ASSALOY Global Solutions Norway AS 683081066C1 Zigbee Gateway User Manual Enter the help project title here

ASSA ABLOY Hospitality AS Zigbee Gateway Enter the help project title here

user manual

1
ASSA ABLOY Hospitality
Quick Reference Guide
ZigBee Gateway
2
ASSA ABLOY Hospitality
Copyrights
The information in this document is subject to change at the sole discretion of
ASSA ABLOY without notice.
Any use, operation or repair in contravention of this document is at your own risk.
ASSA ABLOY does not assume any responsibility for incidental or consequential
damages arising from the use of this manual.
All information and drawings in this document are the property of ASSA ABLOY.
Unauthorized use and reproduction is prohibited.
VingCard and Elsafe are registered trademarks of ASSA ABLOY.
3
ASSA ABLOY Hospitality
Table of contents
.................................................................................................4
FCC and IC statements
............................................................................................................................ 4FCC statements
............................................................................................................................ 5IC statements
.................................................................................................6
Gateway dimensions
.................................................................................................7
Quick reference of technical data
.................................................................................................8
To mount a gateway
4
ASSA ABLOY Hospitality 66 3081 060-3
FCC and IC statements
FCC (Federal Communications Commission) statements
This device comply with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Important note: To maintain compliance with FCC´s RF exposure guidelines,
this equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body. Use only the supplied antenna.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any
other antennas or transmitters.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The concerned end product must be labeled to say 'FCC ID: Y7V-683081066C1'.
The concerned end product must be labeled to say 'FCC ID: Y7V-GW683081066'.
5
ASSA ABLOY Hospitality 66 3081 060-3
IC (Industry Canada) statements
This device comply with Industry Canada licence-exempt RSS standard
CAN ICES-3 (B)/NMB-3(B) B. Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conform aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Important note: To comply with Industry Canada RF radiation exposure limits
for general population, the antennas used for these transmitters must be installed
such that a minimum separation distance of 20 cm is maintained between the
radiator (antenna) and all persons at all times and must not be co-located or
operating in conjunction with any other antenna or transmitter.
Under Industry Canada regulations, these radio transmitters may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitters by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
These radio transmitters IC9514A-683081066C1 and IC9514A-683081066 have been
approved by Industry Canada to operate with the antenna type listed below with the
indicated maximum permissible gain and required antenna impedance. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Name/Model
Gain
Impedance
Inverted F-antenna
3.0 dBi
50 ohm
The term "IC" before the equipment certification number only signifies that the
Industry Canada technical specifications were met.
Le terme "IC" devant le numéro de certification signifie seulement que les specifications
techniques Industrie Canada ont été respectées.
6
ASSA ABLOY Hospitality 66 3081 060-3

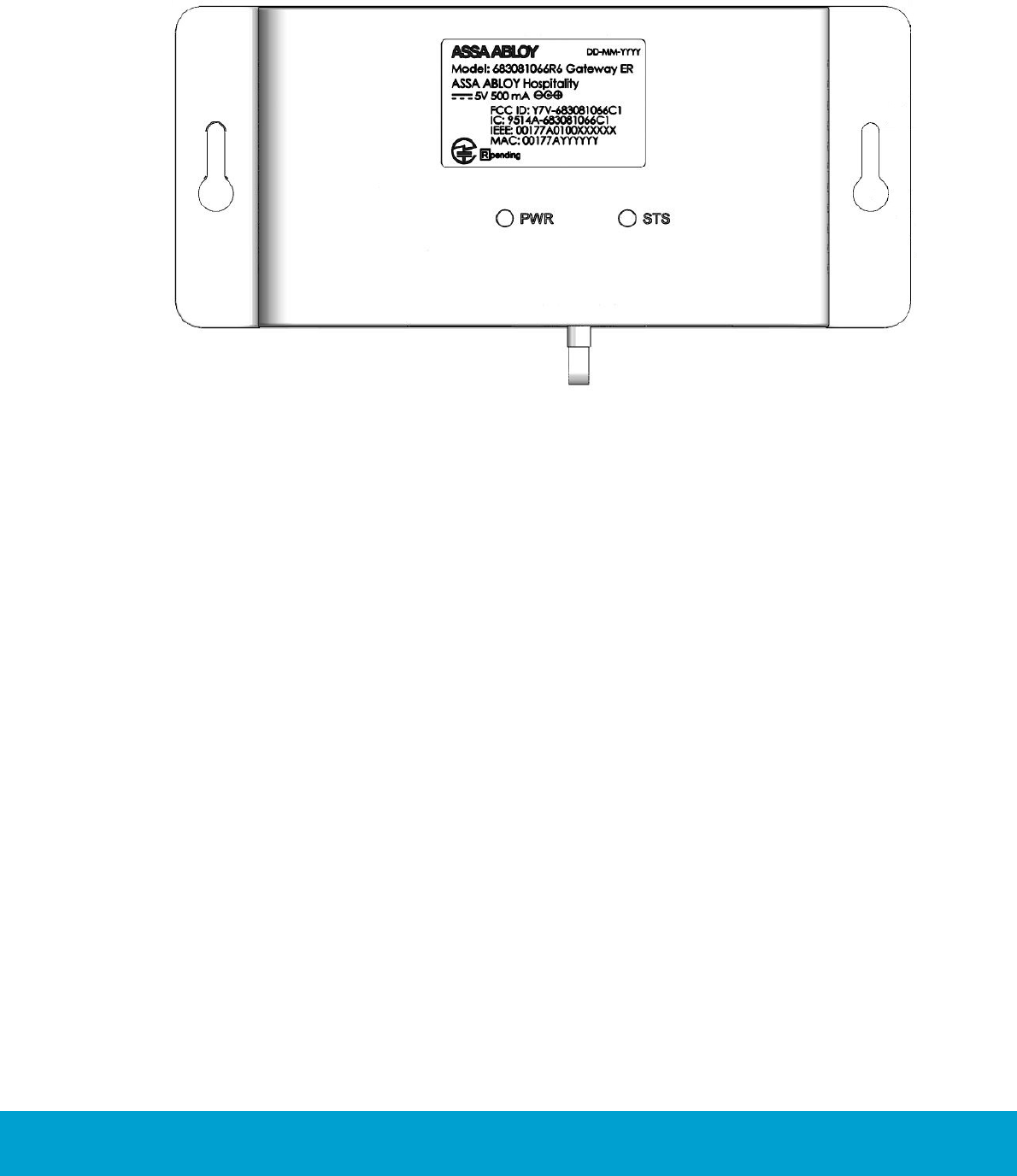

Gateway dimensions
Figure 1
7
ASSA ABLOY Hospitality 66 3081 060-3

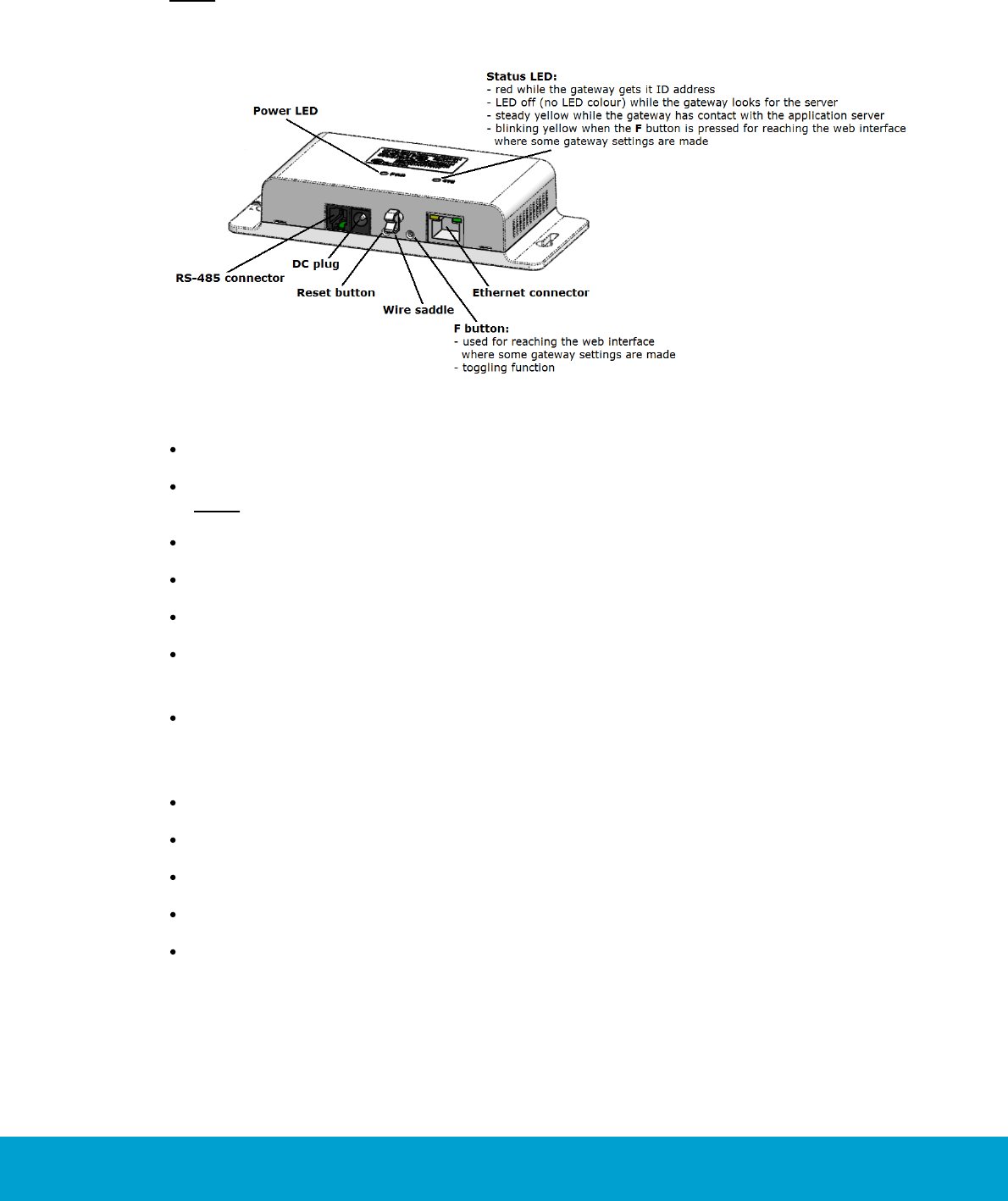

Quick reference of technical data
Note: For more information about the gateway (e.g. about web interface, reset, boot-up,
commissioning the gateway in a ZigBee system etc), see User manual Online option.
Figure 2
Automatic adjustment to 10 or 100 Mbit/s networks
Powered via Ethernet or by a power adapter (5VDC)
Note: The gateway is of PoE class 1; power range 0.44-3.84W.
Low power consumption
The total number of gateways is virtually unlimited
Can have either five routers or 15 endnodes connected
Case with the dimensions 63,0 mm x 144,0 mm x 27,5 mm
(2 31/64" x 5 43/64" x 1 3/32")
Easy mounting (can be mounted either with adhesive VELCRO® strips
or fastening screws; a package with two VELCRO® strips and two
fastenings screws are enclosed)
Weight: 116 g
Flame retardant ABS
UL94 V-0 approved
Colour: RAL 7047
Suitable for operation in the range 5-50º C and 10-90%
non-condensed relative humidity
8
ASSA ABLOY Hospitality 66 3081 060-3
To mount a gateway
Preferred way of mounting the gateway is horizontally:
Figure 3
9
ASSA ABLOY Hospitality
E-mail: apac.hospitality@assaabloy.com
ASSA ABLOY Hospitality APAC
Phone: +65 6305 7670
ASSA ABLOY Hospitality EMEA
ASSA ABLOY Hospitality North America
Phone: +47 69 24 50 00
E-mail: emea.hospitality@assaabloy.com
E-mail: lam.hospitality@assaabloy.com
Phone: +1 972 907 2273
ASSA ABLOY Hospitality Latin America
E-mail: northam.hospitality@assaabloy.com
Phone: +52 55 36 40 12 00
www.assaabloyhospitality.com
