ASSALOY Global Solutions Norway AS GW683081066 Zigbee Gateway User Manual Enter the help project title here

ASSA ABLOY Hospitality AS Zigbee Gateway Enter the help project title here

Users Manual

1
Quick Reference Guide
ZigBee Gateway
DRAFT
2
Copyrights
The information in this document is subject to change at the sole discretion of
ASSA ABLOY AB without notice.
Any use, operation or repair in contravention of this document is at your own risk.
ASSA ABLOY AB does not assume any responsibility for incidental or consequential
damages arising from the use of this manual.
All information and drawings in this document are the property of ASSA ABLOY AB.
Unauthorized use and reproduction is prohibited.
VingCard is a registered trademark of ASSA ABLOY AB.
3
Table of contents
..................................................................................................................... 4
FCC and IC statements
.............................................................................................................................................. 4FCC statements
.............................................................................................................................................. 4IC statements
..................................................................................................................... 6
Gateway dimensions
..................................................................................................................... 7
Quick reference of technical data
..................................................................................................................... 8
To mount a gateway
4DRAFT 66 3081 060-0
FCC and IC statements
FCC (Federal Communications Commission) statements
This device comply with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Important note: To maintain compliance with FCC´s RF exposure guidelines,
this equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body. Use only the supplied antenna.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any
other antennas or transmitters.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The concerned end product must be labeled to say 'FCC ID: Y7V-GW683081066'.
IC (Industry Canada) statements
This device comply with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conform aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Important note: To comply with Industry Canada RF radiation exposure limits
for general population, the antennas used for these transmitters must be installed
such that a minimum separation distance of 20 cm is maintained between the
radiator (antenna) and all persons at all times and must not be co-located or
operating in conjunction with any other antenna or transmitter.
5DRAFT 66 3081 060-0
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter IC9514A-GW683081066 has been approved by Industry Canada
to operate with the antenna type listed below with the indicated maximum permissible
gain and required antenna impedance. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Name/Model
Gain
Impedance
Inverted F-antenna
3.5 dBi
50 ohm
The term "IC" before the equipment certification number only signifies that the
Industry Canada technical specifications were met.
Le terme "IC" devant le numéro de certification signifie seulement que les specifications
techniques Industrie Canada ont été respectées.
6DRAFT 66 3081 060-0

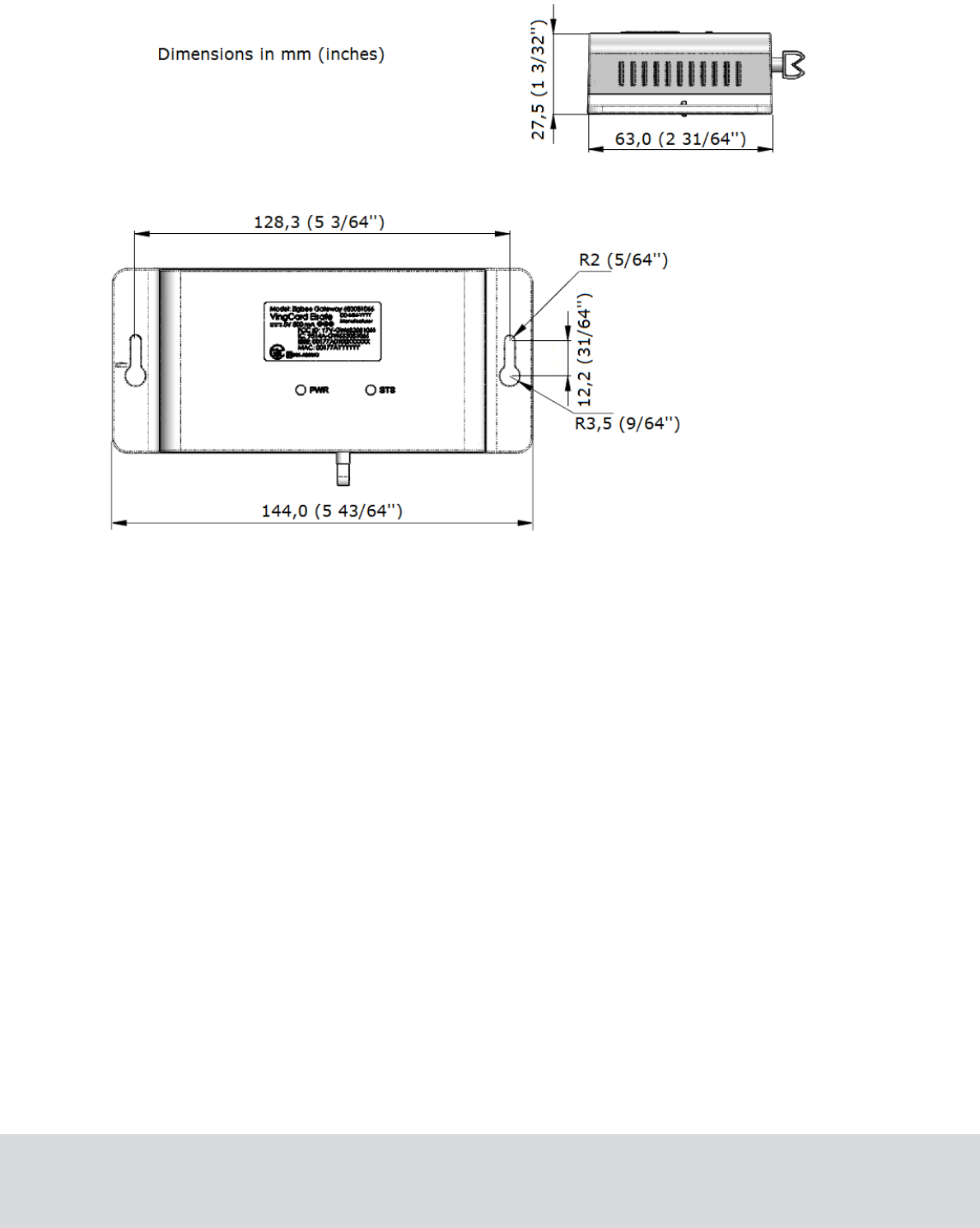

Gateway dimensions
Figure 1
7DRAFT 66 3081 060-0

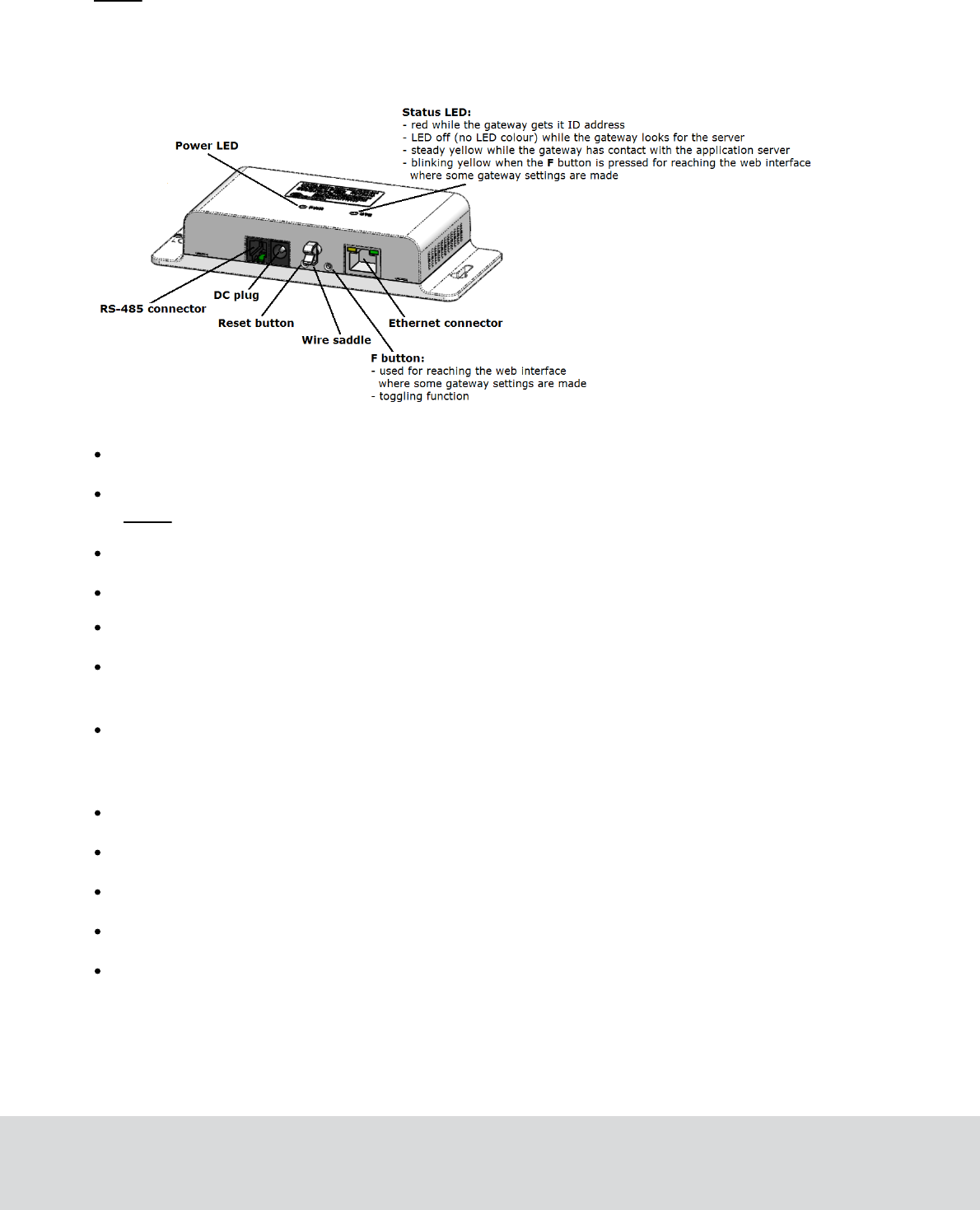

Quick reference of technical data
Note: For more information about the gateway (e.g. about web interface,
reset, boot-up, commissioning the gateway in a ZigBee system etc),
see User manual Online option.

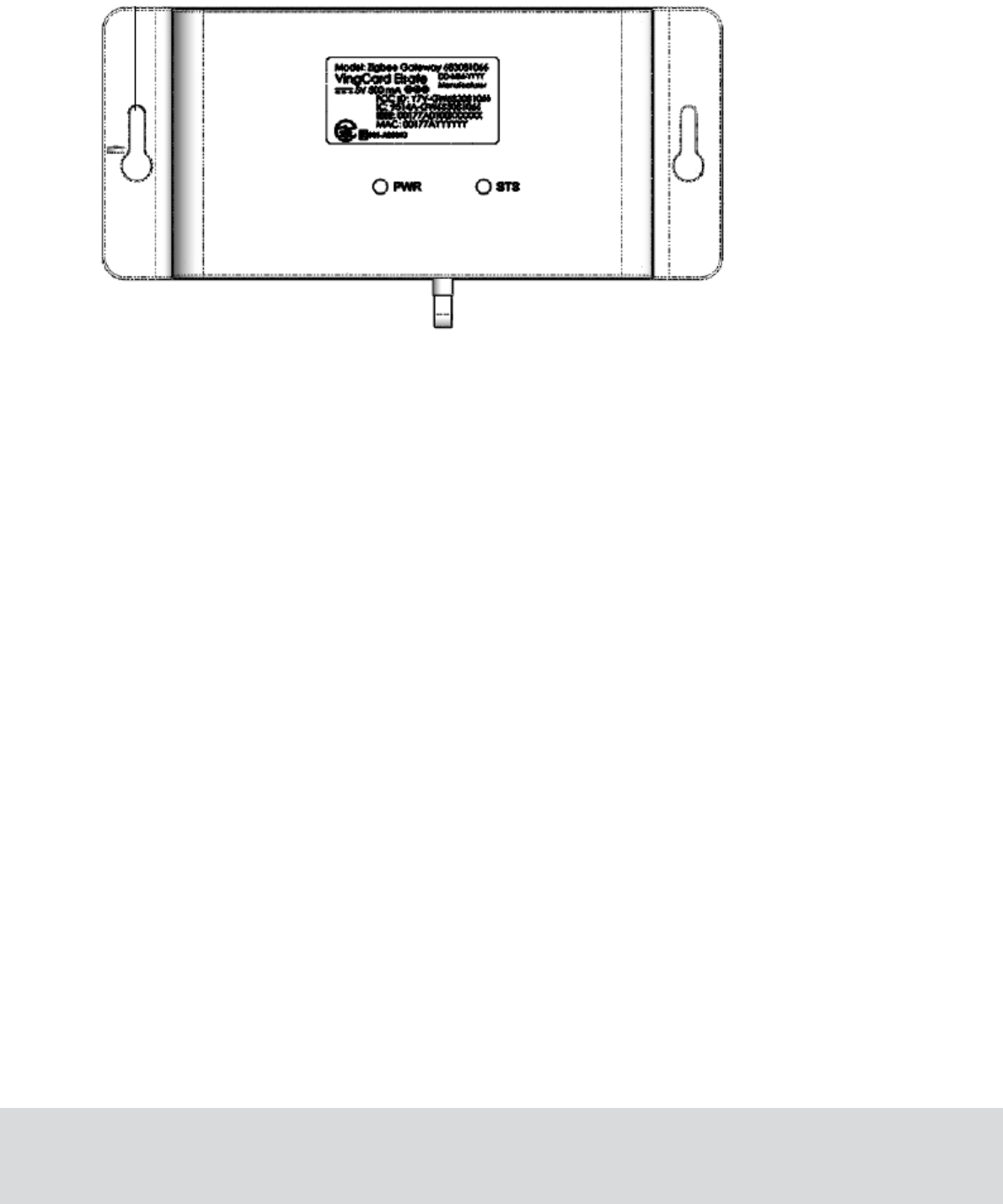

Figure 2
Automatic adjustment to 10 or 100 Mbit/s networks
Powered via Ethernet or by a power adapter (5VDC)
Note: The gateway is of PoE class 1; power range 0.44-3.84W.
Low power consumption
The total number of gateways is virtually unlimited
Can have either five routers or 15 endnodes connected
Case with the dimensions 63,0 mm x 144,0 mm x 27,5 mm
(2 31/64" x 5 43/64" x 1 3/32")
Easy mounting (can be mounted either with adhesive VELCRO® strips
or fastening screws; a package with two VELCRO® strips and two
fastenings screws are enclosed)
Weight: 116 g
Flame retardant ABS
UL94 V-0 approved
Colour: RAL 7047
Suitable for operation in the range 5-50º C and 10-90%
non-condensed relative humidity
8DRAFT 66 3081 060-0
To mount a gateway
Preferred way of mounting the gateway is horizontally:
Figure 3
9
Asia / Pacific:
E-mail: apac@vingcardelsafe.com
Phone: +65 6305 7670
Europe / Middle East / Africa:
E-mail: emea@vingcardelsafe.com
Phone: +47 69 24 50 00
Latin America:
E-mail: lam@vingcardelsafe.com
Phone: +52 55 36 40 12 00
North America:
E-mail: northamerica@vingcardelsafe.com
Phone: +1 972 907 2273
ASSA ABLOY Hospitality – P.O. Box 340 – 1402 Ski – Norway – Phone: +47 69 24 50 00
info@vingcardelsafe.com | www.vingcardelsafe.com
Provider of: VingCard Locks & Systems | Elsafe Safes | Orion EMS | PolarBar Minibars
Specifications may change without notice
