ASSALOY Hospitality AS LCU6351C1 RFID and BLE reader LCU 6351 User Manual Classic RFID
ASSA ABLOY Hospitality AS RFID and BLE reader LCU 6351 Classic RFID
User Manual
1
ASSA ABLOY Hospitality
Technical Manual
VingCard Classic RFID
2
ASSA ABLOY Hospitality
Copyrights
The information in this document is subject to change at the sole discretion of
ASSA ABLOY without notice.
Any use, operation or repair in contravention of this document is at your own risk.
ASSA ABLOY does not assume any responsibility for incidental or consequential
damages arising from the use of this manual.
All information and drawings in this document are the property of ASSA ABLOY.
Unauthorized use and reproduction is prohibited.
VingCard and Elsafe are registered trademarks of ASSA ABLOY.
3
ASSA ABLOY Hospitality
Table of contents
.................................................................................................5
FCC/IC statements
................................................................................................................. 5
FCC statements for LCU
................................................................................................................. 5
ISED (IC) statements for LCU
................................................................................................................. 7
FCC statements for ZigBee endnode
................................................................................................................. 7
ISED (IC) statements for ZigBee endnode
............................................................................................................................. 8
OEM responsibilities
.................................................................................................9
1. Introduction
................................................................................................................. 9
1.1 Introduction to LCU 6351
.................................................................................................10

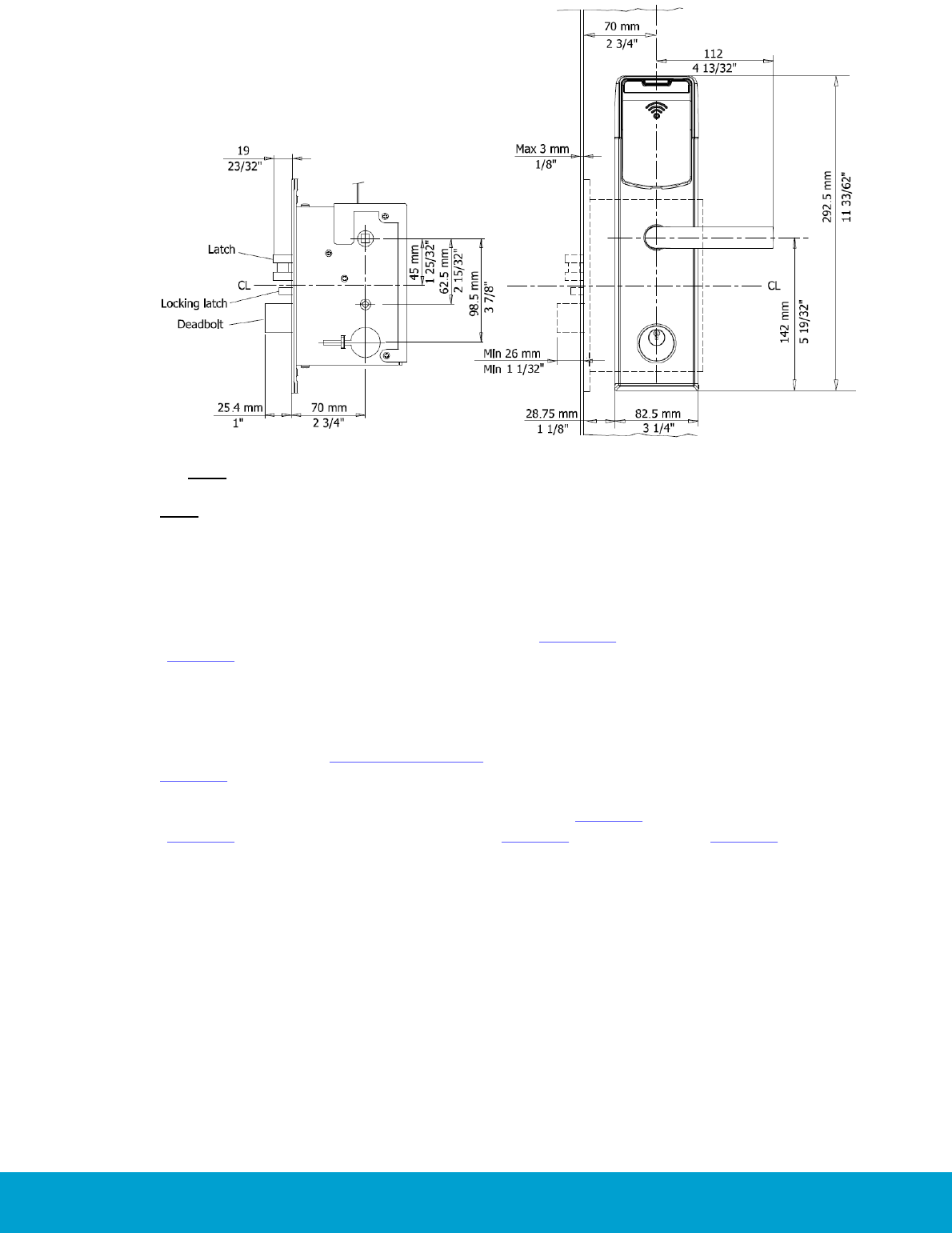

2. External dimension requirements
................................................................................................................. 11
2.1 External strike dimensions
................................................................................................................. 13

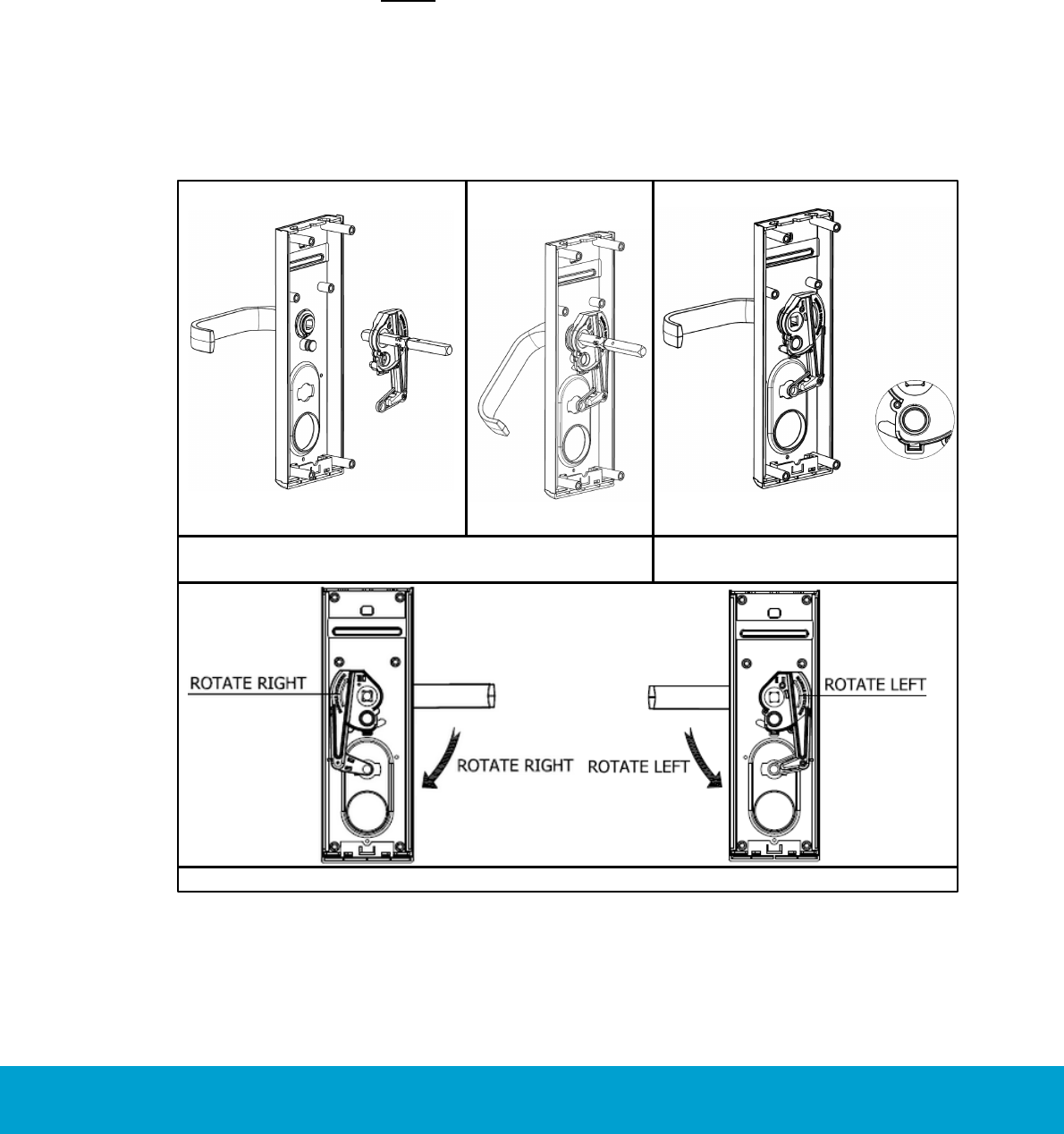

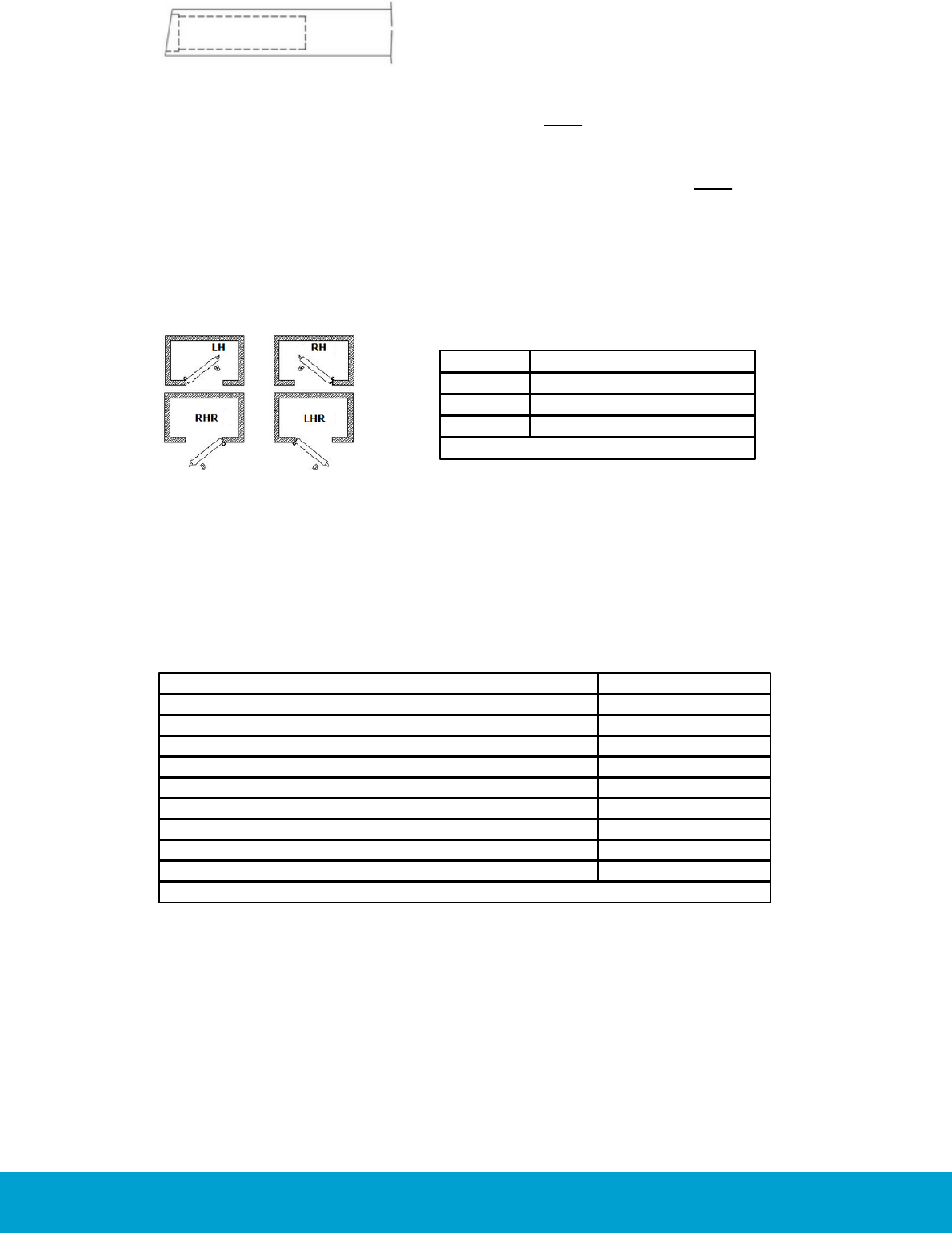

2.2 Direction of opening
................................................................................................................. 13

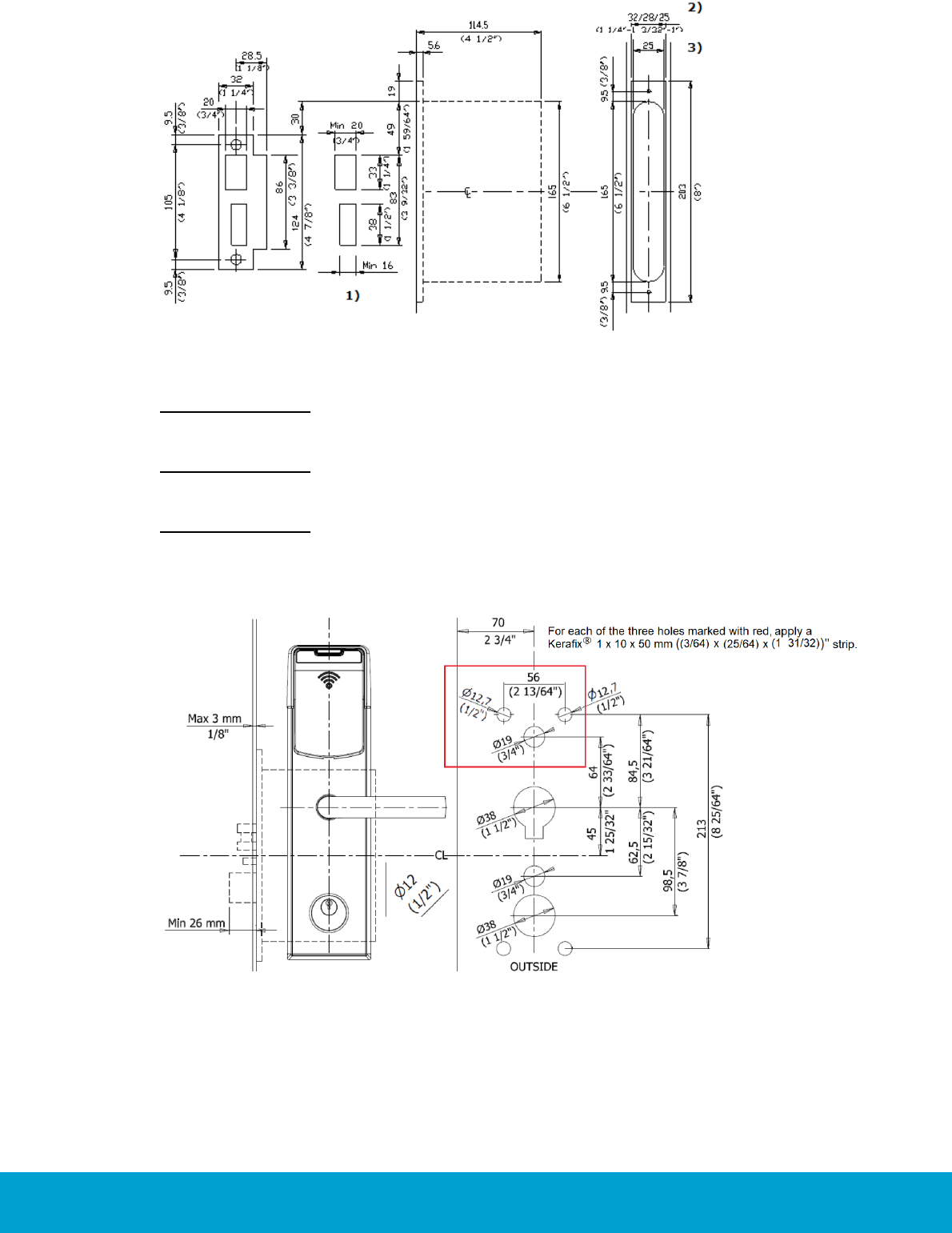

2.3 Cut-outs
.................................................................................................14
3. To install the lock
................................................................................................................. 14

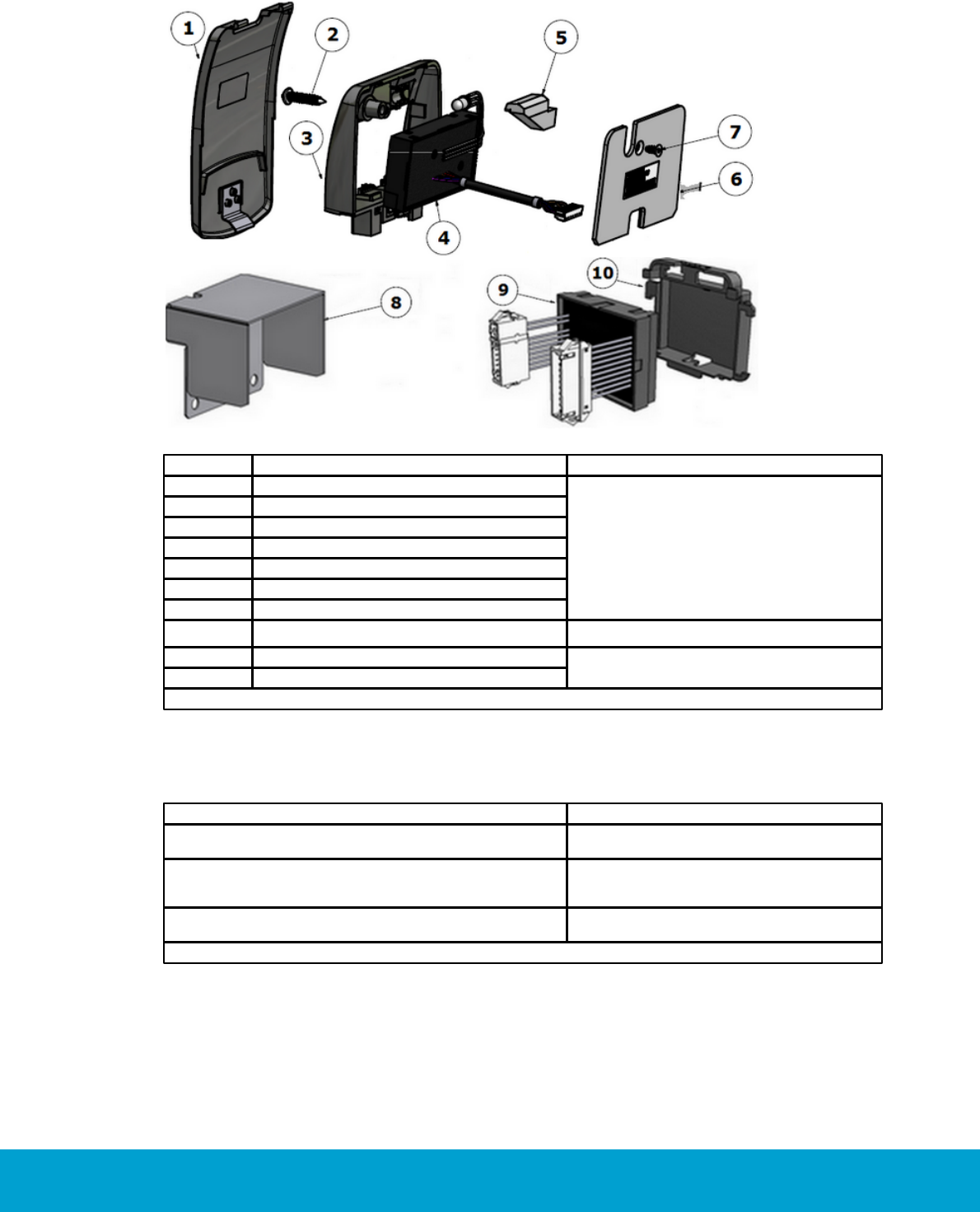

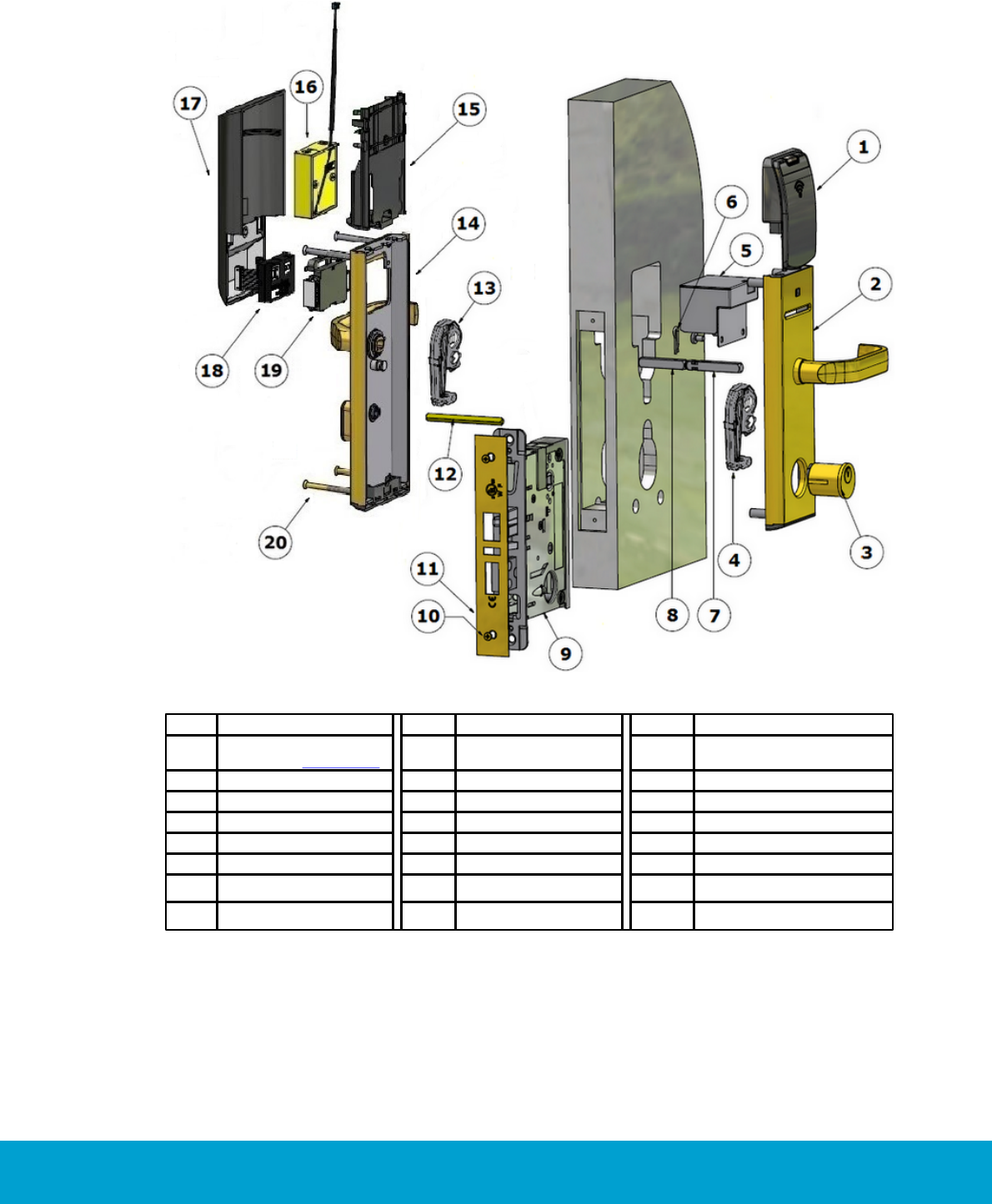

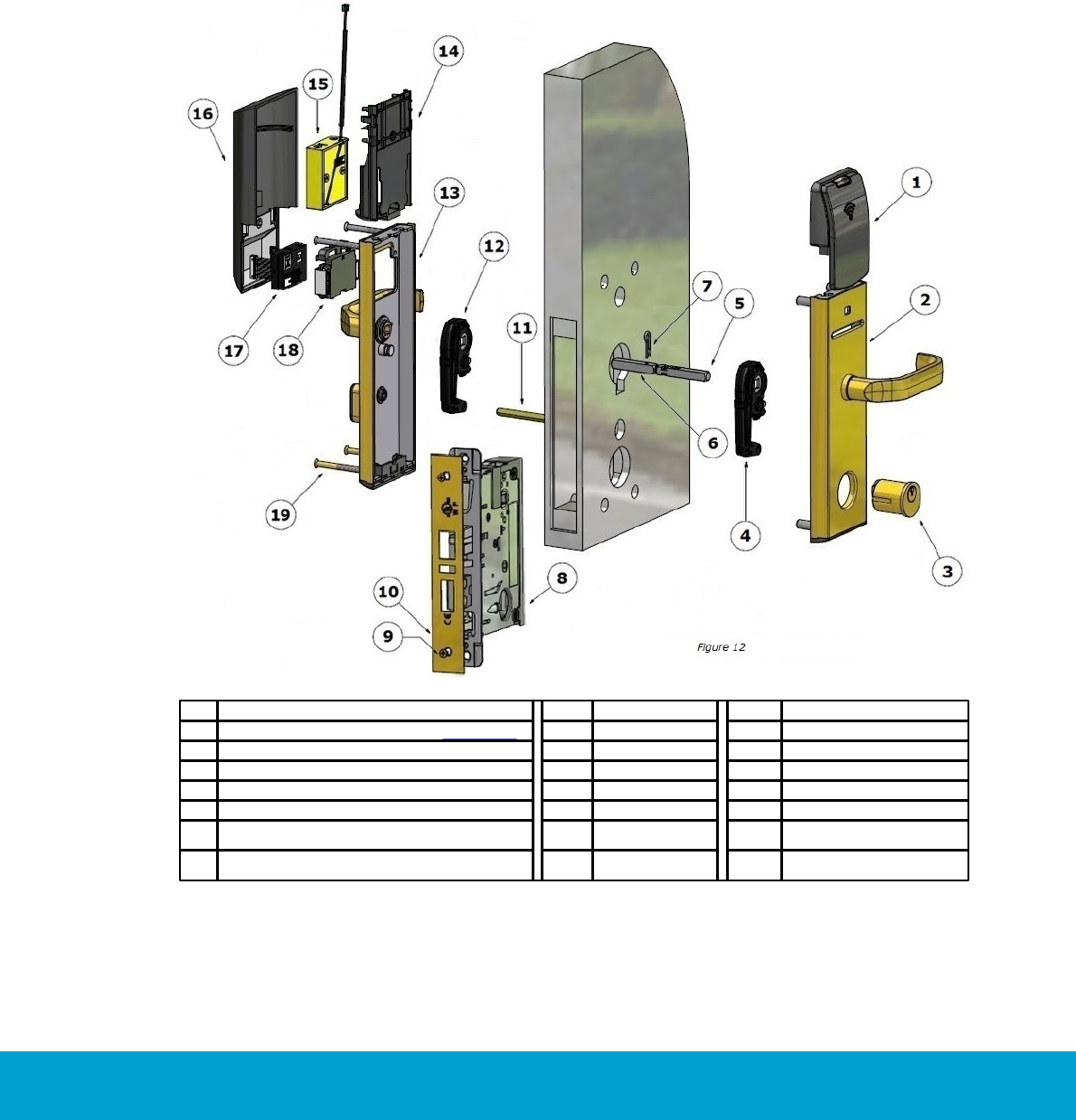

3.1 Exploded view
............................................................................................................................. 14
3.1.1 RFID cut-out
............................................................................................................................. 15
3.1.2 Mag cut-out (for upgrade from mag)
............................................................................................................................. 16
3.1.3 RFID specific parts
............................................................................................................................. 16
3.1.4 Upgrade kits
............................................................................................................................. 17

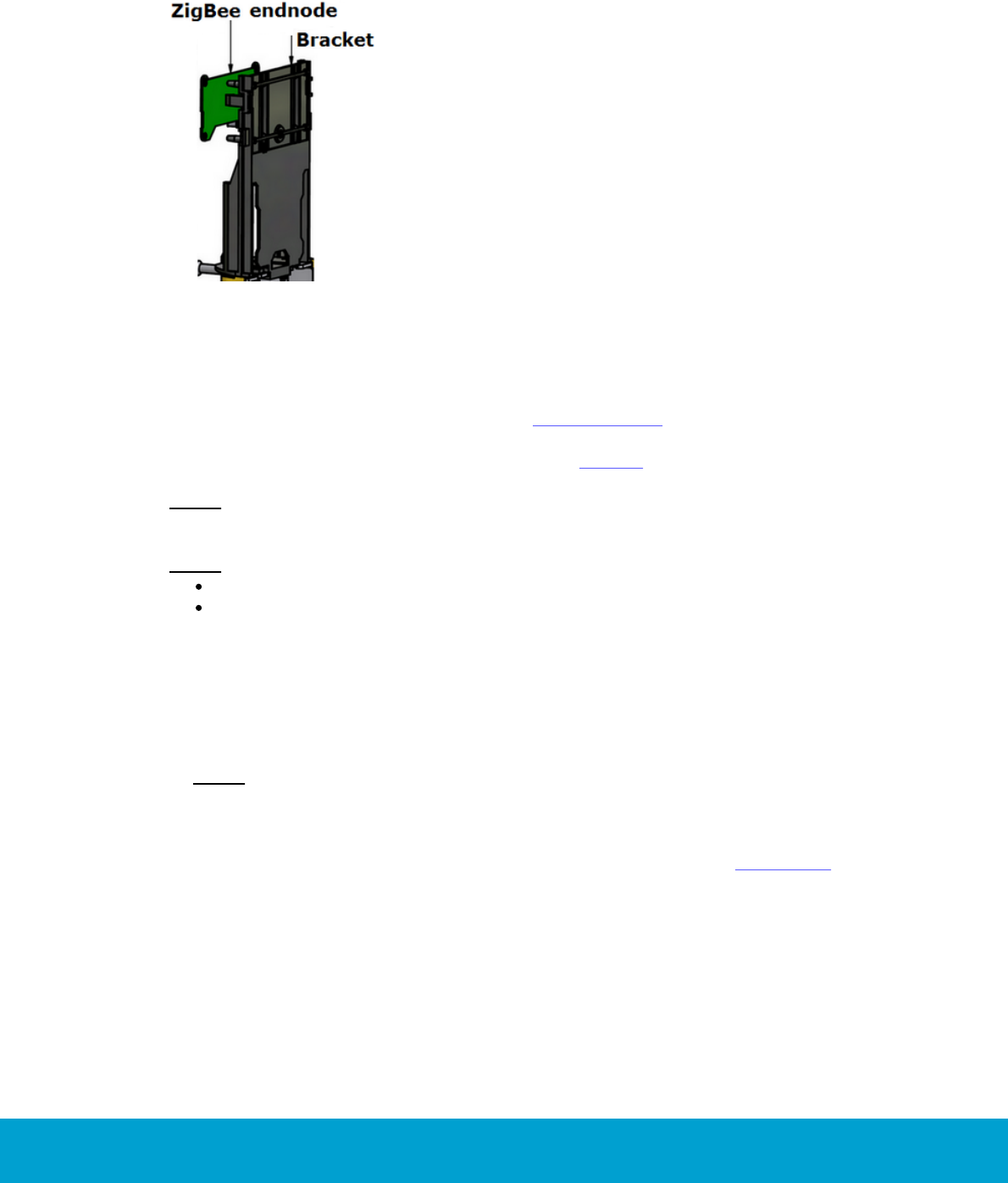

3.1.5 Online by ZigBee
................................................................................................................. 17
3.2 To install the lock
.................................................................................................21
4. Installation checklist
................................................................................................................. 21
4.1 Installation check
................................................................................................................. 21
4.2 Operational check
................................................................................................................. 21
4.3 Security function check
.................................................................................................22
5. Commissioning
.................................................................................................23
6. Maintenance
................................................................................................................. 23

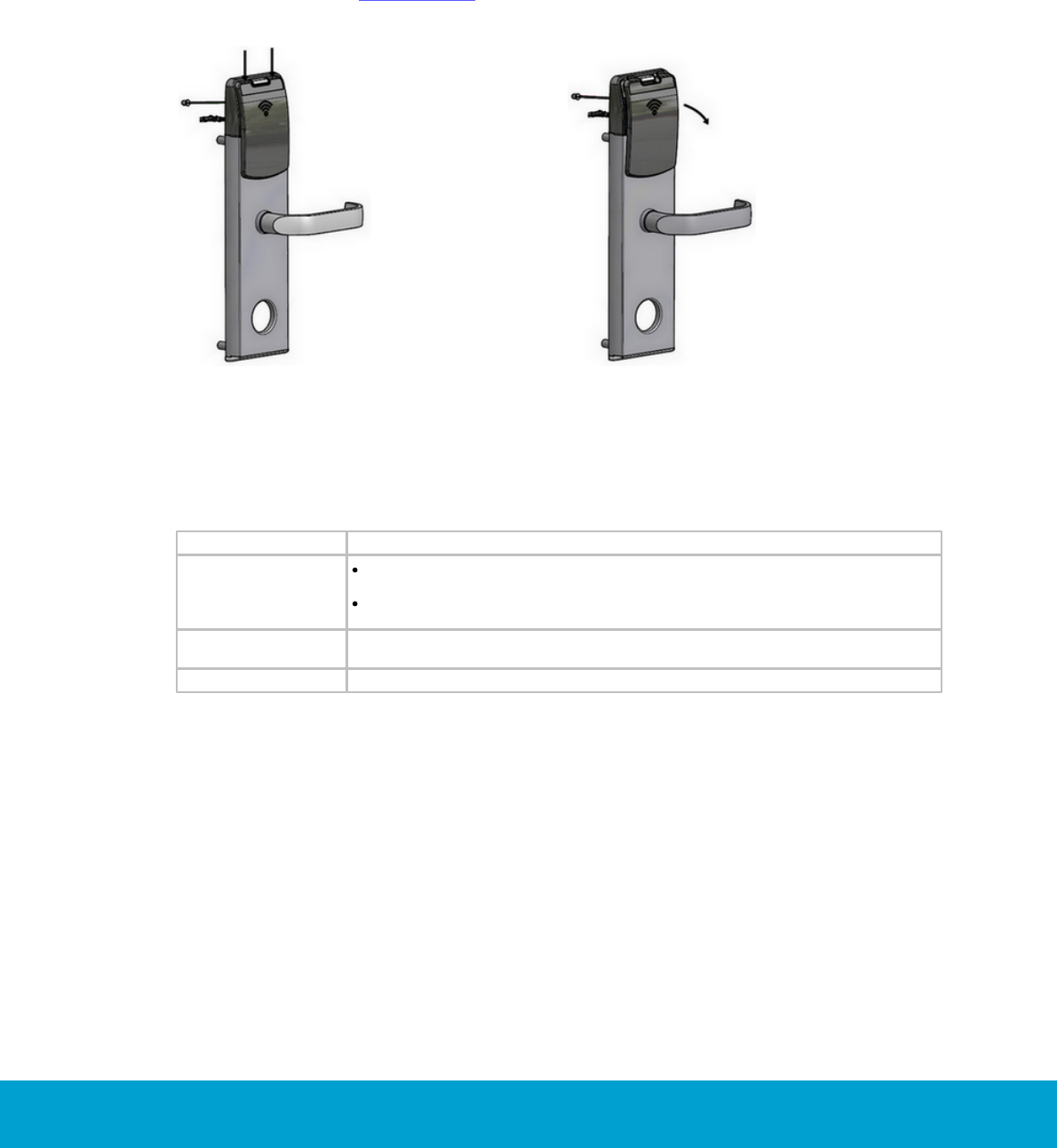

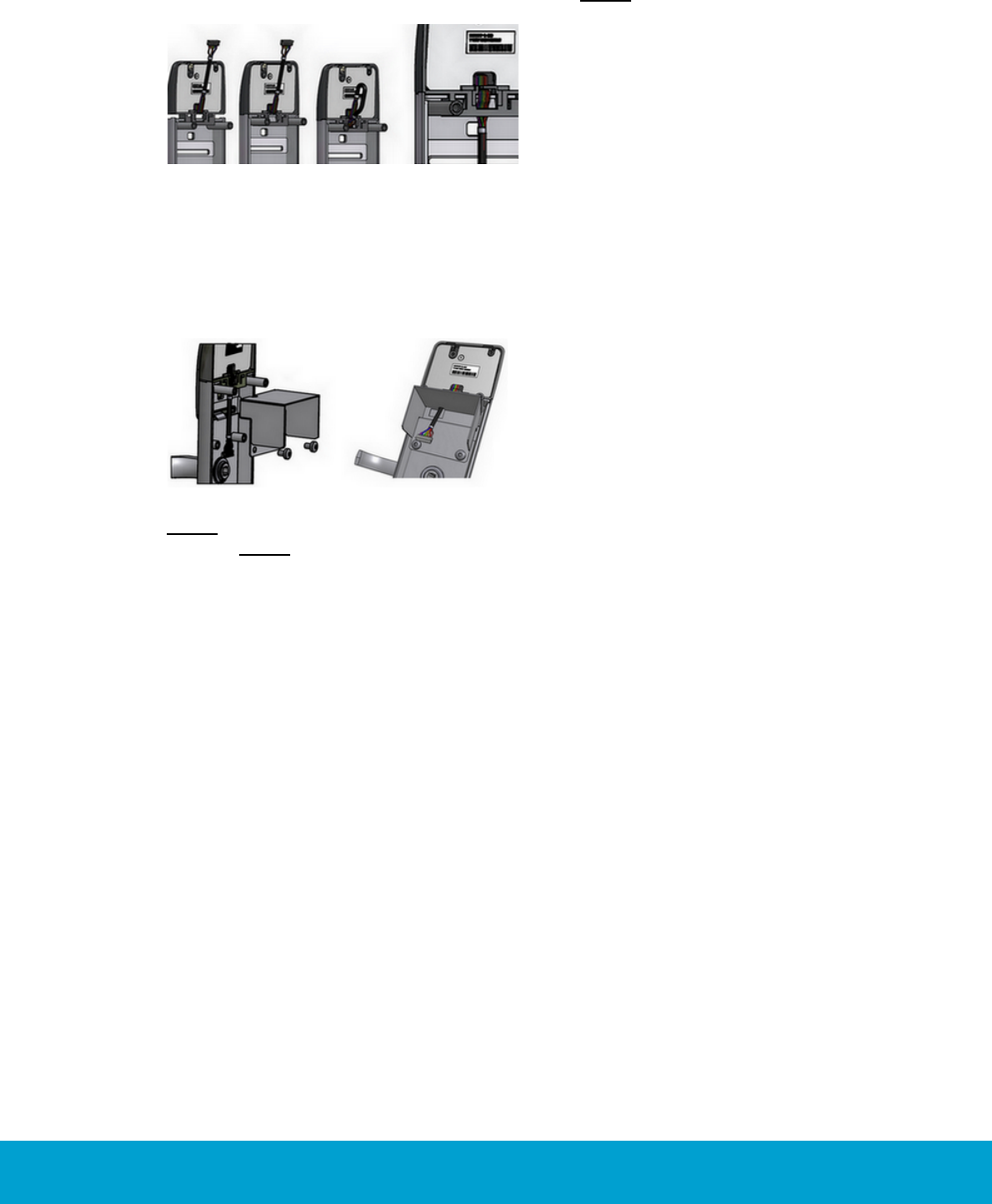

6.1 To release the cover from the RFID module
.................................................................................................23
7. Service functions
.................................................................................................24
Appendix A: ANSI DA ADB
................................................................................................................. 24

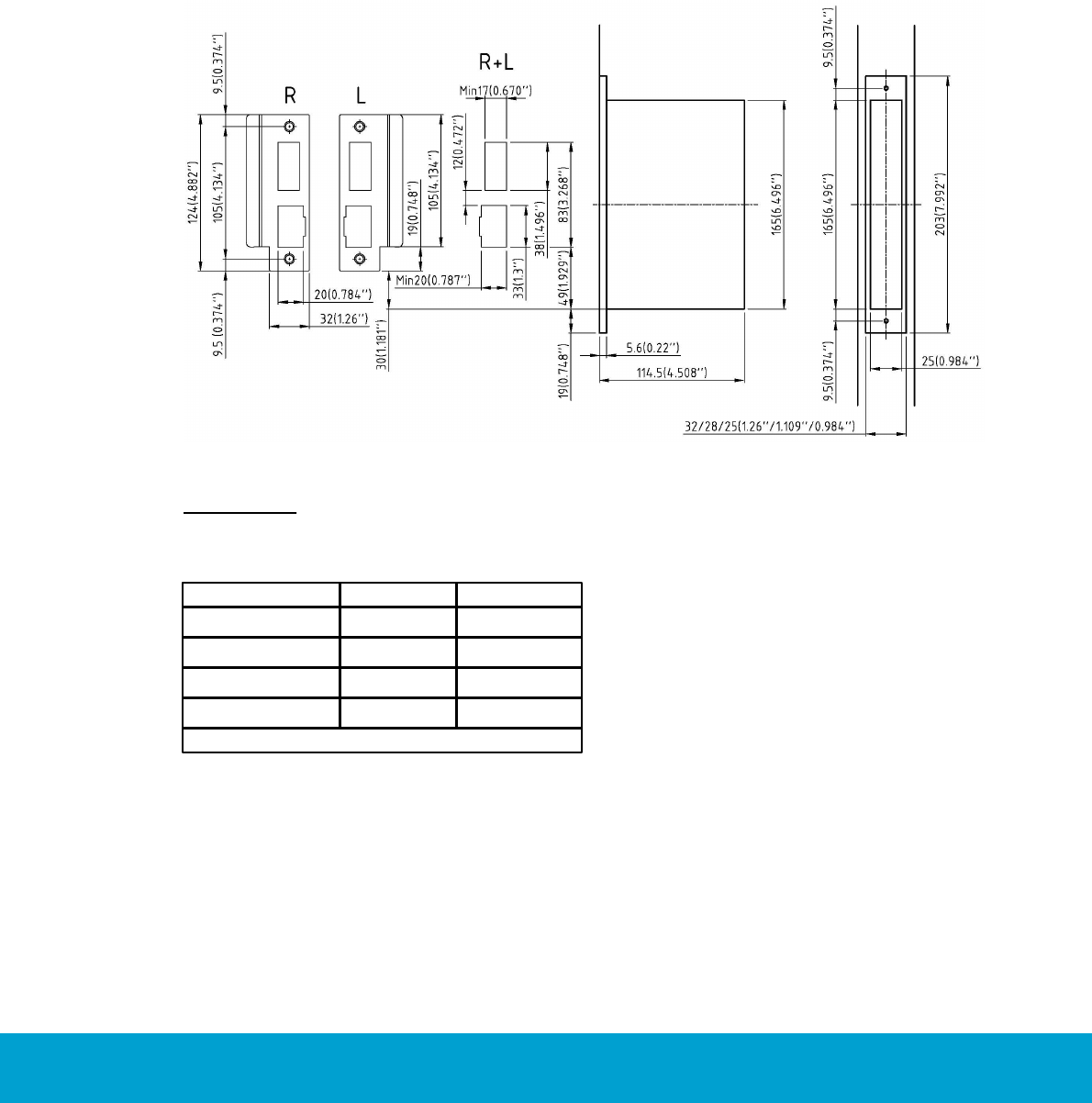

ADB strike
............................................................................................................................. 25
All frames (wooden and steel frames)
............................................................................................................................. 25

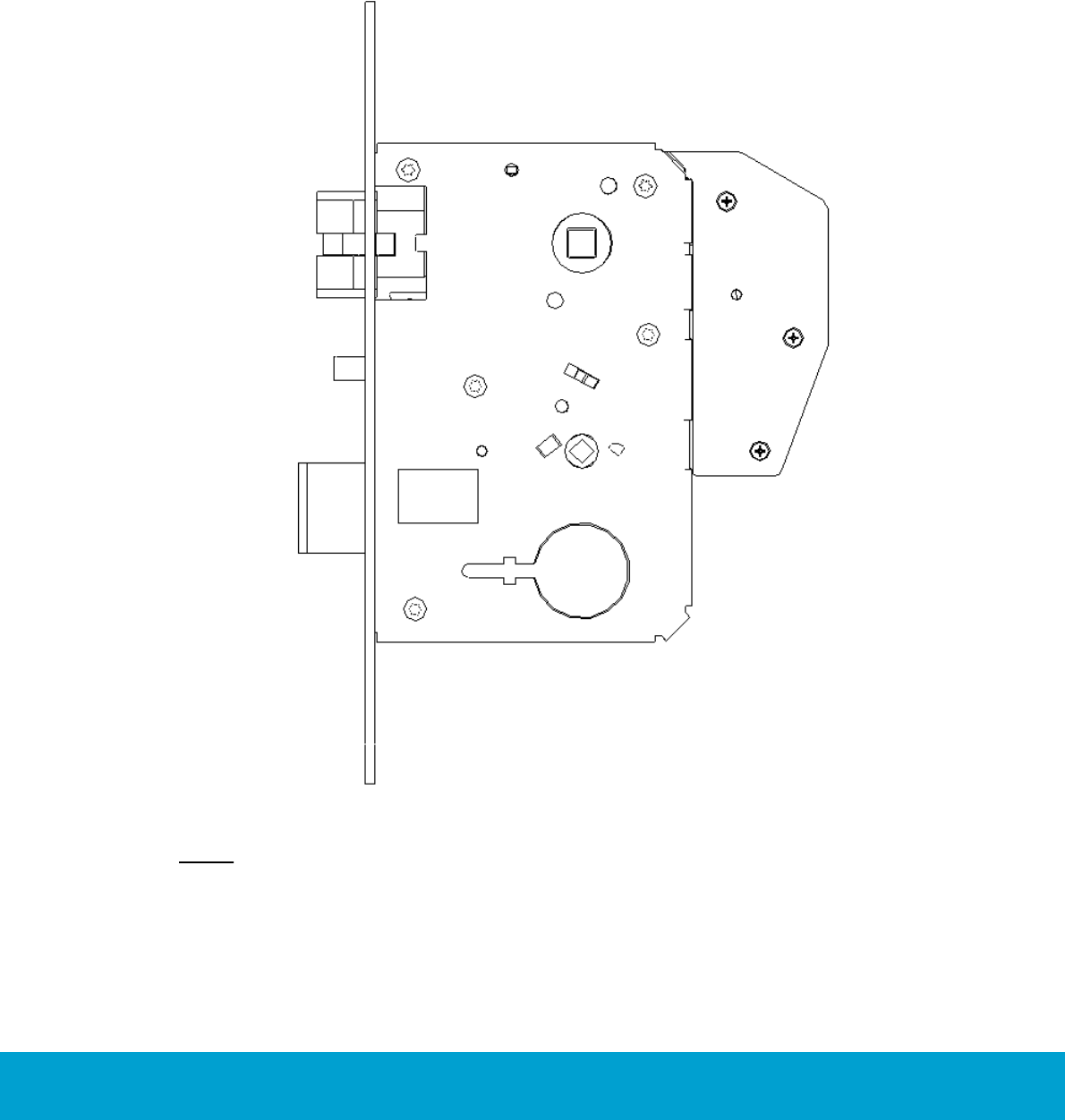

Mortise
................................................................................................................. 26

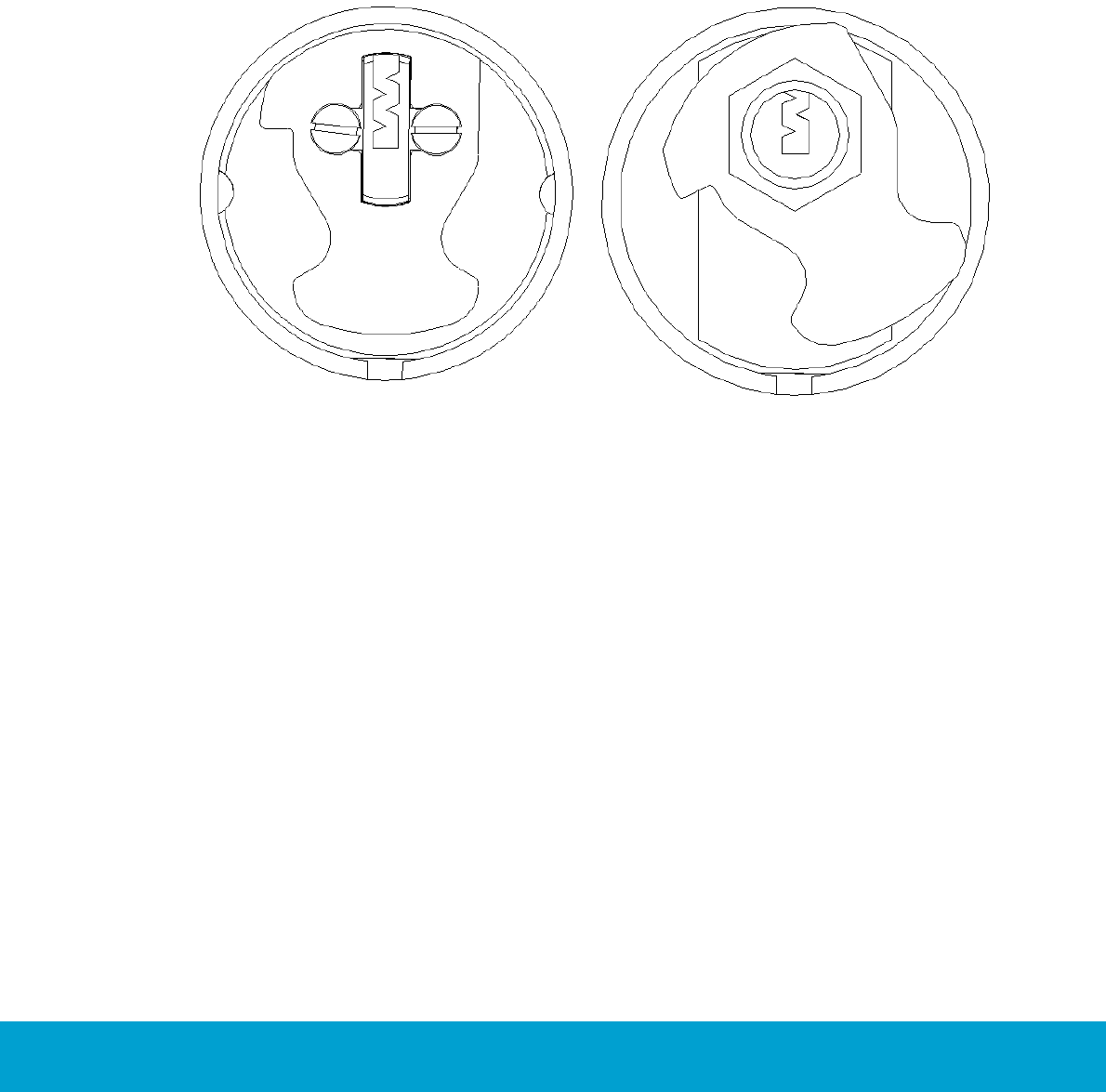

Cylinder for ADB
............................................................................................................................. 26
To install the cylinder
4
ASSA ABLOY Hospitality
.................................................................................................27
Appendix B: ANSI DB ADB
................................................................................................................. 27
ADB strike
............................................................................................................................. 28
All frames (wooden and steel frames)
............................................................................................................................. 28
Mortise
................................................................................................................. 29
Cylinder for ADB
............................................................................................................................. 29
To install the cylinder
.................................................................................................30
Appendix C: EURO ADB
................................................................................................................. 30
EURO ADB lock case
................................................................................................................. 32
Cylinder for ADB (escutcheons with cylinder)
.................................................................................................33
Appendix D: Preparing escutcheons (normally
not needed)
5
ASSA ABLOY Hospitality 66 1100 057-C
FCC/IC statements
FCC (Federal Communications Commission) statements for LCU
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Exposure statement:
This portable device with its antenna complies with FCC RF exposure limits for general population /
uncontrolled exposure. The antenna used for this device must not be co-located or operating in
conjunction with any other antenna or transmitter. Use only the supplied antenna.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antennas
or transmitters.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The LCU must be labeled to say 'FCC ID: Y7V-LCU6351C1'.
ISED (IC) statements for LCU
This device complies with Industry Canada licence-exempt RSS standard CAN ICES-3 (B)/NMB-3(B) B.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conform aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
6
ASSA ABLOY Hospitality 66 1100 057-C
Exposure statement:
This portable device with its antenna complies with FCC RF exposure limits for general population /
uncontrolled exposure. The antenna used for this device must not be co-located or operating in
conjunction with any other antenna or transmitter. Use only the supplied antenna.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter IC:9514A-LCU6351C1 has been approved by Industry Canada to operate
with the antenna type listed below with the indicated maximum permissible gain and required
antenna impedance. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
Name/Model
Gain
Impedance
Inverted F-antenna
3.0 dBi
50 ohm
The term "IC" before the equipment certification number only signifies that the Industry Canada
technical specifications were met.
Le terme "IC" devant le numéro de certification signifie seulement que les specifications techniques
Industrie Canada ont été respectées.
7
ASSA ABLOY Hospitality 66 1100 057-C
FCC (Federal Communications Commission) statements
for ZigBee endnode
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Exposure statement:
This portable device with its antenna complies with FCC RF exposure limits for general population /
uncontrolled exposure. The antenna used for this device must not be co-located or operating in
conjunction with any other antenna or transmitter. Use only the supplied antenna.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antennas
or transmitters.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The endnode must be labeled to say 'FCC ID: Y7V-683081150C1'.
ISED (IC) statements for ZigBee endnode
This device complies with Industry Canada licence-exempt RSS standard CAN ICES-3 (B)/NMB-3(B) B.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conform aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Exposure statement:
This portable device with its antenna complies with FCC RF exposure limits for general population /
uncontrolled exposure. The antenna used for this device must not be co-located or operating in
conjunction with any other antenna or transmitter. Use only the supplied antenna.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
8
ASSA ABLOY Hospitality 66 1100 057-C
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter IC9514A-683081150C1 has been approved by Industry Canada to operate
with the antenna type listed below with the indicated maximum permissible gain and required
antenna impedance. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
Name/Model
Gain
Impedance
Inverted F-antenna
3.0 dBi
50 ohm
The term "IC" before the equipment certification number only signifies that the Industry Canada
technical specifications were met.
Le terme "IC" devant le numéro de certification signifie seulement que les specifications techniques
Industrie Canada ont été respectées.
OEM responsibilities
The endnode module has been certified for integration into products only by OEM integrators under
the following conditions:
1. The antenna must be installed such that a minimum separation distance of 20cm is maintained
between the radiator (antenna) and all persons at all times.
2. The transmitter module must not be co-located or operating in conjunction with any other
antenna or transmitter.
As long as the two conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with these modules installed (e.g., digital device emissions,
PC peripheral requirements, etc.).
Important note: In the event that these conditions can not be met (for certain configurations or
co-location with another transmitter), then Industry Canada certification is no longer considered valid
and the IC Certification Number can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end products (including the transmitter) and obtaining
a separate Industry Canada authorization.
The OEM of the respective module must only use the approved antenna listed above, which have been
certified with this module. The OEM integrator has to be aware not to provide information to the end
user regarding how to install or remove this RF module or change RF related parameters in the user’s
manual of the end products.
9
ASSA ABLOY Hospitality 66 1100 057-C
1. Introduction
The VingCard Classic RFID lock is a standalone electronic lock with RFID (radio
frequency identification) technology, which can also be online by ZigBee 1. VingCard
Classic RFID is compatible with the Visionline system. The lock has LED signals and
can also be configured for sound signals 2; see information about configuring the
beeper in section 1.1 below. Note: The VingCard Classic RFID lock can be used
at new installations, or as an upgrade from VingCard Classic mag; in the latter
case, only add the RFID reader by replacing the top cover.
1.1 Introduction to LCU 6351
LCU 6351 has the same dimensions and service contact as the previous LCU
version (6334), but there are also some differences which are described below.
Instead of having a separate BLE module, the LCU now includes the BLE radio.
Initialization of BLE is however done in the same way as for previous LCU, i.e.
mark 'Include BLE configuration data' under Initialize lock in Lock Service 3G
when initializing the lock/elevator controller/remote controller. As for previous
LCU, if the signal strength should be changed from the default value 0 dBm
and/or if seamless mode is applicable go to Configure lock in Lock Service 3G;
choose 'Send configuration data (BLE)' and make the necessary settings for
'Tx power' and 'seamless mode'. See Quick reference guide Lock Service 3G
for details about the Initialize lock and Configure lock operations.
Minimum Lock Service 3G version is 2.3.0.2, which includes the below minimum
firmware versions:
- 3.17.37.4 (standard lock)
- 3.18.37.4 (elevator controller)
- 3.20.37.4 (remote controller)
- 3.40.37.4 (VingCard Allure standard lock)

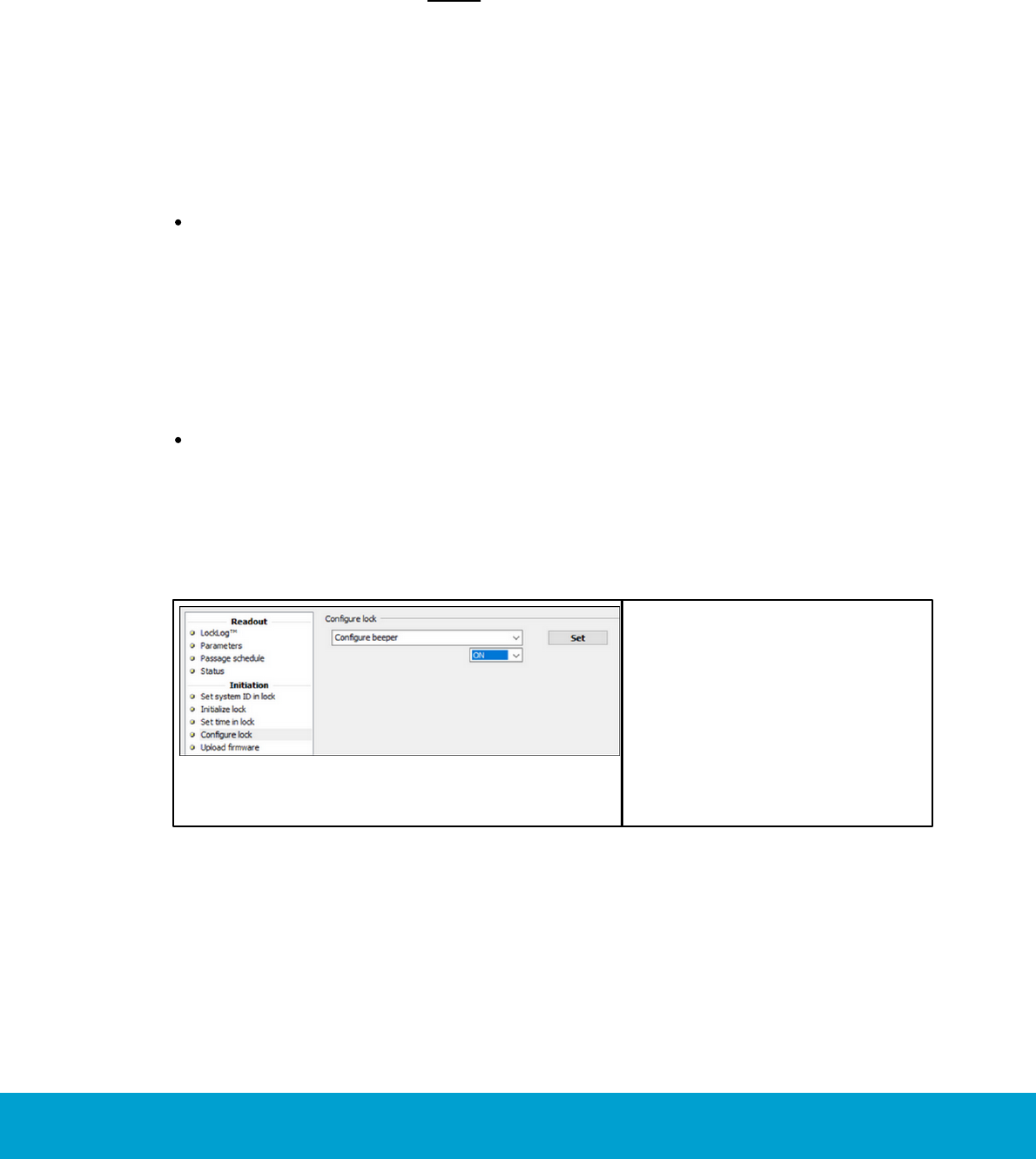

• LCU 6351 can be configured to give sound signals:
1. Connect the service cable to
the lock/elevator controller/
remote controller.
2. Choose Configure lock in the
left pane of Lock Service 3G.
3. In the upper drop-down-menu,
choose 'Configure beeper'.
4. In the lower drop-down-menu,
choose 'ON'.
5. Click the Set button.
1) See User manual Online option for more details about the ZigBee network etc.
2) For information about different LED and sound signals which the lock can give,
see the appendix 'Lock LEDs and sounds and what they mean' in User manual Visionline.
Continued on next page
10
ASSA ABLOY Hospitality 66 1100 057-C
• LCU 6351 can (in addition to the regular green/yellow/red LED signals) be
configured to show a flashing blue LED signal when the BLE radio is searching
for a mobile device to connect to:
1. Connect the service cable to
the lock/elevator controller/
remote controller.
2. Choose Configure lock in the
left pane of Lock Service 3G.
3. In the upper drop-down-menu,
choose 'Configure blue LED'.
4. In the lower drop-down-menu,
choose 'ON'.
5. Click the Set button.

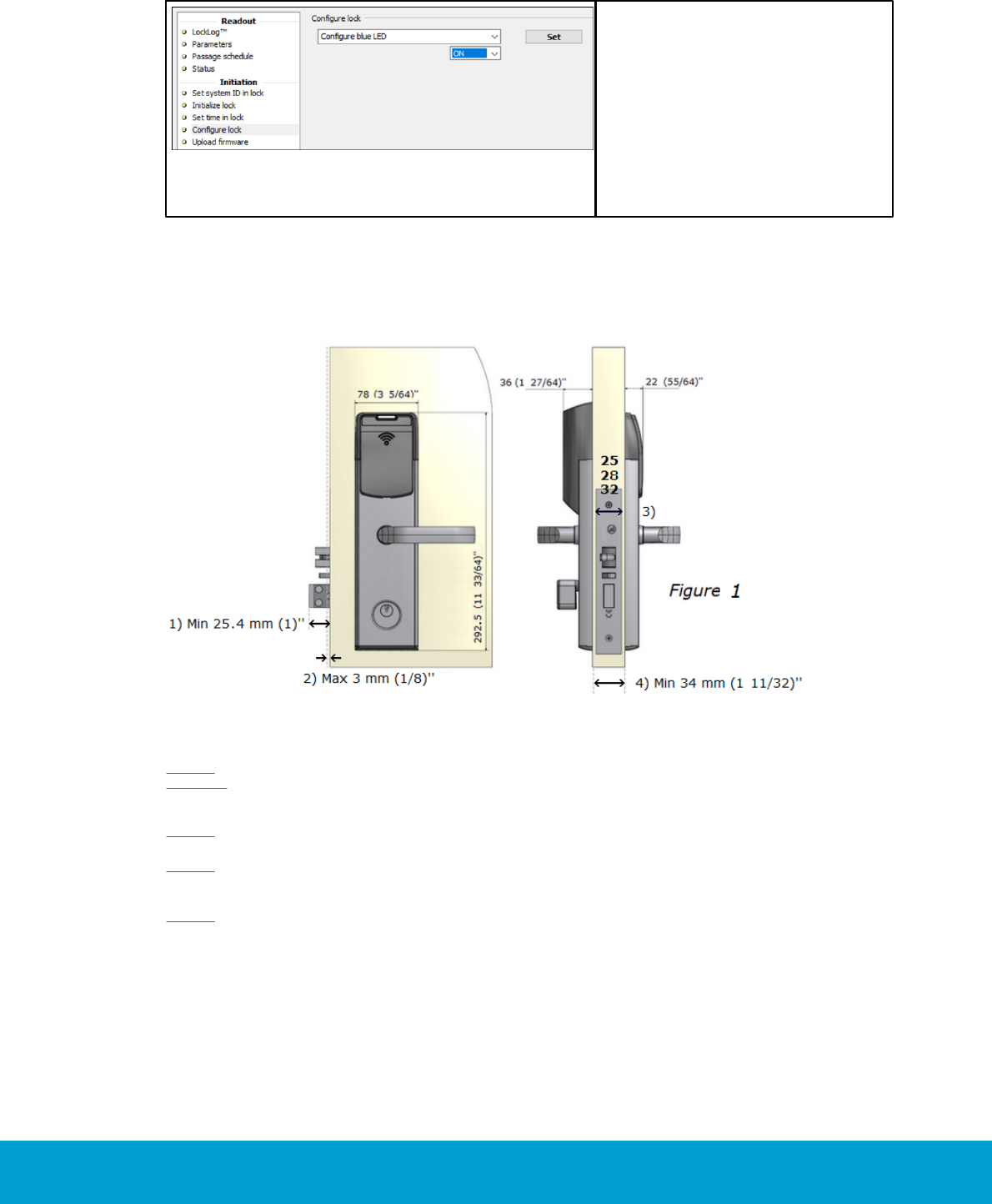

2. External dimension requirements
Before starting the installation, check the below dimensions (in mm/inches).
Note 1: Allow at least 25.4 mm (1)'' in depth for deadbolt.
Warning: When the deadbolt is thrown, the door cannot be opened with a metal key in case of emergency,
if the cut-out is less than 25.4 mm (1)'' deep.
Note 2: Gap between lock front-end and strike must not exceed 3 mm (1/8)''.
Note 3: The lock front-end plate can be delivered in either 25 mm (1)'', 28 mm (1 1/8)'' or US Standard
32 mm (1 1/4)'' widths.
Note 4: Minimum door thickness required is 34 mm (1 11/32)''. Spacer must be on doors that are less
than 34 mm (1 11/32)'' thick.
11
ASSA ABLOY Hospitality 66 1100 057-C
Figure 2: Lock case dimensions Figure 3: Escutcheon dimensions
Note: CL is lock case center line.
Note: The cylinder hole is to be cut only for locks equipped with cylinder. Only one side of the
door is to be mortised, i.e. the cut-out should not go through the entire door as the other cut-outs.
2.1 External strike dimensions
Wooden frame: First install lock in door (see chapter 3), then position the strike
(Figure 4) in frame so that top of the strike is 49 mm below top of the outside front
(19+30 mm).
Steel frame/standard strike not used: First make sure that cut-out in door
confirms to the dimensions in Figure 5. Then install lock in door and position the
top of the lock case (step 1, chapter 3.3) in relation to the cut-out as shown in
Figure 5.
Pictures on next page: external strike dimensions (Figure 4) and cut-out dimensions
(Figure 5) shown in relation to side view (Figure 6) and edge view (Figure 7)
of mortise.
12
ASSA ABLOY Hospitality 66 1100 057-C
Figure 4 Figure 5 Figure 6 Figure 7
Note 1, Figure 5: Distance between latch (upper) cut-out and deadbolt cut-out must
be 12 mm (1/2)'' in order for locking latch function to work.
Note 2, Figure 7: The lock front-end plate can be delivered in 25 mm (1)'', 28 mm
(1 1/8)'' or US Standard 32 mm (1 1/4)'' widths.
Note 3, Figure 7: The lock case will be delivered with lock front 25 mm (1)'', 28 mm
(1 1/8)'' or US Standard 32 mm (1 1/4)'' widths, depending on the dimension of the
lock front-end plate.
Figure 8 Figure 9
13
ASSA ABLOY Hospitality 66 1100 057-C
Figure 10
Figure 8: Position of lock in relation to door cut-out and frame.
Figure 9: Cut-out dimensions to be made for escutcheon. Note: The hole with diameter 38 mm (1 1/2)''
is only to be made if cylinder is applicable. For the cylinder hole, only one side of the door is to be
mortised, i.e. the cut-out should not go through the entire door as the other cut-outs.
Figure 10: Cross-section from top, showing mortises position if door is beveled. Note: If the door is
beveled, i.e. if edge is not at 90° to door, dimensions should be based on the shortest side (upper side
in Figure 10).
2.2 Direction of opening
Figure 11
LH
Left handle
RH
Right handle
RHR
Right handle, reversed
LHR
Left handle, reversed
Table 1
2.3 Cut-outs
For new installations of VingCard Classic RFID, the cut-out drawings
named 'Classic RFID' in Table 2 are applicable. For upgrade installations
from VingCard Classic mag, the cut-out drawings named 'Classic mag'
are applicable.
Model/version name
Cut-out drawing
Classic RFID ANSI DA with cylinder
AN-91
Classic RFID ANSI DA without cylinder
AN-92
Classic RFID ANSI DB with cylinder
AN-59
Classic RFID ANSI DB without cylinder
AN-89
Classic RFID EURO with cylinder
AN-60
Classic RFID EURO without cylinder
AN-90
Classic mag ANSI DA (with and without cylinder)
AN-112
Classic mag ANSI DB (with and without cylinder)
AN-110
Classic mag EURO (with and without cylinder)
AN-111
Table 2
14
ASSA ABLOY Hospitality 66 1100 057-C
3. To install the lock
3.1 Exploded view
3.1.1 RFID cut-out
Pos
Description
Pos
Description
Pos
Description
1
RFID module (see details in pos 1-7 of section 3.1.3)
8
Lock case
15
Battery holder
2
Escutcheon outside
9
Lock front screw
16
Classic battery lid, large
3
Cylinder assy
10
Lock front
17
LCA (lock case adapter) 6343
4, 12
Handle retainer
11
Thumb turn spindle
18
Adapter for LCA
5
Outside spindle
12
See 4
19
Escutcheon screw
6
Inside spindle
13
Escutcheon inside
7
Safety pin
14
Bracket
Table 3
15
ASSA ABLOY Hospitality 66 1100 057-C
3.1.2 Mag cut-out (for upgrade from Classic mag)
Figure 13
Pos
Description
Pos
Description
Pos
Description
1
RFID module (see details
in pos 1-7 of section 3.1.3)
8
Inside spindle
15
Bracket
2
Escutcheon outside
9
Lock case
16
Battery holder
3
Cylinder assy
10
Lock front screw
17
Classic battery lid, large
4, 13
Handle retainer
11
Lock front
18
LCA (lock case adapter) 6343
5
Upgrade plate
12
Thumb turn spindle
19
Adapter for LCA
6
Safety pin
13
See 4
20
Escutcheon screw
7
Outside spindle
14
Escutcheon inside
Table 4
16
ASSA ABLOY Hospitality 66 1100 057-C
3.1.3 RFID specific components
Figure 14: Note that the upgrade plate shown in pos 8 is for upgrades from Classic mag installations.
Pos
Description
AMS part
1
Front cover assy
Pos 1-7 are sold as AMS part 'RFID module, assy'
2
Screw
3
Frame
4
LCU (lock controller unit)
5
Light pipe
6
Shield plate
7
Screw
8
Upgrade plate
9
LCA 6343
Pos 9-10 are sold as AMS part 'LCA 6343 kit'
10
Adapter for LCA
Table 5
3.1.4 Upgrade kits
Name
Description
VingCard Classic 4G RFID upgrade kit (new projects); LCU & LCA
VingCard Classic 3G RFID upgrade kit (AMS); LCU & LCA
VingCard Classic 9V conversion cable kit
Required in addition to upgrade kit for all 9V
installations; contains 9V conversion cable +
battery cable
LCUt1 conversion cable
Required in addition to upgrade kit & 9V conversion
cable kit when upgrading from LCUt1 installations
Table 6
17
ASSA ABLOY Hospitality 66 1100 057-C

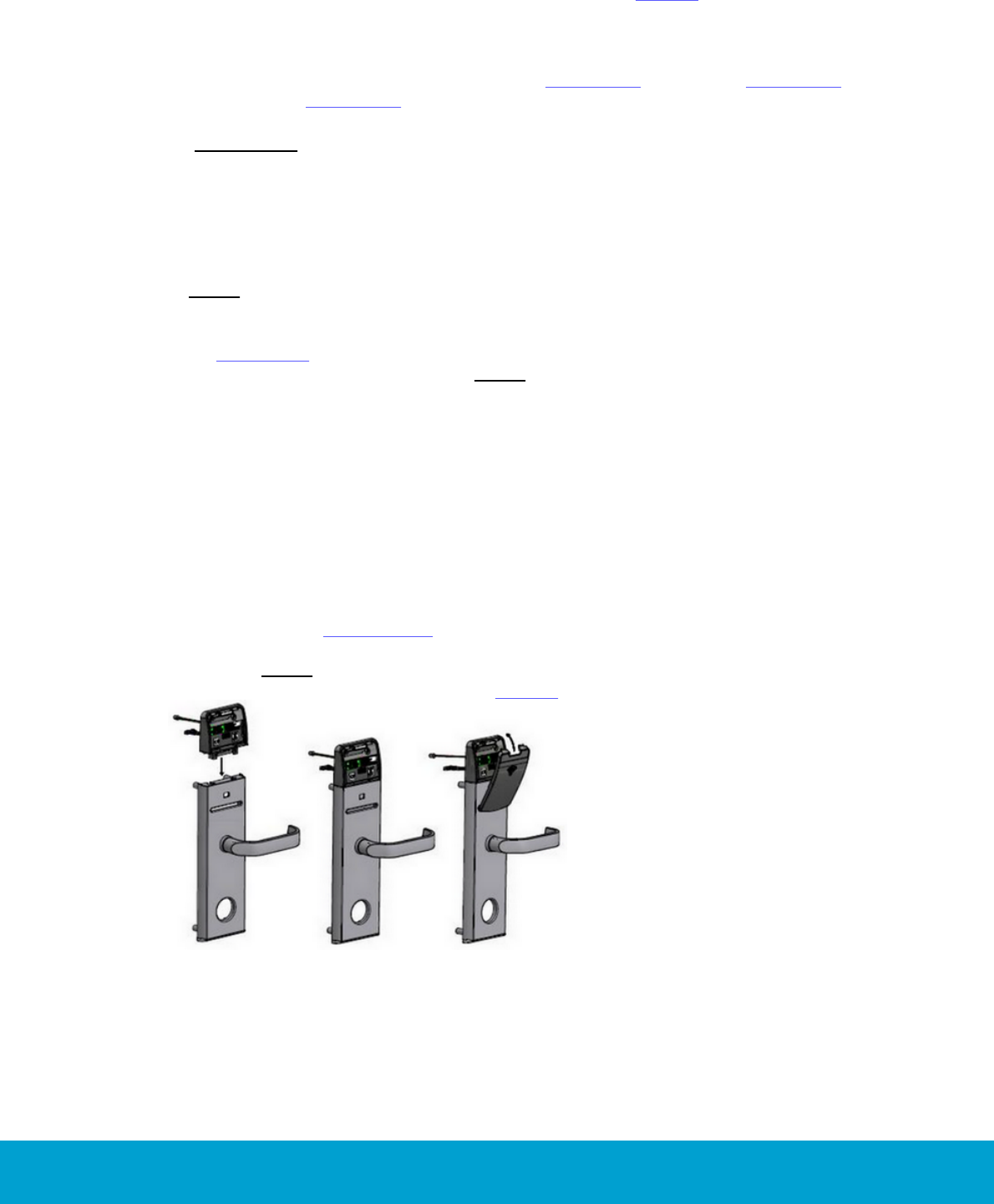

3.1.5 Online by ZigBee
A Classic RFID lock can be online by ZigBee. In this case, a ZigBee endnode
is mounted in the bracket as shown in Figure 15.
Figure 15
3.2 To install the lock
The bold numbers in brackets refer to the exploded views. For upgrade
installations from Classic mag, remove the top cover from the outside
escutcheon and then start the installation from step 19 below.
Note: Gothic style escutcheon is not recommended for VingCard Classic
RFID upgrades.
Note: For a reliable operation:
No parts should be lubricated, except for spindle threads
When cleaning escutcheons, use soft moist cloth without detergent

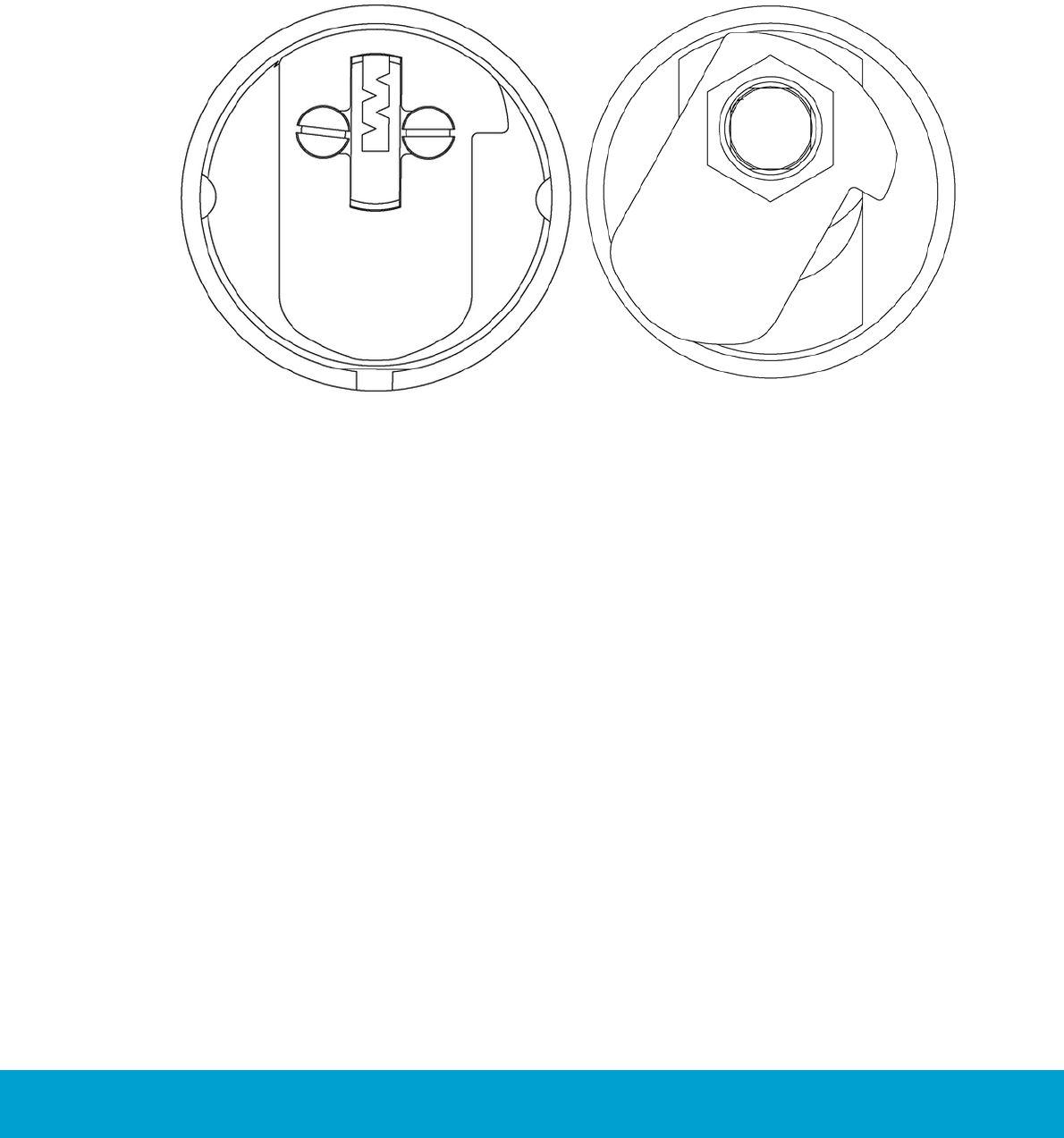

If Hydra cylinder is in use:
Thread the security clip onto the lock case from bottom side, at 45° and
press it upwards so the groove is aligned to the cable cover mounting screw.
1. Position the lock case (RFID:8; mag:9) into the door edge and fasten
it with two lock front screws (RFID:9; mag:10).
Note: Position the cable in the door before inserting the lock case.
2. Normally, the handle retainers are at delivery mounted in the outside and
inside escutcheons respectively. If they are not (e.g. if spare parts have
been ordered), the escutcheons must be prepared according to Appendix E.
3. Mount the spindle (RFID:5+6; mag:7+8) in the lock case from the outside.
The safety pin (RFID:7; mag:6) is holding the handle spindle in correct position.
Push the pin into the hole through the inside spindle. If plastic ring is used,
18
ASSA ABLOY Hospitality 66 1100 057-C
push the plastic ring onto the inside spindle, making sure that the ring fits
into its groove.
4. Position the outside escutcheon onto the spindle.
5. Insert the thumb turn spindle (RFID:11; mag:12) through the lock case until
it stops against the outside escutcheon.

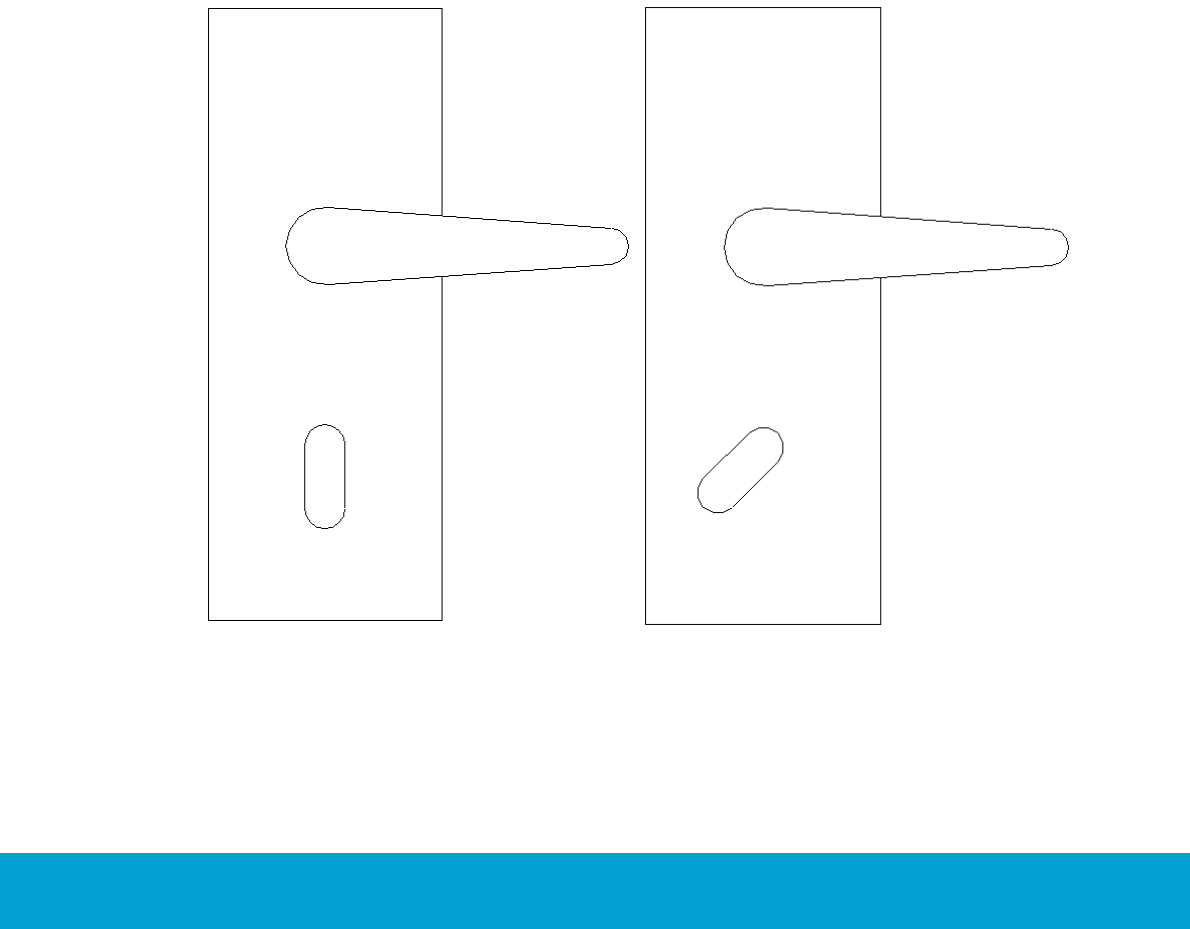

6. Mount the inside escutcheon (RFID:13; mag:14) including handle retainer as
follows: set the thumb turn in its vertical position, while the deadbolt is retracted.
7. Before mounting the inside escutcheon on the door, make sure that:
- The outside spindle and inside spindle fit correctly in their positions; make
sure that there is a 3/4 turn between them (normally fixed already at delivery).
- Inside and outside handle retainers (RFID:4 and 12; mag:4 and 13) are
correctly mounted according to door handing; see Appendix E.
- The cable to the battery is placed correctly through the notch on top of
the escutcheon.
Leave the connectors accessible on the inside of the door.
8. Connect the cable from the lock case to the LCA (RFID:17; mag:18).
Important: Connectors should mount easily; avoid using force. If condensation
can occur (as is likely in hollow steel doors), the contacts should be filled with
silicone grease.
9. Fasten the outside escutcheon (2) and inside escutcheon respectively with four
escutcheon screws (RFID:19; mag:20) as shown, but do not tighten them at
this point. Important: The protruding parts must fit correctly. Any bending or
misalignment may cause malfunction. Important: For lock without cylinder,
never close door before lock is programmed and working with card operation.
If your lock is equipped with standard cylinder (3), proceed to step 11.
Hydra cylinder is used along with clips.
10.Prepare the cylinder as follow:
- Insert an operational key and turn the cylinder so the cylinder arm is in
6 o’clock position.
- Insert the cylinder into the lock case and position the cylinder so it is flush
to the outside escutcheon.
- Fix the cylinder in place with the fixing–screw tool kit as follows:
a) Use the L–shaped Allen key to lock the headless fixing screw to the
T–shaped tool as illustration in the box shows.
b) Using the T–tool, screw the fixing–screw in place as shown to fix the cylinder
in place. When tighten the screw, put pressure on the Allen wrench, not the
T-handle, to avoid over-tightening. Make sure that the cylinder fixing–screw
is tightened in the cylinder.
c) Release the T–tool from fixing–screw by holding the T–tool rigid while
19
ASSA ABLOY Hospitality 66 1100 057-C
turning the Allen key counter-clockwise until the tool is released, then unscrew
the tool.
If your lock is equipped with Hydra cylinder, proceed to step 12.
11.Install the cylinder (3) and fasten it with the cylinder set screw using an Allen
wrench. When using a standard cylinder with ADB lock case, use the optional
short screw as described in the applicable Appendix A (ANSI DA), Appendix B
(ANSI DB) or Appendix C (EURO).
12.Important: Check all functions for smooth operation before final tightening of
the escutcheon screws. Throw the deadbolt with thumb turn and retract the latch
and deadbolt by depressing the inside handle. When installing an ADB lock case
the deadbolt is thrown by pushing the trigger, and retracted by depressing the
inside handle.
13.Install the battery pack by connecting the battery cable to the battery.
Note: Yellow light should flash once after battery is connected.
14.If the battery lid is in metal, the battery cup (not shown in the exploded views
in section 3.1) must be threaded upon the battery before connecting the battery
cable (only for 9V / 6 batteries). Note: If this battery lid is used, it is not possible
to have the lock online by ZigBee.
15.Fasten the lock front (RFID:10; mag:11) with lock front screws (RFID:9;
mag:10). Make sure that the anti-friction latch comes all the way out.
16.Tighten the four escutcheon screws (RFID:19; mag:20), ensuring that the inside
and outside escutcheons are aligned to each other.
17.The RFID module is normally assembled with the outside escutcheon at delivery,
but if it is not (e.g. if the RFID module has been ordered as a spare part), snap the
RFID module (1) in place on top of the outside escutcheon and fasten it with the
screw (pos 2 in section 3.1.3) in the front; see Figure 16. An additional mounting
hole is available in the top left corner of the LCU (lock controller unit), if this is
needed. Note: For upgrades, the LCU must be removed and the upgrade plate
(mag:5) be mounted; see details in step 20.
Figure 16
20
ASSA ABLOY Hospitality 66 1100 057-C
18.The cable is normally at delivery pulled through the cable leader as shown in
Figure 17, but if it is not (e.g. if the RFID module has been ordered as a spare
part), pull the cable through the cable leader. Note: Be aware of sharp edges
on door and escutcheon which can damage the RFID cable upon mounting.
Figure 17
19.When upgrading an existing ASSA ABLOY Hospitality installation with LCU (lock
controller unit) or RM/CM (reader module/control module), the upgrade plate must
be installed. This is a precaution which is required due to already existing holes
in the door. Use the old mounting screws from the LCU/RM to fasten the upgrade
plate as shown in Figure 18. Additional fire protection material must also be placed
in the location of the removed LCU/RM.
Figure 18
Note: At new installations with RFID Classic cut-outs, the upgrade plate is not
needed. Note: When upgrading a non-VingCard lock to VingCard Classic RFID,
a cover plate with dimensions according to the guidelines given in Application Note 93
(AN-93) will replace the upgrading plate.
20.The lock case adapter (LCA) (RFID:17; mag:18) is normally delivered in place
in the adapter for LCA (RFID:18; mag:19), but if this is not the case (e.g. if
the LCA has been ordered as a spare part), snap the LCA in place and fasten the
connectors.
21.Connect the battery cable, the lock case cable and the cable from the LCU
before the inside unit is snapped in place on the inside escutcheon.
22.Install the battery lid (RFID:16; mag:17) by using the lid opener.
21
ASSA ABLOY Hospitality 66 1100 057-C
4. Installation checklist
4.1 Installation check
1. Mortise of the lock: The front–end (including the lock case cover plate) should
be flush with the door edge.
2. Installation of cylinder: The cylinder should be flush with the escutcheon and
properly fixed.
3. Installation of escutcheon: The escutcheon should be aligned vertical to the
door edge and be tightened firmly.
4. Installation of strike: The depth in the frame must be sufficient, min 1” (25.4 mm),
to accommodate the full thrown deadbolt.
4.2 Operational check
1. Outside and inside handle: Handles must return to horizontal position after
being depressed (outside handle can only be depressed slightly as the lock
is in locked position).
2. Thumb turn: The thumb turn must throw and retract the deadbolt freely.
Note: When installing ADB lock case the thumb turn cannot retract deadbolt.
The trigger will throw the deadbolt if depressed.
3. Cylinder: When using an emergency key (EMK), latch and deadbolt must
freely operate.
4. Latch and deadbolt: When the deadbolt has been retracted by the thumb turn
and the inside handle is fully depressed, deadbolt and latch should be flush with
the lock case cover plate.
5. Electronics Note: If there is no cylinder available, it’s important to check that the
electronics works before closing the door. The lock is programmed by showing the
construction card to the lock twice. On first presentation you will see an orange
LED and then on the second a green LED and you will be able to turn the handle
to retract the door latch.
4.3 Security function check
1. Dead latch function: When depressing the locking latch, the latch should be
blocked. Make sure the latch is not snagged by the strike when the door is closed.
2. Panic release function: When the door is closed and the deadbolt is thrown,
depress the inside handle. The deadbolt and the latch must be retracted.
22
ASSA ABLOY Hospitality 66 1100 057-C
5. Commissioning
When the locks have been mounted and connected according to the previous
chapters, the following steps should be performed:
1. Make sure that each lock has got the correct firmware version, i.e. latest available
version of lock firmware for Visionline. The version is read out with the service PC
and the software Lock Service 3G 1, which is also used for uploading the correct
firmware to the lock if needed 2.
2. Each lock is set up as a door in Visionline 3.
3. Download data from the Visionline server to Lock Service 3G 4.
4. Set system ID in each lock 5.
5. Initialize each lock with room number and also with parameters set up in Visionline
for each concerned lock 6 (if applicable with 'Include BLE configuration data'
marked). Note: The initialization will also set the time in the lock.
6. If applicable, make configurations for the lock (e.g. regarding beeper and/or
blue LED) 7.
7. If ZigBee is applicable, this requires that the Online option has been set in
Visionline and that the ZigBee network has been set up 8.
1) See the section Parameters in Quick reference guide Lock Service 3G for details.
2) See the section Upload firmware in Quick reference guide Lock Service 3G for details.
3) See the section To set up a door in Setup manual Visionline for details.
4) See the section Download data from server in Quick reference guide Lock Service 3G for details.
5) See the section Set system ID in lock in Quick reference guide Lock Service 3G for details.
6) The initialization can either be done with a service cable and Lock Service 3G (see the section
Initialize lock in Quick reference guide Lock Service 3G for details), or with an initiation card
issued in Visionline (see the section Initiation card in Setup manual Visionline).
7) See the section Configure lock in Quick reference guide Lock Service 3G for details.
8) See User manual Online option for details.
23
ASSA ABLOY Hospitality 66 1100 057-C
6. Maintenance
6.1 To release the cover from the RFID module
If the LCU contact needs to be reached, e.g. for firmware upgrade, the cover
(front cover assy in section 3.1.3) is demounted according to below:
1. Press the two wings on top of the cover (marked with arrows in the left picture
below), and at the same time pull the cover according to the right picture below.
Figure 19
Figure 20
7. Service functions
Function
Read more
Read-out
For information about read-out with the service PC and the software Lock
Service 3G, see Quick reference guide Lock Service 3G.
For information about read-out with a read-out card or read-out card
advanced, see User manual Visionline.
Firmware upgrade
For information about firmware upgrade with the service PC and Lock Service
3G, see Quick reference guide Lock Service 3G.
Cold reset
For information about cold reset, see Quick reference guide Lock Service 3G.
24
ASSA ABLOY Hospitality 66 1100 057-C
Appendix A: ANSI DA ADB
This appendix contains description and drawings needed for a new installation or
upgrade of the ANSI DA ADB lock case. All dimensions are given in mm and inches.
ADB strike
When doing either a fresh install or an upgrade to ANSI DA ADB lock case,
the external strike plate must be installed as shown in Figure A1.
Figure A1
Important: When installing an ADB lock case, the ADB strike plate with curved lip
must always be used (door handing L and R).
Door handing
Strike L
Strike R
LH (Rx)
X
RHR (Ro)
X
RH (Lx)
X
LHR (Lo)
X
Table A1
25
ASSA ABLOY Hospitality 66 1100 057-C
Appendix A: ANSI DA ADB
All frames (wooden and steel frames)
First install the lock in the door as shown in section 3.3. Place the ADB strike in the
frame as shown in Figure A1, 49mm below the top of the lock front (30mm + 19mm).
Mortise
If the frame is mortised for a standard ANSI strike, the frame must be modified as
shown in Figure A2.
Figure A2
26
ASSA ABLOY Hospitality 66 1100 057-C
Appendix A: ANSI DA ADB
Cylinder for ADB (escutcheons with cylinder)
The ADB lock case can be used with either a threaded cylinder or a Hydra cylinder.
When upgrading from standard lock case with threaded cylinder, the revolving arm
must be replaced; see Figure A3. Old Hydra cylinders cannot be upgraded to fit
ADB lock cases.
Figure A3: Threaded ANSI ADB cylinder
Figure A4: Hydra ANSI ADB cylinder
To install the cylinder
The standard cylinder fastening screw cannot be used for threaded cylinder.
The cylinder fastening screw Set screw Din 916-Grooved cup point M4x10mm
(enclosed with the new threaded ADB cylinder or the upgrade revolving arm)
must be used to fasten the cylinder.
27
ASSA ABLOY Hospitality 66 1100 057-C
Appendix B: ANSI DB ADB
This appendix contains description and drawings needed for a new installation or
upgrade of the ANSI DB ADB lock case. All dimensions are given in mm and inches.
ADB strike
When doing either a fresh install or an upgrade to ANSI DB ADB lock case,
the external strike plate must be installed as shown in Figure B1.
Figure B1
Important: When installing an ADB lock case, the ADB strike plate with curved lip
must always be used (door handing L and R).
Door handing
Strike L
Strike R
LH (Rx)
X
RHR (Ro)
X
RH (Lx)
X
LHR (Lo)
X
Table B1
28
ASSA ABLOY Hospitality 66 1100 057-C
Appendix B: ANSI DB ADB
All frames (wooden and steel frames)
First install the lock in the door as shown in section 3.3. Place the ADB strike in the
frame as shown in Figure B1, 49mm below the top of the lock front (30mm + 19mm).
Mortise
If the frame is mortised for a standard ANSI strike, the frame must be modified as
shown in Figure B2.
Figure B2
29
ASSA ABLOY Hospitality 66 1100 057-C
Appendix B: ANSI DB ADB
Cylinder for ADB
The ADB lock case can be used with either a threaded cylinder or a Hydra cylinder.
When upgrading from standard lock case with threaded cylinder, the revolving arm
must be replaced; see Figure B3. Old Hydra cylinders cannot be upgraded to fit
ADB lock cases.
Figure B3: Threaded ANSI ADB cylinder
Figure B4: Hydra ANSI ADB cylinder
To install the cylinder
The standard cylinder fastening screw cannot be used for threaded cylinder.
The cylinder fastening screw Set screw Din 916-Grooved cup point M4x10mm
(enclosed with the new threaded ADB cylinder or the upgrade revolving arm)
must be used to fasten the cylinder.
30
ASSA ABLOY Hospitality 66 1100 057-C
Appendix C: EURO ADB
This appendix contains description and drawings needed for a new installation
or upgrade of the EURO ADB lock case. All dimensions are given in mm.
EURO ADB lock case
Figure C1
Note: For cut-out dimensions, see DaVinci, Classic or Presidio installation manual.
31
ASSA ABLOY Hospitality 66 1100 057-C
Appendix C: EURO ADB
1. Latch:
Same functions as standard VingCard EURO lock.
2. Auxiliary latch/deadbolt trigger:
When the door is closed and the auxiliary latch hits the strike plate / frame, the
automatic deadbolt will be thrown and the latch blocked. Always install a strike
plate before installing the lock case in door. If the door with lock case is
closed without a strike plate, the auxiliary latch will be jammed in the frame
cut-out. The dimension from the front of the lock case to the strike plate must not
exceed 4 mm to obtain automatic deadbolt function.
3. Automatic deadbolt:
The deadbolt throws automatic when the door is closed.
4. Privacy hub:
With the thumb turn the privacy hub can be rotated 45 degrees. When the
thumb turn is pointing down the privacy function is off. When the thumb turn
is rotated 45 degrees the privacy function is on. The deadbolt cannot be
retracted with the thumb turn.
Figure C2: Privacy off
Figure C3: Privacy on
32
ASSA ABLOY Hospitality 66 1100 057-C
Appendix C: EURO ADB
Cylinder for ADB (escutcheons with cylinder)
The ADB lock case can be used with either EURO ADB threaded cylinder or EURO
ADB Hydra cylinder. When upgrading from a standard lock case with threaded
cylinder, the revolving arm must be replaced; see Figure C4. Old Hydra cylinders
cannot be upgraded to fit ADB lock cases.
Figure C4
Figure C5
33
ASSA ABLOY Hospitality 66 1100 057-C
Appendix D: Preparing escutcheons
(normally not needed)
The below steps are normally already done at delivery, but if not (e.g. if ordering
spare parts) follow the procedure below:
1. The spindles should be assembled and threads be greased, ready to be mounted
to the spring retainer.
2. Push handle retainer against escutcheon until hub stops against metal arm in
handle retainer. Note: The hole in the handle retainer is closed by a metal arm.
3. Turn handle down until hole in handle retainer is just open. Do not use force
on handle against end stop. Push handle retainer against escutcheon with both
thumbs. Release handle when handle retainer snaps on hub in escutcheon.
4. When handle is back in horizontal position, remove spindle from handle and
handle retainer.
5. Assemble second handle retainer. Use the same method for inside escutcheon
as outside escutcheon. Assemble spindle in lock case.
Figure D1: Handle retainer mounting instructions
(this figure and Fig. D2-D3 show deadbolt below)
Figure D2: Assemble handle
retainer, spindle removed
Figure D3: Handle retainer mounted with handing direction
34
