Attention Installer
Cylindrical Lockset
IN100 WiFi
Installation Instructions
FM404 07/16
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473)
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
IN100 Cylindrical Lock
1) Warning
Table of Contents
2
Copyright © 2016 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
1) Warning ................................................................................2
2) General Description .............................................................3
3) Specifications / Features ....................................................3
4) Product Illustration .............................................................4
5) Installation Instructions ......................................................6
6) Operational Check ............................................................ 16

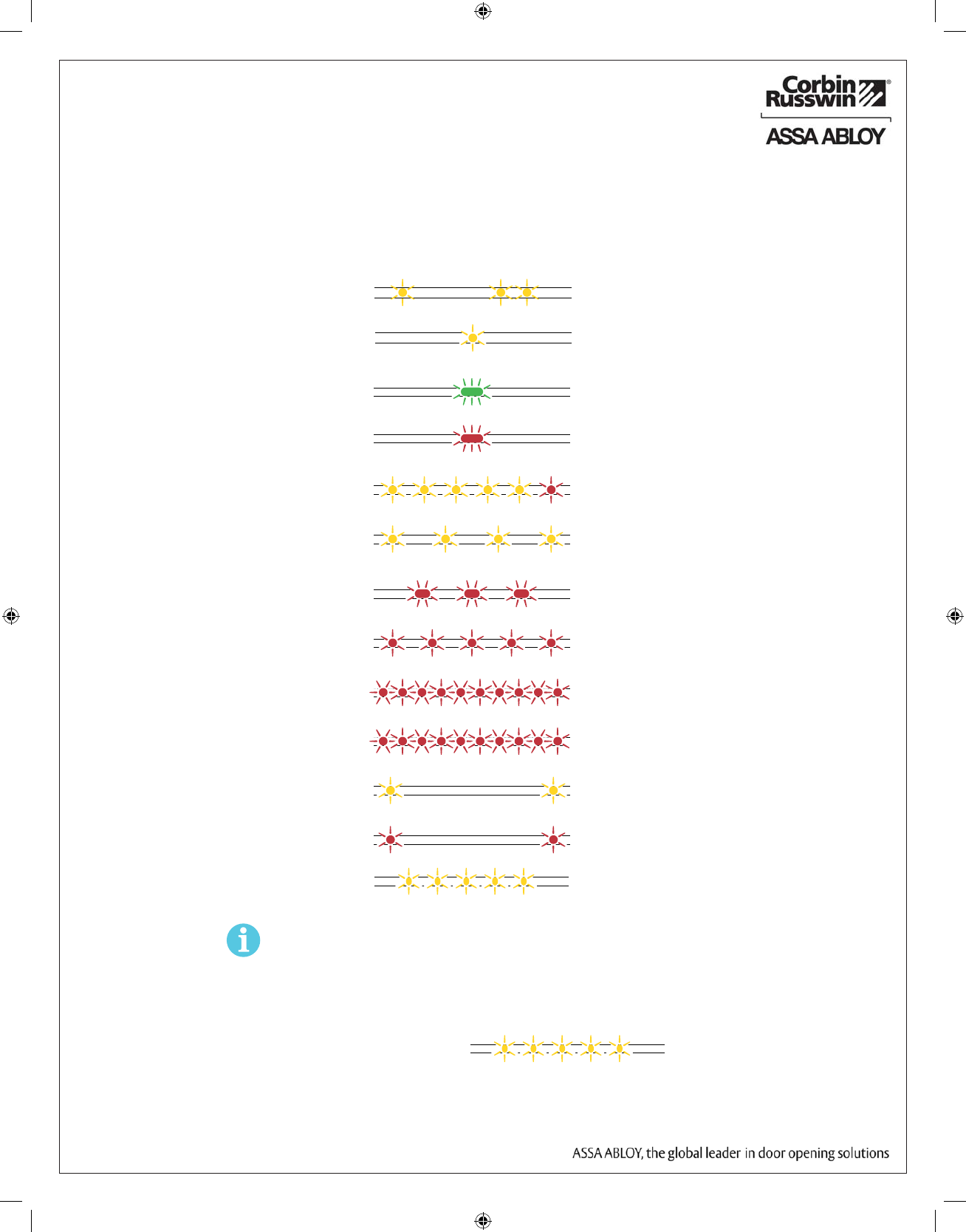

7) LED Indications..................................................................17
!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced technician for help
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This Class
B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements
d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce
dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
!
To avoid possible damage from electrostatic discharge (ESD), some basic precautions should be used when handling
electronic components:
• Minimize build-up of static by touching and/or maintaining contact with unpainted metal surfaces such as door hinges,
latches, and mounting plates especially when mounting electronic components such as readers and controllers onto
the door.
• Leave components (reader and controller) protected in their respective anti-static bags until ready for installation
• Do not touch pins, leads or solder connections on the circuit boards
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
IN100 Cylindrical Lock
3
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
• Latch – Stainless steel, ½” (13mm) throw
Optional: ¾” (19mm) throw deadlocking fire
latch for pairs of doors
• Deadlocking latch prevents manipulation when
door closed
• Door Thickness – Standard 1-3/4” (44mm) to
2” (50mm)
Optional 2” (50mm) to 2-1/4” (57mm)
• UL fire listed
2) General Description
3) Specifications / Features
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
The Corbin Russwin® IN100 lock with Aperio™ Technology makes it easy and cost-effective to bring access
control to more doors. It uses local wireless communication between the lock and an Aperio hub to connect
to an access control system, eliminating the greatest cost and inconvenience of traditional access control –
the wiring at the door.
The IN100 utilizes HID® 125 kHz prox or 13.56 MHz iCLASS® smart card technology, and all technology
features are supported by the physical security of Corbin Russwin ANSI/BHMA Grade 1 hardware.
This product is operated by six (6) “AA” alkaline batteries. Corbin Russwin locks are designed with quality
components to provide high security, performance and durability.
!To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
Electronic Specifications
*For specific security information, please contact
your local ASSA ABLOY Door Security Solutions
sales consultant or call 800-810-WIRE.
Input Power: DC 9V, 1.5A (6 AA alkaline batteries)
Optional hard-power 12VDC to 24VDC
HID® multiCLASS SE® technology offers support
for the following credentials:
High Frequency (13.56 MHz):
HID iCLASS®
HID iCLASS SE® (SIO-enabled)
HID iCLASS® Seos
HID MIFARE® SE
HID DESfire® EV1 SE
MIFARE Classic
DESfire EV1
Low Frequency (125 kHz):
HID Prox®
NFC-enabled Mobile Phones
Uses low-rate wireless personal area networks
(IEEE 802.14.4)
Multiple time zone and holiday access scheduling
First-in unlock or automatic unlock configuration,
based on specified time schedule
Uses AES 128-bit wireless encryption*
Privacy button
• Outside lever controlled by reader or key
retracts latch
• Inside Lever produces REX (request to
exit) signal
• Complete monitoring of door - DPS
(External Door Position Switch supplied)
• May be used for both indoor and
exterior applications.
Hardware Specifications
A weather-protective gasket is required for exterior applications.
4
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

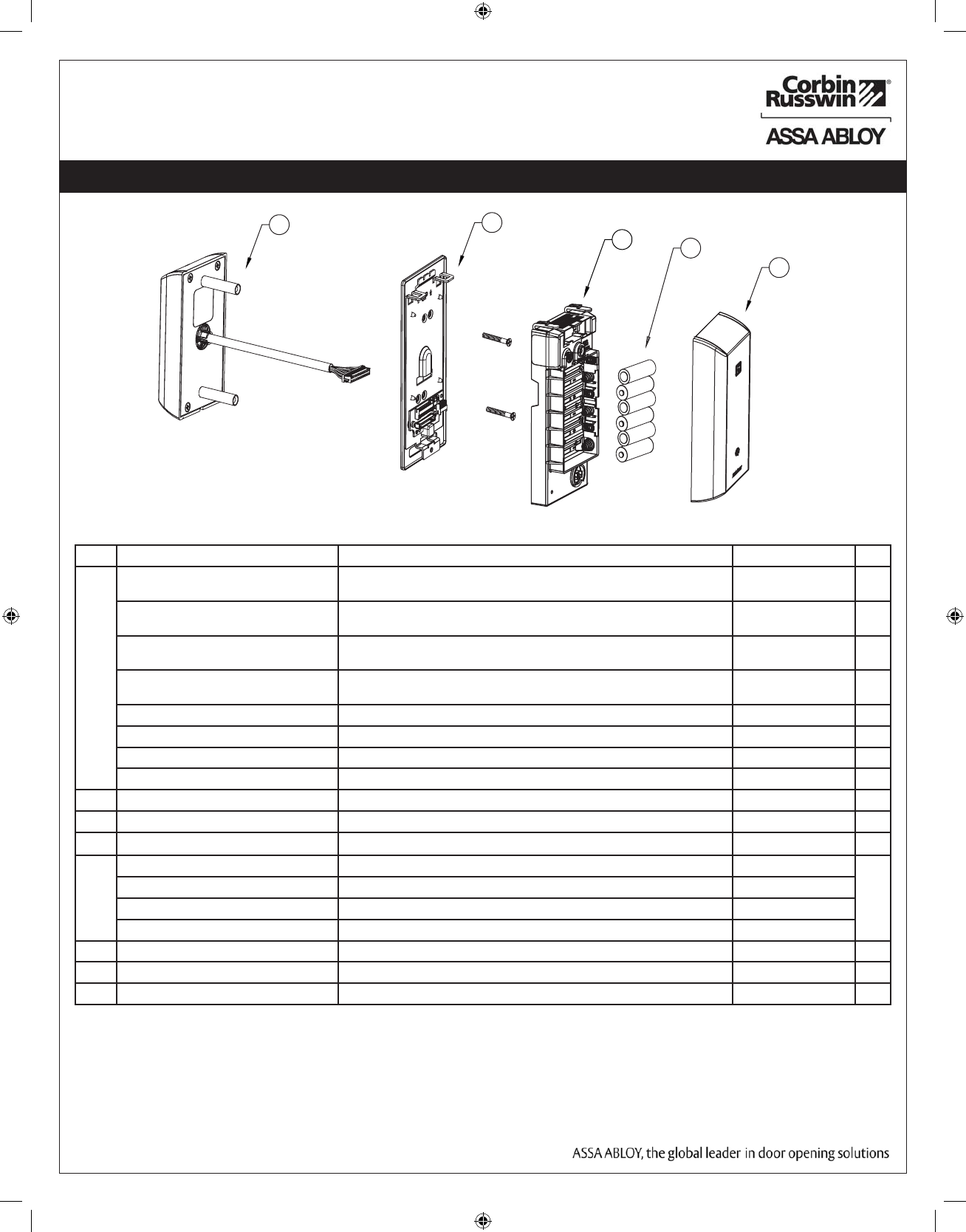

4) Product Illustration
1
5
4
3
2
Reader Module
ITEM PART NUMBER/ORDER STRING DESCRIPTION COLOR/TRIM QTY
1 IN-100-EM01CL33134-IP-B HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE®
SE, HID DESfire® EV1 SE, HID Prox®, NFC-enabled mobile phones
Black 1
IN-100-EM01CL33134-IP-W HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE®
SE, HID DESfire® EV1 SE, HID Prox®, NFC-enabled mobile phones
White 1
IN-100-EM01CL33134-IP-MB-[finish]* HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE®
SE, HID DESfire® EV1 SE, HID Prox®, NFC-enabled mobile phones
Black with metal trim 1
IN-100-EM01CL33134-IP-MW-[finish]* HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE®
SE, HID DESfire® EV1 SE, HID Prox®, NFC-enabled mobile phones
White with metal trim 1
IN-100-EM01CL33134-IPS-B All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 Black 1
IN-100-EM01CL33134-IPS-W All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 White 1
IN-100-EM01CL33134-IPS-MB-[finish]* All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 Black with metal trim 1
IN-100-EM01CL33134-IPS-MW-[finish]* All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 White with metal trim 1
2 820F558 Inside Mounting Kit (mounting plate & hardware) 1
3 820F549 IN100 Controller 1
4 N/A AA battery 6
5 820F489 Inside Escutcheon Black 1
820F499 Inside Escutcheon White
820F525 FIN* Inside Escutcheon Black with metal trim
820F535 FIN* Inside Escutcheon White with metal trim
6 FM356 Field prep template (not shown) 1
7 T31203 Door manufacturers template (not shown) 1
-- FM404 Instructions (this manual) 1
* Specify finish
IN100 Cylindrical Lock
5
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Tools Required:
• Phillips Screw Driver #2, #3
• Flat Blade Screw Driver (Standard size)
• 1/8” Security Allen Wrench (supplied)
1* 785F628 CL33134 Cylindrical lock with fixed core cylinder 1
785F638 CL33134 Cylindrical lock with removable core cylinder
2 785F488 Inside Spring Cassette - IN100 REX (1-3/4” - 2” Door) 1
785F498 Inside Spring Cassette - IN100 REX (2-1/4” Door)
3 783F208 Outside Spring Cassette 1
4 820F609 DPS (Door Position Switch) Kit 1
For parts not listed, refer to CL3300 Parts and Service Manual.

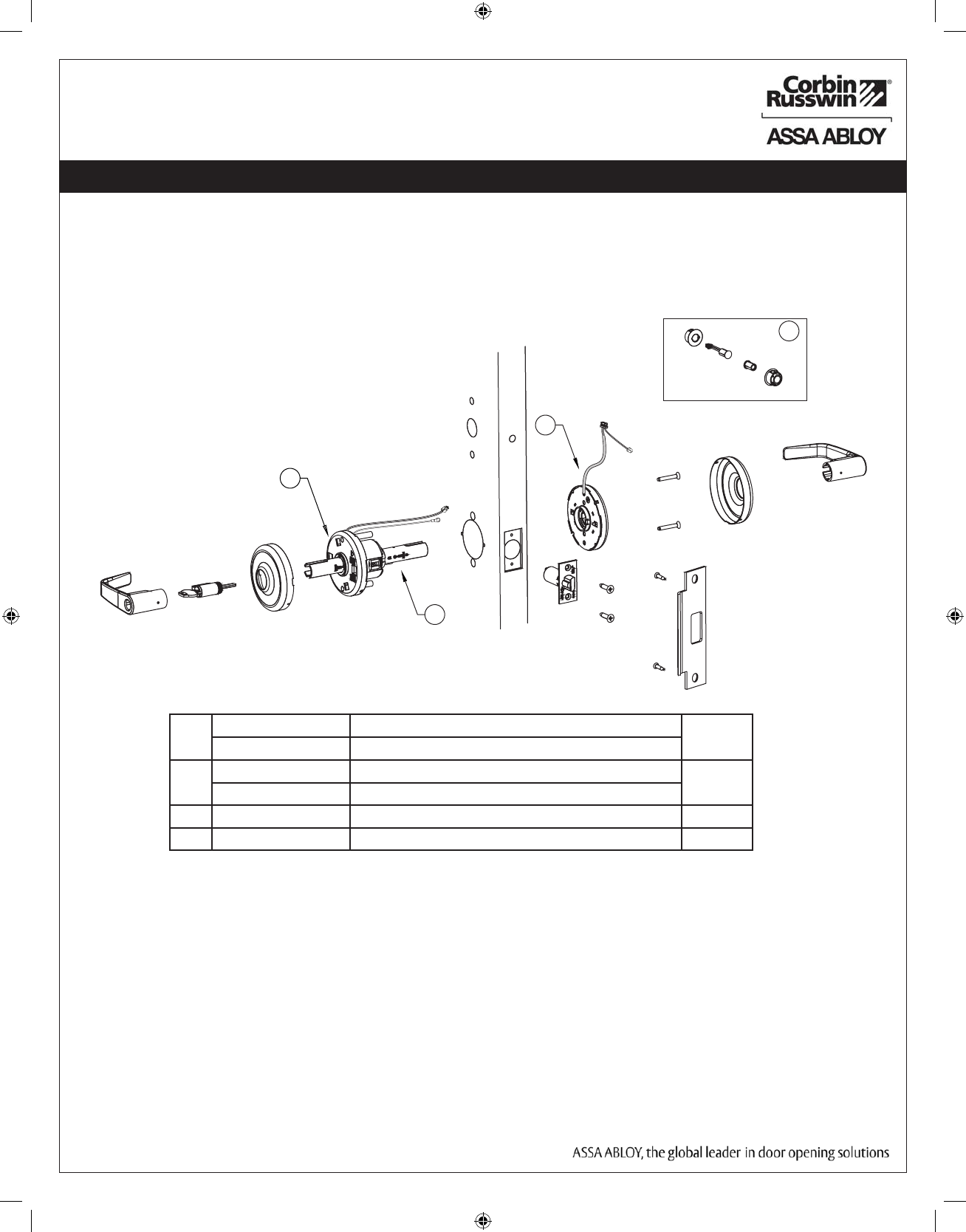

4) Product Illustration (Continued)
1
4
3
2
*The IN100 CL33134 cylindrical lock supports Escape Return functionality.
6
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

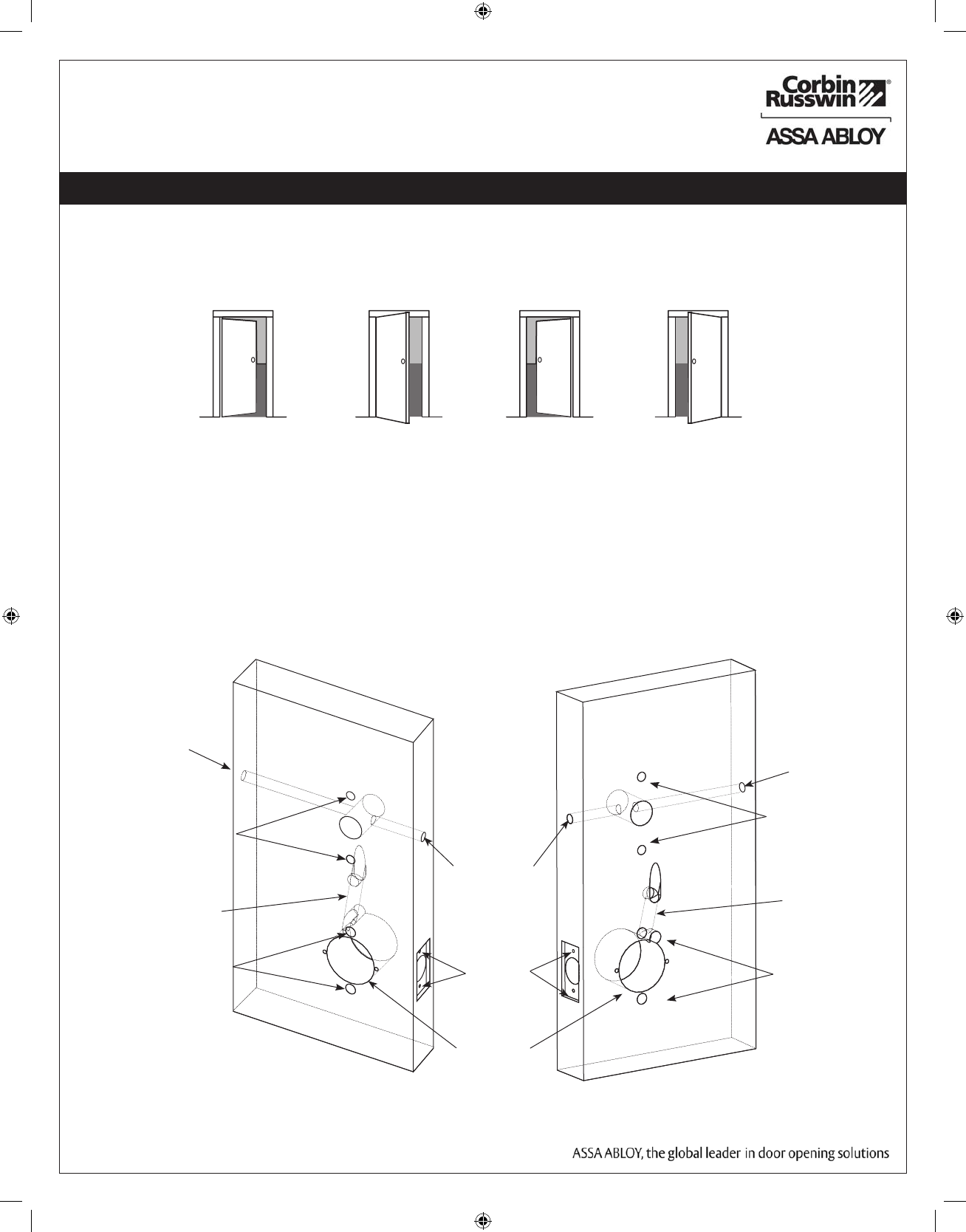

5) Installation Instructions
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHRB”
Illustrations shown are as viewed from the outside or secure side of opening.
Prep door according to supplied door marker (FM356). For door manufacturer templates
visit www.corbinrusswin.com and reference template # T31203.
Outside Face
of Door
Inside Face
of Door
1. Verify Hand and Bevel of door
2. Door Preparation
Wood Door
shown
Fig. 2
Through-bolt Hole
Raceway for Optional
Remote Power
Through-bolt
Hole
Pre-drilled
Tap Holes
Cylindrical
Pocket and
Lever Handle
Hole
Raceway for
Lockbody
Harness
External DPS
Hole
Cable Hole
Raceway for
Lockbody
Harness
Through-bolt Hole
Raceway for Optional
Remote Power
Through-bolt
Hole
Fig. 1
IN100 Cylindrical Lock
7
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

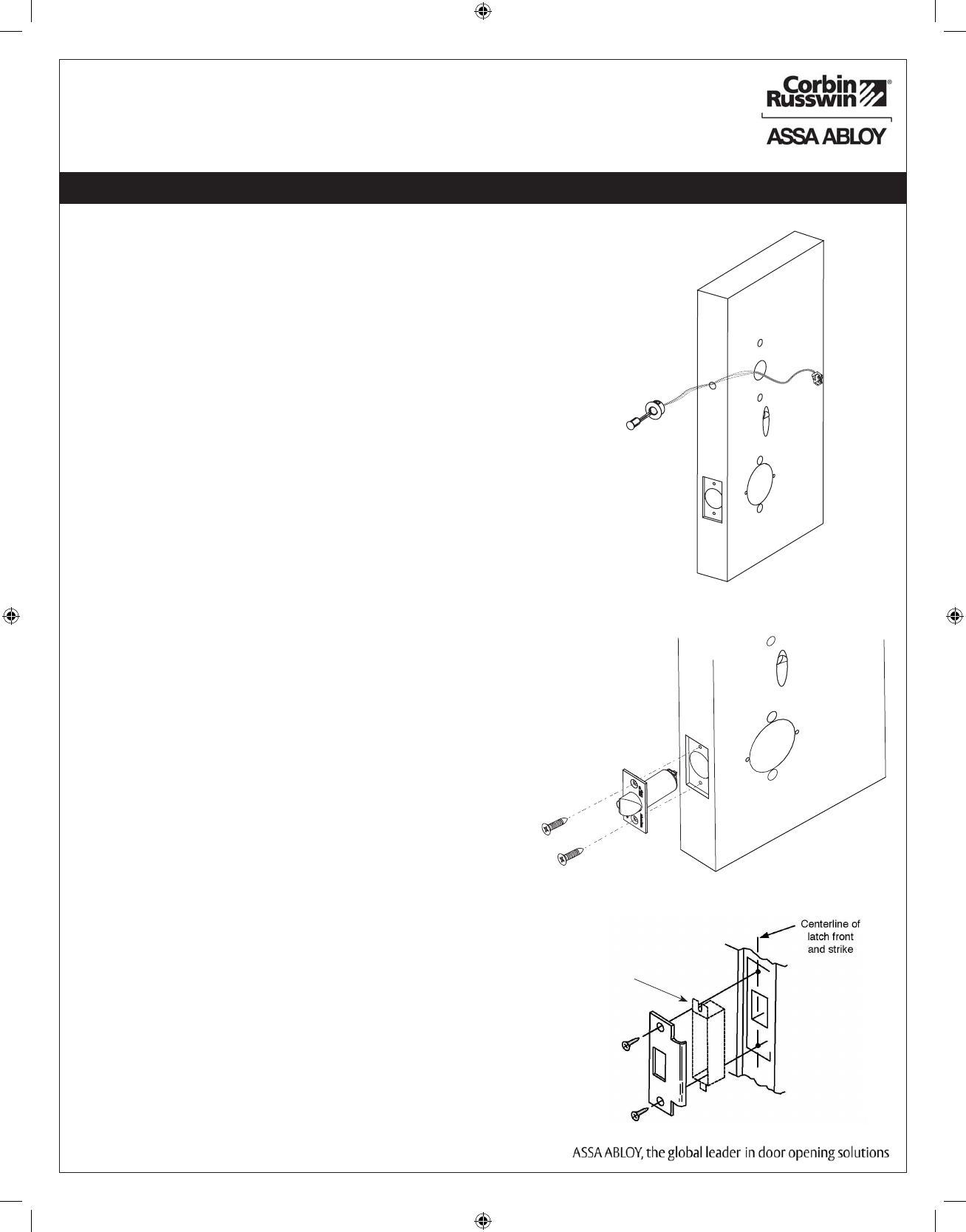

Install latch bolt with beveled bolt facing the strike
using two #8 x 3/4” combination screws (Fig. 4):
Optional Strike Box
Fig. 5
4. Install Latch Bolt
a. Insert DPS into the raceway on the latch edge of the door.
b. Push wires through raceway toward lock prep.
c. Push DPS firmly into place by hand.
Note: DO NOT TAP SWITCH WITH ANY TOOL.
d. Install magnet into door frame. Push firmly into place by hand.
See instruction A7983A.
3. Install Door Position Switch (DPS)
CAUTION: if DPS is not installed or is installed
improperly, door status monitoring features will
not function.
5) Installation Instructions (Continued)
Fig. 4
Install Strike Plate using two #12 x 1” combination
screws (Fig. 5):
5. Install Strike Plate
Fig. 3
8
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

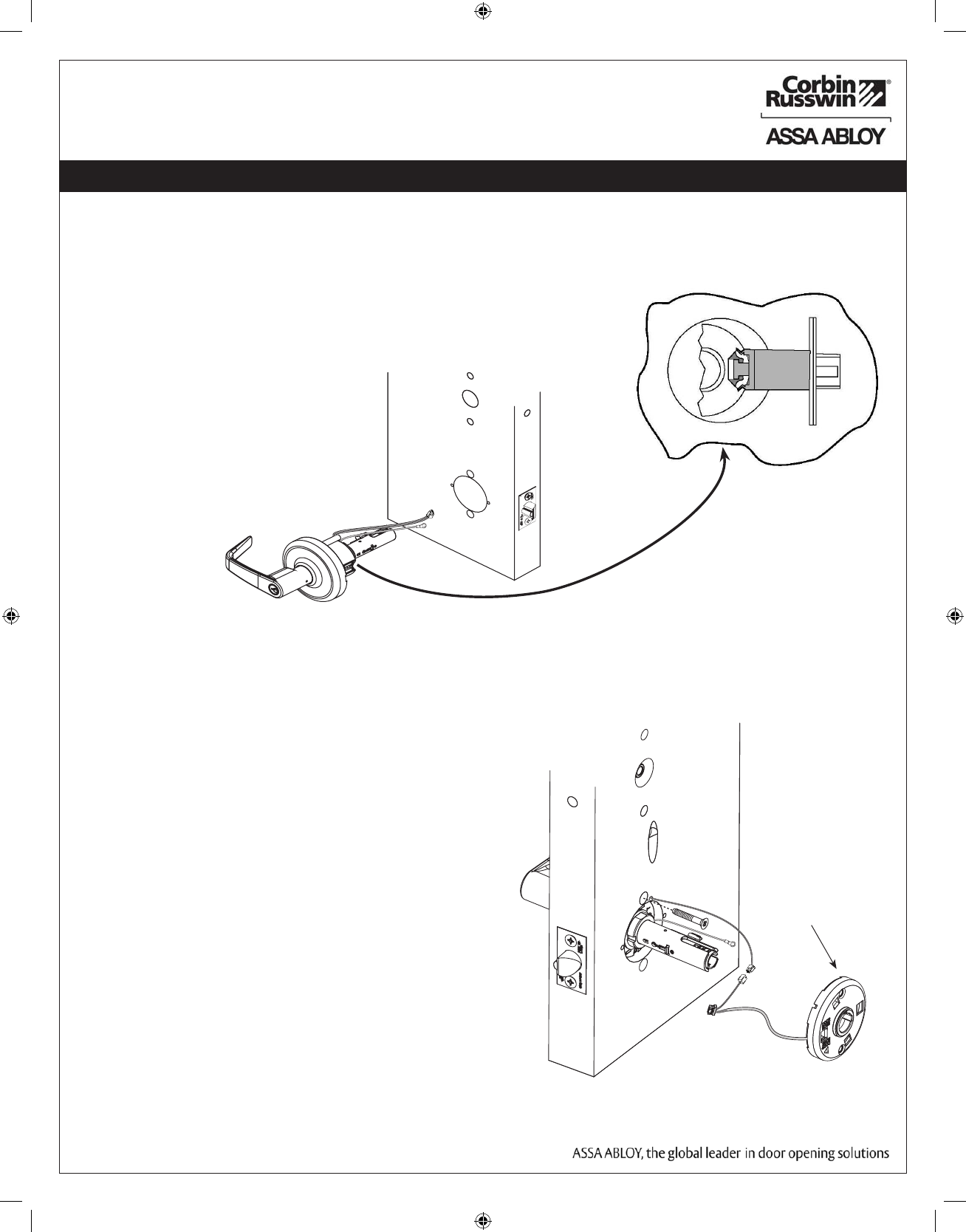

5) Installation Instructions (Continued)
Fig. 6a
Fig. 6b
Outside Face of Door
6
a. Feed lock body and wire through 2-1/8” diameter hole from outside of door (Fig. 6a).
Engage latch with lock body. Latch ears must slide into housing as shown (Fig. 6b).
6. Install Lock Body
Fig. 6c
Inside Face of Door
Spring Cassette
b. Connect 4-pin connector from lock body to 4-pin on
cassette (Fig. 6c).
c. Temporarily install top throughbolt to hold chassis in door (Fig. 6c).
Important: Door must remain open during installation.
Use door stop.
d. Connect REX wire from I/S cassette to
lockbody harness.
IN100 Cylindrical Lock
9
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

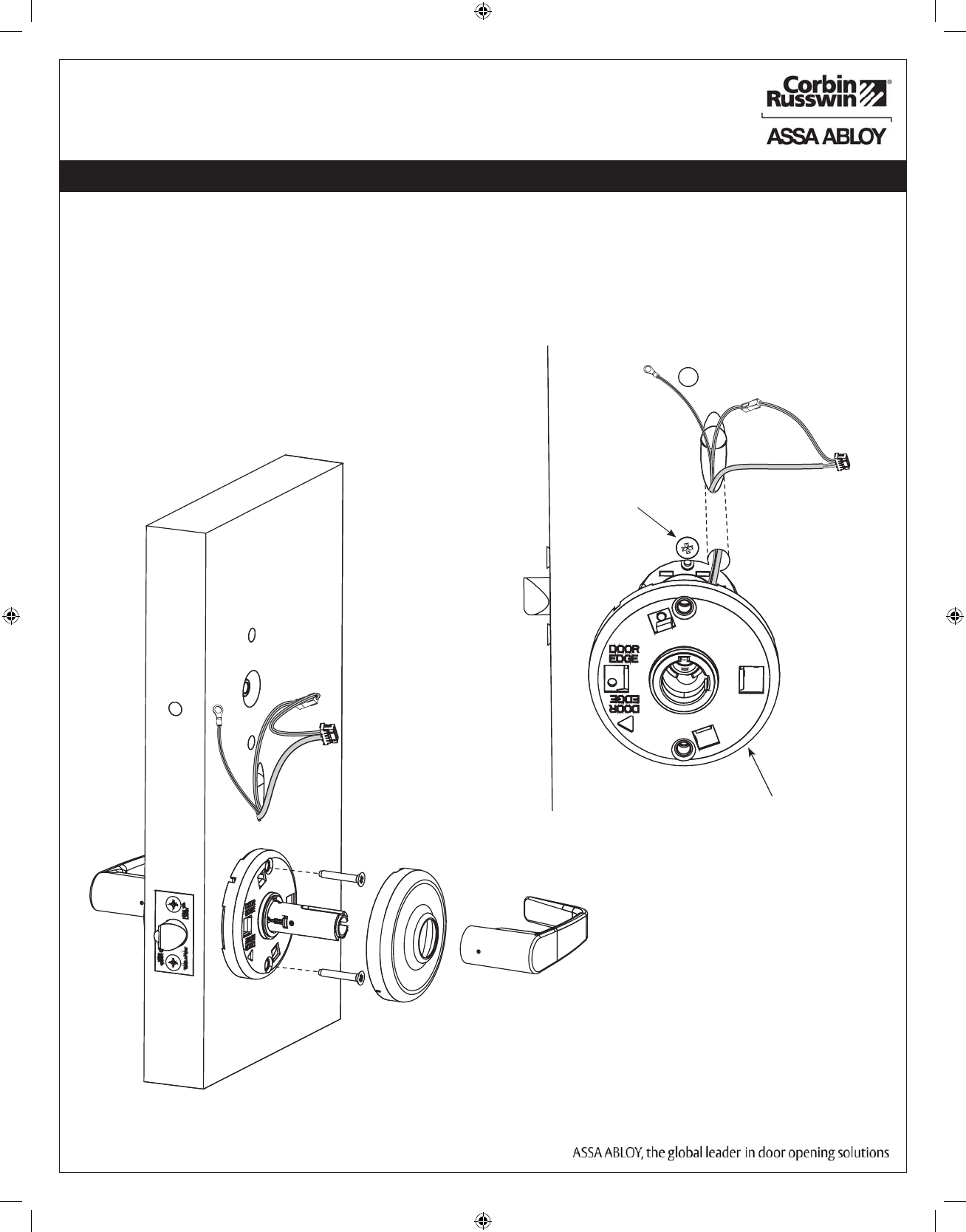

7. Install Inside Spring Cassette Lock
5) Installation Instructions (Continued)
a. Feed harness wires and ground wire up through raceway (Fig. 7a).
b. Remove screw from previous step.
c. Slide on cassette and secure with (2) screws (Fig. 7b).
Fig. 7a Spring Cassette
Remove Screw
Fig. 7b
10
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)

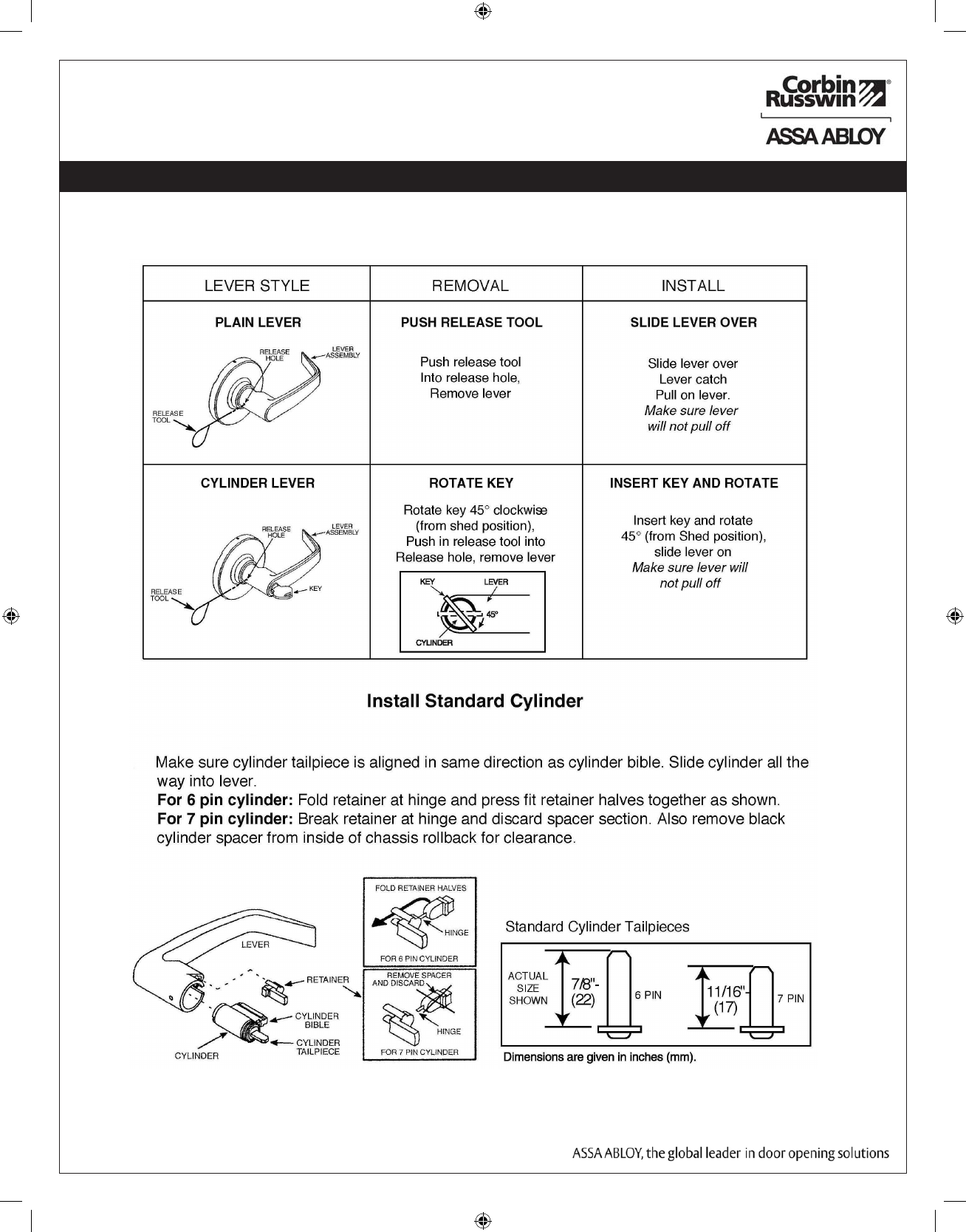

8. Installation and Removal of Lever and Standard Cylinder
IN100 Cylindrical Lock
11
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
Fig. 9a
Outside Face of Door

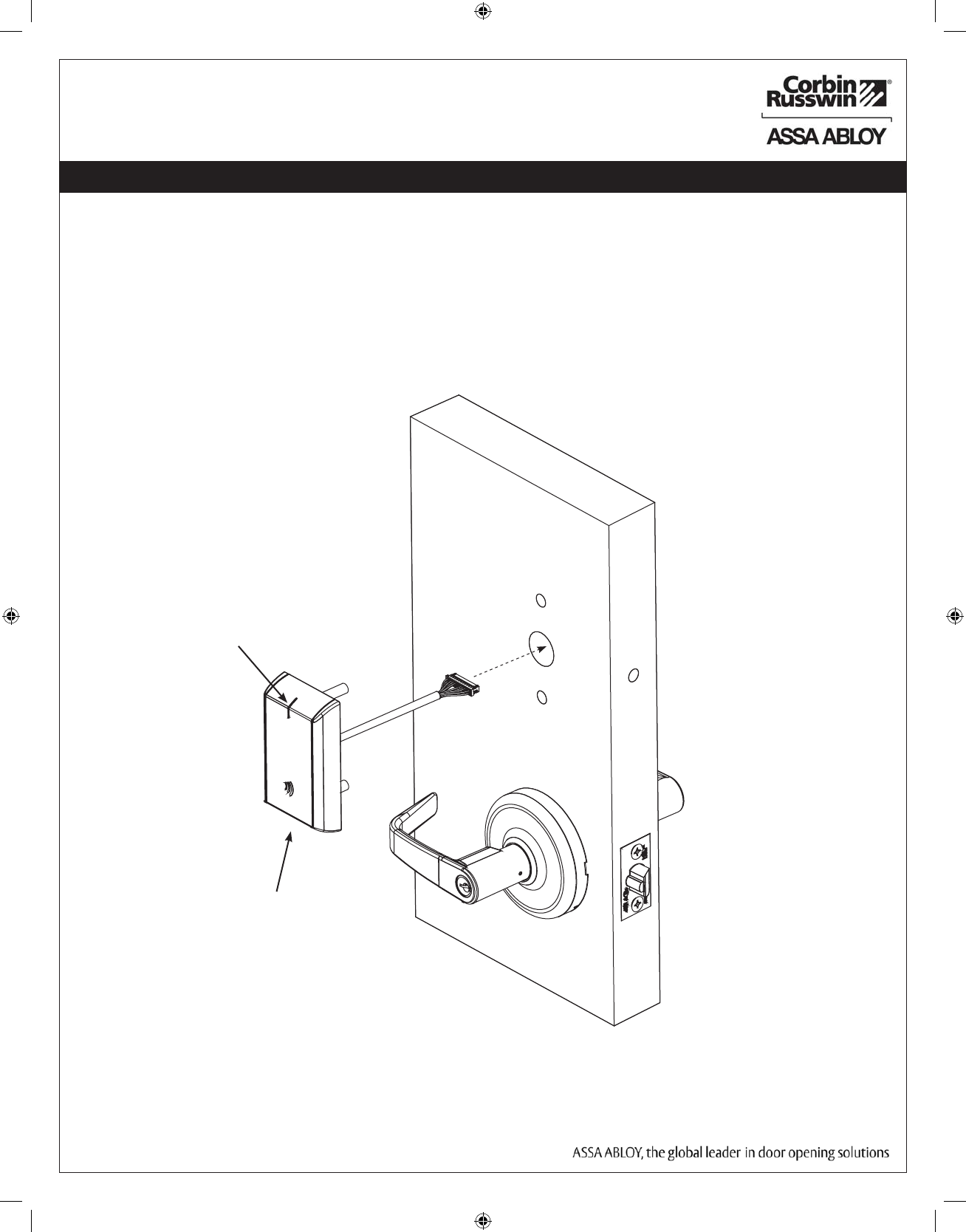

9. Install Outside (Reader) Escutcheon and Inside Mounting Plate
LED
Reader Assembly
with Harness
a. Orient the reader so the LED lens is at the top.
b. Feed reader harness through door (from outside to inside).
c. Install the reader to the outside of door by aligning the mounting posts with the door preparation holes.
Hold the reader flush against door while ensuring proper alignment.
12
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
e. Tuck excess cable into wire hole on inside of door.
f. Begin to secure the mounting assembly by partially tightening the (2) through-bolts on the
inside of the door while ensuring proper alignment as you secure the reader (Fig. 9b).

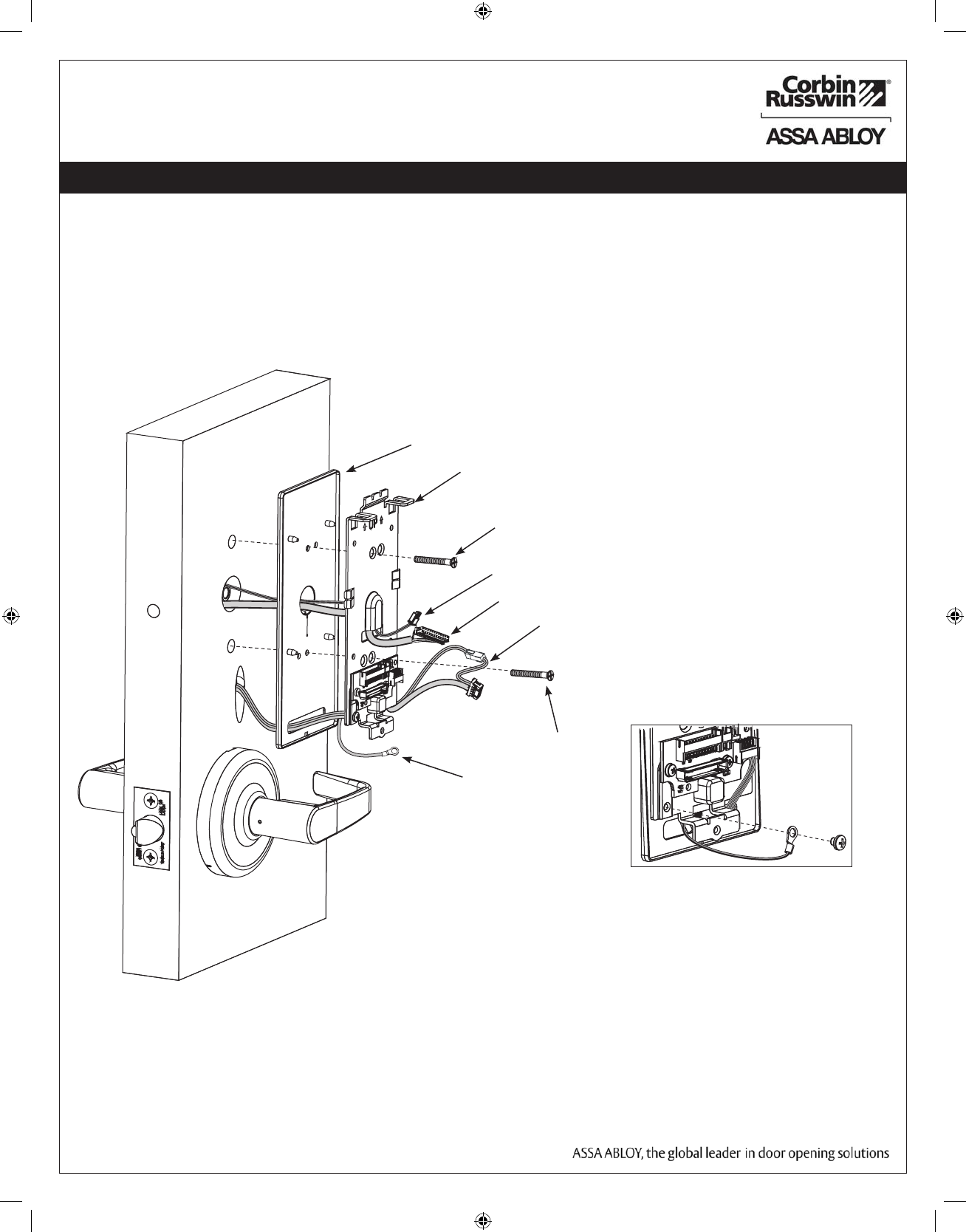

d. Feed the reader harness and DPS connectors through the inside mounting assembly
(and gasket if required*). See Figure 9b.
IMPORTANT: Do not run wires through bottom flange hole in plate (Fig. 9b, c) - it will damage wires and
the controller connector. Route wires around flange, do not route wires through the flange hole (Fig. 9c).
5) Installation Instructions (Continued)
Fig. 9b
Gasket*
Mounting Plate
Lock body
Harness
Ground
Lug
DPS
Reader
Harness
NOTE: Cable lengths exaggerated for illustrative purposes.
Inside of Door
Through -
bolt
Through -
bolt
*Gasket is required for outdoor installations.
If installing with gasket; separate gasket from mounting plate to feed cables/connectors through holes
as indicated (Fig. 9b).
Once cables/connectors are fed through, reattach gasket to mounting plate.
Fig. 9c
g. Secure ground lug with #6-32 machine screw (Fig. 9c).
IN100 Cylindrical Lock
13
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)

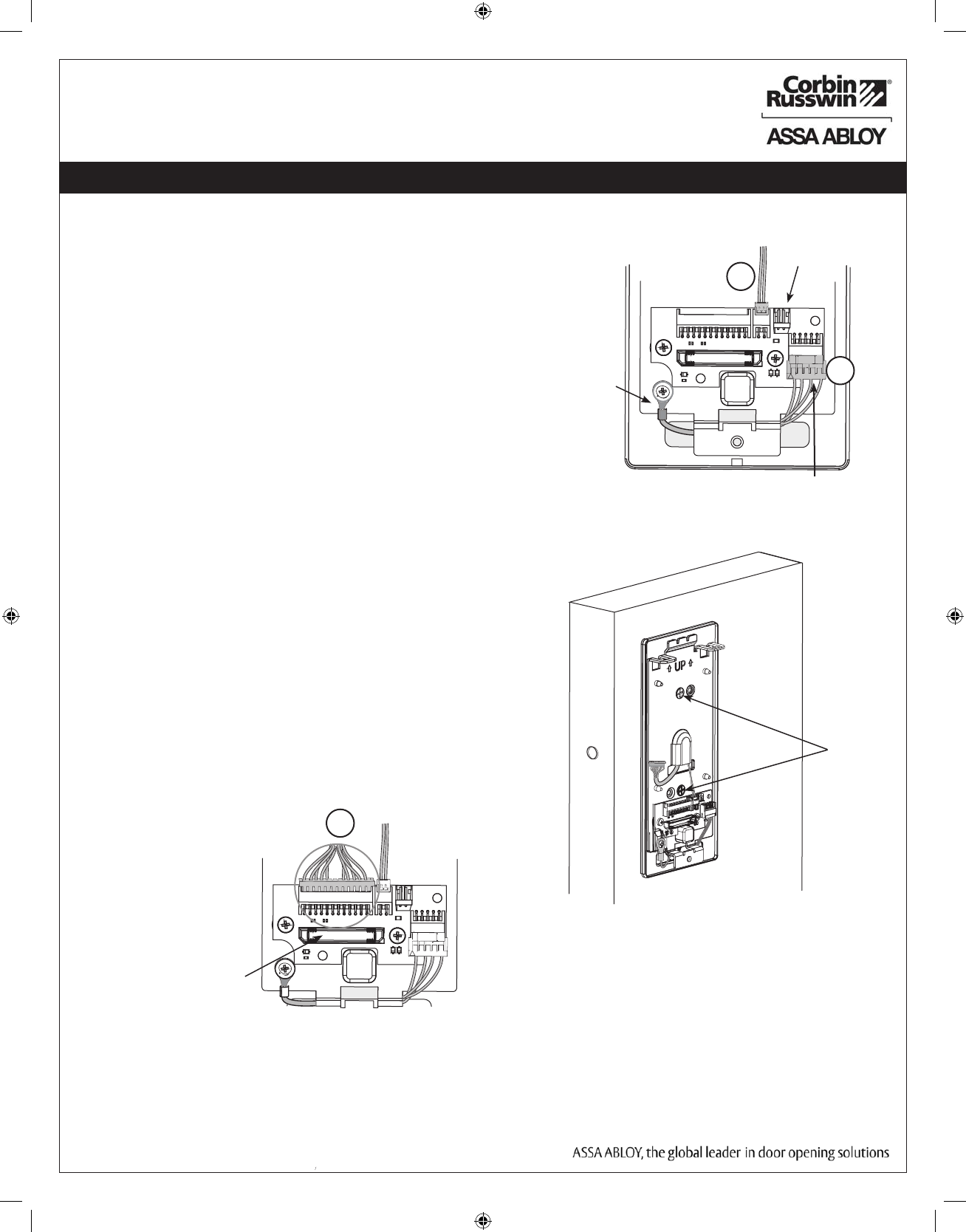

10. Installation of Connectors
Secure the following connectors to their respective terminals (Fig. 10D):
A. Secure the 4-pin DPS connector.
B. Secure the 10-pin lock body assembly connector.
CAUTION - Do not touch or allow debris to enter connector contacts.
IMPORTANT: Do not run wires through bottom hole in plate - it will
damage wires and the controller connector.
Route wires around flange, do not route wires through
the flange hole (Fig. 10B, D).
E. Secure the 24-pin card reader connector (Fig. 10F).
Ground
Lug
DPS (4-pin)
A
Lock
Body
(10-pin)
Fig. 10D
B
Reader
(24-pin)
Board-to-Board
Connector
Fig. 10F
D
D. Secure the mounting assembly while ensuring proper
alignment of outside reader and tighten the (2) through-bolts
on the inside of the door to secure the reader (Fig. 10E).
Secure Mounting Plate
*NOTE: Optional 2-pin external 9-24VDC power connector.
9-24VDC
Power*
C. When all connections have been made, tuck excess cable
into wire hole on inside of door.
Fig. 10E
Fully
tighten
14
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)

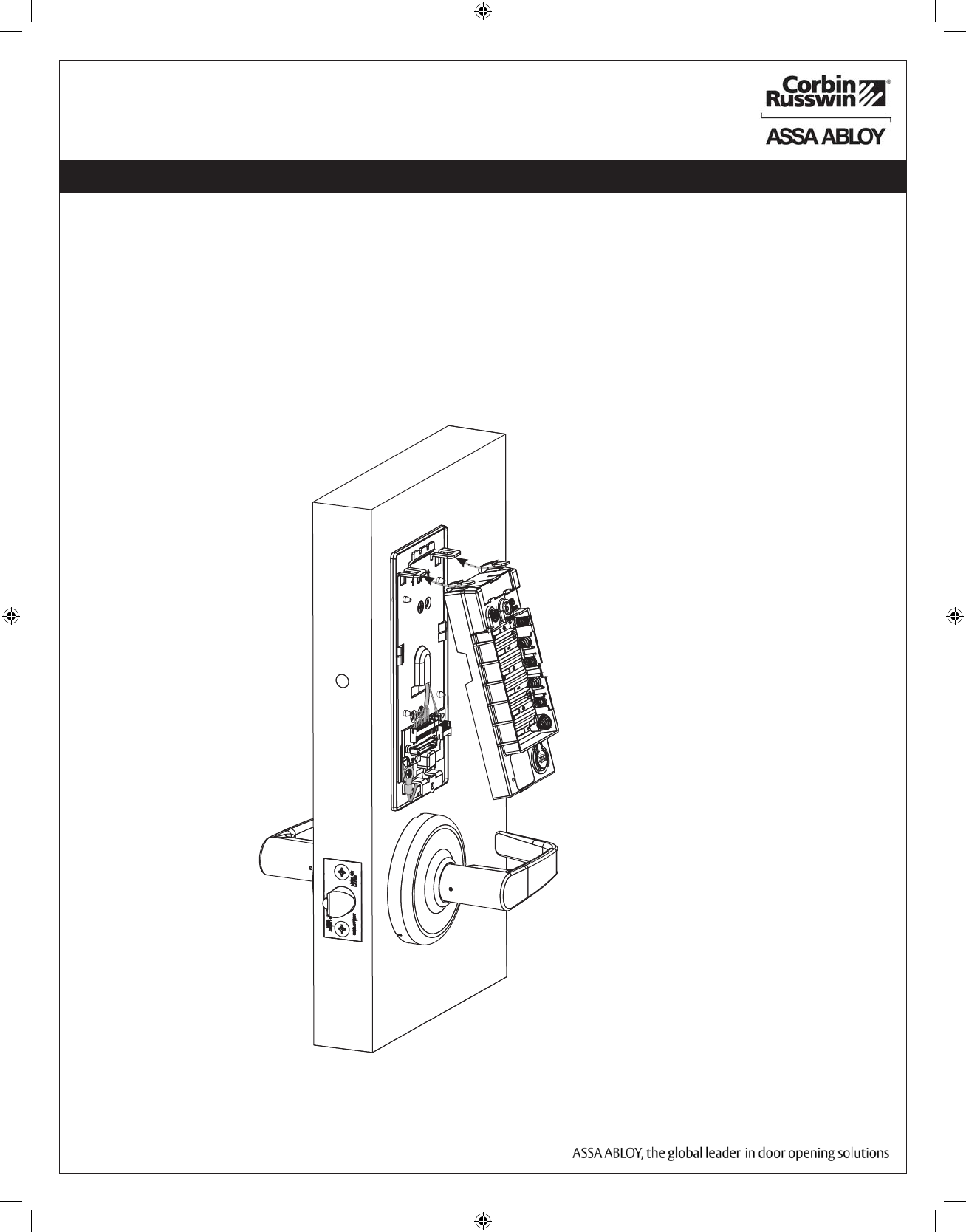

11. Installation of Inside Component Assembly
a. Insert top tabs of controller into slots on mounting plate (Fig. 11).
b. Ensure proper alignment of board-to-board connectors while pivoting bottom of controller
toward door until tab on bottom snaps securely into place on mounting plate.
CAUTION: To avoid possible damage to board-to-board connectors,
care should be taken when securing controller to mounting
plate. If there is resistance when securing, detach controller
to determine cause before re-attaching controller.
Fig. 11
Inside Face of
Door
IN100 Cylindrical Lock
15
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
a. Assemble cover by hooking top edge on inside
mounting plate.
b. Carefully press bottom of cover toward door without
pinching or damaging wires.
c. Secure cover utilizing security allen wrench (provided).
5) Installation Instructions (Continued)

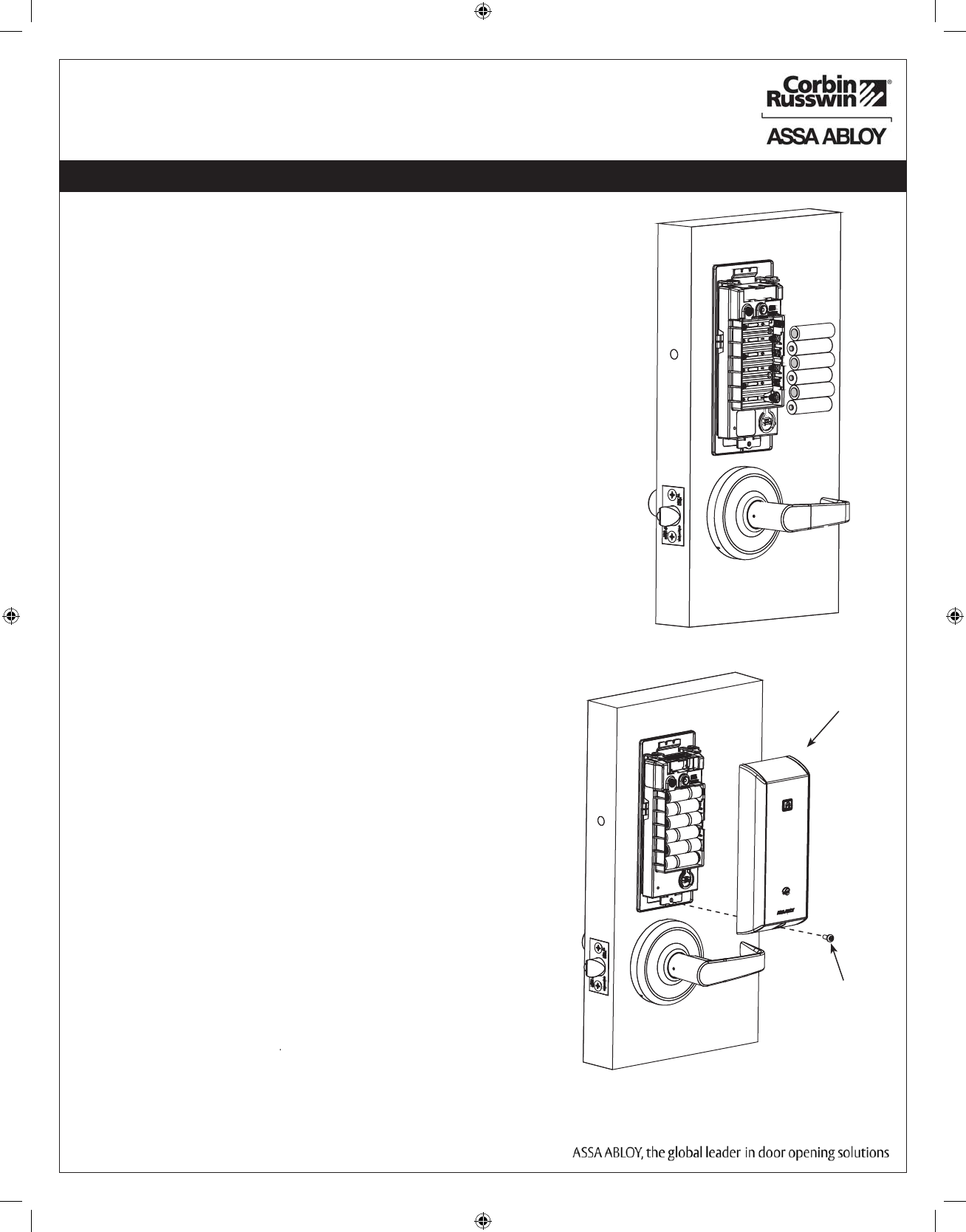

12. Battery Installation
Inside
Cover
Security Allen
Screw
13. Inside Cover Installation
Fig. 12
Fig. 13
1. Place (6) “AA” alkaline batteries in the compartment, being
careful to align polarity properly (Fig. 12).
2. After batteries are installed, there is a slight delay; then red and
green flash, audible “beep” and lock motor will cycle.
16
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

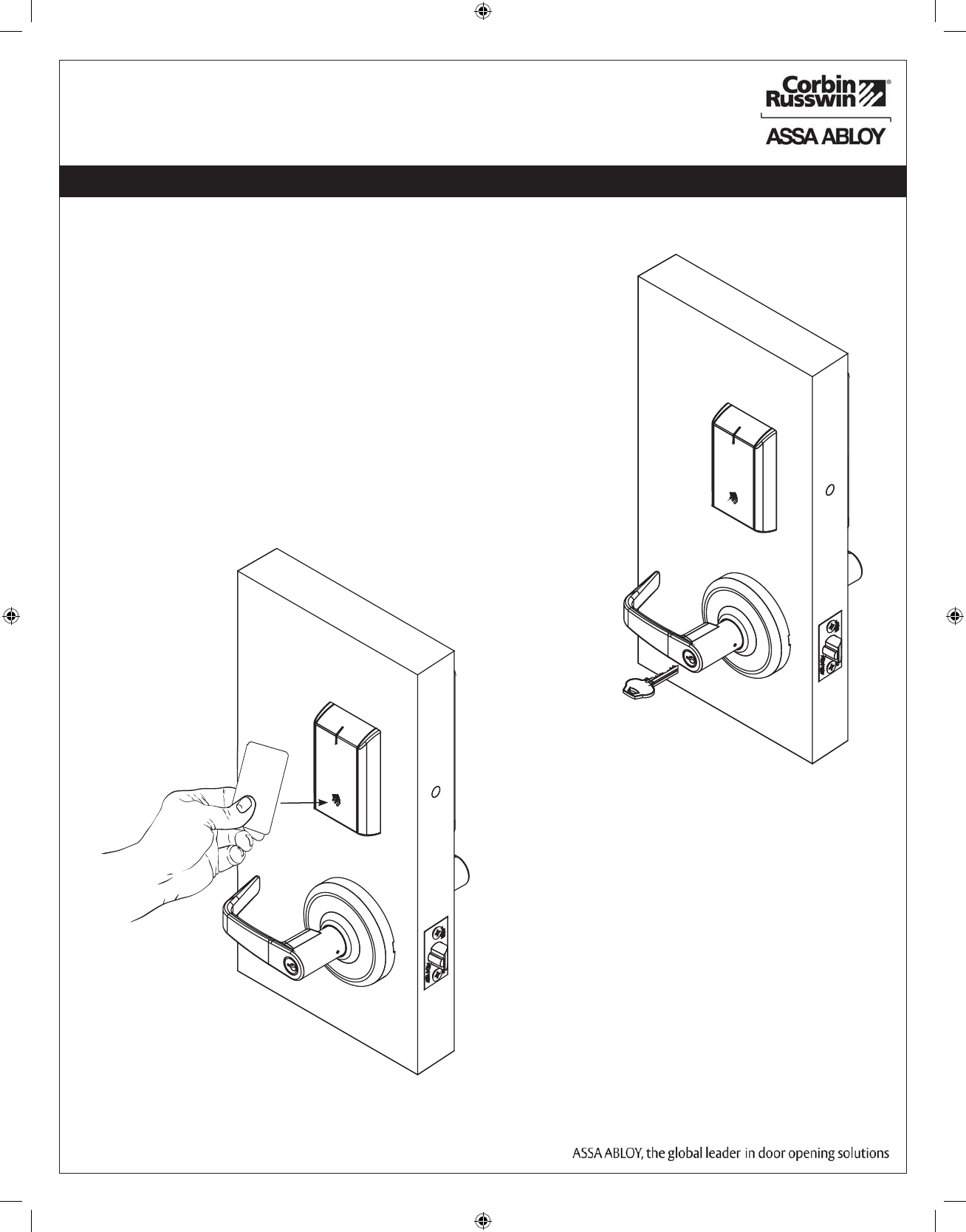

6) Operational Check
a. Insert key into cylinder and rotate (Fig. 14a).
b. There should be no friction against lock case, wire harness or
any other obstructions.
c. Check that the key retracts the latch.
d. The key should rotate freely.
e. Try the inside lever; ensure it retracts latch.
f. Present a valid credential* (Fig. 14b) to unlock outside lever; turn
lever handle to ensure latch retracts.
Fig. 14a
Fig. 14b
When lock is fully installed, perform the following steps:
Note: The credential should approach the inscription
on the reader as indicated (Fig. 13b) to ensure
that the credential is read properly.
Do not wave credential.
IN100 Cylindrical Lock
17
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

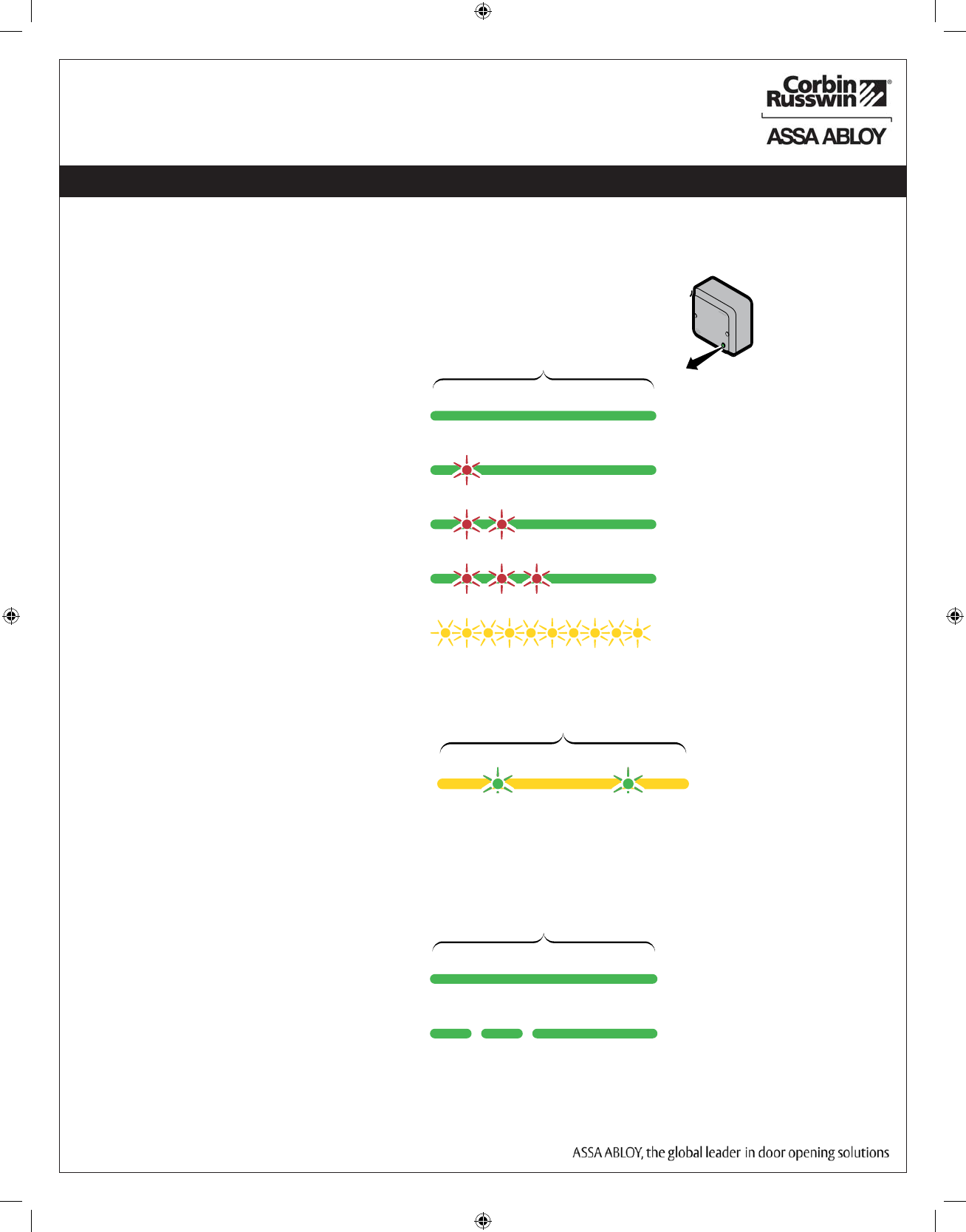

Communication Hub LED indications
The communication hub has a single LED. It supports an optical scheme of red, green and yellow.
The indication scheme is described by the figures below:
Figure 1.
Communication hub normal
operation LED indication
2 sec.
Online Green
Aperio® lock Green + one
red flash
offline
EAC offline
Aperio® lock and Green + three
red flashes
EAC offline
UHF Yellow + off,
fast flash
communication
Some special LED indication schemes* are
used during lock maintenance actions:
2 sec.
Figure 2.
Communication hub maintenance
LED indication Pairing active Yellow + green
Ethernet LED indication
The LED on the AH40 communication hub* indicates both the status of
the Ethernet link level and ethernet communication:
2 sec.
Figure 3.
AH40 Communication hub
Ethernet LED indication Ethernet
link connected Green
Ethernet Green +
communication off fast flash
Green + two red flashes
7) LED Indications
*For more information, refer to Aperio Online Quick Installation Guide
(Document No: ST-001322-PF Date: 2015-12-23)
18
IN100 Cylindrical Lock
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
1)
Lock LED indications
The lock has three LEDs. They support an optical scheme of red, yellow and green.
The indication scheme is described by the figures below:
Figure 4. Lock normal operation LED
indication
One yellow flash after card, two
flashes before PIN (.125 second)
Card + PIN access
(configurable)
Access granted, One green flash
(1 sec.)
EAC offline or online
Access denied, One red flash
(1 sec.)
EAC online
Force closed in remote Five yellow flashes and
open/office mode one red flash (.25 second)
Busy blink, com hub
busy with other locks
Continuous yellow flashes
(.25 seconds every second)
Access denied, Three red flashes
(.5 second each)
EAC offline
Lock mechanism is Continuous red flashes
blocked when closing (.125 seconds every 1 sec.)
Error in lock, Ten red flashes (.125 sec. each)
maintenance required (Repeated every 10 sec. if lock can’t close)
Ten red flashes (.125 sec. each)
repeated every 10 sec.
Tamper
Time to replace Continuous yellow flashes
(.25 seconds every 5 sec.)
the battery
Battery reached end
of life, lock disabled
Continuous red flashes (.25
seconds every 5 sec.)
1) When the lock mechanism is blocked (lock jammed) the lever must be turned to
release the lock mechanism.
Some special LED indication schemes are used during lock maintenance actions:
Figure 5. Lock hub normal
operation LED indication Enter configuration Five yellow flashes
(.125 second each)
mode
One yellow flash (.25 second)
Card access
(configurable)
Enter PIN
EAC response
time
V3 USB cable detection
action occurred
Five yellow flashes
(.25 second each)
IN100 Cylindrical Lock
19
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

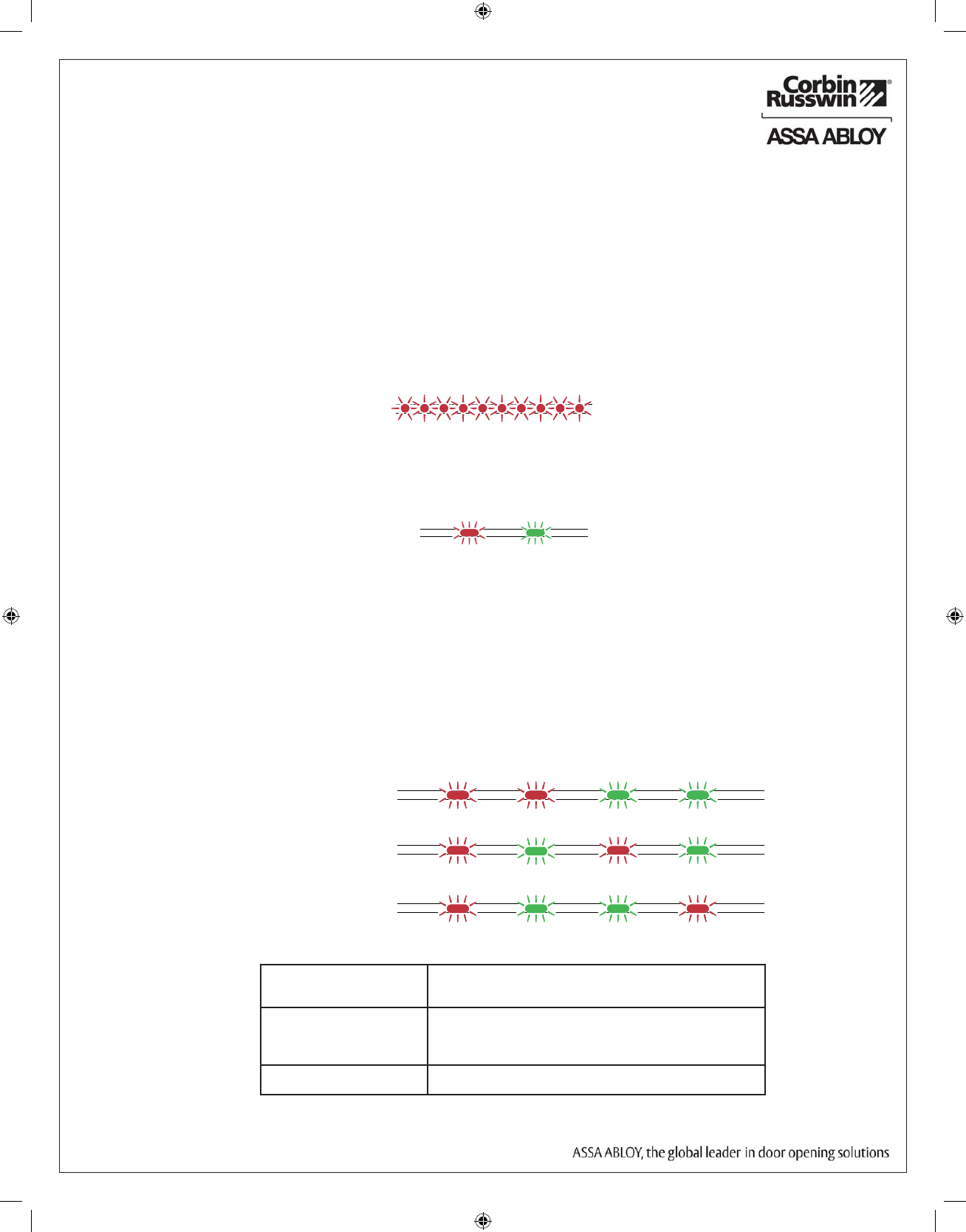

Lock Self-Test LED indication
After replacing batteries, a Power on Self Test (POST) is performed. The result is indicated using
a series of red and green LED flashes as described by the figures below.
8.3.1 Battery not fully charged
8.3.2 Test pass
1 red (1s) + 1 green (1s), Power on self-test passed, see table below.
Error in lock, Ten red flashes (.125 sec. each)
maintenance required (Repeated every 10 sec. if lock can’t close)
LED indication after power up/replacement of the battery
Figure 6. Lock POST LED
indication
8.3.3 Test fail
1 red (1s) + 3 blinks (.5 sec, green or red), at least one test failed (red), see table below.
FATAL ERROR
CABLE ERROR
MECHANICAL ERROR
FATAL ERROR Tests core functionality - MCUs, memory and internal
communication, etc.
CABLE ERROR Tests communication between the different
parts in the system, i.e. different boards
connected with a wire.
MECHANICAL ERROR Test related to moving parts of the lock.
1 sec 0.5 sec 0.5 sec 0.5 sec
One red, one green flash
POST Successful (1 second)
If a fatal error is detected the lock will enter an Error state and continuously indicating fatal error and will
not read cards nor unlock.
Error in lock is an indication -10 quick (125ms) red blinks, that either new batteries are not at the
right voltage or a backward battery has been installed; battery not fully charged; energy counter
not reset or no Power on self-test done.
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

Navigation menu
