Manual – YRT210-ZB
![](/img.php?id=1641560&img=bg2.png)
For Technical Assistance call Yale at 1-800-810-WIRE (9473)
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN DAMAGE TO THE PRODUCT
AND VOID THE FACTORY WARRANTY
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
This document is available on our website in printed Spanish and French. Go to www.yalecommercial.com.
Click "Product Information & Documentation" and then "Installation Instructions".
Este documento está disponible en español en nuestra página de internet. Vaya a www.yalecommercial.com.
Presione "Información del Producto y Documentación" y luego "Instrucciones de Instalación".
Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalecommercial.com.
Cliquez sur le " ; Information sur le produit et Documentation" et puis " Installation Instructions".
Yale Real Living™ Push Button Lever
Installation and Programming Instructions
![](/img.php?id=1641560&img=bg3.png)
2
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Warnings .........................................................................................................................2
Return Lock to Factory Default ................................................................................3
Introduction .....................................................................................................................3
Installation
Components and Tools .............................................................................................4
Prepare Lock for Installation ................................................................................. 5-6
Install Lock .......................................................................................................... 6-11
Programming
Programming Features-Menus-Keys-Definitions ............................................. 12-13
Lock Operation ................................................................................................. 14-15
Miscellaneous Information
Hardware Troubleshooting ......................................................................................17
Programming Troubleshooting ...............................................................................18
Installing the Network Module ...............................................................................19
Change Lever Handing .................................................................................... 20-21
Installing/Replacing Cylinder ................................................................................ 22
Sample Pin Code Management Sheets ........................................................... 23-24
TABLE OF CONTENTS
WARNINGS
FCC:
FCC ID: U4A-YRHCPZW0 (Z-Wave); U4A-YRHCPZB0 (Zigbee)
Model(s): YRT210-ZW, YRT210-ZB
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful Interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and
security of this product. Misalignment can cause performance degradation and a lessening of
security.
Finish Care: This lockset is designed to provide the highest standard of product quality and perfor-
mance. Care should be taken to ensure a long-lasting finish. When cleaning is required use a soft, damp
cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes could damage the coat-
ing and result in tarnishing.
Warning: Changes or modifications to this device not expressly approved by Yale Security, Inc.
could void the user's authority to operate the equipment.
![](/img.php?id=1641560&img=bg4.png)
3
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Factory Default Settings
To reset the lock to factory default, see the following:
The following procedure returns the lock to its factory defaults
by deleting all user codes (including the Master PIN code*) and
returning all programming features to their original default settings
(see below).

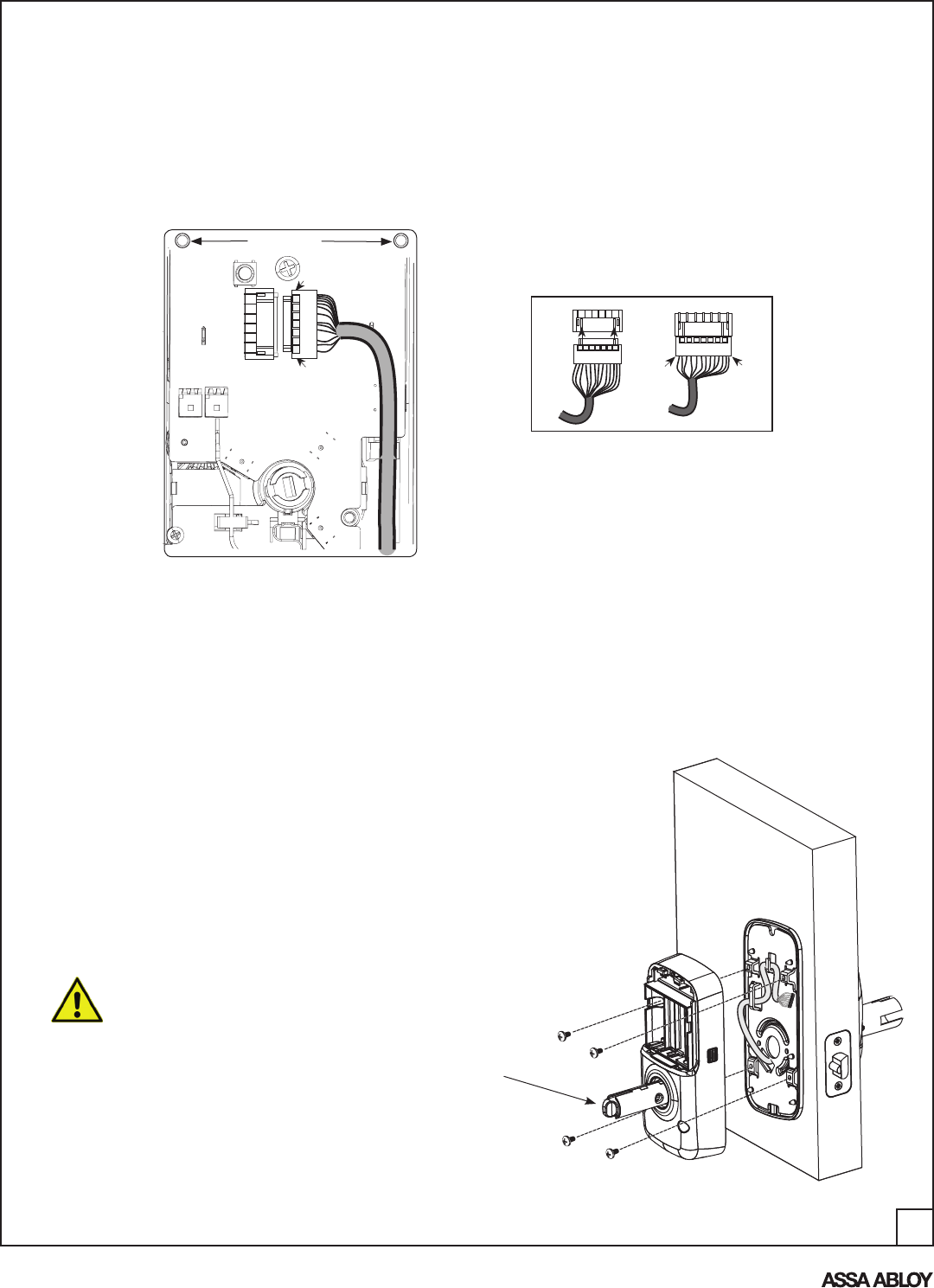

1. Remove the batteries and then remove the inside escutcheon
to access the reset button.

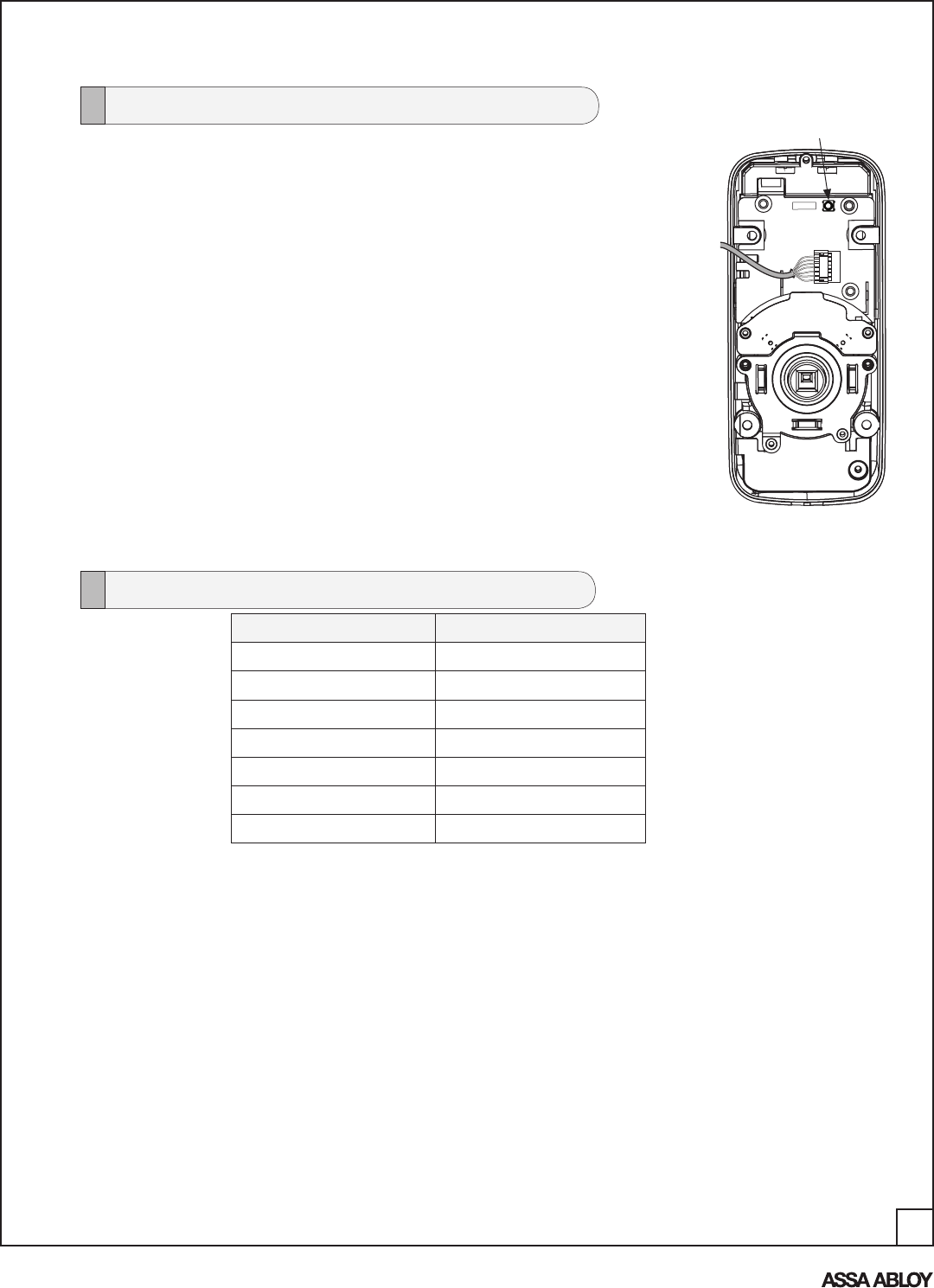

2. The reset button (see image at right) is located above the
PCB cable connector.
3. Hold down the reset button for a minimum of 3 seconds and
then reinstall the batteries; once the batteries are properly
installed, release the reset button.
All features, including adjustable settings** (see below) should
now be returned to factory default.
Upon reset, Master Code Registration is the only option available
and must be performed prior to any other programming of the lock.
See "Operation" later in this manual for programming instructions.
Reset Lock to Factory Default
Reset Button
Inside Escutcheon
Settings Factory Default
Master Code Registration required
Auto Re-lock Enabled
One Touch Re-Lock Enabled
Audio Enabled
Auto Re-lock Time **30 Seconds
Wrong Code Entry Limit **5 Times
Shutdown Time **60 Seconds
**Adjustable only when using Network Module
![](/img.php?id=1641560&img=bg5.png)
4
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Industry Canada:
Canadian ID: 6982A-YRHCPZW0 (Z-Wave); 6982A-YRHCPZB0 (Zigbee)
Model(s): YRT210-ZW, YRT210-ZB
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce
dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle
interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
For the U4A-YRHCPZB0 and 6982A-YRHCPZB0, the following statement applies:
“This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.”
Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
En vertu des règlements d'Industrie Canada, cet émetteur radio ne peut fonctionner avec une antenne
d'un type et un maximum (ou moins) approuvés pour gagner de l'émetteur par Industrie Canada. Pour
réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies
de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Section 7.1.3 of RSS-GEN This Device complies with Industry Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions: 1) this device may not cause interference, and 2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Cet appareil est conforme avec Industrie Canada RSS standard exemptes de licence(s). Son
fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut causer des
interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement du dispositif.
INTRODUCTION
The Yale Real Living™ Stand-alone Push Button Lever Lock combines a robust lockset with a
contemporary electronic aesthetic.
Users benefit from an interactive Push Button keypad that makes day-to-day access effortless for
simple updates to user information in the event of staffing changes or security breaches.
Yale Real Living™ is engineered for quick and easy installation and fits in place of a standard lever
lock door prep (ANSI/BHMA A156.115).
If this is an RF-enabled network lock, it needs to be located within 50 - 100 feet of another network
controller. That distance is influenced by objects between the lock and the controller and may be
expanded depending on proximity to other RF network devices. Also, if the lock is connected to a
network controller, it is recommended that it is programmed through the centralized user interface
(PC or hand-held device) to ensure communication between the lock and the controller unit.
![](/img.php?id=1641560&img=bg6.png)
5
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Lock Installation
#2 Phillips screw driver
Allen wrench (3mm) - provided
Parts Illustrations
Tools Needed

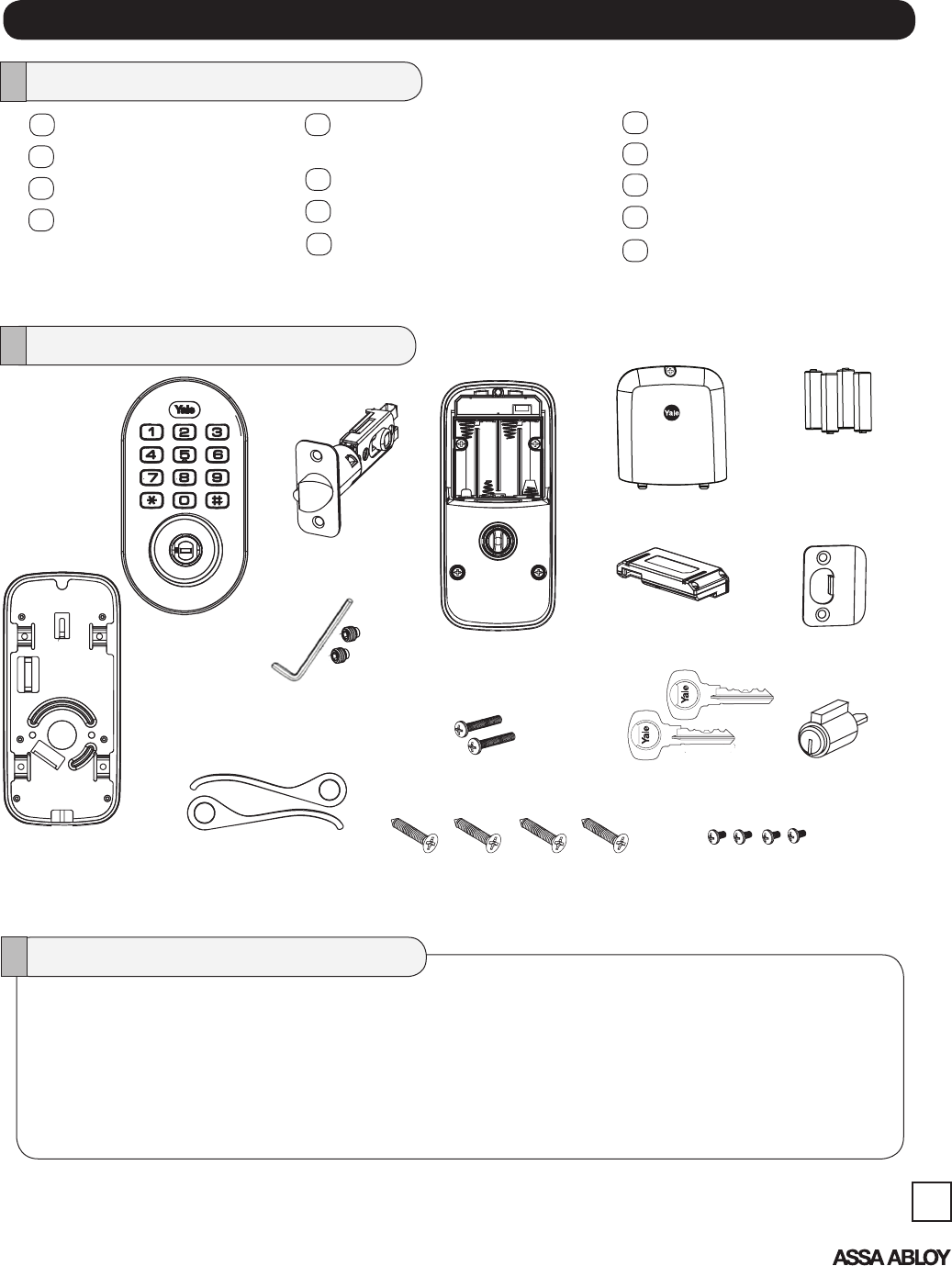

COMPONENTS AND TOOLS
INSTALLATION
Outside
Escutcheon Inside
Escutcheon
4 AA Alkaline
Batteries
Latch bolt
Strike
Included in the box. . .
Door Prep
2-1/8" (54mm) hole saw
1" (26mm) boring bit
7/64" (2.5mm) drill bit
Chisel & hammer
Network Module
(Optional)
Latch Bolt
Keys
(4) Inside Escutcheon
Mounting Screws
(2) Inside Mounting Plate Screws
(2) Latch & (2) Strike Plate Mounting
Screws
Cylinder
Allen Wrench
(2) Hex Set Screws
Outside & Inside Lever
Handles
Inside Mounting Plate
with Gasket
(back of Inside Escutcheon)
Battery Cover
Installation Instructions
Template
Latch Bolt
Strike Plate
Inside Mounting Plate
(with gasket)
Inside Escutcheon
Outside Escutcheon
(2) Screw Packs (see below)
Keys
Cylinder
Battery Cover
Allen Wrench
4 AA Alkaline Batteries
![](/img.php?id=1641560&img=bg7.png)
6
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
INSTALL LOCK
Install Latch

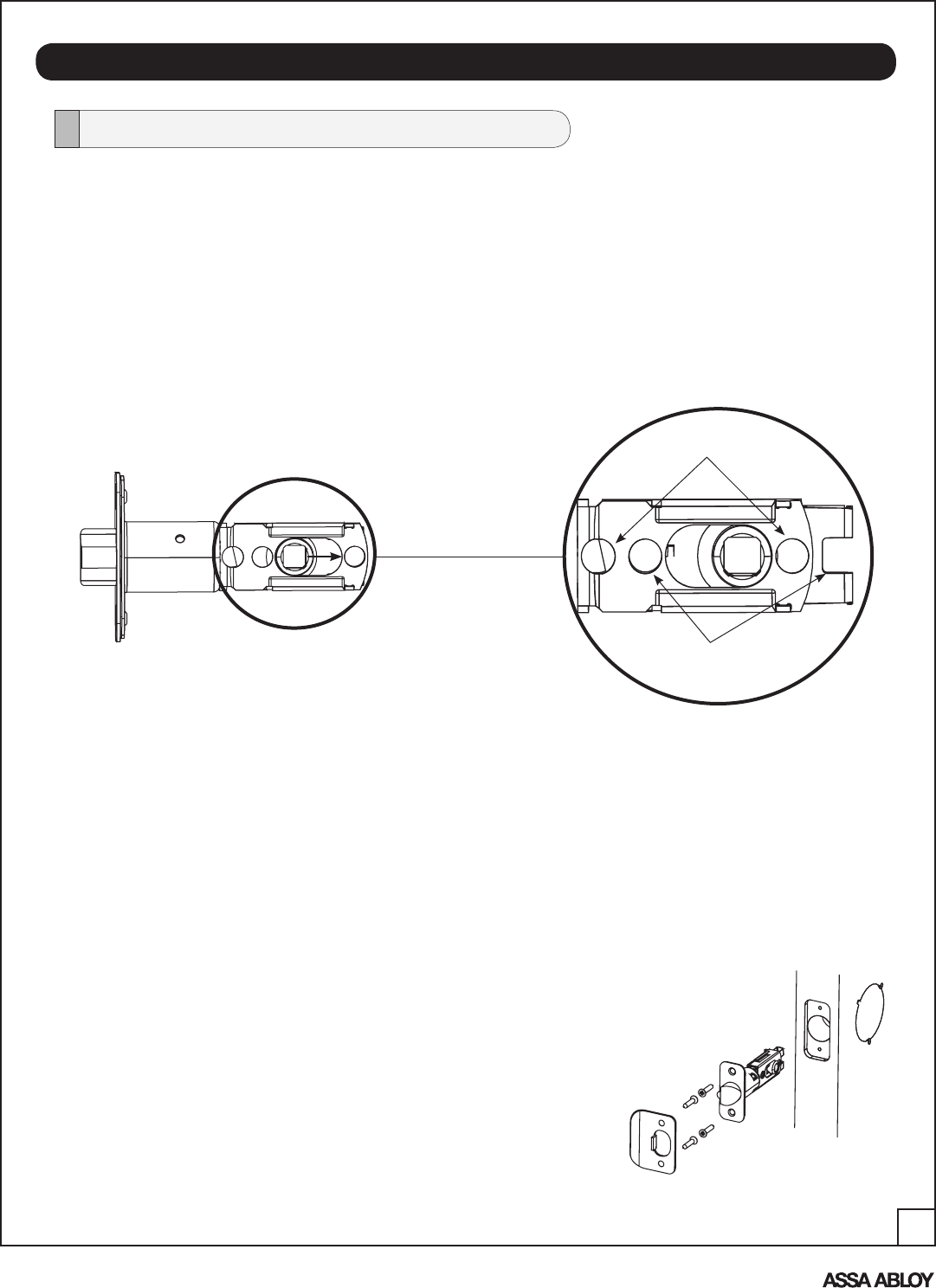

A. Remove the latch (Fig. 1) and strike plate from the packaging.
NOTE: Latch ships with backset in 2-3/8" position (Fig. 1).
Backset is the measurement from door edge to center
of 2-1/8" diameter hole (see template supplied with lock).
If required, pull to extend to 2-3/4" backset position (Detail 1A).
NOTE: Different holes are used for (2) through bolts depending on backset (see Detail 1A).
Figure 1
Detail 1A
2-3/8" through bolt posts
2-3/4" through bolt posts
The lock is packed representative of how it will install on the door.
Before installing the lock on the door:
B. Install latch bolt in door.
1. Attach with two (2) M4 x 25.4mm screws supplied.
C. Install strike on the door frame, using two (2) M4 x 25mm
screws supplied, making sure to allow for the latch to be
centered in the strike.
NOTE: The latch bolt (and strike) can be installed in only one of two ways -
with the bevel (slope) of latch facing out or facing in while standing
outside of the door.
If the door opens in, the bevel will face the outside; if the doors opens out, the
bevel will face in.
The strike plate is installed according to the orientation of the latch bolt. See
Figures 1 & 2 for an example of a RH door that opens in.
NOTE: Make sure door has been prepped according to specifications in template included
with lock.
(4) M4 x 25.4mm
Flat Head
Combination Screws
NOTE: Both latch face and strike plate have adhesive-backed covers to
prevent marring and should be removed upon installation.
Figure 2
![](/img.php?id=1641560&img=bg8.png)
7
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A

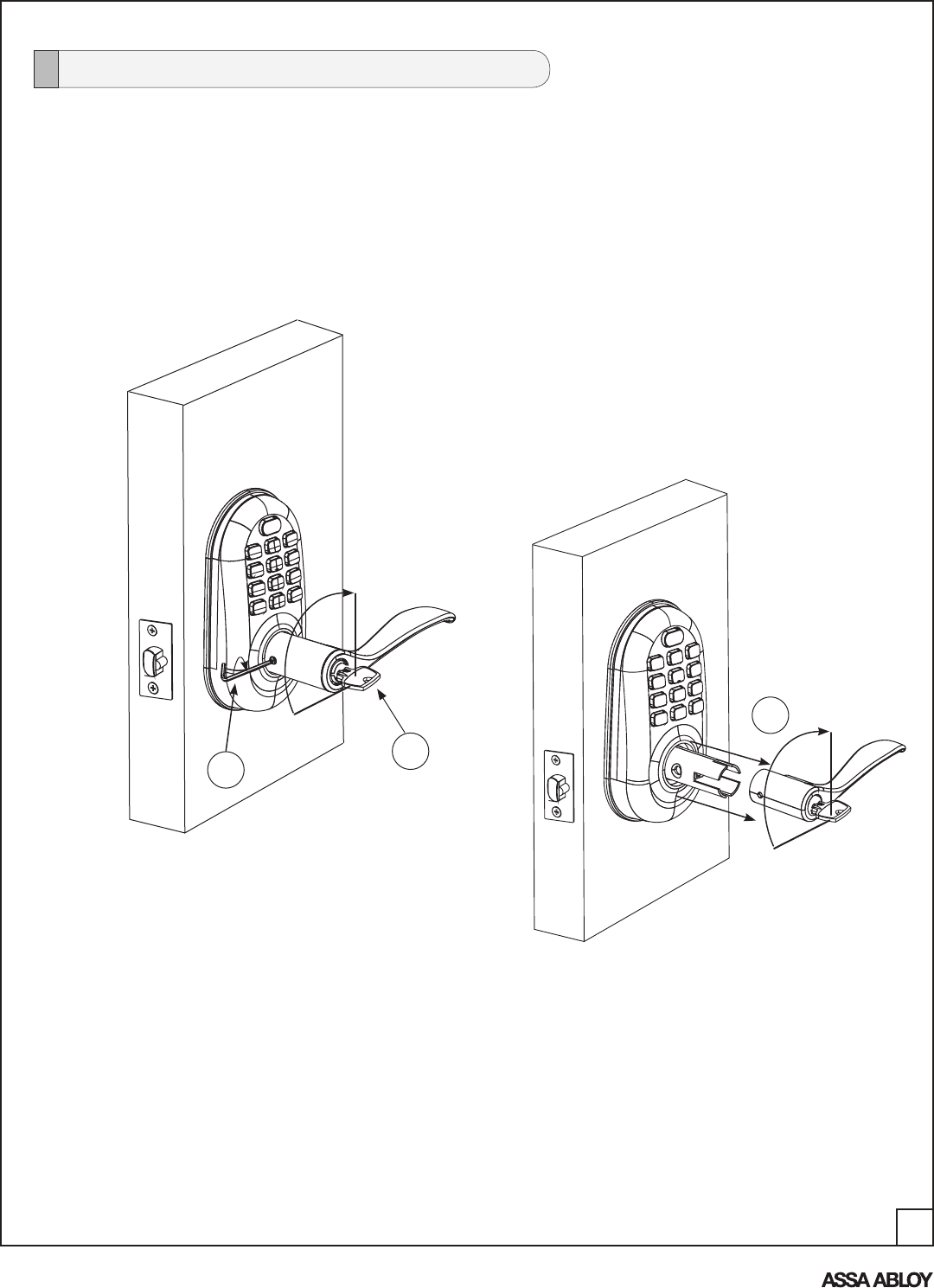

Outside Escutcheon
(with gasket)
Outside of Door
Figure 1A

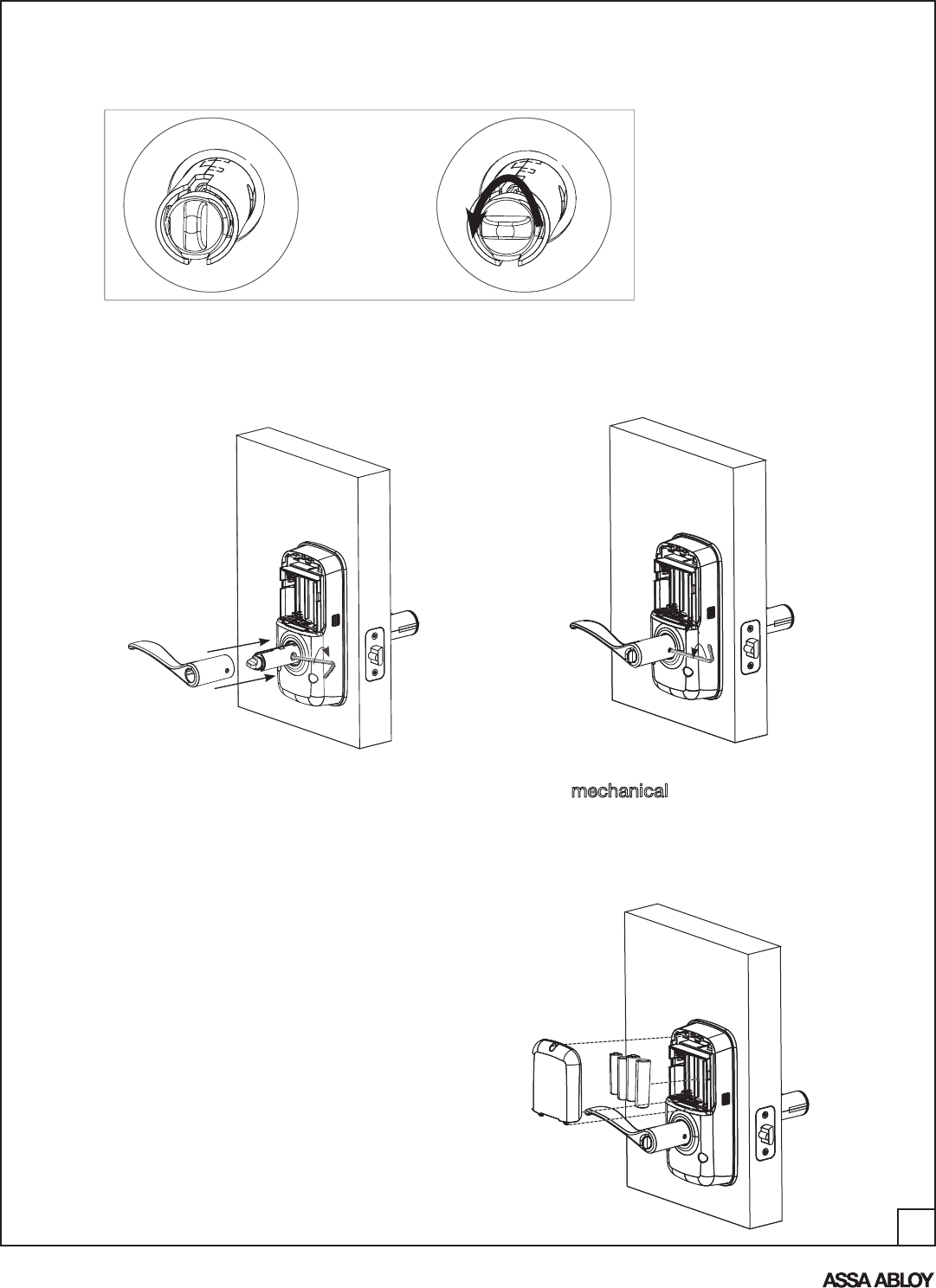

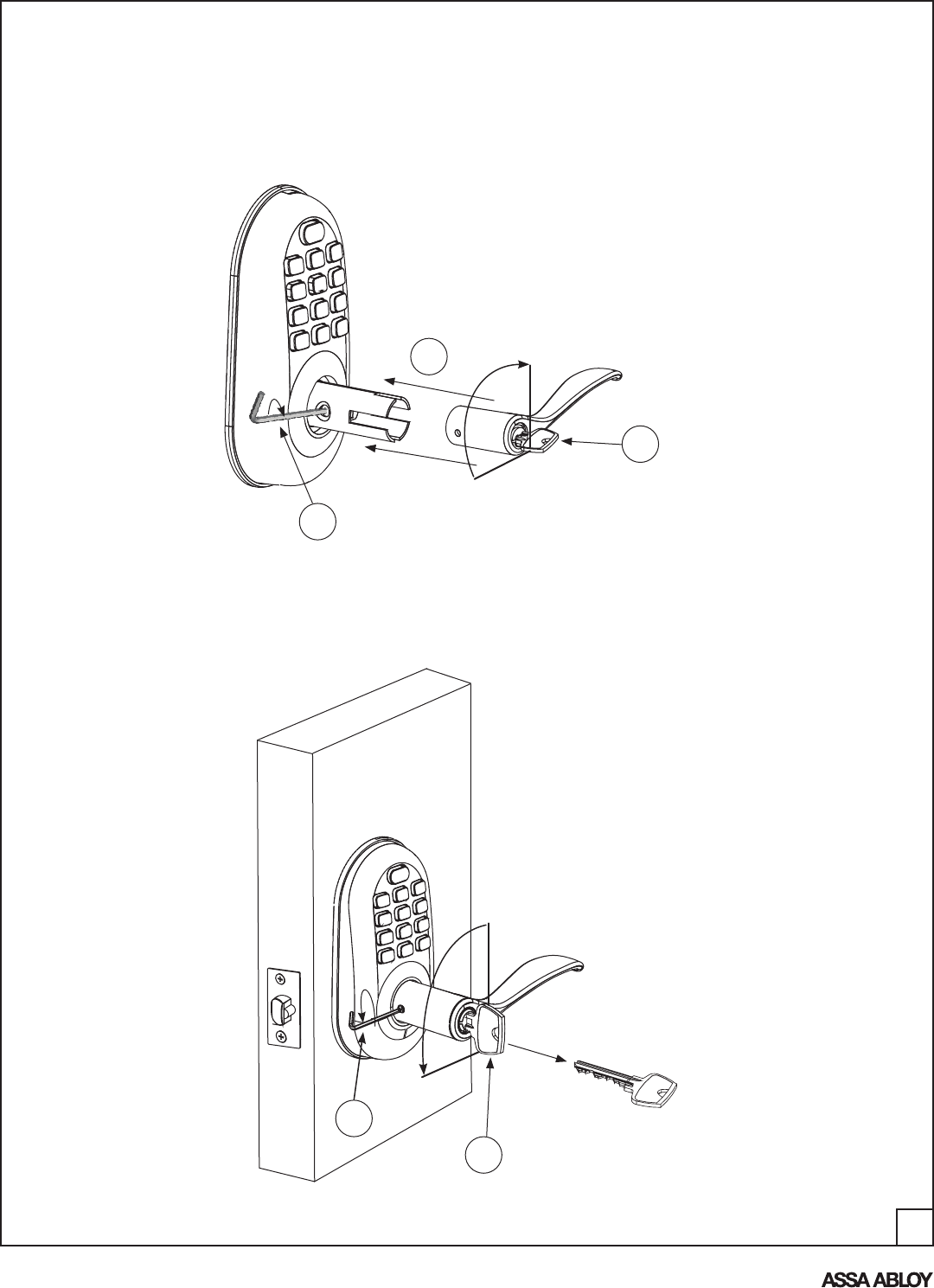

Do not remove clip from Outside Escutcheon shank until correct handing has
been determined and Outside Lever Handle is to be installed.
(See page 9)
1. From outside of door, position the outside escutcheon by first routing the cable
through 2-1/8" diameter hole and under the latch (Fig. 3A & B), then insert
posts* and tailpiece into the latch.
NOTE: Cable goes
under latch (Fig. 1A & 1B).
Outside of Door
Figure 1B
Inside of Door "Top" of Drive Tube
(marked WHITE)
Tailpiece
*Posts are inserted in holes according to
backset adjustment. (Refer back to Detail 1A
under "Install Lock")
NOTE: The "tops" of both the square drive tube and the hub (in the shank) are marked to
indicate their orientation for proper installation (Figures A & B).
Install Outside Escutcheon
![](/img.php?id=1641560&img=bg9.png)
8
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A

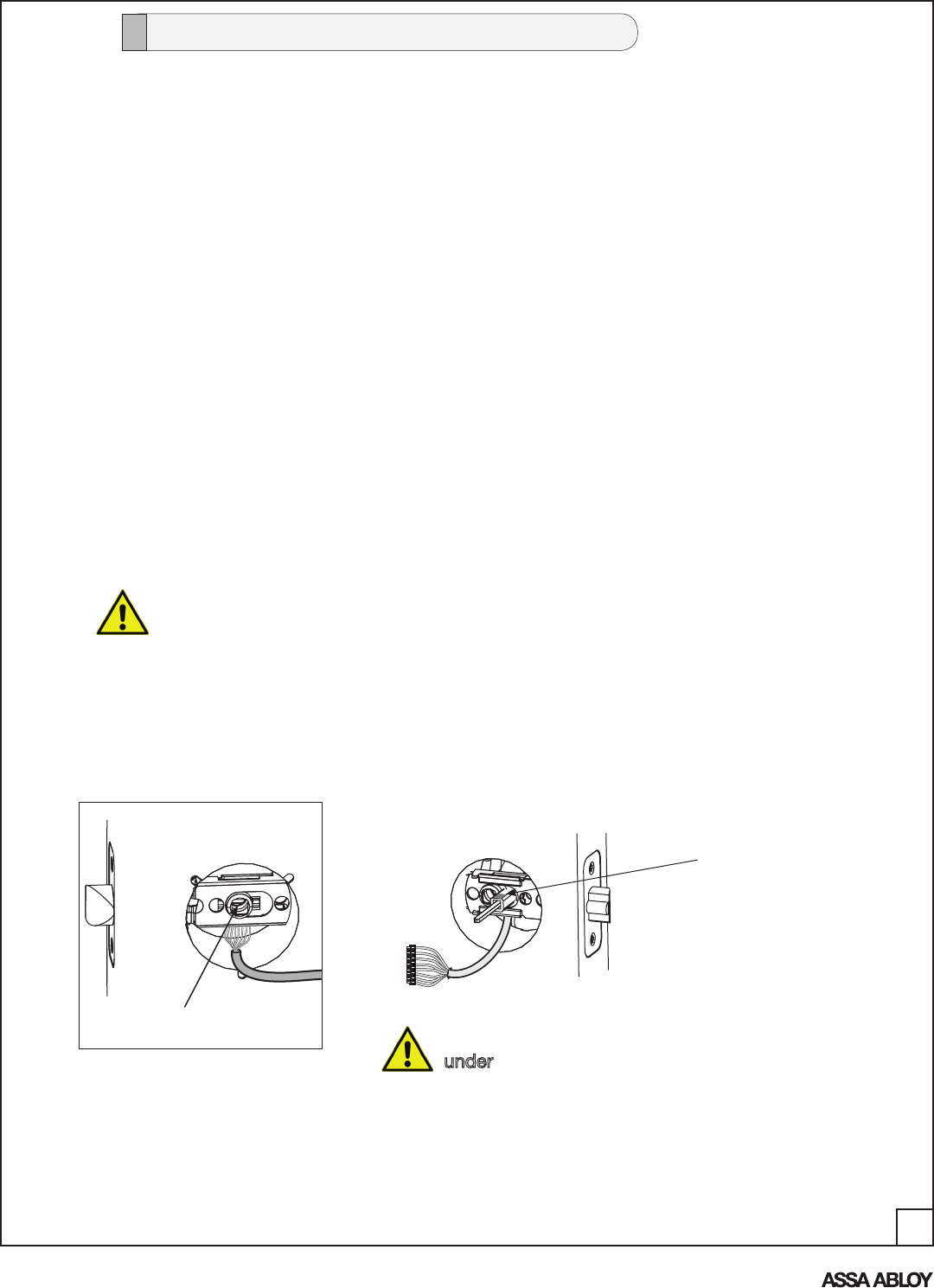

3. Install outside escutcheon.
A. Position the outside escutcheon by routing the
cable through 2-1/8" diameter hole (Fig. 3A),
under the latch.
NOTE: Cable goes
under latch (Fig. 3B).
Figure 3B
Inside of Door
4. Holding the outside escutcheon flush to the door,
position the inside mounting plate by routing the
cable/connector through the mounting plate's 1/2"
rectangular hole below center hole and then route
through left upper slot, then behind center rib (Fig. 4A).
Figure 4A
5. Secure both assemblies using (2) M4 x 25mm pan
head machine screws (Fig. 4A).
Ensure that outside escutcheon is vertically aligned.
Tighten securely with a #2 Phillips screwdriver.
Do not over-tighten.
Figure 3A
Outside of Door
Square
Drive Tube
is marked
(WHITE) to
indicate
"top"
"Top" of Drive Tube
(marked WHITE)
NOTE: The "tops" of both the square drive tube and the
tailpiece it contains are marked to indicate their
proper orientation (Fig. 3A & 3B).
B. Ensure tailpiece is oriented in the horizontal position
(Fig. 3B) and insert tailpiece through center of latch
so that outside escutcheon is flush to the surface of
the door.
Tailpiece must be in
horizontal position
RED mark indicates
"top"
![](/img.php?id=1641560&img=bga.png)
9
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
6. Attach cable assembly to the inside escutcheon printed circuit board (PCB) by lining up
notches on top of cable connector to slots on PCB connector (Fig. 6A & 6B).
Press connector in firmly using thumbs until completely seated (properly seated position
indicated by arrows on PCB as in Fig. 6A and 6B).
Figure 6A
Route cable
as indicated -
do not cover
holes
CAUTION:
Use care when assembling to ensure that the cable lies against the back recessed
area of the inside escutcheon (Fig. 6A).
Position and bend cable, as shown in Fig. 6A to prevent binding when installing the
escutcheon over the mounting plate.
7. Install inside escutcheon:
A. Ensure that thumb turn on inside escutcheon is positioned
vertically (Fig. 7).
B. Install and secure inside escutcheon to inside mounting plate
using (4) M4 x 8mm [8-32 x 5/16"] pan head machine screws
through the inside escutcheon into the mounting plate.
NOTE: Make sure cable does not obstruct path of the mounting
screws and is not being pinched by any metal parts.
Vertical
Figure 6B
![](/img.php?id=1641560&img=bgb.png)
10
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Before proceeding with the next step, determine that the handing of the lever is correct.
Both outside and inside lever handles should always point toward the door hinges.
Determine Lever Handing
NOTE: For correct lever handing, the
hex set screw for the outside
lever shank must be installed
as shown (Fig. 8B). Hex Set
Screw
LH/LHR
Figure 8B
C. Install cylinder in outside lever as indicated (Fig. 8C).
Note correct "swoop" of lever handle (Fig. 8C)
Correct
Figure 8C
RH/RHR
Incorrect
Figure 8A
A. Once correct handing is determined, remove the
clip from the shank (Fig. 8A) that has held the
hub in its correct position.
Do not rotate cam from its original position.
B. Install hex set screw

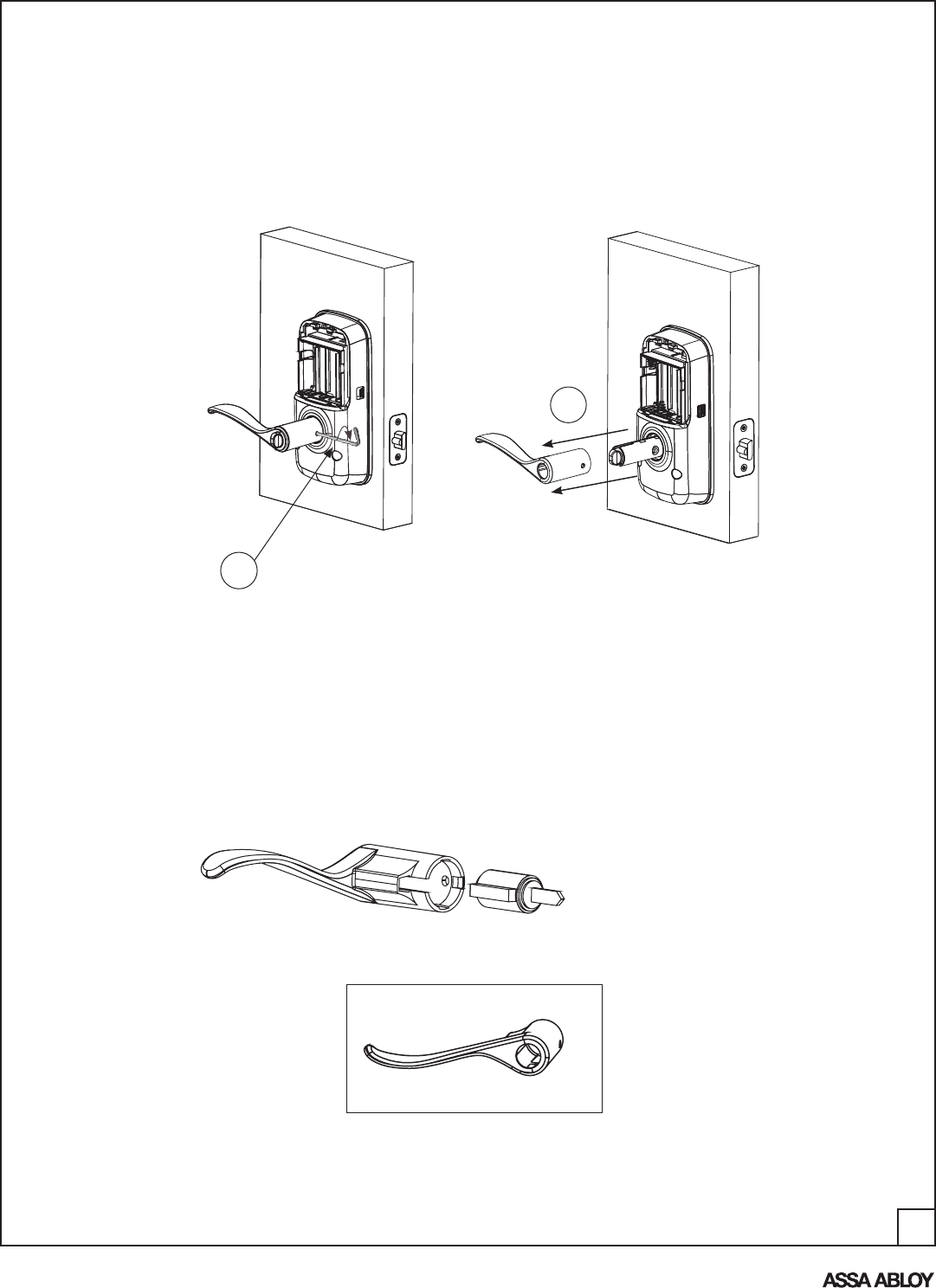

8. Attach outside lever handle to the outside escutcheon:
Detail 8A1
![](/img.php?id=1641560&img=bgc.png)
11
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
D. Insert key in cylinder (outside lever handle); rotate key 90° clockwise (Fig. 8E).
E. Insert allen wrench (included) in set screw on side of shank (toward edge of
door); turn clockwise to allow placement of lever handle over shank; do not overtighten.
F. Push lever handle/key/cylinder in until hole on handle aligns with set screw.
D
E
F
Figure 8E
Hinge side of Door
90°
G. Insert allen wrench and tighten set screw by turning counter-clockwise (Fig. 8F).
H. Turn key 90° counter-clockwise; pull to remove key and test operation of lever
handle, ensuring that the latch moves smoothly.
H
90°
G
Figure 8F
![](/img.php?id=1641560&img=bgd.png)
12
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
9. Attach inside lever handle:
C. Turn set screw counter-clockwise
to tighten.

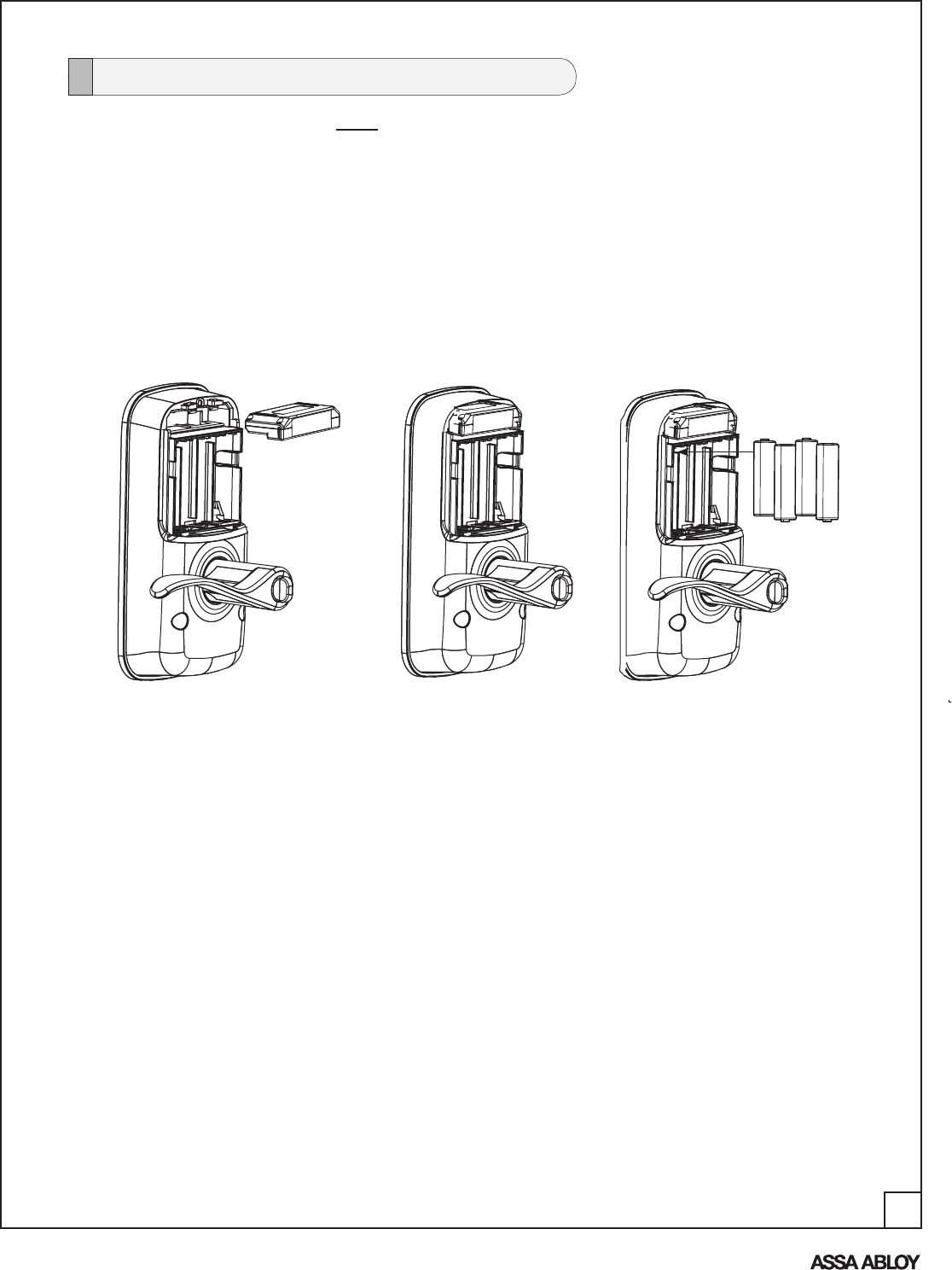

10. Insert four (4) AA alkaline batteries; the lock
will flash and beep several times..
11. Note: Refer to programming instructions prior to
completion of this step.
Install battery cover and tighten Phillips
head screw.
IMPORTANT: Before installing the batteries, test the mechanical operation of lock
by rotating the outside and inside lever handles. Also try using both the thumbturn and
key. The movement of the latch should be smooth and unobstructed.
If operation is not smooth, review the previous steps to ensure proper installation, while
maintaining proper alignment of escutcheons.
A. Rotate thumbturn counter-clockwise to horizontal position (Fig. 9A).
B. Insert allen wrench (included) in set screw
on side of shank (toward edge of door);
turn clockwise to allow placement of
inside lever handle over shank.
Figure 9A
Figure 9B
Figure 9C
![](/img.php?id=1641560&img=bge.png)
13
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
PROGRAMMING
PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS
Programming Features-Menus-Keys-Definitions ............................................. 12-13
Operation .......................................................................................................... 14-15
Network Module Slot
Alkaline Batteries
4 AA Type
Hex Screw
Battery Cover
Outside Inside
Menu and Icons Used in This Guide
Click the indicated number. Enter Master PIN code* (4-8 digits in length).
Press the Star key on the keypad to Enter or
Accept entry. Enter User PIN. Can be 4-8 digits in length.
Press the Pound key on the keypad to enter
Menu mode.
User Number (1 - 25);
RF Controlled (1 - 250).
~M
U
Status Indicator
Numbers
Cylinder
Low Battery Warning
1 Lockout Mode
2 Return to previous step
3
Status Indicators
RED RED &
BLUE
BLUE
*The Master Pin Code must be registered prior to any further programming of the lock.
![](/img.php?id=1641560&img=bgf.png)
14
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all
user PIN code access. When attempting to enter a code while the unit is in Lockout, the
Status Indicator flashes RED and BLUE; the keypad flashes as well.
Low Battery: When battery power is low, the Status Indicator flashes RED. If battery
power is completely lost, use the key override.
Master PIN Code: The Master code is used for programming and for feature settings.
NOTE: The Master Pin Code must be registered prior to programming the lock. The
Master code will also operate the lock.
Auto Re-Lock Time: After successful code entry and the unit unlocks, it will automati-
cally re-lock after a default of thirty (30) seconds. Re-lock time is adjustable from five (5)
to thirty (30) seconds.
One Touch Re-Lock: When the bolt is retracted, activating the keypad will extend the bolt
(during Auto Re-Lock duration or when Auto Re-Lock is disabled).
Shutdown Time: The unit will shutdown for a default of sixty (60) seconds and not allow
operation after the wrong code entry limit has been met. When the unit is in Shutdown,
the Status Indicator flashes RED and BLUE; the keypad flashes as well.
Audio Mode: Choosing Disable (3) in Audio mode shuts off the code confirmation tone
playback for use in quiet areas. Audio mode is enabled or disabled through feature pro-
gramming by the Master code.
Status LED: Located on inside escutcheon.
User PIN Code: The User code operates the lock. Maximum number of user codes is
250 with Network Module; without Network Module, maximum is 25 user codes.
Wrong Code Entry Limit: After a specified number of unsuccessful attempts at entering
a valid PIN code the unit will shut down and not allow operation. Wrong code entry limit is
adjustable from three (3) to ten (10) times through feature settings (up to 5 times with no
RF network enabled - default is 5; 10 with RF network enabled).
Definitions
Factory Default Settings
*Adjustable with Network Module
Settings Factory Default
Master Code Registration required
Auto Re-lock Enabled
One Touch Re-Lock Enabled
Audio Enabled
Auto Re-lock Time **30 Seconds
Wrong Code Entry Limit **5 Times
Shutdown Time **60 Seconds
![](/img.php?id=1641560&img=bg10.png)
15
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
1
Press the key to enter Master
Code Registration.
1
Enter a 4-8 digit Master PIN code
followed by the key.
2
1. Press the key to enter Master Code Registration.
2. Enter a 4-8 digit Master PIN code followed by the key.
Register Master Code Before Programming*
User Codes can only be programmed through the Master Code*.
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter followed by the key.
3. Enter the User number to be registered (1-25) followed by the key.
4. Enter a 4-8 digit PIN code for the User number followed by the key.
User Pin Code Registration
Note: When registering User codes, the code must be entered within 20 seconds.
If time expires, no codes are registered and the process must be re-started.
PIN code structure
Maximum number of user codes is 250 with Network Module; without Network Module,
maximum is 25 user codes.
*Master PIN Code must be registered prior to programming the lock.
OPERATION
![](/img.php?id=1641560&img=bg11.png)
16
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Enable
Disable

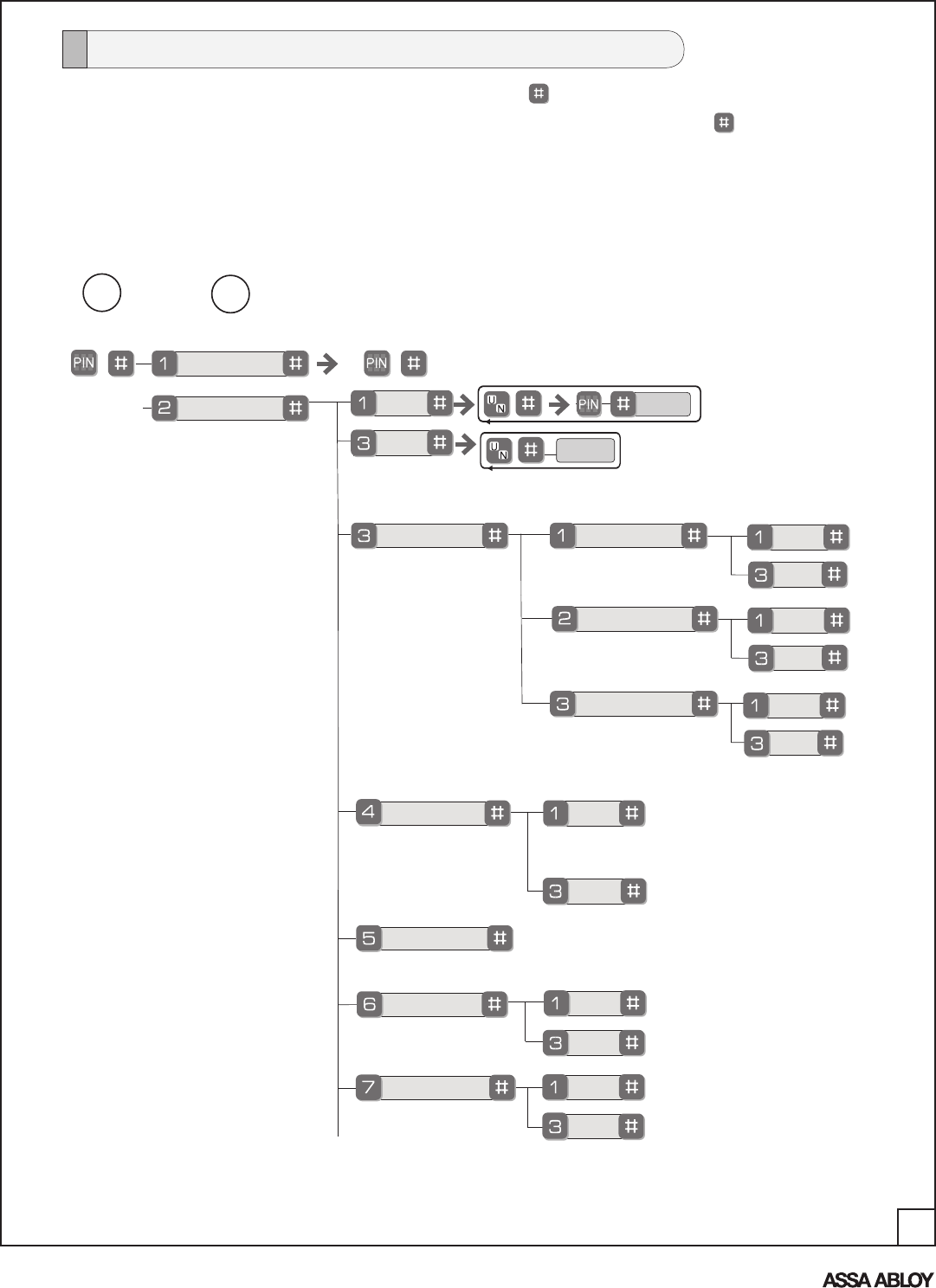

Feature Programming Through Menu Mode Using Master PIN code*
*The Master PIN code must be registered prior to programming of the lock.
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter digit corresponding to the function to be performed followed by the key.
Note: If the lock is connected to a network controller, it is recommended that it is
programmed through the centralized user interface (PC or hand-held device) to
ensure communication between the lock and the controller unit.
12
Master PIN Registration
MM
User Number (UN)
1~25: without network module
1~250: with network module
User PIN Registration
Complete
UComplete
For quiet areas, select Disable (3)
in Audio Mode.
Register
Delete
Advanced Lock Settings
Audio Mode
N/A
All Code Lockout
**Network Module Setting Register
Enable
Enable
Disable
Delete
Disable
**This function appears
only with RF network
module installed.
Auto Re-lock Setting Enable
Disable
Inside Escutcheon LED
One Touch Locking Setting Enable
Disable
Note: If the lock is connected to a
network controller, it is recommended
that it is programmed through the
centralized user interface (PC or hand-
held device) to ensure communication
between the lock and the controller unit.
![](/img.php?id=1641560&img=bg12.png)
17
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A

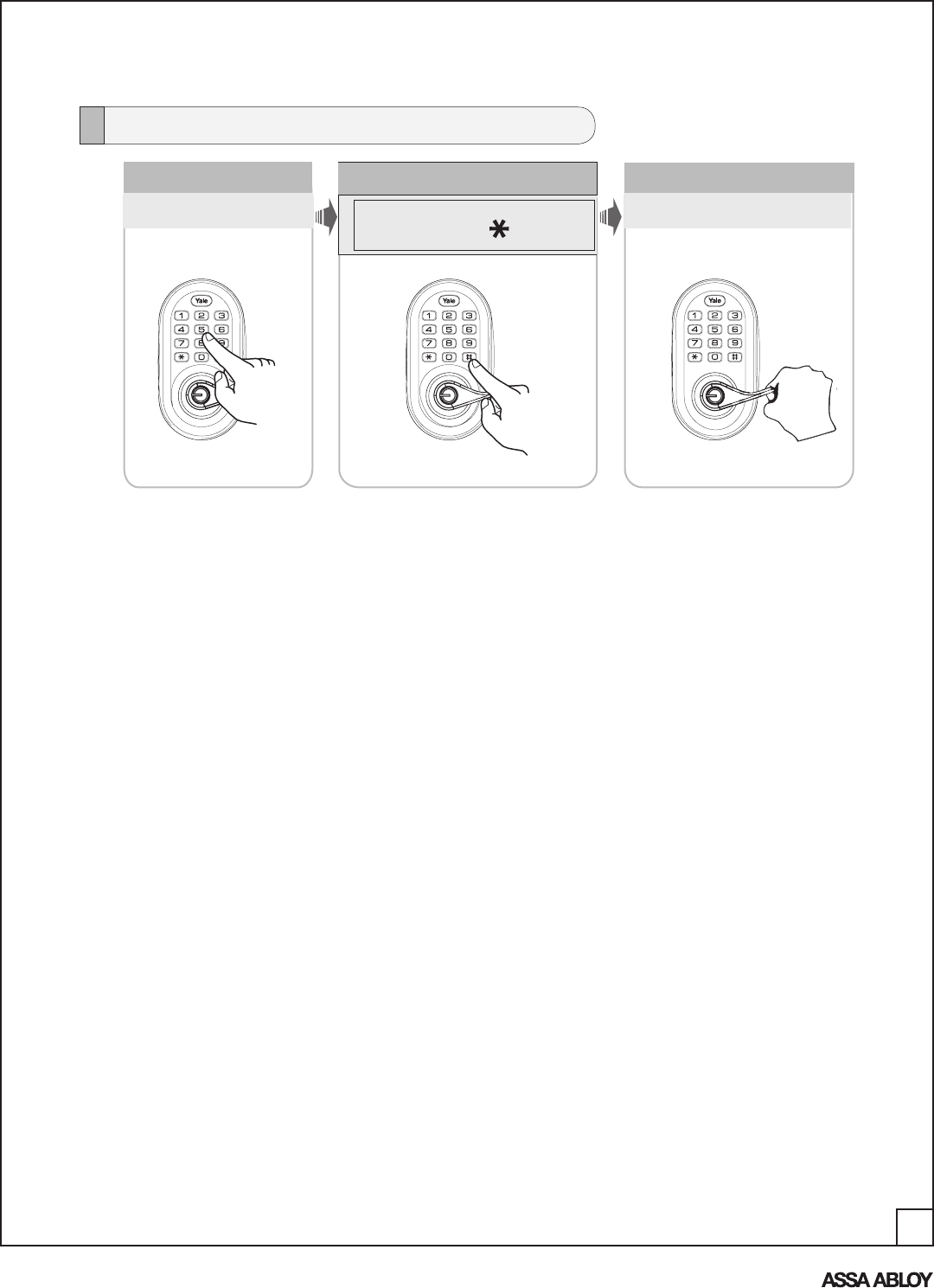

Open Door with PIN Code
1
Enter PIN code.
2
Complete the code entry
by pressing the key.
Unlock.
3
![](/img.php?id=1641560&img=bg13.png)
18
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Cycle the lock in both the locked and the unlocked positions. If problems are found:
TROUBLESHOOTING
Hardware Troubleshooting
Symptom Suggested Action
Door is binding a. Check that door and frame are properly aligned and door is free swinging.
b. Check hinges: They should not be loose or have excessive wear on knuckles.
Latch bolt will not deadlock a. Check for sufficient clearance of the latch bolt within the strike-side jamb. Correct this by
increasing the depth of the pocket for the latch bolt.
b. Check for misalignment of latch bolt and/or strike which may be preventing latch bolt from
properly entering the strike. With the door open, extend and retract the latch bolt; if it is
smooth, check the strike alignment.
Latch bolt does not extend or retract smoothly a. Latch bolt and strike are misaligned, see above.
b. Check the backset of door relative to adjustments already made to latch bolt.
c. Verify proper door preparation and re-bore holes that are too small or misaligned.

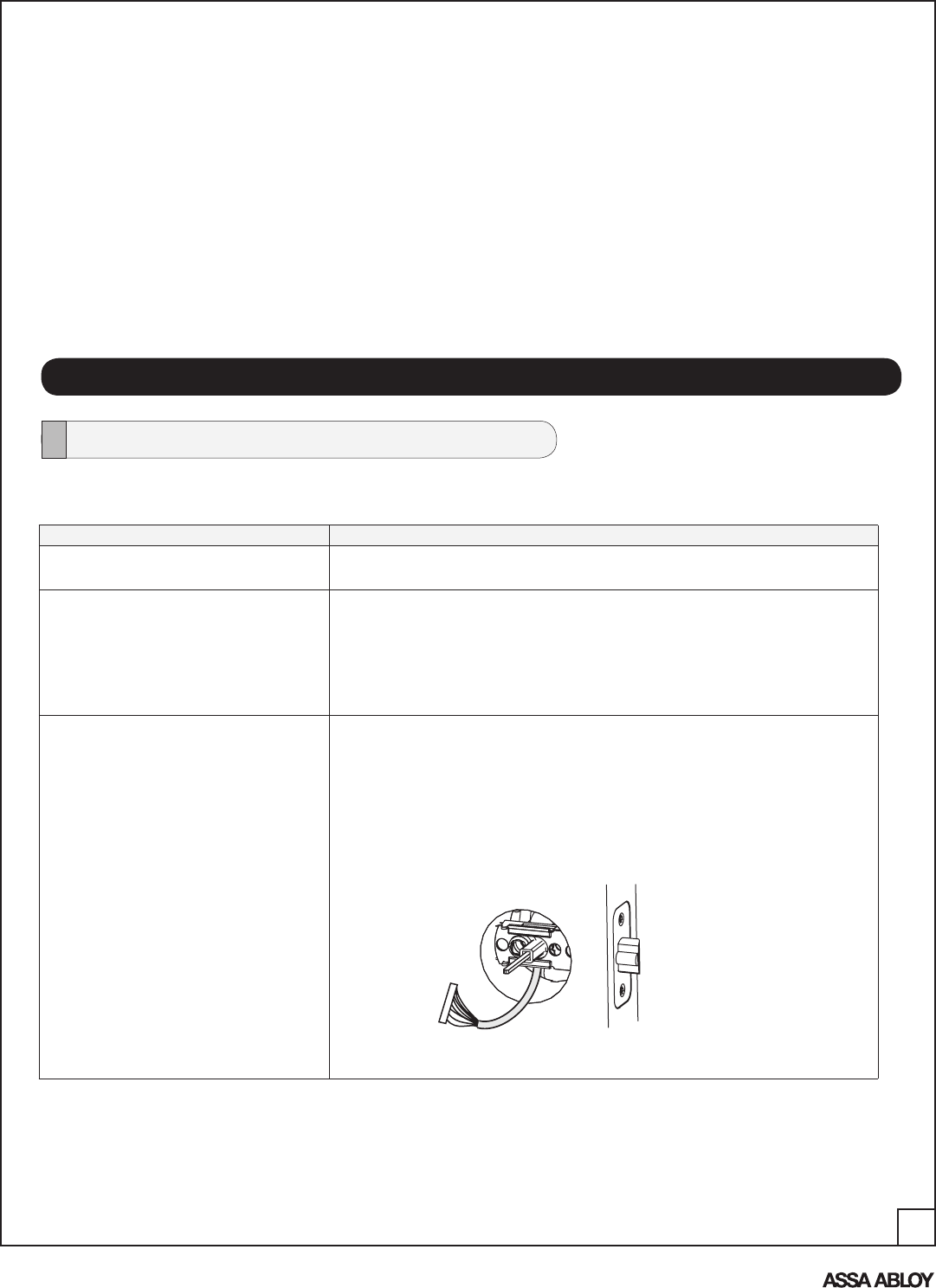

d. Verify keypad cable/connector is routed under the latch bolt (see Fig. A).
e. Verify latch bolt is installed with correct side up (Fig. A).
MISCELLANEOUS
Hardware Troubleshooting ......................................................................................17
Programming Troubleshooting ...............................................................................18
Installing the Network Module ...............................................................................19
Change Lever Handing .................................................................................... 20-21
Replace/Install Cylinder .........................................................................................22
Sample Pin Code Management Sheets ........................................................... 23-24
Inside of Door
Figure A
![](/img.php?id=1641560&img=bg14.png)
19
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
Programming Troubleshooting
* When batteries are replaced, Network Module locks have a real time clock that will be set through the User Interface; it is
recommended to verify correct date and time particularly those locks operating under Daylight Saving Time (DST).
** Network module units only
Symptom Suggested Action
Lock does not respond – door is
open and accessible.
• Press each keypad button to see if they respond when pressed.
• Check batteries are installed and oriented correctly (polarity) in the battery case.
• Check batteries are in good condition; replace batteries* if discharged.
• Check to see if cable is fully connected and not pinched.
Lock does not respond – door is
locked and inaccessible.
• Batteries may be completely discharged.
• Use mechanical key to gain entry and replace batteries*.
Unit chimes to indicate code accep-
tance, but the door will not open.
• Check to see if there is another locking device on the door.
• Check the door gaps for any foreign objects between door and frame.
• Check that the cable is firmly connected to the PC board.
Unit operates to allow access, but will
not automatically re-lock.
• Check to see if Auto Re-lock Mode is enabled.
• Disable Auto Re-lock Mode to lock the door (automatically).
• If low battery indicator is lit (see below), change batteries*.
PIN codes will not register. • PIN codes must consist of 4 to 8 digits to register.
• The same PIN code cannot be used for multiple users.
• Registration/management of PIN codes is set by the authority of the Master Code.
• Contact the Master user
• User codes must be entered within 20 seconds or the process will have to be restarted.
• The star (*) or pound (#) cannot be used as part of the PIN code.
Upon entering a PIN code and press-
ing the star (*) key, the lock gives
a series of beeps, flashes red and
blue LEDs seven times, and does not
unlock.
• Lockout Mode is enabled.
• Only the Master can enable/disable Lockout Mode.
• Contact the Master user.
Upon entering a PIN code and press-
ing the (*) key, there are different
tones.
• Check to see if the lock is set to Lockout Mode.
• Setting/managing Lockout Mode is done through Master Code only. Contact the Master
user.
The unit operates, but it makes
no sound.
• Enable Audio Mode.
The unit displays intermittent RED
flashes.
• This is the Low Battery indicator alerting that it is time to replace the batteries. Replace
all four (4) batteries* with new AA Alkaline batteries.
Upon entering a PIN code and press-
ing the star (*) key, the unit responds
with a series of beeps and the keypad
flashes three times.
• The digits entered were incorrect or incomplete. Re-enter the correct code followed by
the star key.
![](/img.php?id=1641560&img=bg15.png)
20
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
IMPORTANT: The batteries must be removed prior to removing and/or inserting the
network module:
• Remove batteries
• Remove and/or insert network module
• Reinstall batteries
Installing the Network Module
Use Feature Programming step 7 (page 15) for enrollment of the
Network Module.
![](/img.php?id=1641560&img=bg16.png)
21
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
How to Change Handing of Lever (Reverse Levers)
1. Remove the outside lever handle:
A. Insert key in cylinder (outside lever handle); rotate key 90° clockwise.
B. Insert allen wrench (included) in set screw on side of lever (toward edge of
door); turn clockwise to loosen lever handle.
C. Pull to remove lever handle/key/cylinder.
A
90°
90°
C
B
![](/img.php?id=1641560&img=bg17.png)
22
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
2. Remove the inside lever handle:
A. Insert allen wrench (included) in set screw on side of lever
(towards edge of door); turn clockwise to loosen handle.
B. Pull to remove lever handle.
A
A. Remove and switch handles (inside to outside, outside to inside).
B. Remove cylinder from outside lever handle.
C. Insert cylinder in "new" outside lever (Fig. 3A).
D. Push handle in allowing holes for set screw to align.
E. Insert set screw and tighten lever handle by turning set screw
counter-clockwise.
3. Change the lever handing:
Incorrect
NOTE: "Swoop" of lever handle
must be oriented in upward direction
as shown in Fig. 3A
Correct
Figure 3A
B
Figure 3B
![](/img.php?id=1641560&img=bg18.png)
23
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
1. Remove cylinder:
A. Repeat previous steps for removing the outside lever handle.
B. Remove cylinder.
How to Replace or Install Cylinder
2. Install new cylinder:
A. Insert cylinder in "new" outside lever.
B. Push handle in allowing holes for set screw to align.
C. Insert set screw and tighten by turning set screw counter-clockwise.
D. Verify that new cylinder fits and rotates freely.
E. Test operation of the new cylinder/key.
![](/img.php?id=1641560&img=bg19.png)
24
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
PIN CODE MANAGEMENT SAMPLE SHEETS
PIN Code Management (No Network Module - Up to 25 Users)
Location: Door Number: User User Name User # PIN Code
User Type User Name User # PIN Code
Master User 13
User 01 User 14
User 02 User 15
User 03 User 16
User 04 User 17
User 05 User 18
User 06 User 19
User 07 User 20
User 08 User 21
User 09 User 22
User 10 User 23
User 11 User 24
User 12 User 25
![](/img.php?id=1641560&img=bg1a.png)
25
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
PIN Code Management (With Network Module - Up to 250 Users) - Duplicate Sheet to record entries
User Type User Name User # PIN Code User User Name User # PIN Code
Master User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
![](/img.php?id=1641560&img=bg1b.png)
ONLINE LITERATURE AND TEMPLATES
For the latest information on Yale products visit our website at
www.yalelocks.com. Click on the “Literature” button to find the
most up-to-date catalogs, parts manuals, templates, specifica-
tions and installation instructions.
Yale Locks & Hardware
100 Yale Avenue, Lenoir City, TN 37771 • Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Yale Real Living™ is a trademark of
Copyright © 2012, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without express
written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.
YALE, with its unique global reach and range of products, is the world’s favorite lock — the preferred solution for securing your home, family
and personal belongings.
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
An ASSA ABLOY Group brand
P/N AYRT-210-INST-FUL Rev A
