Eee PC User Manual
Eee PC 1016 Series
15G06Q258000
E5771
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing you to
complete certain tasks safely and effectively. These notes have different degrees
of importance as follows:
WARNING! Important information that must be followed for safe operation.
IMPORTANT! Vital information that must be followed to prevent damage
to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
ASUS is devoted to creating environment-friendly products/
packagings to safeguard comsumers’ health while minimizing
the impact on the environment. In order to reduce the use of
substances harmful to the environment, the
Eee PC™ product package does not come with the Eee PC
™ support DVD. The reduction of the number of the manual
pages complies with the reduction of carbon emission. For
system recovery, refer to the section Using Recovery Partition
for the instruction on the F9 recovery.
For the detailed user manual and related information, refer to
the user manual from the Window® desktop or visit the ASUS
Support Site at http://support.asus.com/
ASUS Eee PC
2
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and disconnect
all external peripherals to prevent damage to the connectors. The hard
disk drive’s head retracts when the power is turned OFF to prevent scratching
of the hard disk surface during transport. Therefore, you should not
transport your Eee PC while the power is still ON. Close the display panel
to protect the keyboard and display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be careful not to
rub or scrape surfaces when transporting your Eee PC. You can put your Eee
PC in a carrying case for protection from dirt, water, shock, and scratches.
There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on
people walking through security checks), and magnetic wands (hand-
held devices used on people or individual items). You can send your
Eee PC and diskettes through airport X-ray machines. However, it is
recommended that you do not send your Eee PC or diskettes through
airport magnetic detectors or expose them to magnetic wands.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane. Most
airlines have restrictions for using electronic devices. Most airlines allow
electronic use only between and not during takeoffs and landings.
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack
before going on long trips. Remember that the power adapter charges the
battery pack as long as it is plugged into the computer and an AC power
source. Be aware that it takes much longer to charge the battery pack when
the Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before first use
and whenever it is depleted to prolong battery life. The battery reaches its
maximum capacity after a few full charging and discharging cycles.
ASUS Eee PC
3

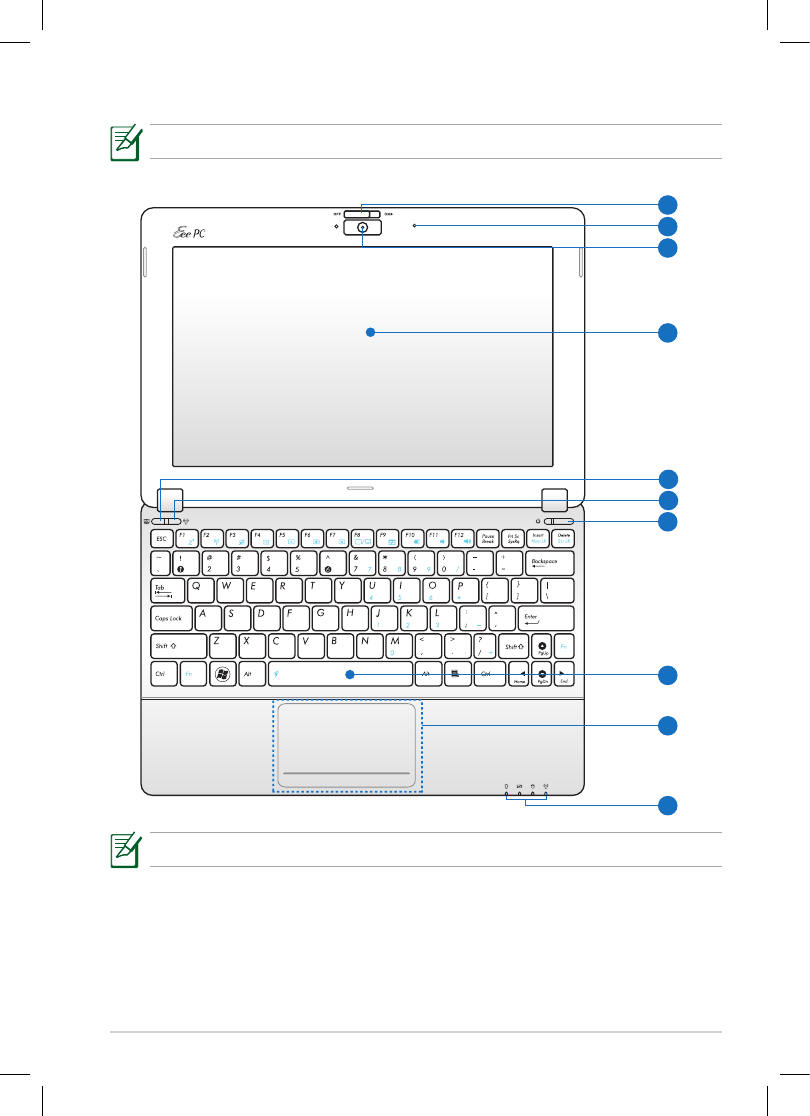

Top Side
The top side may vary in appearance depending on models.
The keyboard differs for each territory.
4
7
10
5
8
9
2
3
1
6
ASUS Eee PC
4
7
Camera Cover Switch
The camera cover switch allows you to open and close the protective
camera cover. Slide the switch to the left to close the camera cover.
Slide the switch to the right to open the camera cover.
Microphone (Built-in)
Built-in Camera
Display Panel
Presentation Mode Button
This button offers quick access to the presentation mode. In the
presentation mode, the screensaver is turned off automatically and
your Eee PC is switched to LCD + CRT Mode directly if it is linked
to an external monitor or a projector. Moreover, if you’ve opened
your PowerPoint file firstly before pressing this button, this button
functions as <Shift> + <F5> to enter the slideshow mode beginning
with the slide you are viewing.
Wireless/Bluetooth Button
The wireless/bluetooth button toggles the internal wireless LAN or
Bluetooth ON or OFF. When enabled, the corresponding wireless/
bluetooth indicator lights up.
You can also press <Fn> + <F2> to toggle the internal wireless LAN
or Bluetooth ON or OFF.
Power Switch (Windows)
The power switch allows powering ON and OFF the Eee PC and
recovering from STR. Press the switch once to turn ON and hold it to
turn OFF the Eee PC. The power switch only works when the display
panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned ON and
blinks slowly when the Eee PC is in the
Suspend-to-RAM (Sleep) mode. This indicator is OFF when the
Eee PC is turned OFF.
Keyboard
The keyboard differs for each territory.
1
2
3
4
5
6
8
ASUS Eee PC
5
Touchpad and Buttons

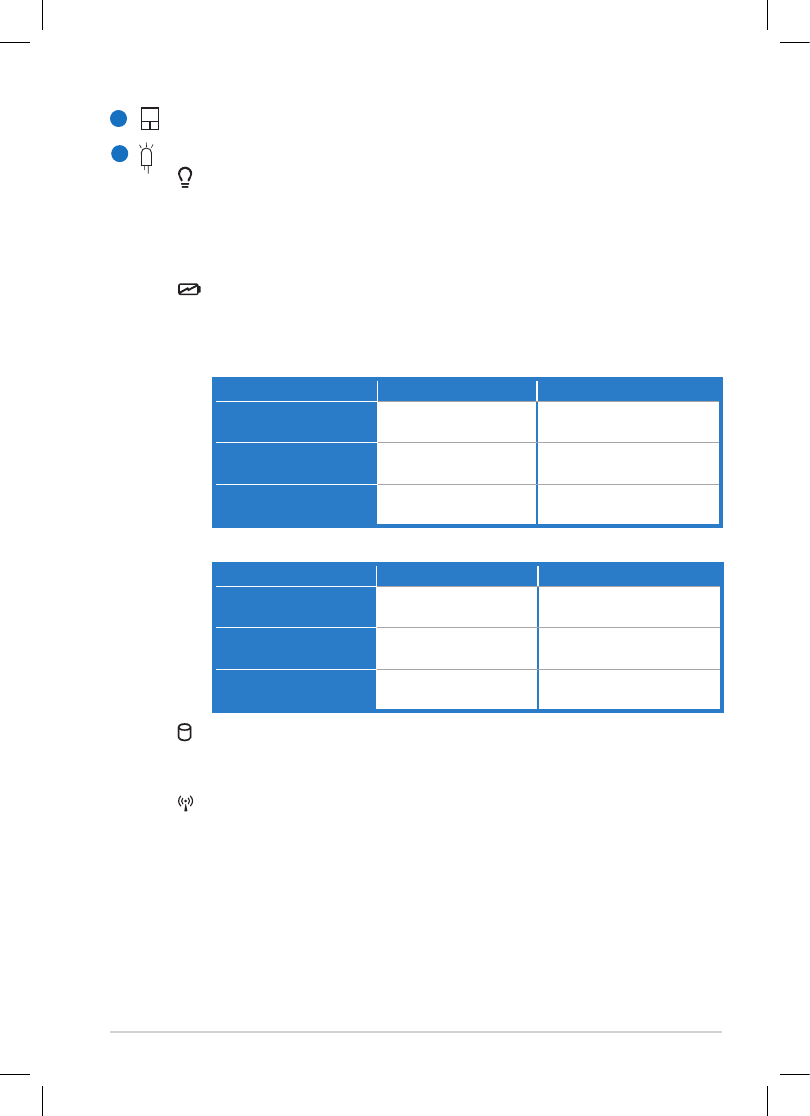

Status Indicators
Power Indicator
The power indicator lights when the Eee PC is turned ON and
blinks slowly when the Eee PC is in the
Suspend-to-RAM (Sleep) mode. This indicator is OFF when the
Eee PC is turned OFF.
Battery Charge Indicator
The battery charge indicator (LED) shows the battery charging
status as follows:
Powered ON
With Adapter Without Adapter
High battery power
(95%–100%) Green ON Off
Medium battery power
(11%–94%) Orange ON Off
Low battery power
(0%–10%) Orange Blinking Orange Blinking
Powered OFF / Standby mode
With Adapter Without Adapter
High battery power
(95%–100%) Green ON Off
Medium battery power
(11%–94%) Orange ON Off
Low battery power
(0%–10%) Orange Blinking Off
Hard Disk Drive (HDD) Indicator
The hard disk drive indicator blinks when data is written to or
read from the disk drive.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless LAN/
Bluetooth (on selected models). When the built-in wireless LAN/
Bluetooth is enabled, this indicator lights.
9
10
ASUS Eee PC
6

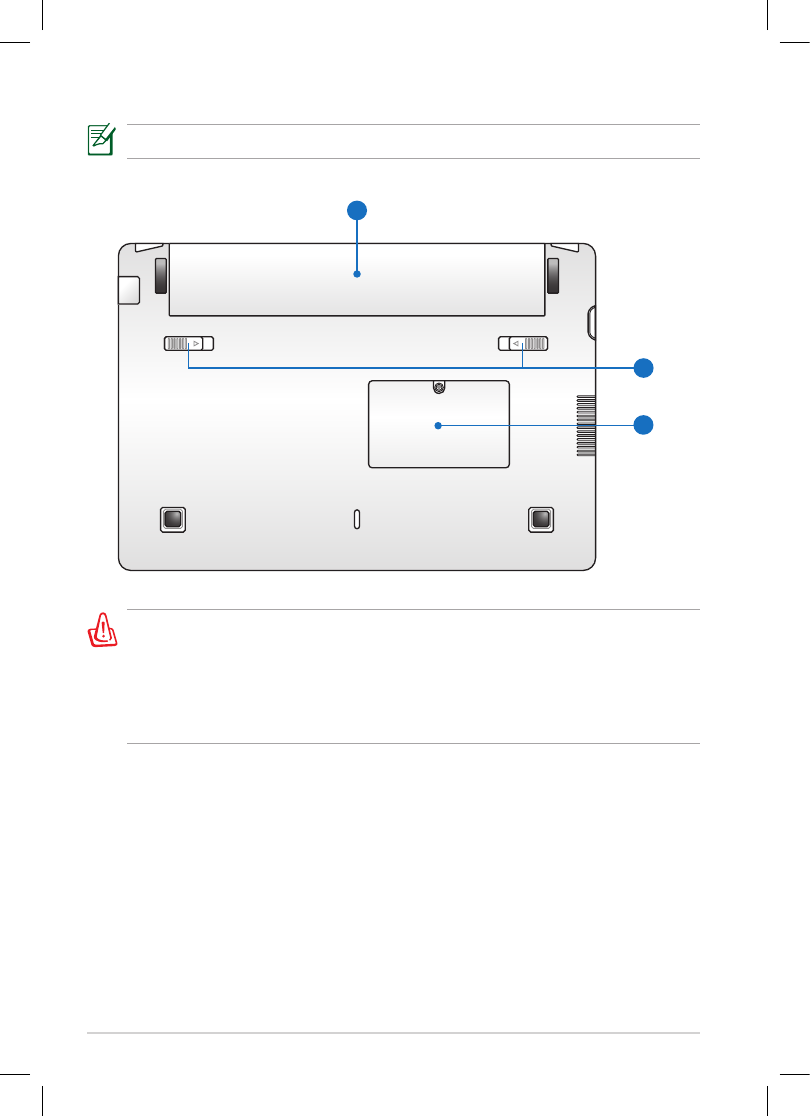

Bottom Side
The bottom side may vary in appearance depending on model.
The bottom of the Eee PC can get very hot. Be careful when handling
the Eee PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT USE
ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK
THE VENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS
OF THE BODY TO AVOID INJURY FROM THE HEAT.
3
1
2
ASUS Eee PC
7
1
2
3
Battery Pack
Battery time varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be purchased as
a single unit.
Battery Lock
The battery lock secures the battery pack. When the battery pack
is properly installed, it automatically locks in place. To remove the
battery pack, slide the battery lock inward.
Memory Compartment
The memory module is secured in a dedicated compartment.

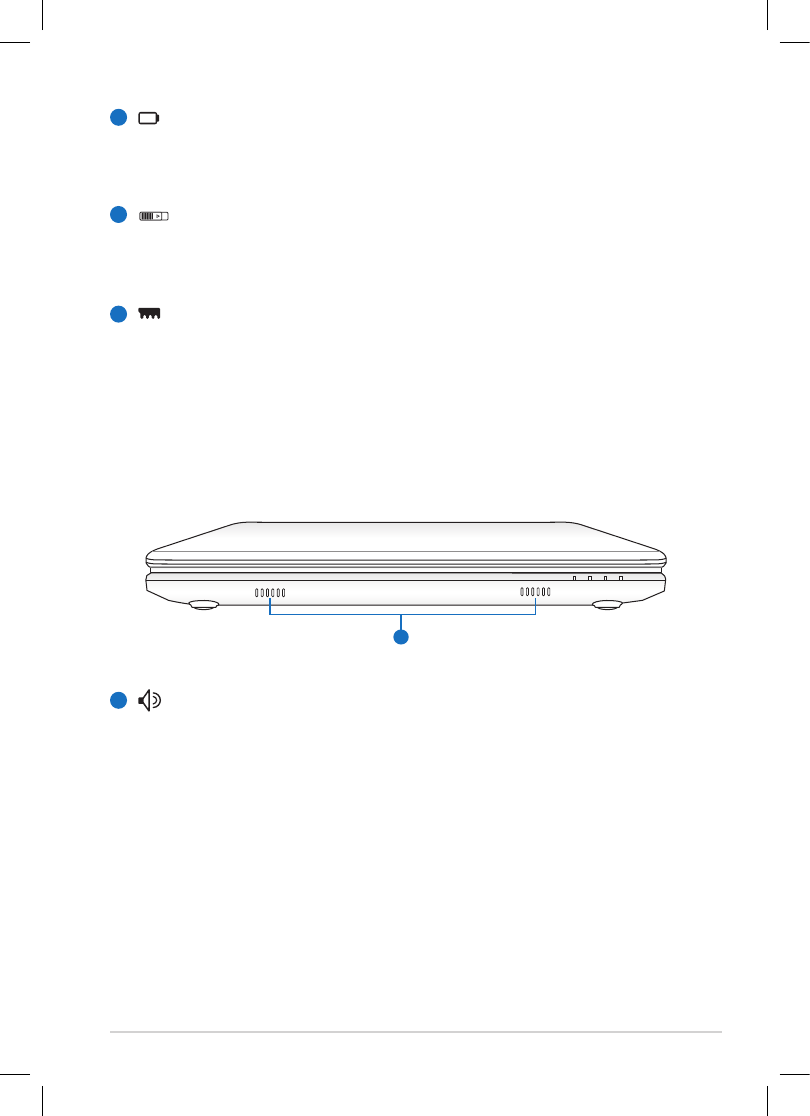

Front Side
1
Audio Speaker System
Audio features are software controlled.
1
ASUS Eee PC
8

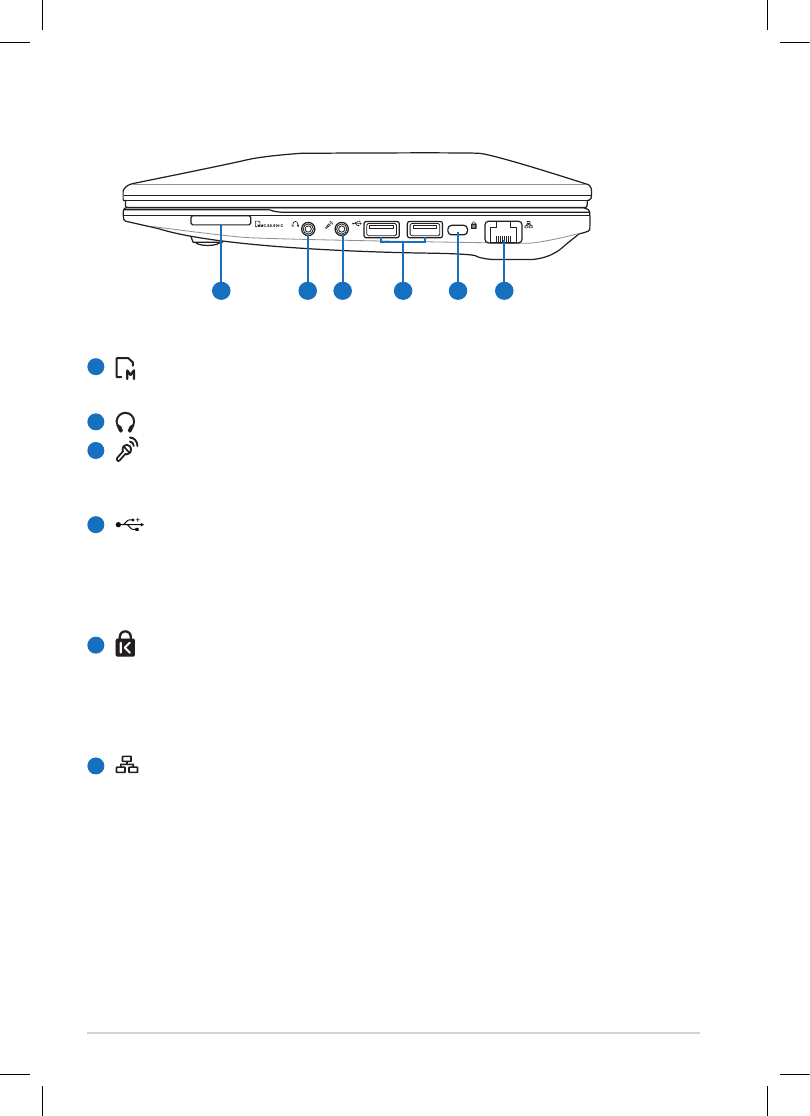

Right Side
Memory Card Slot
The built-in memory card reader can read SD/SDHC/MMC cards.
Headphone Output Jack
Microphone Jack
The microphone jack is designed to connect the microphone used
for voice narrations or simple audio recordings.
USB Port (3.0/2.0/1.1 or 2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 3.0, 2.0, or
USB 1.1 devices such as keyboards, pointing devices, cameras, and
storage devices, connected in a series up to 4.8Gbits/sec (USB 3.0),
480Mbits/sec (USB 2.0), and 12Mbits/sec (USB 1.1).
Kensington® Lock port
The Kensington® lock port allows the Eee PC to be secured using
Kensington® compatible security products. These security products
usually include a metal cable and lock that prevent the Eee PC to be
removed from a fixed object.
LAN Port (10/100M bit or 10/100/1000M bit)
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
2
1
5
4
3
1 2 3 4 5 6
6
ASUS Eee PC
9
1

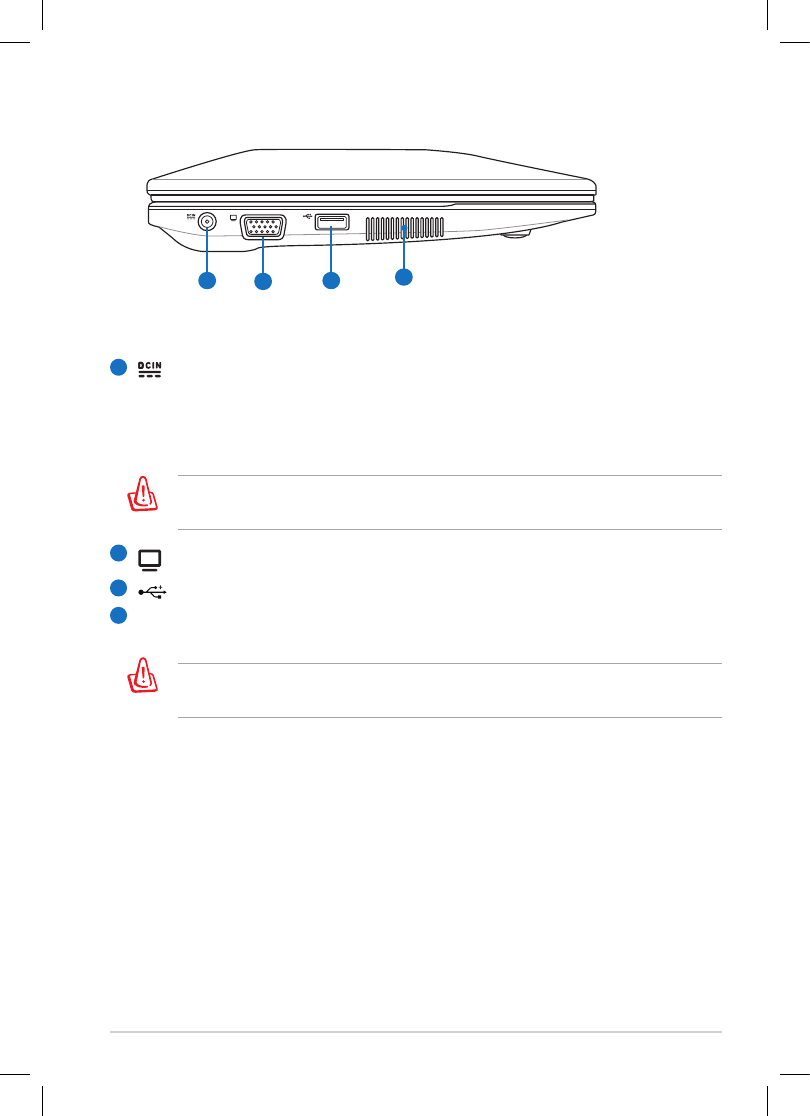

Left Side
Power (DC) Input
The supplied power adapter converts AC power to DC power for use
with this jack. Power supplied through this jack supplies power to the
Eee PC and charges the internal battery pack. To prevent damage to
the Eee PC and battery pack, always use the supplied power adapter.
THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
15 pin D-Sub Display (Monitor) Output
USB Port (2.0/1.1)
Air Vents
The air vents allow cool air to enter and warm air to exit the Eee PC.
Ensure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating may occur.
2
3
4
1234
ASUS Eee PC
10
Keyboard Usage

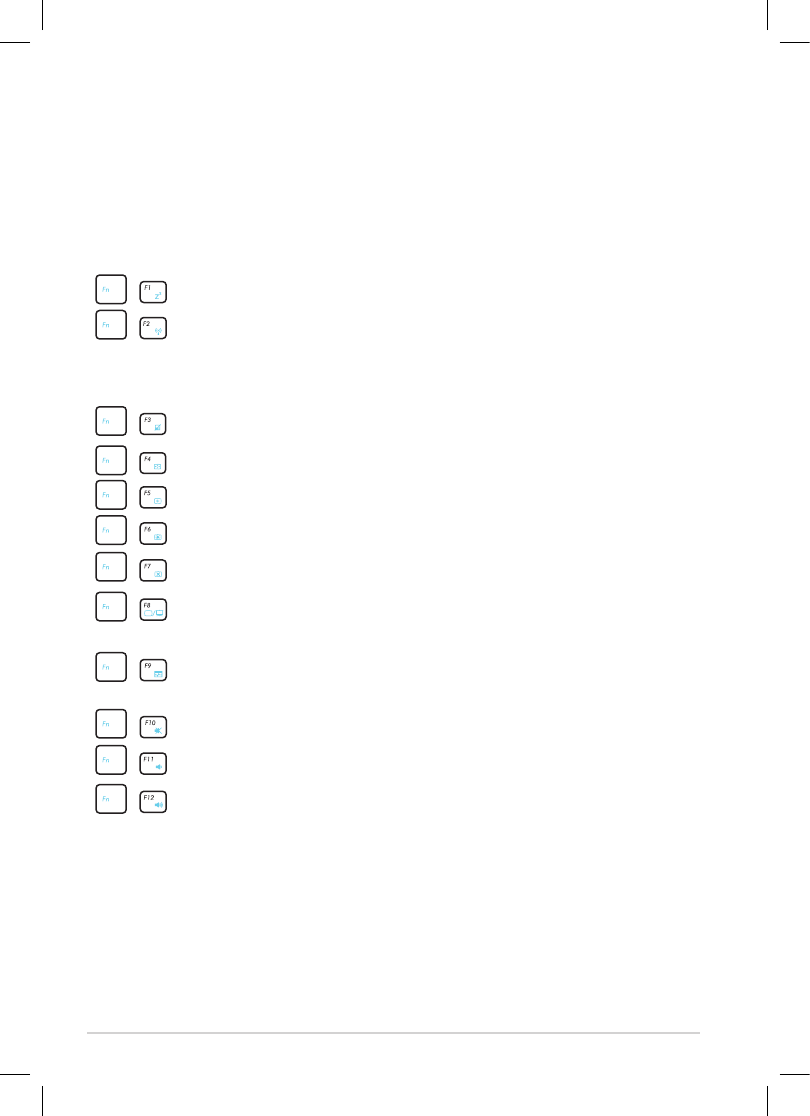

Special Function Keys
The following defines the colored hot keys on the Eee PC’s keyboard. The
colored commands can only be accessed by first pressing and holding the
function key while pressing a key with a colored command. Some function
icons appear in the Notification area after activation.
Zz Icon (F1): Places the Eee PC in suspend mode (Save-to-RAM).
Radio Tower (F2) (Wireless Models Only): Toggles the internal
wireless LAN or Bluetooth (on selected models) ON or OFF with
an on-screen-display. When enabled, the corresponding wireless
indicator will light.
Touchpad (F3): Toggles the touchpad ON/OFF.
Resolution Selection (F4): Press to adjust the display resolution.
Sun Down Icon (F5): Decreases the display brightness.
Sun Up Icon (F6): Increases the display brightness.
Crossed Screen Icon (F7): Turns off the display backlight.
LCD/Monitor Icons (F8): Toggles between the Eee PC’s LCD
display and an external monitor.
Task Manager Icon (F9): Initiates the Task Manager to view the
application process or terminates applications.
Crossed Speaker Icon (F10): Mutes the speaker.
Volume Down Icon (F11): Decreases speaker volume.
Volume Up Icon (F12): Increases the speaker volume.
ASUS Eee PC
11

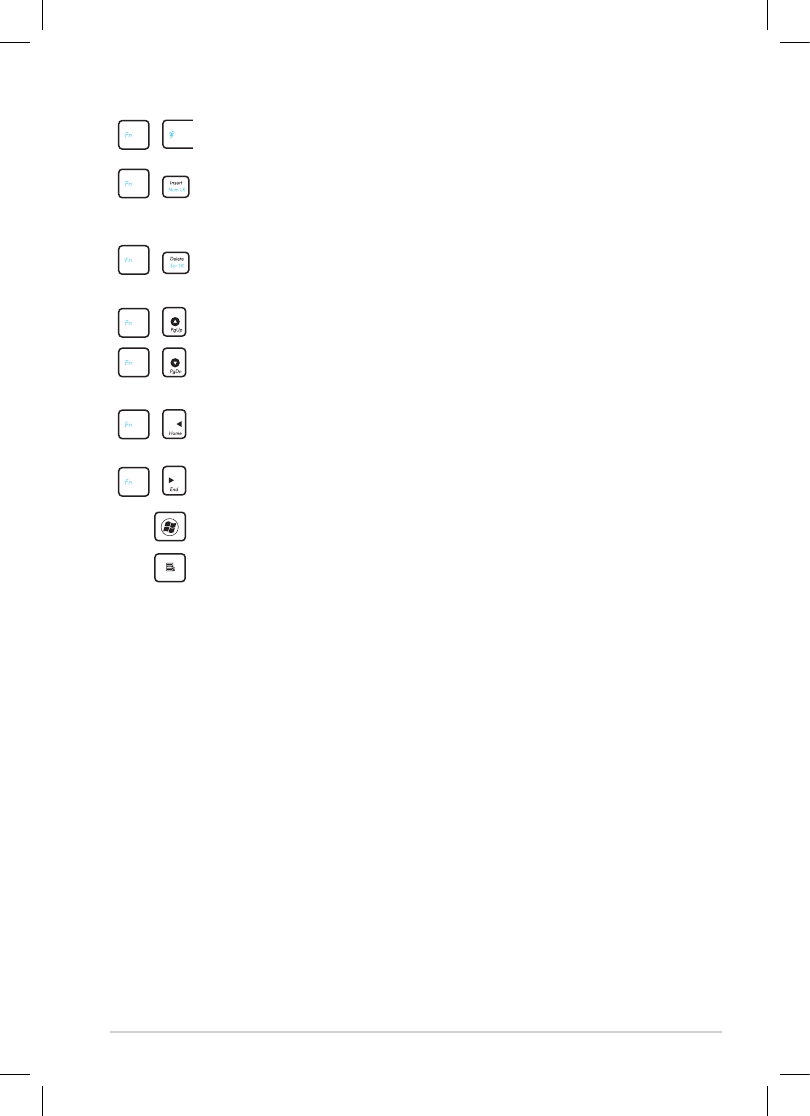

Super Hybrid Engine (Fn+Space Bar): Toggles among various
power saving modes. The selected mode is shown on the display.
Num Lk (Insert): Toggles the numeric keypad
(number lock) ON and OFF. Allows use of a larger portion of the
keyboard for number entering.
Scr Lk (Delete): Toggles the “Scroll Lock” ON and OFF. Allows you
to use a larger portion of the keyboard for cell navigation.
Pg Up (↑): Press to scroll up in documents or the web browser.
Pg Dn (
↓
): Press to scroll down in documents or the web
browser.
Home (
←
): Press to move the pointer to the beginning of the
line.
End (
→
): Press to move the pointer to the end of the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties menu and is
equivalent to right-clicking the touchpad/mouse on an object.
ASUS Eee PC
12

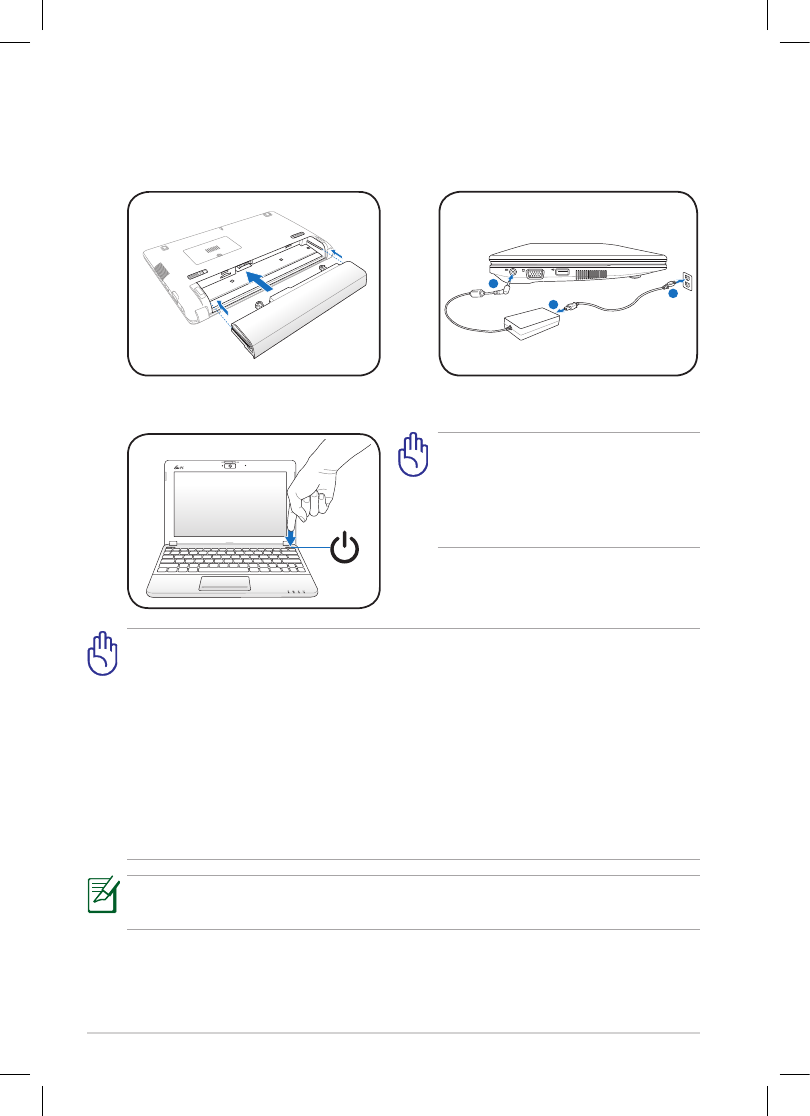

Powering on your Eee PC
These are quick instructions for using your Eee PC.
1. Install the battery pack 2. Connect the AC power adapter
• When you open the display panel, do not force it down to the table
or else the hinges may break! Never lift the Eee PC by the display
panel!
• Only use battery packs and power adapters supplied with this Eee
PC or specifically approved by the manufacturer or retailer for use
with this model or else damage may occur to the Eee PC. The input
voltage range between the wall outlet and this adapter is
AC 100V~240V.
• Never attempt to remove the battery pack while the Eee PC is turned
ON, as this may result in the loss of working data.
Remember to fully charge the battery before first use and whenever it is
depleted to prolong battery life.
3. Turn ON the Eee PC
Damage may occur if you use a
different adapter to power the
Eee PC. You may damage both
your battery pack(s) and the Eee
PC with a faulty AC-DC adapter.
1
2
3
110V-220V
ASUS Eee PC
13
Wireless Network Connection
Configuring a wireless network connection (Win7)
1. Click the wireless network icon with an orange star in the Windows®
Notification area.
If the wireless network icon with an orange star does not show in the
Notification area, activate the wireless LAN function by pressing <Fn> +
<F2> before configuring a wireless network connection.
2. Select the wireless access point you want to connect to from the list and
click Connect to build the connection.
If you cannot find the desired access point, click the Refresh icon on
the upper right corner to refresh and search in the list again.
3. When connecting, you may have to enter a password.
4. After a connection has been established, the connection is shown on the
list.
5. You can see the wireless network icon in the Notification area.
The crossed wireless network icon appears when you press <Fn> +
<F2> to disable the WLAN function.
ASUS Eee PC
14
System Recovery
Using Recovery Partition (F9 Recovery)
About the Recovery Partition
The Recovery Partition is a space reserved on your hard disk drive used to
restore the operating system, drivers, and utilities installed on your Eee PC at
the factory.
Ensure to connect your Eee PC to the AC power adapter before using F9
recovery to avoid recovery failure.
Using the Recovery Partition:
1. Press <F9> during bootup (requires a Recovery Partition)
Ensure to press <F9> only once during bootup.
2. Click Recovery in the Recovery System dialog box to start the system
recovery.
3. The system starts system recovery automatically and follow the onscreen
instructions to complete the recovery process.
Disable Boot Booster in BIOS setup before you perform system recovery
from USB flash disk, external optical drive or hidden partition.
ASUS Eee PC
15
Boot Booster
The Boot Booster item in BIOS setup helps shorten your Eee PC bootup time.
However, you MUST disable this BIOS item before you change any Eee PC
components or perform system recovery (from USB flash disk, external optical
drive or hidden partition). Follow the instructions below to disable Boot
Booster:
1. Start the system and press <F2> on bootup to show the POST screen.
Press <F2> again to enter the BIOS setup.
2. Set Boot Booster to [Disabled].
If you fail to see the POST screen or enter the BIOS setup by doing the
instruction above, restart the system and try pressing <F2> repeatedly
on bootup.
3. Press <F10> to save the configuration and restart Eee PC.
Remember to enable Boot Booster after you complete hardware change
or system recovery.
Appendix
A-2
Declarations and Safety
Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the Federal Communications
Commission (FCC) rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The use of a shielded-type power cord is required in order to meet
FCC emission limits and to prevent interference to the nearby radio
and television reception. It is essential that only the supplied power
cord be used. Use only shielded cables to connect I/O devices to this
equipment. You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
ASUS Eee PC
16

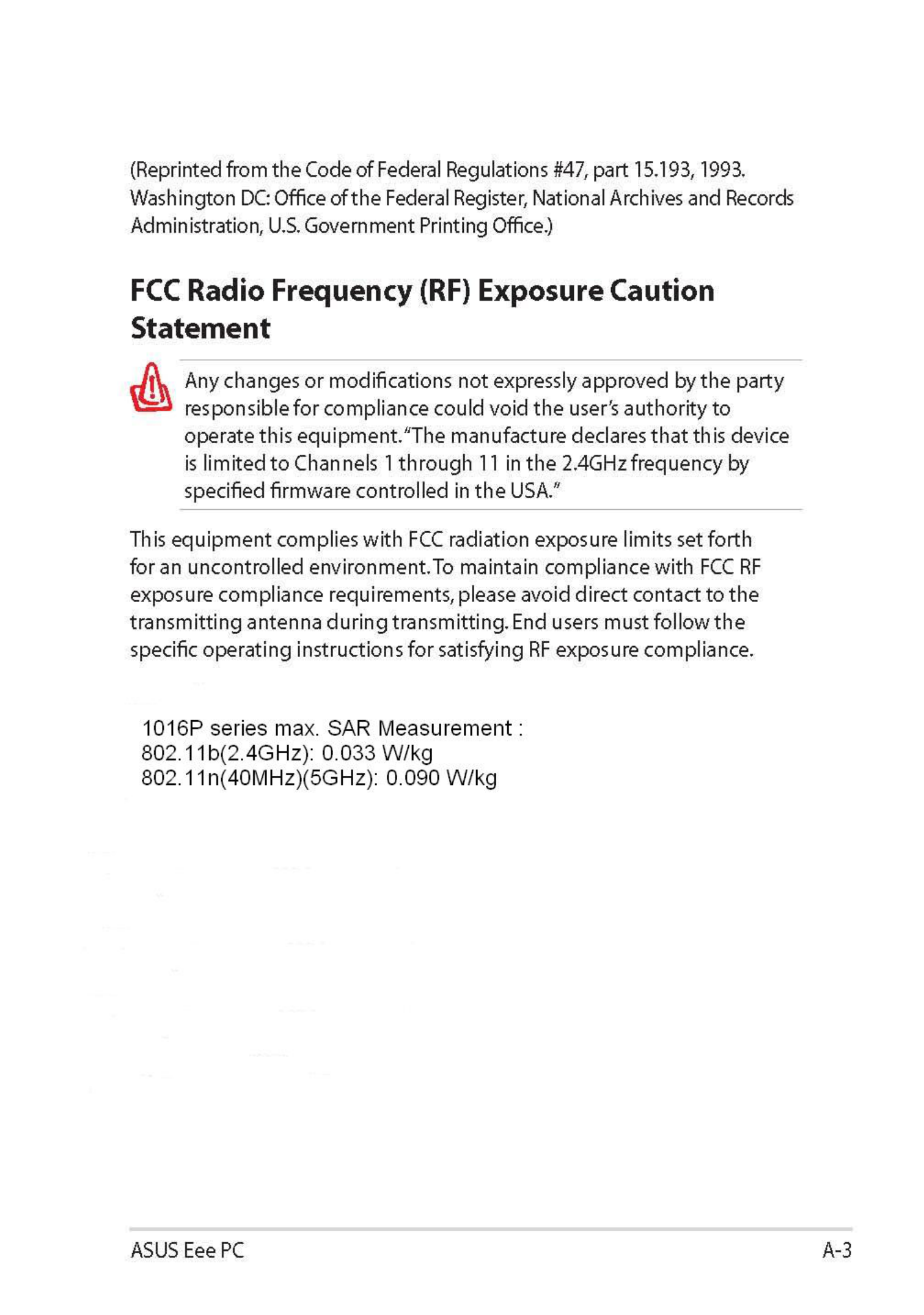

Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg
must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm2
or H05VV-F, 2G, 0.75mm2.
DO NOT throw the battery in municipal waste. The symbol of the
crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
DO NOT throw the Eee PC in municipal waste. This product has been
designed to enable proper reuse of parts and recycling. The symbol
of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment and mercury-containing button cell battery)
should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
SAFE TEMP: This Eee PC should only be used in environments with ambient
temperatures between 5°C (41°F) and 35°C (95°F).
Risk of Explosion if Battery is Replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
CE Mark Warning
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low
voltage directive”.
Declarations and Safety Statements
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio
and Telecommunications Equipment and mutual recognition of conformity.
ASUS Eee PC
17
Copyright Information
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS and Eee PC logo are trademarks of ASUSTek Computer Inc.
Information in this document is subject to change without notice.
Copyright © 2010 ASUSTeK COMPUTER INC. All Rights Reserved.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other
liability, you are entitled to recover damages from ASUS. In each such instance,
regardless of the basis on which you are entitled to claim damages from ASUS,
ASUS is liable for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property; or any other
actual and direct damages resulted from omission or failure of performing
legal duties under this Warranty Statement, up to the listed contract price of
each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims
based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for
which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)
THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE
TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER
IS INFORMED OF THEIR POSSIBILITY.
ASUS Eee PC
18
Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized Representative
in Europe
ASUS COMPUTER GmbH
Address, City HARKORT STR. 21-23, 40880 RATINGEN
Country GERMANY
