ASUS BT-180
2
Contents
Notice ........................................................................................…...…. 3
Safety statements .............................................................................…. 4
System requirements................................................….................…........ 6
Installing the device drivers........................................….............………....… 6
BT-183 specification summary....……................................. ...…........…....…. 8
3
Notices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the Federal Communications Commission (FCC)
rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION! You are cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Office of the Federal Register, National Archives and Records
Administration, U.S. Government Printing Office.
4
Safety statements
Regulatory Information/Disclaimers
Installation and use of this Bluetooth device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any
changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user’s authority to operate
the equipment. The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the substitution
of the connecting cables and equipment other than manufacturer specified. It is the
responsibility of the user to correct any interference caused by such unauthorized
modification, substitution or attachment. Manufacturer and its authorized resellers
or distributors will assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
CAUTION! To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum distance [20cm]
between the radiator and your body. Use on the supplied antenna. Unauthorized
antenna, modification, or attachments could damage the transmitter and may
violate FCC regulations.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this
equipment should be installed and operated with minimum distance [20cm]
between the radiator and your body. Use only with supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
CAUTION! Any changes or modifications not expressly approved in this manual
could void your authorization to use this device.
MPE Statement
Your device contains a low power transmitter. When device is transmitted it sends
out Radio Frequency (RF) signal.
FCC Radio Frequency Exposure
This Bluetooth device has been evaluated under FCC Bulletin OET 65C and found
compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and
15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation
output power of this Bluetooth device is far below the FCC radio frequency exposure
limits. Nevertheless, this device shall be used in such a manner that the potential for
human contact during normal operation – as a mobile or portable device but use in
5
a body-worn way is strictly prohibit. When using this device, a certain separation
distance between antenna and nearby persons has to be kept to ensure RF exposure
compliance. In order to comply with the RF exposure limits established in the ANSI
C95.1 standards, the distance between the antennas and the user should not be less
than [20cm].
RF Exposure
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
About this guide
This user guide contains the information your ASUS Bluetooth Module.
6
System requirements
Before installing the ASUS Bluetooth module, make sure that your system meets
the following requirements:
• Intel® Pentium® 4 or AMD K7/K8 system
• Minimum 64MB system memory
• Windows® 98SE/ME/2000/XP operating system
• Optical drive (for software installation)
• An available USB port (USB 2.0 recommended because USB 1.1 cannot achieve
maximum wireless performance)
Installing the device drivers
To install the device driver in your computer:

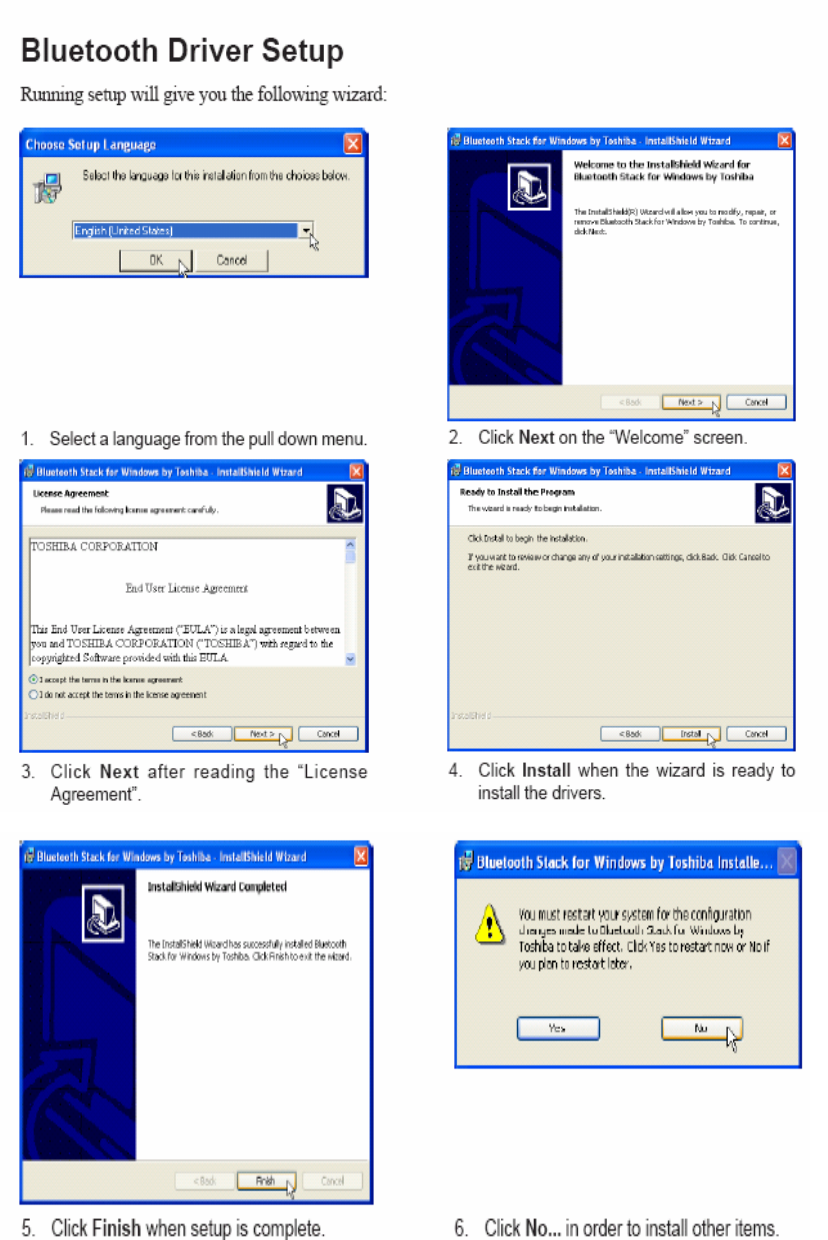

Insert the support CD to the optical drive and follow the following procedure.
7
8

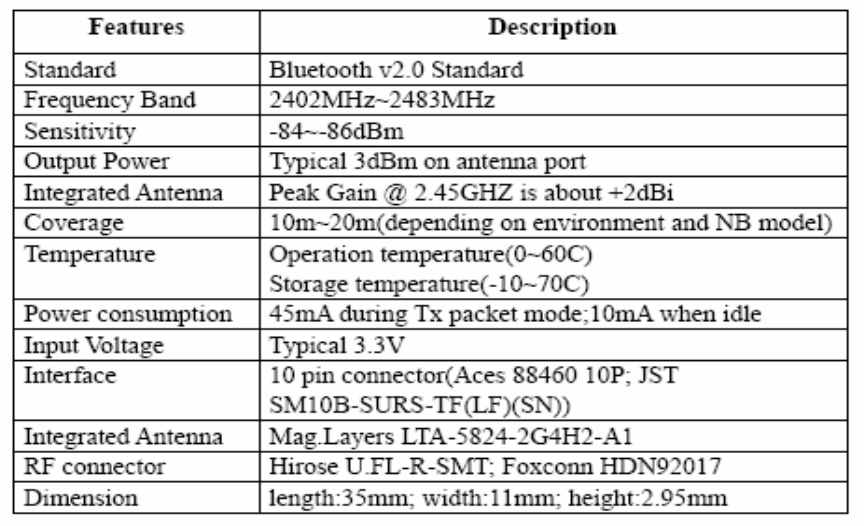

BT-180 specification summary
i. Fully qualified Bluetooth v2.0 system
ii. Enhanced Data Rate (EDR) compliant for both 2Mbps and 3Mbps supported
iii. Fully speed operation with Piconet and Scatternet support
iv. Electrical compliant to USB1.1&2.0 through proprietary Pin Connector (Note: Vcc
is 3.3V, 5V is not allowed)
v. Implement 802.11 coexistence solution by AFH (Adjacent Frequency Hopping),
WCS (Wireless Coexistence System), and Bluetooth Priority
vi. Slim module with 35*11 mm dimension
vii. Chip Antenna and RF connector are manufacturing optional for different
application
viii. All components on single side of PCB
ix. Antenna matching could be fine tuned if mechanism is changed
