Notebook PC
E-Manual for Chromebook
First Edition
April 2014
E8991
2
Notebook PC E-Manual
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL
USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY
ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to
claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property; or any other actual and direct damages
resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,
and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
Notebook PC E-Manual
3
Table of Contents
About this manual ..................................................................................................... 6
Conventions used in this manual ............................................................................. 7
Typography .......................................................................................................................7
Safety precautions .....................................................................................................8
Using your Notebook PC ..............................................................................................8
Caring for your Notebook PC .....................................................................................9
Proper disposal ................................................................................................................10
Chapter 1: Hardware Setup
Getting to know your Notebook PC ...................................................................12
Top View ............................................................................................................................. 12
Bottom ................................................................................................................................ 15
Right Side .......................................................................................................................... 16
Left Side ............................................................................................................................. 17
Chapter 2: Using your Notebook PC
Getting started ...........................................................................................................22
Charge your Notebook PC. ..........................................................................................22

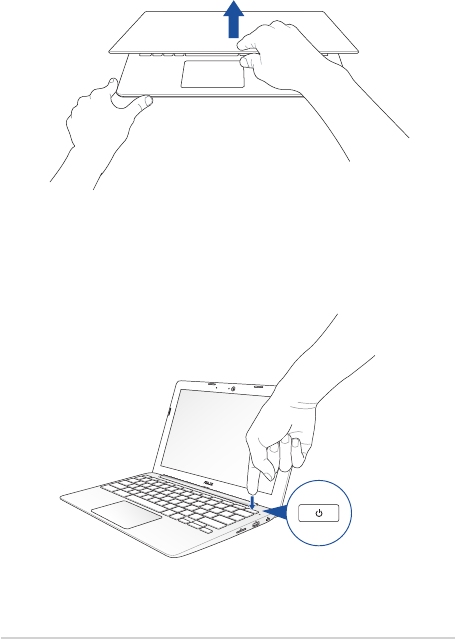

Lift to open the display panel. ................................................................................... 24
Press the power button. ............................................................................................... 24

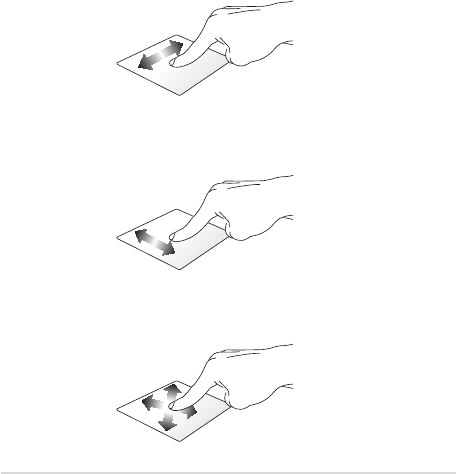

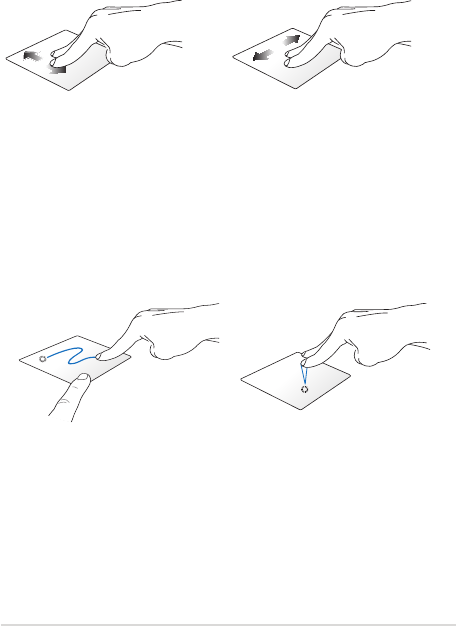

Gestures for the touchpad .....................................................................................25
Moving the pointer ........................................................................................................ 25
One-nger gestures ....................................................................................................... 26
Two-nger gestures ....................................................................................................... 27
Three-nger gesture ...................................................................................................... 28
Using the keyboard ................................................................................................... 29
Chapter 3: Working with Chrome™ OS
Starting for the rst time .........................................................................................32
Sign-in area ..................................................................................................................33
Browse as Guest .............................................................................................................. 33
User account .....................................................................................................................34
4
Notebook PC E-Manual
Using your desktop ...................................................................................................35
Apps list .............................................................................................................................. 35
Status area .........................................................................................................................37
Connecting to the Internet ....................................................................................40
Enabling your Wi-Fi connection ................................................................................ 40
Switching to a new Wi-Fi network connection .................................................... 40

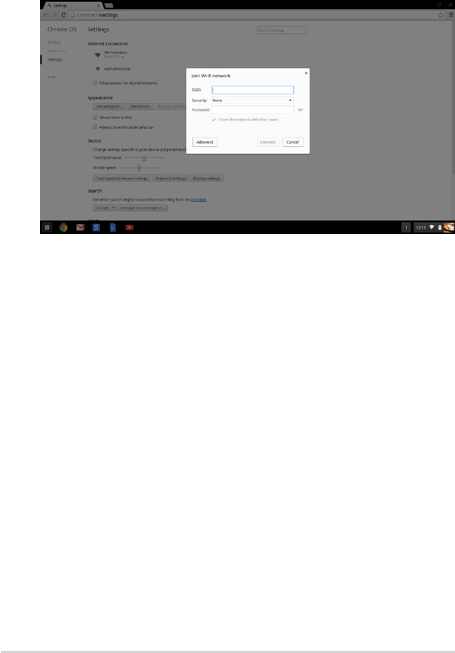

Adding a network connection ................................................................................... 41
Chrome browser .............................................................................................................43

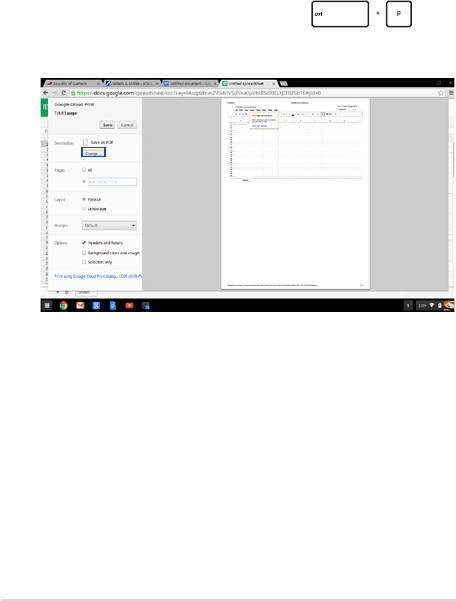

Printing documents ..................................................................................................45

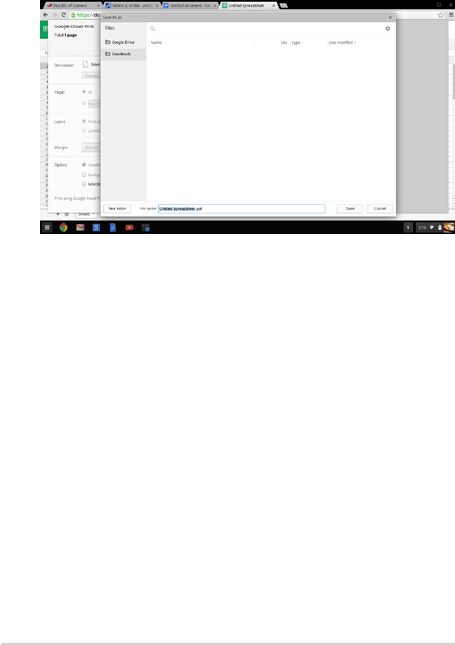

Saving PDF les ............................................................................................................... 45

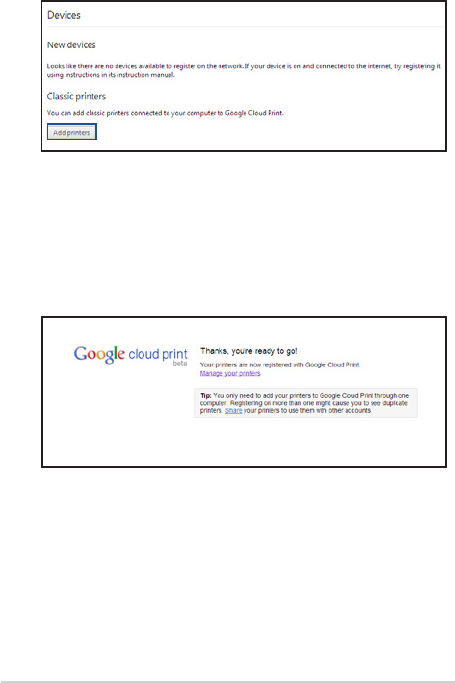

Google Cloud Print ......................................................................................................... 47
Managing your les ..................................................................................................52

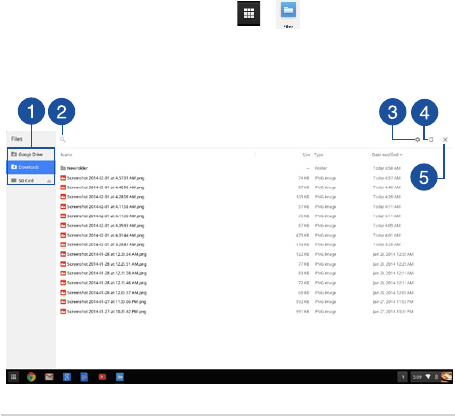

Files app ............................................................................................................................. 52
Google Drive .................................................................................................................... 56
Resetting your Notebook PC .................................................................................60
Using Powerwash ........................................................................................................... 60
Turning your Notebook PC o ..............................................................................62
Using Chrome™ OS ........................................................................................................62
Using the power button on your Notebook PC ................................................... 62
Putting your Notebook PC to sleep ......................................................................... 62
Tips and FAQs
Useful tips for your Notebook PC ........................................................................64
Hardware FAQs ...........................................................................................................65
Software FAQs ............................................................................................................. 67
Appendices
Internal Modem Compliancy ..................................................................................... 70
Overview ............................................................................................................................ 70

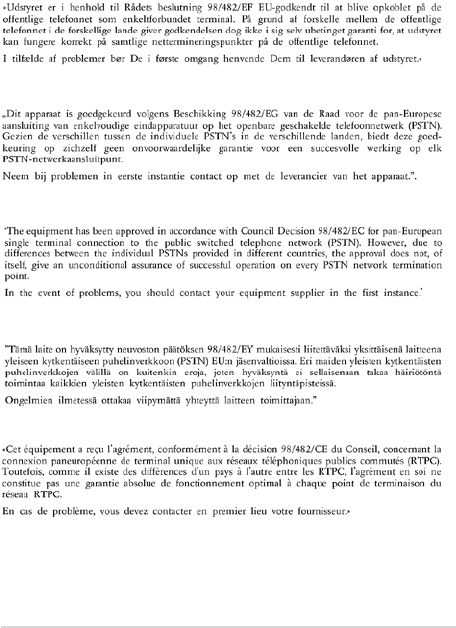

Network Compatibility Declaration ......................................................................... 71
Non-Voice Equipment ..................................................................................................71
Federal Communications Commission Interference Statement ................... 73
FCC Radio Frequency (RF) Exposure Caution Statement ................................. 74
Declaration of Conformity (R&TTE directive 1999/5/EC) .................................. 75
CE Marking ........................................................................................................................ 75
Notebook PC E-Manual
5
IC Radiation Exposure Statement for Canada ...................................................... 76
Déclaration d’Industrie Canada relative à l’exposition aux ondes radio ... 77
Wireless Operation Channel for Dierent Domains ...........................................78
France Restricted Wireless Frequency Bands .......................................................78
UL Safety Notices ............................................................................................................ 80
Power Safety Requirement .......................................................................................... 80
TV Notices ......................................................................................................................... 81
REACH ................................................................................................................................. 81
Macrovision Corporation Product Notice .............................................................. 81
Prevention of Hearing Loss ......................................................................................... 81
Coating Notice .................................................................................................................81
Nordic Lithium Cautions (for lithium-ion batteries) ........................................... 82
CTR 21 Approval (for Notebook PC with built-in Modem) .............................. 83
ENERGY STAR complied product .............................................................................. 85
European Union Eco-label ........................................................................................... 85
Optical Drive Safety Information .............................................................................. 86
Global Environmental Regulation Compliance and Declaration .................. 87
ASUS Recycling/Takeback Services .......................................................................... 87
Rechargeable Battery Recycling Service in North America............................. 87
Regional notice for Singapore ...................................................................................88
Regional notice for India .............................................................................................. 88
Notices for removeable batteries..............................................................................88
Avis concernant les batteries remplaçables..........................................................88
6
Notebook PC E-Manual
About this manual
This manual provides information about the hardware and software
features of your Notebook PC, organized through the following
chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your Notebook
PC.
Chapter 2: Using your Notebook PC
This chapter shows you how to use the dierent parts of your
Notebook PC.
Chapter 3: Working with Chrome™ OS
This chapter provides an overview of using the Chrome™
operating system (OS) in your Notebook PC.
Tips and FAQs
This section presents some recommended tips, hardware FAQs,
and software FAQs you can refer to for maintaining and xing
common issues with your Notebook PC.
Appendices
This section includes notices and safety statements for your
Notebook PC.
Notebook PC E-Manual
7
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing tasks and prevent damage to
your Notebook PC's data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
8
Notebook PC E-Manual
Safety precautions
Using your Notebook PC
This Notebook PC should only be used in
environments with ambient temperatures between
5°C (41°F) and 35°C (95°F).
Refer to the rating label on the bottom of your
Notebook PC and ensure that your power adapter
complies with this rating.
Do not leave your Notebook PC on your lap or near
any part of your body to prevent discomfort or
injury from heat exposure.
Do not use damaged power cords, accessories, and
other peripherals with your Notebook PC.
While powered on, ensure that you do not carry or
cover your Notebook PC with any materials that can
reduce air circulation.
Do not place your Notebook PC on uneven or
unstable work surfaces.
You can send your Notebook PC through x-ray
machines (used on items placed on conveyor belts),
but do not expose them to magnetic detectors and
wands.
Contact your airline provider to learn about related
inight services that can be used and restrictions
that must be followed when using your Notebook
PC in-ight.
Notebook PC E-Manual
9
Caring for your Notebook PC
Disconnect the AC power and remove the battery
pack (if applicable) before cleaning your Notebook
PC. Use a clean cellulose sponge or chamois cloth
dampened with a solution of nonabrasive detergent
and a few drops of warm water. Remove any extra
moisture from your Notebook PC using a dry cloth.
Do not use strong solvents such as thinners,
benzene, or other chemicals on or near your
Notebook PC.
Do not place objects on top of your Notebook PC.
Do not expose your Notebook PC to strong
magnetic or electrical elds.
Do not use or expose your Notebook PC near
liquids, rain, or moisture.
Do not expose your Notebook PC to dusty
environments.
Do not use your Notebook PC near gas leaks.
10
Notebook PC E-Manual
Proper disposal
Do not throw your Notebook PC in municipal waste.
This product has been designed to enable proper
reuse of parts and recycling. The symbol of the
crossed out wheeled bin indicates that the product
(electrical, electronic equipment and mercury-
containing button cell battery) should not be
placed in municipal waste. Check local regulations
for disposal of electronic products.
Do not throw the battery in municipal waste. The
symbol of the crossed out wheeled bin indicates
that the battery should not be placed in municipal
waste.
Notebook PC E-Manual
11
Chapter 1:
Hardware Setup
12
Notebook PC E-Manual
Getting to know your Notebook PC
Top View
NOTE: The keyboard's layout may vary per region or country. The
Notebook view may also vary in appearance depending on the Notebook
PC model.
Notebook PC E-Manual
13
Microphone
The built-in microphone can be used for video conferencing,
voice narrations, or simple audio recording.
Camera indicator
The camera indicator lights up when the built-in camera is in use.
Camera
The built-in camera allows you to take pictures or record videos
using your Notebook PC.
Display panel
This high-denition display panel provides excellent viewing
features for photos, videos, and other multimedia les on your
Notebook PC.
Air vents
The air vents allow cool air to enter and warm air to exit the
Notebook PC.
WARNING! Ensure that paper, books, clothing, cables, or other
objects do not block any of the air vents or else overheating may
occur.
Keyboard
The keyboard provides full-sized QWERTY keys with a
comfortable travel depth for typing. It also enables you to use
the function keys, allows quick access to Chrome™ OSOS, and
controls other multimedia functions.
NOTE: The keyboard layout diers by model or territory.
14
Notebook PC E-Manual
Touchpad
The touchpad allows the use of multi-gestures to navigate
onscreen, providing an intuitive user experience. It also simulates
the functions of a regular mouse.
NOTE: For more details, refer to the Using touchpad gestures
section in this manual.
Power button
Press the power button to turn your Notebook PC on or o. You
can also use the power button to put your Notebook PC to sleep
or hibernate mode and wake it up from sleep or hibernate mode.
In the event that your Notebook PC becomes unresponsive,
press and hold the power button for about four (4) seconds until
your Notebook PC shuts down.
Power indicator
The power indicator lights up when the Notebook PC is turned
on and blinks slowly when the Notebook PC is in sleep mode.
Notebook PC E-Manual
15
Bottom
NOTE: The bottom side may vary in appearance depending on model.
WARNING! The bottom of the Notebook PC can get warm to hot while in
use or while charging the battery pack. When working on your Notebook
PC, do not place it on surfaces that can block the vents.
IMPORTANT! Battery time varies by usage and by the specications for
this Notebook PC. The battery pack cannot be disassembled.
Audio speakers
The built-in audio speakers allow you to hear audio straight from
your Notebook PC. Audio features are software-controlled.
16
Notebook PC E-Manual
Right Side
Mini SIM card slot (optional)
This built in Mini SIM card slot comes with a SIM tray that
supports LTE, GSM* and WCDMA* network bands.
To use this slot, press the SIM tray to release then slide it out of
the slot. Place your SIM on the tray, as indicated by the arrow,
then slide back in until the SIM tray clicks into place.
USB 2.0 port
This USB (Universal Serial Bus) port is compatible with USB 2.0
or USB 1.1 devices such as keyboards, pointing devices, ash
disk drives, external HDDs, speakers, cameras and printers.
Kensington® security slot
The Kensington® security slot allows you to secure your
Notebook PC using Kensington® compatible Notebook PC
security products.
*on selected models only
Notebook PC E-Manual
17
Left Side
Power (DC) input port
Insert the bundled power adapter into this port to charge the
battery pack and supply power to your Notebook PC.
WARNING! The adapter may become warm to hot while in use.
Do not cover the adapter and keep it away from your body while
it is connected to a power source.
IMPORTANT! Use only the bundled power adapter to charge
the battery pack and supply power to your Notebook PC.
18
Notebook PC E-Manual
Two-color battery charge indicator
The two-color LED provides a visual indication of the battery’s
charge status. Refer to the following table for details.
Color Status
Solid Green The Notebook PC is plugged to
a power source and the battery
power is between 95% and
100%.
Solid Orange The Notebook PC is plugged
to a power source, charging its
battery, and the battery power
is less than 95%.
Blinking Orange The Notebook PC is running on
battery mode and the battery
power is less than 10%.
Lights o The Notebook PC is running
on battery mode and the
battery power is between 10%
to 100%.
HDMI port
This port is for a High-Denition Multimedia Interface (HDMI)
connector and is HDCP compliant for HD DVD, Blu-ray, and
other protected content playback.
Notebook PC E-Manual
19
USB 3.0 port with USB Charger+
This USB 3.0 (Universal Serial Bus 3.0) port provides a transfer
rate of up to 5 Gbit/s and is backward compatible to USB 2.0.
The icon indicates this port’s USB Charger+ feature which
allows you to quick-charge mobile devices.
Memory card reader
This Notebook PC has a built-in memory card reader slot that
supports MMC and SD card formats.
Headphone output/microphone input combo jack port
This port allows you to connect your Notebook PC to amplied
speakers or headphones. You can also use this port to connect
your Notebook PC to an external microphone.
20
Notebook PC E-Manual
Notebook PC E-Manual
21
Chapter 2:
Using your Notebook PC
22
Notebook PC E-Manual
Getting started
Charge your Notebook PC.
A. Plug the AC power adapter into a 100V~240V power source.
B. Connect the DC power connector into your Notebook PC’s power
(DC) input.
Charge the Notebook PC for 3 hours before using it in
battery mode for the rst time.
NOTE: The power adapter may vary in appearance, depending on models
and your region.
IMPORTANT!
Power adapter information:
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:1.75A(33W)
• Ratingoutputvoltage:19V
Notebook PC E-Manual
23
IMPORTANT!
• Locatetheinput/outputratinglabelonyourNotebookPCand
ensure that it matches the input/output rating information on your
power adapter. Some Notebook PC models may have multiple rating
output currents based on the available SKU.
• EnsurethatyourNotebookPCisconnectedtothepoweradapter
before turning it on for the rst time. We strongly recommend that
you use a grounded wall socket while using your Notebook PC on
power adapter mode.
• ThesocketoutletmustbeeasilyaccessibleandnearyourNotebook
PC.
• TodisconnectyourNotebookPCfromitsmainpowersupply,unplug
your Notebook PC from the power socket.
WARNING!
Read the following precautions for your Notebook PC’s battery.
• OnlyASUS-authorizedtechniciansshouldremovethebatteryinside
the device.
• Thebatteryusedinthisdevicemaypresentariskofreorchemical
burn if removed or disassembled.
• Followthewarninglabelsforyourpersonalsafety.
• Riskofexplosionifbatteryisreplacedbyanincorrecttype.
• Donotdisposeofinre.
• Neverattempttoshort-circuityourNotebookPC’sbattery.
• Neverattempttodissambleandreassemblethebattery.
• Discontinueusageifleakageisfound.
• Thebatteryanditscomponentsmustberecycledordisposedof
properly.
• Keepthebatteryandothersmallcomponentsawayfromchildren.
24
Notebook PC E-Manual
Lift to open the display panel.
Press the power button.
Notebook PC E-Manual
25
Moving the pointer
You can tap or click anywhere on the touchpad to activate its pointer,
then slide your nger on the touchpad to move the pointer onscreen.
Slide horizontally
Slide vertically
Slide diagonally
Gestures for the touchpad
Gestures allow you to launch programs and access the settings of your
Notebook PC. Refer to the following illustrations when using hand
gestures on your touchpad.
26
Notebook PC E-Manual
One-nger gestures
Click/tap Double tap/double click
Click/tap on the touchpad to
launch and activate apps and
programs.
Double-tap/double-click on an
active screen to minimize or
maximize it on your display panel.
Drag and drop
Click on an active screen then slide the same nger without lifting it
o the touchpad. To drop the screen to its new location, lift your nger
from the touchpad.
Notebook PC E-Manual
27
Two-nger gestures
Two-nger scroll (up/down) Two-nger scroll (left/right)
Slide two ngers to scroll up or
down.
• Slidetwongerstoscrollleft
or right.
• Whilebrowingawebpage,
slide two ngers to the left
or right to go back or move
to the next web page visited.
Drag and drop Two-nger click/tap
Select an item then press and hold
the touchpad. Using your other
nger, slide down the touchpad to
drag and drop the item to a new
location.
Click/tap two ngers on the
touchpad to simulate the right-
click function.
28
Notebook PC E-Manual
Swipe left/swipe right
If you opened multiple tabs on your web browser, swipe three ngers
left or right to switch between these tabs.
Three-nger gesture
Swipe down
Swipe down to see an overview of all the screens currently opened on
Chrome™.
Notebook PC E-Manual
29
Using the keyboard
The following shortcut keys on your Notebook PC’s keyboard can be
used to launch programs and functions while using your Chrome™
OSoperating system.
Goes back to the previous page
Moves to the next page.
Reloads your current web page.
Activates full-screen mode for the currently opened
screen.
Switches to the next window
Decreases display brightness
Increases display brightness
Turns o the speaker volume
Turns down the speaker volume
Turns up the speaker volume
Activates the search box
30
Notebook PC E-Manual
Notebook PC E-Manual
31
Chapter 3:
Working with Chrome™ OS
32
Notebook PC E-Manual
Starting for the rst time
When you start your Notebook PC for the rst time, a series of screens
appear to guide you in conguring your Chrome™ operating system.
To start your Notebook PC:
1. Press the power button on your Notebook PC. Wait for a few
minutes until the setup screen appears.
2. From the setup screen, select your preferred option from the
drop-down button beside the following items:
• Select your language
• Selectyourkeyboard
• Selectanetwork
Once nished, click Continue.
3. Carefully read the Google Chrome OS Terms then select Accept
and continue.
4. In the following sign in screen, input the Email and Password of
your Google account. If you don’t have a Google account yet, you
may create one by clicking on the create a Google Account link.
If you want to skip this sign in process, you may also click browse
as Guest to proceed.
5. Once the setup process is complete, the web browser is launched
and you may start working on Chrome™.
Notebook PC E-Manual
33
Sign-in area
After turning on your Notebook PC, the sign-in screen appears so
you can choose to work on Chrome™ OS using either of the following
options.
IMPORTANT! Ensure you have Internet connection before choosing any
of the following sign-in options.
Browse as Guest
This option is recommended if you simply want to browse online or let
others use your Notebook PC. Downloaded les, browser history, and
cookies are not stored once you sign out as guest.
34
Notebook PC E-Manual
User account
Use this option to access apps and other programs oered in Chrome™
OS and save downloaded les, apps, and browser histories right into
your user account.
Signing in to your user account
Select the user account you want to use then type your password on
the enter password eld.
Adding a user account
Refer to the following steps if you want to add a new user account:
1. Click Add user on the bottom part of the sign-in area.
2. In the following screen, input the new Email and Password you
would like to add as a user account. Your email account must be
Gmail. To create a new Google account, click the create a Google
Account link.
3. Click Sign in.
Notebook PC E-Manual
35
Using your desktop
Apps list
Start working on your Notebook PC by launching apps that can be
accessed after signing in to your user account. These apps enable a
variety of functions that can help you maximize the features of your
Notebook PC.
To launch the app list, click on the launcher.
NOTE: When browsing as a guest, only the icon appears on your
launcher.
Apps list icon launcher
36
Notebook PC E-Manual
Adding apps on the launcher
To add more apps on the launcher:
1. Click .
2. Right-click on the app you want to add on the launcher then
select Pin to shelf
Deleting apps from the launcher
To delete any of the apps you currently have on the launcher:
1. Right-click on the app you want to delete.
2. Select Unpin.
Conguring the app settings
To congure your app’s appearance once launched:
1. Right-click on the app you want to congure.
2. Select any of the following options:
• Open as regular tab
• Openaspinnedtab
• Openaswindow
• Openmaximized
Notebook PC E-Manual
37
Status area
At a glance, the status area displays an overview of your Google user
account information. It also allows you to change the settings of your
Notebook PC and your current user account.
Launching the status area
To launch the status area, click anywhere on the status area box on the
lower right corner of your desktop screen.
Click to launch
the status area.
status area
38
Notebook PC E-Manual
Inside the status area
User account
This shows the currently used Google user account.
Settings
Click this option to access your Chrome™ OS settings.
Sign out
Click this option to sign out from the current user account.
Network
Click this option to view your current network connection,
available network connections, and the network settings.
Bluetooth
Click this option to enable or disable your Bluetooth feature and
manage other Bluetooth devices.
Notebook PC E-Manual
39
Volume
Drag the volume slider to the left or to the right to turn the
volume up or down on your Notebook PC.
Battery status
This shows the current battery life percentage of your Notebook
PC. It also calculates the remaining time before your battery
becomes discharged or fully-charged again.
Date and time
Click this option if you want to adjust the date and time settings
of your Notebook PC.
Chromebook help
Click this option to access the Chromebook help center.
Shutdown
Click this option to sign out of your current log in session and
turn o your Notebook PC.
Lock
Click this option to lock your current session and return to the
sign in area.
40
Notebook PC E-Manual
Connecting to the Internet
Internet connection is a must for you to work on Chrome™ OS via
your Notebook PC. Connect to the Internet wirelessly using a Wi-Fi
connection.
Enabling your Wi-Fi connection
To enable your Wi-Fi connection:
1. Launch the status area.
2. Select No Network > Turn Wi-Fi on...
Switching to a new Wi-Fi network connection
By default, your Notebook PC uses the Wi-Fi network you chose during
the setup process when you used your device for the rst time. In case
you need to choose a new network connection, refer to the following:
1. Launch the status area.
2. Select your current Wi-Fi network connection.
3. Select your new Wi-Fi network connection from the current list of
networks then type in the corresponding password, if necessary.
Notebook PC E-Manual
41
Adding a network connection
To add a new network connection to your list of networks:
1. Launch the status area.
2. Click Settings.
3. Under Internet Connection, select Add connection.
42
Notebook PC E-Manual
4. Choose Add Wi-Fi... or Add private network... then input the
necessary details to setup your new network connection.
5. Click Connect to start connecting to the Internet using this new
network connection.
Notebook PC E-Manual
43
Chrome browser
The Chrome browser is your main tool to go online. Aside from the
Internet, this browser also displays most of the applications launched in
the Chrome™ OS.
To launch the Chrome browser, click on the launcher.
Inside the Chrome browser
Previousandnextwebpageicons
Press these icons to go back to the previous page or go to the
next web page.
Reload
Click this to reload the current web page.
44
Notebook PC E-Manual
Tab
The tab allows you to launch multiple sites or applications on
your Chrome browser.
Close
Click this option to close the current tab.
New tab
Click this option to launch a new tab on your Chrome browser.
Address bar
The address bar displays the current le path or website address
of the tab you are viewing. You may also use the address bar to
search the web by typing down your search word then press
.
Bookmark
Click this to bookmark the current web page you are viewing.
Minimize/maximize
Click this to maximize or minimize your Chrome browser.
Close
Click this to close your Chrome browser.
Settings
Click to customize the settings of your Chrome browser.
Scroll bar
Move this bar up or down to scroll up or down the web page.
Notebook PC E-Manual
45
Printing documents
Using the print feature of your Notebook PC’s Chrome™ OS, you can
save les in PDF format or create hard copies via Google Cloud Print.
Saving PDF les
To save your le in PDF format:
1. Open the le you want to print then press .
2. On the left side of your screen, select the settings you want to
modify such as the Pages, Layout, Margins, and Options.
3. When nished, click Save.
46
Notebook PC E-Manual
4. In the next screen that appears, select which location you want to
save your le as a PDF then type in your preferred le name in the
File name box.
5. Click Save to create the pdf le into the location and exit.
Notebook PC E-Manual
47
Google Cloud Print
If you need to create le printouts from your Notebook PC, you may
do so using the Google Cloud Print feature. Google Cloud Print allows
you to create hard copies using these key ingredients: cloud-based
technology, an active Internet connection, and a cloud print enabled
printer.
Refer to the following information for details on how to use this feature.
Using Cloud Ready printers
If your printer already supports Google Cloud Print, refer to its user
guide to start using it with your Notebook PC.
You may check your printer’s compatibility with this feature via this link:
http://www.google.com/cloudprint/learn
NOTE: If your printer does not appear on the list, you may refer to the
Connecting a classic printer to Google Cloud Print section in this manual.
48
Notebook PC E-Manual
Connecting a classic printer to Google Cloud Print
Classic printers are printers that do not automatically support Google
Cloud Print and needs to be manually setup for use with Google
To use a classic printer with your Notebook PC, you need to connect the
said printer to Google Cloud Print via a compatible Windows® computer.
IMPORTANT!
• EnsurethatyouarerunningaWindows®XPorhigheronyour
computer. When using Windows® XP, ensure that the Windows XP
Service Pack 3 (SP3 is already installed.
• YoumustinstalltheprintertoyourcompatibleWindows®computer
rst before connecting it with Google Cloud Print.
• EnsurethatyourcomputerhasaninstalledGoogleChromebrowser.
Notebook PC E-Manual
49
To connect classic printers to Google Cloud print:
1. Connect your preferred printer to your computer then turn on
both devices.
IMPORTANT! Ensure that your printer is already installed to your
computer before proceeding with the next steps.
2. Connect your computer to the Internet then open your Google
Chrome browser.
3. Click > Settings.
4. Click Show advanced settings...
5. Scroll down to see Google Cloud Print then click Manage.
50
Notebook PC E-Manual
6. Under Classic Printers click Add printers.
7. Sign in using your Google account.
8. In the next screen, click the printer that you want to connect to
Google Cloud Print then click Add printer(s).
9. The following screen appears when you have successfully set up
your printer with Google Cloud Print.
Notebook PC E-Manual
51
Using Google Cloud Print to create printouts
After successfully connecting your printer with Google Cloud Print,
you can start printing les from your Notebook PC using the following
procedures:
1. Open the le you want to print then press .
2. Under the Destination option, click Change...
3. From the list of registered printers, click the printer you want to
use.
4. Congure any addition print options you may want to use then
click Print.
52
Notebook PC E-Manual
Managing your les
Manage and store les on your Notebook PC using the Files app and
Google Drive app on the Chrome™ OS.
Using these apps, you can store and edit various les such as
documents, images, audios, and videos while working on your
Notebook PC. You may also save and access these les via Google
Drive’s cloud storage system.
Files app
The Files app allows you to see all the les that have been downloaded
to your Notebook PC and those that are stored on your Google Drive. It
also shows all connected external devices to your Notebook PC.
To launch the Google Drive app, click > .
Inside the Files app
Notebook PC E-Manual
53
File locations
This column shows you the currently available le locations. This
also shows all the external storage devices that are currently
connected to your Notebook PC.
Search
Click on the search button to enable the search box. To use the
search box, type the le name you want to locate then press
.
Settings
Click this button to customize the settings of your currently
active le location.
Minimize/maximize
Click this to maximize or minimize your Chrome browser.
Close
Click this to close your Chrome browser.
54
Notebook PC E-Manual
Accessing les stored on your Notebook PC
The Downloads folder inside the Files app is where your Notebook PC
stores all types of les downloaded online or saved on your Notebook
PC.
To access these les, simply launch the Files app then select the
Downloads folder and click the le you want to open.
Moving les to another folder
If you want to move les from one location to another inside the Files
app, refer to the following procedures:
1. Open the le location where the le is currently placed.
2. Select the le(s) you want to move then drag and drop the le(s)
into the new le location.
Notebook PC E-Manual
55
Unmounting devices
To ensure that your devices are safely disconnected from your Notebook
PC, unmount them rst via Files app using the following steps:
1. Click > .
2. Select the device you want to unmount then click .
3. Once the unmounted device no longer appears on the le
locations column, you may remove the device from your
Notebook PC.
Creating a new folder
if you want to create a new folder inside any of the current le locations
of your Notebook PC, refer to the following steps:
1. in the Files app screen, select the le location where you want to
create a new folder.
2. Press to create a new folder.
56
Notebook PC E-Manual
Google Drive
Google Drive is a 15 GB cloud storage system you can access on your
Notebook PC via your Google account. It allows you to sync and access
your les across other devices such as mobile phones, tablet PCs, and
other Notebook PCs.
There are two ways in which you can access Google Drive on your
Notebook PC: via the Files app or by launching the Google Drive app.
Launching Google Drive via the Files app
Google Drive under the Files app allows you to see all the les that are
currently stored in your Google Drive. It also allows you to quickly move
les from the Downloads folder into your Google Drive.
To launch Google Drive via the Files app:
1. Click > .
2. Select Google Drive to view all the les currently stored in it
under the following categories:
• Google Drive - Lists all stored les
• Oine - Lists all les that can be accessed oine
• Shared with me - Lists all les that are shared from other
Google accounts
• Recent - Lists all recently opened les
Notebook PC E-Manual
57
Launching the Google Drive app
By accessing the Google Drive app, you can customize its settings and
maximize the use of Google Drive.
IMPORTANT! Ensure that you are connected to the Internet when
launching the Google Drive app.
To launch the Google Drive app, click > .
Moving your downloads to Google Drive
By default, all the les downloaded on your Notebook PC are stored
inside the Download app. You can move these les to your Google
Drive using the following procedures:
1. Click > .
2. Click Downloads then select the Google docs, les, or folders
that you want to move then drag and drop these selected items
into Google Drive.
58
Notebook PC E-Manual
Inside the Google Drive app
Create
Click this option to create a new le that is automatically saved
in your Google Drive.
Upload
Click this option to upload les or folders from another location
into your Google Drive.
File locations
This column shows you the currently available le locations
inside your Google Drive.
Notebook PC E-Manual
59
Searchbox
Type the name of the le, folder, or Google document that you
want to nd you want to locate inside Google Drive then press
or click .
Search
Click this button to start searching for the indicated le name.
Details and activity
Click this option to show the activity log of your Google Drive
account and the details of your My Drive le location.
Switch to list
Click this option to rearrange your les to a list view.
Switch to grid
Click this option to rearrange your les to a grid view.
Settings
Click this button to customize the settings of your Google Drive.
Google Drive storage details
Click this option to view and customize the storage system of
your Google Drive.
60
Notebook PC E-Manual
Resetting your Notebook PC
In case you need to reset your Chrome™ OS to its default settings, you
may do so using Powerwash.
Using Powerwash
WARNING!
• Backupallyourdatabeforeperformingthisoption.
• AlldatastoredlocallyinyourNotebookPCaredeletedwhenusing
Powerwash. However, your Google Drive accounts and other data
synchronized with these accounts are not going to be aected.
1. Launch the status area then select Settings.
2. Scroll down then click on the Show advanced settings...
Notebook PC E-Manual
61
3. Click Powerwash.
4. When prompted, click Restart.
5. In the Powerwash your Chrome device window, click Reset to
proceed.
62
Notebook PC E-Manual
Turning your Notebook PC off
You can turn o your Notebook PC by doing either of the following
procedures:
Using Chrome™ OS
1. Launch the status area.
2. Click .
Using the power button on your Notebook PC
You can also use this option to turn o your Notebook PC in case it
becomes unresponsive.
IMPORTANT! Save your les before performing this option to prevent loss
of important data.
To do this, press the power button on your Notebook PC for at least four
(4) seconds until your Notebook PC turns o.
Putting your Notebook PC to sleep
To put your Notebook PC on Sleep mode, press the power button once.
Notebook PC E-Manual
63
Tips and FAQs
64
Notebook PC E-Manual
Useful tips for your Notebook PC
To help you maximize the use of your Notebook PC, maintain its system
performance, and ensure all your data are kept secured, here are some
useful tips that you can follow:
• Unlessabsolutelynecessary,refrainfromusingforceshutdownto
turn o your Notebook PC.
• Alwaysbackupyourdataandmakeitapointtocreateabackup
data on the cloud or an external storage device.
• RefrainfromusingtheNotebookPCatextremelyhigh
temperatures.
• IfyouarenotgoingtouseyourNotebookPCforalongperiod
of time (at least a month), we recommend that you take out the
battery if the battery is removable.
• Disconnectallexternaldevicesandensureyouhavethefollowing
items prior to resetting your Notebook PC:
- Backup data
- Log in ID and password
- Internet connection information
Notebook PC E-Manual
65
Hardware FAQs
1. A black dot, or sometimes a colored dot, appears onscreen
when I turn on the Notebook PC. What should I do?
Although these dots normally appear onscreen, they will not
aect your system. If the incident continues and subsequently
aects system performance, consult an authorized ASUS service
center.
2. My display panel has an uneven color and brightness. How
canIxthis?
The color and brightness of your display panel may be aected
by the angle and current position of your Notebook PC. The
brightness and color tone of your Notebook PC may also vary per
model. You may use the function keys or the display settings in
your operating system to adjust the appearance of your display
panel.
3. HowcanImaximizemyNotebookPC‘sbatterylife?
You can try doing any of the following suggestions:
• Usethefunctionkeystoadjustthedisplaybrightness.
• DisconnectunusedUSBdevices.
• Closeunusedapplications,especiallythosethattakeuptoo
much system memory.
66
Notebook PC E-Manual
4. My battery LED indicator does not light up. What’s wrong?
• Checkwhetherthepoweradapterorbatterypackis
attached correctly. You may also disconnect the power
adapter or battery pack, wait for a minute, then reconnect
them again to the power outlet and Notebook PC.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
5. When I play audio and video les, why can’t I hear any sound
from my Notebook PC’s audio speakers?
You can try doing any of the following suggestions:
• Press to turn up the speaker volume.
• Checkifyourspeakersweresettomute.
• CheckifaheadphonejackisconnectedtoyourNotebook
PC and remove it.
6. What should I do if my Notebook PC’s power adapter gets lost
or my battery stops working?
Contact your local ASUS service center for assistance.
7. My Notebook PC cannot do keystrokes correctly because my
cursor keeps on moving. What should I do?
Make sure that nothing accidentally touches or presses on your
touchpad while you type on the keyboard.
Notebook PC E-Manual
67
Software FAQs
1. When I turn on my Notebook PC, the power indicator lights
up but not my drive activity indicator. System bootup does
nothappenaswell.WhatcanIdotoxthis?
You can try doing any of the following suggestions:
• ForceshutdownyourNotebookPCbypressingthepower
button for more than four (4) seconds. Check if the power
adapter and battery pack are inserted correctly then turn on
your Notebook PC.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
2. What should I do when my screen displays this message:
“Remove disks or other media. Press any key to restart.”?
You can try doing any of the following suggestions:
• RemoveallconnectedUSBdevicesthenrestartyour
Notebook PC.
• Iftheproblemstillexists,yourNotebookPCmighthavea
memory storage problem. Contact your local ASUS service
center for assistance.
3. My Notebook PC boots slower than usual and my operating
systemlags.HowcanIxthis?
Delete the applications you recently installed or were not
included with your operating system package then restart your
system.
68
Notebook PC E-Manual
4. MyNotebookPCdoesnotbootup.HowcanIxthis?
You can try doing any of the following suggestions:
• RemoveallconnecteddevicestoyourNotebookPCthen
restart your system.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
5. Why can’t my Notebook PC wake up from sleep mode?
• Youneedtopressthepowerbuttontoresumeyourlast
working state.
• Yoursystemmighthavecompletelyusedupitsbattery
power. Connect the power adapter to your Notebook PC
and connect to a power outlet then press the power button.
Notebook PC E-Manual
69
Appendices
70
Notebook PC E-Manual
Internal Modem Compliancy
The Notebook PC with internal modem model complies with JATE (Japan), FCC
(US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved
in accordance with Council Decision 98/482/EC for pan-European single terminal
connection to the public switched telephone network (PSTN). However due
to dierences between the individual PSTNs provided in dierent countries,
the approval does not, of itself, give an unconditional assurance of successful
operation on every PSTN network termination point. In the event of problems you
should contact your equipment supplier in the rst instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has
been published in the Ocial Journal of the EC. The CTR 21 applies to all non
voice terminal equipment with DTMF-dialling which is intended to be connected
to the analogue PSTN (Public Switched Telephone Network).
CTR 21 (Common Technical Regulation) for the attachment requirements for
connection to the analogue public switched telephone networks of terminal
equipment (excluding terminal equipment supporting the voice telephony
justied case service) in which network addressing, if provided, is by means of
dual tone multi-frequency signalling.
Notebook PC E-Manual
71
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notied Body and the vendor:
“This declaration will indicate the networks with which the equipment is designed
to work and any notied networks with which the equipment may have inter-
working diculties.”
Statement to be made by the manufacturer to the user: “This declaration will
indicate the networks with which the equipment is designed to work and any
notied networks with which the equipment may have inter-working diculties.
The manufacturer shall also associate a statement to make it clear where network
compatibility is dependent on physical and software switch settings. It will also
advise the user to contact the vendor if it is desired to use the equipment on
another network.”
Up to now the Notied Body of CETECOM issued several pan-European approvals
using CTR 21. The results are Europe’s rst modems which do not require
regulatory approvals in each individual European country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as
modems, fax machines, auto-dialers and alarm systems. Equipment in which the
end-to-end quality of speech is controlled by regulations (e.g. handset telephones
and in some countries also cordless telephones) is excluded.
72
Notebook PC E-Manual
This table shows the countries currently under the CTR21
standard.
Country Applied More Testing
Austria
1
Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark
1
Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein Yes No
Luxemburg Yes No
The Netherlands
1
Yes Yes
Norway Yes No
Poland No Not Applicable
Portugal No Not Applicable
Spain No Not Applicable
Sweden Yes No
Switzerland Yes No
United Kingdom Yes No
Notebook PC E-Manual
73
This information was copied from CETECOM and is supplied without liability. For
updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.
html
1 National requirements will apply only if the equipment may use pulse dialling
(manufacturers may state in the user guide that the equipment is only intended to
support DTMF signalling, which would make any additional testing superuous).
In The Netherlands additional testing is required for series connection and caller
ID facilities.
Federal Communications Commission
Interference Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• Thisdevicemaynotcauseharmfulinterference.
• Thisdevicemustacceptanyinterferencereceived,includinginterference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the Federal Communications Commission
(FCC) rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
74
Notebook PC E-Manual
• Connecttheequipmentintoanoutletonacircuitdierentfromthatto
which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
WARNING! The use of a shielded-type power cord is required in order to meet
FCC emission limits and to prevent interference to the nearby radio and television
reception. It is essential that only the supplied power cord be used. Use only shielded
cables to connect I/O devices to this equipment. You are cautioned that changes or
modications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Oce of the Federal Register, National Archives and Records
Administration, U.S. Government Printing Oce.)
FCCRadioFrequency(RF)ExposureCaution
Statement
WARNING! Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
“The manufacture declares that this device is limited to Channels 1 through 11 in the
2.4GHz frequency by specied rmware controlled in the USA.”
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
End-users installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
CAUTION! Any changes or modications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
Notebook PC E-Manual
75
Declaration of Conformity (R&TTE directive
1999/5/EC)
The following items were completed and are considered relevant and sucient:
• Essentialrequirementsasin[Article3]
• Protectionrequirementsforhealthandsafetyasin[Article3.1a]
• Testingforelectricsafetyaccordingto[EN60950]
• Protectionrequirementsforelectromagneticcompatibilityin[Article3.1b]
• Testingforelectromagneticcompatibilityin[EN301489-1]&[EN301
489-17]
• Eectiveuseoftheradiospectrumasin[Article3.2]
• Radiotestsuitesaccordingto[EN300328-2]
CE Marking
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low
voltage directive”.
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio and
Telecommunications Equipment and mutual recognition of conformity.
76
Notebook PC E-Manual
ICRadiationExposureStatementforCanada
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting. End users must follow the specic operating instructions for
satisfying RF exposure compliance.
Operation is subject to the following two conditions:
• Thisdevicemaynotcauseinterferenceand
• Thisdevicemustacceptanyinterference,includinginterferencethatmay
cause undesired operation of the device.
To prevent radio interference to the licensed service (i.e. co-channel Mobile
Satellite systems) this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that
is installed outdoors is subject to licensing.
This device complies with Industry Canada licence-exempt RSS standard(s).
CAN ICES-3(B)/NMB-3(B)
Notebook PC E-Manual
77
Déclaration d’Industrie Canada relative à l’
expositionauxondesradio
Cet appareil est conforme aux limites d’exposition aux radiations d’Industrie
Canada dénies pour un environnement non-contrôlé. Pour maintenir la
conformité avec les exigences d’exposition RF d’IC, veuillez éviter tout contact
direct avec l’antenne pendant l’émission. Les utilisateurs naux doivent suivre
les instructions de fonctionnement spéciques pour satisfaire la conformité aux
expositions RF.
Son utilisation est sujette aux deux conditions suivantes :
• Cetappareilnepeutpascauserd’interférence,et
• Cetappareildoitacceptertouteinterférence,ycomprislesinterférences
qui pourraient causer un fonctionnement non souhaité de l’appareil.
Pour éviter les interférences radio avec le service sous licence (c’est à-dire le
partage de canal avec les systèmes de téléphonie satellite), cet appareil est destiné
à être utilisé en intérieur et loin des fenêtres pour fournir un blindage maximal.
Tout appareil (ou son antenne d’émission) qui est installé en extérieur est sujet à
cette licence.
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.
CAN ICES-3(B)/NMB-3(B)
78
Notebook PC E-Manual
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst case maximum
authorized power indoors are:
• 10mWfortheentire2.4GHzband(2400MHz–2483.5MHz)
• 100mWforfrequenciesbetween2446.5MHzand2483.5MHz
NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5
MHz.
There are few possibilities for outdoor use: on private property or on the private
property of public persons, use is subject to a preliminary authorization procedure
by the Ministry of Defense, with maximum authorized power of 100mW in the
2446.5–2483.5MHzband.Useoutdoorsonpublicpropertyisnotpermitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximumauthorizedpowerindoorsis100mW
• Maximumauthorizedpoweroutdoorsis10mW
Wireless Operation Channel for Dierent
Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
Notebook PC E-Manual
79
Departmentsinwhichtheuseofthe2400–2483.5MHzbandispermittedwithan
EIRP of less than 100mW indoors and less than 10mW outdoors:
01 Ain 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin
68 Haut Rhin 70 Haute Saône 71 Saône et Loire
75 Paris 82 Tarn et Garonne 84 Vaucluse
88 Vosges 89 Yonne 90 Territoire de Belfort
94 Val de Marne
This requirement is likely to change over time, allowing you to use your wireless
LAN card in more areas within France. Please check with ART for the latest
information (www.arcep.fr)
NOTE: Your WLAN Card transmits less than 100mW, but more than 10mW.
80
Notebook PC E-Manual
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment
intended to be electrically connected to a telecommunication network that has an
operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak,
and 105V rms, and installed or used in accordance with the National Electrical
Code (NFPA 70).
When using the Notebook PC modem, basic safety precautions should always be
followed to reduce the risk of re, electric shock, and injury to persons, including
the following:
• DONOTusetheNotebookPCnearwater,forexample,nearabathtub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
• DONOTusetheNotebookPCduringanelectricalstorm.Theremaybea
remote risk of electric shock from lightning.
• DONOTusetheNotebookPCinthevicinityofagasleak.
Required for UL 1642 covering primary (nonrechargeable) and secondary
(rechargeable) lithium batteries for use as power sources in products. These
batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may
consist of a single electrochemical cell or two or more cells connected in series,
parallel, or both, that convert chemical energy into electrical energy by an
irreversible or reversible chemical reaction.
• DonotdisposetheNotebookPCbatterypackinare,astheymay
explode. Check with local codes for possible special disposal instructions
to reduce the risk of injury to persons due to re or explosion.
• Donotusepoweradaptersorbatteriesfromotherdevicestoreducethe
risk of injury to persons due to re or explosion. Use only UL certied
power adapters or batteries supplied by the manufacturer or authorized
retailers.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg
must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm
2
or
H05VV-F, 2G, 0.75mm
2
.
Notebook PC E-Manual
81
TV Notices
Note to CATV System Installer—Cable distribution system should be grounded
(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC),
in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial
Cable–installationshouldincludebondingthescreenofthecoaxialcabletothe
earth at the building entrance.
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and
Restriction of Chemicals) regulatory framework, we publish the chemical
substances in our products at ASUS REACH website at http://csr.asus.com/english/
REACH.htm.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S.A. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only
unless otherwise
authorized by Macrovision Corporation
. Reverse engineering or disassembly is
prohibited.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume
levels for long periods.
Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a
coating is applied to insulate the device except on the areas where the I/O ports
are located.
82
Notebook PC E-Manual
Nordic Lithium Cautions (for lithium-ion
batteries)
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions. (English)
ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.
Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla
fabbrica. Non disperdere le batterie nell’ambiente. (Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz
nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning
må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri
tilbage til leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller
en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt
batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty paristo
valmistagan ohjeiden mukaisesti. (Finnish)
ATTENTION! Il y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du mêre type ou d’un type
équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées
conformément aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner. (Norwegian)
(Japanese)
ВНИМАНИЕ! При замене аккумулятора на аккумулятор иного типа возможно
его возгорание. Утилизируйте аккумулятор в соответствии с инструкциями
производителя. (Russian)
Notebook PC E-Manual
83
CTR 21 Approval (for Notebook PC with built-in
Modem)
Danish
Dutch
English
Finnish
French
84
Notebook PC E-Manual
German
Greek
Italian
Portuguese
Spanish
Swedish
Notebook PC E-Manual
85
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental
Protection Agency and the U.S. Department of Energy helping
us all save money and protect the environment through energy
ecient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR
standard, and the power management feature is enabled by default. The
monitor and computer are automatically set to sleep after 10 and 30 minutes
of user inactivity. To wake your computer, click the mouse or press any key on
the keyboard. Please visit http://www.energy.gov/powermanagement for detail
information on power management and its benets to the environment. In
addition, please visit http://www.energystar.gov for detail information on the
ENERGY STAR joint program.
NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.
European Union Eco-label
This Notebook PC has been awarded the EU Flower label, which means that this
product has the following characteristics:
1. Decreased energy consumption during use and stand-by modes.
2. Limited use of toxic heavy metals.
3. Limited use of substances harmful to the environment and health.
4. Reduction of the use of natural resources by encouraging recycling.
5. Designed for easy upgrades and longer lifetime through providing
compatible spare parts such as batteries, power supplies, the keyboard, the
memory, and if available the CD drive or DVD drive.
6. Reduced solid waste through takeback policy.
For more information on the EU Flower label, please visit the European Union Eco-
label website at http://www.ecolabel.eu.
86
Notebook PC E-Manual
Optical Drive Safety Information
Laser Safety Information
WARNING! To prevent exposure to the optical drive’s laser, do not attempt to
disassemble or repair the optical drive by yourself. For your safety, contact a
professional technician for assistance.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Service warning label
WARNING! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR
VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug
Administration implemented regulations for laser products on August 2, 1976.
These regulations apply to laser products manufactured from August 1, 1976.
Compliance is mandatory for products marketed in the United States.
WARNING! Use of controls or adjustments or performance of procedures other
than those specied herein or in the laser product installation guide may result in
hazardous radiation exposure.
Notebook PC E-Manual
87
Global Environmental Regulation Compliance
and Declaration
ASUS follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASUS product is in line
with global environmental regulations. In addition, ASUS disclose the relevant
information based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information
disclosure based on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle our products, batteries, other
components as well as the packaging materials. Please go to http://csr.asus.com/
english/Takeback.htm for detailed recycling information in dierent regions.
Rechargeable Battery Recycling Service in
North America
For US and Canada customers, you can call 1-800-822-8837
(toll-free) for recycling information of your ASUS products’
rechargeable batteries.
88
Notebook PC E-Manual
Regional notice for Singapore
This ASUS product complies with IDA Standards.
Complies with
IDA Standards
DB103778
Regional notice for India
This product complies with the “India E-waste (Management and Handling)Rule
2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated
biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations
exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight
in homogenous materials for cadmium, except for the exemptions listed in
Schedule-II of the Rule.
Notices for removeable batteries
• Riskofexplosionifbatteryisreplacedbyanincorrecttype.
• Thebatteryanditscomponentmustberecycledordisposedofproperly.
Avis concernant les batteries remplaçables
• Labatteriedel’ordinateurportablepeutprésenterunrisqued’incendieou
de brûlure si celle-ci est retirée ou désassemblée.
• Labatterieetsescomposantsdoiventêtrerecyclésdefaçonappropriée.
Notebook PC E-Manual
89
90
Notebook PC E-Manual
EC Declaration of Conformity
We, the undersigned,
Manufacturer: ASUSTeK COMPUTER INC.
Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe: ASUS COMPUTER GmbH
Address, City: HARKORT STR. 21-23, 40880 RATINGEN
Country: GERMANY
declare the following apparatus:
Product name :
Notebook PC
Model name :
C300M
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011
1999/5/EC-R&TTE Directive
EN 300 328 V1.8.1(2012-06)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 908-13 V5.2.1(2011-05)
EN 301 893 V1.7.1(2012-06)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001
EN 62479:2010
EN 50385:2002
EN 62311:2008
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
2006/95/EC-LVD Directive
EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EC) No. 617/2013
2011/65/EU-RoHS Directive
Ver. 140331
CE marking
Declaration Date: 19/05/2014
Year to begin affixing CE marking: 2014
Position : CEO
Name :
Jerry Shen
Signature :
__________
(EC conformity marking)

Navigation menu
