ASUSTeK Computer DPR2320 WIRELESS CABLE MODEM User Manual Title
ASUSTeK Computer Inc WIRELESS CABLE MODEM Title
users manual
WebSTAR™ DPR2320/2325™ and
EPR2320/2325™ Gateway Cable
Modems User’s Guide
Software Release v2.0.1 r1132
1
WebSTAR™ DPR2320/2325™ and EPR2320/2325™ Gateway
Cable Modems User’s Guide
Introduction
Welcome to the exciting world of home and office networking. Your new WebSTAR™ DPR2320™ or EPR2320™
Gateway Cable Modem allows several users to share one high-speed broadband connection across multiple PCs,
laptops, digital cameras, personal data assistants (PDAs), and Internet devices. The WebSTAR DPR2320 and
EPR2320 Gateway Cable Modems make sharing files and photos with your family and friends hassle free. With a
WebSTAR Gateway Cable Modem, your Internet enjoyment and business productivity will surely soar.
This guide provides procedures and recommendations for placing, installing, configuring, operating, and
troubleshooting your gateway cable modem for Internet access and for high-speed wired or wireless broadband
networking for your home or office. Refer to the appropriate section in this guide for the specific information you
need for your situation. Contact your cable service provider for more information about subscribing to these
services.
Benefits and Features
Your new gateway cable modem offers the following outstanding benefits and
features:
• Provides a high-speed broadband Internet connection that energizes your
online experience, and makes downloading and sharing files and photos with
your family and friends hassle free
• Allows you to attach multiple devices in your home or office to the gateway
cable modem for high-speed networking and sharing of files and folders
without first copying them onto a CD or diskette
• Facilitates high-speed wireless networking of PCs, laptops, and PDAs
• Offers an integrated router (gateway) to simplify setting up a home or office
network
• Features Plug and Play operation for easy set up and installation
• Provides parental control and advanced firewall technology
• Includes both USB and Ethernet connections
• Allows vertical, horizontal, or wall-mount placement
• Allows automatic software upgrades by your cable service provider
• Assures a broad range of interoperability with most cable service providers
by complying with Data Over Cable System Interface Specifications
(DOCSIS) 1.0, 1.1, and 2.0 standards along with CableHome 1.0
specifications
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
2
In This Guide
IMPORTANT RULES FOR SAFE OPERATION ......................................................................................................... 3
What’s In the Carton? .................................................................................................................................................. 6
Front Panel Description ............................................................................................................................................... 7

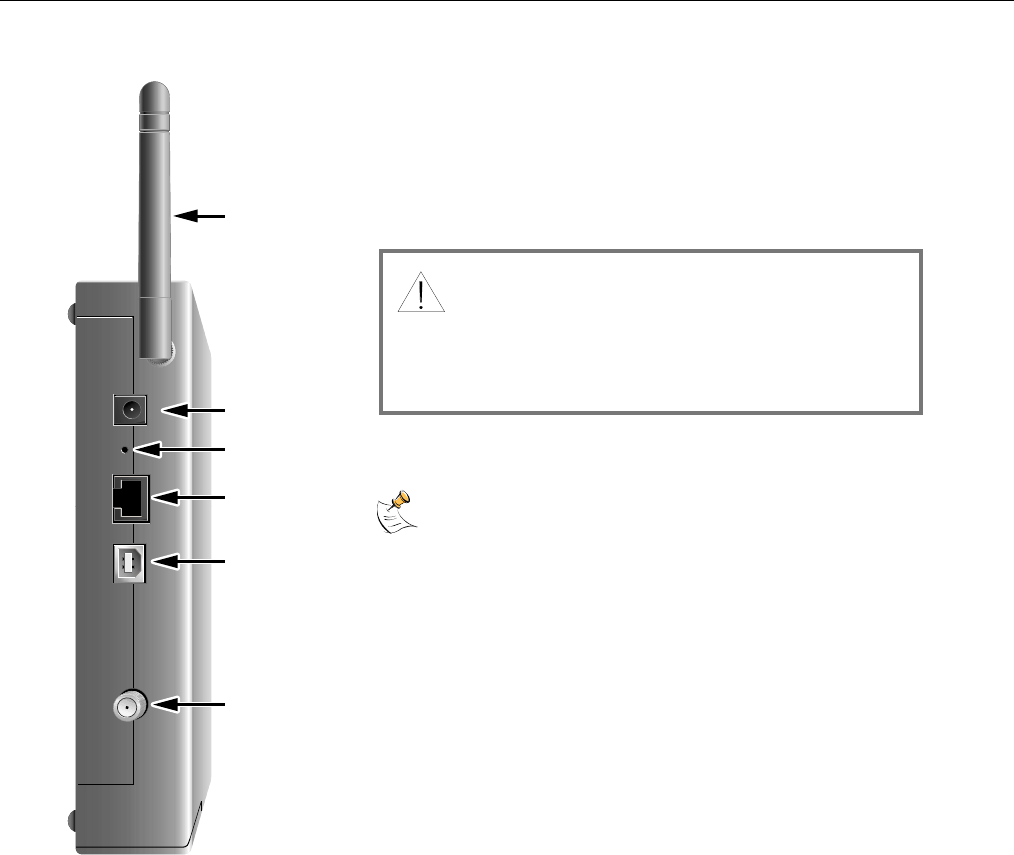

Back Panel Description................................................................................................................................................ 8
Where is the Best Location for My Gateway Cable Modem ........................................................................................ 9
What are the System Requirements for Internet Service? .......................................................................................... 9
How Do I Set Up My High-Speed Internet Access Account? ...................................................................................... 10
How Do I Connect My Devices to Use the Internet? ................................................................................................... 11
How Do I Configure TCP/IP Protocol?......................................................................................................................... 13
How Do I Install USB Drivers? ..................................................................................................................................... 16
How Do I Troubleshoot My Internet Service Installation?............................................................................................ 18
What are the Requirements for Ethernet Network Devices?....................................................................................... 20
How Do I Select and Place Ethernet Network Devices? ............................................................................................. 21
How Do I Connect Ethernet Network Devices? ........................................................................................................... 22
What are the Requirements for USB Network Devices? ............................................................................................. 24
How Do I Select and Place USB Network Devices?.................................................................................................... 25
How Do I Connect USB Network Devices? ................................................................................................................. 26
What are the Requirements for Wireless Network Devices?....................................................................................... 28
How Do I Select and Place Wireless Network Devices? ............................................................................................. 29
How Do I Install Wireless Network Devices?............................................................................................................... 30
How Do I Configure the Gateway Cable Modems? ..................................................................................................... 32
Having Difficulty? ......................................................................................................................................................... 71
Tips for Improved Performance ................................................................................................................................... 73
How Do I Renew the IP Address on My PC? .............................................................................................................. 74
Front Panel Status Indicator Functions........................................................................................................................ 75
Notices ......................................................................................................................................................................... 77
FCC Compliance.......................................................................................................................................................... 78
For Information……………………………………………………………………………………………..………...Back Cover
Important Rules for Safe Operation
3
IMPORTANT RULES FOR SAFE OPERATION
Note to Installer
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
Note to CATV System Installer
This reminder is provided to call the CATV
system installer’s attention to Article 820-40
of the NEC (Section 54, Part I of the Canadian
Electrical Code), that provides guidelines for
proper grounding and, in particular,
specifies that the CATV cable ground shall
be connected to the grounding system of
the building, as close to the point of cable
entry as practical.
CAUTION: To reduce the risk of electric
shock, do not remove cover (or back).
No user-serviceable parts inside. Refer
servicing to qualified service personnel.
This symbol is intended to alert you of the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying this product.
This symbol is intended to alert you that
uninsulated voltage within this product may
have sufficient magnitude to cause electric shock.
Therefore, it is dangerous to make any kind of
contact with any inside part of this product.
WARNING
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
Read and Retain These Instructions
• Read all of the instructions before you operate this equipment. Give
particular attention to all safety precautions. Retain the instructions for future
reference.
• Comply with all warning and caution statements in the instructions. Observe
all warning and caution symbols that are affixed to this equipment.
• Comply with all instructions that accompany this equipment.
Cleaning the Equipment
Before cleaning this equipment, unplug it from the electrical outlet. Use a damp
cloth to clean this equipment. Do not use a liquid cleaner or an aerosol cleaner.
Do not use a magnetic/static cleaning device (dust remover) to clean this
equipment.
Placement
Place this equipment in a location that is close enough to an electrical outlet to
accommodate the length of the power cord. Place this equipment on a stable
surface. The surface must support the size and weight of this equipment. Place
this equipment either horizontally or vertically.
WARNING:
Avoid personal injury
and damage to this
equipment. An
unstable surface may
cause this equipment
to fall.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
4
Accessories
Do not use accessories with this equipment unless recommended by your cable
service provider.
Ventilation
This equipment has openings for ventilation that protect it from overheating. To
ensure the reliability of this equipment, do not obstruct the openings.
• Do not place other equipment, lamps, books, or any other object on the top
of or beside this equipment.
• Do not place this equipment in any of the locations that follow:
−
−−
− On a bed, sofa, rug, or similar surface
−
−−
− Over a radiator or a heat register
• In an enclosure, such as a bookcase or equipment rack, unless the
installation provides proper ventilation
Overloading
Do not overload electrical outlets, extension cords, or integral convenience
receptacles, as this can result in a risk of fire or electric shock. For equipment
that requires battery power or other sources to operate, refer to the operating
instructions for that equipment.
Object and Liquid Entry
Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short out parts that could result in a fire or
electric shock. Do not expose this equipment to liquid or moisture. Do not place
this equipment on a wet surface. Do not spill liquids on or near this equipment.
Lightning and Power Surges
Plug your equipment into a surge protector in order to reduce the risk of damage
from lightning strikes and power surges. If you are unsure of the type of surge
protector to use, contact your cable service provider.
Servicing
Do not open the cover of this equipment. If you open the cover, your warranty will
be void. Refer all servicing to qualified personnel only. Contact your cable service
provider for instructions.
Important Rules for Safe Operation
5
Power Cord Protection
Arrange all power cords so that people cannot walk on the cords, place objects
on the cords, or place objects against the cords, which can damage the cords.
Pay particular attention to cords that are at plugs, at electrical outlets, and at the
places where the cords exit the equipment.
Power Sources
A label on the AC power adapter that is supplied with this equipment indicates
the correct power source for this equipment. Operate this equipment only from an
electrical outlet that has the voltage and frequency that the label indicates.
If you are unsure of the type of power supply to your residence, consult
Scientific-Atlanta, Inc., or your local power company.
Grounding
This equipment may be provided with a three-prong plug. Properly ground (earth)
this equipment by inserting the plug into a grounded electrical, three-socket outlet.
If you are unable to insert this plug fully into the outlet, contact an electrician to
replace your obsolete outlet.
Damage that Requires Service
For damage that requires service, unplug this equipment from the electrical outlet.
Contact your cable service provider when any of the following situations occur:
• There is damage to the power cord or plug
• Liquid enters the equipment
• A heavy object falls on the equipment
• There is exposure to rain or water
• Operation is not normal (the instructions describe the proper operation)
• If you drop this equipment, or damage the cabinet of this equipment
• If this equipment exhibits a distinct change in performance
Upon completion of any service or repairs to this equipment (cable modem), ask
the service technician to perform safety checks to determine that the equipment
is in proper operating condition.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
6

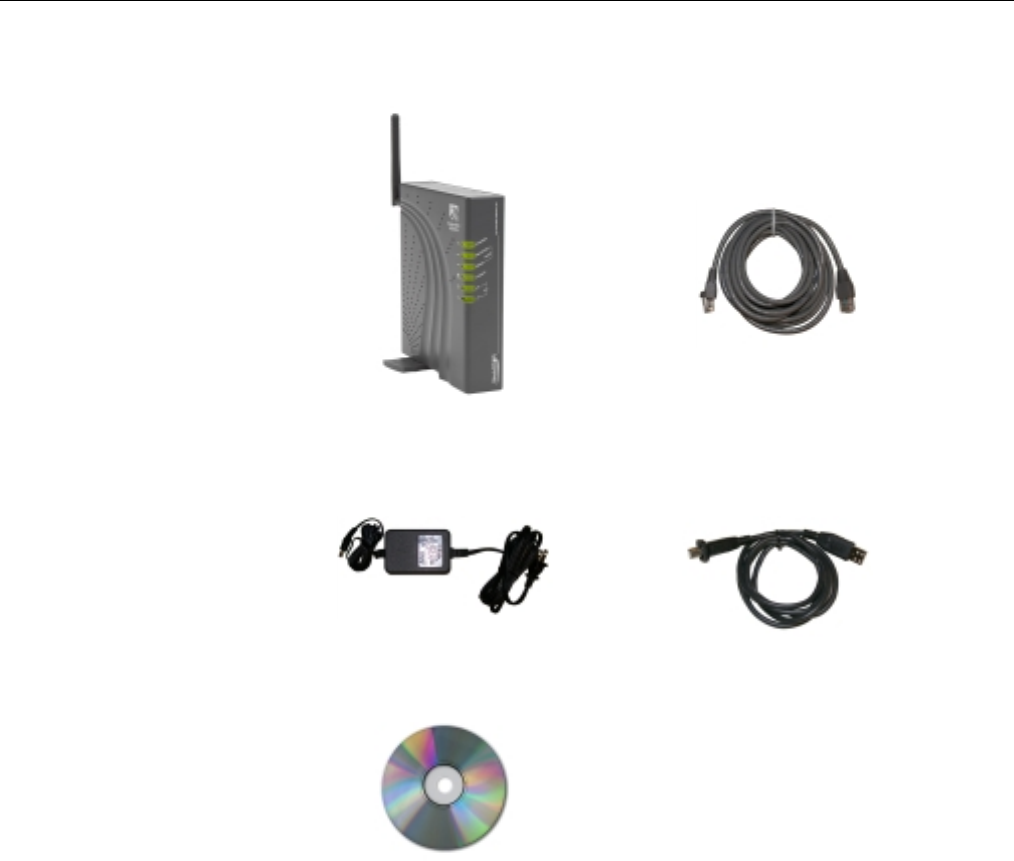

What’s In the Carton?
When you receive your gateway cable modem, you should check the equipment and accessories to verify that
each item is in the carton and that each item is undamaged. The carton contains the following items:
One Model DPR2320 or EPR2320
Gateway Cable Modem with
detachable antenna
One Ethernet cable (CAT5/RJ-45)
One power adapter with power cord
One USB cable
One CD-ROM containing the user’s
guide and the USB drivers
If any of these items are missing or damaged, please contact your cable service
provider for assistance.

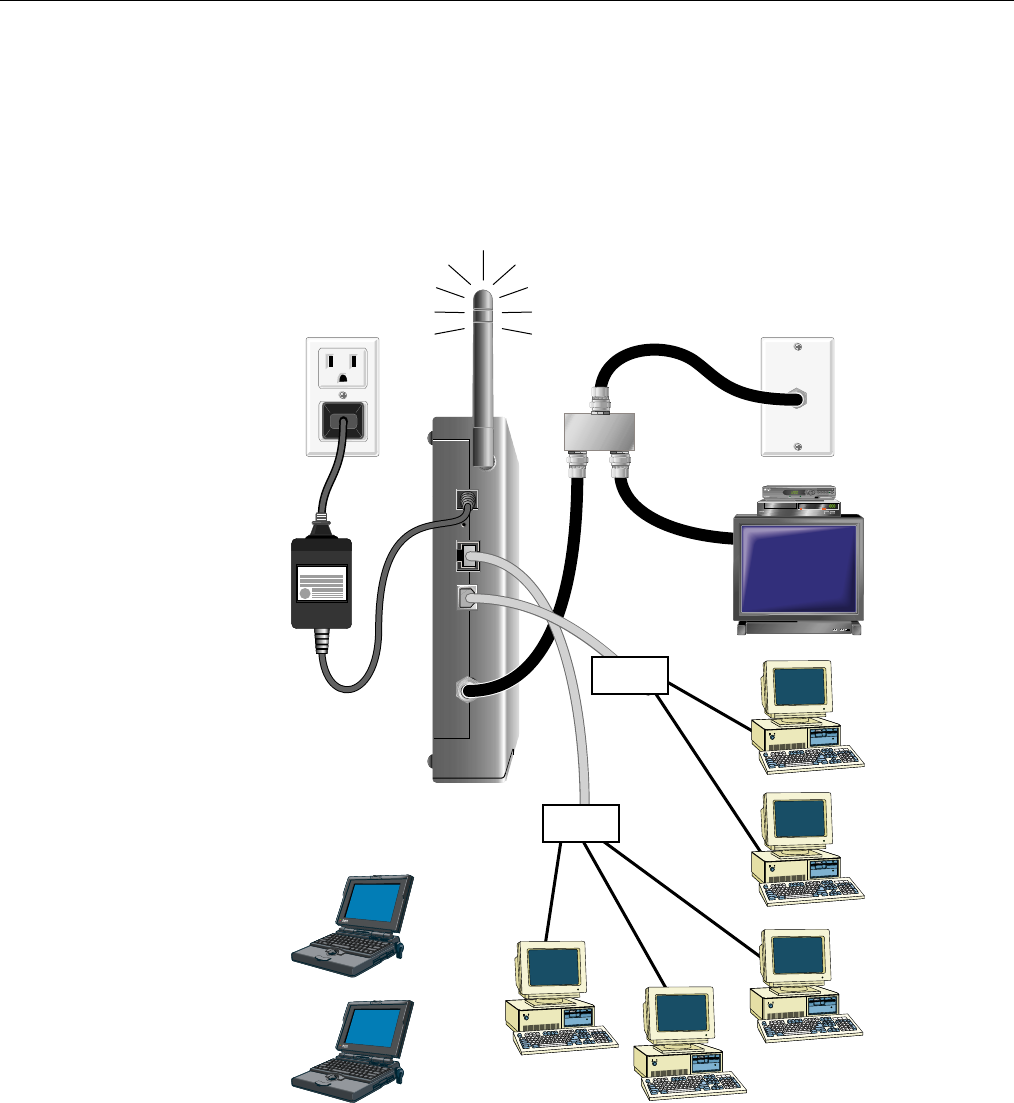

You will need an optional cable signal splitter and additional standard RF coaxial
cables if you want to connect a VCR, a Digital Home Communications Terminal
(DHCT) or a set-top converter, or a TV to the same cable connection as your
cable modem.
Front Panel Description
7

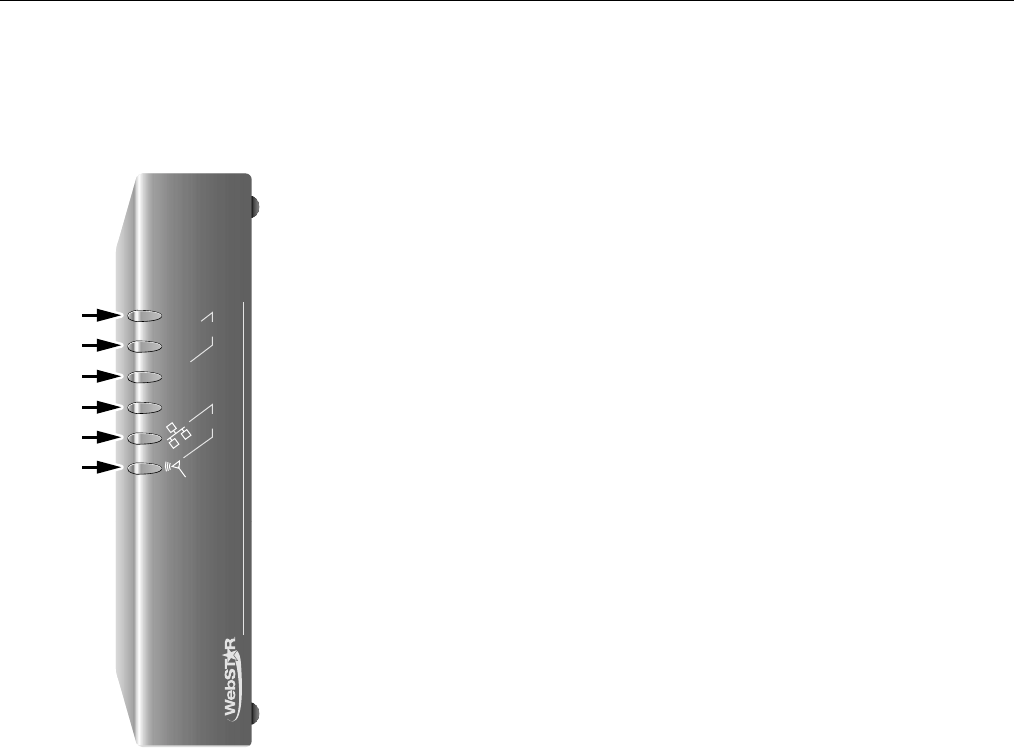

Front Panel Description
The front panel of your cable modem provides status lights that indicate how well and at what state your cable
modem is operating. After the cable modem is successfully registered on the network, the POWER and CABLE
status indicators illuminate continuously to show that the cable modem is active and fully operational. See Front
Panel Status Indicator Functions, later in this guide, for more information on front panel status indicator
functions.
by Scientific-Atlanta, Inc.
POWER
RECEIVE
DATA
SEND
CABLE
PC
T10948
1
2
3
4
5
6
1 POWER—Illuminates solid green to indicate that power is
being applied to the cable modem
2 RECEIVE DATA—Blinks to indicate that the cable modem is
receiving data from the cable network
3 SEND DATA— Blinks to indicate that the cable modem is
sending data to the cable network
4 CABLE—Illuminates solid green when the cable modem is
registered on the network and fully operational. This indicator
blinks to indicate one of the following conditions:
• The cable modem is booting up and not ready for data
• The cable modem is scanning the network and attempting
to register
• The cable modem has lost registration on the network and
will continue blinking until it registers again
5 PC—Illuminates solid green to indicate that an Ethernet/USB
carrier is present and blinks to indicate that Ethernet/USB
data is being transferred between the PC and the cable
modem
6 PC Wireless—Illuminates solid green to indicate that a
wireless access point is enabled and blinks to indicate that
wireless data is being transferred over the wireless
connection
Note: After the cable modem is successfully registered on
the network, the POWER (LED 1) and CABLE (LED 4)
indicators illuminate continuously to indicate that the cable
modem is online and fully operational.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
8
Back Panel Description
The following illustration describes the back panel components of the DPR2320 and the EPR2320.
T10947
2
1
4
5
6
POWER
ANTENNA
12 VDC RESET ETHERNET CABLE
USB
3
1 ANTENNA— Provides a communication connection for the
built-in wireless access point (WAP) to allow wireless devices
to communicate with the cable modem
2 POWER—Connects the cable modem to the DC output of the
AC power adapter that is provided with your cable modem.
3 RESET—Reset-to-Default button (Factory Reset)
This button is for maintenance purposes only.
Do not use unless directed to do so by your service provider.
4 ETHERNET—RJ-45 Ethernet port connects to the Ethernet
port on your PC or your home network
5 USB—12 Mbps USB port connects to the USB port on your
PC
6 CABLE—F-Connector connects to an active cable signal
from your cable service provider
CAUTION:
Avoid damage to your equipment. Only use the AC
power adapter and power cord that is provided with
your cable modem.
Where is the Best Location for My Gateway Cable Modem?
9
Where is the Best Location for My Gateway Cable Modem?
The ideal location for your gateway cable modem is where it has access to outlets and other devices. Think about
the layout of your home or office, and consult with your cable service provider to select the best location for your
gateway cable modem.
Consider these recommendations:
• Position your PC and gateway cable modem so that they are located near an
AC power outlet.
• Position your PC and gateway cable modem so that they are located near an
existing cable input connection to eliminate the need for an additional cable
outlet. There should be plenty of room to guide the cables away from the
modem and the PC without straining or crimping them.
• Airflow around the gateway cable modem should not be restricted.
• Choose a location that protects the gateway cable modem from accidental
disturbance or harm.
• Read this user’s guide thoroughly before you decide where to place your
gateway cable modem.
What are the System Requirements for Internet Service?
To ensure that your gateway cable modem operates efficiently for high-speed Internet service, verify that all of the
Internet devices on your system meet or exceed the following minimum hardware and software requirements.
You will also need an active cable input line and an Internet connection.
Minimum System Requirements for a PC
• A PC with a Pentium MMX 133 processor or greater
• 32 MB of RAM
• Web browsing software (Netscape or Internet Explorer)
• CD-ROM drive
Minimum System Requirements for Macintosh
• MAC OS 7.5
• 32 MB of RAM
System Requirements for an Ethernet Connection
• A PC with Microsoft Windows 95 operating system (or later) with TCP/IP
protocol installed, or an Apple Macintosh computer with TCP/IP protocol
installed
• An active 10/100BaseT Ethernet network interface card (NIC) installed PC
System Requirements for a USB Connection
• A PC with Microsoft Windows 98SE, ME, 2000, or XP operating system
• A master USB port installed in your PC
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
10
How Do I Set Up My High-Speed Internet Access Account?
Before you can use your gateway cable modem, you need to have a high-speed Internet access account. If you
do not have a high-speed Internet access account, you need to set up an account with your local cable service
provider. Choose one of the following two options.
I Do Not Have a High-Speed Internet Access Account
If you do not have a high-speed Internet access account, your cable service
provider will set up your account and become your Internet Service Provider
(ISP). Internet access enables you to send and receive e-mail, access the World
Wide Web, and receive other Internet services. When you contact your cable
service provider, they will ask you for the serial number, the Media Access
Control (MAC) address, and the WLAN data MAC address of the cable modem.
These numbers appear on a label located on the side of the gateway cable
modem. The serial number consists of a series of alphanumeric characters
preceded by S/N. The MAC address consists of a series of alphanumeric
characters preceded by MAC. The WLAN data MAC address consists of a series

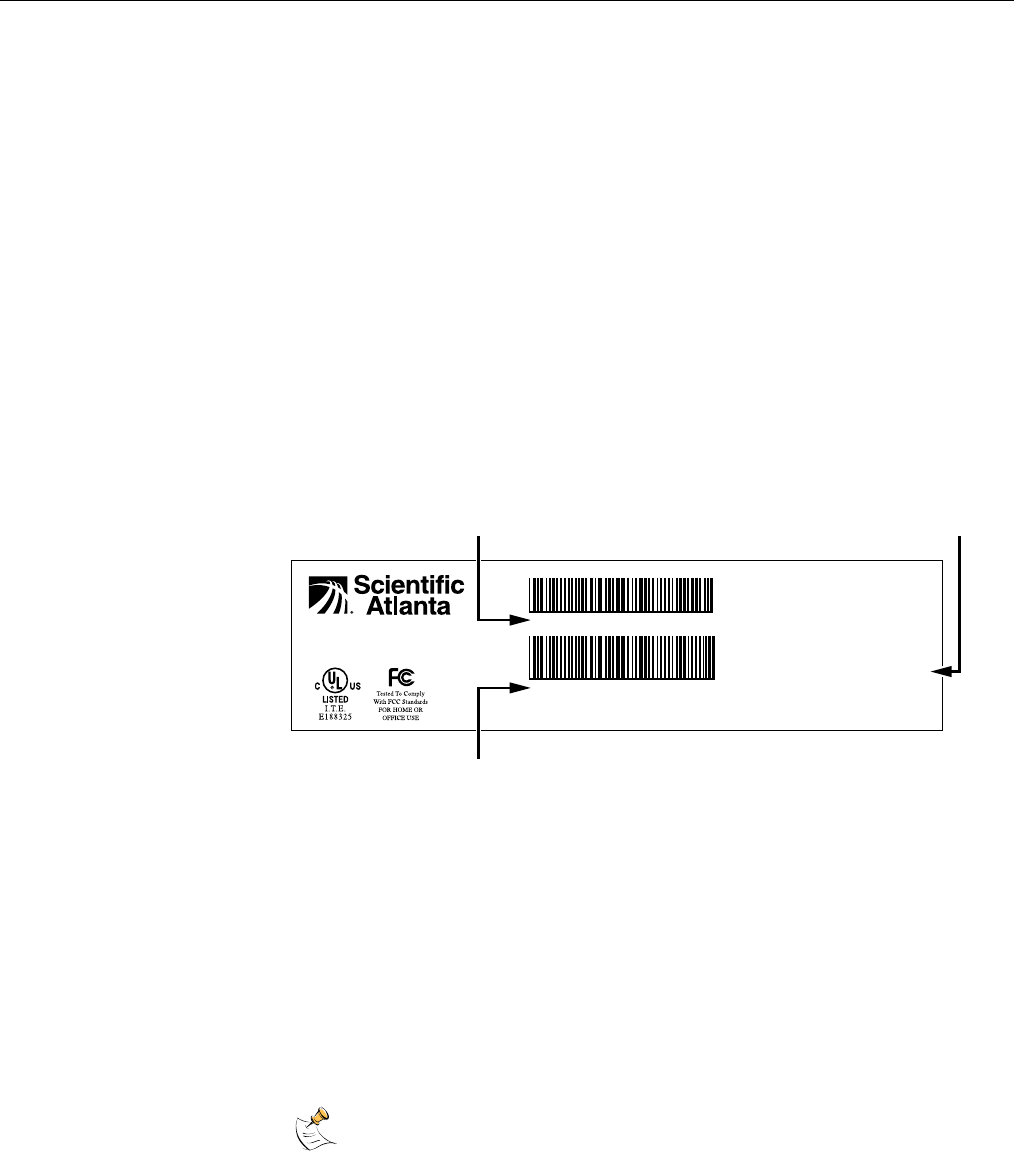

of alphanumeric characters preceded by WLAN DATA MAC. See the following
illustration of a sample label.
MODEL DPR2320 SERIES
CABLE MODEM/ROUTER
P/N: XXXXXX
MODEM NO:
USB MAC:
P-LAN MAC:
WLAN MGT MAC:
WLAN DATA MAC:
CMCI MAC:
121 103 113
00407B-796772
00407B-796774
00407B-796775
00407B-796776
00407B-796777
S/N SM0697286
MAC 00407B-796771
date of mfg: 06/03 Factory ID: 1 MADE IN TAIWAN CM
T10723
MAC Address
Serial Number
WLAN DATA
MAC Address
Write down these numbers in the space provided here.
Serial Number _______________________
MAC Address ________________________
WLAN DATA MAC Address _____________________
I Already Have an Existing High-Speed Internet Access Account
If you have an existing high-speed Internet access account, you must give your
cable service provider the serial number, the MAC address, and the WLAN data
MAC address of the cable modem. Refer to the serial number and MAC address
information listed previously in this section.
You may be able to continue to use your existing e-mail account with your
gateway cable modem. Contact your cable service provider for more information.
How Do I Connect My Devices to Use the Internet?
11
How Do I Connect My Devices to Use the Internet?
You can use your gateway cable modem to access the Internet, and you can share that Internet connection with
other Internet devices in your home or office. Sharing one connection among many devices is called networking.
Connecting and Installing Internet Devices
You must connect and install your gateway cable modem to access the Internet.
Professional installation may be available. Contact your local cable service
provider for further assistance.

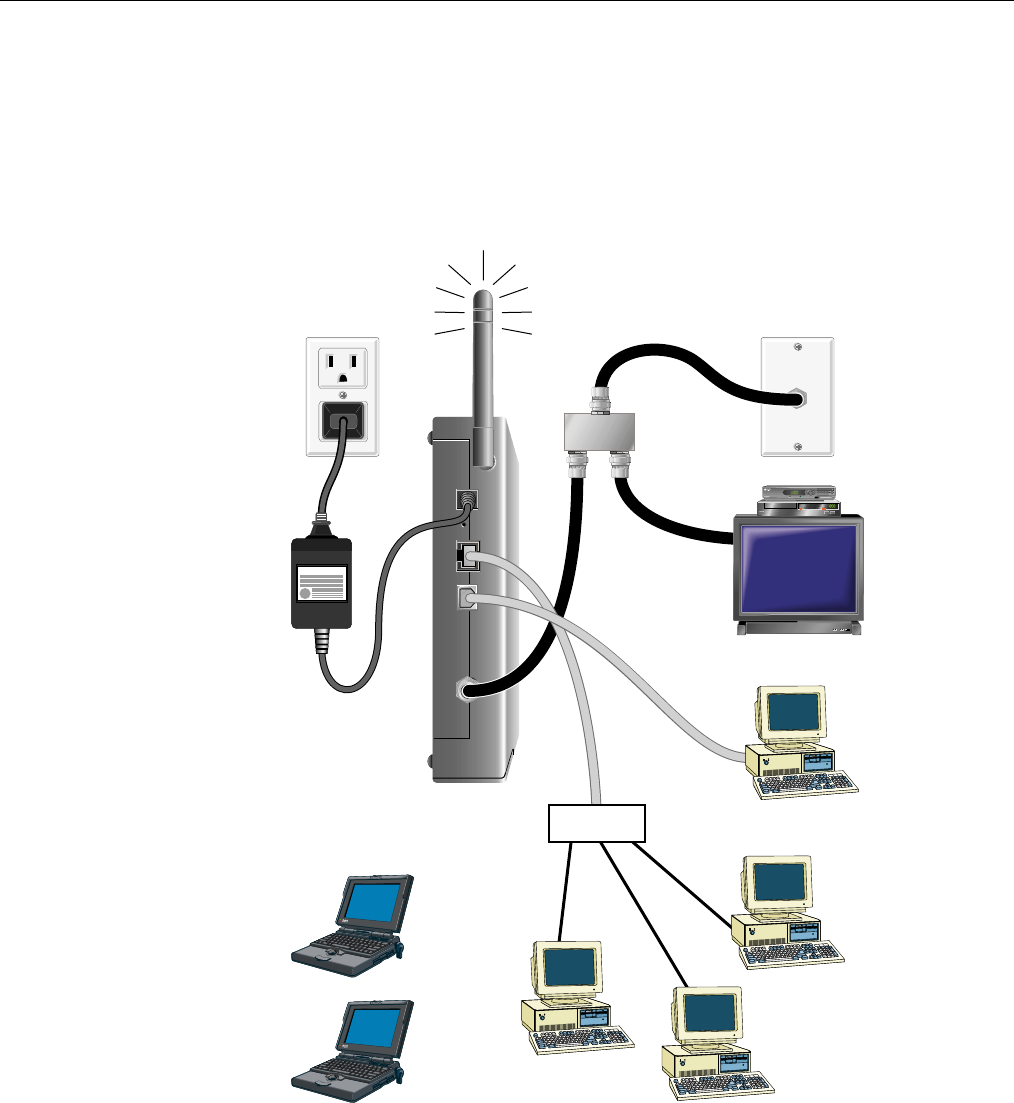

To connect devices
The following diagram illustrates one of the various Internet connection options
that are available to you.
POWER
ANTENNA
12 VDC RESET ETHERNET CABLE
USB
Power
Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
PC
USB Cable
RF
Cable
RF
Cables
Cable
Splitter
T10949
P
ow
e
r
S
uppl
y
BYPASS
VOL
ñ
VOL+
CH+
CH
ñ
MENU GUIDE INFO A/B POWER
Ethernet
Hub
PC
PC
Wireless
Laptop
PC
Wireless
Laptop
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
12
To install the gateway cable modem
1. Power down your PC and unplug it from the power source.
2. Connect your PC to either the ETHERNET port or the USB port using the
appropriate data cable. Do not connect your PC to both the Ethernet and
USB ports at the same time. You can connect two separate PCs to the
gateway cable modem at the same time by connecting one PC to the
Ethernet port and one PC to the USB port.
3. Connect the active RF coaxial cable to the CABLE connector. Use an
optional cable signal splitter to add a TV, a DHCT or set-top converter, or
a VCR.
4. Insert the AC power adapter cord into the DC POWER connector on the
back of the gateway cable modem, and then plug the power adapter into
an AC power source.
5. Plug in and power on your networked devices including your PC. The
gateway cable modem will then begin an automatic search to locate and
sign on to the broadband data network. This process may take up to 5
minutes. The modem will be ready for use when the CABLE indicator on
the front panel stops blinking and illuminates continuously.
6. The next step in setting up your gateway cable modem is to configure
your Internet devices for Internet access. Choose one of the following
options:
• If you want to use Ethernet connections, you must configure the
TCP/IP protocol. To configure the TCP/IP protocol go to How Do I
Configure TCP/IP Protocol, next in this guide.
• If you want to use USB connections, you must install the USB drivers.
To install the USB Drivers for USB go to How Do I Install USB
Drivers, later in this guide.
WARNING:
To avoid personal
injury or damage to
your equipment,
follow these steps in
the exact order shown.
How Do I Configure TCP/IP Protocol?
13
How Do I Configure TCP/IP Protocol?
To configure TCP/IP protocol, you need to have an Ethernet Network Interface Card (NIC) with TCP/IP
communications protocol installed on your system. TCP/IP is a communications protocol used to access the
Internet. This section contains instructions for configuring TCP/IP on your Internet devices to operate with the
gateway cable modem in Microsoft Windows or Macintosh environments.
Configuring TCP/IP on Your Internet Devices
TCP/IP protocol in a Microsoft Windows environment is different for each
Windows version. Follow the appropriate instructions in this section for your
operating system.
To configure Windows 95, 98, 98SE, or ME systems
1. Click Start, select Settings, and choose Control Panel.
2. Double-click the Network icon in the Control Panel window.
3. Read the list of installed network components under the Configuration
tab to verify that your PC contains the TCP/IP protocol/Ethernet adapter.
4. Is TCP/IP protocol listed in the installed network components list?
• If yes, go to step 7.
• If no, click Add, click Protocol, click Add, and then go to step 5.
5. Click Microsoft in the Manufacturers list.
6. Click TCP/IP in the Network Protocols list, and then click OK.
7. Click the TCP/IP Ethernet Adapter protocol, and then choose
Properties.
8. Click the IP Address tab, and then select Obtain an IP address
automatically.
9. Click the Gateway tab and verify that these fields are empty. If they are
not empty, highlight and delete all information from the fields.
10. Click the DNS Configuration tab, and then select Disable DNS.
11. Click OK.
12. Click OK when the system finishes copying the files, and then close all
networking windows.
13. Click YES to restart your computer when the System Settings Change
dialog box opens. The computer restarts. The TCP/IP protocol is now
configured on your PC and your Ethernet devices are ready for use.
14. Try to access the Internet. If you cannot access the Internet, go to
Having Difficulty, later in this guide. If you still cannot access the
Internet, contact your cable service provider for further assistance.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
14
To configure Windows 2000 systems
1. Click Start, select Settings, and choose Network and Dial-up
Connections.
2. Double-click the Local Area Connection icon in the Network and Dial-up
Connections window.
3. Click Properties in the Local Area Connection Status window.
4. Click Internet Protocol (TCP/IP) in the Local Area Connection Properties
window, and then click Properties.
5. Select both Obtain an IP address automatically and Obtain DNS
server address automatically in the Internet Protocol (TCP/IP)
Properties window, and then click OK.
6. Click Yes to restart your computer when the Local Network window
opens. The computer restarts. The TCP/IP protocol is now configured on
your PC and your Ethernet devices are ready for use.
7. Try to access the Internet. If you cannot access the Internet, go to
Having Difficulty, later in this guide. If you still cannot access the
Internet, contact your cable service provider for further assistance.
To configure Windows XP systems
1. Click Start, select Connect to, and choose Show all connections.
2. Double-click the Local Area Connection icon in the LAN or High-Speed
Internet section of the Network Connections window.
3. Click Properties in the Local Area Connection Status window.
4. Click Internet Protocol (TCP/IP), and then click Properties in the Local
Area Connection Properties window.
5. Select both Obtain an IP address automatically and Obtain DNS
server address automatically in the Internet Protocol (TCP/IP)
Properties window, and then click OK.
6. Click Yes to restart your computer when the Local Network window
opens. The computer restarts. The TCP/IP protocol is now configured on
your PC and your Ethernet devices are ready for use.
7. Try to access the Internet. If you cannot access the Internet, go to
Having Difficulty, later in this guide. If you still cannot access the
Internet, contact your cable service provider for further assistance.
How Do I Configure TCP/IP Protocol?
15
To configure Macintosh systems
1. Click the Apple icon in the upper left corner of the Finder. Scroll down to
Control Panels, and then click TCP/IP.
2. Click Edit on the Finder (gray bar) at the top of the screen. Scroll down to
the bottom of the menu, and then click User Mode.
3. Click Advanced in the User Mode window, and then click OK.
4. Click the Up/Down selector arrows located to the right of the Connect Via
section of the TCP/IP window, and then click Using DHCP Server.
5. Click Options in the TCP/IP window, and then click Active in the TCP/IP
Options window.
Note: In some cases, the Load only when needed option will not
appear. If it appears, select the option. A check mark appears in the
option.
6. Verify that the Use 802.3 option located in the upper right corner of the
TCP/IP window is unchecked. If there is a check mark in the option,
deselect the option, and then click Info in the lower left corner.
7. Is there a Hardware Address listed in this window?
• If yes, click OK. To close the TCP/IP Control Panel window, click File,
and then scroll down to click Close. You have completed this
procedure.
• If no, you must power off your Macintosh.
8. With the power off, simultaneously press and hold down the Command
(Apple), Option, P, and R keys on your keyboard. Keeping those keys
pressed down, power on your Macintosh but do not release these keys
until you hear the Apple chime.
9. Continue pressing these keys for at least three chimes, then release the
keys and allow the computer to restart.
10. When your computer fully reboots, repeat steps 1 through 7 to verify that
all TCP/IP settings are correct. If your computer still does not have a
Hardware Address, contact your authorized Apple dealer or Apple
technical support center for further assistance.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
16
How Do I Install USB Drivers?
To install USB drivers, your PC must be equipped with a USB network interface and a Microsoft Windows 98SE,
ME, 2000, or XP operating system. This section contains instructions for installing the gateway cable modem USB
drivers.
If you are not using the USB interface, skip this section.
Installing USB Drivers
The USB driver installation procedures are different for each operating system.
Follow the appropriate instructions in this section for your operating system.
To install Windows 98SE and Windows ME USB drivers
1. Insert the USB Cable Modem Driver Installation Disk into the CD-ROM
drive of your PC.
2. Wait until the Power and Cable indicators on the cable modem illuminate
solid green.
Result: The Add New Hardware Wizard window opens.
3. Click Next in the Add New Hardware Wizard window.
4. Select Search for the best driver for your device (Recommended) in
the Add New Hardware Wizard window, and then click Next.
5. Select CD-ROM drive in the Add New Hardware Wizard window, and
then click Next.
6. Select The updated driver (Recommended) in the Add New Hardware
Wizard window, and then click Next.
7. Click Next in the Add New Hardware Wizard window. The Copying Files
window opens. After 10 to 20 seconds have passed, the Add New
Hardware Wizard window reopens.
8. Click Finish. The USB driver installation is complete.
9. Click Yes in the System Settings Change window to restart your
computer. The computer restarts. The USB drivers are now installed on
your PC and your USB devices are ready for use.
10. Try to access the Internet. If you cannot access the Internet, go to
Having Difficulty, later in this guide. If you still cannot access the
Internet, contact your cable service provider for further assistance.
How Do I Install USB Drivers?
17
To install Windows 2000 drivers
1. Insert the USB Cable Modem Driver Installation Disk into the CD-ROM
drive of your PC.
2. Wait until the Power and Cable indicators on the cable modem illuminate
solid green.
3. Click Next in the Found New Hardware Wizard window.
4. Select Search for a suitable driver for my device (recommended) in
the Found New Hardware Wizard window, and then click Next.
5. Select CD-ROM drives in the Found New Hardware Wizard window, and
then click Next.
6. Click Next in the Found New Hardware Wizard window. The system
searches for the driver file for your hardware device.
7. After the system finds the USB driver, the Digital Signature Not Found
window opens and displays a confirmation message to continue the
installation.
8. Click Yes to continue the installation. The Found New Hardware Wizard
window reopens with a message that the installation is complete.
9. Click Finish to close the Found New Hardware Wizard window. The USB
drivers are installed on your PC and your USB devices are ready for use.
10. Try to access the Internet. If you cannot access the Internet, go to
Having Difficulty, later in this guide. If you still cannot access the
Internet, contact your cable service provider for further assistance.
To install Windows XP drivers
1. Insert the USB Cable Modem Driver Installation Disk into the CD-ROM
drive of your PC.
2. Wait until the Power and Cable indicators on the cable modem illuminate
solid green.
3. Select Install from a list or specific location (Advanced) in the Found
New Hardware Wizard window, and then click Next.
4. Select Search removable media (floppy, CD-ROM) in the Found New
Hardware Wizard window, and then click Next.
5. Click Continue Anyway in the Hardware Installation window to continue
the installation. The Found New Hardware Wizard window reopens with a
message that the installation has finished.
6. Click Finish to close the Found New Hardware Wizard window. The USB
drivers are installed on your PC and your USB devices are ready for use.
7. Try to access the Internet. If you cannot access the Internet, go to Having
Difficulty, later in this guide. If you still cannot access the Internet, contact
your cable service provider for further assistance.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
18
How Do I Troubleshoot My Internet Service Installation?
I cannot connect to the Internet
• Verify that the plug to your gateway cable modem AC adapter is properly
inserted into an electrical outlet.
• Verify that your gateway cable modem AC adapter is not plugged into an
electrical outlet that is controlled by a wall switch. If a wall switch controls the
electrical outlet, make sure the switch is in the ON position.
• Verify that the POWER, CABLE, and the appropriate indicator lights for your
network connection and on the front panel of your gateway cable modem are
illuminated.
• Verify that all cables are properly connected, and that you are using the
correct cables.
• Verify that your cable service is active and that it supports two-way service.
• Verify that TCP/IP is properly installed and configured on all devices if you
are using the Ethernet connections.
• Verify that you have followed the procedure for Installing the USB Drivers
for Windows 98SE, ME, 2000, and XP, earlier in this guide, if you are using
the USB connection.
• Verify that you have called your cable service provider and given them the
serial number and MAC address of your gateway cable modem.
• If you are using a cable signal splitter so that you can connect the cable
signal to other devices, remove the splitter and reconnect the cable so that
the gateway cable modem is connected directly to the main cable input. If the
gateway cable modem now functions properly, the cable signal splitter may
be defective and may need to be replaced.
My gateway cable modem does not register an Ethernet
connection
Even new devices do not always have Ethernet capabilities. Verify that your
device has a 10/100BaseT Ethernet card and that the Ethernet driver software is
properly installed. If you purchase and install an Ethernet card, follow the
installation instructions very carefully.
My gateway cable modem does not register a cable connection
• The gateway cable modem works with a standard, 75-ohm, RF coaxial cable.
If you are using a different cable, your gateway cable modem will not function
properly. Contact your cable service provider to determine if you are using
the correct cable.
• You may need to renew the IP address on your PC. Refer to I need to
renew the IP address on my PC, next in this section for instructions on how
to renew the IP address for your particular operating system.
• Your USB interface may be malfunctioning. Refer to the troubleshooting
information in your USB documentation.
How Do I Troubleshoot My Internet Service Installation?
19
I need to renew the IP address on my PC
If your PC cannot access the Internet after the cable modem is online, it is
possible that your PC did not renew its IP address. Follow the appropriate
instructions in this section for your operating system to renew the IP address on
your PC.
To renew the IP Address for Windows 95, 98, 98SE, and ME systems
1. Click Start, and then click Run to open the Run window.
2. Type winipcfg in the Open field, and click OK to execute the winipcfg
command. The IP Configuration window opens.
3. Click the down arrow to the right of the top field, and select the Ethernet
adapter that is installed on your PC. The IP Configuration window
displays the Ethernet adapter information.
4. Click Release, and then click Renew. The IP Configuration window
displays a new IP address.
5. Click OK to close the IP Configuration window, you have completed this
procedure.
If you cannot access the Internet, contact your cable service
provider for further assistance.
To renew the IP Address for Windows 2000, NT, or XP systems
1. Open a Command Prompt (DOS) window.
2. Type ipconfig/release at the C:/ prompt and press Enter. The system
releases the IP address.
3. Type ipconfig/renew at the C:/ prompt and press Enter. The system
displays a new IP address.
4. Click on the X in the upper-right corner of the window to close the
Command Prompt window. You have completed this procedure.
If you cannot access the Internet, contact your cable service
provider for further assistance.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
20
What are the Requirements for Ethernet Network Devices?
How Many Ethernet Network Devices Can I Connect?
The gateway cable modem can support several Ethernet network devices using
either the Ethernet port on the back panel of the unit, or external Ethernet hubs
that must be purchased separately. The theoretical maximum number of Ethernet
network devices supported is by the gateway cable modem 253. However, under
normal circumstances, the number of devices connected should be a much lower
number. Contact your cable service provider for more information on the
maximum number of Ethernet network devices to connect to the gateway cable
modem in order to maintain optimal network performance.
What are the Wiring Requirements for Ethernet Networking?
A number of factors can impact the practical limit of the network. Although the
gateway cable modem is designed to support several Ethernet network devices,
it is important to view the characteristics of the entire network and not just each
individual node. The theoretical distance between two 10/100BaseT CAT-5
Ethernet hubs is 382 feet (100 meters). Contact your cable service provider or
consult the documentation for your Ethernet network devices for more
information.
Scientific-Atlanta recommends that you use CAT-5 Ethernet cables.
Do I Need to Configure the TCP/IP Protocol on My Computer?
In order for you to use Ethernet network devices on your network, you must have
the TCP/IP protocol properly configured on your PC. Refer to How Do I
Configure TCP/IP Protocol, earlier in this guide, for detailed information on
configuring the TCP/IP protocol.
How Do I Select and Place Ethernet Network Devices?
21
How Do I Select and Place Ethernet Network Devices?
You can use a large variety of Ethernet network devices with your gateway cable modem. These include NIC
cards, hubs, bridges, etc. Contact your cable service provider or consult the documentation for your Ethernet
network devices for more information on configuring Ethernet network devices.
Where is the Best Location for My Ethernet Network Devices?
You should work with your cable service provider to choose the best location for
your Ethernet network devices. Consider these recommendations:
• Location of two-way cable outlets
• Distance of the Ethernet network devices from the gateway cable modem
• Location of computers and other equipment from AC power outlets
• Ease of running Ethernet cable to the Ethernet network devices
Now that you have selected a location for your Ethernet network devices, the
next step is to place and connect your Ethernet network devices. Go to How Do I
Connect Ethernet Network Devices, next in this guide.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
22
How Do I Connect Ethernet Network Devices?
Connecting Ethernet Devices
You must connect your Ethernet devices for use with the gateway cable modem.
Professional installation may be available. Contact your local cable service
provider for further assistance.
The following diagram illustrates one of the various Ethernet network connection
options that are available to you.
POWER
ANTENNA
12 VDC RESET ETHERNET CABLE
USB
Power
Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
PC
USB Cable
RF
Cable
RF
Cables
Cable
Splitter
T10949
P
ow
e
r
S
uppl
y
BYPASS
VOL
ñ
VOL+
CH+
CH
ñ
MENU GUIDE INFO A/B POWER
Ethernet
Hub
PC
PC
Wireless
Laptop
PC
Wireless
Laptop
How Do I Connect Ethernet Network Devices?
23
To connect Ethernet devices
Read the warnings and caution on this page. Then, follow the subsequent
installation procedures to ensure proper gateway cable modem operation when
connecting Ethernet network devices.
1. Select locations for Ethernet network devices. For more information, see
How Do I Select and Place Ethernet Network Devices, earlier in this
guide.
2. Connect an Ethernet port on the gateway cable modem to your PC.
3. Connect additional Ethernet network devices using the other Ethernet
ports on the gateway cable modem, or by connecting an Ethernet hub or
router to the gateway cable modem.
4. Connect the active RF coaxial cable to the CABLE connector on the back
of the gateway cable modem. Use an optional cable signal splitter to add
a TV, a DHCT or set-top converter, or a VCR.
5. After all connections are complete, insert the AC power adapter cord into
the DC POWER connector on the back of the gateway cable modem, and
then plug the power adapter into an AC power source.
6. The gateway cable modem begins an automatic search to locate and
sign on to the network. In some unusual circumstances, this process may
take up to 5 minutes. The gateway cable modem is ready for use when
the CABLE status indicator on the front panel stops blinking and
illuminates continuously.
7. Verify that all Ethernet network devices are working properly.
You will not be able to check the Ethernet front panel status
indicators on the gateway cable modem until after two or more Ethernet
network devices are connected to the gateway cable modem.
WARNING:
• Hazardous electrical
voltages can be
present on any
connected wiring.
Ethernet wiring and
connections must be
properly insulated to
prevent electrical
shock. Disconnect
power from the
gateway cable
modem before
attempting to
connect to any
device.
• To avoid personal
injury, follow these
steps in the exact
order shown.
CAUTION:
To prevent possible
damage to the
equipment, disconnect
any other service
before connecting
your gateway cable
modem to other
devices.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
24
What are the Requirements for USB Network Devices?
How Many USB Devices Can I Connect?
Contact your cable service provider for more information on the maximum
number of USB network devices to connect to the gateway cable modem in order
to maintain optimal network performance.
What are the Wiring Requirements?
Several factors can impact the practical limit of the network. Use correct USB
cables. Contact your cable service provider or consult the documentation for your
USB network device for more information.
Do I Need to Install USB Drivers on My Computer?
To use USB network devices, you must have the correct USB drivers install on
your PC. Refer to How Do I Install USB Drivers, earlier in this guide, for
information on installing USB drivers.
How Do I Select and Place USB Network Devices?
25
How Do I Select and Place USB Network Devices?
You can use a large variety of USB network devices with your gateway cable modem. These include desktop
computers, laptop computers, devices with USB ports, USB adapters. Contact your cable service provider or
consult the documentation for your USB network devices for more information on selecting USB network devices.
Where is the Best Location for My USB Network Devices?
You should work with your cable service provider to choose the best location for
your USB network devices. Consider these recommendations:
• Location of two-way coaxial cable outlets
• Distance of the USB network devices from the gateway cable modem
• Location of computers and other equipment from AC power outlets
• Ease of running USB cable to the USB network devices
Now that you have selected a location for your USB network devices, the next
step is to place and connect your USB network devices. Go to How Do I
Connect USB Network Devices, next in this guide.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
26
How Do I Connect USB Network Devices?
Connecting USB Devices
You must connect your USB devices for use with your gateway cable modem.
Professional installation may be available. Contact your local cable service
provider for further assistance.
The following diagram illustrates one of the various USB network connection
options that are available to you.
POWER
ANTENNA
12 VDC RESET ETHERNET CABLE
USB
Power
Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
PC
RF
Cable
RF
Cables
Cable
Splitter
T10951
P
ow
e
r
S
uppl
y
BYPASS
VOL
ñ
VOL+
CH+
CH
ñ
MENU GUIDE INFO A/B POWER
Ethernet
Hub
PC
PC
PC
Wireless
Laptop
PC
Wireless
Laptop
USB
Hub
How Do I Connect USB Network Devices?
27
To connect USB devices
Read the warnings and caution on this page. Then, follow the subsequent
installation procedures to ensure proper gateway cable modem operation when
connecting USB network devices.
Verify that you have installed the USB drivers on your PC before continuing
with these instructions. See How Do I Install USB Drivers, earlier in this guide
for more information on installing the USB drivers.
1. Select locations for USB network devices. For more information, see
How Do I Select and Place USB Network Devices, earlier in this guide.
2. Connect the USB port on the gateway cable modem to your computer.
3. Connect one or more USB network device to the gateway cable modem.
If you want to connect more than one USB network device to the
gateway cable modem or to your computer, you will need to purchase
and install a USB hub.
4. Connect the active RF coaxial cable to the CABLE connector on the back
of the gateway cable modem. Use an optional cable signal splitter to add
a TV, a DHCT or set-top converter, or a VCR.
5. After all connections are complete, insert the AC power adapter cord into
the DC POWER connector on the back of the gateway cable modem, and
then plug the power adapter into an AC power source.
6. The gateway cable modem begins an automatic search to locate and
sign on to the network that provides the telephone service. This process
may take up to 5 minutes. The gateway cable modem is ready for use
when the CABLE status indicator on the front panel stops blinking and
illuminates continuously.
7. Verify that all USB devices are working properly.
You will not be able to check the USB front panel status indicator
on the gateway cable modem until after at least one USB network device
is connected and operating on the network.
WARNING:
• Hazardous electrical
voltages can be
present on any
connected wiring.
Ethernet wiring and
connections must be
properly insulated to
prevent electrical
shock. Disconnect
power from the
gateway cable
modem before
attempting to
connect to any
device.
• To avoid personal
injury, follow these
steps in the exact
order shown.
CAUTION:
To prevent possible
damage to the
equipment, disconnect
any other service
before connecting
your gateway cable
modem to other
devices.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
28
What are the Requirements for Wireless Network Devices?
How Many Wireless Devices Can I Connect?
The gateway cable modem serves as a wireless access point (WAP). The WAP
on the gateway cable modem provides wireless network service to multiple
wireless network devices. Contact your cable service provider for more
information on the maximum number of wireless network devices to connect to
the gateway cable modem in order to maintain optimal network performance.
What are the Requirements for Wireless Networking?
It is important to view the characteristics of the entire network and not just each
individual node. The theoretical distance between wireless network devices is
100 feet inside of a building, and 300 feet outdoors.
A number of factors can impact the practical limit of the network. Contact your
cable service provider or consult the documentation for your wireless network
devices for more information.
How Do I Select and Place Wireless Network Devices?
29
How Do I Select and Place Wireless Network Devices?
You can use a large variety of wireless network devices with your gateway cable modem. These include
computers, PDAs, etc. On the wireless network, all devices impact the characteristics of the network, because
each device transmits a wireless signal. Contact your cable service provider or consult the documentation for your
wireless network device for more information on selecting the appropriate wireless network devices for your home
or office network.
Where is the Best Location for My Wireless Network Devices?
You should work with your cable service provider to choose the best location for
your wireless network devices. Consider these recommendations:
• Distance from the gateway cable modem to the wireless network devices.
• Do not place the gateway cable modem near metallic surfaces that may
block the wireless communications path. Wireless communication is “line-of-
sight” through non-metallic walls. However, the more structures (walls) the
signal must pass through, the weaker the received signal.
• Do not place wireless network devices near a microwave oven. When
operating, microwave ovens can interfere with wireless transmissions.
• Do not place your wireless network devices near 2.4 GHz wireless
telephones because these telephones may also cause interference with your
wireless network.
Now that you have selected a location for your wireless network devices, the next
step is to place and install your wireless network devices. Go to How Do I Install
Wireless Network Devices, next in this guide.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
30
How Do I Install Wireless Network Devices?
Installing Wireless Network Devices
You must install wireless network devices for use with your gateway cable
modem. Professional installation may be available. Contact your local cable
service provider for further assistance.
The following diagram illustrates one of the various wireless network connection
options that are available to you.
POWER
ANTENNA
12 VDC RESET ETHERNET CABLE
USB
Power
Supply
Cable-Ready TV,
VCR, or Set-Top
Converter
PC
USB Cable
RF
Cable
RF
Cables
Cable
Splitter
T10949
P
ow
e
r
S
uppl
y
BYPASS
VOL
ñ
VOL+
CH+
CH
ñ
MENU GUIDE INFO A/B POWER
Ethernet
Hub
PC
PC
Wireless
Laptop
PC
Wireless
Laptop
How Do I Install Wireless Network Devices?
31
To install wireless network devices
Read the warnings and caution on this page. Then, follow the subsequent
installation procedures to ensure proper gateway cable modem operation when
using wireless network devices.
Follow these steps to install the gateway cable modem for accessing wireless
network devices.
1. Select locations for wireless network devices. For more information, see
How Do I Select and Place Wireless Network Devices, earlier in this
guide.
2. Connect and install the wireless network device(s).
3. Connect the active RF coaxial cable to the CABLE connector on the back
of the gateway cable modem. Use an optional cable signal splitter to add
a TV, a DHCT or set-top converter, or a VCR.
4. After all connections are complete, insert the AC power adapter cord into
the DC POWER connector on the back of the gateway cable modem, and
then plug the power adapter into an AC power source. The gateway
cable modem begins an automatic search to locate and sign on to the
network that provides the telephone service. In some unusual
circumstances, this process may take up to 5 minutes. The gateway
cable modem is ready for use when the CABLE status indicator on the
front panel stops blinking and illuminates continuously.
Some 2.4 GHz cordless telephones can interfere with wireless
signals. Unplug and disconnect any cordless phones until your wireless
network is operating properly.
5. Verify that all wireless network devices are working properly.
WARNING:
• Hazardous electrical
voltages can be
present on any
connected wiring.
Ethernet wiring and
connections must be
properly insulated to
prevent electrical
shock. Disconnect
power from the
gateway cable
modem before
attempting to
connect to any
device.
• To avoid personal
injury, follow these
steps in the exact
order shown.
CAUTION:
To prevent possible
damage to the
equipment, disconnect
any other service
before connecting
your gateway cable
modem to other
devices.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
32
How Do I Configure the Gateway Cable Modems?
To configure your gateway cable modem, you must access the WebWizard configuration pages. This section
provides detailed instructions and procedures for configuring your gateway cable modem to operate correctly and
presents an example of each WebWizard page. Use the WebWizard pages to customize your gateway cable
modem to your needs rather than using the default settings.
The WebWizard pages and the examples shown in this section are for illustration purposes only. Your pages will
differ from the pages shown here.
If you are not familiar with the network configuration procedures detailed in this section, contact your cable
service provider before you attempt to change any of the gateway cable modem default settings.
Configuring the Gateway Cable Modem
You must access the WebWizard in order to configure the gateway cable modem.
To gain access to the WebWizard, use the Web browser on the PC attached to
the cable modem. Type the following IP address and then select Go:
http://192.168.0.1
The Web browser accesses the WebWizard and displays the default About Your
Modem page. This page displays information about the gateway cable modem.

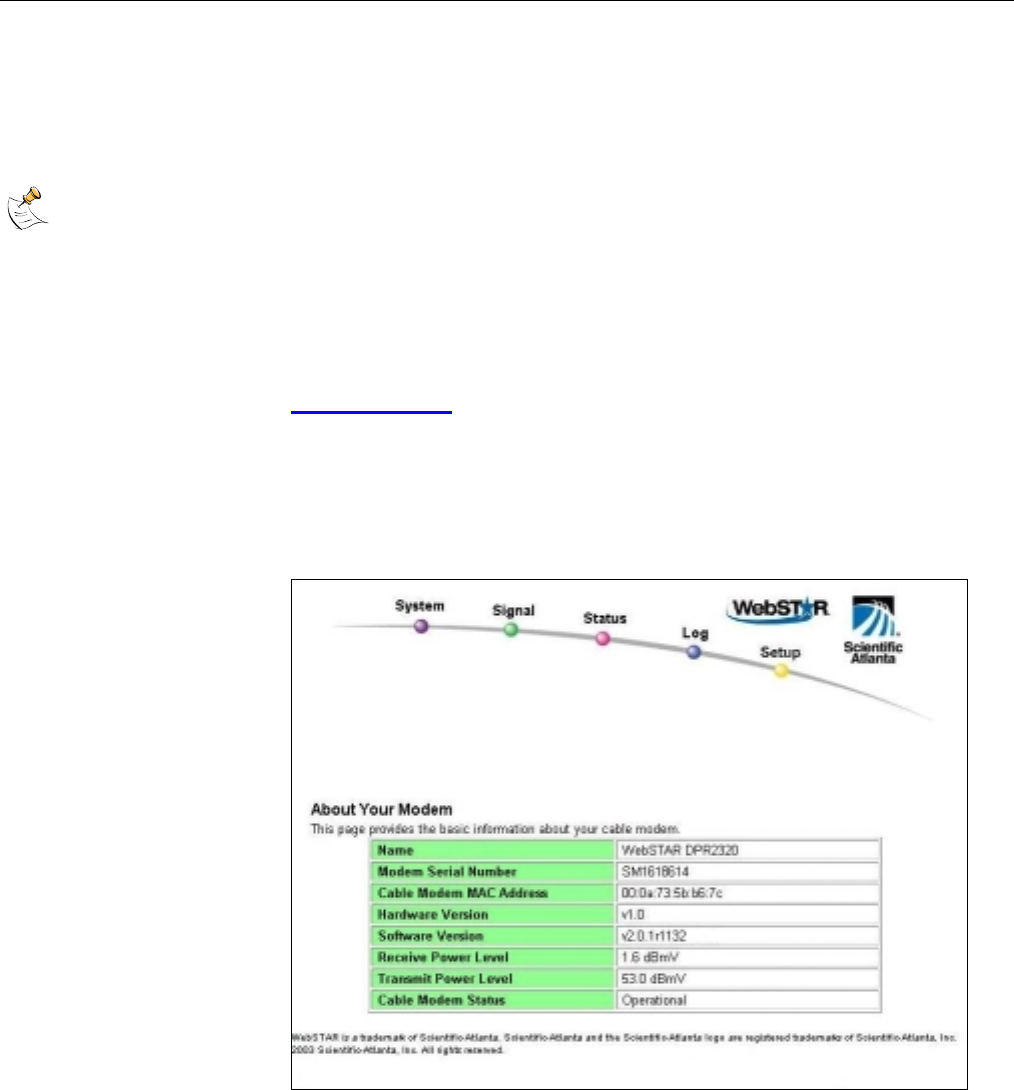

About Your Modem Page Example
The following illustration is an example of the About Your Modem page.
How Do I Configure the Gateway Cable Modems?
33
About Your Modem Page Description
The following table provides a description of each field within the About Your
Modem page.
Field Name Description
Name The name of the gateway cable modem
Cable Modem Serial
Number
A unique sequential series of alphanumeric
characters provided to every modem during
manufacturing
Cable Modem MAC
Address
A unique alphanumeric address for the cable
modem coaxial interface, which is used to connect
to the cable modem termination system (CMTS) at
the headend. A media access control (MAC)
address is a hardware address that uniquely
identifies each node of a network
Hardware Version Identifies the revision of the circuit board design
Software Version Identifies the software version placed into the
modem at the time of manufacturing
Receive Power Level The input level of the downstream CMTS carrier
Transmit Power Level Indicates the upstream power level
Cable Modem Status Lists one of the following possible current states of
the modem:
• other
• notReady
• notSynchronized
• phySynchronized
• usParametersAcquired
• rangingComplete
• ipComplete
• todEstablished
• securityEstablished
• psrsmTransferComplete
• registrationComplete
• operational
• accessDenied
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
34
Setting Configuration Options
Click Setup on the arc logo located in the upper portion of the About Your
Modem screen to access the Setup page. Use the Setup page to access the
various gateway cable modem configuration options. Detailed descriptions of
each configuration option follow later in this guide.
Setup Page Example
The following illustration is an example of the Setup page.
How Do I Configure the Gateway Cable Modems?
35
Setup Page Section Headings
The Setup page is divided into the following section headings:
• Basic Settings
• Advanced Settings
• Firewall
• Wireless
In the Setup page, click the selections listed within these sections to access the
WebWizard page for that selection. A description of the selections available in
each section follows next.
Basic Settings
The following table provides a description of the pages available from within the
Basic Settings section of the Setup page.
Field Name Description
Password Settings Use this page to modify your password settings
Network Configuration Use this page to enter or modify the basic
settings for your network
IP Address Management Use this page to configure how Internet protocol
(IP) addresses are assigned and managed in
your network
Restart Modem Use this page to restart your gateway modem
Advanced Settings
The following table provides a description of the pages available from within the
Advanced Settings section of the Setup page.
Field Name Description
Options Use this page to enable or disable advanced
features on your network
IP Address Filtering Use this page to configure IP address filters.
These filters prevent designated IP addresses
from accessing the Internet
MAC Address Filtering Use this page to configure MAC address filters.
These filters prevent designated MAC addresses
from accessing the Internet
Port Filtering Use this page to configure transmission control
protocol (TCP) and user datagram protocol (UDP)
port filters. These filters prevent a range of
TCP/UDP ports from accessing the Internet
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
36
Field Name Description
Port Forwarding Use this page to configure port forwarding for local IP
addresses. Port forwarding allows you to run a server
on the local area network (LAN) by specifying the
mapping of TCP/UPD ports to local PCs or to the IP
address of other devices. This is a static setting that
holds the ports open at all times
Port Triggers Use this page to configure TCP/UPD port triggers.
Port triggering is similar to port forwarding, but is a
dynamic function. In other words, the ports are not
held open, and the ports close if no outgoing data is
detected on the selected ports for a period of 10
minutes
DMZ Host
(Demilitarized Zone)
Use this page to configure an IP address that is visible
to the wide area network (WAN). DMZ hosting is
commonly referred to as “exposed host,” and allows
you to specify the “default” recipient of WAN traffic
that Network Address Translation (NAT) is unable to
translate to a known local PC.
A DMZ is used by a company that wants to host its
own Internet services without sacrificing unauthorized
access to its private network. DMZ allows one IP
address to be unprotected while others remain
protected. The DMZ is located between the Internet
and an internal network’s line of defense that is a
combination of firewalls and bastion hosts.
Typically, the DMZ contains devices accessible to
Internet traffic, such as Web (HTTP) servers, FTP
servers, SMTP (e-mail) servers, and domain name
system (DNS) servers
Rip Setup
(Routing Information
Protocol)
RIP is used to authenticate this device to the gateway
when using a static IP address
Firewall
The following table provides a description of the pages available from within the
Firewall section of the Setup page.
Field Name Description
Web Filters Use this page to configure Web page filtering,
parental control, and firewall protection. This
page allows you to block/allow Internet access
based on keywords and/or domain names
Time of Day Filters Use this page to block all traffic to and from
specific computers based on the day of week and
the time of day
Event Logging Use this page to access the firewall event log and
to enter your e-mail address in order to receive e-
mail alerts related to firewall attacks by hackers
How Do I Configure the Gateway Cable Modems?
37
Wireless
The following table provides a description of the pages available from within the
Wireless section of the Setup page.
Field Name Description
Link Control Use this page to enable or disable the wireless
access point on the cable modem
Basic Use this page to configure your wireless access
point (WAP) parameters, including service set
identifier (SSID) and channel number
Privacy Use this page to configure your WAP wired
equivalent privacy (WEP) encryption keys and
authentication. Using encryption and
authentication prevents unauthorized access to
your wireless devices
Access Control Use this page to configure the WAP to restrict
access to only selected wireless client devices.
Authorized clients are selected by MAC address.
Use this page to select Open System or Share
Key authentication and to enable and disable
broadcast of the WAP SSID
Advanced Use this page to configure your WAP data rates
and wireless fidelity (WiFi) thresholds
Configuring Your Password Settings
Use the Basic Settings - Password Settings page to set up a password to restrict
unauthorized persons from accessing to your gateway cable modem settings.
Click Password Settings in the Basic Settings section of the Setup page to
access the Password Settings page.
Your gateway modem comes from the factory with no password enabled.
We highly recommend that you set up a user password to prevent unauthorized
users from modifying the settings of your network.
If you do choose to set up a password, use a password that you can easily
remember. Do not forget your password.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
38
Setup Basic Settings – Password Settings Page Example
The following illustration is an example of the Basic Settings – Password Settings
page.
Setting Up Your Password
To set up your password, type your password in the Password field, and then
re-type your password in the Re-Enter Password field. Click Apply to save your
password.
If you set a password, on subsequent access to the WebWizard pages, a
screen similar to the following appears. Do not forget your password. Write your
password and store it in a secure location known only to you.
Leave this blank.
Enter your password here.
How Do I Configure the Gateway Cable Modems?
39
Configuring the Default Settings
You can use the default settings, or, if your system requires different settings to
operate correctly, you can change the default settings using the Setup Basic
Settings – Network Configuration page.
If you are not familiar with the network configuration procedures detailed in
this section, contact your cable service provider before you attempt to change
any of the gateway cable modem default network configuration settings.
Click Network Configuration in the Basic Settings section of the Setup page to
access the Setup Basic Settings – Network Configuration page.

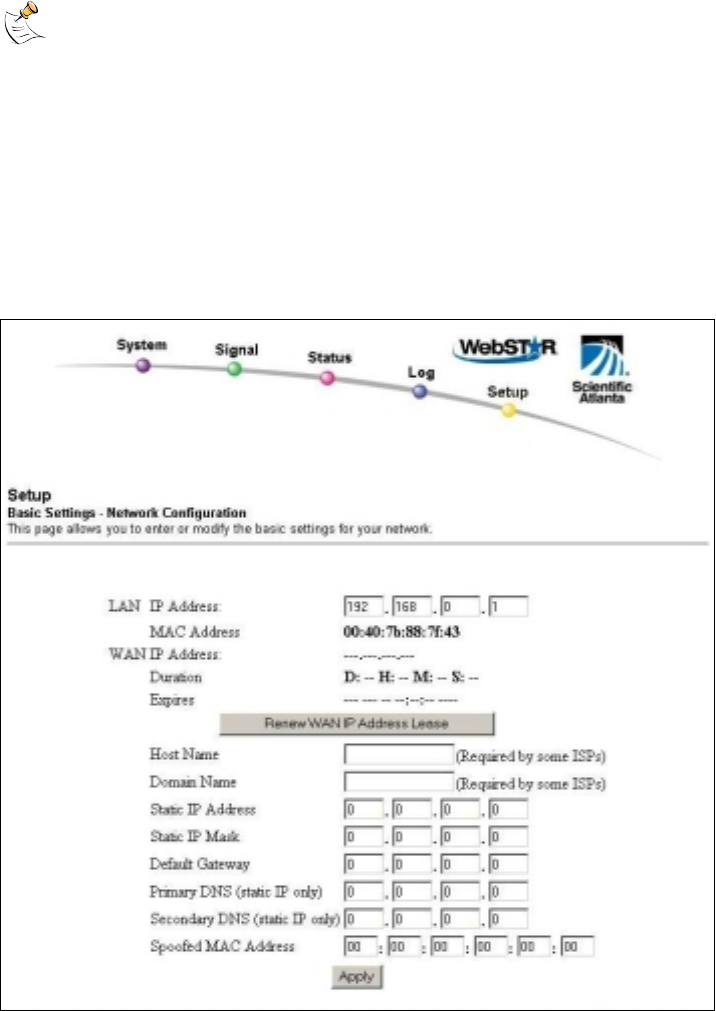

Setup Basic Settings – Network Configuration Page Example
The following illustration is an example of the Setup Basic Settings – Network
Configuration page.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
40
Setup Basic Settings – Network Configuration Page Description
The following table provides a description of the fields within the Setup Basic
Settings – Network Configuration page.
Field Name Description
LAN IP
Address
The base IP address of the private home LAN and the
WebWizard IP address. Your gateway cable modem assigns
private IP addresses to your attached computers by its internal
dynamic host configuration protocol (DHCP) server
MAC
Address
The MAC address for the WAN. The factory assigned MAC
address for the WAN is also referred to as the WLAN Data
MAC address unless a spoofed MAC address is used. (See
Spoofed MAC Address later in this table)
WAN IP
Address
The public IP address assigned to your cable modem by your
ISP. The WAN will be assigned a public IP address by your
cable service provider. The WAN IP address will be shared by
all the PCs in your private local area network to access the
Internet
Duration The length of time your WAN IP address is valid. This length
of time renews when this duration expires
Expires The date and time your WAN IP address expires
Host Name Some ISPs require this information for authentication and will
supply it to you
Domain
Name
Some ISPs require this information for authentication and will
supply it to you
Static IP
Address
Some ISPs require this information for authentication and will
supply it to you
When setting a static IP address, you must enter the IP
address, subnet mask, and default gateway before the static
IP address will become operational
Static IP
Mask
Some ISPs require this information for authentication and will
supply it to you
Default
Gateway
Some ISPs require this information for authentication and will
supply it to you
Primary DNS Some ISPs require this information for authentication and will
supply it to you
Secondary
DNS
Some ISPs require this information for authentication and will
supply it to you
Spoofed
MAC
Address
Some ISPs require the MAC address of the network interface
card (NIC) in your computer for authentication. When installing
the gateway cable modem, you can enter your computer MAC
address here to allow you to connect to your ISP. If a Spoofed
MAC address is used, the gateway will use the Spoofed MAC
address to obtain the public WAN IP address in place of using
the WLAN Data MAC address assigned at the factory
How Do I Configure the Gateway Cable Modems?
41
Function Keys
The following function keys appear on the Setup Basic Settings – Network
Configuration page.
Key Description
Renew WAN IP Address
Lease
Forces a release and renewal of your WAN IP
address
Apply Saves the values you enter into the fields without
closing the screen
Configuring and Managing IP Addresses
Use the Setup Basic Settings – IP Management page to configure how your
system manages and assigns IP addresses in your network.
If you are not familiar with the IP management procedures detailed in this
section, contact your cable service provider before you attempt to change any of
the gateway cable modem default IP management settings.
Click IP Management in the Basic Settings section of the Setup page to access
the Setup Basic Settings – IP Management page.

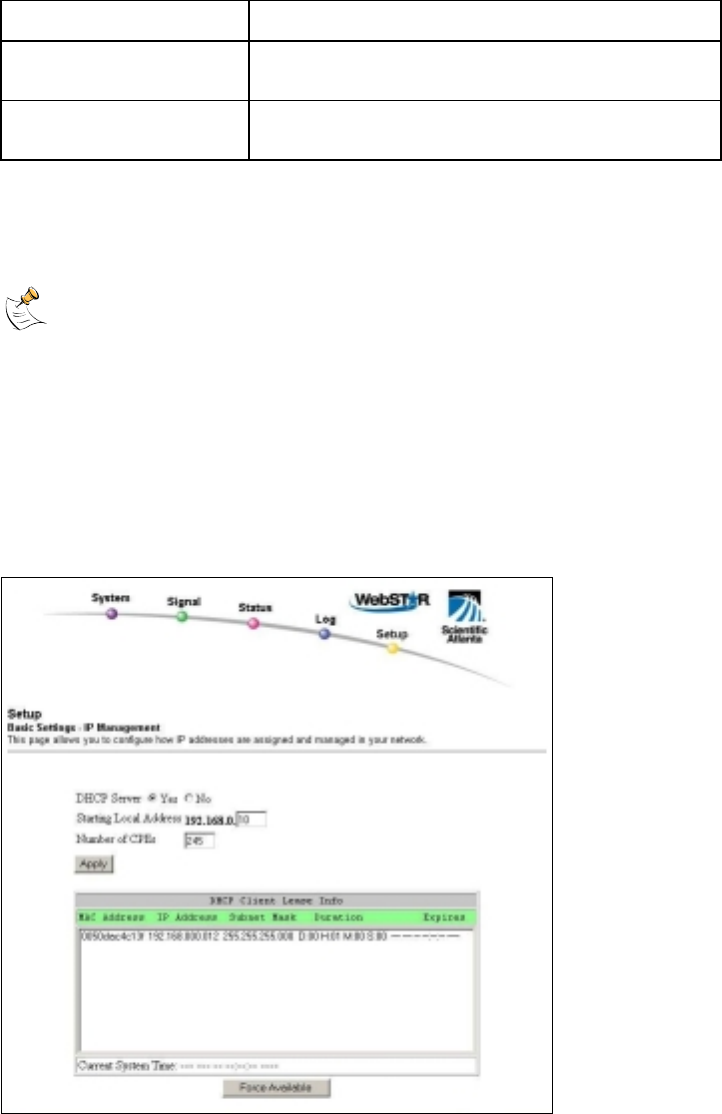

Setup Basic Settings – IP Management Page Example
The following illustration is an example of the Setup Basic Settings – IP
Management page.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
42
Setup Basic Settings – IP Management Page Description
The following table provides a description of the fields within the Basic Settings –
IP Management page.
Field Name Description
DHCP Server Allows you to enable or disable the DHCP server
Starting Local Address The starting address used by the built-in DHCP
server to distribute Private LAN IP addresses. In
the example shown, addresses between 2 and 9
can be used for devices on your Private LAN that
require fixed IP addresses such as printers or a
device assigned as a DMZ host
The LAN IP address ending in 1 is reserved
for the internal gateway server. The LAN IP
address ending in 255 is also reserved and
should not be used for CPE devices
Number of CPEs Enter the maximum number of devices allowed to
connect to the Private LAN.
The maximum number of devices is 255.
This is the combined total of addresses reserved
for static IP addresses, for example, the sum of
the IP addresses between 1 and the value
entered in the Starting Local Address field and
the value entered in the Number of CPEs field.
Note: The sum of the value entered in the
Starting Local Address field and the value
entered in the Number of CPEs field must always
be 255 or less.
DHCP Client Lease Info Displays the MAC address, IP Address, Subnet
Mask, Duration and Expiration date of all devices
issued an IP address by the built-in DHCP server.
This field also displays the current system time
and date
Function Keys
The following function keys appear on the Basic Settings – IP Management page.
Key Description
Apply Saves the values you enter into the fields without
closing the screen
Force Available Forces the release of an IP address for you to
re-use
How Do I Configure the Gateway Cable Modems?
43
Restarting the Gateway Modem
Use the Setup Basic Settings – Restart Cable Modem page to restart your cable
modem.
Click Restart Modem in the Basic Settings section of the Setup page to access
the Basic Settings – Restart Cable Modem page.
Click Reboot Cable Modem to restart the gateway modem.
Restarting your gateway modem does not reset any of the settings.

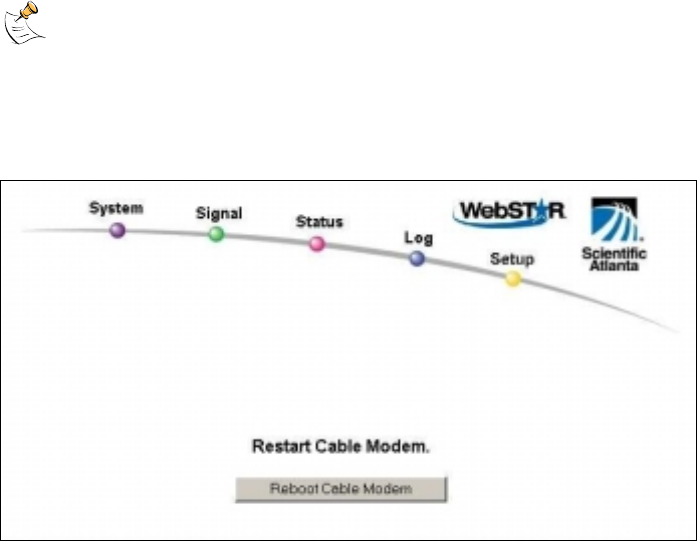

Setup Basic Settings - Restart Cable Modem Page Example
The following illustration is an example of the Restart Cable Modem page.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
44
Enabling and Disabling Advanced Features
Use the Setup Advanced Settings – Options page to enable or disable advanced
features on your network. When the wireless interface is disabled, the transmitter
is turned off.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced options settings.
Click Options in the Advanced Settings section of the Setup page to access the
Setup Advanced Settings – Options page.

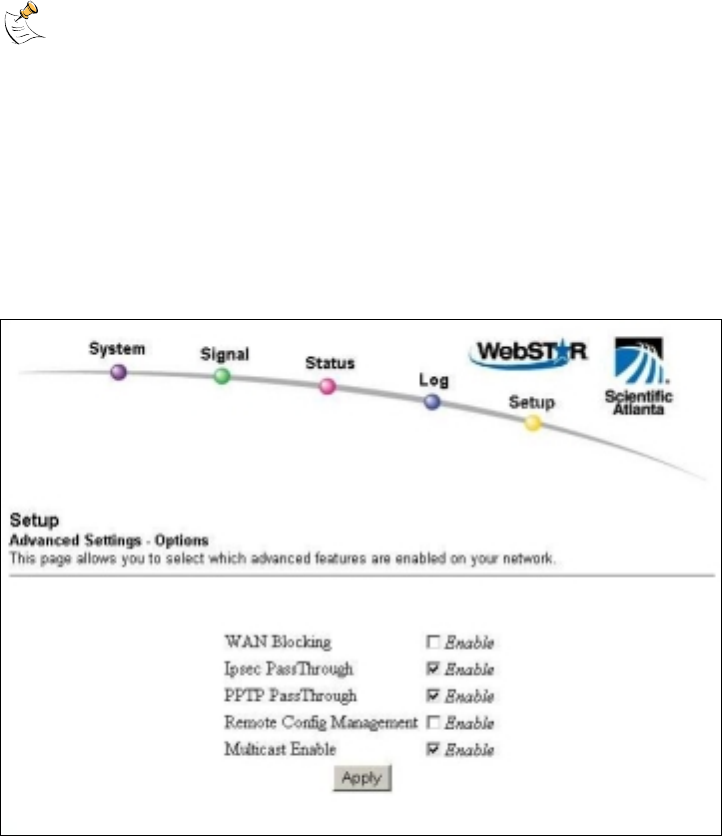

Setup Advanced Settings – Options Page Example
The following illustration is an example of the Setup Advanced Settings – Options
page.
How Do I Configure the Gateway Cable Modems?
45
Setup Advanced Settings – Options Page Description
The following table provides a description of the fields within the Setup Advanced
Settings – Options page.
If you make changes in the Setup Advanced Settings – Options page, click
Apply to apply and save your new IP address filter settings.
Field Name Description
WAN Blocking Checking this box prevents the gateway cable
modem from being visible to the WAN. For
example, pings to the WAN IP address are not
returned
Ipsec PassThrough Checking this box allows applications that use
IPSec (IP Security) to pass through the firewall
PPTP PassThrough Checking this box allows applications that use Point
to Point Tunneling Protocol (PPTP) to pass through
the firewall
Remote Config
Management Checking this box allows Remote Configuration
Management from the WAN side of the gateway
cable modem. Access is allowed by using the
password to access the WebWizard.
If you enable (check) Remote Configuration
Management, when you are away from your home
or office, you can access the settings of your
gateway by entering the WAN IP address into any
PC browser. If you choose to enable (check) this
feature, be sure to set up a user password to
prevent unauthorized access to your gateway
settings.
Multicast Enable Checking this box allows multicasts to pass from
the WAN side through to the private network
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
46
Configuring IP Address Filters
Use the Setup Advanced Settings – IP Filtering page to configure IP address
filters. These filters block a range of IP addresses from accessing the Internet.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced IP filtering settings.
Click IP Filtering in the Advanced Settings section of the Setup page to access
the Setup Advanced Settings – IP Filtering page.
Setup Advanced Settings – IP Filtering Page Example
The following illustration is an example of the Setup Advanced Settings – IP
Filtering page.

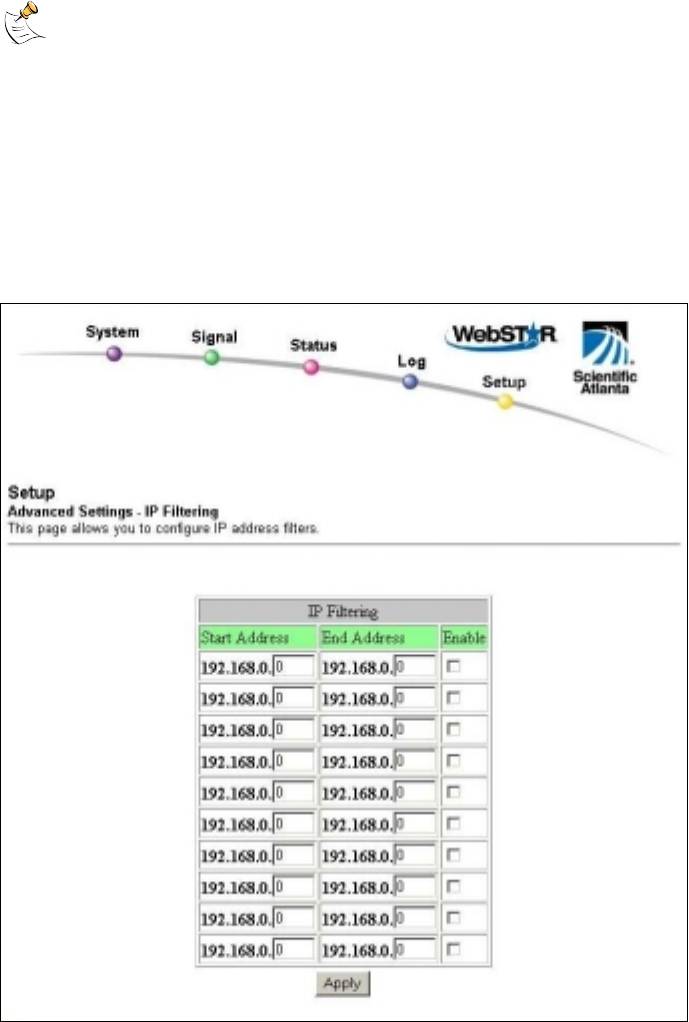

Setup Advanced Settings – IP Filtering Page Description
Use this page to specify and enable a range of IP addresses that cannot have
access to the Internet. Click Apply to apply and save your new IP address filter
settings.
How Do I Configure the Gateway Cable Modems?
47
Configuring MAC Address Filters
Use the Setup Advanced Settings – MAC Filtering page to configure MAC
address filters. These filters prevent individual MAC addresses from accessing
the Internet. You can also prevent individual PCs from sending outgoing
TCP/UDP traffic to the WAN using their MAC address.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced MAC filtering settings.
Click MAC Address Filtering in the Advanced Settings section of the Setup
page to access the Setup Advanced Settings – MAC Filtering page.
Setup Advanced Settings – MAC Filtering Page Example
The following illustration is an example of the Setup Advanced Settings – MAC
Filtering page.

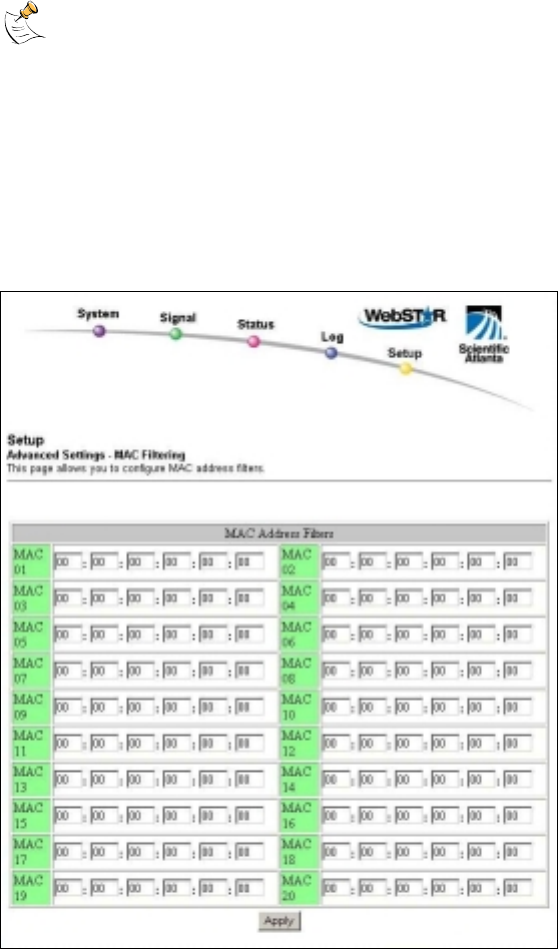

Setup Advanced Settings – MAC Filtering Page Description
Use this page to enter the MAC address or MAC addresses of devices that
cannot have access to the Internet. Click Apply to apply and save your new
MAC address filter settings.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
48
Configuring and Enabling TCP and UDP Port Filters
Use the Setup Advanced Settings – Port Filtering page to configure and enable
TCP and UDP port filters. These filters prevent a range of TCP/UDP ports from
accessing the Internet. You can also prevent PCs from sending outgoing
TCP/UDP traffic to the WAN on specific IP port numbers. This filter is not IP
address- or MAC address-specific. The system blocks the specified port ranges
for all PCs.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced port filtering settings.
Click Port Filtering in the Advanced Settings section of the Setup page to
access the Setup Advanced Settings – Port Filtering page.
Setup Advanced Settings – Port Filtering Page Example
The following illustration is an example of the Setup Advanced Settings – Port
Filtering page.

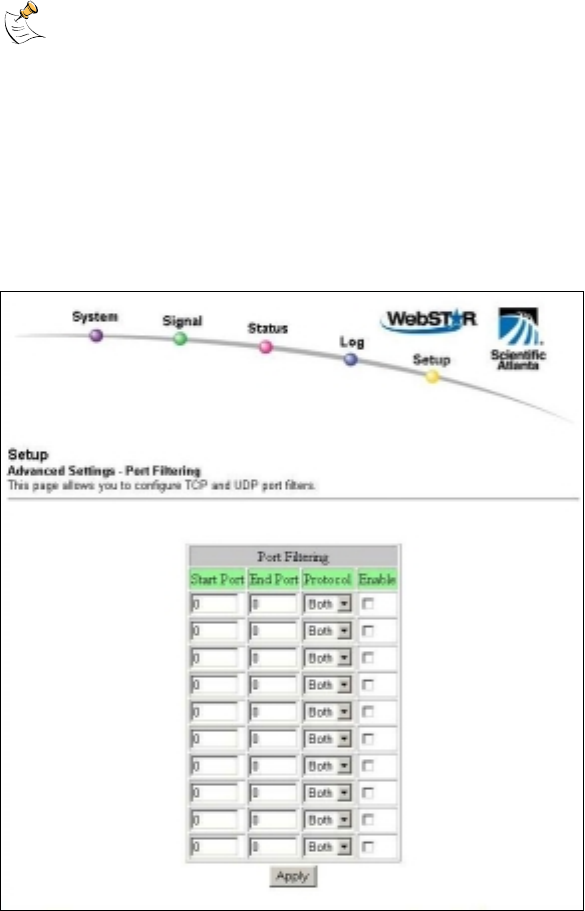

Setup Advanced Settings – Port Filtering Page Description
Use this page to enter and enable the desired port filtering ranges and protocols
in the appropriate fields and then click Apply to apply and save your new port
filtering settings.
How Do I Configure the Gateway Cable Modems?
49
Configuring Port Forwarding for Local IP Addresses
Use the Setup Advanced Settings – Port Forwarding page to configure port
forwarding for local IP addresses. Port forwarding allows you to run a server on
the LAN by specifying the mapping of TCP/UDP ports to a local PC. You must
also set up a fixed private LAN IP address for the destination device.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced port forwarding settings.
Click Port Forwarding in the Advanced Settings section of the Setup page to
access the Setup Advanced Settings – Port Forwarding page.
Setup Advanced Settings – Port Forwarding Page Example
The following illustration is an example of the Setup Advanced Settings – Port
Forwarding page.

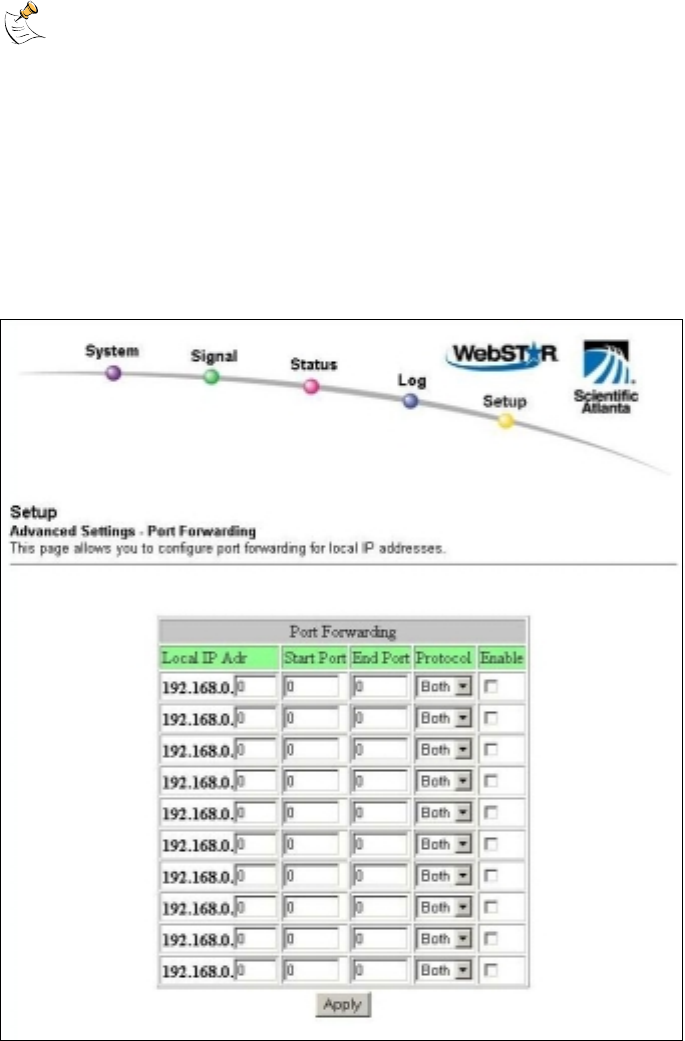

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
50
Setup Advanced Settings – Port Forwarding Page Description
The following example illustrates how to use the port forwarding feature to
configure the Microsoft X-Box Online Live for Internet gaming.
For most widely used applications (including Microsoft X-Box Online Live),
the WebSTAR firewall automatically maps and opens ports required for that
application while the application is in use.
1. Set the device to be used for port forward to a fixed IP address, for
example, 192.168.0.5.
2. In the first entry of the Port Forwarding area of the page, enter the same
IP address (192.168.0.5) in the Local IP Address field.
3. In the same row, enter the appropriate port numbers in the Start Port and
End Port fields.
4. In the same row, select the appropriate protocol from the drop-down list
in the Protocol field, and then select the box in the Enable field.
5. To add additional ports, repeat steps 1 through 4, and then go to step 6.
6. Click Apply to apply and save your new port forwarding settings.
How Do I Configure the Gateway Cable Modems?
51
Configuring TCP/UDP Port Triggers
Use the Setup Advanced Settings – Port Triggers page to configure TCP/UDP
port triggers. Port triggering is similar to port forwarding but is dynamic. In other
words, the system does not hold the ports open indefinitely. For example, when
the gateway cable modem detects outgoing data on a specific IP port number set
in the “Trigger Range,” the resulting ports set in the “Target Range” will open for
incoming data. If the system detects no outgoing traffic on the “Trigger Range”
ports for a period of 10 minutes, the “Target Range” ports close. This is a safer
method for opening specific ports for special applications, such as, video
conferencing programs, interactive gaming, and file transfer in chat programs.
This is safe because the ports are dynamically triggered and not held open
continuously or erroneously left open by the router administrator. Therefore,
these ports are not exposed and vulnerable for potential hackers to discover.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced port triggers settings.
Click Port Triggers in the Advanced Settings section of the Setup page to
access the Setup Advanced Settings – Port Triggers page.
Setup Advanced Settings – Port Triggers Page Example
The following illustration is an example of the Setup Advanced Settings – Port
Triggers page.

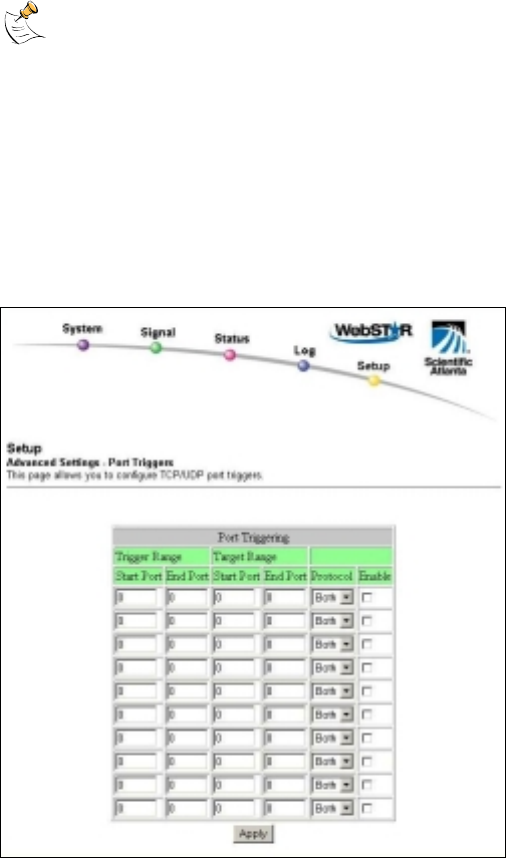

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
52
Setup Advanced Settings – Port Triggers Page Description
Use this page to enter and enable the port forwarding trigger and target range
start and end ports along with protocol information in the appropriate fields. The
following example illustrates how to use the port triggering feature to configure
the Microsoft X-Box Online Live for Internet gaming.
For most widely used applications (including Microsoft X-Box Online Live),
the WebSTAR firewall automatically maps and opens ports required for that
application while the application is in use.
1. In the first row, enter 88 in both Start Port and End Port fields.
2. In the same row, select UDP from the drop-down list in the Protocol
field, and then select the box in the Enable field.
3. In the second row, enter 3074 in both Start Port and End Port fields.
4. In the same row as the second entry, select Both, and then select the
box in the Enable field.
5. Click Apply to apply and save your new port forwarding settings.
How Do I Configure the Gateway Cable Modems?
53
Configuring the DMZ Host
Use the Setup Advanced Settings – DMZ Host page to configure an IP address
that is visible to the WAN. DMZ hosting is commonly referred to as “exposed
host,” and allows you to specify the “default” recipient of WAN traffic that Network
Address Translation (NAT) is unable to translate to a known local PC. DMZ
allows one IP address to be unprotected while others remain protected.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default advanced DMZ host settings.
Click DMZ Host in the Advanced Settings section of the Setup page to access
the Setup Advanced Settings – DMZ Host page.
Setup Advanced Settings – DMZ Host Page Example
The following illustration is an example of the Setup Advanced Settings – DMZ
Host page.

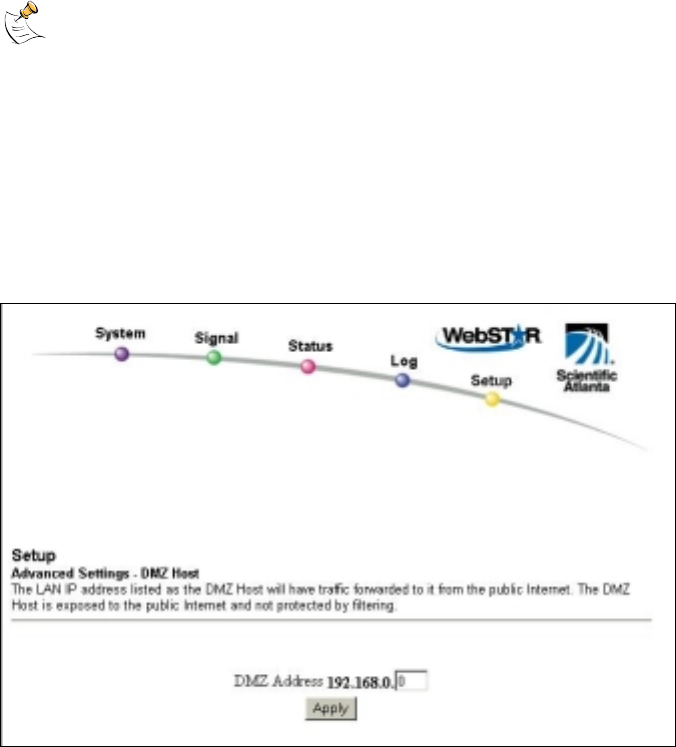

Setup Advanced Settings – DMZ Host Page Description
Use this page to place a Private LAN IP device, for example, an FTP, Mail, or
Web server directly on the Internet (bypassing the firewall). You set the server
with a fixed IP address as a DMZ Host by entering its IP address in the DMZ
Address field. Make sure the IP address used is not in the range of addresses
delivered by the built-in DHCP server. After setting up a DMZ Host, all ports on
this device are open to the Internet. You may configure only one PC to be the
DMZ host. DMZ is generally used for PCs running “problem” applications that
use random port numbers and do not function correctly with the specific port
triggers or port forwarding setups described earlier in this guide. After entering a
DMZ Address, click Apply to apply and save your new DMZ Host setting.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
54
Configuring Web Page Filtering, Parental Control, and
Firewall Protection
Use the Setup Firewall – Web Filters page to configure Web page filtering and
firewall protection. This page allows you either block or allow Internet access
based on keywords and/or domain names. You can also filter on the time of day
and the day of the week.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default firewall Web filters settings.
Click Web Filters in the Firewall section of the Setup page to access the Setup
Firewall – Web Filters page.
Setup Firewall – Web Filters Page Example
The following illustration is an example of the Setup Firewall – Web Filters page.

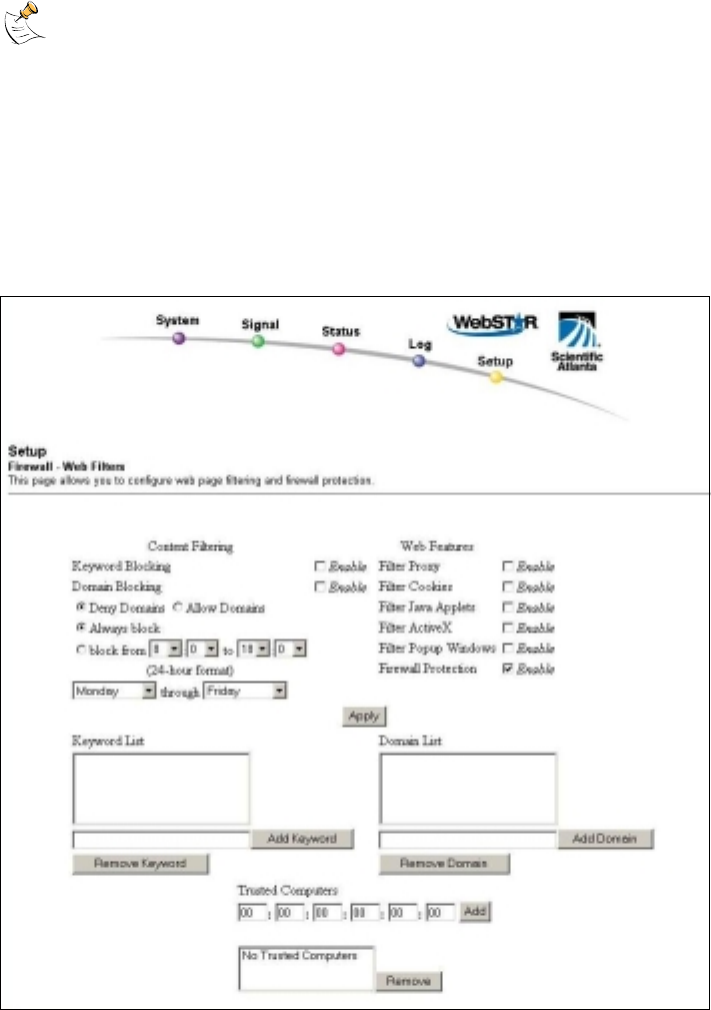

How Do I Configure the Gateway Cable Modems?
55
Setup Firewall – Web Filters Page Description
This section describes the section headings and fields descriptions of the Setup
Firewall – Web Filters page.
Section Headings
The Setup Firewall – Web Filters page is divided into the following section
headings:
• Content Filtering (Parental control)
• Web Features
• Keyword List
• Domain List
• Trusted Computers
If you make changes in any of the fields in the Setup Firewall – Web Filters
page, click Apply to apply and save your Content Filter settings.
Content Filtering
The following table provides a description of each field name within the Content
Filtering section heading.
Field Name Description
Keyword Blocking Allows you to block or allow Internet access based on
keywords
Domain Blocking Allows you to block or allow Internet access based on
domain names and on time of day and day of week.
Verify that the Status page reflects the correct time of
day. If it does not reflect the correct time of day, contact
your ISP. You can also adjust your settings to account
for the difference.
Web Features
The following table provides a description of each field name within the Web
Features section heading.
Field Name Description
Filter Proxy Enables/disables proxy
Filter Cookies Enables/disables cookie blocking
Filter Java Applets Enables/disables java applets
Filter ActiveX Enables/disables ActiveX controls
Filter Popup
Windows
Enables/disables popup windows. Some commonly
used applications employ popup windows as part of the
application. If you disable popup windows, it may
interfere with some of these applications.
Firewall Protection Enables/disables the firewall. When the firewall is
enabled, the firewall will allow most commonly used
applications to pass without any special setup or manual
port configuration
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
56
Keyword List
Use the Keyword List to permanently add keywords to the Web Filter feature by
typing a word into the Keyword List field, and then clicking Add Keyword. To
remove a keyword from the Keyword List, highlight the keyword in the Keyword
List field, and then click Remove Keyword.
Domain List
Use the Domain List to permanently add domain names to the Web Filter by
typing a domain name into the Domain List field, and then clicking Add Domain.
To remove a domain name from the Domain List, highlight the domain name in
the Domain Name list, and then click Remove Domain.
Trusted Computers
Use the Trusted Computers field to specify the MAC address of computers
whose content will always be trusted and allowed unrestricted access to the
Internet.
Configuring Firewall Time of Day Access Filters
Use the Setup Firewall – Time of Day Access Filter page to block all traffic to and
from specific computers based on the day of week and the time of day.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default firewall event logging settings.
Click Time of Day Filters in the Firewall section of the Setup page to access the
Setup Firewall – Time of Day Access Filter page.
How Do I Configure the Gateway Cable Modems?
57
Setup Firewall – Time of Day Access Filter Page Example
The following illustration is an example of the Setup Firewall – Time of Day
Access Filter page.
Time of day refers to your ISP’s time of day server. The time of day server
must be accurate and represent the time of day in your time zone for this feature
to operate properly. Verify that the Status page reflects the correct time of day. If
it does not reflect the correct time of day, contact your ISP. You can also adjust
you settings to account for the difference.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
58
Configuring Firewall Event Logging and E-mail Alerts
Use the Setup Firewall – Event Logging page to access the firewall event log and
allows you to enter your e-mail address in order for you to receive e-mail alerts
related to firewall attacks by hackers.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default firewall event logging settings.
Click Event Logging in the Firewall section of the Setup page to access the
Setup Firewall – Event Logging page.
Setup Firewall – Event Logging Page Example
The following illustration is an example of the Setup Firewall – Event Logging
page.

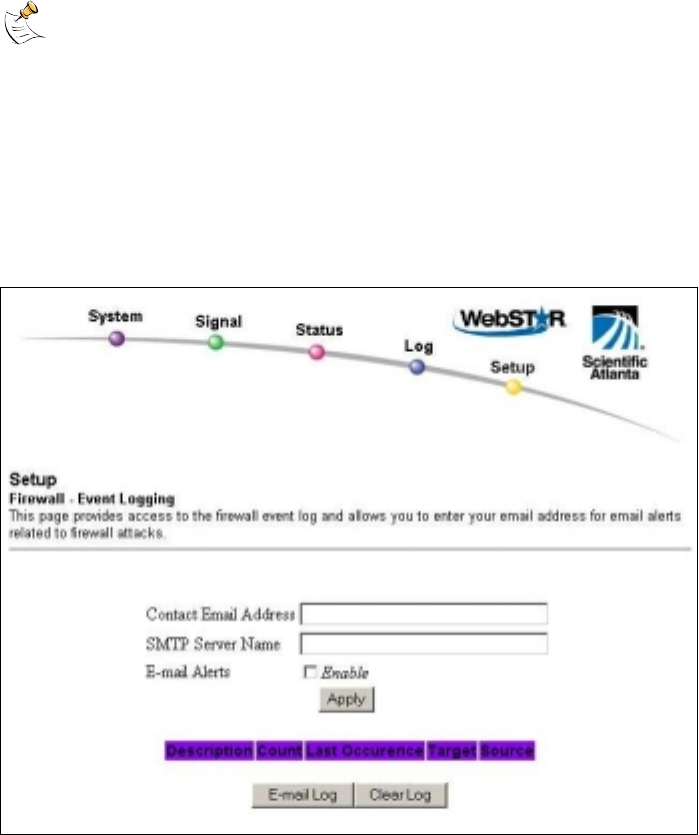

How Do I Configure the Gateway Cable Modems?
59
Setup Firewall – Event Logging Page Description
The Setup Firewall – Event Logging page shows events captured by the firewall.
The log displays the following items:
• Description of the event
• Number of events that have occurred
• Last occurrence of an event
• Target and source addresses
You can configure the system to e-mail log events to the administrator in order
for the administrator to monitor the firewall.
This section describes the section headings and fields descriptions of the Setup
Firewall – Event Logging page.
Field Name Description
Contact Email
Address
Allows you to enter the e-mail address of the person
who monitors the firewall
SMTP Server Name Allows you to enter the mail server name of your
outgoing mail server, or the mail server of your
Internet service provider (ISP)
E-mail Alerts Allows you to enable or disable sending e-mail alerts
Function Keys
The following function keys appear on the Setup Firewall – Event Logging page.
Key Description
Apply Saves the values you enter into the fields without
closing the screen
E-mail Log Allows you to force the system to send an e-mail alert
even if the E-mail Alerts box is left unchecked
Clear Log Allows you to clear all entries in the log
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
60
Enable or Disable the Wireless Interface
Use the Setup Wireless – Link Control page to turn the wireless access point on
the gateway cable modem on or off.
When the wireless interface is disabled, the transmitter is turned off.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default wireless basic settings.
Click Link Control in the Wireless section of the Setup page to access the Setup
Wireless – Link Control page. Select Yes or No in the page to enable to disable
the wireless interface, and then click Apply.
Setup Wireless – Link Control Page Example
The following illustration is an example of the Setup Wireless – Link Control page.

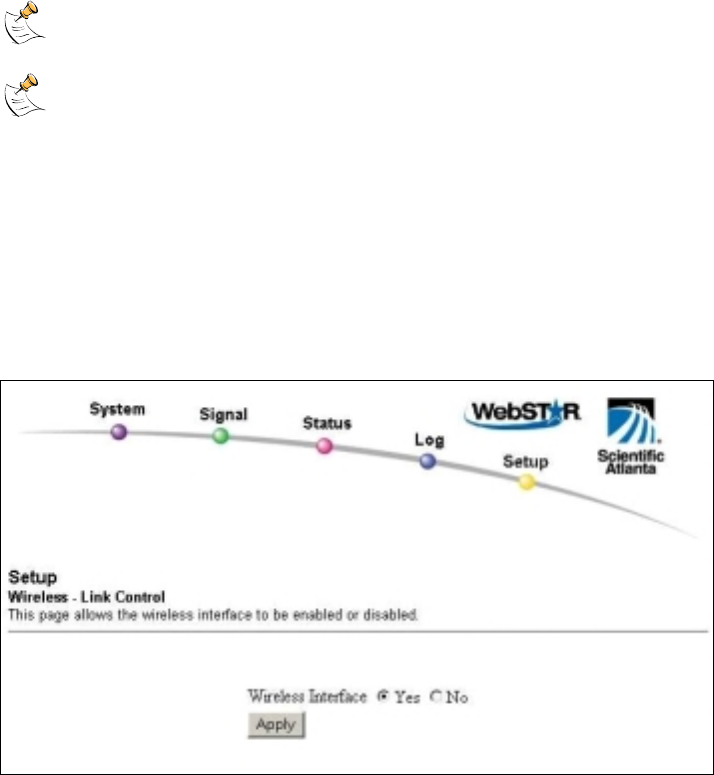

How Do I Configure the Gateway Cable Modems?
61
Configuring Your Wireless Access Point Parameters
Use the Setup Wireless – Basic page to configure your wireless access point
(WAP) parameters, included SSID and channel number.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default wireless basic settings.
Click Basic in the Wireless section of the Setup page to access the Setup
Wireless – Basic page.
Setup Wireless – Basic Page Example
The following illustration is an example of the Setup Wireless – Basic page
showing the factory default settings.

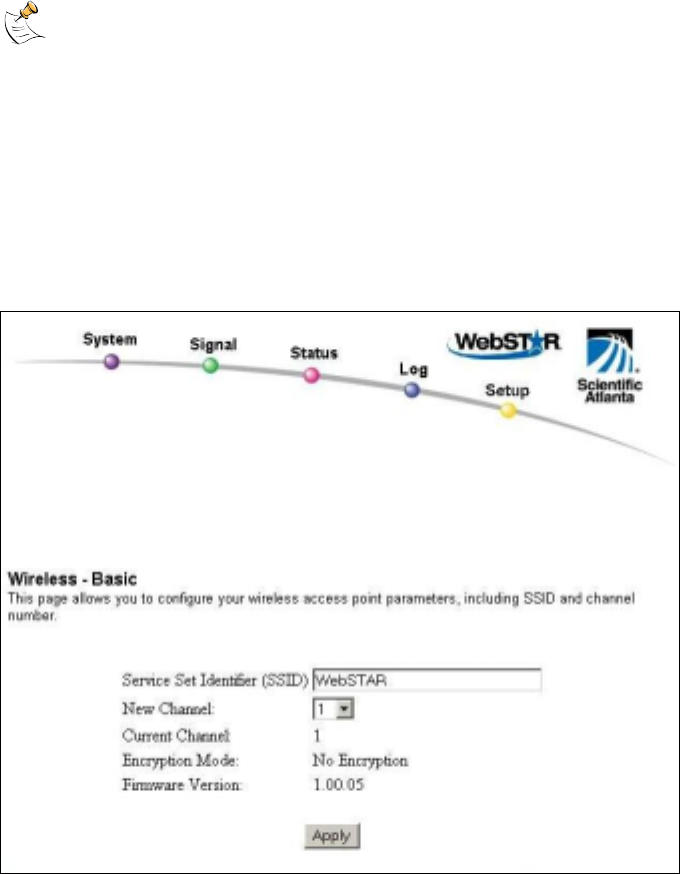

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
62
Setup Wireless – Basic Page Description
This section describes the section headings and fields descriptions of the Setup
Wireless – Basic page.
If you make changes in the Setup Wireless – Basic page, click Apply to
apply and save your wireless basic settings.
Field Name Description
Service Set Identifier
(SSID)
The name assigned to this access point
The factory default for the SSID field should
contain the product name WebSTAR.
New Channel (1-11) Allows setting a communications channel for your
access point
Wireless networking channels overlap. Channels
1, 6, and 11 do not overlap with each other. For best
performance, select one of these channels. If there are
other access points in use in the area, select one of
these channels that is farthest away from the other
access points.
Example: If channel 8 is in use by another access point,
use channel 1 for your wireless network.
If your wireless network is not operating correctly,
or if external devices are interfering with your signal,
select a different channel. Use your PC wireless utility
software to scan for other access points in your area.
Current Channel Present channel the WAP is using
Encryption Mode Shows current encryption mode
Firmware Version Shows current firmware version
How Do I Configure the Gateway Cable Modems?
63
Configuring Your Wireless Network Privacy and Encryption
Parameters
Use the Setup Wireless – Privacy page to configure your WAP wired equivalent
privacy (WEP) encryption keys and authentication.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default wireless privacy settings.
Click Privacy in the Wireless section of the Setup page to access the Setup
Wireless – Privacy page.
Setup Wireless – Privacy Page Example
The following illustration is an example of the Setup Wireless – Privacy page.

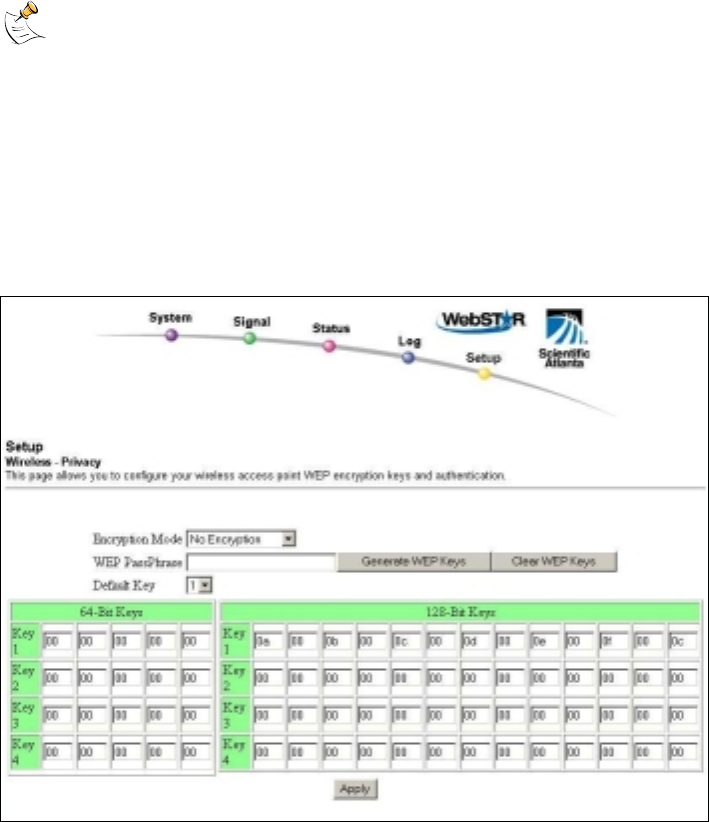

WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
64
Setup Wireless – Privacy Page Description
This section describes the section headings and fields descriptions of the Setup
Wireless – Privacy page.
If you make changes in the Setup Wireless – Privacy page, click Apply to
apply and save your wireless privacy settings.
Field Name Description
Encryption Mode Allows setting No Encryption, 64-bit Encryption, or
128-bit encryption modes.
WEP PassPhrase Allows you to designate a unique WEP PassPhrase
(password) for additional security purposes
Generate WEP Keys Allows your to generate WEP keys after entering the
values in the appropriate fields
• For 64-bit WEP, four unique 64-bit WEP keys will be
generated
• For 128-bit WEP, only one 128-bit WEP key will be
generated. The same key will be entered into all four
key locations.
Clear WEP Keys Clears all WEP keys
Default Key Select which of the four 64-bit or 128-bit Keys to
activate. Only one WEP is in use at a time. You must
manually change keys. They do not change
automatically.
• 64-bit and 40-bit encryption are two different names
for the same encryption
• 128-bit and 104-bit encryption are two different
names for the same encryption
How Do I Configure the Gateway Cable Modems?
65
64 Bit Keys For use with Encryption Mode set to 64-bit encryption.
Enter 5-byte values for a Key. You do not have to set
all four Keys. Only one Key is used for a home
network. Each value is represented in hexadecimal.
Use only these numbers or letters: 0, 1, 2, 3, 4, 5, 6, 7,
8, 9, a, b, c, d, e, and f.
It is generally a good practice to use only
lowercase characters when entering WEP encryption
keys. Uppercase characters can sometimes be
confused with numbers. For example, the uppercase
letter “B” is often mistaken for the number “8.” Using
lowercase characters minimizes the risk of confusing
characters when copying keys from one device to
another. Uppercase characters will automatically be
converted to lowercase when the key or keys are
applied and saved to memory.
Use two numbers or letters in each box. Record your
Key values. You will need these Key values when you
set up your client wireless adapter. The Key values in
each wireless network device must match.
128 Bit Keys For use with Encryption Mode set to 128-bit
encryption. Enter 13-byte values for a Key. You do not
have to set all four Keys. Usually only one is needed
for a home network. Each value is represented in
hexadecimal. Use only these numbers or letters: 0, 1,
2, 3, 4, 5, 6, 7, 8, 9, a, b, c, d, e, and f.
It is generally a good practice to use only
lowercase characters when entering WEP encryption
keys. Uppercase characters can sometimes be
confused with numbers. For example, the uppercase
letter “B” is often mistaken for the number “8.” Using
lowercase characters minimizes the risk of confusing
characters when copying keys from one device to
another. Uppercase characters will automatically be
converted to lowercase when the key or keys are
applied and saved to memory.
Use two numbers or letters in each box. Record your
Key values. You will need these Key values when you
set up your client wireless adapter. The Key values in
each wireless network device must match.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
66
Configuring Wireless Access Point Access Control
Use the Setup Wireless – Access Control page to configure your configure your
wireless access point access control.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default wireless advanced settings.
Click Access Control in the Wireless section of the Setup page to access the
Setup Wireless – Access Control page.
Setup Wireless Access Control Page Example
How Do I Configure the Gateway Cable Modems?
67
Setup Wireless – Access Control Page Description
This section describes the section headings and field descriptions of the Setup
Wireless – Access Control page.
Field Name Description
Authentication When encryption is enabled, this selection allows
you to choose one of the following authentication
methods from the drop-down list:
• Open System—Open system authentication
allows any device to authenticate and then
attempt to communicate with the WAP.
Communication occurs if both devices have
matching pre-configured WEP keys. Open
System authentication does not provide the
client with confirmation that the link has been
established. This makes it more difficult for a
hacker to access the network.
• Shared Key—During shared key authentication,
the WAP sends an unencrypted challenge text
string to any device attempting to communicate
with the WAP. The device requesting
authentication encrypts the challenge text and
sends it back to the WAP. If the challenge text is
encrypted correctly, the access point allows the
requesting device to authenticate. Shared key
authentication provides the client with feedback
when a link is denied where Open System
authentication does not.
• Open System or Shared Key—Either Open
System or Shared Key can associate with the
WAP and the WAP accepts data from wireless
clients using the appropriate form of
authentication.
Closed Network Allows you to disable or enable the network to
access by wireless clients. When ON is selected, the
access point does not broadcast the SSID. The
client device must be configured manually with the
SSID and the MAC address of the access point in
order to access with wireless network.
Allow/Restrict
Access
Enables unrestricted access or limits access to
clients listed in the Access List
Access List Displays the MAC address of the clients that are
allowed to access the wireless access point
Connected Clients Displays the Host Name, IP Address, and Client ID
of wireless clients that are connected to (associated
with) the gateway modem
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
68
Function Keys
The following function keys appear on the Setup Firewall – Event Logging page.
Key Description
Apply Applies and saves the values you enter into the
fields without closing the screen
Clear Clears the Access List
Remove Removes entries from the Access List
Add Adds a client to the Access List
Submit Access List
Changes
Saves and activates changes to the Access List
Configuring Wireless Data Rates and WiFi Thresholds
Use the Setup Wireless – Advanced page to configure your WAP data rates and
wired fidelity (WiFi) thresholds.
If you are not familiar with the advanced settings detailed in this section,
contact your cable service provider before you attempt to change any of the
gateway cable modem default wireless advanced settings.
Click Advanced in the Wireless section of the Setup page to access the Setup
Wireless – Advanced page.
How Do I Configure the Gateway Cable Modems?
69
Setup Wireless – Advanced Page Example
The following illustration is an example of the Setup Wireless – Advanced page.

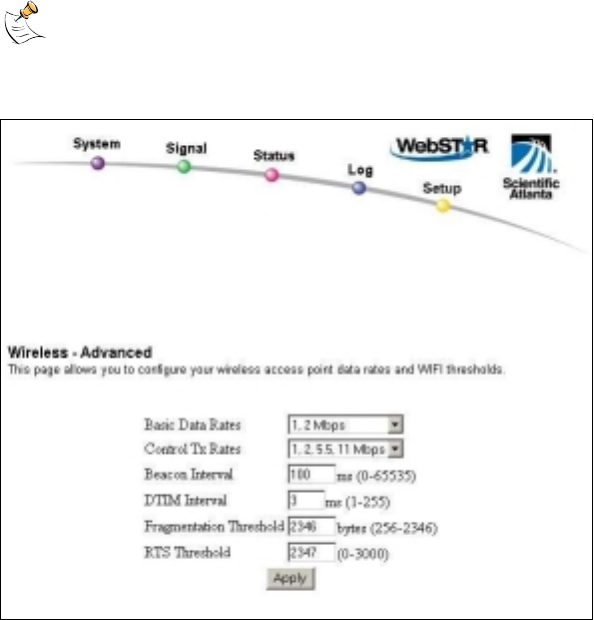

We recommend that you do not change the default wireless settings that
are shown in the preceding illustration unless you are instructed to do so by your
cable service provider.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
70
Setup Wireless – Advanced Page Description
This section describes the section headings and fields descriptions of the Setup
Wireless – Advanced page.
If you make changes in the Setup Wireless – Advanced page, click Apply
to apply and save your wireless advanced settings.
Field Name Description
Basic Data Rates Displays the default initial data rate for associating with
a WAP. For maximum client compatibility, it is
recommended that the Basic Data Rates are set at
1, 2 Mbps so that older cards can easily gain access to
the network. This setting specifies the minimal set of
required data rates
Control Tx Rates Displays the transmit data rates the WAP uses is a
function of signal strength and signal quality. For
maximum potential link speed, it is recommended that
you select all control Tx rates: 1, 2 Mbps, 5.5 Mpbs,
and 11 Mbps
Beacon Interval Displays the time interval that the WAP uses to
announce itself to remote devices. The Beacon
Interval should be left at 100ms for compliance with
most client cards. The Beacon Interval specifies how
often packets are sent by the Access Point (AP) to
synchronize a wireless network and it’s clients
DTIM Interval Displays the time interval between
Broadcasts/Multicast transmissions. The DTIM
(Delivery Traffic Indication Message) Interval is a
countdown informing the wireless clients of the next
window for listening to broadcast and multicast
messages. When the AP has buffered broadcast or
multicast messages for associated clients, it sends the
next DTIM with a DTIM Interval value. AP clients hear
the beacons and awaken to receive the broadcast and
multicast messages. The DTIM Interval should be left
at 3 ms for compliance with most client cards
Fragmentation
Threshold
Fragmentation and ready to send (RTS) thresholds
should be set equivalent to the maximum Ethernet
frame size allowable on the link including overhead
(1536 bytes). Lesser settings can damage data
throughput as large frames could be fragmented or
collisions could occur
RTS Threshold The RTS/CTS threshold determines at what packet
size beyond which the RTS/CTS mechanism is
invoked.
Having Difficulty?
71
Having Difficulty?
Frequently Asked Questions
Q. What if I don’t subscribe to cable TV?
A. If cable TV is available in your area, data service may be made available with
or without subscribing to cable TV service. Contact your local cable service
provider for complete information on cable services, including high-speed
Internet access.
Q. How do I arrange for installation?
A. Professional installation from your cable service provider may be provided. A
professional installation ensures proper cable connection to the modem and to
your PC, and ensures proper configuration of all hardware and software settings.
Contact your cable service provider for more information about installation.
Q. How does the gateway cable modem connect to my computer?
A. The cable modem connects to the USB port or the 10/100BaseT Ethernet
port on your PC. If your PC is not equipped with an Ethernet interface, an
Ethernet card is available from your local PC or office supply retailer, or from
your cable service provider.
Q. After my cable modem is connected, how do I access the Internet?
A. Your local cable service provider becomes your Internet Service Provider
(ISP). They offer a wide range of services including e-mail, chat, news, and
information services. Your cable service provider will provide the software you
will need.
Q. Can I watch TV and surf the Internet at the same time?
A. Absolutely! If you subscribe to cable television service, you can watch TV and
use your cable modem at the same time by connecting your TV and your cable
modem to the cable network using an optional cable signal splitter.
Q. Can I run more than one device on the modem?
A. Yes—a single WebSTAR cable modem will theoretically support up to 253
Ethernet devices utilizing user-supplied Ethernet hubs or routers that you can
purchase at your local PC or office supply retailer. Another user at your location
can simultaneously connect to the USB port on the cable modem. Contact your
cable service provider for further assistance.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
72
Common Troubleshooting Issues
I don’t understand the front panel status indicators.
See Front Panel Status Indicator Functions, later in this guide for more
detailed information on the front panel status indicator operation and function.
The modem does not register an Ethernet connection.
• Verify that your computer has a 10/100BaseT Ethernet card and that the
Ethernet driver software is properly installed. If you purchase and install an
Ethernet card, follow the installation instructions very carefully.
• Verify the status of the front panel status indicator lights.
The modem does not register an Ethernet connection after connecting to a hub.
If you are connecting multiple PCs to the cable modem, you should first connect
the modem to the up-link port of the hub. The LINK LED of the hub will illuminate
continuously.
The modem does not register a cable connection.
• The modem works with a standard 75-ohm RF coaxial cable. If you are using
a different cable, your cable modem will not function properly. Contact your
cable service provider to determine whether you are using the correct cable.
• Verify that you have followed the procedure in How Do I Renew the IP
Address on My PC, later in this guide.
• Your NIC card or USB interface may be malfunctioning. Refer to the
troubleshooting information in the NIC or USB documentation.
Tips for Improved Performance
73
Tips for Improved Performance
Check and Correct
If your cable modem does not perform as expected, the following tips may help. If
you need further assistance, contact your cable service provider.
• Verify that the plug to your cable modem AC adapter is properly inserted into
an electrical outlet.
• Verify that your cable modem AC adapter is not plugged into an electrical
outlet that is controlled by a wall switch. If a wall switch controls the electrical
outlet, make sure the switch is in the ON position.
• Verify that the POWER and CABLE indicators on the front panel of your
cable modem are illuminated.
• Verify that all cables are properly connected, and that you are using the
correct cables.
• Verify that your cable service is active and that it supports two-way service.
• Verify that your TCP/IP is properly installed and configured if you are using
the Ethernet connection.
• Verify that you have followed the procedures in How Do I Install the USB
Drivers, earlier in this guide, if you are using the USB connection.
• Verify that you have called your cable service provider and given them the
serial number and MAC address of your cable modem.
• If you are using a cable signal splitter so that you can connect the cable
modem to other devices, remove the splitter and reconnect the cables so that
the cable modem is connected directly to the cable input. If the cable modem
now functions properly, the cable signal splitter may be defective and may
need to be replaced.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
74
How Do I Renew the IP Address on My PC?
If your PC cannot access the Internet after the cable modem is online, it is possible that your PC did not renew its
IP address.
Renewing the IP Address on Your PC
Follow the appropriate instructions in this section for your operating system to
renew the IP address on your PC.
To renew the IP address for Windows 95, 98, 98SE, or ME systems
1. Click Start, and then click Run to open the Run window.
2. Type winipcfg in the Open field, and click OK to execute the winipcfg
command. The IP Configuration window opens.
3. Click the down arrow to the right of the top field, and select the Ethernet
adapter that is installed on your PC. The IP Configuration window
displays the Ethernet adapter information.
4. Click Release, and then click Renew. The IP Configuration window
displays a new IP address.
5. Click OK to close the IP Configuration window, you have completed this
procedure.
If you cannot access the Internet, contact your cable service
provider for further assistance.
To renew the IP address for Windows 2000, NT, or XP systems
1. Open a Command Prompt (DOS) window.
2. At the C:/ prompt, type ipconfig/release and press Enter. The system
releases the IP address.
3. At the C:/ prompt, type ipconfig/renew and press Enter. The system
displays a new IP address.
4. To close the Command Prompt window, click on the X in the upper right
corner of the window. You have completed this procedure.
If you cannot access the Internet, contact your cable service
provider for further assistance.
Front Panel Status Indicator Functions
75
Front Panel Status Indicator Functions
Initial Power Up, Calibration, and Registration
The following chart illustrates the sequence of steps and the corresponding
appearance of the cable modem front panel status indicators during power up,
calibration, and registration on the network. Use this chart to troubleshoot the
power up, calibration, and registration process of your cable modem.
After the cable modem completes step 7 (Registration Completed), the
modem proceeds immediately to step 8 (Normal Operations).
Front Panel LED Status Indicators During Initial Power Up, Calibration, and Registration
Front Panel LED Status Indicators During Initial Power Up, Calibration, and Registration
Step
1 POWER
Front Panel
Indicator
2
3
1
ON
Self
Test
7
ON
Registration
Completed
2
ON
Downstream
Scan
3
ON
Downstream
Signal Lock
4
ON
Ranging
5
ON
Requesting
IP Address
5PC ON ON
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
6
ON
Registering
6 WIRELESS ON ON
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
ON
or
BLINKING
4 CABLE ON ON
SLOW
BLINKING
1 blink
MOMENTARY
ON OFF BLINKING
2 blinks
BLINKING
4 blinks
RECEIVE ON ONOFF OCCASIONAL
BLINKING
OCCASIONAL
BLINKING
OCCASIONAL
BLINKING
OCCASIONAL
BLINKING
SEND ON ONOFF OFF OCCASIONAL
BLINKING
OCCASIONAL
BLINKING
OCCASIONAL
BLINKING
T10711
Normal Operations
The following chart illustrates the appearance of the cable modem front panel
LED status indicators during normal operations.
Front Panel LED Status Indicators During Normal Operations
Front Panel LED Status Indicators During Normal Operations
Step
1 POWER
Front Panel
Indicator
ON
Normal Operations
(Bold denotes normal)
5PC
2 RECEIVE
4 CABLE
ON - When a single device is connected to either the Ethernet or USB port and no data is being
sent to or from the modem.
BLINKS - LED blinks when only one Ethernet or USB device is connected and
data is being transferrd between the consumer premise equipment (CPE) and the cable modem.
OFF - When no devices are connected to either the Ethernet or USB ports.
Note: With both Ethernet and USB devices connected to the modem at the same time, when data is being
transferred through only one of the devices (Ethernet or USB), the indicator will illuminate continuously.
Whenever data is being sent through both data ports (Ethernet and USB) simultaneously, the indicator
will blink as described above.
6 WIRELESS ON - When the wireless access point is operational.
BLINKS - To indicate data is being transmitted through the wireless access point.
OFF - When the user disables the wireless access point.
BLINKS - To indicate data is being transferred between the modem and the network.
3 SEND BLINKS - To indicate data is being transferred between the modem and the network.
ON
8
T10712
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
76
Special Conditions
The following chart describes the appearance of the cable modem front panel
status indicators during special conditions to show that you have been denied
network access.
T10713
Front Panel LED Status Indicators During Special Conditions
Front Panel LED Status Indicators During Special Conditions
1 POWER
Front Panel Indicator
2 RECEIVE
4 CABLE
Network Access Denied
SLOW BLINKING
1 time per second
5PC SLOW BLINKING
1 time per second
3 SEND SLOW BLINKING
1 time per second
SLOW BLINKING
1 time per second
6 WIRELESS ON or BLINKING
SLOW BLINKING
1 time per second
SLOW BLINKING
1 time per second
Notices
77
Notices
Trademarks
Scientific-Atlanta and the Scientific-Atlanta logo are registered trademarks of
Scientific-Atlanta, Inc. DOCSIS is a registered trademark of Cable Television
Laboratories, Inc. WebSTAR, DPR2320, EPR2320, and “Bringing the Interactive
Experience Home” are trademarks of Scientific-Atlanta, Inc.
Other trademarks listed herein are the property of their respective owners.
Disclaimer
Scientific-Atlanta, Inc. assumes no responsibility for errors or omissions that may
appear in this guide. Scientific-Atlanta reserves the right to change this guide at
any time without notice.
Documentation Copyright Notice
© 2003 Scientific-Atlanta, Inc. All rights reserved.
Printed in the United States of America.
Information in this document is subject to change without notice. No part of this
document may be reproduced in any form without the express written permission
of Scientific-Atlanta, Inc.
Software Use Notice
The software described in this document is copyrighted and furnished to you
under a license agreement. You may only use or copy this software in
accordance with the terms of your license agreement.
Firmware Use Notice
The firmware in this equipment is copyrighted. You may only use the firmware in
the equipment in which it is provided. Any reproduction or distribution of this
firmware, or any portion of it, without express written consent is prohibited.
WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
78
FCC Compliance
United States FCC Compliance
This equipment has been tested and found to comply with the applicable limits of
Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio or TV reception, which can be determined by turning the
equipment off and on. The user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult your cable company or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by Scientific-Atlanta could
void the user’s authority to operate the equipment.
The information shown in the FCC Declaration of Conformity paragraph below is
a requirement of the FCC and is intended to supply you with information
regarding the FCC approval of this device. The phone numbers listed are for
FCC-related questions only and not intended for questions regarding the
connection or operation for this device. Please contact your cable service
provider for any questions you may have regarding the operation or installation of
this device.
FCC Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions: 1) the device may not cause harmful interference, and 2)
the device must accept any interference received, including interference that may
cause undesired operation.
WebSTAR Gateway Cable Modems
Model DPR2320 and Model EPR2320
Scientific-Atlanta, Inc.
5030 Sugarloaf Parkway
Lawrenceville, Georgia 30044 USA
Telephone: 770-236-1077
Canada EMI Regulation
This Class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le matériel brouilleur du Canada.
For Information
If You Have Questions
If you have technical questions, contact your local cable service provider.
Bringing the Interactive
Experience Home
Scientific-Atlanta, Inc. 5030 Sugarloaf Parkway, Box 565447 Lawrenceville, GA 30042
770.236.5000 www.scientificatlanta.com
Product and service availability subject to change without notice.
© 2003 Scientific-Atlanta, Inc. All rights reserved.
July 2003 Printed in USA Part Number 4004215 Rev A
CAUTION: To maintain compliance with FCC’s RF
exposure
g
uidelines, this equipment should be installed
and operated with minimum distance 20cm between the
radiator and
y
our bod
y
. Use on the supplied antenna.
Unauthorized antenna, modification, or attachments
could dama
g
e the transmitter and ma
y
violate FCC
regulations.
