ASUSTeK Computer E8PNE785H Eee PC User Manual Usr man

ASUSTeK Computer Inc Eee PC Usr man

Usr man

Eee PC
User Manual
Windows® 7 Edition
Eee PC 1008P
E5143
15G06Qxxxxxx
ii
Table of Contents
Table of Contents
Table of Contents ...................................................................................................................... ii
About This Users Manual ......................................................................................................iv
Notes for This Manual .............................................................................................................iv
Safety Precautions.....................................................................................................................v
Transportation Precautions ...................................................................................vi
Charging Your Batteries..........................................................................................vii
Airplane Precautions ...............................................................................................vii
Chapter 1: Knowing the Parts
Top Side ....................................................................................................................................1-2
Bottom Side .............................................................................................................................1-5
Right Side .................................................................................................................................1-7
Left Side ....................................................................................................................................1-8
Rear Side ...................................................................................................................................1-9
Keyboard Usage ...................................................................................................................1-10
Special Function Keys .........................................................................................1-10
Touchpad Usage ..................................................................................................................1-12
Multi-finger gesture input .................................................................................1-12
Chapter 2: Getting Started
Installing and uninstalling the Battery Pack ................................................................2-2
Powering on your Eee PC ...................................................................................................2-3
First-time Startup ..................................................................................................................2-4
Desktop .....................................................................................................................................2-6

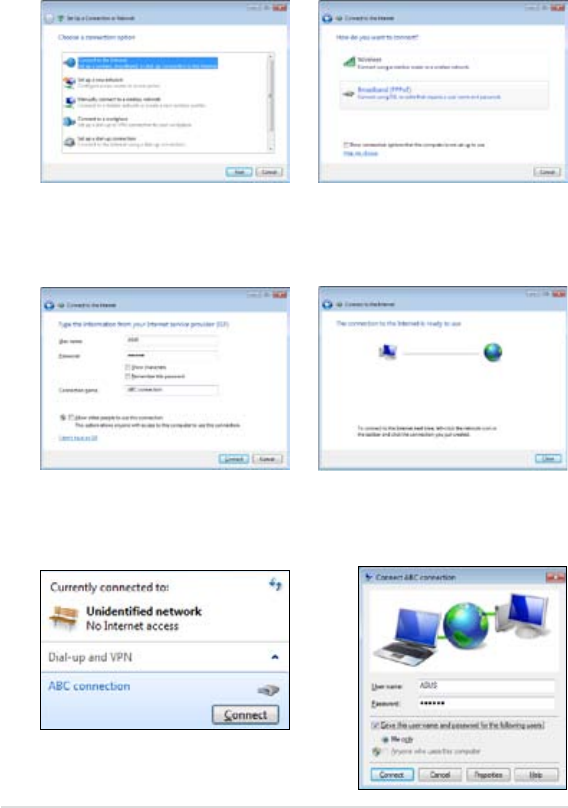

Network Connection ............................................................................................................2-7

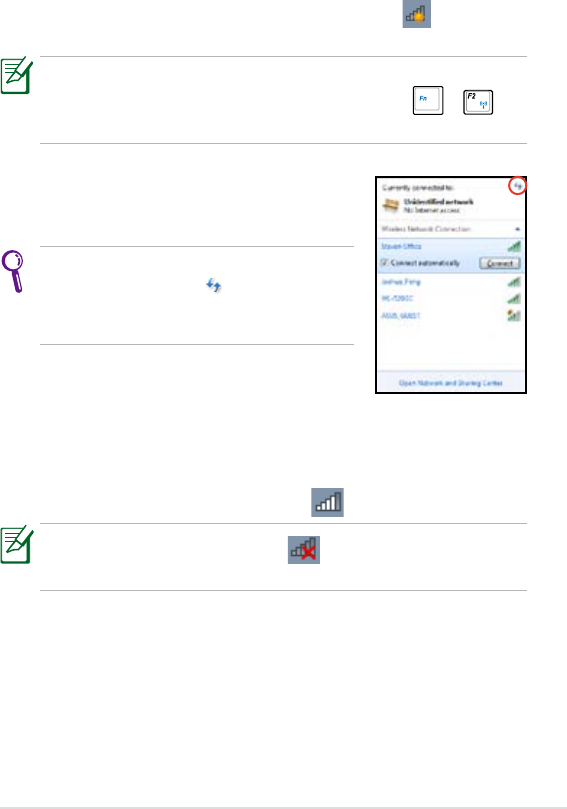

Configuring a wireless network connection.................................................2-7

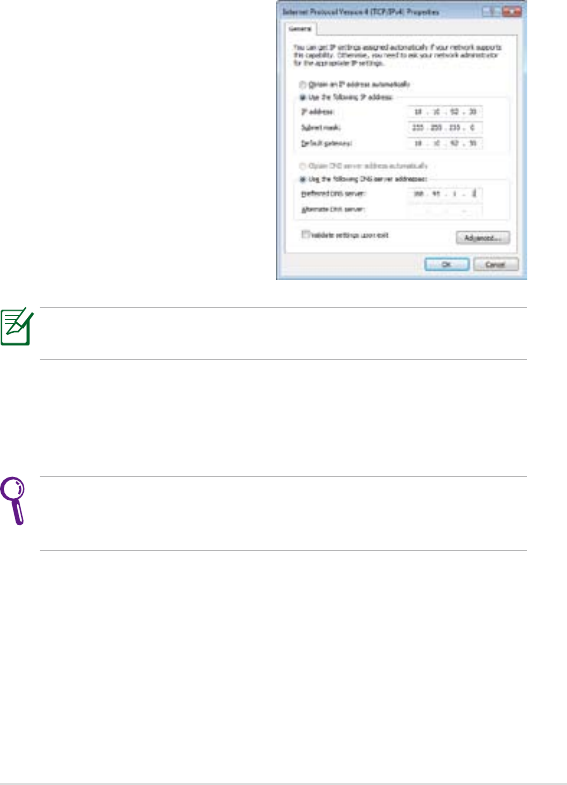

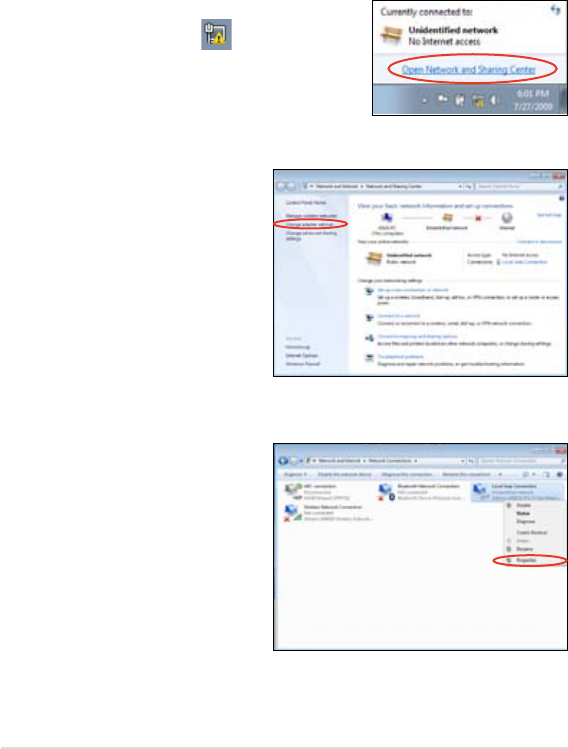

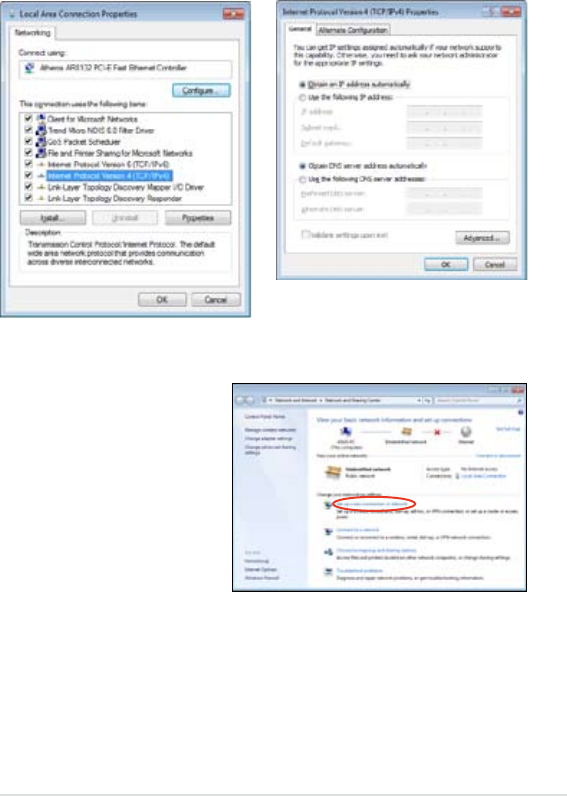

Local Area Network ................................................................................................2-8
Browsing web pages ...........................................................................................2-11
Chapter 3: Using the Eee PC
ASUS Update ...........................................................................................................................3-2

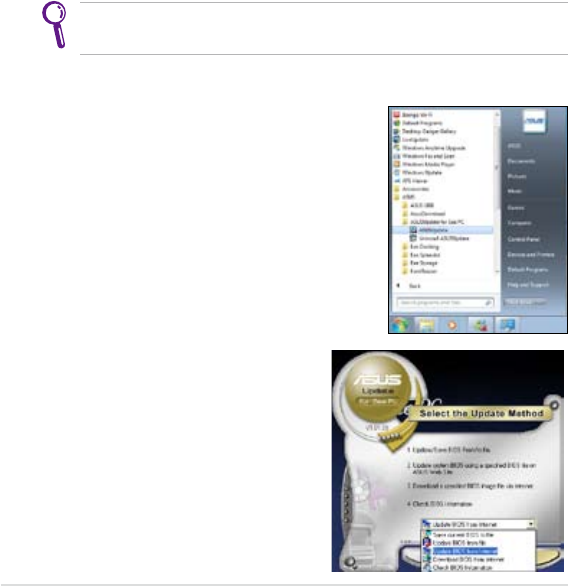

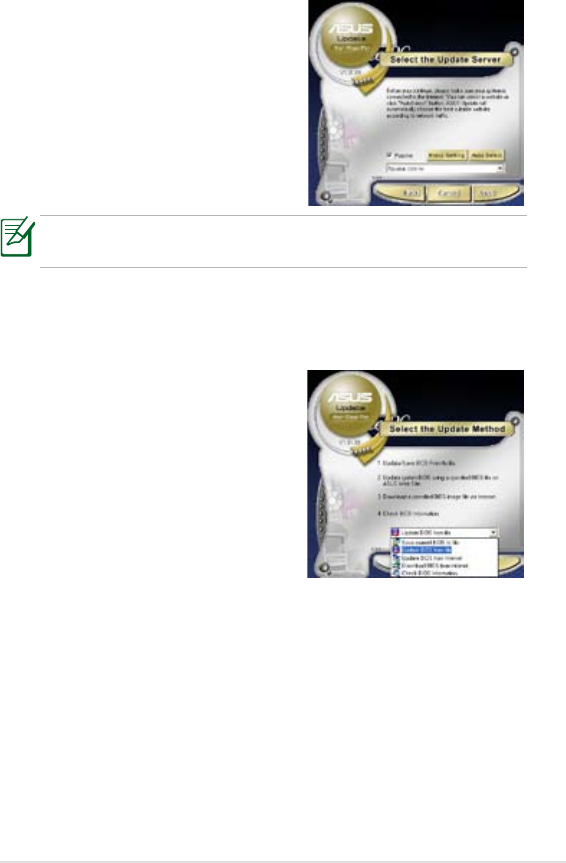

Updating the BIOS through the Internet .......................................................3-2
Updating the BIOS through a BIOS file ...........................................................3-3

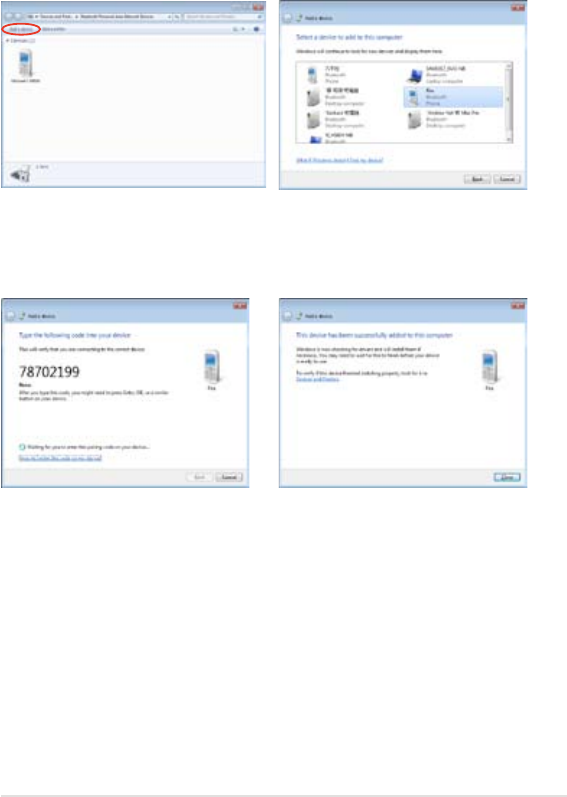

Bluetooth Connection .........................................................................................................3-4
ASUS Eee PC
iii
Super Hybrid Engine ............................................................................................................3-6
Super Hybrid Engine Modes...............................................................................3-6
Eee Docking ............................................................................................................................3-7

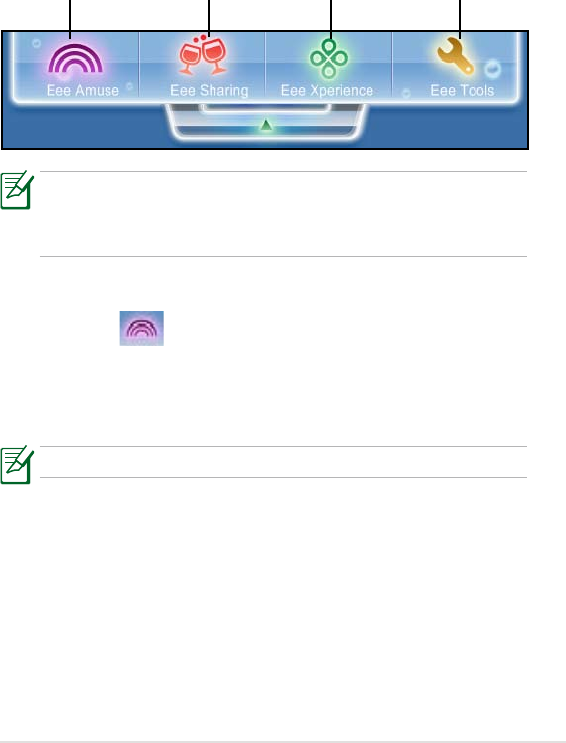

Eee Amuse ................................................................................................................3-7
Eee Sharing ...............................................................................................................3-8
Eee Xperience ..........................................................................................................3-8
Eee Tools ....................................................................................................................3-9
Boingo (on selected models) ............................................................................................3-9

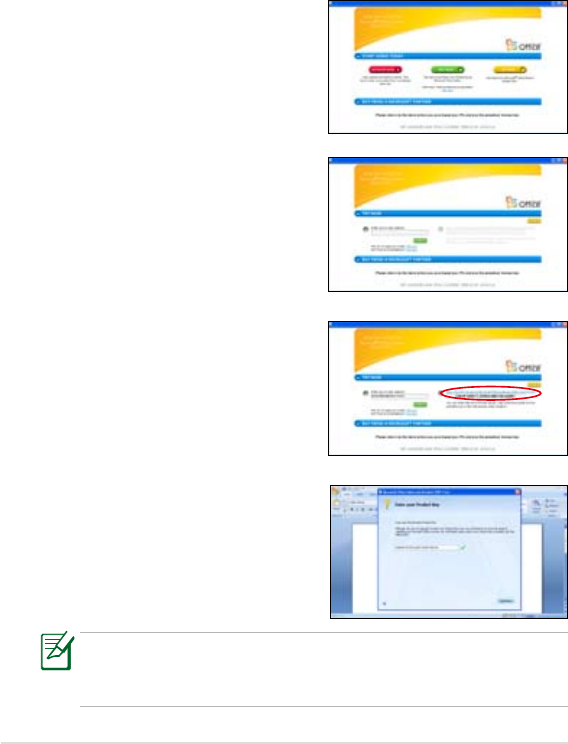

Microsoft® Office Trial .........................................................................................................3-10
Chapter 4: Support DVD & System Recovery
Support DVD information ..................................................................................................4-2
Running the support DVD ...................................................................................4-2

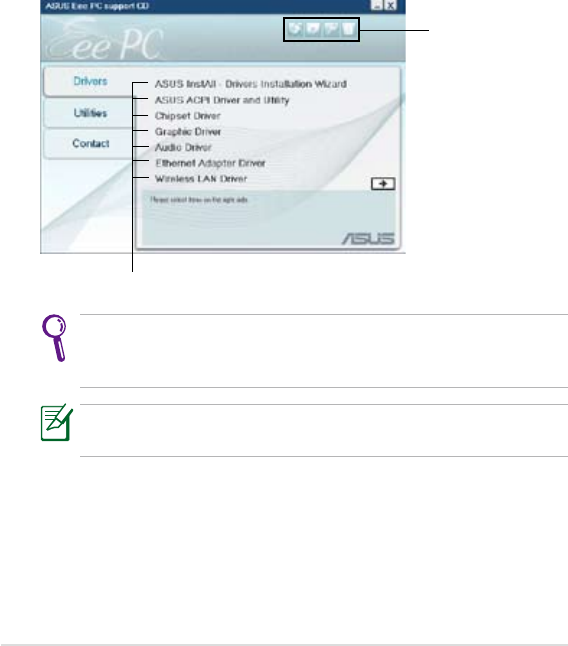

Drivers menu ............................................................................................................4-3
Utilities menu ...........................................................................................................4-3
Contact .......................................................................................................................4-3
Other information ..................................................................................................4-3
System Recovery....................................................................................................................4-4
Using Recovery Partition (F9 Recovery) .........................................................4-4
Using the Support DVD ........................................................................................4-4
Boot Booster............................................................................................................................4-6
Appendix
Declarations and Safety Statements ..............................................................................A-2
Copyright Information ......................................................................................................A-12
Limitation of Liability ........................................................................................................A-13
Service and Support ..........................................................................................................A-13
iv
Table of Contents
About This User’s Manual
You are reading the Eee PC Users Manual. This User’s Manual provides
information regarding the various components in the Eee PC and how to
use them. The following are major sections of this Users Manual:
1. Knowing the Parts
Provides information on the Eee PC’s components.
2. Getting Started
Provides information on getting started with the Eee PC.
3. Using the Eee PC
Provides information on using the Eee PC’s utilities.
4. Support DVD and System Recovery
Gives you information on support DVD contents and system
recovery.
5. Appendix
Gives you safety statements.
The actual bundled applications differ by models and territories.
There may be differences between your Eee PC and the pictures
shown in this manual. Please accept your Eee PC as being correct.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing you
to complete certain tasks safely and effectively. These notes have different
degrees of importance as follows:
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
ASUS Eee PC
v
Safety Precautions
The following safety precautions will increase the life of the Eee PC. Follow
all precautions and instructions. Except as described in this manual, refer
all servicing to qualified personnel. Do not use damaged power cords,
accessories, or other peripherals. Do not use strong solvents such as
thinners, benzene, or other chemicals on or near the surface.
Disconnect the AC power before cleaning. Wipe the Eee PC using a
clean cellulose sponge or chamois cloth dampened with a solution
of nonabrasive detergent and a few drops of warm water and
remove any extra moisture with a dry cloth.
DO NOT leave the Eee PC
on your lap or any part
of the body to prevent
discomfort or injury from
heat exposure.
DO NOT expose to dirty or
dusty environments. DO
NOT operate during a gas
leak.
DO NOT expose to strong
magnetic or electrical fields.
DO NOT expose to or use near
liquids, rain, or moisture. DO
NOT use the modem during
electrical storms.
DO NOT press or touch the
display panel. Do not place
together with small items
that may scratch or enter
the Eee PC.
DO NOT place on uneven
or unstable work surfaces.
Seek servicing if the casing
has been damaged.
DO NOT place or drop objects
on top and do not shove any
foreign objects into the Eee
PC.
Battery safety warning: DO
NOT throw the battery in
fire. DO NOT short circuit the
contacts. DO NOT disassemble
the battery.
vi
Table of Contents
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and
disconnect all external peripherals to prevent damage to the
connectors. The hard disk drives head retracts when the power is turned
OFF to prevent scratching of the hard disk surface during transport.
Therefore, you should not transport your Eee PC while the power
is still ON. Close the display panel to protect the keyboard and display
panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be careful
not to rub or scrape surfaces when transporting your Eee PC. You can put
your Eee PC in a carrying case for protection from dirt, water, shock, and
scratches.
SAFE TEMP: This Eee PC
should only be used
in environments with
ambient temperatures
between 5°C (41°F) and
35°C (95°F)
INPUT RATING: Refer to the
rating label on the bottom
of the Eee PC and be sure
that your power adapter
complies with the rating.
DO NOT throw the Eee PC in municipal waste. This product has
been designed to enable proper reuse of parts and recycling. The
symbol of the crossed out wheeled bin indicates that the product
(electrical, electronic equipment and mercury-containing button
cell battery) should not be placed in municipal waste. Check local
regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the
crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
Incorrect installation of
battery may cause explosion
and damage the Eee PC.
DO NOT carry or cover a
Eee PC that is powered
ON with any materials that
will reduce air circulation
such as a carrying bag.
ASUS Eee PC
vii
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your battery
pack before going on long trips. Remember that the power adapter
charges the battery pack as long as it is plugged into the computer and an
AC power source. Be aware that it takes much longer to charge the battery
pack when the Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before first use
and whenever it is depleted to prolong battery life. The battery reaches its
maximmum capacity after a few full charging and discharging cycles.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane. Most
airlines have restrictions for using electronic devices. Most airlines allow
electronic use only between and not during takeoffs and landings.
There are three main types of airport security devices: X-ray
machines (used on items placed on conveyor belts), magnetic
detectors (used on people walking through security checks), and
magnetic wands (hand-held devices used on people or individual
items). You can send your Eee PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your
Eee PC or diskettes through airport magnetic detectors or expose
them to magnetic wands.
viii
Table of Contents
Top Side
Bottom Side
Right Side
Left Side
Rear Side
Keyboard Usage
Touchpad Usage
1
Chapter 1:
Knowing the Parts
Chapter 1: Knowing the Parts
1-2
4
5
6
7
8
3
2
1

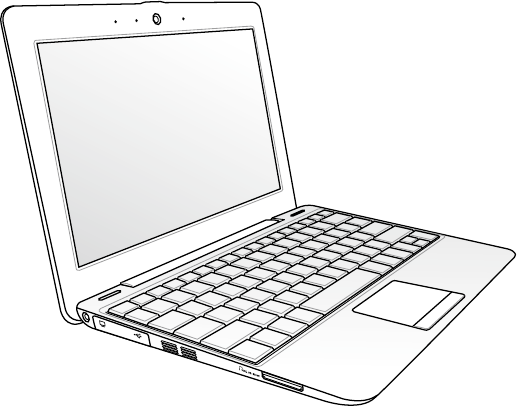

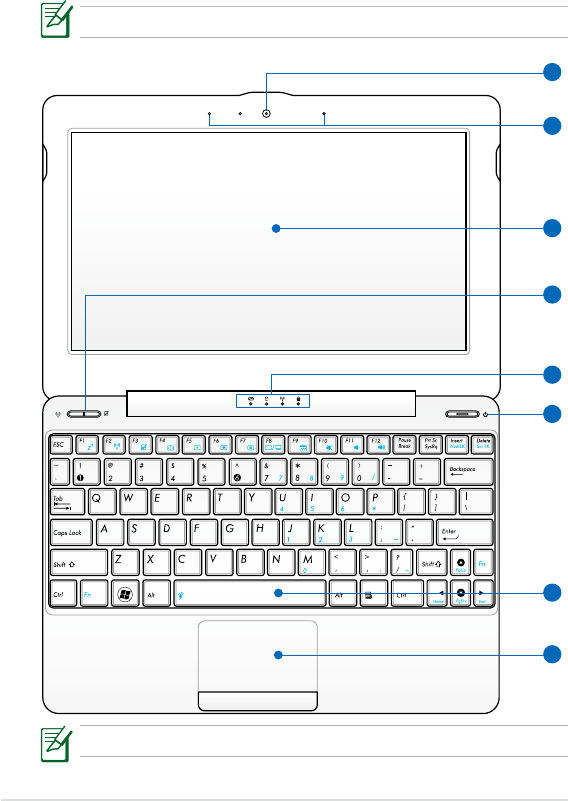

Top Side
Refer to the illustration below to identify the components on this side of
the Eee PC.
The top side may vary in appearance depending on model.
The keyboard differs for each territory.
ASUS Eee PC
1-3
Built-in Camera
Array Microphone (Built-in)
The built-in array microphone is more clear and echo-free
compared with traditional single microphones.
Display Panel
Instant keys
Wireless key (Wireless Models Only)
Toggles the internal wireless LAN or Bluetooth (on selected
models) ON or OFF with an on-screen-display. When enabled,
the corresponding wireless indicator will light. You can also
turn on/off the function by pressing <Fn> + <F2>.
Touchpad Off key
Toggles the touchpad ON/OFF. You can also turn on/off the
function by pressing <Fn> + <F3>.
Status Indicators
Battery Charge Indicator
The battery charge indicator (LED) shows the battery
charging status as follows:
1
2
3
4
Powered ON / Standby mode
With Adapter Without Adapter
High battery power
(95%–100%) Green ON Off
Medium battery power
(11%–94%) Orange ON Off
Low battery power
(0%–10%) Orange Blinking
Orange Blinking
(Power ON)
Off (Standby mode)
Powered OFF
With Adapter Without Adapter
High battery power
(95%–100%) Green ON Off
Medium battery power
(11%–94%) Orange ON Off
Low battery power
(0%–10%) Orange Blinking Off
5
Chapter 1: Knowing the Parts
1-4
Hard Disk Drive (HDD) Indicator
The hard disk drive indicator blinks when data is written to
or read from the disk drive.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless
LAN/Bluetooth. When the built-in wireless LAN/Bluetooth is
enabled, this indicator lights.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when
lighted.
Power Switch
The power switch allows powering ON and OFF the Eee PC and
recovering from STR. Press the switch once to turn ON and hold
it to turn OFF the Eee PC. The power switch only works when the
display panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned ON
and blinks slowly when the Eee PC is in the Save-to-RAM
(Suspend) mode. This indicator is OFF when the Eee PC is
turned OFF.
Keyboard
The keyboard provides keys with comfortable travel (depth at
which the keys can be depressed) and palm rest for both hands.
The keyboard differs depending on model.
Touchpad and Buttons
The touchpad and its buttons comprises a pointing device that
provides the same functions as a desktop mouse.
6
7
8
ASUS Eee PC
1-5
The bottom of the Eee PC can get very hot. Be careful when
handling the Eee PC while it is in operation or recently been in
operation. High temperatures are normal during charging or
operation. DO NOT use on soft surfaces such as beds or sofas,
which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM
THE HEAT.
VGA door
The VGA door is for the installation of a VGA dongle (optional).
Memory Compartment
The memory module is secured in a dedicated compartment.
1
Bottom Side
Refer to the illustration below to identify the components on this side of
the Eee PC.
The bottom side may vary in appearance depending on model.
3
2
1
4
5
2
Chapter 1: Knowing the Parts
1-6
Audio Speaker System
The built-in stereo speaker system allows you to hear audio
without additional attachments. The multimedia sound system
features an integrated digital audio controller that produces rich,
vibrant sound (results improved with external stereo headphones
or speakers). Audio features are software controlled.
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when moving
temporarily between locations. Battery time varies by usage and
by the specifications for this Eee PC. The battery pack cannot be
disassembled and must be purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured.
Move the manual lock to the unlocked position to insert or
remove the battery pack. Move the manual lock to the locked
position after inserting the battery pack.
3
4
5
ASUS Eee PC
1-7
2
1
5
4
3
Right Side
Refer to the illustration below to identify the components on this side of
the Eee PC.
Battery Compartment Cover
Remove the battery compartment cover before installing or
uninstalling the battery pack.
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or
USB 1.1 devices such as keyboards, pointing devices, cameras, and
storage devices, connected in a series up to 12Mbits/sec (USB 1.1)
and 480Mbits/sec (USB 2.0). Also, the USB supports hot-swapping
function.
Microphone Jack
The microphone jack is designed to connect the microphone
used for Skype, voice narrations, or simple audio recordings.
Headphone Output Jack
The 1/8” stereo headphone jack (3.5mm) connects the Eee PCs
audio out signal to amplified speakers or headphones. Using this
jack automatically disables the built-in speakers.
LAN Port
The eight-pin RJ-45 LAN port (10/100M bit) supports a standard
Ethernet cable for connection to a local network. The built-in
connector allows convenient use without additional adapters.
15
234
Chapter 1: Knowing the Parts
1-8
1
Left Side
Refer to the illustration below to identify the components on this side of
the Eee PC.
Power (DC) Input
The supplied power adapter converts AC power to DC power
for use with this jack. Power supplied through this jack supplies
power to the Eee PC and charges the internal battery pack. To
prevent damage to the Eee PC and battery pack, always use the
supplied power adapter.
CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR
BODY.
Mini VGA Connector
The mini VGA connector is for the VGA dongle to connect to a
standard VGA-compatible device such as a monitor or projector
to allow viewing on a larger external display.
USB Port (2.0/1.1)
Air Vents
The air vents allow cool air to enter and warm air to exit the Eee
PC.
Ensure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating may occur.
Memory Card Slot
The built-in memory card reader can read SD/SDHC/MMC cards.
2
3
4
5
ASUS Eee PC
1-9
Rear Side
Refer to the illustration below to identify the components on this side of
the Eee PC.
Battery Charge Indicator
The battery charge indicator (LED) shows the status of the
batterys power. Refer to the LED status table on pages 1-3 to 1-4.
Power Indicator
The power indicator lights when the Eee PC is turned ON and
blinks slowly when the Eee PC is in the Save-to-RAM (Suspend)
mode. This indicator is OFF when the Eee PC is turned OFF.
Air Vents
The air vents allow cool air to enter and warm air to exit the Eee
PC.
Ensure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating may occur.
1
2
3
1 2 3
Chapter 1: Knowing the Parts
1-10
Keyboard Usage
Special Function Keys
The following defines the colored hot keys on the Eee PC’s keyboard. The
colored commands can only be accessed by first pressing and holding the
function key while pressing a key with a colored command. Some function
icons appear in the Notification area after activation.
The Hot Key locations on the function keys may vary depending on
model but the functions should remain the same. Follow the icons
whenever your hot key locations do not match the manual.
Z
z
Icon (F1): Places the Eee PC in suspend mode
(Save-to-RAM).
Radio Tower (F2) (Wireless Models Only): Toggles
the internal wireless LAN or Bluetooth (on selected
models) ON or OFF with an on-screen-display.
When enabled, the corresponding wireless indicator
will light.
The default setting is WLAN ON / Bluetooth OFF.
Touchpad (F3): Toggles the touchpad ON/OFF.
Resolution Selection (F4): Press to adjust the display
resolution.
The Touchpad (<Fn> + <F3>) and Resolution Selection (<Fn> +
<F4>) functions are available on selected models.
Sun Down Icon (F5): Decreases the display brightness.
Sun Up Icon (F6): Increases the display brightness.
Crossed Screen Icon (F7): Turns off the display backlight.
LCD/Monitor Icons (F8): Toggles between the Eee PCs
LCD display and an external monitor.
ASUS Eee PC
1-11
Task Manager Icon (F9): Initiates the Task Manager to
view the application process or terminates applications.
Crossed Speaker Icon (F10): Mutes the speaker.
Volume Down Icon (F11): Decreases speaker volume.
Volume Up Icon (F12): Increases the speaker volume.
Super Hybrid Engine (Fn+Space Bar): Toggles among
various power saving modes. The selected mode is shown
on the display.
Num Lk (Insert): Toggles the numeric keypad
(number lock) ON and OFF. Allows use of a larger portion of
the keyboard for number entering.
Scr Lk (Delete): Toggles the “Scroll Lock” ON and OFF.
Allows you to use a larger portion of the keyboard for cell
navigation.
Pg Up (): Press to scroll up in documents or the web
browser.
Pg Dn (
): Press to scroll down in documents or the web
browser.
Home (
): Press to move the pointer to the beginning of
the line.
End (
): Press to move the pointer to the end of the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties menu
and is equivalent to right-clicking the touchpad/mouse on
an object.
Chapter 1: Knowing the Parts
1-12
Touchpad Usage
Multi-finger gesture input
Finger gesture Applications
Two-nger zooming in/out Adobe reader, Windows Photo Viewer
Two-nger rotating Adobe reader, Windows Photo Viewer
Two-nger scrolling up/down or
left/right Adobe reader, MS Word, MS Excel
Three-nger page up/down Adobe reader, MS Word, MS Excel
Zoom in Zoom out
Two-finger zooming in/out - Moving two fingertips apart or together on
the touchpad to zoom in or zoom out. This is convenient when viewing
photos or reading documents.
Two-finger rotating- Fix one fingertip
on the touchpad and make an arc with
the other to rotate the photo or the
document you are viewing. You can
make a clockwise or counterclockwise
rotation based on your needs.
ASUS Eee PC
1-13
Three-finger page up/down- Use
three fingers to move horizontally on
the touchpad to swipe pages. Swipe
from left to the right to view the next
page or right to the left to return to
the previous pages.
Two-finger scrolling up/down or
left/right- Use two fingertips to slide
up/down or left/right on the touchpad
to scroll a window up/down or left/
right. If your display window includes
several sub-windows, move the
pointer on that pane before scrolling.
Chapter 1: Knowing the Parts
1-14
Installing and uninstalling the Battery Pack
Powering on your Eee PC

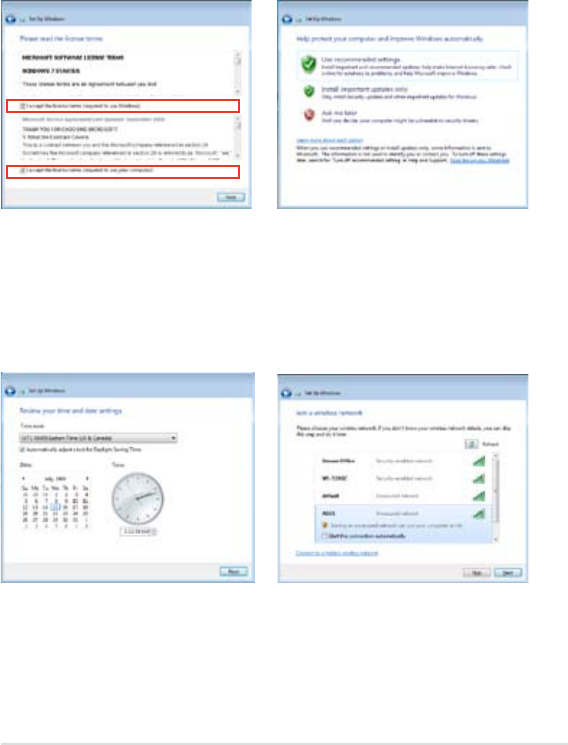

First-time Startup
Desktop
Network Connection
2
Chapter 2:
Getting Started
Chapter 2: Getting Started
2-2
To Install the battery pack:
1
3
2
Installing and uninstalling the
battery pack
Your Eee PC may have its battery pack installed. If not, use the following
procedures to install the battery pack.
1
3
2
To uninstall the battery pack:
1
2
3
4
1
2
3
4
Use the following procedures to uninstall the battery pack.
ASUS Eee PC
2-3
Powering on your Eee PC
These are only quick instructions for using your Eee PC.
Remember to fully charge the battery (8 hours or more) before
first use and whenever it is depleted to prolong battery life. The
battery reaches its maximum capacity after a few full charging and
discharging cycles.
1. Connect the AC power
adapter
Damage may occur if you use a different adapter to power the
Eee PC. You may damage both your battery pack(s) and the Eee
PC with a faulty AC-DC adapter.
When you open the display panel, do not force it down to the table
or else the hinges may break! Never lift the Eee PC by the display
panel!
Only use battery packs and power adapters supplied with this
Eee PC or specifically approved by the manufacturer or retailer for
use with this model or else damage may occur to the Eee PC. The
output voltage of this adapter is +19Vdc, 2.1A.
Never attempt to remove the battery pack while the Eee PC is
turned ON, as this may result in the loss of working data.
2. Turn ON the Eee PC
1
2
3
110V-220V
Chapter 2: Getting Started
2-4
First-time Startup
Actual screen images may vary with operating systems. Visit the
ASUS website at www.asus.com for the latest information.
For the first time you start your Eee PC, the Windows wizard will launch
automatically and lead you through setting up your preferences and some
basic information.
Follow the wizard instructions to finish the initialization:
2. Select you system settings by
specifying the region you are
in, the time zone you are in,
and the keyboard type you
use. Click Next to continue.
1. Select the language you use.
Click Next to continue.
4. Set a password for your user
account if you want. Click
Next to continue.
3. Type your user account name
and your computer’s name,
then click Next to continue.
ASUS Eee PC
2-5
7. Specify the time zone you
are in and the local date and
time. Click Next to continue.
6. Click Use recommended
settings to get the latest
important updates.
5. Read the end user license
agreement and check the
two boxs before I accept the
license terms. Click Next to
continue.
8. Connect to a wireless
network and click Next to
continue. Or click Skip to set
up the wireless connection
later.
Chapter 2: Getting Started
2-6
9. Select the network's location.
Click Next to continue.
10. The initialization is finished.
Desktop
There are several shortcuts on the desktop. Double-click them to launch
the corresponding applications and enter the specified folders. Some
applications would form minimized icons in the Notification area.
The actual Desktop screen may vary according to different models.
ASUS Eee PC
2-7
Network Connection
Configuring a wireless network connection
1. Click the wireless network icon with an orange star in the
Windows® taskbar.
3. When connecting, you may have to enter a password.
4. After a connection has been established, the connection is shown on
the list.
5. You can see the wireless network icon in the taskbar.
2. Select the wireless access point you want to
connect to from the list and click Connect to
build the connection.
If you cannot find the desired access point,
click the Refresh icon on the upper
right corner to refresh and search in the list
again.
If the wireless connection icon does not show in the Notification
area. Activate the wireless LAN function by pressing
+
(<Fn> + <F2>) before configuring a wireless network connection.
The crossed wireless network icon appears when you press
<Fn> + <F2> to disable the WLAN function.
Chapter 2: Getting Started
2-8
Local Area Network
To establish a wired network, follow the instructions below:
Using a dynamic IP / PPPoE network connection:
1. Click the network icon with a yellow
warning triangle in the Windows®
taskbar and select Open Network and
Sharing Center.
2. Click Change adapter
settings in the left blue
pane.
3. Right-click Local Area
Connection and select
Properties.
ASUS Eee PC
2-9
4. Click Internet Protocol
Version 4(TCP/IPv4) and
click Properties.
5. Click Obtain an IP address
automatically and click OK.
6. Return to the Network
and Sharing Center and
then click Set up a new
connection or network.
(Continue the following steps if using PPPoE)
Chapter 2: Getting Started
2-10
7. Select Connect to the
Internet and click Next.
8. Select Broadband (PPPoE)
and click Next.
9. Enter your User name,
Password, and Connection
name. Click Connect.
10. Click Close to finish the
configuration.
11. Click the network icon in
the taskbar and click the
connection you just created.
12. Enter your user name and
password. Click Connect to
connect to the Internet.
ASUS Eee PC
2-11
Browsing web pages
After you finish the network setup, click Internet Explorer on the desktop
and start enjoying net surfing.
Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the
latest information and register at http://vip.asus.com for full service
of your Eee PC.
Using a static IP:
1. Repeat the step 1–4 of Using a dynamic IP to start the static IP
network configuration.
2 Click Use the following IP
address.
3. Enter the IP address, Subnet
mask and Gateway from your
service provider.
4. If needed, enter the preferred
DNS Server address and
alternative address.
5. After entering all the related
values, click OK to build the
network connection.
Contact your Internet Service Provider (ISP) if you have problems
connecting to the network.
Chapter 2: Getting Started
2-12
ASUS Update
Bluetooth Connection
Super Hybrid Engine
Eee Docking
Boingo
Microsoft® Office Trial
3
Chapter 3:
Using the Eee PC
Chapter 3: Using the Eee PC
3-2
ASUS Update
The ASUS Update is a utility that allows you to manage, save, and update
the Eee PC BIOS in Windows® environment. The ASUS Update utility allows
you to:
Save the current BIOS file
Download the latest BIOS file from the Internet
Update the BIOS from an updated BIOS file
Update the BIOS directly from the Internet, and
View the BIOS version information.
This utility is pre-loaded in your Eee PC and is also available in the support
DVD that comes with the Eee PC package.
ASUS Update requires an Internet connection either through a
network or an Internet Service Provider (ISP).
Updating the BIOS through the Internet
To update the BIOS through the Internet
1. Launch the ASUS Update utility from the
Windows® desktop by clicking Start > All
Programs > ASUS > ASUSUpdate for Eee
PC> ASUSUpdate. The ASUS Update main
window appears.
2. Select Update BIOS from
Internet from the drop-down
menu, then click Next.
ASUS Eee PC
3-3
3. Select the ASUS FTP site nearest you
to avoid network traffic, or click Auto
Select. Click Next.
4. From the FTP site, select the desired
BIOS version and click Next.
5. Follow the screen instructions to
complete the update process.
3. Locate the BIOS file from the Open window, then click Open.
4. Follow the screen instructions to complete the update process.
The ASUS Update utility is capable of updating itself through the
Internet. Always update the utility to avail all its features.
Updating the BIOS through a BIOS file
To update the BIOS through a BIOS file:
1. Launch the ASUS Update utility
from the Windows
®
desktop by
clicking Start > Programs >
ASUS > ASUSUpdate for EeePC>
ASUSUpdate. The ASUS Update
main window appears.
2. Select Update BIOS from file from
the drop-down menu, then click
Next.
Chapter 3: Using the Eee PC
3-4
Bluetooth Connection
This device contains FCC ID: TLZ-BT253 and IC ID:6100A-AWBT253.
Bluetooth technology eliminates the need for cables for connecting
Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may
be Notebook PCs, Desktop PCs, mobile phones, and PDAs.
To connect to a Bluetooth-enabled device:
1. Press <Fn> + <F2> repeatedly until Bluetooth ON or WLAN &
Bluetooth ON is shown.
2. From Control Panel, go
to Network and Internet
> Network and Sharing
Center and then click
Change adapter settings
in the left blue pane.
3. Right-click Bluetooth
Network Connection
and select View
Bluetooth Network
Devices.
ASUS Eee PC
3-5
4. Click Add a device to look for
new devices.
5. Select a Bluetooth-enabled
device from the list and click
Next.
6. Enter the Bluetooth security
code into your device and
start pairing.
7. The paired relationship is
successfully built. Click Close
to finish the setting.
Chapter 3: Using the Eee PC
3-6
Super Hybrid Engine Modes
Auto High Performance and
Auto Power-Saving mode
are available only when
applying or removing the
power adapter.
If your external monitor functions abnormally in Power Saving
mode at a resolution of 1024 x 768 pixels or higher, press <Fn> +
<F5> repeatedly to switch the display mode to LCD Only or LCD
+ CRT Clone and reset the power mode to High Performance or
Super Performance.
Super Hybrid Engine
Super Hybrid Engine offers different power modes. The assigned instant
key toggles power savings between various power saving modes. The
power saving modes control many aspects of your Eee PC to maximize
performance versus battery time. The selected mode is shown on the
display.
To change the power mode
Click Start > All Programs > ASUS > Eeepc> SuperHybridEngine.
Press <Fn> + <Space Bar> repeatedly to switch power modes.
Right-click the Super Hybrid Engine
icon in the Notification area, and select
a preferred power mode.
ASUS Eee PC
3-7
Eee Amuse
ASUS @Vibe
ASUS @Vibe allows you to enjoy online entertainment contents including
Radio, Live TV and Games, etc.
The ASUS @Vibe service contents differ for each territory.
Game Park
Game Park includes multiple interesting games.
ASUS AP Bank
ASUS AP Bank offers various software applications and multimedia
enjoyment online.
Eee Amuse Eee Sharing Eee Xperience Eee Tools
The applications in Eee Docking may vary depending on models.
The names of the applications in Eee Docking are subject to change
without notice.
Eee Docking
Eee Docking contains multiple useful applications. The Eee Docking tool
bar is at the top of the desktop.
Chapter 3: Using the Eee PC
3-8
Eee Sharing
ASUS WebStorage
Eee PC users can enjoy free online space. With Internet connection, you
can access and share any files whenever you want and wherever you
are. The ASUS WebStorage help file is accessible only when your Eee PC
connects to the Internet.
YouCAM / E-CAM
YouCAM / E-CAM, working alone or with instant messaging software
(Windows Live Messenger, Skype, etc.), provides interesting effects and
useful add-ons for your webcam.
Eee Xperience
Eee Splendid
Eee Splendid helps improve your Eee PC display in terms of the contrast,
brightness, skin tone, and color saturation for red, green, and blue
independently.
SRS Premium Sound (on selected models)
SRS Premium offers the rich and immerse audio experience in any
listening environment.
Voice Command (Dr. Eee) (on selected models)
Dr. Eee is a voice command tool which allows you to launch a commonly
used function wtih your voice.
ASUS Eee PC
3-9
Eee Tools
Font Resizer
Font Resizer allows you to adjust the font/text size on your Eee PC screen.
LocaleMe
LocaleMe is a web mapping service application, offering easy search for
streets or companies sorted by multiple categories all over the world.
Boingo (on selected models)
Boingo gives you easy access to global Wi-Fi services with a special price
via the pre-installed Boingo utility. Use one account at more than 100,000
hotspots around the world, including airports, hotels, cafes and restaurants.
Chapter 3: Using the Eee PC
3-10
Microsoft® Ofce Trial
Eee PC users can enjoy Microsoft Office Suite free trial for 60 days. Do the
following instructions to start the free trial.
1. Ensure that your Eee PC is connected to the Internet and double-
click Microsoft Office 60 Day Trial - Online on the desktop.
2. Click TRY NOW.
3. Enter your E-mail address and
click SUBMIT.
4. Copy your product key and click
the link.
5. Enter your product key and follow
the onscreen instructions to finish
the activation process before
starting the free trial.
If you want to use other applications in the Microsoft Office Suite,
click start and point to All Programs > Microsoft Office to select a
desired application.
Support DVD information
System Recovery
Boot Booster
4
Chapter 4:
Support DVD &
System Recovery
Chapter 4: Support DVD & System Recovery
4-2
Support DVD information
The support DVD that comes with the Eee PC package contains the
drivers, software applications, and utilities that you can install to avail all
the features.
Running the support DVD
Insert the support DVD in the external optical drive. The DVD
automatically displays the Drivers menu if Autorun is enabled in your
computer.
If Autorun is NOT enabled in your computer, browse the contents of
the support DVD to locate the file ASSETUP.EXE from the BIN folder.
Double-click the ASSETUP.EXE file to run the DVD.
The drivers and utilities bundled in the support DVD may vary by
models and are subject to change without notice.
Click an item to install
Click an icon to display
support DVD/ Eee PC
information
ASUS Eee PC
4-3
Drivers menu
The Drivers menu shows available device drivers when the system detects
installed devices. Install the necessary drivers to activate the devices.
Utilities menu
The Utilities menu shows the applications that the Eee PC supports.
Contact
Click the Contact tab to display the ASUS contact information.
Other information
The icons on the top right corner of the screen provide additional
information on the Eee PC and the contents of the support DVD. Click an
icon to display the specified information.
File list
Technical support
DVD content
System information
Chapter 4: Support DVD & System Recovery
4-4
System Recovery
Using Recovery Partition (F9 Recovery)
About the Recovery Partition
The Recovery Partition is a space reserved on your hard disk drive used to
restore the operating system, drivers, and utilities installed on your Eee PC
at the factory.
Ensure to connect your Eee PC to the AC power adapter before
using F9 recovery to avoid recovery failure.
Using the Recovery Partition:
1. Press <F9> during bootup (requires a Recovery Partition)
2. Click Recovery in the Recovery System dialog box to start the
system recovery.
3. The system starts system recovery automatically and follow the
onscreen instructions to complete the recovery process.
Disable Boot Booster in BIOS setup before you perform system
recovery from USB flash disk, external optical drive or hidden
partition. Refer to the end of this chapter for details.
Ensure to press <F9> only once during bootup.
Using the Support DVD
The Support DVD includes the pure operating system. The Support DVD
provides a comprehensive recovery solution that quickly restores the
pure operating system without drivers and utilities being installed. Before
using the Support DVD, copy your data files to a USB storage device or to
a network drive and make note of any customized configuration settings
(such as network settings).
When you restore your Eee PC to the pure operating system, no
drivers and utilities are installed. You need to manually install the
drivers and utilities you want on your Eee PC.
ASUS Eee PC
4-5
1. Connect an external optical drive to your Eee PC and insert the
Support DVD into the optical drive (System needs to be powered
ON).
2. Press <ESC> on bootup and
the Please select boot device
screen appears. Select USB:
XXXXXX (may be labeled as the
ODD brand name) to boot from
the optical drive. Press <Enter>
and then press any key to
continue.
3. The ASUS Recovery CD/DVD window appears. Select where to
install a new system.
Options are:
Recover system to a partition
This option will delete only the partition you select from below,
allowing you to keep other partitions. Select a partition and click
NEXT.
Recover system to entire HD
This option will delete all partitions from your hard disk drive and
restore the pure OS. Select and click Yes.
If you select Recover system to entire HD, the entire hard disk drive
will be a partition with the pure OS and the F9 recovery function will
no longer exist. Therefore, we highly recommend that you use the F9
recovery to restore the system.
4. Follow the onscreen instructions to complete the recovery process.
You will lose all your data during the system recovery. Ensure that
you make a backup of it before recovering the system.
5. After the system recovery is completed, restart the computer.
6. Set up your language, time zone, keyboard, computer name, and user
name to enter the Windows® OS.
This support DVD is for Eee PC only. DO NOT use it on other
computers. Visit the ASUS website at www.asus.com for any updates.
Please select boot device:
and to move selection
ENTER to select boot device
HDD:PM-ST9160310AS
USB:XXXXXXXX
Chapter 4: Support DVD & System Recovery
4-6
Boot Booster
The Boot Booster item in BIOS setup helps shorten your Eee PC bootup
time. However, you MUST disable this BIOS item before you change any
Eee PC components or perform system recovery (from USB flash disk,
external optical drive or hidden partition). Follow the instructions below
to disable Boot Booster:
1. Start the system and press <F2> on bootup to show the POST
screen. Press <F2> again to enter the BIOS setup.
2. Set Boot Booster to [Disabled]
v02.58 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Main Advanced Security Boot Exit
Boot Device Priority
 BootSettingsConguration
OnBoard LAN Boot ROM [Enabled]
Boot Booster [Disabled]
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
SpeciestheBoot
Device Priority
sequence.
Avirtualoppydisk
drive (Floppy Drive B:
) may appear when you
set the CD-ROM drive
astherstboot
device.
3. Press <F10> to save the configuration and restart Eee PC.
If you fail to see the POST screen or enter the BIOS setup by doing
the instruction above, restart the system and try pressing <F2>
repeatedly on bootup.
Remember to enable Boot Booster after you complete hardware
change or system recovery.
Declarations and Safety Statements
Copyright Information
Limitation of Liability
Service and Support
A
Appendix
Appendix
A-2
Declarations and Safety
Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the Federal Communications
Commission (FCC) rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The use of a shielded-type power cord is required in order to meet
FCC emission limits and to prevent interference to the nearby radio
and television reception. It is essential that only the supplied power
cord be used. Use only shielded cables to connect I/O devices to this
equipment. You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
A-3
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Office of the Federal Register, National Archives and
Records Administration, U.S. Government Printing Office.)
FCC Radio Frequency (RF) Exposure Caution Statement
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment. “The
manufacture declares that this device is limited to Channels 1 through 11 in the
2.4GHz frequency by specified firmware controlled in the USA.”
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting
antenna during transmitting. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
Eee PC 1008P Max. SAR Measurement (1g)
AR5B95 (AW-NE785H) 0.040 W/kg
Appendix
A-4
Declaration of Conformity
(R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant and
sufficient:
Essential requirements as in [Article 3]
Protection requirements for health and safety as in [Article 3.1a]
Testing for electric safety according to [EN 60950]
Protection requirements for electromagnetic compatibility in [Article
3.1b]
Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301
489-17]
Effective use of the radio spectrum as in [Article 3.2]
Radio test suites according to [EN 300 328-2]
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC RF exposure
compliance requirements, please avoid direct contact to the transmitting
antenna during transmitting. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
This device may not cause interference and
This device must accept any interference, including interference that
may cause undesired operation of the device.
To prevent radio interference to the licensed service (i.e. co-channel
Mobile Satellite systems) this device is intended to be operated indoors
and away from windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to licensing.
Appendix
A-6
CE Mark Warning
This is a Class B product, in a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the
EEC directives 2004/108/EC “Electromagnetic compatibility and 2006/95/
EC “Low voltage directive.
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of
the European Parliament and Commission from 9 March, 1999 governing
Radio and Telecommunications Equipment and mutual recognition of
conformity.
ASUS Eee PC
A-7
Wireless Operation Channel for Different Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst case
maximum authorized power indoors are:
10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
100mW for frequencies between 2446.5 MHz and 2483.5 MHz
Channels 10 through 13 inclusive operate in the band 2446.6 MHz to
2483.5 MHz.
There are few possibilities for outdoor use: On private property or on
the private property of public persons, use is subject to a preliminary
authorization procedure by the Ministry of Defense, with maximum
authorized power of 100mW in the 2446.5–2483.5 MHz band. Use
outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
Maximum authorized power indoors is 100mW
Maximum authorized power outdoors is 10mW
Departments in which the use of the 2400–2483.5 MHz band is permitted
with an EIRP of less than 100mW indoors and less than 10mW outdoors:
01 Ain 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées Orientales
67 Bas Rhin 68 Haut Rhin 70 Haute Saône
Appendix
A-8
71 Saône et Loire 75 Paris 82 Tarn et Garonne
84 Vaucluse 88 Vosges 89 Yonne
90 Territoire de Belfort 94 Val de Marne
This requirement is likely to change over time, allowing you to use your
wireless LAN card in more areas within France. Please check with ART for
the latest information (www.art-telecom.fr)
Your WLAN Card transmits less than 100mW, but more than 10mW.
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment
intended to be electrically connected to a telecommunication network
that has an operating voltage to ground that does not exceed 200V peak,
300V peak-to-peak, and 105V rms, and installed or used in accordance
with the National Electrical Code (NFPA 70).
When using the Eee PC modem, basic safety precautions should always
be followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
DO NOT use the Eee PC near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
DO NOT use the Eee PC during an electrical storm. There may be a
remote risk of electric shock from lightning.
DO NOT use the Eee PC in the vicinity of a gas leak.
ASUS Eee PC
A-9
Required for UL 1642 covering primary (nonrechargeable) and secondary
(rechargeable) lithium batteries for use as power sources in products.
These batteries contain metallic lithium, or a lithium alloy, or a lithium
ion, and may consist of a single electrochemical cell or two or more cells
connected in series, parallel, or both, that convert chemical energy into
electrical energy by an irreversible or reversible chemical reaction.
Do not dispose the Eee PC battery pack in a fire, as they may explode.
Check with local codes for possible special disposal instructions to
reduce the risk of injury to persons due to fire or explosion.
Do not use power adapters or batteries from other devices to reduce
the risk of injury to persons due to fire or explosion. Use only UL
certified power adapters or batteries supplied by the manufacturer or
authorized retailers.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than
3Kg must use approved power cords greater than or equal to: H05VV-F, 3G,
0.75mm
2
or H05VV-F, 2G, 0.75mm
2
.
REACH Notice
Complying with the REACH (Registration, Evaluation, Authorisation,
and Restriction of Chemicals) regulatory framework, we published the
chemical substances in our products at ASUS REACH website at http://
green.asus.com/english/REACH.htm.
Appendix
A-10
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION! Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
(English)
ATTENZIONE! Rischio di esplosione della batteria se
sostituita in modo errato. Sostituire la batteria con un una
di tipo uguale o equivalente consigliata dalla fabbrica. Non
disperdere le batterie nell’ambiente. (Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen
Austausch der Batterie. Ersatz nur durch denselben oder
einem vom Hersteller empfohlenem ähnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des
Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig
håndtering. Udskiftning må kun ske med batteri af samme
fabrikat og type. Levér det brugte batteri tilbage til
leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt
batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti
asennettu. Vaihda paristo ainoastaan laitevalmistajan
sousittelemaan tyyppiin. Hävitä käytetty paristo
valmistagan ohjeiden mukaisesti. (Finnish)
ASUS Eee PC
A-11
ATTENTION! Il y a danger d’explosion s’il y a remplacement
incorrect de la batterie. Remplacer uniquement avec
une batterie du mêre type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du
fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri.
Benytt samme batteritype eller en tilsvarende type anbefalt
av apparatfabrikanten. Brukte batterier kasseres i henhold
til fabrikantens instruksjoner. (Norwegian)
(Japanese)
ВВВВВВВВВ ВВВ ВВВВВВ ВВВВВВВВВВВВ ВВ ВВВВВВВВВВВ
ВВВВВ ВВВВ ВВВВВВВВ ВВВ ВВВВВВВВВВВ ВВВВВВВВВВВВ
ВВВВВВВВВВВ В ВВВВВВВВВВВВ В ВВВВВВВВВВВВ
ВВВВВВВВВВВВВВ ВВВВВВВВВ
Appendix
A-12
Copyright Information
No part of this manual, including the products and software described in
it, may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS,
OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES
FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not
be registered trademarks or copyrights of their respective companies, and
are used only for identification or explanation and to the owners benefit,
without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
ASUS Eee PC
A-13
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or
other liability, you are entitled to recover damages from ASUS. In each
such instance, regardless of the basis on which you are entitled to claim
damages from ASUS, ASUS is liable for no more than damages for bodily
injury (including death) and damage to real property and tangible
personal property; or any other actual and direct damages resulted
from omission or failure of performing legal duties under this Warranty
Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages
or claims based in contract, tort or infringement under this Warranty
Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum
for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING:
(1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR
DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR
INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR
YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
Service and Support
Visit our multi-language web site at http://www.asus.com
Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112,
TAIWAN R.O.C
Country TAIWAN
Authorized Representative
in Europe
ASUS COMPUTER GmbH
Address, City HARKORT STR. 21-23, 40880 RATINGEN
Country GERMANY
Appendix
A-14

Navigation menu
