user manual2
Network Connection
ASUS Update
Outlook Express
Eee Storage
Skype™
Microsoft® Works
4
Using the Eee PC
4-2
Chapter 4: Using the Eee PC
Network Connection
Configuring a wireless network connection
1. Double-click the crossed wireless network icon in the
Notification area.
3. When connecting, you may
have to enter a password.
2. Select the wireless access
point you want to connect
to from the list and click
Connect to build the
connection.
If you cannot find the desired access point, click Refresh
network list in the left pane and search in the list again.
If the wireless connection
icon does not show on
the taskbar. Activate the
wireless LAN function by
pressing + (<Fn> +
<F2>) before configuring
a wireless network
connection.
ASUS Eee PC
4-3
4. After a connection has been
established, the connection
is shown on the list.
5. You can see the wireless
network icon in the
Notification area.
The wireless connection icon disappears when you Press +
(<Fn> + <F2>) to disable the WLAN function.
4-4
Chapter 4: Using the Eee PC
Configuring a network connection
If you want to obtain network access, connect the network cable,
with RJ-45 connectors on each end, to the network port on the Eee
PC and the other end to a hub or switch. The illustration below is the
example of your Eee PC connected to a network hub or switch for
use with the built-in Ethernet controller. Connect to network before
enjoying all the network services and functions in Eee PC.
Using a dynamic IP:
1. Right-click the network
icon with a yellow
warning triangle in
the Notification area and
select Open Network
Connections.
Local Area Network
Network hub or switch
Network cable with RJ-45 connectors
ASUS Eee PC
4-5
3. Highlight Internet
Protocol(TCP/IP) and
click Properties.
4. Click Obtain an IP
address automatically
and click OK.
2. Right-click Local Area
Connection and select
Properties.
4-6
Chapter 4: Using the Eee PC
5. Click Create a new
connection to start the
New Connection Wizard.
6. Click Next.
7. Click Connect to the
Internet and click Next.
8. Click Set up my
connection manually.
ASUS Eee PC
4-7
9. Select your connection
type and click Next.
10. Enter your ISP Name and
click Next.
11. Enter your User name and
Password. Click Next.
12. Click Finish to finish the
configuration.
4-8
Chapter 4: Using the Eee PC
13. Enter your user name
and password. Click
Connect to connect to
the Internet.
Contact your Internet Service Provider (ISP) if you have problems
connecting to the network.
ASUS Eee PC
4-9
Using a static IP:
1. Repeat the step 1–3 of Using a dynamic IP to start the static
IP network configuration.
3. Enter the IP address, Subnet mask and Gateway from your
service provider.
4. If needed, enter the preferred DNS Server address and
alternative address.
5. After entering all the related values, click OK to build the
network connection.
2 Click Use the following
IP address.
Contact your Internet Service Provider (ISP) if you have
problems connecting to the network.
4-10
Chapter 4: Using the Eee PC

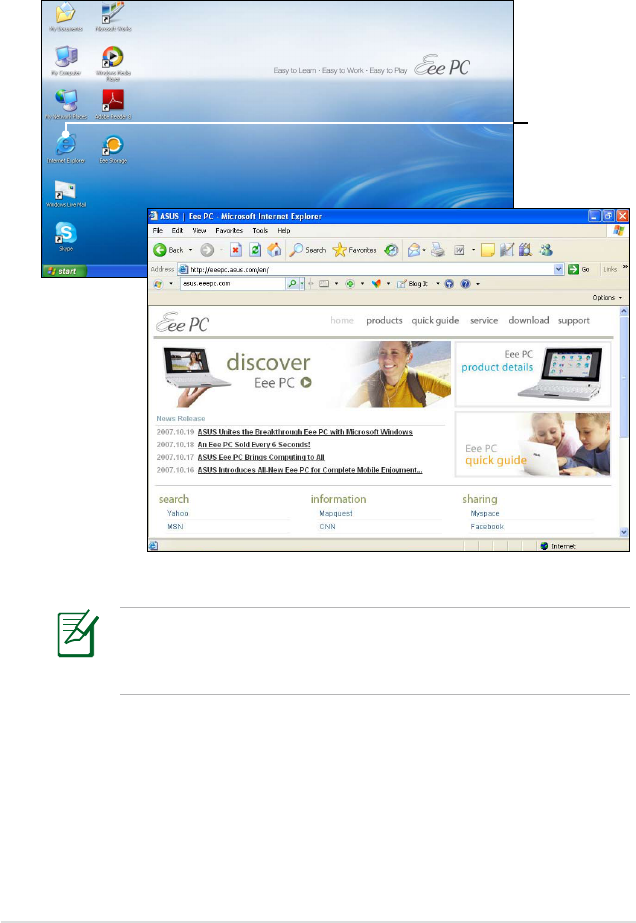

Browsing web pages
After you finish the network setup, click Internet Explorer on the
desktop and start enjoying net surfing.
Launches
the Internet
Explorer web
browser
Visit our Eee PC homepage (http://eeepc.asus.com) to obtain
the latest information and register at http://vip.asus.com for
full service of your Eee PC.
ASUS Eee PC
4-11
ASUS Update
The ASUS Update is a utility that allows you to manage, save, and
update the Eee PC BIOS in Windows® environment. The ASUS Update
utility allows you to:
• Save the current BIOS file
• Download the latest BIOS file from the Internet
• Update the BIOS from an updated BIOS file
• Update the BIOS directly from the Internet, and
• View the BIOS version information.
This utility is pre-loaded in your Eee PC and is also available in the
support DVD that comes with the Eee PC package.
ASUS Update requires an Internet connection either through a
network or an Internet Service Provider (ISP).
Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. Launch the ASUS Update utility from the Windows® desktop by
clicking Start > Programs > ASUS > ASUSUpdate for Eee PC>
ASUSUpdate. The ASUS Update main window appears.
4-12
Chapter 4: Using the Eee PC

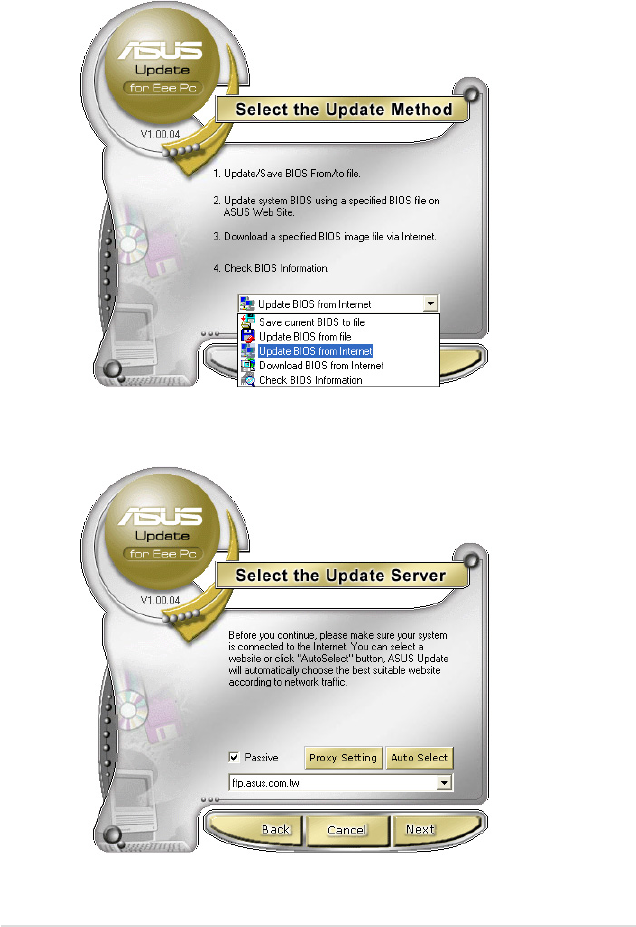

2. Select Update BIOS from Internet from the drop-down menu,
then click Next.
3. Select the ASUS FTP site nearest you to avoid network traffic, or
click Auto Select. Click Next.
ASUS Eee PC
4-13
4. From the FTP site, select the desired BIOS version and click Next.
5. Follow the screen instructions to complete the update process.
The ASUS Update utility is capable of updating itself through the
Internet. Always update the utility to avail all its features.
Updating the BIOS through a BIOS file
To update the BIOS through a BIOS file:
1. Launch the ASUS Update utility from the Windows
®
desktop by
clicking Start > Programs > ASUS > ASUSUpdate for EeePC>
ASUSUpdate. The ASUS Update main window appears.
2. Select Update BIOS from file from the drop-down menu, then
click Next.
3. Locate the BIOS file from the Open window, then click Open.
4. Follow the screen instructions to complete the update process.
4-14
Chapter 4: Using the Eee PC

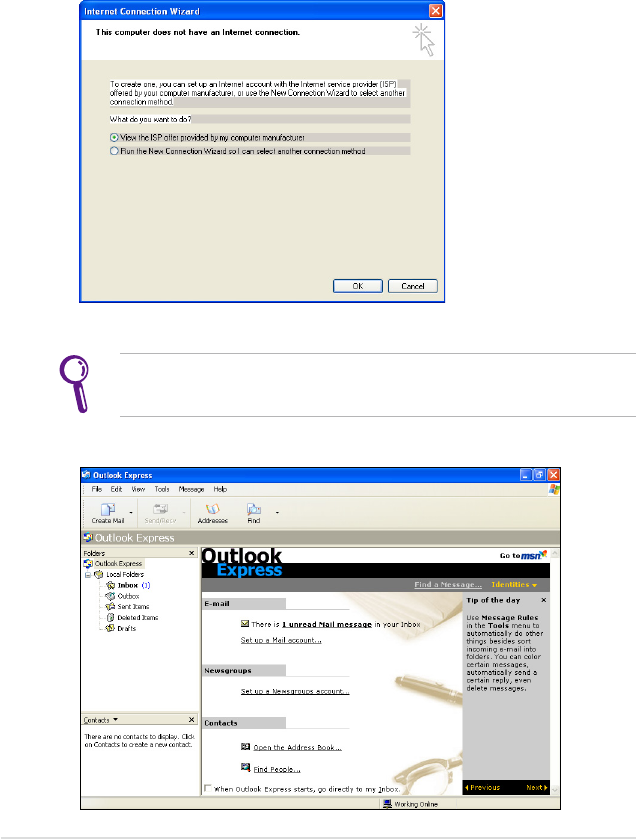

Outlook Express
The Outlook Express e-mail client allows to import preferences,
account settings, address books, and other data from an existing
account in your original personal computer or notebook.
To launch Outlook Express:
1. Click Start > Programs > Outlook Express.
2. Follow the Wizard to finish a new account setup.
Contact your service provider If you do not know the incoming
and outgoing server address of your e-mail account.
3. The Outlook Express main window appears as follows.
ASUS Eee PC
4-15
The content of the free service provided to you is subject to Eee
Storage Web Hard Drive Service Agreement on Eee Storage
official website. Eee Storage reserves the rights to modify or
discontinue the provided web storage service with or without
further notice. Visit the official website (http://www.eeestorage.
com) for details.

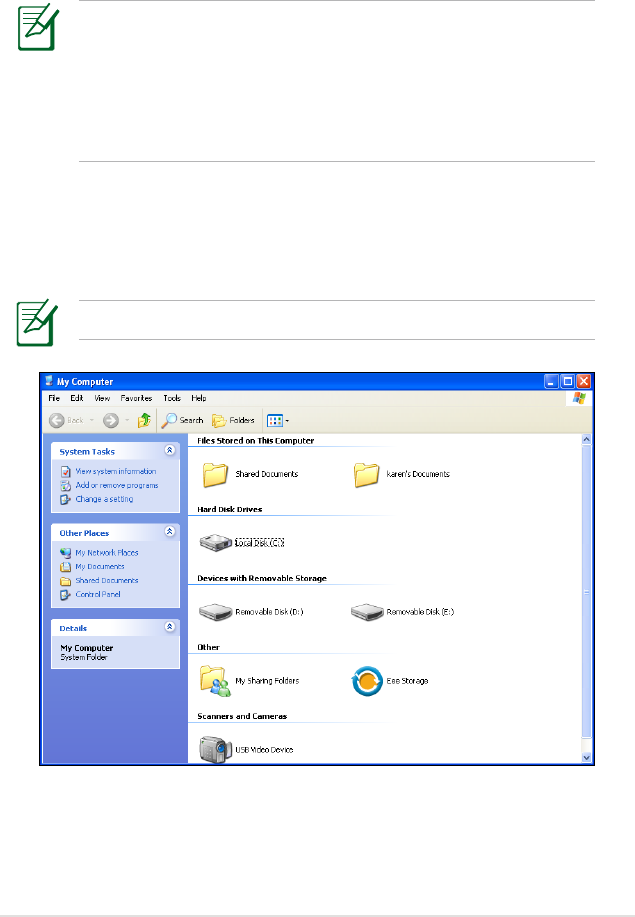

Eee Storage
Eee PC users can enjoy free online space. With Internet connection,
you can access and share any files whenever you want and wherever
you are.
Ensure that your Eee PC is connected to the Internet.
To use Eee Storage
1. Double-click the Eee Storage shortcut on the desktop and
double-click Eee Storage in My Computer.
4-16
Chapter 4: Using the Eee PC
Double-click Setup Your Eee Storage Account to apply an
account and setup a password if you need to use more advanced
functions such as Group Share. This set of account and password
is also indispensable when you use Eee Storage service with
other computer.
3. You can easily drag and drop to upload files onto your free
online space.
2. Read the service agreement
before click Yes to continue.
ASUS Eee PC
4-17
Skype™
Skype enables users to make free calls to other Skype users or
cheaper calls to landlines or mobile phones with Internet access. It
also offers instant messaging function, which users can use to chat
online.
To start using Skype application
1. Double-click the Skype icon on the desktop.
Starts Skype
2. Enter your Skype name and other information to create a new
Skype account. If you have already had a Skype account, click
Cancel to sign in directly.
3. Enter your Skype Name and Password in the box and click
Sign in to start using Skype.
4-18
Chapter 4: Using the Eee PC
Microsoft
®
Works
(in selected territories)
The Microsoft® Works includes several office software like Works
Word Processor, Works Spreadsheet, Dictionary, PowerPoint
Viewer, etc.. You need to initialize the software before use.
3. In the Help us make Works
better dialog box, click Yes
or No and click Finish to
complete the initialization.
We commend you select Yes
to help improve the quality,
reliability and performance
of this software.
Either Yes or No can finish the initialization.
Initializing Microsoft® Works
1. Double-click the Microsoft Works icon on the desktop.
2. In the Microsoft Software
License Terms dialog box,
click I Agree and click Next.
ASUS Eee PC
4-19
Using Microsoft® Works
Microsoft® Works combines several office applications together and
helps you easily manage your schedule and do your work.
Programs
The following example describes how to use Works Word Processor,
Microsoft® Works.
The Microsoft® Works provides various office applications for
different jobs. Select other desired task categories from the list
on the left and get your work done more efficiently.
1. Double-click the Microsoft® Works shortcut on the desktop.
2. Click Programs on the top to switch screens.
3. Click Works Word Processor from the list in the left pane
4. Select Blank Word Processor document in the right pane.
Choose other templates you want to use in the right pane if
needed.
2
34
4-20
Chapter 4: Using the Eee PC
6. In the Open dialog box, click Look in and locate your file. You
can also shorten the process by sorting the files by file types.
5. Under the File menu, click Open.
Or press <Ctrl> + <O> directly.
ASUS Eee PC
4-21
Other functions
Click the buttons on the top to switch screens.
Microsoft® Works Home
The screen displays the calendar and your appointments.
Microsoft® Works Templates
The screen provides templates for different tasks. Select a task
category from the list on the left and start using the built-in
templates.
Microsoft® Works Projects
The Microsoft® Works Projects helps you smartly manage your
projects.
Microsoft® Works History
The history screeen helps you track the history you use the
Microsoft® Works software. You can either sort by names, dates,
templates or programs.
4-22
Chapter 4: Using the Eee PC
Support DVD
System Recovery
5
Support DVD &
System Recovery
5-2
Chapter 5: Support DVD & System Recovery
Support DVD information
The support DVD that comes with the Eee PC package contains the
drivers, software applications, and utilities that you can install to
avail all the features.
If Autorun is NOT enabled in your computer, browse the
contents of the support DVD to locate the file ASSETUP.EXE from
the BIN folder. Double-click the ASSETUP.EXE file to run the DVD.
Click an item to install
Running the support DVD
Insert the support DVD in the external optical drive. The DVD
automatically displays the Drivers menu if Autorun is enabled in
your computer.
Click an icon to
display support
DVD/ Eee PC
information
The drivers and utilities bundled in the support DVD may vary by
models and are subject to change without notice.
ASUS Eee PC
5-3
Drivers menu
The Drivers menu shows available device drivers when the system
detects installed devices. Install the necessary drivers to activate the
devices.
Utilities menu
The Utilities menu shows the applications that the Eee PC supports.
Contact
Click the Contact tab to display the ASUS contact information.
Other information
The icons on the top right corner of the screen provide additional
information on the Eee PC and the contents of the support DVD.
Click an icon to display the specified information.
File list
Technical support
DVD content
System information
5-4
Chapter 5: Support DVD & System Recovery
System Recovery
Using the Support DVD
The Support DVD includes an image of the operating system,
installed on your system at the factory. The Support DVD provides a
comprehensive recovery solution that quickly restores your system
to its original working state, provided that your system drive is in
good working order. Before using the Support DVD, copy your data
files to floppy disks or to a network drive and make note of any
customized configuration settings (such as network settings).
1. Connect an external optical drive to your Eee PC and insert
the Support DVD into the optical drive (System needs to be
powered ON).
2. Press <ESC> on bootup and the Please select boot device
screen appears. Select USB:XXXXXX (may be labeled as the ODD
brand name) to boot from the optical drive.
Please select boot device:
↑ and ↓ to move selection
ENTER to select boot device
HDD:SM-ASUS_PHISON_OB SSD
HDD:SM-ASUS_PHISON SSD
USB:Slimtype DVD
3. Press any key to boot from the optical drive.
Press any key to boot from CD...
ASUS Eee PC
5-5
You will lose all your data during the system recovery. Ensure to
back up your important data before recovering your system.

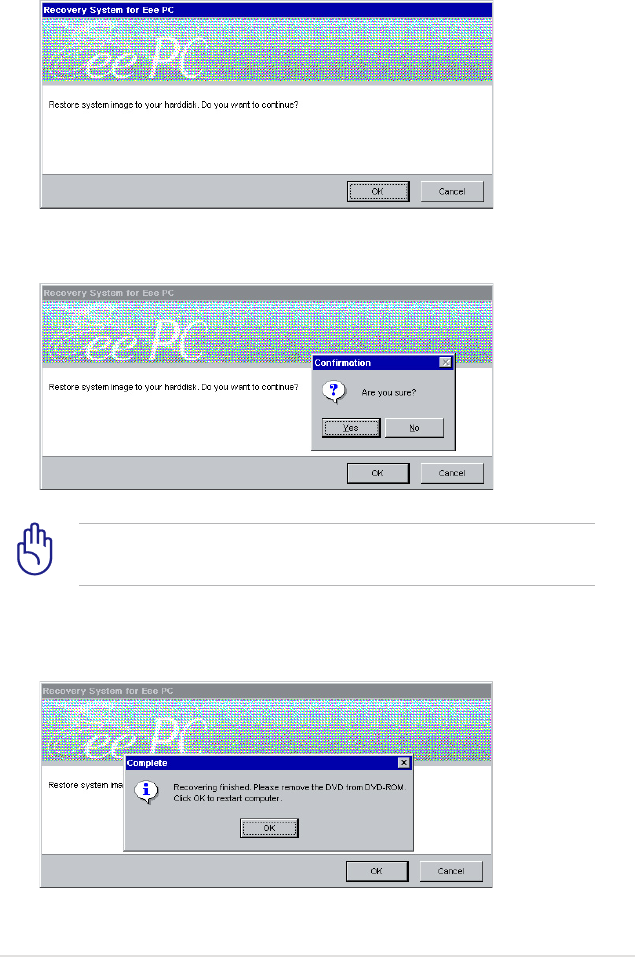

4. Click OK in the Recovery System for Eee PC dialog box.
5. Click Yes to start the system recovery.
6. After the system recovery is completed, eject the Support DVD
from the optical drive and click OK to restart the Eee PC.
5-6
Chapter 5: Support DVD & System Recovery
Declarations and Safety Statements
Copyright Information
Limitation of Liability
Service and Support
A
Appendix
A-2
Appendix
Declarations and Safety Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to
the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the Federal
Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
The use of a shielded-type power cord is required in order to
meet FCC emission limits and to prevent interference to the
nearby radio and television reception. It is essential that only
the supplied power cord be used. Use only shielded cables to
connect I/O devices to this equipment. You are cautioned that
changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate
the equipment.
ASUS Eee PC
A-3
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Office of the Federal Register, National Archives and
Records Administration, U.S. Government Printing Office.)
FCC Radio Frequency (RF) Exposure Caution
Statement
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate this equipment. “The manufacture declares that
this device is limited to Channels 1 through 11 in the 2.4GHz
frequency by specified firmware controlled in the USA.”
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with FCC
RF exposure compliance requirements, please avoid direct contact
to the transmitting antenna during transmitting. End users must
follow the specific operating instructions for satisfying RF exposure
compliance.
Max. SAR Measurement (1g)
0.00395 W/kg
A-4
Appendix
Declaration of Conformity
(R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant
and sufficient:
• Essential requirements as in [Article 3]
• Protection requirements for health and safety as in [Article 3.1a]
• Testing for electric safety according to [EN 60950]
• Protection requirements for electromagnetic compatibility in
[Article 3.1b]
• Testing for electromagnetic compatibility in [EN 301 489-1] & [EN
301]
• Testing according to [489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]
CE Mark Warning
This is a Class B product, in a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with IC
RF exposure compliance requirements, please avoid direct contact
to the transmitting antenna during transmitting. End users must
follow the specific operating instructions for satisfying RF exposure
compliance.
Operation is subject to the following two conditions:
• This device may not cause interference and
• This device must accept any interference, including interference
that may cause undesired operation of the device.
Max. SAR Measurement (1g)
0.00395 W/kg
ASUS Eee PC
A-5
Wireless Operation Channel for Different Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst
case maximum authorized power indoors are:
• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz
Channels 10 through 13 inclusive operate in the band 2446.6 MHz to
2483.5 MHz.
There are few possibilities for outdoor use: On private property or on
the private property of public persons, use is subject to a preliminary
authorization procedure by the Ministry of Defense, with maximum
authorized power of 100mW in the 2446.5–2483.5 MHz band. Use
outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW
Departments in which the use of the 2400–2483.5 MHz band is
permitted with an EIRP of less than 100mW indoors and less than
10mW outdoors:
01 Ain Orientales 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
A-6
Appendix
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées 67 Bas Rhin
68 Haut Rhin 70 Haute Saône
71 Saône et Loire 75 Paris
82 Tarn et Garonne 84 Vaucluse 88 Vosges
89 Yonne 90 Territoire de Belfort
94 Val de Marne
This requirement is likely to change over time, allowing you to use
your wireless LAN card in more areas within France. Please check
with ART for the latest information (www.art-telecom.fr)
Your WLAN Card transmits less than 100mW, but more than
10mW.
ASUS Eee PC
A-7
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone)
equipment intended to be electrically connected to a
telecommunication network that has an operating voltage to
ground that does not exceed 200V peak, 300V peak-to-peak, and
105V rms, and installed or used in accordance with the National
Electrical Code (NFPA 70).
When using the Eee PC modem, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and injury
to persons, including the following:
• DO NOT use the Eee PC near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or
near a swimming pool.
• DO NOT use the Eee PC during an electrical storm. There may be
a remote risk of electric shock from lightning.
• DO NOT use the Eee PC in the vicinity of a gas leak.
Required for UL 1642 covering primary (nonrechargeable) and
secondary (rechargeable) lithium batteries for use as power sources
in products. These batteries contain metallic lithium, or a lithium
alloy, or a lithium ion, and may consist of a single electrochemical
cell or two or more cells connected in series, parallel, or both, that
convert chemical energy into electrical energy by an irreversible or
reversible chemical reaction.
• Do not dispose the Eee PC battery pack in a fire, as they may
explode. Check with local codes for possible special disposal
instructions to reduce the risk of injury to persons due to fire or
explosion.
• Do not use power adapters or batteries from other devices to
reduce the risk of injury to persons due to fire or explosion. Use
only UL certified power adapters or batteries supplied by the
manufacturer or authorized retailers.
A-8
Appendix
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more
than 3Kg must use approved power cords greater than or equal to:
H05VV-F, 3G, 0.75mm
2
or H05VV-F, 2G, 0.75mm
2
.
This symbol of the crossed out wheeled bin indicates that
the product (electrical, electronic equipment, and mercury-
containing button cell battery) should not be placed in
municipal waste. Check local regulations for disposal of
electronic products.
ASUS Eee PC
A-9
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION! Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions. (English)
ATTENZIONE! Rischio di esplosione della batteria se
sostituita in modo errato. Sostituire la batteria con
un una di tipo uguale o equivalente consigliata dalla
fabbrica. Non disperdere le batterie nell’ambiente.
(Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen
Austausch der Batterie. Ersatz nur durch denselben
oder einem vom Hersteller empfohlenem ähnlichen
Typ. Entsorgung gebrauchter Batterien nach Angaben
des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved
fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Levér det brugte
batteri tilbage til leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt
batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti
asennettu. Vaihda paristo ainoastaan laitevalmistajan
sousittelemaan tyyppiin. Hävitä käytetty paristo
valmistagan ohjeiden mukaisesti. (Finnish)
A-10
Appendix
ATTENTION! Il y a danger d’explosion s’il y a
remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du mêre type ou d’
un type équivalent recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément
aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av
batteri. Benytt samme batteritype eller en tilsvarende
type anbefalt av apparatfabrikanten. Brukte batterier
kasseres i henhold til fabrikantens instruksjoner.
(Norwegian)
(Japanese)
ASUS Eee PC
A-11
Copyright Information
No part of this manual, including the products and software
described in it, may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser
for backup purposes, without the express written permission of
ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,
ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Products and corporate names appearing in this manual may or
may not be registered trademarks or copyrights of their respective
companies, and are used only for identification or explanation and to
the owners’ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
A-12
Appendix
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part
or other liability, you are entitled to recover damages from ASUS.
In each such instance, regardless of the basis on which you are
entitled to claim damages from ASUS, ASUS is liable for no more
than damages for bodily injury (including death) and damage to real
property and tangible personal property; or any other actual and
direct damages resulted from omission or failure of performing legal
duties under this Warranty Statement, up to the listed contract price
of each product.
ASUS will only be responsible for or indemnify you for loss, damages
or claims based in contract, tort or infringement under this Warranty
Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the
maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF
THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA;
OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY
ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS
OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
Service and Support
Visit our multi-language web site at http://support.asus.com
