VivoTab User Manual
EXXXX
ASUS is devoted to creating environment-friendly products
and packaging to safeguard consumers’ health while
minimizing the impact on the environment. The reduction
of the number of the manual pages complies with the
reduction of carbon emission.
For the detailed user manual and related information, refer
to the user manual included in the VivoTab or visit the ASUS
Support Site at http://support.asus.com/.
Charging Your Batteries
Ensure to fully charge your battery pack before using your
VivoTab in battery mode for extended periods. Remember that
the power adapter charges the battery pack as long as it is
plugged into an AC power source. Be aware that it takes much
longer to charge the battery pack when the VivoTab is in use.
IMPORTANT! Do not leave the VivoTab connected to the power
supply once it is fully charged. VivoTab is not designed to be left
connected to the power supply for extended periods of time.
Airplane Precautions
Contact your airline provider to learn about related inight
services that can be used and restrictions that must be followed
when using your VivoTab in-ight.
IMPORTANT! You can send your VivoTab through x-ray
machines (used on items placed on conveyor belts), but do not
expose them from magnetic detectors and wands.
Safety Precautions
This VivoTab should only be used in enviroments with ambient
temperatures between 0°C (32°F) and 35°C (95°F).
Long time exposure to extremely high or low temperature
may quickly deplete and shorten the battery life. To ensure the
battery’s optimal performance, ensure that it is exposed within
the recommended environment temperature.
ASUS VivoTab
3
Micro USB cable
VivoTab Power adapter
Technical documentations
and warranty card
Cleaning cloth

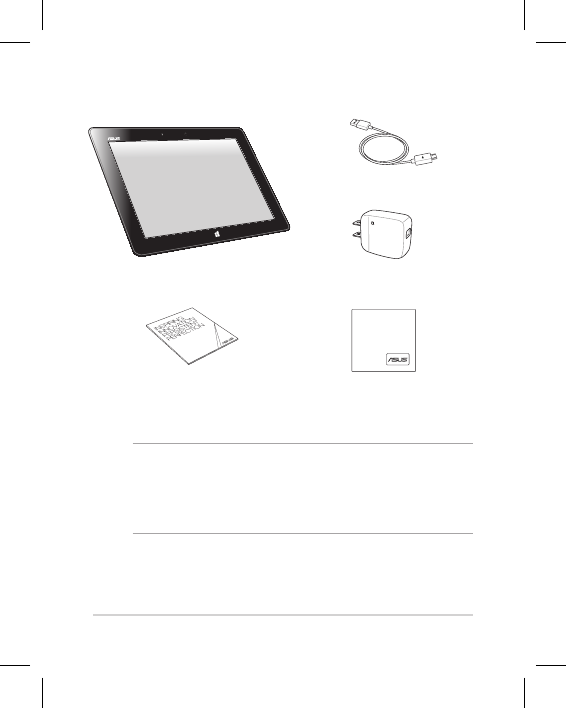

Package contents
NOTES:
• If any of the items is damaged or missing, contact your
retailer.
• The bundled power adapter varies with country or region.
ASUS VivoTab
4
Front camera
This built-in 2-megapixel camera allows you to take
pictures or record videos using your VivoTab.
Ambient light sensor
The ambient light sensor detects the amount of
light in your environment. It allows the system to
automatically adjust the brightness of the display
depending on the ambient light condition.
Touch screen panel
The touch screen panel allows you to operate your
VivoTab using the stylus or touch gestures.

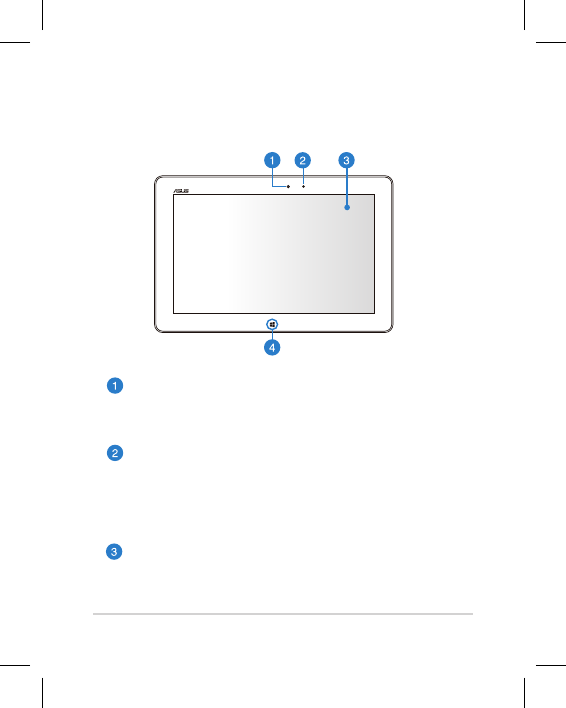

Your VivoTab
Front view
ASUS VivoTab
5
Windows® 8 touch button
Touch this button to go back to the Start screen. If you
are already in the Start screen, touch this button to go
back to the last app you opened.
Rear view
Headphone output/microphone input combo jack
port
This port allows you to connect the VivoTab’s audio-
out signal to amplied speakers or headphones. You
can also use this port to connect your VivoTab to an
external microphone.
IMPORTANT! For microphone input function, the
jack only supports headset microphone.
ASUS VivoTab
6
Volume button
Press this button to increase or decrease the volume.
Manual reset hole
If the system becomes unresponsive, insert a
straightened paper clip into the hole to force-restart
your VivoTab.
IMPORTANT! Forcing the system to restart may result
to data loss. We strongly recommend that you back
up your data regularly.
Camera LED ash
Use the LED ash when taking pictures or recording
videos in a low-light environment.
You can set the LED ash to any of these settings:
Setting Description
AUTO The system automatically uses the LED
ash when taking pictures depeding on the
lighting condition.
ON The system uses the LED ash constantly
when taking pictures in any lighting
condition.
TORCH The system uses the LED ash as a constant
lighting xture or torch when taking photos
or recording videos.
OFF The system disables the LED ash.
ASUS VivoTab
7

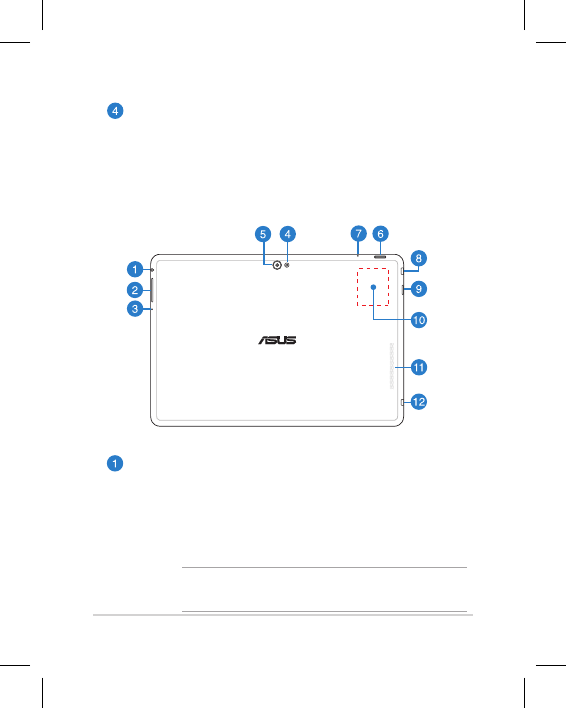

Rear camera
This built-in 8-megapixel camera allows you to take
high-denition pictures or record high-denition
videos using your VivoTab.
Power button
Press the power button to turn your VivoTab on, put
it to sleep or hibernate and wake it up from sleep or
hibernate mode.
Press and hold the power button for about ve (5)
seconds to force shut down your VivoTab when it
becomes unresponsive.
IMPORTANT! Forcing the system to restart may result
to data loss. We strongly recommend that you back
up your data regularly.
Battery charge indicator
This two-color LED provides a visual indication of
the battery’s charge status.
Refer to the table below for details:
Color Status
White Fully charged.
Orange Charging mode.
Dim The AC adapter is not plugged to the
VivoTab.
ASUS VivoTab
8
Microphone
The built-in mono microphone can be used for
video conferencing, voice narrations or simple audio
recordings.
Micro HDMI port
This port is for a micro High-Denition Multimedia
Interface (HDMI) connector and is HDCP compliant
for HD DVD, Blu-ray and other protected content
playback.
MicroSD card slot
The VivoTab comes with a built-in memory card
reader slot that supports microSD, microSDHC and
microSDXC card formats.
Built-in Near Field Communication (NFC) tag
The built-in NFC tag allows you to conveniently share
contacts, pictures, business cards, and other les.
To use the NFC tag, put your VivoTab’s NFC tag near
another NFC-enabled device.
Audio speaker
Your VivoTab is equipped with a built-in high quality
stereo speaker. Audio features are software controlled.
Micro USB 2.0 port
Use the micro USB (Universal Serial Bus) 2.0 port to
charge the battery pack or supply power to your
VivoTab.
ASUS VivoTab
9

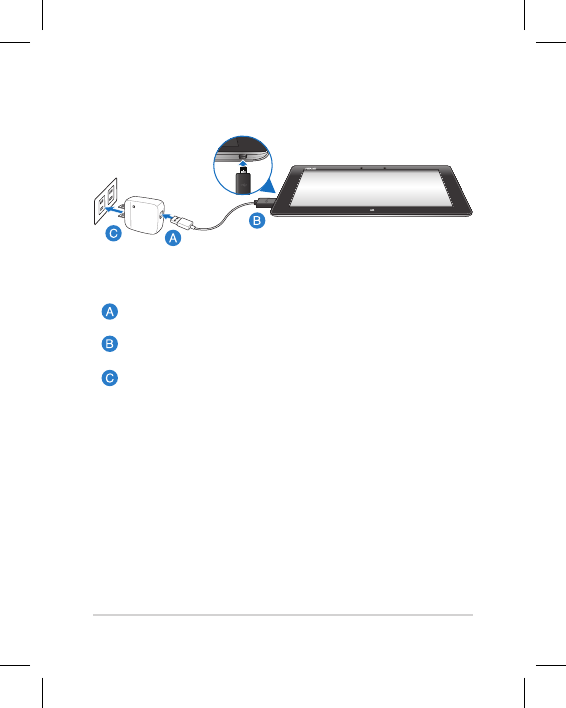

Charging your VivoTab
Connect the micro USB cable to the power adapter.
Plug the micro USB connector into your VivoTab.
Plug the power adapter into a grounded socket outlet.
To charge your VivoTab:
ASUS VivoTab
10
IMPORTANT!
• Use only the bundled power adapter and micro USB cable
to charge your VivoTab. Using a dierent power adapter may
damage your VivoTab.
• Peel the protective lm o from the power adapter and micro
USB cable before charging the VivoTab to prevent risk or
injury.
• Ensure that you plug the power adapter to the correct socket
outlet with the correct input rating. The output voltage of this
adapter is DC5V, 2A.
• Do not leave the VivoTab connected to the power supply
once it is fully charged. VivoTab is not designed to be left
connected to the power supply for extended periods of time.
• When using your VivoTab on power adapter mode, the
grounded socket outlet must be near to the unit and easily
accessible.
• Charge your VivoTab for eight (8) hours before using it in
battery mode for the rst time.
ASUS VivoTab
11
Appendices
Federal Communications Commission
Statement
This device complies with FCC Rules Part 15. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to Part 15 of the
Federal Communications Commission (FCC) rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment causes harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by doing one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
ASUS VivoTab
12
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure
to radio waves. This device is designed and manufactured not
to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of
the U.S. Government.
The exposure standard employs a unit of measurement
known as the Specic Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the EUT
transmitting at the specied power level in dierent channels.
The highest SAR value for the device as reported to the FCC is
1.11 W/kg when placed next to the body.
The FCC has granted an Equipment Authorization for this device
with all reported SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information on this device is
on le with the FCC and can be found under the Display Grant
section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
MSQK0X.
ASUS VivoTab
13
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003
and RSS-210.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device. The IC ID for this device is
3568A-K0X.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below
the Industry Canada (IC) radio frequency exposure limits. The
Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with
the IC Specic Absorption Rate (“SAR”) limits when installed
in specic host products operated in portable exposure
conditions.
Canada’s REL (Radio Equipment List) can be found at the
following web address:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be
found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
ASUS VivoTab
14
Canada, avis d’Industrie Canada (IC)
Cet appareil numérique de classe B est conforme aux normes
canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas causer d’interférence et (2) cet
appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.
L’identiant IC de cet appareil est 3568A-K0X.
Informations concernant l’exposition aux fréquences
radio (RF)
La puissance de sortie émise par cet appareil sans l est
inférieure à la limite d’exposition aux fréquences radio d’
Industrie Canada (IC). Utilisez l’appareil sans l de façon à
minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites
SAR (Specic Absorption Rate – Taux d’absorption spécique) d’
IC lorsqu’il est installé dans des produits hôtes particuliers qui
fonctionnent dans des conditions d’exposition à des appareils
portables.
Ce périphérique est homologué pour l’utilisation au Canada.
Pour consulter l’entrée correspondant à l’appareil dans la liste
d’équipement radio (REL - Radio Equipment List) d’Industrie
Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
ASUS VivoTab
15
EC Declaration of Conformity
This product is compliant with the regulations of the R&TTE
Directive 1999/5/EC. The Declaration of Conformity can be
downloaded from http://support.asus.com.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’
part or other liability, you are entitled to recover damages from
ASUS. In each such instance, regardless of the basis on which
you are entitled to claim damages from ASUS, ASUS is liable
for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property;
or any other actual and direct damages resulted from omission
or failure of performing legal duties under this Warranty
Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss,
damages or claims based in contract, tort or infringement
under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the
maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
Pour des informations supplémentaires concernant l’exposition
aux RF au Canada rendez-vous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
ASUS VivoTab
16
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE
FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR
DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR
FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR
YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
For France, as required by French Article L. 5232-1, this device
is tested to comply with the Sound pressure requirement in NF
EN 50332-2:200 and NF EN 50332-1:20000 standards.
ASUS VivoTab
17
CE Mark Warning
CE marking for devices without wireless LAN/
Bluetooth
The shipped version of this device complies with
the requirements of the EEC directives 2004/108/EC
“Electromagnetic compatibility” and 2006/95/EC “Low voltage
directive”.
RF Exposure information (SAR) - CE
This device meets the EU requirements (1999/519/EC) on the
limitation of exposure of the general public to electromagnetic
elds by way of health protection.
The limits are part of extensive recommendations for the
protection of the general public. These recommendations
have been developed and checked by independent scientic
organizations through regular and thorough evaluations of
scientic studies. The unit of measurement for the European
Council’s recommended limit for mobile devices is the “Specic
Absorption Rate” (SAR), and the SAR limit is 2.0 W/Kg averaged
over 10 gram of body tissue. It meets the requirements of the
International Commission on Non-Ionizing Radiation Protection
(ICNIRP).
For next-to-body operation, this device has been tested and
meets the ICNRP exposure guidelines and the European
Standard EN 62311 and EN 62209-2. SAR is measured with the
ASUS VivoTab
18
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our
commitment to the highest standards for protecting our
environment. We believe in providing solutions for you to
be able to responsibly recycle our products, batteries, other
components as well as the packaging materials. Please go to
http://csr.asus.com/english/Takeback.htm for detailed recycling
information in dierent regions.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing
more than 3Kg must use approved power cords greater than or
equal to: H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.
device directly contacted to the body while transmitting at the
highest certied output power level in all frequency bands of
the mobile device.
Coating notice
IMPORTANT! To provide electrical insulation and maintain
electrical safety, a coating is applied to insulate the device
except on the areas where the I/O ports are located.
ASUS VivoTab
19

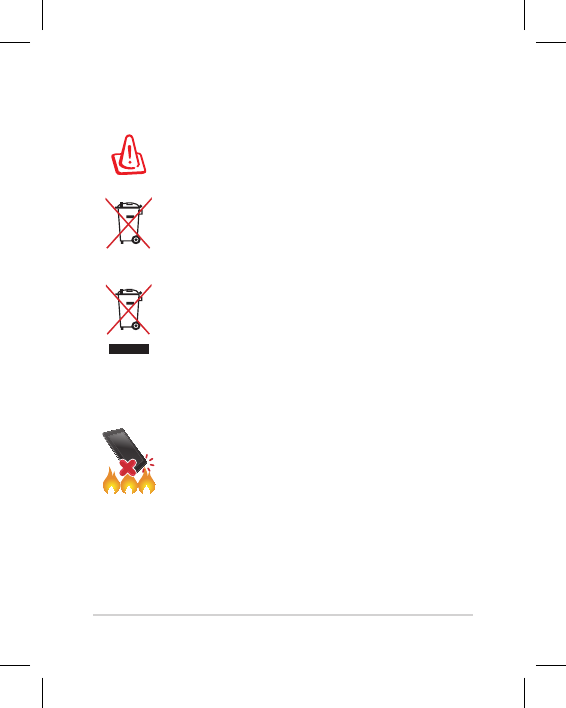

Proper disposal
Risk of explosion if battery is replaced by
an incorrect type. Dispose of used batteries
according to the instructions.
DO NOT throw the battery in municipal waste. The
symbol of the crossed out wheeled bin indicates
that the battery should not be placed in municipal
waste.
DO NOT throw the VivoTab in municipal waste. This
product has been designed to enable proper reuse
of parts and recycling. The symbol of the crossed
out wheeled bin indicates that the product
(electrical, electronic equipment and mercury-
containing button cell battery) should not be
placed in municipal waste. Check local regulations
for disposal of electronic products.
DO NOT throw the VivoTab in re. DO NOT short
circuit the contacts. DO NOT disassemble the
VivoTab.
ASUS VivoTab
20
Copyright Information
No part of this manual, including the products and software
described in it, may be reproduced, transmitted, transcribed,
stored in a retrieval system, or tranPadd into any language in
any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS and VivoTab logo are trademarks of ASUSTek Computer
Inc.
Information in this document is subject to change without
notice.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights
Reserved.
Manufacturer ASUSTek COMPUTER INC.
Address, City 4F, No. 150, LI-TE RD., PEITOU,
TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized
Representative
in Europe
ASUS COMPUTER GmbH
Address, City HARKORT STR. 21-23, 40880 RATINGEN
Country GERMANY
Model name: K0X (ME400C)
