ASUSTeK Computer RTN10 EZ N WIRELESS ROUTER User Manual 1

ASUSTeK Computer Inc EZ N WIRELESS ROUTER Users Manual 1

Contents

Users Manual 1

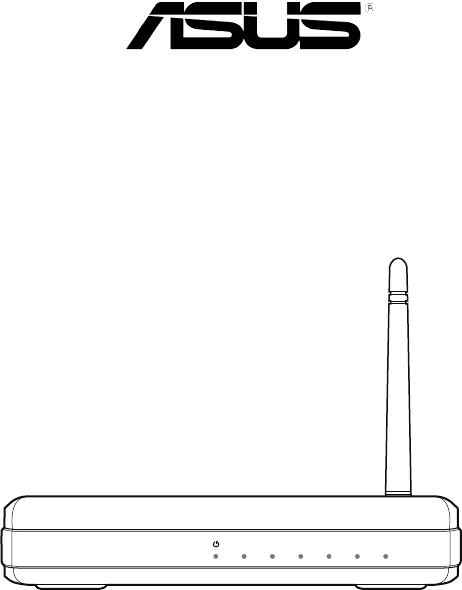

User Manual
RT-N10
ASUS Wireless EZ N Router
RT-N10
150M High Speed
AIR WAN LAN1 LAN2 LAN3 LAN4
2
Copyright © 2009 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK Computer Inc.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
E4808
First Edition V1
June 2009
3
Table of contents
About this guide .................................................................................... 4
How this guide is organized .............................................................. 4
Conventions used in this guide ......................................................... 5
Chapter 1: Knowing your wireless router
Package contents .................................................................................. 6
System requirements ............................................................................ 6
Before you proceed ............................................................................... 6
Hardware features ................................................................................. 7
Front panel ........................................................................................ 7
Rear panel ......................................................................................... 8
Bottom panel ..................................................................................... 9
Mounting options ................................................................................. 10
Chapter 2: Getting started
Setting up the wireless router .............................................................11
Setting up the Router mode using the QIS ..................................... 12
Setting up the Repeater mode using the QIS ................................. 15
Setting up the AP mode using the QIS ............................................ 16
Chapter 3: Conguring the network clients

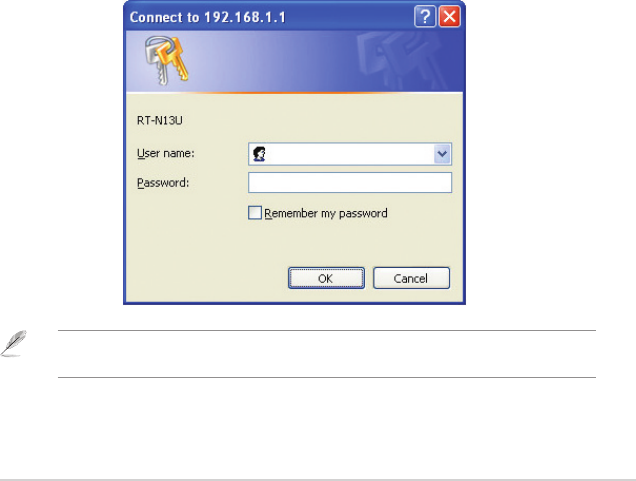

Accessing the wireless router ............................................................ 17

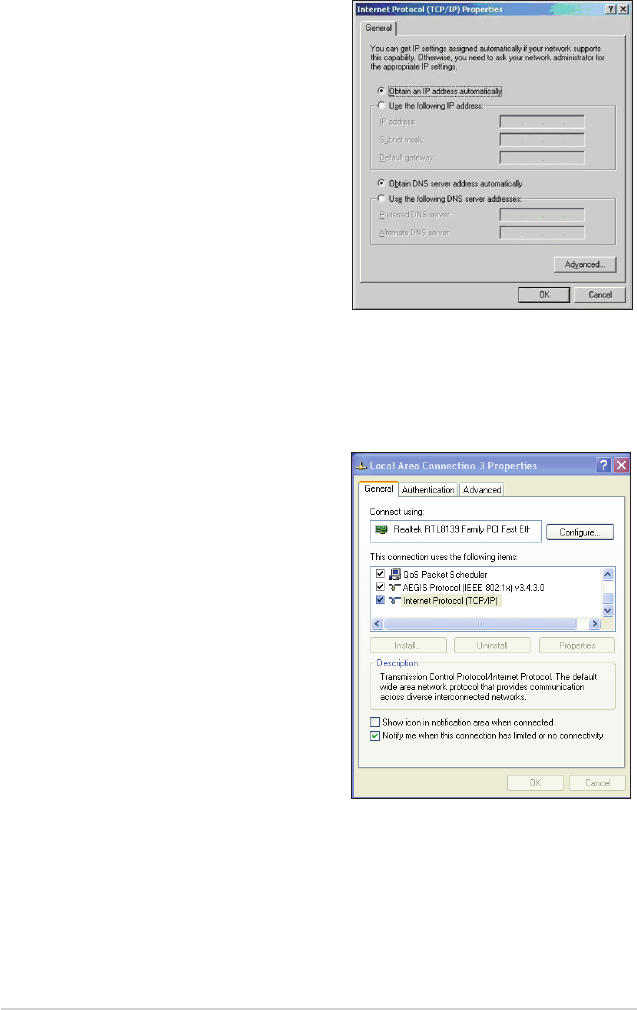

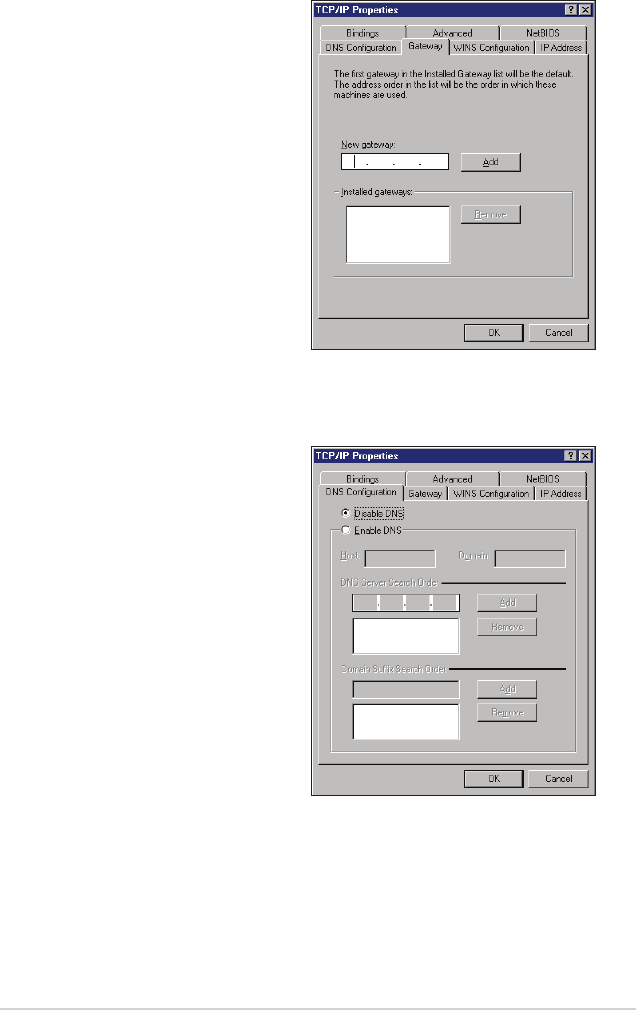

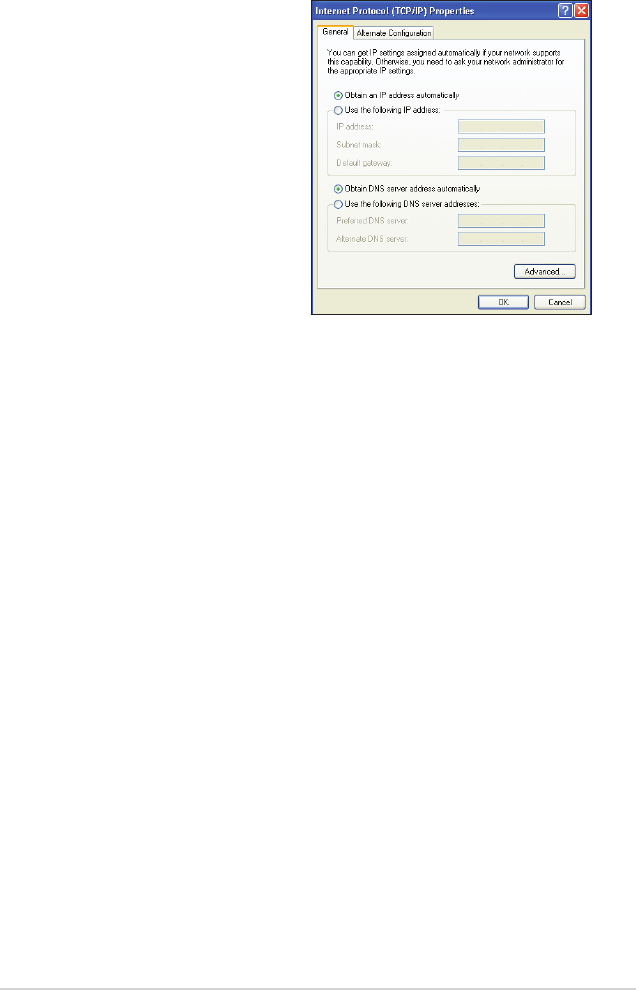

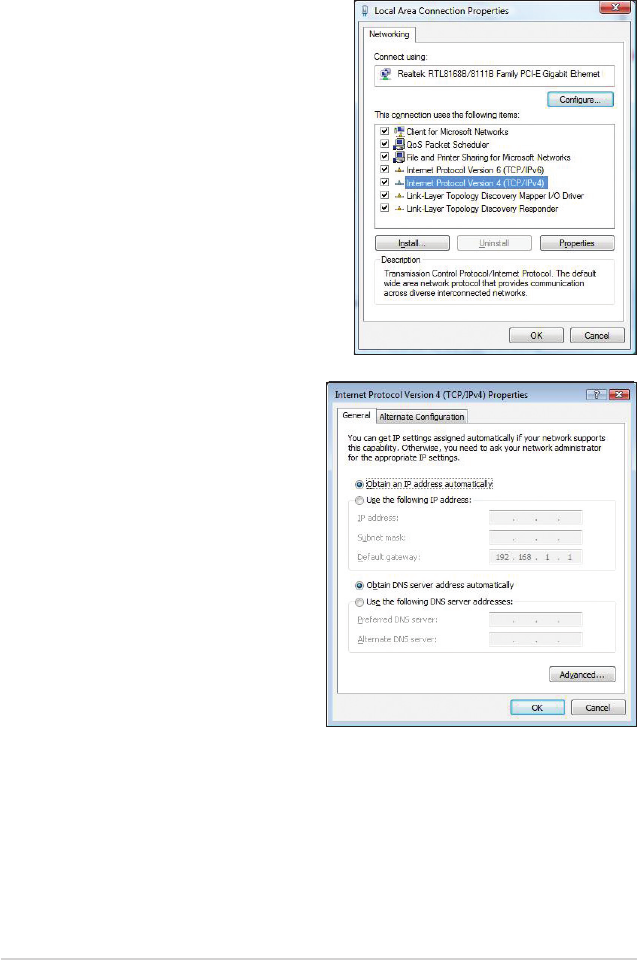

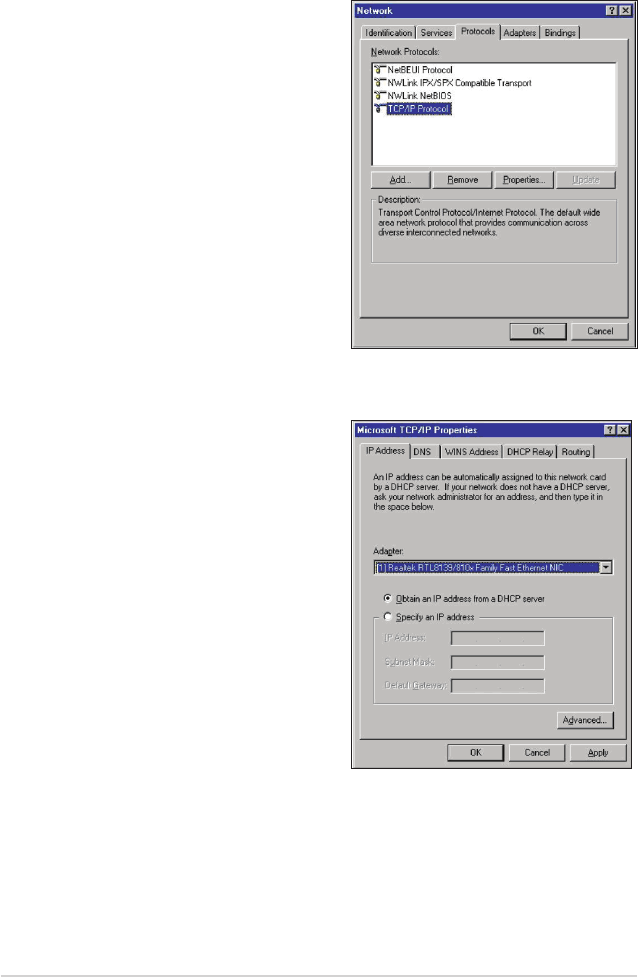

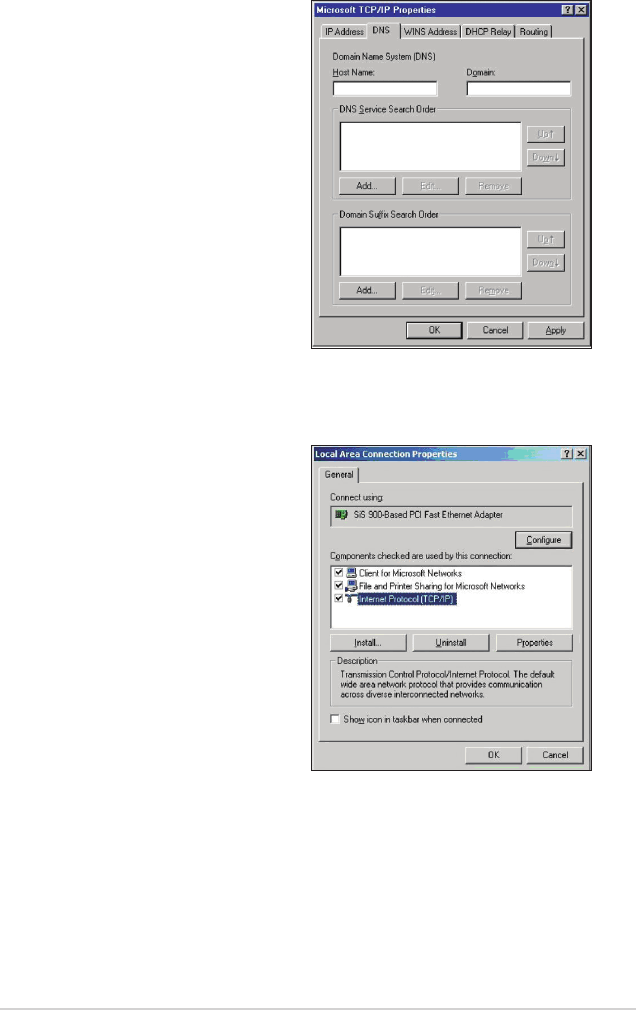

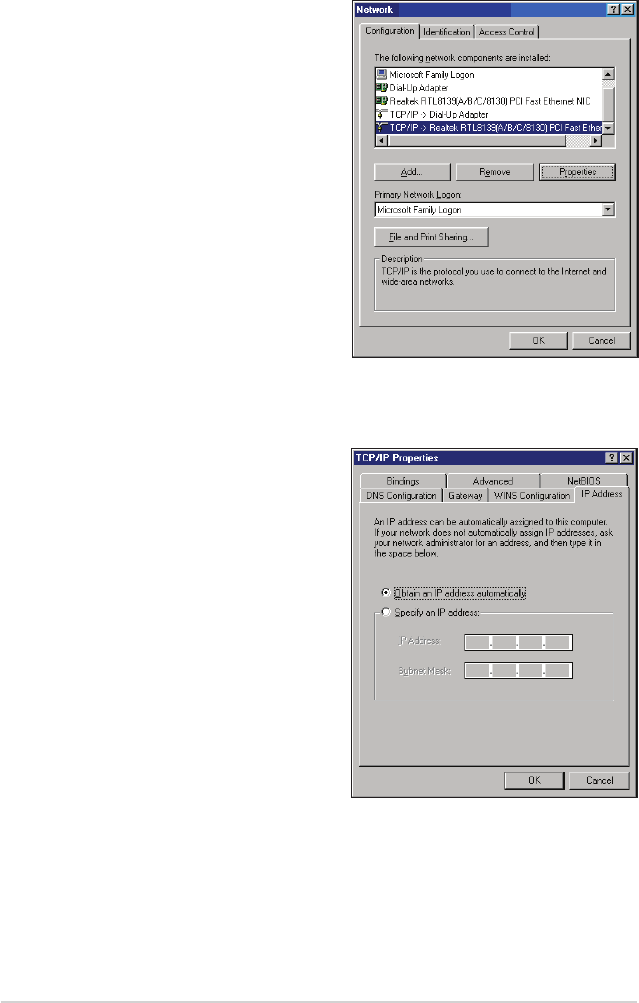

Setting an IP address for wired or wireless clients .......................... 17
Chapter 4: Conguring via the web GUI

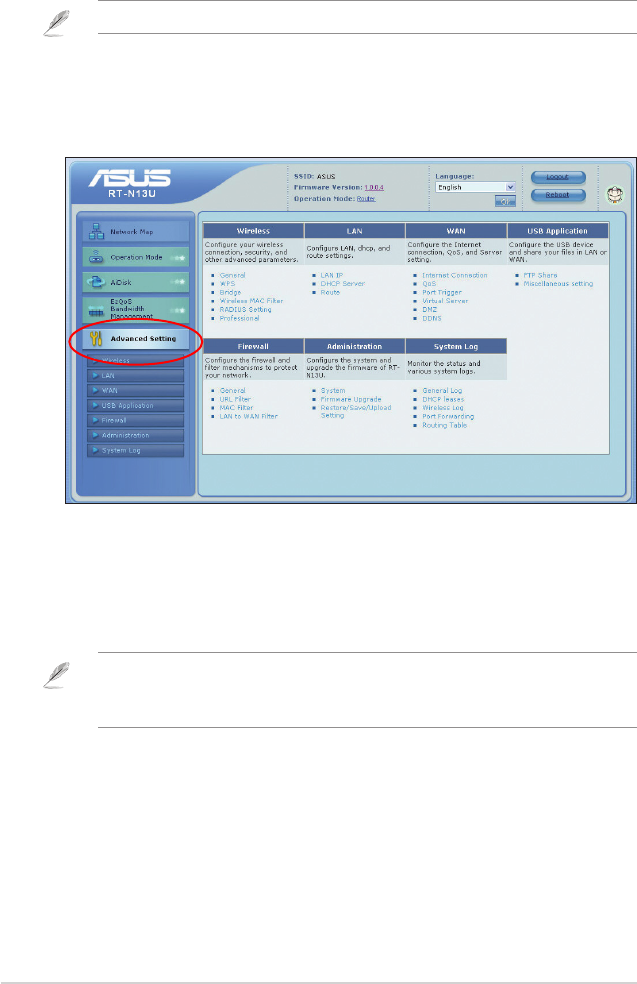

Conguring via the web GUI ............................................................... 25
Using the Network Map ....................................................................... 26
Using the Quick Internet Setup (QIS) again .................................... 27
Creating multiple SSID proles ....................................................... 28
Managing bandwidth with EzQoS ...................................................... 29
Upgrading the rmware ...................................................................... 30
Restoring/Saving/Uploading settings ................................................ 31
4
Table of contents
About this guide
This user guide contains information that you need to install and congure the
ASUS Wireless Router.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Knowing your wireless router
This chapter provides information on the package contents, system
requirements, hardware features, and LED indicators of the ASUS Wireless
Router.
• Chapter 2: Getting started
This chapter provides instructions on setting up the Router, Repeater, and
Access Point (AP) modes of the ASUS Wireless Router.
• Chapter 3: Conguring the network clients
This chapter provides instructions on setting up the clients in your network to
work with your ASUS Wireless Router.
Chapter 5: Installing the utilities
Installing the utilities ........................................................................... 32
Device Discovery ................................................................................. 34
Firmware Restoration .......................................................................... 35
WPS Wizard .......................................................................................... 36
Using WPS Wizard .......................................................................... 36
Chapter 6: Troubleshooting
Troubleshooting ................................................................................... 42
ASUS DDNS Service ............................................................................ 45
Frequently Asked Questions (FAQs) ............................................... 45
Appendices
Notices .................................................................................................. 47
ASUS Contact information .................................................................. 55
5
• Chapter 4: Conguring via the web GUI
This chapter provides instructions on conguring the ASUS Wireless Router
using its web graphics user interface (web GUI).
• Chapter 5: Installing the utilities
This chapter provides information on the utilities that are available from the
support CD.
• Chapter 6: Troubleshooting
This chapter provides you with a troubleshooting guide for solving common
problems you may encounter when using the ASUS Wireless Router.
• Appendices
This chapter provides you with the regulatory Notices and Safety Statements.
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
6RT-N10 Chapter 1: Knowing your wireless router
1
Knowing your
wireless router
Package contents
Check the following items in your ASUS Wireless Router package.
RT-N10 Wireless Router x1
Power adapter x1
Support CD (manual, utilities) x1
RJ45 cable x1
Detachable antenna x1
Quick Start Guide x1
Note: If any of the items is damaged or missing, contact your retailer.
System requirements
Before installing the ASUS Wireless Router, ensure that your system/network
meets the following requirements:
• An Ethernet RJ-45 port (10Base-T/100Base-TX)
• At least one IEEE 802.11b/g/n device with wireless capability
• An installed TCP/IP and Internet browser
Before you proceed
Take note of the following guidelines before installing the ASUS Wireless Router:
• The length of the Ethernet cable that connects the device to the network (hub,
ADSL/cable modem, router, wall patch) must not exceed 100 meters.
• Place the device on a at and stable surface as far from the ground as
possible.
• Keep the device clear from metal obstructions and away from direct sunlight.
• Keep the device away from transformers, heavy-duty motors, uorescent lights,
microwave ovens, refrigerators, and other industrial equipment to prevent
signal loss.
• Install the device in a central area to provide ideal coverage for all wireless
mobile devices.
7
Chapter 1: Knowing your wireless router RT-N10

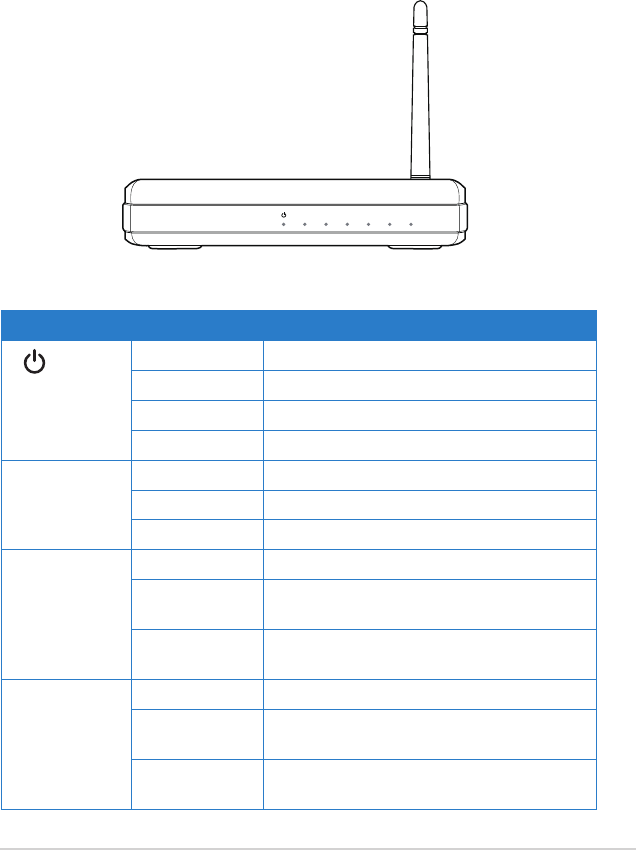

Status indicators
LED Status Indication
(Power) Off No power
On System ready
Flashing-slow Rescue mode
Flashing-quick WPS processing
AIR Off No power
On Wireless system ready
Flashing Transmitting or receiving data (wireless)
LAN 1-4 (Local
Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
WAN (Wide
Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
• Install the device at least 20cm from a person to insure that the product is
operated in accordance with the RF Guidelines for Human Exposure adopted
by the Federal Communications Commission.
Hardware features
Front panel
RT-N10
150M High Speed
AIR WAN LAN1 LAN2 LAN3 LAN4
8RT-N10 Chapter 1: Knowing your wireless router

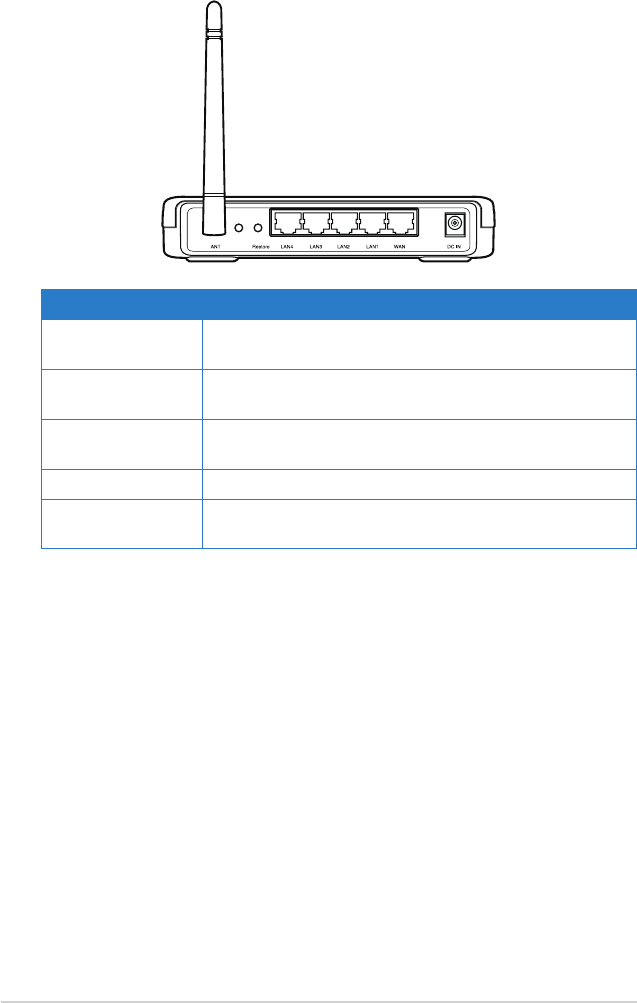

Rear panel
Label Description
WAN Connect an RJ-45 Ethernet cable to this port to establish
WAN connection.
LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to establish
LAN connection.
DC IN Insert the AC adapter into this port to connect your router
to a power source.
WPS Press this button to launch the WPS wizard.
Restore Press this button for more than ve seconds to restore the
system to its factory default settings.
WPS
9
Chapter 2: Setting up the hardware RT-N10

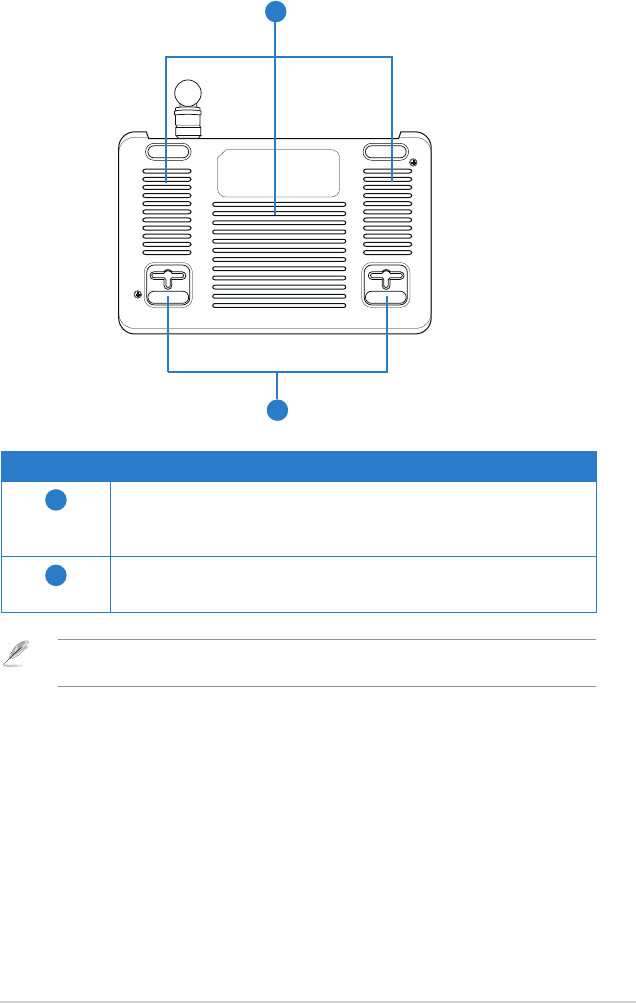

Bottom panel
1
2
Item Description
1Mounting hooks
Use the mounting hooks to mount your router on concrete or
wooden surfaces using two round head screws.
2Air vents
These vents provide ventilation to your router.
Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting
options on the next page of this user manual.
10 RT-N10 Chapter 2: Setting up the hardware
Mounting options
Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface
like a le cabinet or book shelf. The unit may also be converted for mounting to a
wall or ceiling.
To mount the ASUS Wireless Router:
1. Look on the underside for the two mounting hooks.
2. Mark two upper holes in a at surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if
it is too loose.
11
Chapter 2: Setting up the hardware RT-N10
The RT-N10 supports three operation modes: Router (IP Sharing mode), Repeater,
and Access Point (AP). Refer to the following sections on initially setting up an
operation mode using the QIS.
2
Getting started
Setting up the wireless router
The ASUS Wireless Router includes a web graphics user interface (web GUI)
that allows you to congure the wireless router using your web browser on your
computer.
Note: We recommend that you use wired connection for initial conguration to avoid possible
setup problems due to wireless uncertainty.
Note: For details on conguring your wireless router using the web GUI, refer to Chapter 4:
Conguring via the web GUI.

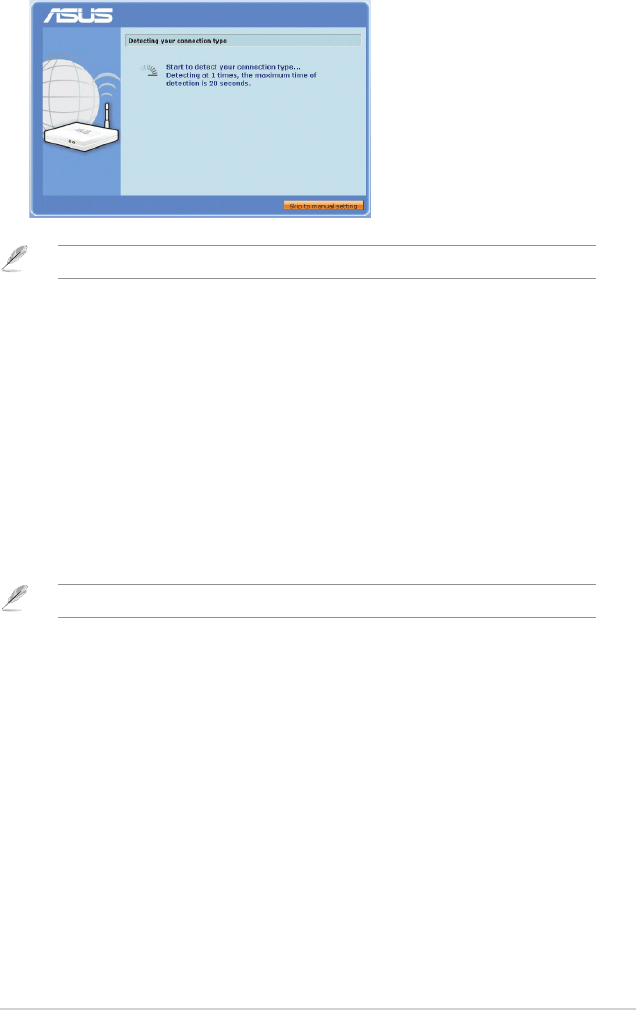

The web GUI integrates a Quick Internet Setup (QIS) function that detects the
Internet connection type automatically and guides you through setting up a network
quickly.
The QIS web page appears automatically after you connected your devices and
launched the web browser. You may also launch the QIS from the Network Map on
the web GUI. Refer to Using the Network Map in Chapter 4 of this user manual
for details.
12 RT-N10 Chapter 2: Setting up the hardware

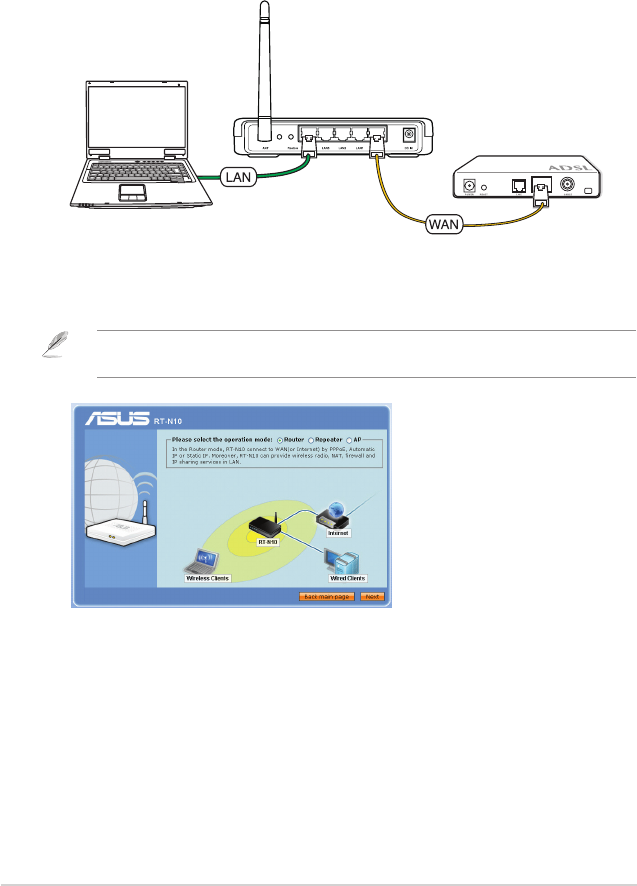

2. Launch the web browser and the QIS web page appears automatically. Choose
the Router mode, then click Next.
Note: If the QIS web page does not appear after you launched the web browser, disable the
proxy settings of the web browser.
Setting up the Router mode using the QIS
In the Router mode, the RT-N10 connects to WAN (Internet) by PPPoE, Automatic
IP, PPTP, L2TP, or Static IP, and provides you with wireless radio. The NAT,
rewall, and IP sharing services in LAN are enabled.
To set up the Router mode using the QIS:
1. Connect your devices.
RT-N10
WPS
Modem
Client
13
Chapter 2: Setting up the hardware RT-N10
Then the QIS starts to detect your Internet connection type.
Note: The PPPoE Internet connection type is used in this setup case.
3. Key in the user name and password. Click Apply all settings.
Note: The above setup screen varies with different Internet connection types.
4. The Internet connection setup is completed.
• Click Going to Internet to go to your home page.
14 RT-N10 Chapter 2: Setting up the hardware
• Click Simply Wireless Security Setting to congure basic security settings
including the SSID, authentication and encryption methods, and security
key for the ASUS Wireless Router.
• Click Advanced Setting page to manually congure advanced settings for
the ASUS Wireless Router.
15
Chapter 2: Setting up the hardware RT-N10
Setting up the Repeater mode using the QIS
In the Repeater mode, the RT-N10 extends your wireless network and provides
you with higher quality wireless radio. The NAT, rewall, and IP sharing services
are disabled.
To set up the Repeater mode using the QIS:

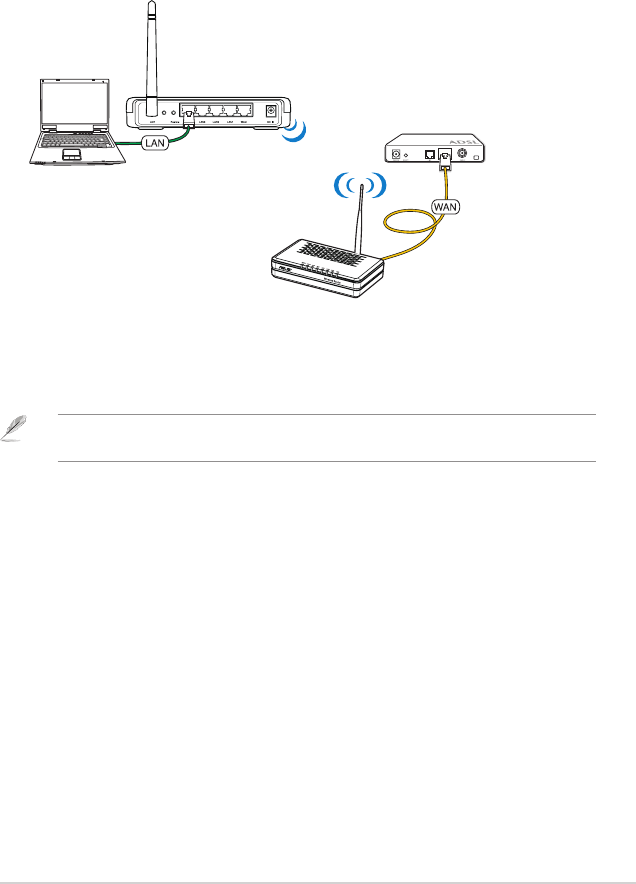

1. Connect your devices.
2. Launch the web browser and the QIS web page appears automatically. Choose
the Repeater mode, then click Next.
Note: If the QIS web page does not appear after you launched the web browser, disable the
proxy settings of the web browser.
3. Select the AP whose wireless signal you want to extend, then click Connect.
WPS
RT-N10
Client
Modem
Wireless Router
16 RT-N10 Chapter 3: Conguring the clients
Setting up the AP mode using the QIS
In the AP mode, the RT-N10 receives the WAN IP address from the router
connected to the WAN port and provides you with wireless radio. The NAT, rewall,
and IP sharing services are disabled.
To set up the AP mode using the QIS:
1. Connect your devices.
WPS
RT-N10
Client
Modem
Router
2. Launch the web browser and the QIS web page appears automatically. Choose
the AP mode, then click Next.
Note: If the QIS web page does not appear after you launched the web browser, disable the
proxy settings of the web browser.
3. Congure the wireless security settings including the SSID, authentication and
encryption methods. Click Finish.
17
Chapter 3: Conguring the clients RT-N10
3
Conguring the
network clients
Accessing the wireless router
Setting an IP address for wired or wireless clients
To access the ASUS Wireless Router, you must have the correct TCP/IP settings
on your wired or wireless clients. Ensure that the clients’ IP addresses are within
the same subnet as the ASUS Wireless Router.
By default, the ASUS Wireless Router integrates the DHCP server function, which
automatically assigns IP addresses to the clients in your network.
But in some instances, you may want to manually assign static IP addresses on
some of the clients or computers in your network rather than automatically getting
IP addresses from your wireless router.
Follow the instructions below that correspond to the operating system installed on
your client or computer.
Note: In the Router mode, if you want to manually assign an IP address to your client, we
recommend that you use the following settings:
• IP address: 192.168.1.xxx (xxx can be any number between 2 and 254. Ensure that the IP
address is not used by another device)
• Subnet Mask: 255.255.255.0 (same as the ASUS Wireless Router)
• Gateway: 192.168.1.1 (IP address of the ASUS Wireless Router)
• DNS: 192.168.1.1 (ASUS Wireless Router) or assign a known DNS server in your network
18 RT-N10 Chapter 3: Conguring the clients
Windows® 9x/ME
1. Click Start > Control Panel >
Network to display the Network
setup window.
2. Select TCP/IP then click
Properties.
3. If you want your computer to
automatically obtain an IP address,
click Obtain an IP address
automatically then click OK.
Otherwise, click Specify an
IP address, then key in the IP
address and Subnet Mask.
19
Chapter 3: Conguring the clients RT-N10
4. Select the Gateway tab, and key in
New gateway then click Add.
5. Select the DNS conguration tab
and click Enable DNS. Key in Host,
Domain, and DNS Server Search
Order, then click Add.
6. Click OK.
20 RT-N10 Chapter 3: Conguring the clients
Windows® NT4.0
1. Go to Control Panel > Network to
display the Network setup window
then select the Protocols tab.
2. Select TCP/IP Protocol from the
Network Protocols list then click
Properties.
3. From the IP Address tab of the
Microsoft TCP/IP Properties
window, you can:
• Select the type of network
adapter installed in your
system.
• Set the router to assign IP
address automatically.
• Manually set up the IP address,
subnet mask, and default
gateway.
21
Chapter 3: Conguring the clients RT-N10
4. Select the DNS tab then click Add
under the DNS Service Search
Order and key in DNS.
Windows® 2000
1. Click Start > Control Panel >
Network and Dial-up Connection.
Right-click Local Area Connection
then click Properties.
22 RT-N10 Chapter 3: Conguring the clients
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
Windows® XP
1. Click Start > Control Panel >
Network Connection. Right-click
Local Area Connection then select
Properties.
23
Chapter 3: Conguring the clients RT-N10
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
24 RT-N10 Chapter 3: Conguring the clients
Windows® Vista
1. Go to Start > Control Panel >
Network and Internet > Network
and Sharing Center. Click View
status > Properties > Continue.
2. Select Internet Protocol
Version 4 (TCP/IPv4), then click
Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address:
and key in IP address and
Subnet mask.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings
to be assigned automatically.
Otherwise, select Use the
following DNS server
addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
25
Chapter 4: Conguring via the web GUI RT-N10
4
Conguring via
the web GUI
Conguring via the web GUI
The router’s web graphics user interface (web GUI) allows you to congure these
features: Network Map and EZQoS Bandwidth Management.
To access the web GUI:
1. In the Router mode, launch a web browser, then key in the router’s default IP
address (192.168.1.1). The login page of the router’s web GUI appears.
2. On the login page, key in the default user name (admin) and password
(admin).
Note: In the Repeater and AP modes, use Device Discovery included in the support CD to nd
the router’s IP address.
26 RT-N10 Chapter 4: Conguring via the web GUI
3. From the main page, click the navigation menu or links to congure the various
features of the ASUS Wireless Router.
Using the Network Map
Network Map allows you to view the status and congure the connection settings
of the Internet, system, and clients in your network. It enables you to quickly set up
your Wide Area Network (WAN) using the Quick Internet Setup (QIS) feature, or to
quickly set up your Local Area Network (LAN) using the WPS Wizard.
Note: For more details on WPS, refer to the section WPS Wizard in Chapter 5 of this user
manual.
To view the status or congure the settings, click any of these icons displayed on
the main page:
Icon Description
Internet status
Click this icon to display information on the Internet
connection status, WAN IP address, DNS, connection type,
and gateway address. From the Internet status screen, use
the Quick Internet Setup (QIS) feature to quickly set up your
WAN.
System status
Click this icon to display information on the SSID,
authentication method, WEP encryption, LAN IP, PIN code,
MAC address, or turn the wireless radio on/off. Launch the
WPS wizard from the System status screen.
27
Chapter 4: Conguring via the web GUI RT-N10
Using the Quick Internet Setup (QIS) again
The Quick Internet Setup (QIS) web page appears automatically after you
connected your devices and launched the web browser.
You may also click GO in the QIS eld under Internet status to launch the QIS.
Icon Description
Client status
Click this icon to display information about the clients or
computers in the network, and allows you to block/unblock
a client.
28 RT-N10 Chapter 4: Conguring via the web GUI
Creating multiple SSID proles
The RT-N10 allows you to create multiple SSID proles that meet various working
scenarios.
To create a SSID prole:
1. Under System status, click Add SSID.
2. Congure the prole settings, then click Add.
3. Click Apply all setting to save the new settings.
29
Chapter 4: Conguring via the web GUI RT-N10
Managing bandwidth with EzQoS
EzQoS Bandwidth Management enables you to set the bandwidth priority and
manage the network trafc.
To set up the bandwidth priority:
1. Click EzQoS Bandwidth Management from the navigation menu at the left
side of your screen.
2. Click each of these four applications to set the bandwidth priority:
Icon Description
Gaming Blaster
The router handles gaming trafc at rst priority.
Internet Application
The router handles the e-mail, web browsing and other Internet
applications trafc at rst priority.
FTP
The router handles at rst priority the trafc of downloading/
uploading data to/from the FTP server.
Voip/Video Streaming
The router handles the audio/video trafc at rst priority.
3. Click Save to save the conguration settings.
30 RT-N10 Chapter 4: Conguring via the web GUI
Upgrading the rmware
Note: Download the latest rmware from the ASUS website at http://www.asus.com
To upgrade the rmware:
1. Click Advanced Setting from the navigation menu at the left side of your
screen.
2. Under the Administration menu, click Firmware Upgrade.
3. In the New Firmware File eld, click Browse to locate the new rmware on your
computer.
4. Click Upload. The uploading process takes about three minutes.
Note: If the upgrade process fails, the wireless router automatically enters the rescue mode and
the power LED indicator at the front panel ashes slowly. To recover or restore the system, use
the Firmware Restoration utility. For more details on this utility, refer to the section Firmware
Restoration in Chapter 5 of this user manual.

Navigation menu
