Users Manual 2
40
4 Using the utilities
NOTES:
• Install the wireless router's utilities from the bundled support
CD.
• If Autorun is disabled, run setup.exe from the root directory
of the support CD.
Device Discovery
Device Discovery is an ASUS WLAN utility that detects an ASUS
wireless router device, and enables you to configure the device.
To launch the Device Discovery utility:
• From your computer’s desktop, click
Start > All Programs > ASUS Utility > RT-N56U Wireless
Router > Device Discovery.
41
Firmware Restoration
Firmware Restoration is used on an ASUS Wireless Router that
failed during its firmware upgrading process. It uploads the
firmware that you specify. The process takes about three to four
minutes.
TolaunchtherescuemodeandusetheFirmware
Restorationutility:
1. Unplug the wireless router from the power source.
2. Hold the Reset button at the rear panel and simultaneously
re-plug the wireless router into the power source. Release the
Reset button when the Power LED at the front panel flashes
slowly, which indicates that the wireless router is in the rescue
mode.
3. From your computer’s desktop, click
Start > All Programs > ASUS Utility RT-N56U Wireless
Router > Firmware Restoration.
IMPORTANT: Launch the rescue mode before using the
Firmware Restoration utility.
42
NOTE: This is not a firmware upgrade utility and cannot be
used on a working ASUS Wireless Router. Normal firmware
upgrades must be done through the web interface. Refer to
Chapter 3: Configuring via the web GUI for more details.
Download Master
Download Master is a utility that allows you to organize your
HTTP, FTP, and BT (BitTorrent) download tasks.
Using the Download Master
NOTE: To use this feature, you need to plug a USB storage
device, such as a USB hard disk or USB flash drive, to the USB
2.0 port on the rear panel of your wireless router. Ensure that
the USB storage device is formatted and partitioned properly.
Refer to the ASUS website at http://www.asus.com for the
HD file system support table.
To use the Download Master:
1. Launch the Download Master from Start > All Programs
> ASUS Utility > RT-N56U Wireless Router > Download
Master.
2. Click File > Connect to connect to the wireless router.
4. Specify a firmware file, then click Upload.
43
3. Follow the instructions below to organize the download tasks
that you want to perform.
HTTP download
To perform an HTTP download, do any of the following:
• Right-click the download
link on the web page and
select Download using
ASUS Download.
• Right-click the download
link on the web page and
select Properties. Copy
the download Address
(URL).
NOTES:
• If you select Download using ASUS Download, you can
see the download task is added to the Transfer list. The
blue bars indicate the progress rate of the download tasks.
• If you copy the download address, click the Assign button
in the utility. Paste the address into Getting File From box,
select HTTP from Options, and click the Download button
to start.
44
BT download
Save the BT seed on your
computer. Click the Assign
button of the Download
Master and select BT in the
Options field. Click Browser
to locate the seed file and click
Download to start.
FTP download
Click the Assign button of the
Download Master and select
FTP in the Options field. Key
in the FTP site address, Port
number, User Name, Password.
Click Download to start.
45

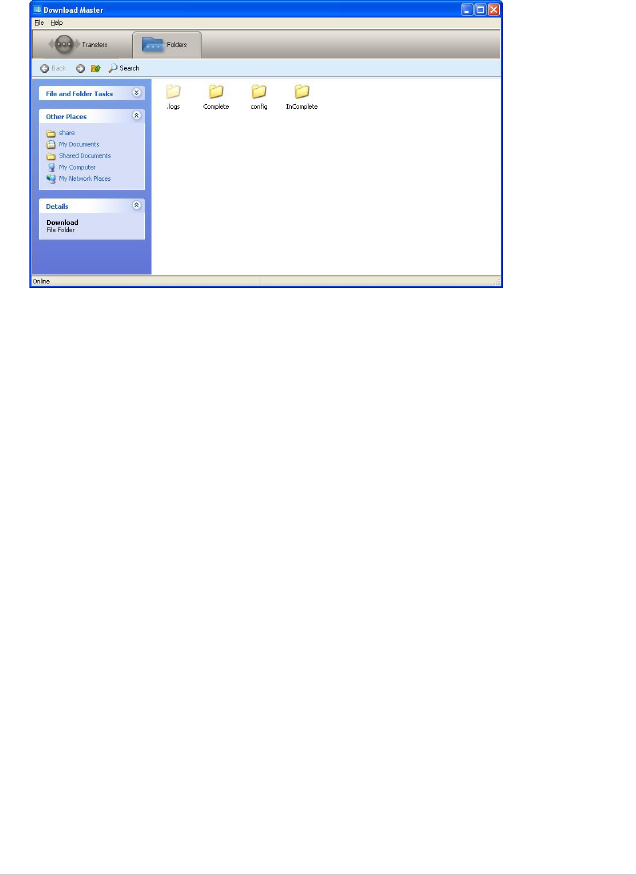

3. Click the Folder button to view the download file. Open
the Complete folder to view or copy the finished files to
your local hard disk. The incomplete tasks are kept in the
InComplete folder.
46
5 Troubleshooting
NOTE: If you encounter problems that are not mentioned in
this chapter, contact the ASUS Technical Support.
Troubleshooting
Icannotaccessawebbrowserforconguringtherouter.
1. Launch your web browser, then click Tools > Internet
Options...
2. Under Temporary Internet files, click Delete Cookies...
and Delete Files...
Theclientcannotestablishawirelessconnectionwith
therouter.
Out of Range:
• Put the router closer to the wireless client.
• Try to change the channel settings.
Authentication:
• Use wired connection to connect to the router.
• Check the wireless security settings.
• Press the Reset button at the rear panel for more than five
seconds.
Cannot find the router:
• Press the Reset button at the rear panel for more than five
seconds.
• Check the setting in the wireless adapter such as SSID and
encryption settings.
NOTE: The commands for deleting cookies and files vary
with the web browser.
47
CannotaccesstheInternetviawirelessLANadapter.
• Move the router closer to the wireless client.
• Check whether the wireless adapter is connected to the
correct wireless router.
• Check whether the wireless channel in use conforms to the
channels available in your country/area.
• Check the encryption settings.
• Check if the ADSL or Cable connection is correct.
• Retry using another Ethernet cable.
Internetisnotaccessible.
• Check the status indicators on the ADSL modem and the
wireless router.
• Check if the WAN LED on the wireless router is ON. If the LED
is not ON, change the cable and try again.
WhenADSLModem“Link”lightisON(notblinking),this
meansInternetAccessispossible.
• Restart your computer.
• Refer to the Quick Start Guide of the wireless router and re-
configure the settings.
• Check if the WAN LED on the wireless router is ON.
• Check the wireless encryption settings.
• Check if the computer can get the IP address (via both wired
network and wireless network).
• Ensure that your web browser is configured to use the local
LAN, and is not configured to use a proxy server.
48
IftheADSL“LINK”lightblinkscontinuouslyorstaysoff,
Internetaccessisnotpossible-theRouterisunableto
establishaconnectionwiththeADSLnetwork.
• Ensure that all your cables are all properly connected .
• Disconnect the power cord from the ADSL or cable modem,
wait a few minutes, then reconnect the cord.
• If the ADSL light continues to blink or stays OFF, contact your
ADSL service provider.
Networknameorencryptionkeysareforgotten.
• Try setting up the wired connection and configuring the
wireless encryption again.
• Press the Reset button at the rear panel of the wireless router
for more than five seconds.
Howtorestorethesystemtoitsdefaultsettings?
• Press the Reset button at the rear panel of the wireless router
for more than five seconds.
• Refer to the section Restoring/Saving/Uploading settings
in Chapter 3 of this user manual.
The following are the factory default settings:
User Name: admin
Password: admin
Enable DHCP: Yes (if WAN cable is plugged in)
IP address: 192.168.1.1
Domain Name: (Blank)
Subnet Mask: 255.255.255.0
DNS Server 1: 192.168.1.1
DNS Server 2: (Blank)
SSID: ASUS
49
IcannotaccesstheInternetviatheASUSWirelessRouter
asamobilerouter(bothwiredandwirelessconnection).
• Verify if your 3G USB adapter is supported from the ASUS
website at www.asus.com.
• Download the latest firmware for your router from the ASUS
website at www.asus.com and upgrade the router.
• Verify if you have activated your 3G USB adapter correctly.
Connect it directly to a computer and test the Internet
connection.
• Verify if your ISP provides signal coverage at your location.
• Verify if you have configured the HSDPA settings correctly.
IcannotaccesstheInternetviatheASUSWirelessRouter
asamobilerouter(wirelessconnection).
• Check the router’s SSID and ensure that you are trying to
connect to the correct network.
• Check the security settings on the router and ensure that you
have the same security settings on your device.
• Move the router to a higher position.
• Move your device closer to the router.
50
ASUS DDNS Service
RT-N56U supports the ASUS DDNS service. When exchanging
devices at the service center, if you have registered the ASUS
DDNS service and want to keep the original domain name,
data transfer is a must. Visit your local service center for more
information.
NOTES:
• If there is no activity in the domain - such as reconfiguring
the router or accessing the registered domain name - within
90 days, the system automatically deletes the registered
information.
• If you encounter any problem or difficulty in using your
device, contact the service center.
Frequently Asked Questions (FAQs)
1. Will the registered information be lost or registered by
others?
If you have not updated the registered information in
90 days, the system automatically deletes the registered
information and the domain name may be registered by
others.
2. I did not register the ASUS DDNS for the router I
bought six months ago. Can I still register it?
Yes, you can still register the ASUS DDNS service for your
router. The DDNS service is embedded in your router, so
you can register the ASUS DDNS service anytime. Before
registering, click Query to check if the hostname has been
registered or not. If not, the system registers the hostname
automatically.
51
3. I have registered a domain name before and it has been
working well until my friends told me that they could
not access my domain name.
Check the following:
1. The internet is working well.
2. The DNS server is working well.
3. The last time you updated the domain name.
If there are still problems in accessing your domain name,
contact the service center.
4. Can I register two domain names to separately access
my http and ftp servers?
No, you cannot. You can only register one domain name for
one router. Use port mapping to implement security in the
network.
5. After restarting the router, why is it that I see different
WAN IPs in MS DOS and in the router configuration
page?
This is normal. The interval time between the ISP DNS server
and ASUS DDNS results in different WAN IPs in MS DOS and
in the router configuration page. Different ISPs may have
different interval time for IP updating.
6. Is the ASUS DDNS service free, or is it just a trial
version?
The ASUS DDNS service is a free and embedded service in
some ASUS routers. Check your ASUS router if it supports the
ASUS DDNS service.
52
Appendices
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
53
Prohibition of Co-location
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter
Safety Information
To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum
distance 20cm between the radiator and your body. Use on the
supplied antenna.
Declaration of Conformity for R&TTE directive 1999/5/
EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been
conducted. These are considered relevant and sufcient.
Protection requirements for electromagnetic compatibility
– Article 3.1b
Testing for electromagnetic compatibility according to EN 301
489-1 and EN 301 489-17 has been conducted. These are
considered relevant and sufcient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328- 2 has
been conducted. These are considered relevant and sufcient.
CE Mark Warning
This is a Class B product, in a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Canada
Notices
Industry Canada regulatory information
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
The user is cautioned that this device should be used only as specied
within this manual to meet RF exposure requirements. Use of this
device in a manner inconsistent with this manual could lead to
excessive RF exposure conditions.
54
NCC 警語
經型式認證合格之低功率射頻電機，非經許可，公司、商號或
使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經
發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻
射性電機設備之干擾。
GNU General Public License
Licensing information
This product includes copyrighted third-party software licensed
under the terms of the GNU General Public License. Please
see The GNU General Public License for the exact terms and
conditions of this license. We include a copy of the GPL with
every CD shipped with our product. All future firmware updates
will also be accompanied with their respective source code.
Please visit our web site for updated information. Note that we
do not offer direct support for the distribution.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of
this license document, but changing it is not allowed.
55
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share
and change free software--to make sure the software is free for
all its users. This General Public License applies to most of the
Free Software Foundation’s software and to any other program
whose authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library General
Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom,
not price. Our General Public Licenses are designed to make sure
that you have the freedom to distribute copies of free software
(and charge for this service if you wish), that you receive source
code or can get it if you want it, that you can change the
software or use pieces of it in new free programs; and that you
know you can do these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the
rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get
the source code. And you must show them these terms so they
know their rights.
56
We protect your rights with two steps: (1) copyright the
software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make
certain that everyone understands that there is no warranty for
this free software. If the software is modified by someone else
and passed on, we want its recipients to know that what they
have is not the original, so that any problems introduced by
others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software
patents. We wish to avoid the danger that redistributors of a
free program will individually obtain patent licenses, in effect
making the program proprietary. To prevent this, we have made
it clear that any patent must be licensed for everyone’s free use
or not licensed at all.
The precise terms and conditions for copying, distribution and
modification follow.
Terms&conditionsforcopying,distribution,&
modication
0. This License applies to any program or other work which
contains a notice placed by the copyright holder saying it
may be distributed under the terms of this General Public
License. The “Program”, below, refers to any such program
or work, and a “work based on the Program” means either
the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion
of it, either verbatim or with modifications and/or translated
into another language. (Hereinafter, translation is included
without limitation in the term “modification”.) Each licensee
is addressed as “you”.
57
Activities other than copying, distribution and modification
are not covered by this License; they are outside its scope.
The act of running the Program is not restricted, and the
output from the Program is covered only if its contents
constitute a work based on the Program (independent of
having been made by running the Program). Whether that is
true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s
source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy
an appropriate copyright notice and disclaimer of warranty;
keep intact all the notices that refer to this License and to the
absence of any warranty; and give any other recipients of the
Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a
copy, and you may at your option offer warranty protection
in exchange for a fee.
2. You may modify your copy or copies of the Program or any
portion of it, thus forming a work based on the Program, and
copy and distribute such modifications or work under the
terms of Section 1 above, provided that you also meet all of
these conditions:
a) You must cause the modified files to carry prominent
notices stating that you changed the files and the date of
any change.
b) You must cause any work that you distribute or publish,
that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no
charge to all third parties under the terms of this License.
c) If the modified program normally reads commands
interactively when run, you must cause it, when started
running for such interactive use in the most ordinary way, to
print or display an announcement including an appropriate
copyright notice and a notice that there is no warranty (or
58
else, saying that you provide a warranty) and that users may
redistribute the program under these conditions, and telling
the user how to view a copy of this License. (Exception: if the
Program itself is interactive but does not normally print such
an announcement, your work based on the Program is not
required to print an announcement.)
These requirements apply to the modified work as a whole.
If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections
as part of a whole which is a work based on the Program,
the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of
who wrote it.
Thus, it is not the intent of this section to claim rights or
contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribution of
derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on
the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium
does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based
on it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you
also do one of the following:
a) Accompany it with the complete corresponding machine-
readable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily
used for software interchange; or,
59
b) Accompany it with a written offer, valid for at least three
years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to
be distributed under the terms of Sections 1 and 2 above on
a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to
the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and
only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of
the work for making modifications to it. For an executable
work, complete source code means all the source code
for all modules it contains, plus any associated interface
definition files, plus the scripts used to control compilation
and installation of the executable. However, as a special
exception, the source code distributed need not include
anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel,
and so on) of the operating system on which the executable
runs, unless that component itself accompanies the
executable.
If distribution of executable or object code is made by
offering access to copy from a designated place, then
offering equivalent access to copy the source code from the
same place counts as distribution of the source code, even
though third parties are not compelled to copy the source
along with the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense or distribute
the Program is void, and will automatically terminate your
rights under this License. However, parties who have received
copies, or rights, from you under this License will not have
their licenses terminated so long as such parties remain in full
compliance.
60
5. You are not required to accept this License, since you have
not signed it. However, nothing else grants you permission
to modify or distribute the Program or its derivative works.
These actions are prohibited by law if you do not accept this
License. Therefore, by modifying or distributing the Program
(or any work based on the Program), you indicate your
acceptance of this License to do so, and all its terms and
conditions for copying, distributing or modifying the Program
or works based on it.
6. Each time you redistribute the Program (or any work based
on the Program), the recipient automatically receives a license
from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not
impose any further restrictions on the recipients’ exercise
of the rights granted herein. You are not responsible for
enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the
conditions of this License, they do not excuse you from the
conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and
any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of
the Program.
If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section
is intended to apply and the section as a whole is intended to
apply in other circumstances.
It is not the purpose of this section to induce you to infringe
any patents or other property right claims or to contest
61
validity of any such claims; this section has the sole purpose
of protecting the integrity of the free software distribution
system, which is implemented by public license practices.
Many people have made generous contributions to the
wide range of software distributed through that system in
reliance on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to distribute
software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is
believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted
in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the
Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that
distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation
as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or
new versions of the General Public License from time to
time. Such new versions will be similar in spirit to the present
version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the
Program specifies a version number of this License which
applies to it and “any later version”, you have the option
of following the terms and conditions either of that version
or of any later version published by the Free Software
Foundation. If the Program does not specify a version number
of this License, you may choose any version ever published by
the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other
62
free programs whose distribution conditions are different,
write to the author to ask for permission.
For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be
guided by the two goals of preserving the free status of all
derivatives of our free software and of promoting the sharing
and reuse of software generally.
NOWARRANTY
11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU.
SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
63
Copyright © 2010 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is
repaired, modified or altered, unless such repair, modification of alteration
is authorized in writing by ASUS; or (2) the serial number of the product is
defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS,
OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN
THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not
be registered trademarks or copyrights of their respective companies, and
are used only for identification or explanation and to the owners’ benefit,
without intent to infringe.
REACH
Complying with the REACH (Registration, Evaluation,
Authorisation, and Restriction of Chemicals) regulatory
framework, we published the chemical substances in our
products at ASUS REACH website at
http://csr.asus.com/english/REACH.htm.
64
ASUS Contact information
ASUSTeK COMPUTER INC. (Asia Pacific)
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Website www.asus.com.tw
Technical Support
Telephone +886228943447
Support Fax +886228907698
Online support support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +15029550883
Fax +15029338713
Website usa.asus.com
Online support support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Fax +492102959911
Website www.asus.de
Online contact www.asus.de/sales
Technical Support
Telephone (Component) +491805010923*
Telephone
(System/Notebook/Eee/LCD) +491805010920*
Fax +492102959911
Online support support.asus.com
* EUR 0.14/minute from a German fixed landline; EUR 0.42/minute from a mobile
phone.
65
Manufacturer: ASUSTeK Computer Inc.
Tel: +886-2-2894-3447
Address: No. 150, LI-TE RD., PEITOU,
TAIPEI 112, TAIWAN
Authorised
representative
in Europe:
ASUS Computer GmbH
Address: HARKORT STR. 21-23, 40880
RATINGEN, GERMANY
Authorised
distributors
in Turkey:
BOGAZICI BIL GISAYAR SAN. VE TIC.
A.S.
Tel: +90 212 3311000
Address: AYAZAGA MAH.
KEMERBURGAZ CAD. NO.10
AYAZAGA/ISTANBUL
INDEX BILGISAYAR SISTEMLERI
MUHENDISLIK SAN. VE TIC. A.S.
Tel: +90 212 3312121
Address: AYAZAGA MAH. CENDERE
YOLU NO.9 AYAZAGA/
ISTANBUL
EEE Yönetmeliğine Uygundur.
