ASUSTeK Computer RTN65U Dual-band Wireless-N750 Gigabit Router User Manual
ASUSTeK Computer Inc Dual-band Wireless-N750 Gigabit Router
user manual
RT-N65U
Dual-band Wireless-N750 Gigabit Router
The ultra-thin and stylish RT-N65U features a 2.4GHz and 5GHz dual bands for
an unmatched concurrent wireless HD streaming; SMB server, UPnP AV server,
and FTP server for 24/7 file sharing; a capability to handle 300,000 sessions;
and the ASUS Green Network Technology, which provides up to 70% power-
saving solution.
User Guide
2
E7376
First Edition
April 2012
Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired,
modied or altered, unless such repair, modication of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS
AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent
to infringe.
3
Table of contents
1 A quick look
Package contents ........................................................................................ 5
Your wireless router .................................................................................... 5
Mounting placement ................................................................................. 7
2 Creating your network
Positioning your router.............................................................................. 8
What you need ............................................................................................. 9
Setting up your wireless router ............................................................10
Wired connection ...............................................................................10
Wireless connection ..........................................................................11
Before you proceed ...................................................................................12
A. Disable the proxy server, if enabled. ..................................12
B. Set the TCP/IP settings to automatically obtain an IP
address. ........................................................................... ............14
C. Disable the dial-up connection, if enabled. ....................15
3 ConguringviathewebGUI
Logging into the web GUI ......................................................................16
Setting up the Internet connection ....................................................17
Quick Internet Setup (QIS) with auto-detection .....................17
Setting up the wireless security settings ..........................................21
Managing your network clients ...........................................................23
Monitoring your USB device ..................................................................24
Creating your Guest Network ...............................................................26

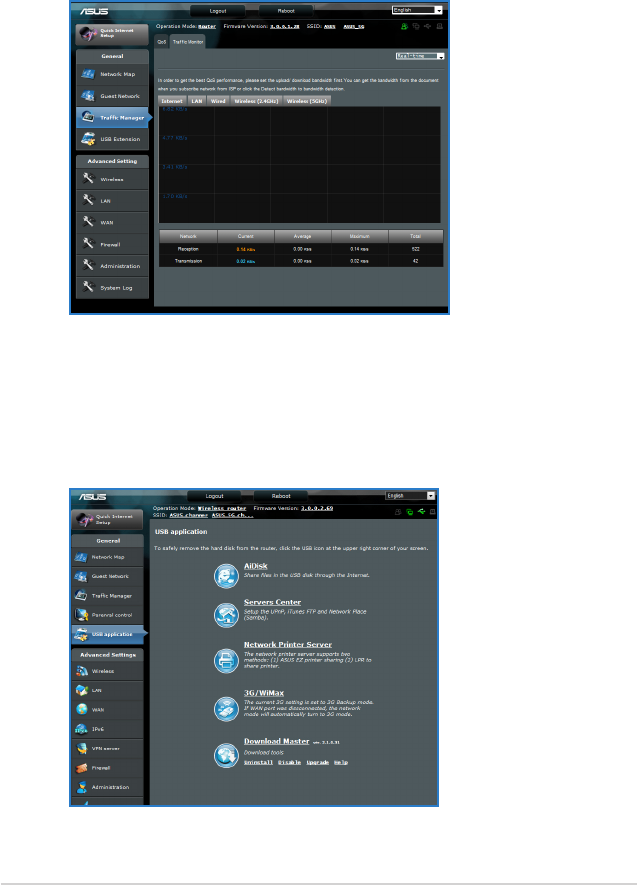

Using the Trac Manager .......................................................................27
Managing QoS (Quality of Service) Bandwidth .......................27
Monitoring Trac ..............................................................................28
Using the USB Extension ........................................................................28
Using AiDisk for Files Sharing ........................................................29
Using the Servers Center service ..................................................32
4
Table of contents
Using the Network Place (Samba) Share service ....................33
Using the FTP Share service............................................................34
Using the Miscellaneous setting ...................................................36
Conguring the Advanced settings ....................................................37
Setting up the DHCP Server ...........................................................37
Upgrading the rmware ..................................................................39
Restoring/Saving/Uploading settings ........................................40

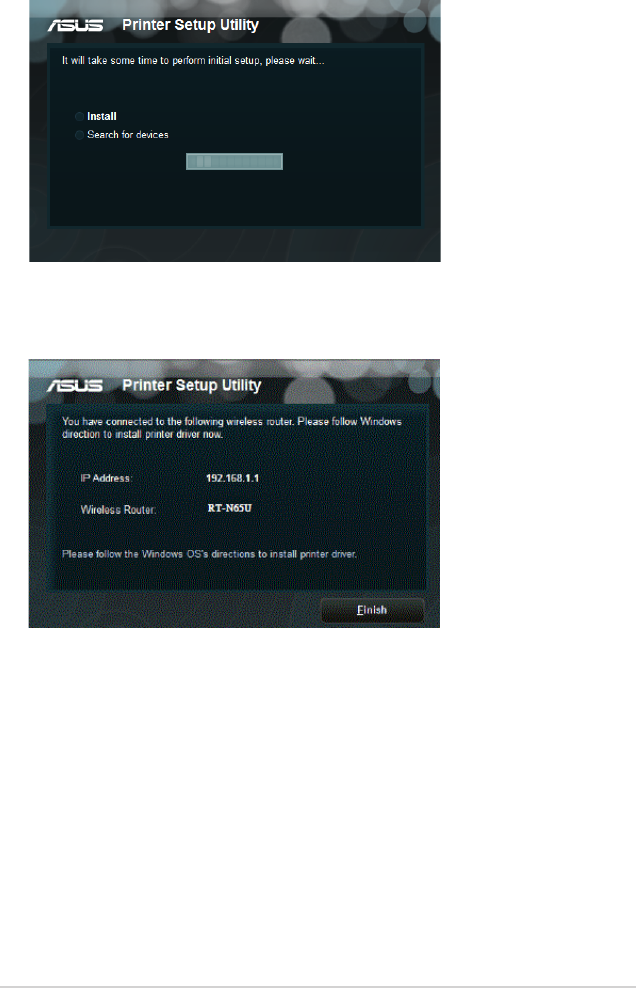

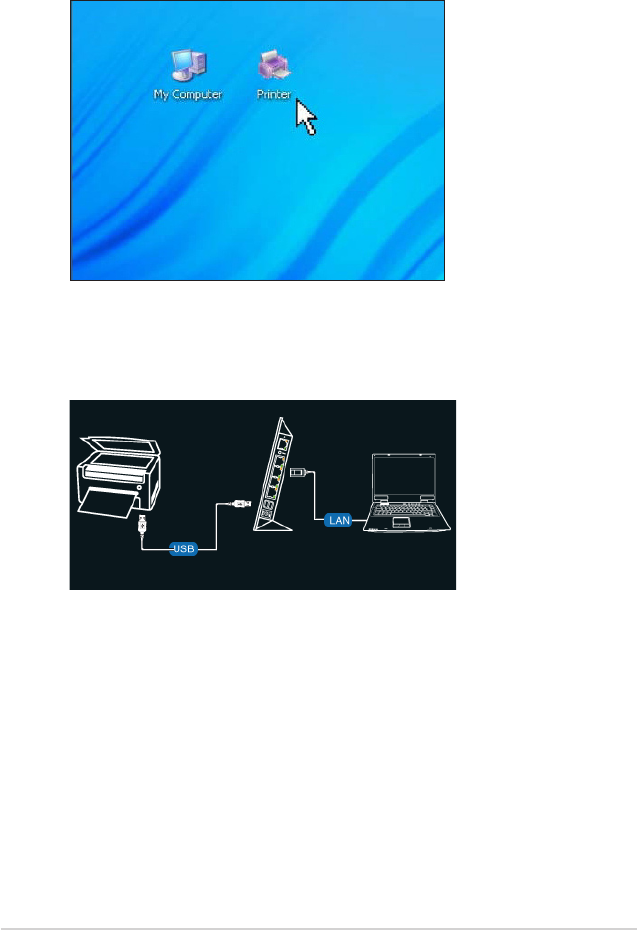

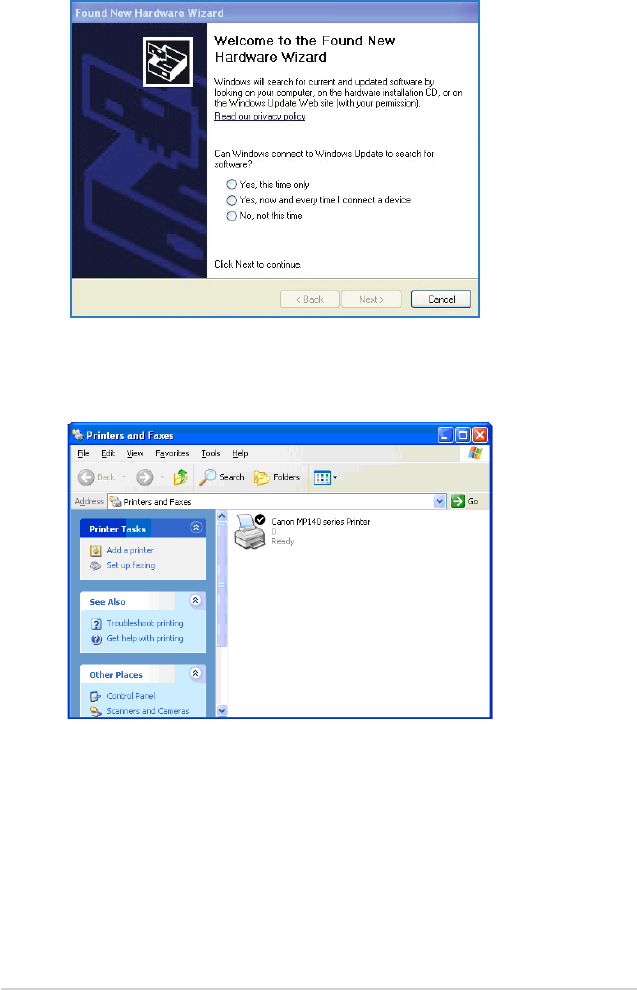

Setting up your network printer ..........................................................41
4 Usingtheutilities
Device Discovery .......................................................................................45
Firmware Restoration ...............................................................................46
5 Troubleshooting
Troubleshooting ........................................................................................48
ASUS DDNS Service ..................................................................................51
Frequently Asked Questions (FAQs) ............................................51
Appendices
Notices ...........................................................................................................53
ASUS Contact information .....................................................................66
Networks Global Hotline Information ................................................67
5
1 A quick look
Your wireless router
Package contents
NOTES:
• If any of the items is damaged or missing, contact ASUS for
technical inquiries and support, Refer to the ASUS Support
Hotline list at the back of this user manual.
• Keep the original packaging material in case you would need
future warranty services such as repair or replacement.
RT-N65U Wireless Router Network cable (RJ-45)
Power adapter Quick Start Guide
Support CD (Manual, utility software) Warranty card
1USB LED
O: No power or no physical connection.
On: Has physical connection to USB devices.
DCIN
ON/OFF
WPS
WPS
1
2
3
4
5
6
7
8
9
10
11
13
12
6
2LAN LED
O: No power or no physical connection.
On: Has physical connection to a local area network (LAN).
3WAN LED
O: No power or no physical connection.
On: Has physical connection to a wide area network (WAN).
45GHz LED
O: No 5GHz signal.
On: Wireless system is ready.
Flashing: Transmitting or receiving data via wireless connection.
52.4GHz LED
O: No 2.4GHz signal.
On: Wireless system is ready.
Flashing: Transmitting or receiving data via wireless connection.
6Power LED
O: No power.
On: Device is ready.
Flashing slow: Rescue mode
Flashing quick: WPS is processing.
7WAN (Internet) port
Connect a network cable into this port to establish WAN connection.
Yellow LED: 1000Mbps connection.
Green LED: 10Mbps/100Mbps connection.
Flashing: Transmitting or receiving data via wired connection.
8Reset button
This button resets or restores the system to its factory default settings.
9LAN 1 ~ 4 ports
Connect network cables into these ports to establish LAN connection.
Yellow LED: 1000Mbps connection.
Green LED: 10Mbps/100Mbps connection.
Flashing: Transmitting or receiving data via wired connection.
USB 3.0 ports
Insert USB 3.0 devices such as USB hard disks or USB ash drives into these ports.
11 Power (DC-In) port
Insert the bundled AC adapter into this port and connect your router to a power source.
Power Switch
Slide up to turn ON the device or slide down to turn it OFF.
13 WPS button
This button launches the WPS Wizard.
10
12
7
Mounting placement
NOTES:
• Use only the adapter that came with your package. Using
other adapters may damage the device.
• Specications:
DC Power adapter DC Output: +19V with max 1.58A current;
+12V with max 2A current
Operating
Temperature 0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
To mount the wireless router into its
stand:
1. Locate the two mounting holes at
the bottom of the wireless router.
2. Latch the stand’s two mounting
hooks to the wireless router’s
mounting holes.
3. Slide the wireless router to
direction of the arrow to secure it
to its stand.
2
2
3
8
2 Creating your network
Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Place the wireless router in a centralized area for a maximum
wireless coverage for the network devices.
• Keep the device away from metal obstructions and away from
direct sunlight.
• Keep the device away from 802.11g or 20MHz only Wi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordless phones, transformers, heavy-duty motors, uorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.
• For the best front-to-rear coverage, place the wireless router in
an upright position.
• For the best up-and-down coverage, place the wireless router
in an inclined position.
• Always update to the latest rmware. Visit the ASUS website at
http://www.asus.com to get the latest rmware updates.
9
What you need
To set up your network, you need one or two computers that meet
the following system requirements:
• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/
1000BaseTX)
• IEEE 802.11a/b/g/n wireless capability
• An installed TCP/IP service
• Web browser such as Internet Explorer, Firefox, Safari, or
Google Chrome
NOTES:
• If your computer does not have built-in wireless capabilities,
you may install an IEEE 802.11a/b/g/n WLAN adapter to your
computer to connect to the network.
• With its dual band technology, your wireless router supports
2.4GHz and 5GHz wireless signals simultaneously. This allows
you to do Internet-related activities such as Internet surng or
reading/writing e-mail messages using the 2.4GHz band while
simultaneously streaming high-denition audio/video les
such as movies or music using the 5GHz band.
• If you are using only one computer with single band
IEEE 802.11b/g/n WLAN adapter, you will only be able to use
the 2.4GHz band.
• If you are using only one computer with dual band
IEEE 802.11a/b/g/n WLAN adapter, you will be able to use the
2.4GHz or 5GHz band.
• If you are using two computers with both
IEEE 802.11a/b/g/n WLAN adapters, you will be able to use
both 2.4GHz and 5GHz bands simultaneously.
• The Ethernet RJ-45 cables that will be used to connect the
network devices should not exceed 100 meters.
10
Setting up your wireless router
Wired connection
IMPORTANT!
• Use wired connection in setting up your wireless router to
avoid possible setup problems due to wireless uncertainty.
• Before setting up your ASUS wireless router, do the following:
• If you are replacing an existing router, disconnect it from
your network.
• Disconnect the cables/wires from your existing modem
setup. If your modem has a backup battery, remove it as
well.
• Reboot your computer (recommended).
NOTE: Your wireless router has an integrated auto-crossover
function, so use either straight-through or crossover cable for
wired connection.
DCIN
ON/OFF
Modem
1
2
3
4
To set up your wireless router via wired connection:
1. Insert your wireless router’s AC adapter to the DC-In port and
plug it to a power outlet.
11
2. Using the bundled network cable, connect your computer to
your wireless router’s LAN port.
IMPORTANT! Ensure that the LAN LED is blinking.
3 Using another network cable, connect your modem to your
wireless router’s WAN port.
4. Insert your modem’s AC adapter to the DC-In port and plug it
to a power outlet.
Wireless connection
Modem
DCIN
ON/OFF
1
2
3
To set up your wireless router via wired connection:
1. Insert your wireless router’s AC adapter to the DC-In port and
plug it to a power outlet.
2 Using the bundled network cable, connect your modem to
your wireless router’s WAN port.
3. Insert your modem’s AC adapter to the DC-In port and plug it
to a power outlet.
4. Install an IEEE 802.11a/b/g/n WLAN adapter on your computer.
12
NOTES:
• For details on connecting to a wireless network, refer to the
WLAN adapter’s user manual.
• To set up the security settings for your network, refer to the
section Setting up the wireless security settings in this user
manual.
Before you proceed
A. Disable the proxy server, if enabled.
Windows® 7
1. Click Start > Internet Explorer to
launch the browser.
2. Click Tools > Internet options >
Connections tab > LAN settings.
NOTE: Before conguring your wireless router, do the steps
described in this section for your host computer and network
clients.
13
3. From the Local Area
Network (LAN) Settings
screen, untick Use a proxy
server for your LAN.
4. Click OK when done.
MAC OS
1. From your Safari
browser, click Safari >
Preferences > Advanced
> Change Settings...
2. From the Network
screen, deselect FTP
Proxy and Web Proxy
(HTTP).
3. Cllick Apply Now when
done.
NOTE: Refer to your browser's help feature for details on
disabling the proxy server.
14
3. To obtain the iPv4 IP
settings automatically,
tick Obtain an IP address
automatically.
To obtain the iPv6 IP
settings automatically, tick
Obtain an IPv6 address
automatically.
4. Click OK when done.
B. Set the TCP/IP settings to automatically obtain an IP
address.
Windows® 7
1. Click Start > Control Panel
> Network and Internet >
Network and Sharing Center >
Manage network connections.
2. Select Internet Protocol
Version 4 (TCP/IPv4) or
Internet Protocol Version
6 (TCP/IPv6), then click
Properties.
15
MAC OS
1. Click the Apple icon
located on the top left of
your screen.
2. Click System Preferences
> Network > Congure...
3. From the TCP/IP tab,
select Using DHCP in the
Congure IPv4 dropdown
list.
4. Cllick Apply Now when
done.
C. Disable the dial-up connection, if enabled.
Windows® 7
1. Click Start > Internet Explorer to
launch the browser.
2. Click Tools > Internet options >
Connections tab.
3. Tick Never dial a connection.
4. Click OK when done.
NOTE: Refer to your operating system’s help and support
feature for details on conguring your computer’s TCP/IP
settings.
NOTE: Refer to your browser's help feature for details on
disabling the dial-up connection.
16
3 Configuring via the web GUI
Logging into the web GUI
Your ASUS Wireless Router comes with an intuitive web graphics
user interface (GUI) that allows you to easily configure its various
features through a web browser such as Internet Explorer, Firefox,
Safari, or Google Chrome.
To log into the web GUI:
1. On your web browser such as Internet Explorer, Firefox, Safari,
or Google Chrome, manually key in the wireless router’s default
IP address: 192.168.1.1
2. On the login page, key in the
default user name (admin)
and password (admin).
NOTES:
• For your network clients, ensure that you set the TCP/IP
settings to obtain IP addresses automatically, disable the
proxy server settings, disable the dial-up settings, and cancel
the dial-up connection.
• For more details, refer to the section Before you proceed in
this user manual.
17
3. The wireless router’s web GUI launches. Use the web GUI to
configure various settings.
Setting up the Internet connection
NOTE: When setting the Internet connection for the first time,
press the Reset button on your wireless router to reset it to its
factory default settings.
Quick Internet Setup (QIS) with auto-detection
The Quick Internet Setup (QIS) function guides you in quickly
setting up your Internet connection.
To use QIS with auto-detection:
1. Launch a web browser such as Internet Explorer, Firefox, Safari,
or Google Chrome.
18
2. The wireless router automatically detects if your ISP connection
type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP. Key in
the necessary information for your ISP connection type.
IMPORTANT! Obtain the necessary information about your
Internet connection type from your ISP.
19
NOTES:
• The auto-detection of your ISP connection type takes place
when you configure the wireless router for the first time or
when your wireless router is reset to its default settings.
• If QIS failed to detect your Internet connection type, click Skip
to manual setting and manually configure your connection
settings.
• If QIS failed to launch automatically, manually launch your
wireless router's web GUI to access the QIS page. To do this,
follow these steps:
• On your web browser, key in http://192.168.1.1
• On the login page, key in the default username admin and
password admin.
• Click the Quick Internet Setup icon from the upper left
corner of the Network Map page.
3. Assign the network name (SSID) and security key for your
2.4GHz and 5 GHz wireless connection. Click Apply when done.
20
4. Your Internet and wireless settings are displayed. Click Next to
continue.
5. Read the wireless network connection tutorial. When done,
click Finish.
21
Setting up the wireless security settings
To protect your wireless network from unauthorized access, you
need to configure its security settings.
To set up the wireless security settings:
1. Key in 192.168.1.1 on your web browser.
2. On the login screen, key in the default user name (admin) and
password (admin), then click OK. The wireless router’s web GUI
launches.

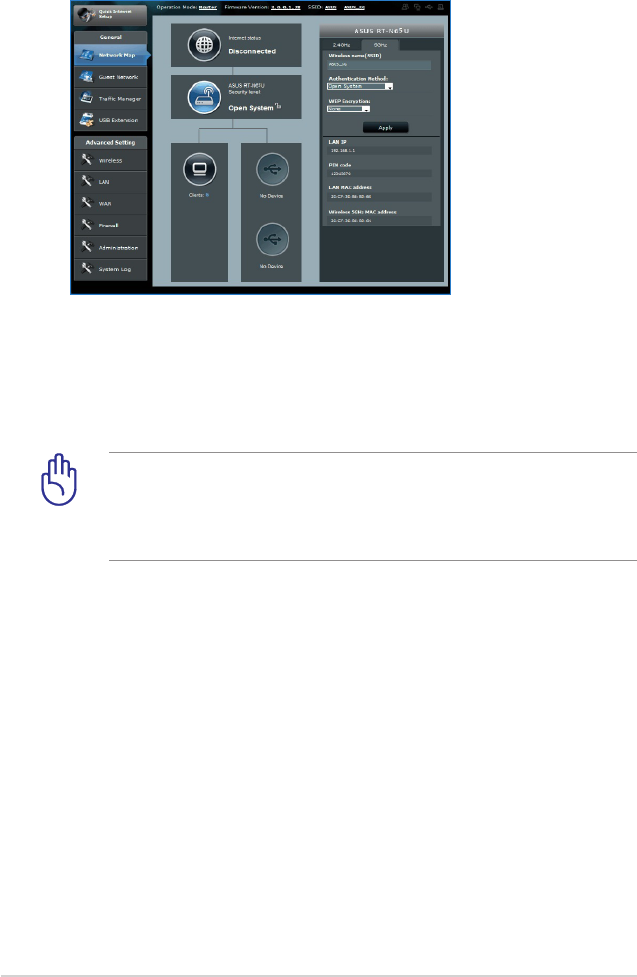

3. On the Network Map screen, select the System status icon to
display the wireless security settings such as SSID, security level,
and encryption settings.
NOTE: You can set up different wireless security settings for
2.4GHz and 5GHz bands.
2.4GHz security settings
22
5GHz security settings
4. On the Wireless name (SSID) field, key in a unique name for
your wireless network.
5. From the Security Level dropdown list, select the encryption
method for your wireless network.
IMPORTANT! The IEEE 802.11n standard prohibits using
High Throughput with WEP or WPA-TKIP as the unicast cipher. If
you use these encryption methods, your data rate will drop to
IEEE 802.11g 54Mbps connection.
6. Key in your security passkey.
7. Click Apply when done.
23
Managing your network clients
To manage your network clients:
1. Launch the wireless router’s web GUI.
2. On the Network Map screen, select the Client Status icon to
display the information about your network clients.
24
NOTE: To use this feature, you need to plug a USB storage
device, such as a USB hard disk or USB flash drive, to the USB 3.0
port on the rear panel of your wireless router. Ensure that the
USB storage device is formatted and partitioned properly. Refer
to the Plug-n-Share Disk Support List at
http://event.asus.com/networks/disksupport
IMPORTANT! You first need to create a user account to
allow other network clients to access the USB device. For more
details, refer to the section Using AiDisk for sharing files in this
user manual.
To monitor your USB device:
1. Launch the wireless router’s web GUI.
2. On the Network Map screen, select the USB Disk Status icon to
display the information about your USB device.
Monitoring your USB device
The ASUS Wireless Router provides two USB 3.0 ports for
connecting USB devices such as a USB storage device and USB
printer, to allow you to monitor the working environment, share
files, and printer with clients in your network.
25
NOTES:
• For more details, refer to the section Using the Network Place
(Samba) Share service and Using the FTP Share service in
this user manual.
• On USB External HDD/Flash disk:
• The wireless router works with most USB HDDs/Flash disks
(up to 2TB size) and supports read-write access for FAT16,
FAT32, EXT2, EXT3, and NTFS.
• To safely remove the USB disk, launch the web GUI
(http://192.168.1.1), then in the upper right corner of
Network Map page click the USB icon > click Eject USB1.
• Incorrect removal of the USB disk may cause data
corruption.
3. On the AiDisk Wizard field, click GO to set up an FTP server for
Internet file sharing.
26
Creating your Guest Network
The Guest Network provides Internet connectivity for temporary
visitors without providing access to your private network.
To create your guest network:
1. Launch the wireless router’s web GUI.
2. On the Guest Network screen, click Create to create a network
for your visitors.
27
Using the Traffic Manager
Managing QoS (Quality of Service) Bandwidth
The Quality of Service (QoS) allows you to set the bandwidth
priority and manage the network traffic.
To set up the bandwidth priority:
1. Launch the wireless router’s web GUI.
2. On the Traffic Manager screen, select the QoS tab.
3. Click ON to enable the default rule and fill in the upload and
download bandwidth fields.
NOTE:
• Get the bandwidth information from your ISP.
• If you want to prioritize specific network applications and
network devices, select your preferred priority from the User-
defined QoS rules.
28
Monitoring Traffic
The traffic monitor function allows you to assess the bandwidth
usage and speed of your Internet, LAN, Wired, WLAN (2.4GHz or
5GHz) connections.
Using the USB Extension
The USB Extension function provides AiDisk, Servers Center,
Network Printer Server and Download Master submenus.
29
Using AiDisk for Files Sharing
AiDisk allows you to share files in the USB disk through the
Internet.
NOTE: Before using AiDisk, ensure that you have inserted a
USB disk into the USB port of your wireless router.
To use AiDisk:
1. Click the AiDisk icon in USB Extension.
2. From the Welcome to AiDisk wizard screen, click Go.
30
3. Select the access rights that you want to assign to the clients
accessing your shared data.
4. Create your domain name via the ASUS DDNS services, select I
will use the service and accept the Terms of service and key
in your domain name. When done, click Next.
31
5. Click Finish to finish the setup.
6. To access the FTP site that you created, launch a web browser
or a third-party FTP client utility and key in the ftp link
(ftp://<domain name>) you have previously created.
32
Using the Servers Center service
Your wireless router allows UPnP (Universal Plug and Play)
multimedia devices, such as PS3 and XBox 360, to access
multimedia files from the USB disk connected to your wireless
router.
NOTE: Before using the UPnP Media Server function, install a
wireless adapter on your UPnP device.
To use your router as a Servers center:
1. Click USB Extension from the navigation menu at the left side
of your screen.
2. Select Servers Center. Your wireless router is now ready to
share the media files stored in the USB disk.
33
Using the Network Place (Samba) Share service
Network Place (Samba) Share allows you to set the account and
permission for samba service.
To use Samba share:
1. Click the Network place (Samba) Share tab in the Servers
Center of USB Extension.
2. Click Add, Delete or Modify to add, delete or modify the
account. Click Apply when done.
34
Using the FTP Share service
Sharing files via the FTP server
The ASUS Wireless Router enables you to share files from your
USB storage device via the FTP server with computers in LAN or
through the Internet.
IMPORTANT! To use this feature, you need to insert a USB
storage device, such as a USB hard disk or USB flash drive,
to the USB3.0 port on the rear panel of your wireless router.
Ensure that the USB storage device is formatted and partitioned
properly. Refer to the ASUS website at
http://www.asus com for the HD file system support table.
NOTE: Ensure that you safely remove the USB disk. Incorrect
removal of the USB disk may cause data corruption.
To share files via the FTP server:
1. Ensure that you have set up your FTP server through AiDisk.
2. Enable the DDNS service for FTP server access. To do this, follow
these steps:
a. From the navigation menu, click Advanced > WAN > DDNS
tab.
b. In the Enable the DDNS Client? field, tick Yes.
c. Key in your User Name or E-mail Address and Password or
DDNS key.
d. Key in your Host name. The format should be
xxx.asuscomm.com, where xxx is your host name.
e. When done, click Apply.
3. From the navigation menu, click USB Extension > Servers
Center > FTP Share tab and select the account that you want
to assign access rights to.
35
4. From the list of files/folders, select the type of access rights that
you want to assign for specific files/folders:
• R/W: Select this option to assign read/write access for a
specific file/folder.
• W: Select this option to assign write only access for a
specific file/folder.
• R: Select this option to assign read only access for a specific
file/folder.
• No: Select this option if you do not want to share a specific
file/folder.
5. Click Apply to apply the changes.
6. To access the FTP server, key in the ftp link
ftp://<hostname>.asuscomm.com and your user name and
password on a web browser or a third-party FTP utility.
36
Using the Miscellaneous setting
Miscellaneous setting allows you to configure other settings for
the USB disk, including maximum login user, device name, work
group and language on FTP server.
To use miscellaneous setting:
1. Click the Miscellaneous setting tab in the Servers Center of
USB Extension.
2. Follow the instruction to key in the necessary information.
3. When finish, click Apply.
37
Configuring the Advanced settings
Advanced Setting allows you to configure the advanced features
of your wireless router.
Setting up the DHCP Server
You may enable the DHCP Server function in your wireless router
so your network clients can automatically obtain IP addresses
from your wireless router.
NOTE: The ASUS Wireless Router can support up to 253 IP
addresses for your network.
To set up the DHCP server:
1. Click Advanced Setting from the navigation menu at the left
side of your screen.
2. Under the LAN menu, click DHCP Server.
38
3. In the Enable the DHCP Server? field, tick Yes.
4. In the IP Pool Starting Address field, key in the starting IP
address.
5. In the IP Pool Ending Address field, key in the ending IP
address.
6. In the Lease Time field, key in the time that the IP addresses
expire and the wireless router automatically assigns new IP
Addresses for the network clients.
IMPORTANT!
• For the IP Pool Starting and Ending IP addresses, we
recommend that you use:
• IP address: 192.168.1.xxx (xxx can be any number between
2 and 254)
• IP Pool Starting Address should not be greater than the IP
Pool Ending Address.
39
To upgrade the firmware:
1. Click Advanced Setting from the navigation menu at the left
side of your screen.
2. Under the Administration menu, click Firmware Upgrade.
3. In the New Firmware File field, click Browse to locate the new
firmware in your computer.
4. Click Upload. The uploading process takes about three
minutes.
Upgrading the firmware
NOTE: Download the latest firmware from the ASUS website
at http://www.asus.com
NOTE: If the upgrade process fails, the wireless router
automatically enters the rescue mode and the power LED
indicator at the front panel flashes slowly. To recover or restore
the system, use the Firmware Restoration utility.
40
Restoring/Saving/Uploading settings
To restore/save/upload the settings:
1. Click Advanced Setting from the navigation menu at the left
side of your screen.
2. Under the Administration menu, click Restore/Save/Upload
Setting.
3. Select the tasks that you want to do:
• To restore to the default factory settings, click Restore, and
click OK in the confirmation message.
• To save the current system settings, click Save, and click
Save in the file download window to save the system file in
your preferred path.
• To restore previous system settings, click Browse to locate
the system file that you want to restore, then click Upload.
41
Setting up your network printer
Use the Network Printer Setup utility to set up a USB printer on
your wireless router and allow network clients to access the USB
printer.
NOTES:
• To check if your USB printer is compatible with your ASUS
wireless router, refer to the Plug-n-Share Disk Support List at
http://event.asus.com/networks/disksupport
• The wireless router's printer server function is not supported
on Windows® 2000.
To set up your USB Printer:
1. Click USB Extension from the navigation menu at the left side
of your screen, then click Network Printer Server.
2. Click Download Now! in the ASUS EZ printer sharing mode to
download the network printer utility.
42
4. Follow the onscreen instructions to set up your hardware, then
click Next.
3. Unzip the downloaded file and click the Printer icon to run the
network printer setup program.
43
5. Wait for a few minutes for the initial setup to finish. Click Next.
6. Click Finish to complete the installation.
44
8. After the printer’s driver installation is completed, network
clients can now use the printer.
7. Follow the Windows® OS instructions to install the printer driver.
45
4 Using the utilities
NOTES:
• Install the wireless router's utilities from the bundled support
CD.
• If Autorun is disabled, run setup.exe from the root directory
of the support CD.
Device Discovery
Device Discovery is an ASUS WLAN utility that detects an ASUS
wireless router device, and enables you to configure the device.
To launch the Device Discovery utility:
• From your computer’s desktop, click
Start > All Programs > ASUS Utility > RT-N65U Wireless
Router > Device Discovery.
NOTE: When you set the router to Access Point mode, you
need to use Device Discovery to get the router’s IP address.
46
Firmware Restoration
Firmware Restoration is used on an ASUS Wireless Router that
failed during its firmware upgrading process. It uploads the
firmware that you specify. The process takes about three to four
minutes.
TolaunchtherescuemodeandusetheFirmware
Restoration utility:
1. Unplug the wireless router from the power source.
2. Hold the Reset button at the rear panel and simultaneously
re-plug the wireless router into the power source. Release the
Reset button when the Power LED at the front panel flashes
slowly, which indicates that the wireless router is in the rescue
mode.
3. Use the following to set up your TCP/IP settings:
IP address: 192.168.1.x
Subnet mask: 255.255.255.0
4. From your computer’s desktop, click
Start > All Programs > ASUS Utility RT-N65U Wireless
Router > Firmware Restoration.
IMPORTANT: Launch the rescue mode before using the
Firmware Restoration utility.
47
NOTE: This is not a firmware upgrade utility and cannot be
used on a working ASUS Wireless Router. Normal firmware
upgrades must be done through the web interface. Refer to
Chapter 3: Configuring via the web GUI for more details.
5. Specify a firmware file, then click Upload.
