There are three main types of airport security devices: X-ray machines (used
on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands
(hand-held devices used on people or individual items). You can send your
Eee Pad through airport X-ray machines. But do not send your Eee Pad
through airport magnetic detectors or expose it to magnetic wands.
Airplane Precautions
Ask an airline personnel if you want to use your Eee Pad onboard an aircraft.
Most airlines have restrictions for using electronic devices. Most airlines allow
electronic use only between and not during takeos and landings.
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack
before going on long trips. Remember that the power adapter charges the
battery pack as long as it is plugged into the computer and an AC power source.
Be aware that it takes much longer to charge the battery pack when the Eee Pad
is in use.
Remember to fully charge the battery (8 hours or more) before rst use and
whenever it is depleted to prolong battery life. The battery reaches its maximum
capacity after a few full charging and discharging cycles.
ASUS Eee Pad
2

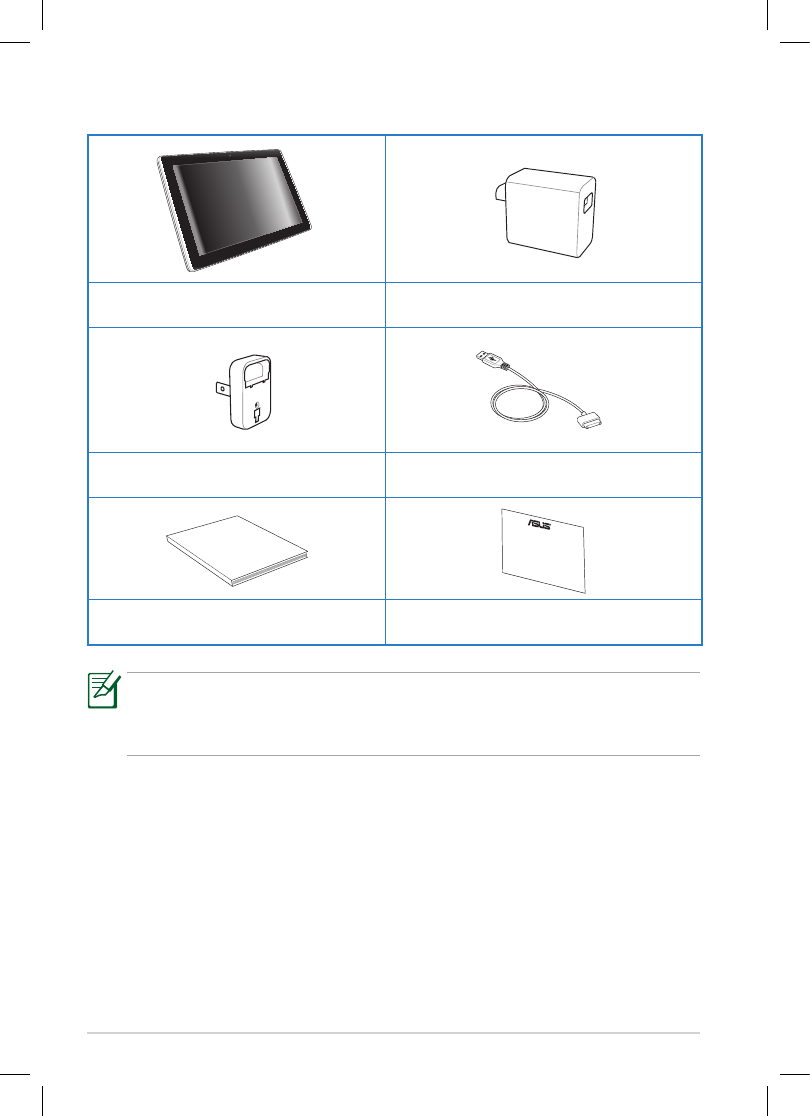

Package Contents
• If any of the items is damaged or missing, contact your retailer.
• The power plug that comes with your Eee Pad may vary depending
on your territory to t the wall outlet.
Eee Pad USB Charger
Power Plug* Docking connector to USB cable
User Manual
User Manual Warranty Card
ASUS Eee Pad
3

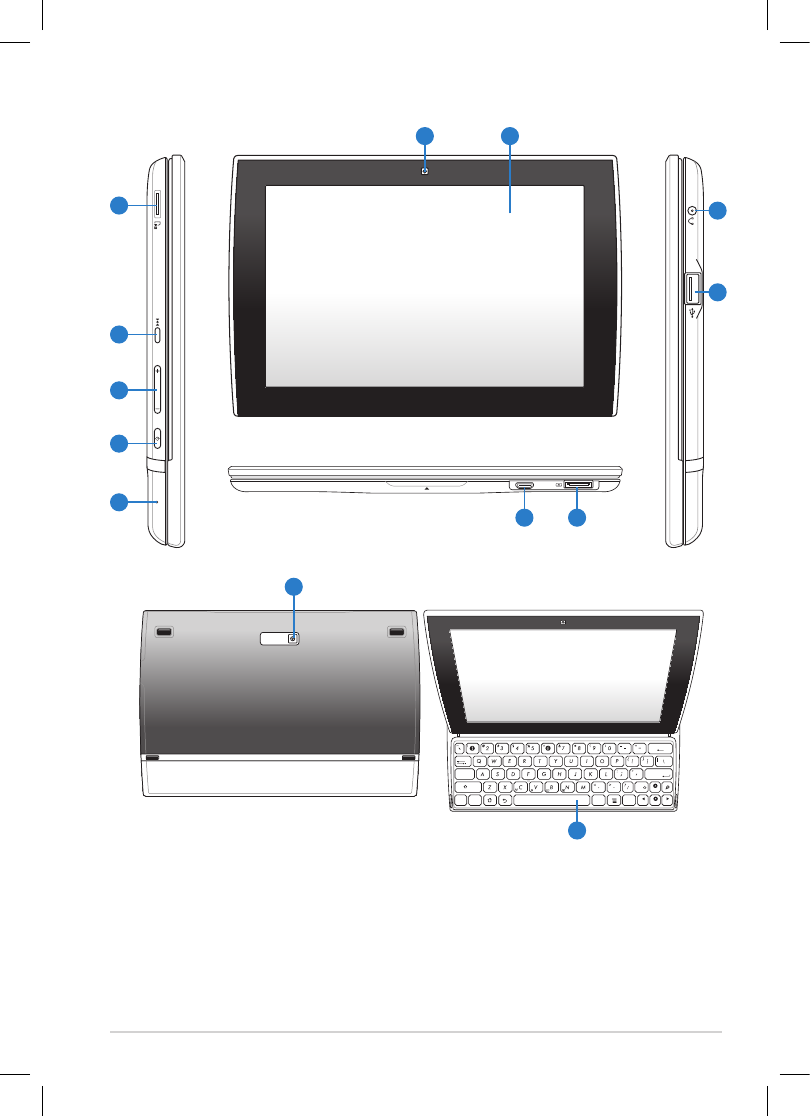

Your Eee Pad
67
HDMI
8 9
10
Home PgDp
PgUp
End
Enter
Backspace
Tab
Caps Lock
Shift Shift
Ctrl Ctrl
Alt
Fn
11
12
13
1
4
3
2
5
ASUS Eee Pad
4
1
Micro SD Card Slot
Insert Micro SD card into this slot.
2
Reset Button
If the system becomes unresponsive, press the reset button to force
the Eee Pad to restart.
Forcing the system to power o may result in data loss. Please
inspect your data to ensure there is no data loss. It is strongly
recommended that important data be backed up regularly.
3
Volume Key
Press this button to increase or decrease the system volume.
4
Power button
The power button turns your Eee Pad on/o. Hold the power button
for 4 seconds and release the button to power on your Eee Pad. When
the Eee Pad is powered on, press the power button to put the Eee
Pad into sleep mode or wake it up from sleep mode. Hold the power
button for 0.5 second to display the shutdown dialog box.
5
Built-in Microphone
The built-in mono microphone can be used for video conferencing,
voice narrations, or simple audio recordings.
6
Built-in front Camera
Use the built-in camera for picture taking, video recording, video
conferencing, and other interactive applications.
7
Touch Screen Panel
The touch screen panel allows you to operate your Eee Pad using
multi-touch up to ten ngers.
8
mini HDMI port
Insert a mini HDMI cable into this port to connect to a high-denition
multimedia interface (HDMI) device.
ASUS Eee Pad
5
9Docking Connector
• Insert the
docking connector to USB cable
to the USB charger,
and then insert the cable into this port to supply power to
your Eee Pad and charge the internal battery pack. To prevent
damage to your Eee Pad and battery pack, always use the
bundled power adapter.
• Connect the docking connector to USB cable to the Eee Pad
and another system (notebook PC or desktop PC) for data
transmission.
10
Built-in rear Camera
Use the built-in camera for picture taking, video recording, video
conferencing, and other interactive applications.
11 Keyboard
The keyboard oers users with the better typing experience than a
on-screen keyboard.
The keyboard printing diers for each territory or country.
12
Headphone Output/Microphone Input Combo Jack
The stereo combo jack (3.5mm) connects the Eee Pad’s audio
out signal to amplied speakers or headphones. Using this jack
automatically disables the built-in speaker.
For microphone input function, the jack supports the headset
microphone ONLY.
13 USB Port (2.0)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB
1.1 devices such as keyboards, pointing devices, ash disk drive and
hard disk drives.
Charging via USB: If you connect your Eee Pad to the USB port
on the computer, the Eee Pad will be charged only when it is in
sleep mode (screen o) or powered o.
ASUS Eee Pad
6

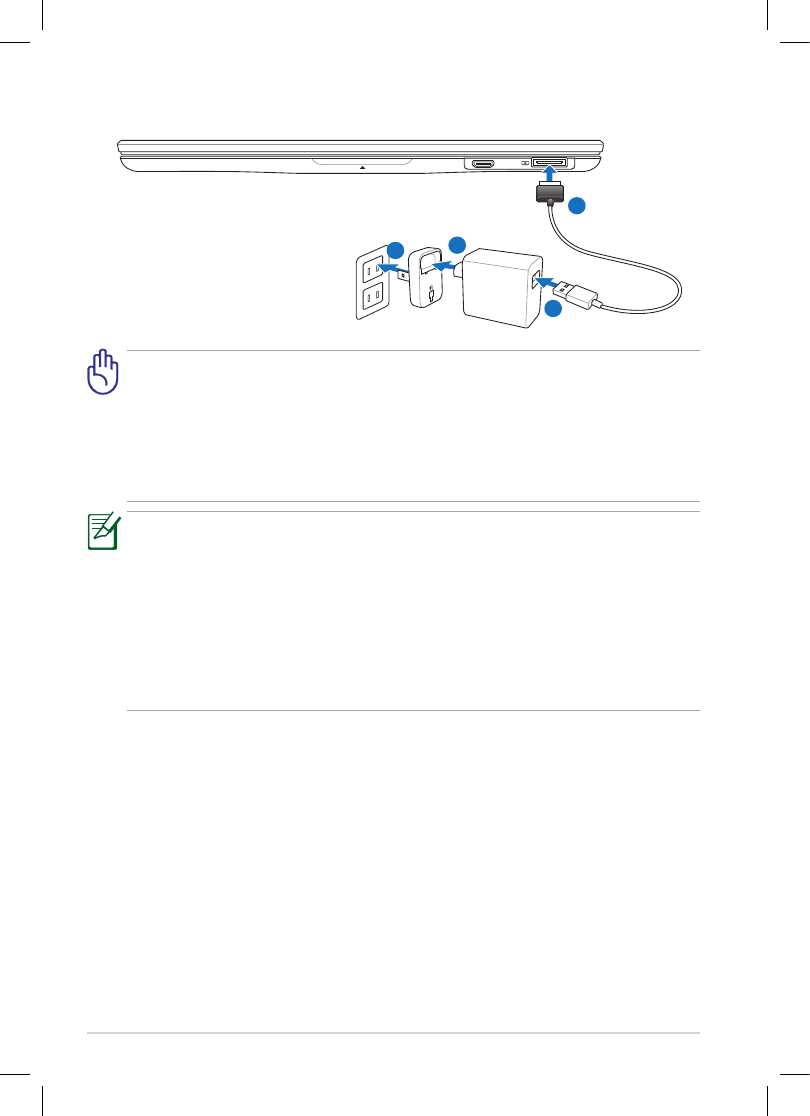

Charging the Eee Pad
HDMI
41
2
3
• To prolong battery life, fully charge the battery for up to 8 hours
when using the Eee Pad for the rst time and whenever the battery
power is fully depleted.
• SL101 can be charged via the USB port on the computer only when
it is in sleep mode (screen o) or powered o.
• Charging through the USB port may take longer time to complete.
• If the computer does not provide enough power for charging Eee
Pad, use the wall outlet instead.
• Use only the power adapter that comes with your device. Using a
dierent power adapter may damage your device.
• Using the provided power adapter and USB cord to connect your Eee
Pad to a power outlet is the best way to charge the Eee Pad.
• The input voltage range between the wall outlet and this adapter is
AC 100V–240V, and the output voltage of this adapter is DC 15V, 1.2A.
ASUS Eee Pad
7
Using the Eee Pad keyboard

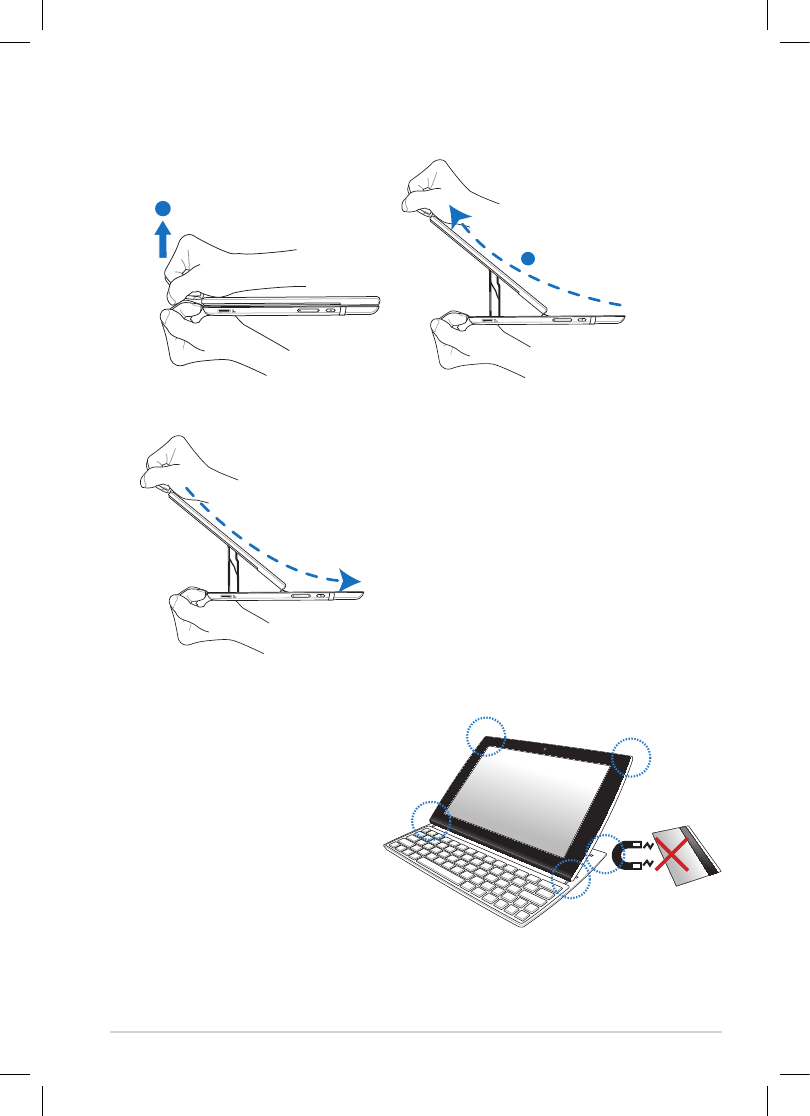

Follow the instructions below to slide open the keyboard.
2
1
Notice on carrying the Eee Pad
Magnets are used to enhance
the stability while folding the
Eee Pad. When carrying your
Eee Pad inside your bag, please
avoid putting cards with
magnetic stripes such as credit
cards or phone cards near the
areas marked in the gure to
prevent demagnetization.
2
1
2
1
Follow the instruction below to fold the keyboard.
ASUS Eee Pad
8
Using File Manager
Internal storage
Open File Manager
and the internal storage
location (/sdcard/) is
displayed.
Removable storage devices
In the Root Directory, locate and enter the Removable folder. You may
see folders of the storage
device(s) connected
to your Eee Pad (e.g.
MicroSD or USBdisk1).
Removing the external storage devices
Click the SD card or the
USB device icon at the
bottom right corner and
click the disconnection
button to safely remove
the connected external
storage devices.
ASUS Eee Pad
9
Declarations and Safety Statements
Federal Communications Commission Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio
waves. This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR
are conducted using standard operating positions accepted by the FCC with
the EUT transmitting at the specied power level in dierent channels.
The highest SAR value for the device as reported to the FCC is 1.52mW/kg
when placed next to the body.
ASUS Eee Pad
10
The FCC has granted an Equipment Authorization for this device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this device is on le with the FCC and can
be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: MSQSL101.
This device is compliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance
with the measurement methods and procedures specied in OET Bulletin 65
Supplement C.
IC Regulations
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This Category II radiocommunication device complies with Industry Canada
Standard RSS-310.
Ce dispositif de radiocommunication de catégorie II respecte la norme
CNR-310 d’Industrie Canada.
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled
exposure limits in IC RSS-102 and had been tested in accordance with
the measurement methods and procedures specied in IEEE 1528. This
equipment should be installed and operated with minimum distance 0cm
between the radiator & your body.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
The County Code Selection feature is disabled for products marketed in the
US/Canada.
For product available in the USA/ Canada markets, only channel 1~11 can be
operated. Selection of other channels is not possible.
ASUS Eee Pad
11
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than
3Kg must use approved power cords greater than or equal to: H05VV-F, 3G,
0.75mm2 or H05VV-F, 2G, 0.75mm2.
DO NOT throw the battery in municipal waste. The symbol of the
crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
DO NOT throw the Eee Pad in municipal waste. This product has been
designed to enable proper reuse of parts and recycling. The symbol
of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment and mercury-containing button cell battery)
should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
SAFE TEMP: This Eee Pad should only be used in environments with
ambient temperatures between 0°C (32°F) and 35°C (95°F).
Risk of Explosion if Battery is Replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
CE Mark Warning
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low
voltage directive”.
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio
and Telecommunications Equipment and mutual recognition of conformity.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle our products, batteries,
other components as well as the packaging materials. Please go to http://csr.
asus.com/english/Takeback.htm for detailed recycling information in dierent
regions.
Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized
Representative in Europe
ASUS COMPUTER GmbH
Address, City HARKORT STR. 21-23, 40880 RATINGEN
Country GERMANY
ASUS Eee Pad
12
Copyright Information
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or tranPadd into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS and Eee Pad logo are trademarks of ASUSTek Computer Inc.
Information in this document is subject to change without notice.
Copyright © 2011 ASUSTeK COMPUTER INC. All Rights Reserved.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other
liability, you are entitled to recover damages from ASUS. In each such
instance, regardless of the basis on which you are entitled to claim damages
from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or
any other actual and direct damages resulted from omission or failure of
performing legal duties under this Warranty Statement, up to the listed
contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims
based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for
which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)
THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE
TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER
IS INFORMED OF THEIR POSSIBILITY.

Navigation menu
