ASUSTeK Computer T100CHIDOCK ASUS Mobile Dock User Manual

ASUSTeK Computer Inc ASUS Mobile Dock

User Manual

ASUS Tablet
ASUS Mobile Dock
E-Manual
First Edition
December 2014
E9794
2
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL
USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY
ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to
claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property; or any other actual and direct damages
resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,
and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
ASUS Tablet and ASUS Mobile Dock E-Manual
3
DRAFT 9 12/12/14
Table of Contents
About this manual ..................................................................................................... 7
Conventions used in this manual ............................................................................. 8
Icons .................................................................................................................................... 8
Typography .......................................................................................................................8
Safety precautions .....................................................................................................9
Using your ASUS Tablet and ASUS Mobile Dock ................................................. 9
Caring for your ASUS Tablet and ASUS Mobile Dock ......................................... 10
Proper disposal ................................................................................................................11
Chapter 1: Hardware Setup
ASUS Tablet .................................................................................................................. 14
Front view .......................................................................................................................... 14
Back view ........................................................................................................................... 16
Bottom side ...................................................................................................................... 16
Top side .............................................................................................................................. 17
Left side .............................................................................................................................. 19
Right side ........................................................................................................................... 21
ASUS Mobile Dock .....................................................................................................22
Top view ............................................................................................................................. 22
Left view ............................................................................................................................. 25
Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock
Getting started ...........................................................................................................28
ASUS Tablet ....................................................................................................................... 28
ASUS Mobile Dock .......................................................................................................... 31

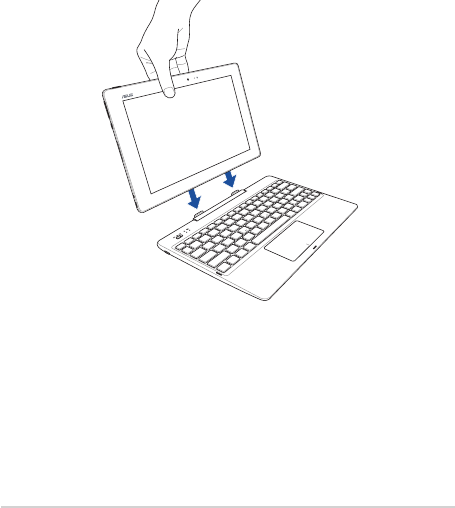

Using your ASUS Tablet with the ASUS Mobile Dock ........................................ 32
Gestures for the touch screen panel and touchpad .....................................33

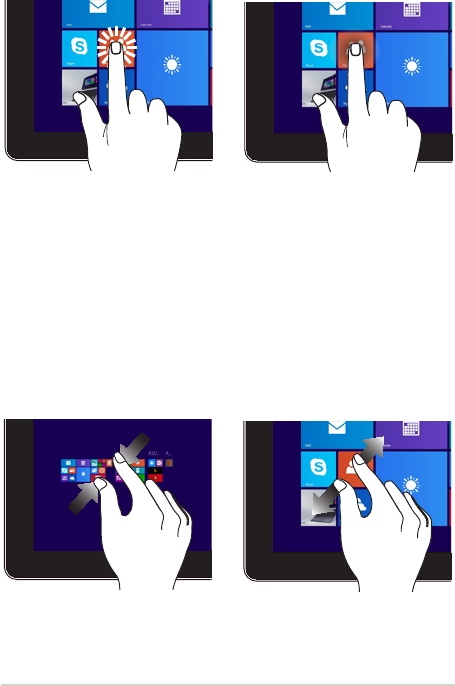

Using the touch screen panel ....................................................................................33

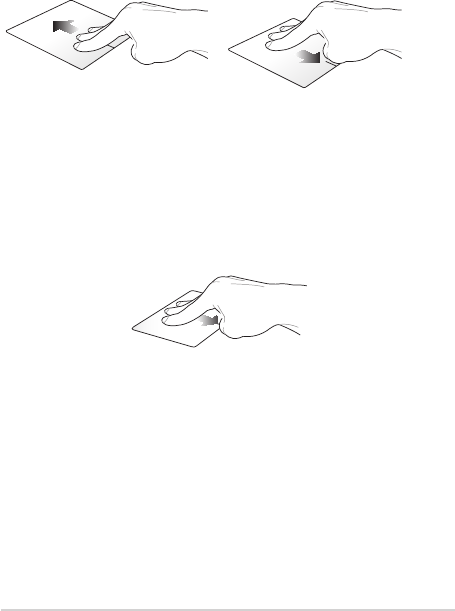

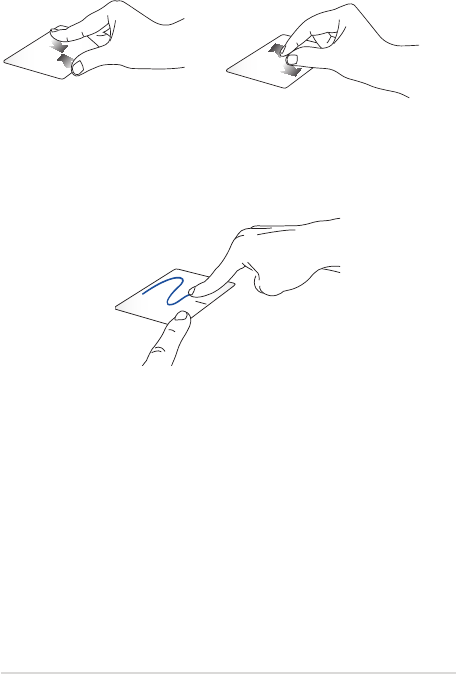

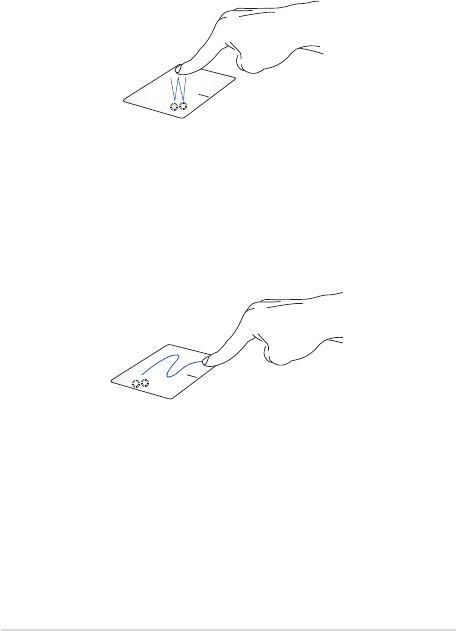

Using the touchpad ....................................................................................................... 36
Using the keyboard ................................................................................................... 43
Function keys ................................................................................................................... 43
Windows® 8.1 keys .........................................................................................................44
4
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Chapter 3: Working with Windows® 8.1
Starting for the rst time .........................................................................................46
Windows® UI .................................................................................................................47

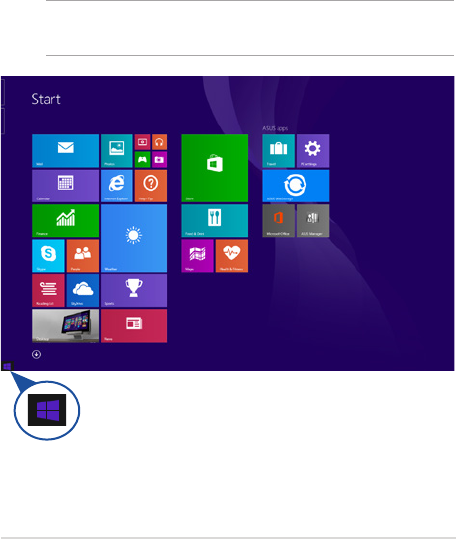

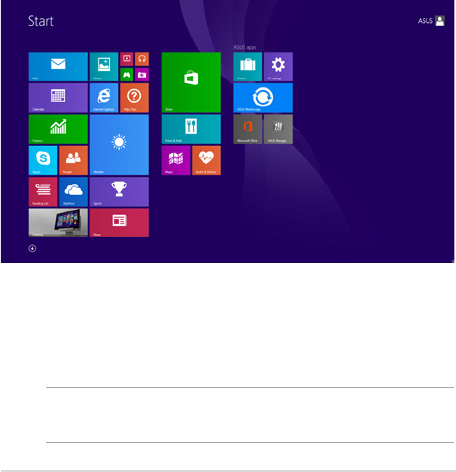

Start screen ....................................................................................................................... 47
Hotspots ............................................................................................................................. 48
Start button ...................................................................................................................... 51
Customizing your Start screen ...................................................................................53
Working with Windows® apps ...............................................................................54
Launching apps ............................................................................................................... 54
Customizing apps ...........................................................................................................54
Accessing the Apps screen .......................................................................................... 57
Charms bar ........................................................................................................................ 59

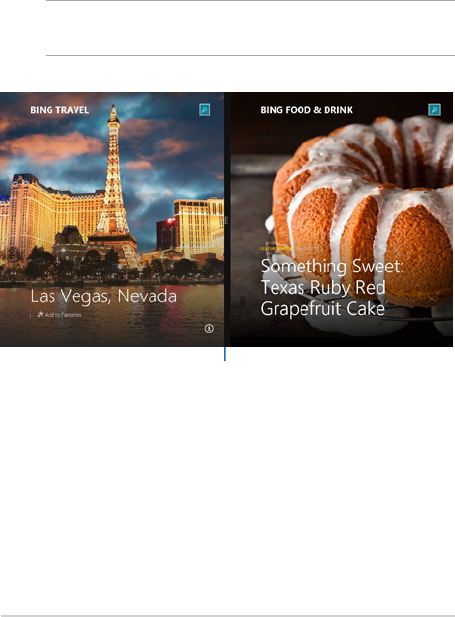

Snap feature .....................................................................................................................62
Other keyboard shortcuts ......................................................................................64
Connecting to wireless networks ........................................................................66
Wi-Fi ..................................................................................................................................... 66
Bluetooth .......................................................................................................................... 67
Airplane mode ................................................................................................................. 68
Turning your ASUS Tablet o.................................................................................69
Putting your ASUS Tablet to sleep ............................................................................ 69
Windows® 8.1 lock screen ........................................................................................70
To proceed from the lock screen ...............................................................................70
Customizing your lock screen .................................................................................... 71
Recovering your system ..........................................................................................73
Enabling a recovery option ........................................................................................ 74
Tips and FAQs
Useful tips for your ASUS Tablet and ASUS Mobile Dock ............................78
Hardware FAQs ...........................................................................................................80
Software FAQs ............................................................................................................. 83
ASUS Tablet and ASUS Mobile Dock E-Manual
5
DRAFT 9 12/12/14
Appendices
Internal Modem Compliancy ..................................................................................... 86
Overview ............................................................................................................................ 86
Network Compatibility Declaration ......................................................................... 87
Non-Voice Equipment ..................................................................................................87
Federal Communications Commission Interference Statement ................... 89
Declaration of Conformity (R&TTE directive 1999/5/EC) .................................. 90
FCC Radio Frequency (RF) Exposure Caution Statement ................................. 91
RF Exposure Information (SAR) .................................................................................. 91
CE Marking ........................................................................................................................ 92
National Telecommunications Commission of the Philippines .................... 92
RF Exposure information (SAR) - CE ......................................................................... 93
IC Radiation Exposure Statement for Canada ...................................................... 94
Déclaration d’Industrie Canada relative à l’exposition aux ondes radio ... 95
Radiation Exposure Statement .................................................................................. 96
Déclaration d'exposition aux radiations.................................................................96
Caution ............................................................................................................................... 96
Avertissement .................................................................................................................. 97
Wireless Operation Channel for Dierent Domains ...........................................98
France Restricted Wireless Frequency Bands ....................................................... 98
UL Safety Notices ............................................................................................................ 100
Power Safety Requirement .......................................................................................... 101
TV Notices ......................................................................................................................... 101
REACH ................................................................................................................................. 101
Macrovision Corporation Product Notice .............................................................. 101
Nordic Lithium Cautions (for lithium-ion batteries) ........................................... 102
Optical Drive Safety Information .............................................................................. 103
6
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
CTR 21 Approval (for ASUS Tablet and ASUS Mobile Dock with built-in
modem) .............................................................................................................................. 104
ENERGY STAR complied product .............................................................................. 106
European Union Eco-label ........................................................................................... 106
Global Environmental Regulation Compliance and Declaration .................. 107
ASUS Recycling/Takeback Services .......................................................................... 107
Rechargeable Battery Recycling Service in North America............................. 107
Regional notice for Singapore ...................................................................................108
Regional notice for India .............................................................................................. 108
Notices for removeable batteries..............................................................................108
Avis concernant les batteries remplaçables..........................................................108
Prevention of Hearing Loss ......................................................................................... 108
ASUS Tablet and ASUS Mobile Dock E-Manual
7
DRAFT 9 12/12/14
About this manual
This manual provides information about the hardware and software
features of your ASUS Tablet and ASUS Mobile Dock, organized through
the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS
Tablet and ASUS Mobile Dock.
Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock
This chapter shows you how to use the dierent parts of your
ASUS Tablet and its ASUS Mobile Dock.
Chapter 3: Working with Windows® 8.1
This chapter provides an overview of using Windows® 8.1 in your
ASUS Tablet.
Tips and FAQs
This section presents some recommended tips, hardware FAQs,
and software FAQs you can refer to for maintaining and xing
common issues with your ASUS Tablet and ASUS Mobile Dock.
Appendices
This section includes notices and safety statements for your ASUS
Tablet and ASUS Mobile Dock.
8
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing tasks and prevent damage to
your ASUS Tablet's data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
= Use the touch screen panel.
= Use the touchpad.
= Use the keyboard.
Icons
The icons below indicate the devices you can use for completing a series
of tasks or procedures on your ASUS Tablet and ASUS Mobile Dock.
ASUS Tablet and ASUS Mobile Dock E-Manual
9
DRAFT 9 12/12/14
Safety precautions
Using your ASUS Tablet and ASUS Mobile Dock
This ASUS Tablet and ASUS Mobile Dock should
only be used in environments with ambient
temperatures between 5°C (41°F) and 35°C (95°F).
Refer to the rating label on the bottom of your ASUS
Tablet and ASUS Mobile Dock and ensure that your
power adapter complies with this rating.
Do not leave your ASUS Tablet and ASUS Mobile
Dock on your lap or near any part of your body to
prevent discomfort or injury from heat exposure.
Do not use damaged power cords, accessories, and
other peripherals with your ASUS Tablet and ASUS
Mobile Dock.
While powered on, ensure that you do not carry or
cover your ASUS Tablet and ASUS Mobile Dock with
any materials that can reduce air circulation.
Do not place your ASUS Tablet and ASUS Mobile
Dock on uneven or unstable work surfaces.
You can send your ASUS Tablet and ASUS Mobile
Dock through x-ray machines (used on items placed
on conveyor belts), but do not expose them to
magnetic detectors and wands.
Contact your airline provider to learn about related
inight services that can be used and restrictions
that must be followed when using your ASUS Tablet
and ASUS Mobile Dock in-ight.
10
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Caring for your ASUS Tablet and
ASUS Mobile Dock
Disconnect the AC power and remove the battery
pack (if applicable) before cleaning your ASUS
Tablet and ASUS Mobile Dock. Use a clean cellulose
sponge or chamois cloth dampened with a solution
of nonabrasive detergent and a few drops of warm
water. Remove any extra moisture from your ASUS
Tablet and ASUS Mobile Dock using a dry cloth.
Do not use strong solvents such as thinners,
benzene, or other chemicals on or near your ASUS
Tablet and ASUS Mobile Dock.
Do not place objects on top of your ASUS Tablet and
ASUS Mobile Dock.
Do not expose your ASUS Tablet and ASUS Mobile
Dock to strong magnetic or electrical elds.
Do not use or expose your ASUS Tablet and ASUS
Mobile Dock near liquids, rain, or moisture.
Do not expose your ASUS Tablet and ASUS Mobile
Dock to dusty environments.
Do not use your ASUS Tablet and ASUS Mobile Dock
near gas leaks.
ASUS Tablet and ASUS Mobile Dock E-Manual
11
DRAFT 9 12/12/14
Proper disposal
Do not throw your ASUS Tablet and ASUS Mobile
Dock in municipal waste. This product has been
designed to enable proper reuse of parts and
recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic
equipment and mercury-containing button cell
battery) should not be placed in municipal waste.
Check local regulations for disposal of electronic
products.
Do not throw the battery in municipal waste. The
symbol of the crossed out wheeled bin indicates
that the battery should not be placed in municipal
waste.
12
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
ASUS Tablet and ASUS Mobile Dock E-Manual
13
DRAFT 9 12/12/14
Chapter 1:
Hardware Setup
14
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
ASUS Tablet
Front view
Front camera
The built-in 1.2-megapixel front camera allows you to take
pictures or record videos using your ASUS Tablet.
Camera indicator
The camera indicator lights up when the built-in camera is in use.
ASUS Tablet and ASUS Mobile Dock E-Manual
15
DRAFT 9 12/12/14
Ambient light sensor
The ambient light sensor detects the amount of ambient light in
your environment. It allows the system to automatically adjust
the brightness of the display depending on the ambient light
condition.
Touch screen panel
This high-denition touch screen panel provides excellent
viewing features for photos, videos, and other multimedia les
on your ASUS Tablet. It also allows you to operate your ASUS
Tablet using touch gestures.
NOTE: To know more about using touch screen gestures when
operating your ASUS Tablet, refer to the Using the touch screen
panel section in this manual.
16
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Bottom side
Hinge holes
Align and insert the latch hooks into these holes to securely
attach the tablet to the ASUS Mobile Dock.
Back view
Rear camera
The built-in rear camera allows you to take pictures or record
videos using your ASUS Tablet.
ASUS Tablet and ASUS Mobile Dock E-Manual
17
DRAFT 9 12/12/14
Top side
Power button
Press the power button to turn your ASUS Tablet on or o. You
can also use the power button to put your ASUS Tablet to sleep
or hibernate mode, and wake it up from sleep or hibernate
mode.
In the event that your ASUS Tablet becomes unresponsive,
press and hold the power button for about ten (10) seconds
until your ASUS Tablet shuts down.
Two-color battery charge indicator
The two-color LED provides a visual indication of the battery’s
charge status. Refer to the following table for details:
18
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Color Status
Solid White The ASUS Tablet is plugged to
a power source and the battery
power is between 95% and
100%.
Solid Orange The ASUS Tablet is plugged to
a power source, charging its
battery, and the battery power
is less than 95%.
Blinking Orange The ASUS Tablet is running on
battery mode and the battery
power is less than 10%.
Lights o The ASUS Tablet is running on
battery mode and the battery
power is between 10% to 100%.
ASUS Tablet and ASUS Mobile Dock E-Manual
19
DRAFT 9 12/12/14
Left side
Micro USB 2.0 port
This micro USB (Universal Serial Bus) 2.0 port is compatible with
USB 2.0 or USB 1.1 devices such as keyboards, pointing devices,
ash disk drives, external HDDs, speakers, cameras and printers.
You may also insert the bundled power adapter into this port to
charge the battery pack and supply power to your ASUS Tablet.
WARNING! The adapter may become warm to hot while in use.
Do not cover the adapter and keep it away from your body while
it is connected to a power source.
IMPORTANT! Use only the bundled power adapter to charge
the battery pack and supply power to your ASUS Tablet.
Headphone output/microphone input combo jack port
This port allows you to connect your tablet to amplied
speakers or headphones. You can also use this port to connect
your tablet to an external microphone.
20
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Audio speakers
The built-in audio speakers allow you to hear audio straight
from your tablet. Audio features are software controlled.
Windows® button
Press this button to go back to Start screen. If you are already in
the Start screen, press this button to go back to the last app you
opened.
Volume button
The volume button allows you to increase or decrease the
volume level of your ASUS Tablet.
ASUS Tablet and ASUS Mobile Dock E-Manual
21
DRAFT 9 12/12/14
Right side
MicroSD card slot
This ASUS Tablet comes with a built-in memory card reader
slot that supports microSD, microSDHC and microSDXC card
formats.
USB 3.0 Micro B port
This micro USB (Universal Serial Bus) 3.0 port is compatible
with USB Micro B cable and can also connect to USB 2.0 devices
using a micro USB cable.
Micro HDMI port
This port is for a micro HDMI (High-Denition Multimedia
Interface) connector and is HDCP compliant for HD DVD, Blu-
ray, and other protected content playback.
Audio speakers
The built-in audio speakers allow you to hear audio straight
from your tablet. Audio features are software controlled.
22
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
ASUS Mobile Dock
NOTE: The keyboard's layout may vary per region or country.
Top view
Two-color battery charge indicator
The two-color LED provides a visual indication of the ASUS
Mobile Dock’s battery charge status. Refer to the following table
for details:
ASUS Tablet and ASUS Mobile Dock E-Manual
23
DRAFT 9 12/12/14
Color Status
Solid White The ASUS Mobile Dock is
plugged to a power source and
the battery power is between
95% and 100%.
Solid Orange The ASUS Mobile Dock is
plugged to a power source,
charging its battery, and the
battery power is less than 95%.
Blinking Orange The ASUS Mobile Dock is
running on battery mode and
the battery power is less than
10%.
Lights o The ASUS Mobile Dock is
running on battery mode and
the battery power is between
10% to 100%.
Bluetooth indicator
This indicator lights up when your ASUS Mobile Dock’s Bluetooth
connection is enabled.
ASUS Mobile dock power switch/Bluetooth switch
Move this swich to the right or to the left to turn on or turn o
your ASUS Mobile Dock and its Bluetooth connectivity.
24
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Keyboard
The keyboard provides QWERTY keys with a comfortable travel
depth for typing. It also enables you to use the function keys,
allows quick access to Windows®, and controls other multimedia
functions.
NOTE: The keyboard layout diers by model or territory.
Dock tabs
The dock tabs allow you to securely attach the ASUS Tablet on
the ASUS Mobile Dock.
ASUS Mobile Dock hinge
This hinge allows you to connect the ASUS Tablet to the ASUS
Mobile Dock. It also holds the ASUS Tablet in place as you adjust
it to dierent viewing angles.
Touchpad
The touchpad allows the use of multi-gestures to navigate
onscreen, providing an intuitive user experience. It also
simulates the functions of a regular mouse.
NOTE: For more details, refer to the Using the touchpad section
in this manual.
ASUS Tablet and ASUS Mobile Dock E-Manual
25
DRAFT 9 12/12/14
Micro USB 2.0 port
You may also insert the bundled power adapter into this port to
charge the battery pack and supply power to your ASUS Mobile
Dock.
WARNING! The adapter may become warm to hot while in use.
Do not cover the adapter and keep it away from your body while
it is connected to a power source.
IMPORTANT! Use only the bundled power adapter to charge the
battery pack and supply power to your ASUS Mobile Dock.
Left view
26
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
ASUS Tablet and ASUS Mobile Dock E-Manual
27
DRAFT 9 12/12/14
Chapter 2:
Using your ASUS Tablet and
ASUS Mobile Dock
28
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Charge the ASUS Tablet for 8 hours before using it in battery
mode for the rst time.
Getting started
ASUS Tablet
Charge your ASUS Tablet
A. Connect the micro USB cable to the power adapter.
B. Plug the power adapter into a grounded power outlet.
C. Plug the micro USB connector into your ASUS Tablet.
NOTE: The power adapter may vary in appearance, depending on models
and your region. Use only the bundled power adapter for charging.
ASUS Tablet and ASUS Mobile Dock E-Manual
29
DRAFT 9 12/12/14
IMPORTANT!
• Locatetheinput/outputratinglabelonyourASUSTabletandASUS
Mobile Dock and ensure that it matches the input/output rating
information on your power adapter. Some ASUS Tablet and ASUS
Mobile Dock models may have multiple rating output currents based
on the available SKU.
• EnsurethatyourASUSTabletandASUSMobileDockisconnectedto
the power adapter before turning it on for the rst time. We strongly
recommend that you use a grounded wall socket while using your
ASUS Tablet and ASUS Mobile Dock on power adapter mode.
• ThesocketoutletmustbeeasilyaccessibleandnearyourASUS
Tablet and ASUS Mobile Dock.
• TodisconnectyourASUSTabletandASUSMobileDockfromitsmain
power supply, unplug your ASUS Tablet and ASUS Mobile Dock from
the power socket.
Turn on your ASUS Tablet
30
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
WARNING!
Refer to the following battery precautions:
• Thebatteryusedinthisdevicemaypresentariskofreorchemical
burn if removed or disassembled.
• Followthewarninglabelsforyourpersonalsafety.
• Riskofexplosionifbatteryisreplacedbyanincorrecttype.
• Donotdisposeofinre.
• Neverattempttoshort-circuityourASUSTabletandASUSMobile
Dock’s battery.
• Neverattempttodissambleandreassemblethebattery.
• Discontinueusageifleakageisfound.
• Thebatteryanditscomponentsmustberecycledordisposedof
properly.
• Keepthebatteryandothersmallcomponentsawayfromchildren.
IMPORTANT!
Power adapter information:
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:2A(10WforASUSMobileDock),
2A (18W for ASUS Tablet)
• Ratingoutputvoltage:5V(10WforASUSMobileDock),
9V (18W for ASUS Tablet)
ASUS Tablet and ASUS Mobile Dock E-Manual
31
DRAFT 9 12/12/14
ASUS Mobile Dock
Charge your ASUS Mobile Dock
A. Connect the micro USB cable to the power adapter.
B. Plug the power adapter into a grounded power outlet
C. Plug the micro USB connector into your ASUS Mobile Dock..
Turn on your ASUS Mobile Dock
IMPORTANT! Enable the Bluetooth function on your display device to
pair it with your ASUS Mobile Dock.
32
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Using your ASUS Tablet with the
ASUS Mobile Dock
Refer to the following steps if you want to use both your ASUS Tablet
and ASUS Mobile Dock as a Notebook PC.
1. Ensure that both devices are charged.
2. Dock the ASUS Tablet into the ASUS Mobile Dock as shown in the
illustration below.
3. Turn on each device to enable automatic Bluetooth pairing.
ASUS Tablet and ASUS Mobile Dock E-Manual
33
DRAFT 9 12/12/14
Left edge swipe Right edge swipe
Swipe from the left edge of the
screen to shue your running
apps.
Swipe from the right edge of the
screen to launch the Charms bar.
Gestures for the touch screen
panel and touchpad
Gestures allow you to launch programs and access the settings of your
ASUS Tablet and ASUS Mobile Dock. Refer to the following illustrations
when using hand gestures on your tablet and touchpad.
Using the touch screen panel
34
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Zoom out Zoom in
Bring together your two ngers
on the touch screen panel.
Spread apart your two ngers on
the touch screen panel.
Tap/Double tap Tap and hold
• Tapanapptolaunchit.
• OnDesktopmode,double-
tap an application to launch
it.
• Tomoveanapp,tapand
hold the app tile then drag
it to a new location.
• Tocloseanapp,tapand
hold the top side of a
running app and drag it
down to the bottom of the
screen.
ASUS Tablet and ASUS Mobile Dock E-Manual
35
DRAFT 9 12/12/14
Top edge swipe Finger slide
• IntheStartscreen,swipe
from the top edge of
the screen to view the
Customize bar.
• Inarunningapp,swipefrom
the top edge of the screen to
view its menu.
Slide your nger to scroll up
and down and slide your nger
to pan the screen left or right.
Swipe up Swipe down
Swipe up from the Start screen to
launch the Apps screen.
Swipe down the Apps screen to
return to the Start screen.
36
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Using the touchpad
Moving the pointer
You can click or click anywhere on the touchpad to activate its pointer,
then slide your nger on the touchpad to move the pointer onscreen.
Slide horizontally
Slide vertically
Slide diagonally
ASUS Tablet and ASUS Mobile Dock E-Manual
37
DRAFT 9 12/12/14
One nger gestures
Tap/Double tap
• IntheStartscreen,tapanapptolaunchit.
• InDesktopmode,double-tapanapplicationtolaunchit.
Drag and drop
Double-tap an item, then slide the same nger without lifting it o the
touchpad. To drop the item to its new location, lift your nger from the
touchpad.
38
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Left-click Right-click
• IntheStartscreen,clickan
app to launch it.
• InDesktopmode,double-
click an application to
launch it.
• IntheStartscreen,clickan
app to select it and launch
the settings bar. You can also
press this button to launch
the All Apps bar.
• InDesktopmode,usethis
button to open the right-
click menu.
NOTE: The areas inside the dotted line represent the locations of the left
mouse button and the right mouse button on the touchpad.
ASUS Tablet and ASUS Mobile Dock E-Manual
39
DRAFT 9 12/12/14
Top edge swipe
• IntheStartscreen,swipefromthetopedgetolaunchtheAll
Apps bar.
• Inarunningapp,swipefromthetopedgetoviewitsmenu.
Left edge swipe Right edge swipe
Swipe from the left edge to shue
your running apps.
Swipe the right edge to launch
the Charms bar.
40
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Two nger gestures
Tap Rotate
Tap two ngers on the touchpad
to simulate the right-click
function.
To rotate an image, place two
ngers on the touchpad then
turn one nger clockwise or
counterclockwise while the other
stays still.
Two-nger scroll (up/down) Two-nger scroll (left/right)
Slide two ngers to scroll up or
down.
Slide two ngers to scroll left or
right.
ASUS Tablet and ASUS Mobile Dock E-Manual
41
DRAFT 9 12/12/14
Zoom out Zoom in
Bring together your two ngers
on the touchpad.
Spread apart your two ngers on
the touchpad.
Drag and drop
Select an item then press and hold the left button. Using your other
nger, slide down the touchpad to drag and drop the item to a new
location.
42
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Three-nger gestures
Swipe up Swipe down
Swipe three ngers upward to
show all running applications.
Swipe three ngers downward to
show the Desktop mode.
Swipe down
Swipe three ngers downward to show the Desktop mode.
ASUS Tablet and ASUS Mobile Dock E-Manual
43
DRAFT 9 12/12/14
Function keys
The function keys on your keyboard can trigger the following
commands:
Using the keyboard
Puts the ASUS Tablet into Sleep mode
Decreases display brightness
Increases display brightness
Toggles the display mode
NOTE: Ensure that the second display is connected
to your ASUS Tablet.
Enables or disables the touchpad
Turns the speaker on or o
Turns the speaker volume down
Turns the speaker volume up
44
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Windows® 8.1 keys
There are two special Windows® keys on your ASUS Mobile Dock, used
as below:
Press this key to go back to the Start screen. If you are
already in the Start screen, press this key to go back to
the last app you opened.
Press this key to simulate the right-click functions.
ASUS Tablet and ASUS Mobile Dock E-Manual
45
DRAFT 9 12/12/14
Chapter 3:
Working with Windows® 8.1
46
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Starting for the rst time
When you start your computer for the rst time, a series of screens
appear to guide you in conguring your Windows® 8.1 operating
system. The Windows® 8.1 operating system is bundled within your
ASUS Tablet.
To start for the rst time:
1. Turn on your ASUS Mobile Dock (if applicable) and ASUS Tablet.
Wait for a few minutes until the setup screen appears.
2. From the setup screen, pick your region and a language to use on
your ASUS Tablet.
3. Carefully read the License Terms. Select I accept.
4. Follow the onscreen instructions to congure the following basic
items:
• Personalize
• Getonline
• Settings
• Youraccount
5. After conguring the basic items, Windows® 8.1 proceeds to
install your apps and preferred settings. Ensure that your ASUS
Tablet is kept powered on during the setup process.
6. Once the setup process is complete, the Start screen appears.
ASUS Tablet and ASUS Mobile Dock E-Manual
47
DRAFT 9 12/12/14
Windows® UI
Windows® 8.1 comes with a tile-based user interface (UI) which allows
you to organize and easily access Windows® apps from the Start screen.
It also includes the following features that you can use while working
on your ASUS Tablet and ASUS Mobile Dock.
Start screen
The Start screen appears after successfully signing in to your user
account. It helps organize all the applications you need in just one
place.
Windows® Apps
These are apps pinned on the Start screen and displayed on tiled-format
for easy access.
NOTE: Some apps require signing in to your Microsoft account before
they are fully launched.
48
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Hotspots on a running app
Hotspots on the Start screen
Hotspots
Onscreen hotspots allow you to launch programs and access the
settings of your ASUS Tablet and ASUS Mobile Dock. The functions in
these hotspots can be activated using the touchpad.
ASUS Tablet and ASUS Mobile Dock E-Manual
49
DRAFT 9 12/12/14
Hotspot Action
upper left corner Hover your mouse pointer on the upper left
corner then tap/click on the recent app’s
thumbnail to revert back to that running app.
If you launched more than one app, slide
down to show all running apps.
lower left corner From a running app screen:
Hover your mouse pointer on the lower left
corner then tap/click to go back to the
Start screen.
NOTE: You can also press the Windows key
on your keyboard to go back to the
Start screen.
From the Start screen:
Hover your mouse pointer on the lower left
corner then tap/click to go back to that
app.
50
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Hotspot Action
top side Hover your mouse pointer on the top side
until it changes to a hand icon. Drag then
drop the app to a new location.
NOTE: This hotspot function only works on
a running app or when you want to use the
Snap feature. For more details, refer to the
Snap feature under Working with Windows®
apps.
upper or lower right
corner
Hover your mouse pointer on the upper or
lower right corner to launch the Charms bar.
ASUS Tablet and ASUS Mobile Dock E-Manual
51
DRAFT 9 12/12/14
Start button
Windows® 8.1 features the Start button which allows you to switch
between the two most recent apps that you opened. The Start button
may be accessed from the Start screen, while on Desktop mode, and on
any app that is currently open onscreen.
Start button on the Start screen
NOTE: The actual color of your Start button varies depending on the
display settings you chose for your Start screen.
Hover your mouse pointer over the left corner of your Start
screen or any opened app to call out the Start button.
52
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Start button on Desktop mode
Context menu
The context menu appears as a box lled with quick access to some of
the programs inside Windows® 8.1 when you right-click on the Start
button.
The context menu also includes the following shut down options for
your ASUS Tablet: sign out, sleep, shut down, restart.
ASUS Tablet and ASUS Mobile Dock E-Manual
53
DRAFT 9 12/12/14
Customizing your Start screen
Windows® 8.1 also enables you to customize your Start screen,
allowing you to boot directly to the Desktop mode and customize the
arrangement of your apps onscreen.
To customize the settings of your Start screen:
or
1. Launch the Desktop.
2. Right-click anywhere on the taskbar, except on the
Start button, to launch the pop-up window.
3. Click Properties then select the Navigation tab to
tick the Navigation and Start screen options you
want to use.
4. Tap/click Apply to save the new settings then exit.
54
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Launching apps
Customizing apps
You can move, resize, unpin, or close apps from the Start screen using
the following steps:
Tap an app to launch it.
Position your mouse pointer over the app then left-click
or tap once to launch it.
Press twice then use the arrow keys to browse
through the apps. Press to launch an app.
Moving apps
Tap and hold the app tile then drag it to a new location.
Double-tap on the app then drag and drop the app to a
new location.
Working with Windows® apps
Use your ASUS Tablet or ASUS Mobile Dock to launch, customize, and
close apps.
ASUS Tablet and ASUS Mobile Dock E-Manual
55
DRAFT 9 12/12/14
Tap and hold the app to activate the Customize bar then
tap and select an app tile size.
Tap and hold the app to activate the Customize bar, then
tap to unpin an app.
Unpinning apps
Resizing apps
Right-click on the app to activate the Customize bar,
then tap/click and select an app tile size.
Right-click on the app to activate the Customize bar
then tap/click .
56
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Tap and hold the top side of the running app then drag
it down to the bottom of the screen to close it.
1. Move your mouse pointer on the top side of the
launched app then wait for the pointer to change
to a hand icon.
2. Drag then drop the app to the bottom of the
screen to close it.
From the running app’s screen, press .
Closing apps
ASUS Tablet and ASUS Mobile Dock E-Manual
57
DRAFT 9 12/12/14
Accessing the Apps screen
Aside from the apps already pinned on your Start screen, you can also
open other applications through the Apps screen.
NOTE: Actual apps shown onscreen may vary per model. The following
screenshot is for reference only.
Swipe up on the Start screen.
On the Start screen, click the button.
From the Start screen, Press then press .
Launching the Apps screen
Launch the Apps screen using your ASUS Tablet or ASUS Mobile Dock.
58
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
1. Launch the All Apps screen.
2. Tap and hold an app you want to add on the
start to activate the Customize bar. Once the
Customize bar is launched, you may also tap
other more apps to add on the Start screen.
3. Tap to pin the selected apps on the Start
screen.
1. Launch the All Apps screen
2. Right-click on the apps that you want to add on
the Start screen.
3. Tap/click on the icon to pin the selected
apps on the Start screen.
Pinning more apps on the Start screen
You can pin more apps on the Start screen using your ASUS Tablet or
ASUS Mobile Dock.
ASUS Tablet and ASUS Mobile Dock E-Manual
59
DRAFT 9 12/12/14
Charms bar
Charms bar
The Charms bar is a toolbar that can be triggered on the right side
of your screen. It consists of several tools that allow you to share
applications and provide quick access for customizing the settings of
your ASUS Tablet and ASUS Mobile Dock.
60
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Swipe from the right edge of the screen to launch the
charms bar.
Move your mouse pointer on the upper or lower right
corner of the screen.
Press
Launching the Charms bar
NOTE: When called out, the Charms bar initially appears as a set of
white icons. The image above shows how the Charms bar looks like once
activated.
Use your ASUS Tablet or ASUS Mobile Dock to launch the Charms bar.
ASUS Tablet and ASUS Mobile Dock E-Manual
61
DRAFT 9 12/12/14
Search
This charm allows you to look for les, applications, or
programs in your ASUS Tablet.
Share
This charm allows you to share applications via social
networking sites or email.
Start
This charm reverts the display back to the Start screen.
From the Start screen, you can also use this to revert back
to a recently opened app.
Devices
This charm allows you to access and share les with the
devices attached to your ASUS Tablet such as an external
display or printer.
Settings
This charm allows you to access the PC settings of your
ASUS Tablet.
Inside the Charms bar
62
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Snap bar
Snap feature
The Snap feature displays two apps side-by-side, allowing you to work
or switch between apps.
IMPORTANT! Ensure that your screen resolution is set to 1366 x 768 pixels
or higher before using the Snap feature.
ASUS Tablet and ASUS Mobile Dock E-Manual
63
DRAFT 9 12/12/14
1. Launch the app you wish to snap.
2. Hover the mouse point on the top side of your
screen.
3. Once the pointer changes to a hand icon, drag
then drop the app to the left or right side of the
display panel.
4. Launch another app.
1. Launch the app you wish to snap.
2. Press and the left or right arrow key to snap
the app to the left or right pane.
3. Launch another app. This app is automatically
placed in the empty pane.
1. Launch the app you wish to snap.
2. Tap and hold the app’s topmost part then drag it
to the left or right side of the screen until the snap
bar appears.
3. Launch another app.
Using Snap
Use your ASUS Tablet or ASUS Mobile Dock to activate and use Snap.
64
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Other keyboard shortcuts
Using the keyboard, you can also use the following shortcuts to help
you launch applications and navigate Windows® 8.1.
\
Switches between the Start screen and the last
running app
Launches the desktop
Launches the This PC window on Desktop mode
Opens the File option from the Search charm
Opens the Share charm
Opens the Settings charm
Opens the Devices charm
Activates the Lock screen
Minimizes all currently active windows
ASUS Tablet and ASUS Mobile Dock E-Manual
65
DRAFT 9 12/12/14
Launches the Project pane
Opens the Everywhere option from the
Search charm
Opens the Run window
Opens Ease of Access Center
Opens the Settings option under the Search
charm
Opens the context menu of the Start button
Launches the magnier icon and zooms in
your screen
Zooms out your screen
Opens the Narrator Settings
66
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Enabling Wi-Fi
Activate Wi-Fi using the following steps on your ASUS Tablet and ASUS
Mobile Dock.
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Select an access point from the list of available Wi-Fi connections.
4. Tap/click Connect to start the network connection.
NOTE: You may be prompted to enter a security key to activate the Wi-Fi
connection.
5. If you want to enable sharing between your ASUS Tablet and
other wireless-enabled systems, tap/click Yes. Tap/click No if you
do not want to enable the sharing function.
Connecting to wireless networks
Wi-Fi
Access emails, surf the Internet, and share applications via social
networking sites using Wi-Fi connection.
IMPORTANT! The Airplane mode disables this feature. Ensure that
Airplane mode is turned o before enabling the Wi-Fi connection.
ASUS Tablet and ASUS Mobile Dock E-Manual
67
DRAFT 9 12/12/14
Pairing with other Bluetooth-enabled devices
You need to pair your ASUS Tablet with other Bluetooth-enabled
devices to enable data transfers. To do this:
1. Launch the Charms bar.
2. Tap/click then tap/click Change PC Settings.
3. Under PC Settings, select Devices then tap/click Add a Device
to search for Bluetooth-enabled devices.
4. Select a device from the list. Compare the passcode on your ASUS
Tablet with the passcode sent to your chosen device. If they are
the same, tap/click Yes to successfully pair your ASUS Tablet with
the device.
NOTE: For some bluetooth-enabled devices, you may be prompted to
key in the passcode of your ASUS Tablet.
Bluetooth
Use Bluetooth to facilitate wireless data transfers with other Bluetooth-
enabled devices.
IMPORTANT! The Airplane mode disables this feature. Ensure that
Airplane mode is turned o before enabling the Bluetooth connection.
68
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
or
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Move the slider to the right to turn the Airplane
mode on.
Airplane mode
The Airplane mode disables wireless communication, allowing you to use
your ASUS Tablet and ASUS Mobile Dock safely while in-ight.
Turning Airplane mode on
Turning Airplane mode o
or
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Move the slider to the left to turn the Airplane
mode o.
NOTE: Contact your airline provider to learn about related inight services
that can be used and restrictions that must be followed when using your
ASUS Tablet and ASUS Mobile Dock in-ight.
ASUS Tablet and ASUS Mobile Dock E-Manual
69
DRAFT 9 12/12/14
Turning your ASUS Tablet off
You can turn o your ASUS Tablet by doing either of the following
procedures:
or
• Tap/click from the Charms bar then
tap/click > Shut down to do a normal
shutdown.
• Fromthelog-inscreen,tap/click > Shut
down.
• YoucanalsoshutdownyourASUSTabletusing
Desktop mode. To do this, launch the desktop
then press alt + f4 to launch the Shut Down
window. Select Shut Down from the drop-down
list then select OK.
• IfyourASUSTabletisunresponsive,pressand
hold the power button for at least four (4)
seconds until your ASUS Tablet turns o.
Putting your ASUS Tablet to sleep
To put your ASUS Tablet on Sleep mode, press the power button once.
You can also put your ASUS Tablet to sleep mode using
Desktop mode. To do this, launch the desktop then
press alt + f4 to launch the Shut Down window. Select
Sleep from the drop-down list then select OK.
70
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Windows® 8.1 lock screen
The Windows® 8.1 lock screen appears when you wake your ASUS Tablet
from sleep or hibernate mode. It also appears when you lock or unlock
Windows® 8.1.
The lock screen can be customized to regulate access to your operating
system. You can change its background display and access some of your
apps while your ASUS Tablet is still locked.
To proceed from the lock screen
or
1. Tap/click on the touchpad or press any key on
your ASUS Mobile Dock.
2. (optional) If your account is password-protected,
you need to key in the password to continue to
the Start screen.
ASUS Tablet and ASUS Mobile Dock E-Manual
71
DRAFT 9 12/12/14
Customizing your lock screen
You can customize your lock screen to show your preferred photo, a
photo slideshow, app updates, and quickly access your ASUS Tablet’s
camera. To change the settings of your lock screen, you may refer to the
following information:
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Under the Lock screen preview, click Browse
to select the photo you would like to use as a
background on your lock screen.
Playing a slideshow
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Under the Lock screen preview, move the Play
a slide show on the lock screen slide bar to On.
4. Scroll down to customize the following options
for your lock screen’s slideshow:
Selecting a photo
72
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Adding app updates
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Scroll down until you see the Lock screen apps
option.
4. Use the following options to add the apps whose
updates you would like to see from your lock
screen:
Activating your ASUS Tablet camera from the lock screen
From the lock screen, you can swipe down to activate and use your
ASUS Tablet's camera. Refer to the following steps on how to enable this
feature:
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Scroll down until you see the Camera option.
4. Move the slide bar to On.
ASUS Tablet and ASUS Mobile Dock E-Manual
73
DRAFT 9 12/12/14
Recovering your system
Using recovery options on your ASUS Tablet allows you to restore the
system to its original state or simply refresh its settings to help improve
performance.
IMPORTANT!
• Back up all your data les before doing any recovery option on your
ASUS Tablet.
• Notedownimportantcustomizedsettingssuchasnetworksettings,
user names, and passwords to avoid data loss.
• Ensure that your ASUS Tablet is plugged in to a power source before
resetting your system.
Windows® 8.1 allows you to do any of the following recovery options:
• RefreshyourPCwithoutaectingyourles- This option allows
you refresh your ASUS Tablet without aecting personal les
(photos, music, videos, documents) and apps from the Windows®
store.
Using this option, you can restore your ASUS Tablet to its default
settings and delete other installed apps.
• RemoveeverythingandreinstallWindows- This option resets
your ASUS Tablet to its factory settings. You must back up your
data before doing this option.
74
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
• Advancedstartup- Using this option allows you to perform
other advanced recovery options on your ASUS Tablet such as:
- Using a USB drive, network connection or Windows recovery
DVD to startup your ASUS Tablet.
- Using Troubleshoot to enable any of these advanced
recovery options: System Restore, System Image Recovery,
Startup Repair, Command Prompt, UEFI Firmware Settings,
Startup Settings.
Enabling a recovery option
Refer to the following steps if you want to access and use any of the
available recovery options for your ASUS Tablet.
1. Launch the charms bar and select Settings.
ASUS Tablet and ASUS Mobile Dock E-Manual
75
DRAFT 9 12/12/14
2. Select Change PC Settings.
3. Under the PC Settings options, select Update and recovery.
76
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
4. Under the Update and recovery options, select Recovery then
select the recovery option you would like to do.
ASUS Tablet and ASUS Mobile Dock E-Manual
77
DRAFT 9 12/12/14
Tips and FAQs
78
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Useful tips for your ASUS Tablet
and ASUS Mobile Dock
To help you maximize the use of your ASUS Tablet and ASUS Mobile
Dock, maintain its system performance, and ensure all your data are
kept secured, here are some useful tips that you can follow:
• UpdateWindows®periodicallytoensurethatyourapplications
have the latest security settings.
• UseASUSLiveUpdatetoupdateASUS-exclusiveapplications,
drivers and utilities in your ASUS Tablet and ASUS Mobile Dock.
Refer to the ASUS Tutor installed in your ASUS Tablet for more
details.
• Useananti-virussoftwaretoprotectyourdataandkeepthis
updated too.
• Unlessabsolutelynecessary,refrainfromusingforceshutdownto
turn o your ASUS Tablet and ASUS Mobile Dock.
• Alwaysbackupyourdataandmakeitapointtocreateabackup
data in an external storage drive.
ASUS Tablet and ASUS Mobile Dock E-Manual
79
DRAFT 9 12/12/14
• RefrainfromusingtheASUSTabletandASUSMobileDockat
extremely high temperatures. If you are not going to use your
ASUS Tablet and ASUS Mobile Dock for a long period of time (at
least a month), we recommend that you take out the battery if the
battery is removable.
• Disconnectallexternaldevicesandensureyouhavethefollowing
items prior to resetting your ASUS Tablet and ASUS Mobile Dock:
- Product key for your operating systems and other installed
applications
- Backup data
- Log in ID and password
- Internet connection information
80
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Hardware FAQs
1. A black dot, or sometimes a colored dot, appears onscreen
when I turn on the ASUS Tablet. What should I do?
Although these dots normally appear onscreen, they will not
aect your system. If the incident continues and subsequently
aects system performance, consult an authorized ASUS service
center.
2. My display panel has an uneven color and brightness. How
can I x this?
The color and brightness of your display panel may be aected
by the angle and current position of your ASUS Tablet and
ASUS Mobile Dock. The brightness and color tone of your ASUS
Tablet may also vary per model. You may use the function keys
or the display settings in your operating system to adjust the
appearance of your display panel.
3. How can I maximize my ASUS Tablet and ASUS Mobile Dock ‘s
battery life?
You can try doing any of the following suggestions:
• Usethefunctionkeystoadjustthedisplaybrightness.
• IfyouarenotusinganyWi-Ficonnection,switchyour
system into Airplane mode.
• DisconnectunusedUSBdevices.
• Closeunusedapplications,especiallythosethattakeuptoo
much system memory.
ASUS Tablet and ASUS Mobile Dock E-Manual
81
DRAFT 9 12/12/14
4. My battery LED indicator does not light up. What’s wrong?
• Checkwhetherthepoweradapterorbatterypackis
attached correctly. You may also disconnect the power
adapter or battery pack, wait for a minute, then reconnect
them again to the power outlet and your ASUS Tablet or
ASUS Mobile Dock.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
5. Why is my touchpad not working?
• Press to enable your touchpad.
• CheckifASUSSmartGesturehasbeensettodisablethe
touchpad when connecting an external pointing device.
6. When I play audio and video les, why can’t I hear any sound
from my ASUS Tablet’s speakers?
You can try doing any of the following suggestions:
• Checkifyourspeakersweresettomute.
• CheckifaheadphonejackisconnectedtoyourASUSTablet
and remove it.
• UnlocktheI/OInterfaceSecurityinyoursystem’sBIOS.For
more details, refer to the I/O Interface Security section in this
manual.
7. What should I do if my ASUS Tablet and ASUS Mobile Dock’s
power adapter gets lost or my battery stops working?
Contact your local ASUS service center for assistance.
82
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
8. Why does audio still come out from my ASUS Tablet’s audio
speakers even if I already connected my headphone into the
right jack port?
Go to Control Panel > Hardware and Sound then access Audio
Manager to congure the settings.
9. My ASUS Tablet and ASUS Mobile Dock cannot do keystrokes
correctly because my cursor keeps on moving. What should I
do?
Make sure that nothing accidentally touches or presses on your
touchpad while you type on the keyboard. You can also disable
your touchpad by pressing .
10. My ASUS Tablet and ASUS Mobile Dock’s touchpad is not
working. What should I do?
You can try doing any of the following suggestions:
• CheckifASUSSmartGestureissettodisabletouchpadby
connecting an external pointing device to your ASUS Tablet
and ASUS Mobile Dock. If yes, disable this function.
• Press .
11. Instead of showing letters, pressing the “U”, “I”, and “O” keys
on my keyboard displays numbers. How can I change this?
Press the key or (on selected models) on your
ASUS Mobile Dock to turn o this feature and use the said keys
for inputting letters.
ASUS Tablet and ASUS Mobile Dock E-Manual
83
DRAFT 9 12/12/14
Software FAQs
1. When I turn on my ASUS Tablet and ASUS Mobile Dock, the
power indicator lights up but not my drive activity indicator.
System bootup does not happen as well. What can I do to x
this?
You can try doing any of the following suggestions:
• ForceshutdownyourASUSTabletandASUSMobileDockby
pressing the power button for more than ten (10) seconds.
Check if the power adapter is inserted correctly then turn on
your ASUS Tablet and ASUS Mobile Dock.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
2. What should I do when my screen displays this message:
“Remove disks or other media. Press any key to restart.”?
You can try doing any of the following suggestions:
• RemoveallconnectedUSBdevicesthenrestartyourASUS
Tablet and ASUS Mobile Dock.
• Removeanyopticaldiscsthatareleftinsidetheopticaldrive
then restart.
• Iftheproblemstillexists,yourASUSTabletmighthavea
memory storage problem. Contact your local ASUS service
center for assistance.
3. My ASUS Tablet boots slower than usual and my operating
system lags. How can I x this?
Delete the applications you recently installed or were not
included with your operating system package then restart your
system.
84
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
4. My ASUS Tablet does not boot up. How can I x this?
You can try doing any of the following suggestions:
• RemoveallconnecteddevicestoyourASUSTabletand
ASUS Mobile Dock then restart your system.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
5. Why can’t my ASUS Tablet wake up from sleep or hibernate
mode?
• Youneedtopressthepowerbuttontoresumeyourlast
working state.
• Yoursystemmighthavecompletelyusedupitsbattery
power. Connect the power adapter to your ASUS Tablet and
ASUS Mobile Dock and connect to a power outlet then press
the power button.
ASUS Tablet and ASUS Mobile Dock E-Manual
85
DRAFT 9 12/12/14
Appendices
86
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Internal Modem Compliancy
The ASUS Tablet with internal modem model complies with JATE (Japan), FCC
(US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved
in accordance with Council Decision 98/482/EC for pan-European single terminal
connection to the public switched telephone network (PSTN). However due
to dierences between the individual PSTNs provided in dierent countries,
the approval does not, of itself, give an unconditional assurance of successful
operation on every PSTN network termination point. In the event of problems you
should contact your equipment supplier in the rst instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has
been published in the Ocial Journal of the EC. The CTR 21 applies to all non
voice terminal equipment with DTMF-dialling which is intended to be connected
to the analogue PSTN (Public Switched Telephone Network).
CTR 21 (Common Technical Regulation) for the attachment requirements for
connection to the analogue public switched telephone networks of terminal
equipment (excluding terminal equipment supporting the voice telephony
justied case service) in which network addressing, if provided, is by means of
dual tone multi-frequency signalling.
ASUS Tablet and ASUS Mobile Dock E-Manual
87
DRAFT 9 12/12/14
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notied Body and the vendor:
“This declaration will indicate the networks with which the equipment is designed
to work and any notied networks with which the equipment may have inter-
working diculties.”
Statement to be made by the manufacturer to the user: “This declaration will
indicate the networks with which the equipment is designed to work and any
notied networks with which the equipment may have inter-working diculties.
The manufacturer shall also associate a statement to make it clear where network
compatibility is dependent on physical and software switch settings. It will also
advise the user to contact the vendor if it is desired to use the equipment on
another network.”
Up to now the Notied Body of CETECOM issued several pan-European approvals
using CTR 21. The results are Europe’s rst modems which do not require
regulatory approvals in each individual European country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as
modems, fax machines, auto-dialers and alarm systems. Equipment in which the
end-to-end quality of speech is controlled by regulations (e.g. handset telephones
and in some countries also cordless telephones) is excluded.
88
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
This table shows the countries currently under the CTR21
standard.
Country Applied More Testing
Austria
1
Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark
1
Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein Yes No
Luxemburg Yes No
The Netherlands
1
Yes Yes
Norway Yes No
Poland No Not Applicable
Portugal No Not Applicable
Spain No Not Applicable
Sweden Yes No
Switzerland Yes No
United Kingdom Yes No
ASUS Tablet and ASUS Mobile Dock E-Manual
89
DRAFT 9 12/12/14
This information was copied from CETECOM and is supplied without liability. For
updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.
html
1 National requirements will apply only if the equipment may use pulse dialling
(manufacturers may state in the user guide that the equipment is only intended to
support DTMF signalling, which would make any additional testing superuous).
In The Netherlands additional testing is required for series connection and caller
ID facilities.
Federal Communications Commission
Interference Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• Thisdevicemaynotcauseharmfulinterference.
• Thisdevicemustacceptanyinterferencereceived,includinginterference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the Federal Communications Commission
(FCC) rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
90
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
• Connecttheequipmentintoanoutletonacircuitdierentfromthatto
which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
WARNING! The use of a shielded-type power cord is required in order to meet
FCC emission limits and to prevent interference to the nearby radio and television
reception. It is essential that only the supplied power cord be used. Use only shielded
cables to connect I/O devices to this equipment. You are cautioned that changes or
modications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Oce of the Federal Register, National Archives and Records
Administration, U.S. Government Printing Oce.)
Declaration of Conformity (R&TTE directive
1999/5/EC)
The following items were completed and are considered relevant and sucient:
• Essentialrequirementsasin[Article3]
• Protectionrequirementsforhealthandsafetyasin[Article3.1a]
• Testingforelectricsafetyaccordingto[EN60950]
• Protectionrequirementsforelectromagneticcompatibilityin[Article3.1b]
• Testingforelectromagneticcompatibilityin[EN301489-1]&[EN301
489-17]
• Eectiveuseoftheradiospectrumasin[Article3.2]
• Radiotestsuitesaccordingto[EN300328-2]
ASUS Tablet and ASUS Mobile Dock E-Manual
91
DRAFT 9 12/12/14
FCC Radio Frequency (RF) Exposure Caution
Statement
WARNING! Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
“The manufacture declares that this device is limited to Channels 1 through 11 in the
2.4GHz frequency by specied rmware controlled in the USA.”
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting. End users must follow the specic operating instructions for
satisfying RF exposure compliance.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio ferquency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions accepted by the FCC with the EUT
transmitting at the specied power level in dierent channels.
The highest SAR values for this device, as reported to the FCC, are 1.02 W/kg for
T100 Chi when placed next to the body.
The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this device is on le with the FCC and can be found under the
Display Grant section of www.fcc.gov/eot/ea/fccid
HOST MODEL HOST FCC ID FUNCTION CONTAINS MODULE
T100 Chi MSQ-T100CHI WLAN and
Bluetooth
N/A
T100 Chi Mobile
Dock
MSQ-
T100CHIDOCK
Bluetooth only N/A
92
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
CE Marking
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low
voltage directive”.
This device is restricted to indoor use only when operating in the 5150 to 5350
MHz frequency usage.
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio and
Telecommunications Equipment and mutual recognition of conformity.
This equipment may be operated in:
AT BE BG CH CY CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
ASUS Tablet and ASUS Mobile Dock E-Manual
93
DRAFT 9 12/12/14
National Telecommunications Commission of the
Philippines
This ASUS product complies with NTC Standards.
for T100 Chi:
This device have been tested to comply with the Sound Pressure Level
requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards.
Permanent hearing loss may occur if earphones or headphones are used at high
volume for prolonged periods of time.
RF Exposure information (SAR) - CE
This device meets the EU requirements (1999/519/EC) on the limitation of
exposure of the general public to electromagnetic elds by way of health
protection.
The limits are part of extensive recommendations for the protection of the
general public. These recommendations have been developed and checked by
independent scientic organizations through regular and thorough evaluations
of scientic studies. The unit of measurement for the European Council’s
recommended limit for mobile devices is the “Specic Absorption Rate” (SAR),
and the SAR limit is 2.0 W/Kg averaged over 10 gram of body tissue. It meets
the requirements of the International Commission on Non-Ionizing Radiation
Protection (ICNIRP).
For next-to-body operation, this device has been tested and meets the ICNRP
exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is
measured with the device directly contacted to the body while transmitting at the
highest certied output power level in all frequency bands of the mobile device.
94
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting. End users must follow the specic operating instructions for
satisfying RF exposure compliance.
Operation is subject to the following two conditions:
• Thisdevicemaynotcauseinterferenceand
• Thisdevicemustacceptanyinterference,includinginterferencethatmay
cause undesired operation of the device.
To prevent radio interference to the licensed service (i.e. co-channel Mobile
Satellite systems) this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that
is installed outdoors is subject to licensing.
This device complies with Industry Canada licence-exempt RSS standard(s).
CAN ICES-3(B)/NMB-3(B)
The IC ID for T100 Chi is: 3568A-T100CHI
HOST MODEL HOST FCC ID FUNCTION CONTAINS MODULE
T100 Chi MSQ-T100CHI WLAN and
Bluetooth
N/A
T100 Chi Mobile
Dock
MSQ-
T100CHIDOCK
Bluetooth only N/A
ASUS Tablet and ASUS Mobile Dock E-Manual
95
DRAFT 9 12/12/14
Déclaration d’Industrie Canada relative à
l’exposition aux ondes radio
Cet appareil est conforme aux limites d’exposition aux radiations d’Industrie
Canada dénies pour un environnement non-contrôlé. Pour maintenir la
conformité avec les exigences d’exposition RF d’IC, veuillez éviter tout contact
direct avec l’antenne pendant l’émission. Les utilisateurs naux doivent suivre
les instructions de fonctionnement spéciques pour satisfaire la conformité aux
expositions RF.
Son utilisation est sujette aux deux conditions suivantes :
• Cetappareilnepeutpascauserd’interférence,et
• Cetappareildoitacceptertouteinterférence,ycomprislesinterférences
qui pourraient causer un fonctionnement non souhaité de l’appareil.
Pour éviter les interférences radio avec le service sous licence (c’est à-dire le
partage de canal avec les systèmes de téléphonie satellite), cet appareil est destiné
à être utilisé en intérieur et loin des fenêtres pour fournir un blindage maximal.
Tout appareil (ou son antenne d’émission) qui est installé en extérieur est sujet à
cette licence.
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.
CAN ICES-3(B)/NMB-3(B)
L’identiant Industrie Canada de cet appareil est: 3568A-T100Chi.
HOST MODEL HOST FCC ID FUNCTION CONTAINS MODULE
T100 Chi MSQ-T100CHI WLAN and
Bluetooth
N/A
T100 Chi Mobile
Dock
MSQ-
T100CHIDOCK
Bluetooth only N/A
96
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Radiation Exposure Statement
The product comply with the Canada portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in this
manual. The further RF exposure reduction can be achieved if the product can be
kept as far as possible from the user body or set the device to lower output power
if such function is available.
Déclaration d'exposition aux radiations
Le produit est conforme aux limites d'exposition pour les appareils portables RF
pour les Etats-Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La
réduction aux expositions RF peut être augmentée si l'appareil peut être conservé
aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la
puissance de sortie la plus faible si une telle fonction est disponible.
Caution
(i) the device for operation in the band 5150-5250 MHz is only for indoor use
to reduce the potential for harmful interference to co-channel mobile satellite
systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz
and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz
shall comply with the e.i.r.p. limits specied for point-to-point and non point-to-
point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
ASUS Tablet and ASUS Mobile Dock E-Manual
97
DRAFT 9 12/12/14
Avertissement
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des
instructions précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à l’intérieur an de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5
250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-
5 825 MHz) doit se conformer à la limite de p.i.r.e. spéciée pour l’exploitation
point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars
de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la
priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
98
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst case maximum
authorized power indoors are:
• 10mWfortheentire2.4GHzband(2400MHz–2483.5MHz)
• 100mWforfrequenciesbetween2446.5MHzand2483.5MHz
NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5
MHz.
There are few possibilities for outdoor use: on private property or on the private
property of public persons, use is subject to a preliminary authorization procedure
by the Ministry of Defense, with maximum authorized power of 100mW in the
2446.5–2483.5MHzband.Useoutdoorsonpublicpropertyisnotpermitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximumauthorizedpowerindoorsis100mW
• Maximumauthorizedpoweroutdoorsis10mW
Wireless Operation Channel for Dierent
Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
ASUS Tablet and ASUS Mobile Dock E-Manual
99
DRAFT 9 12/12/14
Departmentsinwhichtheuseofthe2400–2483.5MHzbandispermittedwithan
EIRP of less than 100mW indoors and less than 10mW outdoors:
01 Ain 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin
68 Haut Rhin 70 Haute Saône 71 Saône et Loire
75 Paris 82 Tarn et Garonne 84 Vaucluse
88 Vosges 89 Yonne 90 Territoire de Belfort
94 Val de Marne
This requirement is likely to change over time, allowing you to use your wireless
LAN card in more areas within France. Please check with ART for the latest
information (www.arcep.fr)
NOTE: Your WLAN Card transmits less than 100mW, but more than 10mW.
100
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment
intended to be electrically connected to a telecommunication network that has an
operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak,
and 105V rms, and installed or used in accordance with the National Electrical
Code (NFPA 70).
When using the ASUS Tablet and ASUS Mobile Dock modem, basic safety
precautions should always be followed to reduce the risk of re, electric shock,
and injury to persons, including the following:
• DONOTusetheASUSTabletandASUSMobileDocknearwater,for
example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
• DONOTusetheASUSTabletandASUSMobileDockduringanelectrical
storm. There may be a remote risk of electric shock from lightning.
• DONOTusetheASUSTabletandASUSMobileDockinthevicinityofagas
leak.
Required for UL 1642 covering primary (nonrechargeable) and secondary
(rechargeable) lithium batteries for use as power sources in products. These
batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may
consist of a single electrochemical cell or two or more cells connected in series,
parallel, or both, that convert chemical energy into electrical energy by an
irreversible or reversible chemical reaction.
• DonotdisposetheASUSTabletandASUSMobileDockbatterypackin
a re, as they may explode. Check with local codes for possible special
disposal instructions to reduce the risk of injury to persons due to re or
explosion.
• Donotusepoweradaptersorbatteriesfromotherdevicestoreducethe
risk of injury to persons due to re or explosion. Use only UL certied
power adapters or batteries supplied by the manufacturer or authorized
retailers.
ASUS Tablet and ASUS Mobile Dock E-Manual
101
DRAFT 9 12/12/14
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg
must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm
2
or
H05VV-F, 2G, 0.75mm
2
.
TV Notices
Note to CATV System Installer—Cable distribution system should be grounded
(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC),
in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial
Cable–installationshouldincludebondingthescreenofthecoaxialcabletothe
earth at the building entrance.
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and
Restriction of Chemicals) regulatory framework, we publish the chemical
substances in our products at ASUS REACH website at http://csr.asus.com/english/
REACH.htm.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S.A. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only
unless otherwise
authorized by Macrovision Corporation
. Reverse engineering or disassembly is
prohibited.
102
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Nordic Lithium Cautions (for lithium-ion
batteries)
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions. (English)
ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.
Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla
fabbrica. Non disperdere le batterie nell’ambiente. (Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz
nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning
må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri
tilbage til leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller
en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt
batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty paristo
valmistagan ohjeiden mukaisesti. (Finnish)
ATTENTION! Il y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du mêre type ou d’un type
équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées
conformément aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner. (Norwegian)
(Japanese)
ВНИМАНИЕ! При замене аккумулятора на аккумулятор иного типа возможно
его возгорание. Утилизируйте аккумулятор в соответствии с инструкциями
производителя. (Russian)
ASUS Tablet and ASUS Mobile Dock E-Manual
103
DRAFT 9 12/12/14
Optical Drive Safety Information
Laser Safety Information
WARNING! To prevent exposure to the optical drive’s laser, do not attempt to
disassemble or repair the optical drive by yourself. For your safety, contact a
professional technician for assistance.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Service warning label
WARNING! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR
VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug
Administration implemented regulations for laser products on August 2, 1976.
These regulations apply to laser products manufactured from August 1, 1976.
Compliance is mandatory for products marketed in the United States.
WARNING! Use of controls or adjustments or performance of procedures other
than those specied herein or in the laser product installation guide may result in
hazardous radiation exposure.
Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a
coating is applied to insulate the device except on the areas where the I/O ports
are located.
104
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Danish
Dutch
English
Finnish
French
CTR 21 Approval (for ASUS Tablet and ASUS
Mobile Dock with built-in modem)
ASUS Tablet and ASUS Mobile Dock E-Manual
105
DRAFT 9 12/12/14
German
Greek
Italian
Portuguese
Spanish
Swedish
106
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental
Protection Agency and the U.S. Department of Energy helping
us all save money and protect the environment through energy
ecient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR
standard, and the power management feature is enabled by default. The monitor
and computer are automatically set to sleep after 10 and 30 minutes of user
inactivity. To wake your computer, click the mouse or touchpad (if applicable),
press any key on the keyboard, or press the power button. Please visit http://www.
energy.gov/powermanagement for detail information on power management and
its benets to the environment. In addition, please visit http://www.energystar.
gov for detail information on the ENERGY STAR joint program.
NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.
European Union Eco-label
This ASUS Tablet and ASUS Mobile Dock has been awarded the EU Flower label,
which means that this product has the following characteristics:
1. Decreased energy consumption during use and stand-by modes.
2. Limited use of toxic heavy metals.
3. Limited use of substances harmful to the environment and health.
4. Reduction of the use of natural resources by encouraging recycling.
5. Designed for easy upgrades and longer lifetime through providing
compatible spare parts such as batteries, power supplies, the keyboard, the
memory, and if available the CD drive or DVD drive.
6. Reduced solid waste through takeback policy.
For more information on the EU Flower label, please visit the European Union Eco-
label website at http://www.ecolabel.eu.
ASUS Tablet and ASUS Mobile Dock E-Manual
107
DRAFT 9 12/12/14
Global Environmental Regulation Compliance
and Declaration
ASUS follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASUS product is in line
with global environmental regulations. In addition, ASUS disclose the relevant
information based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information
disclosure based on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle our products, batteries, other
components as well as the packaging materials. Please go to http://csr.asus.com/
english/Takeback.htm for detailed recycling information in dierent regions.
For US and Canada customers, you can call 1-800-822-8837
(toll-free) for recycling information of your ASUS products’
rechargeable batteries.
Rechargeable Battery Recycling Service in
North America
108
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 9 12/12/14
Regional notice for Singapore
This ASUS product complies with IDA Standards.
Complies with
IDA Standards
DB103778
Regional notice for India
This product complies with the “India E-waste (Management and Handling)Rule
2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated
biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations
exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight
in homogenous materials for cadmium, except for the exemptions listed in
Schedule-II of the Rule.
Notices for removeable batteries
• Riskofexplosionifbatteryisreplacedbyanincorrecttype.
• Thebatteryanditscomponentmustberecycledordisposedofproperly.
Avis concernant les batteries remplaçables
• Labatteriedel’ordinateurportablepeutprésenterunrisqued’incendieou
de brûlure si celle-ci est retirée ou désassemblée.
• Labatterieetsescomposantsdoiventêtrerecyclésdefaçonappropriée.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume
levels for long periods.
ASUS Tablet and ASUS Mobile Dock E-Manual
109
DRAFT 9 12/12/14
低功率電波輻射性電機管理辦法
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前
項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機
須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干
擾。
無線傳輸設備（UNII）
• 在 5.25 ~ 5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室
內使用。
• 無線資訊傳輸設備忍受合法通信之干擾且不得干擾合法通信；
如造成干擾，應不即停用，俟無干擾之虞，始得繼續使用。
• 無線資訊傳設備的製造廠商應確保頻不穩定性，如依製造廠商
使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。

Navigation menu
