ASUSTeK Computer T100T Notebook PC User Manual TempConfidential T100T UserMan

ASUSTeK Computer Inc Notebook PC TempConfidential T100T UserMan

Contents

TempConfidential_(T100T) UserMan

DRAFT v2 DRAFT v2 DRAFT v2
E8640
Camera
Camera indicator
Touch screen
panel
Revised Edition
September 2013
Ambient light sensor

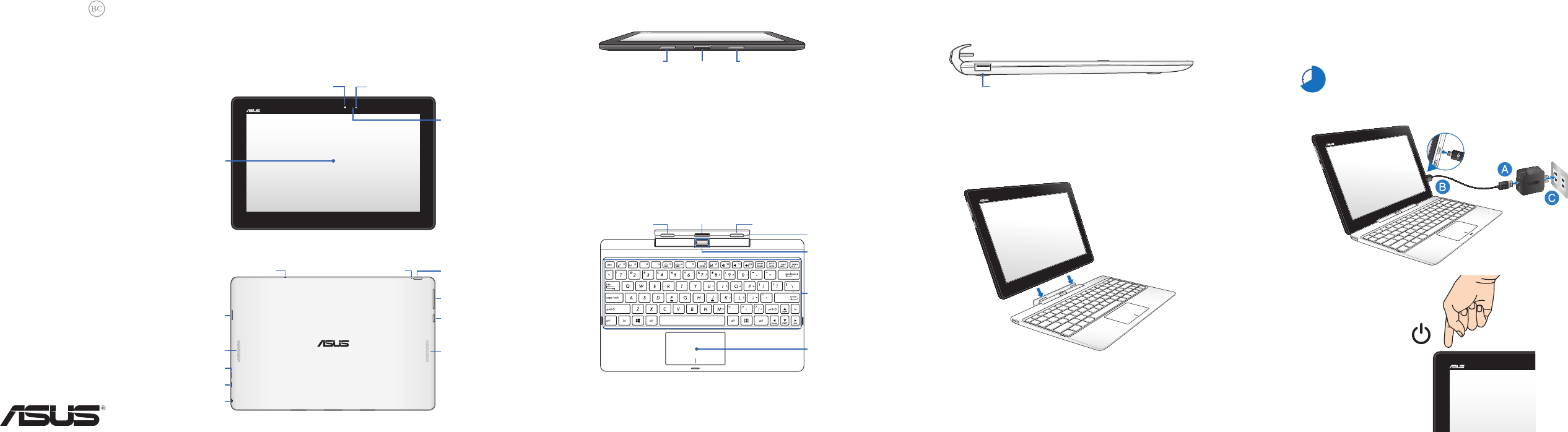

Rear View
Bottom Side
Tablet
The tablet of your Notebook PC allows you to perform touch screen gestures while
working on Windows® 8.1.
Top View
Getting started
1. Dock the tablet to the mobile dock.
3. Press the power button.
NOTE: The power adapter may vary in appearance, depending on models and your
region.
Charge the Notebook PC for 8 hours before using it in battery mode for the
rst time.
Power button
Volume button
Windows® button
Audio speaker
Speaker/
Headset port
Audio speaker
MicroSD
card slot
Microphone Battery charge indicator
Hinge hole Dock port Hinge hole
Mobile dock
Connecting the mobile dock to your tablet allows you to use both devices as a
Notebook PC. The mobile dock provides additional input features to your tablet
via its touchpad and keyboard functions.
NOTE: The keyboard's layout may vary per region or country.
Top View
Release button
Touchpad
Keyboard
Latch hook
Latch hook Dock connector
Left Side
USB 3.0 port
2. Charge your Notebook PC.
A. Connect the micro USB cable to the power adapter.
B. Plug the micro USB connector into your Notebook PC.
C. Plug the power adapter into a grounded power outlet.
1
2
Micro USB 2.0
port
Micro HDMI port
15060-23100100
Hinge
Notebook PC
User Manual
T100T Series
Copyright Information
You acknowledge that all rights of this Manual remain with ASUS. Any and all rights, including without
limitation, in the Manual or website, are and shall remain the exclusive property of ASUS and/or its
licensors. Nothing in this Manual intends to transfer any such rights, or to vest any such rights to you.
ASUS PROVIDES THIS MANUAL AS IS” WITHOUT WARRANTY OF ANY KIND. SPECIFICATIONS AND
INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND
ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to
claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property; or any other actual and direct damages
resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,
and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
Service and Support
Visit our multi-language web site at http://support.asus.com
E-Manual version
Download the complete English manual version from:
http://support.asus.com/download/options.aspx?SLanguage=en
WARNING!
The bottom of the Notebook PC can get warm to hot while in use or while charging the battery
pack. When working on your Notebook PC, do not place it on surfaces that can block the vents.
CAUTION!
This Notebook PC should only be used in environments with ambient temperatures between
5°C (41°F) and 35°C (95°F).
Refer to the rating label on the bottom of your Notebook PC and ensure that your power
adapter complies with this rating.
The power adapter may become warm to hot while in use. Do not cover the adapter and keep
it away from your body while it is connected to a power source.
IMPORTANT!
Ensure that your Notebook PC is connected to a grounded power adapter before turning it
on for the rst time.
When using your Notebook PC on power adapter mode, the socket outlet must be near to the
unit and easily accessible.
Locate the input/output rating label on your Notebook PC and ensure that it matches the
input/output rating information on your power adapter. Some Notebook PC models may
have multiple rating output currents based on the available SKU.
Power adapter information:
- Input voltage: 100-240Vac
- Input frequency: 50-60Hz
- Rating output current: 2A (10W)
- Rating output voltage: 5V
Safety notices for your Notebook PC
WARNING!
Read the following precautions for your Notebook PC’s battery:
Only ASUS-authorized technicians should
remove the battery inside the device.
Never attempt to short-circuit your
Notebook PC’s battery.
The battery used in this device may present
a risk of re or chemical burn if removed or
disassembled.
Never attempt to dissamble and
reassemble the battery.
Follow the warning labels for your personal
safety.
Discontinue usage if leakage is found.
Risk of explosion if battery is replaced by an
incorrect type.
This battery and its components must be
recycled or disposed of properly.
Do not dispose of in re. Keep the battery and other small
components away from children.
DRAFT v2 DRAFT v2 DRAFT v2
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use
approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of
Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS
REACH website at http://csr.asus.com/english/REACH.htm.
Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied
to insulate the device except on the areas where the I/O ports are located.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components as well as the packaging materials. Please
go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in dierent
regions.
Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.
EC Declaration of Conformity
We, the undersigned,
Manufacturer: ASUSTeK COMPUTER INC.
Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country: TAIWAN
Authorized representative in Europe: ASUS COMPUTER GmbH
Address, City: HARKORT STR. 21-23, 40880 RATINGEN
Country: GERMANY
declare the following apparatus:
Product name : Notebook PC
Model name : T100T, H100T, R104T
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
EN 55022:2010
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011
1999/5/EC-R &TTE Directive
EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 893 V1.6.1(2011-11)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001
EN 62479:2010
EN 50385:2002
EN 62311:2008
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.1.1(2009-05)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
2006/95/EC-LVD Directive
EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
2011/65/EU-RoHS Directive Ver. 130208
CE marking
Declaration Date: 10/09/2013
Year to begin affixing CE marking:2013
Position : CEO
Name : Jerry Shen
Signature : __________
(EC conformity marking)
Green ASUS notice
ASUS is devoted to creating environment-friendly products and packaging to safeguard
consumers’ health while minimizing the impact on the environment. The reduction of the
number of the manual pages complies with the reduction of carbon emission.
For detailed user manual and related information, refer to the user manual included in the
Notebook PC or visit the ASUS Support site at http://support.asus.com/.
Canada, avis d’Industrie Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003, RSS-210, et
CAN ICES-3(B)/NMB-3(B).
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas
causer d’interférence et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.
L’identiant IC de cet appareil est 3568A-T100T.
Informations concernant l’exposition aux fréquences radio (RF)
La puissance de sortie émise par cet appareil sans l est inférieure à la limite d’exposition aux
fréquences radio d’Industrie Canada (IC). Utilisez l’appareil sans l de façon à minimiser les
contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specic Absorption Rate
– Taux d’absorption spécique) d’IC lorsqu’il est installé dans des produits hôtes particuliers qui
fonctionnent dans des conditions d’exposition à des appareils portables.
Ce périphérique est homologué pour l’utilisation au Canada. Pour consulter l’entrée
correspondant à l’appareil dans la liste d’équipement radio (REL - Radio Equipment List)
d’Industrie Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng
Pour des informations supplémentaires concernant l’exposition aux RF au Canada rendez-vous
sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
IC Warning Statement
The device could automatically discontinue transmission in case of absence of information to
transmit, or operational failure. Note that this is not intended to prohibit transmission of control
or signaling information or the use of repetitive codes where required by the technology.
The Country Code Selection feature is disabled for products marketed in the US/Canada. For
product available in the USA/Canada markets, only channel 1-11 can be operated. Selection of
other channels is not possible.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems; the maximum antenna gain permitted (for
device in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the EIRP limit; and the
maximum antenna gain permitted (for devices in the band 5275-5850 MHz) to comply with
the EIRP limits specied for point-to-point and non point-to-point operation as appropriate, as
stated in section A9.2(3). In addition, high-power radars are allocated as primary users (meaning
they have priority) of the band 5250-5350 MHz and this radar could cause interference and/or
damage to LE-LAN devices.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This device is
designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specic Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard
operating positions accepted by the FCC with the EUT transmitting at the specied power level
in dierent channels.
The highest SAR value for the device as reported to the FCC is 1.183 W/kg when placed next to
the body.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device
is on le with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/
fccid after searching on FCC ID: MSQT100T.
FCC Radio Frequency (RF) Exposure Caution
Statement
WARNING! Any changes or modications not expressly approved by the party
responsible for compliance could void the users authority to operate this equipment.
“The manufacture declares that this device is limited to Channels 1 through 11 in the
2.4GHz frequency by specied rmware controlled in the USA.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements, please
avoid direct contact to the transmitting antenna during transmitting. End users must follow the
specic operating instructions for satisfying RF exposure compliance.
UL Safety Notices
DO NOT use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
DO NOT use the Notebook PC during an electrical storm. There may be a remote risk of
electric shock from lightning.
DO NOT use the Notebook PC in the vicinity of a gas leak.
Do not dispose the Notebook PC battery pack in a re, as they may explode. Check with local
codes for possible special disposal instructions to reduce the risk of injury to persons due to
re or explosion.
Do not use power adapters or batteries from other devices to reduce the risk of injury to
persons due to re or explosion. Use only UL certied power adapters or batteries supplied
by the manufacturer or authorized retailers.
Global Environmental Regulation Compliance and
Declaration
ASUS follows the green design concept to design and manufacture our products, and
makes sure that each stage of the product life cycle of ASUS product is in line with global
environmental regulations. In addition, ASUS disclose the relevant information based on
regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure
based on regulation requirements ASUS is complied with: Japan JIS-C-0950 Material
Declarations, EU REACH SVHC, Korea RoHS, Swiss Energy Laws
CE Mark Warning
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the European
Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications
Equipment and mutual recognition of conformity.
The highest CE SAR value for the device is 0.533 W/Kg.
This equipment may be operated in:
AT BE BG CH CY CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
RF Exposure information (SAR) - CE
This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the
general public to electromagnetic elds by way of health protection.
The limits are part of extensive recommendations for the protection of the general public. These
recommendations have been developed and checked by independent scientic organizations
through regular and thorough evaluations of scientic studies. The unit of measurement for the
European Council’s recommended limit for mobile devices is the “Specic Absorption Rate” (SAR),
and the SAR limit is 2.0 W/Kg averaged over 10 gram of body tissue. It meets the requirements
of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).
For next-to-body operation, this device has been tested and meets the ICNRP exposure
guidelines and the European Standard EN 62311 and EN 62209-2. SAR is measured with the
device directly contacted to the body while transmitting at the highest certied output power
level in all frequency bands of the mobile device.
Regional notice for Singapore
This ASUS product complies with IDA Standards.
Complies with
IDA Standards
DB103778
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003, RSS-210, and CAN ICES-3(B)/
NMB-3(B).
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device. The IC ID for this device is 3568A-T100T.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the IC Specic Absorption Rate
(“SAR”) limits when installed in specic host products operated in portable exposure conditions.
Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
EC Declaration of Conformity
This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The
Declaration of Conformity can be downloaded from http://support.asus.com.
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment causes harmful interference to radio or television reception, which
can be determined by tuning the equipment o and on, the user is encouraged to try to correct
the interference by doing one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Operation on the 5.15-5.25 GHz frequency band is restricted for indoor use only. The FCC
requires indoor use for the 5.15-5.25 GHz band to reduce the potential for harmful interference
to co-channel Mobile Satellite Systems. It will only transmit on 5.25-5-35 GHz, 5.47-5.725 GHz,
and 5.725-5.850 GHz bands when associated with an access point (AP).

Navigation menu
