ASUSTeK Computer T100TAL Wifi Dual Band + BT combo module User Manual
ASUSTeK Computer Inc Wifi Dual Band + BT combo module
User Manual.pdf
ASUS Tablet
ASUS Mobile Dock
E-Manual
T100 Series
Revised Edition V2
October 2014
E9842
2
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL
USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY
ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to
claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property; or any other actual and direct damages
resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,
and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
ASUS Tablet and ASUS Mobile Dock E-Manual
3
DRAFT 1
Table of Contents
About this manual ..................................................................................................... 7
Conventions used in this manual ............................................................................. 8
Icons .................................................................................................................................... 8
Typography .......................................................................................................................8
Safety precautions .....................................................................................................9
Using your ASUS Tablet ................................................................................................ 9
Caring for your ASUS Tablet ........................................................................................ 10
Proper disposal ................................................................................................................11
Chapter 1: Hardware Setup
Top View ........................................................................................................................ 14
ASUS Tablet features .................................................................................................16
Top and back view .......................................................................................................... 16
Bottom side ...................................................................................................................... 20
ASUS Mobile Dock features ...................................................................................21

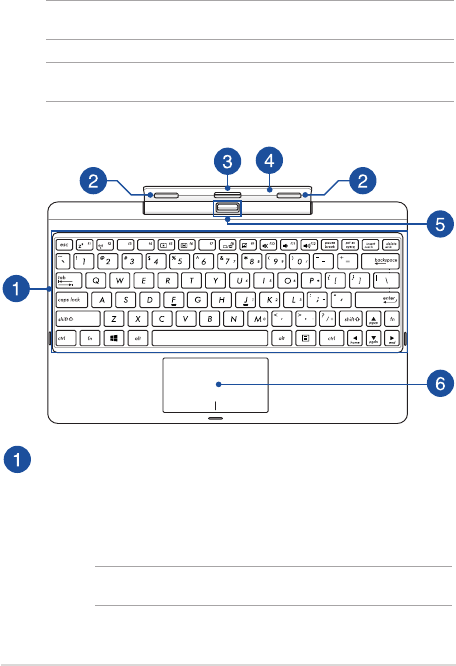

Top view ............................................................................................................................. 21
Left view ............................................................................................................................. 23
Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock
Getting started ...........................................................................................................26

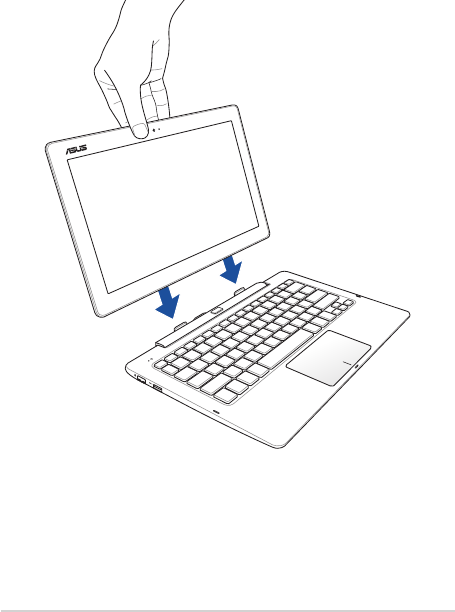

Dock the ASUS Tablet on the ASUS Mobile Dock. .............................................. 26

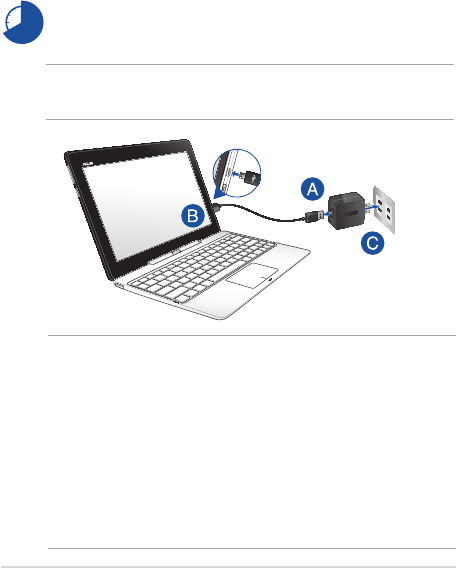

Charge your ASUS Tablet. ............................................................................................ 27

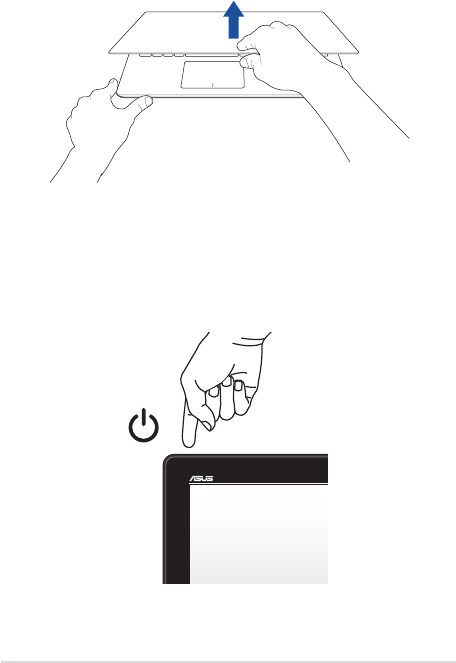

Lift to open the display panel. ................................................................................... 29
Press the power button. ............................................................................................... 29
Gestures for the touch screen panel and touchpad .....................................30

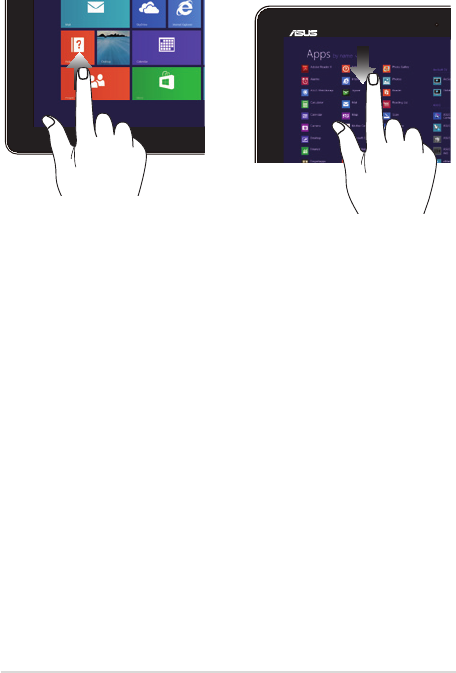

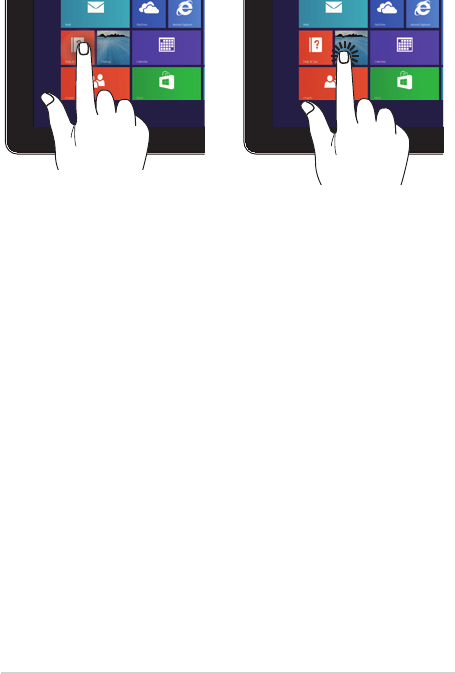

Using touch screen panel gestures ..........................................................................30

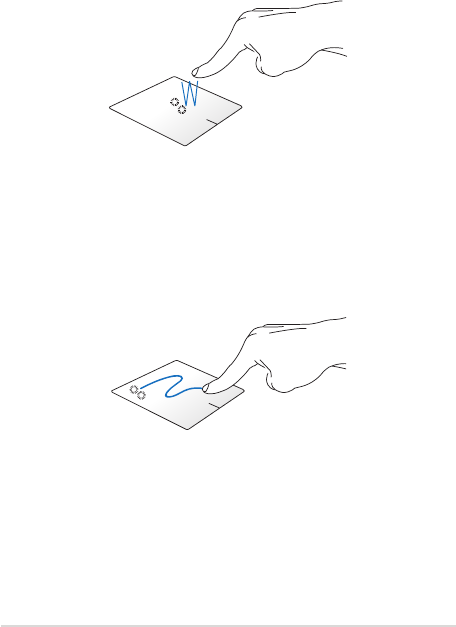

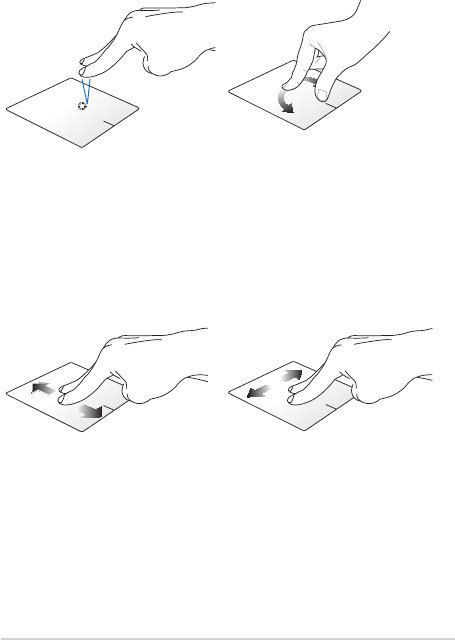

Using touchpad gestures.............................................................................................34
Using the keyboard ................................................................................................... 42
Function keys ................................................................................................................... 42
Windows® 8.1 keys .........................................................................................................43
4
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Chapter 3: Working with Windows® 8.1
Starting for the rst time .........................................................................................46
Windows® UI .................................................................................................................47

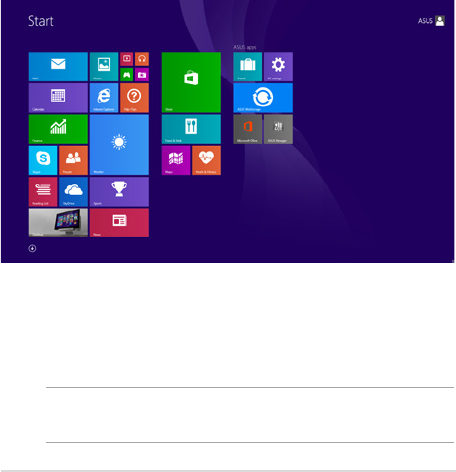

Start screen ....................................................................................................................... 47
Hotspots ............................................................................................................................. 48
Start button ...................................................................................................................... 51
Customizing your Start screen ...................................................................................53
Working with Windows® apps ...............................................................................54
Launching apps ............................................................................................................... 54
Customizing apps ...........................................................................................................54
Accessing the Apps screen .......................................................................................... 57
Charms bar ........................................................................................................................ 59
Snap feature .....................................................................................................................62
Other keyboard shortcuts ......................................................................................64
Connecting to wireless networks ........................................................................66
Wi-Fi ..................................................................................................................................... 66
Bluetooth .......................................................................................................................... 67
Airplane mode ................................................................................................................. 68
Connecting to wired networks .............................................................................69
Conguring a dynamic IP/PPPoE network connection ....................................69
Conguring a static IP network connection ......................................................... 70
Turning your ASUS Tablet o.................................................................................71
Putting your ASUS Tablet to sleep ............................................................................ 71
Windows® 8.1 lock screen ........................................................................................72
To proceed from the lock screen ...............................................................................72
Customizing your lock screen .................................................................................... 73
Troubleshoot ...............................................................................................................75
Refresh your PC ............................................................................................................... 75
Reset your PC ................................................................................................................... 76
Advanced options .......................................................................................................... 77
ASUS Tablet and ASUS Mobile Dock E-Manual
5
DRAFT 1
Tips and FAQs
Useful tips for your ASUS Tablet ........................................................................... 80
Hardware FAQs ...........................................................................................................81
Software FAQs ............................................................................................................. 84
Appendices

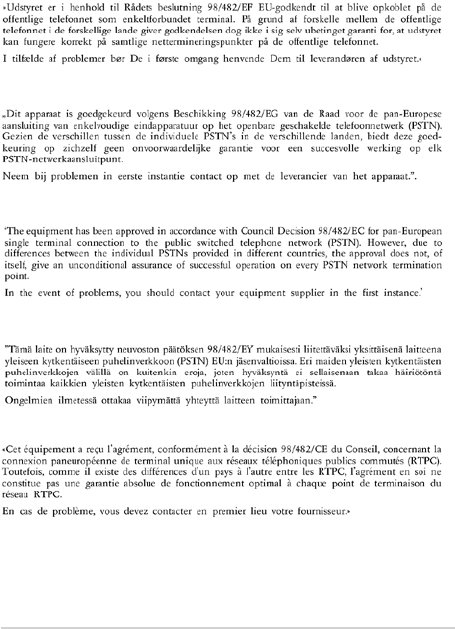

Internal Modem Compliancy ..................................................................................... 88
Overview ............................................................................................................................ 88

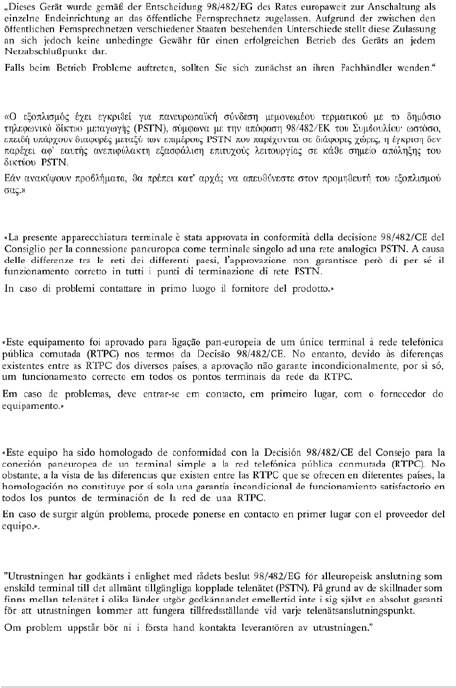

Network Compatibility Declaration ......................................................................... 89
Non-Voice Equipment ..................................................................................................89
Federal Communications Commission Interference Statement ................... 91
Declaration of Conformity (R&TTE directive 1999/5/EC) .................................. 92
FCC Radio Frequency (RF) Exposure Caution Statement ................................. 93
RF Exposure Information (SAR) .................................................................................. 93
CE Marking ........................................................................................................................ 94
Prevention of Hearing Loss ......................................................................................... 95
RF Exposure information (SAR) - CE ......................................................................... 95
IC Radiation Exposure Statement for Canada ...................................................... 96
Déclaration d’Industrie Canada relative à l’exposition aux ondes radio ... 97
Radiation Exposure Statement .................................................................................. 98
Déclaration d'exposition aux radiations.................................................................98
Caution ............................................................................................................................... 98
Avertissement .................................................................................................................. 99
Wireless Operation Channel for Dierent Domains ...........................................100
France Restricted Wireless Frequency Bands ....................................................... 100
UL Safety Notices ............................................................................................................ 102
Power Safety Requirement .......................................................................................... 103
TV Notices ......................................................................................................................... 103
REACH ................................................................................................................................. 103
Macrovision Corporation Product Notice .............................................................. 103
Nordic Lithium Cautions (for lithium-ion batteries) ........................................... 104
Optical Drive Safety Information .............................................................................. 105
CTR 21 Approval (for ASUS Tablet with built-in Modem) ................................. 106
6
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
European Union Eco-label ........................................................................................... 108
Global Environmental Regulation Compliance and Declaration .................. 109
ASUS Recycling/Takeback Services .......................................................................... 109
Rechargeable Battery Recycling Service in North America............................. 109
Regional notice for Singapore ...................................................................................110
Regional notice for India .............................................................................................. 110
Notices for removeable batteries..............................................................................110
Avis concernant les batteries remplaçables..........................................................110
ASUS Tablet and ASUS Mobile Dock E-Manual
7
DRAFT 1
About this manual
This manual provides information about the hardware and software
features of your ASUS Tablet and ASUS Mobile Dock, organized through
the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS
Tablet and ASUS Mobile Dock.
Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock
This chapter shows you how to use the dierent parts of your
ASUS Tablet and its ASUS Mobile Dock.
Chapter 3: Working with Windows® 8.1
This chapter provides an overview of using Windows® 8.1 in your
ASUS Tablet.
Chapter 4: Upgrading your ASUS Tablet
This chapter guides you through the process of replacing and
upgrading parts of your ASUS Tablet.
Tips and FAQs
This section presents some recommended tips, hardware FAQs,
and software FAQs you can refer to for maintaining and xing
common issues with your ASUS Tablet.
Appendices
This section includes notices and safety statements for your ASUS
Tablet and ASUS Mobile Dock.
8
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing tasks and prevent damage to
your ASUS Tablet's data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
= Use the touch screen panel.
= Use the touchpad.
= Use the keyboard.
Icons
The icons below indicate the devices you can use for completing a
series of tasks or procedures on your ASUS Tablet.
ASUS Tablet and ASUS Mobile Dock E-Manual
9
DRAFT 1
Safety precautions
Using your ASUS Tablet

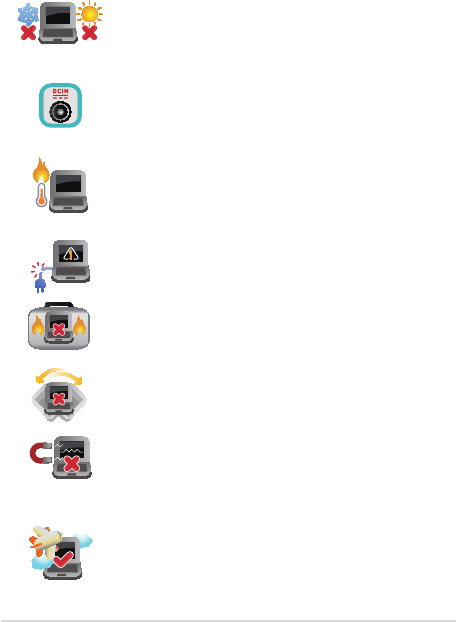

This ASUS Tablet should only be used in
environments with ambient temperatures between
5°C (41°F) and 35°C (95°F).
Refer to the rating label on the bottom of your ASUS
Tablet and ensure that your power adapter complies
with this rating.
Do not leave your ASUS Tablet on your lap or near
any part of your body to prevent discomfort or
injury from heat exposure.
Do not use damaged power cords, accessories, and
other peripherals with your ASUS Tablet.
While powered on, ensure that you do not carry or
cover your ASUS Tablet with any materials that can
reduce air circulation.
Do not place your ASUS Tablet on uneven or
unstable work surfaces.
You can send your ASUS Tablet through x-ray
machines (used on items placed on conveyor belts),
but do not expose them to magnetic detectors and
wands.
Contact your airline provider to learn about related
inight services that can be used and restrictions
that must be followed when using your ASUS Tablet
in-ight.
10
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Caring for your ASUS Tablet
Disconnect the AC power and remove the battery
pack (if applicable) before cleaning your ASUS
Tablet. Use a clean cellulose sponge or chamois
cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water. Remove
any extra moisture from your ASUS Tablet using a
dry cloth.
Do not use strong solvents such as thinners,
benzene, or other chemicals on or near your ASUS
Tablet.
Do not place objects on top of your ASUS Tablet.
Do not expose your ASUS Tablet to strong magnetic
or electrical elds.
Do not use or expose your ASUS Tablet near liquids,
rain, or moisture.
Do not expose your ASUS Tablet to dusty
environments.
Do not use your ASUS Tablet near gas leaks.
ASUS Tablet and ASUS Mobile Dock E-Manual
11
DRAFT 1
Proper disposal
Do not throw your ASUS Tablet/ASUS Mobile Dock
in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The
symbol of the crossed out wheeled bin indicates
that the product (electrical, electronic equipment
and mercury-containing button cell battery) should
not be placed in municipal waste. Check local
regulations for disposal of electronic products.
Do not throw the battery in municipal waste. The
symbol of the crossed out wheeled bin indicates
that the battery should not be placed in municipal
waste.
12
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
ASUS Tablet and ASUS Mobile Dock E-Manual
13
DRAFT 1
Chapter 1:
Hardware Setup
14
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

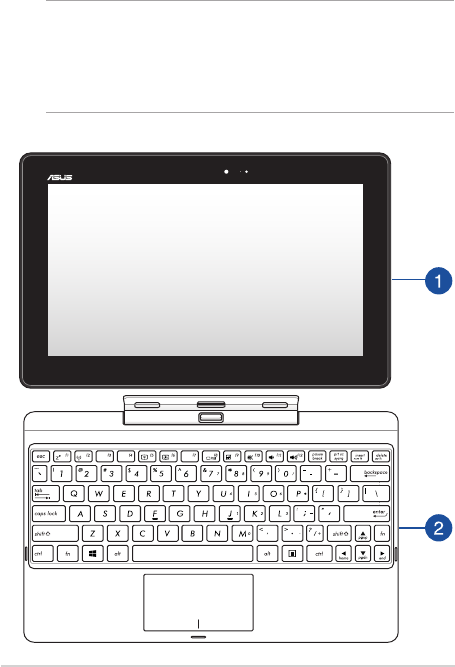

Top View
NOTE:
• The keyboard's layout may vary per region or country. The top view
may also vary in appearance depending on the ASUS Tablet model.
• TheASUSMobileDockiscompatiblewithT100seriesASUSTablets.
ASUS Tablet and ASUS Mobile Dock E-Manual
15
DRAFT 1
ASUS Tablet
Your ASUS Tablet comes with an optional ASUS Mobile Dock to
suit your mobile needs. The ASUS Tablet is also equipped with
its own features for work and play which can be accessed using
touch screen gestures.
NOTE: For more details on using the ASUS Tablet, refer to the
Tablet features and Gestures for the ASUS Tablet and touchpad
sections in this manual.
ASUS Mobile Dock
The ASUS Mobile Dock provides additional input features to your
touch screen panel via its touchpad and keyboard functions.
IMPORTANT! To know more about connecting or disconnecting
your ASUS Tablet from its ASUS Mobile Dock, refer to the Docking
the ASUS Tablet on the ASUS Mobile Dock and Undocking the ASUS
Tablet sections in this manual.
16
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

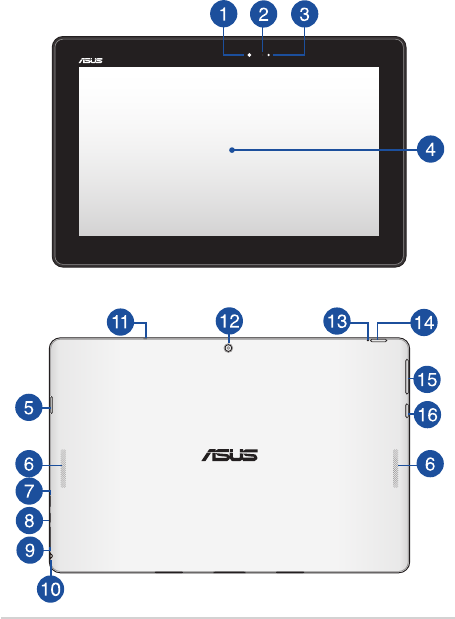

ASUS Tablet features
Top and back view
ASUS Tablet and ASUS Mobile Dock E-Manual
17
DRAFT 1
Front camera
The built-in 1.2-megapixel front camera allows you to take
pictures or record videos using your ASUS Tablet.
Camera indicator
The camera indicator lights up when the built-in camera is in use.
Ambient light sensor
The ambient light sensor detects the amount of ambient light in
your environment. It allows the system to automatically adjust
the brightness of the display depending on the ambient light
condition.
Touch screen panel
This high-denition touch screen panel provides excellent
viewing features for photos, videos, and other multimedia les
on your ASUS Tablet. It also allows you to operate your ASUS
Tablet using touch gestures.
NOTE: To know more about using touch screen gestures when
operating your ASUS Tablet, refer to the Using the tablet section in
this manual.
MicroSD card slot
The tablet comes with a built-in memory card reader slot that
supports microSD, microSDHC, and microSDXC card formats.
Audio speakers
The built-in audio speaker allows you to hear audio straight
from the ASUS Tablet. The audio features of this ASUS Tablet are
software-controlled.
18
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Micro USB 2.0 port
Use the micro USB (Universal Serial Bus) port 2.0 to charge or
supply power to your ASUS Tablet.
Micro HDMI port
This port is for a micro HDMI (High-Denition Multimedia
Interface) connector and is HDCP compliant for HD DVD, Blu-ray,
and other protected content playback.
Micro SIM card slot (for models with LTE only)
Your ASUS Tablet comes with a built-in micro SIM card slot that
supports GSM, WCDMA, and LTE network bands.
Headphone output/Microphone input combo jack port
This port allows you to connect your ASUS Tablet to amplied
speakers or headphones. You can also use this port to connect
your ASUS Tablet to an external microphone.
Microphone
The built-in microphone can be used for video conferencing,
voice narrations, or simple audio recording.
Rear camera
The built-in rear camera allows you to take pictures or record
videos using your ASUS Tablet.
Two-color battery charge indicator
This two-color LED provides a visual indication of the battery’s
charge status. Refer to the following table for details:
ASUS Tablet and ASUS Mobile Dock E-Manual
19
DRAFT 1
Color Status
White The ASUS Tablet is plugged to
a power source and the battery
power is between 95% and 100%.
Orange The ASUS Tablet is plugged to a
power source, charging its battery,
and the battery power is less than
95%.
Lights o The Tablet PC is running on battery
mode and the battery power is
between 10% to 100%.
Power button
Press the power button to turn your ASUS Tablet on, put it to
sleep mode, and wake it up from sleep mode.
In the event that your ASUS Tablet becomes unresponsive, press
and hold the power button for about ten (10) seconds to force it
to shut down.
IMPORTANT! Forcing the system to restart may result to data
loss. We strongly recommend that you back up your data
regularly.
Volume button
The volume button allows you to increase or decrease the
volume level of your ASUS Tablet.
Windows® button
Press this button to go back to Start screen. If you are already in
the Start screen, press this button to go back to the last app you
opened.
20
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

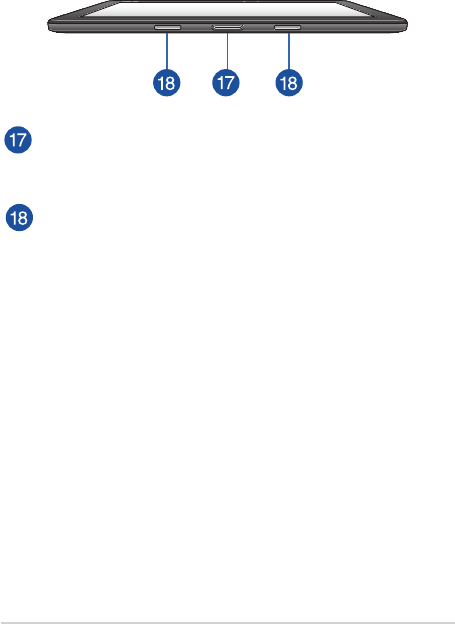

Bottom side
Dock port
Connect the ASUS Mobile Dock to this port to support keyboard,
touchpad, and USB 3.0 port* functions.
Hinge holes
Align and insert the latch hooks into these holes to securely
attach the tablet to the ASUS Mobile Dock.
* on selected models only
ASUS Tablet and ASUS Mobile Dock E-Manual
21
DRAFT 1
Keyboard
The keyboard provides QWERTY keys with a comfortable travel
depth for typing. It also enables you to use the function keys,
allows quick access to Windows®, and controls other multimedia
functions.
NOTE: The keyboard layout diers by territory.
ASUS Mobile Dock features
IMPORTANT! The ASUS Mobile Dock is optional accessory
NOTE: The keyboard's layout may vary per region or country.
Top view
22
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Latch hooks
The latch hooks allow you to securely attach the ASUS Tablet on
the ASUS Mobile Dock.
Dock connector
Securely attach the tablet into the ASUS Mobile Dock by
aligning the dock port on top of this connector.
Hinge
This hinge supports the tablet while it is connected to the ASUS
Mobile Dock. It also holds the tablet in place while you adjust it
into dierent viewing angles.
Release button
Press this button to safely detach the tablet from the ASUS
Mobile Dock.
Touchpad
The touchpad allows the use of multi-gestures to navigate
onscreen, providing an intuitive user experience. It also
simulates the functions of a regular mouse.
NOTE: For more details, refer to the Using the touchpad section
in this manual.
ASUS Tablet and ASUS Mobile Dock E-Manual
23
DRAFT 1
USB 2.0 port*
This USB (Universal Serial Bus) port is compatible with USB 2.0 or
USB 1.1 devices such as keyboards, pointing devices, ash disk
drives, external HDDs, speakers, cameras and printers.
USB 3.0 port*
The USB 3.0 (Universal Serial Bus 3.0) port provides a transfer rate
up to 5Gbit/s and is backward compatible to USB 2.0.
Left view
* on selected models only
24
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
ASUS Tablet and ASUS Mobile Dock E-Manual
25
DRAFT 1
Chapter 2:
Using your ASUS Tablet and
ASUS Mobile Dock
26
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Getting started
Dock the ASUS Tablet on the ASUS Mobile Dock.
ASUS Tablet and ASUS Mobile Dock E-Manual
27
DRAFT 1
Charge your ASUS Tablet.
A. Connect the micro USB cable to the power adapter.
B. Plug the micro USB connector into your ASUS Tablet.
C. Plug the power adapter into a grounded power outlet.
NOTE: The power adapter may vary in appearance, depending on models
and your region. Use only the bundled power adapter for charging.
Charge the ASUS Tablet for 8 hours before using it in battery
mode for the rst time.
IMPORTANT!
Power adapter information:
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:2A(10Wfornon-HDDdockor18WforHDD
dock)
• Ratingoutputvoltage:5V(10Wfornon-HDDdock)or9V(18Wfor
HDD dock)
28
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
IMPORTANT!
• Locatetheinput/outputratinglabelonyourASUSTabletandensure
that it matches the input/output rating information on your power
adapter. Some ASUS Tablet models may have multiple rating output
currents based on the available SKU.
• EnsurethatyourASUSTabletisconnectedtothepoweradapter
before turning it on for the rst time. We strongly recommend that
you use a grounded wall socket while using your ASUS Tablet on
power adapter mode.
• ThesocketoutletmustbeeasilyaccessibleandnearyourASUS
Tablet.
• TodisconnectyourASUSTabletfromitsmainpowersupply,unplug
your ASUS Tablet from the power socket.
WARNING!
Read the following precautions for your ASUS Tablet’s battery.
• OnlyASUS-authorizedtechniciansshouldremovethebatteryinside
the device.
• Thebatteryusedinthisdevicemaypresentariskofreorchemical
burn if removed or disassembled.
• Followthewarninglabelsforyourpersonalsafety.
• Riskofexplosionifbatteryisreplacedbyanincorrecttype.
• Donotdisposeofinre.
• Neverattempttoshort-circuityourASUSTablet’sbattery.
• Neverattempttodissambleandreassemblethebattery.
• Discontinueusageifleakageisfound.
• Thebatteryanditscomponentsmustberecycledordisposedof
properly.
• Keepthebatteryandothersmallcomponentsawayfromchildren.
ASUS Tablet and ASUS Mobile Dock E-Manual
29
DRAFT 1
Lift to open the display panel.
Press the power button.
30
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Gestures for the touch screen
panel and touchpad
Gestures allow you to launch programs and access the settings of
your ASUS Tablet. Refer to the following illustrations when using hand
gestures on your touch screen panel and touchpad.
NOTE: The following screenshots are for reference only. The touch screen
panel’s appearance may vary depending on model.
The gestures allow you to launch programs and access the settings of
your ASUS Tablet. The functions can be activated by using the hand
gestures to your ASUS Tablet’s touch screen panel.

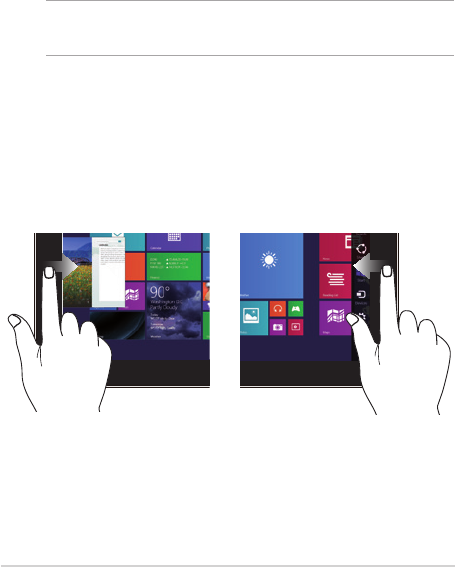

Left edge swipe Right edge swipe
Swipe from the left edge of the
screen to shue your running
apps.
Swipe from the right edge of the
screen to launch the Charms bar.
Using touch screen panel gestures
ASUS Tablet and ASUS Mobile Dock E-Manual
31
DRAFT 1

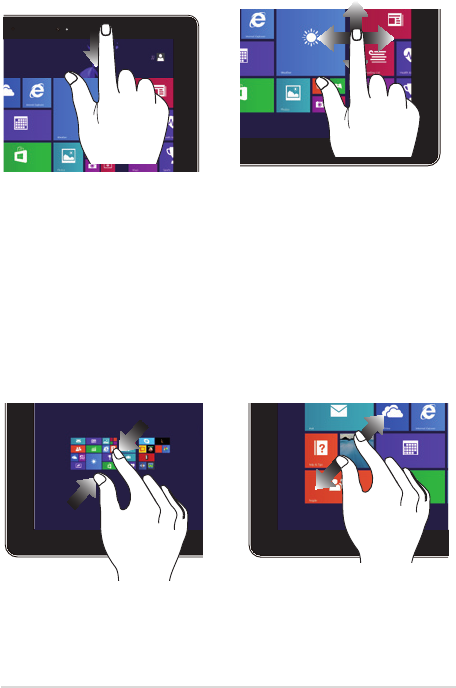

Top edge swipe Finger slide
• IntheStartscreen,swipe
from the top edge of
the screen to view the
Customize bar.
• Inarunningapp,swipefrom
the top edge of the screen to
view its menu.
Slide your nger to scroll up and
down and slide your nger to
pan the screen left or right.
Zoom out Zoom in
Bring together your two ngers on
the touch panel.
Spread apart your two ngers
on the touch panel.
32
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Tap/Double tap Tap/click and hold
• Tap an app to launch it.
• On Desktop mode, double-
tap an item to launch it.
• To move an app, tap and
hold the app tile and drag it
to a new location.
• To close an app, tap and
hold the top side of the
running app and drag it
down to the bottom of the
screen to close it.
ASUS Tablet and ASUS Mobile Dock E-Manual
33
DRAFT 1
Swipe up Swipe down

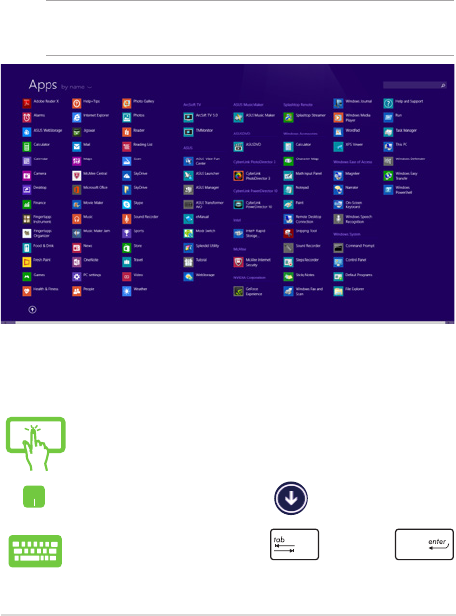

Swipe up from the Start screen to
launch the Apps screen.
Swipe down from the Apps
screen to return to the Start
screen.
34
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Using touchpad gestures

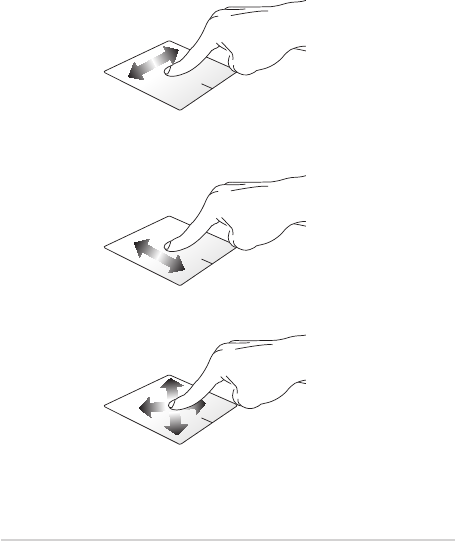

Moving the pointer
You can tap or click anywhere on the touchpad to activate its pointer,
then slide your nger on the touchpad to move the pointer onscreen.
Slide horizontally
Slide vertically
Slide diagonally
ASUS Tablet and ASUS Mobile Dock E-Manual
35
DRAFT 1
One-nger gestures
Tap/click, Double tap/click
• IntheStartscreen,tap/clickanapptolaunchit.
• InDesktopmode,doubletap/clickanapplicationtolaunchit.
Drag and drop
Double-tap/click an item, then slide the same nger without lifting it
o the touchpad. To drop the item to its new location, lift your nger
from the touchpad.
36
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

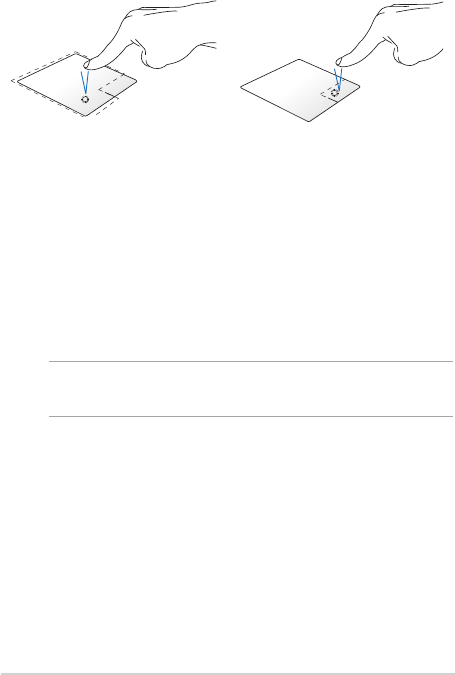

Left-click Right-click
• IntheStartscreen,clickan
app to launch it.
• InDesktopmode,double-
click an application to
launch it.
• IntheStartscreen,clickan
app to select it and launch
the settings bar. You can also
press this button to launch
the All Apps bar.
• InDesktopmode,usethis
button to open the right-
click menu.
NOTE: The areas inside the dotted line represent the locations of the left
mouse button and the right mouse button on the touchpad.
ASUS Tablet and ASUS Mobile Dock E-Manual
37
DRAFT 1
Top edge swipe
• IntheStartscreen,swipefromthetopedgetolaunchtheAll
Apps bar.
• Inarunningapp,swipefromthetopedgetoviewitsmenu.
Left edge swipe Right edge swipe
Swipe from the left edge to shue
your running apps.
Swipe the right edge to launch
the Charms bar.
38
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Two-nger gestures
Tap/click Rotate
Tap/click two ngers on the
touchpad to simulate the right-
click function.
To rotate an image, place two
ngers on the touchpad then
turn one nger clockwise or
counterclockwise while the other
stays still.
Two-nger scroll (up/down) Two-nger scroll (left/right)
Slide two ngers to scroll up or
down.
Slide two ngers to scroll left or
right.
ASUS Tablet and ASUS Mobile Dock E-Manual
39
DRAFT 1

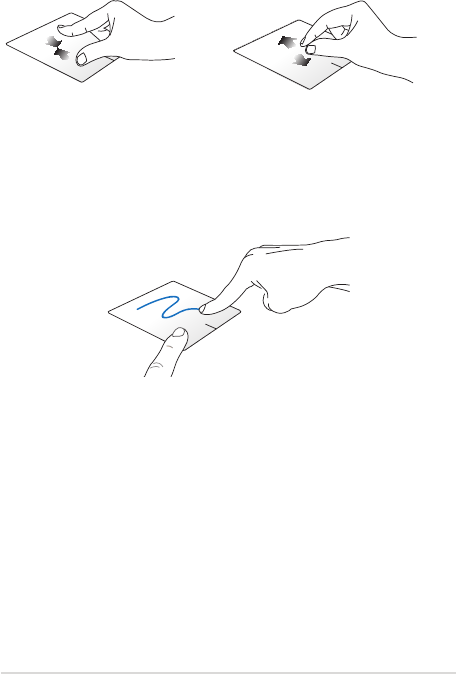

Zoom out Zoom in
Bring together your two ngers on
the touchpad.
Spread apart your two ngers on
the touchpad.
Drag and drop
Select an item then press and hold the left button. Using your other
nger, slide down the touchpad to drag and drop the item to a new
location.
40
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

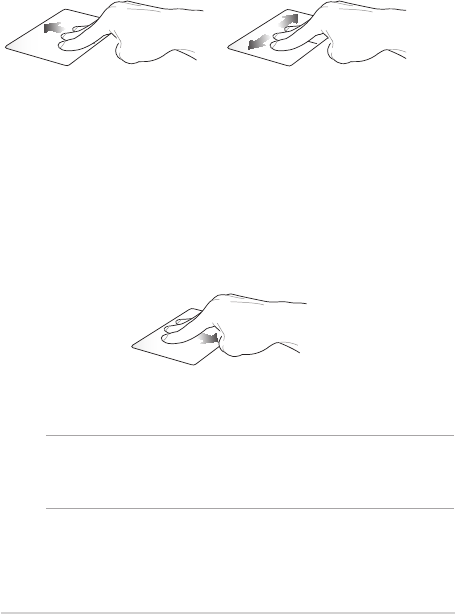

Three-nger gestures
Swipe up Swipe left/right
Swipe three ngers upward to
show all running applications.
Swipe three ngers left or right
to show running apps in Desktop
mode or Start screen.
IMPORTANT! By default, the three-nger gestures are not enabled in
your ASUS Tablet. To enable these gestures, refer to section Enabling the
three-nger gestures.
Swipe down
Swipe three ngers downward to show the Desktop mode.
ASUS Tablet and ASUS Mobile Dock E-Manual
41
DRAFT 1

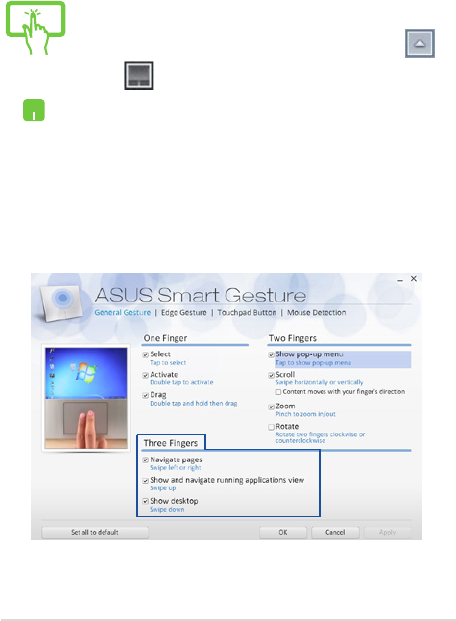

Enabling the three-nger gestures
Activate the three-nger gestures of your touchpad using the following
steps:
or
1. Launch the Desktop app.
2. On the lower-right corner of the taskbar, tap >
to launch ASUS Smart Gesture app.
3. Tick the following items on the Three Fingers pane:
- Navigate page
- Show and navigate running apps’ view
- Show desktop
4. Tap Apply then tap OK.
42
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

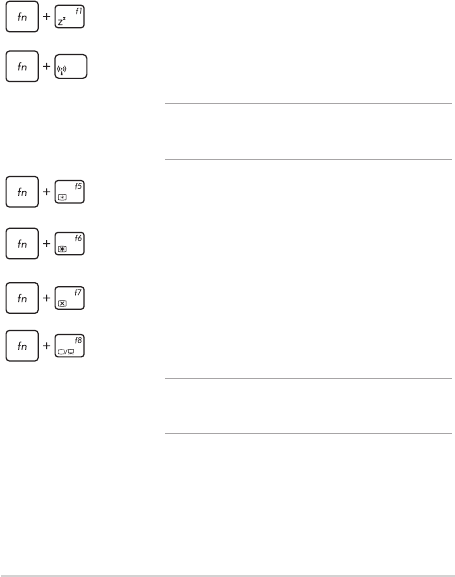

Function keys
The function keys on your keyboard can trigger the following
commands:
Using the keyboard
Puts the ASUS Tablet into Sleep mode
f2
Turns Airplane mode on or o
NOTE: When enabled, the Airplane mode disables
all wireless connectivity.
Decreases display brightness
Increases display brightness
Turns the display panel o
Toggles the display mode
NOTE: Ensure that the second display is connected
to your ASUS Tablet.
ASUS Tablet and ASUS Mobile Dock E-Manual
43
DRAFT 1

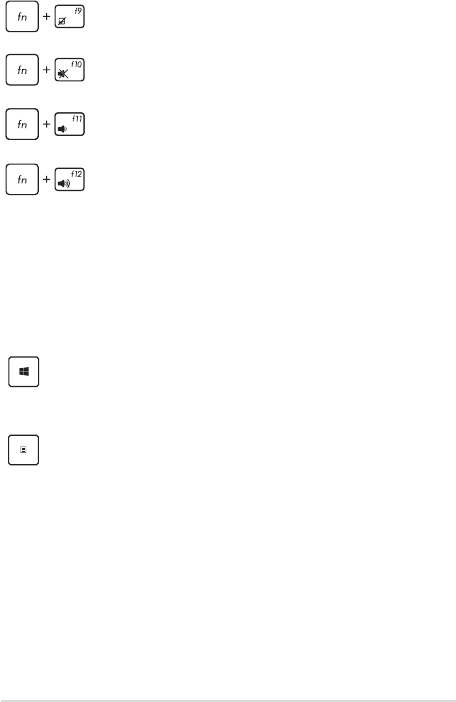

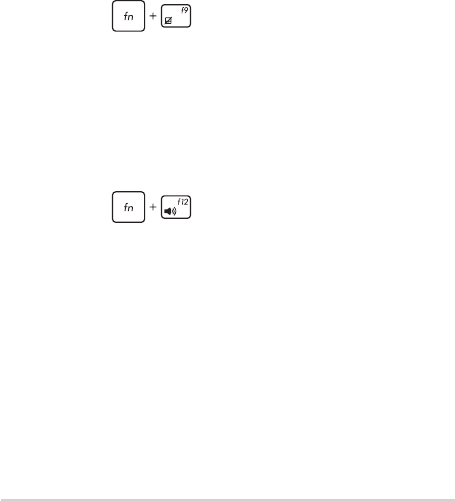

Enables or disables the touchpad
Turns the speaker on or o
Turns the speaker volume down
Turns the speaker volume up
Windows® 8.1 keys
There are two special Windows® keys on your keyboard used as below:
Press this key to go back to the Start screen. If you are
already in the Start screen, press this key to go back to
the last app you opened.
Press this key to simulate the right-click functions.
44
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
ASUS Tablet and ASUS Mobile Dock E-Manual
45
DRAFT 1
Chapter 3:
Working with Windows® 8.1
46
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Starting for the rst time
When you start your computer for the rst time, a series of screens
appear to guide you in conguring your Windows® 8.1 operating
system.
To start your ASUS Tablet for the rst time:
1. Press the power button on your ASUS Tablet. Wait for a few
minutes until the setup screen appears.
2. From the setup screen, pick your region and a language to use on
your ASUS Tablet.
3. Carefully read the License Terms. Select I accept.
4. Follow the onscreen instructions to congure the following basic
items:
• Personalize
• Getonline
• Settings
• Youraccount
5. After conguring the basic items, Windows® 8.1 proceeds to
install your apps and preferred settings. Ensure that your ASUS
Tablet is kept powered on during the setup process.
6. Once the setup process is complete, the Start screen appears.
ASUS Tablet and ASUS Mobile Dock E-Manual
47
DRAFT 1
Windows® UI
Windows® 8.1 comes with a tile-based user interface (UI) which allows
you to organize and easily access Windows® apps from the Start screen.
It also includes the following features that you can use while working
on your ASUS Tablet.
Start screen
The Start screen appears after successfully signing in to your user
account. It helps organize all the applications you need in just one
place.
Windows® Apps
These are apps pinned on the Start screen and displayed on tiled-format
for easy access.
NOTE: Some apps require signing in to your Microsoft account before
they are fully launched.
48
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

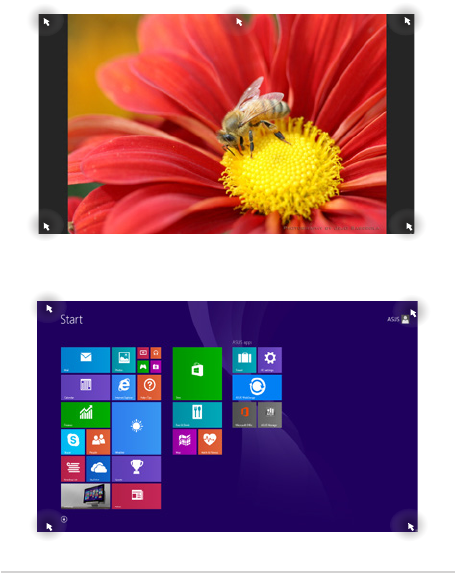

Hotspots
Onscreen hotspots allow you to launch programs and access the
settings of your ASUS Tablet. The functions in these hotspots can be
activated using the touchpad.
Hotspots on a running app
Hotspots on the Start screen
ASUS Tablet and ASUS Mobile Dock E-Manual
49
DRAFT 1
Hotspot Action
upper left corner Hover your mouse pointer on the upper left
corner then tap/click on the recent app’s
thumbnail to revert back to that running app.
If you launched more than one app, slide
down to show all running apps.
lower left corner From a running app screen:
Hover your mouse pointer on the lower left
corner then tap/click to go back to the
Start screen.
NOTE: You can also press the Windows key
on your keyboard to go back to the
Start screen.
From the Start screen:
Hover your mouse pointer on the lower left
corner then tap/click to go back to that
app.
50
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Hotspot Action
top side Hover your mouse pointer on the top side
until it changes to a hand icon. Drag then
drop the app to a new location.
NOTE: This hotspot function only works on
a running app or when you want to use the
Snap feature. For more details, refer to the
Snap feature under Working with Windows®
apps.
upper or lower right
corner
Hover your mouse pointer on the upper or
lower right corner to launch the Charms bar.
ASUS Tablet and ASUS Mobile Dock E-Manual
51
DRAFT 1
Start button
Windows® 8.1 features the Start button which allows you to switch
between the two most recent apps that you opened. The Start button
may be accessed from the Start screen, while on Desktop mode, and on
any app that is currently open onscreen.
Start button on the Start screen
NOTE: The actual color of your Start button varies depending on the
display settings you chose for your Start screen.
Hover your mouse pointer over the left corner of your Start
screen or any opened app to call out the Start button.
52
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

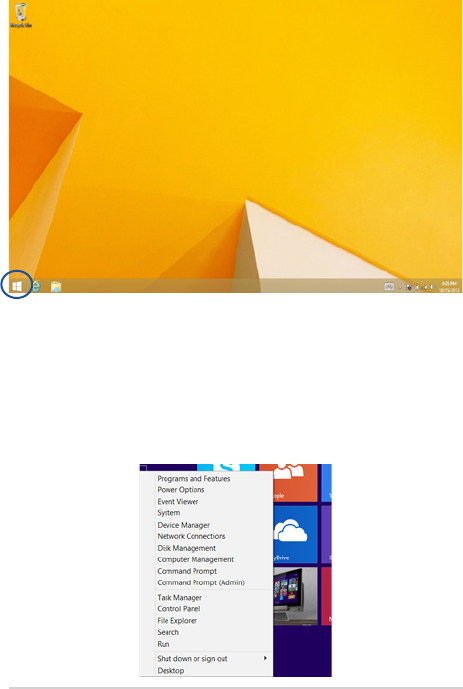

Start button on Desktop mode
Context menu
The context menu appears as a box lled with quick access to some of
the programs inside Windows® 8.1 when you right-click on the Start
button.
The context menu also includes the following shut down options for
your ASUS Tablet: sign out, sleep, shut down, restart.
ASUS Tablet and ASUS Mobile Dock E-Manual
53
DRAFT 1
Customizing your Start screen
Windows® 8.1 also enables you to customize your Start screen,
allowing you to boot directly to the Desktop mode and customize the
arrangement of your apps onscreen.
To customize the settings of your Start screen:
or
1. Launch the Desktop.
2. Right-click anywhere on the taskbar, except on the
Start button, to launch the pop-up window.
3. Click Properties then select the Navigation tab to
tick the Navigation and Start screen options you
want to use.
4. Tap/click Apply to save the new settings then exit.
54
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Working with Windows® apps
Use your ASUS Tablet’s touch screen panel, touchpad, or keyboard to
launch, customize, and close apps.
Launching apps
Customizing apps
You can move, resize, unpin, or close apps from the Start screen using
the following steps:
Tap an app to launch it.
Position your mouse pointer over the app then left-click
or tap once to launch it.
Press twice then use the arrow keys to browse
through the apps. Press to launch an app.
Moving apps
Tap and hold the app tile then drag it to a new location.
Double-tap on the app then drag and drop the app to a
new location.
ASUS Tablet and ASUS Mobile Dock E-Manual
55
DRAFT 1

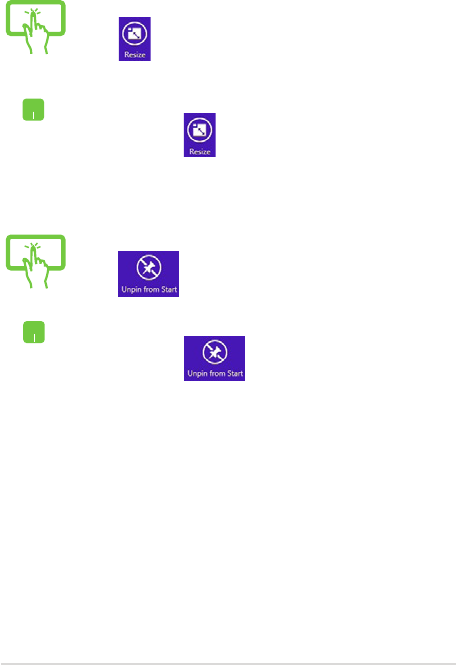

Tap and hold the app to activate the Customize bar then
tap and select an app tile size.
Tap and hold the app to activate the Customize bar, then
tap to unpin an app.
Unpinning apps
Resizing apps
Right-click on the app to activate the Customize bar,
then tap/click and select an app tile size.
Right-click on the app to activate the Customize bar
then tap/click .
56
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Tap and hold the top side of the running app then drag
it down to the bottom of the screen to close it.
1. Move your mouse pointer on the top side of the
launched app then wait for the pointer to change
to a hand icon.
2. Drag then drop the app to the bottom of the
screen to close it.
From the running app’s screen, press .
Closing apps
ASUS Tablet and ASUS Mobile Dock E-Manual
57
DRAFT 1
Accessing the Apps screen
Aside from the apps already pinned on your Start screen, you can also
open other applications through the Apps screen.
NOTE: Actual apps shown onscreen may vary per model. The following
screenshot is for reference only.
Launching the Apps screen
Launch the Apps screen using your ASUS Tablet's touch screen panel,
touchpad, or keyboard.
Swipe up on the Start screen.
On the Start screen, click the button.
From the Start screen, Press then press .
58
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Pinning more apps on the Start screen
You can pin more apps on the Start screen using your touch screen
panel or touchpad.
1. Launch the All Apps screen.
2. Tap and hold an app you want to add on the
start to activate the Customize bar. Once the
Customize bar is launched, you may also tap
other more apps to add on the Start screen.
3. Tap to pin the selected apps on the Start
screen.
1. Launch the All Apps screen
2. Right-click on the apps that you want to add on
the Start screen.
3. Tap/click on the icon to pin the selected
apps on the Start screen.
ASUS Tablet and ASUS Mobile Dock E-Manual
59
DRAFT 1

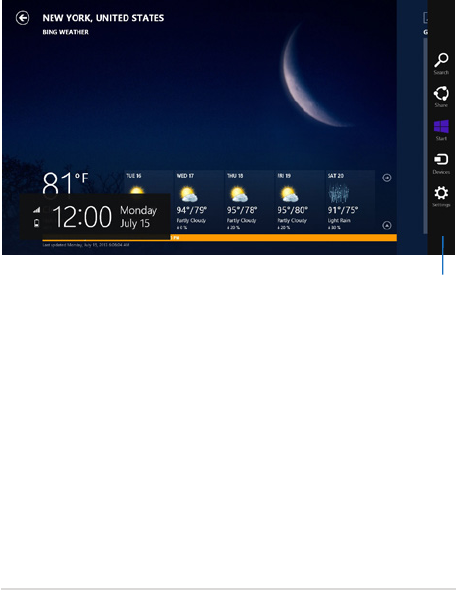

Charms bar
The Charms bar is a toolbar that can be triggered on the right side
of your screen. It consists of several tools that allow you to share
applications and provide quick access for customizing the settings of
your ASUS Tablet.
Charms bar
60
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Launching the Charms bar
NOTE: When called out, the Charms bar initially appears as a set of
white icons. The image above shows how the Charms bar looks like once
activated.
Use your ASUS Tablet’s touch screen panel, touchpad, or keyboard to
launch the Charms bar.
Swipe from the right edge of the screen to launch the
charms bar.
Move your mouse pointer on the upper or lower right
corner of the screen.
Press
ASUS Tablet and ASUS Mobile Dock E-Manual
61
DRAFT 1
Search
This charm allows you to look for les, applications, or
programs in your ASUS Tablet.
Share
This charm allows you to share applications via social
networking sites or email.
Start
This charm reverts the display back to the Start screen.
From the Start screen, you can also use this to revert back
to a recently opened app.
Devices
This charm allows you to access and share les with the
devices attached to your ASUS Tablet such as an external
display or printer.
Settings
This charm allows you to access the PC settings of your
ASUS Tablet.
Inside the Charms bar
62
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Snap feature
The Snap feature displays two apps side-by-side, allowing you to work
or switch between apps.
IMPORTANT! Ensure that your ASUS Tablet’s screen resolution is set to
1366 x 768 pixels or higher before using the Snap feature.
Snap bar
ASUS Tablet and ASUS Mobile Dock E-Manual
63
DRAFT 1
Using Snap
Use your ASUS Tablet’s touch screen panel, touchpad, or keyboard to
activate and use Snap.
1. Launch the app you wish to snap.
2. Hover the mouse point on the top side of your
screen.
3. Once the pointer changes to a hand icon, drag
then drop the app to the left or right side of the
display panel.
4. Launch another app.
1. Launch the app you wish to snap.
2. Press and the left or right arrow key to snap
the app to the left or right pane.
3. Launch another app. This app is automatically
placed in the empty pane.
1. Launch the app you wish to snap.
2. Tap and hold the app’s topmost part then drag it
to the left or right side of the screen until the snap
bar appears.
3. Launch another app.
64
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

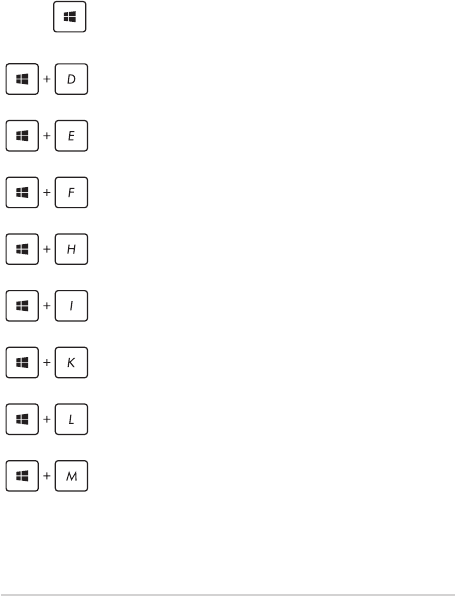

Other keyboard shortcuts
Using the keyboard, you can also use the following shortcuts to help
you launch applications and navigate Windows® 8.1.
\
Switches between the Start screen and the last
running app
Launches the desktop
Launches the This PC window on Desktop mode
Opens the File option from the Search charm
Opens the Share charm
Opens the Settings charm
Opens the Devices charm
Activates the Lock screen
Minimizes all currently active windows
ASUS Tablet and ASUS Mobile Dock E-Manual
65
DRAFT 1

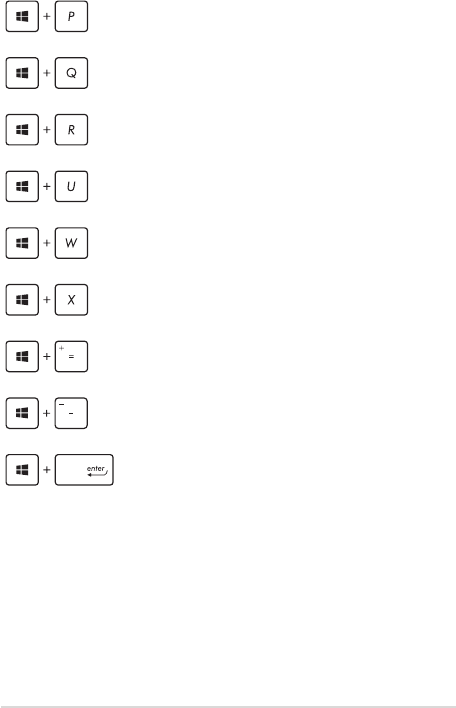

Launches the Project pane
Opens the Everywhere option from the
Search charm
Opens the Run window
Opens Ease of Access Center
Opens the Settings option under the Search
charm
Opens the context menu of the Start button
Launches the magnier icon and zooms in
your screen
Zooms out your screen
Opens the Narrator Settings
66
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Connecting to wireless networks
Wi-Fi
Access emails, surf the Internet, and share applications via social
networking sites using your ASUS Tablet’s Wi-Fi connection.
IMPORTANT! The Airplane mode disables this feature. Ensure that
Airplane mode is turned o before enabling the Wi-Fi connection of your
ASUS Tablet.
Enabling Wi-Fi
Activate Wi-Fi in your ASUS Tablet using the following steps on your
touch screen panel or touchpad.
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Select an access point from the list of available Wi-Fi
connections.
4. Tap/click Connect to start the network connection.
NOTE: You may be prompted to enter a security key to
activate the Wi-Fi connection.
5. If you want to enable sharing between your ASUS
Tablet and other wireless-enabled systems, tap/click
Yes . Tap/click No if you do not want to enable the
sharing function.
ASUS Tablet and ASUS Mobile Dock E-Manual
67
DRAFT 1
Bluetooth
Use Bluetooth to facilitate wireless data transfers with other Bluetooth-
enabled devices.
IMPORTANT! The Airplane mode disables this feature. Ensure that
Airplane mode is turned o before enabling the Bluetooth connection of
your ASUS Tablet.
Pairing with other Bluetooth-enabled devices
You need to pair your ASUS Tablet with other Bluetooth-enabled devices
to enable data transfers. To do this, use your touchpad as follows:
1. Launch the Charms bar.
2. Tap/click then tap/click Change PC Settings.
3. Under PC Settings, select Devices then tap/click Add
a Device to search for Bluetooth-enabled devices.
4. Select a device from the list. Compare the passcode
on your ASUS Tablet with the passcode sent to your
chosen device. If they are the same, tap/click Yes to
successfully pair your ASUS Tablet with the device.
NOTE: For some bluetooth-enabled devices, you may be
prompted to key in the passcode of your ASUS Tablet.
68
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
or
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Move the slider to the right to turn the Airplane
mode on.
Press
f2
.

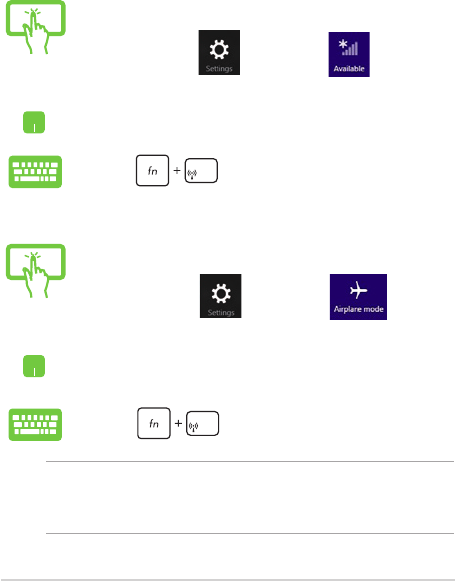

Airplane mode
The Airplane mode disables wireless communication, allowing you to
use your ASUS Tablet safely while in-ight.
Turning Airplane mode on
Turning Airplane mode o
or
1. Launch the Charms bar.
2. Tap/click and tap/click .
3. Move the slider to the left to turn the Airplane
mode o.
Press
f2
.
NOTE: Contact your airline provider to learn about related inight services
that can be used and restrictions that must be followed when using your
ASUS Tablet in-ight.
ASUS Tablet and ASUS Mobile Dock E-Manual
69
DRAFT 1
Connecting to wired networks
You can also connect to wired networks, such as local area networks
and broadband Internet connection, using your ASUS Tablet’s LAN port.
NOTE: Contact your Internet Service Provider (ISP) for details or
your network administrator for assistance in setting up your Internet
connection.
To congure your settings, refer to the following procedures.
IMPORTANT! Ensure that a network cable is connected between your
ASUS Tablet’s LAN port and a local area network before performing the
following actions.
Conguring a dynamic IP/PPPoE network
connection
1. Launch Desktop.
2. From the Windows® taskbar, right-click the network
icon then tap/click Open Network and
Sharing Center.
3. In the Network and Sharing Center window, tap/
click Change adapter settings.
4. Right-click on your LAN then select Properties.
5. Tap/click Internet Protocol Version 4(TCP/IPv4)
then tap/click Properties.
70
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
7. Return to the Network and Sharing Center
window then tap/click Set up a new connection or
network.
8. Select Connect to the Internet then tap/click Next.
9. Tap/click Broadband (PPPoE).
10. Type your User name, Password, and Connection
name then tap/click Connect.
11. Tap/click Close to nish the conguration.
12. Tap/click on the taskbar then tap/click the
connection you just created.
13. Type your user name and password then tap/click
Connect to start connecting to the Internet.
Conguring a static IP network connection
1. Repeat steps 1 to 5 under Conguring a dynamic
IP/PPPoE network connection.
2 Tap/click Use the following IP address.
3. Type the IP address, Subnet mask and Default
gateway from your service provider.
4. If needed, you can also type the preferred DNS
server address and alternate DNS server address
then tap/click OK.
NOTE: Proceed to the next steps if you are using PPPoE connection.
6. Tap/click Obtain an IP address automatically then
tap/click OK.
ASUS Tablet and ASUS Mobile Dock E-Manual
71
DRAFT 1

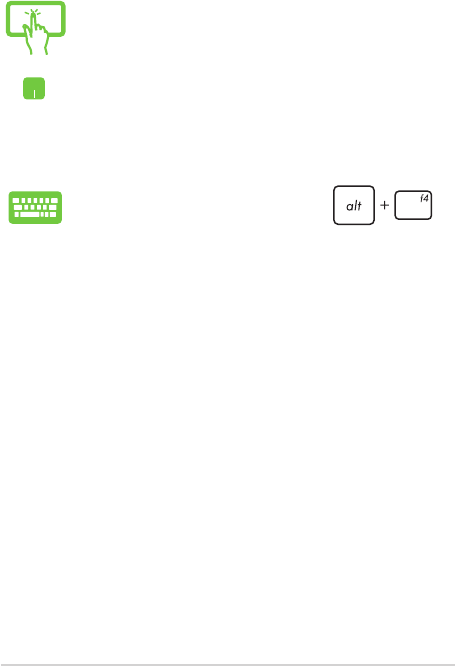

Turning your ASUS Tablet off
You can turn o your ASUS Tablet by doing either of the following
procedures:
Putting your ASUS Tablet to sleep
To put your ASUS Tablet on Sleep mode, press the power button once.
You can also put your ASUS Tablet to sleep mode using
Desktop mode. To do this, launch the desktop then
press alt + f4 to launch the Shut Down window. Select
Sleep from the drop-down list then select OK.
or

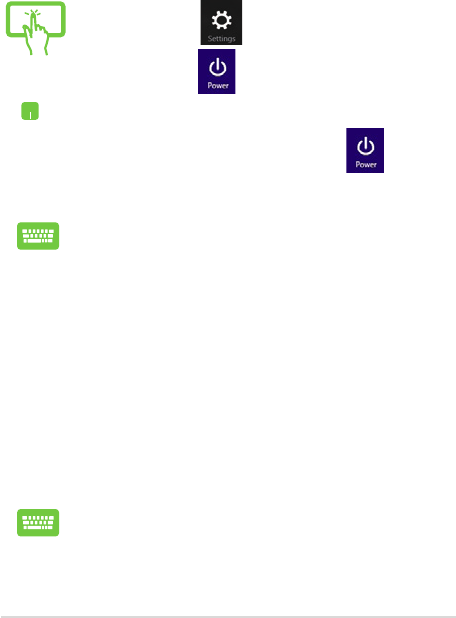

• Tap/click from the Charms bar then
tap/click > Shut down to do a normal
shutdown.
• Fromthelog-inscreen,tap/click > Shut
down.
• YoucanalsoshutdownyourASUSTabletusing
Desktop mode. To do this, launch the desktop
then press alt + f4 to launch the Shut Down
window. Select Shut Down from the drop-down
list then select OK.
• IfyourASUSTabletisunresponsive,pressand
hold the power button for at least four (4)
seconds until your ASUS Tablet turns o.
72
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

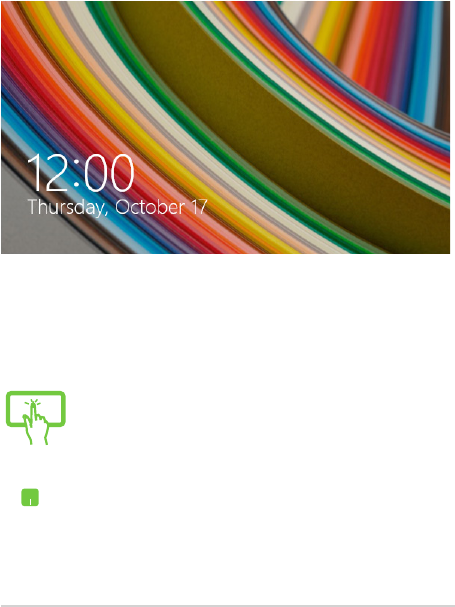

Windows® 8.1 lock screen
The Windows® 8.1 lock screen appears when you wake your ASUS Tablet
from sleep or hibernate mode. It also appears when you lock or unlock
Windows® 8.1.
The lock screen can be customized to regulate access to your operating
system. You can change its background display and access some of your
apps while your ASUS Tablet is still locked.
To proceed from the lock screen
or
1. Tap/click on the touchpad or press any key on
your ASUS Tablet's keyboard.
2. (optional) If your account is password-protected,
you need to key in the password to continue to
the Start screen.
ASUS Tablet and ASUS Mobile Dock E-Manual
73
DRAFT 1
Customizing your lock screen
You can customize your lock screen to show your preferred photo, a
photo slideshow, app updates, and quickly access your ASUS Tablet’s
camera. To change the settings of your lock screen, you may refer to the
following information:
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Under the Lock screen preview, click Browse
to select the photo you would like to use as a
background on your lock screen.

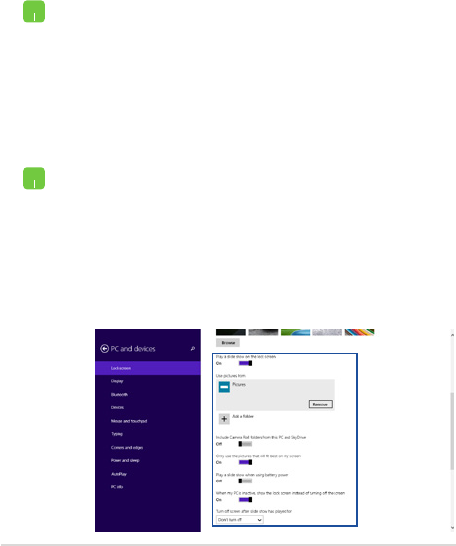

Playing a slideshow
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Under the Lock screen preview, move the Play
a slide show on the lock screen slide bar to On.
4. Scroll down to customize the following options
for your lock screen’s slideshow:
Selecting a photo
74
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1

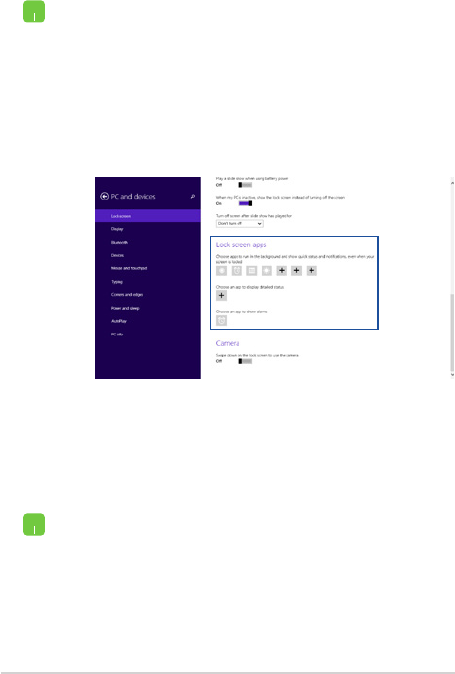

Adding app updates
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Scroll down until you see the Lock screen apps
option.
4. Use the following options to add the apps whose
updates you would like to see from your lock
screen:
Activating your ASUS Tablet camera from the lock screen
From the lock screen, you can swipe down to activate and use your
ASUS Tablet's camera. Refer to the following steps on how to enable this
feature:
1. Launch the Charms bar > Settings.
2. Select Change PC Settings > Lock screen.
3. Scroll down until you see the Camera option.
4. Move the slide bar to On.
ASUS Tablet and ASUS Mobile Dock E-Manual
75
DRAFT 1
Troubleshoot
By pressing during POST, you can access Windows® 8.1
troubleshoot options which includes the following:
• RefreshyourPC
• ResetyourPC
• Advancedoptions
Refresh your PC
Use Refresh your PC if you want to refresh your system without losing
your current les and applications.
To access this during POST:
1. Restart your ASUS Tablet then press during
POST.
2. Wait for Windows® to load the Choose an option
screen then tap/click Troubleshoot.
3. Tap/click Refresh your PC.
4. In the Refresh your PC screen, read the bullet points
to learn more about using this option then tap/click
Next.
5. Tap/click the account you would like to refresh.
6. Type your account password then tap/click
Continue.
7. Tap/click Refresh.
IMPORTANT! Ensure that your ASUS Tablet is plugged in
to a power source before refreshing your system.
76
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Reset your PC
IMPORTANT! Back up all your data before performing this option.
Use Reset your PC to restore your ASUS Tablet to its default settings.
To access this during POST:
1. Restart your ASUS Tablet then press during
POST.
2. Wait for Windows® to load the Choose an option
screen then tap/click Troubleshoot.
3. Tap/click Reset your PC.
4. In the Reset your PC screen, read the bullet points
to learn more about using this option then tap/click
Next.
5. Tap/click your preferred reset option: Just remove
my les or Fully clean the drive.
6. Tap/click Reset.
IMPORTANT! Ensure that your ASUS Tablet is plugged in to
a power source before resetting your system.
ASUS Tablet and ASUS Mobile Dock E-Manual
77
DRAFT 1
Advanced options
Use Advanced options to perform additional troubleshooting options
in your ASUS Tablet.
To access this during POST:
1. Restart your ASUS Tablet then press during
POST.
2. Wait for Windows® to load the Choose an option
screen then tap/click Troubleshoot.
3. Tap/click Advanced options.
4. In the Advanced options screen, select the
troubleshooting option you wish to perform.
5. Follow the succeeding steps to complete the
process.
Using System Image Recovery
Under Advanced options, you can use System Image Recovery to
recover your system using your ASUS Tablet’s original image le.
To access this during POST:
1. Restart your ASUS Tablet then press during
POST.
2. Wait for Windows® to load the Choose an option
screen then tap/click Troubleshoot.
3. Tap/click Advanced options.
78
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
4. In the Advanced options screen, select System
Image Recovery.
5. Choose an account you would like to recover using
a system image le.
6. Type your account password then tap/click
Continue.
7. Select Use the latest available system image
(recommended), then tap/click Next. You can
also choose Select a system image if your system
image is in an external device or DVD.
8. Follow the succeeding steps to complete the
system image recovery procedure.
NOTE: We strongly recommend that you regularly backup
your system to prevent data loss in case your ASUS Tablet
stops working.
ASUS Tablet and ASUS Mobile Dock E-Manual
79
DRAFT 1
Tips and FAQs
80
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Useful tips for your ASUS Tablet
To help you maximize the use of your ASUS Tablet, maintain its system
performance, and ensure all your data are kept secured, here are some
useful tips that you can follow:
• UpdateWindows®periodicallytoensurethatyourapplications
have the latest security settings.
• UseASUSLiveUpdatetoupdateASUS-exclusiveapplications,
drivers and utilities in your ASUS Tablet. Refer to the ASUS Tutor
installed in your ASUS Tablet for more details.
• Useananti-virussoftwaretoprotectyourdataandkeepthis
updated too.
• Unlessabsolutelynecessary,refrainfromusingforceshutdownto
turn o your ASUS Tablet.
• Alwaysbackupyourdataandmakeitapointtocreateabackup
data in an external storage drive.
• RefrainfromusingtheASUSTabletatextremelyhigh
temperatures. If you are not going to use your ASUS Tablet for a
long period of time (at least a month), we recommend that you
take out the battery if the battery is removable.
• Disconnectallexternaldevicesandensureyouhavethefollowing
items prior to resetting your ASUS Tablet:
- Product key for your operating systems and other installed
applications
- Backup data
- Log in ID and password
- Internet connection information
ASUS Tablet and ASUS Mobile Dock E-Manual
81
DRAFT 1
Hardware FAQs
1. A black dot, or sometimes a colored dot, appears onscreen
when I turn on the ASUS Tablet. What should I do?
Although these dots normally appear onscreen, they will not
aect your system. If the incident continues and subsequently
aects system performance, consult an authorized ASUS service
center.
2. My display panel has an uneven color and brightness. How
can I x this?
The color and brightness of your display panel may be aected
by the angle and current position of your ASUS Tablet. The
brightness and color tone of your ASUS Tablet may also vary per
model. You may use the function keys or the display settings in
your operating system to adjust the appearance of your display
panel.
3. How can I maximize my ASUS Tablet ‘s battery life?
You can try doing any of the following suggestions:
• Usethefunctionkeystoadjustthedisplaybrightness.
• IfyouarenotusinganyWi-Ficonnection,switchyour
system into Airplane mode.
• DisconnectunusedUSBdevices.
• Closeunusedapplications,especiallythosethattakeuptoo
much system memory.
82
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
4. My battery charge indicator does not light up. What’s wrong?
• Checkwhetherthepoweradapterorbatterypackis
attached correctly. You may also disconnect the power
adapter or battery pack, wait for a minute, then reconnect
them again to the power outlet and ASUS Tablet.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.

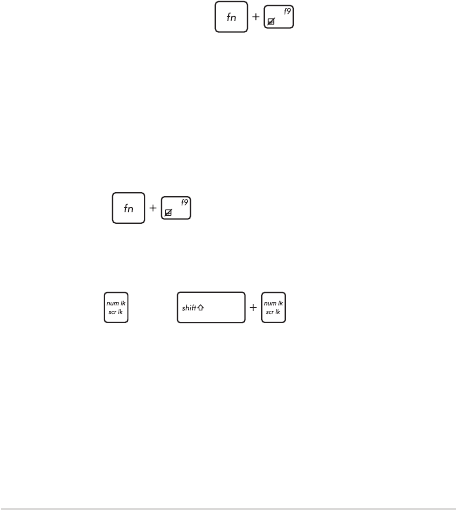

5. Why is my touchpad not working?
• Press to enable your touchpad.
• CheckifASUSSmartGesturehasbeensettodisablethe
touchpad when connecting an external pointing device.
6. When I play audio and video les, why can’t I hear any sound
from my ASUS Tablet’s audio speakers?
You can try doing any of the following suggestions:
• Press to turn up the speaker volume.
• Checkifyourspeakersweresettomute.
• CheckifaheadphonejackisconnectedtoyourASUSTablet
and remove it.
7. What should I do if my ASUS Tablet’s power adapter gets lost
or my battery stops working?
Contact your local ASUS service center for assistance.
ASUS Tablet and ASUS Mobile Dock E-Manual
83
DRAFT 1
8. Why does audio still come out from my ASUS Tablet’s audio
speakers even if I already connected my headphone into the
right jack port?
Go to Control Panel > Hardware and Sound then access Audio
Manager to congure the settings.
9. My ASUS Tablet cannot do keystrokes correctly because my
cursor keeps on moving. What should I do?
Make sure that nothing accidentally touches or presses on your
touchpad while you type on the keyboard. You can also disable
your touchpad by pressing .
10. My ASUS Tablet’s touchpad is not working. What should I do?
You can try doing any of the following suggestions:
• CheckifASUSSmartGestureissettodisabletouchpadby
connecting an external pointing device to your ASUS Tablet.
If yes, disable this function.
• Press .
11. Instead of showing letters, pressing the “U”, “I”, and “O” keys
on my keyboard displays numbers. How can I change this?
Press the key or (on selected models) on
your ASUS Tablet to turn o this feature and use the said keys for
inputting letters.
12. How do I know that my system is running?
Press and hold the power button for about two (2) seconds until
the power button’s LED indicator blinks ve times and the camera
LED indicator blinks once.
84
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Software FAQs
1. When I turn on my ASUS Tablet, the power indicator lights up
but nothing appears on my screen. What can I do to x this?
You can try doing any of the following suggestions:
• ForceshutdownyourASUSTabletbypressingthepower
button for about ten (10) seconds. Check if the power
adapter and battery pack are inserted correctly then turn on
your ASUS Tablet.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
2. What should I do when my screen displays this message:
“Remove disks or other media. Press any key to restart.”?
You can try doing any of the following suggestions:
• RemoveallconnectedUSBdevicesthenrestartyourASUS
Tablet.
• Iftheproblemstillexists,yourASUSTabletmighthavea
memory storage problem. Contact your local ASUS service
center for assistance.
3. My ASUS Tablet boots slower than usual and my operating
system lags. How can I x this?
Delete the applications you recently installed or were not
included with your operating system package then restart your
system.
ASUS Tablet and ASUS Mobile Dock E-Manual
85
DRAFT 1
4. My ASUS Tablet does not boot up. How can I x this?
You can try doing any of the following suggestions:
• RemoveallconnecteddevicestoyourASUSTabletthen
restart your system.
• PressF9 upon startup. When your ASUS Tablet enters
Troubleshooting, select Refresh or Reset your PC.
• Iftheproblemstillexists,contactyourlocalASUSservice
center for assistance.
5. Why can’t my ASUS Tablet wake up from sleep mode?
• Youneedtopressthepowerbuttontoresumeyourlast
working state.
• Yoursystemmighthavecompletelyusedupitsbattery
power. Connect the power adapter to your ASUS Tablet and
connect to a power outlet then press the power button.
86
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
ASUS Tablet and ASUS Mobile Dock E-Manual
87
DRAFT 1
Appendices
88
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
Internal Modem Compliancy
The ASUS Tablet with internal modem model complies with JATE (Japan), FCC
(US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved
in accordance with Council Decision 98/482/EC for pan-European single terminal
connection to the public switched telephone network (PSTN). However due
to dierences between the individual PSTNs provided in dierent countries,
the approval does not, of itself, give an unconditional assurance of successful
operation on every PSTN network termination point. In the event of problems you
should contact your equipment supplier in the rst instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has
been published in the Ocial Journal of the EC. The CTR 21 applies to all non
voice terminal equipment with DTMF-dialling which is intended to be connected
to the analogue PSTN (Public Switched Telephone Network).
CTR 21 (Common Technical Regulation) for the attachment requirements for
connection to the analogue public switched telephone networks of terminal
equipment (excluding terminal equipment supporting the voice telephony
justied case service) in which network addressing, if provided, is by means of
dual tone multi-frequency signalling.
ASUS Tablet and ASUS Mobile Dock E-Manual
89
DRAFT 1
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notied Body and the vendor:
“This declaration will indicate the networks with which the equipment is designed
to work and any notied networks with which the equipment may have inter-
working diculties.”
Statement to be made by the manufacturer to the user: “This declaration will
indicate the networks with which the equipment is designed to work and any
notied networks with which the equipment may have inter-working diculties.
The manufacturer shall also associate a statement to make it clear where network
compatibility is dependent on physical and software switch settings. It will also
advise the user to contact the vendor if it is desired to use the equipment on
another network.”
Up to now the Notied Body of CETECOM issued several pan-European approvals
using CTR 21. The results are Europe’s rst modems which do not require
regulatory approvals in each individual European country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as
modems, fax machines, auto-dialers and alarm systems. Equipment in which the
end-to-end quality of speech is controlled by regulations (e.g. handset telephones
and in some countries also cordless telephones) is excluded.
90
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
This table shows the countries currently under the CTR21
standard.
Country Applied More Testing
Austria
1
Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark
1
Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein Yes No
Luxemburg Yes No
The Netherlands
1
Yes Yes
Norway Yes No
Poland No Not Applicable
Portugal No Not Applicable
Spain No Not Applicable
Sweden Yes No
Switzerland Yes No
United Kingdom Yes No
ASUS Tablet and ASUS Mobile Dock E-Manual
91
DRAFT 1
This information was copied from CETECOM and is supplied without liability. For
updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.
html
1 National requirements will apply only if the equipment may use pulse dialling
(manufacturers may state in the user guide that the equipment is only intended to
support DTMF signalling, which would make any additional testing superuous).
In The Netherlands additional testing is required for series connection and caller
ID facilities.
Federal Communications Commission
Interference Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• Thisdevicemaynotcauseharmfulinterference.
• Thisdevicemustacceptanyinterferencereceived,includinginterference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the Federal Communications Commission
(FCC) rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
92
ASUS Tablet and ASUS Mobile Dock E-Manual
DRAFT 1
• Connecttheequipmentintoanoutletonacircuitdierentfromthatto
which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
WARNING! The use of a shielded-type power cord is required in order to meet
FCC emission limits and to prevent interference to the nearby radio and television
reception. It is essential that only the supplied power cord be used. Use only shielded
