ASUS Transformer Pad
User Manual
TF500T
E7556
ASUS is devoted to creating environment-friendly products and
packagings to safeguard consumers’ health while minimizing the impact
on the environment. The reduction of the number of the manual pages
complies with the reduction of carbon emission.
For the detailed user manual and related information, refer to the user
manual included in the Transformer Pad or visit the ASUS Support Site
at http://support.asus.com/
Charging your battery pack
Once the Transformer Pad is fully-charged, ensure that you unplug it from the power
source. Some electronic items are not designed to be kept plugged to a power
source for long periods of time.
If you wish to use the battery power, ensure to fully charge your battery pack before
going on long trips. Remember that the power adapter charges the battery pack
as long as it is plugged to an AC power source. It takes much longer to charge the
battery pack when your Transformer Pad is in use.
Airplane precautions
Ask an airline personnel if you want to use your Transformer Pad onboard the aircraft.
Most airlines have restrictions in using electronic devices, and allow its use only when
the plane reaches its cruising altitude.
There are three types of airport security devices: X-ray scanner (for luggages placed
on conveyor belts), metal detectors (a walk-through security checking device), and
magnetic wands (hand-held devices for checking on passengers). You can send your
Transformer Pad through the X-ray scanner, but do not send your Transformer Pad
through the metal detectors or checked by magnetic wands.
ASUS Transformer Pad Manual
2
DRAFT v2
DRAFT v2
DRAFT v2
Package Contents
• If any of the items is damaged or missing, contact your retailer.
• The bundled power plug varies with country or region.
ASUS Transformer Pad USB charger
USB Dock cable User manual
Cleaning cloth Warranty card
ASUS Transformer Pad Manual 3
DRAFT v2
DRAFT v2
DRAFT v2
Getting to know your ASUS Transformer
Pad
Light sensor
The light sensor detects the amount of light in your environment and
automatically adjusts the brightness of your Tansformer Pad’s touch
screen panel.
Built-in camera
Use the built-in camera to take pictures, record videos, video
conferencing, and other interactive applications.
Touch screen panel
The touch screen panel allows you to operate your Transformer Pad using
touch gestures.

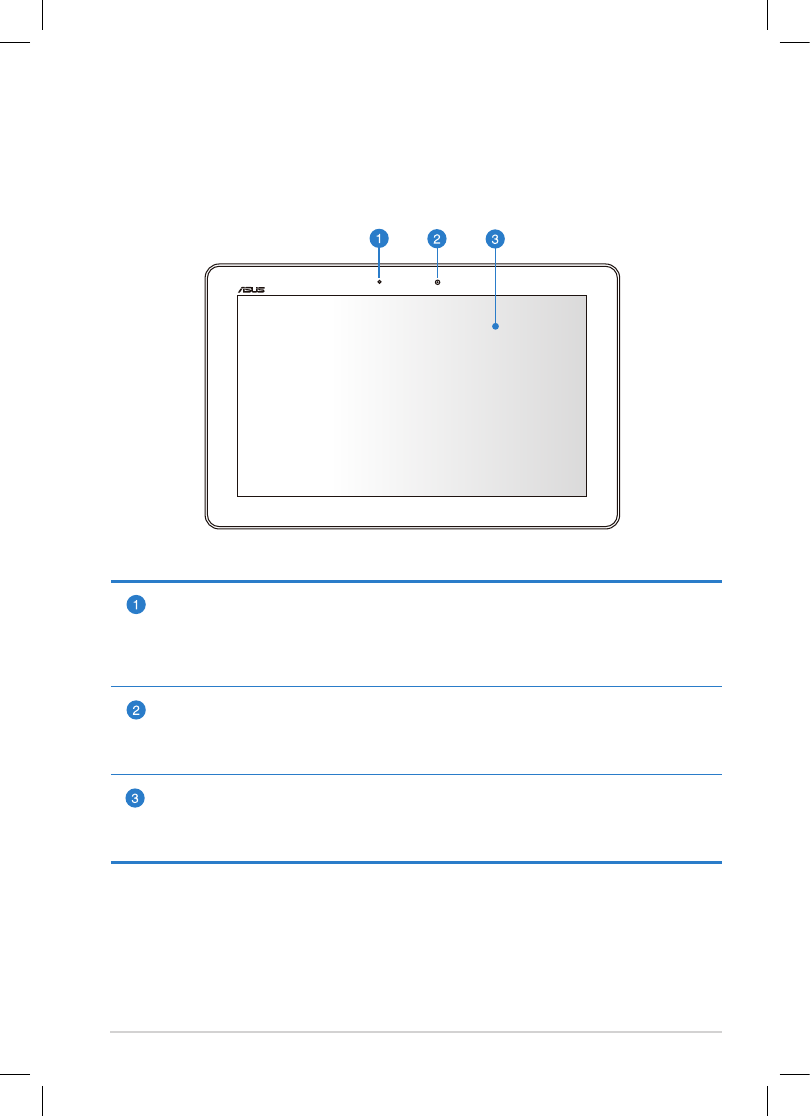

Front view
ASUS Transformer Pad Manual
4
DRAFT v2
DRAFT v2
DRAFT v2

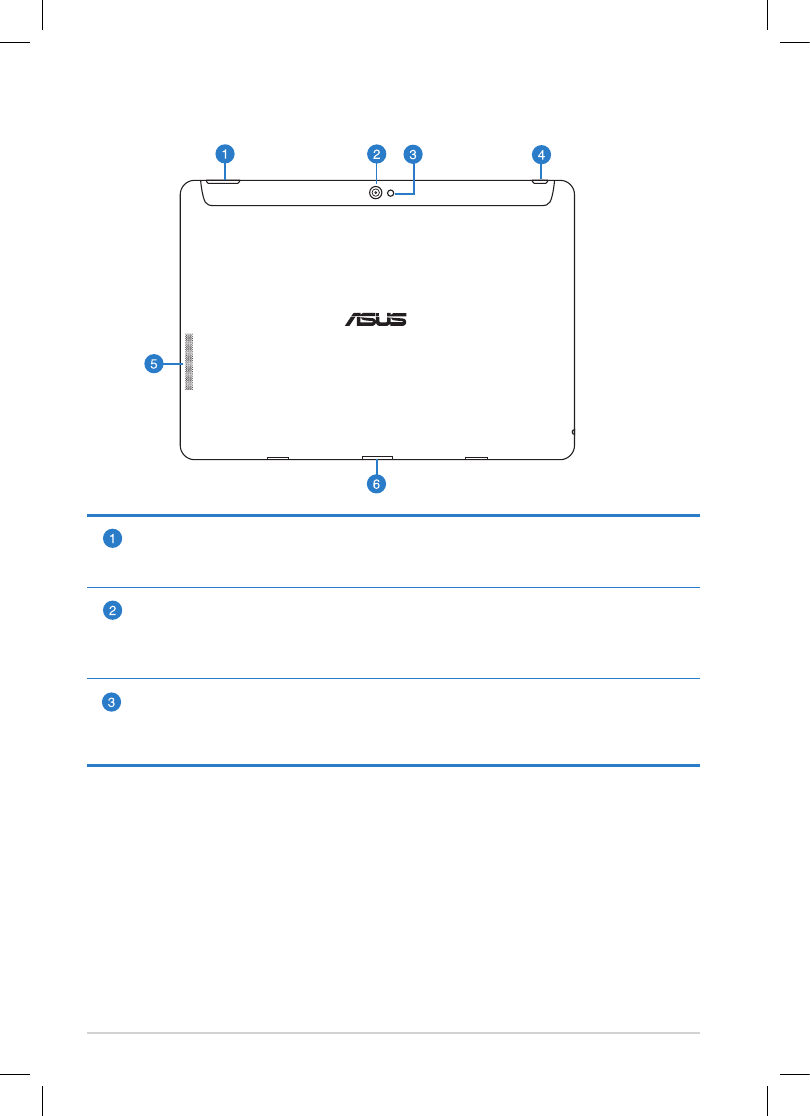

Rear view
Volume button
Press this button to increase or decrease the volume.
Built-in camera
Use the built-in camera to take pictures, record videos, video
conferencing, and other interactive applications.
Camera LED ash
Use the ash to take photos when lighting conditions are poor or when
there is a backlight.
ASUS Transformer Pad Manual 5
DRAFT v2
DRAFT v2
DRAFT v2
Power button
Press and hold the Power button to turn on your Transformer Pad.
When your Transformer Pad is on, press the Power button to put it in sleep
mode or wake it up from sleep mode.
Two-color battery charge indicator
Dim: The power charger is not plugged to the Transformer Pad.
White: The battery is 100% charged.
Orange: The Transformer Pad is in battery charging mode.
Audio speaker system
Your Transformer Pad is equipped with a built-in high quality stereo
speakers.
Dock connector
• Insert the power adapter into this port to supply power to your
Transformer Pad and charge the internal battery pack.
• Connect the USB Dock cable to the Transformer Pad and another
system (notebook or desktop PC) for data transmission.
• Dock the Transformer Pad to the mobile dock for keyboard and USB
connectivity.
ASUS Transformer Pad Manual
6
DRAFT v2
DRAFT v2
DRAFT v2
Micro SD card slot
Insert Micro SD card into this slot.
Reset hole
If the system becomes unresponsive, insert a paper clip into the hole to
force-restart your Transformer Pad.
Forcing the system to restart may result to data loss. We strongly
recommend that you back up your data regularly.
Micro HDMI port
Insert a micro HDMI cable into this port to connect to an HDMI device.
3.5mm Headphone output/Microphone input combo jack
Connect an amplied speaker or headphones to this port. You can also
connect a microphone for voice narrations or simple audio recording.
Built-in microphone
The built-in mono microphone can be used for video conferencing, voice
narrations, or simple audio recordings.

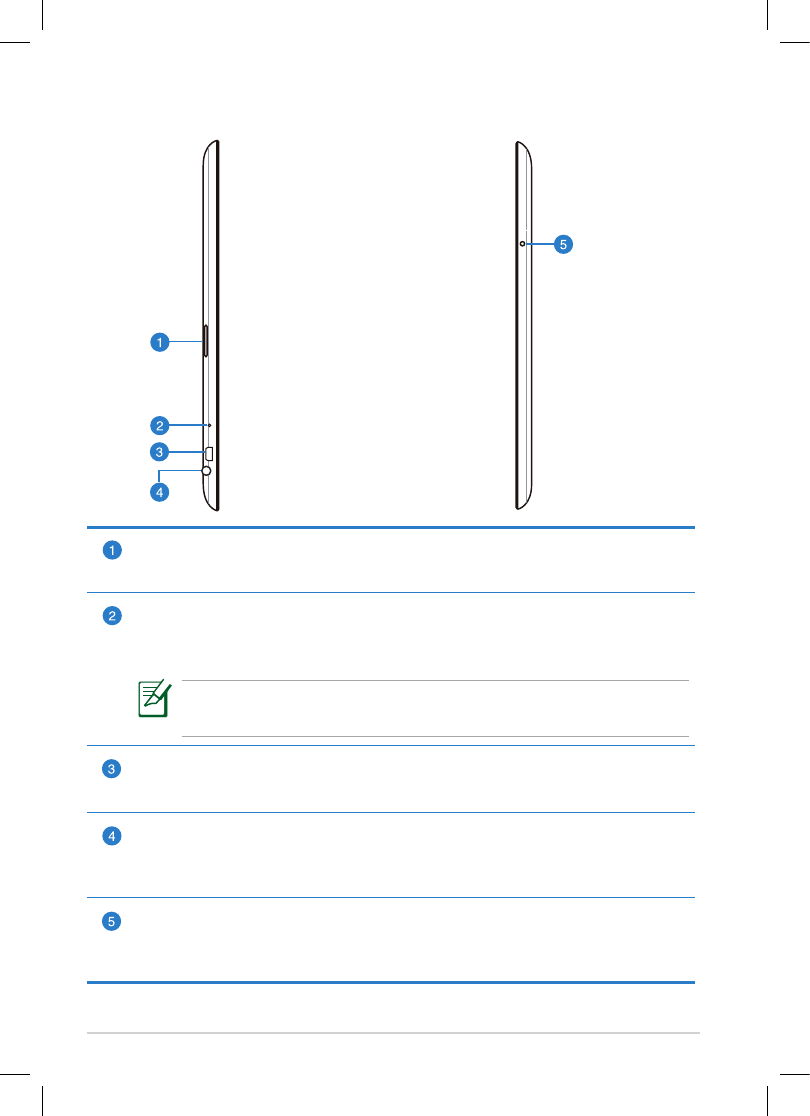

Left view Right view
ASUS Transformer Pad Manual 7
DRAFT v2
DRAFT v2
DRAFT v2
• Use only the power adapter and the USB Dock cable to charge your Transformer
Pad. Using a dierent power adapter may damage your Transformer Pad.
• Ensure that the 40-pin USB connector is fully inserted into your ASUS
Transformer Pad.
• Do not leave the Transformer Pad connected to the power supply once it is fully
charged. Some electrical devices are not designed to be left connected to the
power supply for extended periods of time.
• The input voltage range between the wall outlet and the power adapter is AC
100V–240V, and the output voltage of the power adapter is DC 15V, 1.2A.
• Charge the Transformer Pad for 8 hours before using it for the rst time.

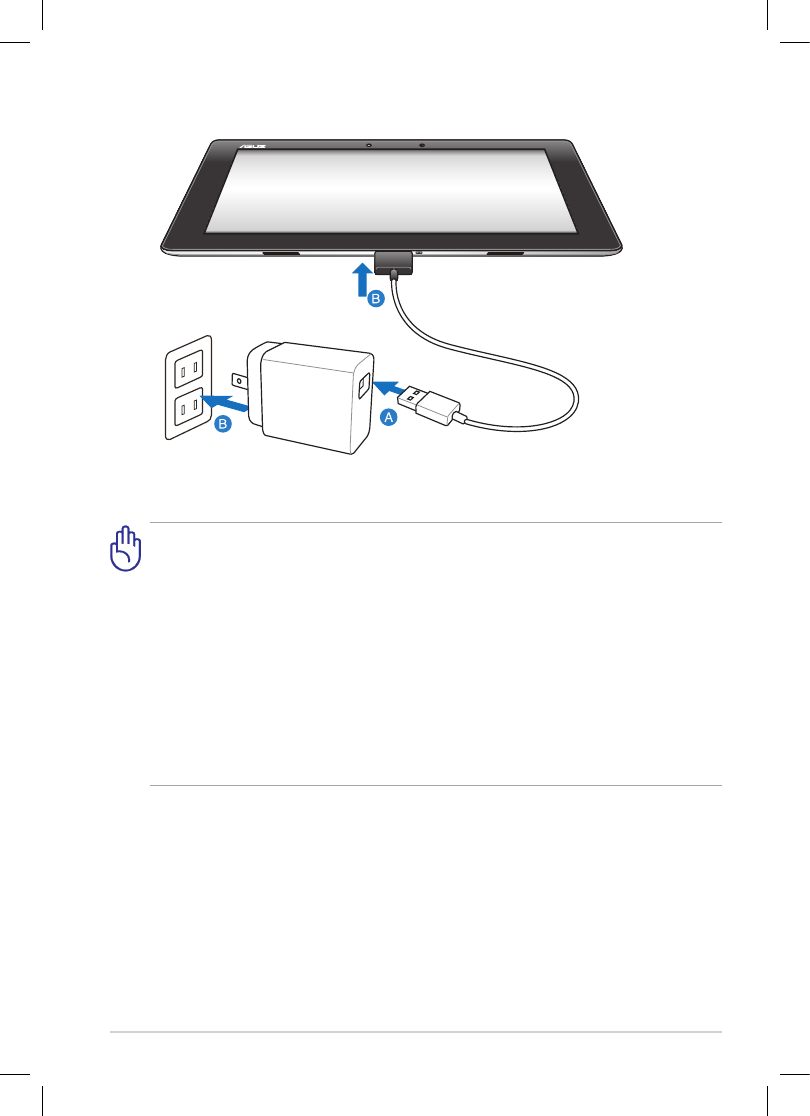

Charging your ASUS Transformer Pad
ASUS Transformer Pad Manual
8
DRAFT v2
DRAFT v2
DRAFT v2
Turning your Transformer Pad on

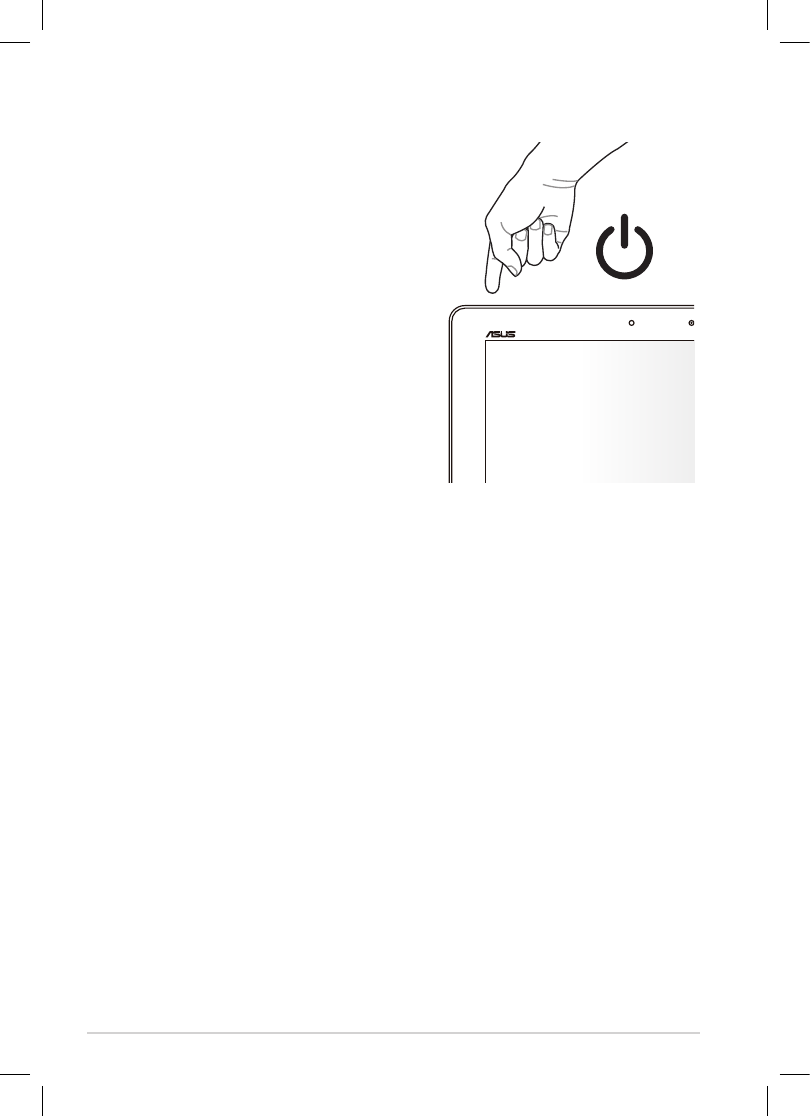

To turn your device on:
Press and hold the power button for one (1)
second.
ASUS Transformer Pad Manual 9
DRAFT v2
DRAFT v2
DRAFT v2
Declarations and Safety Statements
Federal Communications Commission Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions accepted by the FCC with the EUT
transmitting at the specied power level in dierent channels.
The highest SAR value for the device as reported to the FCC is 1.270 W/kg when
placed next to the body.
ASUS Transformer Pad Manual
10
DRAFT v2
DRAFT v2
DRAFT v2
The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this device is on le with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
MSQTF500T.
This device is compliance with SAR for general population /uncontrolled exposure
limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specied in OET Bulletin 65 Supplement C.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada
(IC) radio frequency exposure limits. The Wireless Device should be used in such
a manner such that the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with the IC Specic
Absorption Rate (“SAR”) limits when installed in specic host products operated in
portable exposure conditions.
Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the
following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d’Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes
ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne
doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence,
notamment les interférences qui peuvent aecter son fonctionnement.
ASUS Transformer Pad Manual 11
DRAFT v2
DRAFT v2
DRAFT v2
CE Mark Warning
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low
voltage directive”.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans l Dell est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de
sans l Dell de façon à minimiser les contacts humains lors du fonctionnement
normal.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specic
Absorption Rate – Taux d'absorption spécique) d'IC lorsqu'il est installé dans des
produits hôtes particuliers qui fonctionnent dans des conditions d'exposition à
des appareils portables.
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter
l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio
Equipment List) d'Industry Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada
rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
ASUS Transformer Pad Manual
12
DRAFT v2
DRAFT v2
DRAFT v2
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio and
Telecommunications Equipment and mutual recognition of conformity.
The highest CE SAR value for the device is 0.548 W/kg.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg
must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm2
or H05VV-F, 2G, 0.75mm2.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle our products, batteries, other
components as well as the packaging materials. Please go to http://csr.asus.com/
english/Takeback.htm for detailed recycling information in dierent regions.
Coating notice
To provide electrical insulation and maintain electrical safety, a coating is applied
to insulate the Transformer Pad’s body except where the IO ports are located.
Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the
instructions.
DO NOT throw the battery in municipal waste. The symbol of the
crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
DO NOT throw the Tablet PC in municipal waste. This product has
been designed to enable proper reuse of parts and recycling. The
symbol of the crossed out wheeled bin indicates that the product
(electrical, electronic equipment and mercury-containing button
cell battery) should not be placed in municipal waste. Check local
regulations for disposal of electronic products.
SAFE TEMP: This device should only be used in environments with
ambient temperatures between 0°C (32°F) and 35°C (95°F).
ASUS Transformer Pad Manual 13
DRAFT v2
DRAFT v2
DRAFT v2
Copyright Information
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or tranPadd
into any language in any form or by any means, except documentation kept by
the purchaser for backup purposes, without the express written permission of
ASUSTeK COMPUTER INC. (“ASUS”).
ASUS and ASUS Transformer Pad logo are trademarks of ASUSTek Computer Inc.
Information in this document is subject to change without notice.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other
liability, you are entitled to recover damages from ASUS. In each such instance,
regardless of the basis on which you are entitled to claim damages from ASUS,
ASUS is liable for no more than damages for bodily injury (including death) and
damage to real property and tangible personal property; or any other actual and
direct damages resulted from omission or failure of performing legal duties under
this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims
based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for
which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)
THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO,
YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES
OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS
OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF
THEIR POSSIBILITY.
Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized
Representative in Europe
ASUS COMPUTER GmbH
Address, City HARKORT STR. 21-23, 40880 RATINGEN
Country GERMANY
ASUS Transformer Pad Manual
14
DRAFT v2
DRAFT v2
DRAFT v2
