Tablet PC
User Manual
TF810C
ASUS Tablet PC User Manual
2
E7492
July 2012
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,
ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS
OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY
OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are
entitled to recover damages from ASUS. In each such instance, regardless of the basis on which
you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily
injury (including death) and damage to real property and tangible personal property; or any
other actual and direct damages resulted from omission or failure of performing legal duties
under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract,
tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA;
OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL
DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR
RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
TF810C 3
Package contents
NOTES:
• Contact your retailer if any of these items are damaged or missing.
• Contents may vary per country or region.

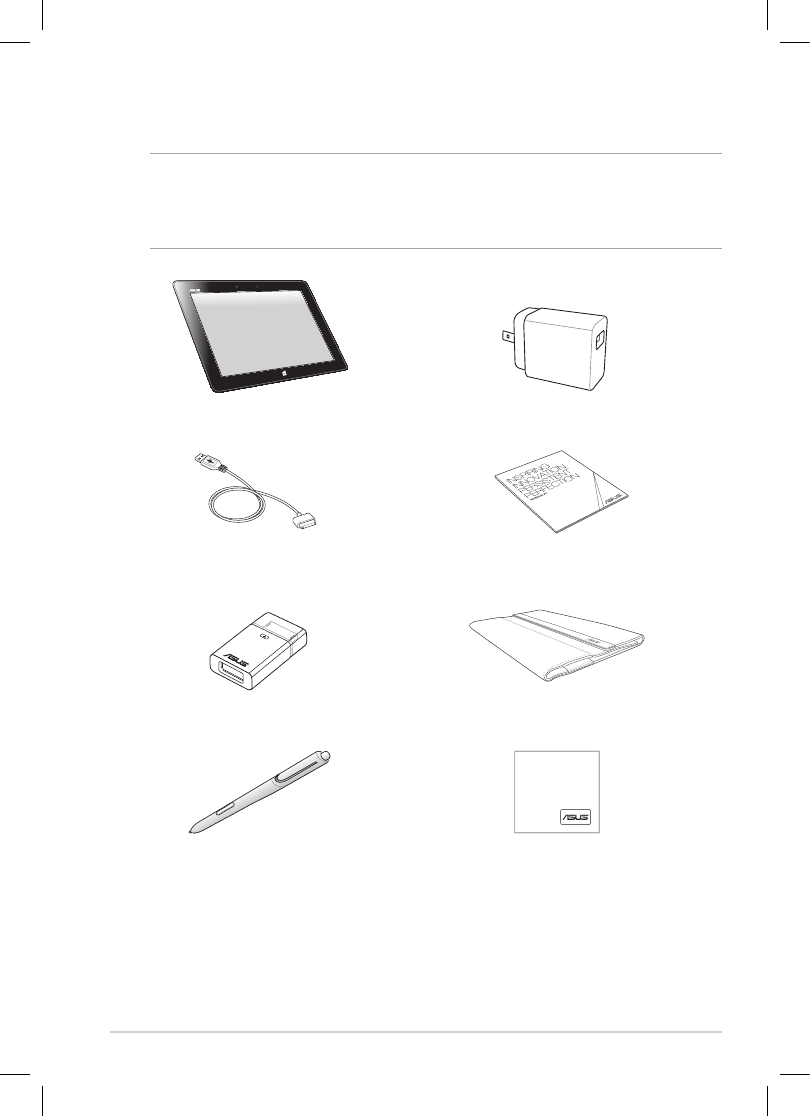

Tablet PC USB Charger
USB Dock cable Technical documentations and
warranty card
USB Dongle Sleeve
Stylus pen Cleaning cloth
ASUS Tablet PC User Manual
4
Safety precautions
Using your Tablet PC

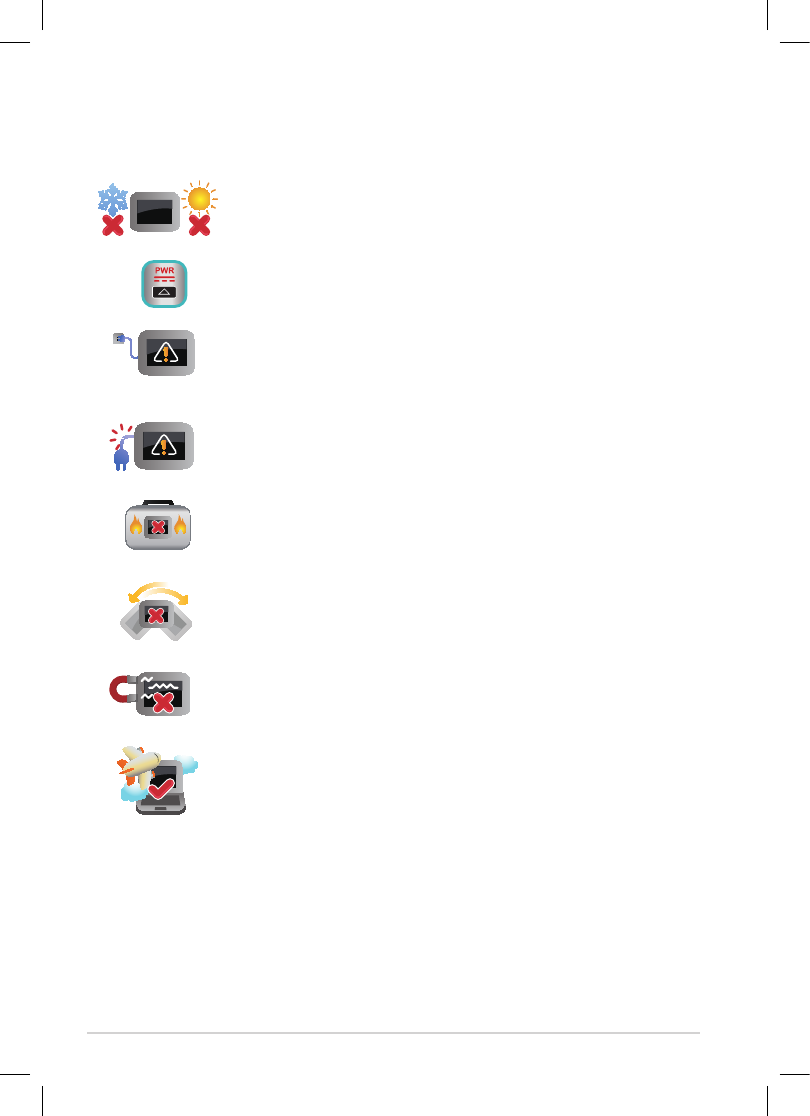

This Tablet PC should only be used in environments with
ambient temperatures between 0°C (32°F) and 35°C (95°F).
Refer to the rating label of the Tablet PC on the user manual
and ensure that your power adapter complies with this rating.
Do not leave the Tablet PC connected to the power supply once
it is fully charged. Some electrical devices are not designed to
be left connected to the power supply for extended periods of
time.
Do not use damaged power cords, accessories, and other
peripherals.
While powered ON, ensure that you do not carry or cover your
Tablet PC with any materials that can reduce air circulation.
Do not place your Tablet PC on uneven or unstable work
surfaces.
You can send your Tablet PC through x-ray machines (used on
items placed on conveyor belts), but do not expose them from
magnetic detectors and wands.
Contact your airline provider to learn about related inight
services that can be used and restrictions that must be
followed when using your Tablet PC in-ight.
TF810C 5
Getting to know your Tablet PC

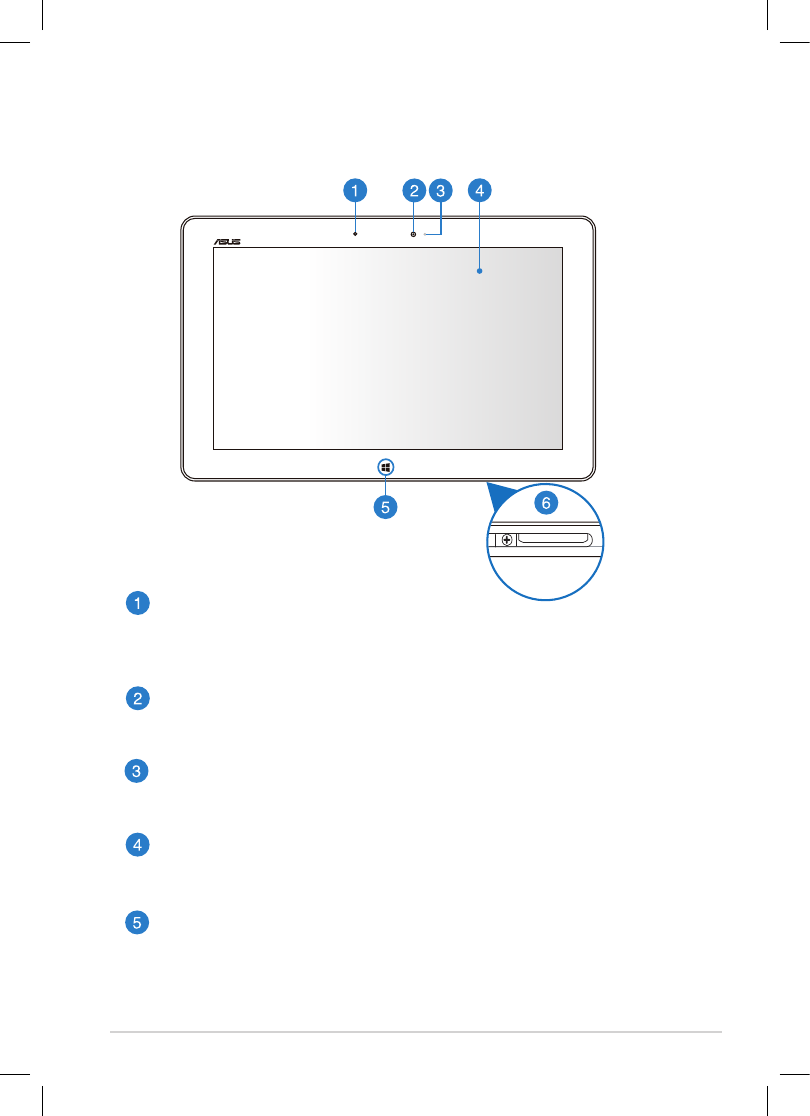

Ambient light sensor
The ambient light sensor detects the amount of ambient light in your
environment. It allows the system to automatically adjust the brightness
of the display depending on the ambient light condition.
Front camera
This built-in 2-megapixel camera allows you to take pictures or record
videos using your Tablet PC.
Camera indicator
The camera indicator lights up when either of the built-in cameras is in
use.
Touch screen panel
The touch screen panel allows you to operate your Tablet PC using touch
gestures.
Windows® 8 touch button
Touch this button to go back to the Start screen. If you are already in the
Start screen, touch this button to go back to the last app you opened.
Front view
ASUS Tablet PC User Manual
6

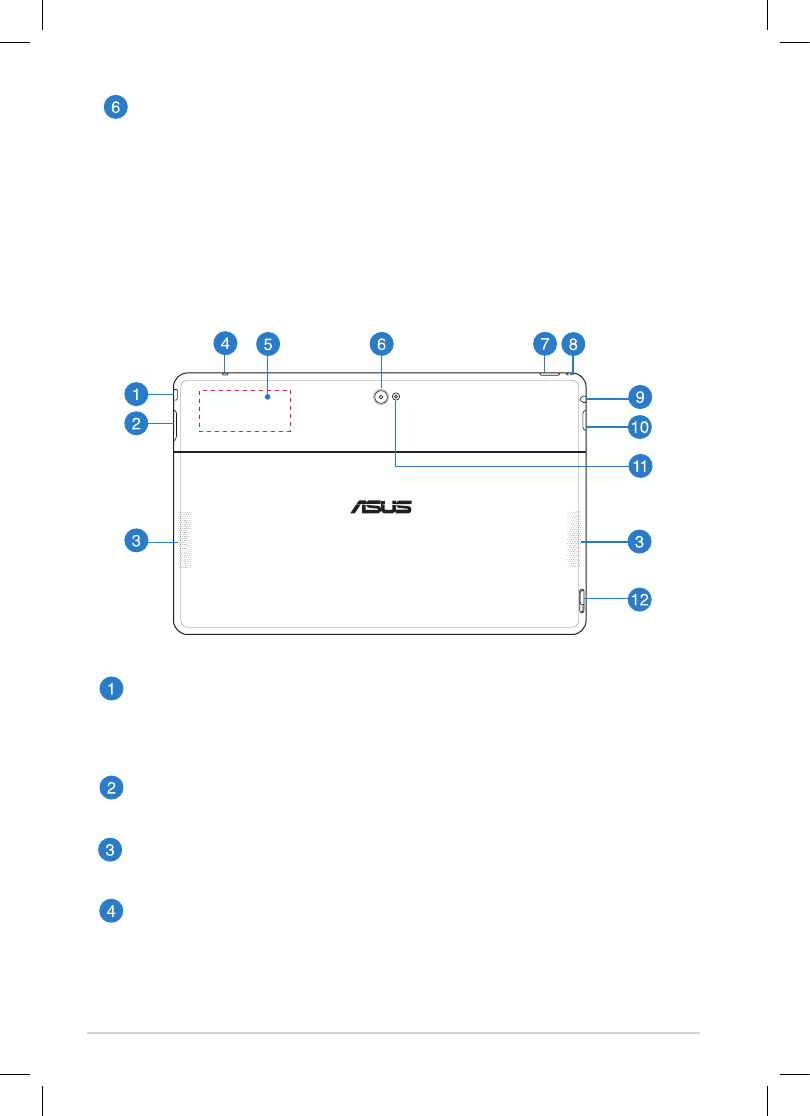

Rear view
Dock connector
The dock connector allows you to do the following:
• Insert the power adapter into this port to supply power to your
Tablet PC and charge the internal battery pack.
• Dock the Tablet PC on the mobile dock for keyboard and USB
connectivity.
• Connect the bundled USB Dongle for USB extension function.
Micro HDMI port
This port is for a micro High-Denition Multimedia Interface (HDMI)
connector and is HDCP compliant for HD DVD, Blu-ray and other protected
content playback.
Volume button
Press this button to increase or decrease the volume.
Audio speakers
Your Tablet PC is equipped with a built-in high quality stereo speakers.
Microphone
The built-in microphone can be used for video conferencing, voice
narrations or simple audio recording.
TF810C 7
Built-in Near Field Communication (NFC) tag
The built-in NFC tag allows you to conveniently share contacts, pictures,
videos, business cards, and other les. To use the NFC tag, put your Tablet
PC’s NFC tag near another NFC-enabled device.
Rear camera
This built-in 8-megapixel camera allows you take high-denition pictures
or record high denition videos using your Tablet PC.
Power button
Press the power button to turn your Tablet PC on, put it to sleep or
hibernate and wake it up from sleep or hibernate mode.
Press and hold the power button for about eight (8) seconds to force shut
down your Tablet PC when it becomes unresponsive.
Battery charge indicator
This two-color LED, located on the power button, provides the
following visual indications of the battery’s charge status:
Color Status
White Fully charged.
Orange Charging mode.
Dim The AC adapter is not plugged to the Tablet PC.
Manual reset hole
If the system becomes unresponsive, insert a straightened paper clip into
the hole to force-restart your Tablet PC.
WARNING! Forcing the system to restart may result to data loss. We strongly
recommend that you back up your data regularly.
Headphone output/microphone input combo jack port
This port allows you to connect the Tablet PC’s audio-out signal to
amplied speakers or headphones. You can also use this port to connect
your Tablet PC to an external microphone.
Micro SD card slot
Insert a Micro SD card into this slot.
Camera LED ash
Use the ash to take photos when lighting conditions are poor or when
there is a backlight.
ASUS Tablet PC User Manual
8

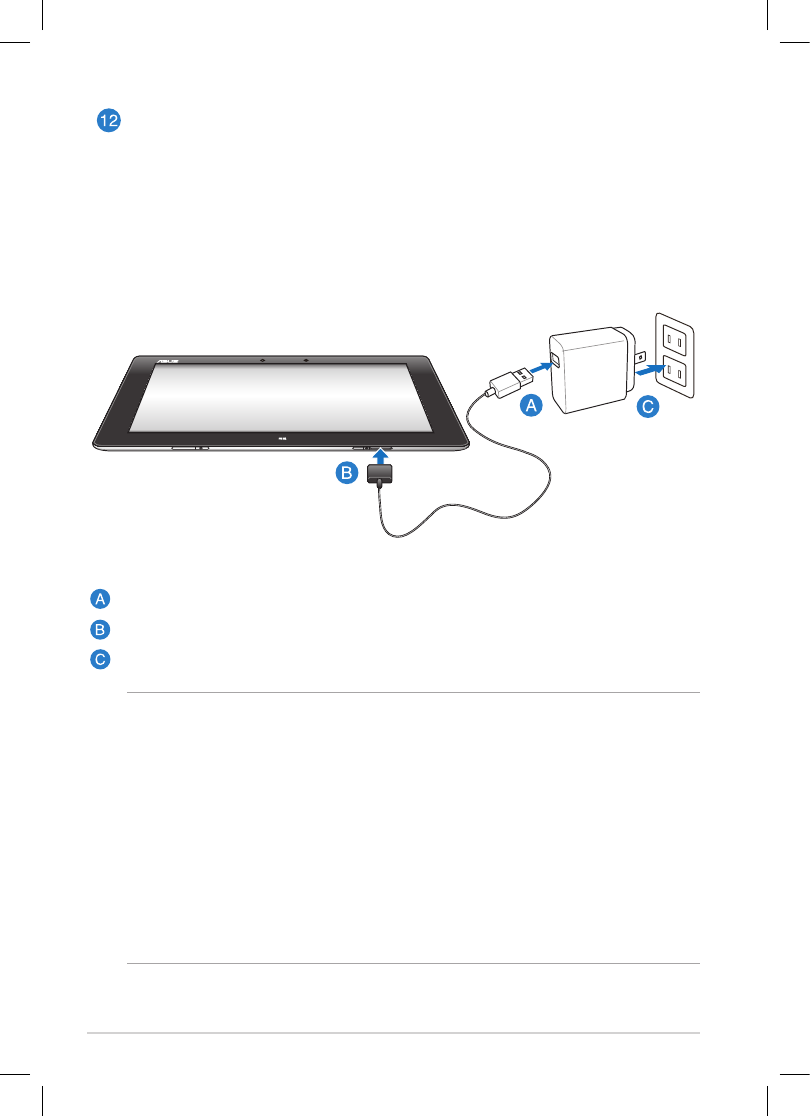

To charge your Tablet PC:
Connect the USB Dock cable to the power adapter.
Plug the 36-pin connector into your Tablet PC.
Plug the power adapter into an electrical outlet.
Mobile dock latch
Move the latch down and hold it to detach your Tablet PC from the mobile
dock.
Setting up your Tablet PC
Charging your Tablet PC
IMPORTANT!
• Use only the bundled power adapter and the USB Dock cable to charge your
Tablet PC. Using a dierent power adapter may damage your Tablet PC.
• Ensure that the 36-pin connector is fully inserted into your Tablet PC.
• Plug the power adapter to an AC 100V-240V power outlet. The output voltage of
the power adapter is DC 15V, 1.2A.
• When using your Tablet PC on power adapter mode, the socket outlet must be
near to the unit and easily accessible.
• Charge the Tablet PC for eight (8) hours before using it in battery mode for the
rst time.
TF810C 9

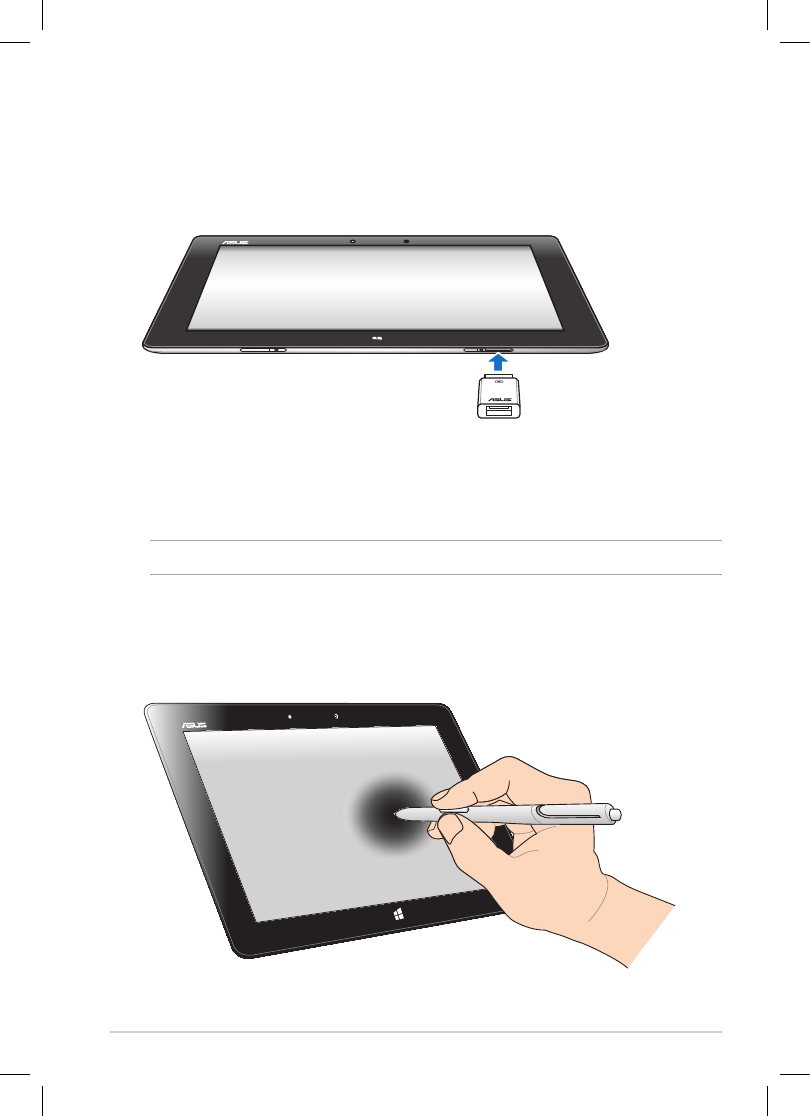

Using the USB dongle
The USB dongle allows you to connect a USB device to your Tablet PC. With the
bundled USB dongle inserted, you can connect and access the contents of your
ash drives or external HDDs, connect an external USB speaker, use a mouse or a
keyboard and other USB devices.
To use the USB dongle:
A. Connect the bundled USB dongle’s connector to your Tablet PC’s dock port.
B. Insert the USB device to the USB dongle’s USB port.
IMPORTANT! Ensure that the 36-pin USB dongle is fully inserted to your Tablet PC.
Using the stylus pen
The bundled stylus pen allows you to input commands on your Tablet PC. With
your stylus pen, you can make selections, draw or sketch on the touch screen
panel.
ASUS Tablet PC User Manual
10

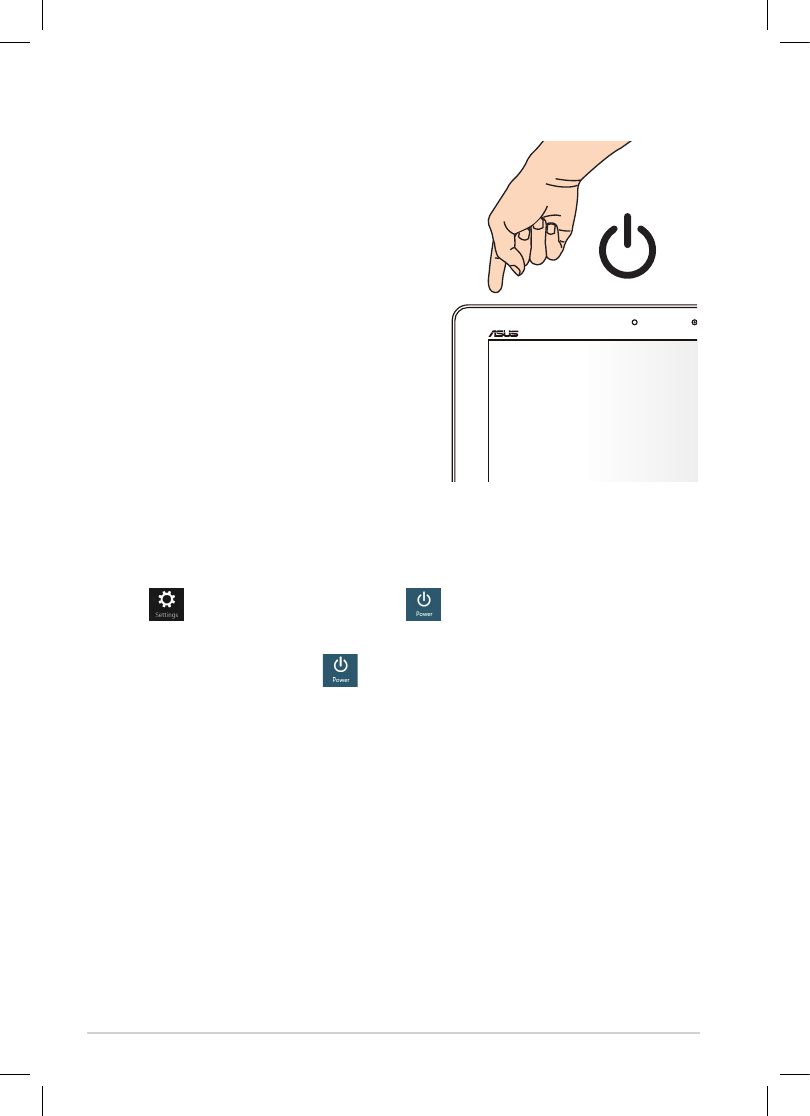

Turning your Tablet PC on
To turn your Tablet PC on:
Press the power button.
Turning your Tablet PC o
You can shut down your Tablet PC by doing either of the following:
Tap from the Charm bar then tap > Shut down to do a normal
shutdown.
•
From the log-in screen, tap > Shut down.
•
If your Tablet PC is unresponsive, press and hold the power button for at least
eight (8) seconds until your Tablet PC turns o.
•
Putting your Tablet PC to sleep
To put your Tablet PC on Sleep mode, press the Power button once.
TF810C 11
Appendices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment causes harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by doing one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
TF810C Tablet PC
Wi-Fi module# NH-665 Maximum SAR Measurement
FCC ID: MSQTF810C
IC ID: 3568A-TF810C
FCC: 0.869 W/Kg
CE: 0.384 W/Kg
Wi-Fi module# AH-691 Maximum SAR Requirement
FCC ID: MSQTF810CAH691
FCC: 1.490 W/Kg
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This device is
designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specic Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard
operating positions accepted by the FCC with the EUT transmitting at the specied power level
in dierent channels.
ASUS Tablet PC User Manual
12
The highest SAR value for the device as reported to the FCC is 0.869 W/kg when placed next to
the body.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device
is on le with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/
fccid after searching on the following FCC IDs:
• MSQTF810C for Wi-Fi module # NH-665
• MSQTF810CAH691 for Wi-Fi module # AH-691
This device is compliance with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and
procedures specied in OET Bulletin 65 Supplement C.
This device can operate under 5.15-5.25GHz frequency range for indoor use only. Outdoor
operation under 5150-5250MHz is prohibited.
This device is a slave equipment. It is not used for radar detections and not ad-hoc operational in
the DFS band.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device. The IC ID for this device is 3568A-TF810C for Wi-Fi module# NH-665.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the IC Specic Absorption Rate
(“SAR”) limits when installed in specic host products operated in portable exposure conditions.
Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d’Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer
d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences
qui peuvent aecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans l Dell est inférieure à la limite d'exposition aux
fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans l Dell de façon à minimiser les
contacts humains lors du fonctionnement normal.
TF810C 13
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
CE Mark Warning
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC directives
2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low voltage directive”.
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the European
Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications
Equipment and mutual recognition of conformity.
The highest CE SAR value for the device is 0.384 W/kg.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specic Absorption Rate
– Taux d'absorption spécique) d'IC lorsqu'il est installé dans des produits hôtes particuliers qui
fonctionnent dans des conditions d'exposition à des appareils portables.
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée
correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List)
d'Industry Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous
sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
ASUS Tablet PC User Manual
14

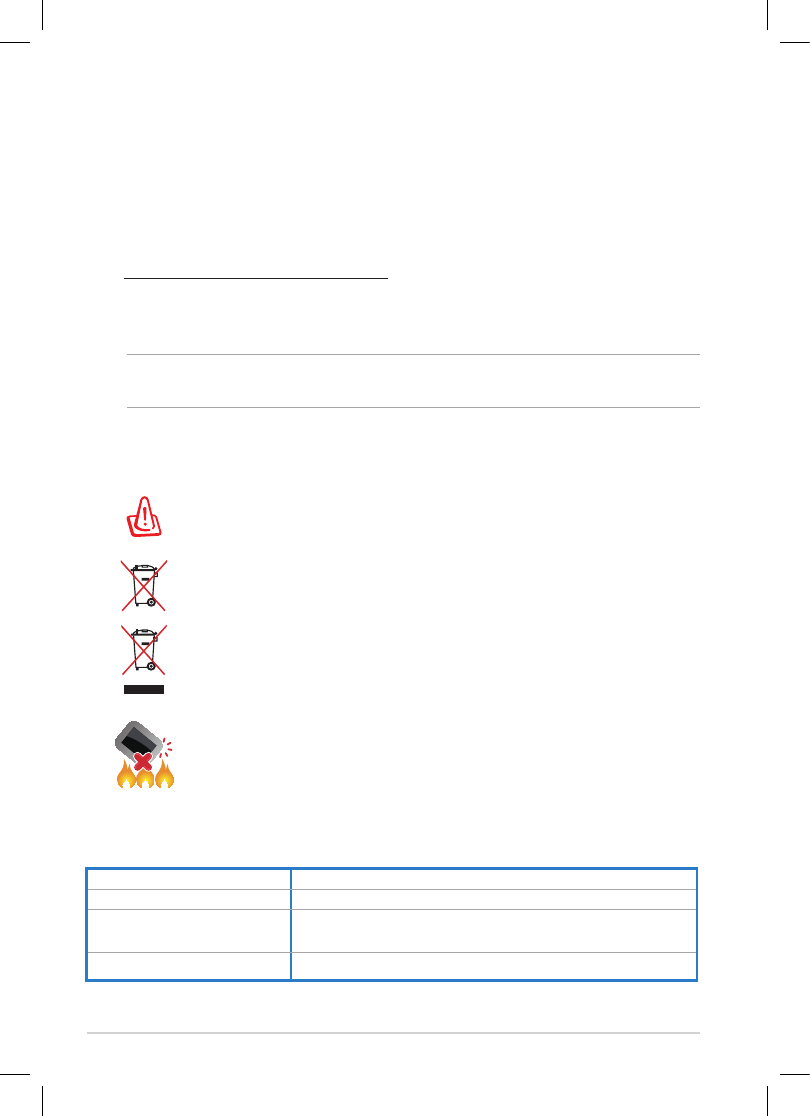

Proper disposal
Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
DO NOT throw the battery in municipal waste. The symbol of the crossed out
wheeled bin indicates that the battery should not be placed in municipal
waste.
DO NOT throw the Tablet PC in municipal waste. This product has been
designed to enable proper reuse of parts and recycling. The symbol of the
crossed out wheeled bin indicates that the product (electrical, electronic
equipment and mercury-containing button cell battery) should not be placed
in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the Tablet PC in re. DO NOT short circuit the contacts. DO NOT
disassemble the Tablet PC.
Manufacturer: ASUSTeK Computer Inc.
Address: No.150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN
Authorised representative
in Europe:
ASUS Computer GmbH
Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY
Coating notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied
to insulate the device except on the areas where the I/O ports are located.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components as well as the packaging materials. Please
go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in dierent
regions.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved
power cords greater than or equal to: H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.
