User Manual
Copyright Information
No part of this manual, including the products and software described in it, may be reproduced, transmitted, tran-
scribed, stored in a retrieval system, or translated into any language in any form or by any means, except documen-
tation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COM-
PUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIREC-
TORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSI-
NESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR
IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such
repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced
or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of
their respective companies, and are used only for identification or explanation and to the owners’ benefit, without
intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFOR-
MATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD
NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LI-
ABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover
damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from
ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and
tangible personal property; or any other actual and direct damages resulted from omission or failure of performing
legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringe-
ment under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your
reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR
(3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL
DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RE-
SELLER IS INFORMED OF THEIR POSSIBILITY.
1
Product Name: Notebook PC Hardware
Manual Revision: 1 E1541
Release Date: January 2004
Notebook PC
Hardware User’s Manual
2
Safety Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power
cords greater than or equal to: H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus
set out in the Radio Interference Regulations of the Canadian Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
(Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.)
For use with AC Adaptor Model (Pour Utiliser Avec Modele): ADP-65DB (65W)
WARNING! The use of a shielded-type power cord is required in order to meet FCC
emission limits and to prevent interference to the nearby radio and television recep-
tion. It is essential that only the supplied power cord be used. Use only shielded
cables to connect I/O devices to this equipment. You are cautioned that changes or
modifications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
3
Safety Statements
Nordic Cautions (for Notebook PC with Lithium-Ion Battery)
(Japanese)
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by method claims of certain
U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser products
manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.
ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato. Sostituire la batteria con un
una di tipo uguale o equivalente consigliata dalla fabbrica. Non disperdere le batterie nell’ambiente. (Italian)
VORSICHT! Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben
oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben
des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ
som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan
sousittelemaan tyyppiin. Hävitä käytetty paristo valmistagan ohjeiden mukaisesti. (Finnish)
ATTENTION! Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du mêre type ou d’un type équivalent recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type
anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. (Norwegian)
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions. (English)
WARNING: Use of controls or adjustments or performance of procedures other than
those specified herein or in the laser product installation guide may result in hazard-
ous radiation exposure.
4
Safety Statements
Safety Statements
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the Notebook PC using
a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few
drops of warm water and remove any extra moisture with a dry cloth.
WARNING! The following safety precautions will increase the life of the Notebook PC.
Follow all precautions and instructions. Except as described in this manual, refer all
servicing to qualified personnel. Do not use damaged power cords, accessories, or
other peripherals. Do not use strong solvents such as thinners, benzene, or other
chemicals on or near the surface.

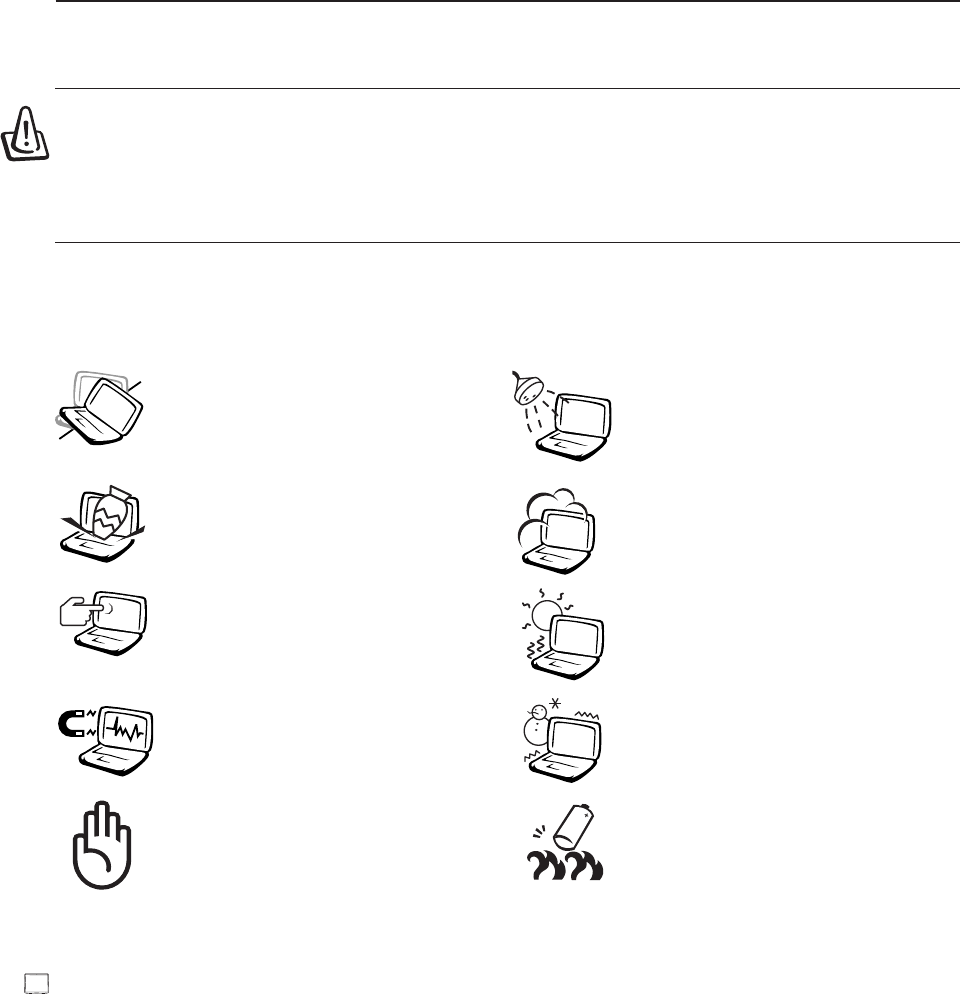

DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DO NOT expose to strong magnetic
or electrical fields.
DO NOT expose to extreme temperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
items that may scratch or enter the Note-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
Display Panel Care
The LCD screen is very delicate and requires careful handling. Pay attention to the following precautions:
• When not in use, keep the display panel closed to prevent dust accumulation.
• Do not use chemical cleaners on the screen. Wipe only with a dry cloth or tissue.
• Do not put your fingers or any objects directly on the screen.
• Do not press or lay any objects on the machine when it is closed.
• Do not carry the Notebook PC with small or sharp objects (e.g. paper clips or staples) that may
enter the Notebook PC and scratch the display panel.
5
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external periph-
erals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is
turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not
transport the Notebook PC while the power is still ON. Close the display panel and check that it is
latched securely in the closed position to protect the keyboard and display panel.
Remove Floppy Disks
Make sure your floppy disk drive (external on some models) does not contain a diskette when trans-
porting the floppy disk drive. When a diskette is inserted into the floppy disk drive, the eject button
protrudes out. If you attempt to transport the floppy disk drive with a diskette in the drive, you risk
damaging the eject button and also risk scratching the surface of the diskette when the floppy disk drive
is jolted.
Cover Your Notebook PC
Use a carrying case such as the one supplied with your Notebook PC to protect it from dirt, water,
shock, and scratches.
Safety Statements
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restric-
tions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (hand-held devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
NOTE: The surface glaze is easily dulled if not properly cared for. Be careful not to rub
or scrap the Notebook PC surfaces when transporting your Notebook PC.
6
Danish
Dutch
English
Finnish
French
German
Greek
Italian
Portuguese
Spanish
Swedish
CTR 21 Approval (for Notebook PC with built-in Modem)
Safety Statements
7
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically
connected to a telecommunication network that has an operating voltage to ground that does not exceed
200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National
Electrical Code (NFPA 70).
When using the Notebook PC modem, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
•Do not use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool.
•Do not use the Notebook PC during an electrical storm. There may be a remote risk of electric shock
from lightning.
•Do not use the Notebook PC in the vicinity of a gas leak.
Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium bat-
teries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy,
or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in
series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or revers-
ible chemical reaction.
•Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local codes for
possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
•Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to
fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or
authorized retailers.
Notebook PC Optical Drive
Laser Safety Information
Internal or external optical drives sold with this Notebook PC contains a CLASS 1 LASER PRODUCT
(LASER KLASSE 1 PRODUKT). Laser classifications can be found in the glossary at the end of this
user’s manual.
Safety Statements
Service warning label
WARNING: Making adjustments or performing procedures other than those specified
in the user’s manual may result in hazardous laser exposure. Do not attempt to disas-
semble the optical drive. For your safety, have the optical drive serviced only by an
authorized service provider.
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
8
Contents
1. Introducing the Notebook PC ................................................................11
About This User’s Manual ..................................................................................................... 12
Notes For This Manual..................................................................................................... 12
Preparing your Notebook PC ................................................................................................ 13
2. Knowing the Parts.................................................................................. 15
Top Side ................................................................................................................................ 16
Bottom Side........................................................................................................................... 18
Left Side ................................................................................................................................ 20
Right Side.............................................................................................................................. 22

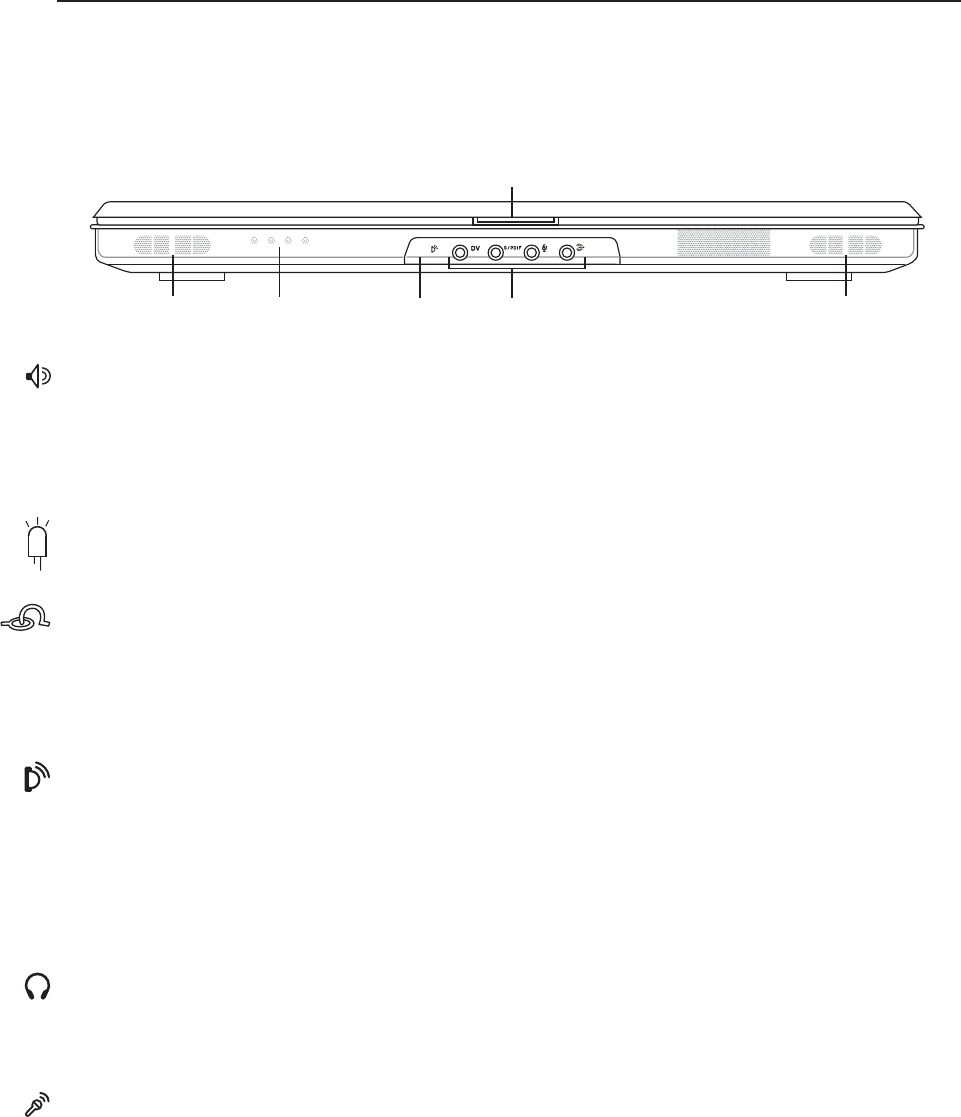

Front Side.............................................................................................................................. 23
3. Getting Started ....................................................................................... 25
Using the Battery Pack..........................................................................................................26

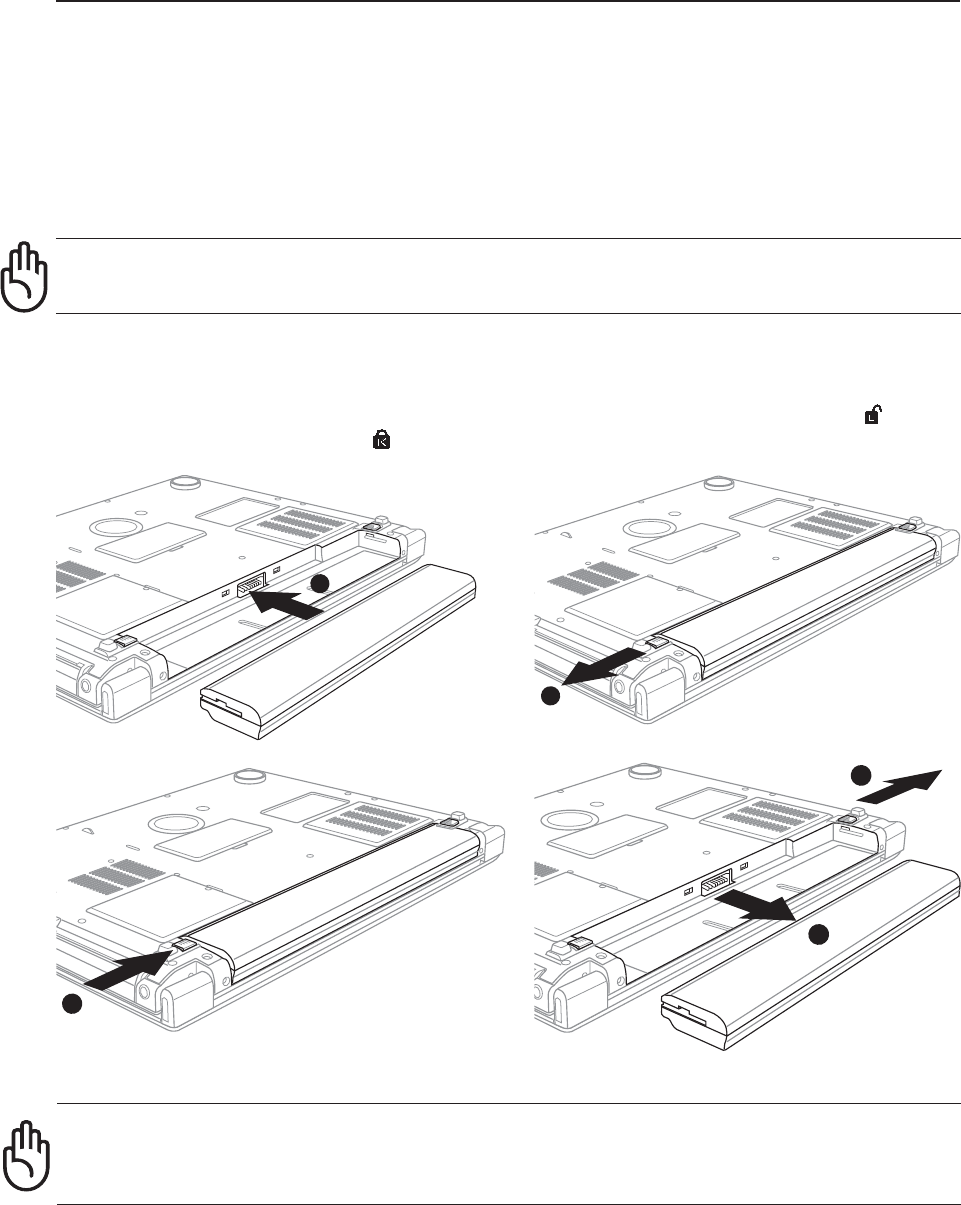

Installing and Removing the Battery Pack ....................................................................... 26
Charging the Battery Pack ............................................................................................... 27
Battery Care ..................................................................................................................... 27
Operating Systems................................................................................................................ 27
Support Software ............................................................................................................. 27
Power Connection ................................................................................................................. 28
Powering ON The Notebook PC ...................................................................................... 29
The Power-On Self Test (POST)...................................................................................... 29

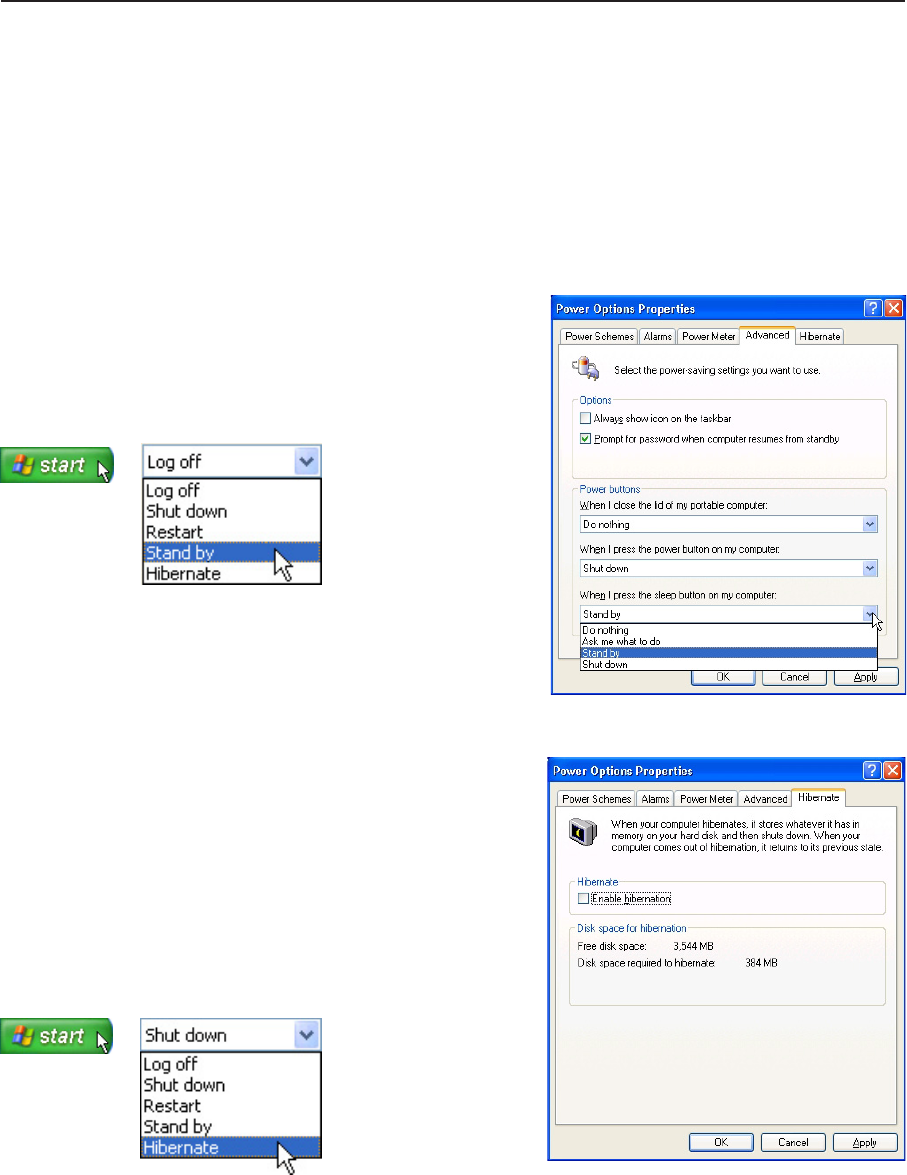

Power Management - “Stand By” & “Hibernate” .............................................................. 30

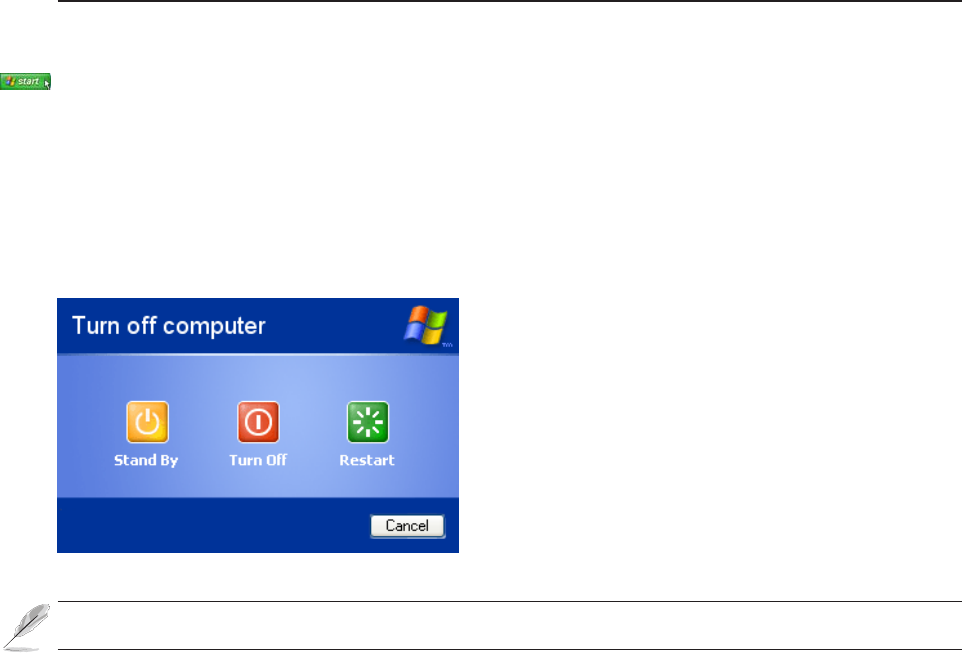

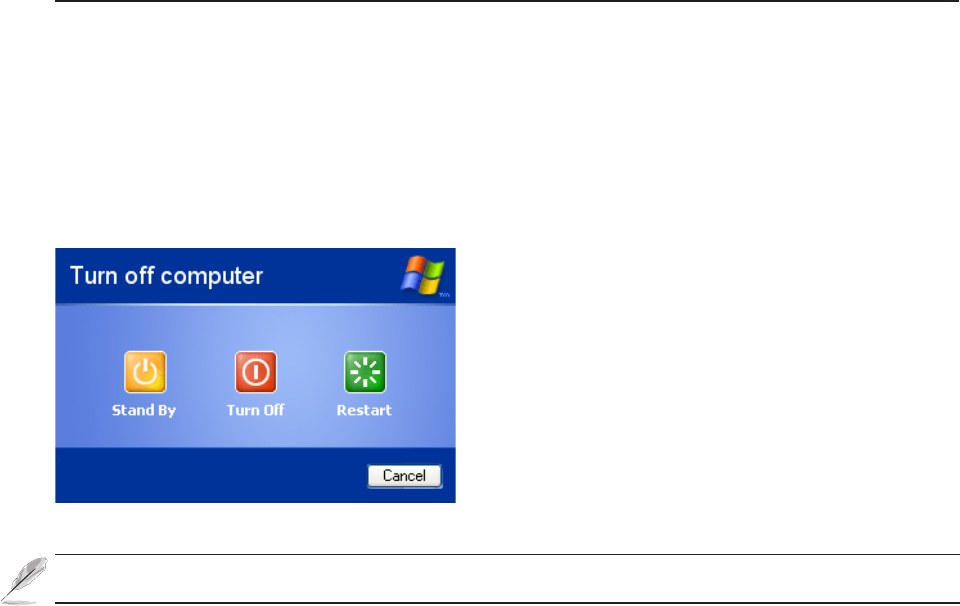

Powering OFF the Notebook PC........................................................................................... 31
Restarting or Rebooting ................................................................................................... 31
Powering OFF the Notebook PC ..................................................................................... 32
Instant Launch Keys and Status Indicators ........................................................................... 33
Instant Launch Keys.............................................................................................................. 33
Status Indicators ................................................................................................................... 35
Using the Keyboard............................................................................................................... 37
Colored Hot Keys ............................................................................................................. 37
Microsoft Windows™ Keys .............................................................................................. 38

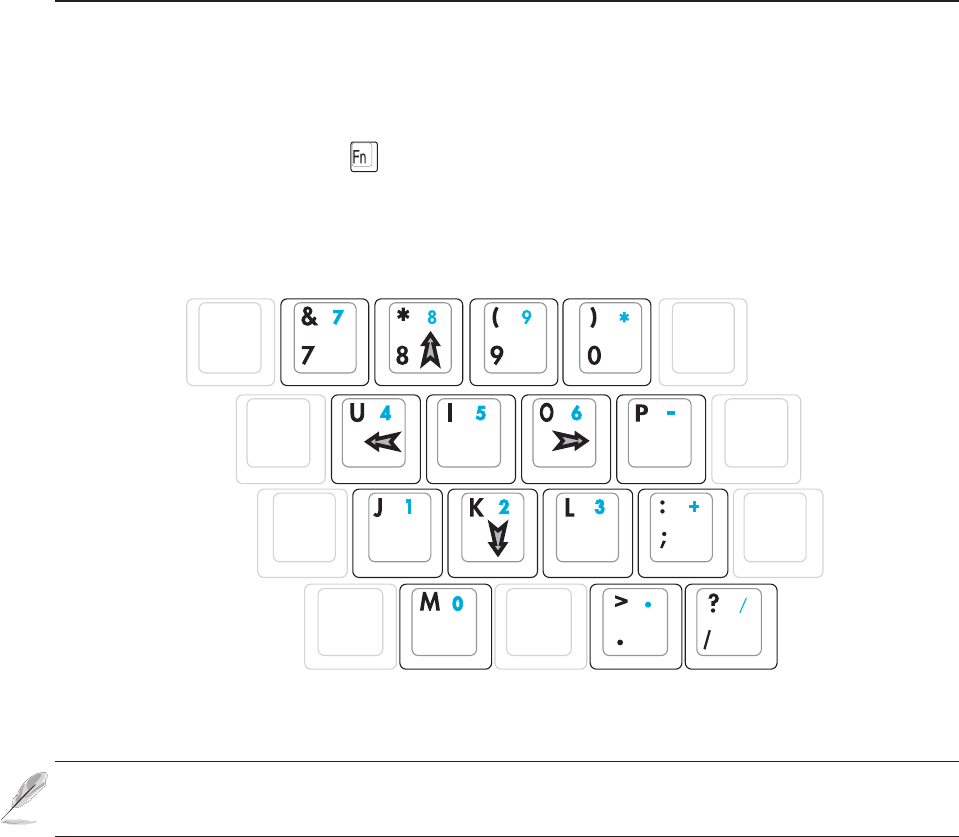

Keyboard as a Numeric Keypad ...................................................................................... 39
Keyboard as Cursors ....................................................................................................... 39
9
4. Using the Notebook PC ......................................................................... 41
Pointing Device ..................................................................................................................... 42
Using the Touchpad ......................................................................................................... 42

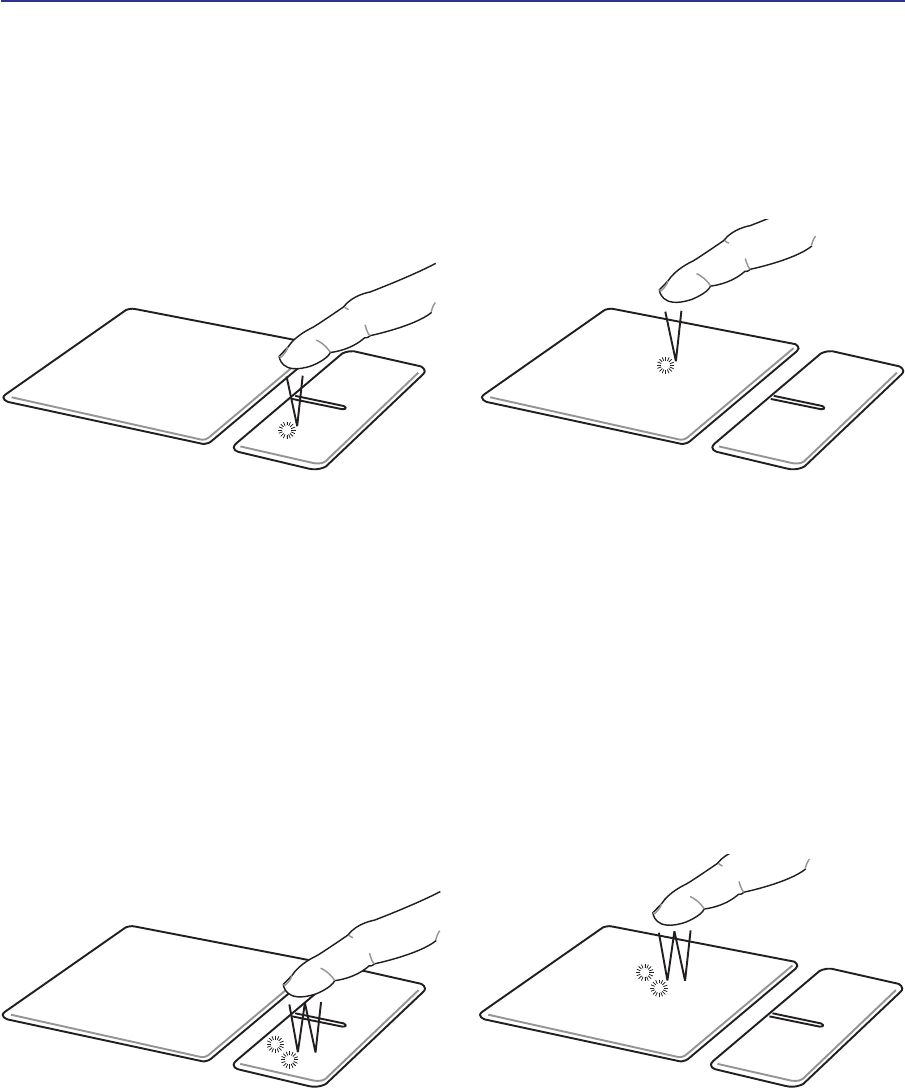

Touchpad Usage Illustrations ........................................................................................... 43
Caring for the Touchpad ................................................................................................... 44

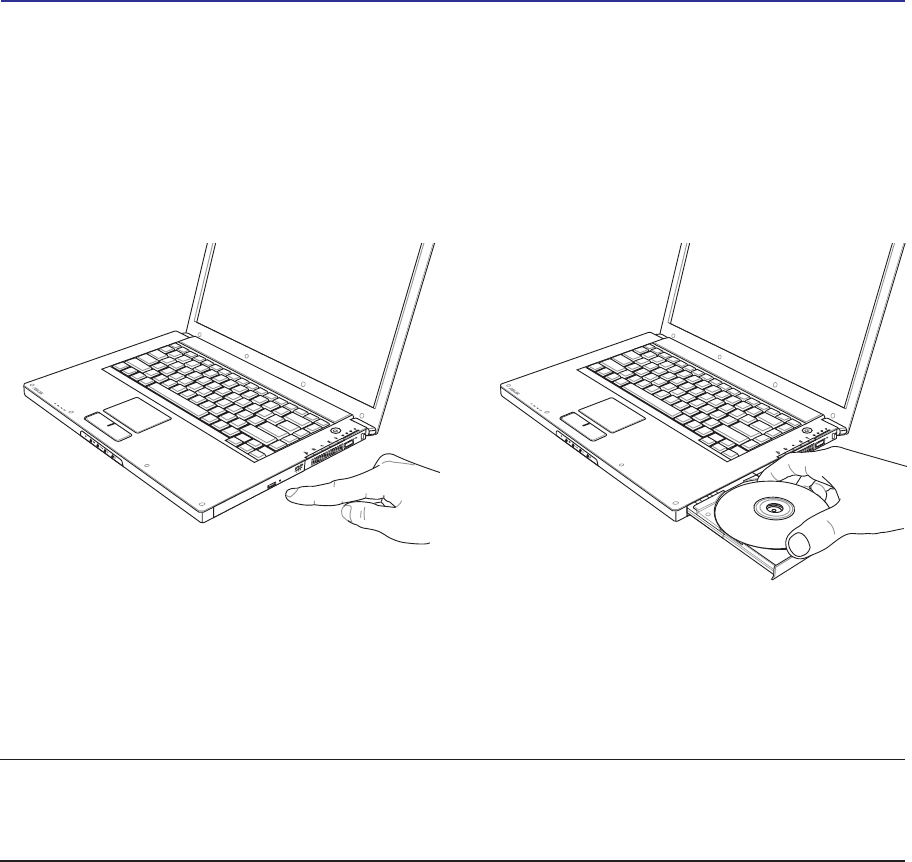

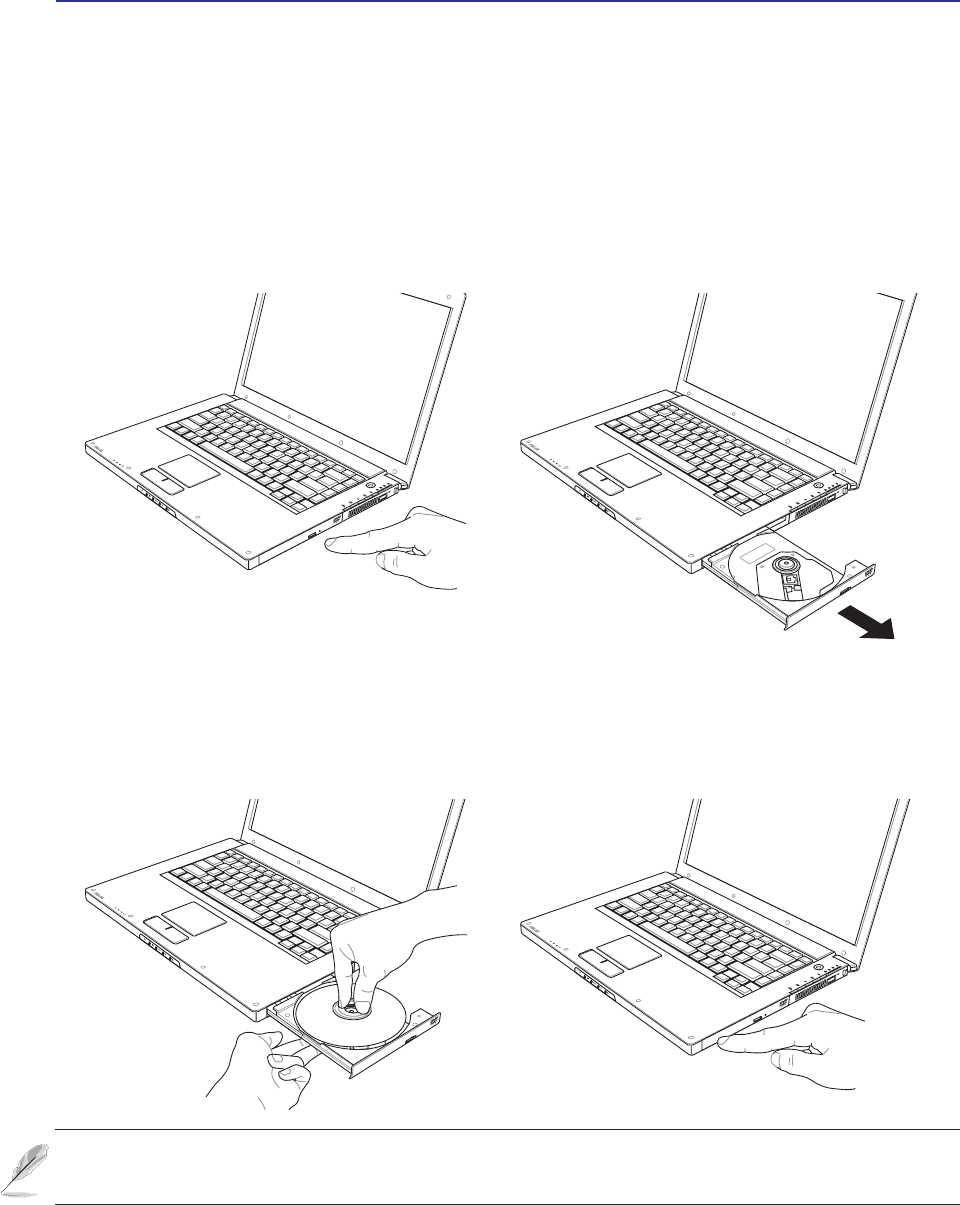

Optical Drive.......................................................................................................................... 45
PC Card (PCMCIA) Socket ................................................................................................... 47
32-bit CardBus Support ................................................................................................... 47

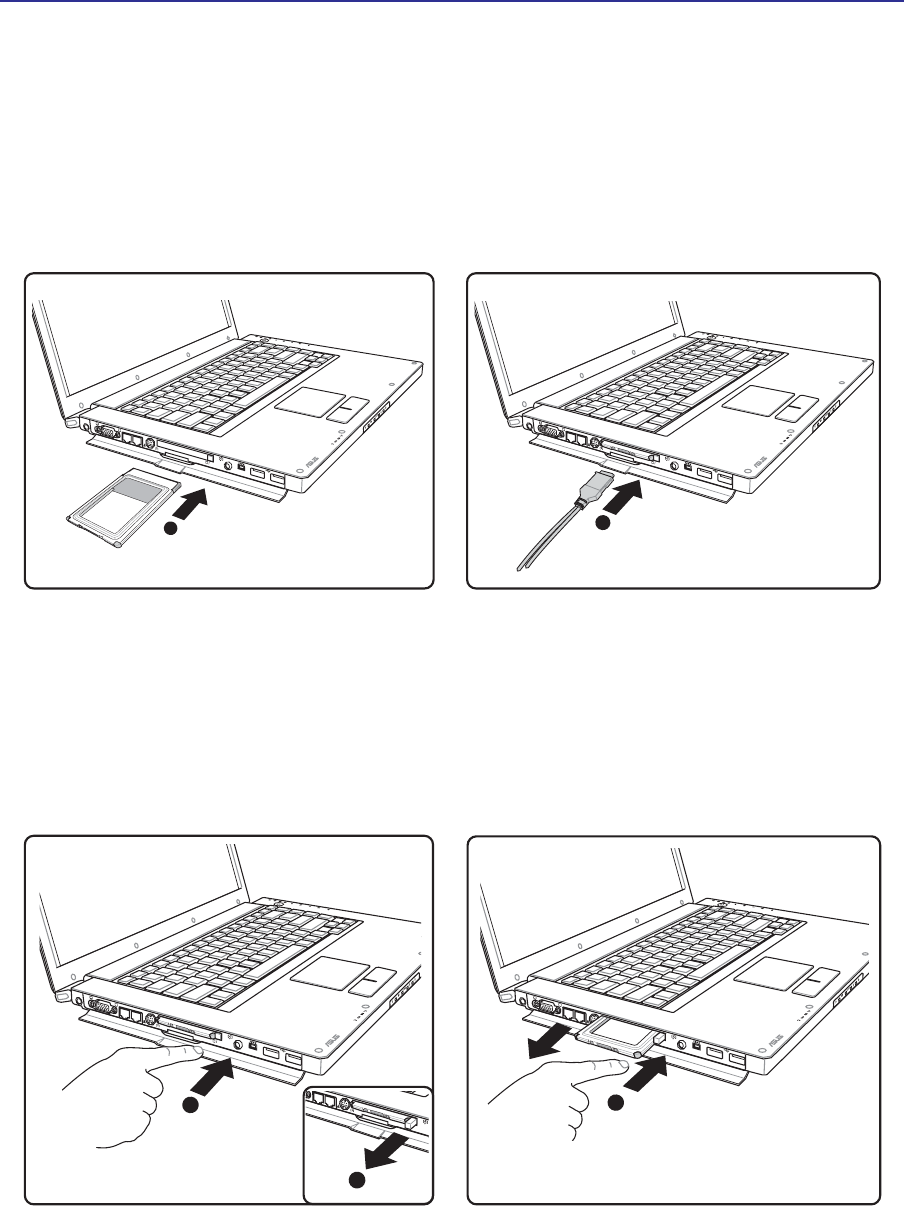

Inserting a PC Card (PCMCIA) ........................................................................................ 48
Removing a PC Card (PCMCIA)...................................................................................... 48

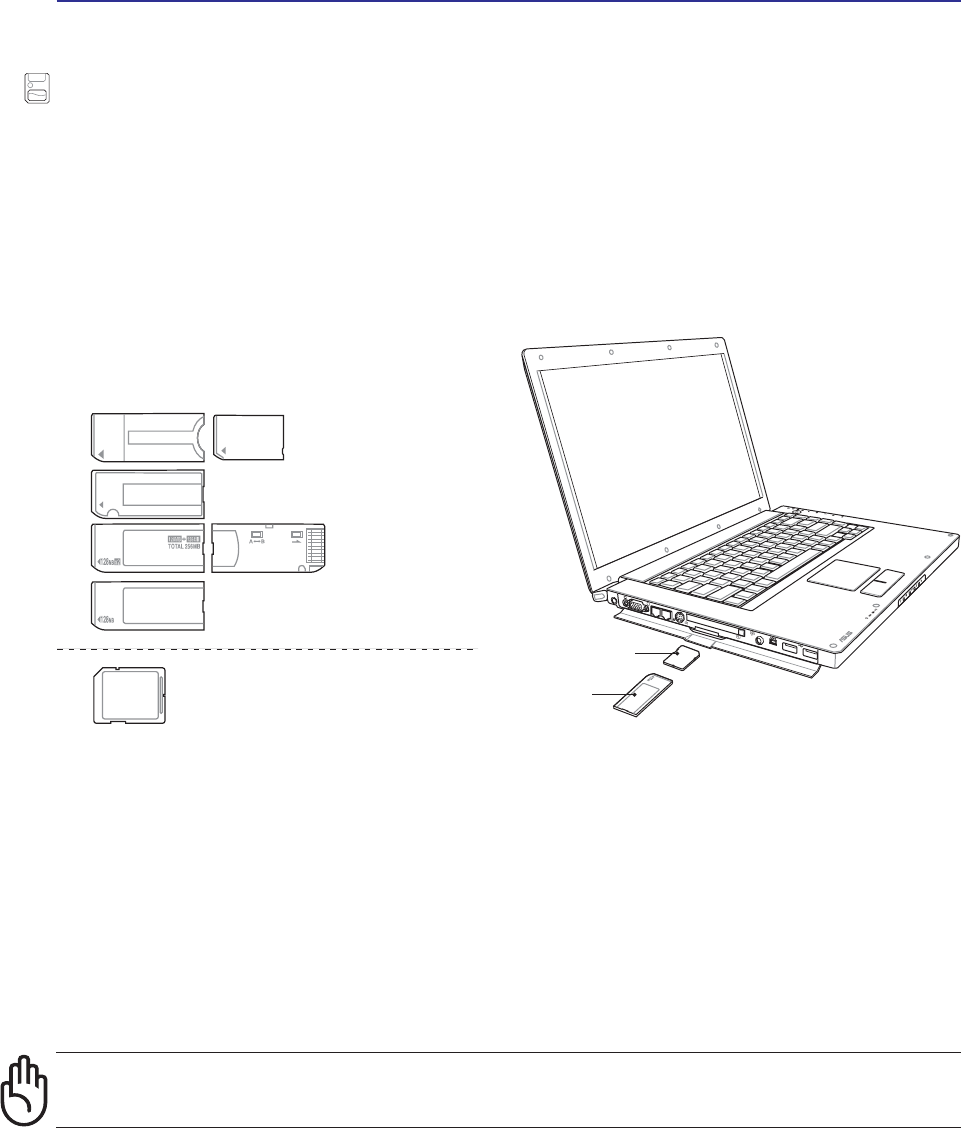

Flash Memory Card Reader............................................................................................. 49

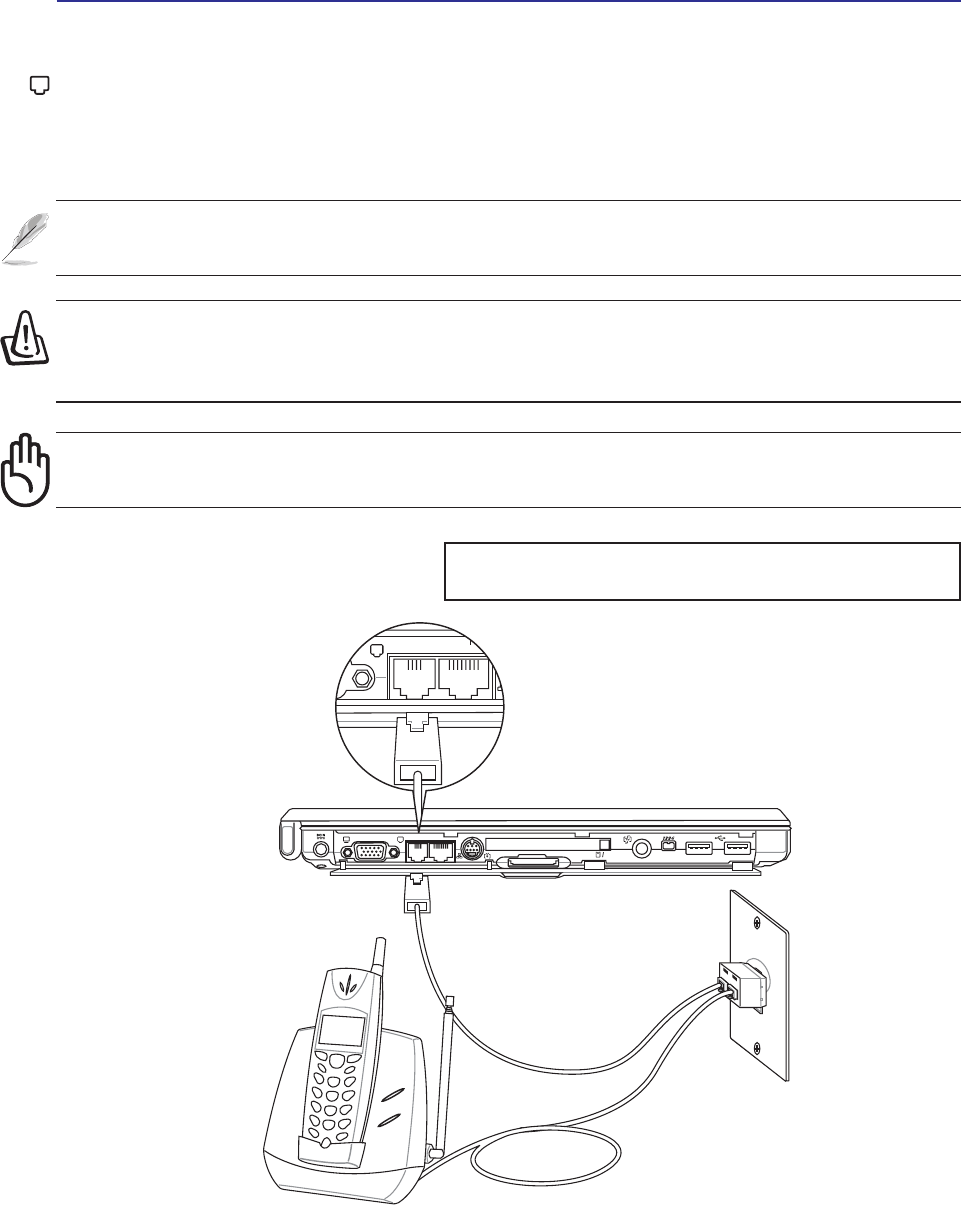

Modem Connection .......................................................................................................... 50
Modem and Network Connections ........................................................................................ 51
Network Connection......................................................................................................... 52
AC Power System .................................................................................................................53
Battery Power System........................................................................................................... 53
Charging the Battery Pack ............................................................................................... 53
Using Battery Power ........................................................................................................ 54
Power Management Modes .................................................................................................. 55
Full Power Mode & Maximum Performance .................................................................... 55
ACPI................................................................................................................................. 55
Suspend Mode ................................................................................................................. 55
Power Management Modes .................................................................................................. 55
Full Power Mode & Maximum Performance .................................................................... 55
ACPI................................................................................................................................. 55
Suspend Mode ................................................................................................................. 55
Thermal Power Control .................................................................................................... 56
Power Savings ................................................................................................................. 56
Power State Summary ..................................................................................................... 56
Notebook PC Upgrades ........................................................................................................ 57
System Memory Expansion ............................................................................................. 57
Hard Disk Drive Upgrades ............................................................................................... 57
Processor Upgrades ........................................................................................................ 57
Contents
10
Appendix ..................................................................................................... 59

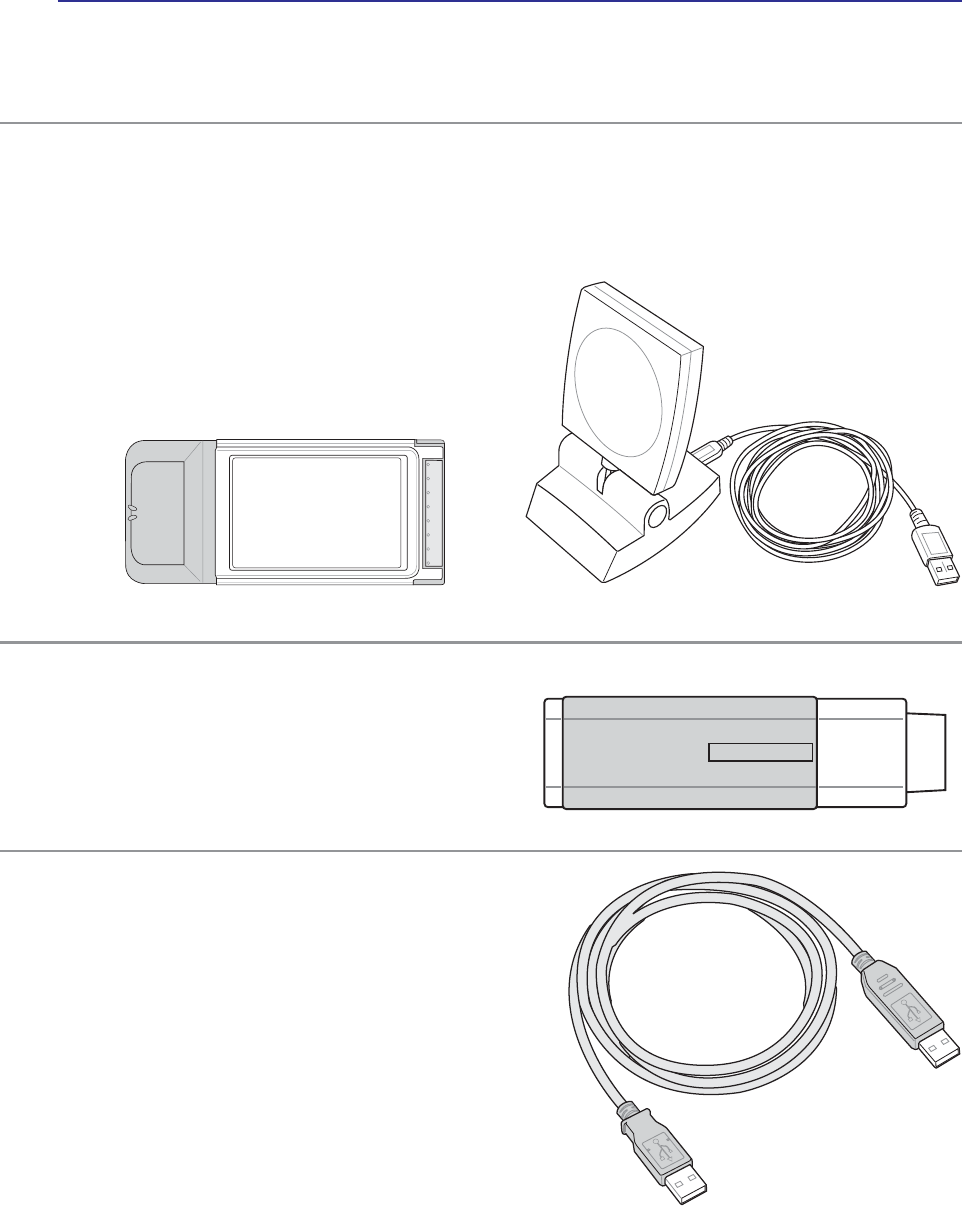

Optional Accessories............................................................................................................. 60
USB Hub .......................................................................................................................... 60
Wireless LAN Cardbus Card or USB ............................................................................... 61
USB Flash Memory .......................................................................................................... 61
USB Communication Cable ............................................................................................. 61
USB Floppy Disk Drive .................................................................................................... 62
USB Keyboard and Mouse .............................................................................................. 62
Optional Connections ............................................................................................................63
Monitor Out Connection ................................................................................................... 63
External Audio Connections ............................................................................................. 63
IEEE1394 Connection...................................................................................................... 64
Securing Your Notebook PC ............................................................................................ 64
DVD-ROM Drive Information................................................................................................. 65
Internal Modem Compliancy ................................................................................................. 66
Glossary ................................................................................................................................ 68
Notebook PC Information ...................................................................................................... 74
Contents
11
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Preparing your Notebook PC
12
1 Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
This User’s Manual was created using Macintosh versions of Adobe® PageMaker™ 6.52, Adobe®
Photoshop™ 5.5, Adobe® Illustrator® 8.0, and Macromedia® Freehand™ 8.0.1. The body text type used
in this manual is “Times” (MAC) or “Times New Roman” (Windows™) and headings are “Helvetica”
(MAC) or “Arial” (Windows™). A few notes and warnings in bold are used throughout this guide that
you should be aware of in order to complete certain tasks safely and completely. These notes have
different degrees of importance as described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the <
> or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
13
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor-
mation on using your Notebook PC.
1. Install the battery pack
Insert the battery pack until it clicks into place.

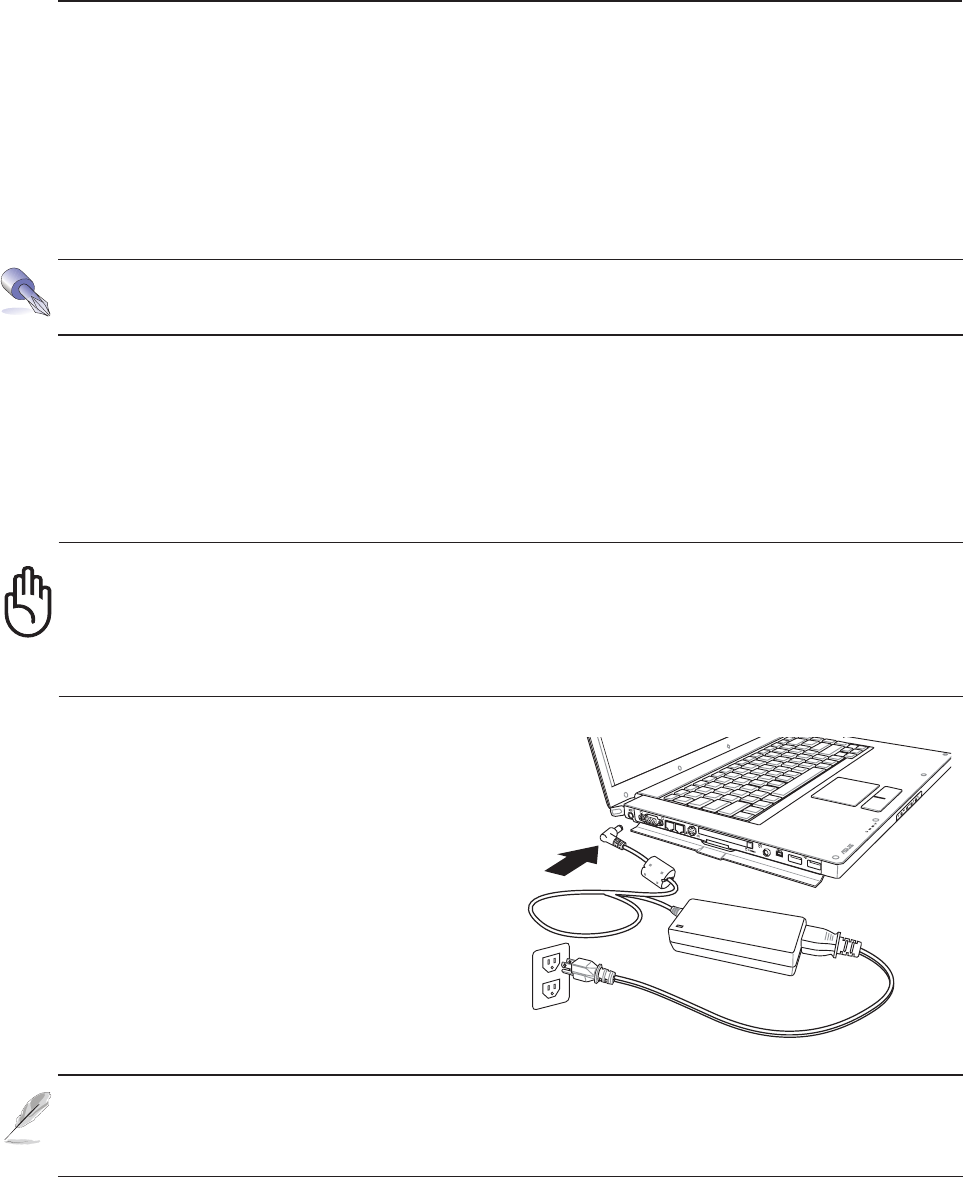

2. Connect the AC Power Adapter
1. Connect this end of the power cord to the
AC-DC converter.
2. Plug the “AC Power Cord” into an electrical out-
let (110V - 240V).
3. Insert the DC Power Plug.
3. Open the Display Panel
Press the power button and release. In Windows XP, this button
can also be used to safely turn OFF the Notebook PC.
There is no latch to release. Lift the display panel with one hand
while holding the system portion with your other hand.
4. Turn ON the Notebook PC
1
1
2
3
14
1 Introducing the Notebook PC
15
2. Knowing the Parts
Top Side
Bottom Side
Left Side
Right Side
Rear Side
Front Side
16
2 Knowing the Parts

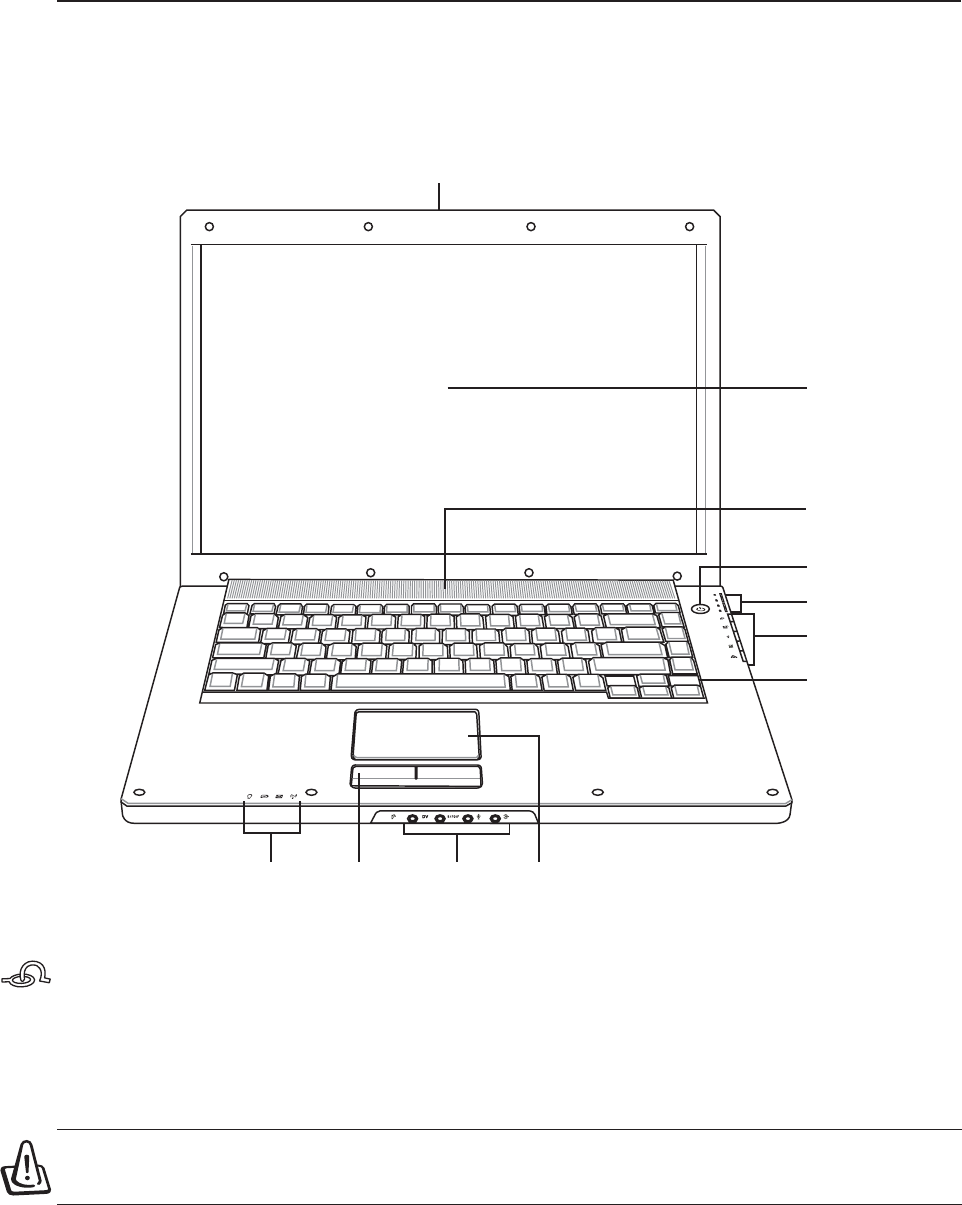

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
Display Panel Latch
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, push and release the latch with your
thumb and lift up the display panel with the same thumb. Slowly tilt the display panel forward or
backward to a comfortable viewing angle.
WARNING! When opening, do not force the display panel down to the table or else
the hinges may break! Never lift the Notebook PC by the display panel!
Audio Speakers
Display Panel
Touchpad
Buttons
Keyboard
Touchpad
Power Switch /
Instant Keys
Display Panel Latch
LED Status
Indicators
CD Player Controls
CD Player Status
Indicators
Audio Jacks
17
Knowing the Parts 2

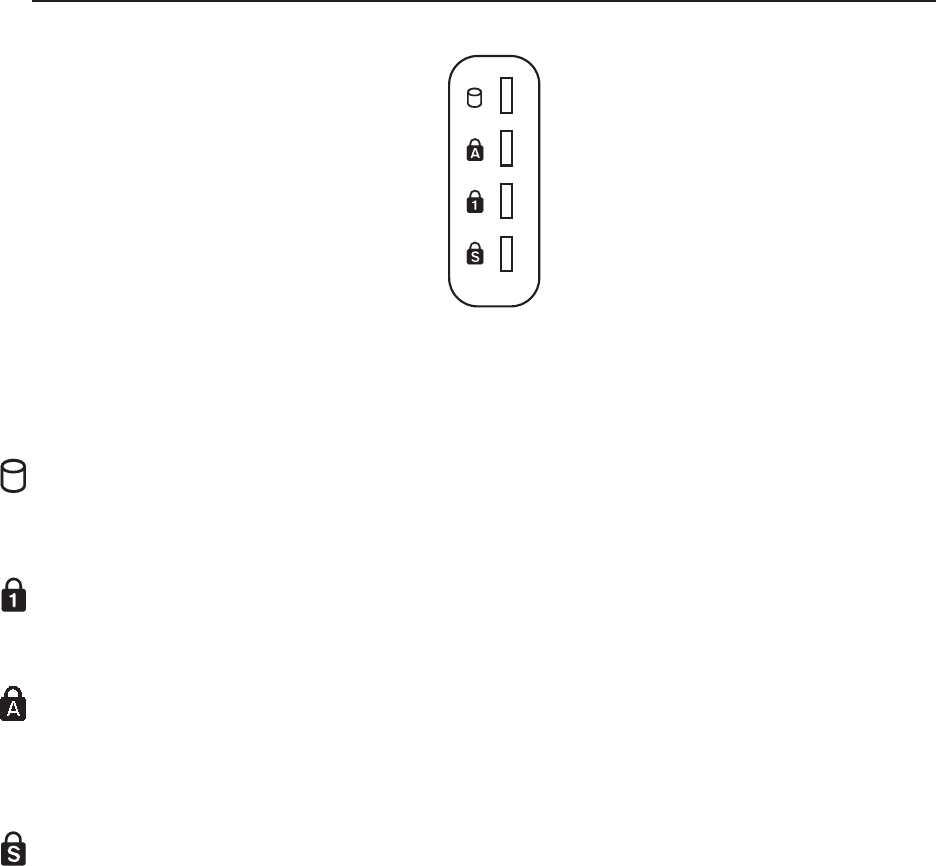

LED Status Indicators
Status indicator details are described in section 3.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse.
A software-controlled scrolling function is available after setting up the included touchpad utility to
allow easy Windows or web navigation.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be de-
pressed) and palm rest for both hands. Two Windows™ function keys are provided to help ease naviga-
tion in the Windows™ operating system.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Push the
switch once to turn ON and once to turn OFF the Notebook PC.
Instant Launch Keys
Instant launch keys allow you to launch frequently used applications with one push of a button. Details
provided later in this manual.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix
TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors,
the LCD panel does not produce any radiation or flickering, so it is easier on the eyes.
Audio Speakers
The built-in speaker allows you to hear audio without additional attachments. The multimedia sound
system features an integrated digital audio controller that produces rich, vibrant sound (results im-
proved with external stereo headphones or speakers). All audio features are software controlled.
CD Player Controls
The CD player controls allow playing an audio CD without turning ON the Notebook PC and without
using a software audio player. This is similar to using a portable CD player.
18
2 Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
IMPORTANT! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
S
u
p
e
r
/
o
r
S
o
u
n
d
S
y
s
t
e
m
/
4
.
1
C
h
a
n
n
e
l
B
a
s
s
Battery Pack Battery Lock
Hard Disk Drive
Compartment
Memory
Compartment
Sub-Woofer
Speaker
Optical
Drive
Battery Lock
Mini-PCI
Compartment
19
Knowing the Parts 2
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to be done by authorized
service centers or dealers only.
Battery Lock
The battery is held by a spring lock. The spring loaded latch automatically locks the battery pack when
inserted. Holding this in the unlock position will allow battery removal. Usage details are described in
the battery section later in this manual.
Battery Pack
The battery pack is actually combined with the Notebook PC’s surface in order to reduce thickness.
When the battery is released, the surface and battery pack will be seen as a single unit. The battery pack
cannot be further disassembled and must be replaced as a single unit.
Audio Speaker (Sub-Woofer)
The built-in woofer allows you to enjoy amazing bass (low frequency) sounds in your multimedia
applications.
Optical Drive
This Notebook PC features a built-in CD/DVD optical drive and depending on model, may have writ-
ing capabilities.
Memory Compartment
The memory compartment contains an expansion slot for additional memory. Memory installation or
upgrades must be done by an authorized retailer or else warranty will be void.
20
2 Knowing the Parts

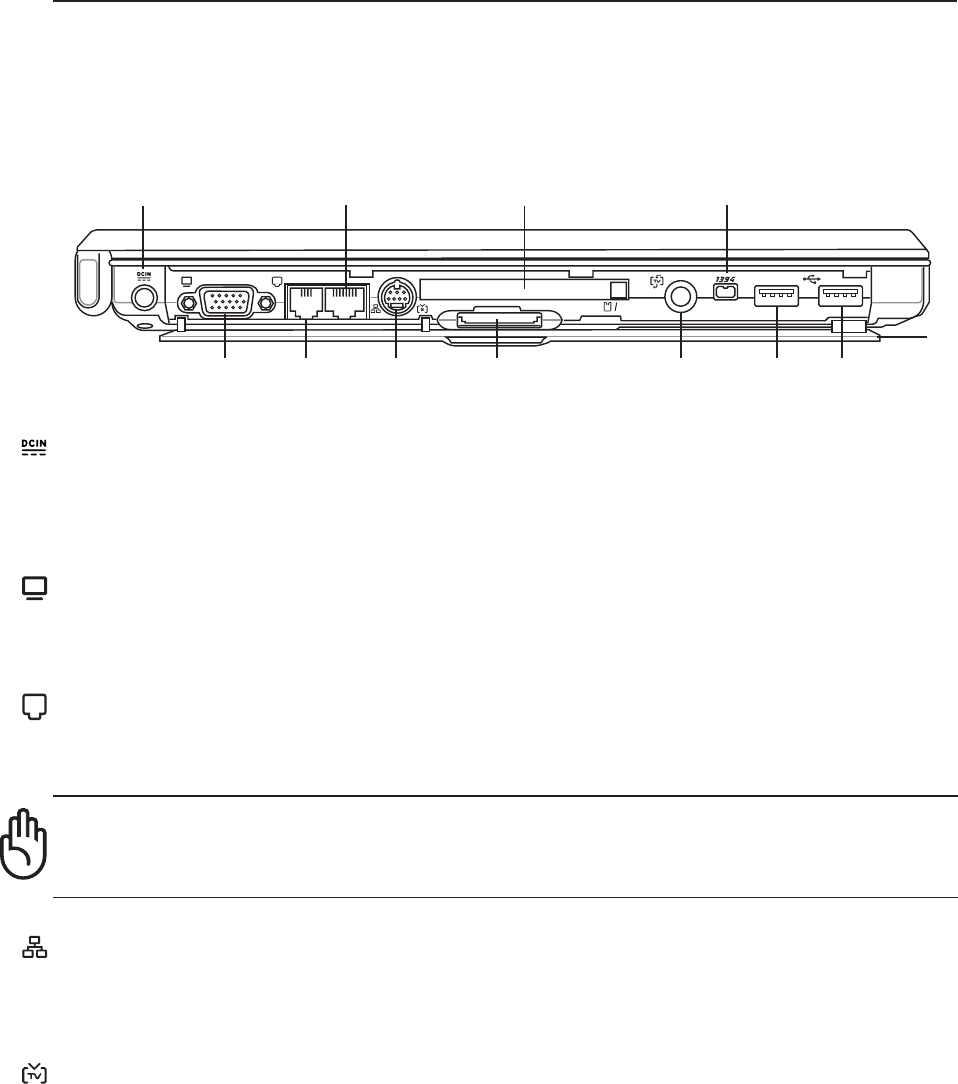

Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
LAN Port
The RJ-45 LAN port supports an RJ-45 Ethernet cable. The internal LAN supports 10Base-T or 100Base-
TX standard or duplex networks. The built-in connector allows convenient use without a dongle.
Modem Port
The RJ-11 telephone port supports an RJ-11 telephone cable. The internal modem supports up to 56K
V.90 transfers. The built-in connector allows convenient use without a dongle.
IMPORTANT! The built-in modem does not support the voltage used in digital phone
systems. Do not connect the modem port to a digital phone system or else damage
will occur to the Notebook PC.
WWW.ASUS.COM
remote
PC Card Slot and Eject
LAN
Port
Modem
Port Flash
Memory Slot
DC Power
Input Jack
Display
Output
1394
Port
USB PortsTV Cable-
In Port
TV-Out
Port
Monitor Port
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor or pro-
jector to allow viewing on a larger external display.
DC Power Input Jack
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied
through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent
damage to the Notebook PC and battery pack, always use the supplied power adapter.
TV-Out Port
For times when you need a really big display, try the TV-Out function. TV-Out allows a high definition
connection to a television or video projection device using a Super VHS (S-Video) cable (not pro-
vided). An adapter is provided for use with RCA inputs available on all standard video devices. This
port support NTSC or PAL formats.
21
Knowing the Parts 2
1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging capabilities
like USB. The interface IEEE1394 has a bandwidth of 100-400 Mbits/sec and can handle up to 63 units
on the same bus. IEEE1394 is also used in high-end digital equipment and should be marked “DV” for
Digital Video port.
PC Card Slot and Eject
One PCMCIA 2.1 compliant PC Card socket is available to support one type I/II PC card. The socket
supports 32-bit CardBus. This allows accommodation of Notebook PC expansion options such as memory
cards, ISDN, SCSI, Smart Cards, and wireless network adapters.
Flash Memory Slot
Normally a PCMCIA memory card reader must be purchased separately
in order to use memory cards from devices such as digital cameras, MP3
players, mobile phones, and PDAs. This Notebook PC has a built-in
memory card reader that can read the following flash memory cards:
Secure Digital (SD), Multi-Media Card (MMC), Memory Stick (MS),
Memory Stick Select (MS Select), Memory Stick Duo (with MS adapter),
Memory Stick Pro, and Memory Stick Pro Duo (with MS Pro adapter).
The built-in memory card reader is not only convenient, but also faster
than most other forms of memory card readers because it utilizes the
high-bandwidth PCI bus.
MMC/SD
MS/Pro
IMPORTANT! Never remove cards while or immediately after reading, copying, for-
matting, or deleting data on the card or else data loss may occur.
USB Ports (1.1 & 2.0)
Universal Serial Bus (USB) supports many USB compatible devices such as keyboards, pointing de-
vices, video cameras, modems, hard disk drives, printers, monitors, and scanners connected in a series
up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simulta-
neously on a single computer, with peripherals such as USB keyboards and some newer monitors
acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that peripherals can
be connected or disconnected without restarting the computer.
22
2 Knowing the Parts
Kensington® Lock Port
The Kensington® lock port allows the Notebook PC to be secured using Kensington® compatible Note-
book PC security products. These security products usually include a metal cable and lock that prevent
the Notebook PC to be removed from a fixed object. Some security products may also include a motion
detector to sound an alarm when moved.

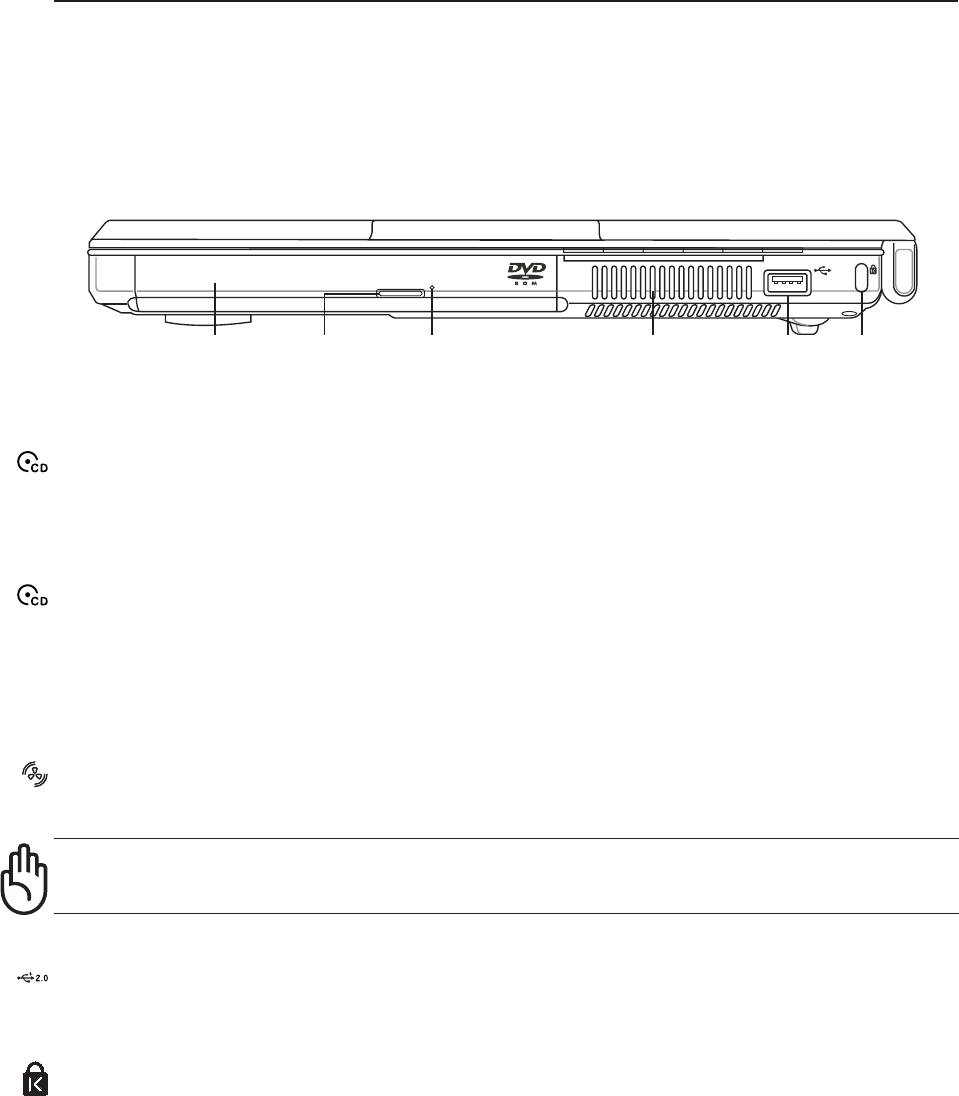

Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
Optical Drive Module
This Notebook PC features a module bay to accept a removable module device. Shown here is an
optical drive module which may support CD, DVD, or RW discs depending on the optical drive model.
Optical Drive Electronic Eject and Emergency Eject
The optical drive eject is an electronic eject button (requiring power) for opening the tray. You can also
eject the optical drive tray through any optical drive software player or by right clicking the optical
drive in Windows™ “My Computer.” The emergency eject is used to eject the optical drive tray in case
the electronic eject does not work. Do not use the emergency eject in place of the electronic eject.
WWW.ASUS.COM
USB Port Kensington
®
Lock Port
Optical Drive
Electronic Eject Optical Drive
Emergency Eject
Optical Drive Air Vents
USB Ports (1.1 & 2.0)
See left side for more information.
23
Knowing the Parts 2
Front Side
Refer to the diagram below to identify the components on the front side of the Notebook PC.
Display Panel Latch
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, slide and release the latch with your
thumb and lift up the display panel with the same thumb. Slowly tilt the display panel forward or
backward to a comfortable viewing angle.
Status Indicators
Status indicator details are described in section 3.
Infrared Port (IrDA)
The infrared (IrDA) communication port allows convenient wireless data communication with infra-
red-equipped devices or computers. This allows easy wireless synchronization with PDAs or mobile
phones and even wireless printing to printers. If your office supports IrDA networking, you can have
wireless connection to a network anywhere provided there is a direct line of sight to an IrDA node.
Small offices can use IrDA technology to share a printer between several closely placed Notebook PCs
and even send files to each other without a network.
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals
from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for
video conferencing, voice narrations, or simple audio recordings.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to ampli-
fied speakers or headphones. Using this jack automatically disables the built-in speakers.
Audio Speakers
The built-in speaker allows you to hear audio without additional attachments. The multimedia sound
system features an integrated digital audio controller that produces rich, vibrant sound (results im-
proved with external stereo headphones or speakers). All audio features are software controlled.
Display Panel Latch
Status
Indicators SpeakerSpeaker Audio JacksInfrared
Port
24
2 Knowing the Parts
25
3. Getting Started
Using the Battery Pack
Operating Systems
Power Connection
Powering ON The Notebook PC
Power Management - Stand By and Hibernate
Restarting or Rebooting
Powering OFF The Notebook PC
Using the Keyboard
Instant Launch Keys and Status Indicators
26
3 Getting Started
Using the Battery Pack
Installing and Removing the Battery Pack
Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have
its battery pack installed, use the following procedures to install the battery pack.
To install the battery pack:
1. Insert the battery pack until it clicks into place.
2. Slide the battery lock to the lock position.
To remove the battery pack:
1. Slide the battery release to unlock .
2. Remove the battery pack.
IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is
turned ON, as this may result in the loss of working data.
IMPORTANT! Only use battery packs and power adapters supplied with this Note-
book PC or specifically approved by the manufacturer or retailer for use with this
model or else damage may occur to the Notebook PC.
1
2
1
3
2
27
Getting Started 3
Charging the Battery Pack
Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery
pack begins to charge as soon as the Notebook PC is connected to external power. Fully charge the
battery pack before using it for the first time. A new battery pack must completely charge before the
Notebook PC is disconnected from external power. It takes a few hours to fully charge the battery when
the Notebook PC is turned OFF and may take twice the time when the Notebook PC is turned ON. The
battery charge light turns OFF when the battery pack is charged.
Battery Care
The Notebook PC’s battery pack, like all rechargeable batteries, has a limit on the number times it can
be recharged. Fully draining and charging the battery once a day every day will last over a year but how
long beyond that will depend on your environment temperature, humidity, and how your Notebook PC
is used. It is ideal that the battery be used in a temperature range between 10˚C and 29˚C (50˚F and
85˚F). You must also take into account that the Notebook PC’s internal temperature is higher than the
outside temperature. Any temperatures above or below this range will shorten the life of the battery.
But in any case, the battery pack’s usage time will eventually decrease and a new battery pack must be
purchased from an authorized dealer for this Notebook PC. Because batteries also have a shelf life, it is
not recommended to buy extras for storing.
Operating Systems
This Notebook PC may offer (depending on territory) its customers the choice of a pre-installed oper-
ating system such as Microsoft Windows XP. The choices and languages will depend on the territory.
The levels of hardware and software support may vary depending on the installed operating system.
The stability and compatibility of other operating systems cannot be guaranteed.
Support Software
This Notebook PC comes with a support CD that provides BIOS, drivers and applications to enable
hardware features, extend functionality, help manage your Notebook PC, or add functionality not pro-
vided by the native operating system. If updates or replacement of the support CD is necessary, contact
your dealer for web sites to download individual software drivers and utilities.
The support CD contains all drivers, utilities and software for all popular operating systems including
those that have been pre-installed. The support CD does not include the operating system itself. The
support CD is necessary even if your Notebook PC came pre-configured in order to provide additional
software not included as part of the factory pre-install.
A recovery CD is optional and includes an image of the original operating system installed on the hard
drive at the factory. The recovery CD provides a comprehensive recovery solution that quickly restores
the Notebook PC’s operating system to its original working state provided that your hard disk drive is
in good working order. Contact your retailer if you require such a solution.
28
3 Getting Started
NOTE: This Notebook PC may come with either a two or three-prong plug depending
on territory. If a three-prong plug is provided, you must use a grounded AC outlet or
use a properly grounded adapter to ensure safe operation of the Notebook PC.
Power Connection
Your Notebook PC comes with a universal AC-DC adapter. That means that you may connect the
power cord to any 110V-120V as well as 220V-240V outlets without setting switches or using power
converters. Different countries may require that an adapter be used to connect the provided US-stan-
dard AC power cord to a different standard. Most hotels will provide universal outlets to support differ-
ent power cords as well as voltages. It is always best to ask an experienced traveler about AC outlet
voltages when bringing power adapters to another country.
With the AC power cord connected to the AC-DC converter, connect the AC power cord to an AC outlet
(preferably with surge-protection) and then connect the DC plug to the Notebook PC. Connecting the
AC-DC adapter to the AC outlet first allows you to test the AC outlet’s power and the AC-DC converter
itself for compatibility problems before connecting the DC power to the Notebook PC. The green
power LED on the adapter lights up if the power is within accepted ranges.
TIP: You can buy travel kits for the Notebook PC that includes power and modem
adapters for almost every country.
Connecting the Power Adapter
1. Connect this end of the power cord to the
AC-DC converter.
2. Plug the “AC Power Cord” into an electrical out-
let (110V - 240V).
3. Insert the DC Power Plug.
IMPORTANT! Damage may occur if you use a different adapter to power the Note-
book PC or use the Notebook PC’s adapter to power other electrical devices. If there
is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek ser-
vicing. Seek servicing if you suspect a faulty AC-DC adapter. You may damage both
your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.
1
2
3
29
Getting Started 3
The Power-On Self Test (POST)
When you turn ON the Notebook PC, it will first run through a series of software-controlled diagnostic
tests called the Power-On Self Test (POST). The software that controls the POST is installed as a
permanent part of the Notebook PC’s architecture. The POST includes a record of the Notebook PC’s
hardware configuration, which is used to make a diagnostic check of the system. This record is created
by using the BIOS Setup program. If the POST discovers a difference between the record and the
existing hardware, it will display a message on the screen prompting you to correct the conflict by
running BIOS Setup. In most cases the record should be correct when you receive the Notebook PC.
When the test is finished, you may get a message reporting “No operating system found” if the hard
disk was not preloaded with an operating system. This indicates that the hard disk is correctly detected
and ready for the installation of a new operating system.
The S.M.A.R.T. (Self Monitoring and Reporting Technology) checks the hard disk drive during POST
and gives a warning message if the hard disk drive requires servicing. If any critical hard disk drive
warning is given during bootup, backup your data immediately and run Windows disk checking program.
To run Window’s disk checking program: (1) right-click any hard disk drive icon in “My Computer”, (2)
choose Properties, (3) click the Tools tab, (4) click Check Now, (5) select a hard disk drive, (6) select
Thorough to also check for physical damages, and (7) click Start. Third party disk utilities such as Symantec’s
Norton Disk Doctor can also perform the same functions but with greater ease and more features.
Powering ON The Notebook PC
The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you may
adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system
configuration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during the splash
screen, standard boot information such as the BIOS version can be seen. Press [ESC] and you will be
presented with a boot menu with selections to boot from your available drives.
NOTE: Before bootup, the display panel flashes when the power is turned ON. This is
part of the Notebook PC’s test routine and is not a problem with the display.
IMPORTANT! If warnings are still given during bootup after running a software disk
checking utility, you should take your Notebook PC in for servicing. Continued use
may result in data loss.
IMPORTANT! Never turn OFF or reset your Notebook PC while the hard disk or floppy
disk is in use and the activity LED is flashing; doing so can result in loss or destruc-
tion of your data. To protect the hard disk drive, always wait at least 5 seconds after
turning OFF your Notebook PC before turning it back ON.
30
3 Getting Started
Power Management - “Stand By” & “Hibernate”
Power management settings can be found in the Windows control panel. The following shows the
power options properties in Windows. You can define “Stand By” or “Shut down” for closing the
display panel, pressing the power button, or activating sleep mode. “Stand by” and “Hibernate” saves
power when your Notebook PC is not in use by turning OFF certain components. When you resume
your work, your last status (such as a document scrolled down half way or email typed half way will
reappear as if you never left. “Shut down” will close all applications and ask if you want to save your
work if any are not saved.
“Stand by” is the same as Suspend-to-RAM (STR). This
function stores your current data and status in RAM while
many components are turned OFF. Because RAM is vola-
tile, it requires power to keep (refresh) the data. To operate:
select “Start” | “Shut down”, and “Stand by”.
“Hibernate” is the same as Suspend-to-Disk (STD) and
stores your current data and status on the hard disk drive.
By doing this, RAM does not have to be periodically re-
freshed and power consumption is greatly reduced but not
completely eliminated because certain wake-up components
like LAN and modem needs to remain powered. “Hiber-
nate” saves more power compared to “Stand by”. To oper-
ate: Enable hibernation in “Power Options” and select “Start”
| “Shut down”, and “Hibernate”.
31
Getting Started 3
Restarting or Rebooting
After making changes to your operating system, you may be prompted to restart the system. Some
installation processes will provide a dialog box to allow restart. To restart the system manually:
Click the Start button and select Shut Down | and choose Restart.
In case the operating system hangs (stops, freezes, crashes), try a “warm boot” by pressing [Ctrl][Alt][Del]
keys simultaneously. (You may try a few times if there is no response.)
The screens are different depending on your security settings.
32
3 Getting Started
Powering OFF the Notebook PC
In Windows XP, the Notebook PC can be powered OFF by using Start | Shut Down... | Turn off (or
Shut down). For operating systems without proper power management (DOS, Windows NT), you
must power OFF the Notebook PC by holding the power switch for 2 seconds (as opposed to 1 second
to power ON) after closing applications and exiting operating systems. Holding the power switch for 2
seconds is necessary in order to prevent accidental power-OFFs.
The screens are different depending on your security settings.
33
Getting Started 3
Instant Launch Keys
Instant Launch Keys and Status Indicators
Email Launch Key
Pressing this button will launch your Email application while Windows is running.
Internet Launch Key
Pressing this button will launch your Internet browser application while Windows is
running.
Pad-Lock Key
Pressing this button will lock your touchpad when using an external mouse. Locking
the touchpad will prevent you from accidentally moving the cursor while typing. To
enable the touchpad, simply press this button again.
Power4 Gear+ Key
The Power4 Gear+ button toggles power savings between various power saving modes.
The power saving modes control many aspects of the Notebook PC to maximize per-
formance versus battery time during various events.
3D Key
The 3D key allows the enabling or disabling of the 3D audio function.
34
3 Getting Started
Power4 Gear+ Modes
When you are using an AC power adapter, Power4
Gear+ will switch between three modes in the AC
power mode segment. When you remove the AC
adapter, Power4 Gear+ will switch between seven
modes in the battery (DC) mode segment. When you
remove or apply the AC adapter, Power4 Gear+ will
automatically shift you up or down into the proper
mode segment (AC or DC).
Super
Performance
High
Performance
Game
Performance
DVD Movie
Performance
Email/Office
Performance
Presentation
Performance
Audio Listening
Performance
Battery-Saving
Performance
Mode
Names
Icons
AC
AC/DC
AC/DC
DC
DC
DC
DC
DC
Power
Segment
35
Getting Started 3
Wireless LAN Indicator (Optional)
This indicator is only applicable on models with internal wireless LAN. When the internal wireless
LAN is enabled, this indicator will light. (Windows software settings are necessary to use the wireless
LAN.)
Power Indicator
The green LED lights to indicate that the Notebook PC is turned ON and blink when the Notebook PC
is in the Suspend-to-RAM (Standby) mode. This LED is OFF when the Notebook PC is OFF or in the
Suspend-to-Disk (Hibernation) mode.
Battery Charge Indicator
The battery charge indicator is an LED that shows the status of the battery’s power as follows:
ON: The Notebook PC’s battery is charging
Blinking: The Notebook PC’s battery power is lower than 10%
Off: The Notebook PC’s battery is charged or completely drained
Email Indicator
Flashes when there is one or more new email(s) in your email program’s inbox. This function requires
software setup and may not be currently configured on your Notebook PC. This function is designed
for Microsoft email software only and may not work with email software from other companies.
Status Indicators
36
3 Getting Started
Number Lock
Indicates that number lock [Num Lk] is activated when lighted. Number lock allows some of the key-
board letters to act as numbers for easier numeric data input.
Drive Activity Indicator
Indicates that the Notebook PC is accessing one or more storage device(s) such as the hard disk. The
light flashes proportional to the access time.
Capital Lock
Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of the
keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is OFF, the
typed letters will be in the lower case form (e.g. a,b,c).
Status Indicators
Scroll Lock
Indicates that scroll lock [Scr Lk] is activated when lit. Scroll lock allows some of the keyboard letters
to act as direction keys in order to allow easier navigation when only a part of the keyboard is required,
such as for playing games.
37
Getting Started 3
Using the Keyboard
Colored Hot Keys
The following defines the colored hot keys on the Notebook PC’s keyboard. The colored commands can only
be accessed by first pressing and holding the function key while pressing a key with a colored command.
NOTE: The Hot Key locations on the function keys may vary depending on model but
the functions should remain the same. Follow the icons instead of the function keys.
“Z” Icon (F1): Places the Notebook PC in suspend mode (either Save-to-RAM or Save-
to-Disk depending on sleep button setting in power management setup).
Radio Tower Icon (F2): Wireless Models Only: Toggles the internal wireless LAN and
Bluetooth ON and OFF. When enabled, the wireless LAN LED will light. Windows
software settings are necessary to use the wireless LAN or Bluetooth.
Filled Sun Icon (F5):
Decreases the display brightness
Open Sun Icon (F6):
Increases the display brightness
LCD Icon (F7): Toggles the display panel ON and OFF. This also stretches your screen
area (on certain models) to fill the entire display when using low resolution modes.
LCD/Monitor Icons (F8): Toggles between: Notebook PC LCD -> External Monitor -
> Television. (This function does not work in 256 Colors, select High Color in Display
Property Settings.) IMPORTANT: It is necessary to connect an external monitor or
television before booting up the Notebook PC for this function to work properly.
Speaker Icons (F10):
Toggles the speakers ON and OFF (only in Windows OS)
Down Speaker Icon (F11):
Decreases the speaker volume (only in Windows OS)
Up Speaker Icon (F12):
Increases the speaker volume (only in Windows OS)
Num Lk (Ins): Toggles the numeric keypad (number lock) ON and OFF. Allows you to
use a larger portion of the keyboard for number entering.
Scr Lk (Del): Toggles the “Scroll Lock” ON and OFF. Allows you to use a larger por-
tion of the keyboard for cell navigation.
38
3 Getting Started
Keyboard as a Numeric Keypad
The numeric keypad is embedded in the keyboard and consists of 15 keys that make number intensive
input more convenient. These dual-purpose keys are labeled in orange on the key caps. Numeric as-
signments are located at the upper right hand corner of each key as shown in the figure. When the
numeric keypad is engaged by pressing , the number lock LED lights up. If an external key-
board is connected, pressing the on the external keyboard enables/disables the NumLock on both
keyboards simultaneously. To disable the numeric keypad while keeping the keypad on an external
keyboard activated, press the keys on the Notebook PC.
NOTE: The large bold characters and symbols are printed here for your reference.
They are not labeled on the keyboard as shown here.
Microsoft Windows™ Keys
There are two special Windows™ keys on the keyboard as described below.
The key with the Windows™ Logo activates the Start menu located at the bottom left of the
Windows™ desktop.
The other key, that looks like a Windows™ menu with a small cursor, activates the proper-
ties menu and is equivalent to pressing the right mouse button on a Windows™ object.
39
Getting Started 3
Keyboard as Cursors
The keyboard can be used as cursors while Number Lock is ON or OFF in order to increase navigation
ease while entering numeric data in spreadsheets or similar applications.
With Number Lock OFF, press and one of the cursor keys shown below. For example [Fn][8] for
up, [Fn][K] for down, [Fn][U] for left, and [Fn][O] for right.
With Number Lock ON, use [Shift] and one of the cursor keys shown below. For example [Shift][8]
for up, [Shift][K] for down, [Shift][U] for left, and [Shift][O] for right.
NOTE: The large bold characters and symbols are printed here for your reference.
They are not labeled on the keyboard as shown here.
40
3 Getting Started
41
4. Using the Notebook PC
Pointing Device
Optical Drive
Flash Memory Card Reader
PC Card (PCMCIA) Socket
Modem and Network Connections
AC Power System
Battery Power System
Power Management Modes
Notebook PC Upgrades
42
4 Using the Notebook PC
Cursor
Movement
Scroll Up
Right Click
Scroll Down
Left Click
Pointing Device
The Notebook PC’s integrated touchpad pointing de-
vice is fully compatible with all two/three-button and
scrolling knob PS/2 mice. The touchpad is pressure sen-
sitive and contains no moving parts; therefore, mechani-
cal failures can be avoided. A device driver is still re-
quired for working with some application software.
Using the Touchpad
Light pressure with the tip of your finger is all that is
required to operate the touchpad. Because the touch-
pad is electrostatic sensitive, objects cannot be used
in place of your fingers. The touchpad’s primary func-
tion is to move the cursor around or select items dis-
played on the screen with the use of your fingertip.
The following illustrations demonstrate proper use of
the touchpad.
Moving The Cursor
Place your finger in the center of the touchpad and slide in a direction to move the cursor.
Up - Slide finger forward
Left - Slide
finger left
Down - Slide finger backward
Right - Slide
finger right
IMPORTANT! Do not use any objects in
place of your finger to operate the touch-
pad or else damage may occur to the
touchpad’s surface.
43
Using the Notebook PC 4
Double-clicking/Double-tapping - This is a common skill for launching a program directly from the
corresponding icon you select. Move the cursor over the icon you wish to execute, press the left button
or tap the pad twice in rapid succession, and the system launches the corresponding program. If the
interval between the clicks or taps is too long, the operation will not be executed. You can set the
double-click speed using the Windows Control Panel “Mouse.” The following 2 examples produce the
same results.
(press the left button twice and release) (lightly but rapidly strike the touchpad twice)
(press the left cursor button and release) (lightly but rapidly strike the touchpad)
Clicking/Tapping - With the cursor over an item, press the left button or use your fingertip to touch the
touchpad lightly, keeping your finger on the touchpad until the item is selected. The selected item will
change color. The following 2 examples produce the same results.
Clicking Tapping
Double-Clicking Double-Tapping
Touchpad Usage Illustrations
44
4 Using the Notebook PC
Caring for the Touchpad
The touchpad is pressure sensitive. If not properly cared for, it can be easily damaged. Take note of the
following precautions.
• Make sure the touchpad does not come into contact with dirt, liquids or grease.
• Do not touch the touchpad if your fingers are dirty or wet.
• Do not rest heavy objects on the touchpad or the touchpad buttons.
• Do not scratch the touchpad with your finger nails or any hard objects.
Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can
move the cursor over the item you select, and while keeping the left button depressed, moving the
cursor to the desired location, then release the button. Or, you can simply double-tap on the item and
hold while dragging the item with your fingertip. The following 2 examples produce the same results.
(hold left button and slide finger on touchpad) (lightly strike the touchpad twice, sliding finger
on touchpad during second strike)
Dragging-Clicking Dragging-Tapping
NOTE: A software-controlled scrolling function is available after setting up the in-
cluded touchpad utility to allow easy Windows or web navigation. Basic functions
can be adjusted at the Windows control panel to allow comfortable clicking and tap-
ping.
NOTE: The touchpad responds to movement not to force. There is no need to tap the
surface too hard. Tapping too hard does not increase the responsiveness of the touch-
pad. The touchpad responds best to light pressure.
45
Using the Notebook PC 4
Optical Drive
Inserting an optical disc
1. While the Notebook PC’s power is ON, press
the drive’s eject button and the tray will eject
out partially.
2. Gently pull on the drive’s front panel and slide the
tray completely out. Be careful not to touch the
CD drive lens and other mechanisms. Make sure
there are no obstructions that may get jammed un-
der the drive’s tray.
3. Hold the disc by the edge and face the disc’s
printed side up. Push down on both sides of
the disc’s center until the disc snaps onto the
hub. The hub should be higher than the disc
when correctly mounted.
4. Slowly push the drive’s tray back in. The drive will
begin reading the table of contents (TOC) on the
disc. When the drive stops, the disc is ready to be
used.
NOTE: It is normal to hear as well as feel the CD spinning with great intensity in the
CD drive while data is read.
46
4 Using the Notebook PC
A CD drive letter should be present regardless of the presence of a CD disc in the drive. After the CD is
properly inserted, data can be accessed just like with hard disk drives; except that nothing can be
written to or changed on the CD. Using the proper software, a CD-RW drive or DVD+CD-RW drive
can allow CD-RW discs to be used like a hard drive with writing, deleting, and editing capabilities.
Vibration is normal for all high-speed optical drives due to unbalanced CDs or CD print. To decrease
vibration, use the Notebook PC on an even surface and do not place labels on the CD.
Listening to Audio CD
The optical drives can play audio CDs, but only the DVD-ROM drive can play DVD audio. Insert the
audio CD and Windows™ automatically opens an audio player and begins playing. Depending on the
DVD audio disc and installed software, it may require that you open a DVD player to listen to DVD
audio. You can adjust the volume using hotkeys or Windows™ speaker icon on the taskbar.
Using the Optical Drive
Optical discs and equipment must be handled with care because of the precise mechanics involved.
Keep in mind the important safety instructions from your CD suppliers. Unlike desktop optical drives,
the Notebook PC uses a hub to hold the CD in place regardless of the angle. When inserting a CD, it is
important that the CD be pressed onto the center hub or else the optical drive tray will scratch the CD.
WARNING! If the CD disc is not properly locked onto the center hub, the CD can be
damaged when the tray is closed. Always watch the CD closely while closing the tray
slowly to prevent damage.
Optical Drive (Cont’)
Removing an optical disc
1. While the Notebook PC’s power is ON, press
the drive’s eject button and the tray will eject
out partially.
2. Gently pry the edge of the disc upwards at an
angle to remove the disc from the hub.
47
Using the Notebook PC 4
PC Card (PCMCIA) Socket
The Notebook PC supports PC Cards (or sometimes referred to as PCMCIA cards) to allow expansion
like PCI cards on desktop computers. This allows you to customize your Notebook PC to meet a wide
range of application needs. The PCMCIA socket can interface with type I or type II PC cards. PC cards
are about the size of a few stacked credit cards and have a 68-pin connector at one end. The PC Card
standard accommodates a number of function, communication, and data storage expansion options. PC
cards come in memory/flash cards, fax/modems, networking adapters, SCSI adapters, MPEG I/II de-
coder cards, Smart Cards, and even wireless modem or LAN cards. The Notebook PC supports PCMCIA
2.1, and 32-bit CardBus standards.
The three different PC Card standards actually have different thicknesses. Type I cards are 3.3mm,
Type II cards are 5mm, and Type III cards are 10.5mm thick. Type I and Type II cards can be used in a
single socket and Type III cards take up two sockets. Type III cards are only supported on Notebook
PC’s with two PC card sockets.
32-bit CardBus Support
CardBus support allows PC Cards and their hosts to use 32-bit bus mastering and operate at speeds of
up to 33MHz, transferring data in burst modes comparable with PCI’s 132MB/sec. By comparison, the
standard 16-bit PC Card bus can handle only 20MB/sec. Since the Notebook PC is equipped with
CardBus broader and faster data pathway, it can handle bandwidth-hungry operations, such as 100Mbps
Fast Ethernet, Fast SCSI peripherals, and ISDN-based video conference. The CardBus peripherals sup-
port plug and play.
The CardBus socket is backward-compatible with 16-bit PC Cards serving at 5 volts operation while
CardBus operates at 3.3 volts to reduce power consumption.
48
4 Using the Notebook PC
Inserting a PC Card (PCMCIA)
1. If there is a PC Card socket protector, remove it using the “Removing a PC Card” instructions below.
2. Insert the PC card with the connector side first and label side up. Standard PC cards will be flush
with the Notebook PC when fully inserted.
3. Carefully connect any cables or adapters needed by the PC card. Usually connectors can only be
inserted in one orientation. Look for a sticker, icon, or marking on one side of the connector repre-
senting the top side.
1. Press in the toggle eject button and release. The
recessed spring loaded toggle button will ex-
tend when pushed in and released.
2. Press the extended button again to eject the PC
Card. Carefully pull the ejected PC card out of
the socket.
Removing a PC Card (PCMCIA)
To remove the PC card, first remove all cables or adapters attached to the PC card, then double-click the
PC card icon on the Windows taskbar and stop the PC card you want to remove.
remote
5
remote
3
remote
4
remote
1
Be sure the PC card is
level when inserting.
remote
2
49
Using the Notebook PC 4
Flash Memory Card Reader
Normally a PCMCIA memory card reader must be purchased separately in order to use memory cards
from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has
a single built-in memory card reader that can read the following flash memory cards: Secure Digital
(SD), Multi-Media Card (MMC), Memory Stick (MS), Memory Stick Select (MS Select), Memory
Stick Duo (with MS adapter), Memory Stick Pro, and Memory Stick Pro Duo (with MS Pro adapter).
Memory Sticks may be standard or with MagicGate technology. The built-in memory card reader is not
only convenient, but also faster than most other forms of memory card readers because it utilizes the
high-bandwidth PCI bus.
IMPORTANT! Never remove cards while or immediately after reading, copying, for-
matting, or deleting data on the card or else data loss may occur.
MS (Memory Stick)
Duo/Pro/Duo Pro/MG
MS (Memory Stick)
Select
MS (Memory Stick)
Magic Gate (MG)
MS (Memory Stick)
MS adapter
MMC (Multimedia Card)
SD (Secure Digita
Supported Memory Types
remote
SD/MMC
M
S (Memory Stick)
50
4 Using the Notebook PC
NOTE: The built-in modem and network cannot be installed later as an upgrade. Mo-
dem and/or network can be installed as a PC card (PCMCIA).
Modem and Network Connections
The built-in modem and network model comes with both an RJ-11 and an RJ-45 port. RJ-11 telephone
cables have two or four wires and are used to connect telephones to telephone outlets found in the walls of
residential homes and some commercial buildings (some commercial buildings may have telephone wir-
ing designed for dedicated phone systems that may not be compatible). RJ-45 network cables are found
connecting network computers to network hubs or switches usually found in business environments.
IMPORTANT! Only use analog telephone outlets. The built-in modem does not sup-
port the voltage used in digital phone systems. Do not connect the RJ-11 to digital
phone systems found in many commercial buildings or else damage will occur!
51
Using the Notebook PC 4
CAUTION: For electrical safety concerns, only use telephone cables rated 26AWG or
higher. (see Glossary for more information)
NOTE: When you are connected to an online service, do not place the Notebook PC in
suspend (or sleep mode) or else you will disconnect the modem connection.
WARNING! Only use analog telephone outlets. The built-in modem does not support
the voltage used in digital phone systems. Do not connect the RJ-11 to digital phone
systems found in many commercial buildings or else damage will occur!
This is an example of the Notebook PC connected to
a telephone jack for use with the built-in modem.
Modem Connection
The telephone wire used to connect the Notebook PC’s internal modem should have either two or four
wires (only two wires (telephone line #1) is used by the modem) and should have an RJ-11 connector
on both ends. Connect one end to the modem port and the other end to an analog telephone wall socket
(the ones found in residential buildings). Once the driver is setup, the modem is ready to use.
Telephone Wall
Jack
Telephone cables
with RJ-11 connectors
WWW.ASUS.COM
remote
Telephone
connection is
optional
52
4 Using the Notebook PC
WWW.ASUS.COM
remote
Network Hub or Switch
Network cable with
RJ-45 connectors
Network Connection
Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the Note-
book PC and the other end to a hub or switch. For 100BASE-TX speeds, your network cable must be
category 5 (not category 3) with twisted-pair wiring. If you plan on running the interface at 100Mbps,
it must be connected to a 100BASE-TX hub (not a 100BASE-T4 hub). For 10Base-T, use category 3, 4,
or 5 twisted-pair wiring. Duplex transfers (up to 200Mbps) is supported on this Notebook PC but
requires connection to a switch with “duplex” enabled. The software default is to use the fastest setting
so no user-intervention is required.
Twisted-Pair Cable
The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-
through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not
compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in
between, a crossover twisted-pair is required.
This is an example of the Notebook PC connected to a Network
Hub or Switch for use with the built-in Ethernet controller.
53
Using the Notebook PC 4
AC Power System
The Notebook PC power is comprised of two parts, the power adapter and the battery power system.
The power adapter converts AC power from a wall outlet to the DC power required by the Notebook
PC. The battery pack consists of a set of battery cells housed together. The AC Adapter’s primary
function is to provide power to the Notebook PC which also charges the battery pack. When the power
adapter is connected to the Notebook PC, it provides power to the Notebook PC and charges the inter-
nal battery at the same time as long as it is plugged into an electrical outlet.
Battery Power System
The Notebook PC is designed to work with a removable battery pack. A fully charged pack will provide
several hours of battery life, which can be further extended by using power management features through
the BIOS setup. The battery system implements the Smart Battery standard under the Windows envi-
ronment, which allows the battery to accurately report the amount of charge percentage left in the
battery. Additional battery packs are optional and can be purchased separately through a Notebook PC
retailer. Before using the Notebook PC on battery power for the first time, check the battery icon in the
Windows task bar to make sure that the battery is fully charged. Charging the battery takes a few hours
when the Notebook PC is powered OFF.
Charging the Battery Pack
You can charge the battery pack by using the power adapter. When the power adapter is plugged in, the
inserted battery pack automatically recharges whether your Notebook PC is ON or OFF. It takes a few
hours to receive a full charge when the power is OFF but takes twice as long when the Notebook PC is
in use. The battery is charging when the orange LED is solid. When the LED is OFF, the battery pack is
charged.
IMPORTANT! To protect your Notebook PC from damage, use only the power adapter
that came with this Notebook PC because each power adapter has its own power
output ratings.
NOTE: The battery stops charging if the temperature is too high or the battery voltage
is too high. BIOS provides a smart battery refreshing function.
54
4 Using the Notebook PC
Using Battery Power
A fully-charged battery pack provides the Notebook PC a few hours of working power. But the actual
figure varies depending on how you use the power saving features, your general work habits, the CPU,
system memory size, and the size of the display panel.
Checking Battery Power
To check the remaining battery power, move your cursor over the power icon. The power icon is a
“battery” when not using AC power and a “plug” when using AC power. Double click on the icon for
more information and settings.
WARNING! Suspend-to-RAM (STR) does not last long when the battery power is de-
pleted. Suspend-to-Disk (STD) is not the same as power OFF. STD requires a small
amount of power and will fail if no power is available due to complete battery deple-
tion or no power supply (e.g. removing both the power adapter and battery pack).
NOTE: If you ignore the low battery warning, eventually the Notebook PC enters sus-
pend mode (Windows default uses STR).
WARNING! Never attempt to remove the battery pack while the power is ON, or if the
system has not yet entered into the suspend mode as this may result in the data loss.

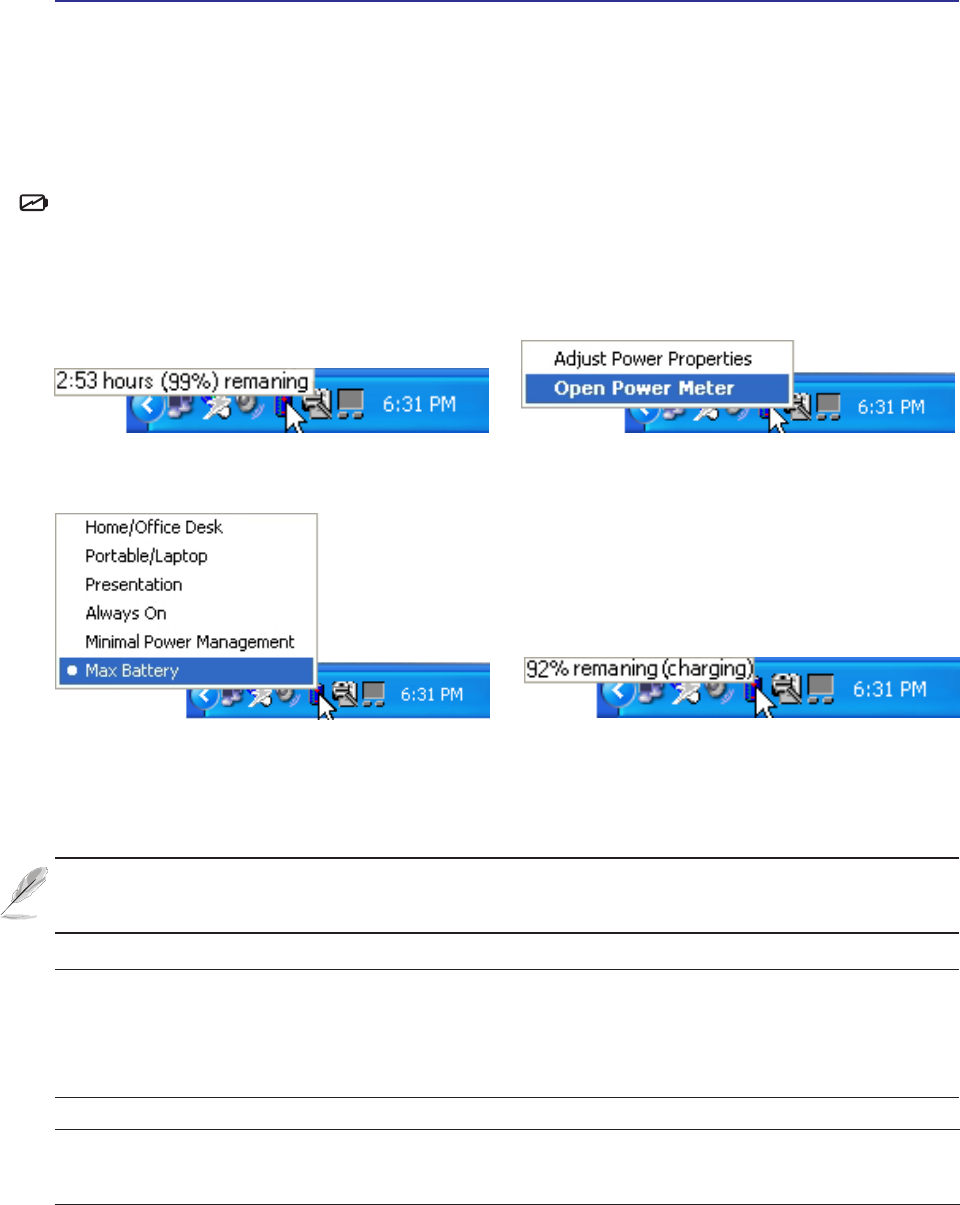

Move your mouse over the battery
icon for remaining power information. Right-click the battery icon for sub-
menus.
Left-click the battery icon for
power management settings. When the AC power is connected,
charging status will be shown.
55
Using the Notebook PC 4
Power Management Modes
The Notebook PC has a number of automatic or adjustable power saving features that you can use to
maximize battery life and lower Total Cost of Ownership (TCO). You can control some of these fea-
tures through the Power menu in the BIOS Setup. ACPI power management settings are made through
the operating system. The power management features are designed to save as much electricity as
possible by putting components into a low power consumption mode as often as possible but also allow
full operation on demand. These low power modes are referred to as “Stand by” (or Suspend-to-RAM)
and “Hibernation” mode or Suspend-to-Disk (STD). The Standby mode is a simple function provided
by the operating system. When the Notebook PC is in either one of the power saving modes, the status
will be shown by the following: “Stand by”: Power LED Blinks and “Hibernation”: Power LED OFF.
Full Power Mode & Maximum Performance
The Notebook PC operates in Full Power mode when the power management function is disabled by
configuring Windows power management and SpeedStep. When the Notebook PC is operating in Full
Power Mode, the Power LED remains ON. If you are conscious of both system performance and power
consumption, select “Maximum Performance” instead of disabling all power management features.
ACPI
Advanced Configuration and Power Management (ACPI) was developed by Intel, Microsoft, and Toshiba
especially for Windows and later to control power management and Plug and Play features. ACPI is the
new standard in power management for Notebook PCs.
NOTE: APM was used in older operating systems like Windows NT4 and Windows 98.
Because newer operating systems like Windows XP, Windows 2000, and Windows ME
utilize ACPI, APM is no longer fully supported on this Notebook PC.
Suspend Mode
In “Stand by” (STR) and “Hibernation” (STD), the CPU clock is stopped and most of the Notebook PC
devices are put in their lowest active state. The suspend mode is the lowest power state of the Notebook
PC. The Notebook PC enters suspend mode when the system remains idle for a specified amount of time
or manually using the [Fn][F1] keys. The Power LED blinks when the Notebook PC is in STR mode. In
STD mode, the Notebook PC will appear to be powered OFF. Recover from STR by pressing any
keyboard button (except Fn). Recover from STD by using the power switch (just like powering
ON the Notebook PC).
56
4 Using the Notebook PC
Thermal Power Control
There are three power control methods for controlling the Notebook PC’s thermal state. These power
control cannot be configured by the user and should be known in case the Notebook PC should enter
these states. The following temperatures represent the chassis temperature (not CPU).
• The fan turns ON for active cooling when the temperature reaches the safe upper limit.
• The CPU decreases speed for passive cooling when the temperature exceeds the safe upper limit.
• The system shut down for critical cooling when temperature exceeds the maximum safe upper limit.
Power Savings
In addition to reducing the CPU clock, this mode puts devices including the LCD backlight in their
lower active state. The Notebook PC enters “Stand by” mode (low priority) when the system remains
idle for a specified amount of time. The timeout can be set through Windows power management
(higher priority). To resume system operation, press any key.
Power State Summary
STATE ENTRY EVENT EXIT EVENT
“Stand by” • “Stand by” through Windows Start button, • Any device
• Timer as set though “Power Management” • Battery low
in Windows Control Panel (higher priority)
STR (“Stand by”) • Hotkey [Fn][F1] • Signal from modem port
(Suspend-to-RAM) -- • Power button
STD (“Hibernate”) • Hotkey [Fn][F1] • Power button
(Suspend-to-Disk) -- • Battery Extremely Low
Soft OFF • Power button (can be defined as STR or STD) • Power button
• “Shut down” through Windows Start button
57
Using the Notebook PC 4
Notebook PC Upgrades
System Memory Expansion
Additional memory will increase application performance by decreasing hard disk access. This is more
noticeable on newer software that require more and more system resources. The BIOS automatically
detects the amount of memory in the system and configures CMOS accordingly during the POST
(Power-On-Self-Test) process. There is no hardware or software (including BIOS) setup required after
the memory is installed. Only purchase expansion modules from authorized retailers of this Notebook
PC to ensure maximum compatibility and reliability. Visit an authorized service center or retailer for
information on memory upgrades for your Notebook PC.
Hard Disk Drive Upgrades
Hard disk drives have higher capacities and operate at much faster speeds than floppy disk drives and CD-
ROM drives. Enhanced IDE drives provide a reliable, fast, and cost-effective mass storage solution in the
PC storage industry. The high speed transfer modes supported are UltraATA/100 up to 100MB/sec and
PIO mode 4 up to 16.6MB/sec. The Notebook PC comes with a removable 2.5” (6.35cm) wide and .374”
(.95cm) high UltraATA/100/66 IDE hard disk drive with current capacities up to 80GB. Current IDE hard
drives support S.M.A.R.T. (Self Monitoring and Reporting Technology) to detect hard disk errors or
failures before they happen. Visit an authorized service center or retailer for upgrades.
IMPORTANT! Poor handling of the Notebook PC may damage the hard disk drive.
Handle the Notebook PC gently and keep it away from static electricity and strong
vibrations or impact. The hard disk drive is the most delicate component and will
likely be the first or only component that is damaged if the Notebook PC is dropped.
Processor Upgrades
Some Notebook PC models feature an upgradable processor design for faster performance in the fu-
ture. Some Notebook PC models feature a ULV design for compactness and may not be upgraded. Visit
an authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
58
4 Using the Notebook PC
59
Appendix
Optional Accessories
Optional Connections
Internal Modem Compliancy
Glossary
Notebook PC Information
60
A Appendix
Optional Accessories
These items, if desired, come as optional items to complement your Notebook PC.
USB Hub
Attaching an optional USB hub will increase your USB ports and allow you to quickly connect or
disconnect many USB peripherals through a single cable.
61
Appendix A
Optional Accessories (Cont.)
These items, if desired, come as optional items to complement your Notebook PC.
Wireless LAN Cardbus Card or USB
The SpaceLink™ Cardbus Card is a dual band (IEEE 802.11a/b) wireless LAN adapter that fits into
a Notebook PC’s PCMCIA Type II slot with Cardbus support. The USB version is single band (IEEE
802.11b) but supports any computer (Notebook or Desktop) with a USB port.
Wireless LAN (Cardbus Card) Wireless LAN (USB)
USB Flash Memory
A USB flash memory device can replace the slow
1.44MB floppy disk by with up to 128MB in high-
speed durable storage that is compatible with all
computers using the USB port.
USB Communication Cable
Attaching optional USB communication cables be-
tween computers through the USB ports will al-
low basic file transfer capabilities between the com-
puters whether they be Notebook PC’s, Desktop
PC’s, or a combination of both.
62
A Appendix
WARNING! To prevent system failures,
use (Safely Remove Hardware) on the
taskbar before disconnecting the USB
floppy disk drive. Eject the floppy disk
before transporting the Notebook PC to
prevent damage from shock.
USB Keyboard and Mouse
Attaching an external USB keyboard will allow data entry to be more comfortable. Attaching an exter-
nal USB mouse will allow Windows navigation to be more comfortable. Both the external USB key-
board and mouse will work simultaneously with the Notebook PC’s built-in keyboard and touchpad.
Optional Accessories (Cont.)
These items, if desired, come as optional items to complement your Notebook PC.
USB Floppy Disk Drive
The Notebook PC features an optional USB-interface disk drive that accepts a standard 1.44MB (or
720KB) 3.5-inch floppy diskette. The eject button is on the top edge of the floppy disk drive for easy
access, unlike desktop PCs with the eject button on the bottom of the floppy disk drive. Floppy access
activity can be monitored through the LED on the front of the floppy disk drive.
WWW.ASUS.COM
remote
WWW.ASUS.COM
WWW.ASUS.COM
remote
63
Appendix A
Monitor Out Connection
Attaching an optional VGA/LCD monitor is just
like that of a standard desktop PC (some configu-
rations may require additional display driver set-
tings. You can view the Notebook PC display panel
while simultaneously allowing others to view the
external monitor. For large audiences, try you can
connect a video projector to this port.
Optional Connections
These items, if desired, may be purchased from third-parties.
External Audio Connections
The Notebook PC provides easy access for con-
necting a stereo headphone or multichannel am-
plifier, mono microphone, and a stereo audio source
just like on many personal audio equipment.
WWW.ASUS.COM
remote
64
A Appendix
Optional Connections (Cont.)
These items, if desired, may be purchased from third-parties.
IEEE1394 Connection
1394 is a high speed serial bus like SCSI but has
simple connections and hot-plugging capabilities
like USB. Up to 63 devices such as hard disk drives,
scanners, removable drives, and digital cameras/
video cameras with an 1394 port can all be con-
nected (more 1394 devices can be connected us-
ing a 1394 hub). 1394 is also used in high-end digi-
tal equipment and should be marked “DV” for
Digital Video port.
Securing Your Notebook PC
For system and hard disk drive security, see BIOS
setup “Security”. A third party lock such as the ones
by Kensington® can be used to secure your Note-
book PC physically to an unmovable object. The
cable wraps around an object and the “T” shaped
end inserts into the Kensington® lock port as shown
in this illustration and a key or combination dial is
used to secure the lock in place.
WWW.ASUS.COM
remote
65
Appendix A
DVD-ROM Drive Information
The Notebook PC comes with an optional DVD-ROM drive or a CD-ROM drive. In order to view
DVD titles, you must install your own DVD viewer software. Optional DVD viewer software may be
purchased with this Notebook PC. The DVD-ROM drive allows the use of both CD and DVD discs.
Regional Playback Information
Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of CSS
protected content. CSS (sometimes called copy guard) is the name given to the content protection scheme
adopted by the motion picture industry to satisfy a need to protect against unlawful content duplication.
Although the design rules imposed on CSS licensors are many, one rule that is most relevant is playback
restrictions on regionalized content. In order to facilitate geographically staggered movie releases, DVD
video titles are released for specific geographic regions as defined in “Region Definitions” below. Copyright
laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is
sold). While DVD movie content may be released for multiple regions, CSS design rules require that any
system capable of playing CSS encrypted content must only be capable of playing one region.
Region Definitions
Region 1
Canada, US, US Territories
Region 2
Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy, Ja-
pan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden,
Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia
Region 3
Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand, Vietnam
Region 4
Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacific Islands, South
America
Region 5
CIS, India, Pakistan, Rest of Africa, Russia, North Korea
Region 6
China
NOTE: The region setting may be changed up to five times using the viewer software,
then it can only play DVD movies for the last region setting. Changing the region code
after that will require factory resetting which is not covered by warranty. If resetting is
desired, shipping and resetting costs will be at the expense of the user.
66
A Appendix
Internal Modem Compliancy
The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea,
Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/
482/EC for pan-European single terminal connection to the public switched telephone network (PSTN).
However due to differences between the individual PSTNs provided in different countries, the approval
does not, of itself, give an unconditional assurance of successful operation on every PSTN network
termination point. In the event of problems you should contact your equipment supplier in the first
instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the
Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-
dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Net-
work).
CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the ana-
logue public switched telephone networks of terminal equipment (excluding terminal equipment sup-
porting the voice telephony justified case service) in which network addressing, if provided, is by
means of dual tone multifrequency signalling.
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notified Body and the vendor: "This declaration will
indicate the networks with which the equipment is designed to work and any notified networks with
which the equipment may have inter-working difficulties"
Network Compatibility Declaration
Statement to be made by the manufacturer to the user: "This declaration will indicate the networks with
which the equipment is designed to work and any notified networks with which the equipment may
have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where
network compatibility is dependent on physical and software switch settings. It will also advise the user
to contact the vendor if it is desired to use the equipment on another network."
Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The
results are Europe's first modems which do not require regulatory approvals in each individual Euro-
pean country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines,
auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by
regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.
67
Appendix A
This table shows the countries currently under the CTR21 standard.
Country Applied More Testing
Austria1Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark1Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein Yes No
Luxemburg Yes No
The Netherlands1Yes Yes
Norway Yes No
Poland No Not Applicable
Portugal No Not Applicable
Spain No Not Applicable
Sweden Yes No
Switzerland Yes No
United Kingdom Yes No
This information was copied from CETECOM and is supplied without liability. For updates to this
table, you may visit http://www.cetecom.de/technologies/ctr_21.html
1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may
state in the user guide that the equipment is only intended to support DTMF signalling, which would
make any additional testing superfluous).
In The Netherlands additional testing is required for series connection and caller ID facilities.
68
A Appendix
Glossary
ACPI (Advanced Configuration and Power Management Interface)
Modern standard for reducing power usage in computers.
APM (Advanced Power Management)
Modern standard for reducing power usage in computers.
AWG (American Wire Gauge)
NOTE: This table is for general reference only and should not be used as a source of
the American Wire Gauge standard as this table may not be current or complete.
Gauge Diam Area R I@3A/mm2
AWG (mm) (mm2) (ohm/km) (mA)
46 0.04 0.0013 13700 3.8
44 0.05 0.0020 8750 6
42 0.06 0.0028 6070 9
41 0.07 0.0039 4460 12
40 0.08 0.0050 3420 15
39 0.09 0.0064 2700 19
38 0.10 0.0078 2190 24
37 0.11 0.0095 1810 28
0.12 0.011 1520 33
36 0.13 0.013 1300 40
35 0.14 0.015 1120 45
0.15 0.018 970 54
34 0.16 0.020 844 60
0.17 0.023 757 68
33 0.18 0.026 676 75
0.19 0.028 605 85
32 0.20 0.031 547 93
30 0.25 0.049 351 147
29 0.30 0.071 243 212
27 0.35 0.096 178 288
26 0.40 0.13 137 378
25 0.45 0.16 108 477
Gauge Diam Area R I@3A/mm2
AWG (mm) (mm2) (ohm/km) (mA)
24 0.50 0.20 87.5 588
0.55 0.24 72.3 715
0.60 0.28 60.7 850
22 0.65 0.33 51.7 1.0 A
0.70 0.39 44.6 1.16 A
0.75 0.44 38.9 1.32 A
20 0.80 0.50 34.1 1.51 A
0.85 0.57 30.2 1.70 A
19 0.90 0.64 26.9 1.91 A
0.95 0.71 24.3 2.12 A
18 1.00 0.78 21.9 2.36 A
1.10 0.95 18.1 2.85 A
1.20 1.1 15.2 3.38 A
16 1.30 1.3 13.0 3.97 A
1.40 1.5 11.2 4.60 A
1.50 1.8 9.70 5.30 A
14 1.60 2.0 8.54 6.0 A
1.70 2.3 7.57 6.7 A
13 1.80 2.6 6.76 7.6 A
1.90 2.8 6.05 8.5 A
12 2.00 3.1 5.47 9.4 A
69
Appendix A
BIOS (Basic Input/Output System)
BIOS is a set of routines that affect how the computer transfers data between computer components,
such as memory, disks, and the display adapter. The BIOS instructions are built into the computer’s
read-only memory. BIOS parameters can be configured by the user through the BIOS Setup program.
The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM.
Bit (Binary Digit)
Represents the smallest unit of data used by the computer. A bit can have one of two values: 0 or 1.
Boot
Boot means to start the computer operating system by loading it into system memory. When the manual
instructs you to “boot” your system (or computer), it means to turn ON your computer. “Reboot” means
to restart your computer. When using Windows 95 or later, selecting “Restart” from “Start | Shut Down...”
will reboot your computer.
Bus Master IDE
PIO (Programmable I/O) IDE requires that the CPU be involved in IDE access and waiting for me-
chanical events. Bus master IDE transfers data to/from the memory without interrupting the CPU. Bus
master IDE driver and bus master IDE hard disk drives are required to support bus master IDE mode.
Byte (Binary Term)
One byte is a group of eight contiguous bits. A byte is used to represent a single alphanumeric character,
punctuation mark, or other symbol.
Clock Throttling
Chipset function which allows the processor’s clock to be stopped and started at a known duty cycle.
Clock throttling is used for power savings, thermal management, and reducing processing speed.
COM Port
COM is a logical device name used by to designate the computer serial ports. Pointing devices, mo-
dems, and infrared modules can be connected to COM ports. Each COM port is configured to use a
different IRQ and address assignment.
CPU (Central Processing Unit)
The CPU, sometimes called “Processor,” actually functions as the “brain” of the computer. It interprets
and executes program commands and processes data stored in memory.
Device Driver
A device driver is a special set of instructions that allows the computer’s operating system to commu-
nicate with devices such as VGA, audio, Ethernet, printer, or modem.
Hardware
Hardware is a general term referring to the physical components of a computer system, including pe-
ripherals such as printers, modems, and pointing devices.
70
A Appendix
DVD is essentially a bigger, faster CD that can hold video as well as audio and computer data. With
these capacities and access rates, DVD discs can provide you with dramatically-enhanced high-color,
full-motion videos, better graphics, sharper pictures, and Dolby® Digital Surround for a theater-like
experience. DVD aims to encompass home entertainment, computers, and business information with a
single digital format, eventually replacing audio CD, videotape, laserdisc, CD-ROM, and perhaps even
video game cartridges. DVD has widespread support from all major electronics companies, all major
computer hardware companies, and most major movie and music studios.
Device Driver
A device driver is a special set of instructions that allows the computer’s operating system to commu-
nicate with devices such as VGA, audio, Ethernet, printer, or modem.
Hardware
Hardware is a general term referring to the physical components of a computer system, including pe-
ripherals such as printers, modems, and pointing devices.
IDE (Integrated Drive Electronics)
IDE devices integrate the drive control circuitry directly on the drive itself, eliminating the need for a
separate adapter card (in the case for SCSI devices). UltraDMA/66 or 100 IDE devices can achieve up
to 33MB/Sec transfer.
IEEE1394
Also known as iLINK (Sony) or FireWire (Apple). IEEE1394 is a high speed serial bus like SCSI but
has simple connections and hot-plugging capabilities like USB. The interface IEEE1394 has a band-
width of 400-1000 Mbits/sec and can handle up to 63 units on the same bus. It is very likely that
IEEE1394, together with USB, will replace Parallel, IDE, SCSI, and EIDE ports. IEEE1394 is also
used in high-end digital equipment and should be marked “DV” for Digital Video port.
Infrared Port (IrDA)
The infrared (IrDA) communication port allows convenient wireless data communication with infra-
red-equipped devices or computers. This allows easy wireless synchronization with PDAs or mobile
phones and even wireless printing to printers. If your office supports IrDA networking, you can have
wireless connection to a network anywhere provided there is a direct line of sight to an IrDA node.
Small offices can use IrDA technology to share a printer between several closely placed Notebook PCs
and even send files to each other without a network.
Kensington® Locks
Kensington® locks (or compatible) allow the Notebook PC to be secured usually using a metal cable
and lock that prevent the Notebook PC to be removed from a fixed object. Some security products may
also include a motion detector to sound an alarm when moved.
71
Appendix A
Laser Classifications
As lasers became more numerous and more widely used, the need to warn users of laser hazards be-
came apparent. To meet this need, laser classifications were established. Current classification levels
vary from optically safe, requiring no controls (Class 1) to very hazardous, requiring strict controls
(Class 4).
CLASS 1: A Class 1 laser or laser system emits levels of optical energy that are eye-safe and conse-
quently require no controls. An example of this class of laser system is the checkout scanning device
found in most grocery stores or lasers used in optical drives.
CLASS 2 AND CLASS 3A: Class 2 and Class 3A lasers emit visible, continuous-wave (CW) optical
radiation levels slightly above the maximum permissible exposure (MPE) level. Although these la-
sers can cause eye damage, their brightness usually causes observers to look away or blink before
eye damage occurs. These lasers have strict administrative controls requiring placement of signs
warning personnel not to stare directly into the beam. Class 3A lasers must not be viewed with
optically-aided devices.
CLASS 3B: Class 3B lasers, and Class 3A lasers with outputs of 2.5mW, are hazardous to personnel
who are within the beam path and look at the beam source directly or by specular reflection. These
lasers cannot produce hazardous diffuse reflections. Personnel working with these lasers should wear
appropriate protective eyewear during any operation of the laser. Class 3B lasers have both adminis-
trative and physical controls to protect personnel. Physical controls include limited access work
areas. Administrative controls include special warning signs posted outside the entrances to the laser
work spaces and lights outside the entrances that warn personnel when the lasers are in use.
CLASS 4: Class 4 lasers are high-power lasers that will cause damage to unprotected eyes and skin
through intra-beam viewing and specular or diffuse reflections. Consequently, no personnel should
be in aroom where a Class 4 laser is operating without proper eye protection.
LPT Port (Line Printer Port)
Logical device name reserved by DOS for the computer parallel ports. Each LPT port is configured to
use a different IRQ and address assignment.
PCI Bus (Peripheral Component Interconnect Local Bus)
PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by
expansion card manufacturers.
PC Cards (PCMCIA)
PC cards are about the size of a few stacked credit cards and have a 68-pin connector at one end. The PC
Card standard accommodates a number of function, communication, and data storage expansion op-
tions. PC cards come in memory/flash cards, fax/modems, networking adapters, SCSI adapters, MPEG
I/II decoder cards, and even wireless modem or LAN cards. The Notebook PC supports PCMCIA 2.1,
and 32-bit CardBus standards. The three different PC Card standards actually have different thick-
nesses. Type I cards are 3.3mm, Type II cards are 5mm, and Type III cards are 10.5mm thick. Type I and
Type II cards can be used in a single socket. Type III cards take up two sockets and must be used on
Notebook PCs with two sockets.
72
A Appendix
POST (Power On Self Test)
When you turn on the computer, it will first run through the POST, a series of software-controlled
diagnostic tests. The POST checks system memory, the motherboard circuitry, the display, the key-
board, the diskette drive, and other I/O devices.
PS/2 Port
PS/2 ports are based on IBM Micro Channel Architecture. This type of architecture transfers data through
a 16-bit or 32-bit bus. A PS/2 mouse and/or keyboard may be used on ATX motherboards.
RAM (Random Access Memory)
There are several different types of RAM such as DDR (Double Dynamic RAM), DRAM (Dynamic
RAM), EDO DRAM (Extended Data Output DRAM), SDRAM (Synchronous DRAM).
ROM (Read Only Memory)
ROM is nonvolatile memory used to store permanent programs (called firmware) used in certain com-
puter components. Flash ROM (or EEPROM) can be reprogrammed with new programs (or BIOS).
Suspend Mode
In Save-to-RAM (STR) and Save-to-Disk (STD), the CPU clock is stopped and most of the Notebook
PC devices are put in their lowest active state. The Notebook PC enters Suspend when the system
remains idle for a specified amount of time or manually using the function keys. The timeout setting of
both Hard Disk and Video can be set by the BIOS Setup. The Power LED blinks when the Notebook PC
is in STR mode. In STD mode, the Notebook PC will appear to be powered OFF.
System Disk
A system disk contains the core file of an operating system and is used to boot up the operating system.
Twisted-Pair Cable
The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-
through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not
compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in
between, a crossover twisted-pair is required.
UltraDMA/66 or 100
UltraDMA/66 or 100 are new specifications to improve IDE transfer rates. Unlike traditional PIO
mode, which only uses the rising edge of IDE command signal to transfer data, UltraDMA/66 or 100
uses both rising edge and falling edge.
USB (Universal Serial Bus)
A new 4-pin serial peripheral bus that allows plug and play computer peripherals such as keyboard,
mouse, joystick, scanner, printer and modem/ISDN to be automatically configured when they are at-
tached physically without having to install drivers or reboot. With USB, the traditional complex cables
from back panel of your PC can be eliminated.
73
Appendix A
74
A Appendix
Notebook PC Information
This page is provided for recording information concerning your Notebook PC for future reference or
for technical support. Keep this User’s Manual in a secured location if passwords are filled out.
Owner’s Name:__________________________ Owner’s Telephone: ________________
Manufacturer: ______________________________________ Model: ________________
Retailer: ______________________________________ Telephone: ________________
Display Size:_________ Purchase Date: _________ Serial Number: ________________
Hard Disk Drive Manufacturer: ______________________Capacity: ________________
2nd Hard Disk Drive Manufacturer: ___________________Capacity: ________________
BIOS Version: _______________________________________ Date: ________________
Accessories: _______________________________ Serial Number: ________________
Accessories: _______________________________ Serial Number: ________________
Software
Operating System: ________________________________ Version: ________________
Software: __________________________________ Serial Number: ________________
Software: __________________________________ Serial Number: ________________
Security
Supervisor Password: _______________________ User Password: ________________
Network
User’s Name: ____________Password: ______________ Domain: ________________
User’s Name: ____________Password: ______________ Domain: ________________
Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Company Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
General Telephone: +886-2-2894-3447 Web Site Address: www.asus.com.tw
General Fax: +886-2-2894-7798 General Email: info@asus.com.tw
Technical Support
MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English)
Desktop/Server (Tel): +886-2-2890-7123 (English) Support Fax: +886-2-2890-7698
ASUS COMPUTER INTERNATIONAL (America)
Company Address: 44370 Nobel Drive, Fremont, CA 94538, USA
General Email: tsd@asus.com Web Site Address: usa.asus.com
General Fax: +1-510-608-4555
Technical Support
Support Email: notebooktsd@asus.com Support Fax: +1-502-933-8713
General Support: +1-502-995-0883 Notebook (Tel): +1-510-739-3777 x5110
ASUS COMPUTER GmbH (Germany & Austria)
Company Address: Harkort Str. 25, D-40880 Ratingen, Germany
Web Site Address: www.asuscom.de General Telephone: +49-2102-95990
Online Contact: www.asuscom.de/sales General Fax: +49-2102-959911
Technical Support
Online Support: www.asuscom.de/support Support Fax: +49-2102-959911
Component Support: +49-2102-95990 Notebook Support: +49-2102-959910
