ASUSTeK Computer WL130N SUPER SPEED N WIRELESS PCI ADAPTER User Manual E3123 WL 130N Manual EMI

ASUSTeK Computer Inc SUPER SPEED N WIRELESS PCI ADAPTER E3123 WL 130N Manual EMI

USERS MANUAL

User Manual

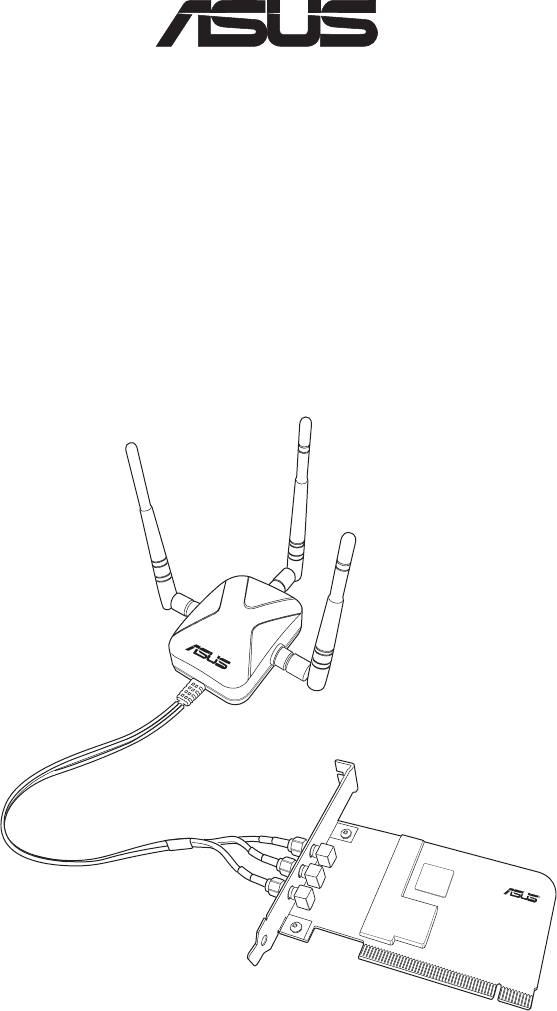

Super Speed N Wireless PCI Adapter
WL-130N
(For 802.11n draft, 802.11g & 802.11b Networks)
®
E3123/ March 2007
R
2 ASUS WLAN Adapter
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired,
PRGLÀHGRUDOWHUHGXQOHVVVXFKUHSDLUPRGLÀFDWLRQRIDOWHUDWLRQLVDXWKRUL]HG
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are
XVHG RQO\ IRU LGHQWLÀFDWLRQ RU H[SODQDWLRQ DQG WR WKH RZQHUVҋ EHQHÀW ZLWKRXW
intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2007 ASUSTeK COMPUTER INC. All Rights Reserved.
Copyright Information
ASUS WLAN Adapter 3
ASUSTeK COMPUTER INC.
Company address: 15 Li-Te Road, Beitou, Taipei 11259
General (tel): +886-2-2894-3447
Web site address: www.asus.com.tw
General (fax): +886-2-2894-7798
General email: info@asus.com.tw
Technical support
General support (tel): +886-2-2894-3447
Online support: http://support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Company address: 44370 Nobel Drive, Fremont, CA 94538, USA
General (fax): +1-510-608-4555
Web site address: usa.asus.com
Technical support
General support (tel): +1-502-995-0883
Online support: http://support.asus.com
Notebook (tel): +1-510-739-3777 x5110
Support (fax): +1-502-933-8713
ASUS COMPUTER GmbH (Germany & Austria)
Company address: Harkort Str. 25, D-40880 Ratingen, Germany
General (tel): +49-2102-95990
Web site address: www.asus.com.de
General (fax): +49-2102-959911
Online contact: www.asus.com.de/sales
Technical support
Component support: +49-2102-95990
Online support: http://support.asus.com
Notebook support: +49-2102-959910
Support (fax): +49-2102-959911
Contact Information
4 ASUS WLAN Adapter
1. Introduction ..............................................................................5
Package contents ..................................................................................5
Features.................................................................................................5
2. Installation ................................................................................6
System Requirements ...........................................................................6
Installation Procedures ..........................................................................6
Installing the WLAN utilities and driver.....................................................6
Reading the WLAN Status Indicators.......................................................7
2QH7RXFK:L]DUG....................................................................................8
&RQÀJXULQJZLWKWKH:/$1XWLOLW\,QIUDVWUXFWXUH ....................................9
&RQÀJXULQJZLWKWKH:/$1XWLOLW\$G+RF............................................10
3. Software Reference................................................................11
ASUS WLAN Control Center ...............................................................11
Wireless Settings Utility .......................................................................13
Status - Status........................................................................................13
Status - Connection................................................................................15

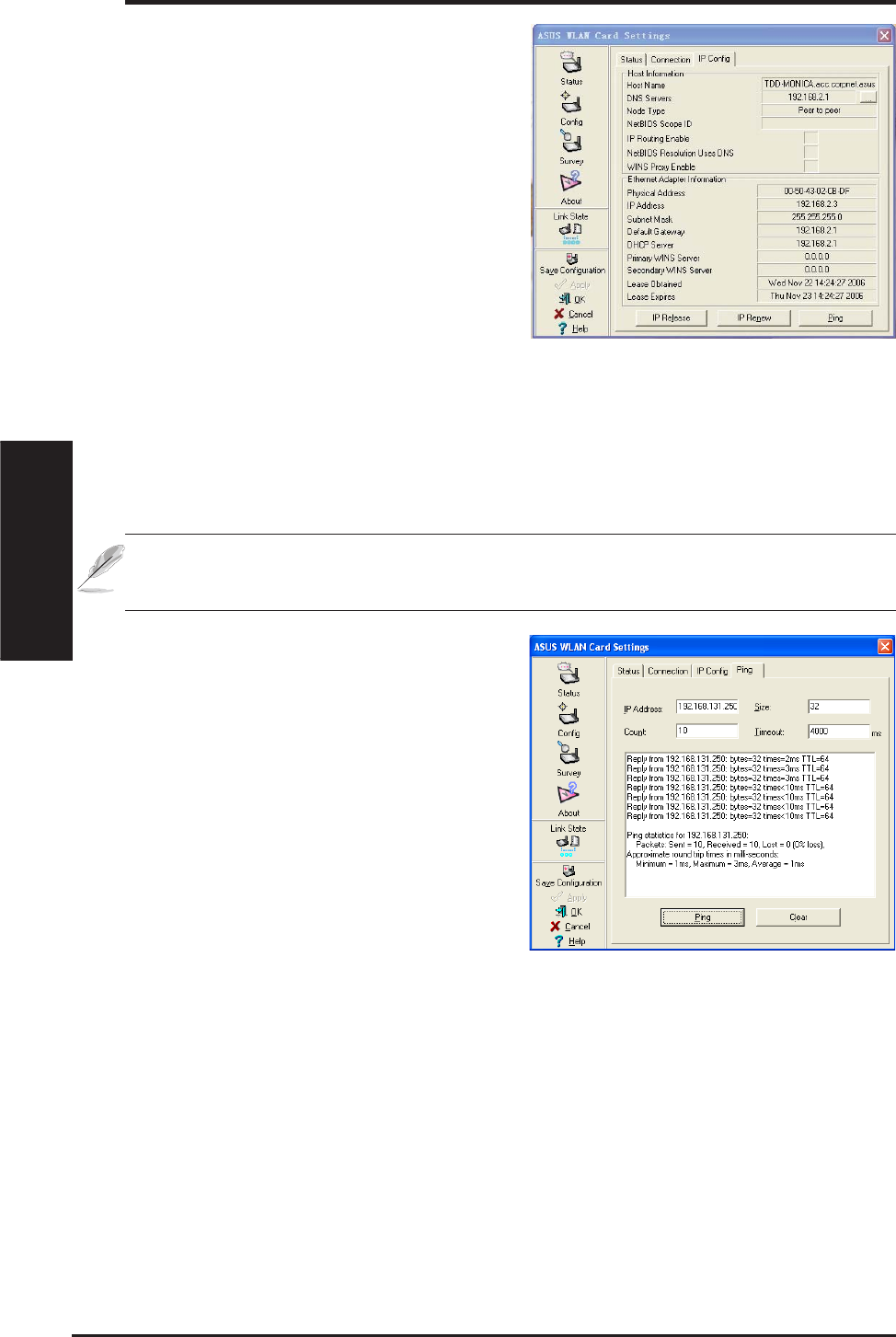

6WDWXV,3&RQÀJ ...................................................................................16
Status - Ping...........................................................................................16

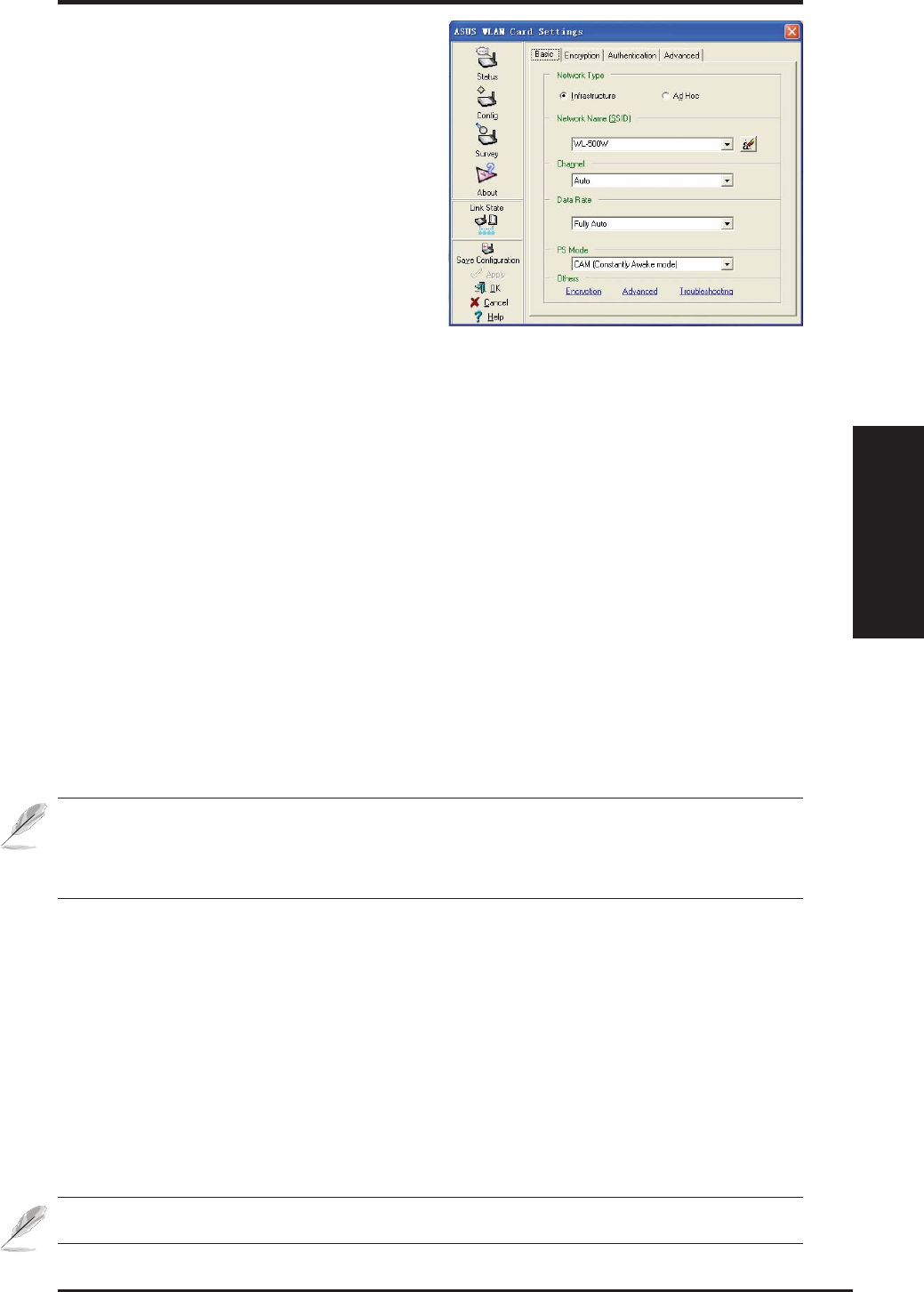

&RQÀJ%DVLF.........................................................................................17

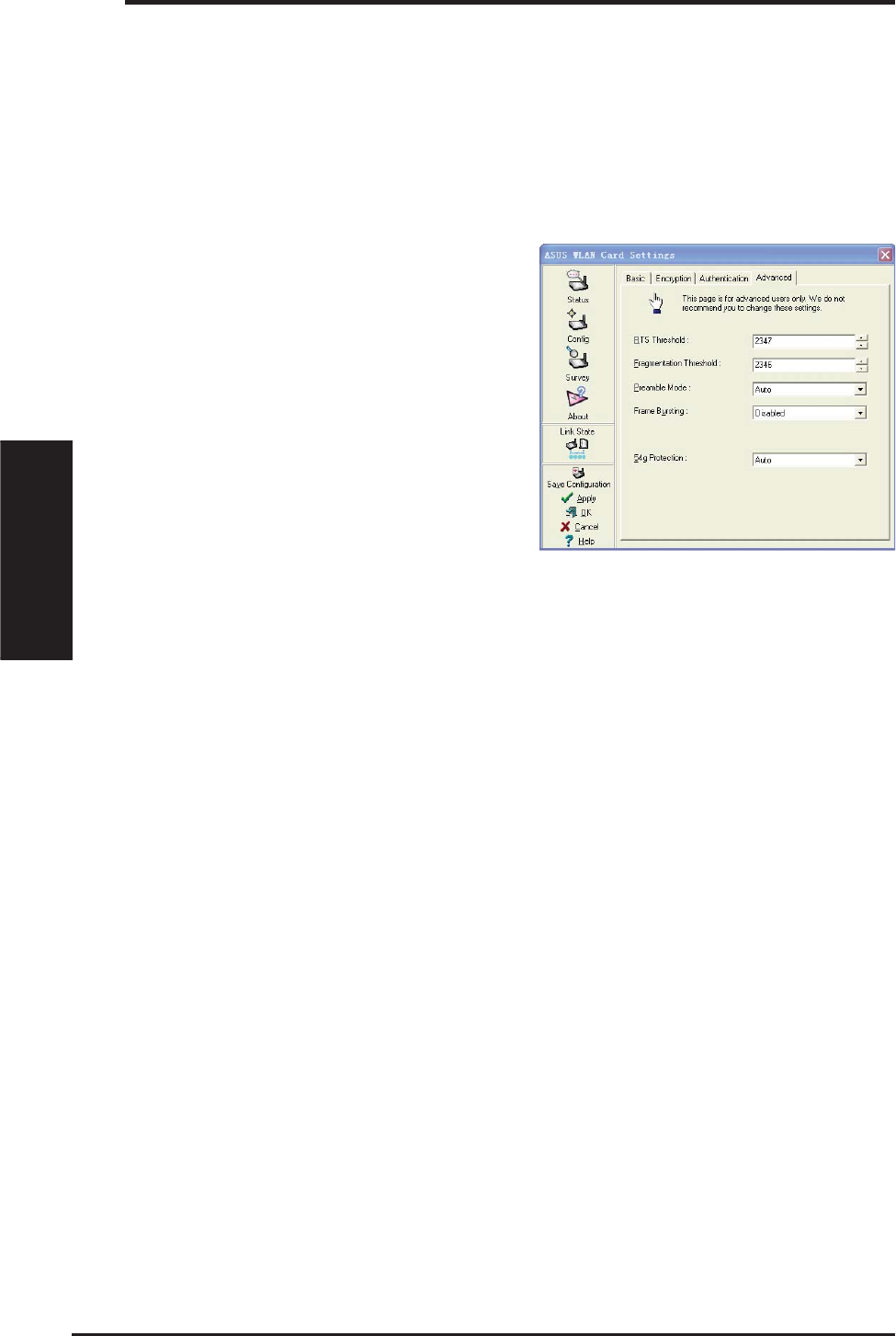

&RQÀJ$GYDQFHG..................................................................................18

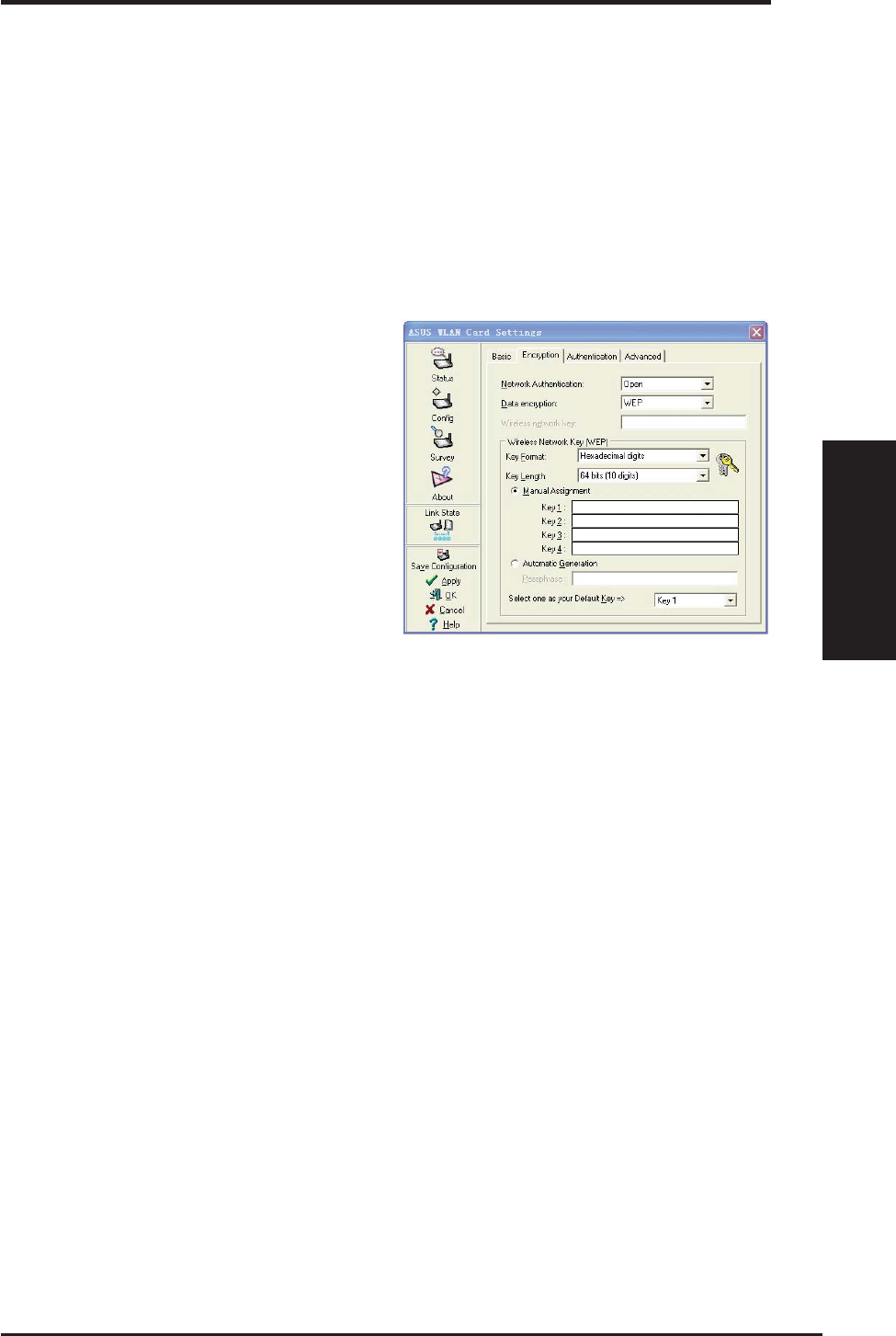

&RQÀJ(QFU\SWLRQ.................................................................................19
&RQÀJ$XWKHQWLFDWLRQ ...........................................................................22

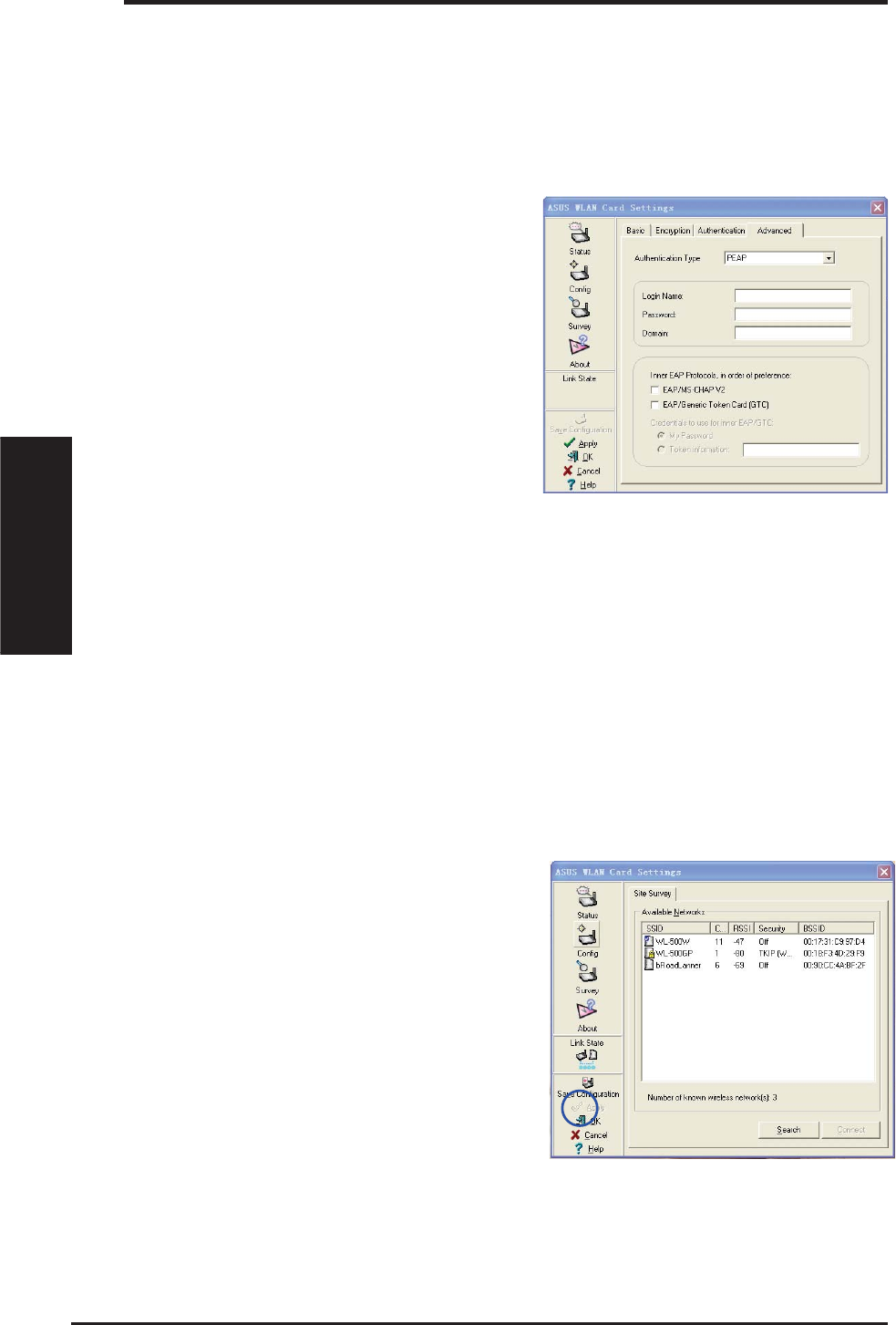

Survey - Site Survey...............................................................................22

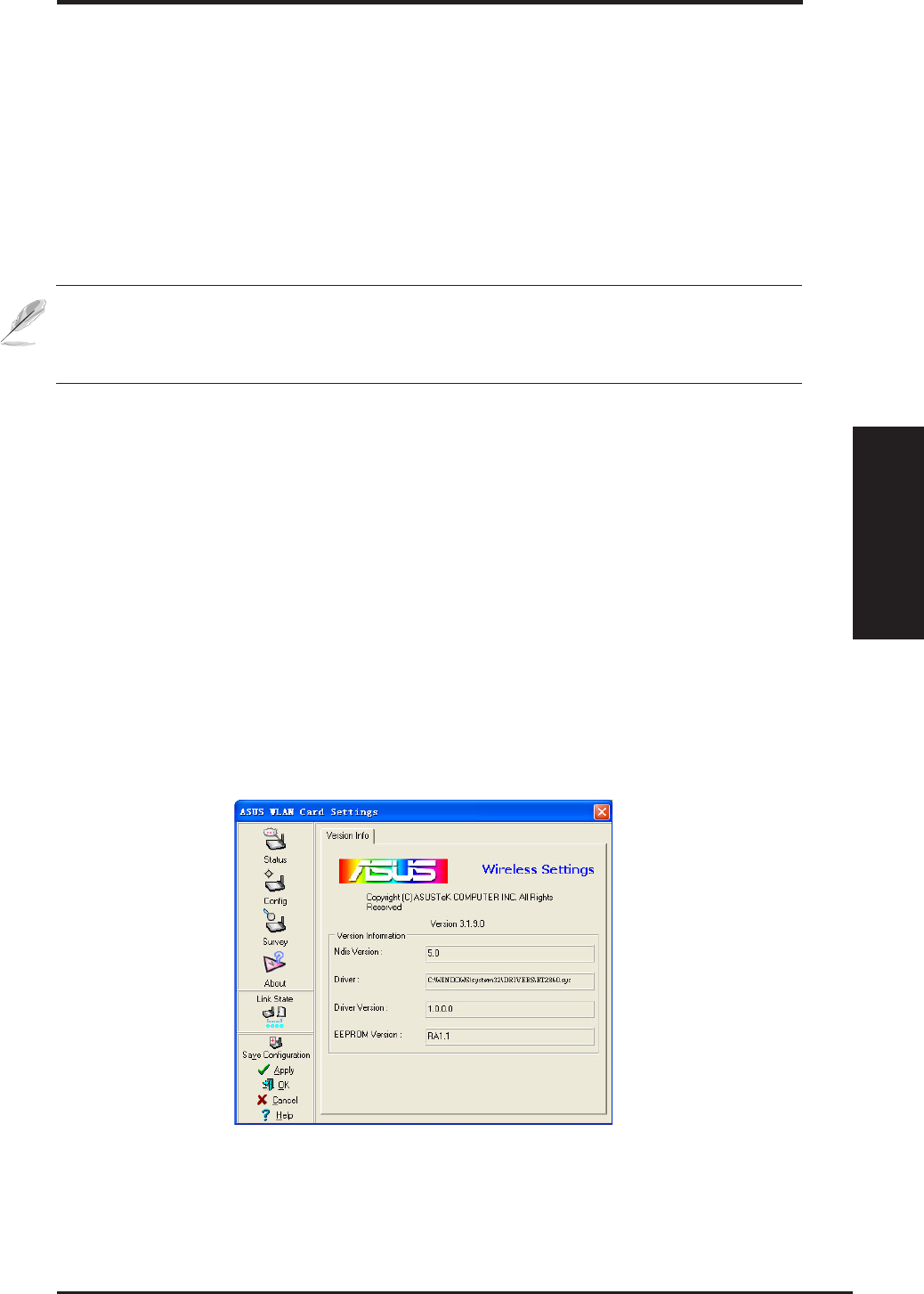

About - Version Info................................................................................23

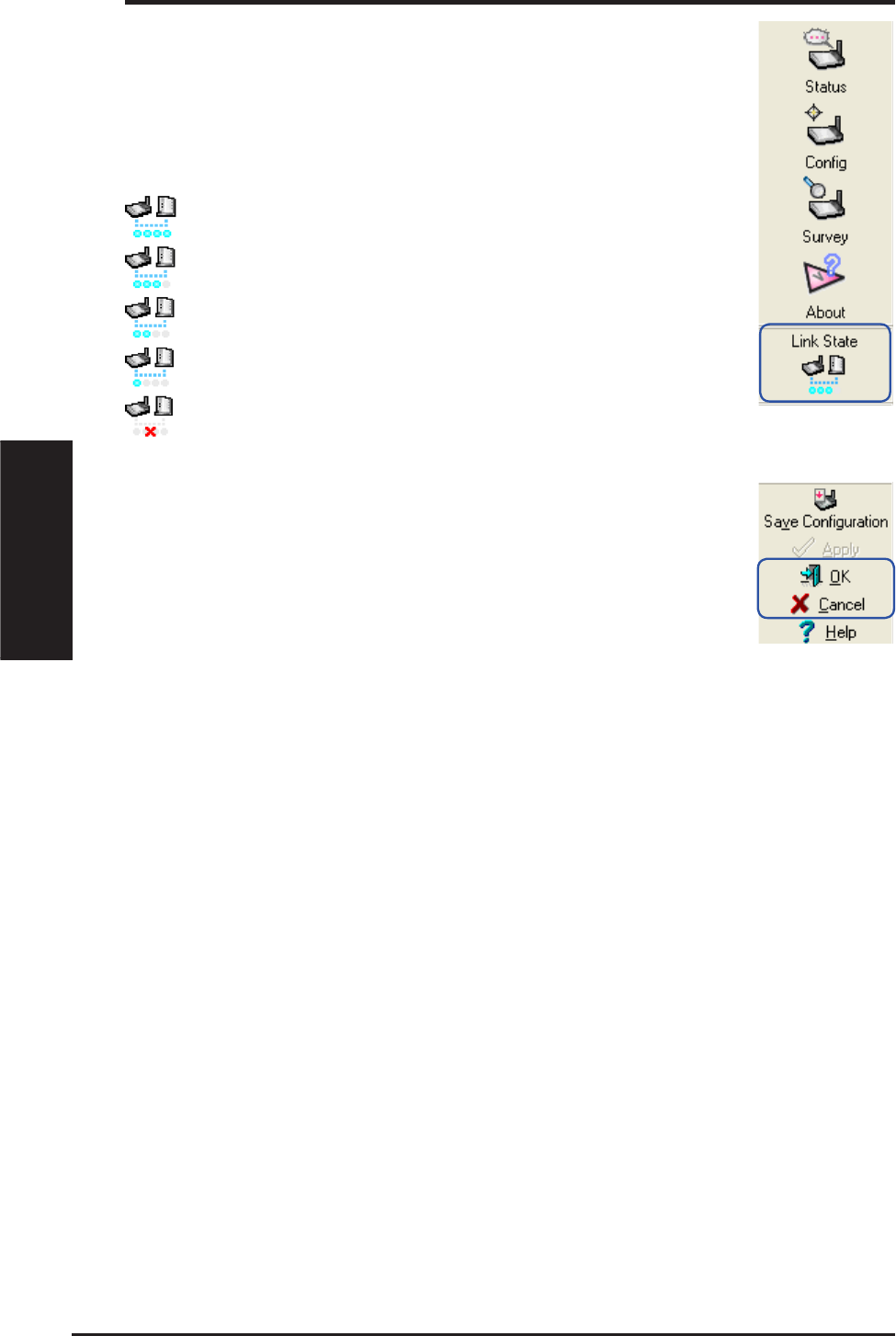

Link State ...............................................................................................24
Exit Wireless Settings.............................................................................24

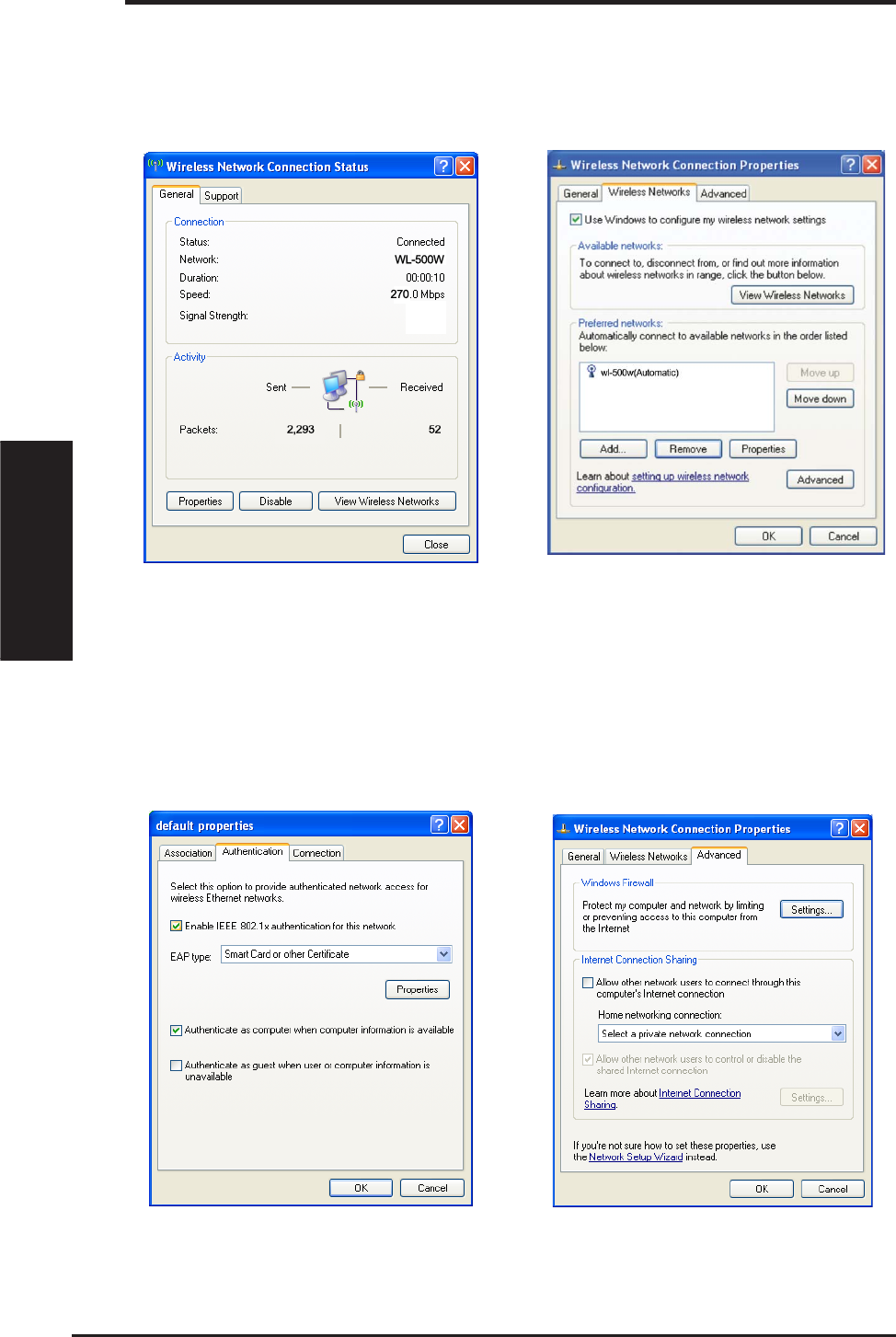

Windows® XP Wireless Options...........................................................25
4. Troubleshooting .....................................................................27
5. Glossary ..................................................................................29
6. Appendix .................................................................................37
Table of Contents
ASUS WLAN Adapter 5
Chapter 1
Introduction
Chapter 1 - Introduction
Package contents
Check the following items in your ASUS Wireless LAN Adapter package.
Contact your retailer if any item is damaged or missing.
1 x ASUS Wireless LAN Adapter (WL-130N)
1 x Support CD
1 x Quick Start Guide
Features
PCI slot, Q'UDIW6SHFLÀFDWLRQOFDM, DSSS.
Supports Infrastructure and Ad-hoc networks.
Compatible with IEEE 802.11b and 802.11g devices.
Chapter 2
6 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
2. Installation
System Requirements
To begin using the WLAN Adapter, you must meet the following minimum
requirements:
• Windows XP/2000
• PCI slot for personal computer
• 128MB system memory or larger
 0+]SURFHVVRURUKLJKHU
Important: Install the WLAN Adapter utilities before inserting the WLAN
Adapter into your computer.

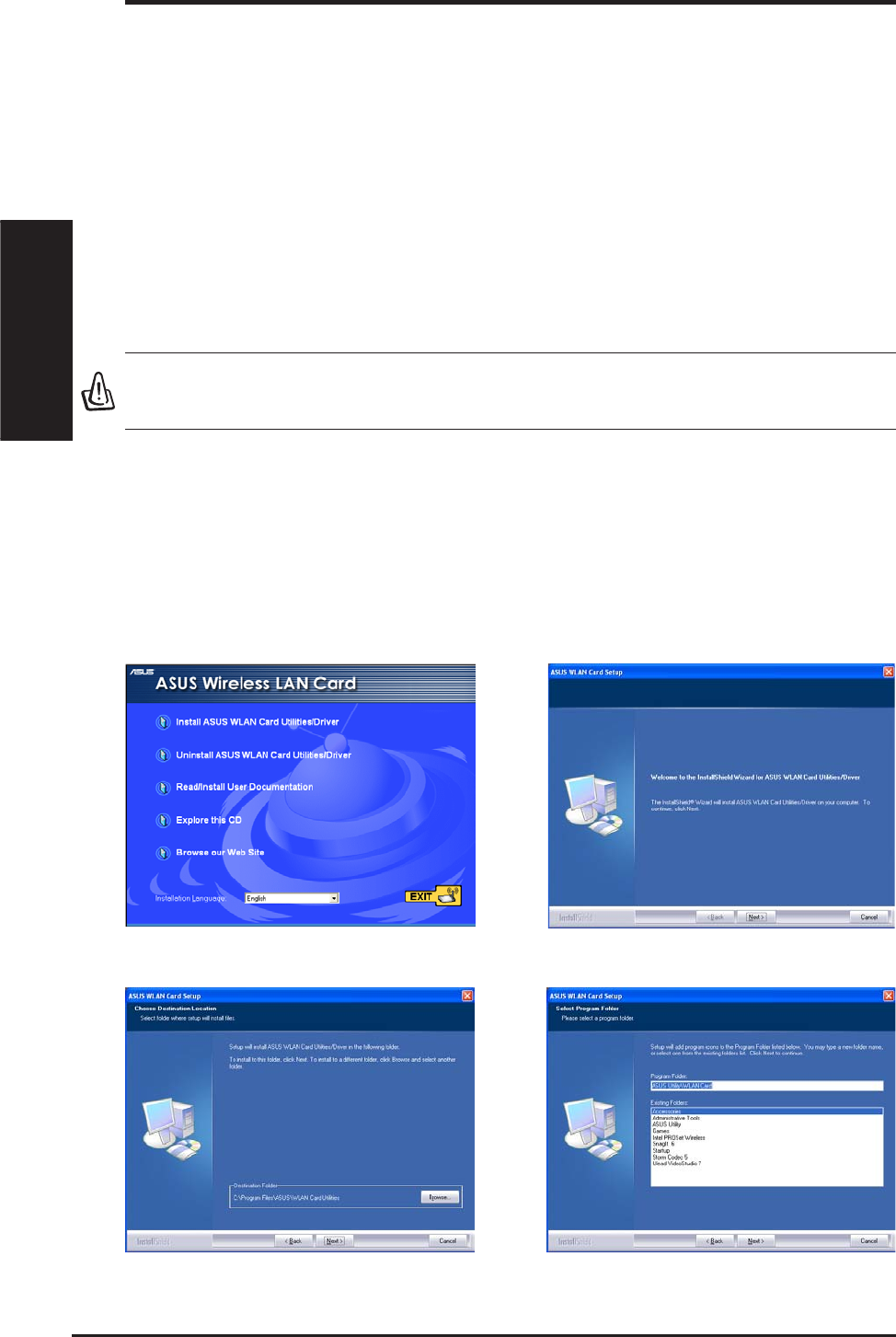

Installing the WLAN utilities and driver
Follow these instructions to install the WLAN Adapter utilities and driver. Insert
the support CD into your optical drive. If autorun is enabled in your computer,
the CD automatically displays the utility menu. Clickmatically displays the utility menu. Click Install ASUS WLAN Card
Utilities/Driver. If autorun is disabled, double-click SETUP.EXE in the root
directory of the CD.
2. Click Next on the Welcome screen.1. Select your language and click Install
ASUS WLAN Card Utilities/Driver.
4. Click Next to create short cut.
3. Click Next to use the default Destination
Folder or click Browse to select another folder.
ASUS WLAN Adapter 7
Chapter 2 - Installation
Chapter 2
Installation

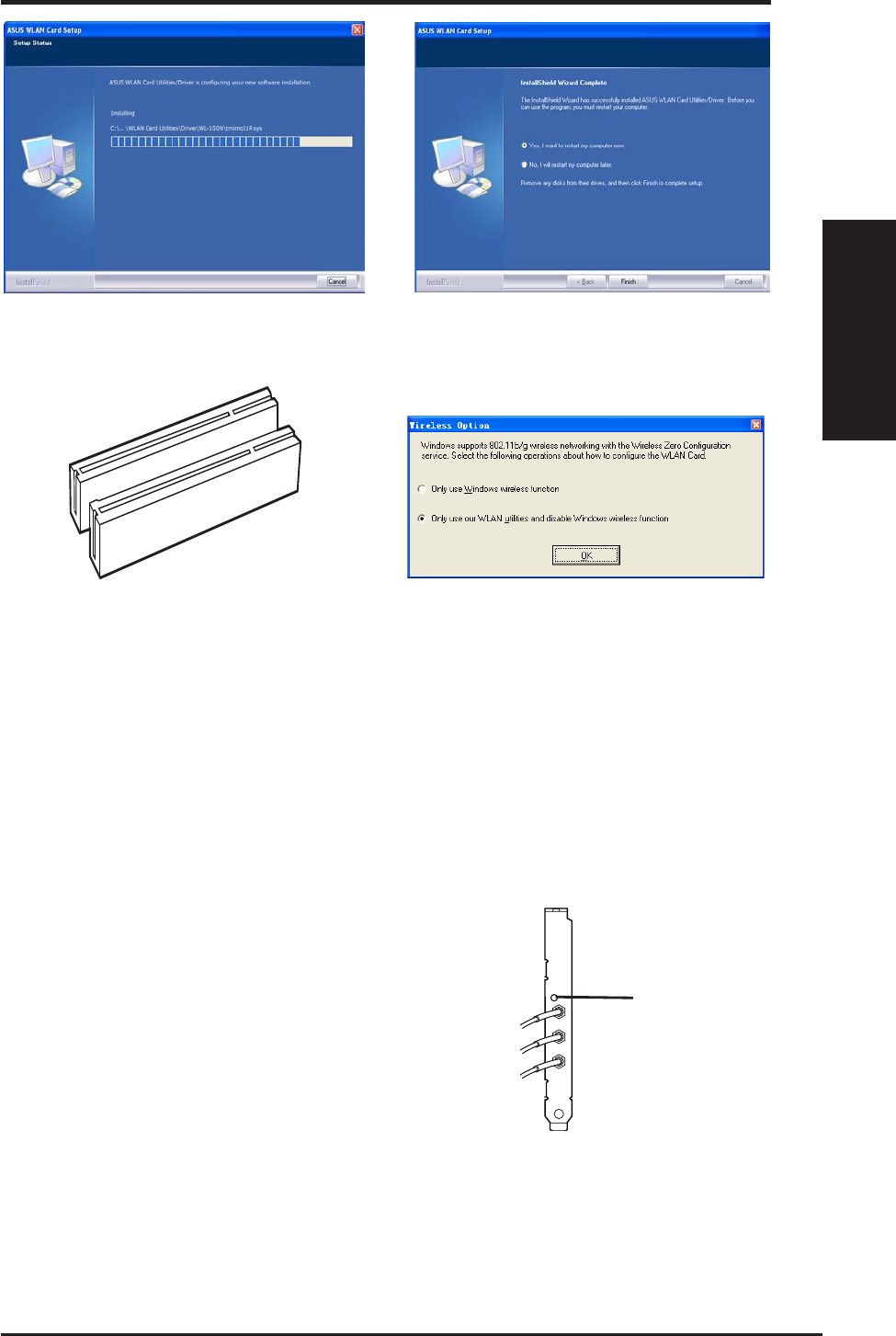

7. Carefully insert the WLAN Adapter into
\RXU FRPSXWHUҋV 3&, VORW :LQGRZV ZLOO
automatically detect and configure the
WLAN Adapter using the utilities and
drivers installed in the previous steps.

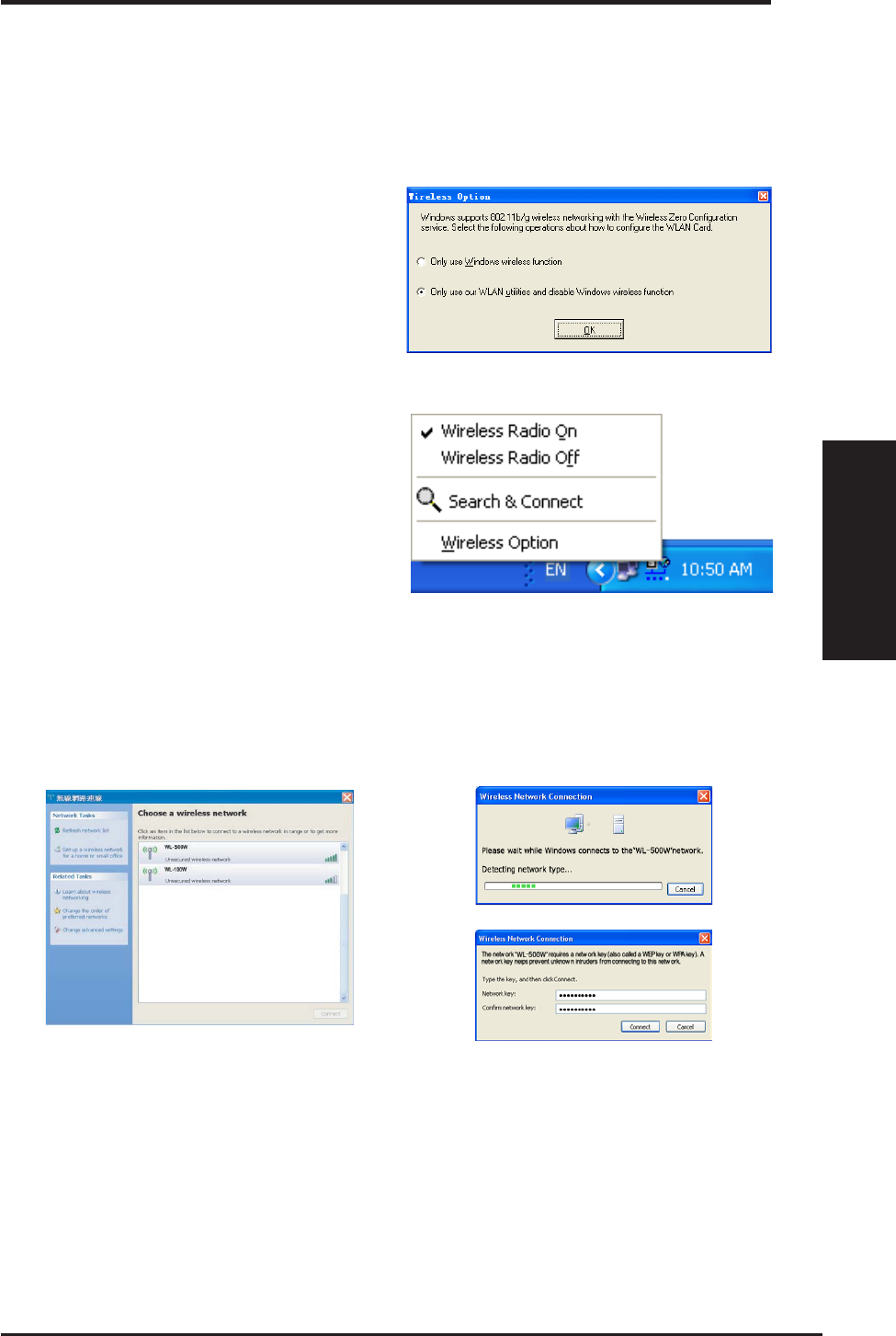

8. Windows XP users: When the program
is launched for the first time (during
Windows restart), you are asked to
FKRRVHRQHXWLOLW\WRFRQÀJXUHWKH:/$1
Adapter. Select "Only use our WLAN
utilities and disable Windows wireless
function".
Reading the WLAN status indicators
The device comes with one LED that indicates the status of the WLAN
Adapter.
5. The installation process takes several
seconds.
6. When Setup is complete, click Finish to
H[LW WKH LQVWDOODWLRQ ZL]DUG DQG UHVWDUW WKH
computer.
ACT LED
Blinking: Transmitting data; the blinking
speed indicates the link speed.
OFF: Radio off or Adapter is disabled. ACT LED
Chapter 2
8 ASUS WLAN Adapter
Chapter 2 - Installation
Installation

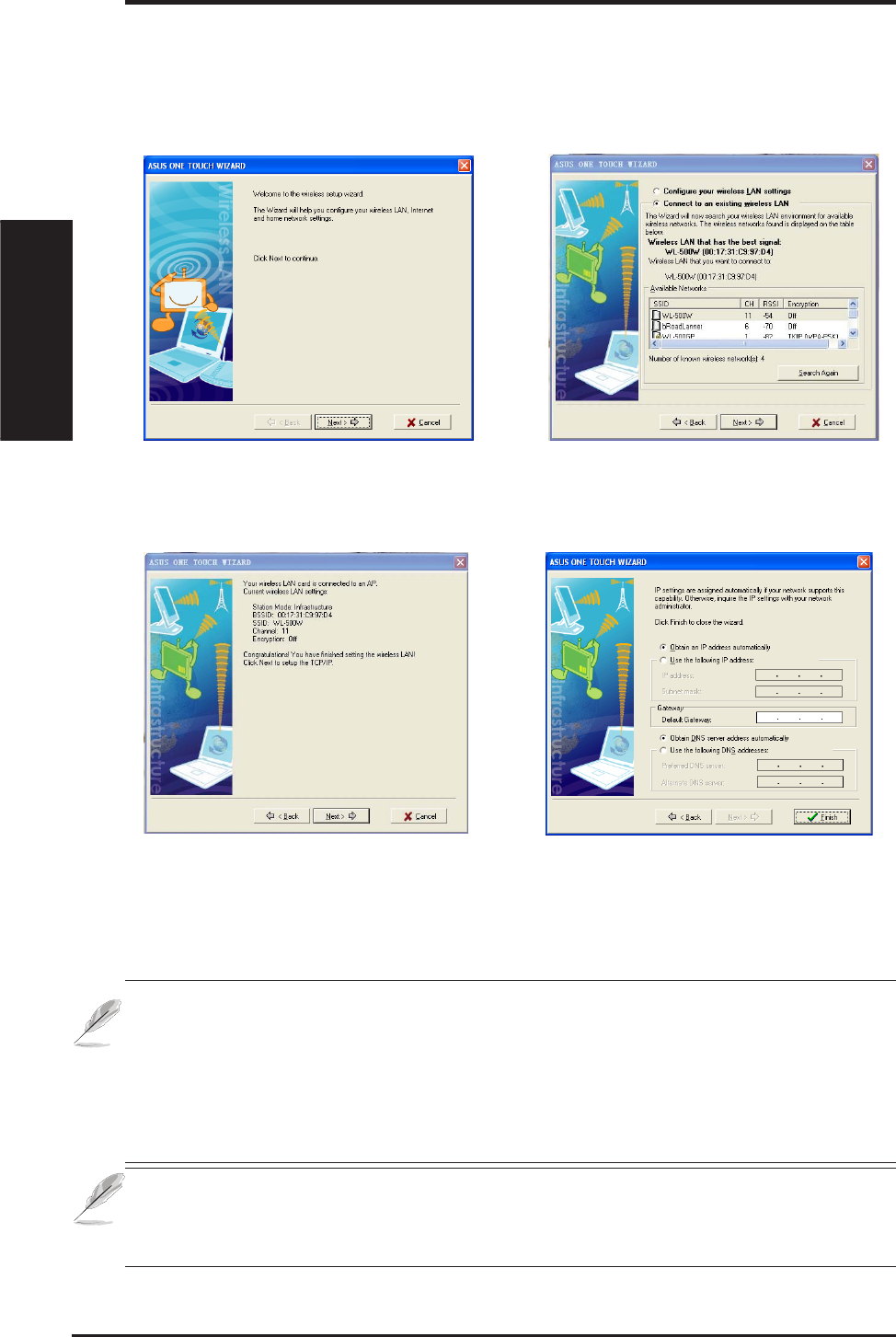

One Touch Wizard
8VH 2QH7RXFK :L]DUG WR VHWXS \RXU ZLUHOHVV FRQQHFWLRQ ZLWK DQ H[LVWLQJ
wireless LAN.
/DXQFK2QH7RXFK:L]DUGIURP6WDUW
menu and click Next to set up your
wireless network.
2. Select an AP from the Available Networks
ÀHOGWKHQFOLFN1H[W
3. Connection is complete. Click Next
to setup the IP address for the WLAN
Adapter.
4. Choose to obtain an IP address or to
assign static address manually for your
WLAN Adapter. When IP setting is
complete, click Finish to exit the One
7RXFK:L]DUG
Note: If the access point you want to connect has set up encryption
SROLFLHV\RXPXVWFRQÀJXUHWKHVDPHHQFU\SWLRQRQ\RXU:/$1$GDSWHU
Select "Configure your wireless LAN settings" radio button in step 2
and make the settings accordingly. When the encryption settings are
complete, you can launch the One Touch Wizard once again from the Start
menu to set up the connection with your AP.
We suggest WL-130N work with WL-500W Super Speed N wireless router
IRUPD[LPXPSHUIRUPDQFH0DNHVXUHWKHURXWHUÀUPZDUHLVWKHXSGDWHG
&KHFN$686ZHEVLWHIRUURXWHUODWHVWXSGDWHGÀUPZDUH
ASUS WLAN Adapter 9
Chapter 2 - Installation
Chapter 2
Installation

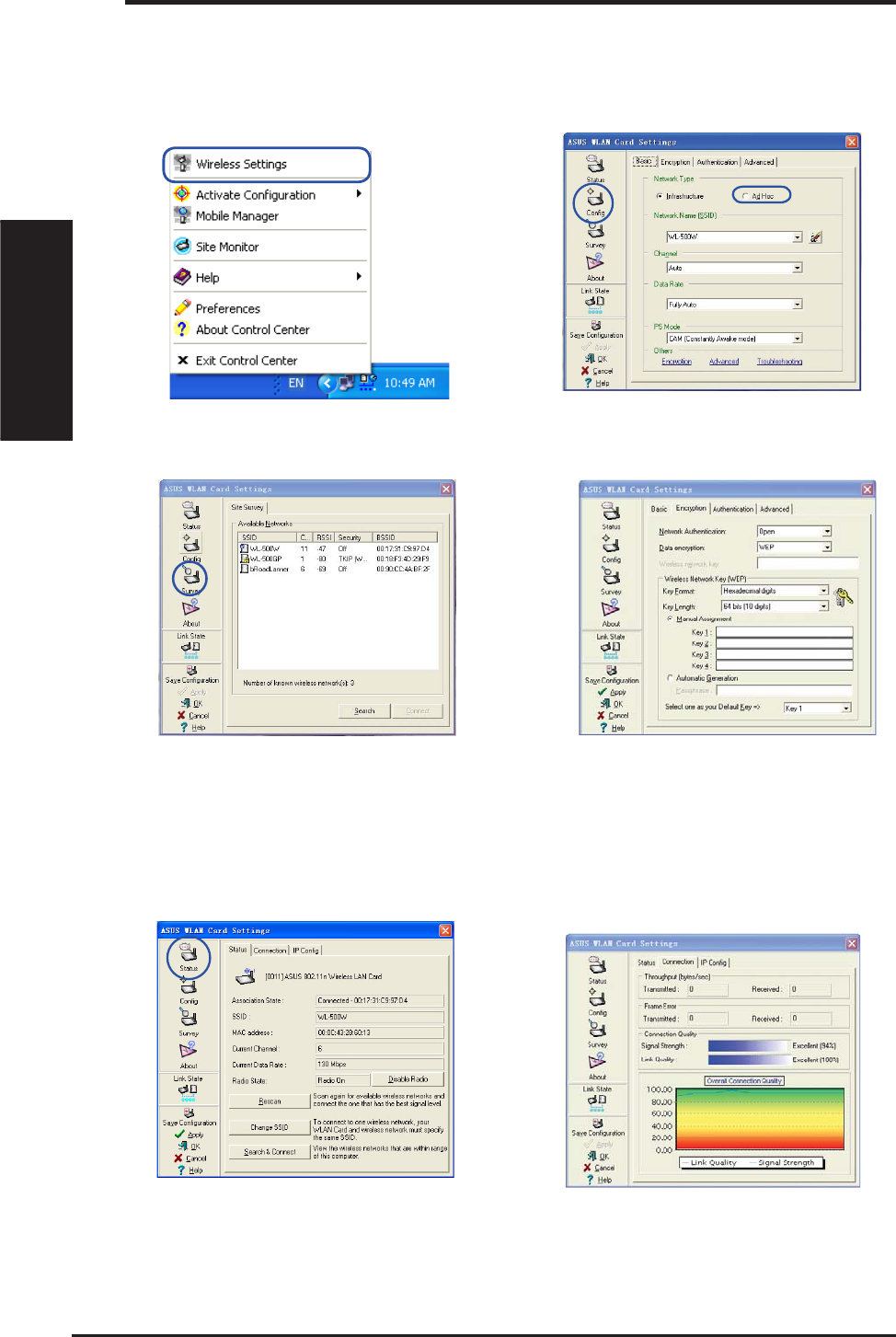

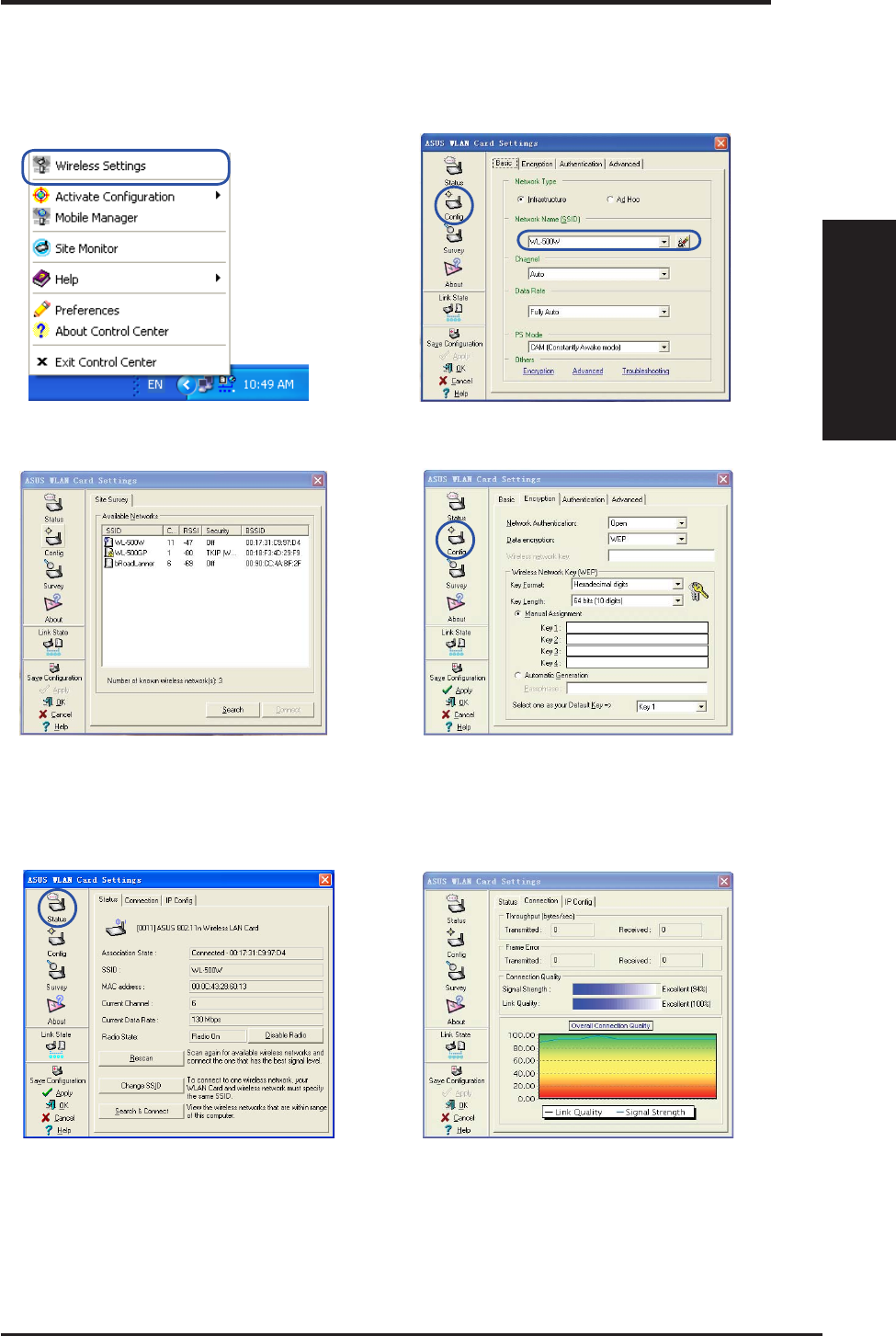

&RQÀJXULQJZLWKWKH:/$1XWLOLW\,QIUDVWUXFWXUH
Use ASUS WLAN utility to get connected with an existing wireless network.
6. Check the Connection tab to see the
signal strength. Click OK to exit the utility.
5. Check the Status page to see the
association state. If connection is
established, the box shows “Connected -
xx:xx:xx:xx:xx:xx”.
3. Use Site Survey LI\RXGRQҋWNQRZWKH
SSID of your access point(s).
4. Encryption settings must match those
at the access point. Ask your network
administrator about settings if necessary.
Click Apply to activate the settings.
1. Right-click the wireless connection icon
and select Wireless Settings.
2. Check the Config page to set the SSID
(network name) to that of your wireless AP.
Chapter 2
10 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
&RQÀJXULQJZLWKWKH:/$1XWLOLW\$G+RF
The WLAN Adapter supports Ad Hoc mode which allows communication
between wireless stations without an AP.
2. Click the &RQÀJbutton and set the WLAN
Adapter to Ad Hoc connection mode.
3. Click the Survey button to scan for Ad
Hoc nodes. Select the node you want to
communicate with and press Connect.
4. If the encryption settings of your WLAN
Adapter are different from those of the
other Ad Hoc nodes, you are prompted
to make the encryption of the two nodes
identical. Click Apply to activate the
settings.
1. Right-click the wireless connection icon
and select Wireless Settings.
5. Check the Status page to see the association
state. If connection is established, the box
shows “Connected - xx:xx:xx:xx:xx:xx”.
6. Check the Connection tab to see the
signal strength. Click OK to exit the utility.
ASUS WLAN Adapter 11
Chapter 3 - Software Reference
Chapter 3
Software Reference

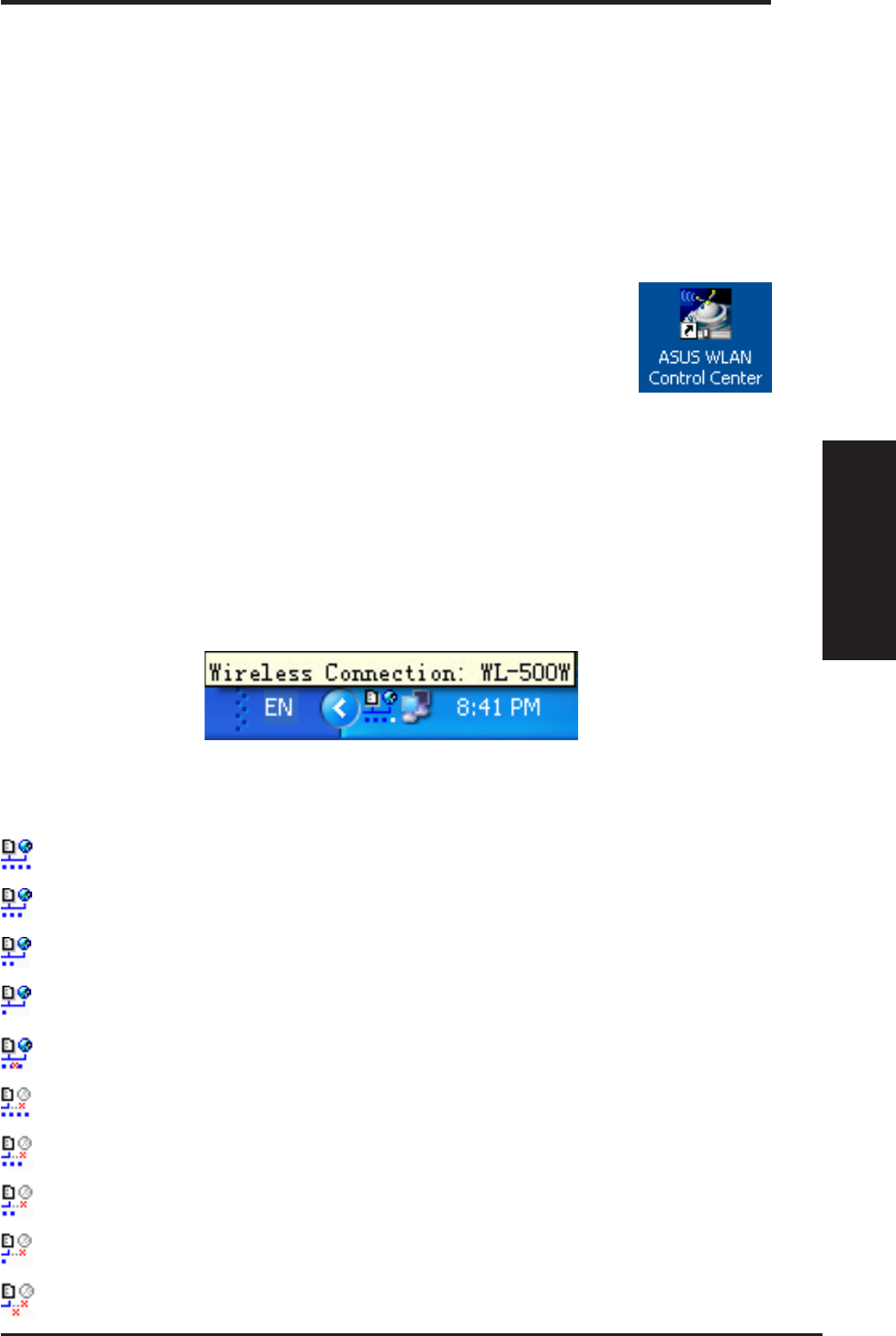

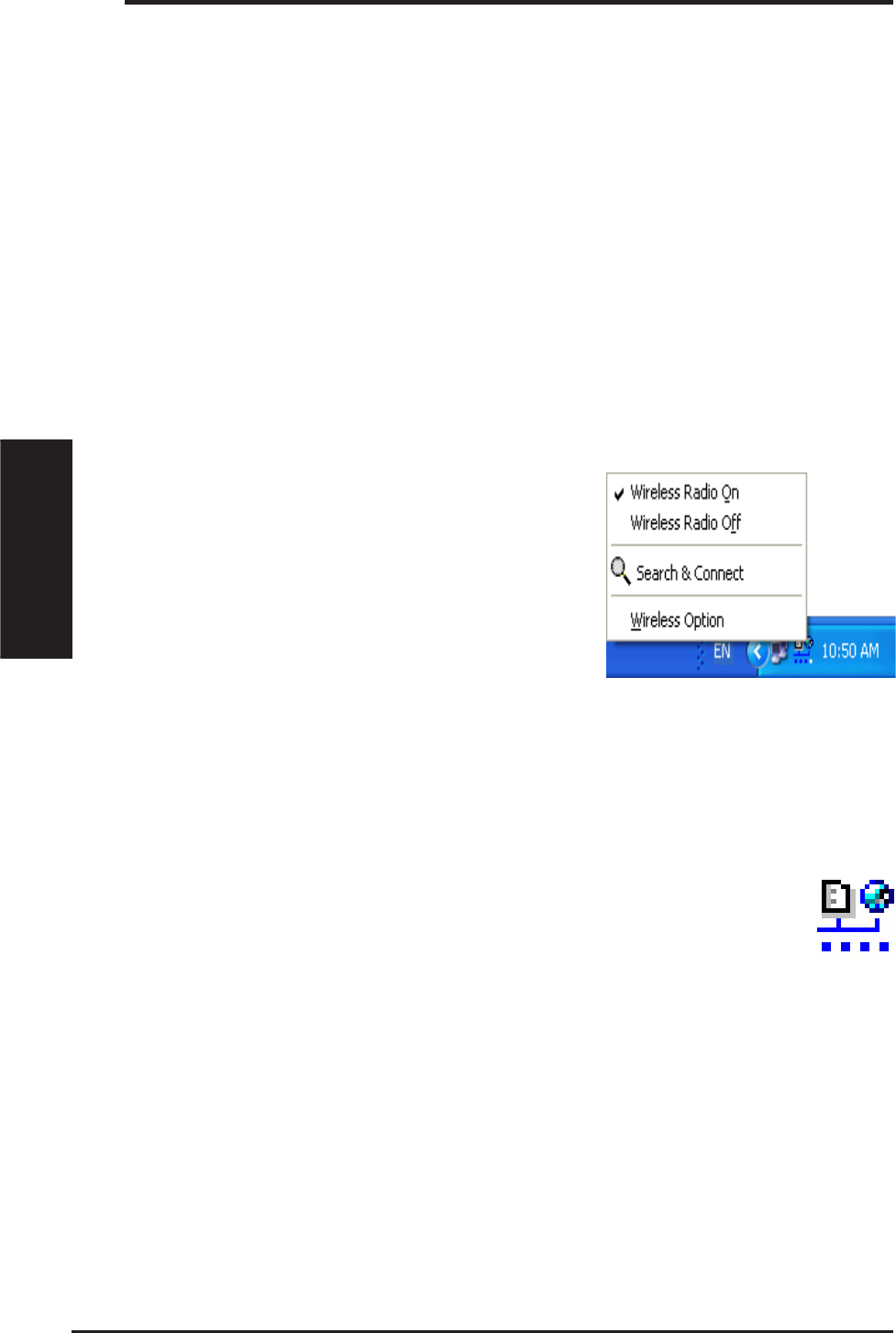

Using the Control Center
The Control Center taskbar icon displays the following information:
• Link quality of the WLAN Adapter (Excellent, Good, Fair, Poor, Not
Linked)
• Whether the WLAN Adapter is connected to a network (Blue:
Connected, Gray: Not Connected)
Taskbar Icon and Status
Wireless Status Icons (on the taskbar)
Excellent link quality and connected to Internet (Infrastructure)
Good link quality and connected to Internet (Infrastructure)
Fair link quality and connected to Internet (Infrastructure)
Poor link quality and connected to Internet (Infrastructure)
Not linked but connected to Internet (Infrastructure)
Excellent link quality but not connected to Internet (Infrastructure)
Good link quality but not connected to Internet (Infrastructure)
Fair link quality but not connected to Internet (Infrastructure)
Poor link quality but not connected to Internet (Infrastructure)
Not linked and not connected to Internet (Infrastructure)
ASUS WLAN Control Center
ASUS WLAN Control Center is an application which makes it easier to launch
WLAN applications and activate network location settings. The WLAN Control
Center starts automatically when system boots. When WLAN Control Center is
running, you can see a Control Center icon on the Windows taskbar.
Starting the Control Center
• Select ASUS WLAN Control Center in Windows Start
menu, or
• Double-click the ASUS WLAN Control Center icon on the desktop.
3. Software Reference
12 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Taskbar icon - Left-click menu
Left-click the taskbar icon to show the following
menu items:
• Wireless Radio On – Click to turn
the wireless radio ON.
•Wireless Radio Off – Click to turn
the wireless radio OFF.
•Search & Connect – Click to view
the properties of available access points.
•Wireless Option (Windows
®
XP only) – Click to choose Windows
®
Wireless Zero Configuration (WZC) service or ASUS utilities to
FRQÀJXUH\RXU:/$1$GDSWHU
Taskbar Icon - Launch Wireless Settings
Double-click the taskbar icon to launch the Wireless Settings utility. to launch the Wireless Settings utility.
Taskbar icon - Right-click menu
Right-click the taskbar icon to show the following menu items:
•Wireless Settings – Click to launch Wireless Settings application.
•$FWLYDWH&RQÀJXUDWLRQ– Click toFKRRVHDSUHVHWSURÀOH
•Mobile Manager – Click to launch Mobile Manager application.
•Site Monitor – Click to launch the Site Monitor application.
•Preferences – Click to FXVWRPL]HWKH&RQWURO&HQWHUSURJUDP<RXFDQ
create a Control Center shortcut on the desktop and decide whether to
start Control Center when system boots.
•About Control Center-Shows the version of Control Center.
•Exit – Click to close the Control Center program.
Taskbar Left-Click Menu
ASUS WLAN Adapter 13
Chapter 3 - Software Reference
Chapter 3
Software Reference
Status - Status
You can view the information about the
WLAN Adapter from the Status menu.
7KHVWDWXVÀHOGVDUHEODQNLIWKH:/$1
Adapter is not installed. You can turn
off the WLAN Adapter by clicking the
“Disable Radio” button.
Association State
Displays the connection status as
follows:
Connected - The adapter is now associated with one wireless LAN device.
When operating in Infrastructure mode, this field shows the MAC address
of the access point with which the WLAN Adapter is communicating. When
operating in Ad Hoc PRGHWKLV ÀHOGVKRZV WKHYLUWXDO 0$&DGGUHVV XVHGE\
computers participating in the Ad Hoc network.
ASUS Wireless Settings Utility
Wireless Settings is an application for managing the WLAN Adapter. Use Wireless
6HWWLQJVWRYLHZRUPRGLI\WKHFRQÀJXUDWLRQVHWWLQJVRUWRPRQLWRUWKHRSHUDWLRQDO
status of your WLAN Adapter. When Wireless Settings is launched, you can
VHHWKHWDEEHGSURSHUW\VKHHWV ZKLFKFDWHJRUL]HWKHFRQÀJXUDWLRQRSWLRQVLQWR
groups.
Starting Wireless Settings
• Open the Windows Control Panel, then double-click the ASUS WLAN
Adapter Settings icon.
or
• Click the Windows Start button, select Programs | ASUS Utility |
WLAN Adapter | Wireless Settings.
or
• Right-click the Control Center icon on the Windows taskbar and
select Wireless Settings.
NOTE: If you have more than one ASUS WLAN device installed on your
computer, you may see a device selection window when you launch the
“Wireless Settings” utility. Select the device you want when such situation
occurs.
14 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Scanning... : The station is trying to authenticate and associate with an access
point or Ad Hoc node.
Disconnected: The WLAN Adapter is installed to the system, but not yet
connected to a wireless device.
SSID:
'LVSOD\VWKH6HUYLFH6HW,GHQWLÀHU66,'RIWKHGHYLFHWKDWWKHDGDSWHU
is either associated or intending to join.
MAC address:
Shows the hardware address of the WLAN Adapter. MAC
DGGUHVVLVDXQLTXHLGHQWLÀHUIRUQHWZRUNLQJGHYLFHVW\SLFDOO\ZULWWHQDVWZHOYH
hexadecimal digits from 0 through 9 and A through F separated by colons, i.e.
00:E0:18:F0:05:C0).
Current Channel:
Displays the radio channel to which the adapter
is currently tuned. This number changes as the radio scans the available
channels.
Current Data Rate:
Displays the current data rate in megabits per second
(Mbps).
Radio State:
Shows the wireless radio status: ON or OFF.
Radio On - When the wireless radio is turned ON, the icon on the right
appears in the upper left of the Status page.
Radio Off- When the wireless radio is turned OFF, the icon on the right
appears in the upper left of the Status page.
Buttons
Rescan – Make the WLAN Adapter rescan all available devices. If the current
link quality or signal strength is poor, rescanning can be used to push the radio
off a weak access point and search for a better link with another access point.
This function usually takes several seconds.
Change SSID – Click this button to set the SSID to that of the AP you want to
connect.
Search & Connect – Click this button to connect to an available wireless AP.
NOTE: For 802.11n performance, select 40MHz bandwidth in wireless
router. Channel option depends on the bandwidth that you select.
ASUS WLAN Adapter 15
Chapter 3 - Software Reference
Chapter 3
Software Reference

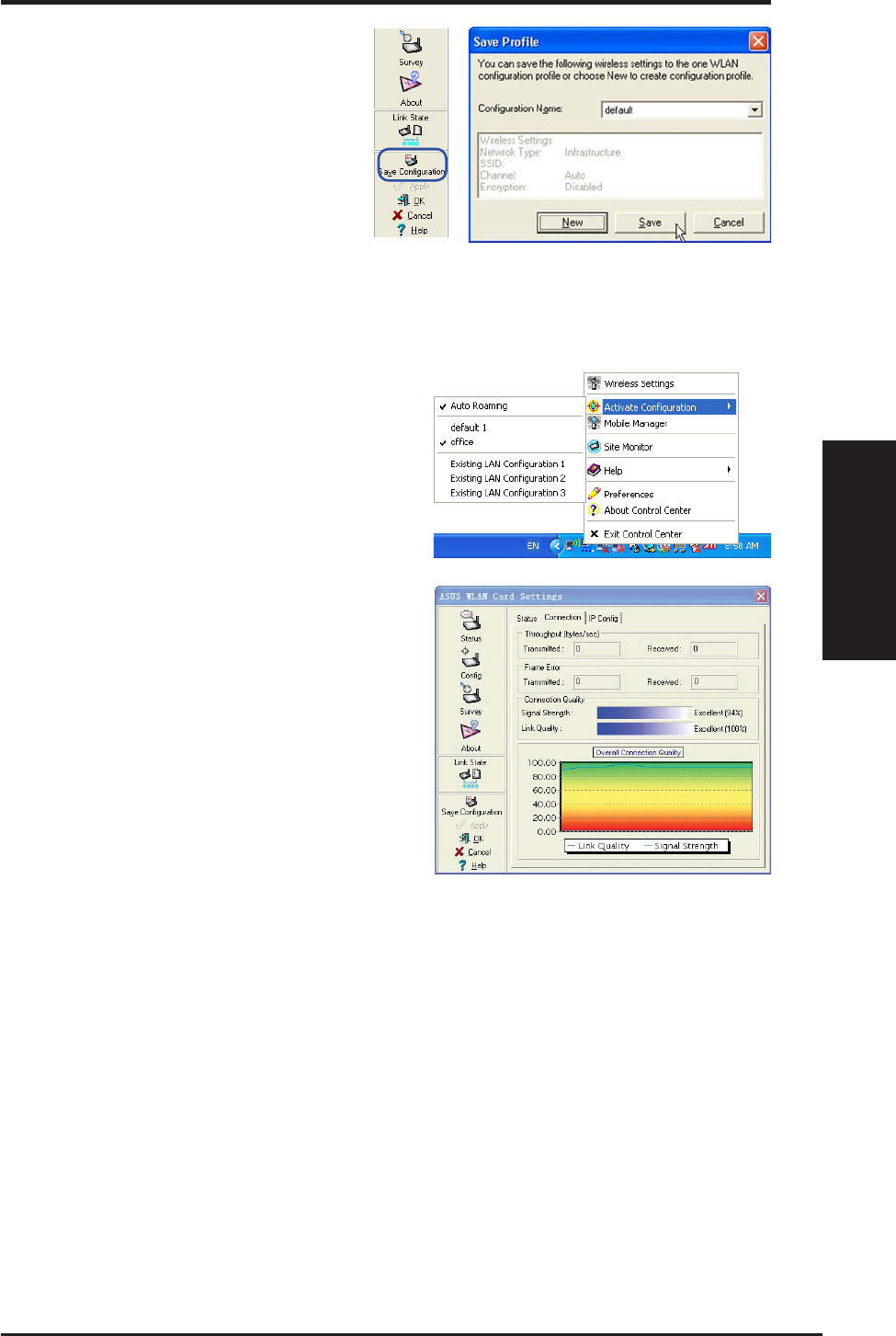

6DYH&RQÀJXUDWLRQ
When you make settings for a
certain working environment, you
may need to save your settings to a
SURÀOHVRWKDW\RXFDQHDVLO\VZLWFK
to the settings without repeating the
configurations. For example, you
FDQVHWSURÀOHV IRUZRUNKRPHDQG
RWKHUVLWXDWLRQV:KHQ\RXWUDYHOIURPKRPHWRZRUNFKRRVHWKHRIÀFHSURÀOH
that contains all your settings for office use. When you travel back home,
FKRRVHWKH´KRPHµSURÀOH
$FWLYDWH&RQÀJXUDWLRQ
Auto roaming is enabled by default and
makes the adapter automatically switch to
APs of better signal. You can uncheck it if
\RXZDQWWRFRQQHFWWRDVSHFLÀHG$3XVLQJ
DSDUWLFXODUSURÀOH
Status - Connection
You can view the current link statistics about
the WLAN Adapter. These statistics are
updated once per second and are valid if the
WLAN Adapter is correctly installed.
Frame Sent/Received
Transmitted - The number of frames that
were transmitted.
Received - The number of frames that were received.
Frame Error
Transmitted - The number of frames that were not successfully transmitted.
Received - The number of frames that were not successfully received.
Connection Quality
Signal Strength - Shows the link quality of the access point or Ad Hoc node
the WLAN Adapter is currently connected to. Ratings are: Excellent, Good,
Fair, and Poor.
Overall Connection Quality
The overall connection quality is derived from the current signal strength. A
graphic chart uses percentage to show signal quality.
16 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
6WDWXV,3&RQÀJ
IP Config tab shows all the current
host and WLAN Adapter information
including host name, DNS servers,
IP address, subnet mask and default
gateway.
Button
IP Release - If you want to remove the
current IP address, click this button to
release the IP address from DHCP server.
IP Renew - If you want to obtain a new IP address from DHCP server, click this
button to renew the IP address.
Ping - Click this button to open “Ping” tab which is used to ping the devices in
your network.
NOTE: The IP Release and IP Renew buttons can only be used on the
WLAN Adapter which gets IP address from DHCP server.
Status - Ping
Click the "Ping" button in Status-IP
&RQÀJWDEWRRSHQWKLVSDJH7KH3LQJ
tab allows you to verify the accessibility
of other computers or network devices.
To ping a connection:
1. Type the IP address of the device you
ZDQWWRYHULI\LQWKH,3$GGUHVVÀHOG
2. Configure the ping session by
DVVLJQLQJWKHSLQJSDFNHWVL]HDQG
number of packet to send, and the timeout value (in milliseconds).
3. Click the “Ping” button.
During the ping session, the Ping button Changes into a Stop button. To cancel
the ping session, click the “Stop” button.
7KHVHVVLRQÀHOGGLVSOD\VLQIRUPDWLRQRQWKHYHULÀHGFRQQHFWLRQLQFOXGLQJWKH
roundtrip time (minimum, maximum, and average) and packets sent, received,
and lost after a ping session.
&OLFNWKH´&OHDUµEXWWRQWRFOHDUWKHVHVVLRQÀHOG
ASUS WLAN Adapter 17
Chapter 3 - Software Reference
Chapter 3
Software Reference
&RQÀJ%DVLF
This page enables you to change the
:/$1$GDSWHUFRQÀJXUDWLRQV
Network Type
Infrastructure – Infrastructure means
to establish a connection with an access
point. Once connected, the access
point allows you to access wireless
LAN and wired LAN (Ethernet). The
Channel field turns to Auto if the
connection is based on Infrastructure.
Ad Hoc – Ad Hoc means to communicate directly with other wireless clients
without using an access point. An “Ad Hoc” network can be setup quickly
and easily without pre-planning, for example, sharing meeting notes between
attendants in a meeting room.
Network Name (SSID)
SSID stands for “Service Set Identifier”, which is a string used to identify a
wireless LAN. Use the SSID to connect with a known access point. You can
enter a new SSID or select one from the drop-down list box. If you get connected
by designating the SSID, you are only to connect the AP with the SSID you
assigned. If the AP is removed from the network, your WLAN Adapter does not
roam automatically to other APs. SSIDs must all be printable characters and
having a maximum of 32 case sensitive characters, such as “ Wireless”.
NOTE: Set the SSID to a null string, if you wish to allow your station to
FRQQHFWWRDQ\DFFHVVSRLQWLWFDQÀQG%XW\RXFDQQRWXVHQXOOVWULQJLQ
Ad Hoc mode.
Channel
The Channel field is for setting radio channel. Your WLAN Adapter can
automatically select the correct channel to communicate with an wireless device,
DQGWKHSDUDPHWHULVÀ[HGWR$XWRLQERWK,QIUDVWUXFWXUHDQG$G+RFPRGH
The available radio channels depend on the regulations in your country. For
the United States (FCC) and Canada (IC), channel 1 to 11 are supported. For
Europe (ETSI), channel 1 to 13 are supported. For Japan (MKK), channel 1 to
14 are supported.
&OLFN$SSO\WRVDYHDQGDFWLYDWHWKHQHZFRQÀJXUDWLRQV
18 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Others
Encryption – Click this link to show the "Encryption" tab.
Advanced – Click this link to show the "Advanced" tab. In most cases, the
default values do not have to be changed.
Troubleshooting – Click on this to show the Troubleshooting utility.
&RQÀJ$GYDQFHG
Click Advanced link on Config-Basic
page to show this tab. This tab allows
you to set up additional parameters for
the wireless Adapter. We recommend
using the default values for all items in
this window.
RTS Threshold (0-2347)
The RTS/CTS (Request to Send/Clear
WR6HQGIXQFWLRQLVXVHGWRPLQLPL]HFROOLVLRQVDPRQJZLUHOHVVVWDWLRQV
When RTS/CTS is enabled, the router refrains from sending a data frame until
another RTS/CTS handshake is completed. Enable RTS/CTS by setting a
VSHFLÀFSDFNHWVL]HWKUHVKROG7KHGHIDXOWYDOXHLVUHFRPPHQGHG
Fragmentation Threshold (256-2346)
Fragmentation is used to divide 802.11 frames into smaller pieces (fragments)
that are sent separately to the destination. Enable fragmentation by setting
DVSHFLÀF SDFNHWVL]HWKUHVKROG,IWKHUH LVDQ H[FHVVLYHQXPEHURIFROOLVLRQV
on the WLAN, experiment with different fragmentation values to increase the
reliability of frame transmissions. The default value (2000) is recommended for
normal use.
ASUS WLAN Adapter 19
Chapter 3 - Software Reference
Chapter 3
Software Reference
Network Authentication
Since there is no precise bound in
wireless LANs, the WLAN users need
to implement certain mechanism
to provide security solution. The
Authentication policies in this tab
provide protection of different levels
such as Open, Shared, WPA-PSK,
WPA, and WPA2.
Open - Select this option to make the
network operate on Open System
mode, which use no authentication algorithm. Open stations and APs can
authenticate with each other without checking any WEP Key, even if there is.
Shared - Select this option to make the network operate on Shared key mode.
In a Share Key Authentication system, four-step exchange of frames is required
to validate that the station is using the same WEP Key as the access point.
WPA-PSK/ WPA2-PSK - Select this option to enable WPA Pre-Shared Key
under Infrastructure mode. It enables communication between your client and
APs using WPA-PSK/WPA2-PSK encryption mode.
WPA/ WPA2 - The network is operating in IEEE 802.1x authentication mode.
This mode is for environments with RADIUS (Remote Access Dial-in User
Service). In a RADIUS environment, three Extensible Authentication Protocol
(EAP) are supported, including PEAP, EPA/TLS, and LEAP.
&RQÀJ(QFU\SWLRQ
This page enables you to configure the Wireless LAN Adapter encryption
settings. For data confidentiality in a wireless environment, IEEE 802.11
specifies a Wired Equivalent Privacy (WEP) algorithm to offer transmission
privacy. The WEP uses keys to encrypt and decrypt data packets. The
encryption process can scramble frame bits to avoid disclosure to others. The
WPA/WPA2 is improved security system for 802.11 which are developed to
overcome the weakness of the WEP protocol.
20 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Data encryption
For Open and Shared authentication mode, the configuration options of
encryption type are Disabled and WEP. For WPA, WPA-PSK, WPA2 and
WPA2-PSK authentication mode, Temporal Key Integrity Protocol (TKIP)
encryption and Advanced Encryption Standard (AES) encryption are supported.
Disabled - Disable the encryption function.
WEP - WEP Key is used to encrypt your data before it is transmitted over air.
You can only connect and communicate with wireless devices that use the
same WEP keys.
TKIP - TKIP uses an encryption algorithm methods which is more stringent
than the WEP algorithm. It also uses existing WLAN calculation facilities to
SHUIRUPHQFU\SWLRQ7.,3YHULÀHVWKHVHFXULW\FRQÀJXUDWLRQDIWHUWKHHQFU\SWLRQ
keys are determined.
AES: AES is a symmetric 128-bit block encryption technique which works
simultaneously on multiple network layers.
Wireless Network Key
This option is enabled only if you select WPA-PSK or WPA2-PSK authentication
PRGH 6HOHFW ´7.,3µ RU ´$(6µ LQ WKH HQFU\SWLRQ ÀOHG DV HQFU\SWLRQ PRGH WR
EHJLQWKHHQFU\SWLRQSURFHHG1RWHWRFKDUDFWHUVDUHUHTXLUHGLQWKLVÀHOG
Wireless Network Key (WEP)
7KLVRSWLRQLVFRQÀJXUDEOHRQO\LI\RX HQDEOH:(3LQ1HWZRUN$XWKHQWLFDWLRQ
ÀHOG7KH :(3 .H\ LV D  ELWV  E\WH RU  ELWV  E\WH +H[DGHFLPDO
digits which is used to encrypt and decrypt data packets.
Key Format
You can select to enter Hexadecimal digits (0~9, a~f, and A~F) or ASCII
FKDUDFWHUVWRVHWXSNH\VE\GHÀQLQJWKH.H\)RUPDW
Key Length
For 64 bits encryption, each key contains 10 hex digits or 5 ASCII characters.
For 128 bits encryption, each key contains 26 hex digits or 13 ASCII characters.
Two ways to assign WEP keys
1. Manual Assignment - When you select this option, the cursor appears
LQWKHÀHOGIRU.H\)RUELWHQFU\SWLRQ\RXDUHUHTXLUHGWRHQWHUIRXU
WEP Keys. Each Key contains exactly 10 hex digits (0~9, a~f, and A~F).
For 128-bit encryption, you are required to enter four WEP Keys. Each Key
contains exactly 26 hex digits (0~9, a~f, and A~F).
ASUS WLAN Adapter 21
Chapter 3 - Software Reference
Chapter 3
Software Reference
2. Automatic Generation - Type a combination of up to 64 letters,
numbers, or symbols in the Passphrase box, the Wireless Settings Utility
automatically uses an algorithm to generate four WEP Keys.
Select one as your Default Key
7KH'HIDXOW.H\ÀHOGDOORZV\RXVSHFLI\ZKLFKRIWKHIRXUHQFU\SWLRQNH\VLVWR
use for transmitting data over wireless LAN. You can change the default key
by clicking on the downward arrow, selecting the number of the key you want
to use, and clicking the “Apply” button. If the access point or station with which
you are communicating uses the identical key by the same sequence, you can
use any of the keys as the default on your WLAN Adapter.
Click the “Apply” button after you have created the encryption keys, the
Wireless Settings Utility uses asterisks to mask your keys.
64/128bits versus 40/104bits
There are two levels of WEP Encryption: 64 bits and 128 bits.
Firstly, 64 bit WEP and 40 bit WEP are the same encryption method and
can interoperate in the wireless network. This lower level of WEP encryption
uses a 40 bit (10 Hex character) as a “secret key” (set by user), and a 24 bit
´,QLWLDOL]DWLRQ9HFWRUµQRWXQGHUXVHUFRQWURO7KLVWRJHWKHUPDNHVELWV
24). Some vendors refer to this level of WEP as 40 bits and others refer to this
as 64 bits. Our Wireless LAN products use the term 64 bits when referring to
this lower level of encryption.
Secondly, 104 bit WEP and 128 bit WEP are the same encryption method and
can interoperate in the wireless network. This higher level of WEP encryption
uses a 104 bit (26 Hex character) as a “secret key” (set by user), and a 24 bit
´,QLWLDOL]DWLRQ 9HFWRUµ QRW XQGHU XVHU FRQWURO 7KLV WRJHWKHU PDNHV  ELWV
   6RPH YHQGRUV UHIHU WR WKLV OHYHO RI :(3 DV  ELWV DQG RWKHUV
refer to this as 128 bits. Our Wireless LAN products use the term 128 bits when
referring to this higher level of encryption.
22 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Survey - Site Survey
Use the Site Survey tab to view statistics
on the wireless networks available to the
WLAN Adapter and their parameters.
•SSID: The SSID of the available
networks.
•Channel: The channel used by each
network.
&RQÀJ$XWKHQWLFDWLRQ
This tab allows you to set the security settings to match those of your AP. It is
FRQÀJXUDEOHRQO\LI\RX KDYHVHW1HWZRUN$XWKHQWLFDWLRQWR:3$RU :3$LQ
&RQÀJ(QFU\SWLRQWDE
Authentication Type
The authentication type methods include:
PEAP: PEAP (Protected Extensible
Authentication Protocol) authentication
is a version of Extensible Authentication
Protocol (EAP). EAP ensures mutual
authentication between a wireless client
and a server that resides at the network
operations center.
EPA/TLS: EPA/TLS (Extensible
Authentication Protocol - Transport Layer Security) is a follow-on to Secure
6RFNHW/D\HU66/,WSURYLGHVVWURQJVHFXULW\EXWUHOLHVRQFOLHQWFHUWLÀFDWHV
for user authentication.
LEAP: LEAP (Light Extensible Authentication Protocol) authentication is a
version of Extensible Authentication Protocol (EAP). EAP ensures mutual
authentication between a wireless client and a server that resides at the
network operations center.
ASUS WLAN Adapter 23
Chapter 3 - Software Reference
Chapter 3
Software Reference
Buttons
Search – To scan all available wireless networks and show the scan result in the
“Available Network” list.
Connect – To associate with a network, select the network from the
“Available Network” list and click this button.
NOTE: Some access points may disable SSID broadcast and hide
themselves from “Site Survey” or “Site Monitor”, however, you can
connect such AP if you know their SSID.
•RSSI: The Received Signal Strength Indication (RSSI) transmitted by each
network. This information is helpful in determining which network to connect
WR7KHYDOXHLVWKHQQRUPDOL]HGWRDG%PYDOXH
•Encryption: Wireless network encryption information. All devices in
the network should use the same encryption method to ensure the
communication.
•BSSID: The media access control (MAC) address of the access point or
the Basic Service Set ID of the Ad Hoc node.
About - Version Info
Use the Version Info tab to view program and WLAN Adapter version
LQIRUPDWLRQ7KHSURJUDPYHUVLRQLQIRUPDWLRQÀHOGLQFOXGHVWKH&RS\ULJKWDQG
utility version. The version information includes the NDIS version, driver name,
driver version and hardware version.
This screen is an example only. Your version numbers
will be different from what are shown here.
24 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
Link State
WLAN Adapter “Link State” icon appears on the left side of
the WLAN Adapter Settings. Use the icon to view the current
signal status.
Exit Wireless Settings
To exit Wireless Settings, you can click OK or Cancel.
Excellent Link Quality (Infrastructure)
Good Link Quality (Infrastructure)
Fair Link Quality (Infrastructure)
Poor Link Quality (Infrastructure)
Not linked (Infrastructure)
ASUS WLAN Adapter 25
Chapter 3 - Software Reference
Chapter 3
Software Reference
Windows
®
XP Wireless Options
The wireless options window shown below is only available for Windows
®
XP.
,WDSSHDUVZKHQ\RXUXQWKH&RQWURO &HQWHUXWLOLW\DWWKHÀUVWWLPH6HOHFW WKH
XWLOLW\\RXZDQWWRXVHIRUFRQÀJXULQJ\RXU:/$1$GDSWHU
Only use Windows wireless function
– Only use Windows
®
XP Wireless
=HUR&RQÀJXUDWLRQVHUYLFHWRFRQÀJXUH
the WLAN Adapter.
Only use our WLAN utilities and
disable XP wireless function
– 2QO\XVH$686:/$1XWLOLWLHVWRFRQÀJXUHWKH:/$1$GDSWHU
(recommended)
You can open the Wireless Option
setting window at any time by left-
clicking the control center icon and
choosing Wireless Option.
Taskbar Left-Click Menu
&RQÀJXULQJZLWK:LQGRZV
®
:LUHOHVV=HUR&RQÀJXUDWLRQVHUYLFH
If you want to configure your WLAN Adapter via Windows
®
Wireless Zero
&RQÀJXUDWLRQ:=&VHUYLFHIROORZWKHLQVWUXFWLRQEHORZWRPDNHWKHVHWWLQJV
2. A window prompts out asking you for
the key if you have set up encryption
on your wireless router, input the keys
and click Connect. The connection is
complete.
1. Double-click the wireless network
icon on the task bar to view available
networks.Select the AP and click
Connect.
26 ASUS WLAN Adapter
Chapter 3 - Software Reference
Chapter 3
Software Reference
To set up the wireless connection properties, right-click the wireless icon on the
taskbar and select Open Network Connection. Then right-click the network
connection icon and select Property to open the Wireless Network Connection
Status page.
1. The General page shows status, duration,
speed, and signal strength. Signal
strength is represented by green bars with
5 bars indicating excellent signal and 1
bar meaning poor signal.
2. Select “Wireless Networks” tab to show
Preferred networks. Use the Add button
to add the “SSID” of available networks
and set the connection preference order
with the Move up and Move down
buttons. The radio tower with a signal
icon identifies the currently connected
access point. Click Properties to set the
authentication of the wireless connection.
3. The Authentication page allows you to
add security settings. Read Windows help
for more information.
4. The Advanced page allows you to set
ÀUHZDOODQGVKDULQJ5HDG:LQGRZVKHOS
for more information.
ASUS WLAN Adapter 27
Chapter 4 - Troubleshooting
Chapter 4
Troubleshooting
4. Troubleshooting
The following troubleshooting guides provide answers to some of the more
common problems, which you may encounter while installing or using WLAN
$GDSWHU SURGXFWV ,I \RX HQFRXQWHU GLIÀFXOWLHV WKDW DUH QRW PHQWLRQHG LQ WKLV
section, please contact the Wireless LAN Technical Support.
Verify if the WLAN Adapter is installed correctly.
When the WLAN Adapter setup is complete, you can verify if the driver has
been setup properly. Right click My Computer, select Properties, and click
the Device Manager tab. Then double-click the Network adapters icon; you
should see “802.11g Network Adapter” with an icon of an expansion adapter.
There should not be a “!” or “?” (problem) or “x” (disabled) symbol over this
icon.
There is a yellow exclamation mark or a yellow question mark in
Device Manager in front of my WLAN Adapter.
To resolve the problem, you should update/reinstall the WLAN Adapter driver.
In “Device Manager”, right click 802.11g Network Adapter, select Properties,
and select Driver tab. Click on Update Driver button, then follow the “Update
'HYLFH'ULYHU:L]DUGµWRFRPSOHWHWKHGULYHULQVWDOODWLRQ
Cannot connect to any access points
)ROORZWKHSURFHGXUHEHORZWRFRQÀJXUH\RXU:/$1$GDSWHU
a. Verify that the “Network Type” is in “Infrastructure” mode.
b. Verify that the “SSID” of your WLAN Adapter is set to the same “SSID”
of an access point.
c. Verify that the “Encryption” type is the same as that of an access point.
If you enabled “WEP” encryption, you must also set the same WEP
Keys on both sides.
ASUS WLAN Adapter
Chapter 4 - Troubleshooting
Chapter 4
Troubleshooting
28
Cannot connect to a Station (WLAN Adapter)
)ROORZWKHSURFHGXUHEHORZWRFRQÀJXUH\RXU:/$1$GDSWHU
a. Verify that the “Network Type” is in “Ad Hoc” mode.
b. Verify that the “SSID” of your WLAN Adapter is set to the same “SSID” of
the other station (or another WLAN Adapter).
c. Verify that the “channel” of the WLAN Adapter is “Auto” or set to the
same “channel” of the other station (or another WLAN Adapter).
d. Verify that the “Encryption” type is the same as the other station (or another
WLAN Adapter). If “WEP” encryption is enabled, you must set the same
“WEP” Keys on both stations.
Bad link quality or bad signal strength
There are two possible reasons. First is radio interference, keep the
environment around the WLAN Adapter away from microwave ovens and large
metal objects. Then try to reorient the WLAN Adapter antenna. Second is the
distance, decrease the distance between your WLAN Adapter and the access
point or station (or another WLAN Adapter).
The TCP/IP protocol did not bind to the WLAN PC Adapter.
This will occur when the computer already has six TCP/IP bindings in Windows
98 or ten bindings in Windows Me. These limits are imposed by the Microsoft
operating system.
Solution: If your computer already has the maximum number of TCP/IP
ELQGLQJVUHPRYHRQHRIWKHQHWZRUNDGDSWHUVIURPWKH1HWZRUNFRQÀJXUDWLRQ
before installing the WLAN Adapter driver.
ASUS WLAN Adapter 29
Chapter 5
Chapter 5 - Glossary
Glossary
5. Glossary
Access Point (AP)
A networking device that seamlessly connects wired and wireless networks. access
points combined with a distributed system support the creation of multiple radio
cells that enable roaming throughout a facility.
Ad Hoc
A wireless network composed solely of stations within mutual communication range
of each other (no access point).
Basic Rate Set
This option allows you to specify the data transmission rate.
Basic Service Area (BSS)
A set of stations controlled by a single coordination function.
Broadband
A type of data transmission in which a single medium (such as cable) carries
several channels of data at once.
Channel
An instance of medium use for the purpose of passing protocol data units that
may be used simultaneously, in the same volume of space, with other instances
of medium use (on other channels) by other instances of the same physical layer,
with an acceptably low frame error ratio due to mutual interference.
Client
A client is the desktop or mobile PC that is connected to your network.
COFDM (for 802.11a or 802.11g)
Signal power alone is not enough to maintain 802.11b-like distances in an 802.11a/
g environment. To compensate, a new physical-layer encoding technology was
designed that departs from the traditional direct-sequence technology being
deployed today. This technology is called COFDM (coded OFDM). COFDM was
developed specifically for indoor wireless use and offers performance much
superior to that of spread-spectrum solutions. COFDM works by breaking one
high-speed data carrier into several lower-speed subcarriers, which are then
WUDQVPLWWHG LQSDUDOOHO(DFK KLJKVSHHGFDUULHULV0+] ZLGHDQGLV EURNHQ
XS LQWR  VXEFKDQQHOV HDFK DSSUR[LPDWHO\  .+] ZLGH &2)'0 XVHV  RI
these subchannels for data, while the remaining four are used for error correction.
COFDM delivers higher data rates and a high degree of multipath reflection
recovery, thanks to its encoding scheme and error correction.
30 ASUS WLAN Adapter
Chapter 5
Chapter 5 - Glossary
Glossary
(DFKVXEFKDQQHOLQWKH&2)'0LPSOHPHQWDWLRQLVDERXW.+]ZLGH$WWKHORZ
end of the speed gradient, BPSK (binary phase shift keying) is used to encode 125
Kbps of data per channel, resulting in a 6,000-Kbps, or 6 Mbps, data rate. Using
quadrature phase shift keying, you can double the amount of data encoded to 250
Kbps per channel, yielding a 12-Mbps data rate. And by using 16-level quadrature
DPSOLWXGH PRGXODWLRQ HQFRGLQJ  ELWV SHU KHUW] \RX FDQ DFKLHYH D GDWD UDWH RI
0ESV7KH DJ VWDQGDUGVSHFLÀHV WKDW DOODJFRPSOLDQW SURGXFWV
must support these basic data rates. The standard also lets the vendor extend the
PRGXODWLRQVFKHPHEH\RQG0ESV5HPHPEHUWKHPRUHELWVSHUF\FOHKHUW]
that are encoded, the more susceptible the signal will be to interference and fading,
and ultimately, the shorter the range, unless power output is increased.
Default Key
This option allows you to select the default WEP key. This option allows you to
use WEP keys without having to remember or write them down. The WEP keys
generated using the Pass Phrase is compatible with other WLAN products.
The Pass Phrase option is not as secure as manual assignment.
Device Name
Also known as DHCP client ID or network name. Sometimes provided by an
ISP when using DHCP to assign addresses.
'+&3'\QDPLF+RVW&RQÀJXUDWLRQ3URWRFRO
This protocol allows a computer (or many computers on your network) to be
automatically assigned a single IP address from a DHCP server.
DNS Server Address (Domain Name System)
DNS allows Internet host computers to have a domain name and one or more IP
addresses. A DNS server keeps a database of host computers and their respective
domain names and IP addresses, so that when a user enters a domain name into
the Internet browser, the user is sent to the proper IP address. The DNS server
address used by the computers on your home network is the location of the DNS
server your ISP has assigned.
DSL Modem (Digital Subscriber Line)
A DSL modem uses your existing phone lines to transmit data at high speeds.
Direct-Sequence Spread Spectrum (for 802.11b)
Spread spectrum (broadband) uses a narrowband signal to spread the transmission
over a segment of the radio frequency band or spectrum. Direct-sequence is a
spread spectrum technique where the transmitted signal is spread over a particular
frequency range.
ASUS WLAN Adapter 31
Chapter 5
Chapter 5 - Glossary
Glossary
Direct-sequence systems communicate by continuously transmitting a redundant
pattern of bits called a chipping sequence. Each bit of transmitted data is mapped
into chips and rearranged into a pseudorandom spreading code to form the
chipping sequence. The chipping sequence is combined with a transmitted data
stream to produce the output signal.
Wireless mobile clients receiving a direct-sequence transmission use the spreading
code to map the chips within the chipping sequence back into bits to recreate the
original data transmitted by the wireless device. Intercepting and decoding a direct-
VHTXHQFHWUDQVPLVVLRQUHTXLUHVDSUHGHÀQHGDOJRULWKPWRDVVRFLDWHWKHVSUHDGLQJ
code used by the transmitting wireless device to the receiving wireless mobile
client.
7KLVDOJRULWKP LVHVWDEOLVKHGE\,(((EVSHFLÀFDWLRQV7KHELWUHGXQGDQF\
within the chipping sequence enables the receiving wireless mobile client to
recreate the original data pattern, even if bits in the chipping sequence are
corrupted by interference. The ratio of chips per bit is called the spreading ratio.
A high spreading ratio increases the resistance of the signal to interference. A
low spreading ratio increases the bandwidth available to the user. The wireless
device uses a constant chip rate of 11Mchips/s for all data rates, but uses different
modulation schemes to encode more bits per chip at the higher data rates. The
wireless device is capable of an 11 Mbps data transmission rate, but the coverage
area is less than a 1 or 2 Mbps wireless device since coverage area decreases as
bandwidth increases.
Encryption
This provides wireless data transmissions with a level of security. This option
allows you to specify a 64-bit or a 128-bit WEP key. A 64-bit encryption contains
10 hexadecimal digits or 5 ASCII characters. A 128-bit encryption contains 26
hexadecimal digits or 13 ASCII characters.
64-bit and 40-bit WEP keys use the same encryption method and can interoperate
on wireless networks. This lower level of WEP encryption uses a 40-bit (10
KH[DGHFLPDO GLJLWVDVVLJQHG E\WKHXVHUVHFUHWNH\DQGD ELW,QLWLDOL]DWLRQ
Vector assigned by the device. 104-bit and 128-bit WEP keys use the same
encryption method.
All wireless clients in a network must have identical WEP keys with the access
point to establish connection. Keep a record of the WEP encryption keys.
Extended Service Set (ESS)
A set of one or more interconnected basic service set (BSSs) and integrated
ORFDODUHDQHWZRUNV/$1VFDQEHFRQÀJXUHGDVDQ([WHQGHG6HUYLFH6HW
(66,'([WHQGHG6HUYLFH6HW,GHQWLÀHU
You must have the same ESSID entered into the gateway and each of its wireless
FOLHQWV7KH(66,'LVDXQLTXHLGHQWLÀHUIRU\RXUZLUHOHVVQHWZRUN
32 ASUS WLAN Adapter
Chapter 5
Chapter 5 - Glossary
Glossary
Ethernet
7KH PRVW ZLGHO\ XVHG /$1 DFFHVV PHWKRG ZKLFK LV GHÀQHG E\ WKH ,((( 
standard. Ethernet is normally a shared media LAN meaning all devices on the
network segment share total bandwidth. Ethernet networks operate at 10Mbps
using CSMA/CD to run over 10-BaseT cables.
Firewall
$ÀUHZDOOGHWHUPLQHVZKLFKLQIRUPDWLRQSDVVHVLQDQGRXWRIDQHWZRUN1$7FDQ
FUHDWHDQDWXUDOÀUHZDOOE\KLGLQJDORFDOQHWZRUNҋV,3DGGUHVVHVIURPWKH,QWHUQHW
A Firewall prevents anyone outside of your network from accessing your computer
DQGSRVVLEO\GDPDJLQJRUYLHZLQJ\RXUÀOHV
Gateway
$QHWZRUNSRLQWWKDWPDQDJHVDOOWKHGDWDWUDIÀFRI\RXUQHWZRUNDVZHOODVWRWKH
Internet and connects one network to another.
IEEE
The Institute of Electrical and Electronics Engineers. The IEEE sets standards
for networking, including Ethernet LANs. IEEE standards ensure interoperability
between systems of the same type.
IEEE 802.11
IEEE 802.xx is a set of specifications for LANs from the Institute of Electrical
and Electronic Engineers (IEEE). Most wired networks conform to 802.3, the
VSHFLÀFDWLRQIRU&60$&'EDVHG(WKHUQHWQHWZRUNVRUWKHVSHFLÀFDWLRQIRU
WRNHQULQJQHWZRUNVGHÀQHVWKHVWDQGDUGIRUZLUHOHVV/$1VHQFRPSDVVLQJ
three incompatible (non-interoperable) technologies: Frequency Hopping Spread
Spectrum (FHSS), Direct Sequence Spread Spectrum (DSSS), and Infrared.
802.11 specifies a carrier sense media access control and physical layer
VSHFLÀFDWLRQVIRUDQG0ESVZLUHOHVV/$1V
IEEE 802.11a (54Mbits/sec)
Compared with 802.11b: The 802.11b standard was designed to operate in
WKH *+] ,60 ,QGXVWULDO 6FLHQWLÀF DQG 0HGLFDO EDQG XVLQJ GLUHFWVHTXHQFH
spread-spectrum technology. The 802.11a standard, on the other hand, was
GHVLJQHGWRRSHUDWHLQWKHPRUHUHFHQWO\DOORFDWHG*+]81,,8QOLFHQVHG
National Information Infrastructure) band. And unlike 802.11b, the 802.11a standard
departs from the traditional spread-spectrum technology, instead using a frequency
GLYLVLRQPXOWLSOH[LQJVFKHPHWKDWVLQWHQGHGWREHIULHQGOLHUWRRIÀFHHQYLURQPHQWV
The 802.11a standard, which supports data rates of up to 54 Mbps, is the Fast
Ethernet analog to 802.11b, which supports data rates of up to 11 Mbps. Like
Ethernet and Fast Ethernet, 802.11b and 802.11a use an identical MAC (Media
Access Control). However, while Fast Ethernet uses the same physical-layer
encoding scheme as Ethernet (only faster), 802.11a uses an entirely different
encoding scheme, called OFDM (orthogonal frequency division multiplexing).
ASUS WLAN Adapter 33
Chapter 5
Chapter 5 - Glossary
Glossary
The 802.11b spectrum is plagued by saturation from wireless phones, microwave
ovens and other emerging wireless technologies, such as Bluetooth. In contrast,
802.11a spectrum is relatively free of interference.
The 802.11a standard gains some of its performance from the higher frequencies
at which it operates. The laws of information theory tie frequency, radiated power
DQG GLVWDQFH WRJHWKHU LQ DQ LQYHUVH UHODWLRQVKLS 7KXV PRYLQJ XS WR WKH *+]
VSHFWUXP IURP  *+] ZLOO OHDG WR VKRUWHU GLVWDQFHV JLYHQ WKH VDPH UDGLDWHG
power and encoding scheme.
Compared with 802.11g: 802.11a is a standard for access points and radio NICs
that is ahead of 802.11g in the market by about six months. 802.11a operates in the
*+]IUHTXHQF\EDQGZLWKWZHOYHVHSDUDWHQRQRYHUODSSLQJFKDQQHOV$VDUHVXOW
you can have up to twelve access points set to different channels in the same
area without them interfering with each other. This makes access point channel
DVVLJQPHQW PXFK HDVLHU DQG VLJQLÀFDQWO\ LQFUHDVHV WKH WKURXJKSXW WKH ZLUHOHVV
LAN can deliver within a given area. In addition, RF interference is much less likely
EHFDXVHRIWKHOHVVFURZGHG*+]EDQG
IEEE 802.11b (11Mbits/sec)
In 1997, the Institute of Electrical and Electronics Engineers (IEEE) adopted the
VWDQGDUGIRUZLUHOHVVGHYLFHVRSHUDWLQJLQWKH*+]IUHTXHQF\EDQG7KLV
standard includes provisions for three radio technologies: direct sequence spread
spectrum, frequency hopping spread spectrum, and infrared. Devices that comply
with the 802.11 standard operate at a data rate of either 1 or 2 Mbps.
In 1999, the IEEE created the 802.11b standard. 802.11b is essentially identical
to the 802.11 standard except 802.11b provides for data rates of up to 11 Mbps
for direct sequence spread spectrum devices. Under 802.11b, direct sequence
devices can operate at 11 Mbps, 5.5 Mbps, 2 Mbps, or 1 Mbps. This provides
interoperability with existing 802.11 direct sequence devices that operate only at 2
Mbps.
Direct sequence spread spectrum devices spread a radio signal over a range of
IUHTXHQFLHV7KH,(((EVSHFLÀFDWLRQDOORFDWHVWKH*+]IUHTXHQF\EDQG
into 14 overlapping operating Channels. Each Channel corresponds to a different
set of frequencies.
IEEE 802.11g
802.11g is a new extension to 802.11b (used in majority of wireless LANs today)
WKDW EURDGHQV EV GDWD UDWHV WR  0ESV ZLWKLQ WKH  *+] EDQG XVLQJ
OFDM (orthogonal frequency division multiplexing) technology. 802.11g allows
backward compatibility with 802.11b devices but only at 11 Mbps or lower,
depending on the range and presence of obstructions.
Infrastructure
A wireless network centered about an access point. In this environment, the access
point not only provides communication with the wired network but also mediates
ZLUHOHVVQHWZRUNWUDIÀFLQWKHLPPHGLDWHQHLJKERUKRRG
34 ASUS WLAN Adapter
Chapter 5
Chapter 5 - Glossary
Glossary
IP (Internet Protocol)
The TCP/IP standard protocol that defines the IP datagram as the unit of
information passed across an Internet and provides the basis for connectionless
packet delivery service. IP includes the ICMP control and error message protocol
as an integral part. It provides the functional equivalent of ISO OSI Network
Services.
IP Address
An IP address is a 32-bit number that identifies each sender or receiver of
information that is sent across the Internet. An IP address has two parts: the
LGHQWLÀHU RI D SDUWLFXODU QHWZRUN RQ WKH ,QWHUQHW DQG DQ LGHQWLÀHU RI WKH SDUWLFXODU
device (which can be a server or a workstation) within that network.
,60%DQGV,QGXVWULDO6FLHQWLÀFDQG0HGLFLQH%DQGV
Radio frequency bands that the Federal Communications Commission (FCC)
DXWKRUL]HGIRUZLUHOHVV/$1V7KH,60EDQGVDUHORFDWHGDW0+]*+]
DQG*+]
ISP (Internet Service Provider)
$Q RUJDQL]DWLRQ WKDW SURYLGHV DFFHVV WR WKH ,QWHUQHW 6PDOO ,63V SURYLGH VHUYLFH
via modem and ISDN while the larger ones also offer private line hookups (T1,
fractional T1, etc.).
LAN (Local Area Network)
$FRPPXQLFDWLRQV QHWZRUNWKDW VHUYHVXVHUV ZLWKLQ DGHÀQHG JHRJUDSKLFDO DUHD
The benefits include the sharing of Internet access, files and equipment like
printers and storage devices. Special network cabling (10 Base-T) is often used to
connect the PCs together.
MAC Address (Media Access Control)
A MAC address is the hardware address of a device connected to a network.
NAT (Network Address Translation)
1$7 PDVNV D ORFDO QHWZRUNҋV JURXS RI ,3 DGGUHVVHV IURP WKH H[WHUQDO QHWZRUN
allowing a local network of computers to share a single ISP account. This process
allows all of the computers on your home network to use one IP address. This will
enable access to the Internet from any computer on your home network without
having to purchase more IP addresses from your ISP.
NIC (Network Interface Card)
A network adapter inserted into a computer so that the computer can be connected
to a network. It is responsible for converting data from stored in the computer to the
form transmitted or received.
ASUS WLAN Adapter 35
Chapter 5
Chapter 5 - Glossary
Glossary
Packet
A basic message unit for communication across a network. A packet usually
includes routing information, data, and sometimes error detection information.
Pass Phrase
The Wireless Settings utility uses an algorithm to generate four WEP keys
based on the typed combination.
PPP (Point-to-Point Protocol)
PPP is a protocol for communication between computers using a serial interface,
typically a personal computer connected by phone line to a server.
PPPoE (Point-to-Point Protocol over Ethernet)
Point-to-Point Protocol is a method of secure data transmission. PPP using
Ethernet to connect to an ISP.
Preamble
Allows you to set the preamble mode for a network to Long, Short, or Auto. The
default preamble mode is Long.
Radio Frequency (RF) Terms: GHz, MHz, Hz
7KHLQWHUQDWLRQDOXQLWIRUPHDVXULQJIUHTXHQF\LV+HUW]+]HTXLYDOHQWWRWKH
ROGHU XQLW RI F\FOHV SHU VHFRQG 2QH PHJDKHUW] 0+] LV RQH PLOOLRQ +HUW] 2QH
JLJDKHUW]*+]LVRQHELOOLRQ+HUW]7KHVWDQGDUG86HOHFWULFDOSRZHUIUHTXHQF\LV
+]WKH$0EURDGFDVWUDGLRIUHTXHQF\EDQGLV0+]WKH)0EURDGFDVW
UDGLR IUHTXHQF\ EDQG LV  0+] DQG ZLUHOHVV  /$1V RSHUDWH DW 
*+]
66,'6HUYLFH6HW,GHQWLÀHU
SSID is a group name shared by every member of a wireless network. Only client
PCs with the same SSID are allowed to establish a connection. Enabling the
Response to Broadcast SSID requests option allows the device to broadcast
its SSID in a wireless network. This allows other wireless devices to scan and
establish communication with the device. Unchecking this option hides the SSID to
SUHYHQWRWKHUZLUHOHVVGHYLFHVIURPUHFRJQL]LQJDQGFRQQHFWLQJWRWKHGHYLFH
Station
Any device containing IEEE 802.11 wireless medium access conformity.
Subnet Mask
$VXEQHWPDVNLVDVHWRIIRXUQXPEHUVFRQÀJXUHGOLNHDQ,3DGGUHVV,WLVXVHGWR
create IP address numbers used only within a particular network.
36 ASUS WLAN Adapter
Chapter 5
Chapter 5 - Glossary
Glossary
TCP (Transmission Control Protocol)
The standard transport level protocol that provides the full duplex, stream service
on which many application protocols depend. TCP allows a process or one
machine to send a stream of data to a process on another. Software implementing
TCP usually resides in the operating system and uses the IP to transmit information
across the network.
WAN (Wide Area Network)
A system of LANs, connected together. A network that connects computers located
in separate areas, (i.e., different buildings, cities, countries). The Internet is a wide
area network.
WECA (Wireless Ethernet Compatibility Alliance)
An industry group that certifies cross-vender interoperability and compatibility
of IEEE 802.11b wireless networking products and to promote that standard for
enterprise, small business, and home environments.
WPA (Wi-Fi Protected Access)
Wi-Fi Protected Access (WPA) is an improved security system for 802.11. It is part
of the 802.11i draft security standard. WPA encompasses TKIP (Temporal Key
Integrity Protocol) along with MIC (Message Integrity Check) and other fixes to
:(3 VXFK DV :HDN ,9 ,QLWLDOL]DWLRQ 9HFWRU ÀOWHULQJ DQG 5DQGRP ,9 JHQHUDWLRQ
TKIP uses 802.1x to deploy and change temporary keys as opposed to static
:(3NH\VRQFHXVHGLQWKHSDVW,WLVDVLJQLÀFDQWLPSURYHPHQWRYHU:(3:3$
is part of a complete security solution. WPA also requires authentication servers in
enterprise security solutions.
Requirements
(1) A WPA compatible access point or Wireless router, (2) Operating system
updates that support WPA. In XP, an updated Windows Zero Config service is
needed. Users can download the Windows XP WPA patch here:
http://microsoft.com/downloads/details.aspx?FamilyId=009D8425-CE2B-47A4-
ABEC-274845DC9E91&displaylang=en
Please note that this patch requires the installation Windows XP Service Pack 1,
which is available here: http://www.microsoft.com/WindowsXP/pro/downloads/
servicepacks/sp1/default.asp
For earlier Windows Operating systems, a WPA capable supplicant is required
VXFKDV)XQN6RIWZDUHҋV2G\VVH\&OLHQW
WLAN (Wireless Local Area Network)
This is a group of computers and other devices connected wirelessly in a small
area. A wireless network is referred to as LAN or WLAN.
ASUS WLAN Adapter 37
Chapter 6 - Appendix
Chapter 6
Appendix
6. Appendix
FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party
UHVSRQVLEOH IRU FRPSOLDQFH FRXOG YRLG WKH XVHUҋV DXWKRULW\ WR RSHUDWH WKH
equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter
Safety Information
7R PDLQWDLQ FRPSOLDQFH ZLWK )&&ҋV 5) H[SRVXUH JXLGHOLQHV WKLV HTXLSPHQW
should be installed and operated with minimum distance 20cm between the
radiator and your body. Use on the supplied antenna.
Declaration of Conformity for R&TTE directive 1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are
FRQVLGHUHGUHOHYDQWDQGVXIÀFLHQW
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has
EHHQFRQGXFWHG7KHVHDUHFRQVLGHUHGUHOHYDQWDQGVXIÀFLHQW
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328- 2 has been conducted. These are
FRQVLGHUHGUHOHYDQWDQGVXIÀFLHQW
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
EHUᛋᄬ
གྷݭёᄮᙋЪॾ̝ҲΑதडᐛ࿪፟ĂܧགྷధΞĂ̳Φăથֹཱིٕϡ۰Ӯ̙଀ጽҋតՀᐛதă
ΐ̂ΑதٕតՀࣧనࢍ̝পّ̈́ΑਕĄ
ҲΑதडᐛ࿪ֹ̝፟ϡ̙଀ᇆᜩࢳਝщБ̈́̒ᕘЪڱ఼ܫćགྷ൴னѣ̒ᕘன෪ॡĂᑕϲӈ
ઃϡĂ֭ԼචҌ൑̒ᕘॡ͞଀ᚶᜈֹϡĄ
݈ีЪڱ఼ܫĂ޽ֶ࿪ܫڱఢؠүຽ̝൑ቢ࿪఼ܫĄ
ҲΑதडᐛ࿪፟ืԡצЪڱ఼ܫٕ̍ຽăࡊጯ̈́ᗁᒚϡ࿪گᏬडّ࿪፟న౯̝̒ᕘĄ
38 ASUS WLAN Adapter
Chapter 6
Appendix
Chapter 6 - Appendix

Navigation menu
