1. Introduction
ASUS Wireless Router 5
Chapter 1 - Introduction
1. Introduction
Overview
Thank you for purchasing the ASUS Wireless Router. The ASUS Wireless
Router, WL-520g, complies with IEEE 802.11g and 802.11b standards. The
802.11g is as extension to 802.11b (used in majority of wireless LANs
today) that broadens 802.11b’s data rates to 54 Mbps within the 2.4 GHz
band using OFDM (orthogonal frequency division multiplexing) technology.
The 802.11g allows backward compatibility with 802.11b devices but only
at 11 Mbps or lower, depending on the range and presence of obstructions.
Wireless LANs are complementary extensions to existing wired LANs,
offering complete mobility while maintaining continuous network
connectivity to both corporate and home Intranets. They add a new level of
convenience for LAN users. PC users stay connected to the network
anywhere throughout a building without being bound by a LAN wires.
This is accomplished through the use of Access Point functionality of ASUS
Wireless Routers. ASUS Wireless Router with built-in Internet gateway
capability, allows your family to share a broadband Modem and one ISP
account simultaneously from different rooms without wires! ASUS Wireless
products can keep you connected anywhere, any time.
System Requirements
To begin using the ASUS WL-520g Wireless Router, you must have the
following minimum requirements:
• ADSL/Cable Modem and Broadband Internet Account.
• An Ethernet (10Base-T or 10/100Base-TX) adapter for wired client
• At least one 802.11g (54Mbps) or one 802.11b (11Mbps) wireless adapter
for wireless mobile clients
• TCP/IP and an Internet browser installed
The Product Package
The Wireless Router comes with:
• Wireless Router • Quick Start Guide
• Power adapter (5 Volts DC) • Support CD (with User’s Manual)
• RJ-45 Ethernet cable (straight-through)
1. Introduction
Chapter 1 - Introduction
6 ASUS Wireless Router
Features
125 High Speed Mode
The WL-520g wireless router uses the 802.11g OFDM standard to allow
fast 54Mbps wireless data transfers while remaining fully compatible with
previous 802.11b devices. With “Afterburner” technology, WL-520g can
boost wireless transfer speeds by 35% compared with standard 802.11g
speeds. (Afterburner support is also required on client side.)
Wi-Fi Multimedia (WMM)
WMM enhances wireless transfers of multimedia contents, providing
wireless network users an improved experience for sharing audio and video
files. WMM is a profile of the upcoming IEEE 802.11e Quality of Service
(QoS) extensions for 802.11 networks. QoS and multimedia support are
critical to wireless home networks, which require video on demand, audio
on demand, voice over IP and high-speed Internet access. (WMM support
is also required on client side.)
Wi-Fi Protected Access 2 (WPA2™)
WPA2 is the next-generation Wi-Fi security standard, combining the most
powerful authentication and encryption techniques, such as the Advanced
Encryption Standard (AES) to provide government grade security to protect
wireless networks from unauthorized use. WPA2 is designed to be backward
compatible with the original WPA standard, and therefore, WPA2 also
supports TKIP, AES, WPA, WPA-PSK and 802.1x authenticated WPA
networks. WEP, ACL and SPI firewall are also included to make sure
information doesn’t fall into the wrong hands.
ASUS EZSetup Wizard
Adopting a unique push button design, ASUS’ Wireless Router Series greatly
streamlines the setup process for beginners. Just press the button located
on the back of the device and use the simple ASUS EZSetup Wizard utility.
The routers will automatically register various wireless-capable devices
onto the network and activate security standards.
Parental Control / Children Protection
With specific keywords in URL setting within a pre-defined time interval,
this home wireless router will do web based filtering parental control to
filter/block adult content from newsgroups or websites. It is a router-based
filter, not PC-based, so you just make settings one time to keep all household
internet devices protected.
1. Introduction
ASUS Wireless Router 7
Chapter 1 - Introduction
The ASUS WLAN 802.11g
Access Point (WL-300g) creates
a wireless network using the
IEEE 802.11g and 802.11b
wireless standards.

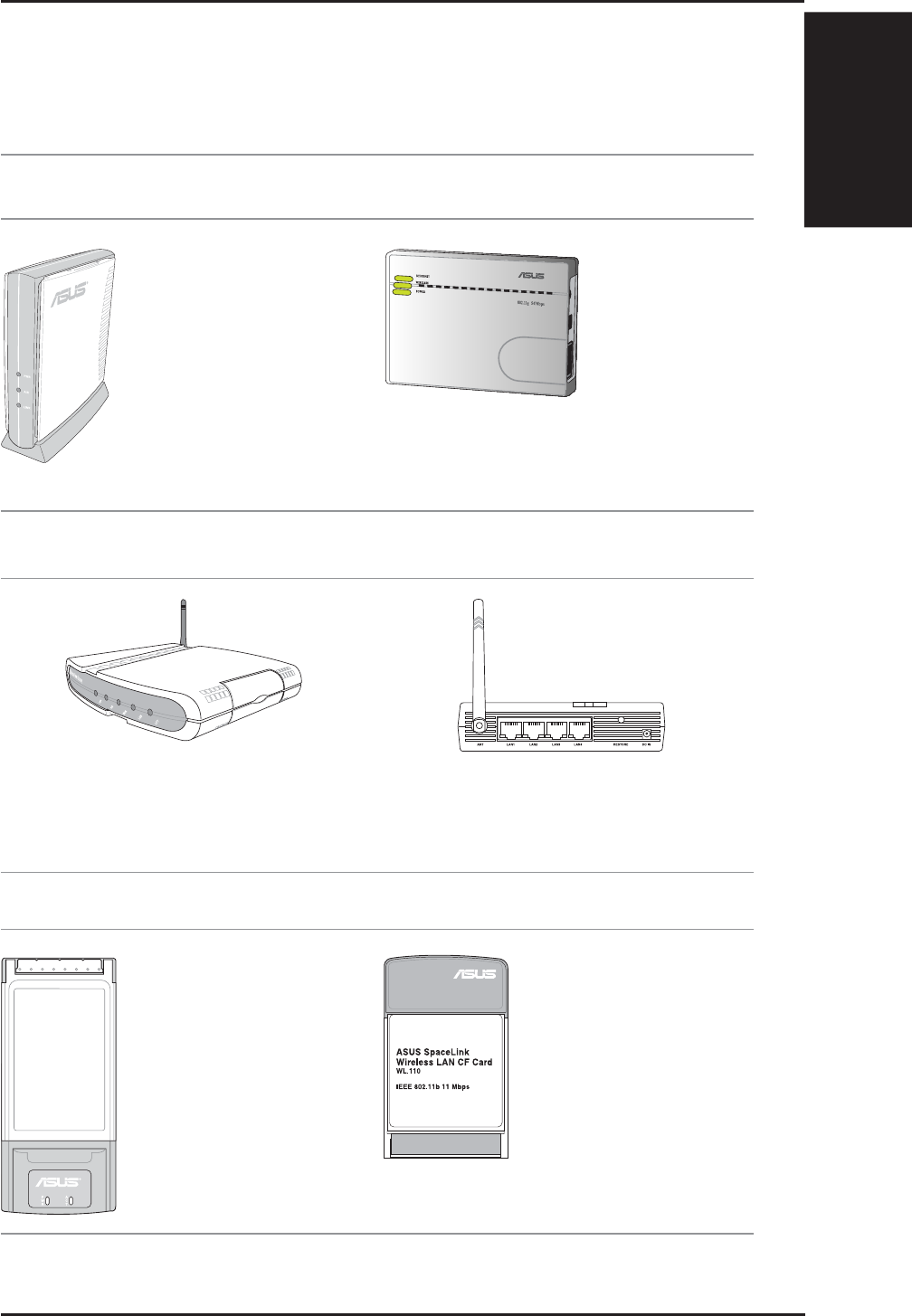

The ASUS Wireless Family
The ASUS Wireless family contains a several wireless network solutions for
802.11g & 802.11b wireless local area networks in the home or office.

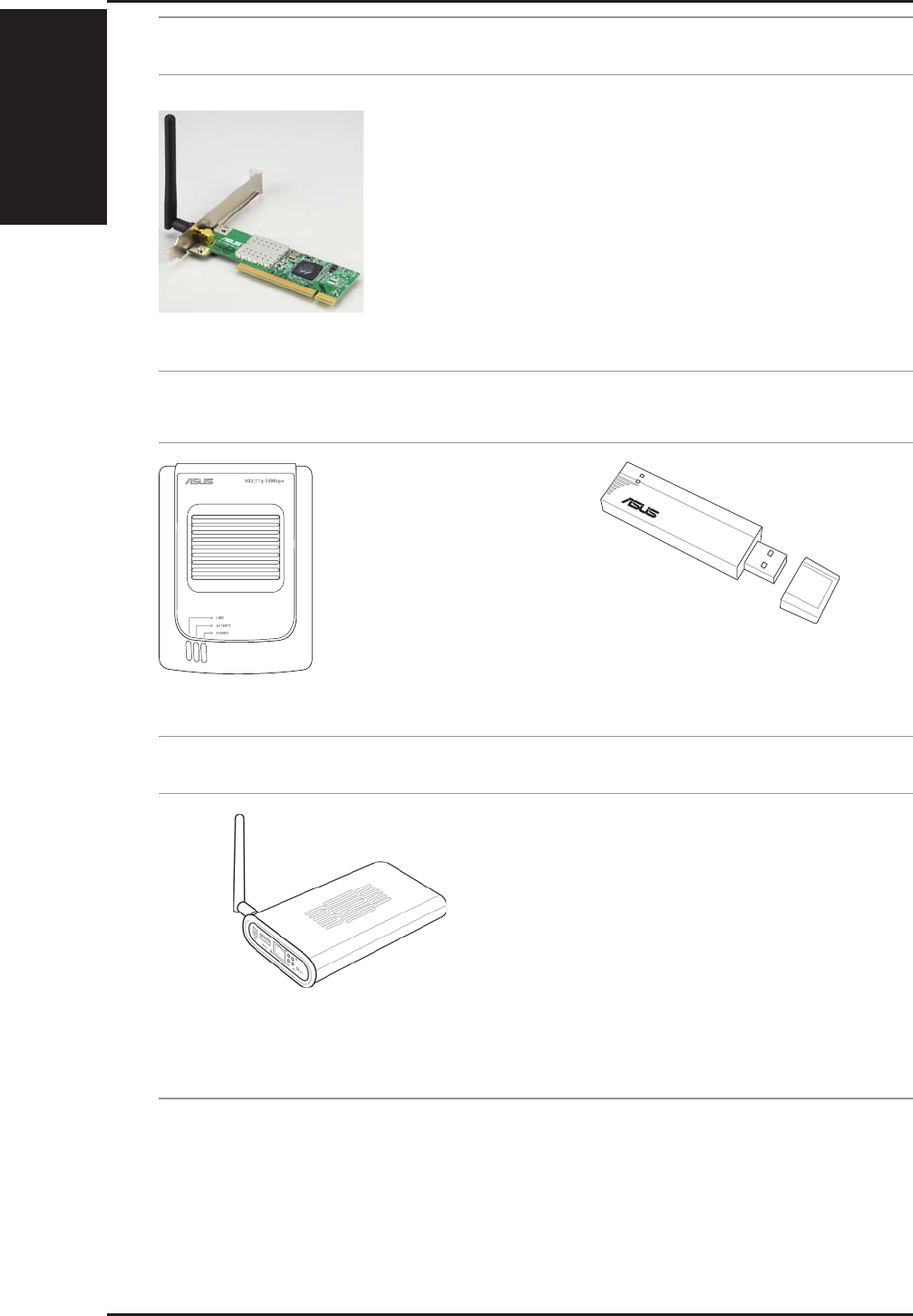

The ASUS 802.11b Wireless
CF Card (WL-110) is a IEEE
802.11b wireless LAN adapter
that fits into a Compact Flash
Type II slot in a Portable
Digital Assistant (PDA).
The ASUS WLAN PC Card
(WL-107g) is a wireless LAN
adapter that fits into a PCMCIA
Type II slot in a Notebook PC and
creates a wireless network using
the IEEE 802.11g/b wireless
standards.
The ASUS WLAN Gateway (WL-500g) creates a
wireless network using the IEEE 802.11g/b wireless
standards and allows sharing a single Internet
connection.
The ASUS 3 in 1
Pocket Access Point
(WL-330g) creates a
wireless network
using the IEEE
802.11g/b wireless
standards.
(The illustrations are not to scale.)
Access Point or Client
Access Point & Router
PCMCIA Client Compact Flash (CF) Client
The ASUS WLAN 802.11g Pocket Router (WL-
530g) creates a wireless network using the IEEE
802.11g and 802.11b wireless standards and allows
sharing a single Internet connection.
1. Introduction
Chapter 1 - Introduction
8 ASUS Wireless Router
The ASUS USB Wireless LAN Adapter (WL-167g)
is thumb-sized and creates a wireless network using
the IEEE 802.11g/b wireless standards and connects
to any computer using USB2.0 connectivity.
The ASUS USB Wireless
LAN Adapter (WL-160g)
creates a wireless network
using the IEEE 802.11g/b
wireless standards and
connects to any computer
using USB2.0 connectivity.
The ASUS WLAN
PCI Card (WL-
138g) is a wireless
LAN adapter that fits
into a standard PCI
slot in a desktop PC
and creates a wireless
network using the
IEEE 802.11g/b
wireless standards.
(The illustrations are not to scale.)
USB Access Point or Client USB Client
PCI Client
802.11g 54Mbps
Access Point & File Server
The ASUS WLAN 802.11g Access Point (WL-
HDD) creates a wireless network using the IEEE
802.11g and 802.11b wireless standards. Also serves
as a file server (wireless network attached storage).
1. Introduction
ASUS Wireless Router 9
Chapter 1 - Introduction
Wireless Client
Wireless Client
ASUS Wireless Router
LAN
Wireless
Wired Client
Network Topology
The settings that you need to perform will vary depending on the role that
your ASUS Wireless Router will play.
Network Backbone
No software setting is necessary in the ASUS Wireless Router.
In this topology, the wireless router connects your wired and wireless devices
together to form a local area network (LAN), as shown. To connect a
computer (or other device) to the ASUS Wireless Router, you need a network
cable (UTP-Cat5) with one end connected to one of the LAN ports on the
back of the ASUS Wireless Router and the other in the 10/100 LAN port on
that device. For wireless connections, wireless mobile clients must comply
with the IEEE 802.11b standard.
1. Introduction
Chapter 1 - Introduction
10 ASUS Wireless Router
Wireles
s
ASUS Wireless Router
I
nternet Service Provider
Wired Client
Wireless Client
Wireless Client
WAN
LAN
ADSL or Cable Modem
Internet

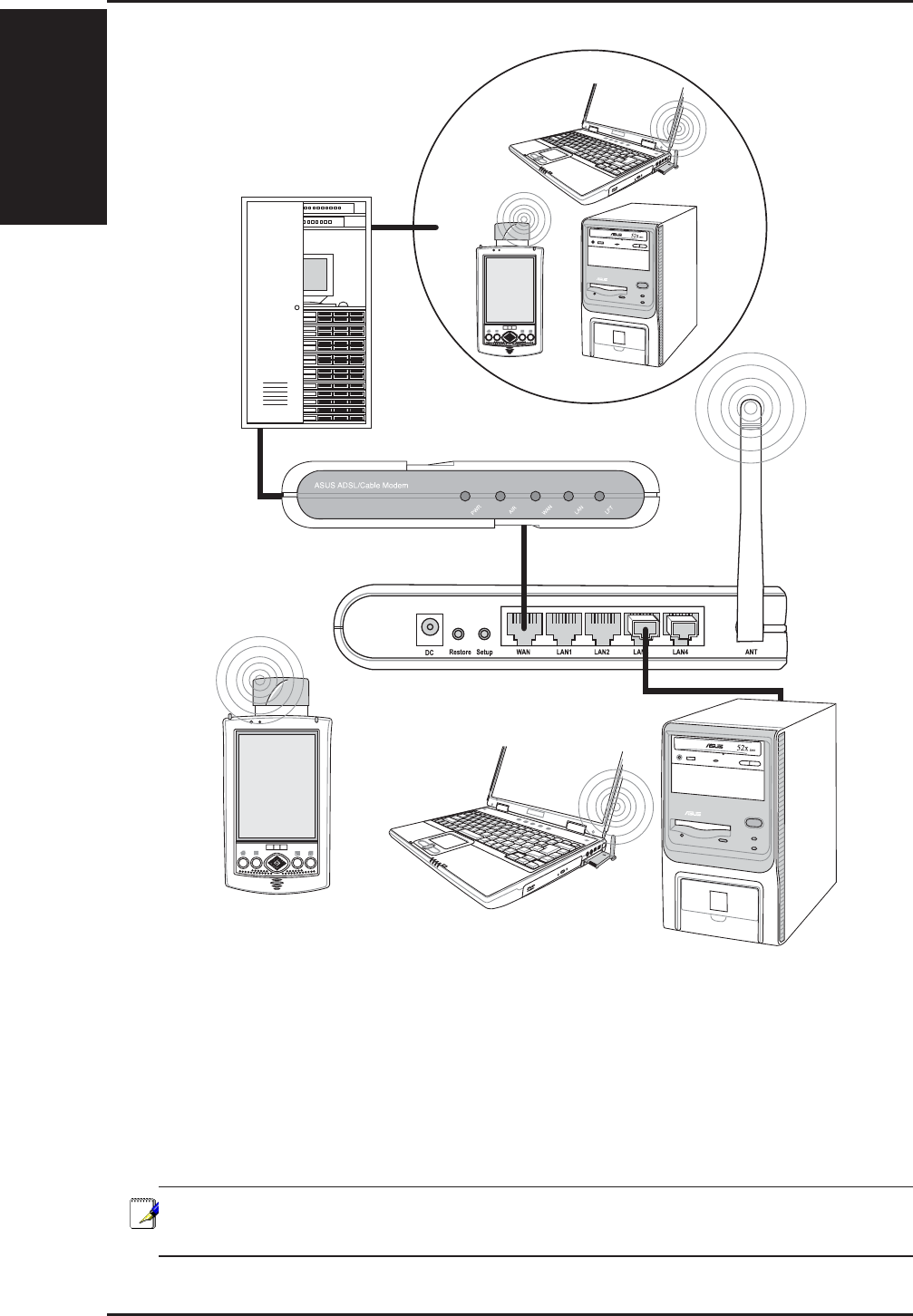

Agent to an ISP
In this topology, the wireless router is not only a backbone of your LAN
but also an agent to your Internet Service Provider (ISP). You may use an
ADSL or Cable modem to communicate with your ISP. Connect the LAN
port on the modem with the WAN port at the back of the ASUS Wireless
Router using a network cable as shown above.
Note: You also need to make sure that other connections on the
ADSL or Cable modem are correct.
1. Introduction
ASUS Wireless Router 11
Chapter 1 - Introduction
Wireless
Wired Client
Wireless Client
Wireless Client
ASUS Wireless Router
WAN
LAN
Network Backbone
Agent to Another Network
In this topology, the wireless router is an agent between your LAN and
another network. Use a network cable with one end connected to the WAN
port on the wireless router and the other to the other network as shown
above.
1. Introduction
Chapter 1 - Introduction
12 ASUS Wireless Router

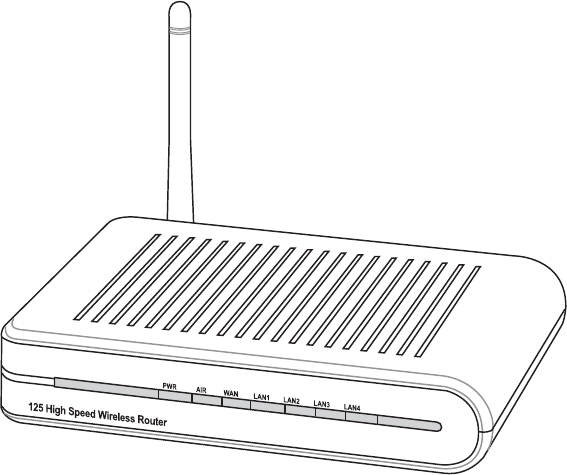

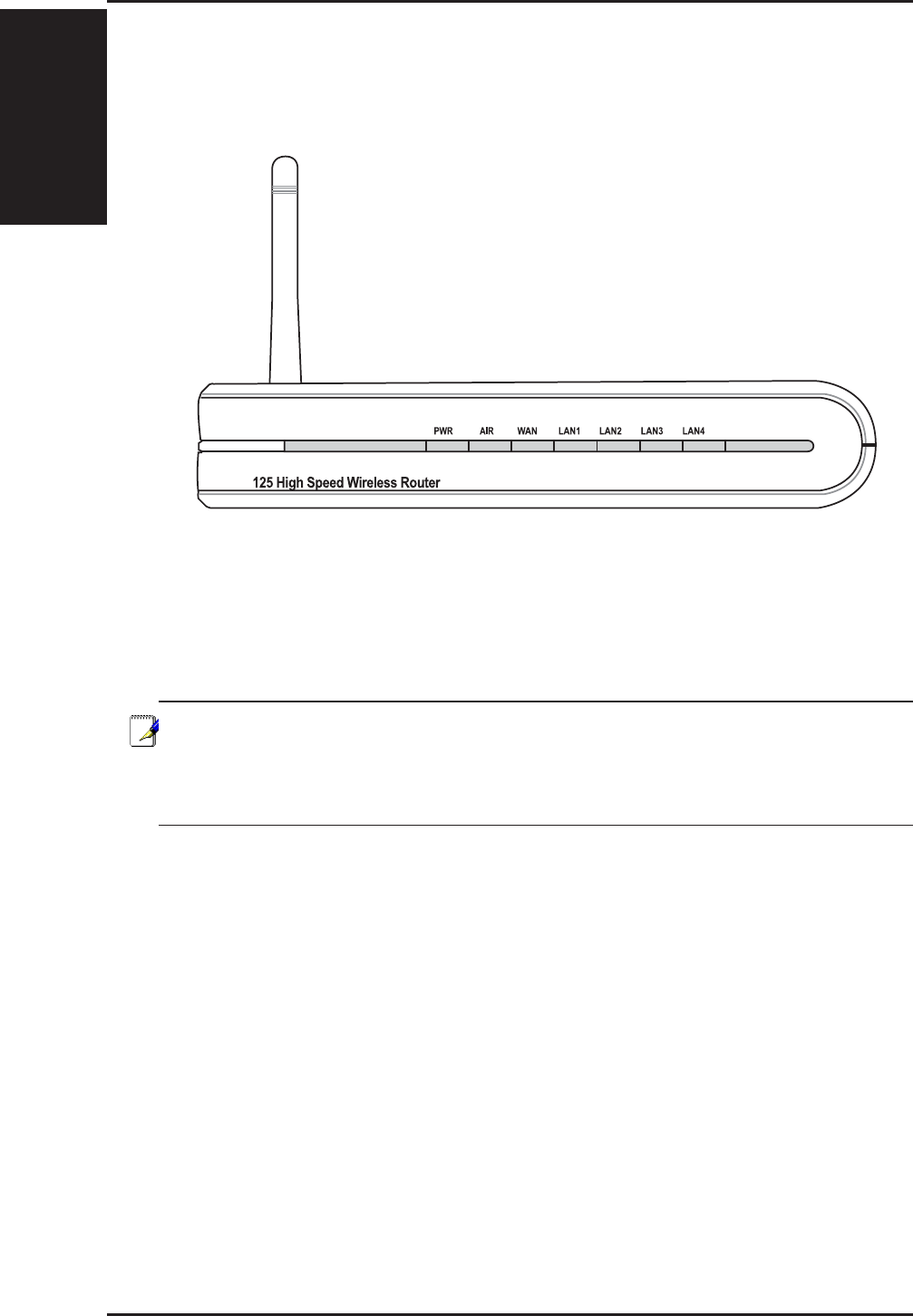

LED Indicators
The LEDs on the front of the ASUS Wireless Router display the status of
the ASUS Wireless Router.
PWR (Power)
Off No power
On System ready
Flashing-slow
Firmware upgrade failed
Flashing-quick
EZsetup processing
Note: If the setup button is pushed without running the EZsetup
wizard utility, the PWR indicator will flash and Internet connections
will pause for a short period but will then return to normal opera-
tion without changes.
AIR (Wireless Network)
Off No power
On Wireless system ready
Flashing Transmitting or receiving data (wireless)
WAN (Wide Area Network)
Off No power
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (through Ethernet wire)
LAN 1-4 (Local Area Network)
Off No power
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (through Ethernet wire)
2. Installation
Chapter 2 - Installation
ASUS Wireless Router 13
2. Installation Procedure
Follow these steps to install the ASUS Wireless Router.
1. Determine the best location for the ASUS Wireless Router. Keep in mind
the following considerations:
• The length of the Ethernet cable that connects the ASUS Wireless
Router to the network must not exceed 100 meters.
• Try to place the ASUS Wireless Router on a flat, sturdy surface as
far from the ground as possible, such as on top of a desk or book-
case, keeping clear of obstructions and away from direct sunlight.
• Try to centrally locate the ASUS Wireless Router so that it will pro-
vide coverage to all of the wireless mobile devices in the area. Orien-
tating the antenna vertically should provide the best reception.
• Use only the power supply that came with this unit. Other power
supplies may fit but the voltage and power may not be compatible.
2. Wall mounting or vertical standing is also possible.
Important: It is the responsibility of the installer and users of the
ASUS Wireless Router to guarantee that the antenna is operated at
least 20 centimeters from any person. This is necessary to insure
that the product is operated in accordance with the RF Guidelines
for Human Exposure which have been adopted by the Federal Com-
munications Commission.
Wall Mounting Option
Out of the box, the ASUS Wireless Router is designed to sit on a
raised flat surface like a file cabinet or book shelf. The unit may
also be converted for mounting to a wall or ceiling.
Follow these steps to mount the ASUS Wireless Router to a wall:
1. Look on the underside for the mounting hooks.
2. Mark two upper holes in a flat surface using the provided hole template.
3. Tighten two screws until only 1/4” is showing.
4. Latch the upper two hooks of the ASUS Wireless Router onto the screws.
Note: Readjust the screws if you cannot latch the ASUS Wireless
Router onto the screws or if it is too loose.
Chapter 2 - Installation
2. Installation
14 ASUS Wireless Router
Warning: Use the ASUS Wireless Router only with the power adapter
supplied in the product package. Using another power supply may
damage the ASUS Wireless Router.

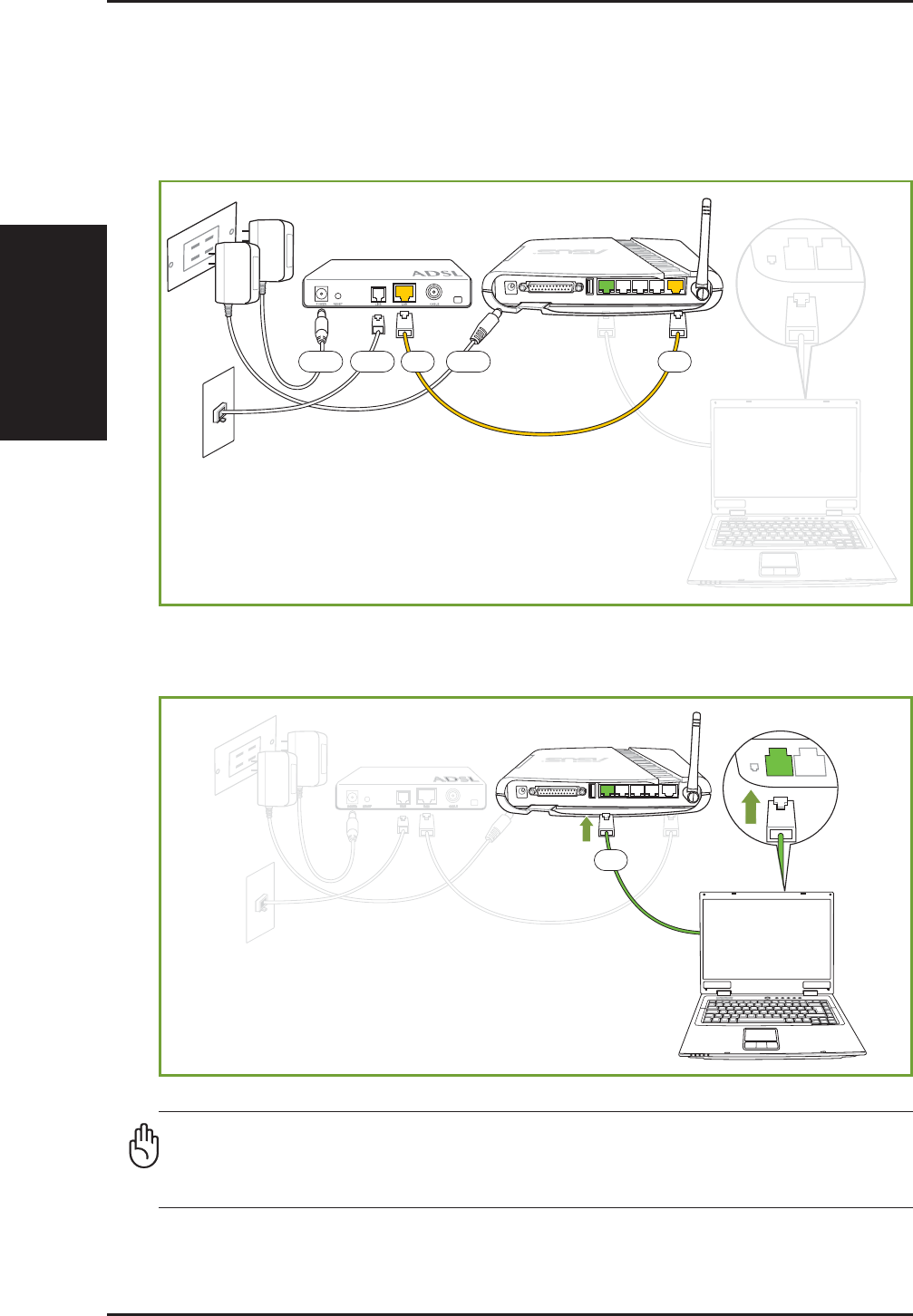

Connections

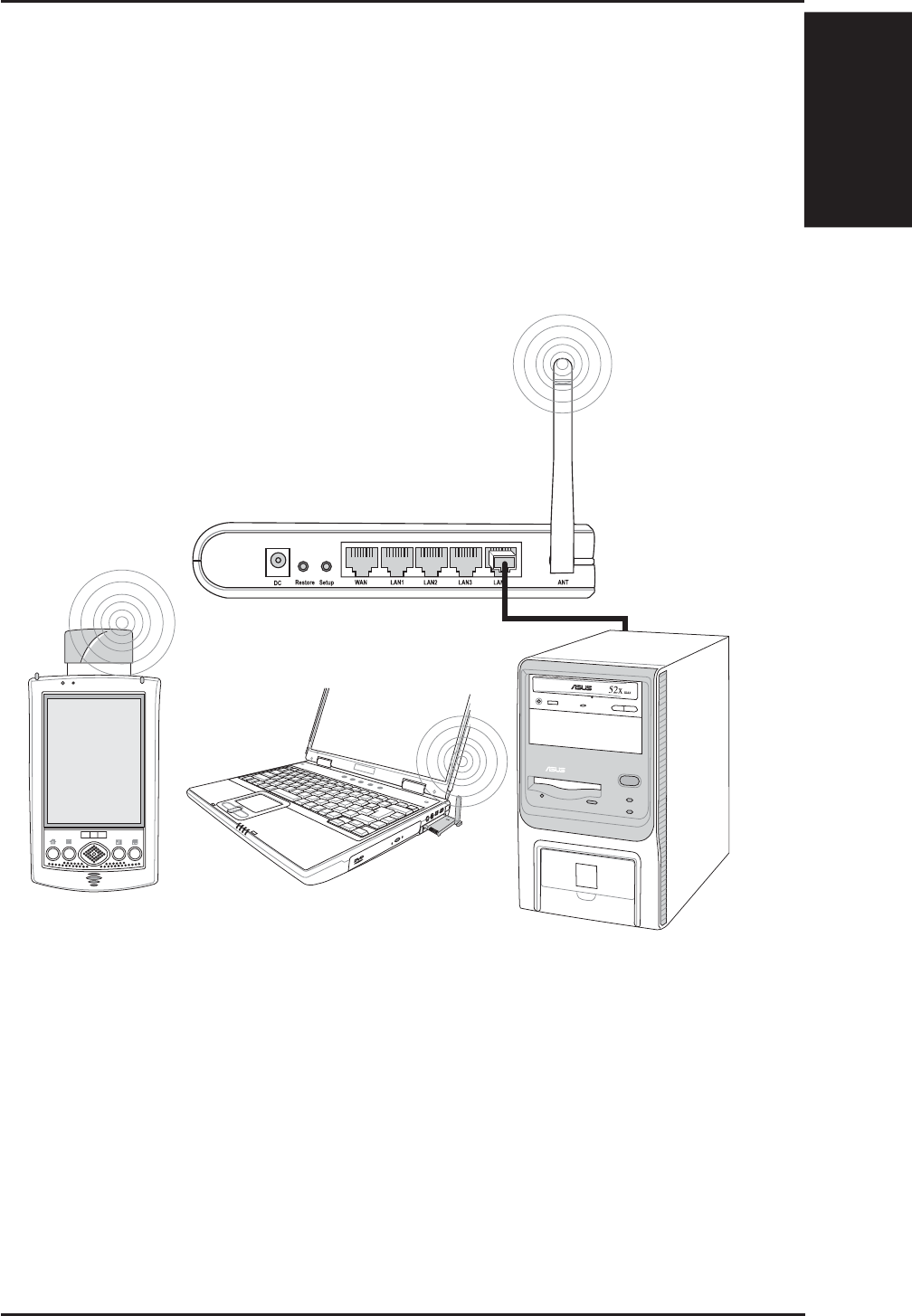

Connect your ADSL Modem and Wireless Router as shown in the illustration. A
LAN cable must be connected between the LAN port on the ADSL and the
WAN port on the Wireless Router.
Connect the Wireless Router to your computer through the LAN port.
ADSL Modem Wireless Router
Telephone Jack
Power Phone LAN LANPower
Wireless Client
Wireless Router
LAN
3. Utilities
ASUS Wireless Router 15
Chapter 3 - Software Configuration
3. Software Configuration
Configuring the ASUS Wireless Router
The ASUS Wireless Router can be configured to meet various usage
scenarios. Some of the factory default settings may suit your usage; however,
others may need changing. Prior to using the ASUS Wireless Router, you
must check the basic settings to guarantee it will work in your environment.
Configuring the ASUS Wireless Router is done through a web browser.
You need a Notebook PC or desktop PC connected to the ASUS Wireless
Router (either directly or through a hub) and running a web browser as a
configuration terminal. The connection can be wired or wireless. For the
wireless connection, you need an IEEE 802.11g/b compatible device, e.g.
ASUS WLAN Card, installed in your Notebook PC. You should also disable
WEP and set the SSID to “default” for your wireless LAN device. If you
want to configure the ASUS Wireless Router or want to access the Internet
through the ASUS Wireless Router, TCP/IP settings must be correct.
Normally, the TCP/IP setting should be on the IP subnet of the ASUS
Wireless Router.
Note: Before rebooting your computer, the ASUS Wireless Router
should be switched ON and in ready state.
Connecting to the ASUS Wireless Router
Wired Connection
One RJ-45 cable is supplied with the ASUS Wireless Router. Auto crossover
function is designed into the ASUS Wireless Router so you can use either a
straight-through or a crossover Ethernet cable. Plug one end of the cable
into the WAN port on the rear of the ASUS Wireless Router and the other
end into the Ethernet port of your ADSL or Cable modem.
Wireless-Connection
Refer to your wireless adapter user’s manual on associating with the ASUS
Wireless Router. The default SSID of the ASUS Wireless Router is “default”
(lower case), encryption is disabled and open system authentication is used.
3. Utilities
16 ASUS Wireless Router
Chapter 3 - Software Configuration

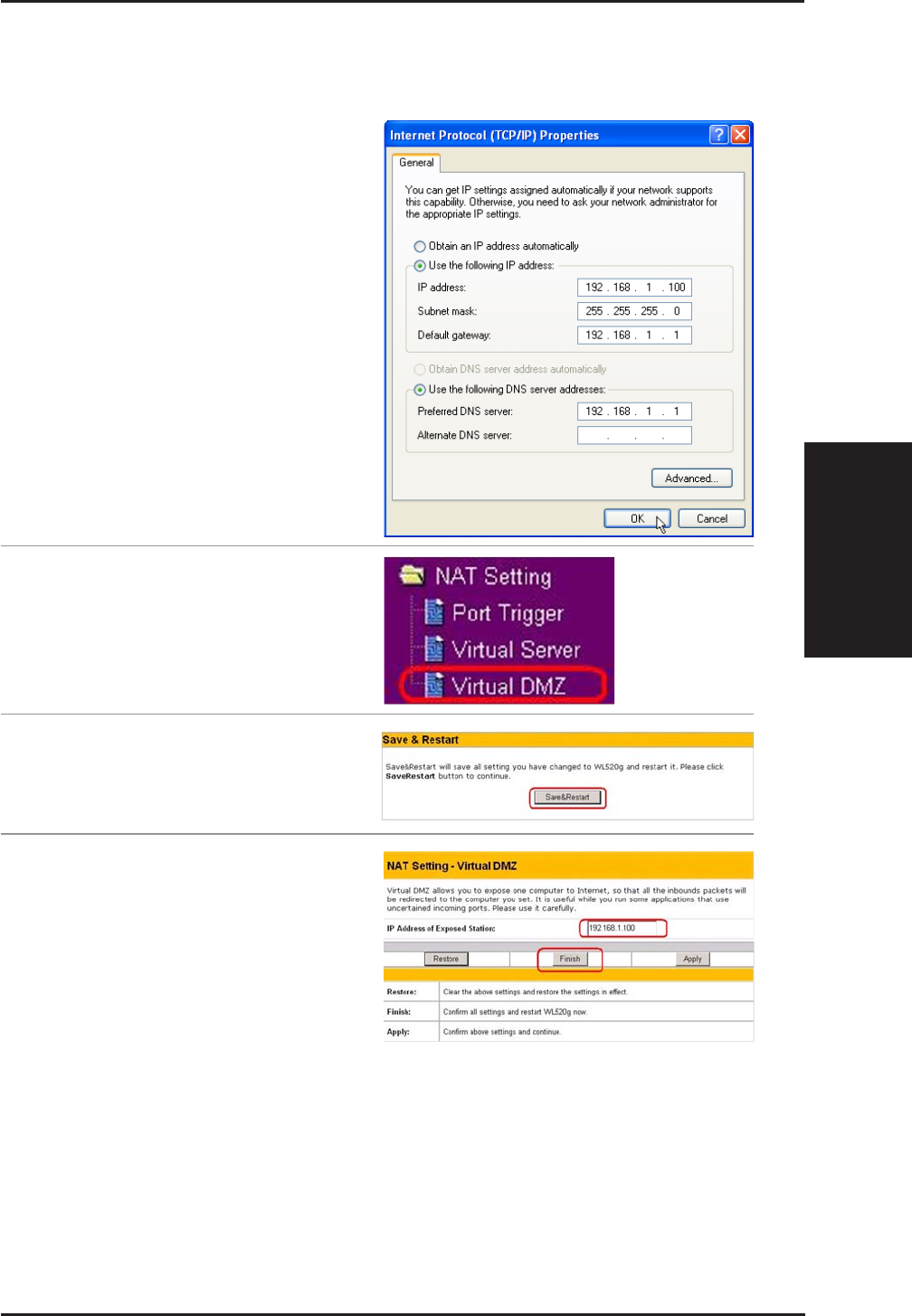

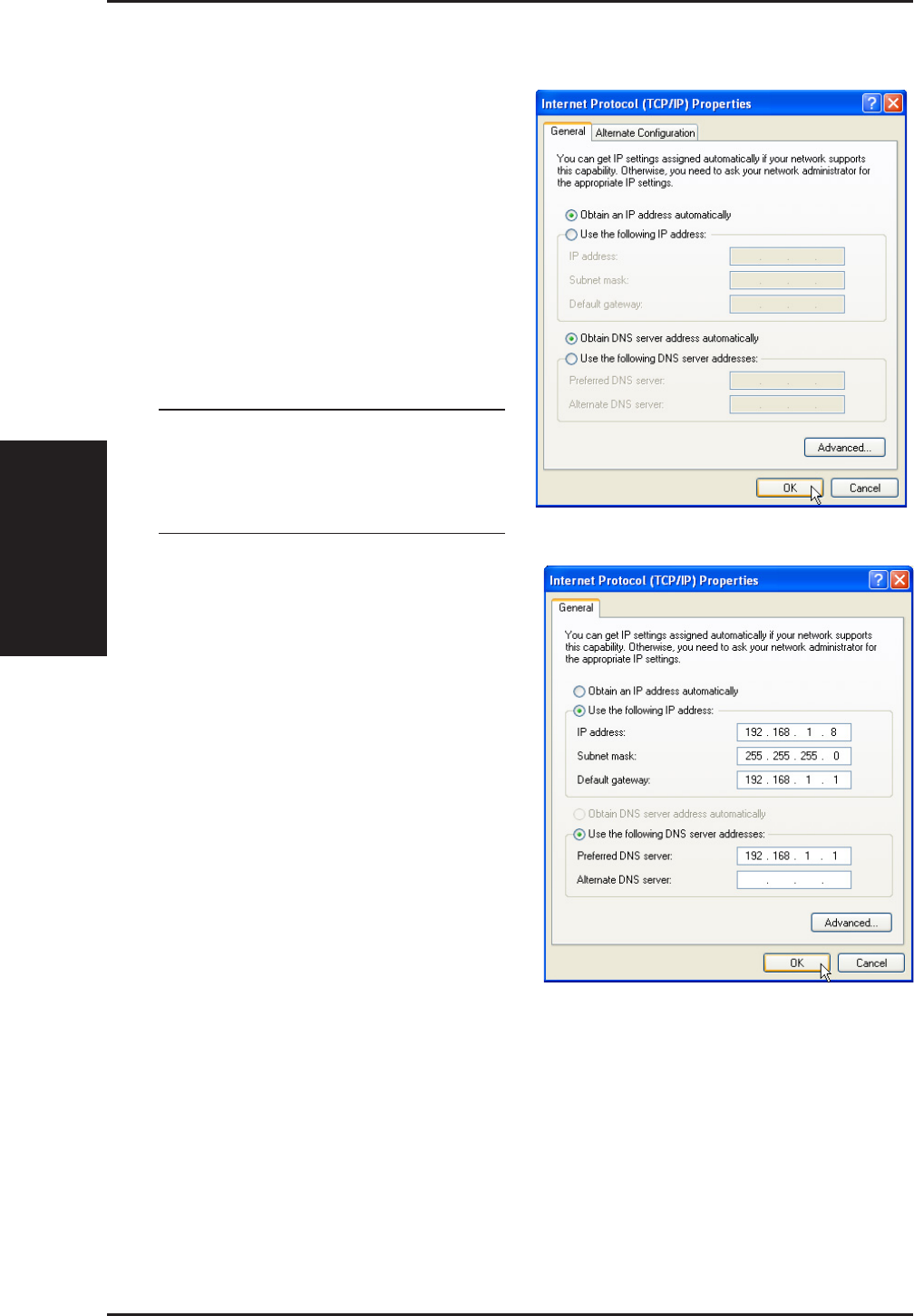

Setting IP Manually
If you want to set your IP address
manually, the following default
settings of the ASUS Wireless
Router should be known:
• IP address 192.168.1.1
• Subnet Mask 255.255.255.0.
If you set your computer’s IP
manually, it needs to be on the same
segment. For example:
• IP address 192.168.1.xxx (xxx
can be any number between 2
and 254 that is not used by
another device)
• Subnet Mask 255.255.255.0 (same as the ASUS Wireless Router)
• Gateway 192.168.1.1 (this is the ASUS Wireless Router)
• DNS 192.168.1.1 (ASUS Wireless Router IP address or your own).
Setting IP address for Wired or Wireless Connection
Get IP Automatically
The ASUS Wireless Router
incorporates a DHCP server so the
easiest method is to set your PC to
get its IP address automatically and
reboot your computer. So the
correct IP address, gateway, DNS
(Domain Name System Server)
can be obtained from the ASUS
Wireless Router.
Note: Before rebooting your
PC, the ASUS Wireless Router
should be switched ON and in
ready state.
3. Utilities
ASUS Wireless Router 17
Chapter 3 - Software Configuration

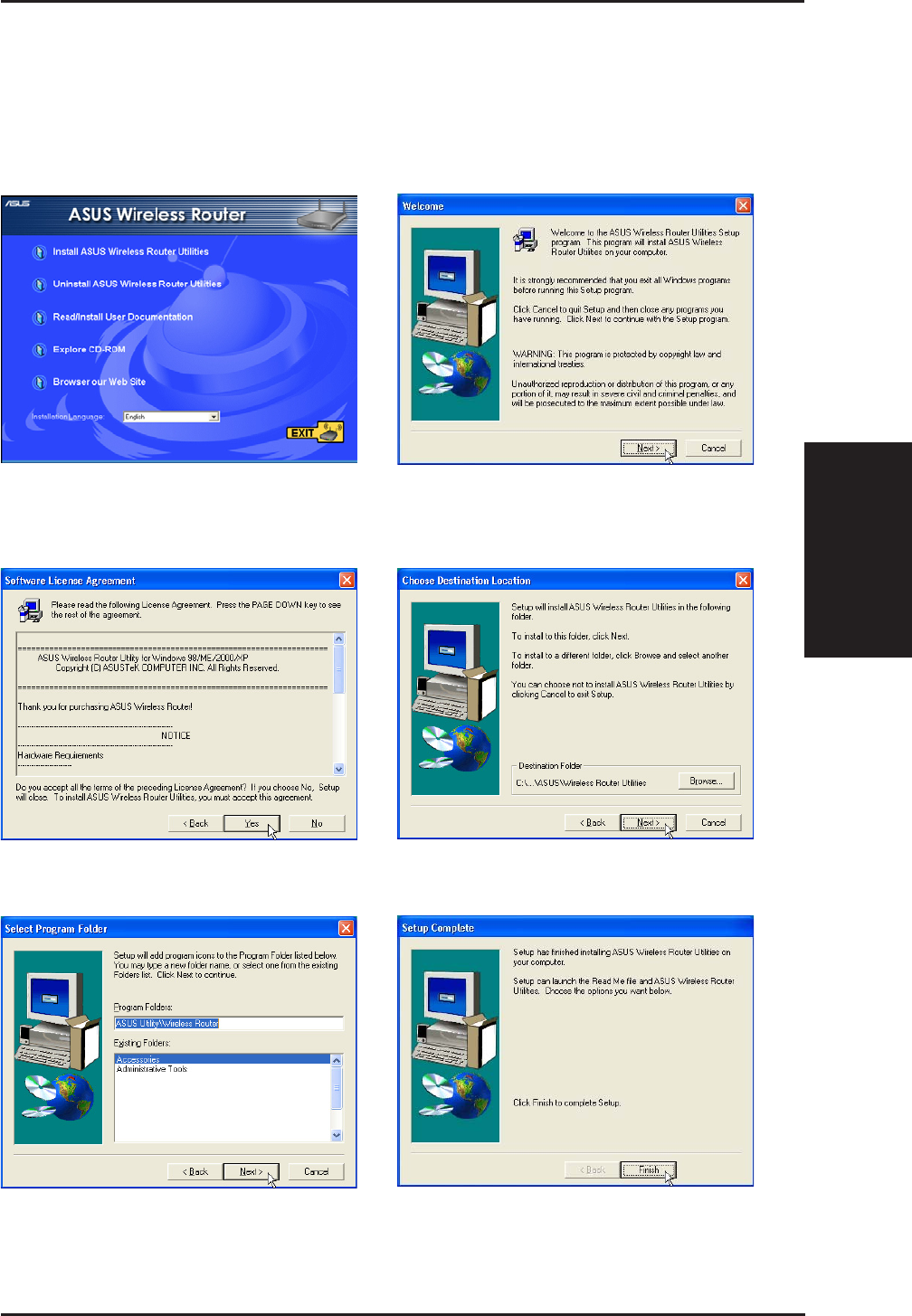

Installing the ASUS Wireless Router Utilities
Follow these steps to install the ASUS Wireless Router Utilities in Microsoft
Windows. Insert the support CD provided with the ASUS Wireless Router and
the menu will appear. (Double-click setup.exe if your autorun has been disabled.)
(1) Select a language and click Install
ASUS Wireless Router Utilities.(2) Click Next after reading the welcome
screen.
(3) Click Yes after reading the license
agreement.
(5) Click Next to accept the default
program folder or enter another.
(4) Click Next to accept the default
destination folder or enter another.
(6) Click Finish when setup is complete.
3. Utilities
18 ASUS Wireless Router
Chapter 3 - Software Configuration
Using the Wireless Router for the First Time
1. ASUS Wireless Router Utilities

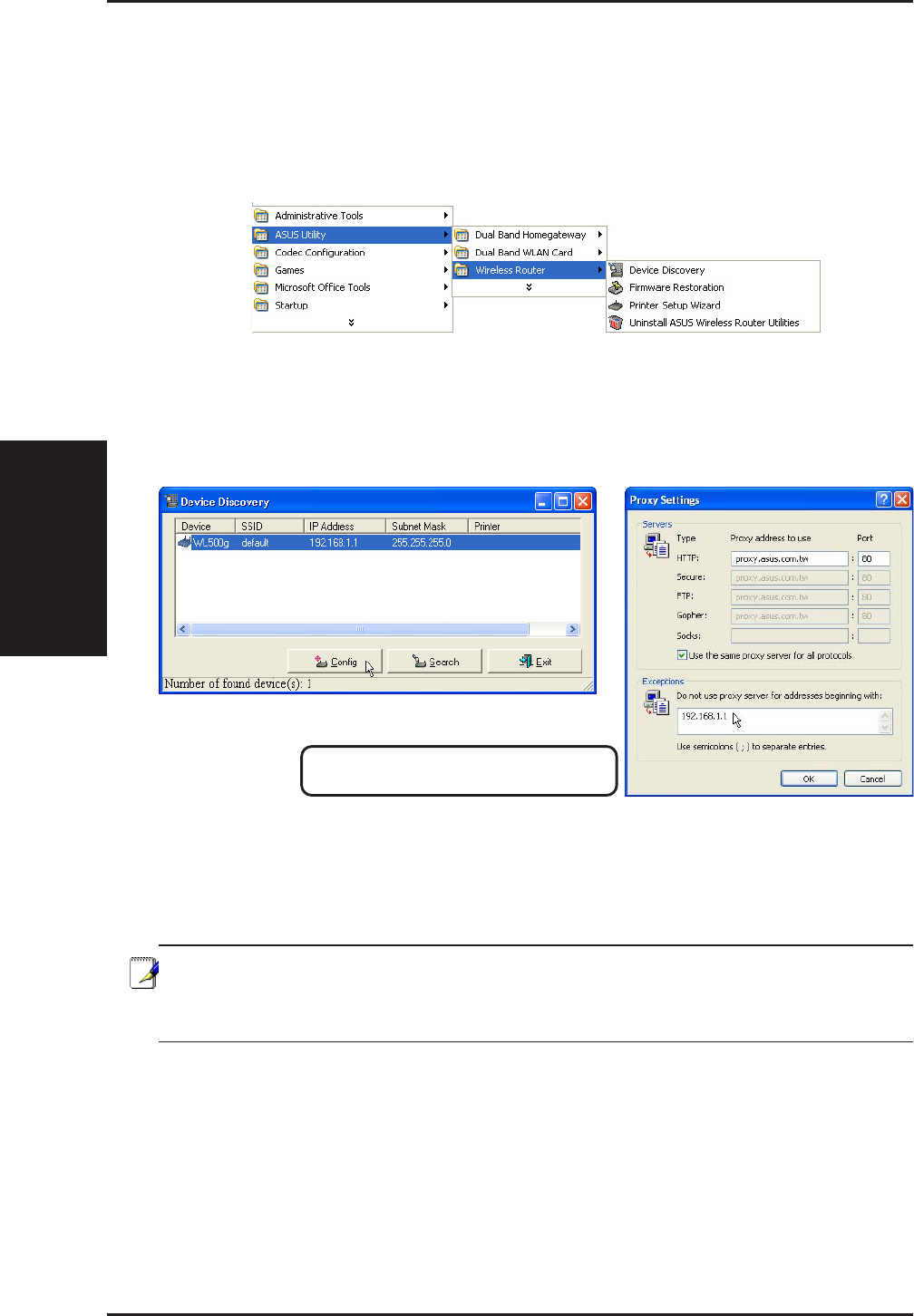

Run Device Discovery from “ASUS Utility” in Windows Start Programs.
If your computer’s IP is not on the same subnet as the ASUS Wireless Router
(192.168.1.X), you will be asked to change it. The IP address can be any number
from 2 to 254 that is not used by another device. Gateway is not required.
Note: Using a proxy server (Microsoft® Internet Explorer) for your
LAN requires that you set an exception for the ASUS Wireless Router
or else connection will fail.
Add 192.168.1.1 in the Exceptions box if you are
using a proxy server (Microsoft® Internet Explorer).
2. Connect to the ASUS WLAN Web Manager
Run the ASUS WLAN Device Discovery from the Start menu and click
Config when the device is found.
Enter Address or Name Manually
You can also open your PC’s web browser and enter the name or the default
IP address of the ASUS Wireless Router:
http://my.router or http://my.WL-520g or http://192.168.1.1
3. Utilities
ASUS Wireless Router 19
Chapter 3 - Software Configuration

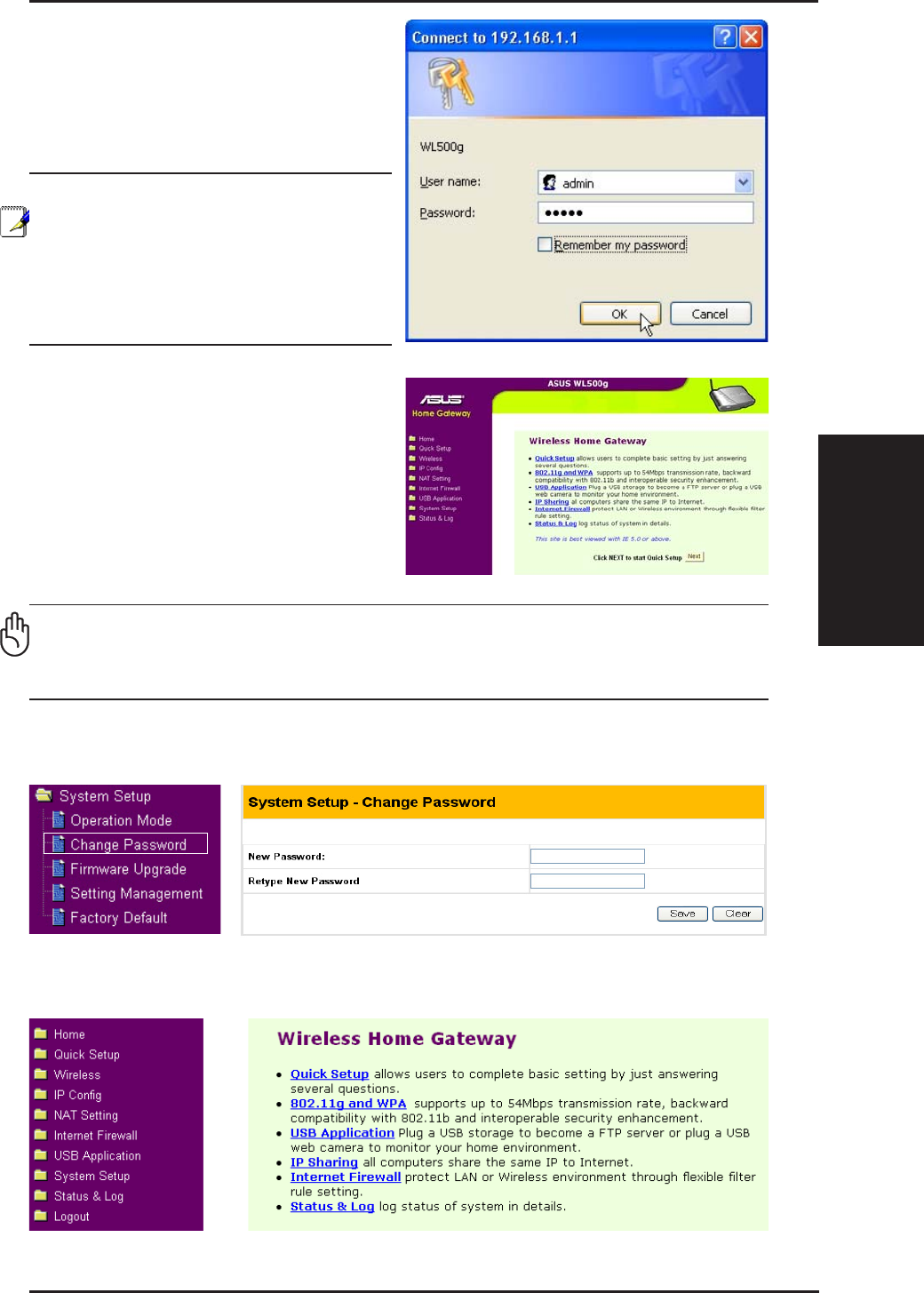

User Name & Password
Once connected, a window will ask
for the “User name” and “Password”
in order to log in. The factory default
values are “admin” and “admin”.
Note: If you cannot find any the
ASUS Wireless Routers due to
a problem in the IP settings,
push and hold the “Restore”
button over five seconds to re-
store factory default settings.
Home Page
After logging in, you will see the
ASUS Wireless Router home page.
3. Set your own password
IMPORTANT: After entering information on any page, click the
“Apply”, “Save”, or “Finished” button. If you click any other link,
you will be directed to another page and lose your new settings.
4. Use Quick Setup
3. Utilities
20 ASUS Wireless Router
Chapter 3 - Software Configuration

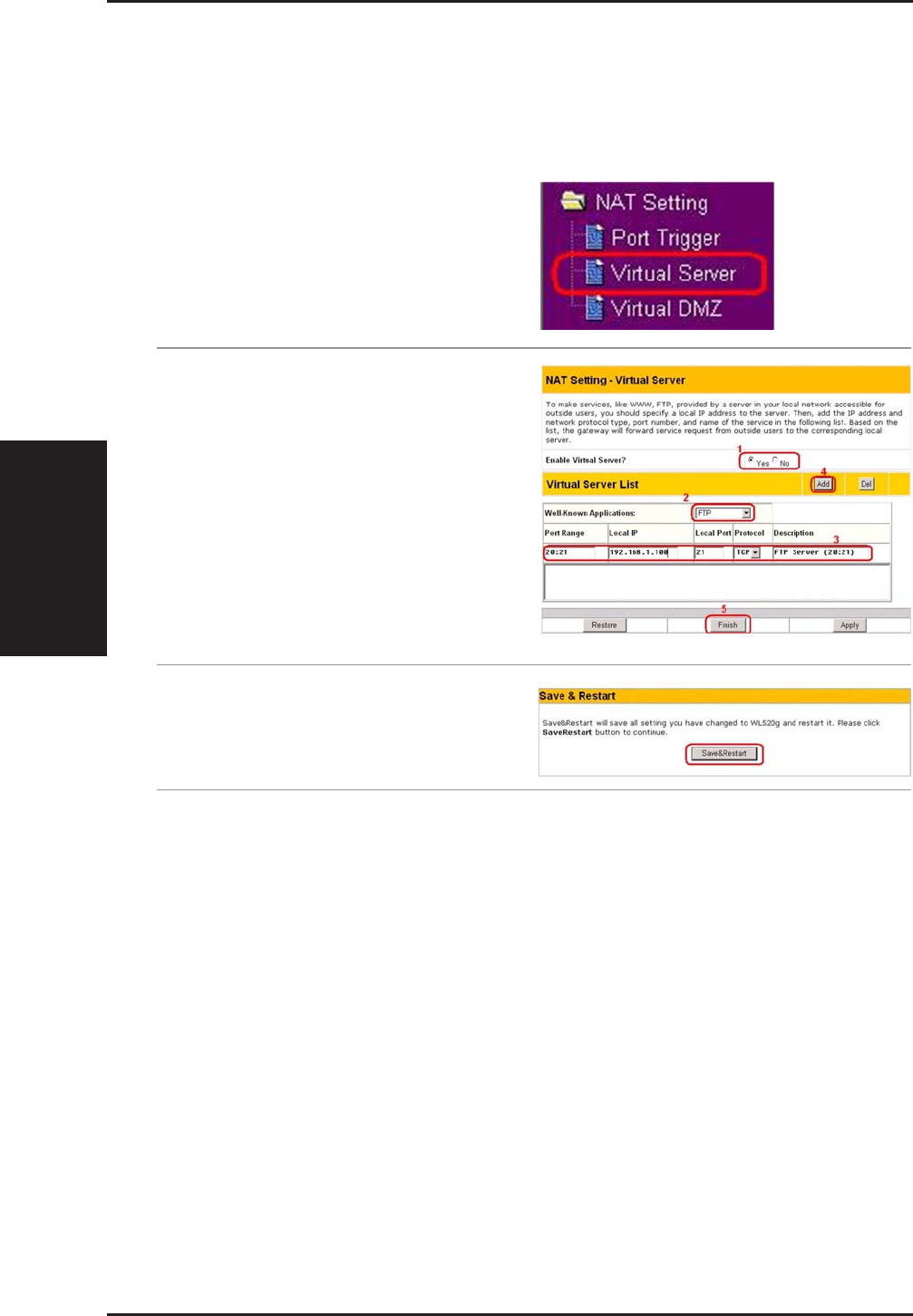

2. (1) Enable Virtual Server
(2) Choose Application (e.g. FTP)
(3) Enter data in the fields
Port Range: Port connected to WAN
Local IP: IP address of the FTP Server
Local Port: Oort of the FTP Server
Protocol:Protocol Type
(4) Click Add button to add settings
(5) Click Finish button
Commonly used features
Setting up a server in your LAN
3. Click Save&Restart”.
1. Select Virtual Server under “NAT
Setting”
3. Utilities
ASUS Wireless Router 21
Chapter 3 - Software Configuration
ASUS Wireless Router
DSL or Cable Modem
4. Click Finish.
5. Click Save&Restart”.
1. Connect the LAN port from a DSL or
Cable modem to one of the LAN ports
on the wireless router.
2. Select DHCP Server under “IP Config”
3. Turn OFF the “DHCP Server” function
Setting up as switching Hub and pure AP (no IP
sharing NAT)
3. Utilities
22 ASUS Wireless Router
Chapter 3 - Software Configuration
4. Double-click Internet Protocol (TCP/IP)
2. Click View network connections.
3. Right-click Local Area Connection
and select “Properties”.
1. Open My Network Places from
Windows “start”.
Setting up net meeting, MSN, on-line gaming, and
remote control programs
3. Utilities
ASUS Wireless Router 23
Chapter 3 - Software Configuration
5. Enter TCP/IP settings as shown here.
6. Choose “Virtual DMZ” from “NAT
Setting” in WL-520g settings
7. Enter the IP address and click Finish.
8. Click Save&Restart”.
Setting up net meeting, MSN, on-line gaming, and
remote control programs (Cont.)
3. Utilities
24 ASUS Wireless Router
Chapter 3 - Software Configuration
10. Open your e-mail to find the activation
letter and open it.
11. Click the confirmation link to activate
your account.
2. If you do not have Dynamic-DNC,
enable the DDNS Client. Then, choose
one server from 2 and click Free Trial
to apply for a new Dynamic-BNC.

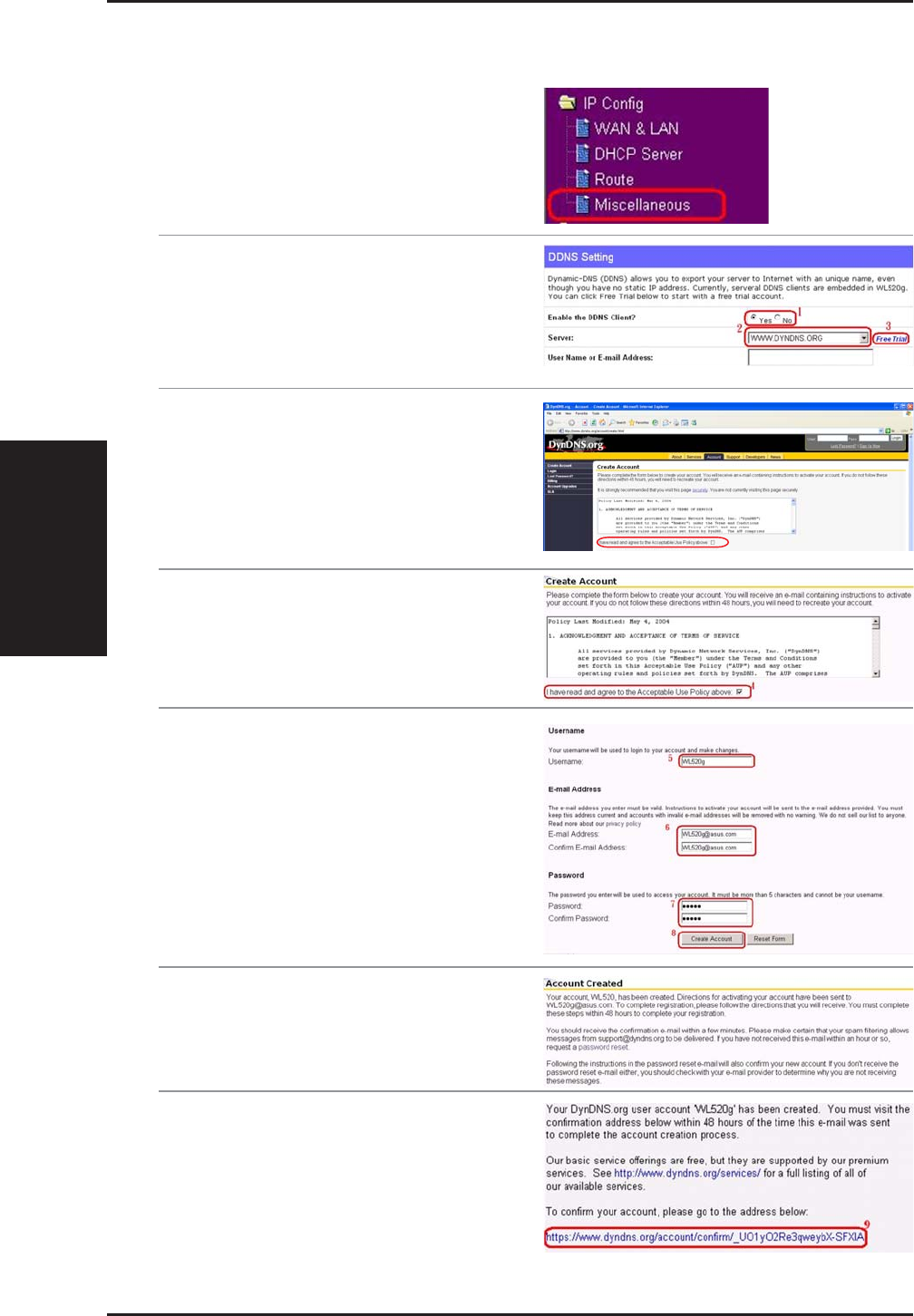

1. Choose “Miscellaneous” from IP Config
directory
Setting up DDNS
3. After clicking Free Trail, this web page
will open.
4. Read the policy and select “I have
read...”.
5. Enter the user name you want
(e.g.WL-520g)
6. Enter an e-mail address for a activation
letter.
7. Enter the password of your account
8. Click Create Account.
9. You will see this message telling you
that your account has been created.
You then receive a letter by e-mail to
activate the account.
3. Utilities
ASUS Wireless Router 25
Chapter 3 - Software Configuration

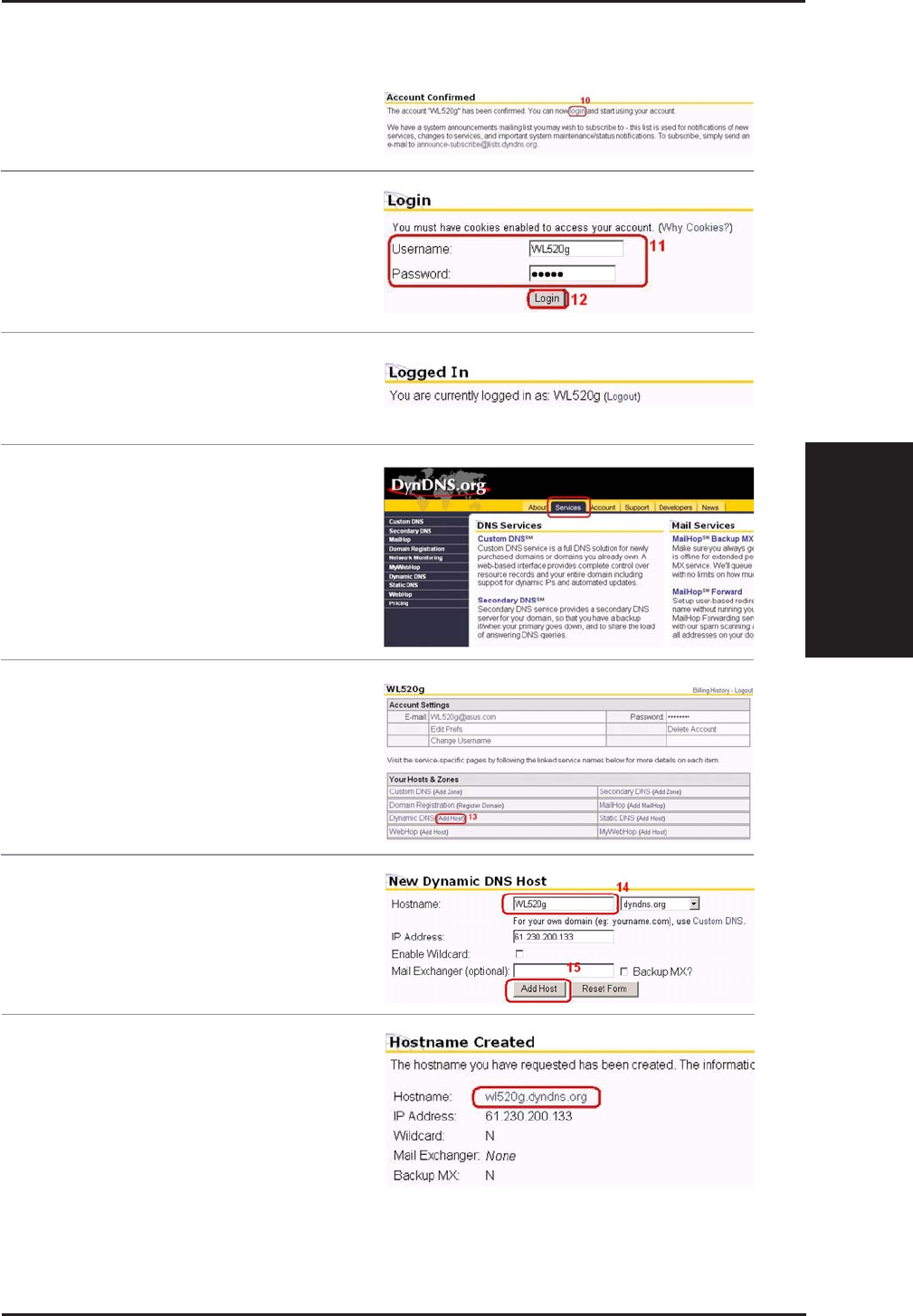

13. Enter your “Username” and
“Password” that you used to apply for
the account and click Login.
14. After you login, you will see this
message.
15. Select Services tab.
16. Click Add Host next to Dynamic DNS
to add your own DDNS.
17. Enter the “Hostname” and then click
Add Host.
12. Press the “login” to login your account
18. You will see this message when your
Hostname is successfully created.
Setting up DDNS (Cont.)
3. Utilities
26 ASUS Wireless Router
Chapter 3 - Software Configuration

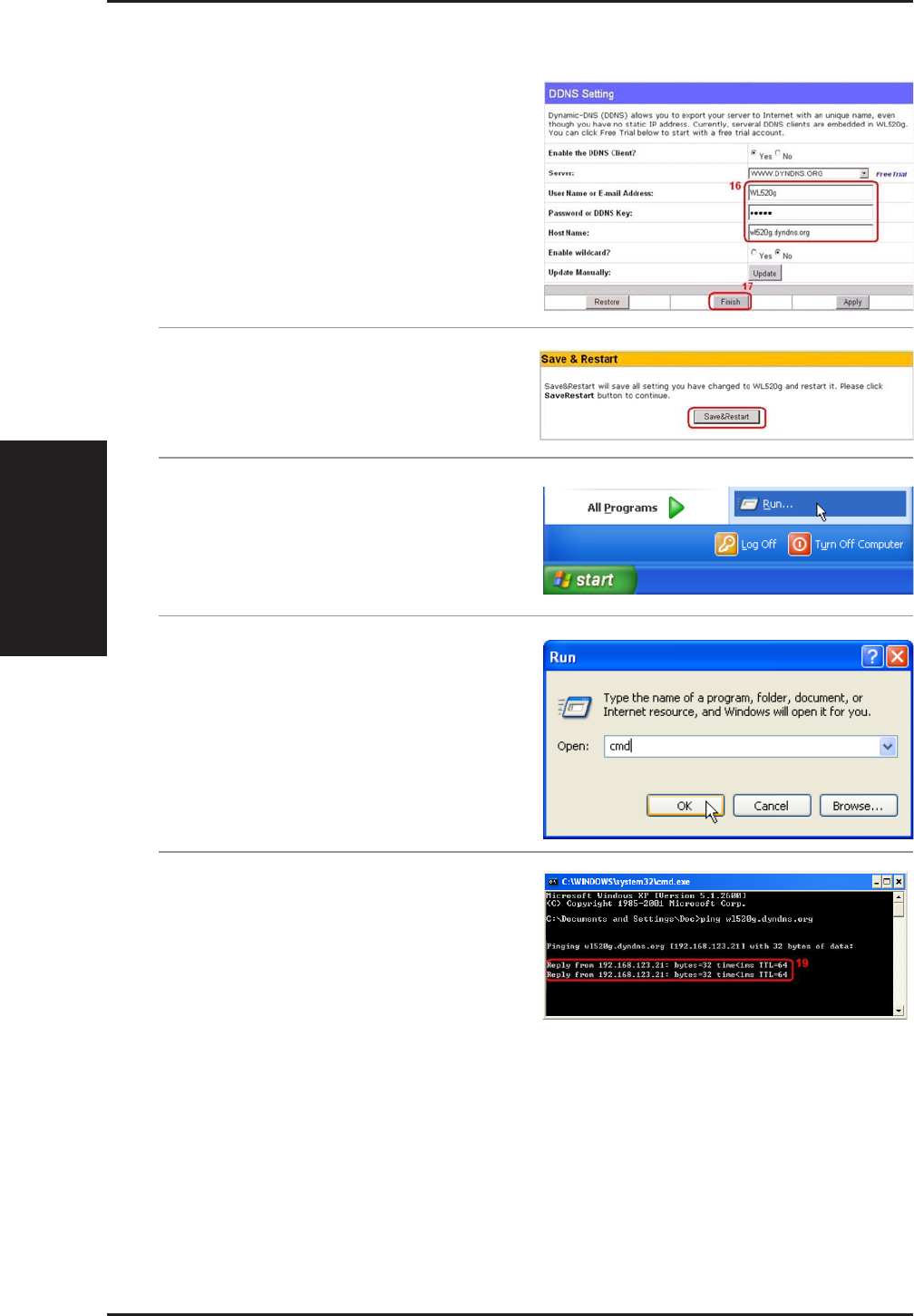

19. Enter your account data. The user
name password is the account you
created when applying for DDNS. Then
click Finish.
20. Click Save&Restart.
21. Verify the DDNS is working. Click
Windows start and select Run...
22. Type in cmd and click OK to open the
DOS console.
23. Type ping wl-520g.dyndns.org (use
your hostname). If you can see a reply
from the hostname, the DDNS is
working correctly.
Setting up DDNS (Cont.)
3. Utilities
ASUS Wireless Router 27
Chapter 3 - Software Configuration
2. Select AP mode as WDS Only. If you
want to use both AP and WDS, you can
choose Hybrid mode.
3. If you selected WDS or Hybrid mode,
you will see a message telling you to
choose a fixed channel for WDS.
4. Select a fixed channel for WDS
5. Select Yes or No to “Connect to APs in
Remote Bridge List” to connect to other
APs which are connected by the APs
in you list.
6. If you want to “Allow anonymous” login
in your local area network, you can
select “Yes”.

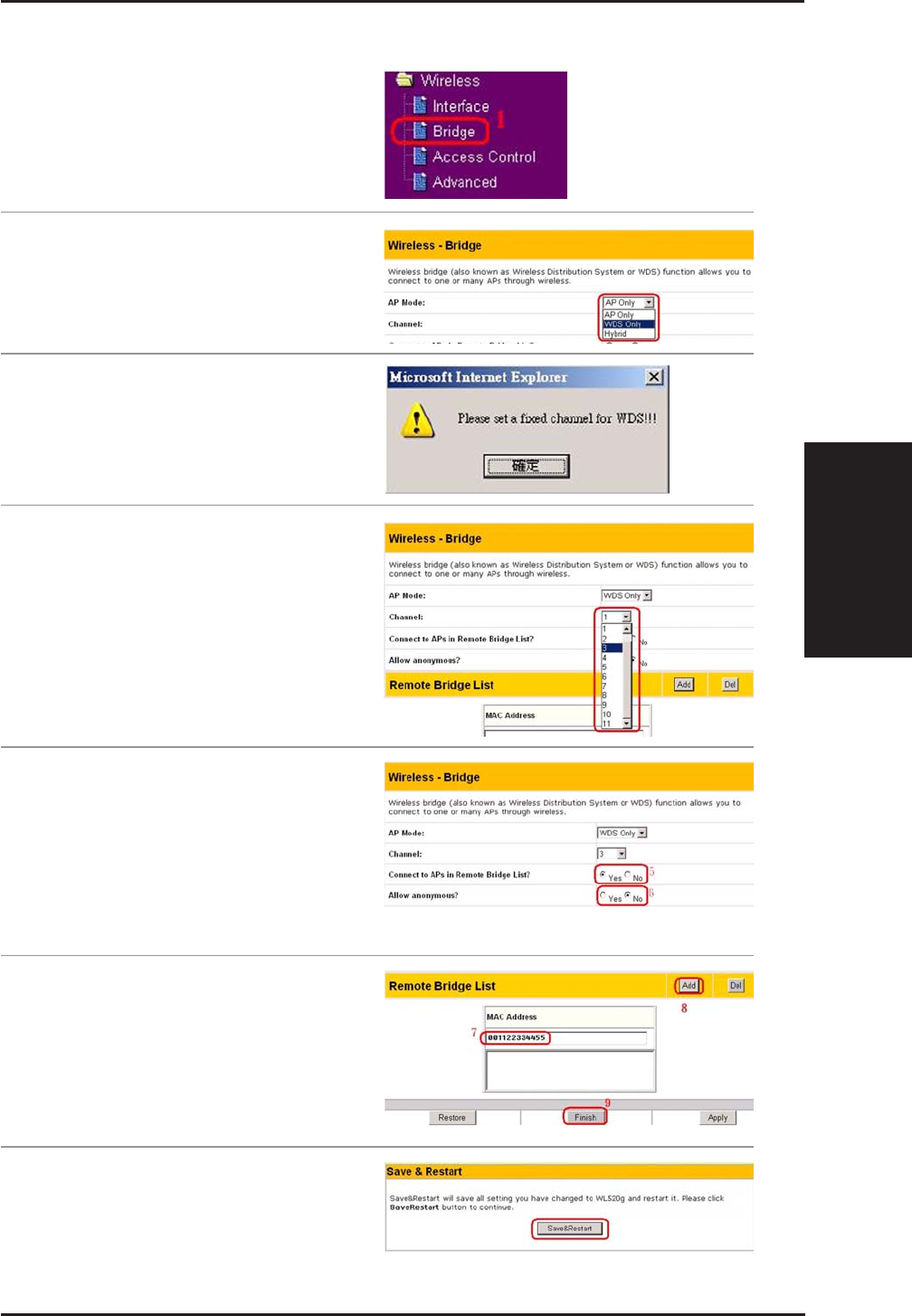

Setting up WDS
1. Choose Bridge under “Wireless”.
7. Enter the MAC address of the APs you
want to connect to.
8. Click Add after you key in the “MAC
address”
9. Click Finish.
10. Click Save&Restart.
3. Utilities
28 ASUS Wireless Router
Chapter 3 - Software Configuration
Appendix
ASUS Wireless Router 29
Appendix
Troubleshooting
The ASUS Wireless Router is designed to be very easy to install and operate.
However, if you experience difficulties, use the information in this chapter
to help diagnose and solve problems. If you cannot resolve a problem, contact
Technical Support, as listed on the front of this manual.
Common Problems and Solutions
Problem
ASUS Wireless Router does not power up:
Solution
• Check for faulty the ASUS Wireless Router power supply by measuring
the output voltage with an electrical test meter.
• Check failed AC supply (power outlet)
Problem
Cannot communicate with the ASUS Wireless Router through a wired
network connection.
Solution
• Verify network configuration by ensuring that there are no duplicate IP
addresses. Power down the device in question and ping the assigned IP
address of the device. Ensure no other device responds to that address.
• Check that the cables used have proper pin outs and connectors or use
another LAN cable.
Appendix
30 ASUS Wireless Router
Appendix
Problem
The ASUS Wireless Router Web Manager still cannot find or connect to the
ASUS Wireless Router after verifying the IP address and LAN cable, changes
cannot be made, or password is lost.
Solution
In case the ASUS Wireless Router is inaccessible, you can restore
the ASUS Wireless Router’s factory default settings. Use a
straightened paper clip to press the button located in the hole labeled
“Restore ” on the back of the ASUS Wireless Router and keep it
depressed over 5 seconds. The LEDs
will flash when reset is successful.
Reset to Defaults
The following are factory default values. These values will be present when you
first receive your the ASUS Wireless Router, if you push the reset button on the
back of the ASUS Wireless Router over 5 seconds, or if you click the “Restore”
button on the “Factory Default” page under “Advanced Setup”.
Name Default Value
User Name admin
Password admin
Enable DHCP Yes
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
DNS Server 1 192.168.1.1
DNS Server 2 (blank)
SSID default
Domain Name (blank)
Appendix
ASUS Wireless Router 31
Appendix
Problem
My 802.11b PC Card will not associate with the ASUS Wireless Router.
Solution
Follow these steps:
1. Try to bring the devices closer together; the PC Card may be out of range
of the ASUS Wireless Router.
2. Confirm that the ASUS Wireless Router and PC Card have the same SSID.
3. Confirm that the ASUS Wireless Router and PC Card have the same
Encryption settings, if enabled.
4. Confirm that the ASUS Wireless Router’s Air and Link LEDs are solid
green.
5. Confirm that the authorization table includes or excludes the MAC address
of the WLAN PC card if “Wireless Access Control” is enabled.
Problem
The throughput seems slow.
Solution
To achieve maximum throughput, verify that your antennas are well-placed,
not behind metal, and do not have too many obstacles between them. If
you move the client closer to the ASUS Wireless Router and throughput
increases, you may want to consider adding a second the ASUS Wireless
Router and implementing roaming.
• Check antenna, connectors and cabling.
• Verify network traffic does not exceed 37% of bandwidth.
• Check to see that the wired network does not exceed 10 broadcast messages
per second.
• Verify wired network topology and configuration.
Appendix
32 ASUS Wireless Router
Appendix
Problem
I cannot find the ASUS Wireless Routers using the ASUS Wireless Router
Discovery.
Solution
To configure the ASUS Wireless Router through a wireless LAN card, your
computer must be in the same subnet of the ASUS Wireless Router. You
cannot find the ASUS Wireless Routers with subnet different from your
computer within the same gateway. You must change your computer to the
same subnet as the ASUS Wireless Router. The factory default subnet of
the ASUS Wireless Router is "192.168.1.1".
In Windows NT/2000/XP, you must log in with Administrator privi-
leges so that all functions of the ASUS Wireless Router Manager
can function correctly. If you do not log in as a member of the Ad-
ministrator group, you cannot change IP settings but can still run
the Discovery utility if the original IP setting is correct.
Problem
How do I upgrade the firmware on the ASUS Wireless Router?
Solution
Periodically, a new Flash Code is available for ASUS Wireless Routers on
the Web site at http://www.asus.com. Update the ASUS Wireless Router s
Flash Code using the Firmware Upgrade option on the System Setup
menu of the Web manager.
