ASUSTeK Computer WN4509L 802.11A/B/G/N/AC 1T1R WLAN USB Dongle User Manual WN4509L UserMan
ASUSTeK Computer Inc 802.11A/B/G/N/AC 1T1R WLAN USB Dongle WN4509L UserMan
(WN4509L) UserMan
Page 1 8/26/2014
802.11A/B/G/N/AC 1T1R WLAN USB Dongle/
802.11A/B/G/N/AC 1T1R 無線網路模組
WN4509L
(Realtek RTL8811AU)
ASUS
User’s Manual
Page 2 8/26/2014
REGULATORY STATEMENTS
FCC WARING STATEMENT
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Page 3 8/26/2014
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: "Contains FCC ID:
MSQ-WN4509L ”
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to
an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use
only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc operation
in the DFS band.
Canada, Industry Canada (IC) Notices
This device complies with Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil est conforme avec Industrie Canada exemptes de licence RSS standard(s).
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits
under mobile exposure conditions. (antennas are greater than 20cm from a person's body).
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux
fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les
contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux
Page 4 8/26/2014
RF d'IC dans des conditions d'exposition à des appareils mobiles (antennes sont supérieures à
20 cm à partir du corps d'une personne).
This radio transmitter IC: 3568A-WN4509L has been approved by Industry Canada to operate
withthe antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited for use
with this device.
Cet émetteur radio IC: 3568A-WN4509L a été approuvé par Industrie
Canada pour fonctionner avec les types d'antennes énumérés ci‐dessous
avec le gain maximal admissible et impédance d'antenne requise pour
chaque type d'antenne indiqué. Types d'antennes n'est pas inclus dans
cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type,
sont strictement interdits pour une utilisation avec cet appareil.
NCC:
低功率電波輻射性電機管理辦法
(1)在5.25-5.35 GHz 頻帶內操作之無線資訊傳輸設備，限於室內使用。
(2)本模組於取得認證後將依規定於模組本體標示審驗合格標籤，並要求最終產品平台廠
商(OEM Integrator)於最終產品平台(End Product)上標示” 本產品內含射頻模組，其 NCC
型式認證號碼為:CCXXxxYYyyyZzW
(3)經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
(4)低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應
立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或
工業、科學及醫療用電波輻射性電機設備之干擾。
警語標示的方式依據是：“低功率電波輻射性電機管理辦法”第十條“製造、輸入或販賣低
功率射頻電機者，應於低功率射頻電機使用說明書內加印第十二條及第十四條之規定內
容”。
Page 5 8/26/2014
INTRODUCTION
The 802.11ac, 1T1R Wireless LAN USB2.0 Module is a device that allows you
connect your computer to a wireless local area network (LAN). A wireless LAN allows
your system to use wireless Radio Frequency (RF) technology to transmit and receive
data without physically attaching to the network. The Wireless protocols that come with
this product ensure data security and isolation from interference generated by other radio
frequencies.
This card also allows you to take full advantage of your computer’s mobility with
access to real-time information and online services anytime and anywhere. In addition,
this device eliminates the bother of pulling cable through walls and under furniture. It
even allows you to place your system in locations where cabling is impossible.
Modifying and augmenting networks has never been so easy.
Wireless Network Options

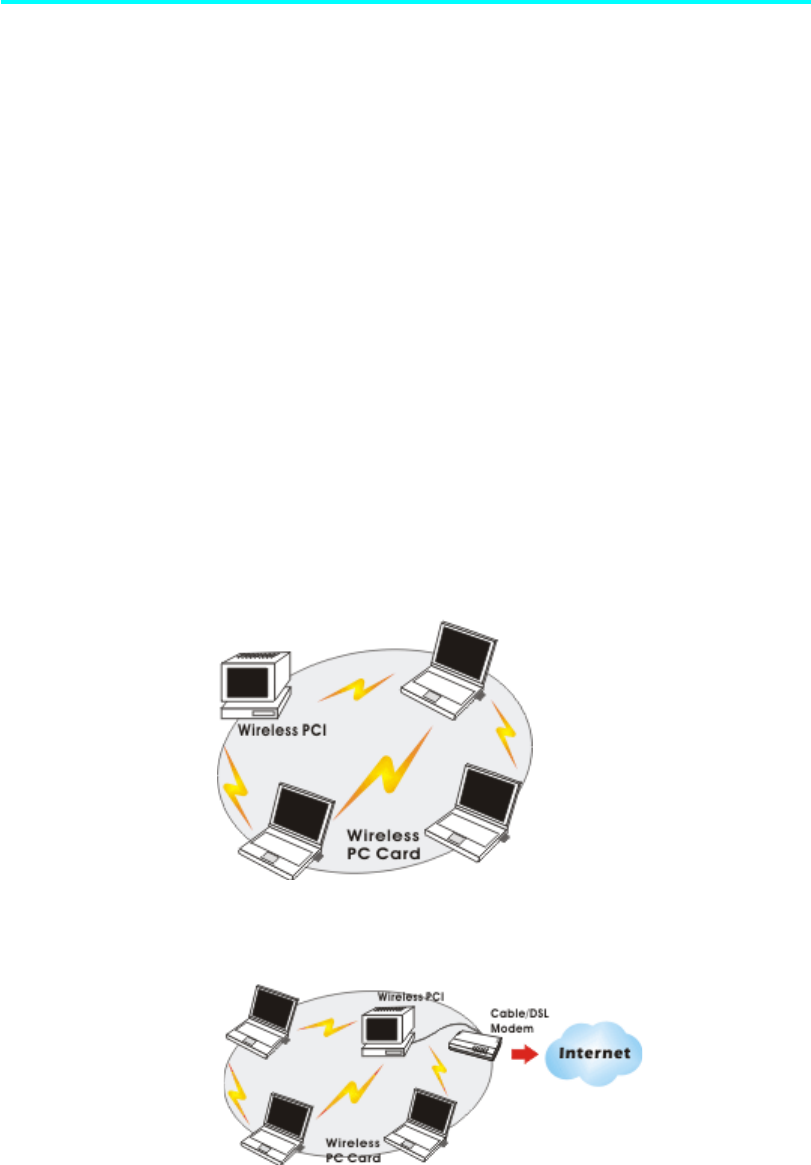

The Peer-to-Peer Network
This network installation lets you set a small wireless workgroup easily and
quickly. Equipped with wireless PC Cards or wireless PCI, you can share files
and printers between each PC and laptop.
You can also use one computer as an Internet Server to connect to a wired global
network and share files and information with other computers via a wireless LAN.

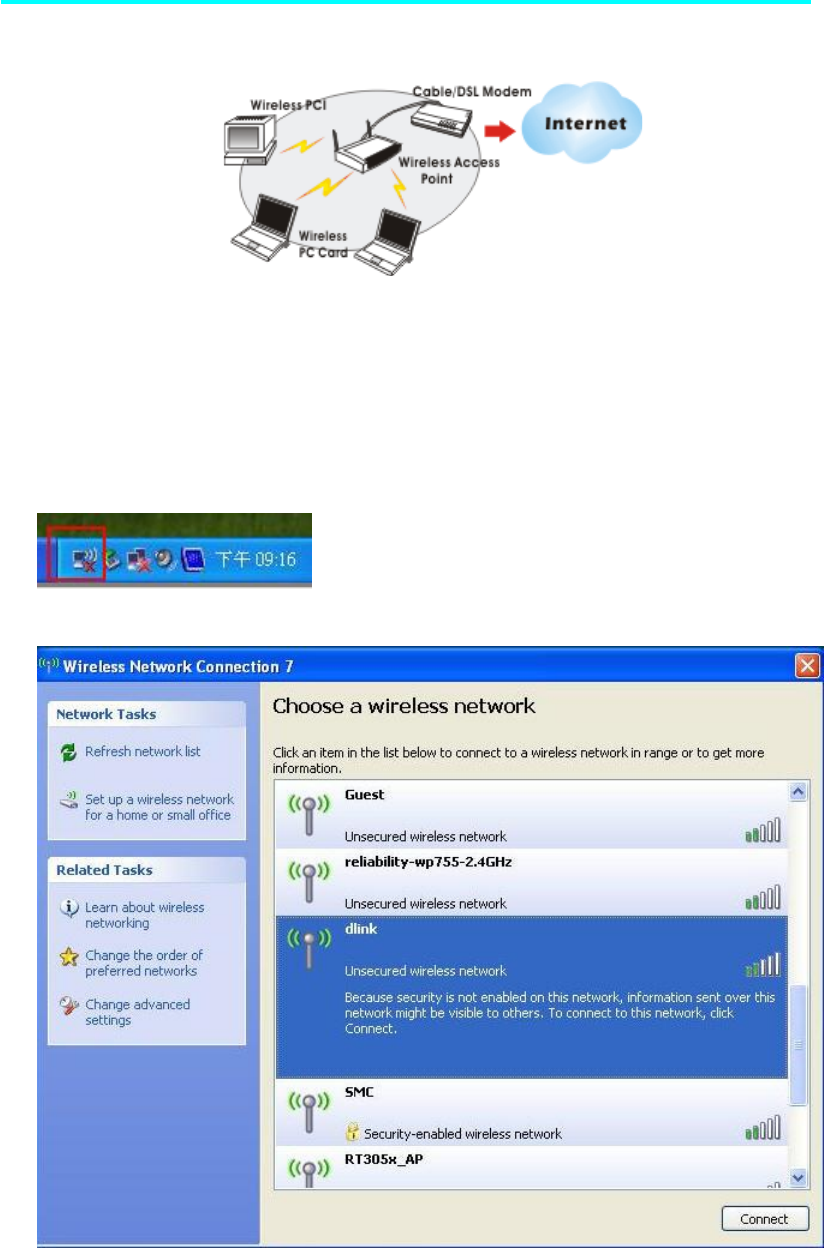

The Access Point Network
The network installation allows you to share files, printers, and Internet access
much more conveniently. With Wireless LAN Cards, you can connect wireless
LAN to a wired global network via an Access Point.
Page 6 8/26/2014
NETWORK CONNECTION
Once the device driver is well installed, a network setting described in the following
should be also established.
1. Click the Wireless icon to enable Windows Zero Configure.
2. Select the AP then click the Connect
Page 7 8/26/2014

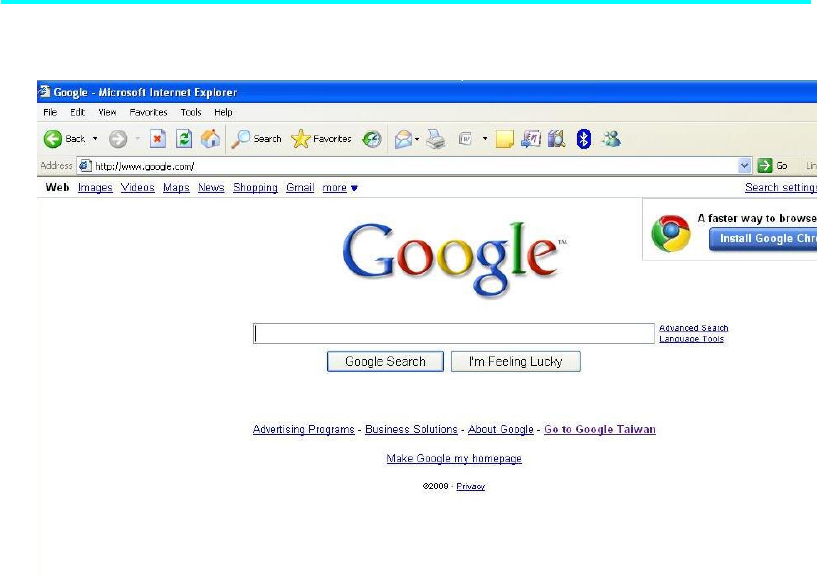

3. Surfing the Internet after completing connection.
