ASUSTeK Computer X00ID ASUS Phone User Manual
ASUSTeK Computer Inc ASUS Phone
User Manual
User Guide
15060-95600000
E12503
First Edition / April 2017
Model: ASUS_X00ID (ZC554KL)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
Receiver
Front camera
Proximity
sensor
Touch screen
display
Flash
Fingerprint sensor /
Home key
Back
key
Recent apps
key
Side features
Audio jack
Power
key
Nano SIM
x2/ micro SD
card slot
Eject
hole
Volume
key
Microphone
Speaker
Microphone
Micro USB port
Rear features
Flash
Rear camera
NOTES:
• TheNanoSIMcardslotssupportGSM,
WCDMA,FDD-LTE,andTDD-LTEnetwork
bands.
• ThemicroSDcardslotsupportsmicroSDand
microSDXC card formats.
Charging your ASUS Phone
To charge your ASUS Phone:
1. ConnecttheUSBconnectorintothepower
adapter’s USB port.
2. Connect the other end of the USB cable to your
ASUS Phone.
3. Plugthepoweradapterintoawallsocket.
NOTES:
• Forsafetypurposes,useONLY thebundledpower
adapter and cable to avoid damaging your device
andpreventtheriskofinjury.
• Forsafetypurposes,useONLYthebundledpower
adapter and cable to charge your ASUS Phone.
• Theinputvoltagerangebetweenthewalloutletand
thisadapterisAC100V-240V.Theoutputvoltage
of the USB cable is +5V 2A, 10W.
IMPORTANT!
• WhenusingyourASUSPhonewhileitispluggedto
apoweroutlet,thegroundedpoweroutletmustbe
near to the unit and easily accessible.
• WhenchargingyourASUSPhonethroughyour
computer, ensure that you plug the USB cable to
your computer’s USB port.
• AvoidchargingyourASUSPhoneinan
environmentwithambienttemperatureofabove
35oC (95oF).
3
1
2
Installing a Nano SIM/ microSD
card

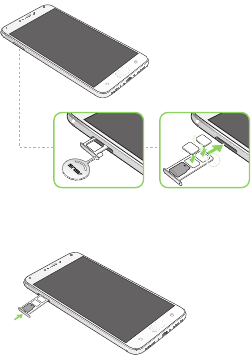

To install a Nano SIM/ microSD card:
3. Push the tray to close it.
1. Push the bundled eject pin into the hole on the
card slot to eject the tray out.
2. InserttheNanoSIMormicroSDcardintothe
appropriate slot.
IMPORTANT!WhentwoSIMcardsareinserted,only
oneSIMcardslotsupports4G/3G/2Gservice.Theother
SIMcardslotonlysupports2G/3Gservice.
CAUTION!
• Donotusesharptoolsorsolventonyourdeviceto
avoid scratches on it.
• UseonlyastandardNanoSIMcardonyourASUS
Phone.
• FormoreregulatoryinformationandE-labels,
checkonyourdevicefromSettings > About >
Regulatory Information.
Federal Communications
Commission Statement
Thisdevicecomplieswithpart15oftheFCCRules.
Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the
user‘s authority to operate the equipment.
Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimits
are designed to provide reasonable protection
against harmful interference in a residential
installation.Thisequipmentgenerates,usesandcan
radiate radio frequency energy and, if not installed
andusedinaccordancewiththeinstructions,may
cause harmful interference to radio communications.
However,thereisnoguaranteethatinterference
willnotoccurinaparticularinstallation.Ifthis
equipment does cause harmful interference to radio
ortelevisionreception,whichcanbedetermined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
ormoreofthefollowingmeasures:
- Reorientorrelocatethereceivingantenna.
- Increasetheseparationbetweentheequipment
and receiver.
- Connect the equipment into an outlet on a
circuitdifferentfromthattowhichthereceiver
is connected.
- Consultthedealeroranexperiencedradio/TV
technician for help.
Theantenna(s)usedforthistransmittermustnotbe
co-locatedoroperatedinconjunctionwithanyother
antenna or transmitter.
Thecountrycodeselectionisfornon-USmodels
only and is not available to all US models. Per FCC
regulation,allWiFiproductsthataremarketedinUS
mustbexedtoUS-operatedchannelsonly.
RF Exposure Information (SAR)
Thisdevicehasbeentestedandmeetsapplicable
limitsforRadioFrequency(RF)exposure.
SpecicAbsorptionRate(SAR)referstotherateat
whichthebodyabsorbsRFenergy.SARlimitsare
1.6Wattsperkilogram(overavolumecontaining
amassof1gramoftissue)incountriesthatfollow
theUnitedStatesFCClimitand2.0W/kg(averaged
over10gramsoftissue)incountriesthatfollowthe
CounciloftheEuropeanUnionlimit.TestsforSAR
are conducted using standard operating positions
withthedevicetransmittingatitshighestcertied
powerlevelinalltestedfrequencybands.
ToreduceexposuretoRFenergy,useahands-free
accessoryorothersimilaroptiontokeepthisdevice
awayfromyourheadandbody.Carrythisdevice
atleast10mmawayfromyourbodytoensure
exposurelevelsremainatorbelowtheas-tested
levels. Choose the belt clips, holsters, or other
similarbody-wornaccessorieswhichdonotcontain
metallic components to support operation in this
manner.CaseswithmetalpartsmaychangetheRF
performance of the device, including its compliance
withRFexposureguidelines,inamannerthat
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
ThehighestFCCSARvaluesforthedeviceareas
follows:
• 0.74W/Kg@1g(Head)
• 1.08W/Kg@1g(Body)
TheFCChasgrantedanEquipmentAuthorization
forthisdevicewithallreportedSARlevelsevaluated
asincompliancewiththeFCCRFexposure
guidelines.SARinformationonthisdeviceisonle
withtheFCCandcanbefoundundertheDisplay
Grantsectionofwww.fcc.gov/oet/ea/fccid after
searching on FCC ID: MSQX00ID.
Canada, Industry Canada (IC)
Notices
ThisdevicecomplieswithIndustryCanada’s
licence-exemptRSSstandard(s).Operationis
subjecttothefollowingtwoconditions:
(1) Thisdevicemaynotcauseinterference;and
(2) Thisdevicemustacceptanyinterference,
including interference that may cause
undesired operation of the device.
LeprésentappareilestconformeauxnormesCNR
d’IndustrieCanadaapplicablesauxappareilsradio
exemptsdelicence.Sonutilisationestsujetteaux
deuxconditionssuivantes:
(1) Cet appareil ne doit pas créer d’interférences
nuisibles, et
(2) Cet appareil doit tolérer tout type
d’interférences, y compris celles susceptibles
de provoquer un fonctionnement non souhaité
de l’appareil.
Radio Frequency (RF) Exposure Information
TheradiatedoutputpoweroftheWirelessDevice
isbelowtheIndustryCanada(IC)radiofrequency
exposurelimits.TheWirelessDeviceshouldbe
used in such a manner such that the potential
for human contact during normal operation is
minimized.Thisdevicehasbeenevaluatedforand
showncompliantwiththeICSpecicAbsorption
Rate(“SAR”)limitswheninstalledinspecichost
productsoperatedinportableexposureconditions.
Canada’sREL(RadioEquipmentList)canbefound
atthefollowingwebaddress:http://www.ic.gc.ca/
app/sitt/reltel/srch/nwRdSrch.do?lang=eng.
AdditionalCanadianinformationonRFexposure
alsocanbefoundatthefollowingwebaddress:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.
html.
Informations concernant l’exposition aux
fréquences radio (RF)
La puissance de sortie émise par cet appareil
sanslestinférieureàlalimited’expositionaux
fréquencesradiod’IndustrieCanada(IC).Utilisez
l’appareilsansldefaçonàminimiserlescontacts
humains lors d’un fonctionnement normal.
Cet appareil été évalué et démontré conforme
auxlimitesdeDAS(Débitd’absorptionspécique)
d’IC lorsqu’il est installé dans des produits hôtes
particuliers qui fonctionnent dans des conditions
d’expositionàdesappareilsportables.
Ce périphérique est homologué pour l’utilisation
au Canada. Pour consulter l’entrée correspondant
àl’appareildanslalisted’équipementradio(REL
-RadioEquipmentList)d’IndustrieCanadarendez-
vous sur :
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng.
Pour des informations supplémentaires concernant
l’expositionauxondesradioauCanada,rendez-
vous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.
html.
CAN ICES-3(B)/NMB-3(B)
ThisClassBdigitalapparatuscomplieswith
Canadian ICES-003.
Cet appareil numérique de la classe B est conforme
àlanormeNMB-003duCanada.
Thisdeviceanditsantenna(s)mustnotbeco-
locatedoroperatedinconjunctionwithanyother
antennaortransmitter,excepttestedbuilt-inradios.
TheCountyCodeSelectionfeatureisdisabledfor
productsthataremarketedintheUS/Canada.
Cet appareil et son ou ses antenne(s) ne doivent
pas être situés près de ou utilisés conjointement
avec une autre antenne ou un autre émetteur,
exceptionfaitedesradiosintégréesquiontété
testées.
La fonction de sélection de l’indicatif du pays est
désactivéepourlesproduitscommercialisésaux
États-Unis et au Canada.
TheICIDforthisdeviceis3568A-X00ID.
L’identiantIndustrieCanadadecetappareilest:
3568A-X00ID.
Additional statements for phones:
ToreduceexposuretoRFenergy,useahands-free
accessoryorothersimilaroptiontokeepthisdevice
awayfromyourheadandbody.Carrythisdevice
atleast10mmawayfromyourbodytoensure
exposurelevelsremainatorbelowtheas-tested
levels. Choose the belt clips, holsters, or other
similarbody-wornaccessorieswhichdonotcontain
metallic components to support operation in this
manner.CaseswithmetalpartsmaychangetheRF
performance of the device, including its compliance
withRFexposureguidelines,inamannerthat
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
EU Radio Equipment Directive
Compliance
Simplied EU Declaration of Conformity
Hereby,ASUSTekComputerInc.declaresthatthe
radio equipment ASUS_X00IDisincompliancewith
Directive2014/53/EU.FulltextofEUdeclaration
of conformity is available at https://www.asus.com/
support/. (Search for ZC554KL)
RF Output Table
Items Maximum Radio-Frequency Output Power Table
Bluetooth BluetoothRF(2402~2480MHz) 6.2 (dBm)
Bluetooth4.0-LE(2402~2480MHz) 1.75 (dBm)
WLAN
2.4GHz802.11b(2412~2472MHz) 15.82(dBm)
2.4GHz802.11g(2412~2472MHz) 13.15 (dBm)
2.4GHz802.11nHT20(2412~2472
MHz)
12.19 (dBm)
2.4GHz802.11nHT40(2422~2462
MHz)
12.12 (dBm)
GSM
GSM900Burst(880~915;925~960
MHz)
32.78(dBm)
GSM1800Burst(1710~1785;
1805~1880MHz)
29.14 (dBm)
WCDMA
WCDMABandI(1920~1980;
2110~2170MHz)
22.23 (dBm)
WCDMABandVIII(880~915;
925~960MHz)
21.96 (dBm)
LTE
LTEBandI(1920~1980;
2110~2170MHz)
21.81(dBm)
(fullRB)
LTEBandIII(1710~1785;
1805~1880MHz)
22.19 (dBm)
(fullRB)
LTEBandVII(2500~2570;
2620~2690MHz)
22.99 (dBm)
(fullRB)
LTEBandVIII(880~915;925~960
MHz)
22.09 (dBm)
(fullRB)
LTEBandXX(832~862;791~821
MHz)
21.8(dBm)
(fullRB)
LTEBandXL(2300~2400;
2300~2400MHz)
22.11 (dBm)
(fullRB)
RF Exposure Information
ThisASUSproducthasbeentestedandmeets
applicableEuropeanSARlimits.TheSARlimitis
2.0W/kgincountriesthatsetthelimitaveraged
over10gramsoftissue.ThespecicmaximumSAR
valuesforthisdeviceareasfollows:
• Head:0.302W/Kg
• Body:1.200W/Kg
Whencarryingthisdeviceorusingitwhilewornon
the body, either use an approved accessory such
asaholsterorotherwisemaintainadistanceof0.5
cmfromthebodytoensurecompliancewithRF
exposurerequirements.
Using GPS (Global Positioning
System) on your ASUS Phone
TousetheGPSpositioningfeatureonyourASUS
Phone:
• Ensure that your device is connected to the
InternetbeforeusingGoogleMaporany
GPS-enabledapps.
• Forrst-timeuseofaGPS-enabledappon
your device, ensure that you are outdoors to
get the best positioning data.
NOTE: ThisRFoutputpowertableisforEU
memberstates,theEEAStates,theEFTAStates
andTurkeyonly.Thefrequencyrangeandthe
RFoutputpowermaydifferfromothernon-EU
countries.
CE Marking
Prevention of Hearing Loss
Topreventpossiblehearingdamage,donotlistenat
high volume levels for long periods.
Safety information
ASUS Phone care
• UseyourASUSPhoneinanenvironmentwith
ambienttemperaturesbetween0°C(32°F)
and35°C(95°F).
The battery
YourASUSPhoneisequippedwithahigh
performance non-detachable Li-polymer battery.
Observe the maintenance guidelines for a longer
battery life.
• Donotremovethenon-detachableli-polymer
batteryasthiswillvoidthewarranty.
• Avoidcharginginextremelyhighorlow
temperature.Thebatteryperformsoptimallyin
anambienttemperatureof+5°Cto+35°C.
• WhenusingaGPS-enabledappon
your device inside a vehicle, the metallic
componentofthecarwindowandother
electronicdevicesmightaffecttheGPS
performance.
• Donotremoveandreplacethebatterywitha
non-approved battery.
• UseonlyASUSbattery.Usingadifferent
battery may cause physical harm/injury and
may damage your device.
• Donotremoveandsoakthebatteryinwateror
any other liquid.
• Nevertrytoopenthebatteryasitcontains
substancesthatmightbeharmfulifswallowed
orallowedtocomeintocontactwith
unprotectedskin.
• Donotremoveandshort-circuitthebattery,as
itmayoverheatandcauseare.Keepitaway
fromjewelryormetalobjects.
• Donotremoveanddisposeofthebattery
inre.Itcouldexplodeandreleaseharmful
substances into the environment.
• Donotremoveanddisposeofthebatterywith
yourregularhouseholdwaste.Takeittoa
hazardousmaterialcollectionpoint.
• Donottouchthebatteryterminals.
• Toavoidreorburns,donotdisassemble,
bend, crush, or puncture the battery.
NOTES:
• Riskofexplosionifbatteryisreplacedbyan
incorrect type.
• Disposeofusedbatteryaccordingtothe
instructions.
The charger
• UseonlythechargersuppliedwithyourASUS
Phone.
• Neverpullthechargercordtodisconnectit
fromthepowersocket.Pullthechargeritself.
Caution
Your ASUS Phone is a high quality piece of
equipment. Before operating, read all instructions
andcautionarymarkingsonthe(1)ACAdapter.
• DonotusetheASUSPhoneinanextreme
environmentwherehightemperatureorhigh
humidityexists.TheASUSPhoneperforms
optimallyinanambienttemperaturebetween0
°C(32°F)and35°C(95°F).
• DonotdisassembletheASUSPhoneorits
accessories. If service or repair is required,
returntheunittoanauthorizedservicecenter.
Iftheunitisdisassembled,ariskofelectric
shockorremayresult.
• Donotshort-circuitthebatteryterminalswith
metal items.
Operator access with a tool
IfaTOOLisnecessarytogainaccesstoan
OPERATORACCESSAREA,eitherallother
compartmentswithinthatareacontainingahazard
shallbeinaccessibletotheOPERATORbytheuse
ofthesameTOOL,orsuchcompartmentsshallbe
markedtodiscourageOPERATORaccess.
ASUS Recycling/Takeback
Services
ASUSrecyclingandtakebackprogramscome
from our commitment to the highest standards for
protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle
ourproducts,batteries,othercomponentsaswell
asthepackagingmaterials.Pleasegotohttp://
csr.asus.com/english/Takeback.htm for detailed
recycling information in different regions.
Regional notice for Singapore
ThisASUSPhonecomplies
withIMDAStandards.
NOTE: PleasebenotedtheNanoSIMslotGSM
willnolongerbeusablewiththecessationof2G
networksinSingaporeafterApril1,2017.
India E-waste (Management and
handling) Rules 2016
Thisproductcomplieswiththe“IndiaE-Waste
(Management)Rules,2016”andprohibits
useoflead,mercury,hexavalentchromium,
polybrominated biphenyls (PBBs) and
polybrominated diphenyl ethers (PBDEs) in
concentrationsexceeding0.1%byweightin
homogenousmaterialsand0.01%byweightin
homogenousmaterialsforcadmium,exceptforthe
exemptionslistedinScheduleIIoftheRule.
Proper disposal
Risk of explosion if battery is replaced
by an incorrect type. Dispose of used
batteries according to the instructions.
DONOTthrowthebatteryinmunicipal
waste.Thesymbolofthecrossedout
wheeledbinindicatesthatthebattery
shouldnotbeplacedinmunicipalwaste.
DONOTthrowthisproductinmunicipal
waste.Thisproducthasbeendesigned
to enable proper reuse of parts and
recycling.Thesymbolofthecrossedout
wheeledbinindicatesthattheproduct
(electrical, electronic equipment and
mercury-containing button cell battery)
shouldnotbeplacedinmunicipalwaste.
Checklocalregulationsfordisposalof
electronic products.
DONOTthrowthisproductinre.DO
NOTshortcircuitthecontacts.DONOT
disassemble this product.
WARNING! Thisproductmaycontainchemicals
knowntotheStateofCaliforniatocausecancer,
birth defects, or other reproductive harm. Wash
hands after handling.
Copyright©2017ASUSTeKCOMPUTERINC.
AllRightsReserved.
YouacknowledgethatallrightsofthisManualremainwithASUS.
Anyandallrights,includingwithoutlimitation,intheManualor
website,andshallremaintheexclusivepropertyofASUSand/orits
licensors.NothinginthisManualintendstotransferanysuchrights,
or to vest any such rights to you.
ASUSPROVIDESTHISMANUAL“ASIS”WITHOUTWARRANTY
OFANYKIND.SPECIFICATIONSANDINFORMATION
CONTAINEDINTHISMANUALAREFURNISHEDFOR
INFORMATIONALUSEONLY,ANDARESUBJECTTOCHANGE
ATANYTIMEWITHOUTNOTICE,ANDSHOULDNOTBE
CONSTRUEDASACOMMITMENTBYASUS.
ASUS
Address: 4F, No.150 Li-Te Rd., Peitou, Taipei,
Taiwan
Tel: 886228943447
Fax: 886228907698
Declaration
We declare that the IMEI codes for this product, ASUS
Phone, are unique to each unit and only assigned to
thismodel.TheIMEIofeachunitisfactorysetand
cannot be altered by the user and that it complies
withtherelevantIMEIintegrityrelatedrequirements
expressedintheGSMstandards.
Should you have any questions or comments regarding
this matter, please contact us.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel:886228943447
Fax:886228907698
Support:http://vip.asus.com/eservice/techserv.aspx
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)
