ASUSTeK Computer Z012DC ASUS Phone User Manual

ASUSTeK Computer Inc ASUS Phone

Contents

User Manual

E11806
User Guide
First Edition/ July 2016
Model: ASUS_Z012DC (ZE552KL)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
Touch screen
display
Receiver
LED indicator
Touch keys
Proximity sensor and light sensor
Front camera
Side features
Power Key
Audio jack
USB Type-C port
Microphone
Volume Key
Micro SIM, Nano
SIM / MicroSD
combo card slot
Speaker
NOTE: The USB Type-C port supports USB2.0
transfer rate.
Rear features
Rear camera
Camera flash
Rear cover
Laser focus
Finger print
sensor
RGB sensor
Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power
adapter’s USB port.
2. Connect the other end of the USB Type C
cable to your ASUS Phone.
3. Plug the power adapter into a wall socket.
NOTES:
• Useonlythepoweradapterthatcamewith
your device. Using a different power adapter
may damage your device.
• UsingthebundledpoweradapterandASUS
Phone signal cable to connect your ASUS
Phone to a power outlet is the best way to
charge your ASUS Phone.
• Theinputvoltagerangebetweenthewall
outlet and this adapter is AC 100V - 240V.
The output voltage of the Type C cable is
+5V 2A, 10W.
IMPORTANT!
• WhenusingyourASUSPhonewhileitis
plugged to a power outlet, the grounded
power outlet must be near to the unit and
easily accessible.
• WhenchargingyourASUSPhonethrough
your computer, ensure that you plug the USB
Type C cable to your computer’s USB 2.0 /
USB 3.0 port.
• AvoidchargingyourASUSPhoneinan
environment with ambient temperature of
above 35oC (95oF).
2
3
1

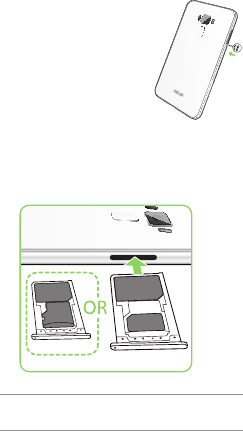

1. Push a pin into the hole
on the Micro SIM / Nano
SIM / MicroSD card tray
to eject it.
Installing a Micro SIM / Nano SIM /
MicroSD card
To install a Micro SIM / Nano SIM / MicroSD card:
2. Insert the Micro SIM / Nano SIM or MicroSD
card(s) into the card slot(s).
Micro-SIM1
Nano-SIM2
Micro-SIM1
Micro SD
IMPORTANT: You can only use the Nano SIM
card or the MicroSD card at a time.
NOTES:
• TheMicroSIM/NanoSIMcardslotssupport
LTE, WCDMA and GSM/EDGE network
bands.
• TheMicroSDcardslotsupportsMicroSDand
MicroSDHC card formats.
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardMicroSIMcardonyour
ASUS Phone. A Nano to Micro SIM adapter
oratrimmedSIMcardmaynotproperlyt
into and may not be detected by your ASUS
Phone.
• DO NOT install an empty Nano to Micro
SIM adapter into the Micro SIM card slot to
avoid irreversible damage.
IMPORTANT: Both Micro SIM and Nano SIM card
slots support 3G WCDMA/ 4G LTE network band.
But only one SIM card can connect to 4G LTE
service at a time.
3. Push the tray to close it.
Federal Communications
Commission Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the
user‘s authority to operate the equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
- Consultthedealeroranexperiencedradio/TV
technician for help.
The antenna(s) used for this transmitter must not be
co-located or operating in conjunction with any other
antenna or transmitter.
The country code selection is for non-US model
only and is not available to all US model. Per FCC
regulation, all WiFi product marketed in US must
fixedtoUSoperationchannelsonly.
Canada, Industry Canada (IC)
Notices
This device complies with Industry Canada’s
licence-exempt RSS standard(s. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause
undesired operation of the device.
LeprésentappareilestconformeauxCNR
d’IndustrieCanadaapplicablesauxappareilsradio
exemptsdelicence.L’exploitationestautoriséeaux
deuxconditionssuivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device
is below the Industry Canada (IC) radio frequency
exposurelimits.TheWirelessDeviceshouldbe
used in such a manner such that the potential
for human contact during normal operation is
minimized. This device has been evaluated for and
showncompliantwiththeICSpecicAbsorption
Rate(“SAR”)limitswheninstalledinspecichost
productsoperatedinportableexposureconditions.
Canada’s REL (Radio Equipment List) can be found
at the following web address: http://www.ic.gc.ca/
app/sitt/reltel/srch/nwRdSrch.do?lang=eng
AdditionalCanadianinformationonRFexposure
also can be found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.
html
Informations concernant l’exposition aux
fréquences radio (RF)
La puissance de sortie émise par cet appareil
sanslestinférieureàlalimited’expositionaux
fréquences radio d’Industrie Canada (IC). Utilisez
l’appareilsansldefaçonàminimiserlescontacts
humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme
auxlimitesSAR(SpecicAbsorptionRate–Taux
d’absorptionspécique)d’IClorsqu’ilestinstallé
dans des produits hôtes particuliers qui fonctionnent
dansdesconditionsd’expositionàdesappareils
portables.
Ce périphérique est homologué pour l’utilisation
au Canada. Pour consulter l’entrée correspondant
àl’appareildanslalisted’équipementradio(REL
- Radio Equipment List) d’Industrie Canada rendez-
vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng
Pour des informations supplémentaires concernant
l’expositionauxRFauCanadarendez-voussur:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.
html
Caution
(i) the device for operation in the band 5150-5250
MHz is only for indoor use to reduce the
potential for harmful interference to co-channel
mobile satellite systems;
Avertissement
Leguided’utilisationdesdispositifspourréseaux
locauxdoitincluredesinstructionsprécisessurles
restrictions susmentionnées, notamment:
(i) les dispositifs fonctionnant dans la bande 5
150-5 250 MHz sont réservés uniquement
pouruneutilisationàl’intérieuranderéduire
lesrisquesdebrouillagepréjudiciableaux
systèmes de satellites mobiles utilisant les
mêmescanaux;
CAN ICES-3(B)/NMB-3(B)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est conforme
àlanormeNMB-003duCanada.
This device and its antenna(s) must not be co-
located or operating in conjunction with any other
antennaortransmitter,excepttestedbuilt-inradios.
The County Code Selection feature is disabled for
products marketed in the US/ Canada.
Cet appareil et son antenne ne doivent pas être
situés ou fonctionner en conjonction avec une autre
antenneouunautreémetteur,exceptionfaitesdes
radios intégrées qui ont été testées.
La fonction de sélection de l’indicatif du pays est
désactivéepourlesproduitscommercialisésaux
États-Unis et au Canada.
The IC ID for this device is 3568A-Z012DC.
L’identiantIndustrieCanadadecetappareilest:
3568A-Z012DC.
CAUTION: High-power radars are allocated as
primary users (i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or
damage to LE-LAN devices.
AVERTISSEMENT: Les utilisateurs de radars
de haute puissance sont désignés utilisateurs
principaux(c.-à-d.,qu’ilsontlapriorité)pourles
bandes 5250-5350 MHz et 5650-5850 MHz et que
ces radars pourraient causer du brouillage et/ou
desdommagesauxdispositifsLAN-EL.
RF Exposure Information (SAR)
This device has been tested and meets applicable
limitsforRadioFrequency(RF)exposure.
SpecicAbsorptionRate(SAR)referstotherateat
which the body absorbs RF energy. SAR limits are
1.6 Watts per kilogram (over a volume containing
a mass of 1 gram of tissue) in countries that follow
the United States FCC limit and 2.0 W/kg (averaged
over 10 grams of tissue) in countries that follow the
Council of the European Union limit. Tests for SAR
are conducted using standard operating positions
withthedevicetransmittingatitshighestcertied
power level in all tested frequency bands.
ToreduceexposuretoRFenergy,useahands-free
accessory or other similar option to keep this device
away from your head and body. Carry this device
at least 15 mm away from your body to ensure
exposurelevelsremainatorbelowtheas-tested
levels. Choose the belt clips, holsters, or other
similar body-worn accessories which do not contain
metallic components to support operation in this
manner. Cases with metal parts may change the RF
performance of the device, including its compliance
withRFexposureguidelines,inamannerthat
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
The highest FCC SAR values for the device are as
follows:
• 1.17W/Kg(Head)
• 0.59W/Kg(Body-worn)
The FCC has granted an Equipment Authorization
for this device with all reported SAR levels evaluated
asincompliancewiththeFCCRFexposure
guidelines.SARinformationonthisdeviceisonle
with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: MSQZ012DC.
CE RF Exposure Compliance
This device meets the EU requirements (1999/519/
EC)onthelimitationofexposureofthegeneral
publictoelectromagneticeldsbywayofhealth
protection.
For body-worn operation, this device has been
tested and meets the ICNIRP guidelines and the
European Standard EN 62209-2, for use with
dedicated accessories. SAR is measured with
this device at a separation of 0.5 cm to the body,
whiletransmittingatthehighestcertiedoutput
power level in all frequency bands of this device.
Use of other accessories which contain metals
maynotensurecompliancewithICNIRPexposure
guidelines.
CE Mark Warning
CE marking for devices with wireless
LAN/ Bluetooth
This equipment complies with the requirements of
Directive 1999/5/EC of the European Parliament
and Commission from 9 March, 1999 governing
CLASS 1 LASER PRODUCT
This equipment may be operated in:
IT RU FR TR CZ PO SK ES
PT HU DE RO WB SI UA KZ
NOTE: This device is restricted to indoor use
only when operating in the 5150 to 5350 MHz
frequency range.
Using GPS (Global Positioning
System) on your ASUS Phone
To use the GPS positioning feature on your ASUS
Phone:
• Ensure that your device is connected to the
Internet before using Google Map or any
GPS-enabled apps.
• Forrst-timeuseofaGPS-enabledappon
your device, ensure that you are outdoors to
get the best positioning data.
• When using a GPS-enabled app on
your device inside a vehicle, the metallic
component of the car window and other
electronic devices might affect the GPS
performance.
Radio and Telecommunications Equipment and
mutual recognition of conformity. The highest CE
SAR values for the device are as follows:
• 0.493W/Kg(Head)
• 1.460W/Kg(Body)
Laser safety information
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen
at high volume levels for long periods.
For France, headphones/earphones for this
device are compliant with the sound pressure level
requirement laid down in the applicable EN 50332-
1:2013 and/or EN50332-2:2013 standard required
by French Article L.5232-1.
Safety information
ASUS Phone care
• UseyourASUSPhoneinanenvironmentwith
ambient temperatures between 0 °C (32 °F)
and 35 °C (95 °F).
The battery
WARNING: Disassembling the battery by yourself
will void its warranty and may cause serious harm.
Your ASUS Phone is equipped with a high
performance non-detachable Li-polymer battery.
Observe the maintenance guidelines for a longer
battery life.
• Donotremovethenon-detachableLi-polymer
battery as this will void the warranty.
• Avoidcharginginextremelyhighorlow
temperature. The battery performs optimally in
an ambient temperature of +5 °C to +35 °C.
• Donotremoveandreplacethebatterywitha
non-approved battery.
• UseonlyASUSbattery.Usingadifferent
battery may cause physical harm/injury and
may damage your device.
• Donotremoveandsoakthebatteryinwateror
any other liquid.
• Nevertrytoopenthebatteryasitcontains
substances that might be harmful if swallowed
or allowed to come into contact with
unprotected skin.
• Donotremoveandshort-circuitthebattery,as
itmayoverheatandcauseare.Keepitaway
from jewelry or metal objects.
• Donotremoveanddisposeofthebattery
inre.Itcouldexplodeandreleaseharmful
substances into the environment.
• Donotremoveanddisposeofthebatterywith
your regular household waste. Take it to a
hazardous material collection point.
• Donottouchthebatteryterminals.
• Toavoidreorburns,donotdisassemble,
bend, crush, or puncture the battery.
NOTES:
• Riskofexplosionifbatteryisreplacedbyan
incorrect type.
• Disposeofusedbatteryaccordingtothe
instructions.
The charger
• UseonlythechargersuppliedwithyourASUS
Phone.
Caution
Your ASUS Phone is a high quality piece of
equipment. Before operating, read all instructions
and cautionary markings on the (1) AC Adapter.
• DonotusetheASUSPhoneinanextreme
environment where high temperature or high
humidityexists.TheASUSPhoneperforms
optimally in an ambient temperature between 0
°C (32 °F) and 35 °C (95 °F).
• DonotdisassembletheASUSPhoneorits
accessories. If service or repair is required,
return the unit to an authorized service center.
If the unit is disassembled, a risk of electric
shockorremayresult.
• Donotshort-circuitthebatteryterminalswith
metal items.
Operator access with a tool
If a TOOL is necessary to gain access to an
OPERATOR ACCESS AREA, either all other
compartments within that area containing a hazard
shall be inaccessible to the OPERATOR by the use
of the same TOOL, or such compartments shall be
marked to discourage OPERATOR access.
ASUS Recycling/Takeback
Services
ASUS recycling and takeback programs come
from our commitment to the highest standards for
protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle
our products, batteries, other components as well
as the packaging materials. Please go to http://
csr.asus.com/english/Takeback.htm for detailed
recycling information in different regions.
Proper disposal
Regional notice for Singapore
This ASUS Phone complies
with IDA Standards.
WARNING! This product may contain chemicals
known to the State of California to cause cancer,
birth defects, or other reproductive harm. Wash
hands after handling.
Risk of explosion if battery is replaced
by an incorrect type. Dispose of used
batteries according to the instructions.
DO NOT throw the battery in municipal
waste. The symbol of the crossed out
wheeled bin indicates that the battery
should not be placed in municipal waste.
DO NOT throw this product in municipal
waste. This product has been designed to
enable proper reuse of parts and recycling.
The symbol of the crossed out wheeled
bin indicates that the product (electrical,
electronic equipment and mercury-
containing button cell battery) should not
be placed in municipal waste. Check
local regulations for disposal of electronic
products.
DONOTthrowthisproductinre.DO
NOT short circuit the contacts. DO NOT
disassemble this product.
EU Declaration of Conformity
We, the undersigned,
Manufacturer:
ASUSTeK COMPUTER INC.
Address:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe:
ASUS COMPUTER GmbH
Address, City:
HARKORT STR. 21-23, 40880 RATINGEN
Country:
GERMANY
declare the following apparatus:
Product name :
ASUS Phone
Model name :
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
EMC – Directive 2004/108/EC (until April 19th, 2016) and Directive 2014/30/EU (from April 20th, 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Directive 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD – Dir ective 2006/95/EC (until April 19th, 2016) and Directive 2014/35/EU (from April 20th, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Directive 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directive 2011/65/EU V er. 160217
CE marking
Equipment Class 2
0682
Signature
Jerry Shen
Printed Name
CEO
Position
Taipei, Taiwan
Place of issue
06/06/2016
Date of issue
2016
Year CE marking was first affixed
(EU conformity marking)
Declaração CE de Conformidade
Nós, os abaixo-assinados,
Fabricante:
ASUSTeK COMPUTER INC.
Endereço:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado na Europa:
ASUS COMPUTER GmbH
Endereço, cidade:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
declaramos o seguinte aparelho:
Nome do produto:
ASUS Phone
Nome do modelo:
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
O objeto da declaração acima descrito está em conformidade com a legislação de harmonização da União aplicável:
EMC Diretiva 2004/108/CE (até 19 de abril de 2016) e Diretiva 2014/30/UE (a partir de 20 de abril de 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Diretiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD Diretiva 2006/95/CE (até 19 de abril de 2016) and Diretiva 2014/35/UE (a partir de 20 de abril de 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
EcoEcodesign – Diretiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Diretiva 2011/65/UE Ver. 160217
Marcação CE
Classe de equipamento 2
0682
Assinatura
Jerry Shen
Nome impresso
CEO
Posição
Taipei, Taiwan
Local de emissão
06/06/2016
Data de emissão
2016
Ano marcação CE foi aposta por primeira vez
(Marcação CE de conformidade)
Declaraţie de conformitate UE
Subsemnatul,
Producător :
ASUSTeK COMPUTER INC.
Adresă:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Reprezentant autorizat în Europa:
ASUS COMPUTER GmbH
Adresă, Oraş:
HARKORT STR. 21-23, 40880 RATINGEN
Ţară:
GERMANIA
declară următorul aparat:
Nume Produs :
ASUS Phone
Nume Model :
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
Obiectul declarației descris mai sus este în conformitate cu legislația relevantă de armonizare a Uniunii :
CEM – Directiva 2004/108/CE (până în 19 Aprilie 2016) şi Directiva 2014/30/UE (până în 20 Aprilie 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD – Dir ectiva 2006/95/CE (până în 19 Aprilie 2016) şi Directiva 2014/35/UE ( până în 20 Aprilie 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE Ver. 160217
Marcajul CE
Echipament Clasa 2
0682
Semnătură
Jerry Shen
Nume
CEO
Funcţie
Taipei, Taiwan
Locul emiterii
06/06/2016
Data emiterii
2016
Anul în care Marcajul CE a fost aplicat pentru
prima oară
(Marcaj de conformitate UE )
EU Uygunluk Beyanı
Biz, bu imza altındakiler
Üretici:
ASUSTeK COMPUTER INC.
Adres:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Avrupa’daki Yetkili:
ASUS COMPUTER GmbH
Adres, Şehir:
HARKORT STR. 21-23, 40880 RATINGEN
Ülke:
ALMANYA
Aşağıdaki ürünleri beyan ediyoruz :
Ürün adı :
ASUS Phone
Model adı :
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
Yukarıda belirtilen beyanın konusu birlik yasalarına göre uygundur:
EMC – Direktif 2004/108/EC 19 Nisan 2016’ya kadar ve Direktif 2014/30/EU 20 Nisan 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Direktifi 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD – Direktifi 2006/95/19 Nisan 2016’ya kadar ve Direktif 2014/35/EU 20 Nisan 2016
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Direktif 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Direktifi 2011/65/EU Ver. 160217
CE işareti
Ekipman Sınıfı 2
0682
İmza
Jerry Shen
Basılı Ad
CEO
Pozisyonu
Taipei, Taiwan
Sürüm yeri
06/06/2016
Sürüm tarihi
2016
CE işaretinin ilk eklendiği yıl
(EU uygunluk işareti)
EU Konformitätserklärung
Hiermit erklären wir,
Hersteller:
ASUSTeK COMPUTER INC.
Anschrift:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Bevollmächtigter:
ASUS COMPUTER GmbH
Anschrift des Bevollmächtigten:
HARKORT STR. 21-23, 40880 RATINGEN
Land:
GERMANY
dass nachstehend bezeichnete Produkte
Produktbezeichnung
ASUS Phone
Modellbezeichnung:
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
mit den nachstehend angegebenen, für das Produkt geltenden Richtlinien/Bestimmungen übereinstimmen:
EMV – Richtlinie 2004/108/EG (bis 19. April 2016) und Richtlinie 2014/30/EU ( ab 20. April 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Richtlinie 1999/5/EG
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD – Richtlinie 2006/95/EG (bis 19. April 2016) und Richtlinie 2014/35/EU (ab 20. April 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ökodesign – Richtlinie 2009/125/EG
Verordnung (EG) No. 1275/2008
Verordnung (EG) No. 642/2009
Verordnung (EG) No. 278/2009
Verordnung (EU) No. 617/2013
RoHS – Richtlinie 2011/ 65 /EU Ver. 160217
CE Kennzeichen
Geräteklasse 2
0682
Unterschrift
Jerry Shen
Name
CEO
Position
Taipei, Taiwan
Ort
06/06/2016
Datum
2016
Jahr der Kennzeichenvergabe
(EU Konformitätszeichen)
UE Declaración de Conformidad
Nosotros, los abajo firmantes,
Fabricante:
ASUSTeK COMPUTER INC.
Dirección:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado en Europa:
ASUS COMPUTER GmbH
Dirección, Ciudad:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
Declaramos el siguiente producto:
Nombre del aparato :
ASUS Phone
Nombre del modelo :
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
El objeto de la declaración descrita anteriormente es conforme con la legislación de armonización pertinente de la Unión:
EMC Directiva 2004/108/CE (hasta el 19 de abril, 2016) y Directiva 2014/30/UE (desde el 20 de abril, 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
LVD Directiva 2006/95/CE (hasta el 19 de abril, 2016) y Directiva 2014/35/UE (desde el 20 de abril, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Diseño Ecológico – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE Ver. 160217
Marcado CE
Clase de equipo 2
0682
Firma
Jerry Shen
Nombre impreso
CEO
Posición
Taipei, Taiwan
Lugar de emisión
06/06/2016
Fecha de emisión
2016
Año en que se colocó
el marcado CE por primera vez
(Marcado CE de comformidad)
DECLARATION UE DE CONFORMITE
Nous, soussignés
Fabricant:
ASUSTeK COMPUTER INC.
Adresse:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Représentant autorisé en Europe:
ASUS COMPUTER GmbH
Adresse, ville:
HARKORT STR. 21-23, 40880 RATINGEN
Pays:
GERMANY
Déclarons l’appareil suivant:
Nom du produit :
ASUS Phone
Nom du modèle :
ASUS_Z012D/ASUS_Z012DA/ASUS_Z012DB
L’objet de la déclaration décrit ci-dessus est conforme avec la législation d’harmonisation de l’Union applicable
Directive CEM 2004/108/CE (jusqu’au 19 avril 2016) et la directive 201 4/30/UE (à partir du 20 avril 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55024:2010
EN 61000-3-3:2013
Directive R&TTE 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1(2015-03)
EN 301 908-2 V6.2.1
EN 301 908-13 V6.2.1
EN 301 893 V1.8.1(2015-03)
EN 50360:2001+A1:2012
EN 62479:2010
EN 62311:2008
EN 62209-1:2006
EN 62209-2:2010
EN 50566:2013+AC:2014
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-08)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
Directive LVD 2006//125/CE (jusqu’au 19 avril 2016) et la directive 2014/34/UE (à partir du 20 avril 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Directive écoconception 2009/125/CE
Regulation (CE) No. 1275/2008
Regulation (CE) No. 642/2009
Regulation (CE) No. 278/2009
Regulation (UE) No. 617/2013
Directive RoHS 2011/65/UE Ver. 160217
Marquage CE
Equipement de classe 2
0682
Signature
Jerry Shen
Nom en caractères d’imprimerie
CEO
Position
Taipei, Taiwan
Lieu de délivrance
06/06/2016
Date d'Emission
2016
Année où commence l’apposition
du marquage CE
(Marquage UE de conformité)
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: Asus Computer International
Address: 800 Corporate Way, Fremont, CA 94539.
Phone/Fax No: (510)739-3777/(510)608-4555
hereby declares that the product
Product Name : ASUS Phone
Model Number : ASUS_Z012DC
Conforms to the following specifications:
FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Representative Person’s Name : Steve Chang / President
Signature :
Date : Jun. 06, 2016
Ver. 140331
Copyright © 2016 ASUSTeK COMPUTER INC.
All Rights Reserved.
You acknowledge that all rights of this Manual remain with ASUS.
Any and all rights, including without limitation, in the Manual or
website,andshallremaintheexclusivepropertyofASUSand/orits
licensors. Nothing in this Manual intends to transfer any such rights,
or to vest any such rights to you.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY
OF ANY KIND. SPECIFICATIONS AND INFORMATION
CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS.
ASUS
Address: 4F, 150 Li-Te Road, Peitou, Taipei,
Taiwan
Tel: 886228943447
Fax: 886228907698
Declaration
We declare that the IMEI codes for this product, ASUS
Phone, are unique to each unit and only assigned to
this model. The IMEI of each unit is factory set and
cannot be altered by the user and that it complies
with the relevant IMEI integrity related requirements
expressedintheGSMstandards.
Should you have any questions or comments regarding
this matter, please contact us.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel: 886228943447
Fax:886228907698
Support:http://vip.asus.com/eservice/techserv.aspx
15060-79700200
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)

Navigation menu
