T h i suser Manual was produced with careful consideration,

but please let us know if there is anything that is wrong or

needs correcting.

T h i smanual may not, in whole or in part, be reproduced,

photocopied, transcribed, translated, or transmitted in

whatsoever form without the prior permission of the manufacturer.

T h esize and appearance of this device may be changed for

improvement without notice.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measure :

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

B a t t e ry Warning Instruction

C a u t i o n

If battery is incorrectly replaced there poses a danger of explosion. Replace Battery only with same or equipment type

recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Fuse Warning Instruction

C a u t i o n

For continued protection against risk of fire, replace only with same type and rating off use. Disconnect input power

before serving. Only connect this equipment to an earthed socket outlet.

Laser Product

Class 1 Laser Pro d u c t

This appliance contains a laser system and is classified as a 〞CLASS 1 LASER PRODUCT〞. To use this model

properly, read this Owner’s Manual carefully and keep this manual for future reference. In case of any trouble with

this model, please contact your nearest〞Authorized Repair Center〞.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

C a u t i o n

The laser used in the CD-ROM drive can damage your eyes. Do not attempt to open the cover

To reduce the risk of electric shock, do not remove cover(or back).

No user-serviceable parts inside.

Refer servicing to qualified service personnel.

Use of controls or adjustments or performance of procedures other than those specified herein may result in

hazardous radiation exposure.

Do not open the top cover of the drive and never touch the internal parts in order to avoid

EXPOSURE TO INVISIBLE LASER RADIATION.

When the power switch is On, do not place your eyes close to the foat panel opening door and other openings to

look into the inside of the drive.

I m p o rtant Safety Instru c t i o n s

The following instructions pertain to the risk of fire, electric shock or bodily injury.

Please read all of these instructions carefully.

1. Save these instructions for later use.

2. Follow all of the instructions and warnings marked on this product or included in this manual.

3. Do not use this computer on an unstable cart, stand or table.

The product may fall, causing serious damage to the product.

4. Slots and openings in the cabinet and back have been provided for ventilation.

To ensure the reliable operation of your computer, and to protect in from overheating,

these openings must not be blocked or covered. Don′t use this product on a bed, sofa, rug or

other similar surface. This product should never be placed near or over a radiator or heat register.

This product should not be placed in a built-in installation unless proper ventilation is provided.

5. Never push objects of any kind into the computer through the cabinet openings, as they may

touch dangerous voltage points or short out parts that could result in a fire or electrical shock.

Never spill liquid of any on the product.

6. This computer should only be connected to the AC power source indicated on your computer system′s

information abel. If you are not sure of the type of AC power available,

consult your dealer or local power company. Only connect this computer to a power outlet that matches

the power requirements of this computer.

7 . Do not allow anything to rest on the power cord.

Do not locate this product where people will walk on the cord.

8. If you have to use an extension cord with this computer, make sure that the

total amperage rating of all equipment plugged into it dose not exceed the amperage

rating of the extension cord. Also, make sure that the total of all products plugged into

the main AC power outlet dose not exceed 3.5amps.

9. Unplug your computer from the main electrical power outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

10. Do not use this computer near water.

11. This product is equipped with a 3-wire grounding type plug, a plug having a third(grounding) pin.

This plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to

insert or replace your obsolete outlet, contact your electrician to replace your obsolete outlet.

Do not defeat the purpose of the grounding-type plug.

M a i n t e n a n c e

If the product does not operate normally, adjust only these controls that are covered by

the operating instructions. Improper adjustment of other controls may result in damage

and may require extensive repair work to restore the product to normal operation.

Unplug this product from the main power outlet and call for service under any of the

following conditions :

A. If the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product has been dropped or the cabinet has been damaged.

E. If the product exhibits a distinct change in performance, indicating a need for service.

S t o p

If you ever have to remove the main system unit cover observe the following

precautions :

A. The power supply cord must be unplugged before the main system unit cover is

removed.

B. Once removed, the cover must be replaced and screwed in position before the power

supply cord is plugged back in.

B e fo re You Start

1. Product Features 1 0

2. Equipment Checklist 11

3. Notes on Installation and Operation 1 2

I n t ro d u c t i o n

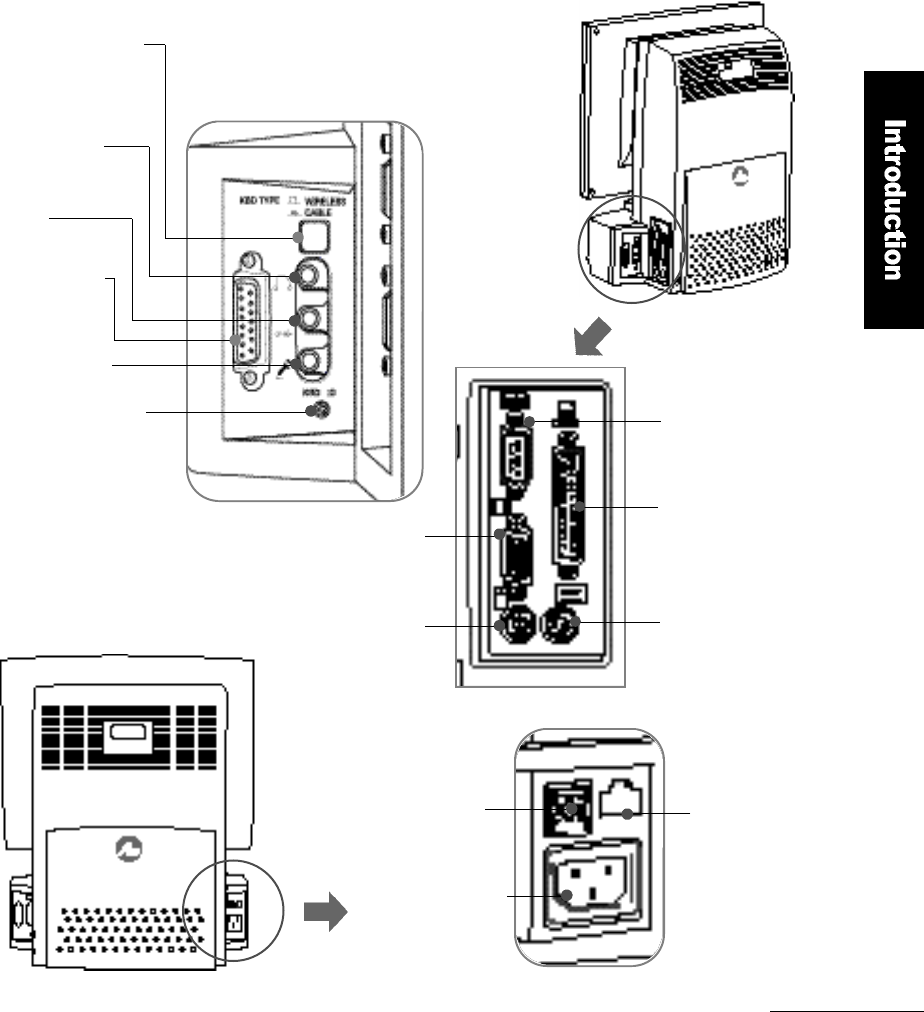

1. Appearance 1 4

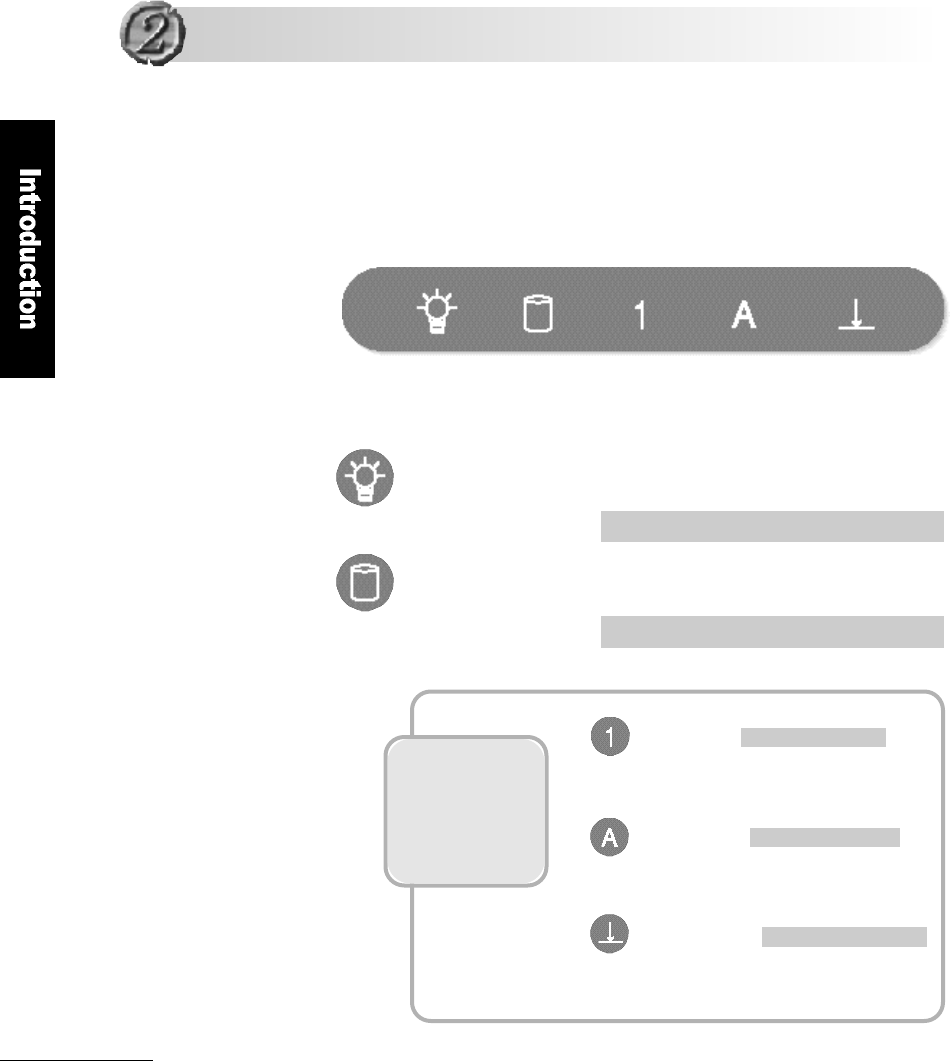

2. Computer Status Indicator Panel 1 6

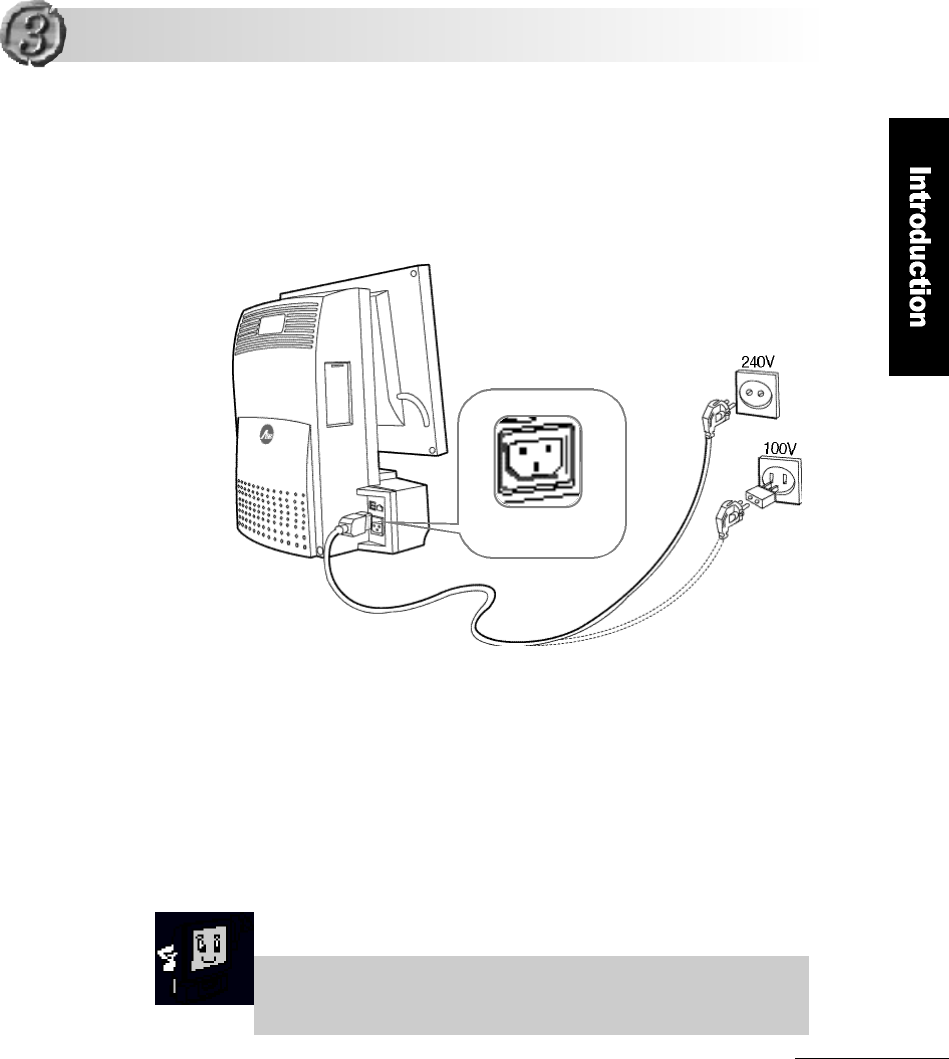

3. Connecting the Power Cord 1 7

Getting Start e d

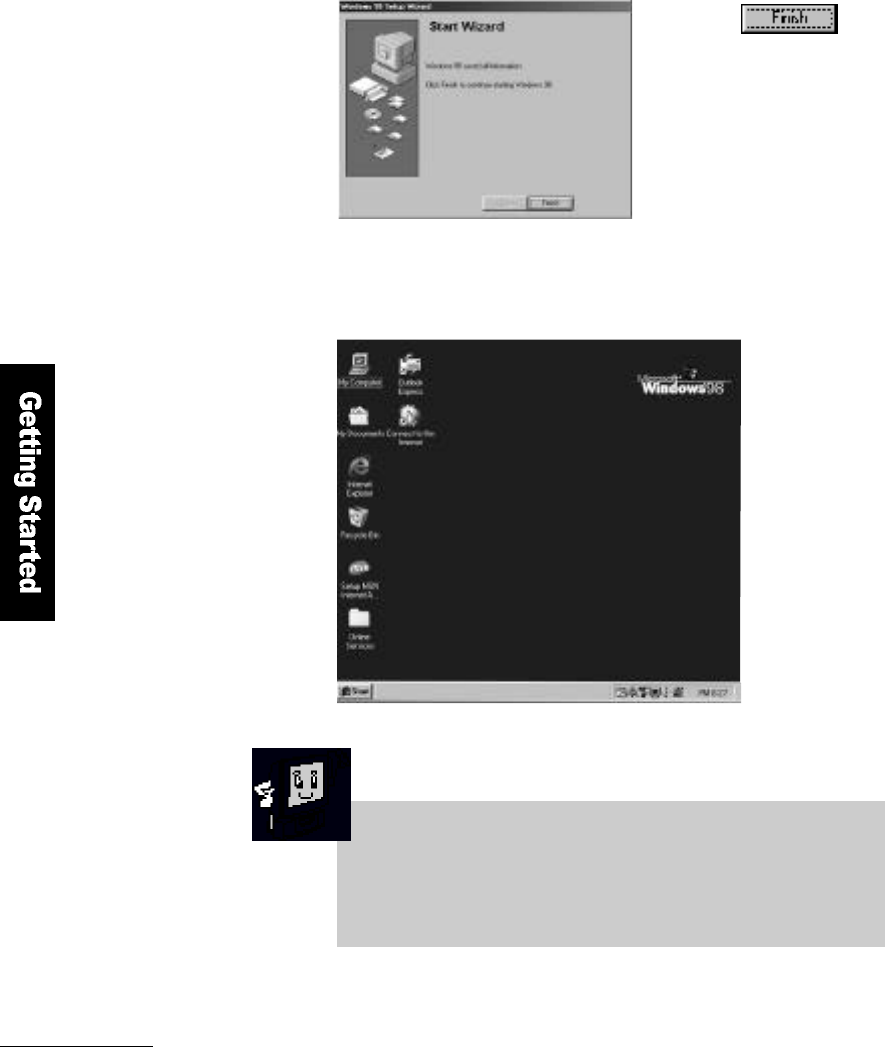

1. Booting 1 8

2. Shutdown 2 1

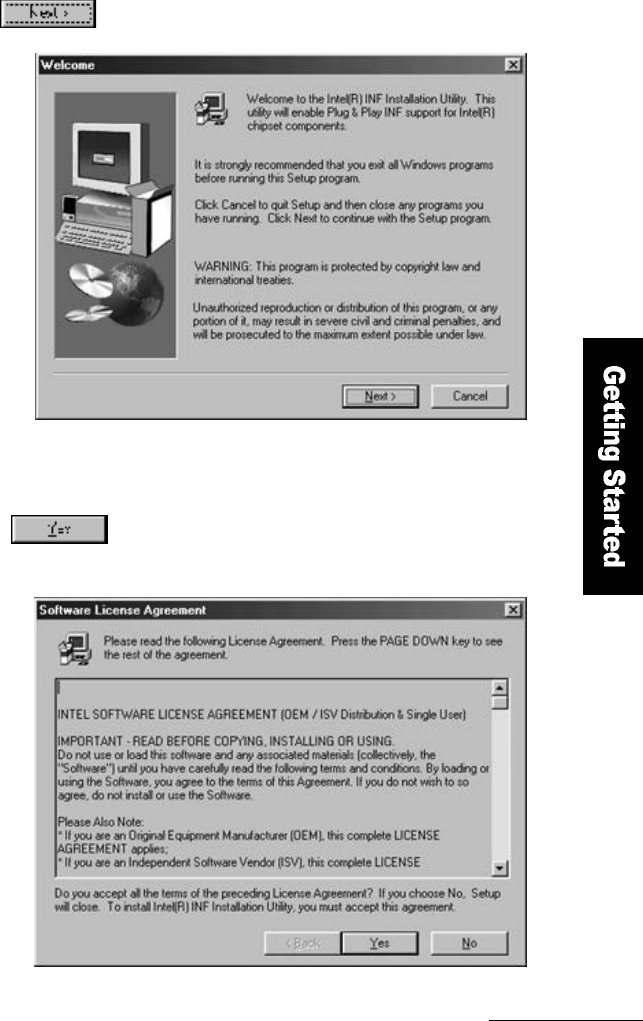

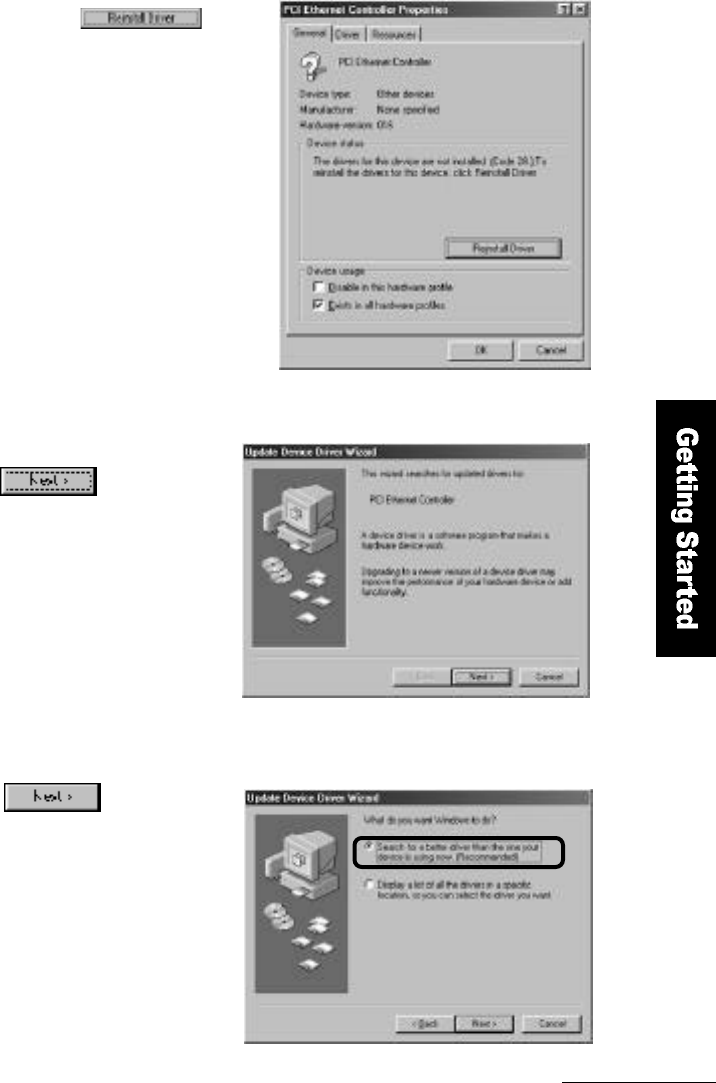

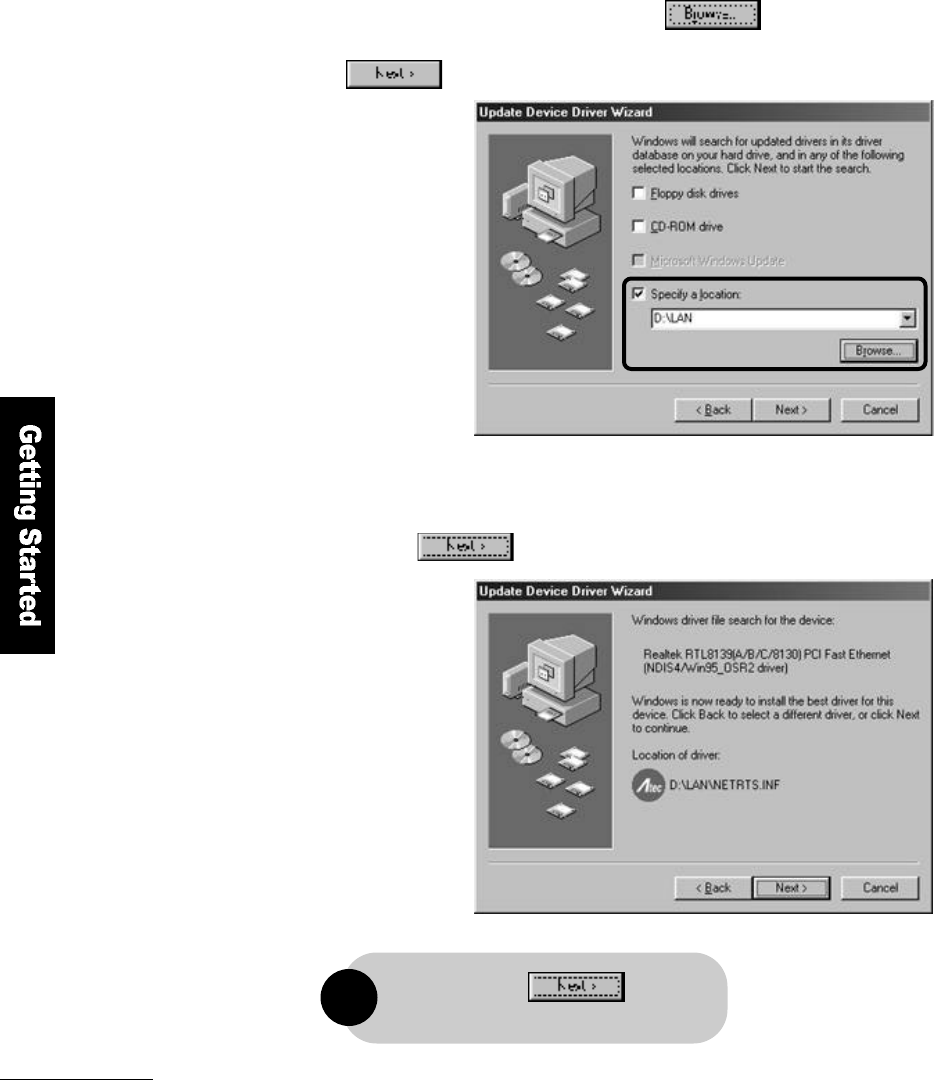

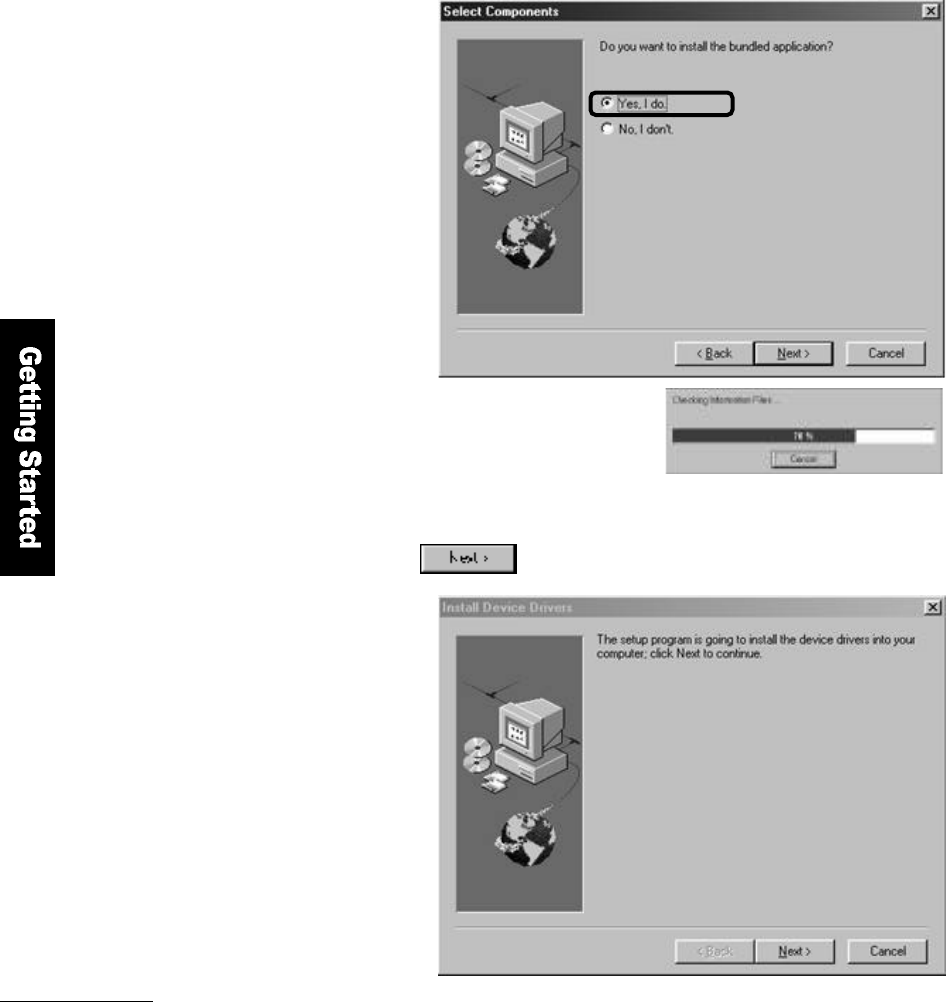

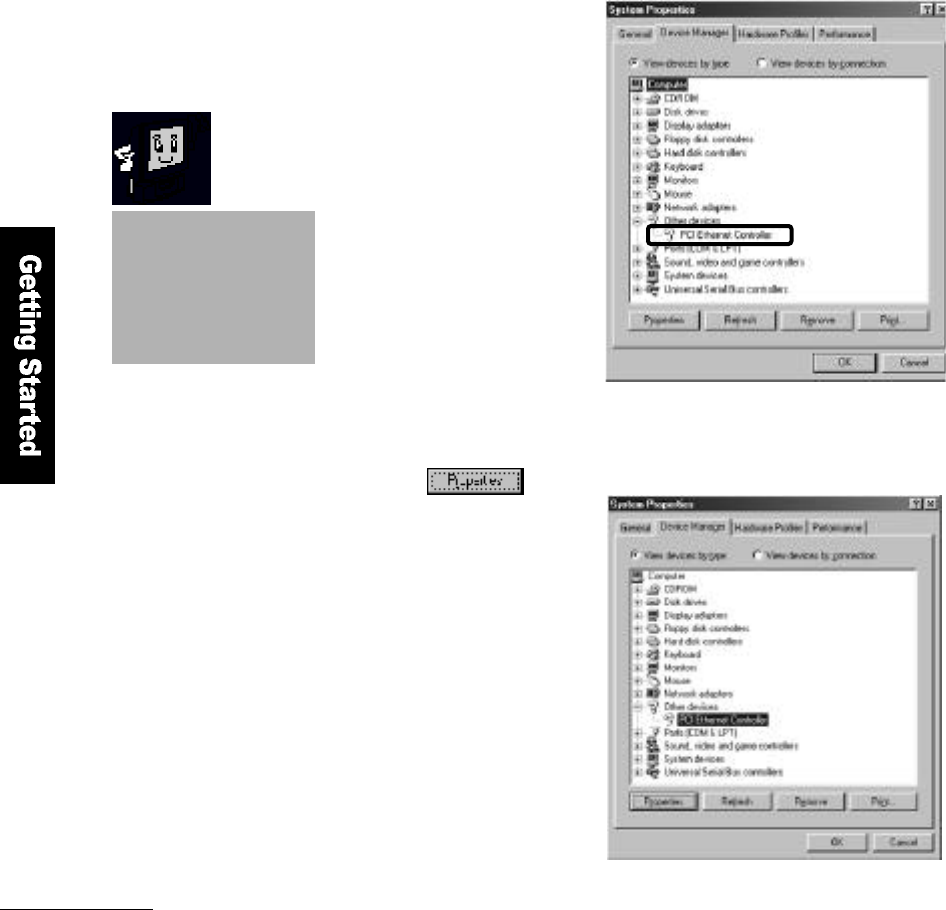

3. Installing the Drivers 2 2

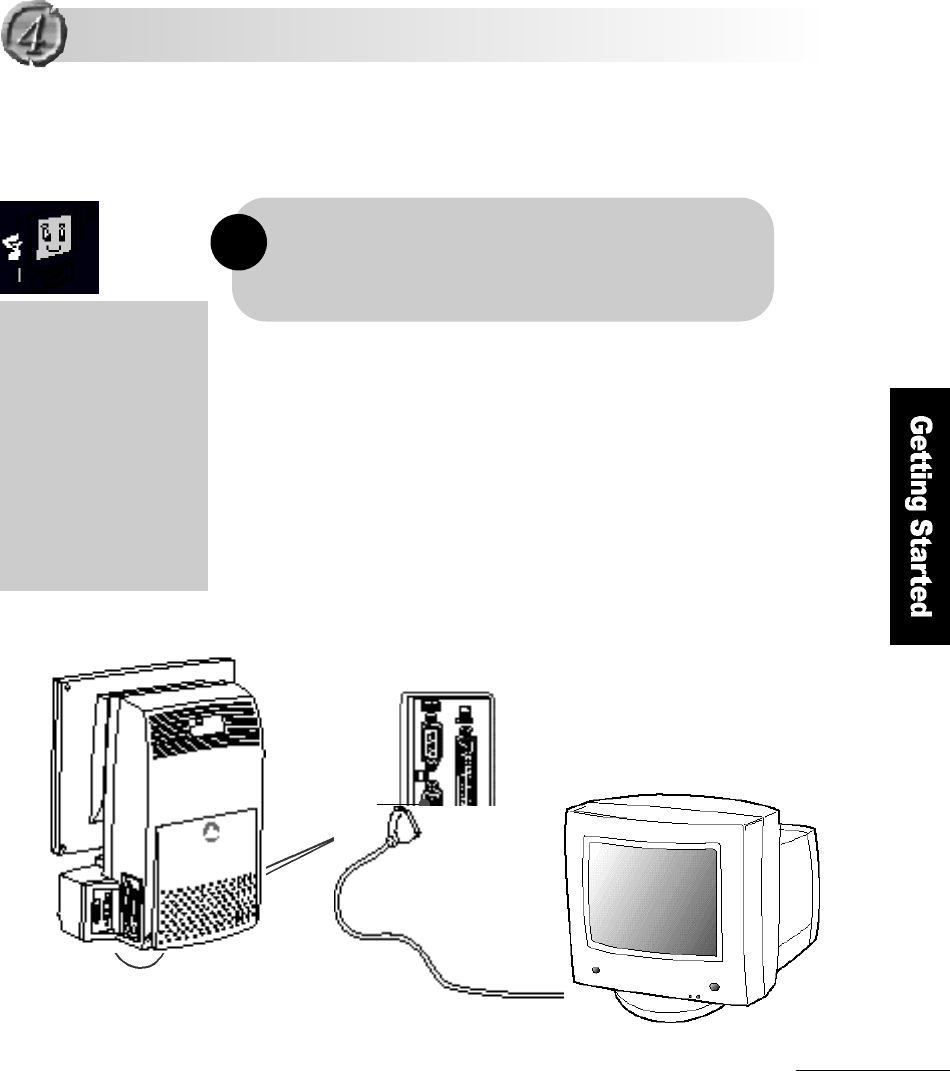

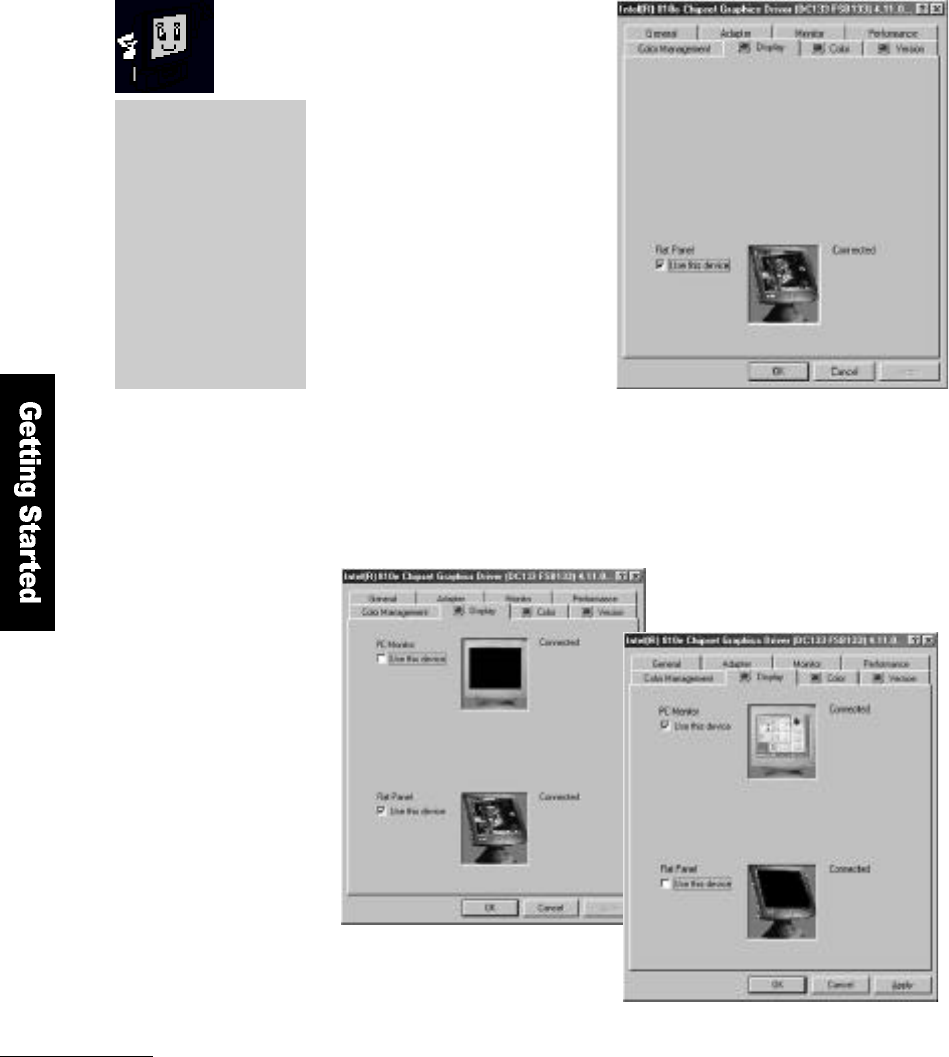

4. Using an External Monitor 4 3

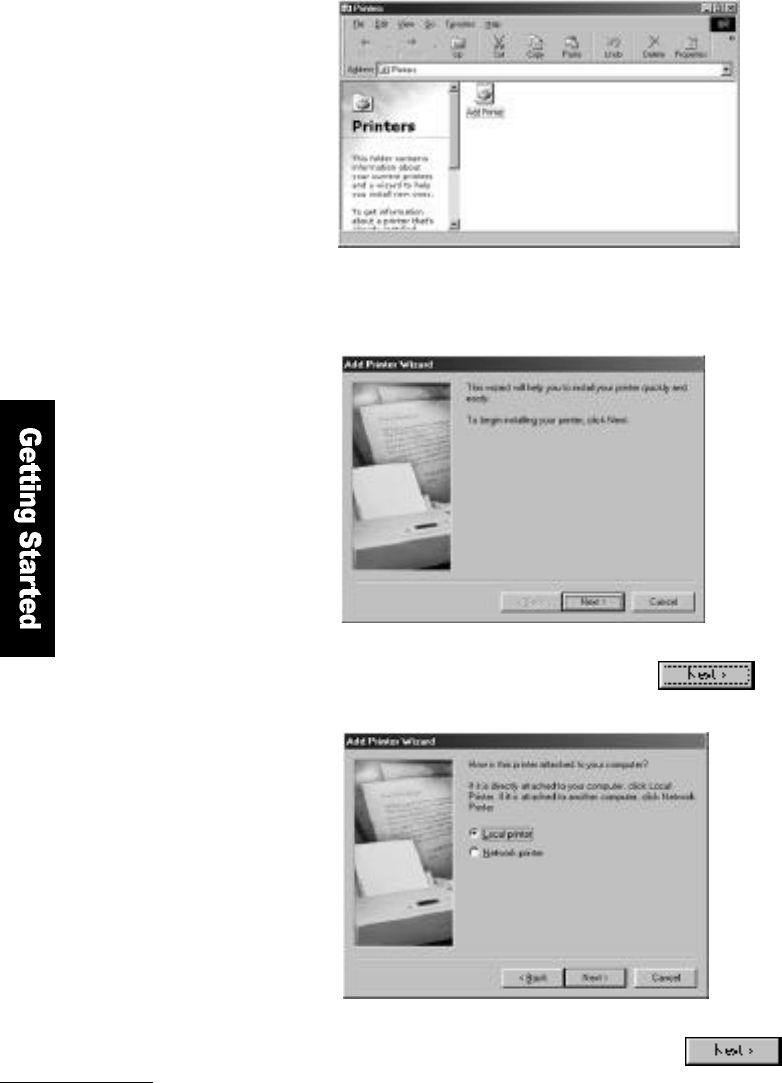

5. Installing a Printer 4 5

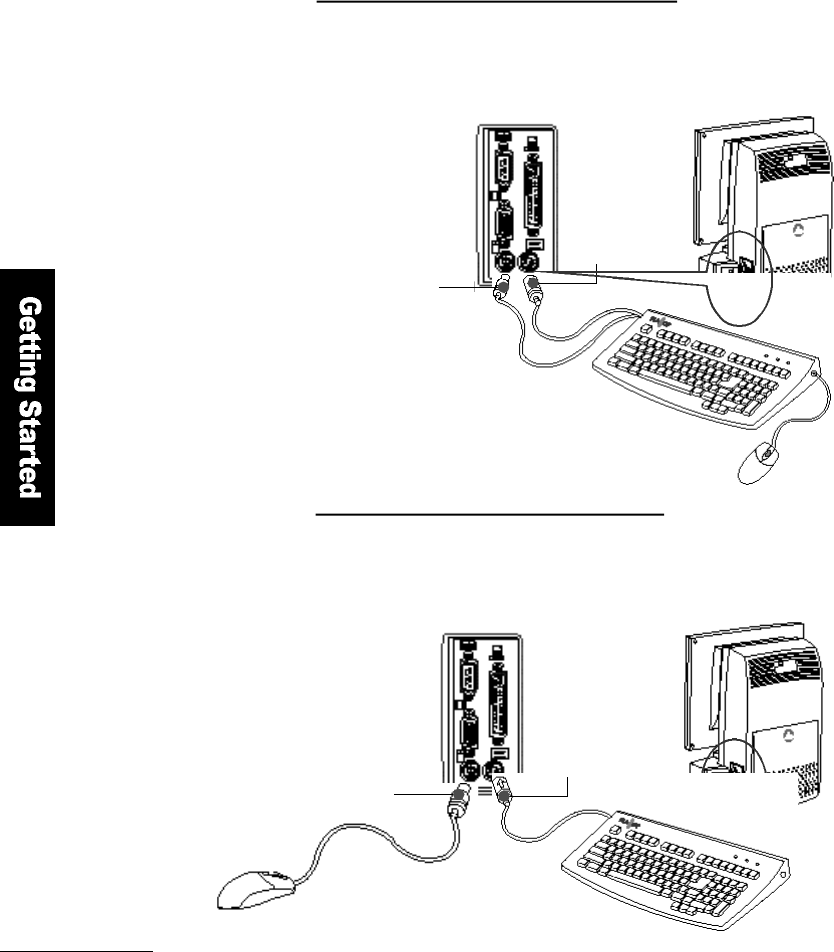

6. Using a Wired Keyboard and a Mouse 4 9

7. Using a Wireless Keyboard and a Mouse 5 1

Table of Contents

Good usage will give the

p roduct a long life

Thank you for purchasing our F L ATO P

product. In order to receive maximum

e f fectiveness from this product,

please read this manual before you start

to use it.

Table of Contents

A d vanced Operat i o n s

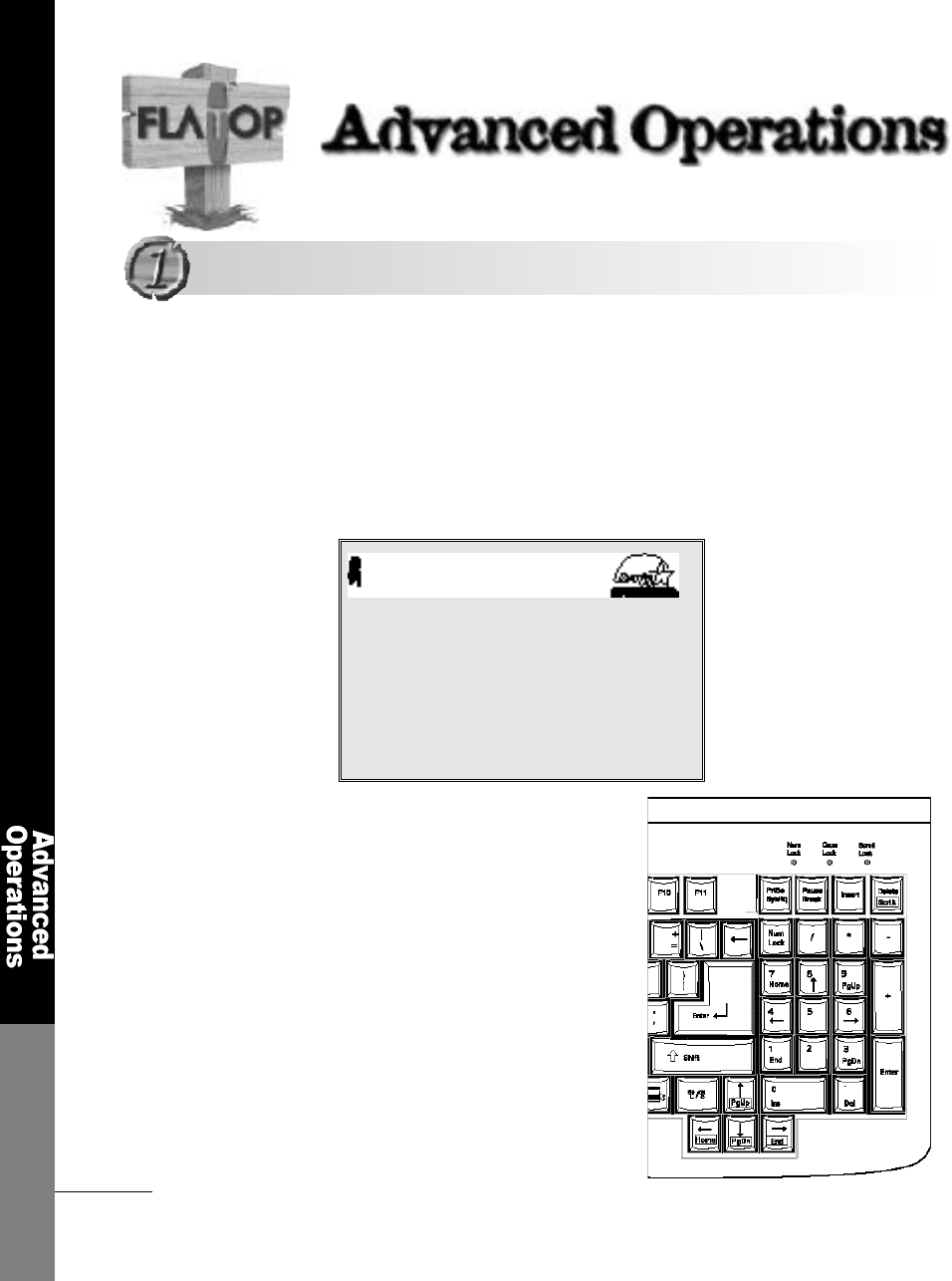

1. Entering the System Setup 5 6

2. Turning the power on with the Keyboard 5 7

I m p r oved Computer Pe r fo rm a n c e

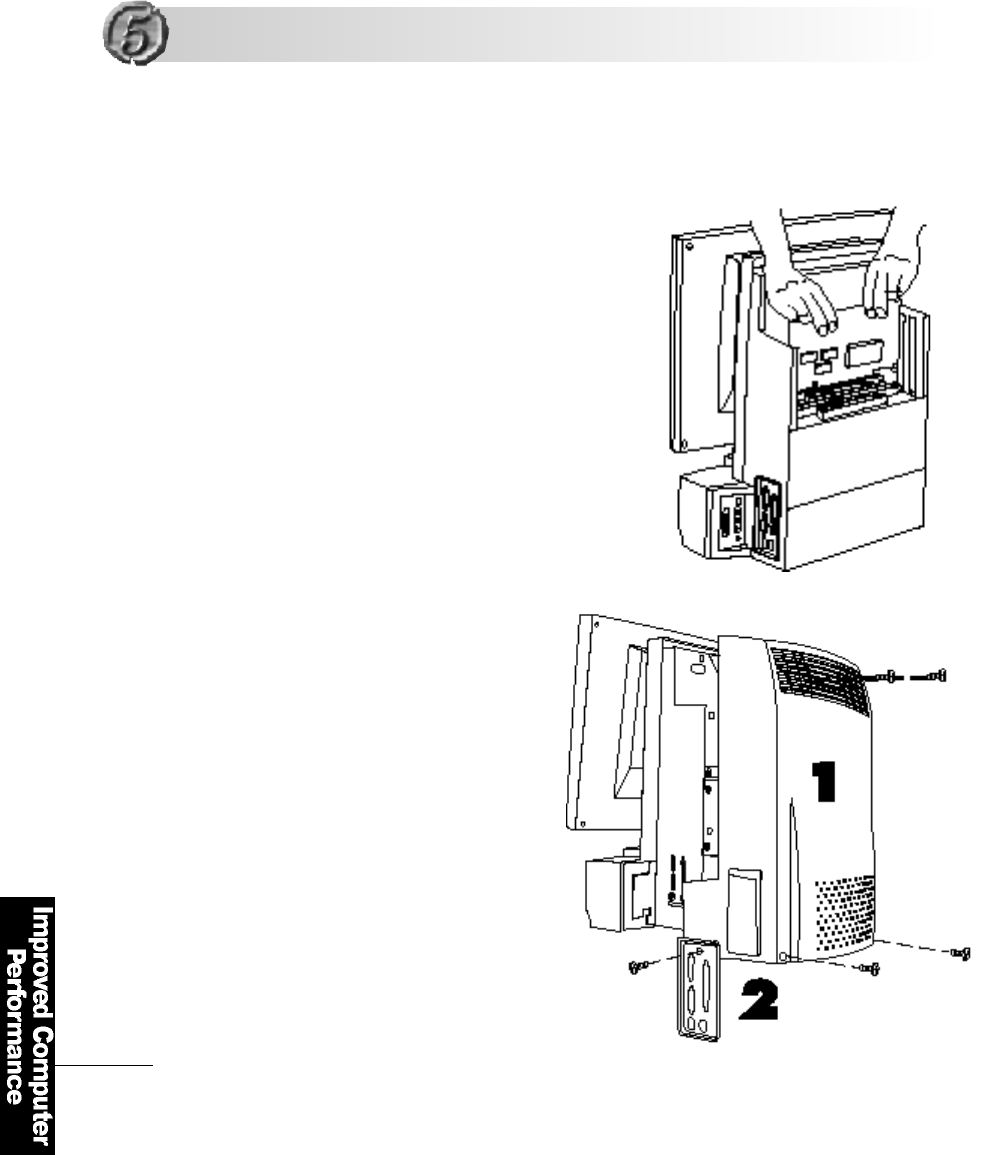

1. Opening the Computer Cover 6 0

2. Composition of the Mainboard and Connectors 6 1

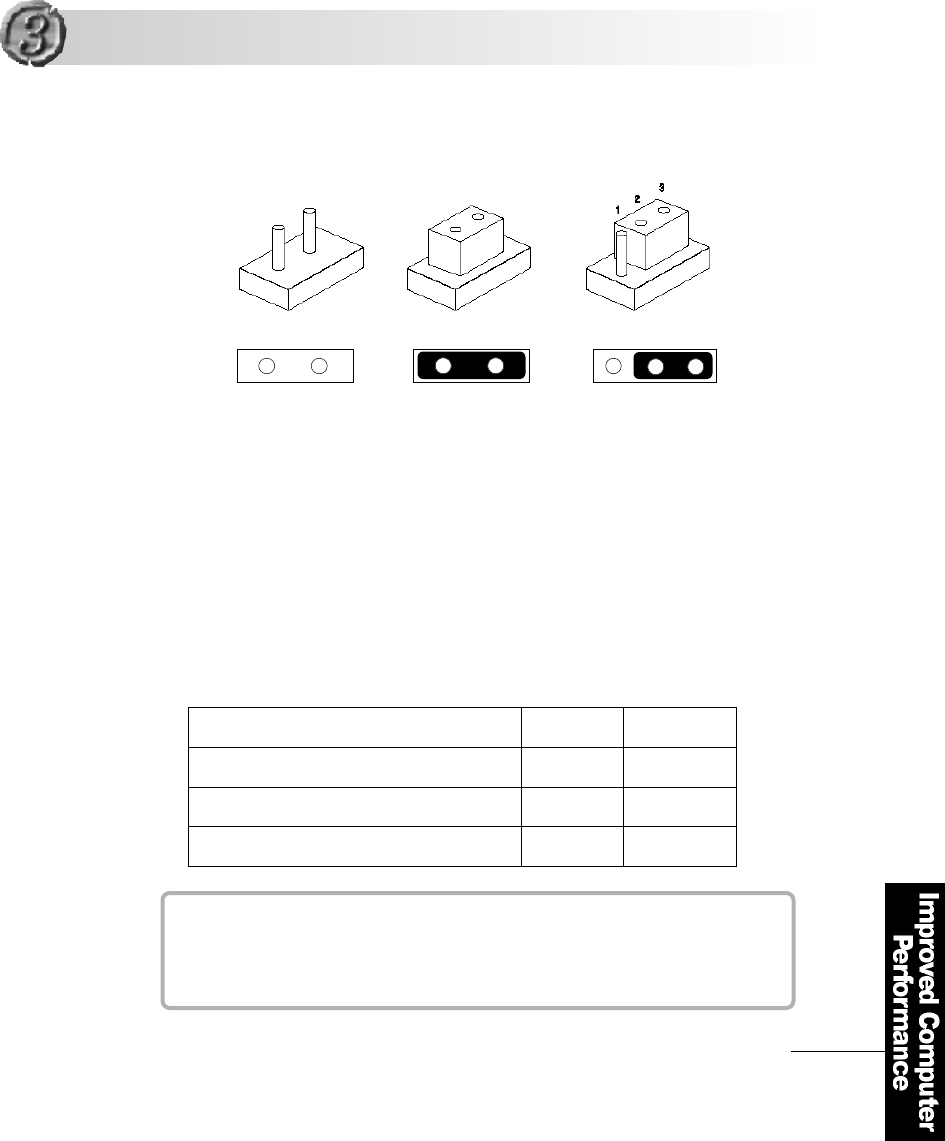

3. Improving the CPU performance 6 3

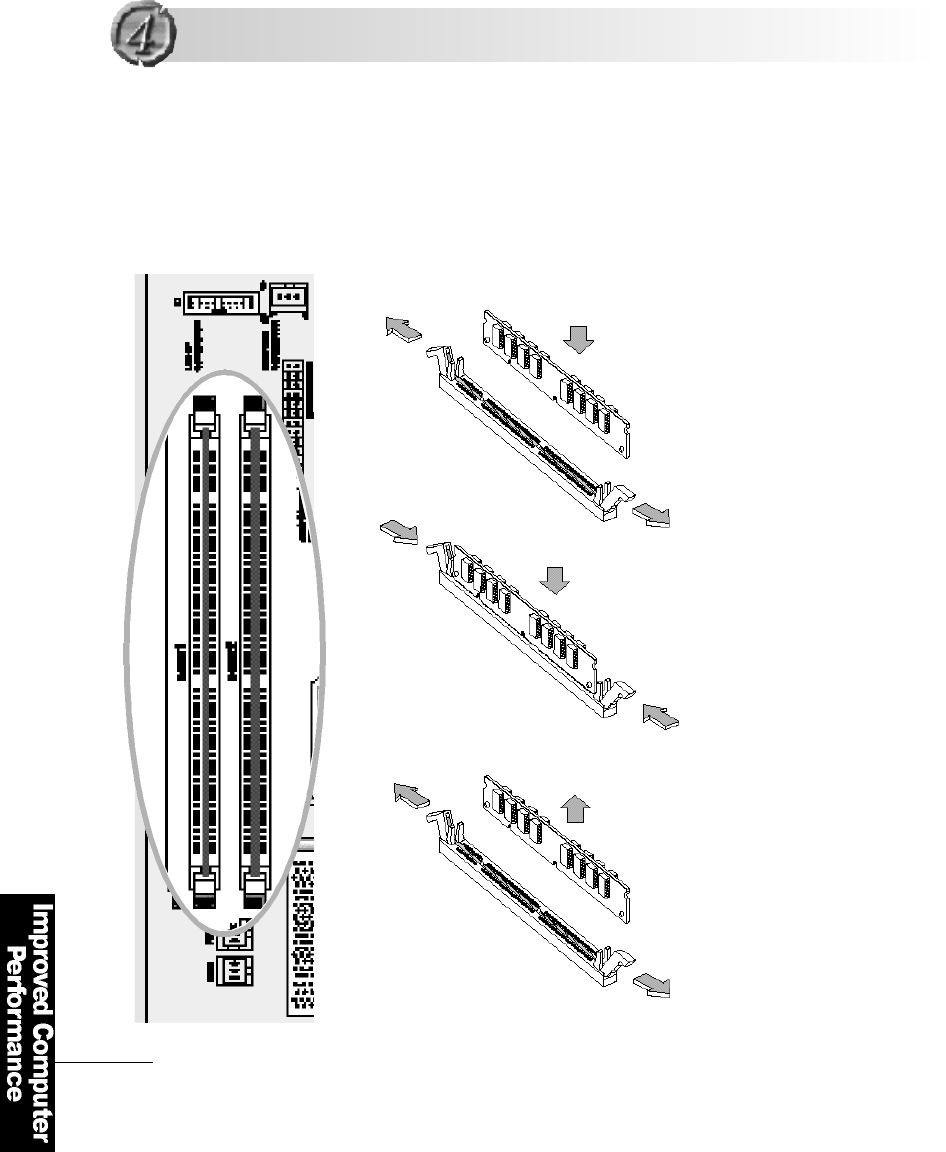

4. Expanding the Memory 6 4

5. Installing cards in the Expansion Slot 6 6

Tro u bl e s h o o t i n g 6 8

Table of Contents

1 0

Before You Start

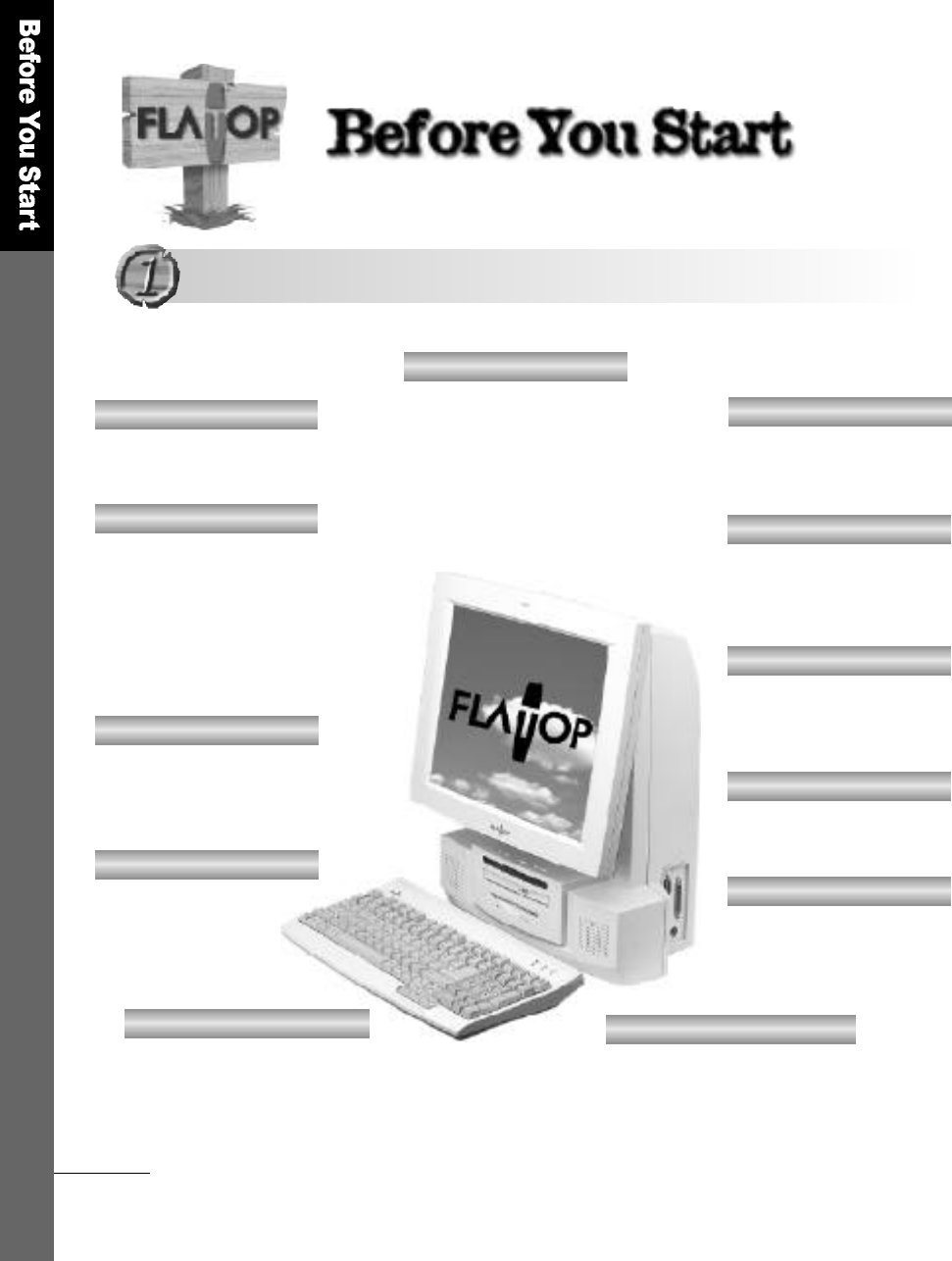

EASY SCALABILITY

Expansion slot with

2PCI/1AMR Bus;2PCI or

1 PCI/AMR Bus

N E T W O R K

Realteck RTL 8139B

V I D E O

Support for Intel 810e

Chipset 3D

CACHE MEMORY

L2 cache memory

of 256KB

CD-ROM DRIVE

24X Slim size

S O U N D

Avance ALC AC′97

sound codec

M E M O RY

64MB DRAM,

expandable to 512MB

K E Y B O A R D/ M O U S E

Choose between

w i r e d / w i r e l e s s

keyboard and mouse

HIGH MOBILITY

light weight of 10.5kg

CPU

Intel PentiumⅢ( F C P G A )

S C R E E N

Vertical viewing angle

of -5°~ 2 5 °, Horizontal

viewing angle (+left/-right)

of 120°, and vertical visible

screen angle of 90°

Product Features

MODEL : AF8

LCD

1024 x 768 Max. resolution

and 16.7 million colors on

1 5 .1󰢆TFT LCD screen

Before You Start

1 1

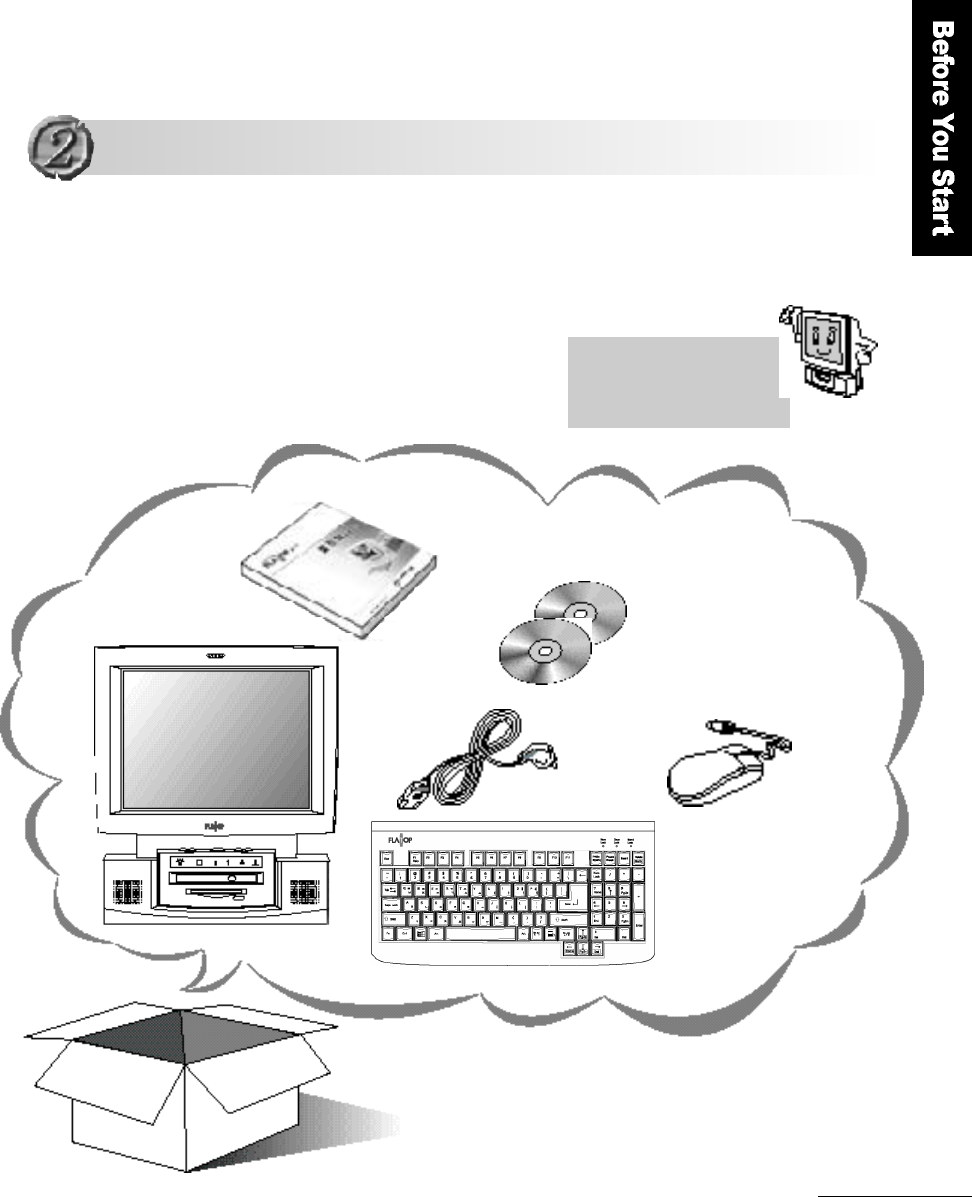

Check to make sure that you have all the following items.

If any of the items are missing or damaged, contact your

dealer immediately.

F L ATO P

Key b o a rd

Mouse

Power Cabl e

User

M a nu a l F L AT O P

C D s Wi n d o ws 98

CD and

I n s t a l l a tion

boot disk

The FLATOP CDs contain the

system programs, device

drivers and utilities.

O p t i on: Wireless Keyboard, Wireless Mouse,

DVD-ROM DRIVE, Mic

Equipment Checklist

1 2

Before You Start

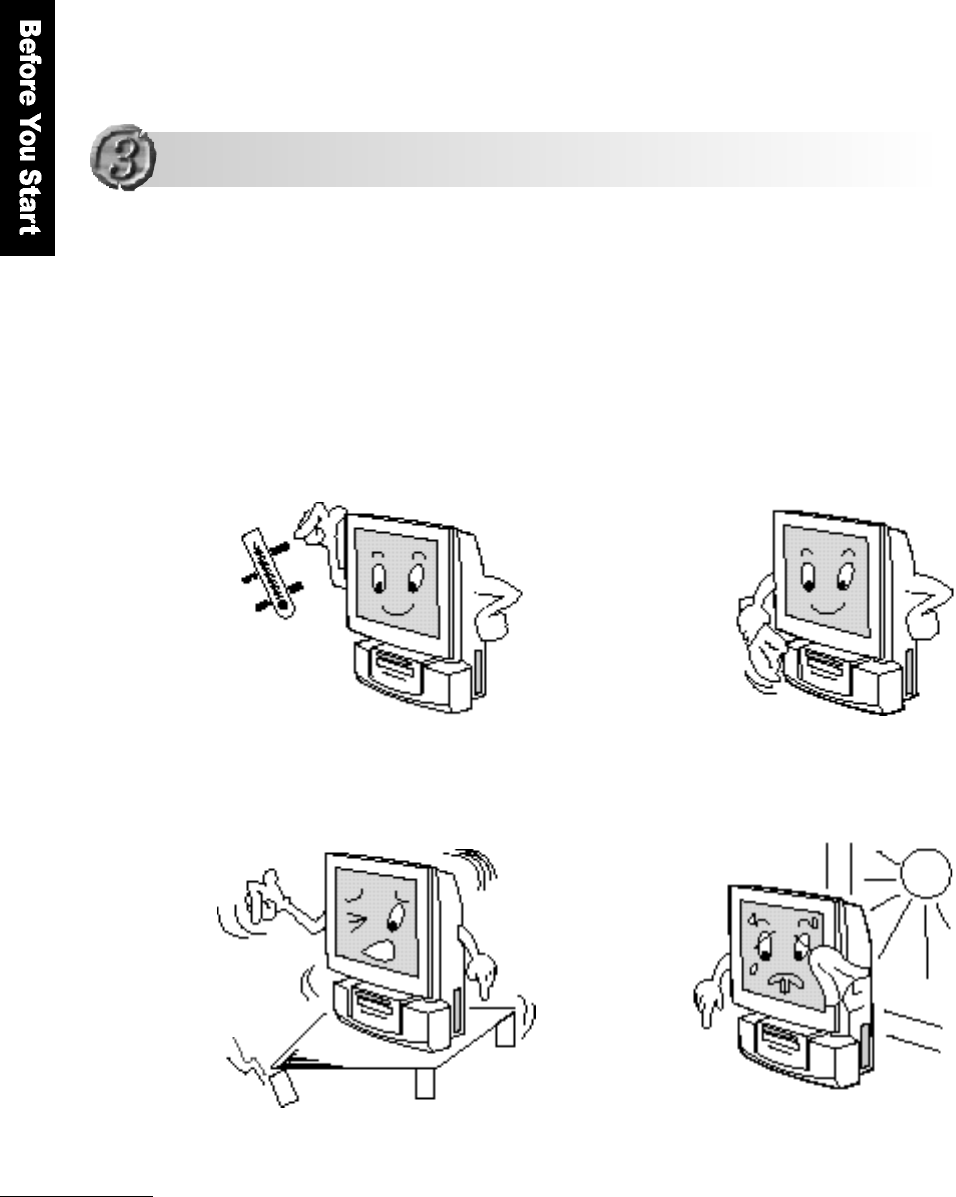

A good installation environment gives the product a longer life.

Please sit the product on a stable and secure surf a c e .

I n s t a l l a tion Env i ro n m e n t

Notes on Installation and Operation

Maintain an

optimum

temperature and humidity;

5 - 2 5℃and 30%

Clean the LCD

panel with a soft

materials(such as

cotton cloth)

Sit the product on

a stable and

secure surface

Install the

product in a

w e l l - v e n t i l a t e d

room, not

exposed to

direct sunlight.

Before You Start

1 3

Damage caused by the user′s misuse or carelessness is

not covered by the warranty service.

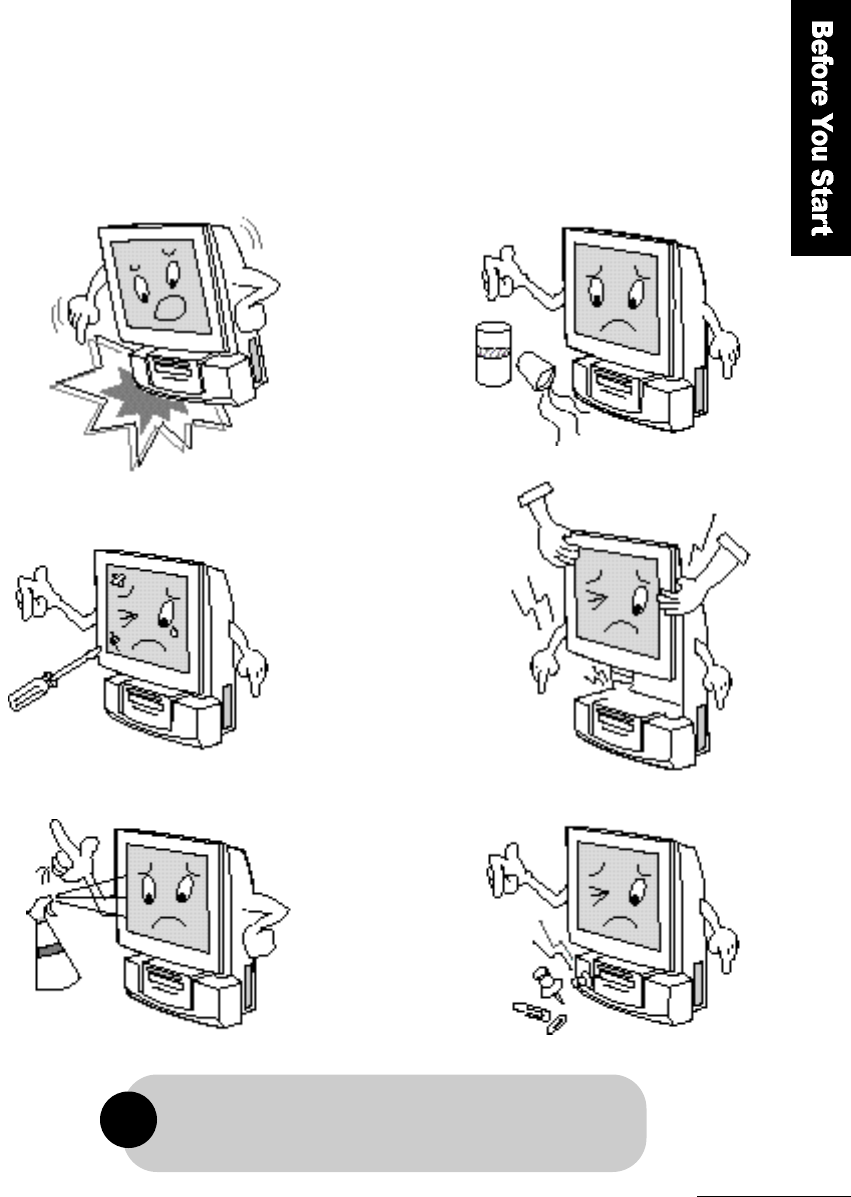

Cautions in Use

Do not drop or

shake the product. Do not spill

beverages,

such as coffee,

on the product

Do not scratch or

jolt the LCD

s u r f a c e .

Do not lift up the

product by holding

the LCD panel.

Do not spray any

detergent

directly onto the

LCD screen.

(lest you mark

the screen

p e r m a n e n t l y )

Do not insert any

f o r e i g n

substances into

p r o d u c t .

Become familiar with the names of the extern a l

C o m p o n e n t s

■The Fro n t

This section describes the appearance and the various buttons and

functions of the product. Please refer to the brief descriptions and

names given in the illustrations in order to learn the functions of each

c o m p o n e n t .

M i c r o p h o n e

Power Button

Speaker Vo l u m e

CD-ROM DRIVE

Built-in Speaker

1 5 . 1󰢆TFT LCD Panel

LCD Screen Brightness

Status Indicator Panel

3 . 5 󰢆F D D

Built-in Speaker

This 392(W)mm x 430(H) sized product provides a space-saving feature and

the display gives vertical viewing angles between -5°and 25°and a clean

screen quality even when you view it from the side.

▶Built-in Microphone (option)

▶Power can be turned On or Off

when the power cord is connected

to a wall outlet (standby mode)

▶adjusts the speaker volume

▶24X Slim size CD-ROM drive

▶Max. 5W output

▶16.7 million colors at 1024 x 768 Max.

r e s o l u t i o n

▶Adjusts the LCD Screen Brightness

▶Indicates the current status of

o p e r a t i o n

▶Max. 5W output

▶1.44 Floppy Disk Drive

1 4

I n t r o d u c t i o n

Appearance

I n t r o d u c t i o n

1 5

Serial Port

■The Back

󰦙

Parallel Port

Mouse Connector

Video Connector

Selector Switch

for Keyboard

Line in

M i c r o p h o n e

J o y s t i c k / M i d i

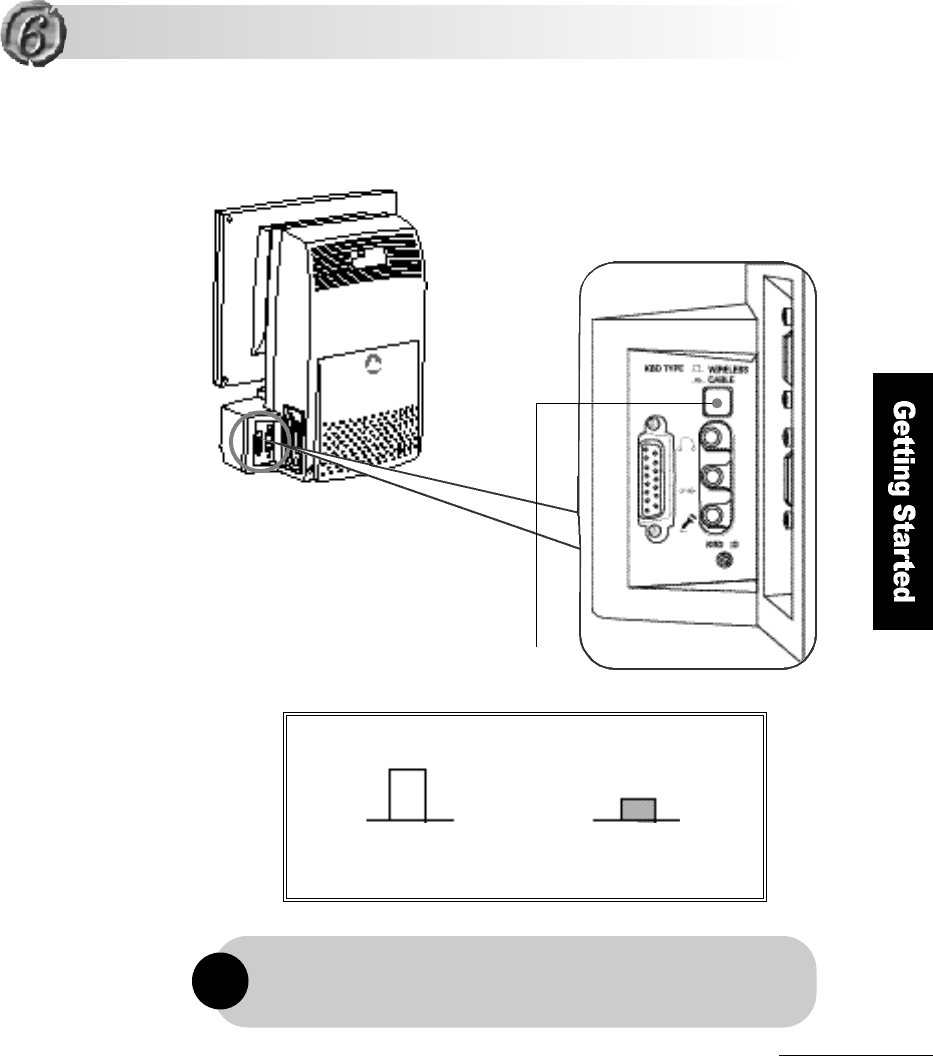

Wireless Keyboard

ID Reset Switch

Keyboard Connector

▶Select between wired and

wireless keyboard

▶Output terminal for

external speakers

▶Game port and Midi

▶Terminal for External

M i c r o p h o n e

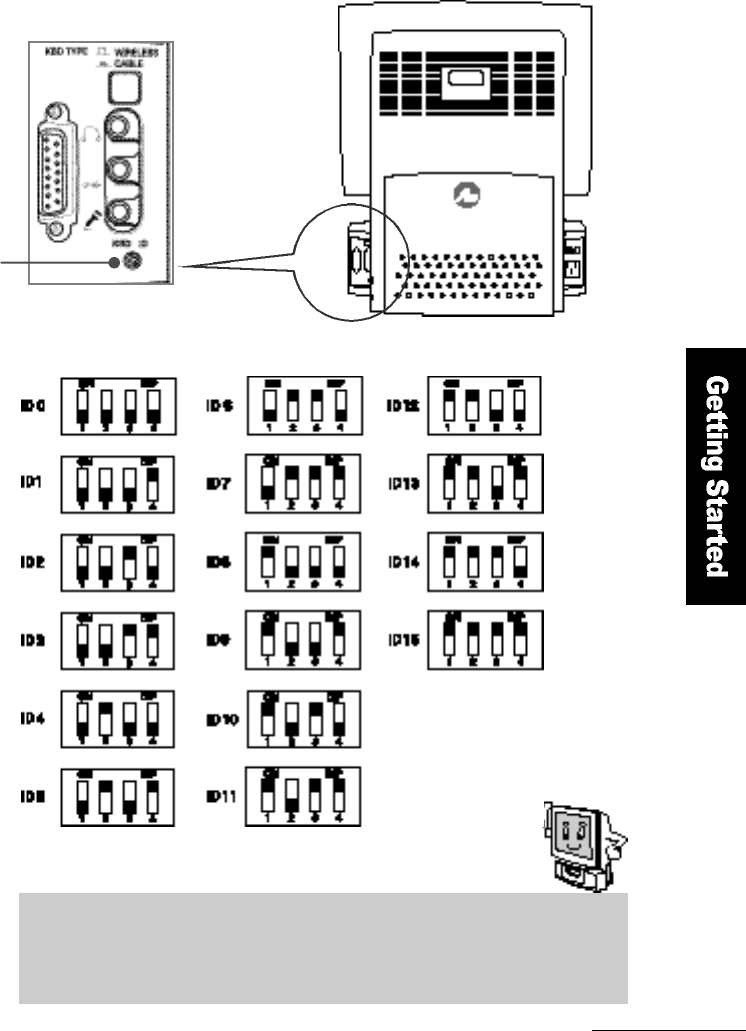

▶The reset switch for the

wireless keyboard ID

▶External monitor

connection point

▶PS/2 type mouse connector

▶Communication port (COM1)

▶Printer port (LPT1)

▶PS/2 type keyboard connector

Speaker Out

USB Port

Power Connector

RJ-45 Port

▶Input for 240V/100V

p o w e r

▶1 0 / 1 0 0 M b p s

Ethernet port

▶Port for USB

c o n n e c t i o n

1 6

I n t r o d u c t i o n

:When this light is on, it means the computer′s

power is on.

: When this light is on, it means the computer

is accessing the internal hard disk.

Power-On Indicator

L i g h t

HDD In Use Indicator

L i g h t

These indicator

lights are on

when a wireless

keyboard is being

u s e d !

The computer status indicator panel shows the current operation

of the computer. There is a symbol for each indicator light on

F L AT O P ′s indicator panel for the user to easily understand

the current status of the computer.

R e d : Normal power-on

Green : HDD in use

Green: NUM LOCK in use

Green: CAPS LOCK in use

Green: SCROLL LOCK in use

Computer Status Indicator Panel

NUM LOCK

CAPS LOCK

SCROLL LOCK

This indicates that the number keypad

of the FLATOP wireless keyboard

This indicates that the alphabet can be

used only in capitals

The arrow keys can be used as the

keys for screen adjustment

POWER-ON HDD In Use NUM LOCK CAPS LOCK SCROLL LOCK

I n t r o d u c t i o n

1 7

Connect one end of the power cord to the power connector on

the back of the computer as shown below.

Connect the other end to the 240V/100V wall outlet.

When the computer is connected to the wall outlet, but is not

being used, it will automatically switch to standby mode.

The FLATOP voltage is automatically set between 100V and

240V without using a conversion switch.

When the computer is in the standby mode pressing either the

power button or any key can start the computer.

Connecting the Power Cord

Power connector

Power cord

Wall outlet

1 8

Getting Started

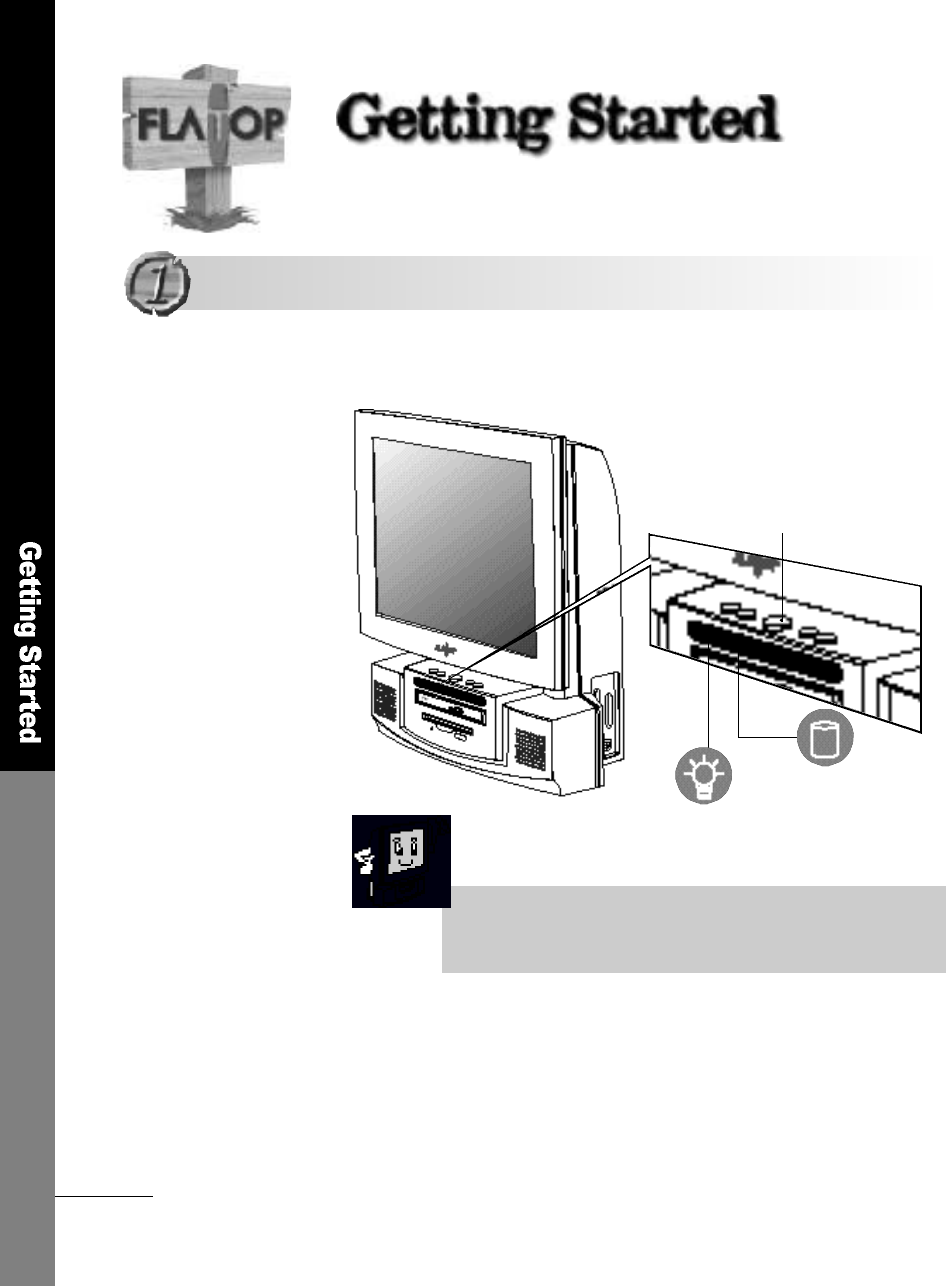

Power button

If you press the power button softly, as shown below, the power

indicator light turns on.

Please make sure that the keyboard, mouse and other peripheral

devices are correctly connected before you turn the computer on.

B o o t i n g

■For turning the power on using the key b o a rd

If using Keyboard/Mouse Power On in the [Integrated Peripherals]

section in CMOS Setup utillty, you can turn the computer on by

entering the password.

HDD indicator light

Power-On indicator light

(please refer to page 47)

Getting Started

1 9

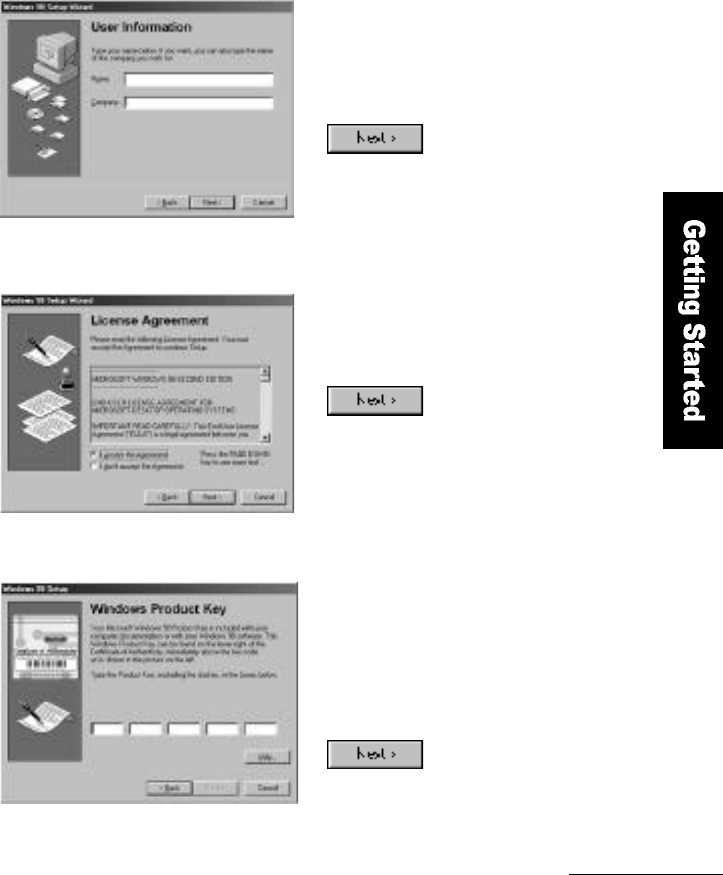

The first thing you have to do when you turn

the computer on for the first time

A window appears prompting you

to enter information about

yourself. Enter your name and

your company, and click the

b u t t o n .

A window showing the license

agreement appears. Select

A g r e e and click the

b u t t o n .

The authentication window appears.

Enter the product number provided

in the Windows 98 User M a n u a l

(enclosed with the computer).

Enter the number and click the

b u t t o n .

2 0

Getting Started

Click the button in

the start wizard window.

Windows 98 starts.

FLATOP has a variety of software, including Microsoft Windows 98,

installed in its hard disk. Please read the Windows 98 User′s

Manual carefully to gain insight into its operation.

Getting Started

2 1

Computer Shutdown

Click S t a r tand select

Shut down to turn the

computer off .

The computer turns off

automatically after 3~4 seconds

When you are not use

the computer for a long

period of time, moving

it or cleaning it, please

be sure to disconnect

the computer from the

wall outlet.

S h u t d o w n

Please follow this method if the computer does not operate

n o r m a l l y ,or if it needs a restart due to an error occurring.

1. Click <Ctrl> + <Alt> + <Del> keys.

2. Press and hold the power button for 4 seconds or more,

and release it.

( When the computer does not restart as in No.1 above )

2 2

Getting Started

Double-click the My Computer icon on the desktop. Right-Button click

the CD-ROM disk and select O p e n.

Double-click the I N F _ U P D AT E f o l d e r. Run the Setup.

➊

➊How to install INF_UPDAT E

If Unknown deviceis indicated in the Device Manager of the System

other device Properties dialog box, follow this procedure.

Installing the Drivers

Getting Started

2 3

Click the button to continue the setup.

Select the button in the S o f t w a r e License Agreement.

When the setup is complete, restart the system.

2 4

Getting Started

How to Install the Video Driver

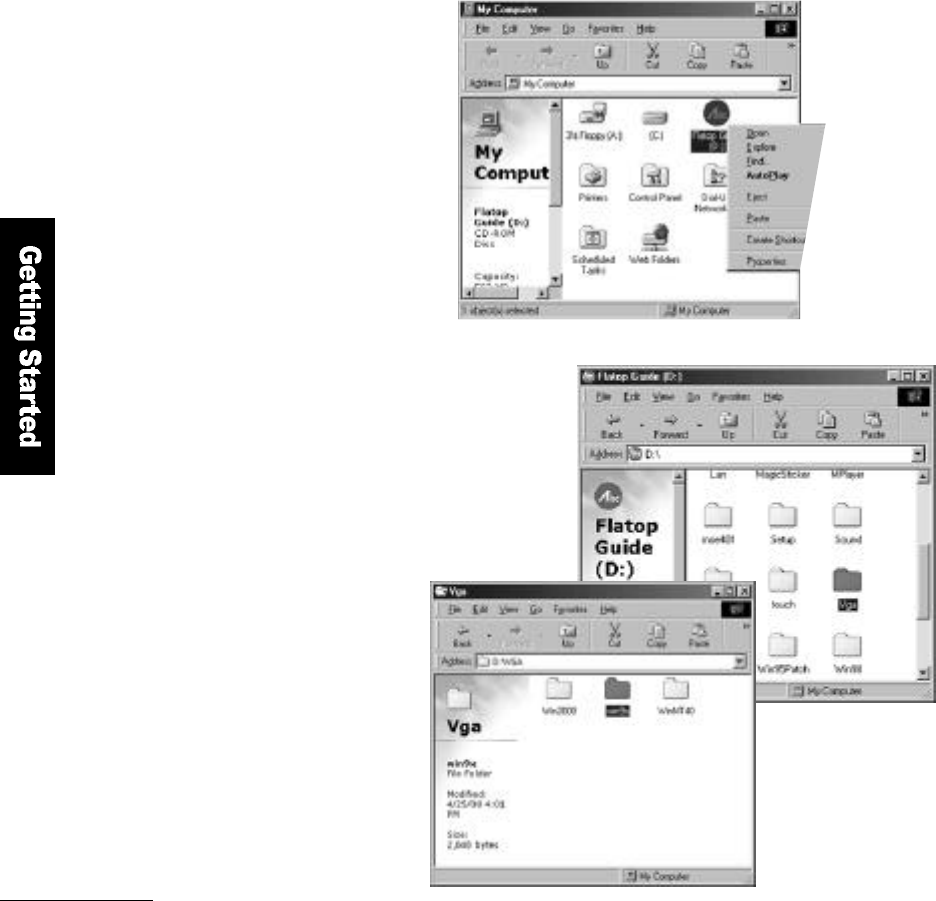

Double-click the My Computericon. Right-Button click the CD-ROM

disk and select O p e n

➋

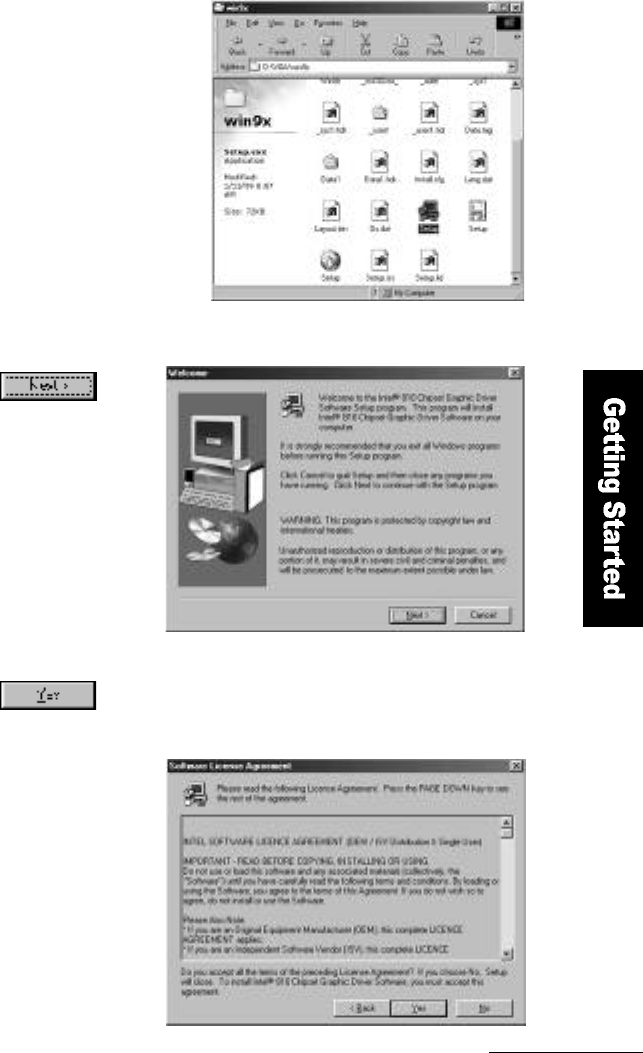

Open the V G A folder and

then the Wi n 9 x f o l d e r .

Getting Started

2 5

Run the S e t u p.

Click the b u t t o n .

Click the button in the

Software License Agreementw i n d o w.

2 6

Getting Started

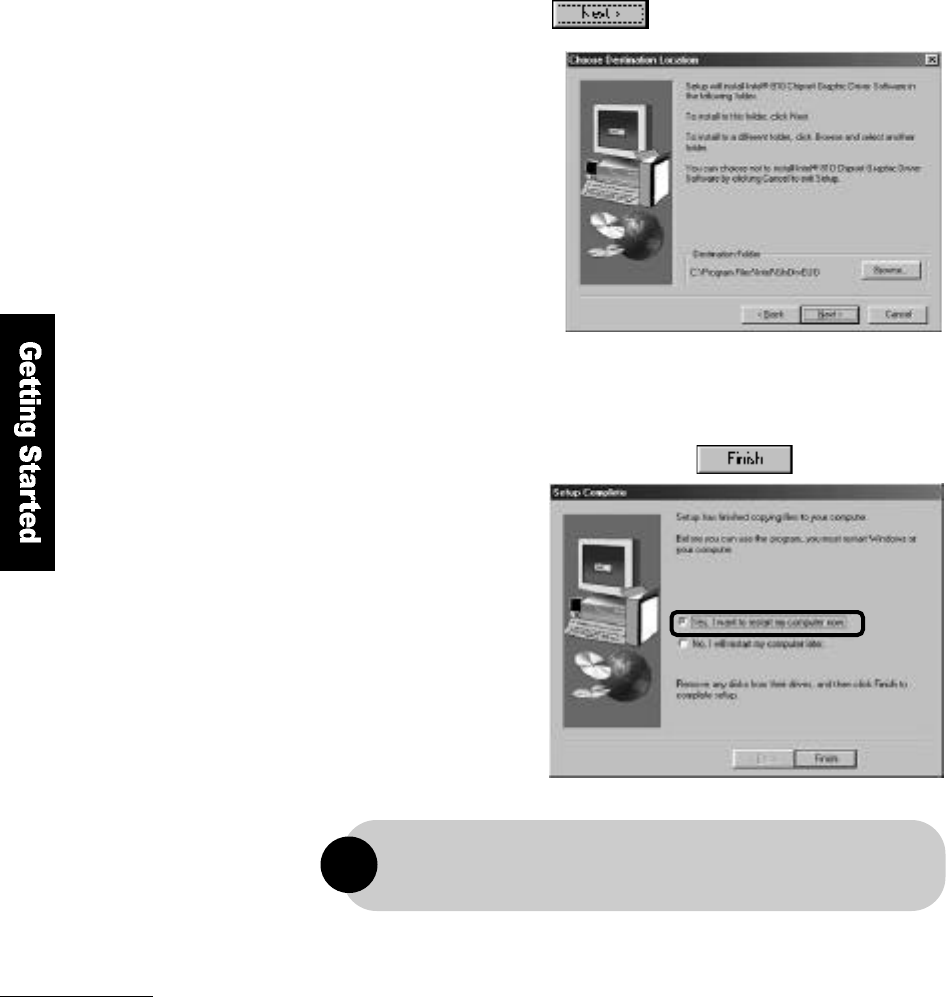

Select the folder into which the V G A driver will

be installed and click the b u t t o n .

When the driver installation is complete, select

Restart the ComputerN o w and click the b u t t o n .

For a trouble-free driver installation, please be sure to restart the computer.

Getting Started

2 7

Open AL C 1 0 0 and then

Windows 98

How to Install the Sound Driver

( AVA N C E - A L C 1 0 0 )

➌

If a PCI Multimedia Audio

Device exists, it means

the sound driver is not

i n s t a l l e d .

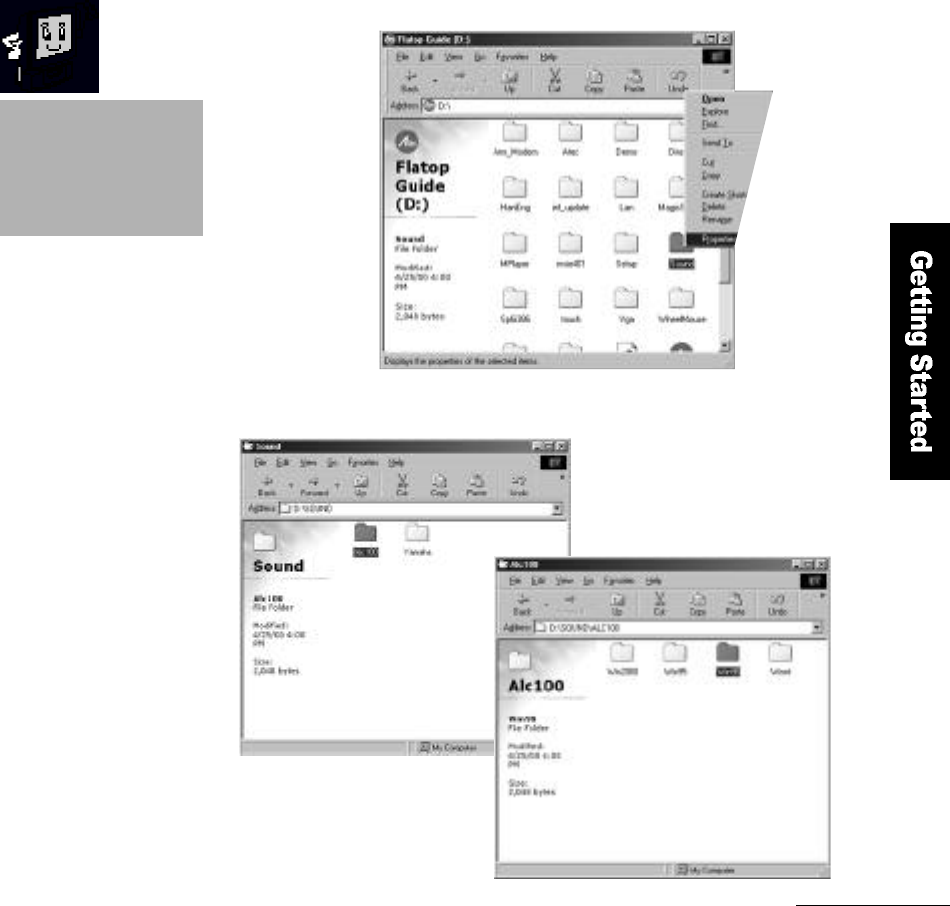

Right-Button click onSound folder on the CD ROM and select Op en

2 8

Getting Started

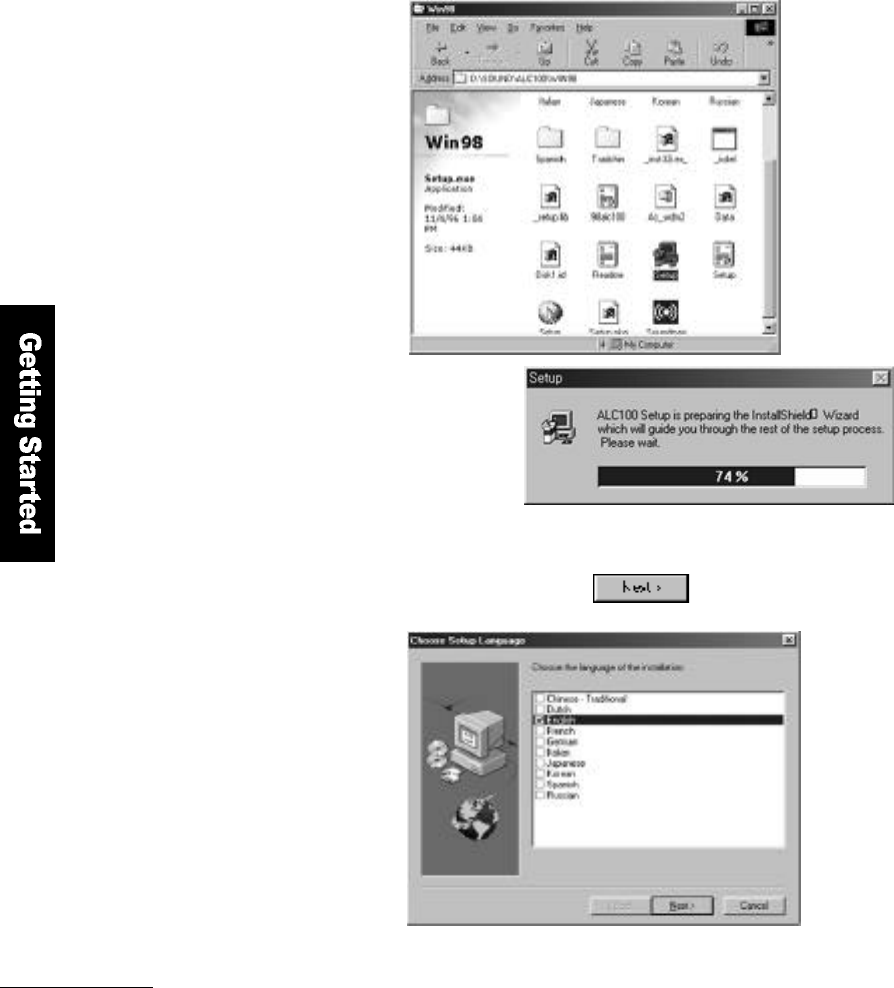

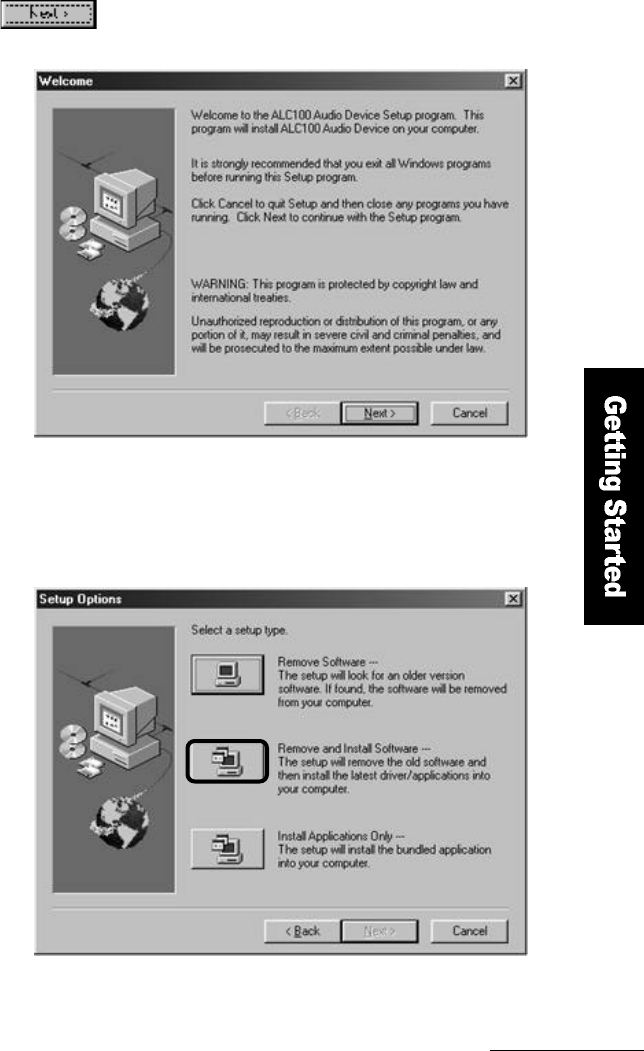

Run the S e t u p.

Choose E n g l i shand click the b u t t o n .

Setup Process

Getting Started

2 9

Click the b u t t o n .

Click the Add/Remove softwareicon for the setup options

3 0

Getting Started

Select Yesfor application installation.

Click the b u t t o n .

Getting Started

3 1

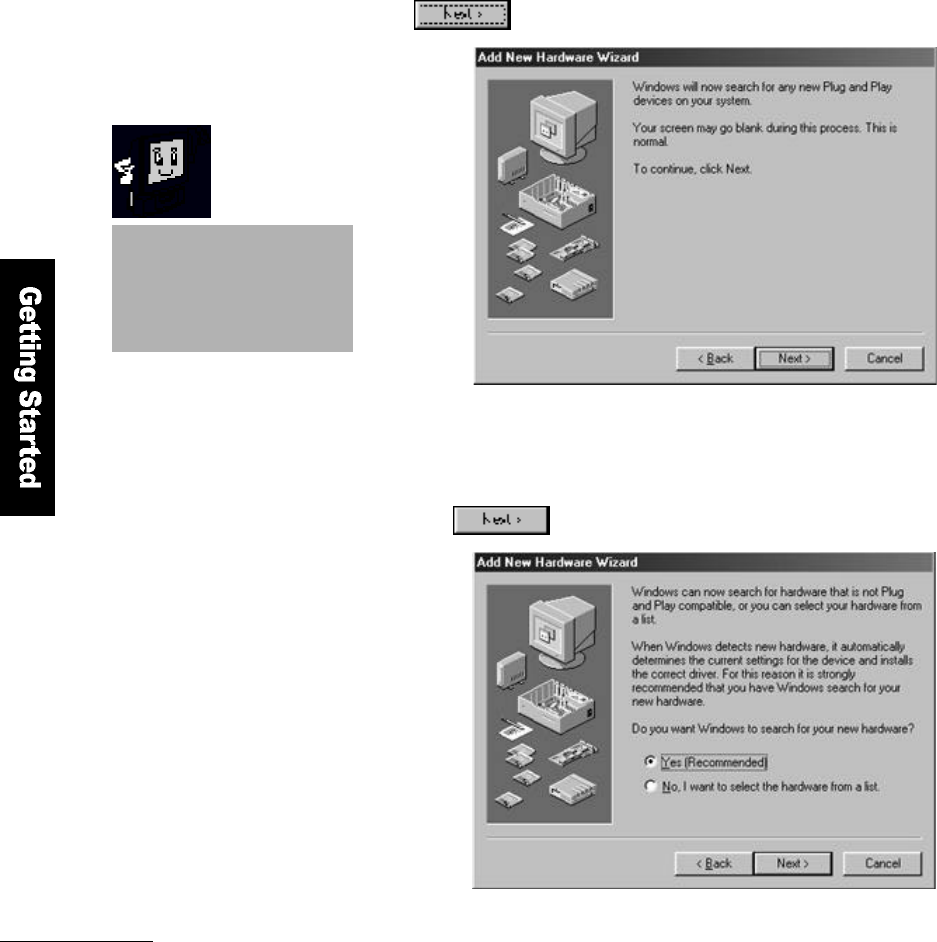

If the Add New Hardware Wi z a r d wants to search for a driver,

click the b u t t o n .

3 2

Getting Started

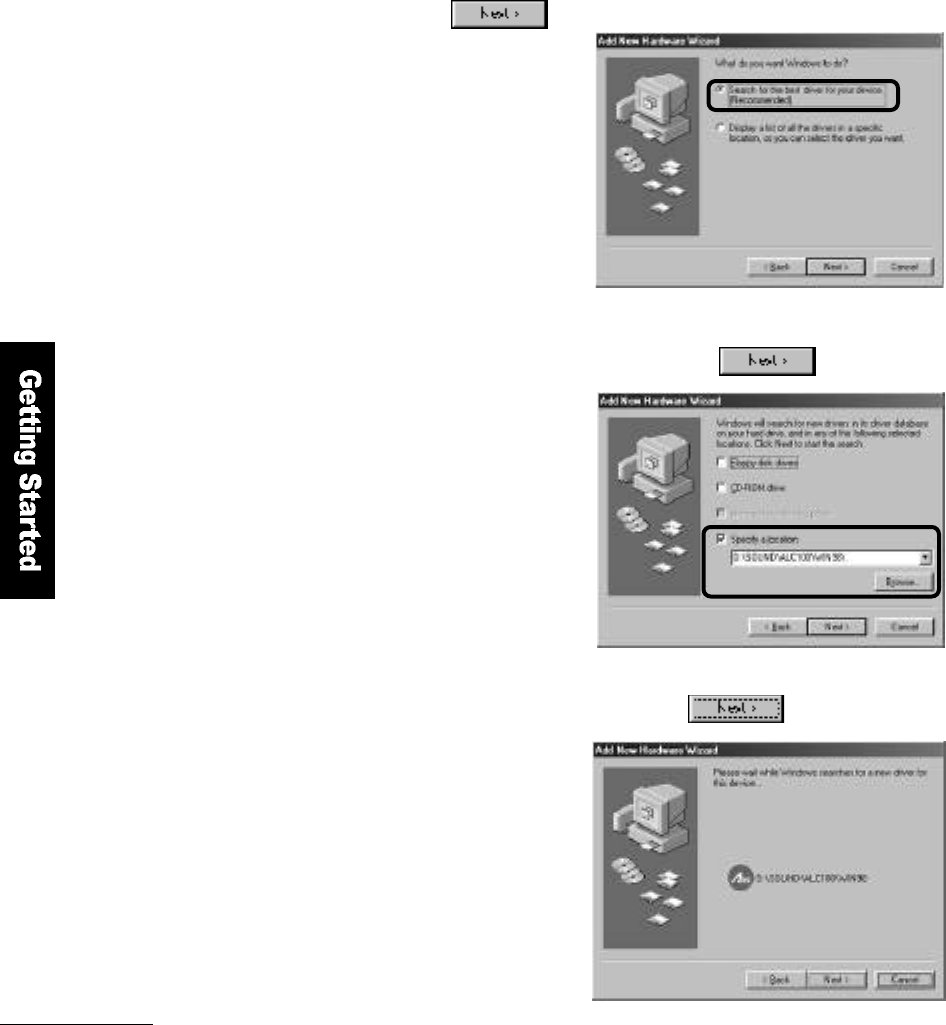

Select Search for the best driver for your device (Recommended)

and click the b u t t o n .

1 0

Specify the location to search in and click the b u t t o n .

1 1

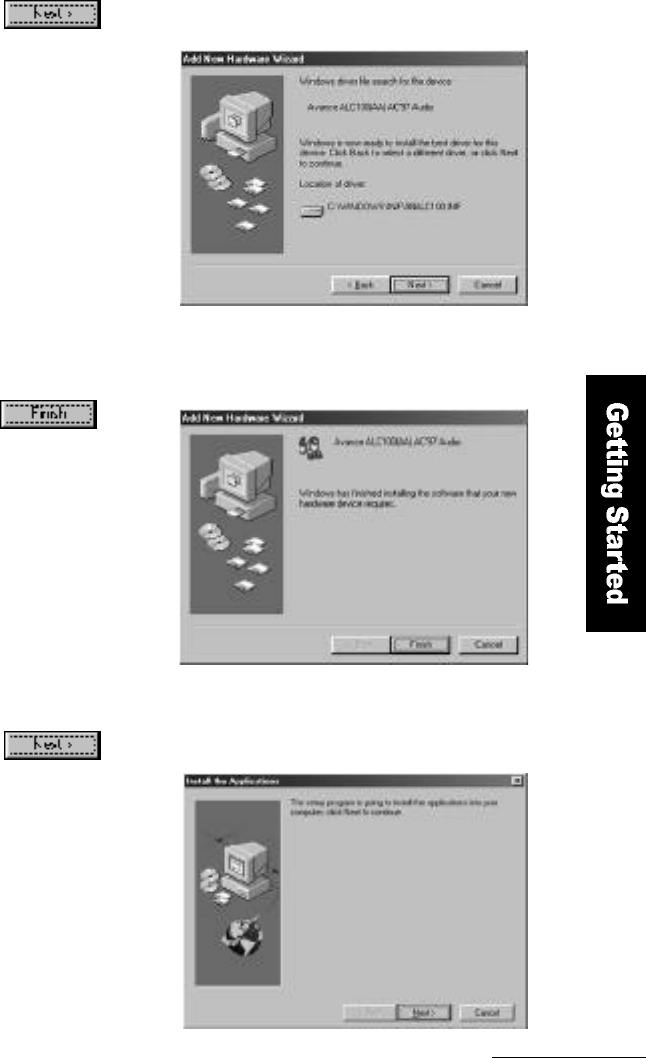

If any new driver are discovered, click the b u t t o n .

1 2

Getting Started

3 3

Click the button to copy the driver file.

1 3

When driver installation is complete,

click the b u t t o n .

1 4

Click the button for application installation.

1 5

3 4

Getting Started

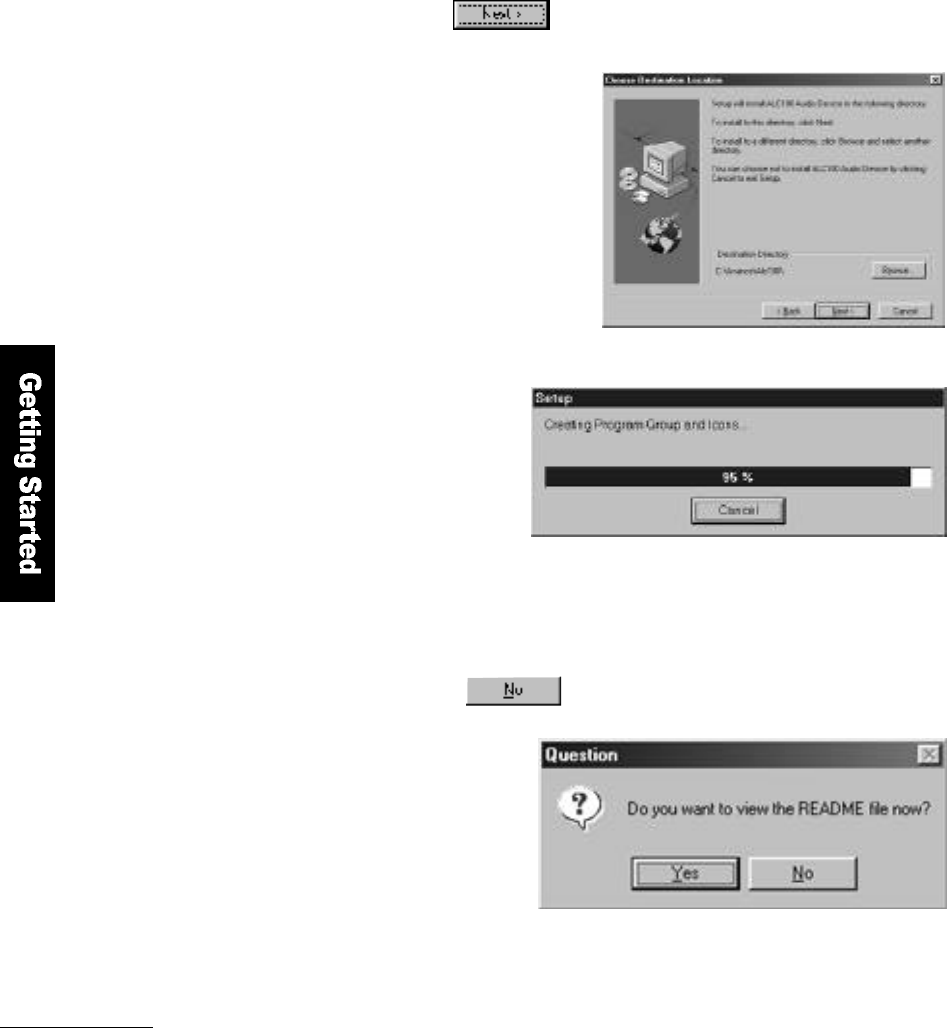

Specify the directory to which the application has been copied

and click the b u t t o n .

1 6

If you want to see the sound setup details, click Yes.

If not, click the b u t t o n .

1 7

Setup Process

Getting Started

3 5

For a trouble-free driver installation,

please be sure to restart the computer.

Click the button to confirm driver installation.

1 8

When the entire installation is complete, click the

b u t t o n .

1 9

3 6

Getting Started

How to Install the Network Driver

Make sure that the Other Devicesof System Properties includes a P C I

Ethernet Controller.

󰠊

If a PCI Ethernet

Controller exists, that

means the network

driver is not installed yet.

Choose PCI Ethernet Controller

and Click b u t t o n

Getting Started

3 7

Click the b u t t o n

in the PCI Ethernet controller

p r o p e r t i e s.

If the Update Device Driver Wi z a r d

window appears, click the

button.

Select Search for a better driver than the only your device is

using now (Recommended) and click the

b u t t o n .

3 8

Getting Started

Select the location to search. Click the b u t t o n

to specify the driver′s location and then click the

b u t t o n .

If the device name for the driver you want to install matches,

click the b u t t o n .

When you click the button,

the file copy will begin.

Getting Started

3 9

During installation,

the computer may need

the Windows 98 CD. So,

please have the CD ready.

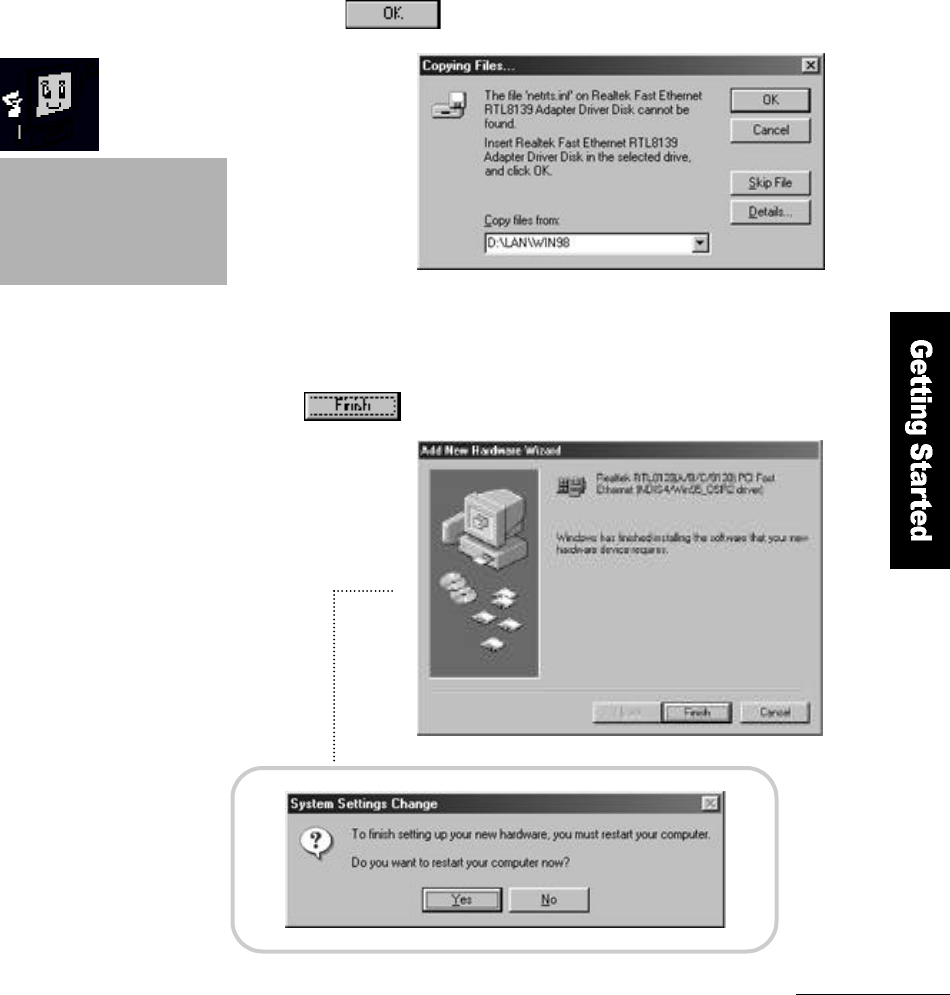

If the computer looks for r t l8 1 3 9 . s y s during

installation, specify the D :\L a n\w i n 9 8 folder

and click the b u t t o n .

When the driver installation is complete,

click the button to restart the computer.

4 0

Getting Started

How to Install an AMR modem

To search for a driver in Add New Hardware Wi z a r d,

click the b u t t o n

󰠋

Select Search for a suitable driver for my device (Recommended)

and click the b u t t o n .

The AMR modem is an option.

You have to have an AMR

modem card installed to

install a driver for it.

Getting Started

4 1

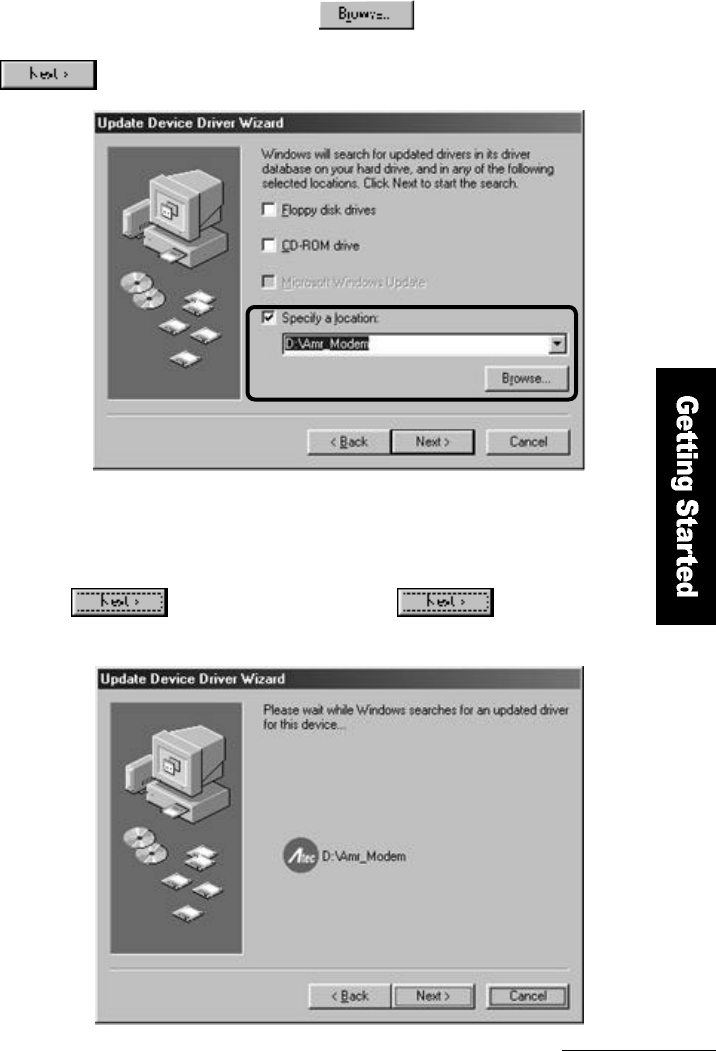

Select the location to search. Click the

button to specify the driver′s location and then click the

b u t t o n .

If the device name for the driver you want to install matches,

click the button. When you click the button,

the file copy will begin.

4 2

Getting Started

When the driver copy is complete, click the b u t t o n .

This completes the A M R modem driver installation.

Select in Add Country, Enable PBX and click the

b u t t o n .

Getting Started

4 3

1. To use an external monitor, you must have the FLATOP VGA

driver installed.

2. Turn off FLATOP when you connect the video connector into an

external monitor

Using an External Monitor

Connect the video connector on the back of FLATOP to the

external monitor.

This section describes how to connect an external monitor to your

F L ATOP computer.

As the FLATOP LCD

monitor has adopted

TFT (Thin Film Transistor)

technology to 16.7 million

colors and 1024 x 768

resolution, you can enjoy

a vivid screen quality

without using an

external monitor.

External monitor

Vi d e o

connector

4 4

Getting Started

If you connect an external

monitor without turning off

your FLATO P, the computer

will not be able to find the

external monitor as shown in

the diagram.

Once the external monitor is found, you can choose between

the LCD panel (Figure 1) and external monitor (Figure 2), or both.

▲(Figure 1) LCD panel selected

▼(Figure 2) External monitor

s e l e c t e d

LCD technology

FLATOP has adopted

Black Matrix technology

to give it an excellent

screen quality. You can

clearly recognize

the difference in quality

when you compare

FLATOP with other

p r o d u c t s .

Getting Started

4 5

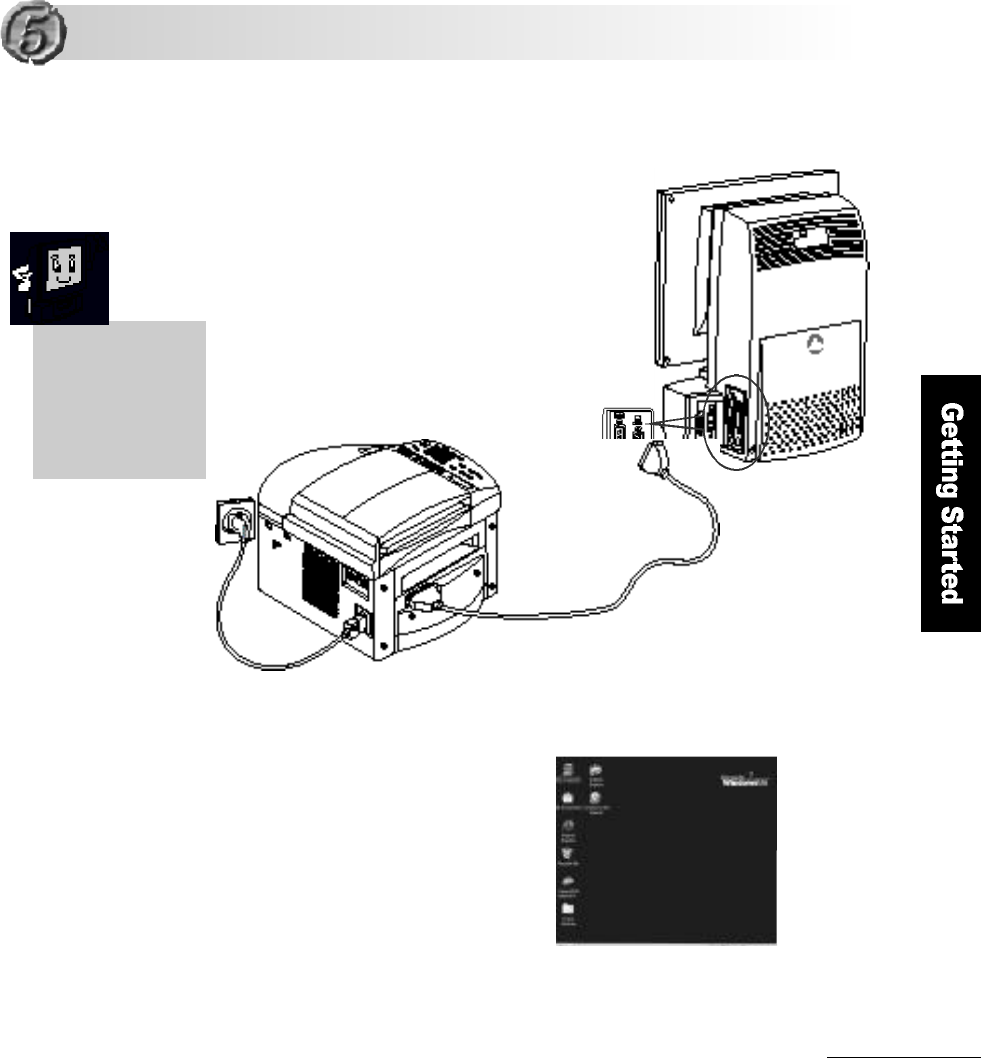

Connect the printer cable to

the print port of the computer.

When the connection is

established, first turn on

the printer and then FLATO P

to start Windows 98.

Make sure that

your computer is

turned off before

you begin the

i n s t a l l a t i o n .

Installing a Printer

4 6

Getting Started

Double-click the My Computer icon. Open

the Printer folder and run Add Printer.

The Add Printer Wi z a r d begins.

Click the b u t t o n .

Make sure that the printer is connected

and click the b u t t o n .

Getting Started

4 7

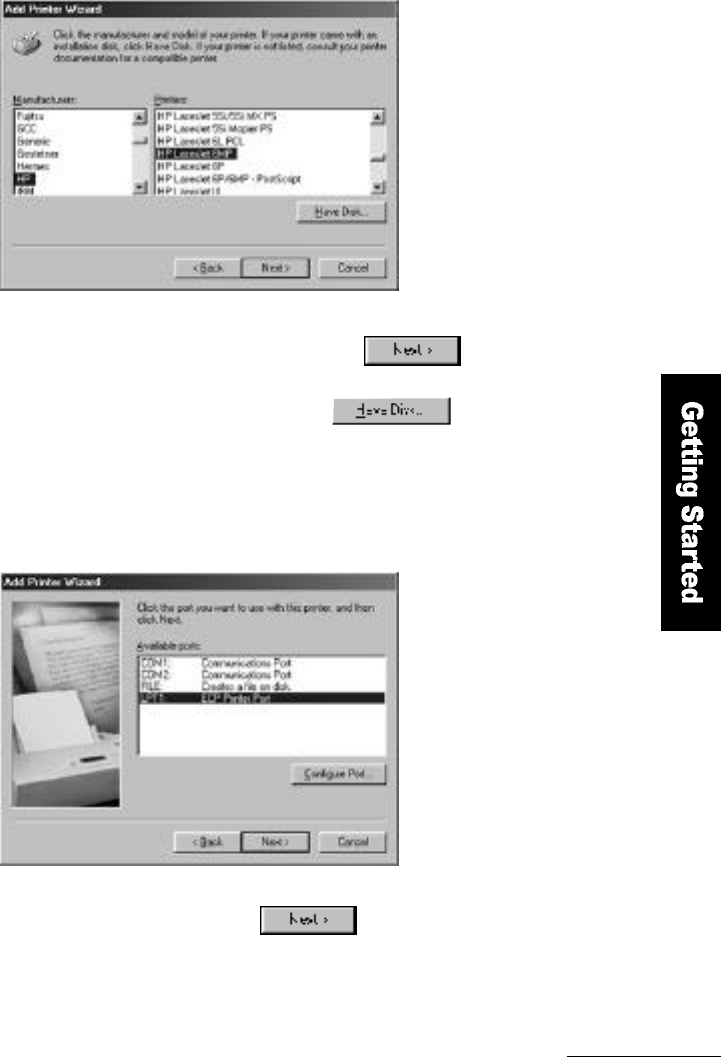

Select the LPT1 and click the

b u t t o n .

Select the manufacturer and model name,

and click the button.

If you have an installation disk,

click the b u t t o n .

4 8

Getting Started

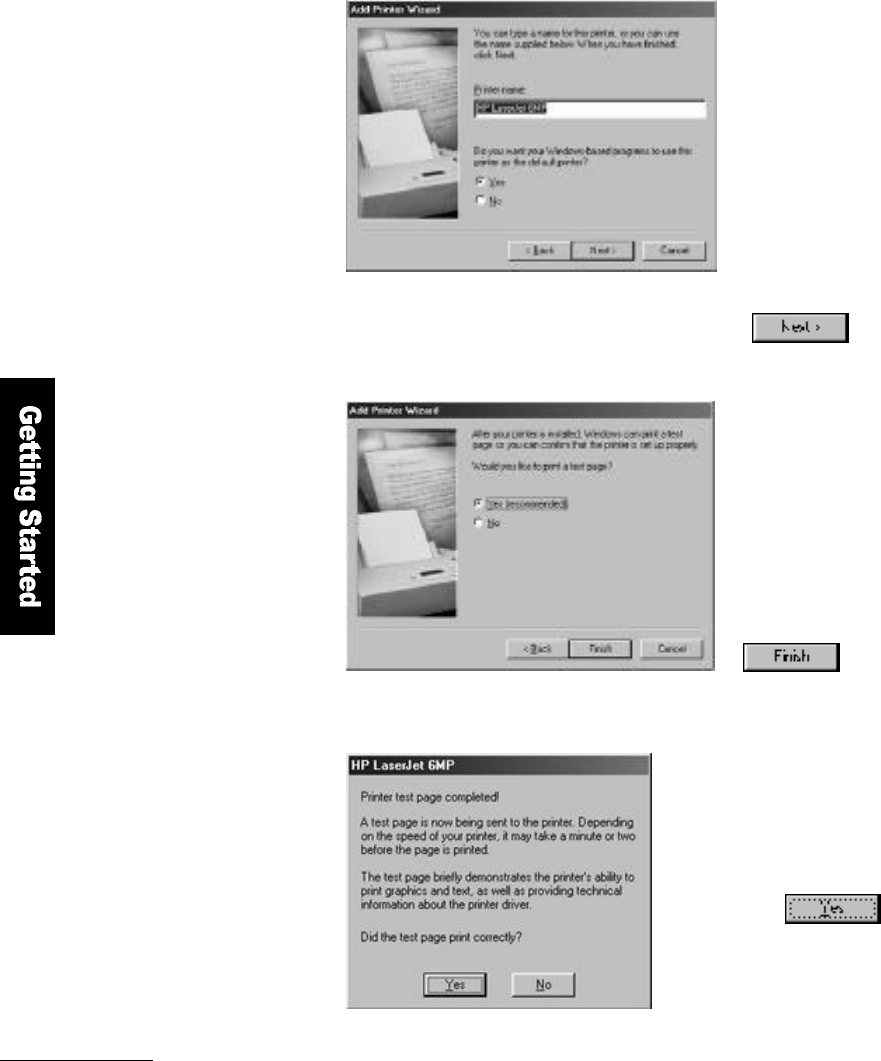

In the Test Page Print

w i n d o w, select Ye s

and click the

b u t t o n .

Type the printer name you want

and click the b u t t o n .

Check the print quality

and click the b u t t o n .

This completes the printer setup.

1 0

Getting Started

4 9

To connect a wired keyboard and a mouse, turn off the computer and set the

selection switch for wire d / w i reless keyboard and mouse to Wi r ed Use.

FLATOP provides for a wired PS/2 keyboard and mouse by default,

but you can choose to use a wireless keyboard and mouse if preferred.

Using a Wired Keyboard and a Mouse

Wireless Use Wired Use

Selection switch for wired/wireless of

keyboard and mouse

5 0

Getting Started

K e y b o a r d

c o n n e c t o r

Mouse connector

Connecting the mouse to the FLATO P

Connect the mouse to the FLATO P.󰟳and connect the keyboard cord of the

two cords from the keyboard to the keyboard socket of FLATO P.󰟴

Connecting the mouse to the keyboard

Connect the two keyboard cords to the two sockets for keyboard and mouse

in the computer.󰟳And then connect the mouse to the keyboard.󰟴

Two Methods to Connect Wi r ed Keyboard s

K e y b o a r d

c o n n e c t o r

Mouse connector

󰟳

󰟴

Getting Started

5 1

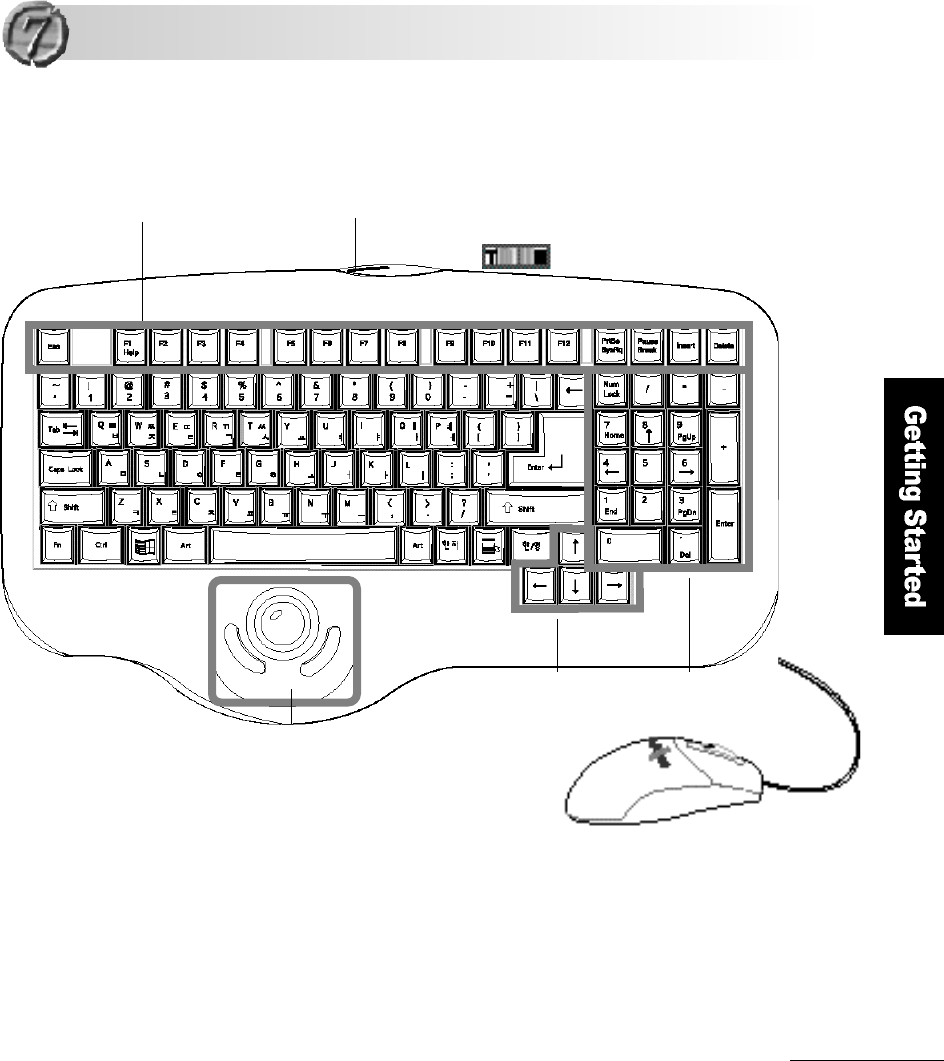

Function keypad IR radiation Selection switch for trackball/mouse

Number keypad

Cursor keypad

(arrow keys)

The wireless keyboard used for FLATOP provides a high space

utilization with 5m operation distance and 30°operation angle.

■H ow to use the key b o a rd bat t e ry

F L ATO P′s wireless keyboard uses DC 3V. The life of the battery spans

about 3 months (depending on the keyboard operation time).

When the keyboard is not in use, it automatically converts to

the power saving mode to reduce wasting the battery.

Tr a c k b a l l

Using a Wireless Keyboard and a Mouse

5 2

Getting Started

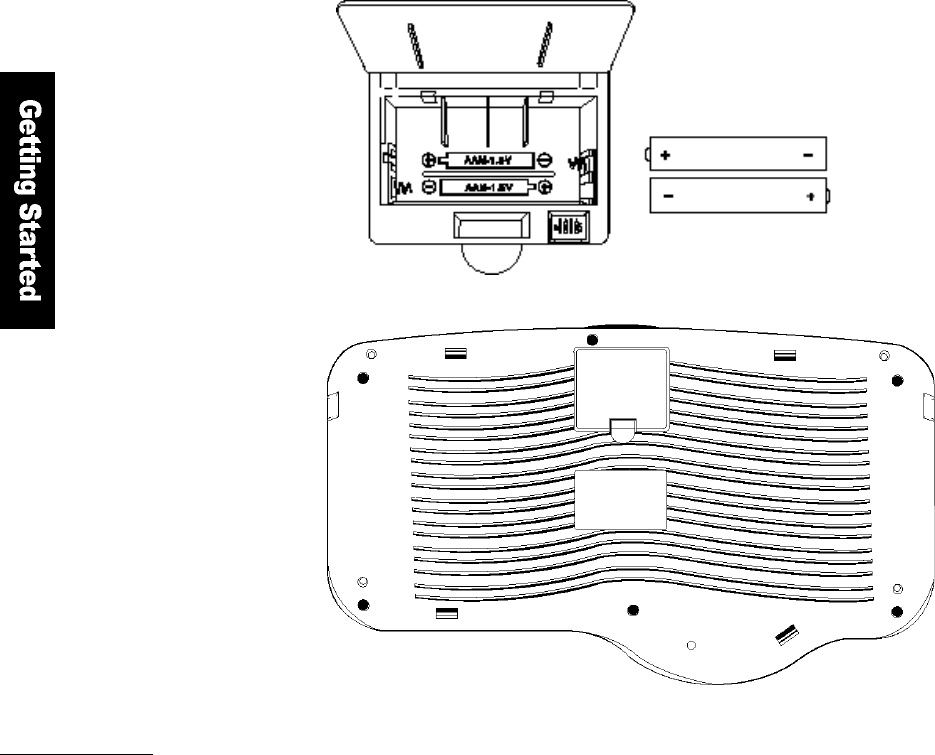

Battery Inner

B a t t e r y

C o v e r

➊

➊Changing the Battery

1. The keyboard uses 2dry batteries of DC 1.5V and AA size.

2. Turn the computer upside down and open the battery cover.

Insert the batteries according to the + and - poles.

3. Use batteries from the same supplier for higher eff i c i e n c y.

4. Changing 2dry batteries at the same time will help the battery last

l o n g e r

Getting Started

5 3

Selection switch for

t r a c k b a l l / m o u s e

Make sure that the computer is turned off before you connect the mouse.

You cannot connect two mouses at the same time.

■Selection sw i t c h for tra ck b a l l / m o u s e

To use the trackball, move the switch so that ″T″is seen

To use the mouse, move the switch so that ″M″is seen

Using the Mouse

F L AT O P ′s wireless keyboard has two bus-type mouse sockets on its right

and left sides. You can connect the mouse to either of the two sockets

w h i c h e v e r, is most convenient.

➋

5 4

Getting Started

■H ow to set an ID

Turn the keyboard upside down, open the battery cover and you will see

ID setting jumpers. You can use as many as 16 IDs from 0 to 15.

Set the jumpers according to the following table.

Keyboard Bottom

Battery Cover

Remove the batteries

before you set the

keyboard ID

ID setting

j u m p e r s

Setting the Keyboard ID

When two or more FLATO P′sare used with wireless keyboards,

d i fferent keystrokes could be input to your FLATO P. So, set a unique ID

for your keyboard to ensure uninterrupted operation.

➌

Getting Started

5 5

Wireless keyboard

ID reset button

If you set an ID for the wireless keyboard and press the reset button on the

back of the computer, the ID will be changed.

5 6

Advanced Operations

To Enter the System Setup

While the computer is initializing,

you can enter the system setup by

using the <DEL> key

The system setup re p resents how you set the computer′s hard w a re

composition in CMOS. The computer checks the savings in CMOS

every time it starts.

If there is discrepancy between the system setup and the hard w a r e

components, you will see error messages. In this case, you have to

modify the CMOS setup according to the new enviro n m e n t .

Number keypad

Award Modular BIOS V6.00PG, An Energy Star Ally

6 F 8 1 0 - 0 A

Award Plug and Play BIOS Extention V1.0A

Detecting IDE drives.......

Entering the System Setup

Advanced Operations

5 7

You can modify the BIOS setup to start the computer by using

the keyboard

Turning the power on using the Keyboard

After you power up the system, the BIOS message appears on the

screen and the memory count begins.

After the memory test, the following message will appear on the

s c r e e n .

Press DEL to enter setup.

In CMOS Setup′s primary screen, use the arrow keys to move to

Integrated Peripheralsand press E n t e r .

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

Pc Health Status

Frequency/Voltage control

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

ESC : Quit F5 : Menu in BIOS ↑↓ 󰥳󰥴 : Select Item

F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

You can start the computer without pressing the power button, provided that

the computer is in standby mode and that the computer′s power cord is

connected to a wall outlet

5 8

Advanced Operations

ESC : EXIT F1 : General Help

F7 : Optimized Defaults

•D i s a b l e d : default setting

•P a s s w o r d : When this option is Selected, move the Cursor to the

KB Power On Password field and press .

Enter your password. You can enter up to characters.

Type in exactly the same password to confirm,

the press .

I N T E R G ATED PERIPHERALS

Move to Keyboard/Mouse Power On

Item Help

Menu Level

CMOS Setup Utilty-Copyright(C)

1984-1999 Award Software

Integrated Peripherals

On-Chip Primary PCI IDE E n a b l e d

On-Chip Secondary PCI IDE E n a b l e d

IDE Primary Master PIO A u t o

IDE Primary Slave PIO A u t o

IDE Secondary Master PIO A u t o

IDE Secondary Slave PIO A u t o

IDE Primary Master UDMA A u t o

IDE Primary Slave UDMA A u t o

IDE Secondary Master UDMA A u t o

IDE Secondary Slave UDMA A u t o

USB Controller E n a b l e d

USB Keyboard Support E n a b l e d

Init Display First PCI Slot

AC97 Audio E n a b l e d

AC97 Modem D i s a b l e d

Keyboard/Mouse Power On D i s a b l e d

KB Power On Password E n t e r

KB Power On Hot Key C t r l - F 1

Onboard FDC Controller E n a b l e d

Onboard Serial Port 1 3 F 8 / I R Q 4

Onboard Serial Port 2 2 F 8 / I R Q 3

UART2 Mode Select N o r m a l

RxD, TxD Active H i , L o

IR Transmission Delay E n a b l e d

Onboard Parallel Port 3 7 8 / I R Q 7

Parallel Port Mode E C P + E P P

EPP Mode Select E P P 1 . 7

ECP Mode Use DMA 3

PWR Lost Resume State Keep Off

Game Port Address D i s a b l e d

Midi Port IRQ 5

The power button will not function once a keyboard password has been set in

the KB Power On Passwordfield. You must type the correct password to

power-on the system. If you forgot the password, power-on the system and

then remove the battery. Wait for a few seconds and install it back before

power-on the system.

Advanced Operations

5 9

FREQUENCY / VOLTAGE CONTROL

•Hot Key : When this option is selected, move the cursor to the

KB Power On Hot Keyfield to select a function Key

you would like to use to power-on the system.

The options are from Ctrl+F1 to Ctrl+F12.

•Mouse Left : If you select this option, you can turn on the system by

double-clicking the mouse left button.

•Mouse Right : If you select this option, you can turn on the system by

double-clicking the mouse right button

•Any Key : If you select this option, you can turn on the system by

pressing any key.

•Keyboard98 : If you select this option, you can turn on the system using

the ″Wake Up″button on the Windows 98 keyboard.

•Button Only : If you select this option, you can turn on the system only

by pressing the power button (default).

CPU Frequency Control

You can choose CPU Clock Ratio processor rate. The following

options are provided; x3, x3.5, x4, x4.5, x5, x5.5, x6, x6.5.

↑↓ 󰥳󰥴 Move Enter : Select Item +/-/PU/PD : Value F10 : Save ESC : EXIT F1 : General Help

F5 : Previous Values F6 : Fail-safe Defaults F7 : Optimized Defaults

Item Help

Menu Level

Auto Detect DIMM/PCI Clt E n a b l e d

Spread Spectrum E n a b l e d

Host CPU/DIMM/PCI Clock D e f a u l t

CPU Clock Ratio X 3

The frequent ratio of some processors has been fixed by

the manufacturer, therefore you don′t need to over clock them.

If you are using this kind of processor, please ignore this field.

6 0

Improved Computer Performance

Put the computer on a clean place

Remove the screws.

Pull the cover softly

(Forced pulling could cause damage to the LCD panel).

Disconnect the computer from the power before you remove the

computer cover. Removing the cover with the computer turn e d

on could cause damage to computer components due to fire or

a short-circ u i t .

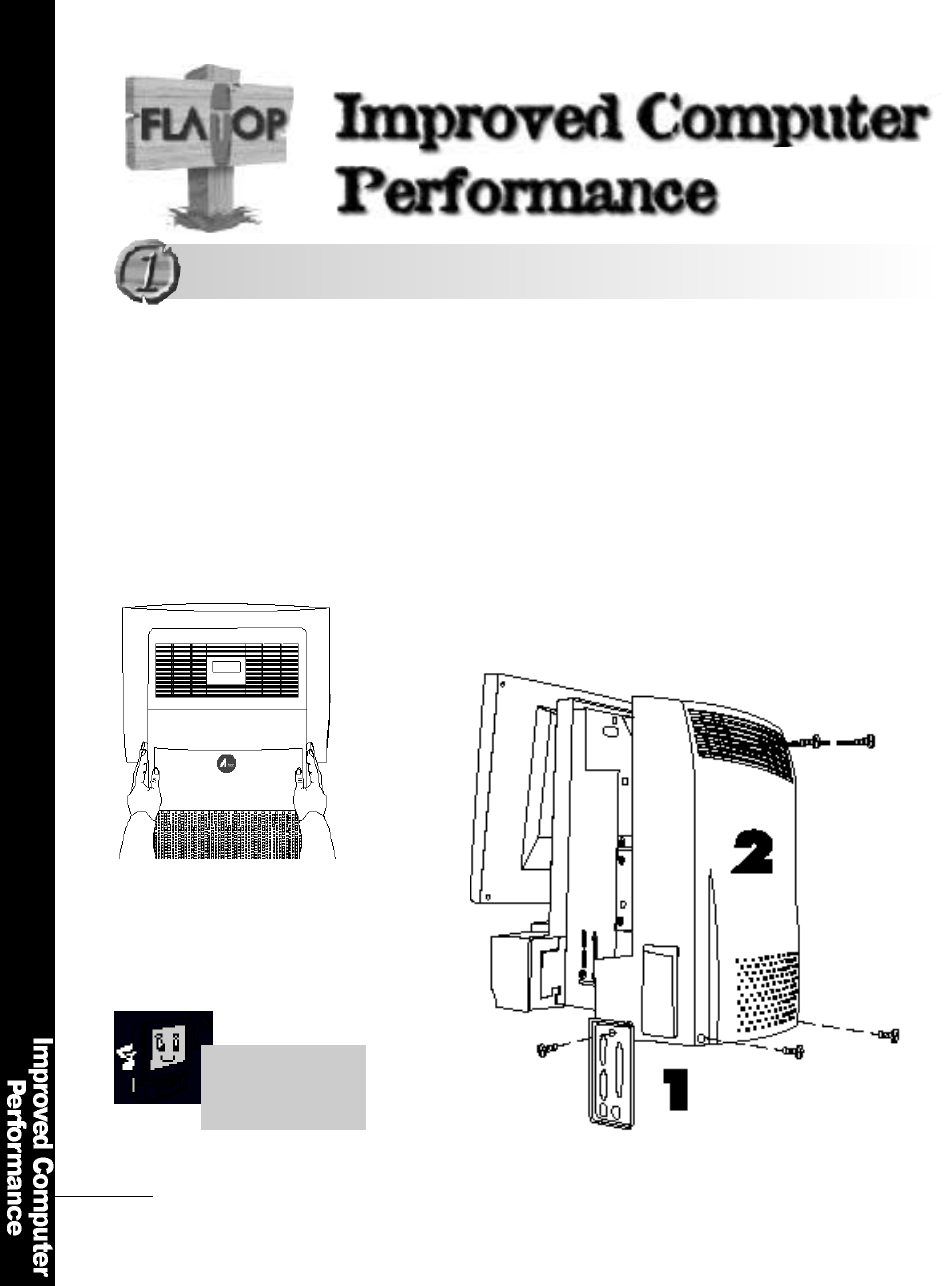

Opening the ComputerCover

Opening the Computer Cover

Open the computer

according to the

n u m b e r .

Improved Computer Performance

6 1

When you scale the computer up, check the related parts.

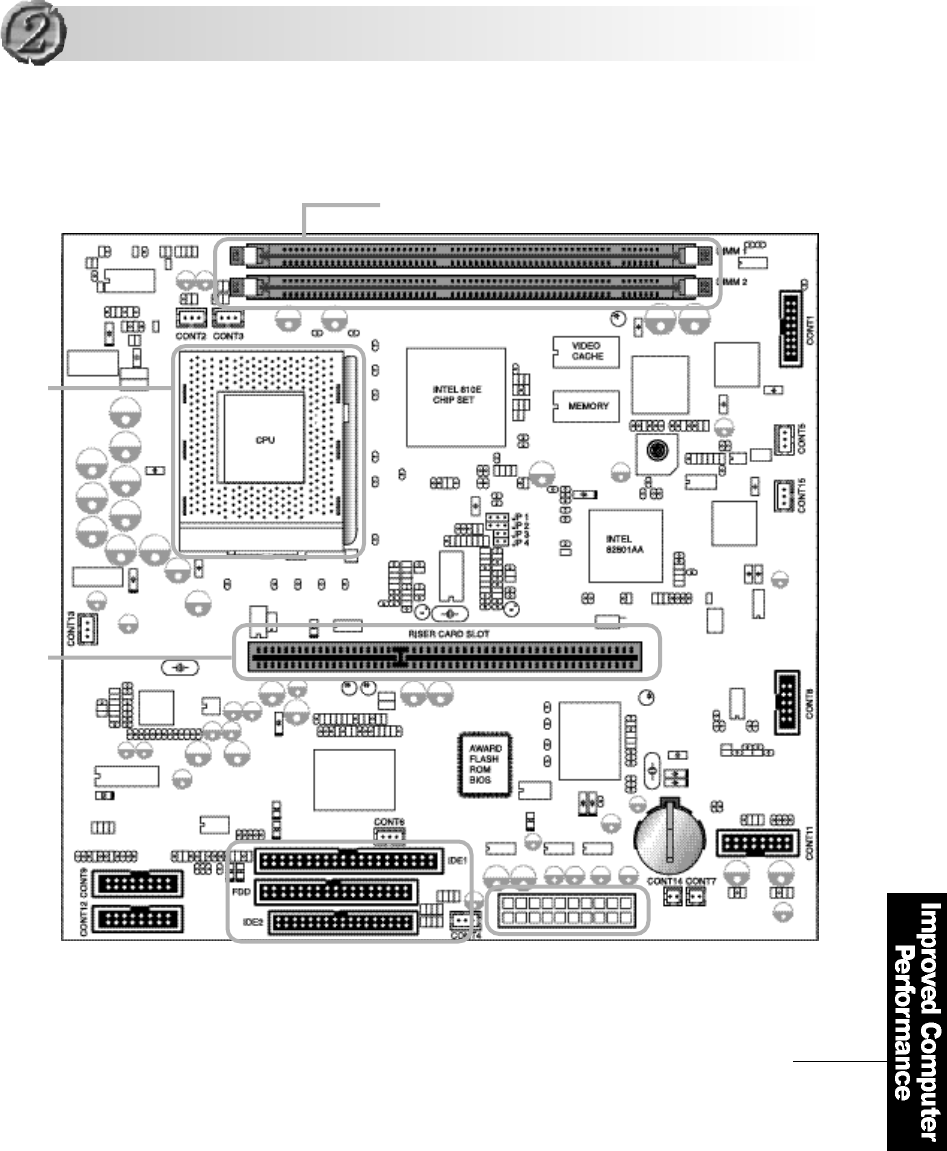

Composition of the Mainboard and Connectors

F C - P G A

CPU socket

Riser card slot

Floppy disk connector

CD-ROM connector

Hard disk connector Power connector

Memory socket (DIMM)

•

6 2

Improved Computer Performance

Cont 1 LCD interface cable connector (for LCD output)

Cont 2 FAN 1: CPU Cooling fan′spower connector (permitted changing with Cont 3)

Cont 3 FAN2: External radiator fan′spower connector (permitted changing with Cont 2)

Cont 4 Cooling fan′spower connector

Cont 5 Inverter Connector

Cont 6 IR connector

Cont 7 Internal Microphone connector

Cont 8 Serial Port 2 connector

Cont 9 External serial port, parallel port, VGA port connector

C o n t 11 USB, Ethernet port connector

C o n t 1 2 Sound, keyboard and mouse connector

C o n t 1 3 Line in connector

C o n t 1 4 Left speaker connector

C o n t 1 5 MiCom Test (Don′t used)

For correct connection, check the mainboard′sconnector information

Connector Functions

1. Make a record of the information on the connection status before you

remove the connectors.

2. Connect the hard disk drive, floppy disk drive and CD-ROM drive

connectors according to their directions.

Improved Computer Performance

6 3

Since AF8 senses the CPU speed automatically, you don′t have to set

the jumpers. The AF8 supports PPGA CELERON CPU and FCPGA

PENTIUM ⅢC P U .

The AF8 mainboard supports the system bus clock from 66Mhz to 133Mhz

(the default is 100Mhz).

Set the jumpers according to the CPU clock(set in the closed mode).

O P E N C l o s e d Number 2 and 3 closed

M H z

Celeron CPU 66 MHz

P e n t i u mⅢCPU ″E″Type 100 MHz

P e n t i u mⅢCPU ″E B″Type 133 MHz

J P 1

2 - 3

1 - 2

J P 2

2 - 3

1 - 2

Improving the CPU perf o r m a n c e

Jumper Setting

Jumper Setting for CPU Speed

( Re m oved in the mass pro d u c t i o n )

6 4

Improved Computer Performance

The AF8 uses 168 pin memory modules called

″DIMM (Dual In-line Memory Module)″.

It supports a maximum 512MB.

Pull the lock-in tabs outward to

remove the memory module

Pull the two lock-in tabs outwards

at the both ends of the memory

s o c k e t .

Insert the memory module into the

socket perpendicularly in a

rightwards direction.

1. Inserting the memory module

Expanding the Memory

2. Re m oving the memory module

Improved Computer Performance

6 5

FLATOP supports PC-100 and special PC-133 standard memory.

* FLATOP cannot use PC-66 memory. A combination of Celeron CPU and PC-66

memory could cause abnormal operation in the memory.

We don′t recommend this combination.

■C a u t i o n s

1. As memory is vulnerable to static electricity, be careful in inserting and

removing the memory modules.

2. Check the memory module type before you install the new memory

m o d u l e .

※Specifications for the memory module used for this product

Memory type : 168 pin DIMM (SDRAM)

Speed : PC-100

Capacity : 64MB, 128MB

Total Memory Capacity

3 2 M

4 8 M

6 4 M

8 0 M

9 6 M

1 2 8 M

1 9 2 M

2 5 6 M

3 2 M

6 4 M

1 2 8 M

DIMM 1 DIMM 2

1 6 M

3 2 M

1 6 M

3 2 M

6 4 M

1 2 8 M

5 1 2 M 2 5 6 M 2 5 6 M

6 6

Improved Computer Performance

Open the computer cover and insert

the card using both hands

Make sure that the card is correctly

inserted into the slot and fasten the

c a r d ′s bracket with a screw.

Close the cover and fasten

it with screws

F L AT O P ′sm a i n b o a r d can accommodate additional

2 PCI cards or 1 AMR card and 1 PCI card .

Installing cards in the Expansion Slot

Improved Computer Performance

6 7

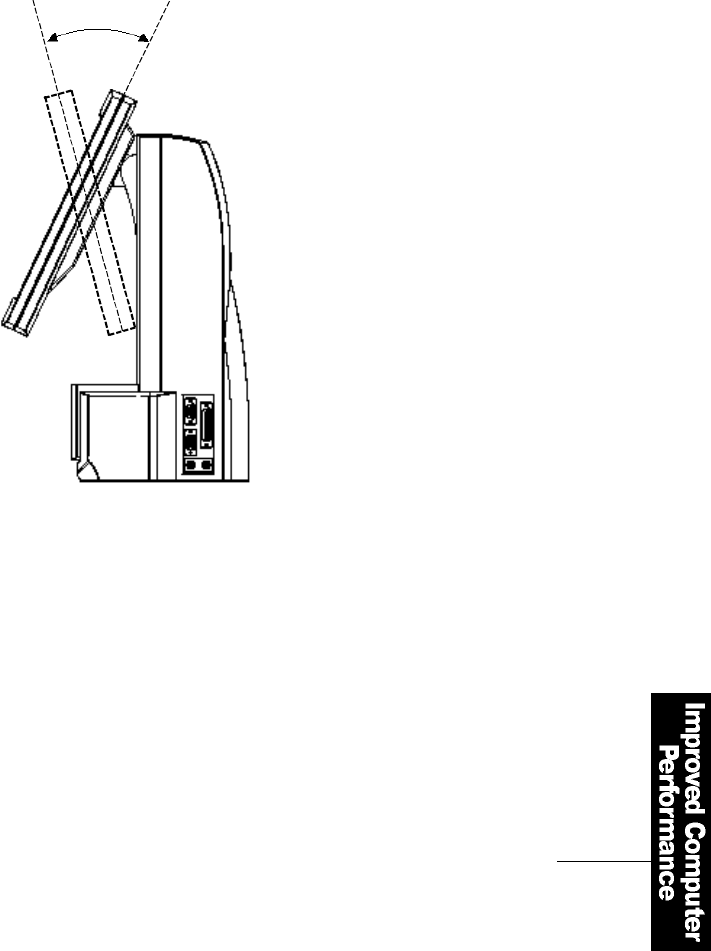

■Adjusting the FLATOP LCD Monitor

You can adjust FLATO P ′s

TFT LCD monitor in the vertical

range of -5 ~ +25°. To change

its vertical angles, hold both

sides of the panel and move it

up and down.

3 0°

6 8

T r o u b l e s h o o t i n g

This section describes universal problems that could happen to your

F L AT O P. If you encounter difficulties and problems in using this pro d u c t ,

first refer to this section. You can gain detailed explanations by calling

our help desk at 82-2-2190-5050.

One of my applications does not operate normally. Why?

Check the followings

1. Is there enough memory to run the application?

2. Is the application is designed for the current operating system?

3. Is the necessary device driver installed?

4. Does the application have a problem when it runs on another

c o m p u t e r ?

If you encounter an error message while using the application, refer to the

manual that comes with the application. If you still have problems, contact

the branch where you purchased the product or our help desk.

Troubleshooting

6 9

I connected an external monitor, but why are the monitor screens

overlapping and unstable?

F L AT O P′sTFT LCD uses 1024 x 768 resolution. This resolution is

applied to the external monitor. Therefore the screen could be distorted

or tremble. Adjust the external monitor′sresolution according to the

following procedure.

1. Refer to the monitor′sUser Manual and check the supported

r e s o l u t i o n s .

2. Select Di s p l a y from the Control Panel.

3. Select Settings tap in the Display Properties.

4. Set the resolution that the monitor supports and click Ye s

If the above procedure doesn′tsolve the problem, check that the

F L ATOP video driver is correctly configured in the Display Properties

I reinstalled Windows 98. Why do the sound, VGA, and LAN cards

m a l f u n c t i o n ?

To use FLATO P′s sound, VGA, and LAN cards after reinstallation, install

all the drivers provided by the manufacturer again. You can download

those drivers from FLATO P′s website at www. f l a t o p . c o . k r.

※Please refer to ″Installing drivers″on Page 18

7 0

T r o u b l e s h o o t i n g

Why does the computer have white or colored spots on its LCD screen?

F L AT O P′s LCD contains about 1 million pixels and bad pixels could occur.

LCDs with higher quality pixels are extremely expensive and beyond the

a f fordability of average users.

We are doing our best to minimize bad pixels. Bad pixels below a certain

level don′t affect the product.

The computer issues a message Keyboard error or no keyboard present

and the keyboard doesn′tfunction. Why?

You can use either a wired or a wireless keyboard by setting the

selection switch for wired/wireless options

Check the following

1. Check the keyboard connection.

2. Check the selection switch for wired/wireless keyboard is correctly set.

3. When the dry battery is used up, the keyboard could malfunction.

Check the battery.

4. If you are using a wireless keyboard, press the ID reset switch on the

k e y b o a r d

Troubleshooting

7 1

How can I find out how to install other operating systems and drivers for

those systems?

Please refer to the FLATOP installation guide or visit our website at

w w w.flatop.co.kr for information on new operating systems and device

d r i v e r s

Why doesn′t my FLATOP shutdown automatically under Windows 2000.

1. Click Start and point to S e t t i n g sand then Control Panel. Run the

Power Option and select A P M and then Advanced Power

M a n a g e m e n t . Activate the Enable APM Support.

2. Enable APM, ACPI related items in BIOS′s Power Management and

reinstall Windows 2000.

Why can′t FLATOP recognize the AMR card?

After installing the AMR card, set the AC97 Audio or AC97 Modem to

E n a b l e d in Integrated Peripheralsin the system BIOS.

O n e - y e a r

w a r r a n t y

C u s t o m e r ′sC a r d

W a r r a n ty

FLATOP LCD PC

Model name :

: Te l . A d d r e s s

You must present this warranty containing the date of purchase when you ask for service.

Please keep this warranty in a safe place.

1. The warranty of this product will be based on the contents in the warranty.

2. The warranty period is calculated from the date of purchase, please write down the date of purchase.

3. The warranty period lasts one year for normal use.

4. In the case of a separate agreement, the descriptions of the main agreement will be applied.

Product name

Date of Purchase

C u s t o m e r ′s Name

Agency Name

FLATOP LCD PC

Model name :

: Te l . A d d r e s s

Product name

Date of Purchase

C u s t o m e r ′s Name

Agency Name

ATEC AF8 LCD PC User Manual FLATOP8
