ATEN Technology IOGEAR GWAV8141KTX WIRELESS HD KIT User Manual no2 02 1 English itrio usermanual ai
ATEN Technology, Inc., dba IOGEAR WIRELESS HD KIT no2 02 1 English itrio usermanual ai
Users Manual
English
Contents
3
Full HD Full HD Full HD Full HD Full HD
Caution for Safety
Caution for Safety 4.....................................
Introduction
Product Introduction
Major Feature
6
6
...................................
........................................
Package Contents
Package Contents 7.....................................
Installation
Transmitter / Receiver Installation
IR Flasher Installation
LAN Installtion
PLC Installation
11
13
14
15
..........................
...................................
.......................................
.......................................

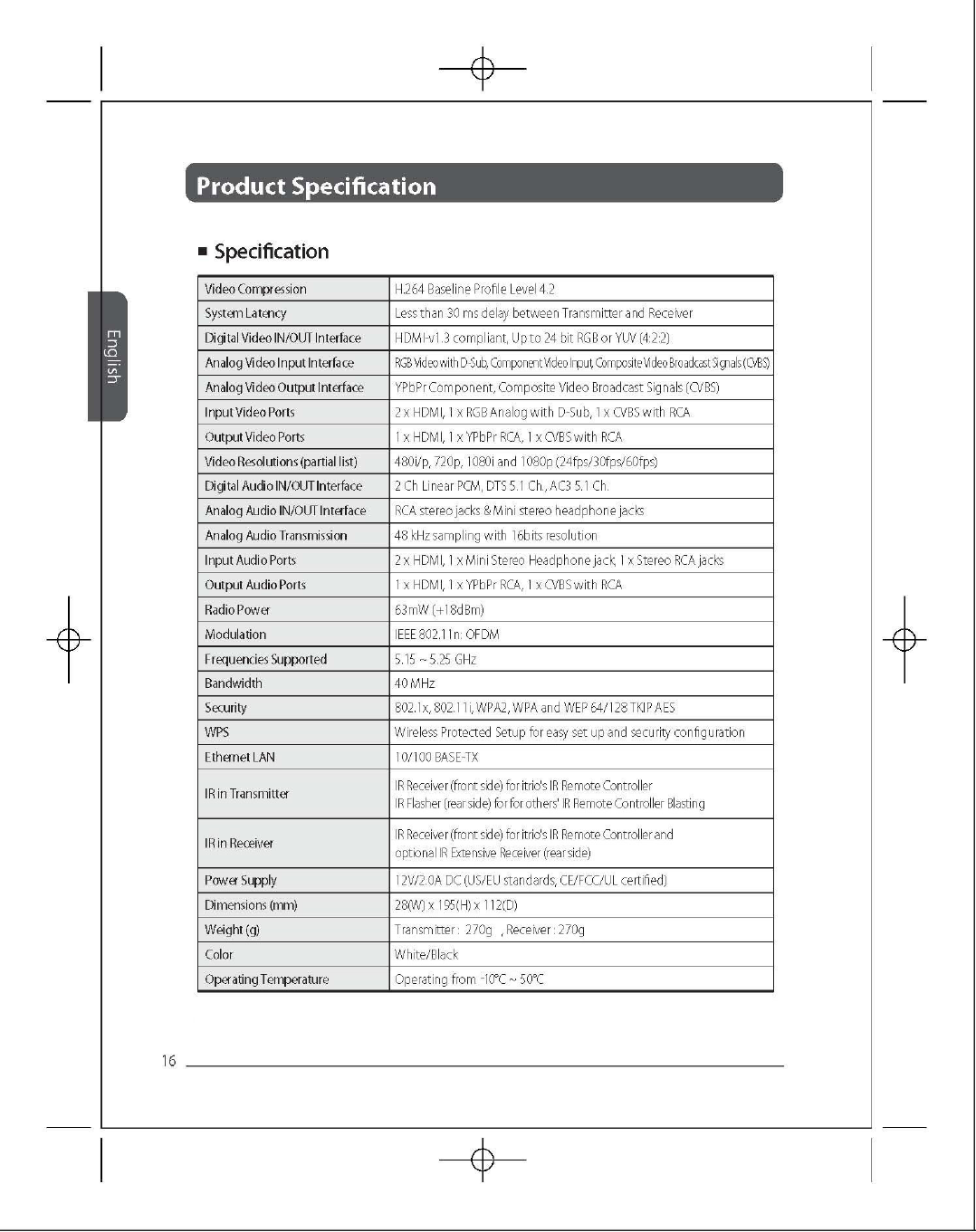

Product Specication
Specication
Video Format Supported
Audio Format Supported
Change WiFi Frequency
Factory Reset
Software upgrade
16
17
18
18
18
19
........................................
................................
................................
.................................
........................................
.....................................
Q & A
Q & A 20.............................................
Operation Control & Function

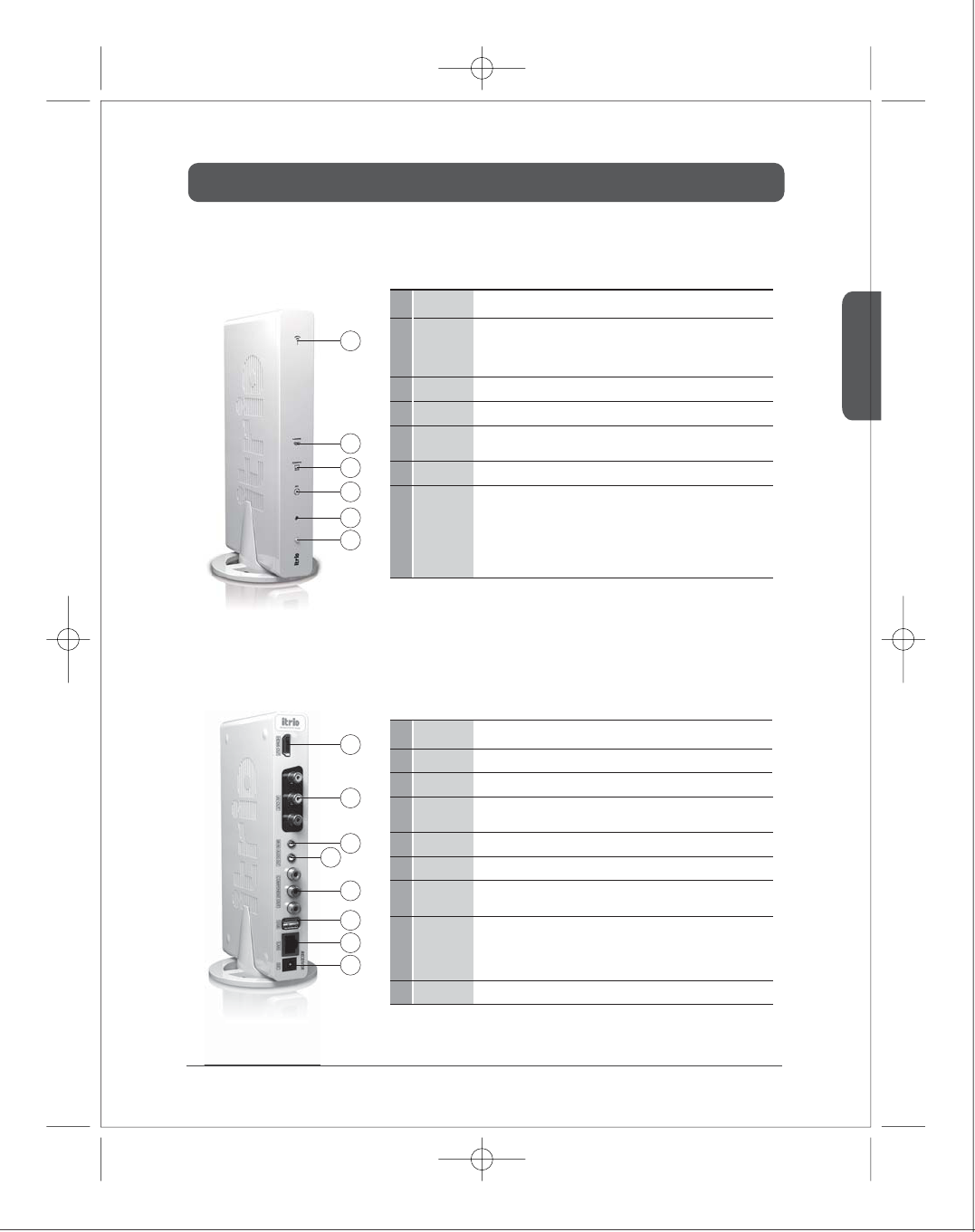

Transmitter Front
Transmitter Rear
Receiver Front
Receiver Rear
Remote Control
8
8
9
9
10
.....................................
......................................
.......................................
........................................
......................................
English
Caution for Safety
4
Full HD Full HD Full HD Full HD Full HD
Please read this user’s manual carefully before using the product.
If there is any strange sound, smoke or odor, pull the cable o immediately.
(It may cause re or electric shock)
Do not disassemble.
(It may cause re or electric shock.)
Do not put any sharpen object into the venting hole of the product.
(It may cause re or electric shock.)
Ensure to plug the product rmly.
(It may cause overheating or re if it plugs unstably.)
Ensure not to use the damaged cable.
( It may cause re or electric shock.)
Keep the product away from heaters or stoves.
(It may cause a re.)
Keep the battery of remote control out of reach of children.
Do not place the production on a bed, sofa or inside a closet that is not good for
ventilation.
(It may cause overheating or re.)
Do not use the product in close distance from the inammatory substance or combustible
spray.
(It may cause re.)
Caution for Safety
English
5
Full HD Full HD Full HD Full HD Full HD
Always wipe the product o with soft fabric, not water mop.
(Water may come inside the product through the venting hole, and it may cause
electric shock.)
Keep clean the power plug and the outlet.
(Dirt may cause a short circuit and re.)
Keep the product out of reach of children.
Don’t unplug the power cord with a wet hand.
(It may cause electric shock.)
The heat and humidity may cause the damage to the remote control.
Unplug the power cord if you don’t use the product for a long time.
(Dirt may cause heat, re or electric shock.)
Ensure not to be damaged to the power cord.
(Damaged power cord may cause re or electric shock.)
Introduction
English
6
Full HD Full HD Full HD Full HD Full HD
■ Product Introduction
■ Major Feature
●
●
●
●
●
●
●
1080p60 Full HD encoding/decoding with H.264 Baseline Prole (Level 4.2)
Low latency
- Latency of encoding-decoding in 1080p60 HD: Within 30ms
Supports both digital(HDMI) and analog(RGB, Component, D-Sup) video/audio
Supports Wireless or Wireline
- IEEE 802.11n 5 GHz WiFi
- Power line communication (PLC) modem
- LAN connection
Internal Antenna (Supporting MIMO)
HDMI-v1.3 (HDCP-v1.1) compliant.
Supports both DTV & VESA standards
- DTV : 1920x1080i60/p60, 1280x720p60, 720x480i60/p60
- VESA : WSXGA+(1680x1050), SXGA(1280x1024), WXGA(1280x800), XGA(1024x768),
SVGA(800x600), VGA(640x480)
itrio, using WiFi wireless solution, is the device for sending 1920x1080 Full HD video sources to other
location in your house. Once you connect Full HD video sources such as Set top box, Blu-ray player,
Multi media player, DVD player or PC to the transmitter and connect the display device to the receiver,
you can enjoy wirelessly Full HD video anywhere in your house.
itrio uses IEEE802.11n draft 2.0 standard WiFi technology for wireless connection. In case the wireless
connection is interfered, you can use PLC (power line communication) modem without additional
cable installation. You can also enjoy itrio through a LAN cable connection via LAN port.

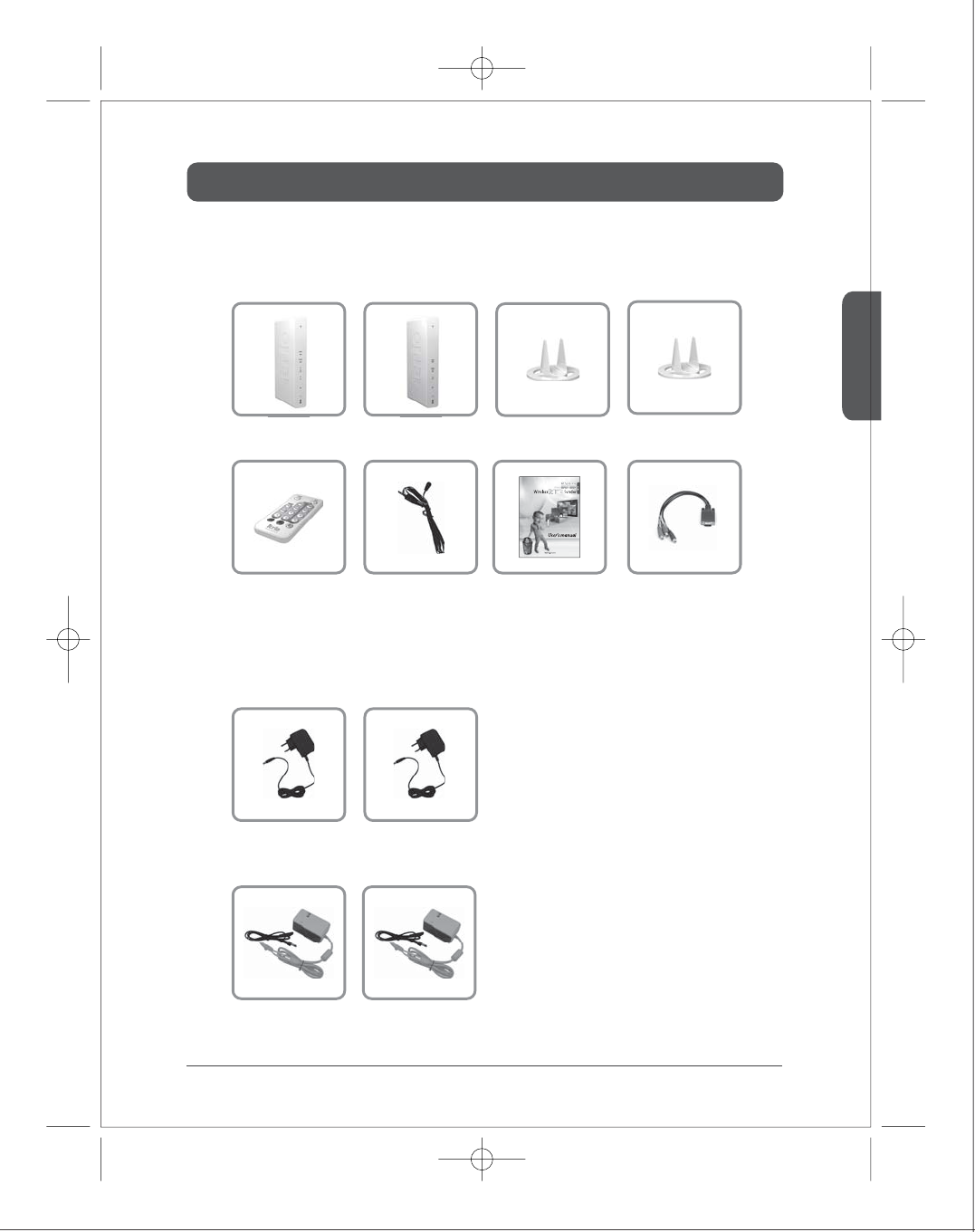

Package Contents
English
7
Full HD Full HD Full HD Full HD Full HD
■
※ Before you use the product, check the following components are all present.
Transmitter Receiver Stand1 Stand2
■
Adapter1 Adapter2
Components
Adapter by model
PLC1 PLC2
Remote Control IR-Flasher
- HD-W100 / HD-L100
- HD-P100
User’s Manual D-Sub
to component adaptor

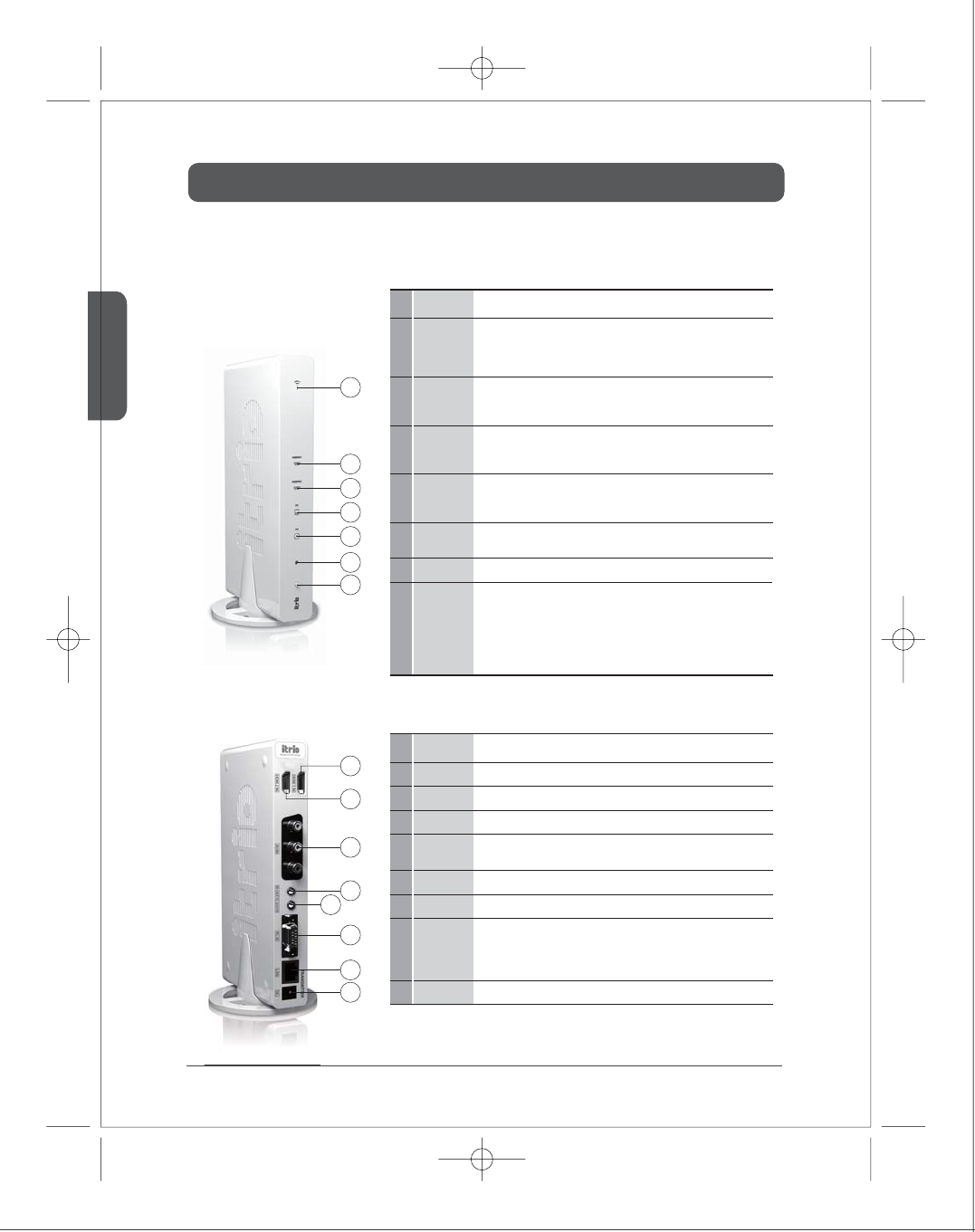

Operation Control & Function
English
8
Full HD Full HD Full HD Full HD Full HD
■
■
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
Description
Function
HDMI2-IN
AV-IN
IR-OUT
PC AUDIO-IN
2
3
4
5
HDMI 2 input port (correspond to ‘HDMI2’ on the remote control)
HDMI1-IN
1
HDMI 1 input port (correspond to ‘HDMI1’ on the remote control)
Composite or SCART input port (correspond to ‘AV’ on remote control)
PC-IN
6
Support component input through component gender.
It will be used for the following feature
Stereo Audio input port
DC
8
Power input port
Connect IR Flasher to control external devices which are connected to the
transmitter.
LAN
7
Power and
Source Button
Description
Function
1
IR window
2
IR receiving window from remote control.
AV
3
4
PC
HDMI2
5
It will be on when the HDMI2 port is selected for the video input.
If the cable is not connected or video signal is not fed into properly, LED will blink.
6
HDMI1
It will be on when the HDMI1 port is selected for the video input.
If the cable is not connected or video signal is not fed into properly, LED will blink.
7
Power/Link LED
○
○
Press it shortly to turn the power on.
When power on,
-
-
Press shortly : Press to select the video input source. Each press the power
button will cycle through the available video input "HDMI1
→
MHMI2
→
PC
→
AV
→
HDMI1" in sequence.
Press longer : Press and hold more than 3 seconds to turn the power o.
○
○
○
Connection to PLC modem
Direct connection to LAN cable
Connection to PC for the system conguration setting
Transmitter Front
Transmitter Rear
It will be on when the AV-IN port (composite or SCART) is selected for the video
input.
It will be on when the PC-IN port is selected for the video input.
If the cable is not connected or video signal is not fed into properly, LED will blink.
○
○
○
Blink : System booting or establishing link between the transmitter and the receiver.
Quick Blink : Software upgrading or wireless/LAN mode switching.
On : Finish of link establishment is completed between the transmitter and the
receiver.
Operation Control & Function
English
9
Full HD Full HD Full HD Full HD Full HD
AUDIO-OUT
4
Connect additional IR Extender in order to extend receiving the
remote control.(purchase separately)
○
○
Press it shortly to turn the power on.
When power on,
-
-
Press shortly : Press to select the video input source. Each press the power
button will cycle through the available video input "HDMI
→
COMPO
→
AV
→
HDMI " in sequence.
Press longer : Press and hold more than 3 seconds to turn the power o.
■
■
Receiver Front
Receiver Rear
1
2
3
4
5
6
1
2
3
4
5
6
7
8
Description
Function
AV-OUT
2
HDMI-OUT
1
HDMI output port
IR-IN
3
COMPONENT-OUT
5
Component output port
Stereo Audio output port
DC
8
Power input port
Composite or Scart output port
LAN
7
USB
6
This USB port is for software upgrade.
(For more information, please refer to Software upgrade on page 17. )
Power and
Source Button
Description
Function
1
IR window
2
IR receiving window from remote control.
3
4
COMPO
5
HDMI It will be on when the HDMI-OUT port is selected for the video output.
6
Power/Link LED
○
○
○
Blink : System booting or establishing link between the transmitter and the receiver.
Quick Blink : Software upgrading or wireless/LAN mode switching.
On : Finish of link establishment is completed between the transmitter and the
receiver.
AV It will be on when the AV-OUT port (composite or SCART) is selected for the video
output.
It will be on when the COMPONENT-OUT port is selected for the video output.
LAN cable will be used for the following feature
○
○
○
Connection to PLC modem
Direct connection to LAN cable
Connection to PC for the system conguration setting
Operation Control & Function
English
10
Full HD Full HD Full HD Full HD Full HD
12
5
4
3
68
7

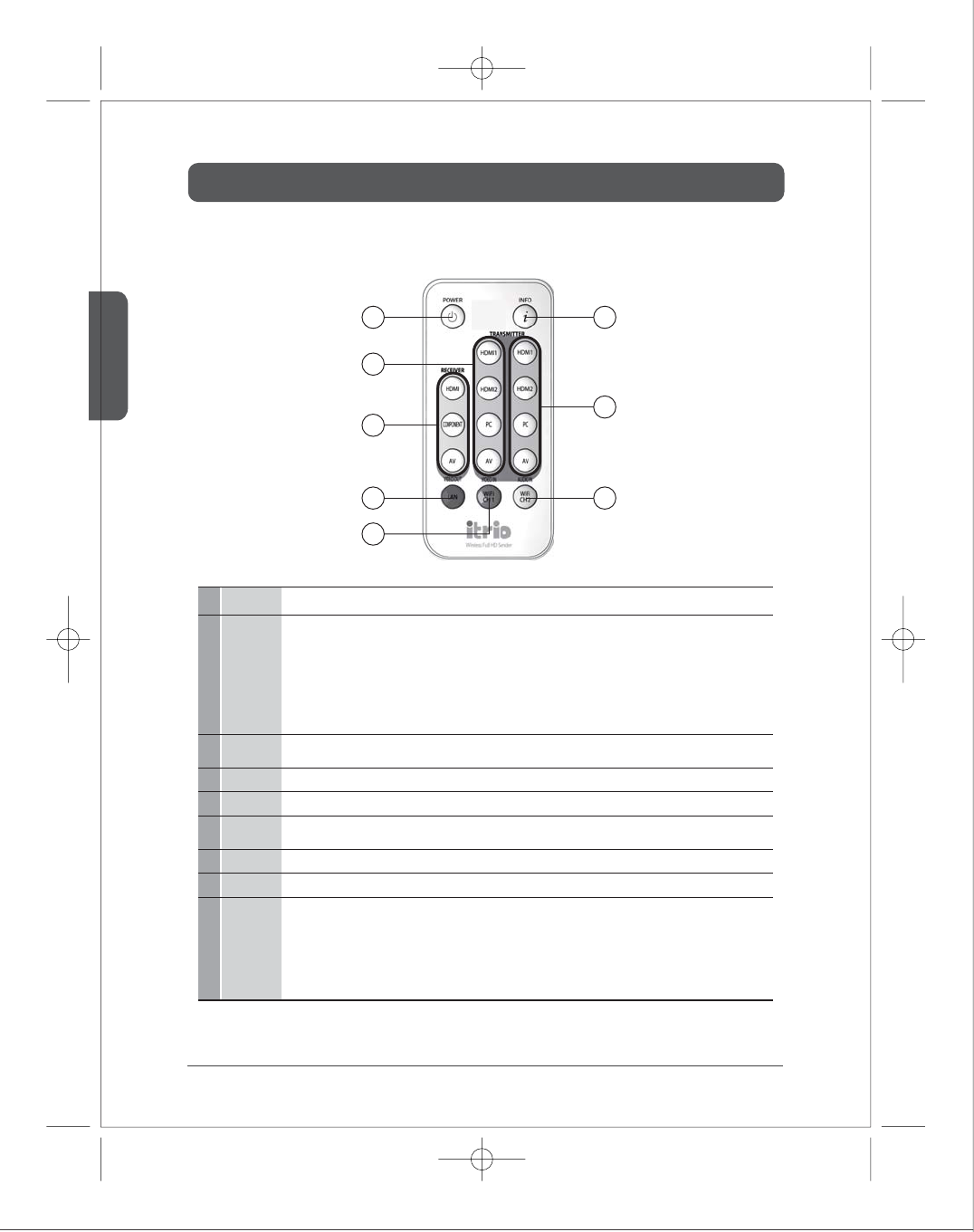

■ Remote control
Description
Function
Display the current resolution, input / output ports, channel, WiFi reception (1/5~5/5). (5/5 strongest, 1/5 weakest)
It appears when you press and disappears automatically after around 20 seconds.
Note1. If the power is o abnormally, the user's conguration may not be saved.
Note 1.
Note 2.
Note 3.
Note 4.
⑥~⑧ are functioned HD-W100 model only.
⑥~⑧ are applied only when you press the button more than 5 seconds. On the normal link stage, if you change either TX or RX both device
will be changed simultaneously.
Otherwise you should change on TX and RX separately. (Info screen appears on the display for 3 seconds if it changes appropriately.
It will be rebooting when you change for ⑥~⑧ . Power/Link LED will blink in a short time and reboot.
Link may be interfered caused by wrong setting or malfunction of ⑥~⑧ button. In this case, please select desired communication mode
(LAN/WiFi) or channel to each transmitter and receiver using remote control.
INFO
2
AUDIO IN
5
VIDEO OUT
3
VIDEO IN
4
Select VIDEO input port on the transmitter (HDMI1, HDMI2, PC, AV)
Select VIDEO output port of the receiver (HDMI, COMPO , AV)
LAN(Red)
6
WiFi Ch1(Green)
7
WiFi Ch2(Yellow)
8
Select WiFi (Wireless) mode, Ch2.
* TX : Transmitter, RX : Receiver
Select WiFi (Wireless) mode, Ch1.
Select LAN (Cable) mode.
POWER
1
○
○
○
Power on :
- If you turn on TX or RX when power/Link LED is on , both devices will be power-on simultaneously within 10 seconds.
- You have to turn on each of TX and RX separately when power/Link LED is o, it may takes around 1 min 30 seconds for booting up.
Power o (press shortly) : When you turn o TX or RX, both devices will be power-o simultaneously and only power LED will be on.
Power o (press more than 4 sec) : When you turn o TX or RX, both devices will be power-o simultaneously, and LED will be o.
Power will be completely turned o.
To turn on/o the power of transmitter and receiver.
Select AUDIO input port on the transmitter (HDMI1, HDMI2, PC, AV)
Audio port is selected same with video port as a default. But you can select particular audio port using this button.
Installation
English
11
Full HD Full HD Full HD Full HD Full HD
1)
2)
3)
4)
5)
6)
7)
Connect the cable of the desired devices (multimedia player and display device) to the port of the
transmitter/ receiver and turn the power on.
Connect the power adapter, then the power will be turned on automatically.
During the boot time, LEDs on the front panel of transmitter and receiver blink .
After booting, Power/Link LED blinks until the link between the transmitter and the receiver is up.
In/output port setting of the transmitter and the receiver is controlled by remote control or button
setting on the product manually.
When all the process is completed, Power/Link LED activates without blinking, and the video will
appear on the screen 3~5 seconds later.
If wireless or cable link is aected by external factors, Power/Link LED may blink again.
(Please reconnect the cable and power)
* Note1 : It is recommended to connect HDMI cable to the transmitter and the receiver, before power on.

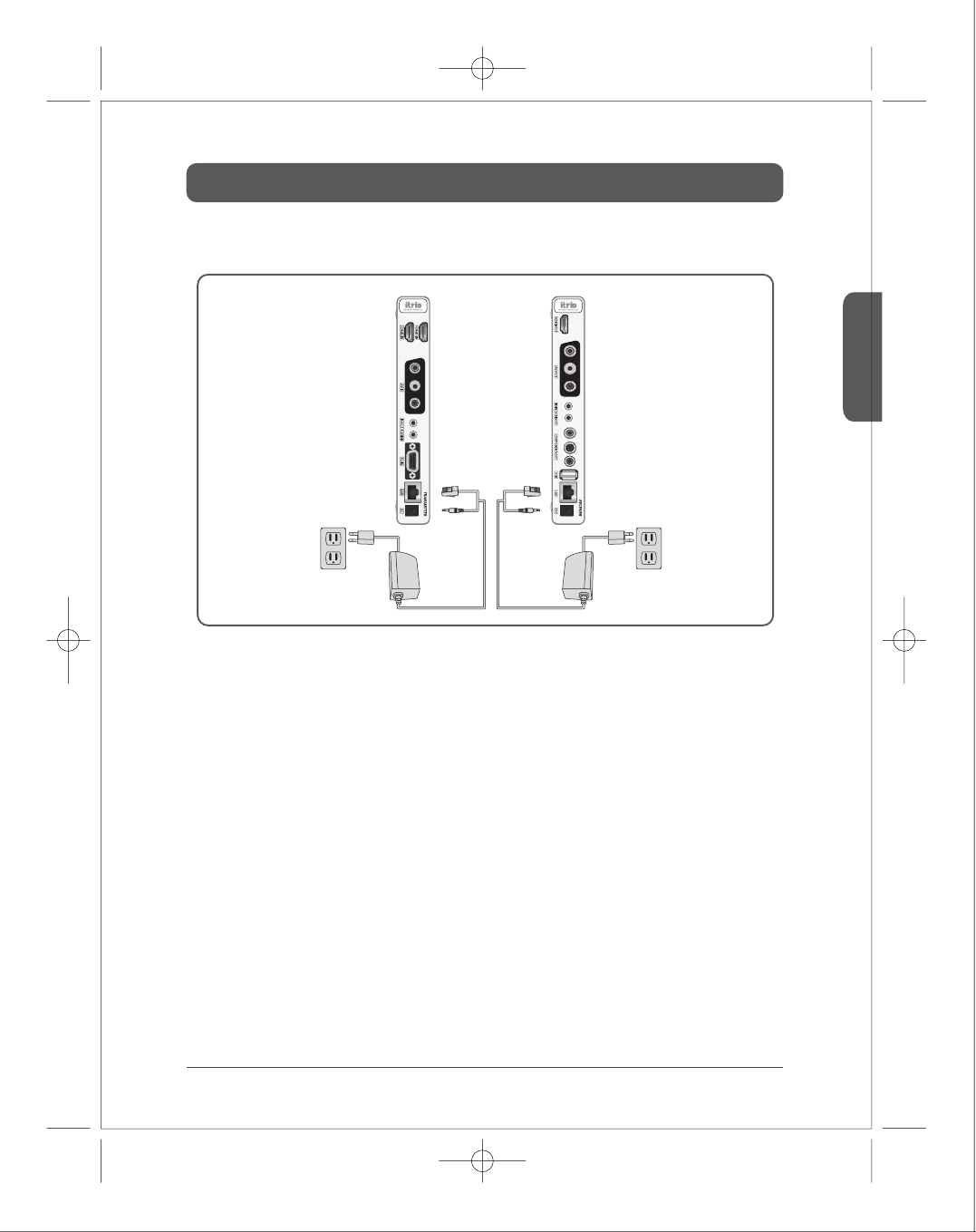

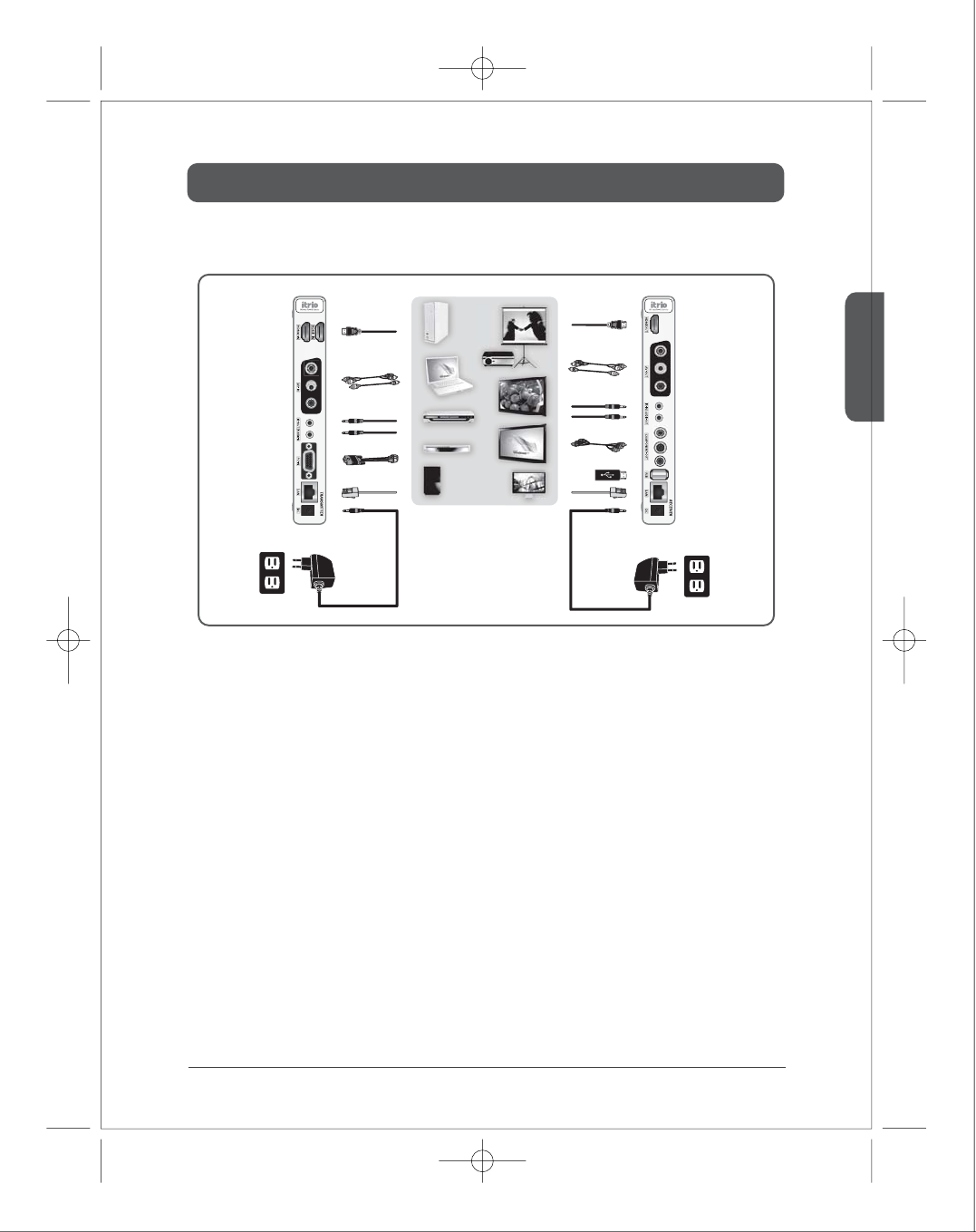

■ Transmitter / Receiver Installation
Transmitter Receiver
Adapter Adapter
Multimedia player / Display device
Installation
English
12
Full HD Full HD Full HD Full HD Full HD

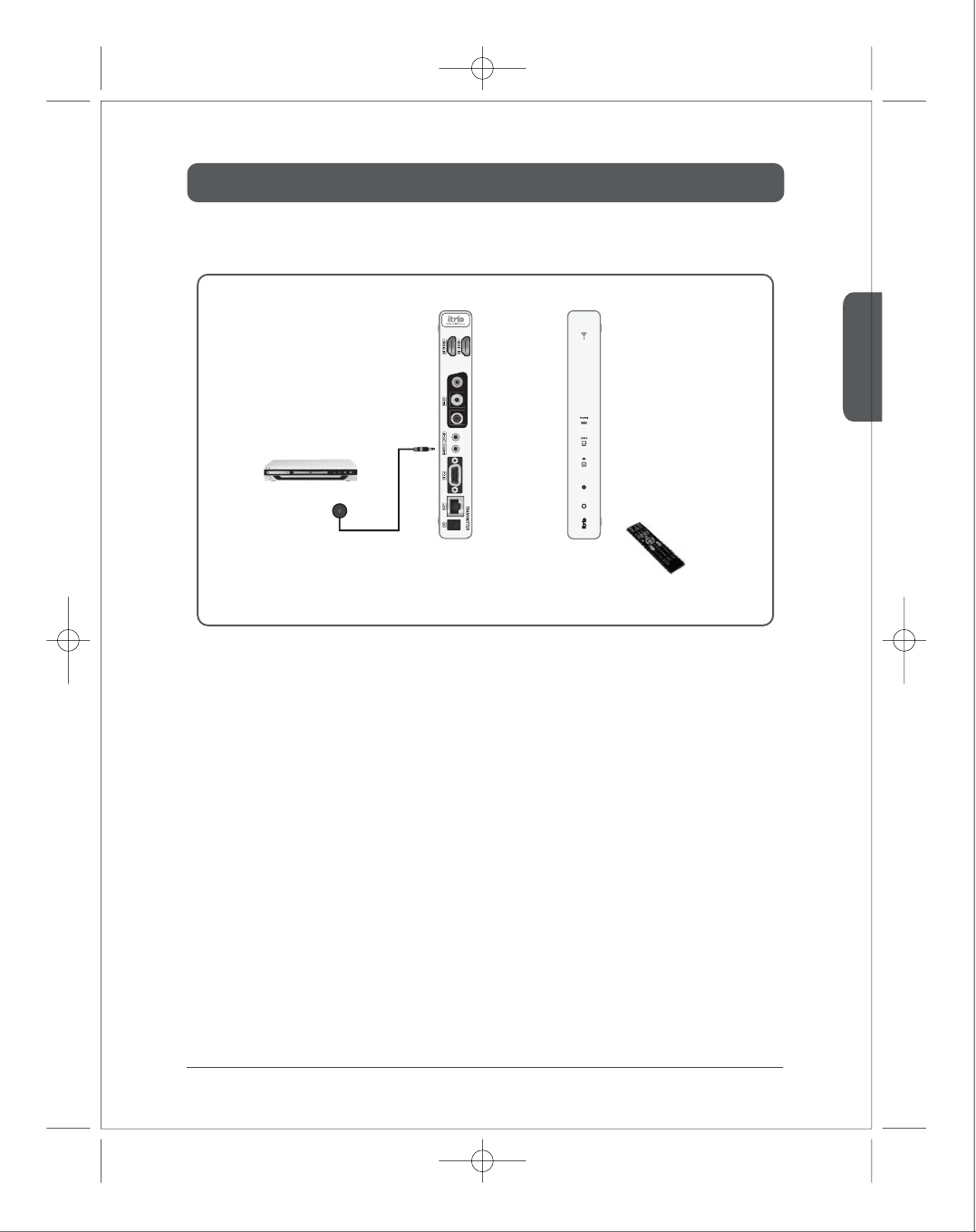

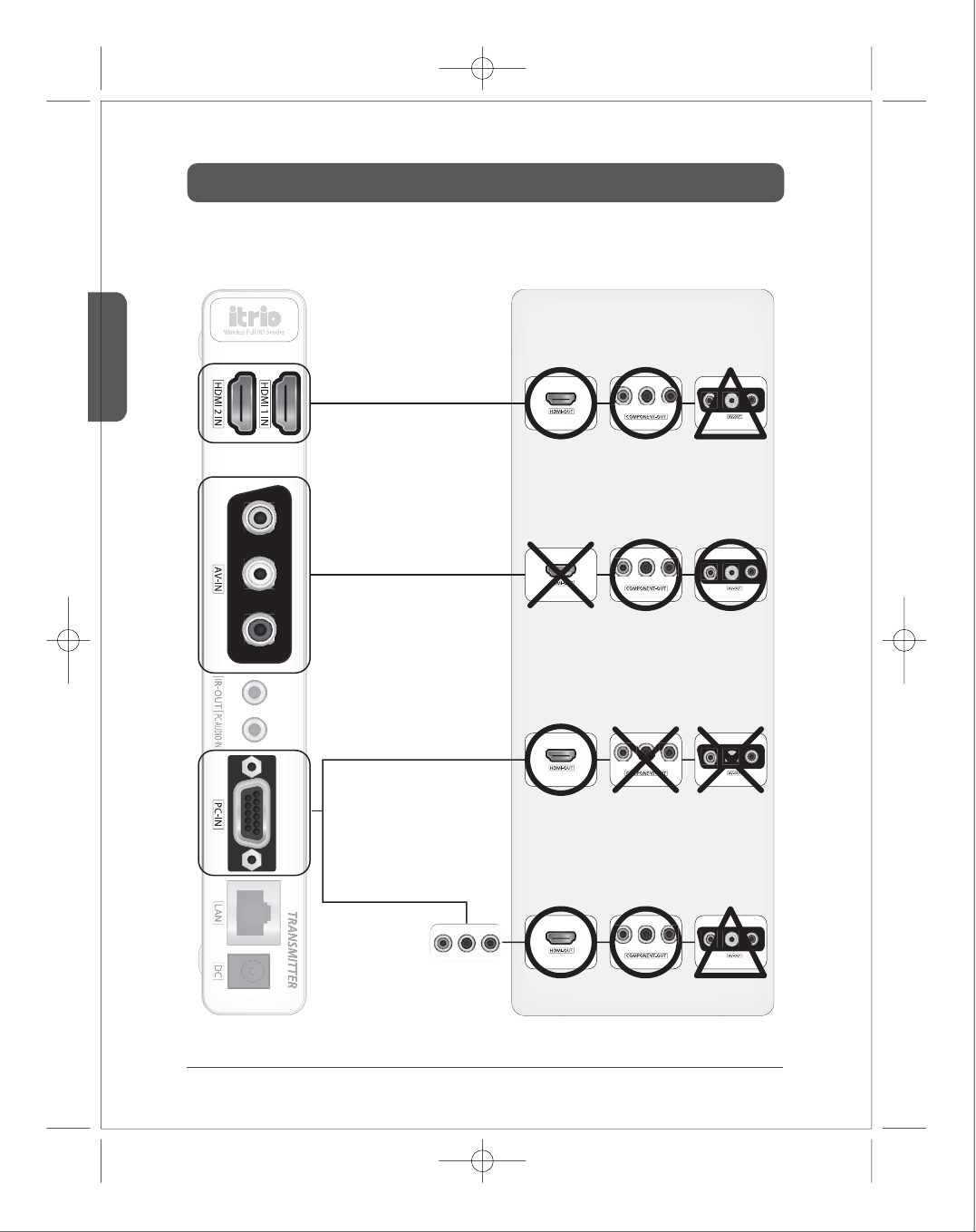

How to make link between the transmitter and the receiver.
Transmitter Receiver
Component
(Multimedia Device)
HDMI1/HDMI2 input &
Appropriate output port
* Composite(AV) supports only 1080i/576i/480i resolution.
* Composite(AV) supports only 1080i/576i/480i resolution.
Composite(AV) input &
Appropriate output port
Component(D-Sub) input &
Appropriate output port
PC(D-Sub) input &
Appropriate output port
Installation
English
13
Full HD Full HD Full HD Full HD Full HD
1)
2)
3)
Connect IR Flasher to IR-IN of the transmitter.
Place the end point of IR Flasher to near IR window of multimedia players.
Control multimedia player remotely by pointing remote control of multimedia player to IR window
of the receiver.
■ IR Flasher Installation
IR Flasher
Transmitter Receiver
Multimedia player
From the receiver, you can remotely control the multimedia player which is connected to the transmitter.
Installation
English
14
Full HD Full HD Full HD Full HD Full HD
1)
2)
3)
Connect LAN cable directly between the transmitter and the receiver, or to the IP router/LAN hub.
When you connect the transmitter and the receiver directly by UTP LAN cable, input the both end of
LAN cable to the each LAN port of the product. Then, turn the power on.
When you connect to the IP router/L2 switching hub, please follow the process below.
a.
b.
c.
d.
Please check the IP address of the device.
As a default conguration, transmitter’s IP address is 192.168.0.151, and receiver’s is 192.168.0.152.
The product has simple built-in web server inside. So, you can check and change the conguration. You can
connect the product to the PC via LAN cable and enter the IP address of the device on the web browser. At any
time, you can change the IP conguration as a default by factory set. (please refer to the Factory Reset on Page 16.)
When the default IP address of the transmitter/receiver are not used in your current network, just connect the
LAN cable to the IP router or LAN hub and turn the power on.
When the default IP address of the transmitter/receiver are already being used, you have to set the available IP
address to the transmitter and the receiver separately.
Connect the product to the PC via LAN cable, and enter new IP address of the transmitter/receiver respectively.
After setting new IP address, please follow the process.
For more information, please refer to the instruction at website (www.i-trio.com)

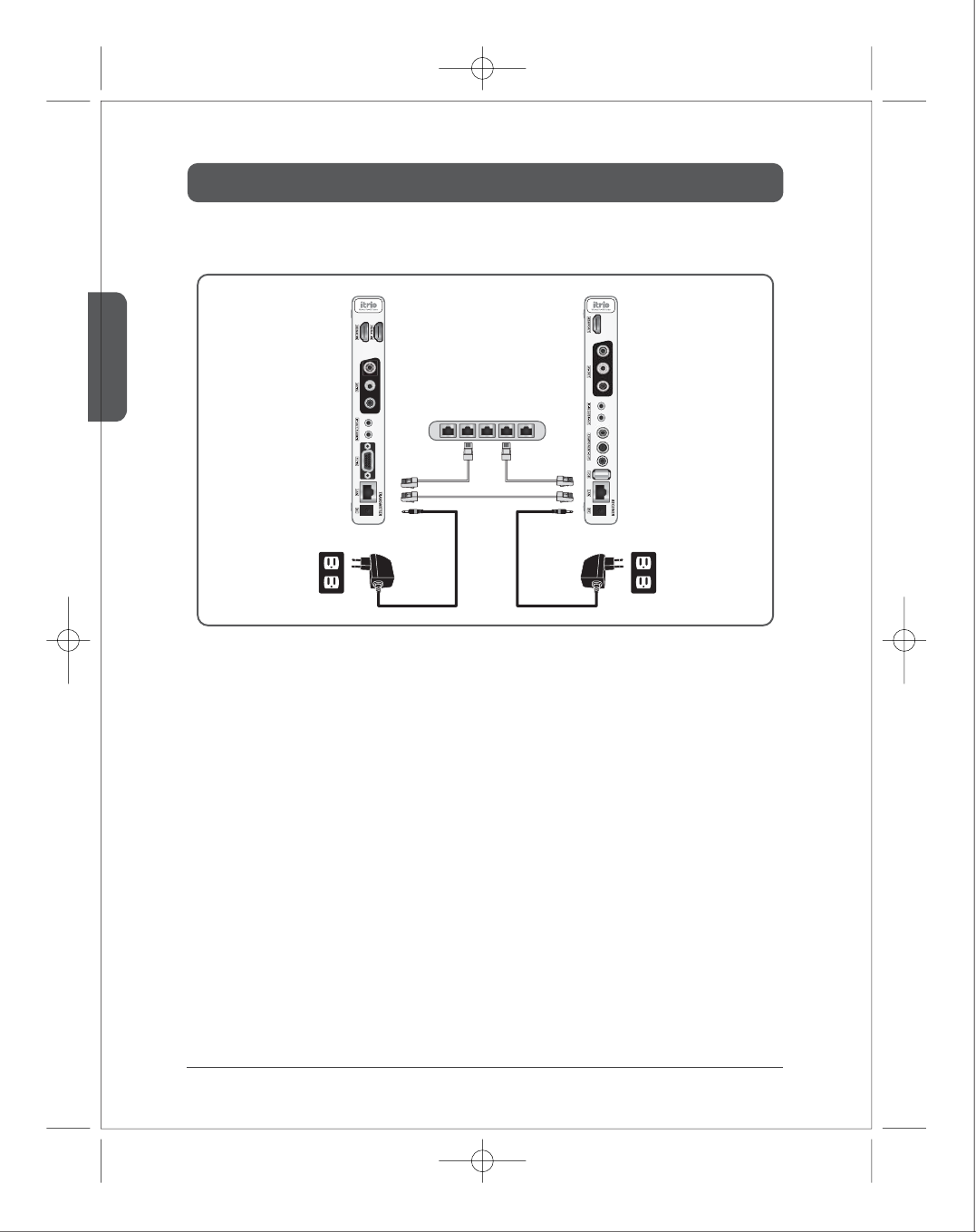

■ LAN Installtion
Transmitter Receiver
Adapter Adapter
LAN Cable
LAN Hub
Installation
English
15
Full HD Full HD Full HD Full HD Full HD
1)
2)
3)
4)
Connect the LAN cable of the PLC modem1 to the LAN port of the transmitter.
Connect the Power cord of the PLC modem1 to the DC Power of the transmitter.
Connect LAN cable of PLC modem2 to LAN port on the back of the receiver.
Connect the Power output of the PLC modem2 to the DC Power of the receiver.
*Please refer to the detailed PLC modem guide which is provided with HD-P100 model.
■ PLC Installation
Transmitter Receiver
PLC modem PLC modem
Product Specication
English
17
Note 1.
Note 2.
Note 3.
Note 4.
Note 5.
Full HD Full HD Full HD Full HD Full HD
■ Video Format Supported
1600 x 1200p60 reduced format
itrio just relays the input format of the video from the transmitter to the receiver. itrio does not change the
video format. If you want to change output format, you should change input format on the external device
which is connected to the transmitter.
HDMI output of the receiver doesn't support AV(NTSC:480i or PAL:576i) input signal from the transmitter.
Please use component output terminal of receiver.
Among HDMI input signal, only 1080i/480i/576i input video signal support AV output. Other HDMI input
signal doesn't support AV output of the transmitter. Please use HDMI or Component output terminal of the
transmitter.
PC that is connected with D-Sub of the transmitter support only HDMI output of the receiver.
Video
Standard
VESA
Format
(PC standard)
DTV
Format
(TV standard)
Resolutions HDMI
640 x 480p60
640 x 480p70
640 x 480p85
800 x 600p60
800 x 600p70
800 x 600p85
1024 x 768p60
1024 x 768p70
1024 x 768p85
1152 x 864p60
1152 x 864p70
1152 x 864p85
1280 x 800p60
1280 x 960p60
1280 x 960p70
1280 x 960p85
1280 x 1024p60
1360 x 768p60
1440 x 900p60
1600 x 1200Rp60
1600 x 900p60
1680 x 1050p60
720 x 480I60(NTSC)
720 x 576I50(PAL)
720 x 480p60
720 x 576p50
1280 x 720p50
1280 x 720p60
1920 x 1080i50
1920 x 1080i60
1920 x 1080p24
1920 x 1080p25
1920 x 1080p30
1920 x 1080p50
1920 x 1080p60
D-SUB HDMI COMP
itrio Transmitter itrio Receiver
1)
AV(CVBS) AV(CVBS)
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
X
O
X
O
O
O
O
O
O
O
O
O
O
X
X
O
O
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
O
O
X
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
X
X
O
O
O
O
O
O
O
O
O
O
O
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
O
O
X
X
X
X
O
O
X
X
X
X
X
Product Specication
English
18
Change WiFi Frequency
Full HD Full HD Full HD Full HD Full HD
Ch 1
Ch 2
5.19 GHz(WiFi Ch38)
5.23 GHz(WiFi Ch46)
WiFi Ch1 (Green)
WiFi Ch2 (Yellow)
WiFi Channel Frequency Use Remote Control Button
1)
2)
-Digital compressed audio : AC-3 Dolby Digital, DTS ( Pass Through)
Digital Audio
-16bit 2-channel linear PCM (44.1kHz & 48kHz)
Analog audio
1)
2)
3)
If there are the devices that use same WiFi frequency, the receiver’s output video may be
distorted because of frequency interference. In this case, you can change WiFi frequency in
order to avoid interference.
If you press the button (WiFi Ch1 / WiFi Ch2) of the remote control over 5 seconds, WiFi
frequency will be changed and system will be rebooted.
If the transmitter and the receiver are linked appropriately, it is ne to change WiFi frequency
on the one device. However, if the transmitter and the receiver are not linked, WiFi frequency
should be changed on each of transmitter and receiver respectively.
■
Factory Reset
1)
2)
With pressing the power button of the transmitter or the receiver, connect the power.
Once you press the power button for 3 seconds, all the LED will blink and the system setting is set
to be factory mode.
■
■ Audio Format Supported
This Function is applied to only wireless model(w).Note1.
Product Specication
English
19
Full HD Full HD Full HD Full HD Full HD
1)
2)
3)
4)
5)
Download up-to-dated software (itrio.img) at web page (www.i-trio.com)
Store this S/W in "root directory" of USB memory.
Plug USB memory into the USB port of the receiver.
With LEDs blinking, the receiver and the transmitter will be upgraded in sequence.
(It takes around 5 minutes)
When the refreshing is completed, the product will be rebooted.
■ Software upgrade
a.
b.
c.
d.
Update is available only when the transmitter and the receiver operate normally.
NEVER remove the power during update.
(If the power is o during upgrading, the product will not work again.)
During the update, screen does not display the video.
When the product reboots again, you can remove the USB Memory.
Important Notice)
Q & A
English
20
Full HD Full HD Full HD Full HD Full HD
A : Communication method (LAN/WiFi) or channel may not be set appropriately. Please
set the desired communication method and channel by referring 4-5). ⑥~⑧.
Especially, when the system is wireless mode, make the transmitter and the receiver
closer, please check if the link is completed pressing Ch1 and ch2 for over 5 seconds
and, then, make them locate near TV. If link is established appropriately when they
are close but LED is blinking when they are apart, it means wireless signal is weakened
by some reason or it may be interfered by a wireless device which use the same
frequency in the near place.
Q : Power/Link LED keeps blinking and the transmitter and receiver are not linked
appropriately.
1)
A : It is not a broken product. When the receiver receives the video data, there is noise on
screen if the receiver couldn’t receive the essential information. The screen will be
shown clearly soon.
Q : When itrio is turned on rst time, TV screen doesn’t show clearly and after a while turn
into clear picture. Is it broken?
2)
A :
Q :
3)
Yes, it is. However, low quality HDMI splitter may convey the video signal information
inappropriately or the electric feature of HDMI video signal form the HDMI splitter may
not satisfy the standard. Please use it carefully.
Is it possible to use video output from HDMI splitter?
■ Q & A
For the further information, please refer to our web page 'www.i-trio.com'
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface cables
when connecting to computer or peripheral devices). Any changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOIDTHE USER�S AUTHORITY TO OPERATE THE
EQUIPMENT.
"This device is restricted to indoor-only use for the 5150 ~ 5250 GHz band."
IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
