Wireless-G Notebook Network CardUser Manual (GWP512)

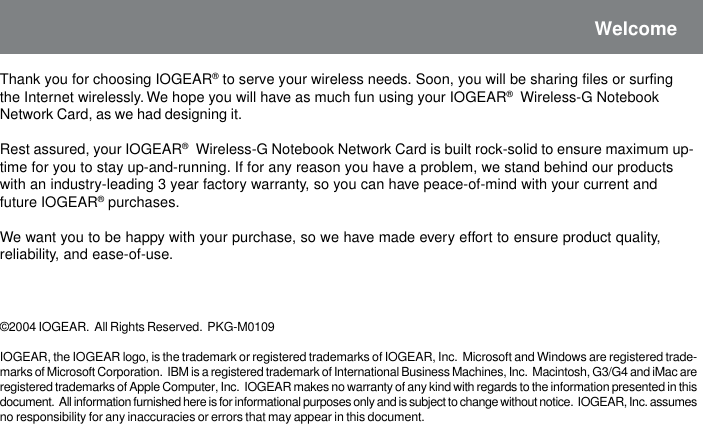

WelcomeThank you for choosing IOGEAR® to serve your wireless needs. Soon, you will be sharing files or surfingthe Internet wirelessly. We hope you will have as much fun using your IOGEAR® Wireless-G NotebookNetwork Card, as we had designing it.Rest assured, your IOGEAR® Wireless-G Notebook Network Card is built rock-solid to ensure maximum up-time for you to stay up-and-running. If for any reason you have a problem, we stand behind our productswith an industry-leading 3 year factory warranty, so you can have peace-of-mind with your current andfuture IOGEAR® purchases.We want you to be happy with your purchase, so we have made every effort to ensure product quality,reliability, and ease-of-use.©2004 IOGEAR. All Rights Reserved. PKG-M0109IOGEAR, the IOGEAR logo, is the trademark or registered trademarks of IOGEAR, Inc. Microsoft and Windows are registered trade-marks of Microsoft Corporation. IBM is a registered trademark of International Business Machines, Inc. Macintosh, G3/G4 and iMac areregistered trademarks of Apple Computer, Inc. IOGEAR makes no warranty of any kind with regards to the information presented in thisdocument. All information furnished here is for informational purposes only and is subject to change without notice. IOGEAR, Inc. assumesno responsibility for any inaccuracies or errors that may appear in this document.

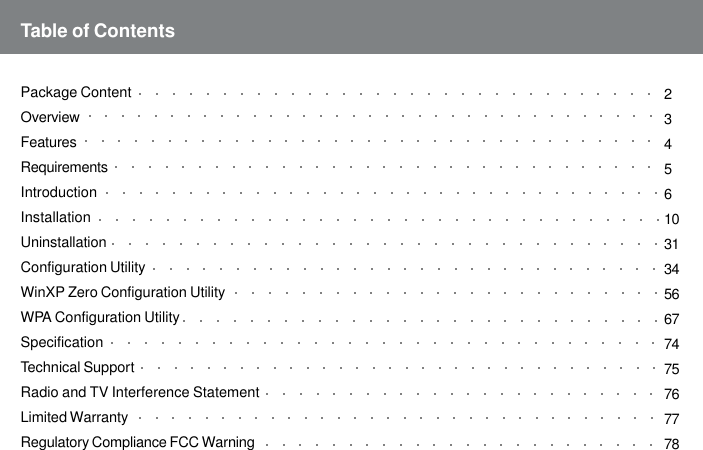

Package ContentOverviewFeaturesRequirementsIntroductionInstallationUninstallationConfiguration UtilityWinXP Zero Configuration UtilityWPA Configuration UtilitySpecificationTechnical SupportRadio and TV Interference StatementLimited WarrantyRegulatory Compliance FCC Warning2345610313456677475767778Table of Contents

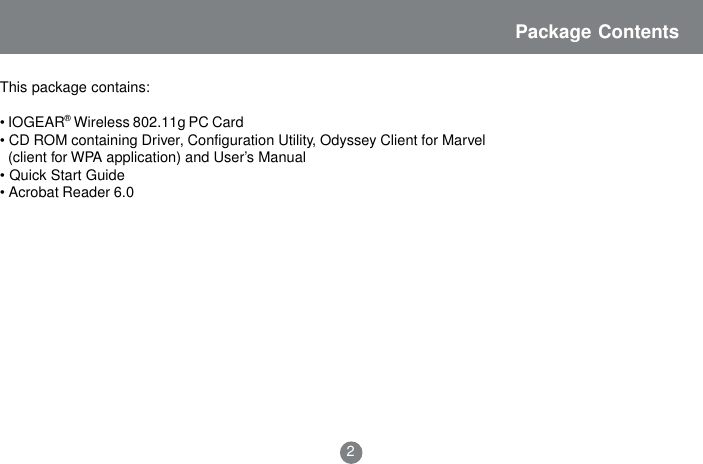

2This package contains:• IOGEAR® Wireless 802.11g PC Card• CD ROM containing Driver, Configuration Utility, Odyssey Client for Marvel (client for WPA application) and User’s Manual• Quick Start Guide• Acrobat Reader 6.0Package Contents

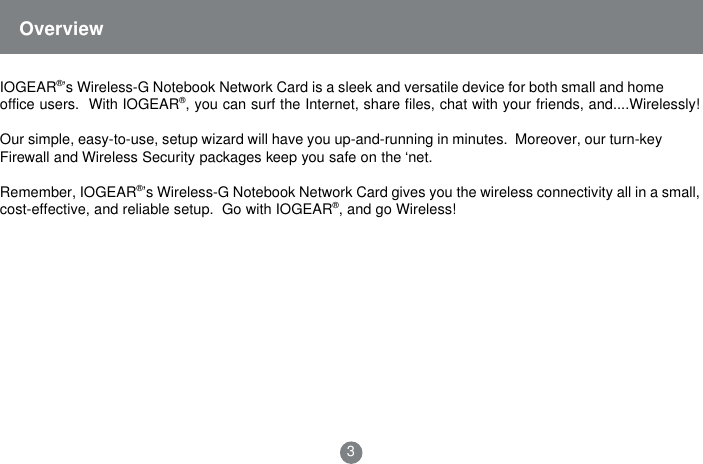

IOGEAR®’s Wireless-G Notebook Network Card is a sleek and versatile device for both small and homeoffice users. With IOGEAR®, you can surf the Internet, share files, chat with your friends, and....Wirelessly!Our simple, easy-to-use, setup wizard will have you up-and-running in minutes. Moreover, our turn-keyFirewall and Wireless Security packages keep you safe on the ‘net.Remember, IOGEAR®’s Wireless-G Notebook Network Card gives you the wireless connectivity all in a small,cost-effective, and reliable setup. Go with IOGEAR®, and go Wireless!Overview3

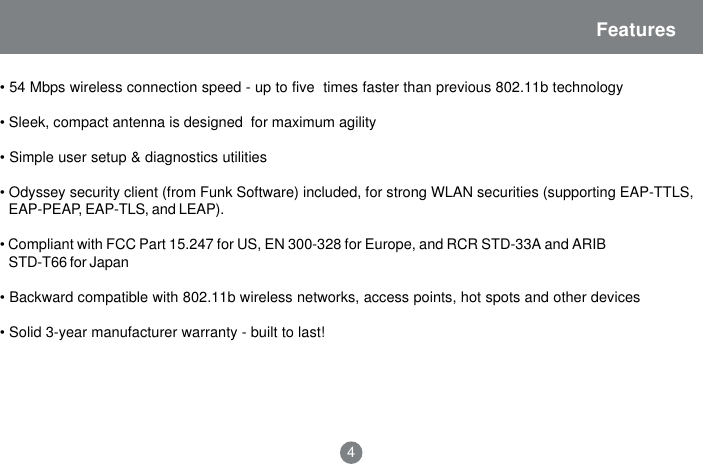

Features• 54 Mbps wireless connection speed - up to five times faster than previous 802.11b technology• Sleek, compact antenna is designed for maximum agility• Simple user setup & diagnostics utilities• Odyssey security client (from Funk Software) included, for strong WLAN securities (supporting EAP-TTLS,EAP-PEAP, EAP-TLS, and LEAP).• Compliant with FCC Part 15.247 for US, EN 300-328 for Europe, and RCR STD-33A and ARIBSTD-T66 for Japan• Backward compatible with 802.11b wireless networks, access points, hot spots and other devices• Solid 3-year manufacturer warranty - built to last!4

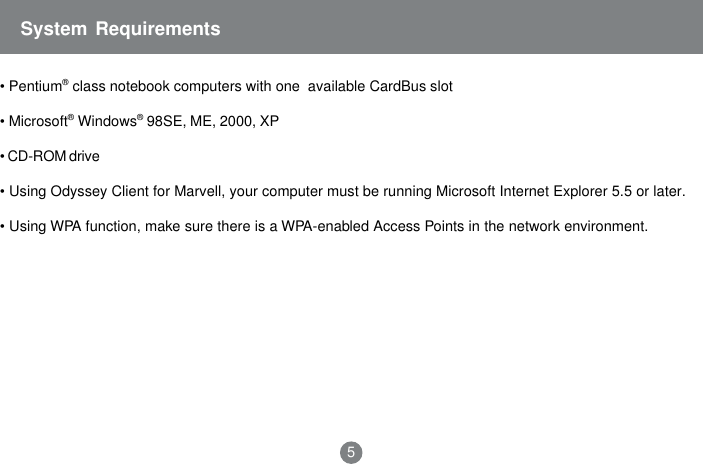

System Requirements• Pentium® class notebook computers with one available CardBus slot• Microsoft® Windows® 98SE, ME, 2000, XP• CD-ROM drive• Using Odyssey Client for Marvell, your computer must be running Microsoft Internet Explorer 5.5 or later.• Using WPA function, make sure there is a WPA-enabled Access Points in the network environment.5

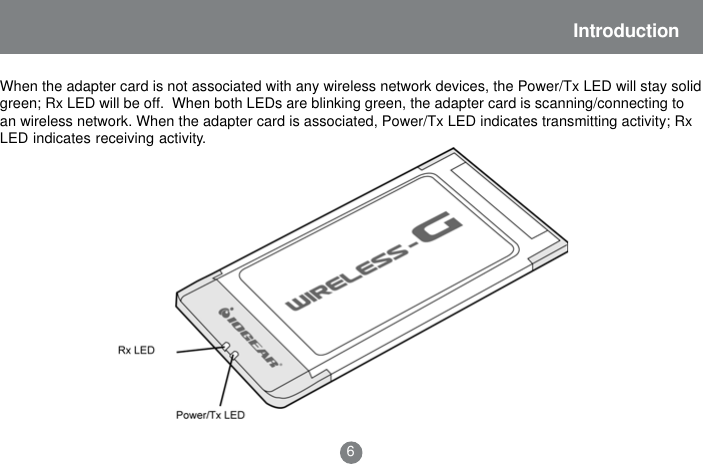

Introduction6When the adapter card is not associated with any wireless network devices, the Power/Tx LED will stay solidgreen; Rx LED will be off. When both LEDs are blinking green, the adapter card is scanning/connecting toan wireless network. When the adapter card is associated, Power/Tx LED indicates transmitting activity; RxLED indicates receiving activity.

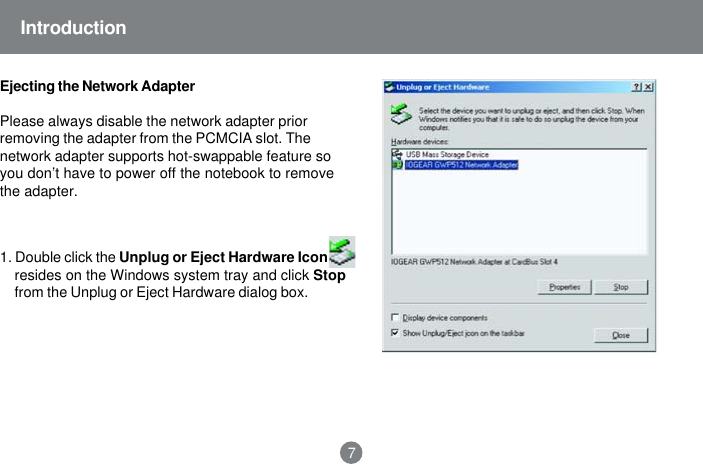

Ejecting the Network AdapterPlease always disable the network adapter priorremoving the adapter from the PCMCIA slot. Thenetwork adapter supports hot-swappable feature soyou don’t have to power off the notebook to removethe adapter.1. Double click the Unplug or Eject Hardware Iconresides on the Windows system tray and click Stopfrom the Unplug or Eject Hardware dialog box.Introduction7

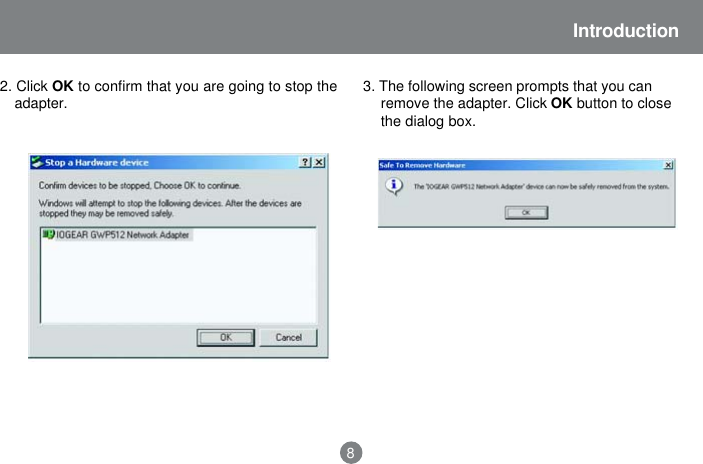

Introduction2. Click OK to confirm that you are going to stop theadapter.83. The following screen prompts that you canremove the adapter. Click OK button to closethe dialog box.

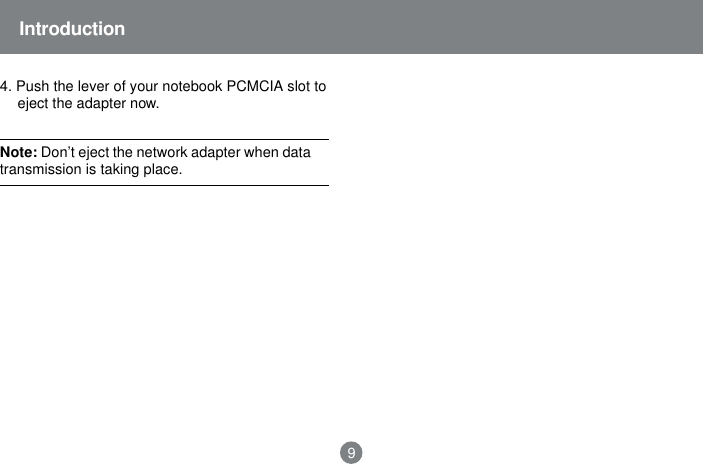

Note: Don’t eject the network adapter when datatransmission is taking place.Introduction94. Push the lever of your notebook PCMCIA slot toeject the adapter now.

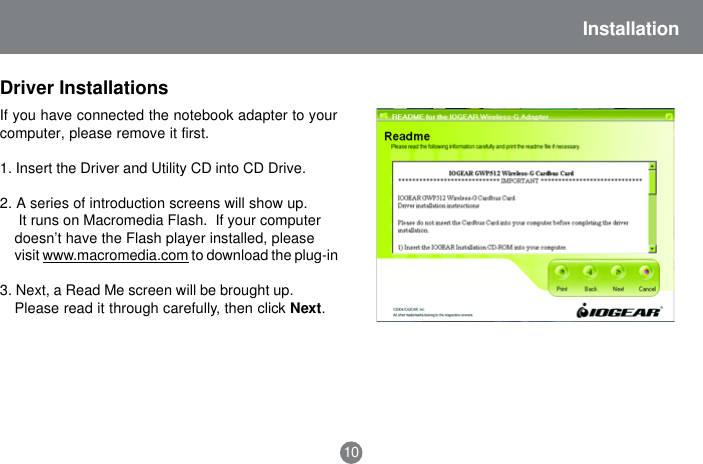

Installation10If you have connected the notebook adapter to yourcomputer, please remove it first.1. Insert the Driver and Utility CD into CD Drive.2. A series of introduction screens will show up. It runs on Macromedia Flash. If your computerdoesn’t have the Flash player installed, pleasevisit www.macromedia.com to download the plug-in3. Next, a Read Me screen will be brought up.Please read it through carefully, then click Next.Driver Installations

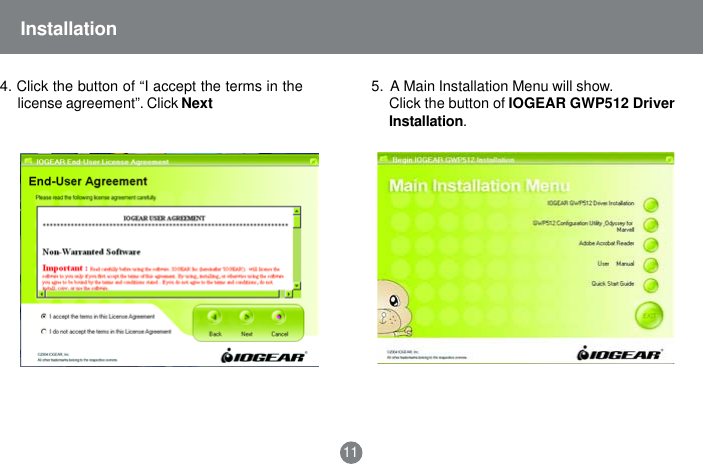

Installation114. Click the button of “I accept the terms in thelicense agreement”. Click Next 5. A Main Installation Menu will show.Click the button of IOGEAR GWP512 DriverInstallation.

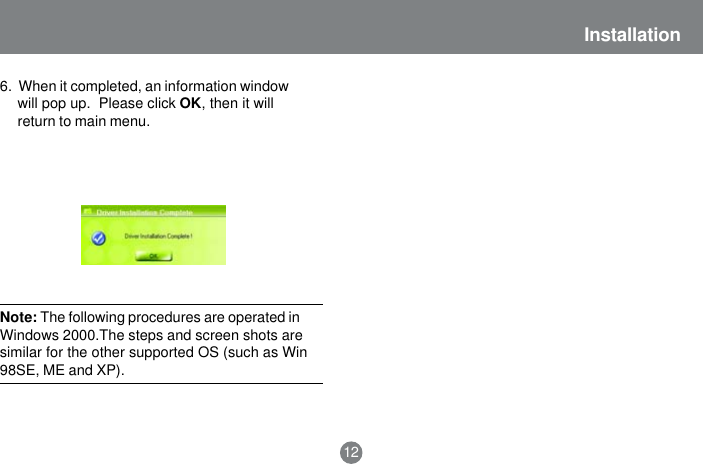

Installation12Note: The following procedures are operated inWindows 2000.The steps and screen shots aresimilar for the other supported OS (such as Win98SE, ME and XP).6. When it completed, an information windowwill pop up. Please click OK, then it willreturn to main menu.

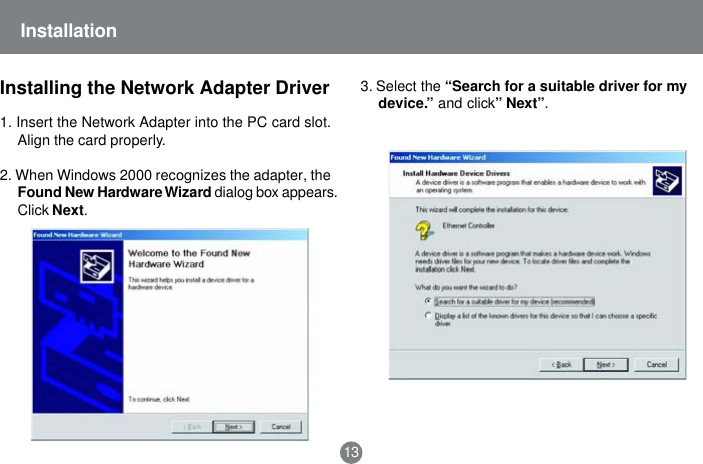

3. Select the “Search for a suitable driver for mydevice.” and click” Next”.Installation13Installing the Network Adapter Driver1. Insert the Network Adapter into the PC card slot.Align the card properly.2. When Windows 2000 recognizes the adapter, theFound New Hardware Wizard dialog box appears.Click Next.

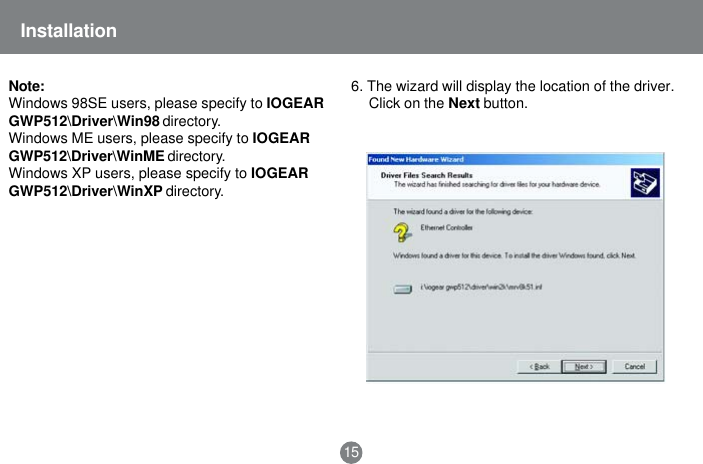

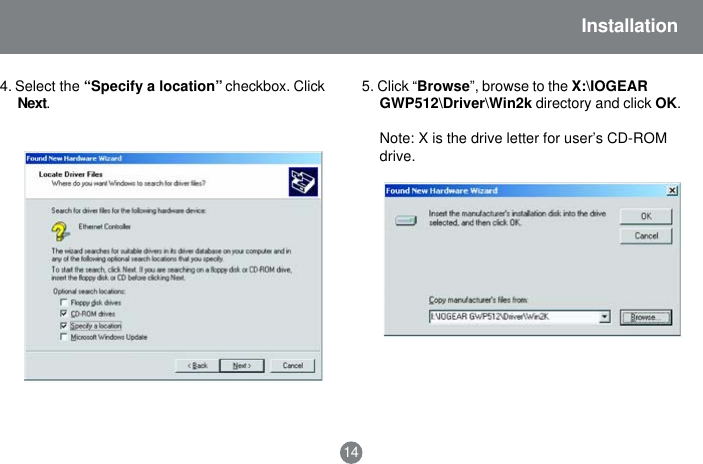

5. Click “Browse”, browse to the X:\IOGEARGWP512\Driver\Win2k directory and click OK.Note: X is the drive letter for user’s CD-ROMdrive.14Installation4. Select the “Specify a location” checkbox. ClickNext.
Installation156. The wizard will display the location of the driver.Click on the Next button.Note:Windows 98SE users, please specify to IOGEARGWP512\Driver\Win98 directory.Windows ME users, please specify to IOGEARGWP512\Driver\WinME directory.Windows XP users, please specify to IOGEARGWP512\Driver\WinXP directory.

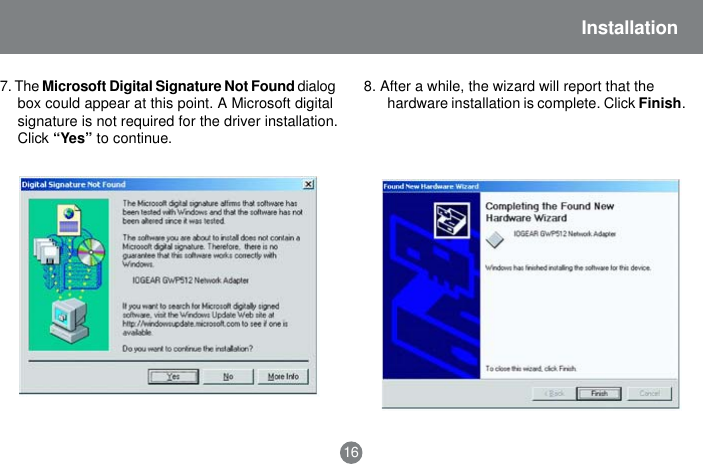

7. The Microsoft Digital Signature Not Found dialogbox could appear at this point. A Microsoft digitalsignature is not required for the driver installation.Click “Yes” to continue.16Installation8. After a while, the wizard will report that thehardware installation is complete. Click Finish.

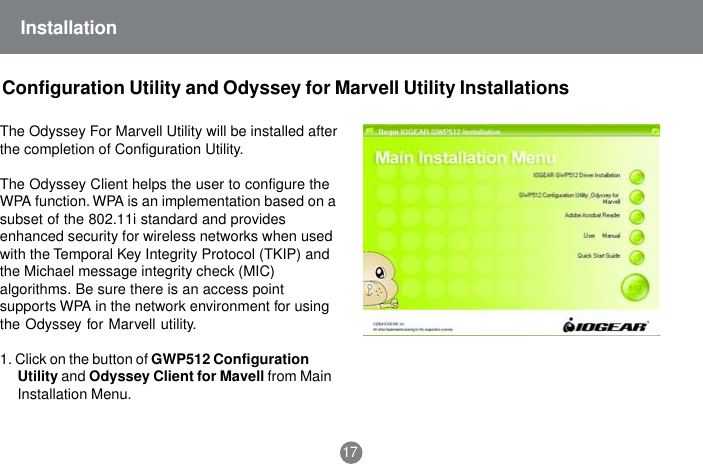

Installation17The Odyssey For Marvell Utility will be installed afterthe completion of Configuration Utility.The Odyssey Client helps the user to configure theWPA function. WPA is an implementation based on asubset of the 802.11i standard and providesenhanced security for wireless networks when usedwith the Temporal Key Integrity Protocol (TKIP) andthe Michael message integrity check (MIC)algorithms. Be sure there is an access pointsupports WPA in the network environment for usingthe Odyssey for Marvell utility.1. Click on the button of GWP512 ConfigurationUtility and Odyssey Client for Mavell from MainInstallation Menu.Configuration Utility and Odyssey for Marvell Utility Installations

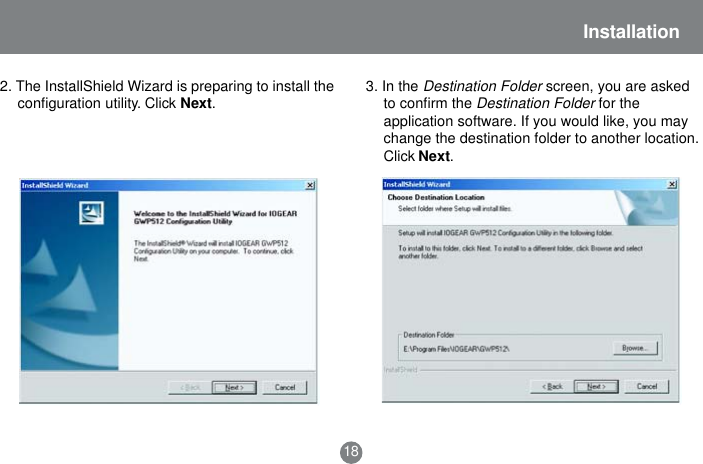

18Installation3. In the Destination Folder screen, you are askedto confirm theDestination Folder for theapplication software. If you would like, you maychange the destination folder to another location.Click Next.2. The InstallShield Wizard is preparing to install theconfiguration utility. Click Next.

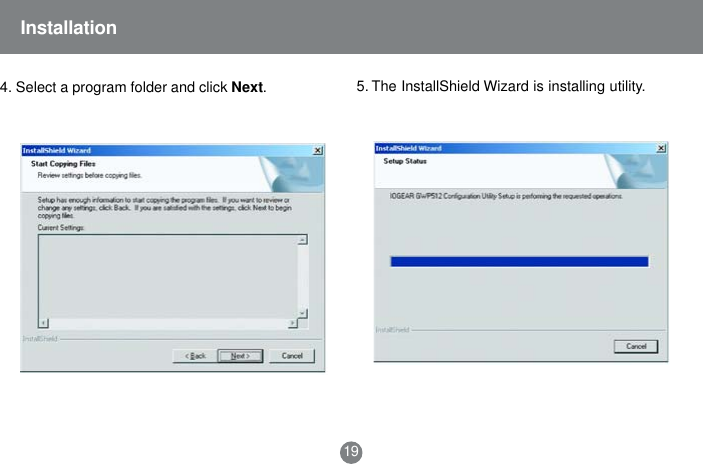

19Installation4. Select a program folder and click Next.5. The InstallShield Wizard is installing utility.

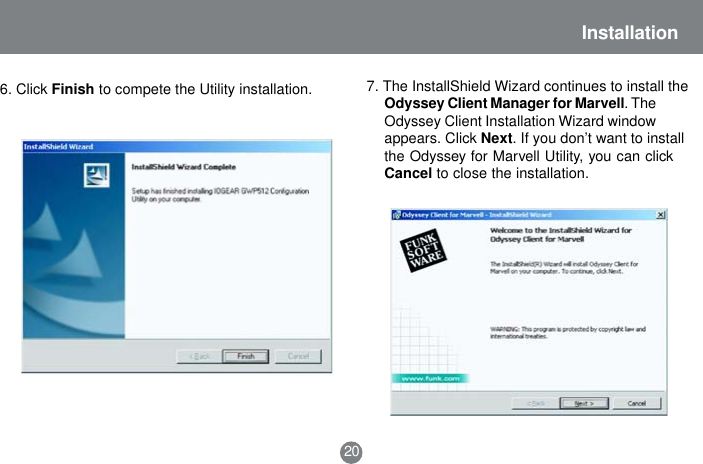

7. The InstallShield Wizard continues to install theOdyssey Client Manager for Marvell. TheOdyssey Client Installation Wizard windowappears. Click Next. If you don’t want to installthe Odyssey for Marvell Utility, you can clickCancel to close the installation.20Installation6. Click Finish to compete the Utility installation.

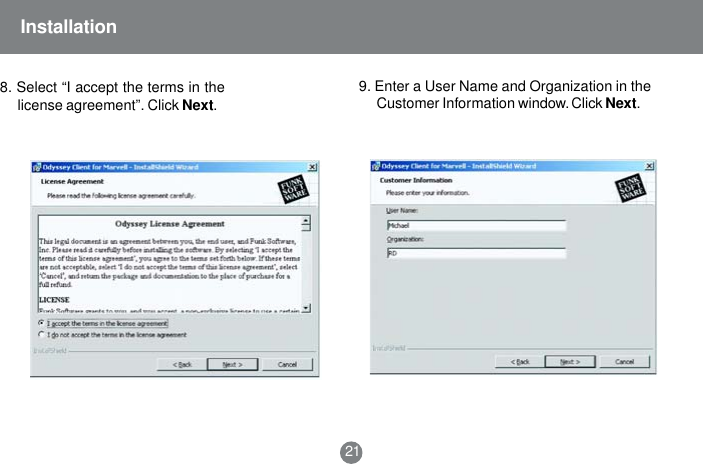

21Installation8. Select “I accept the terms in thelicense agreement”. Click Next.9. Enter a User Name and Organization in theCustomer Information window. Click Next.

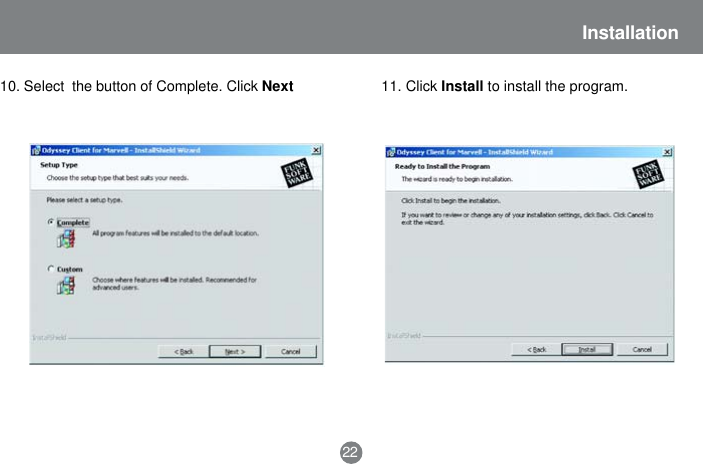

10. Select the button of Complete. Click Next 11. Click Install to install the program.22Installation

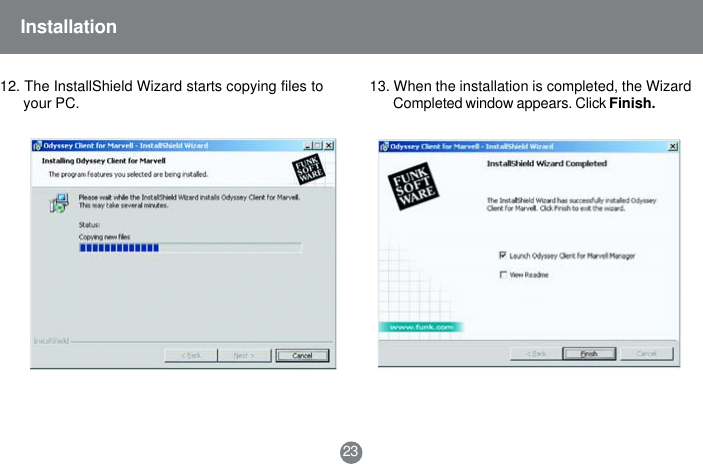

13. When the installation is completed, the WizardCompleted window appears. Click Finish.23Installation12. The InstallShield Wizard starts copying files toyour PC.

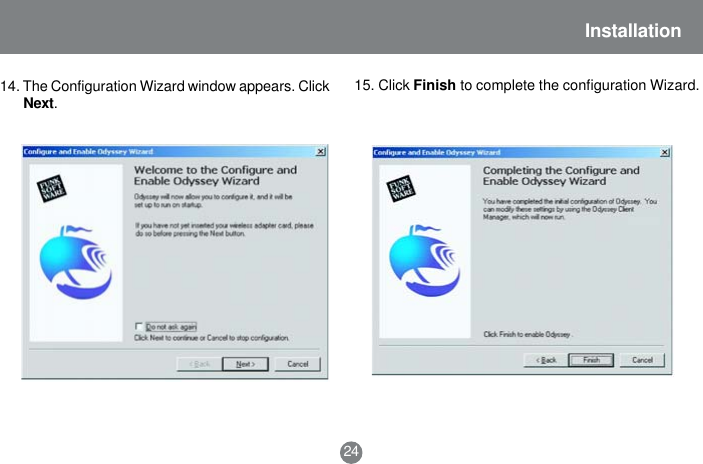

24Installation14. The Configuration Wizard window appears. ClickNext.15. Click Finish to complete the configuration Wizard.

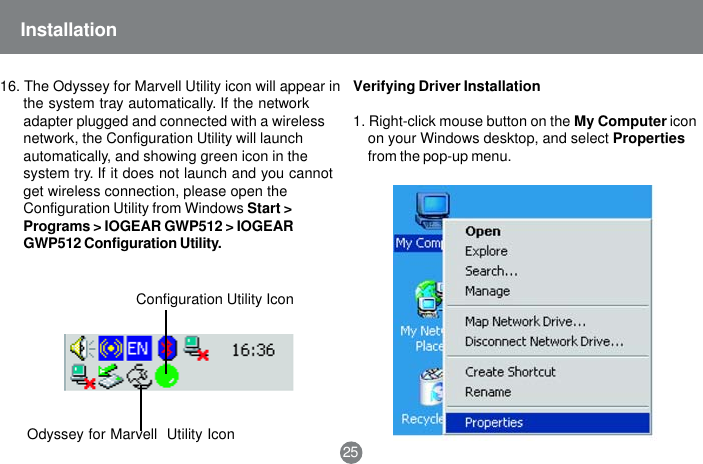

Odyssey for Marvell Utility IconConfiguration Utility Icon25Installation16. The Odyssey for Marvell Utility icon will appear inthe system tray automatically. If the networkadapter plugged and connected with a wirelessnetwork, the Configuration Utility will launchautomatically, and showing green icon in thesystem try. If it does not launch and you cannotget wireless connection, please open theConfiguration Utility from Windows Start >Programs > IOGEAR GWP512 > IOGEARGWP512 Configuration Utility.Verifying Driver Installation1. Right-click mouse button on the My Computer iconon your Windows desktop, and select Propertiesfrom the pop-up menu.

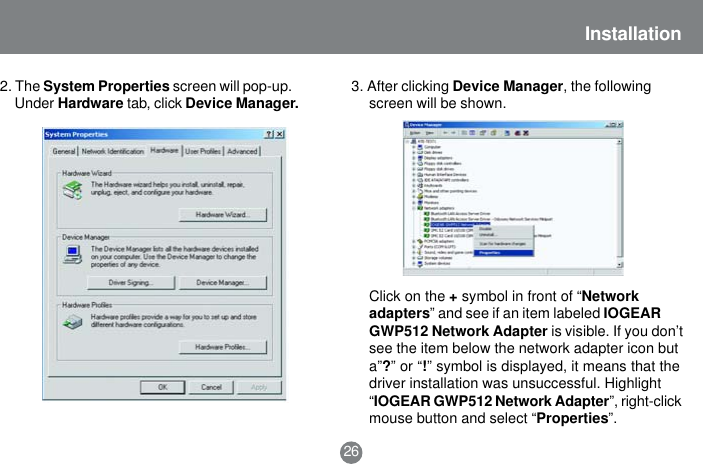

26Installation2. The System Properties screen will pop-up.Under Hardware tab, click Device Manager. 3. After clicking Device Manager, the followingscreen will be shown.Click on the + symbol in front of “Networkadapters” and see if an item labeled IOGEARGWP512 Network Adapter is visible. If you don’tsee the item below the network adapter icon buta”?” or “!” symbol is displayed, it means that thedriver installation was unsuccessful. Highlight“IOGEAR GWP512 Network Adapter”, right-clickmouse button and select “Properties”.

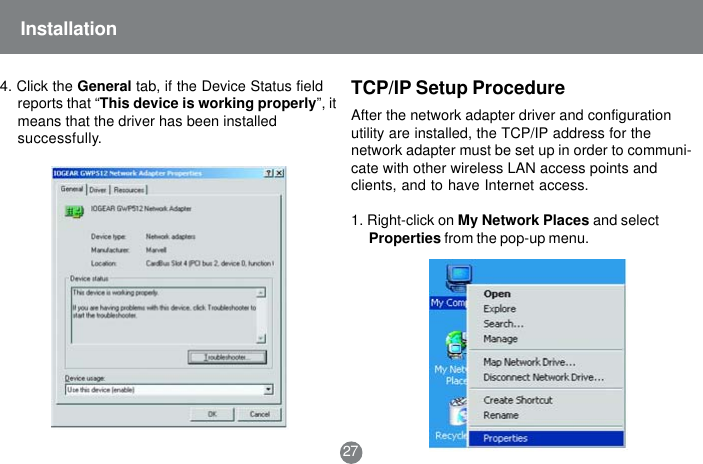

TCP/IP Setup Procedure27Installation4. Click the General tab, if the Device Status fieldreports that “This device is working properly”, itmeans that the driver has been installedsuccessfully.After the network adapter driver and configurationutility are installed, the TCP/IP address for thenetwork adapter must be set up in order to communi-cate with other wireless LAN access points andclients, and to have Internet access.1. Right-click on My Network Places and selectProperties from the pop-up menu.

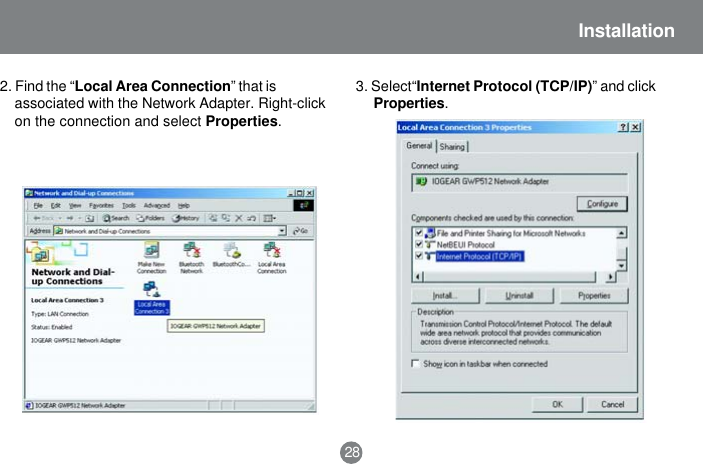

2. Find the “Local Area Connection” that isassociated with the Network Adapter. Right-clickon the connection and select Properties.3. Select“Internet Protocol (TCP/IP)” and clickProperties.28Installation

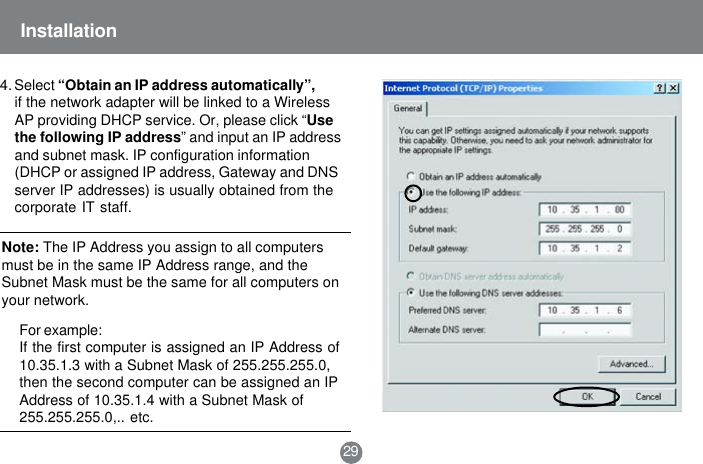

Note: The IP Address you assign to all computersmust be in the same IP Address range, and theSubnet Mask must be the same for all computers onyour network.For example:If the first computer is assigned an IP Address of10.35.1.3 with a Subnet Mask of 255.255.255.0,then the second computer can be assigned an IPAddress of 10.35.1.4 with a Subnet Mask of255.255.255.0,.. etc.29Installation4. Select “Obtain an IP address automatically”,if the network adapter will be linked to a WirelessAP providing DHCP service. Or, please click “Usethe following IP address” and input an IP addressand subnet mask. IP configuration information(DHCP or assigned IP address, Gateway and DNSserver IP addresses) is usually obtained from thecorporate IT staff.

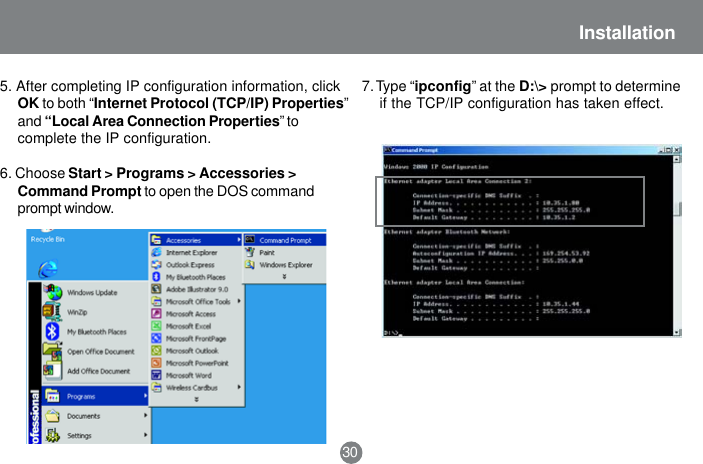

30Installation5. After completing IP configuration information, clickOK to both “Internet Protocol (TCP/IP) Properties”and “Local Area Connection Properties” tocomplete the IP configuration.6. Choose Start > Programs > Accessories >Command Prompt to open the DOS commandprompt window.7. Type “ipconfig” at the D:\> prompt to determineif the TCP/IP configuration has taken effect.

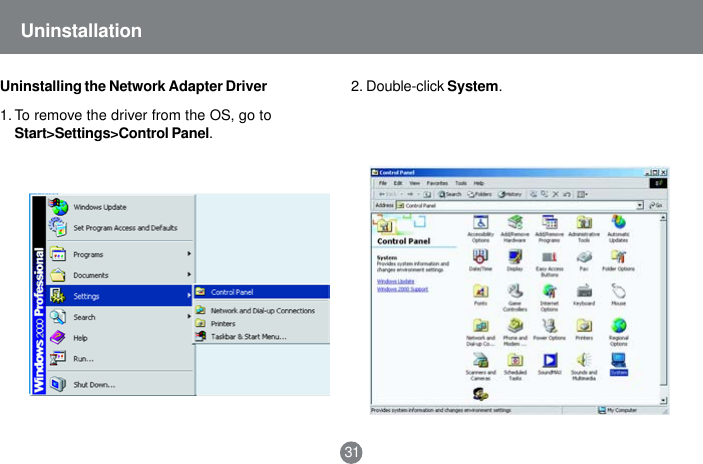

31Uninstalling the Network Adapter Driver1. To remove the driver from the OS, go toStart>Settings>Control Panel.Uninstallation2. Double-click System.

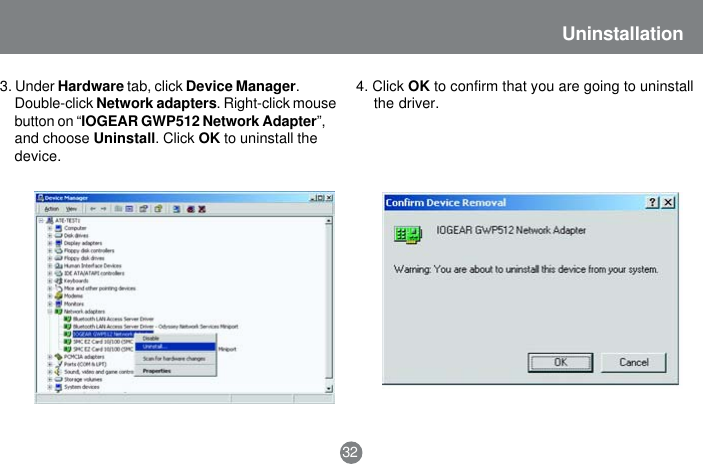

324. Click OK to confirm that you are going to uninstallthe driver.Uninstallation3. Under Hardware tab, click Device Manager.Double-click Network adapters. Right-click mousebutton on “IOGEAR GWP512 Network Adapter”,and choose Uninstall. Click OK to uninstall thedevice.

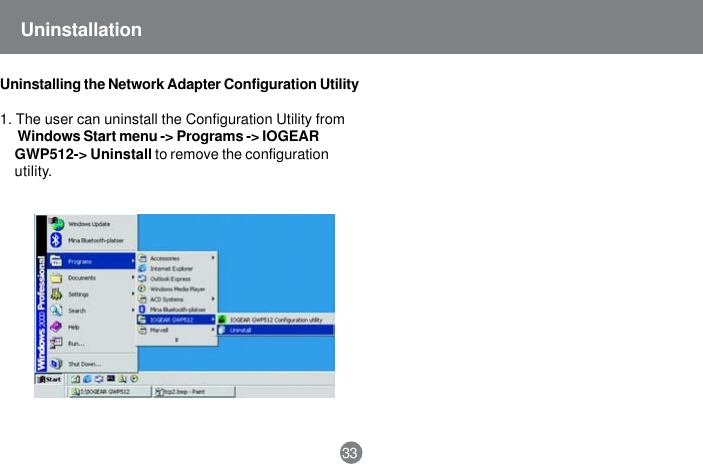

Uninstalling the Network Adapter Configuration Utility1. The user can uninstall the Configuration Utility fromWindows Start menu -> Programs -> IOGEARGWP512-> Uninstall to remove the configurationutility.33Uninstallation

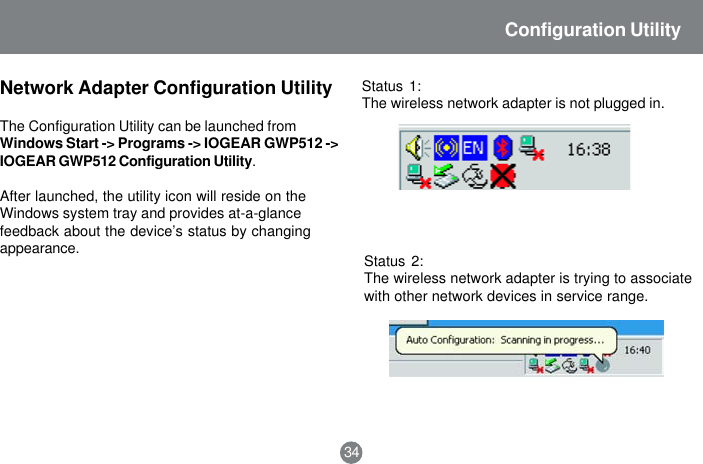

Status 2:The wireless network adapter is trying to associatewith other network devices in service range.34Configuration UtilityNetwork Adapter Configuration UtilityThe Configuration Utility can be launched fromWindows Start -> Programs -> IOGEAR GWP512 ->IOGEAR GWP512 Configuration Utility.After launched, the utility icon will reside on theWindows system tray and provides at-a-glancefeedback about the device’s status by changingappearance.Status 1:The wireless network adapter is not plugged in.

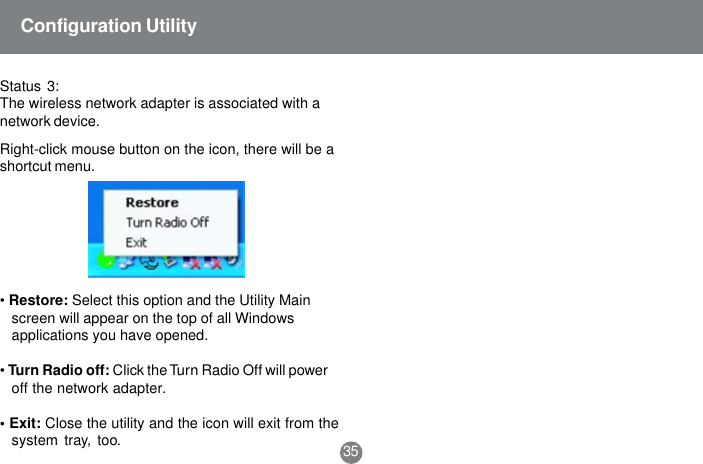

•Restore: Select this option and the Utility Mainscreen will appear on the top of all Windowsapplications you have opened.•Turn Radio off: Click the Turn Radio Off will poweroff the network adapter.• Exit: Close the utility and the icon will exit from thesystem tray, too. 35Configuration UtilityStatus 3:The wireless network adapter is associated with anetwork device.Right-click mouse button on the icon, there will be ashortcut menu.

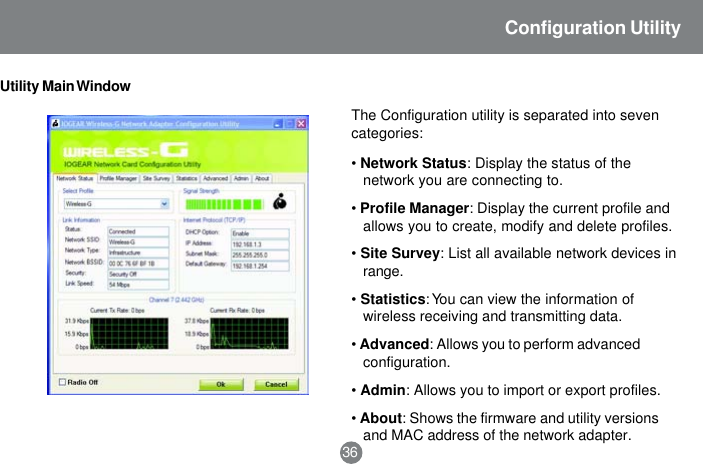

Utility Main WindowThe Configuration utility is separated into sevencategories:•Network Status: Display the status of thenetwork you are connecting to.•Profile Manager: Display the current profile andallows you to create, modify and delete profiles.•Site Survey: List all available network devices inrange.•Statistics: You can view the information ofwireless receiving and transmitting data.•Advanced: Allows you to perform advancedconfiguration.•Admin: Allows you to import or export profiles.•About: Shows the firmware and utility versionsand MAC address of the network adapter.36Configuration Utility

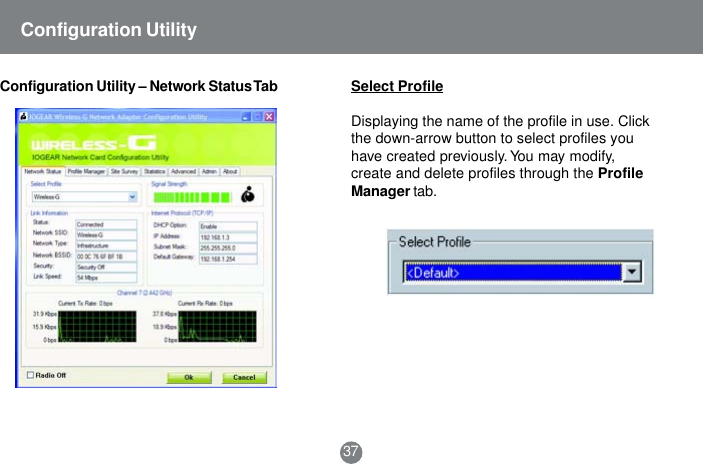

Select ProfileDisplaying the name of the profile in use. Clickthe down-arrow button to select profiles youhave created previously. You may modify,create and delete profiles through the ProfileManager tab.37Configuration UtilityConfiguration Utility – Network Status Tab

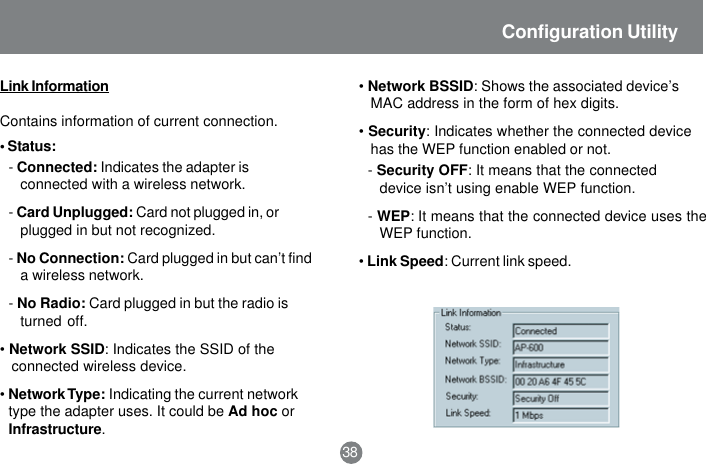

-Connected: Indicates the adapter isconnected with a wireless network.-Card Unplugged: Card not plugged in, orplugged in but not recognized.-No Connection: Card plugged in but can’t finda wireless network.-No Radio: Card plugged in but the radio isturned off.•Network SSID: Indicates the SSID of theconnected wireless device.•Network Type: Indicating the current networktype the adapter uses. It could be Ad hoc orInfrastructure.38Configuration UtilityLink InformationContains information of current connection.• Status:•Network BSSID: Shows the associated device’sMAC address in the form of hex digits.•Security: Indicates whether the connected devicehas the WEP function enabled or not.-Security OFF: It means that the connecteddevice isn’t using enable WEP function.-WEP: It means that the connected device uses theWEP function.•Link Speed: Current link speed.

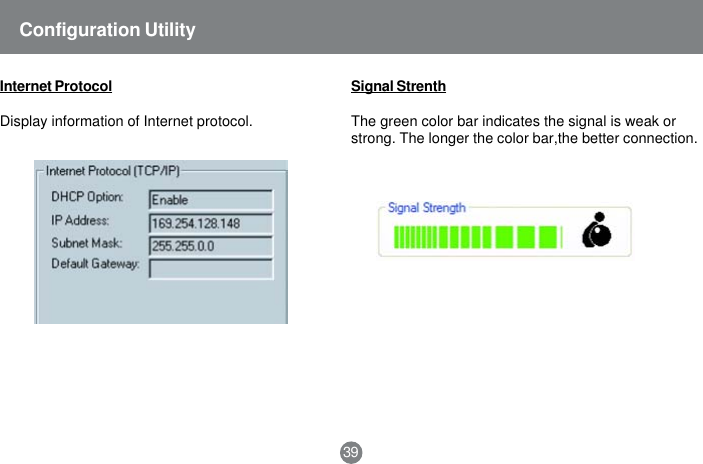

39Configuration UtilityInternet ProtocolDisplay information of Internet protocol.Signal StrenthThe green color bar indicates the signal is weak orstrong. The longer the color bar,the better connection.

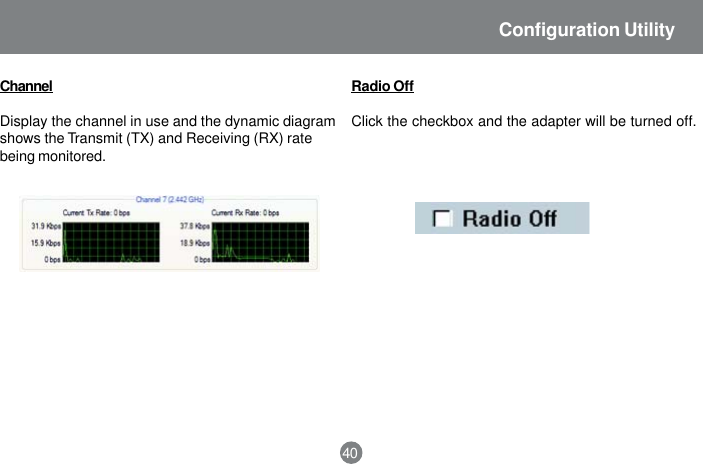

40Configuration UtilityChannelDisplay the channel in use and the dynamic diagramshows the Transmit (TX) and Receiving (RX) ratebeing monitored.Radio OffClick the checkbox and the adapter will be turned off.

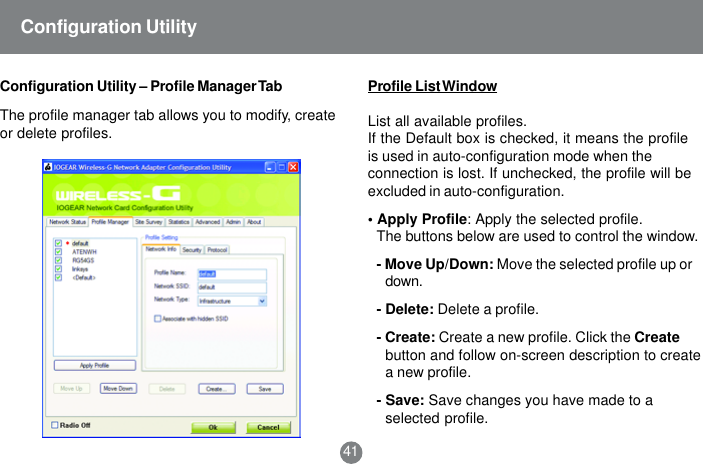

41Configuration Utility – Profile Manager TabConfiguration UtilityThe profile manager tab allows you to modify, createor delete profiles.Profile List WindowList all available profiles.If the Default box is checked, it means the profileis used in auto-configuration mode when theconnection is lost. If unchecked, the profile will beexcluded in auto-configuration.• Apply Profile: Apply the selected profile.The buttons below are used to control the window.- Move Up/Down: Move the selected profile up ordown.- Delete: Delete a profile.- Create: Create a new profile. Click the Createbutton and follow on-screen description to createa new profile.- Save: Save changes you have made to aselected profile.

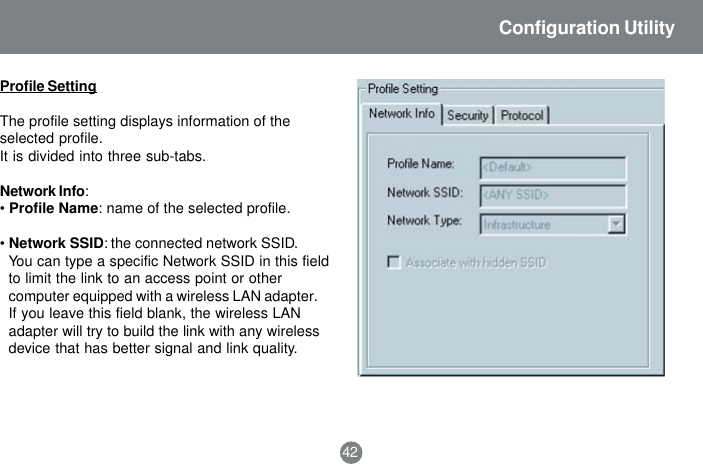

42Configuration UtilityProfile SettingThe profile setting displays information of theselected profile.It is divided into three sub-tabs.Network Info:•Profile Name: name of the selected profile.•Network SSID: the connected network SSID.You can type a specific Network SSID in this fieldto limit the link to an access point or othercomputer equipped with a wireless LAN adapter.If you leave this field blank, the wireless LANadapter will try to build the link with any wirelessdevice that has better signal and link quality.

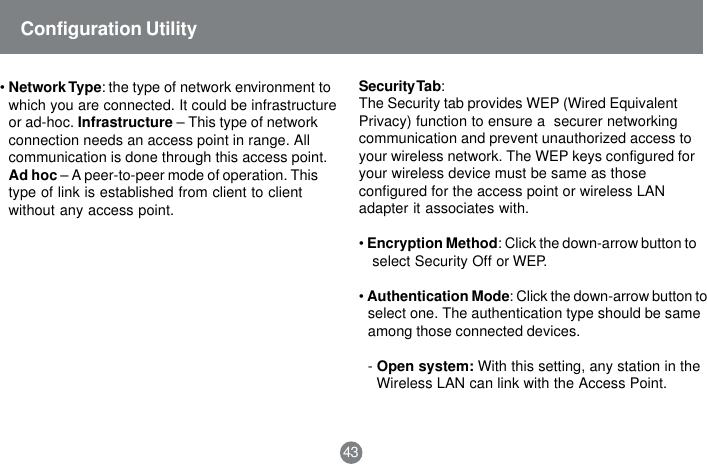

43•Network Type: the type of network environment towhich you are connected. It could be infrastructureor ad-hoc. Infrastructure – This type of networkconnection needs an access point in range. Allcommunication is done through this access point.Ad hoc – A peer-to-peer mode of operation. Thistype of link is established from client to clientwithout any access point.Configuration UtilitySecurity Tab:The Security tab provides WEP (Wired EquivalentPrivacy) function to ensure a securer networkingcommunication and prevent unauthorized access toyour wireless network. The WEP keys configured foryour wireless device must be same as thoseconfigured for the access point or wireless LANadapter it associates with.•Encryption Method: Click the down-arrow button to select Security Off or WEP.•Authentication Mode: Click the down-arrow button toselect one. The authentication type should be sameamong those connected devices.-Open system: With this setting, any station in theWireless LAN can link with the Access Point.

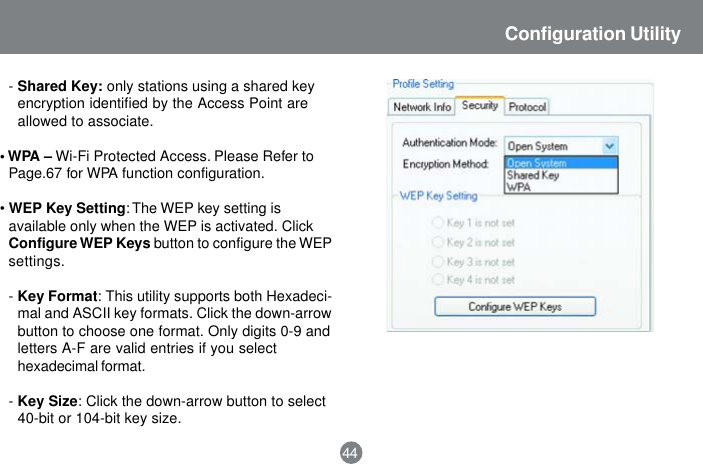

44Configuration Utility-Shared Key: only stations using a shared keyencryption identified by the Access Point areallowed to associate.• WPA – Wi-Fi Protected Access. Please Refer toPage.67 for WPA function configuration.•WEP Key Setting: The WEP key setting isavailable only when the WEP is activated. ClickConfigure WEP Keys button to configure the WEPsettings.-Key Format: This utility supports both Hexadeci-mal and ASCII key formats. Click the down-arrowbutton to choose one format. Only digits 0-9 andletters A-F are valid entries if you selecthexadecimal format.-Key Size: Click the down-arrow button to select40-bit or 104-bit key size.

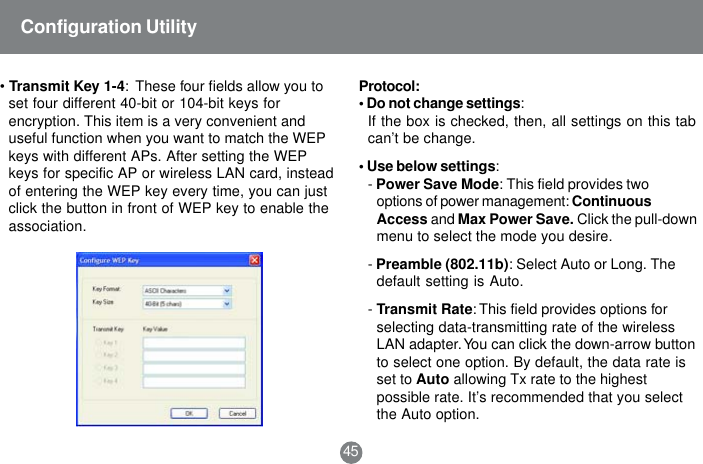

45Configuration Utility•Transmit Key 1-4: These four fields allow you toset four different 40-bit or 104-bit keys forencryption. This item is a very convenient anduseful function when you want to match the WEPkeys with different APs. After setting the WEPkeys for specific AP or wireless LAN card, insteadof entering the WEP key every time, you can justclick the button in front of WEP key to enable theassociation.Protocol:• Do not change settings:If the box is checked, then, all settings on this tabcan’t be change.• Use below settings:-Power Save Mode: This field provides twooptions of power management: ContinuousAccess and Max Power Save. Click the pull-downmenu to select the mode you desire.-Preamble (802.11b): Select Auto or Long. Thedefault setting is Auto.-Transmit Rate: This field provides options forselecting data-transmitting rate of the wirelessLAN adapter. You can click the down-arrow buttonto select one option. By default, the data rate isset to Auto allowing Tx rate to the highestpossible rate. It’s recommended that you selectthe Auto option.

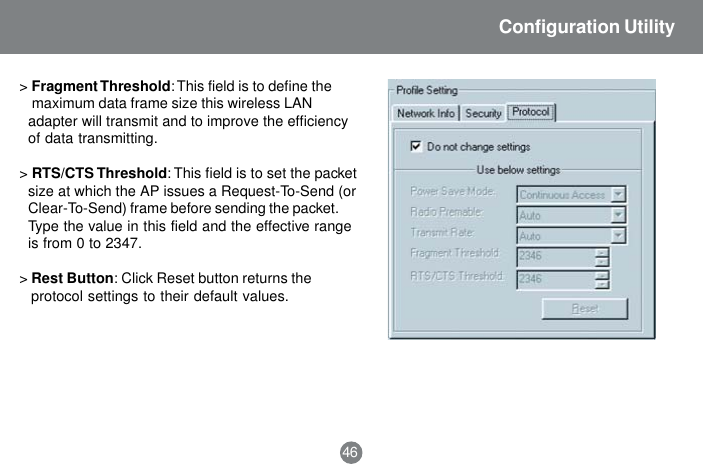

46Configuration Utility>Fragment Threshold: This field is to define the maximum data frame size this wireless LANadapter will transmit and to improve the efficiencyof data transmitting.>RTS/CTS Threshold: This field is to set the packetsize at which the AP issues a Request-To-Send (orClear-To-Send) frame before sending the packet.Type the value in this field and the effective rangeis from 0 to 2347.>Rest Button: Click Reset button returns theprotocol settings to their default values.

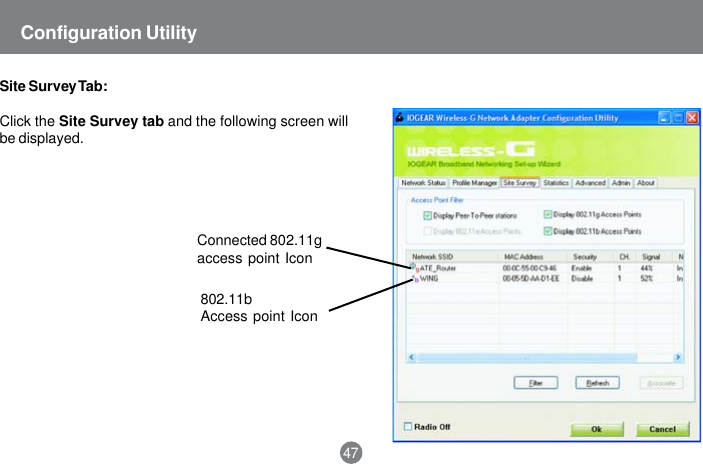

Connected 802.11gaccess point Icon802.11bAccess point Icon47Configuration UtilitySite Survey Tab:Click the Site Survey tab and the following screen willbe displayed.

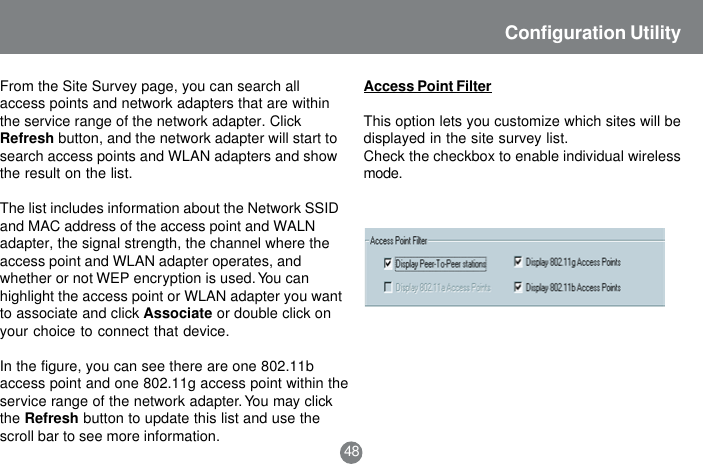

48Configuration UtilityFrom the Site Survey page, you can search allaccess points and network adapters that are withinthe service range of the network adapter. ClickRefresh button, and the network adapter will start tosearch access points and WLAN adapters and showthe result on the list.The list includes information about the Network SSIDand MAC address of the access point and WALNadapter, the signal strength, the channel where theaccess point and WLAN adapter operates, andwhether or not WEP encryption is used. You canhighlight the access point or WLAN adapter you wantto associate and click Associate or double click onyour choice to connect that device.In the figure, you can see there are one 802.11baccess point and one 802.11g access point within theservice range of the network adapter. You may clickthe Refresh button to update this list and use thescroll bar to see more information.Access Point FilterThis option lets you customize which sites will bedisplayed in the site survey list.Check the checkbox to enable individual wirelessmode.

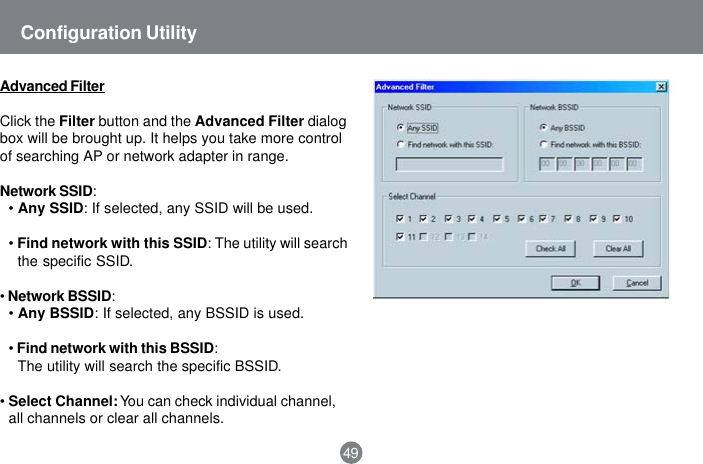

49Configuration UtilityAdvanced FilterClick the Filter button and the Advanced Filter dialogbox will be brought up. It helps you take more controlof searching AP or network adapter in range.Network SSID:•Any SSID: If selected, any SSID will be used.•Find network with this SSID: The utility will searchthe specific SSID.•Network BSSID:•Any BSSID: If selected, any BSSID is used.•Find network with this BSSID:The utility will search the specific BSSID.•Select Channel: You can check individual channel,all channels or clear all channels.

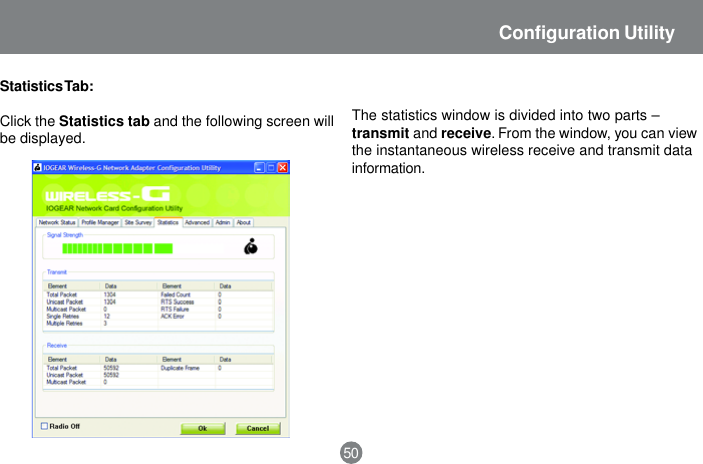

50Configuration UtilityThe statistics window is divided into two parts –transmit and receive. From the window, you can viewthe instantaneous wireless receive and transmit datainformation.Statistics Tab:Click the Statistics tab and the following screen willbe displayed.

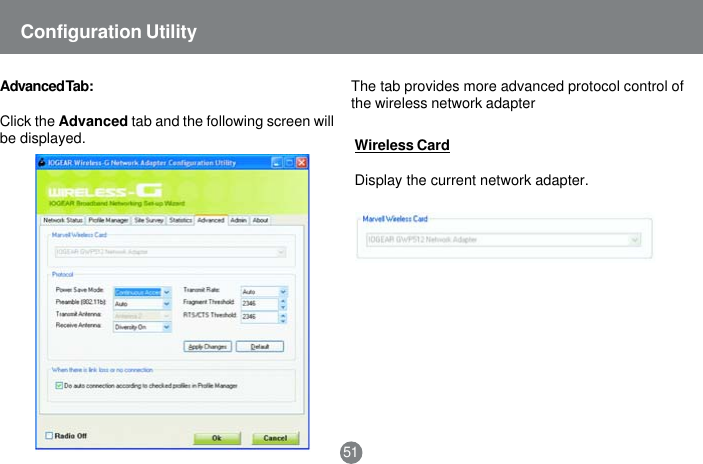

The tab provides more advanced protocol control ofthe wireless network adapterWireless CardDisplay the current network adapter.51Configuration UtilityAdvanced Tab:Click the Advanced tab and the following screen willbe displayed.

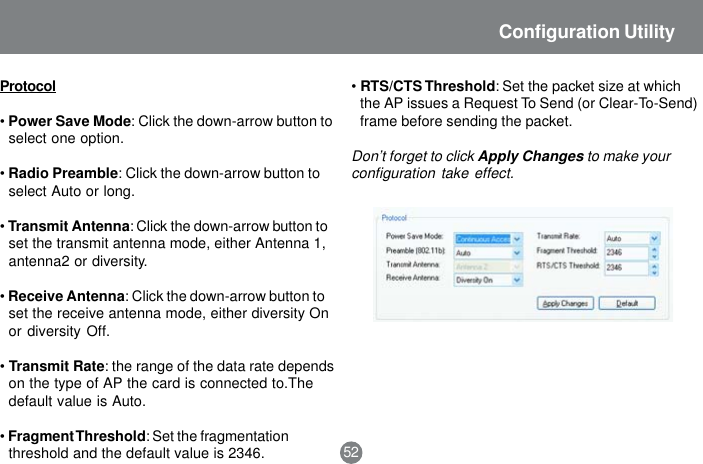

Protocol•Power Save Mode: Click the down-arrow button toselect one option.•Radio Preamble: Click the down-arrow button toselect Auto or long.•Transmit Antenna: Click the down-arrow button toset the transmit antenna mode, either Antenna 1,antenna2 or diversity.•Receive Antenna: Click the down-arrow button toset the receive antenna mode, either diversity Onor diversity Off.•Transmit Rate: the range of the data rate dependson the type of AP the card is connected to.Thedefault value is Auto.•Fragment Threshold: Set the fragmentationthreshold and the default value is 2346.•RTS/CTS Threshold: Set the packet size at whichthe AP issues a Request To Send (or Clear-To-Send)frame before sending the packet.Don’t forget to click Apply Changes to make yourconfiguration take effect.52Configuration Utility

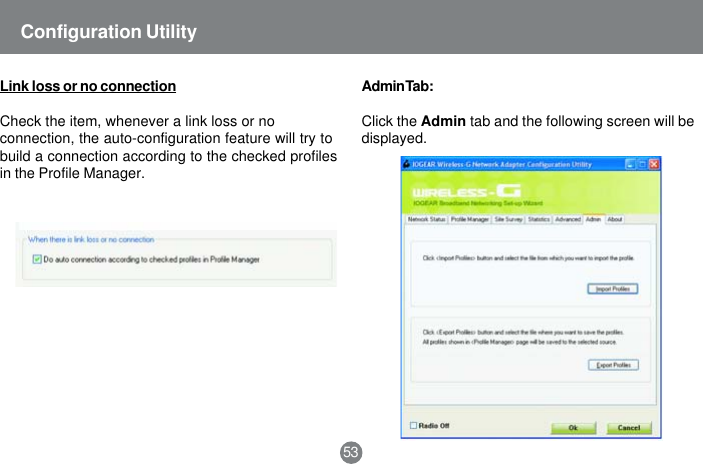

Link loss or no connectionCheck the item, whenever a link loss or noconnection, the auto-configuration feature will try tobuild a connection according to the checked profilesin the Profile Manager.Admin Tab:Click the Admin tab and the following screen will bedisplayed.53Configuration Utility

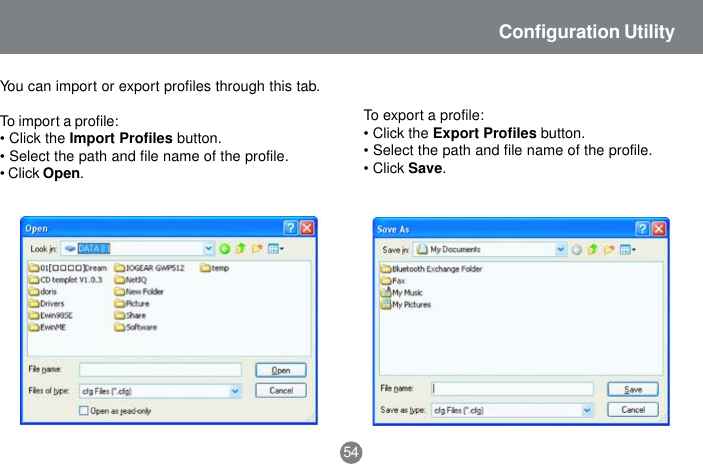

You can import or export profiles through this tab.To import a profile:• Click the Import Profiles button.• Select the path and file name of the profile.• Click Open.To export a profile:• Click the Export Profiles button.• Select the path and file name of the profile.• Click Save.54Configuration Utility

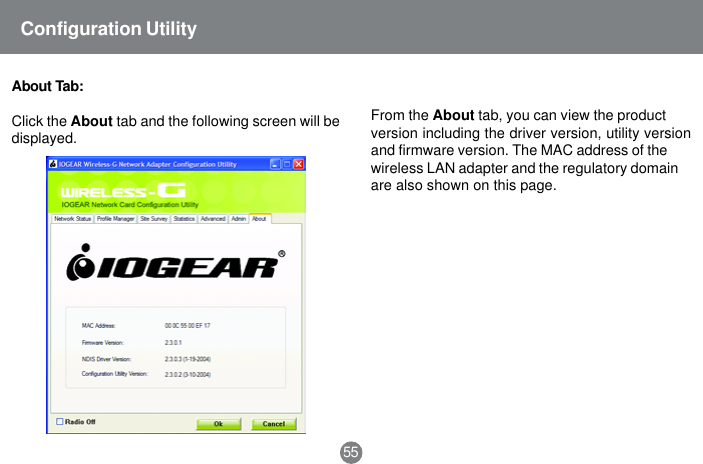

55Configuration UtilityAbout Tab:Click the About tab and the following screen will bedisplayed.From the About tab, you can view the productversion including the driver version, utility versionand firmware version. The MAC address of thewireless LAN adapter and the regulatory domainare also shown on this page.

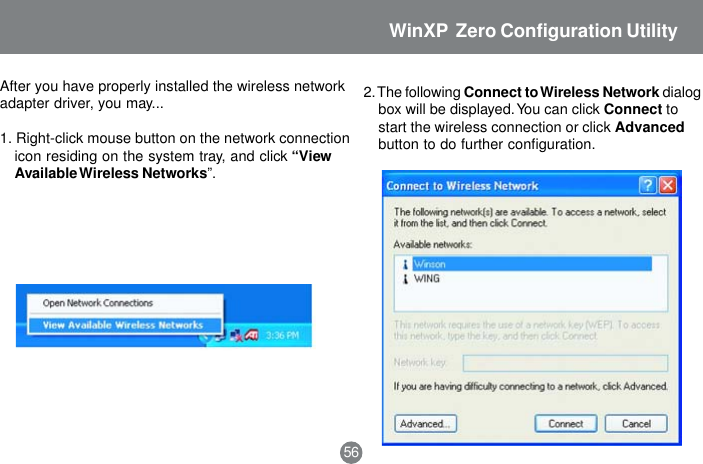

After you have properly installed the wireless networkadapter driver, you may...1. Right-click mouse button on the network connectionicon residing on the system tray, and click “ViewAvailable Wireless Networks”.2. The following Connect to Wireless Network dialogbox will be displayed. You can click Connect tostart the wireless connection or click Advancedbutton to do further configuration.56WinXP Zero Configuration Utility

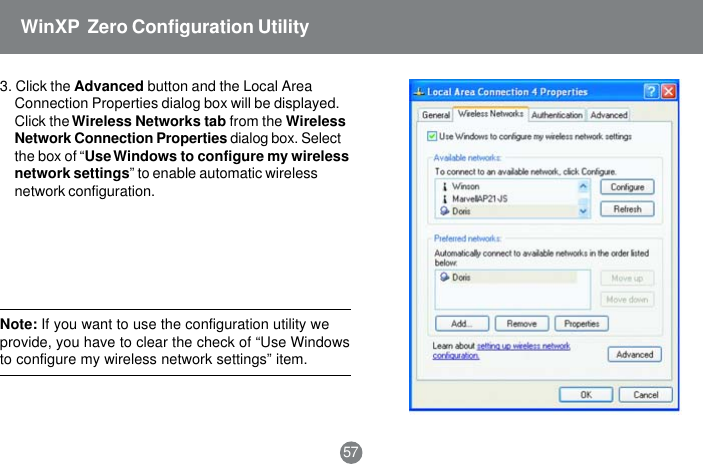

Note: If you want to use the configuration utility weprovide, you have to clear the check of “Use Windowsto configure my wireless network settings” item.573. Click the Advanced button and the Local AreaConnection Properties dialog box will be displayed.Click the Wireless Networks tab from the WirelessNetwork Connection Properties dialog box. Selectthe box of “Use Windows to configure my wirelessnetwork settings” to enable automatic wirelessnetwork configuration.WinXP Zero Configuration Utility

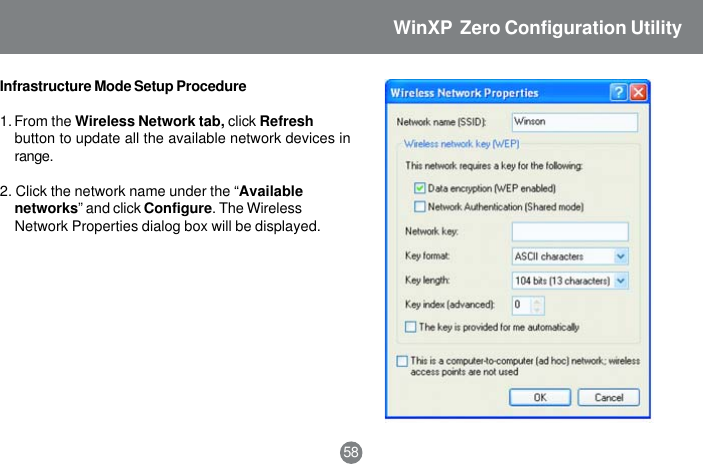

Infrastructure Mode Setup Procedure1. From the Wireless Network tab, click Refreshbutton to update all the available network devices inrange.2. Click the network name under the “Availablenetworks” and click Configure. The WirelessNetwork Properties dialog box will be displayed.58WinXP Zero Configuration Utility

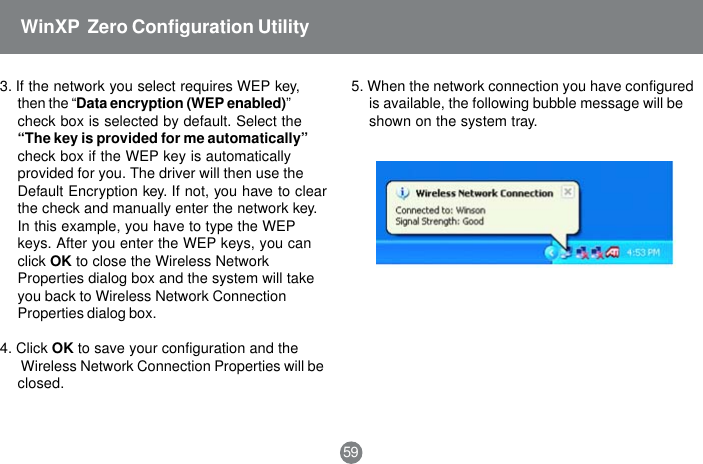

3. If the network you select requires WEP key,then the “Data encryption (WEP enabled)”check box is selected by default. Select the“The key is provided for me automatically”check box if the WEP key is automaticallyprovided for you. The driver will then use theDefault Encryption key. If not, you have to clearthe check and manually enter the network key.In this example, you have to type the WEPkeys. After you enter the WEP keys, you canclick OK to close the Wireless NetworkProperties dialog box and the system will takeyou back to Wireless Network ConnectionProperties dialog box.4. Click OK to save your configuration and the Wireless Network Connection Properties will beclosed.5. When the network connection you have configuredis available, the following bubble message will beshown on the system tray.59WinXP Zero Configuration Utility

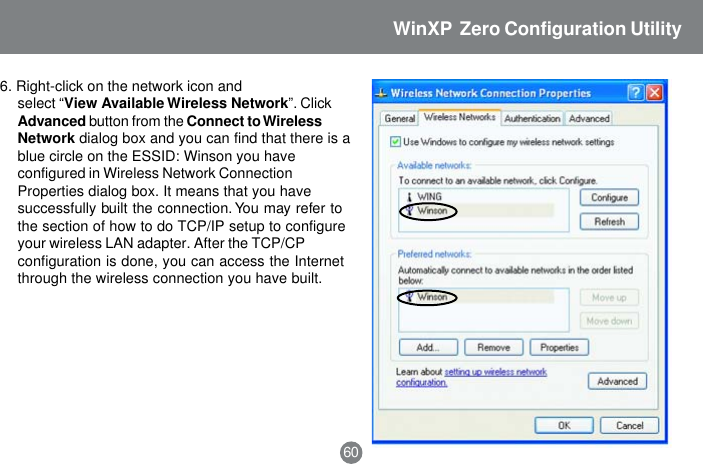

6. Right-click on the network icon andselect “View Available Wireless Network”. ClickAdvanced button from the Connect to WirelessNetwork dialog box and you can find that there is ablue circle on the ESSID: Winson you haveconfigured in Wireless Network ConnectionProperties dialog box. It means that you havesuccessfully built the connection. You may refer tothe section of how to do TCP/IP setup to configureyour wireless LAN adapter. After the TCP/CPconfiguration is done, you can access the Internetthrough the wireless connection you have built.60WinXP Zero Configuration Utility

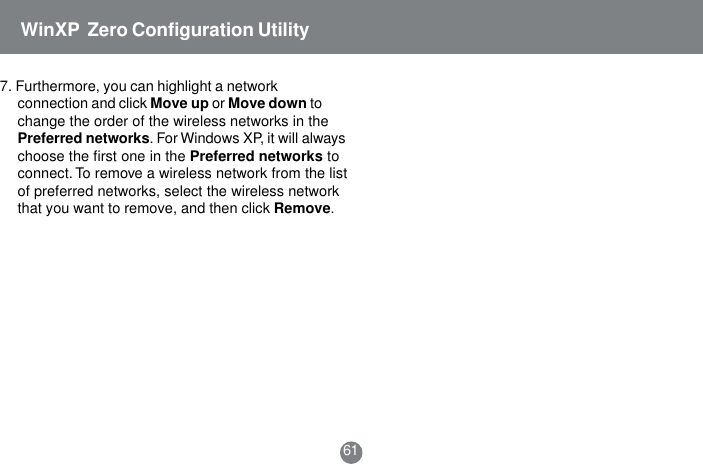

617. Furthermore, you can highlight a networkconnection and click Move up or Move down tochange the order of the wireless networks in thePreferred networks. For Windows XP, it will alwayschoose the first one in the Preferred networks toconnect. To remove a wireless network from the listof preferred networks, select the wireless networkthat you want to remove, and then click Remove.WinXP Zero Configuration Utility

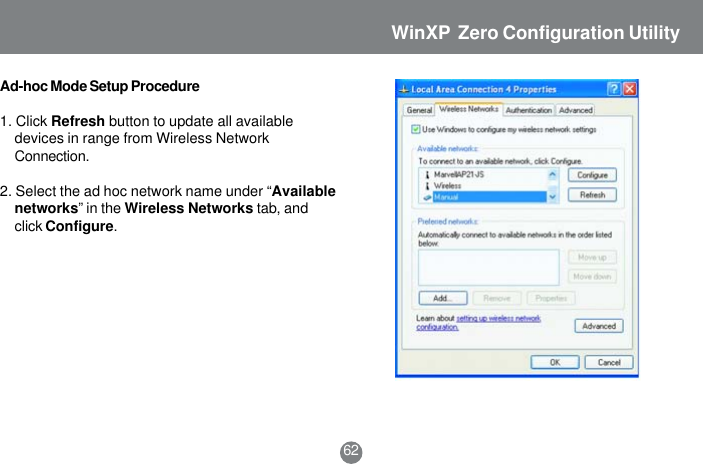

Ad-hoc Mode Setup Procedure1. Click Refresh button to update all availabledevices in range from Wireless NetworkConnection.2. Select the ad hoc network name under “Availablenetworks” in the Wireless Networks tab, andclick Configure.62WinXP Zero Configuration Utility

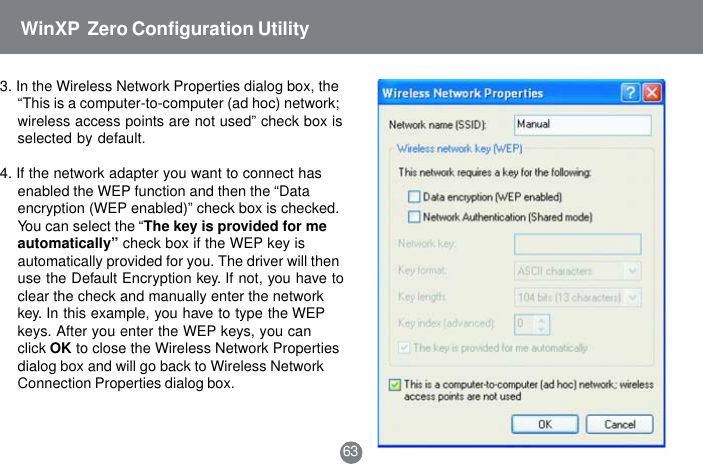

633. In the Wireless Network Properties dialog box, the“This is a computer-to-computer (ad hoc) network;wireless access points are not used” check box isselected by default.4. If the network adapter you want to connect hasenabled the WEP function and then the “Dataencryption (WEP enabled)” check box is checked.You can select the “The key is provided for meautomatically” check box if the WEP key isautomatically provided for you. The driver will thenuse the Default Encryption key. If not, you have toclear the check and manually enter the networkkey. In this example, you have to type the WEPkeys. After you enter the WEP keys, you canclick OK to close the Wireless Network Propertiesdialog box and will go back to Wireless NetworkConnection Properties dialog box.WinXP Zero Configuration Utility

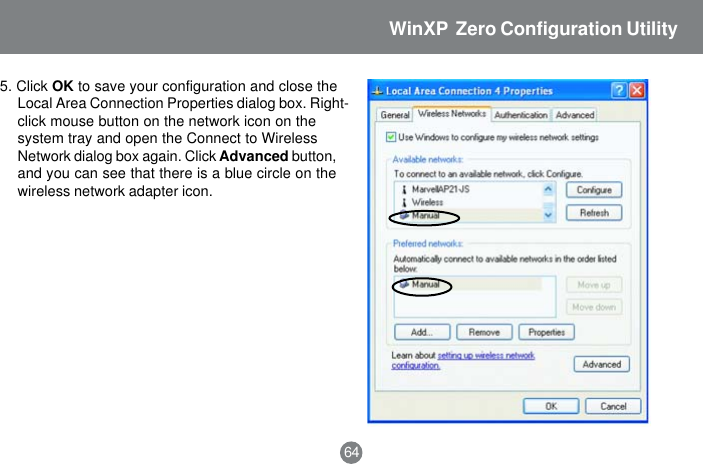

5. Click OK to save your configuration and close theLocal Area Connection Properties dialog box. Right-click mouse button on the network icon on thesystem tray and open the Connect to WirelessNetwork dialog box again. Click Advanced button,and you can see that there is a blue circle on thewireless network adapter icon.64WinXP Zero Configuration Utility

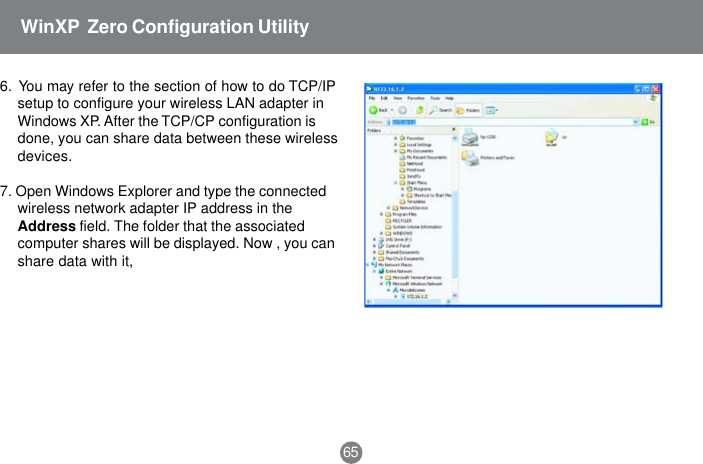

656. You may refer to the section of how to do TCP/IPsetup to configure your wireless LAN adapter inWindows XP. After the TCP/CP configuration isdone, you can share data between these wirelessdevices.7. Open Windows Explorer and type the connectedwireless network adapter IP address in theAddress field. The folder that the associatedcomputer shares will be displayed. Now , you canshare data with it,WinXP Zero Configuration Utility

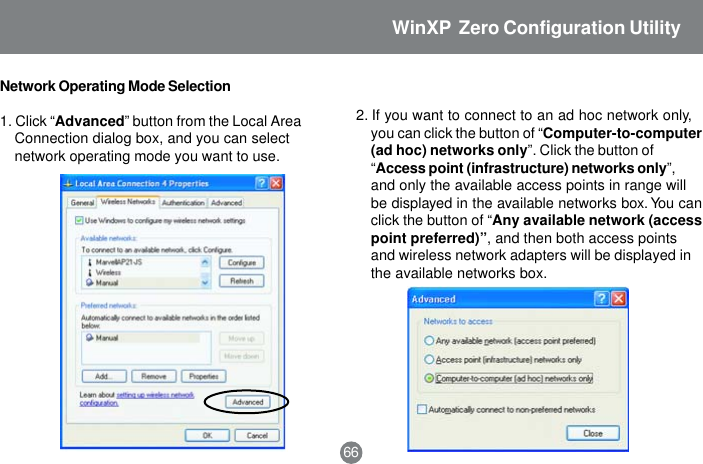

2. If you want to connect to an ad hoc network only,you can click the button of “Computer-to-computer(ad hoc) networks only”. Click the button of“Access point (infrastructure) networks only”,and only the available access points in range willbe displayed in the available networks box. You canclick the button of “Any available network (accesspoint preferred)”, and then both access pointsand wireless network adapters will be displayed inthe available networks box.Network Operating Mode Selection1. Click “Advanced” button from the Local AreaConnection dialog box, and you can selectnetwork operating mode you want to use.66WinXP Zero Configuration Utility

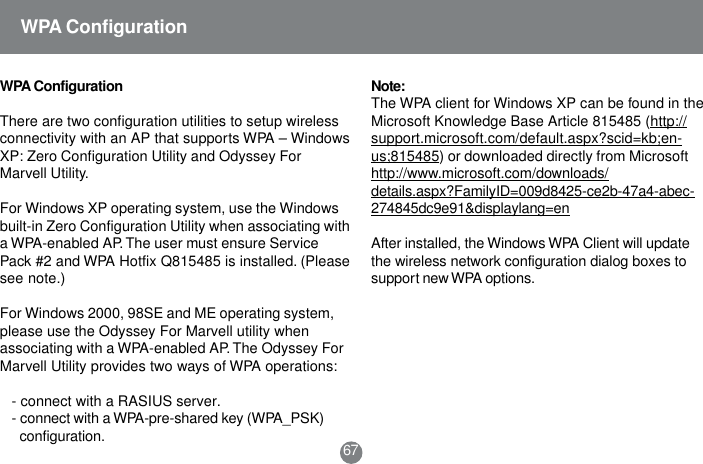

Note:The WPA client for Windows XP can be found in theMicrosoft Knowledge Base Article 815485 (http://support.microsoft.com/default.aspx?scid=kb;en-us;815485) or downloaded directly from Microsofthttp://www.microsoft.com/downloads/details.aspx?FamilyID=009d8425-ce2b-47a4-abec-274845dc9e91&displaylang=enAfter installed, the Windows WPA Client will updatethe wireless network configuration dialog boxes tosupport new WPA options.WPA ConfigurationThere are two configuration utilities to setup wirelessconnectivity with an AP that supports WPA – WindowsXP: Zero Configuration Utility and Odyssey ForMarvell Utility.For Windows XP operating system, use the Windowsbuilt-in Zero Configuration Utility when associating witha WPA-enabled AP. The user must ensure ServicePack #2 and WPA Hotfix Q815485 is installed. (Pleasesee note.)For Windows 2000, 98SE and ME operating system,please use the Odyssey For Marvell utility whenassociating with a WPA-enabled AP. The Odyssey ForMarvell Utility provides two ways of WPA operations:- connect with a RASIUS server.- connect with a WPA-pre-shared key (WPA_PSK) configuration. 67WPA Configuration

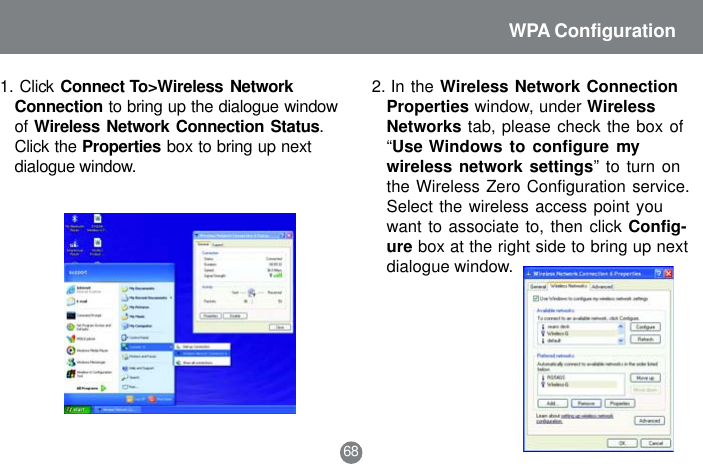

1. Click Connect To>Wireless NetworkConnection to bring up the dialogue windowof Wireless Network Connection Status.Click the Properties box to bring up nextdialogue window.2. In the Wireless Network ConnectionProperties window, under WirelessNetworks tab, please check the box of“Use Windows to configure mywireless network settings” to turn onthe Wireless Zero Configuration service.Select the wireless access point youwant to associate to, then click Config-ure box at the right side to bring up nextdialogue window.68WPA Configuration

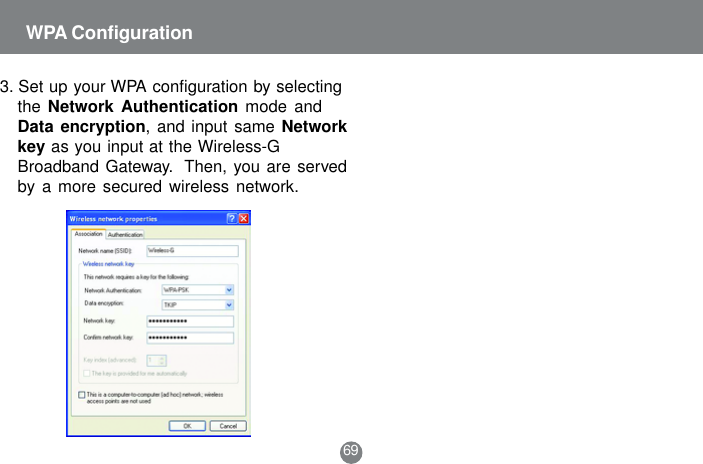

3. Set up your WPA configuration by selectingthe Network Authentication mode andData encryption, and input same Networkkey as you input at the Wireless-GBroadband Gateway. Then, you are servedby a more secured wireless network.69WPA Configuration

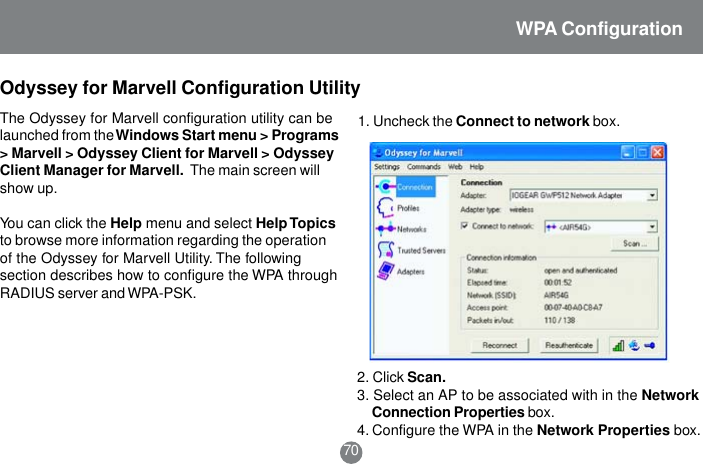

The Odyssey for Marvell configuration utility can belaunched from the Windows Start menu > Programs> Marvell > Odyssey Client for Marvell > OdysseyClient Manager for Marvell. The main screen willshow up.You can click the Help menu and select Help Topicsto browse more information regarding the operationof the Odyssey for Marvell Utility. The followingsection describes how to configure the WPA throughRADIUS server and WPA-PSK.1. Uncheck the Connect to network box.2. Click Scan.3. Select an AP to be associated with in the Network Connection Properties box.4. Configure the WPA in the Network Properties box.Odyssey for Marvell Configuration Utility70WPA Configuration

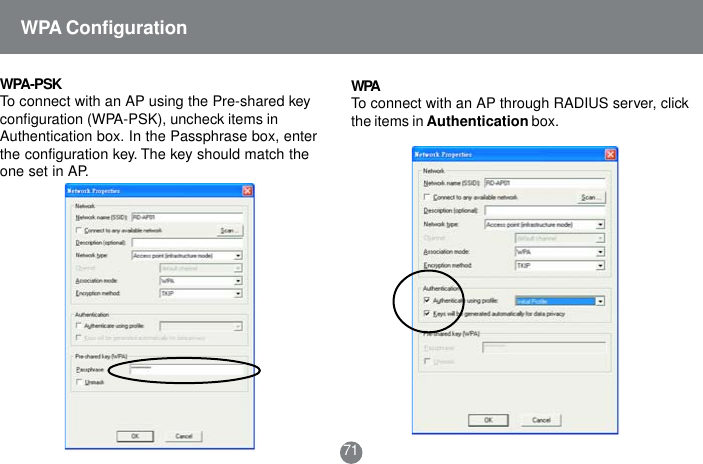

WPATo connect with an AP through RADIUS server, clickthe items in Authentication box.71WPA-PSKTo connect with an AP using the Pre-shared keyconfiguration (WPA-PSK), uncheck items inAuthentication box. In the Passphrase box, enterthe configuration key. The key should match theone set in AP.WPA Configuration

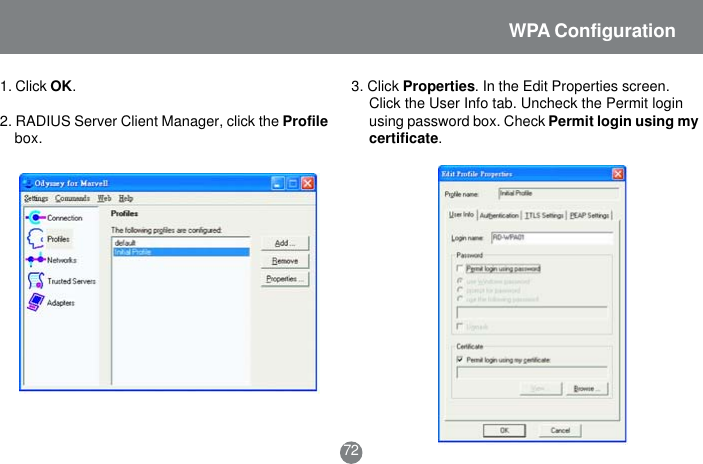

3. Click Properties. In the Edit Properties screen.Click the User Info tab. Uncheck the Permit loginusing password box. Check Permit login using mycertificate.721. Click OK.2. RADIUS Server Client Manager, click the Profilebox.WPA Configuration

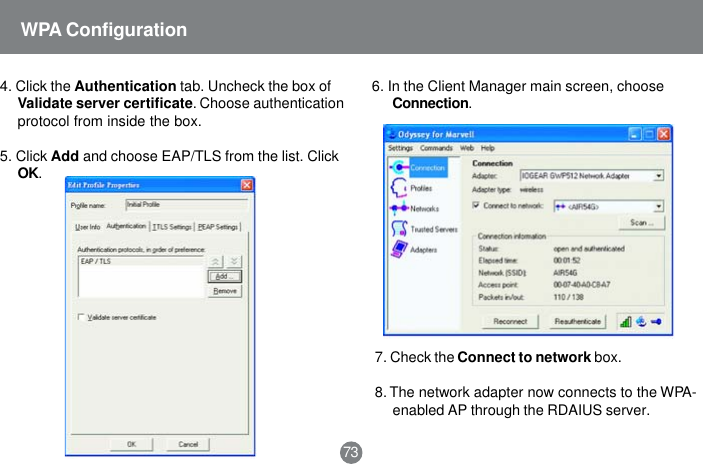

4. Click the Authentication tab. Uncheck the box ofValidate server certificate. Choose authenticationprotocol from inside the box.5. Click Add and choose EAP/TLS from the list. ClickOK.7. Check the Connect to network box.8. The network adapter now connects to the WPA-enabled AP through the RDAIUS server.736. In the Client Manager main screen, choose Connection.WPA Configuration

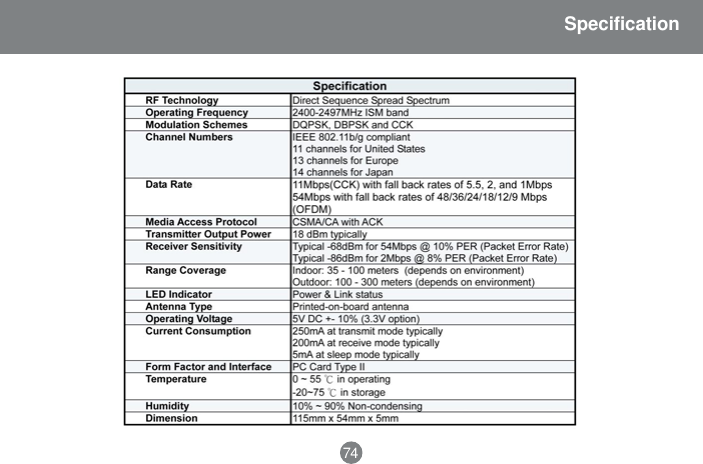

Specification74

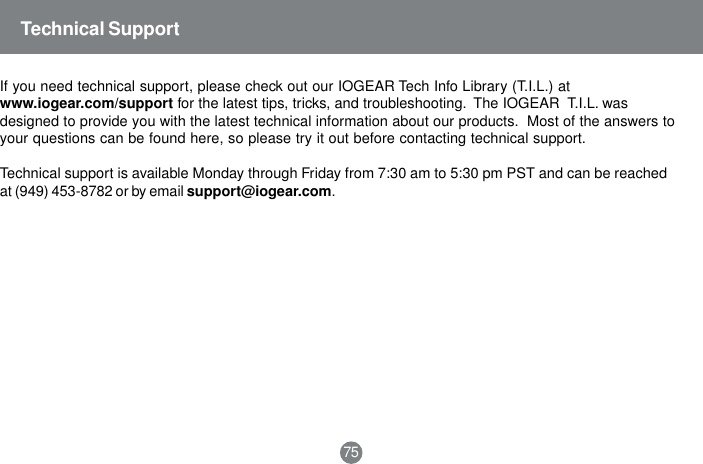

Technical SupportIf you need technical support, please check out our IOGEAR Tech Info Library (T.I.L.) atwww.iogear.com/support for the latest tips, tricks, and troubleshooting. The IOGEAR T.I.L. wasdesigned to provide you with the latest technical information about our products. Most of the answers toyour questions can be found here, so please try it out before contacting technical support.Technical support is available Monday through Friday from 7:30 am to 5:30 pm PST and can be reachedat (949) 453-8782 or by email support@iogear.com.75

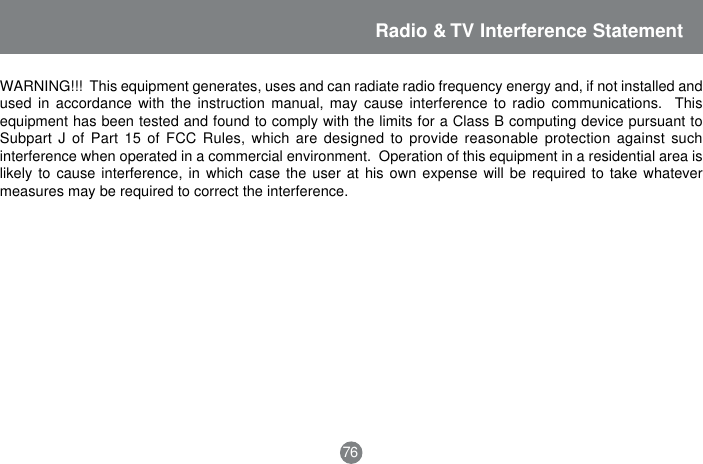

Radio & TV Interference StatementWARNING!!! This equipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instruction manual, may cause interference to radio communications. Thisequipment has been tested and found to comply with the limits for a Class B computing device pursuant toSubpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against suchinterference when operated in a commercial environment. Operation of this equipment in a residential area islikely to cause interference, in which case the user at his own expense will be required to take whatevermeasures may be required to correct the interference.76

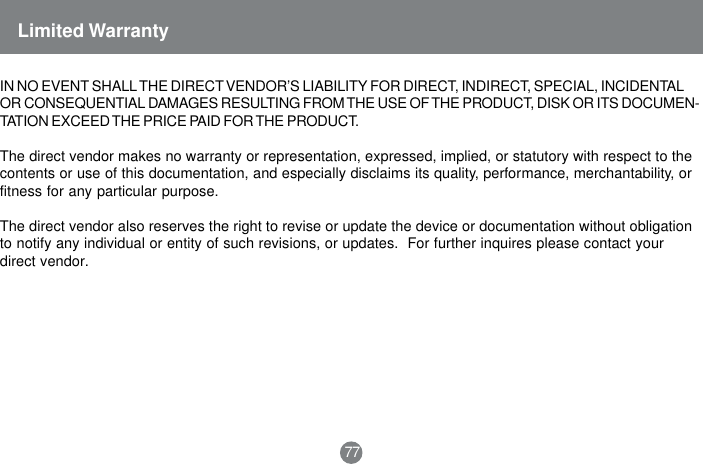

IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTALOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMEN-TATION EXCEED THE PRICE PAID FOR THE PRODUCT.The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to thecontents or use of this documentation, and especially disclaims its quality, performance, merchantability, orfitness for any particular purpose.The direct vendor also reserves the right to revise or update the device or documentation without obligationto notify any individual or entity of such revisions, or updates. For further inquires please contact yourdirect vendor.Limited Warranty77

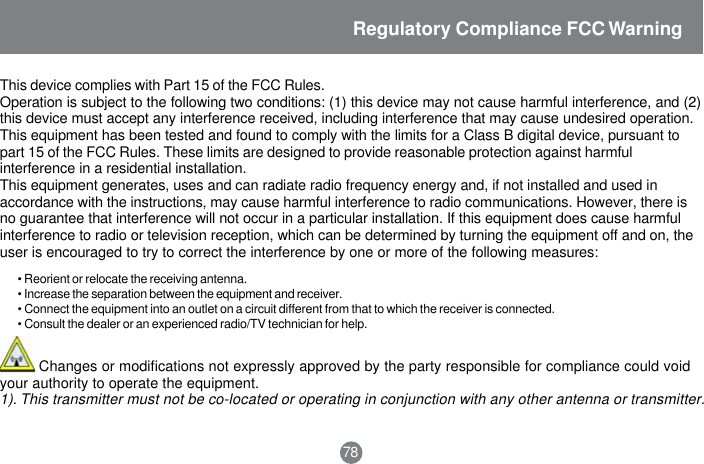

Regulatory Compliance FCC WarningThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant topart 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could voidyour authority to operate the equipment.1). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.78
