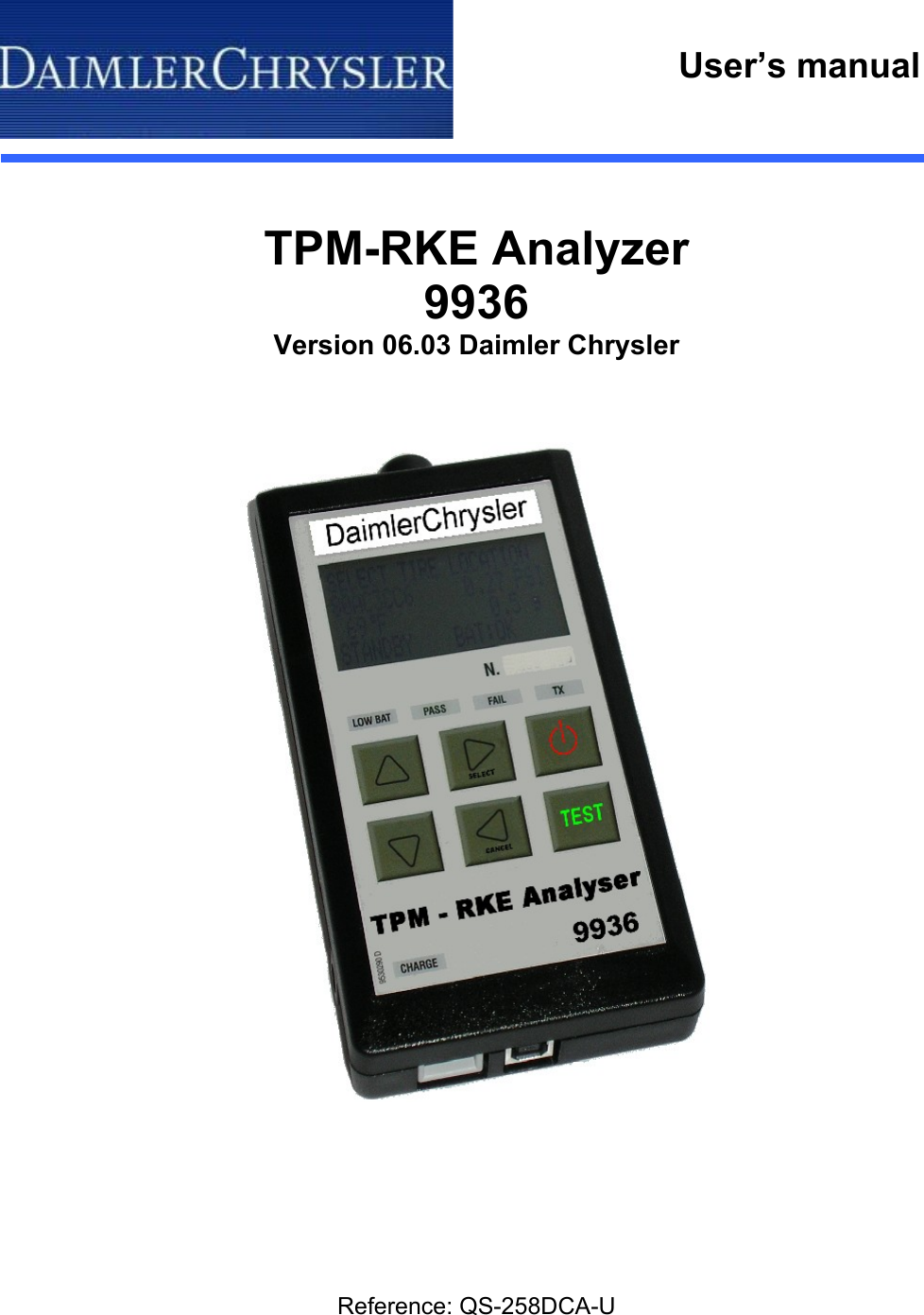

User’s manualTPM-RKE Analyzer9936Version 06.03 Daimler ChryslerReference: QS-258DCA-U

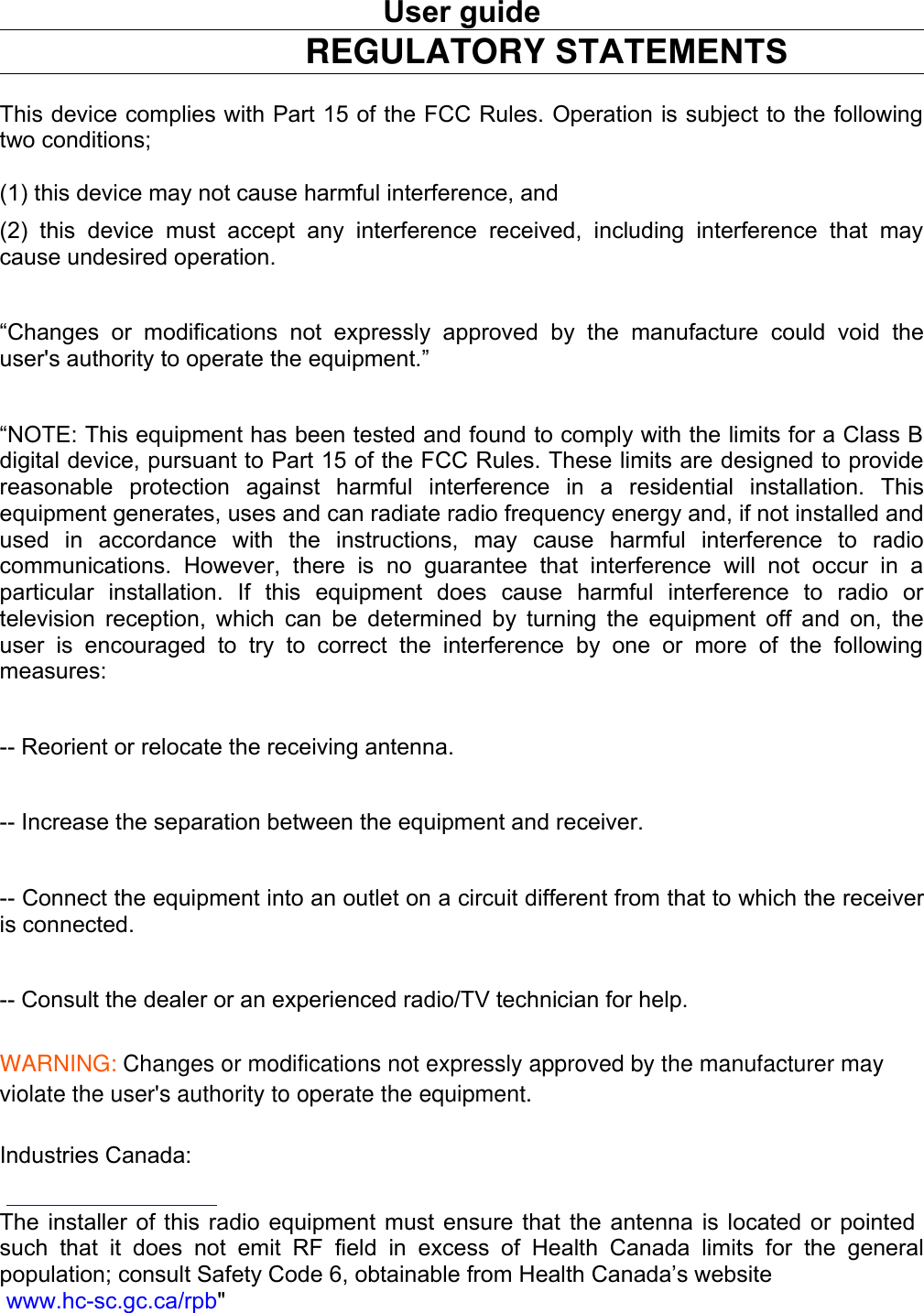

User guideREGULATORY STATEMENTSThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.“Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment.” “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the manufacturer mayviolate the user's authority to operate the equipment. Industries Canada: The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb"

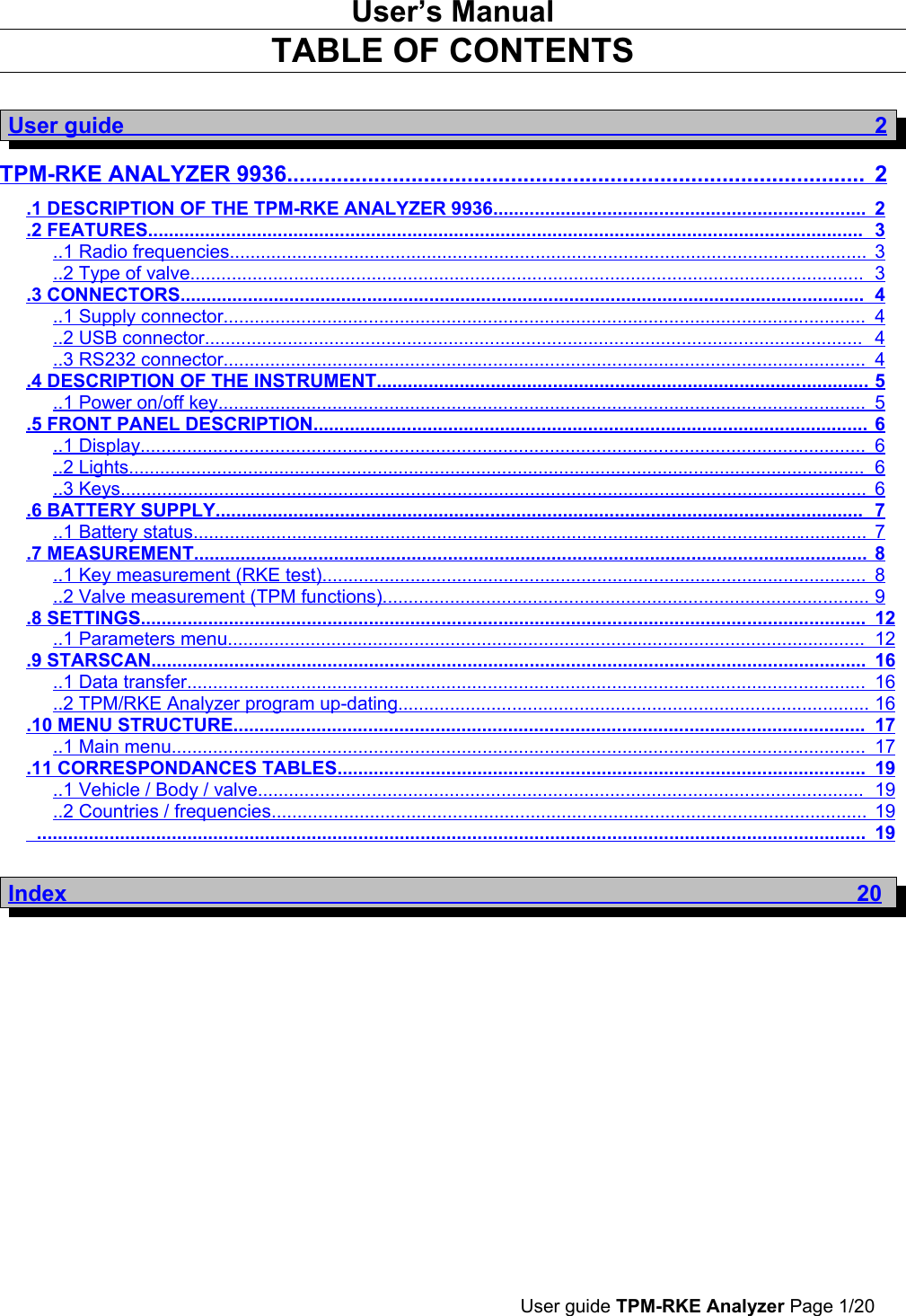

User’s ManualTABLE OF CONTENTSUser guide 2 TPM-RKE ANALYZER 9936 ............................................................................................. 2 .1 DESCRIPTION OF THE TPM-RKE ANALYZER 9936 ........................................................................ 2 .2 FEATURES .......................................................................................................................................... 3 ..1 Radio frequencies ........................................................................................................................... 3 ..2 Type of valve .................................................................................................................................. 3 .3 CONNECTORS .................................................................................................................................... 4 ..1 Supply connector ............................................................................................................................ 4 ..2 USB connector ............................................................................................................................... 4 ..3 RS232 connector ............................................................................................................................ 4 .4 DESCRIPTION OF THE INSTRUMENT ............................................................................................... 5 ..1 Power on/off key ............................................................................................................................. 5 .5 FRONT PANEL DESCRIPTION ........................................................................................................... 6 ..1 Display ............................................................................................................................................ 6 ..2 Lights .............................................................................................................................................. 6 ..3 Keys ................................................................................................................................................ 6 .6 BATTERY SUPPLY ............................................................................................................................. 7 ..1 Battery status .................................................................................................................................. 7 .7 MEASUREMENT .................................................................................................................................. 8 ..1 Key measurement (RKE test) ......................................................................................................... 8 ..2 Valve measurement (TPM functions) .............................................................................................. 9 .8 SETTINGS ............................................................................................................................................ 12 ..1 Parameters menu ........................................................................................................................... 12 .9 STARSCAN .......................................................................................................................................... 16 ..1 Data transfer ................................................................................................................................... 16 ..2 TPM/RKE Analyzer program up-dating ........................................................................................... 16 .10 MENU STRUCTURE .......................................................................................................................... 17 ..1 Main menu ...................................................................................................................................... 17 .11 CORRESPONDANCES TABLES ...................................................................................................... 19 ..1 Vehicle / Body / valve ..................................................................................................................... 19 ..2 Countries / frequencies ................................................................................................................... 19 ................................................................................................................................................................ 19 Index 20 User guide TPM-RKE Analyzer Page 1/20

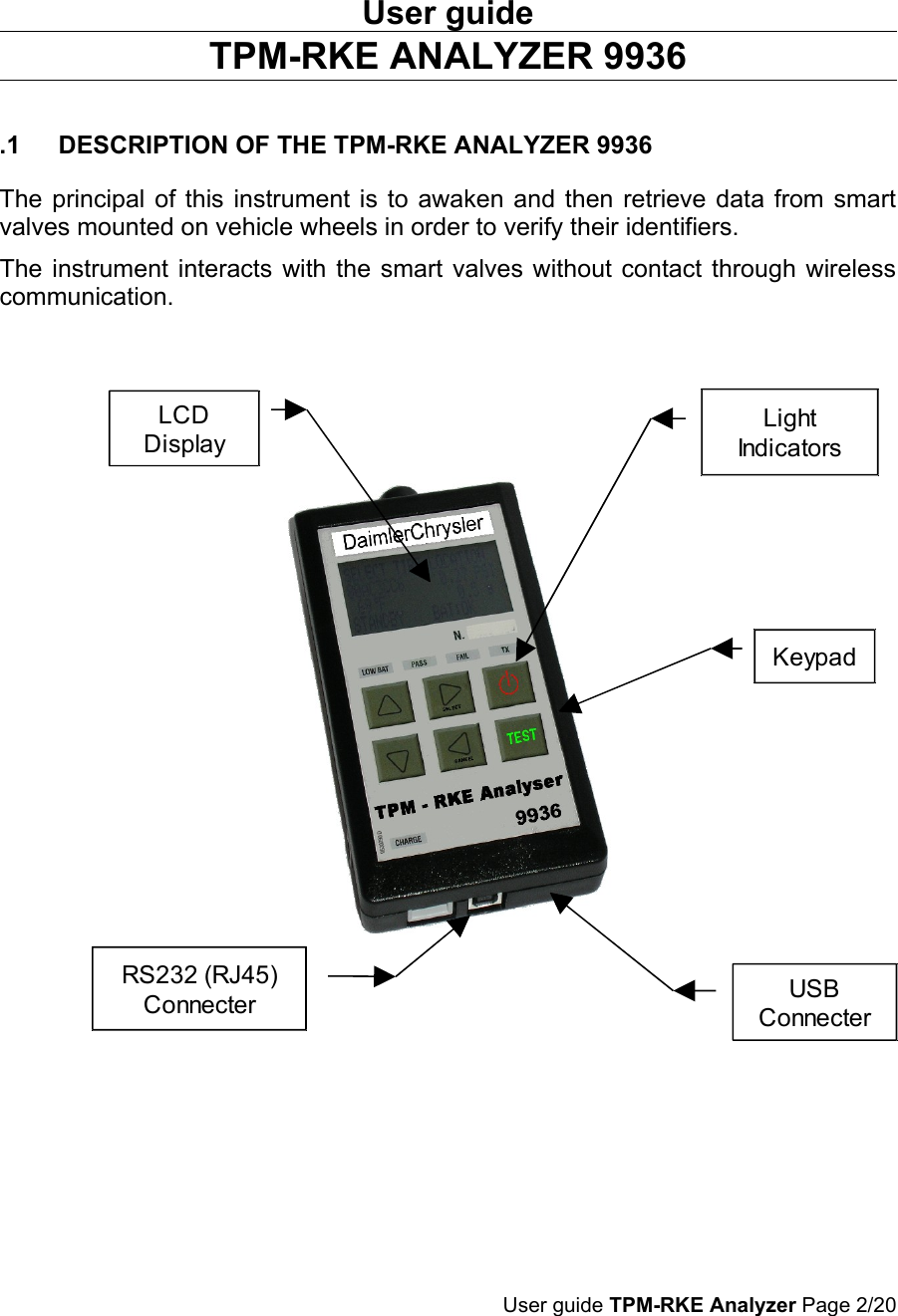

User guideTPM-RKE ANALYZER 9936.1 DESCRIPTION OF THE TPM-RKE ANALYZER 9936The principal of this instrument is to awaken and then retrieve data from smart valves mounted on vehicle wheels in order to verify their identifiers. The instrument interacts with the smart valves without contact through wireless communication.User guide TPM-RKE Analyzer Page 2/20LCD DisplayLight IndicatorsKeypadUSB ConnecterRS232 (RJ45) Connecter

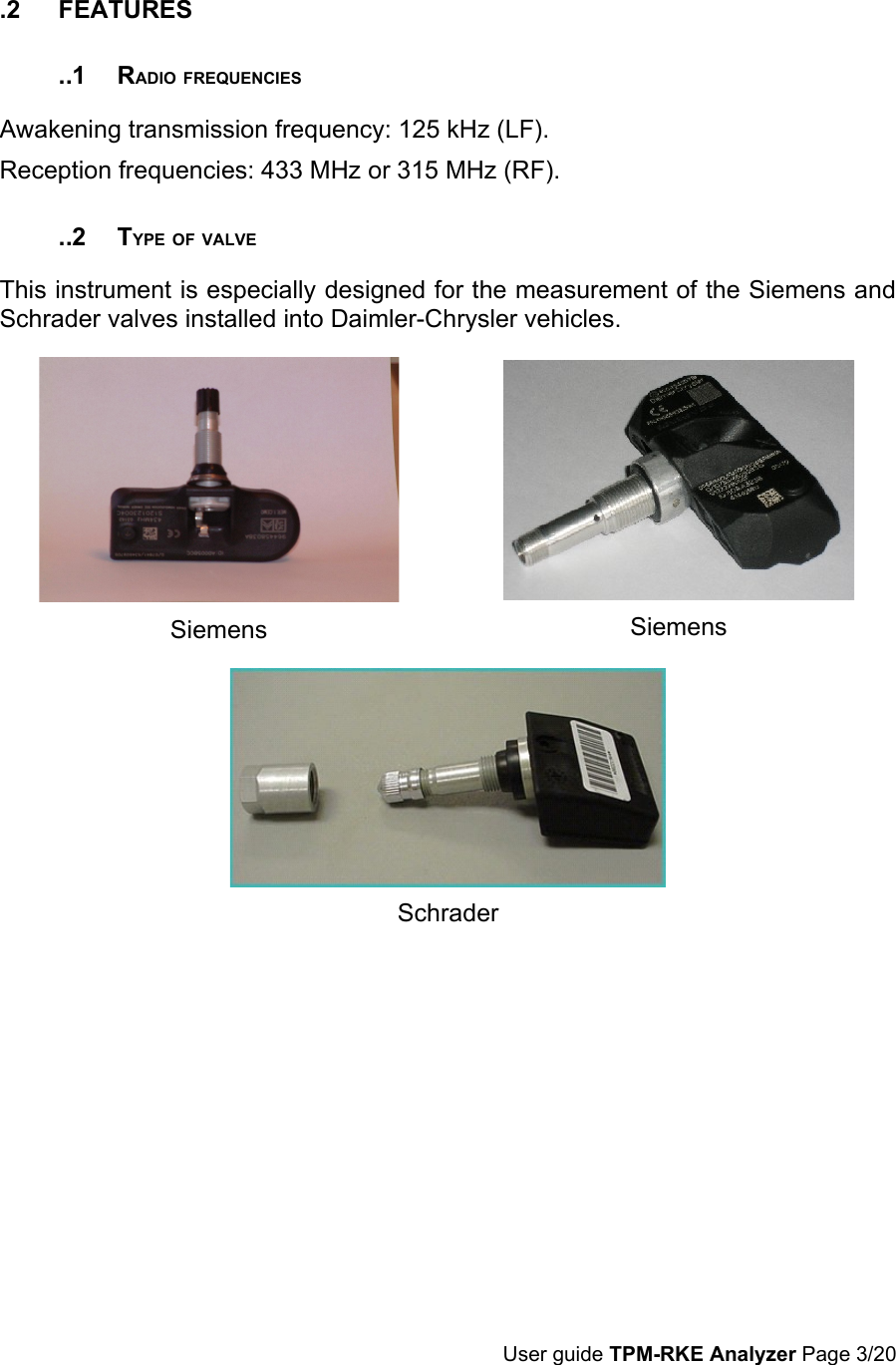

.2 FEATURES..1 RADIO FREQUENCIESAwakening transmission frequency: 125 kHz (LF). Reception frequencies: 433 MHz or 315 MHz (RF). ..2 TYPE OF VALVEThis instrument is especially designed for the measurement of the Siemens and Schrader valves installed into Daimler-Chrysler vehicles. Siemens Siemens SchraderUser guide TPM-RKE Analyzer Page 3/20

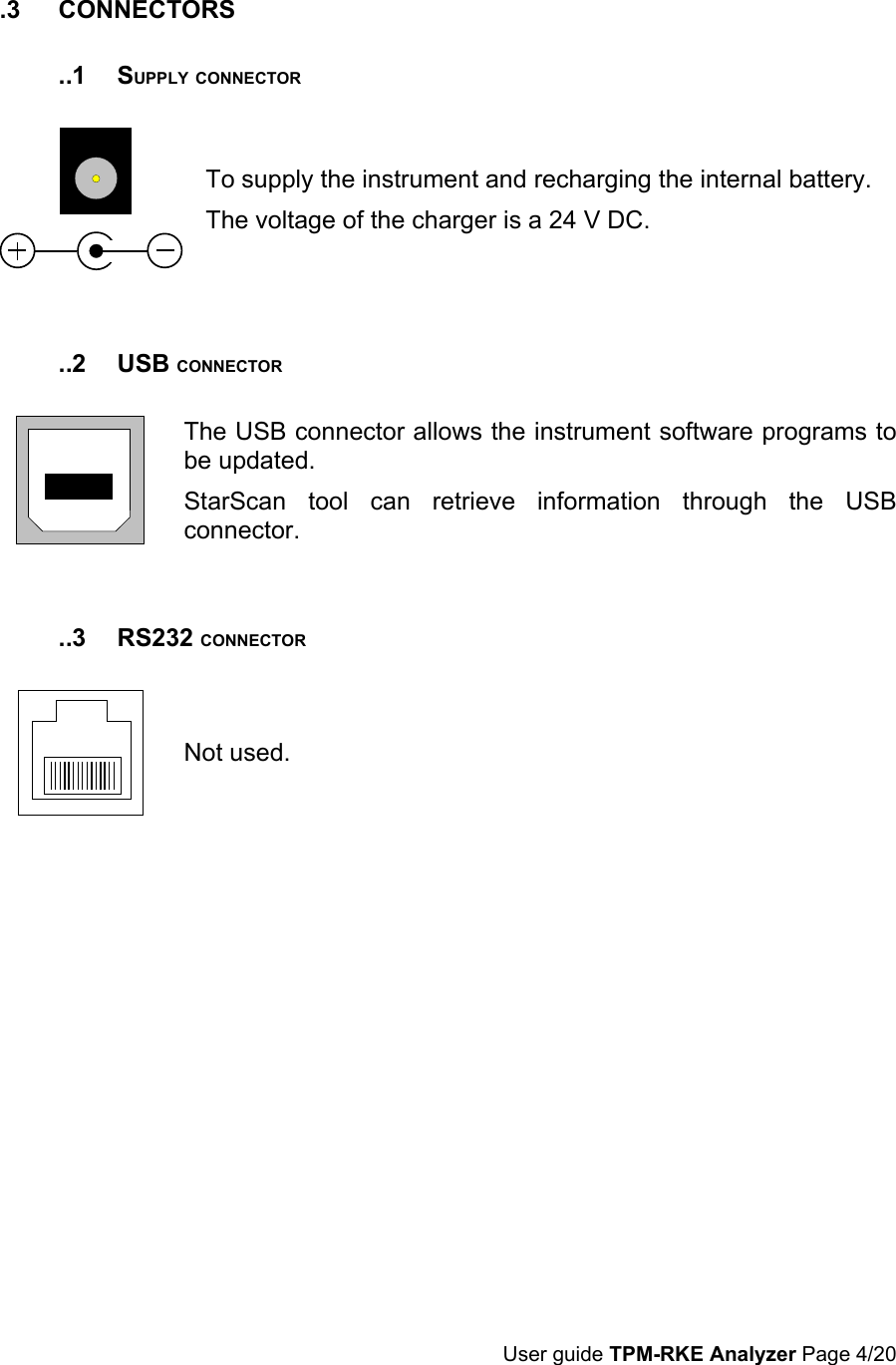

.3 CONNECTORS..1 SUPPLY CONNECTOR To supply the instrument and recharging the internal battery.The voltage of the charger is a 24 V DC. ..2 USB CONNECTOR The USB connector allows the instrument software programs to be updated.StarScan tool can retrieve information through the USB connector...3 RS232 CONNECTOR Not used.User guide TPM-RKE Analyzer Page 4/20

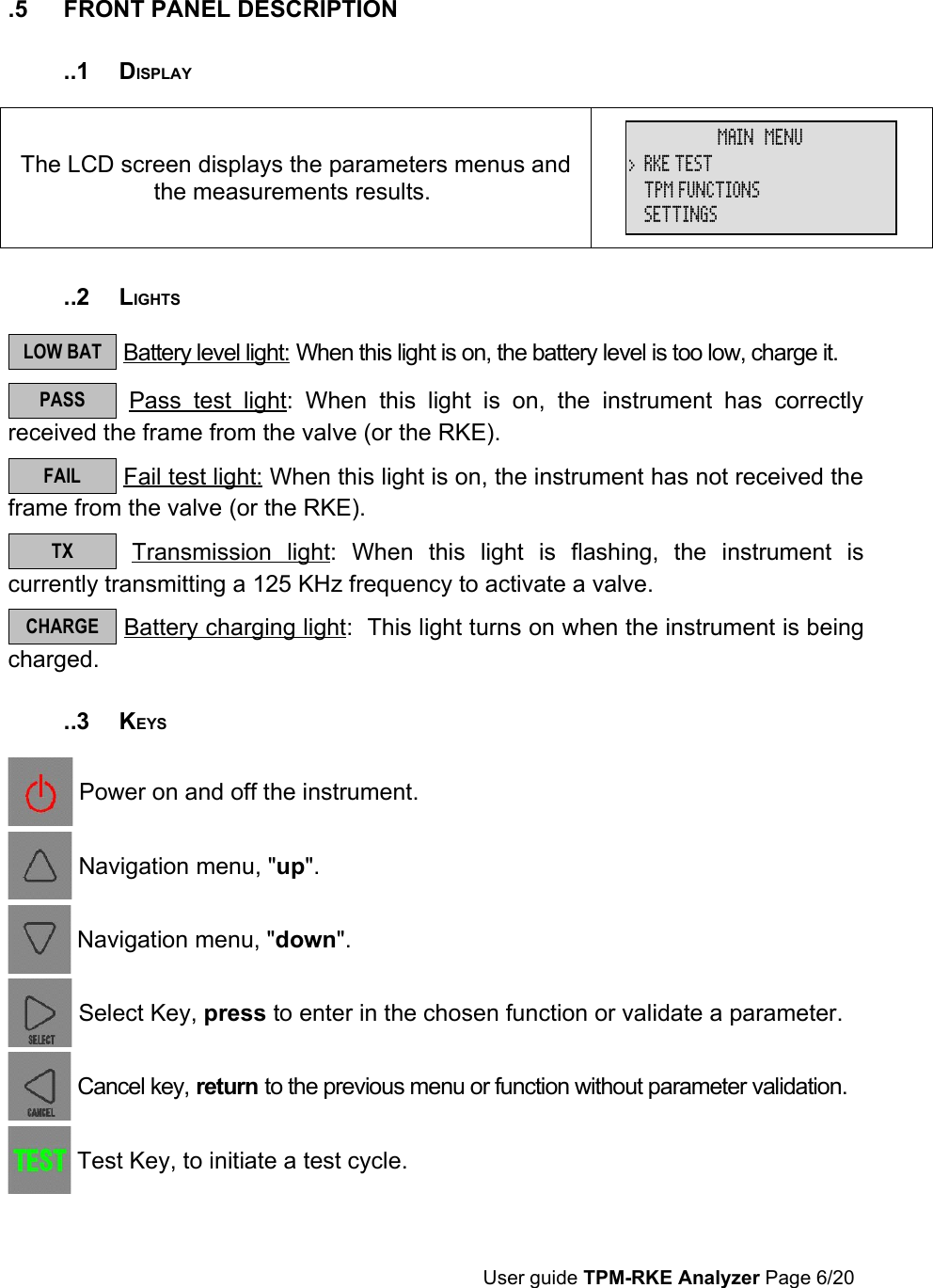

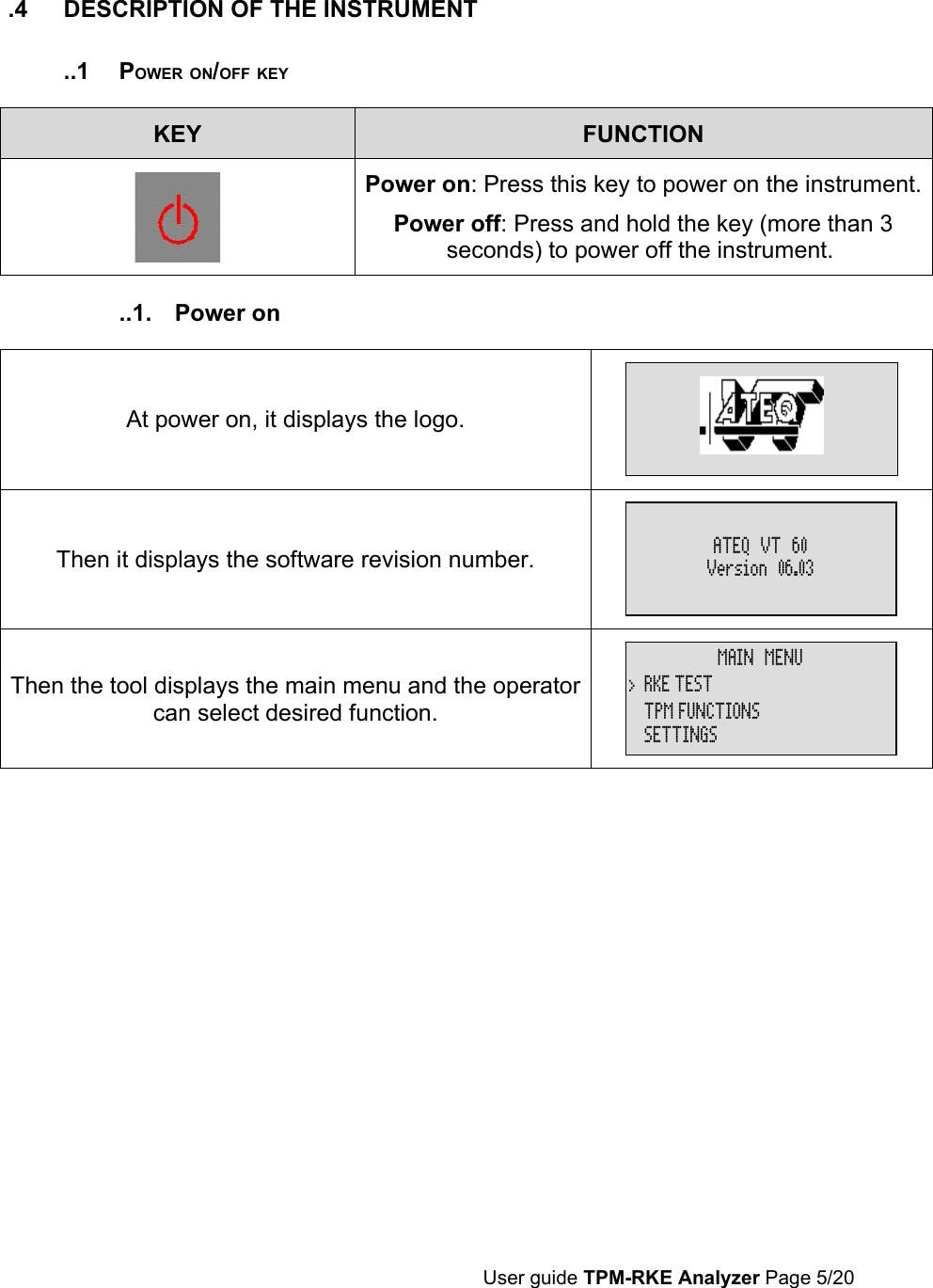

.5 FRONT PANEL DESCRIPTION..1 DISPLAYThe LCD screen displays the parameters menus and the measurements results. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS ..2 LIGHTS LOW BAT Battery level light: When this light is on, the battery level is too low, charge it. PASS Pass test light: When this light is on, the instrument has correctly received the frame from the valve (or the RKE). FAIL Fail test light: When this light is on, the instrument has not received the frame from the valve (or the RKE). TX Transmission light: When this light is flashing, the instrument is currently transmitting a 125 KHz frequency to activate a valve. CHARGE Battery charging light: This light turns on when the instrument is being charged...3 KEYS Power on and off the instrument. Navigation menu, "up". Navigation menu, "down". Select Key, press to enter in the chosen function or validate a parameter. Cancel key, return to the previous menu or function without parameter validation. Test Key, to initiate a test cycle. User guide TPM-RKE Analyzer Page 6/20

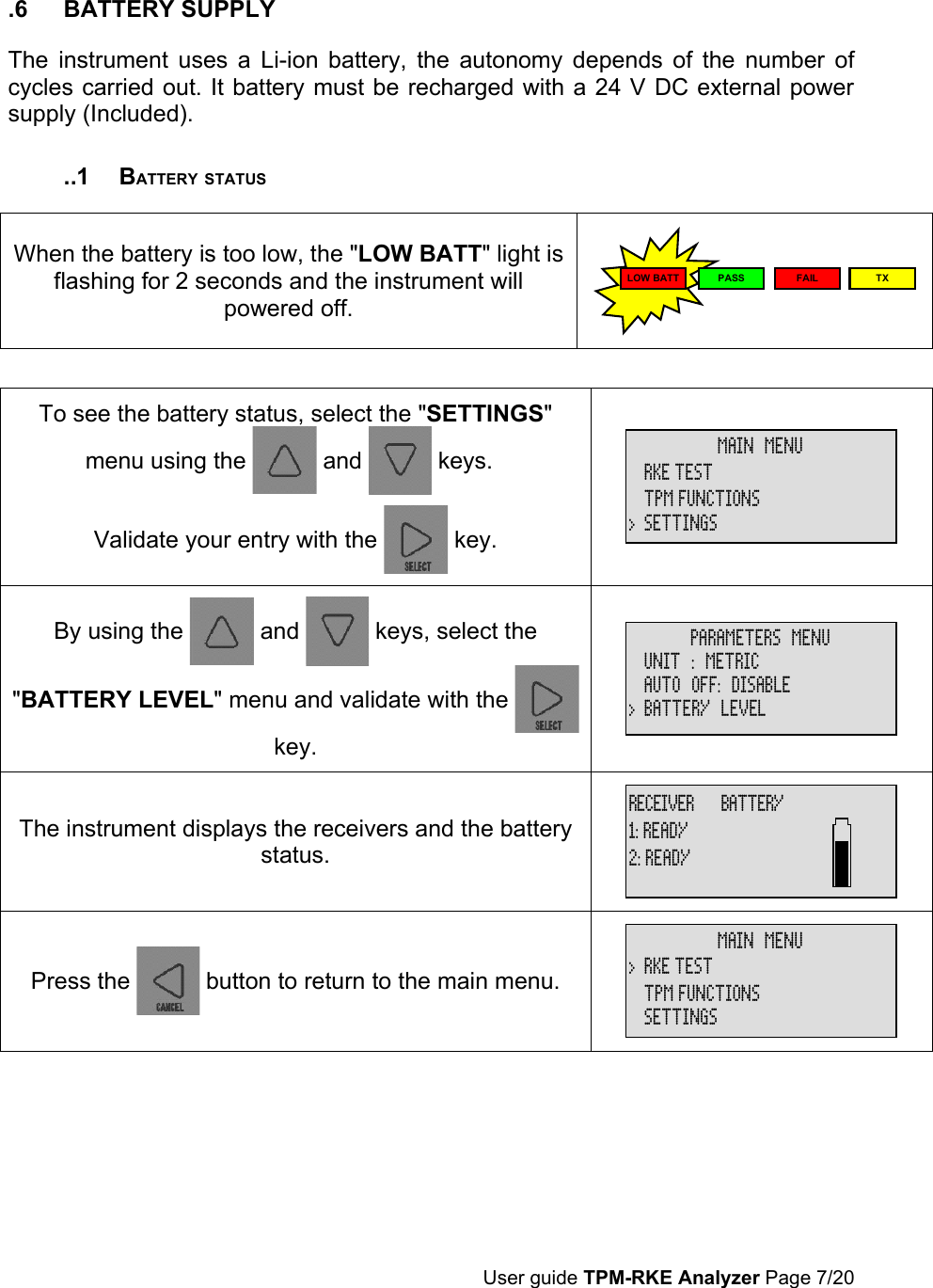

.6 BATTERY SUPPLYThe instrument uses a Li-ion battery, the autonomy depends of the number of cycles carried out. It battery must be recharged with a 24 V DC external power supply (Included). ..1 BATTERY STATUSWhen the battery is too low, the "LOW BATT" light is flashing for 2 seconds and the instrument will powered off. LOW BATT PASS FAIL TX To see the battery status, select the "SETTINGS" menu using the and keys. Validate your entry with the key. MAIN MENU RKE TEST TPM FUNCTIONS > SETTINGS By using the and keys, select the "BATTERY LEVEL" menu and validate with the key. PARAMETERS MENU UNIT : METRIC AUTO OFF: DISABLE > BATTERY LEVEL The instrument displays the receivers and the battery status. RECEIVER BATTERY 1: READY 2: READY Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 7/20

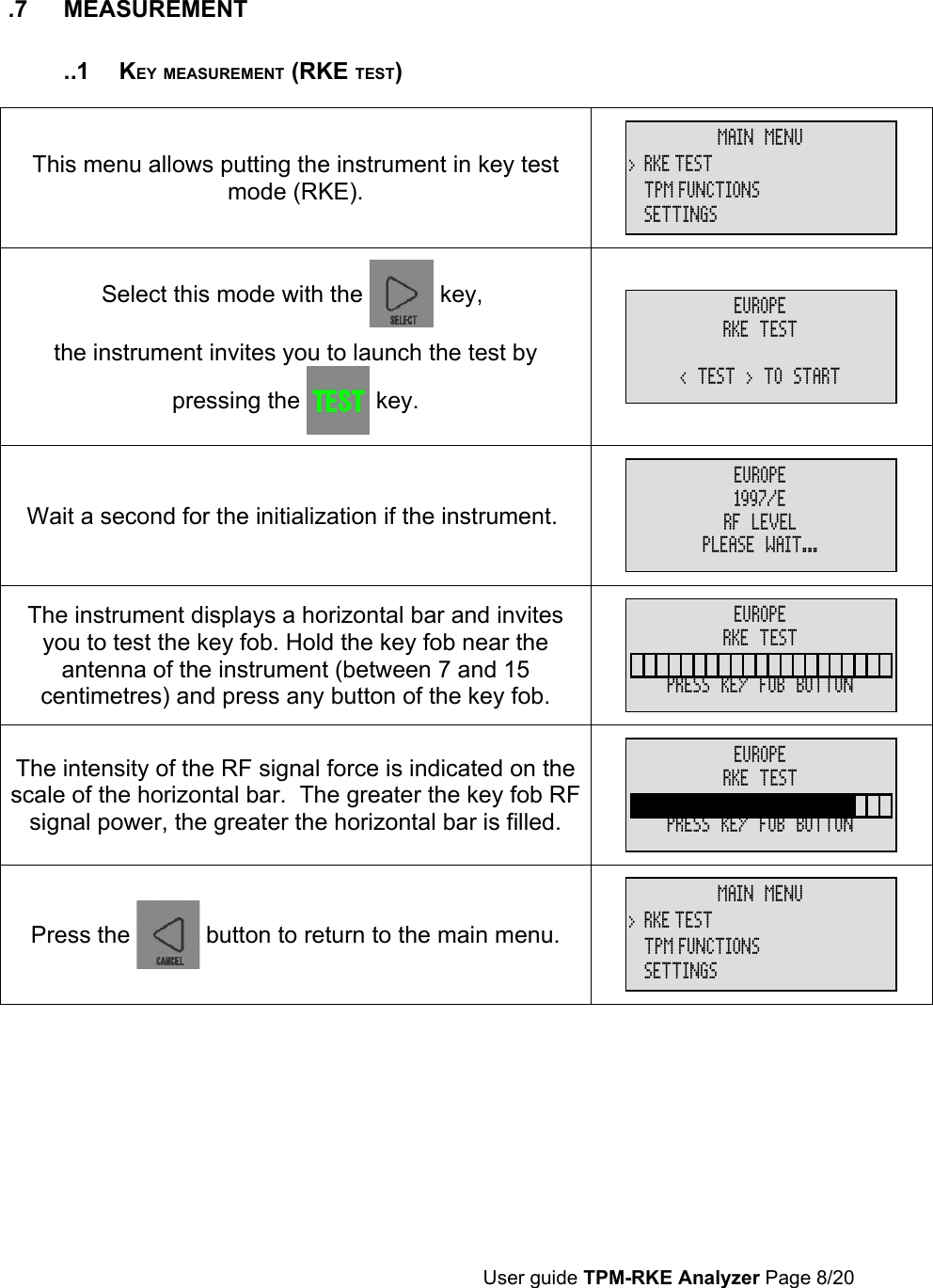

.7 MEASUREMENT..1 KEY MEASUREMENT (RKE TEST)This menu allows putting the instrument in key test mode (RKE). MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS Select this mode with the key, the instrument invites you to launch the test by pressing the key. EUROPE RKE TEST < TEST > TO START Wait a second for the initialization if the instrument. EUROPE 1997/E RF LEVEL PLEASE WAIT... The instrument displays a horizontal bar and invites you to test the key fob. Hold the key fob near the antenna of the instrument (between 7 and 15 centimetres) and press any button of the key fob. EUROPE RKE TEST PRESS KEY FOB BUTTON The intensity of the RF signal force is indicated on the scale of the horizontal bar. The greater the key fob RF signal power, the greater the horizontal bar is filled. EUROPE RKE TEST PRESS KEY FOB BUTTON Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 8/20

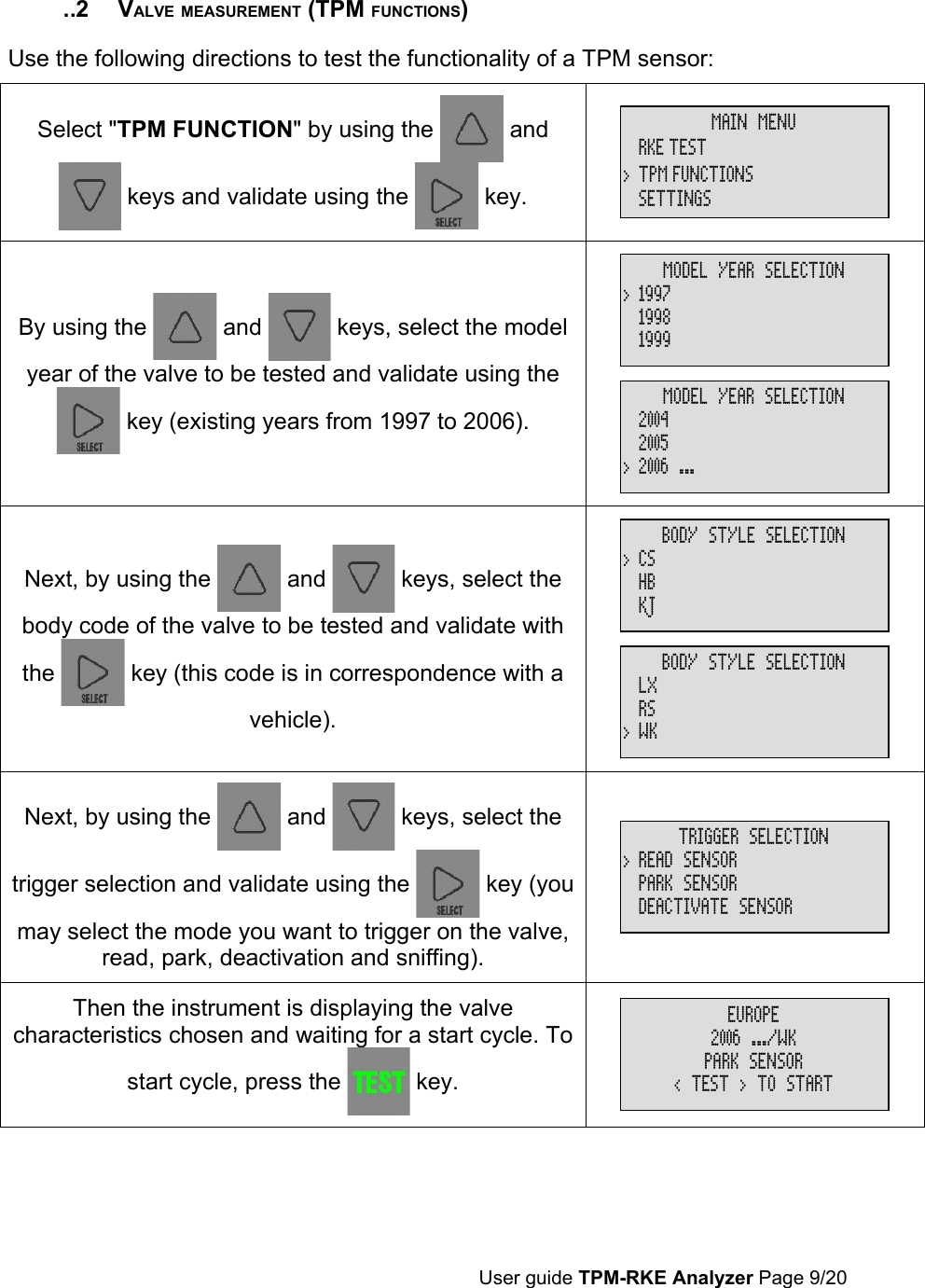

..2 VALVE MEASUREMENT (TPM FUNCTIONS)Use the following directions to test the functionality of a TPM sensor: Select "TPM FUNCTION" by using the and keys and validate using the key. MAIN MENU RKE TEST > TPM FUNCTIONS SETTINGS By using the and keys, select the model year of the valve to be tested and validate using the key (existing years from 1997 to 2006). MODEL YEAR SELECTION > 1997 1998 1999 MODEL YEAR SELECTION 2004 2005 > 2006 ... Next, by using the and keys, select the body code of the valve to be tested and validate with the key (this code is in correspondence with a vehicle). BODY STYLE SELECTION > CS HB KJ BODY STYLE SELECTION LX RS > WK Next, by using the and keys, select the trigger selection and validate using the key (you may select the mode you want to trigger on the valve, read, park, deactivation and sniffing). TRIGGER SELECTION > READ SENSOR PARK SENSOR DEACTIVATE SENSOR Then the instrument is displaying the valve characteristics chosen and waiting for a start cycle. To start cycle, press the key. EUROPE 2006 .../WK PARK SENSOR < TEST > TO START User guide TPM-RKE Analyzer Page 9/20

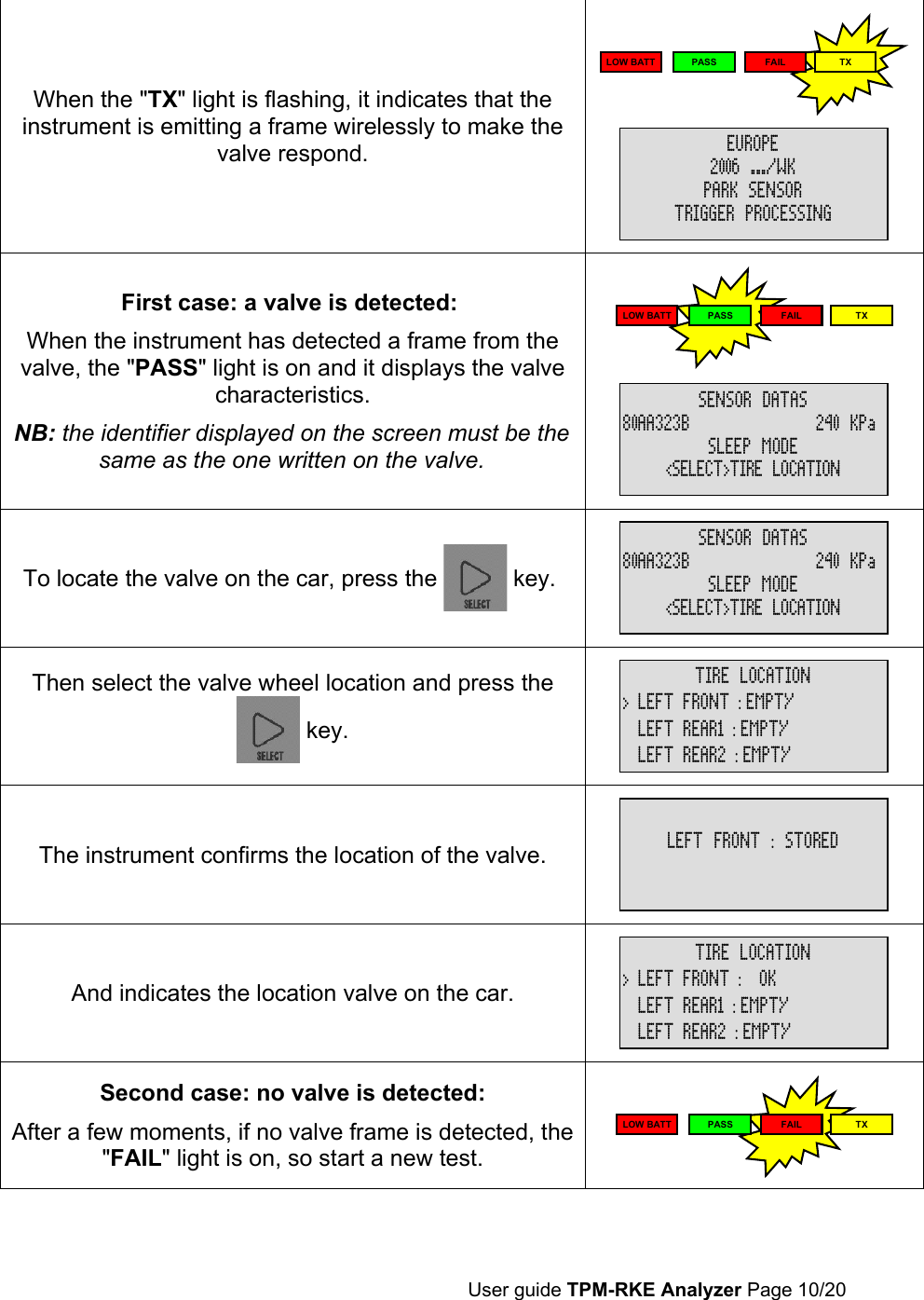

When the "TX" light is flashing, it indicates that the instrument is emitting a frame wirelessly to make the valve respond. LOW BATT PASS FAIL TX EUROPE 2006 .../WK PARK SENSOR TRIGGER PROCESSING First case: a valve is detected: When the instrument has detected a frame from the valve, the "PASS" light is on and it displays the valve characteristics.NB: the identifier displayed on the screen must be the same as the one written on the valve. LOW BATT PASS FAIL TX SENSOR DATAS 80AA323B 240 KPa SLEEP MODE <SELECT>TIRE LOCATION To locate the valve on the car, press the key. SENSOR DATAS 80AA323B 240 KPa SLEEP MODE <SELECT>TIRE LOCATION Then select the valve wheel location and press the key. TIRE LOCATION > LEFT FRONT : EMPTY LEFT REAR1 : EMPTY LEFT REAR2 : EMPTY The instrument confirms the location of the valve. LEFT FRONT : STORED And indicates the location valve on the car. TIRE LOCATION > LEFT FRONT : OK LEFT REAR1 : EMPTY LEFT REAR2 : EMPTY Second case: no valve is detected:After a few moments, if no valve frame is detected, the "FAIL" light is on, so start a new test. LOW BATT PASS FAIL TX User guide TPM-RKE Analyzer Page 10/20

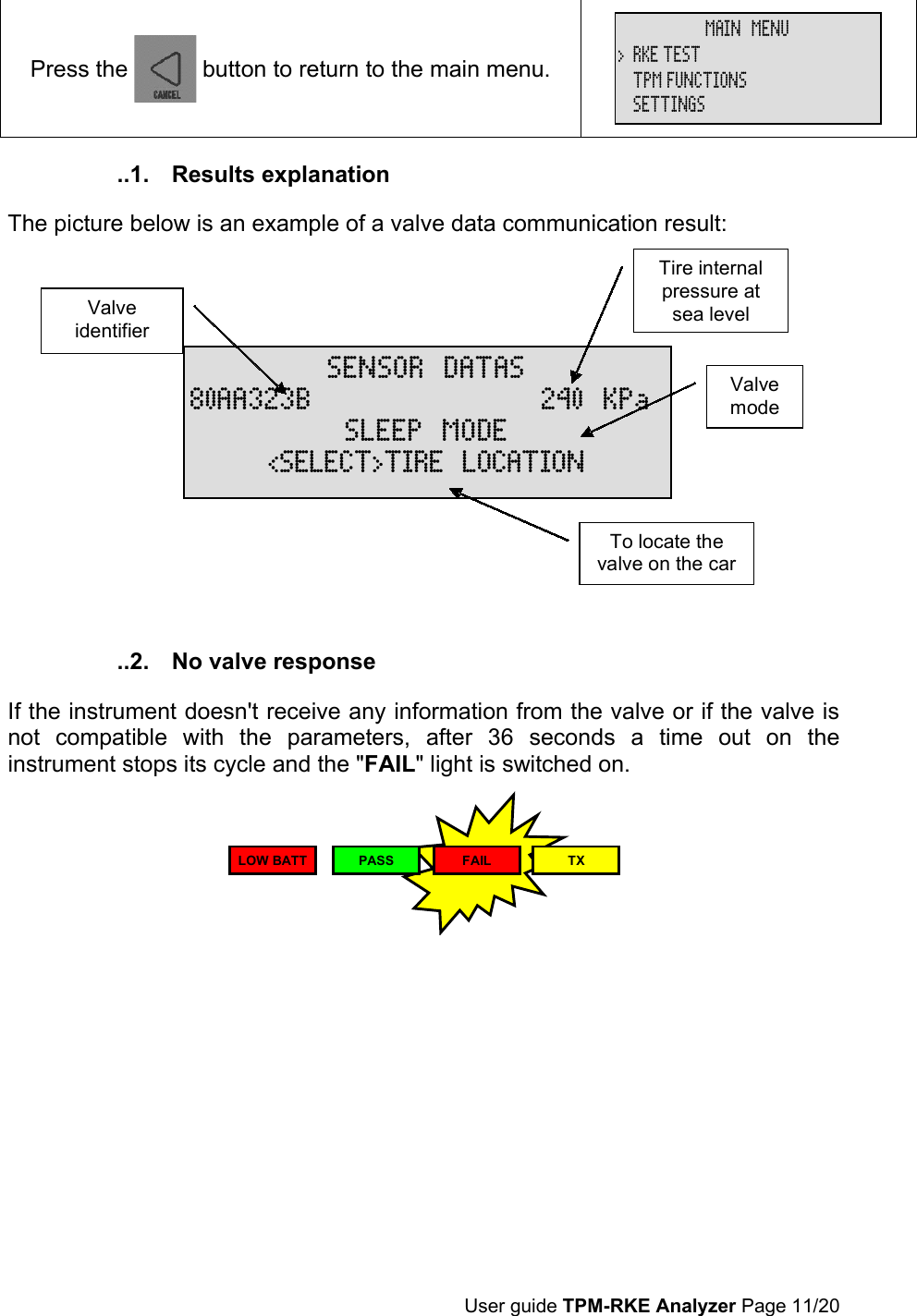

Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS ..1. Results explanationThe picture below is an example of a valve data communication result: SENSOR DATAS 80AA323B 240 KPa SLEEP MODE <SELECT>TIRE LOCATION Valve identifier Tire internal pressure at sea level Valve mode To locate the valve on the car ..2. No valve responseIf the instrument doesn't receive any information from the valve or if the valve is not compatible with the parameters, after 36 seconds a time out on the instrument stops its cycle and the "FAIL" light is switched on. LOW BATT PASS FAIL TX User guide TPM-RKE Analyzer Page 11/20

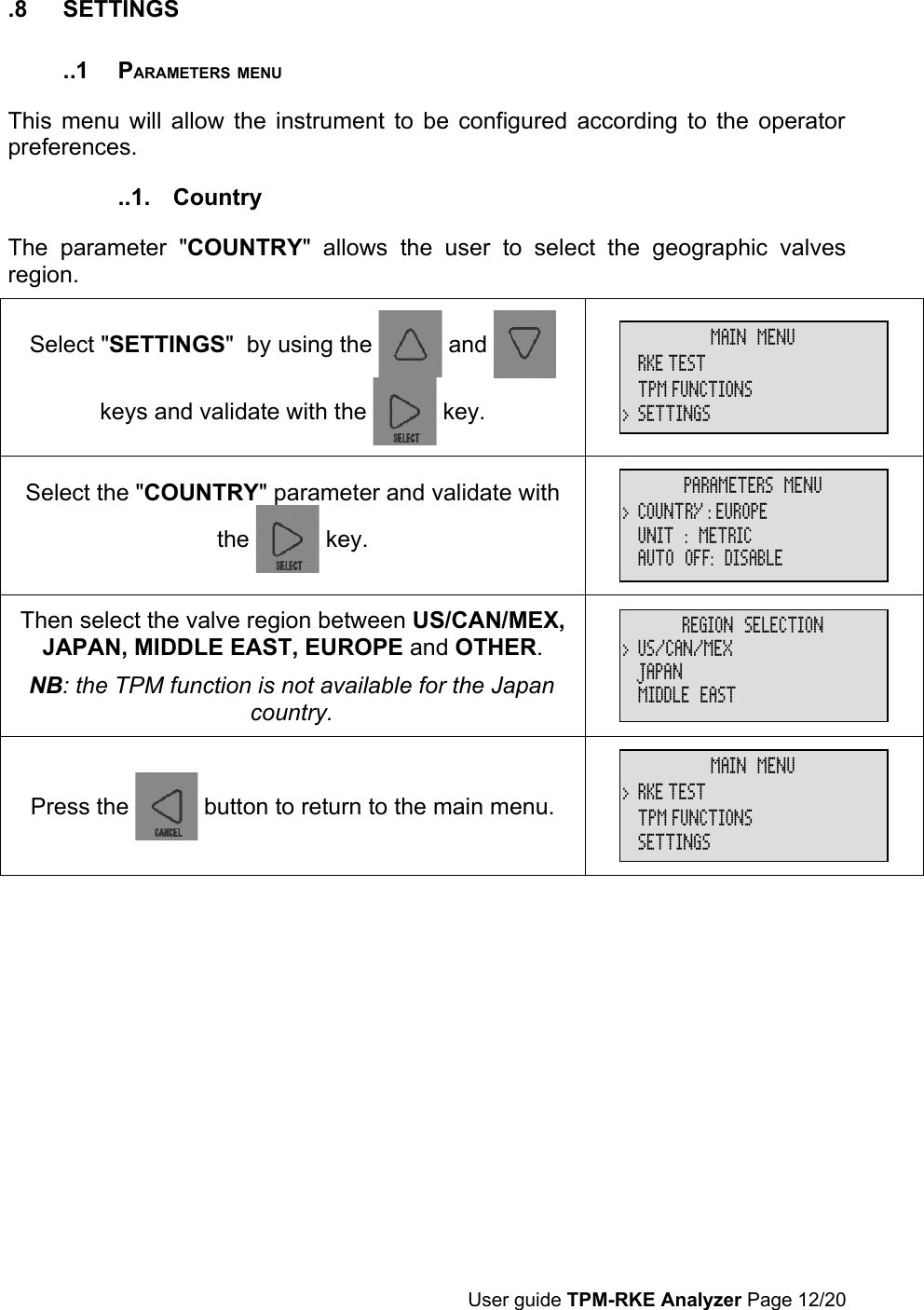

.8 SETTINGS..1 PARAMETERS MENUThis menu will allow the instrument to be configured according to the operator preferences. ..1. CountryThe parameter "COUNTRY" allows the user to select the geographic valves region. Select "SETTINGS" by using the and keys and validate with the key. MAIN MENU RKE TEST TPM FUNCTIONS > SETTINGS Select the "COUNTRY" parameter and validate with the key. PARAMETERS MENU > COUNTRY : EUROPE UNIT : METRIC AUTO OFF: DISABLE Then select the valve region between US/CAN/MEX, JAPAN, MIDDLE EAST, EUROPE and OTHER.NB: the TPM function is not available for the Japan country. REGION SELECTION > US/CAN/MEX JAPAN MIDDLE EAST Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 12/20

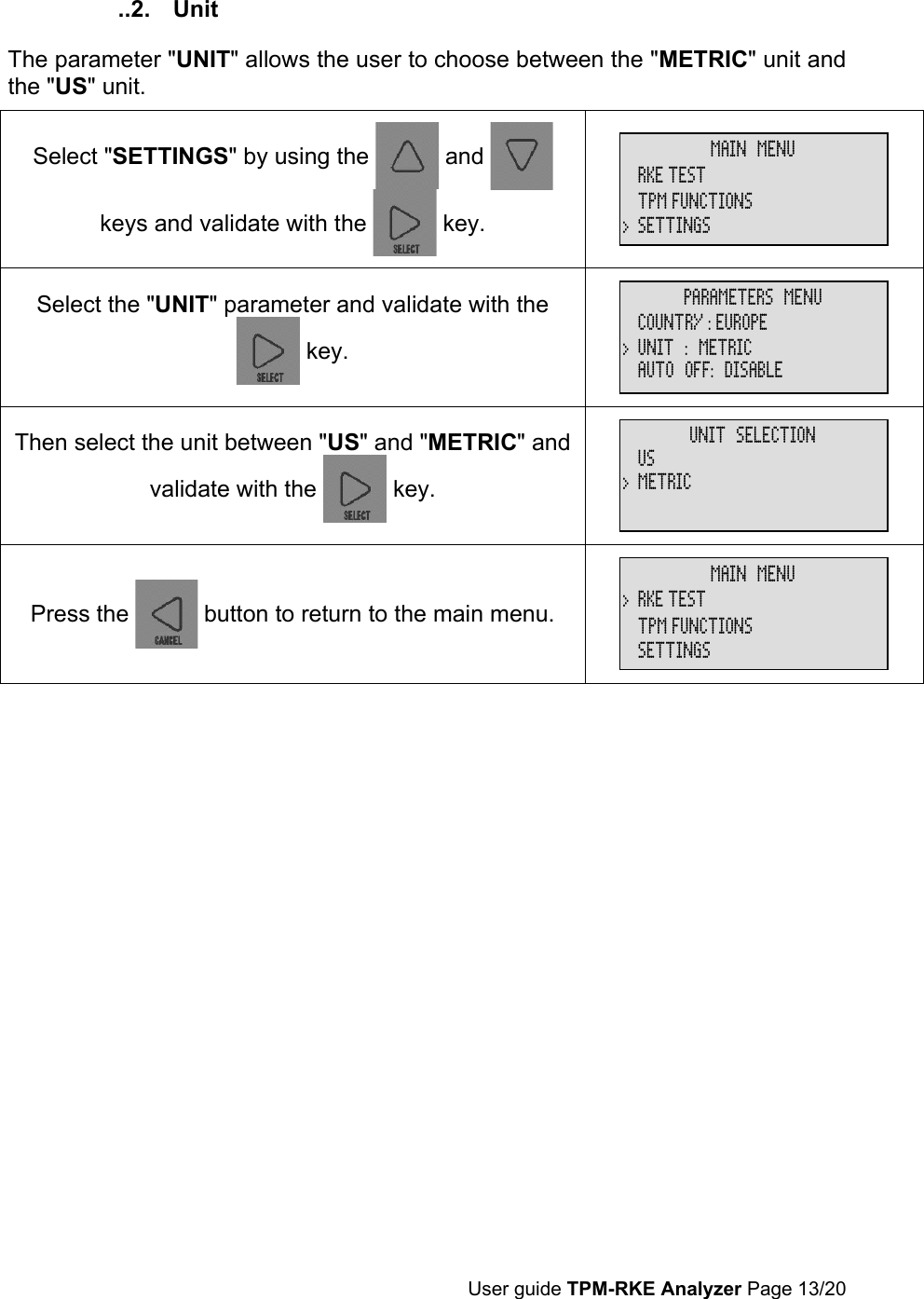

..2. UnitThe parameter "UNIT" allows the user to choose between the "METRIC" unit and the "US" unit.Select "SETTINGS" by using the and keys and validate with the key. MAIN MENU RKE TEST TPM FUNCTIONS > SETTINGS Select the "UNIT" parameter and validate with the key. PARAMETERS MENU COUNTRY : EUROPE > UNIT : METRIC AUTO OFF: DISABLE Then select the unit between "US" and "METRIC" and validate with the key. UNIT SELECTION US > METRIC Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 13/20

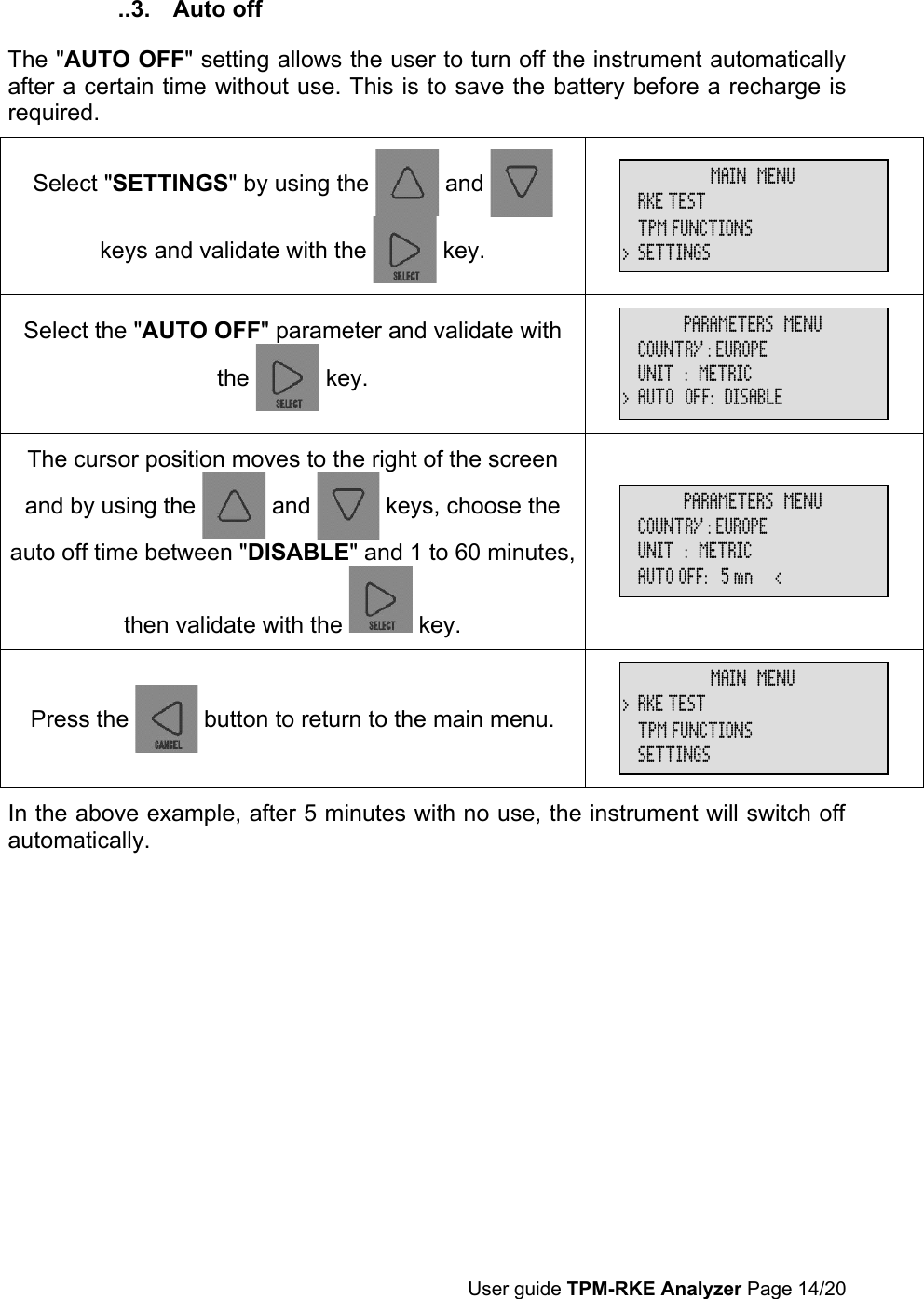

..3. Auto offThe "AUTO OFF" setting allows the user to turn off the instrument automatically after a certain time without use. This is to save the battery before a recharge is required. Select "SETTINGS" by using the and keys and validate with the key. MAIN MENU RKE TEST TPM FUNCTIONS > SETTINGS Select the "AUTO OFF" parameter and validate with the key. PARAMETERS MENU COUNTRY : EUROPE UNIT : METRIC > AUTO OFF: DISABLE The cursor position moves to the right of the screen and by using the and keys, choose the auto off time between "DISABLE" and 1 to 60 minutes, then validate with the key. PARAMETERS MENU COUNTRY : EUROPE UNIT : METRIC AUTO OFF: 5 mn < Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS In the above example, after 5 minutes with no use, the instrument will switch off automatically.User guide TPM-RKE Analyzer Page 14/20

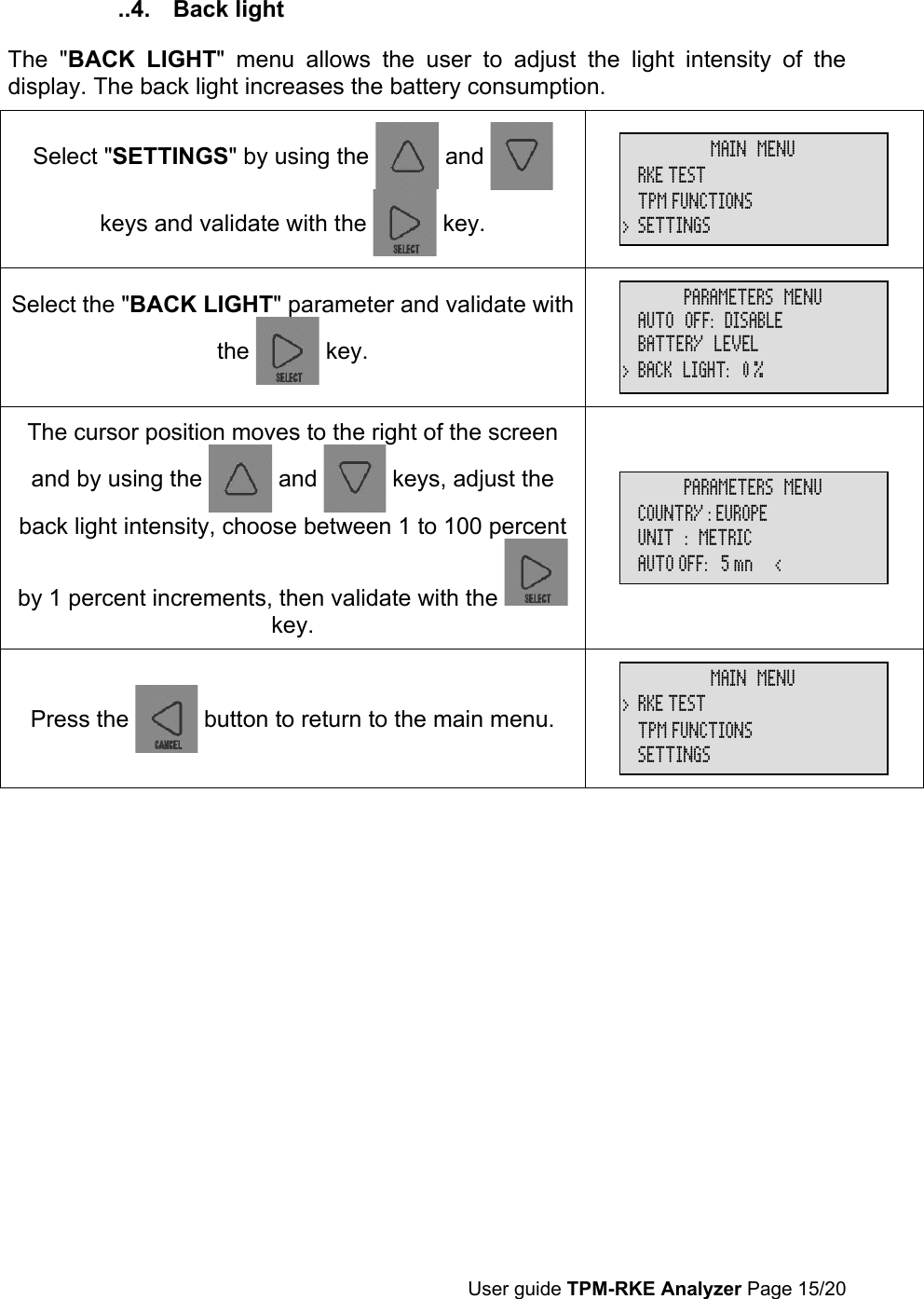

..4. Back lightThe "BACK LIGHT" menu allows the user to adjust the light intensity of the display. The back light increases the battery consumption. Select "SETTINGS" by using the and keys and validate with the key. MAIN MENU RKE TEST TPM FUNCTIONS > SETTINGS Select the "BACK LIGHT" parameter and validate with the key. PARAMETERS MENU AUTO OFF: DISABLE BATTERY LEVEL > BACK LIGHT: 0 % The cursor position moves to the right of the screen and by using the and keys, adjust the back light intensity, choose between 1 to 100 percent by 1 percent increments, then validate with the key. PARAMETERS MENU COUNTRY : EUROPE UNIT : METRIC AUTO OFF: 5 mn < Press the button to return to the main menu. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 15/20

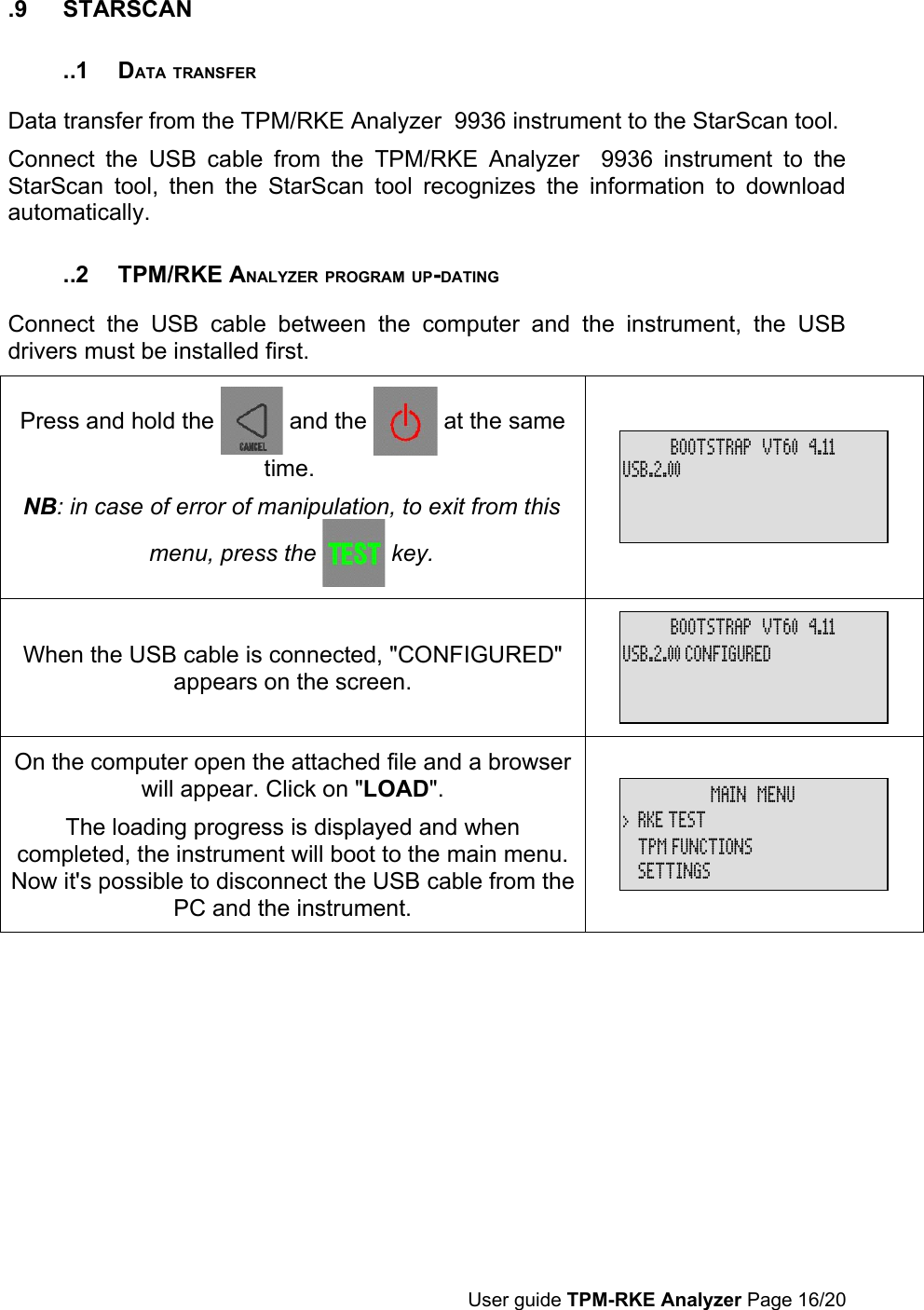

.9 STARSCAN..1 DATA TRANSFERData transfer from the TPM/RKE Analyzer 9936 instrument to the StarScan tool. Connect the USB cable from the TPM/RKE Analyzer 9936 instrument to the StarScan tool, then the StarScan tool recognizes the information to download automatically...2 TPM/RKE ANALYZER PROGRAM UP-DATINGConnect the USB cable between the computer and the instrument, the USB drivers must be installed first. Press and hold the and the at the same time. NB: in case of error of manipulation, to exit from this menu, press the key. BOOTSTRAP VT60 4.11 USB.2.00 When the USB cable is connected, "CONFIGURED" appears on the screen. BOOTSTRAP VT60 4.11 USB.2.00 CONFIGURED On the computer open the attached file and a browser will appear. Click on "LOAD".The loading progress is displayed and when completed, the instrument will boot to the main menu. Now it's possible to disconnect the USB cable from the PC and the instrument. MAIN MENU > RKE TEST TPM FUNCTIONS SETTINGS User guide TPM-RKE Analyzer Page 16/20

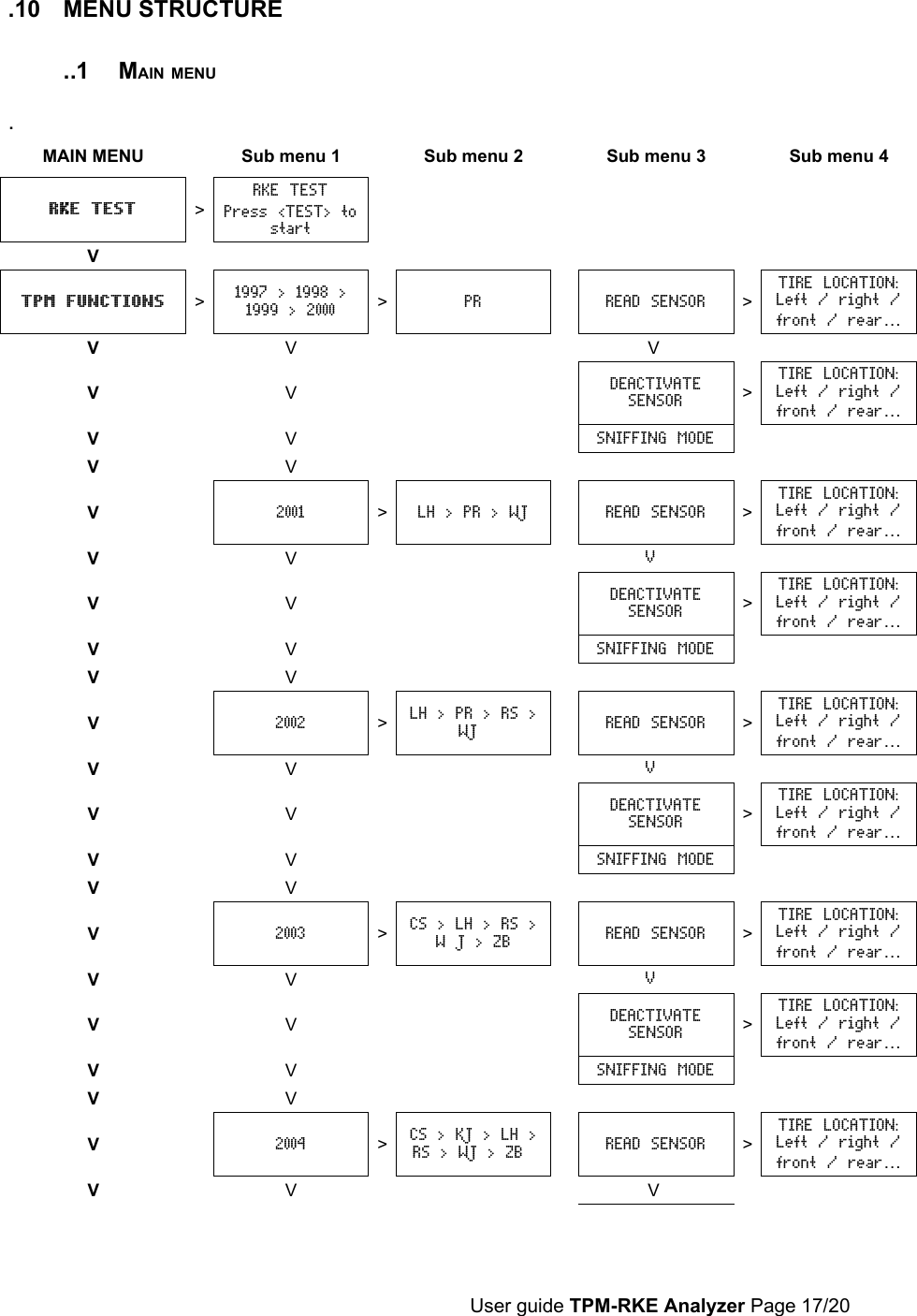

.10 MENU STRUCTURE..1 MAIN MENU.MAIN MENU Sub menu 1 Sub menu 2 Sub menu 3 Sub menu 4RKE TEST >RKE TESTPress <TEST> to startVTPM FUNCTIONS >1997 > 1998 > 1999 > 2000 >PR READ SENSOR >TIRE LOCATION: Left / right / front / rear…VV V VVDEACTIVATE SENSOR >TIRE LOCATION: Left / right / front / rear…VVSNIFFING MODEVVV2001 >LH > PR > WJ READ SENSOR >TIRE LOCATION: Left / right / front / rear…VVV VVDEACTIVATE SENSOR >TIRE LOCATION: Left / right / front / rear…VVSNIFFING MODEVVV2002 >LH > PR > RS > WJ READ SENSOR >TIRE LOCATION: Left / right / front / rear…VVV VVDEACTIVATE SENSOR >TIRE LOCATION: Left / right / front / rear…VVSNIFFING MODEVVV2003 >CS > LH > RS > W J > ZB READ SENSOR >TIRE LOCATION: Left / right / front / rear…VVV VVDEACTIVATE SENSOR >TIRE LOCATION: Left / right / front / rear…VVSNIFFING MODEVVV2004 >CS > KJ > LH > RS > WJ > ZB READ SENSOR >TIRE LOCATION: Left / right / front / rear…VV V User guide TPM-RKE Analyzer Page 17/20

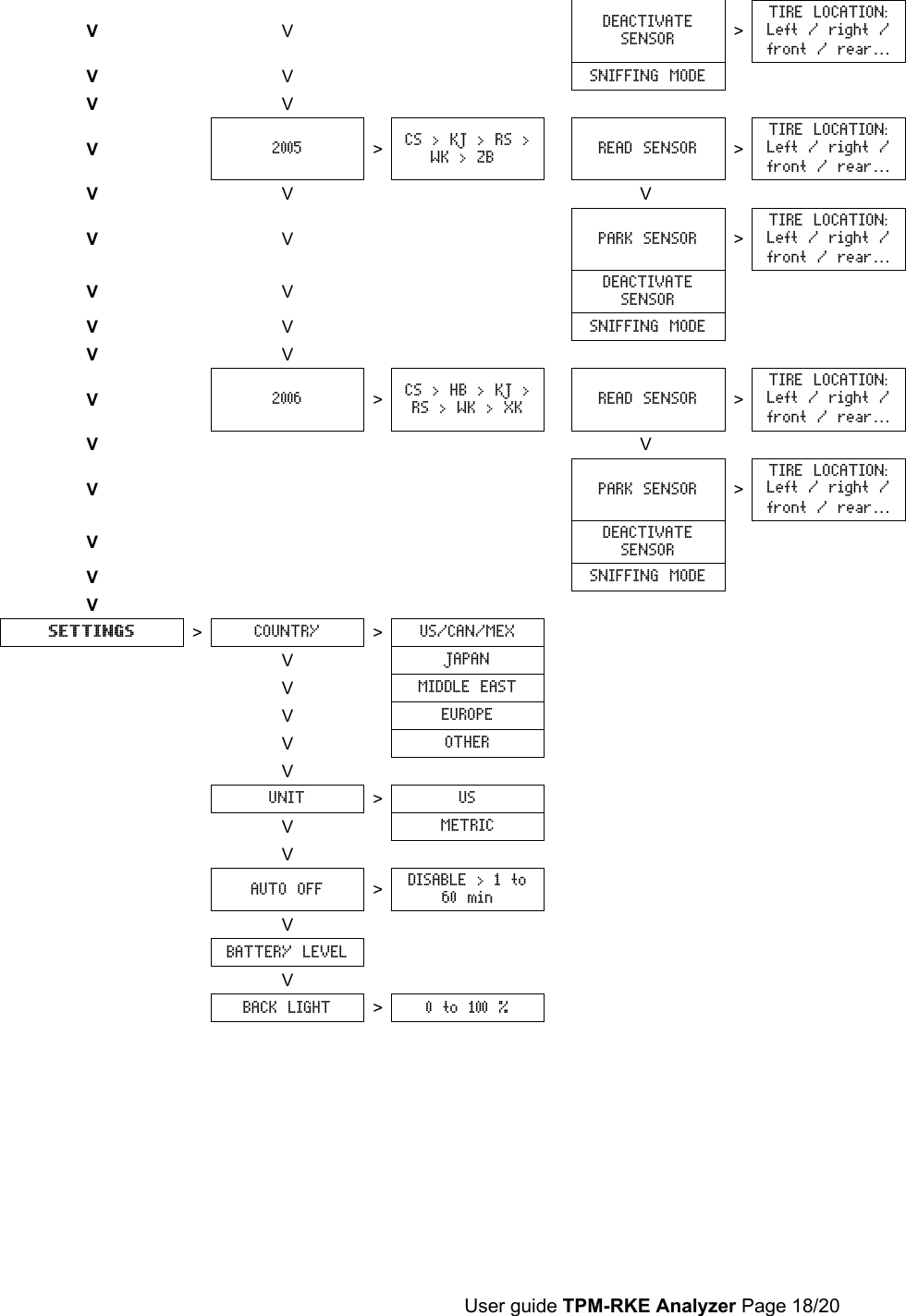

VVDEACTIVATE SENSOR >TIRE LOCATION: Left / right / front / rear…VVSNIFFING MODEVVV2005 >CS > KJ > RS > WK > ZB READ SENSOR >TIRE LOCATION: Left / right / front / rear…VV V VVPARK SENSOR >TIRE LOCATION: Left / right / front / rear…VVDEACTIVATE SENSORVVSNIFFING MODEVVV2006 >CS > HB > KJ > RS > WK > XK READ SENSOR >TIRE LOCATION: Left / right / front / rear…VV VPARK SENSOR >TIRE LOCATION: Left / right / front / rear…VDEACTIVATE SENSORVSNIFFING MODEVSETTINGS >COUNTRY >US/CAN/MEXVJAPANVMIDDLE EASTVEUROPEVOTHERVUNIT >USVMETRICVAUTO OFF >DISABLE > 1 to 60 minVBATTERY LEVELVBACK LIGHT >0 to 100 %User guide TPM-RKE Analyzer Page 18/20

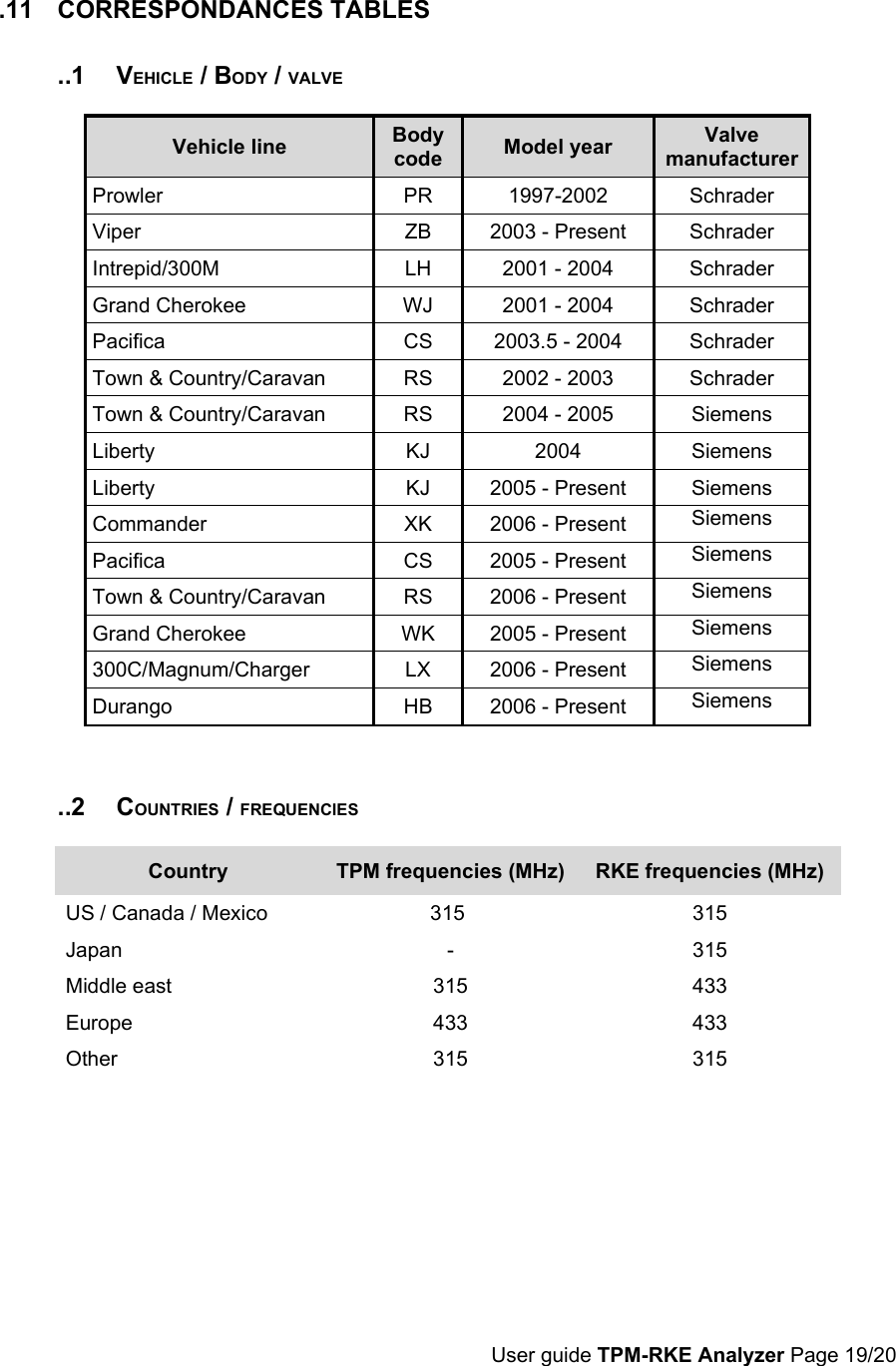

.11 CORRESPONDANCES TABLES..1 VEHICLE / BODY / VALVEVehicle line Bodycode Model year Valve manufacturerProwler PR 1997-2002 SchraderViper ZB 2003 - Present SchraderIntrepid/300M LH 2001 - 2004 SchraderGrand Cherokee WJ 2001 - 2004 SchraderPacifica CS 2003.5 - 2004 SchraderTown & Country/Caravan RS 2002 - 2003 SchraderTown & Country/Caravan RS 2004 - 2005 SiemensLiberty KJ 2004 SiemensLiberty KJ 2005 - Present SiemensCommander XK 2006 - Present SiemensPacifica CS 2005 - Present SiemensTown & Country/Caravan RS 2006 - Present SiemensGrand Cherokee WK 2005 - Present Siemens300C/Magnum/Charger LX 2006 - Present SiemensDurango HB 2006 - Present Siemens..2 COUNTRIES / FREQUENCIESCountry TPM frequencies (MHz) RKE frequencies (MHz)US / Canada / Mexico 315 315Japan - 315Middle east 315 433Europe 433 433Other 315 315 User guide TPM-RKE Analyzer Page 19/20

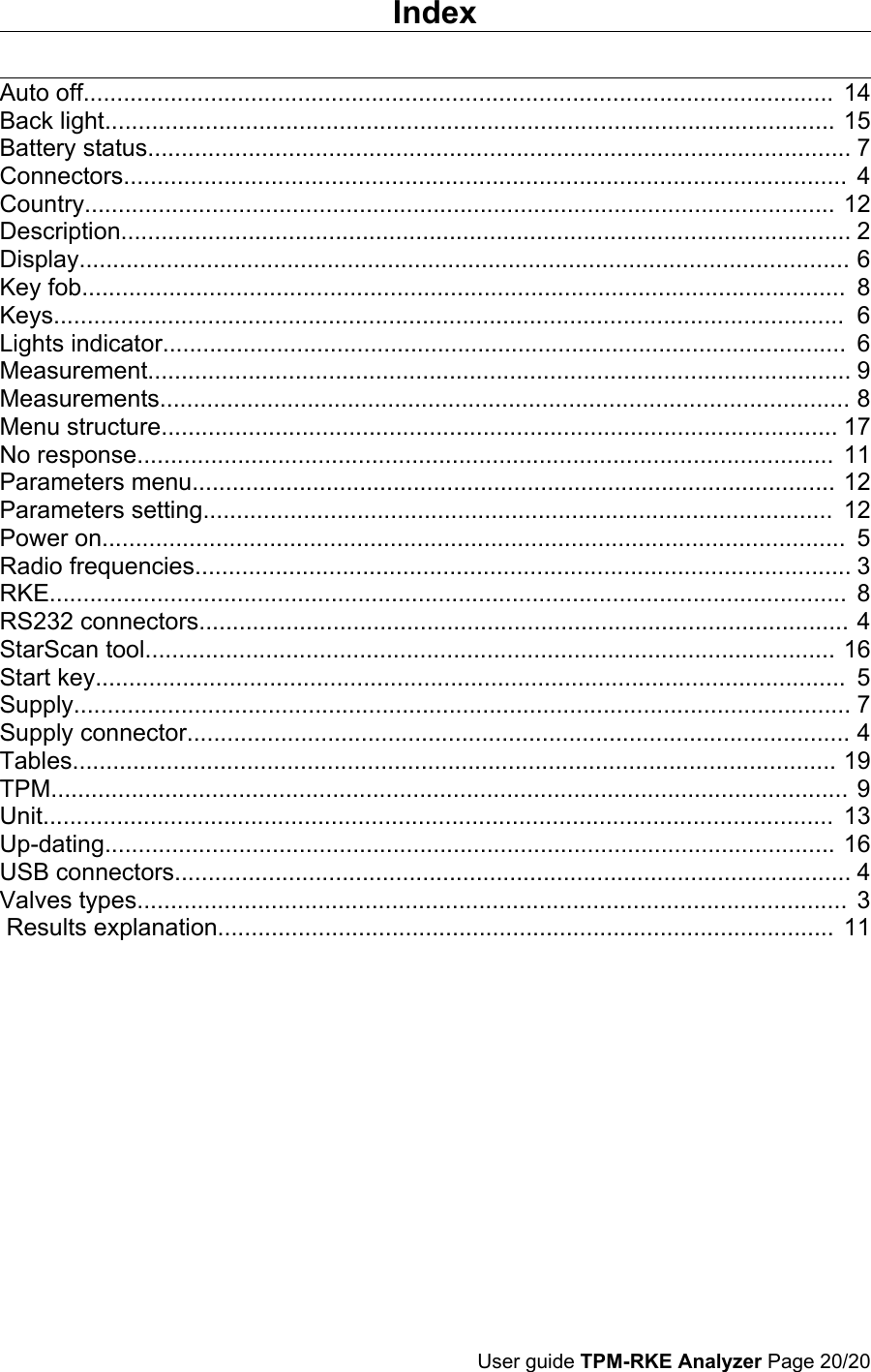

IndexAuto off................................................................................................................ 14Back light............................................................................................................. 15Battery status......................................................................................................... 7Connectors............................................................................................................ 4Country................................................................................................................ 12Description............................................................................................................. 2Display................................................................................................................... 6Key fob.................................................................................................................. 8Keys...................................................................................................................... 6Lights indicator...................................................................................................... 6Measurement......................................................................................................... 9Measurements....................................................................................................... 8Menu structure..................................................................................................... 17No response........................................................................................................ 11Parameters menu................................................................................................ 12Parameters setting.............................................................................................. 12Power on............................................................................................................... 5Radio frequencies.................................................................................................. 3RKE....................................................................................................................... 8RS232 connectors................................................................................................. 4StarScan tool....................................................................................................... 16Start key................................................................................................................ 5Supply.................................................................................................................... 7Supply connector................................................................................................... 4Tables.................................................................................................................. 19TPM....................................................................................................................... 9Unit...................................................................................................................... 13Up-dating............................................................................................................. 16USB connectors..................................................................................................... 4Valves types.......................................................................................................... 3 Results explanation............................................................................................ 11User guide TPM-RKE Analyzer Page 20/20
