ATI Electronics ATICK6 BLUETOOTH SPEAKERPHONE User Manual CK6

ATI Electronics (Shenzhen) Co. Ltd BLUETOOTH SPEAKERPHONE CK6

Users Manual

User's Manual

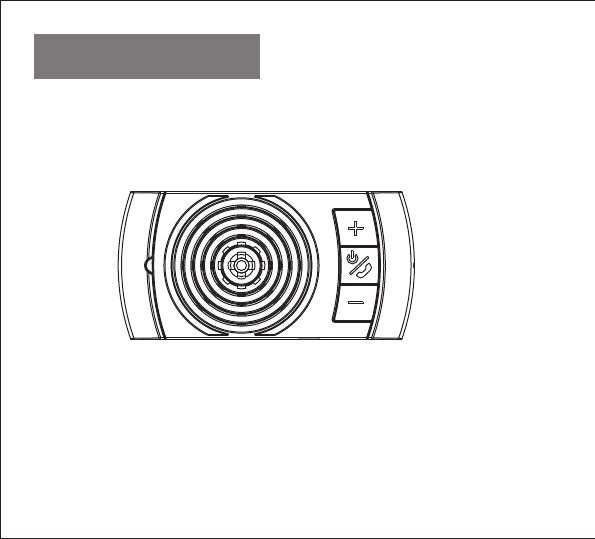

Bluetooth Speakerphone
K6
C
1About CK6 Bluetooth Speakerphone
2About Bluetooth Technology
1
This versatile Bluetooth speakerphone is portable and specially designed for the user
to enjoy convenience and freedom of wireless communication. Dual capacity of use on
desk-top like a conference Speakerphone and in-car like a Hands-Free car kit.
CK6 built advanced DSP technology for Echo Cancellation & Noise Suppression,
provides you excellent full duplex sound quality.
Bluetooth is a short-range wireless communication technology. The Bluetooth wireless
technology makes it possible to connect any compatible portable and stationary
communications device without using cables. The technology is based on a radio link
that offers fast and reliable transmission of voice and data information. Bluetooth
refers to a worldwide standard designed to operate in the internationally recognized
ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4GHz~
2.485GHz), Bluetooth transmissions hop between 79 separate frequencies 1.600 times
every second, and with a communication range of about 10 meters. Your handset must
support Bluetooth.
2
5
4
7
6
3
1
3
2
Getting Started
To use your Bluetooth speakerphone, please follow these simple steps:
a) Charge your speakerphone. Before using the speakerphone, it is recommended
to charge the battery fully for the first time. Normally charge the battery fully need
take approx 3 hours.
b) Put the speakerphone close to a Bluetooth-enabled mobile phone less than1 meter
distance for pairing operation.
c) Ensure your speakerphone and handset is within 10 meters Bluetooth connection
distance.

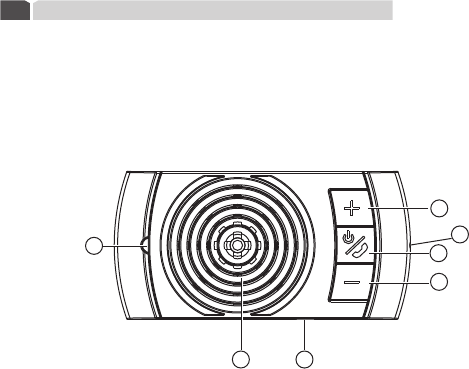

1. LED indicators
2. Speaker
3. Charging Socket (5-pin mini-USB)
4. Volume Decrease (V-)
5. MFB (Multi-Function Button)
6. Microphone
7. Volume Increase ( V+)
3

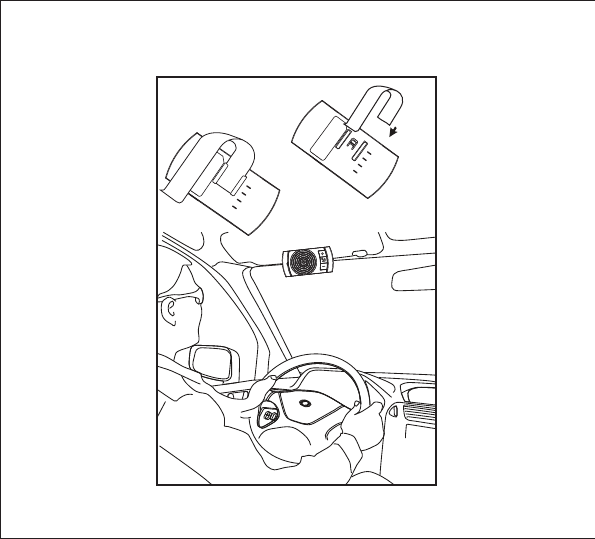

Installation - Sun Visor
This device has an replaceable, rechargeable battery, it is compatible with Nokia
BL-5B battery. But you are recommand to use the original accessary or approved battery
by supplier.
1. For first time use, please fully charge the speakerphone.
2. Plug the car charger into the car lighter socket and put the MINI USB plug into the
socket of the speakerphone.
3. While the charger is connected, the red indicator light is displayed during charging.
Charging the battery fully may take up to 3 hour.
4. When the battery is fully charged, the red indicator light turns off and the blue
indicator will solid light. Please disconnect the car charger from the speakerphone
and the car lighter socket.
The fully charged battery can keep the power up to 10 hours of talk-time. When the
speakerphone is powered on and battery power is low, it will notify you with voice
Battery lowvery 30 seconds. The indicator light will turn red.
4Charging the battery
5Battery information
Your device is powered by a chargeable battery. The full performance of a new battery
is an achieved only after two or three complete charge and discharge cycles. The battery
can be charged and discharged hundreds of times, but it will eventually wear out.
Unplug the charger from the electrical plug and the device when not in use. Do not
leave a fully charged battery connected to a charger, since overcharging may shorten
its lifetime. If left unused, a fully charged battery will lose its charge over time.
4
6Turning On/O ff the CK6
5
Turning On
When the CK6 is turned off, press and hold the MFB for 3 seconds until you hear
a short beep, the LED indicator will be solid blue for 3 seconds. The CK6 is now
turned on.
Turning Off
At any state after the CK6 is turned on, press and hold the MFB for 3 seconds
until you hear a long beep, the CK6 will be turned off, the LED indicator will be
solid red for 3 seconds at the same time.
Note: If the CK6 has been paired successfully, it will connect to the device that
you last connected automatically.
7Pairing
Before you use the CK6 the first time, you must pair the unit with a
Bluetooth-enabled mobile phone. This operation guide is based on a Bluetooth
enabled phone as the host device. Please refer to the following steps to pair CK6
speakerphone:
(a) Put the CK6 close to a Bluetooth-enabled mobile phone less than 1 metre
distance.
Important:
It is recommended that you fully charge the speakerphone before leaving it unused for
along time. To prevent overdischarge endangers the battery, you are recommended to
fully charge the speakerphone each 2 months.
6
(b) Ensure the CK6 is turned OFF .
(c) Press and hold the MFB for 6 seconds until you see the LED flashes Red and Blue
alternately and you will hear a long beep, it is now ready for pairing.
(E) Select "CK6" from the list.
(f ) Enter the PIN code "0000" and confirm to complete pairing. When pairing is
completed the CK6 will connecte to your phone automatically, you may hear
a long beep and LED indicator will flash blue 3 times. In standby state, the LED
indicator will flash blue 1 time every 3 seconds.
Note:
If you did not finish pairing operation within 2 minutes, the CK6 will turn off.
Please repeat the operation follows step (c) to (f ) to pair the CK6 and mobile
phone again.
The CK6 supports Bluetooth v2.1+EDR specification, the simplified pairing
process will make paring your devices easily, if your mobile phone supports
Bluetooth v2.1+EDR specification, you just need turn on both of them, and add new
Bluetooth device on your phone, the CK6 and your phone will find each other
and connect automatically.
The CK6 supports multi-point technology. If you need connect the CK6
to the 2nd Bluetooth phone, please repeat the pairing operation steps above. When
finishing the pairing, turn off the CK6 and turn on again, the CK6 will
connect to the both 2 phones automatically.
Make Connectio n/Link to Mobile phone:
9
8
7
After pairing is completed, if the CK6 is not connected to mobile phone, please
follow the simple steps to activate the Bluetooth connection/link:
1.If your CK6 has finished the pairing operation successfully, when the CK6
is turned on, it will connect to the phone(s) you last connected automatically, but
make sure your phone's Bluetooth function is active.
2.The CK6 supports multi-point and connects to 2 phones at the same time.
In some operations, you need to distinguish the connection sequence, so we appoint
the phone first connected as phone 1, the second one as phone 2.
Disconnect from Mobile phone:
You may want to connect your CK6 with another Bluetooth mobile. Please follow
the simple steps to disconnect the CK6 with the pre-paired handset.
lPower off the CK6.
lSelect "disconnect" to remove previous connection from the device list.
10
8
Using the CK6
After the pairing is completed and battery is fully charged, please follow the bellow
instruction to use the CK6.
(a) Answering a Call:
When you receive an incoming call, press MFB shortly to answer the call or answer the
call via your mobile phone by the normal way.
(b) Ending a Call:
Shortly press MFB to end your call or end the call via your mobile phone by the normal
way.
(c) Reject a Call:
When you receive an incoming call, press and hold the MFB for 3 seconds until you hear
a short beep, the incoming call will be rejected.
(d)Voice Dialing:
In the stand-by mode, press the MFB shortly, you will hear a beep and the phone will
prompt you say the voice tag that which you have already attached to your address list.
If the voice tag is identified by the phone, the related number will be dialed out.
Note:
Please make sure that your mobile phone supports voice dialing function, and the
voice tags have been set up on your mobile phone prior to attempting this function.
Refer to your mobile phone's user guide or contact your service provider.
If the CK6 has connected to 2 phones, double press the MFB will start
Voice-Dialing of phone 2.
9
(e)Last Number Re-Dialing:
In the stand-by mode, Press and hold Volume Down button for 2 seconds, you will hear
2 short tones, the last number you dialed will be re-dial out. If the CK6 has
connected to 2 phones, press and hold Volume Up button for 2 seconds will start last
number re-dialing of phone 2.
Note:
If the CK6 has connected to 2 phones, when one phone has activated a call, the
CK6 will disconnect to the other phone temporally, when you end the call the
CK6 will re-connect it automatically, please make sure your phone's Bluetooth
function would not be inactive during the calling.
(f)Adjusting the Volume:
During the call is in progress, press the volume up or volume down buttons to increase
or decrease volume. You can also adjust the volume on you mobile phone.
(g)Mute:
During the call is in progress, shortly press the "MODE" button to mute the MIC of
, you will heart a tone from low to high, and the remindful tone will sound
every 10s. Repeat the operation to cancel mute function.
(h)Transfer a call:
During the call is in progress, shortly press the"V+"& "V-"bttons, then the call will be
transferred to mobile phone.
Repeat the operation can transfer the call between the mobile phone and CK6.
CK6
11
10
Reset the paired device(s) lis t and the last/default user
You may want to reset the CK6 to its original settings and clear the previous
pairing. Please follow these simple steps.
(a)Ensure the CK6 is under standby mode.
(b)Press and hold the "V+"& "V-" buttons for 10 sec. until LED flashes blue & red at
the same time. Release the buttons, the paired list of CK6 has been clear.
(c)After reset the paired list, if the CK6 is powered on again, it will enter
pairing mode automatically, you can do a new pairing operation.
12
11
LED Indication
3 beeps every
one minute
Status Red LED Blue LED Sound
Power On Solid on for
3 seconds Middle low beep
Power Off Solid on for 3
seconds Long low beep
Standby after Pairing Flashes 1 time
every 3 seconds
Standby Low Voltage
Charging Completed Off Off
Charging in Progress Solid on
Mute Solid on
Pairing Completed Flashes on every
3 seconds
2 tones every
10 seconds
Long beep
Pairing in Progress Flashes Red and Blue alternately
In Talking Progress Flashes 1 time
every 15 seconds
Flashes 1 time
every 3 seconds
12
13 Safety and general informatio n
1.Please read this User's Manual carefully and follow all instructions.
2.To avoid any damage or malfunction of the device do not drop the device from
high places.
3.Keep device away form humidity, water and any other liquid. If the device is exposed
to water, moisture and other liquids do not operate it to avoid any electrical shock,
explosion and damage to the device or yourself.
4.Do not place or keep this device near any heat sources, such as, direct sun light,
radiators, stoves or other apparatus which produce heat. It may cause an explosion,
degrade the performance and/or reduce battery life.
5.Do not modify, repair or disassemble device (Especially the battery: It may cause an
explosion). Doing this will void the warranty.
6.Do not place heavy objects on the device.
7.Use only supplied and approved charger.
8.Replacement or service must be done by a qualified service center or manufacturer.
9.Unplug this device when unused for long periods of time or during lightening storms.
14
13
If you are unable to connect your CK6 and mobile phone, please try the following:
(a) Ensure the CK6 is paired with your mobile phone.
(b) Ensure your mobile phone's Bluetooth feature is activated. Please refer to your
mobile phone user guide for specific instruction.
(c) Ensure the CK6 is within a maximum of 10 meters of your mobile phone(s) and
there are no obstructions, such as wall or other electronic devices in between as it
may cause shorter or interference transmission.
(d) If all the above steps do not resolve your problem, please remove the battery for
a while.
(e) The Bluetooth CK6 is compliant with and adopts the Bluetooth Specification
V1.2. However, interoperability between the device and other Bluetooth-enable
products is not guaranteed because it depends on compatibility. For more
information on the compatibility between the devices with other Bluetooth-enabled
products, please check with the manufacturer/importer.
Trouble Shooting
15
14
Product Specifications
Bluetooth Specifications Version 2.1, Class 2, 10 Meters
Bluetooth Profile Supported Headset & Hands-Free Profiles
Operating Frequency Band 2.402 to 2.480GHz unlicensed ISM band
Dimension 120(L)x60( W)x16.5(H) mm
Weight 61g
Normal Charge Time 3 hrs.(approx.)
Talk Time Up to 6 hrs.
Standby Time Up to 300 hrs
Rechargeable Li-ion Battery 3.7V DC, 650mAH, (NKI #BL-5B compatible)
AC/DC Charger DC 5 to 6 V, 300 mA
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.

Navigation menu
