ATI Electronics BARXXX Bluetooth Audio Adapter User Manual 1 Notice Before Using
ATI Electronics (Shenzhen) Co. Ltd Bluetooth Audio Adapter 1 Notice Before Using
user manual
![](/img.php?id=1995065&img=bg1.png)

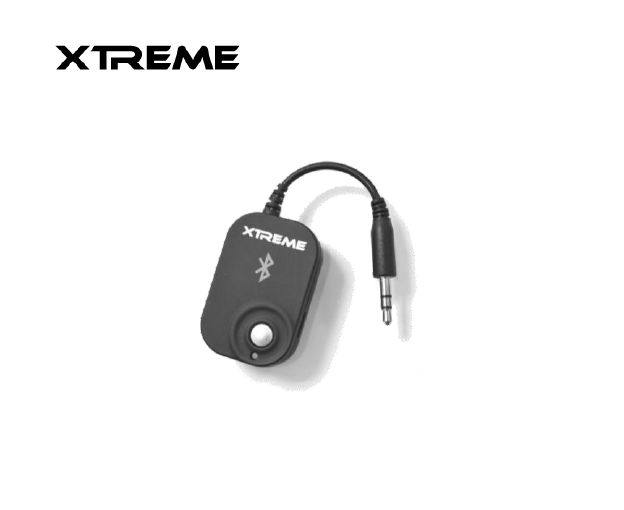

Bluetooth audio
adapter
Model Name:BAR100
FCC ID: SF4-BARXXX
![](/img.php?id=1995065&img=bg2.png)
User manual
Item# 51901
![](/img.php?id=1995065&img=bg3.png)
- -
1
1. Notice Before Using
Thank you for purchasing the Bluetooth® Audio Receiver.
Please read this User's Manual completely before you use
the device.
The Music Receiver is based on the advanced Bluetooth®
wireless technology and compliant with Bluetooth
V3.0+EDR specification, it is capable of connecting with a
Bluetooth® enable phone or other Bluetooth® device with
audio gateway. Media players, Desktops and Notebook
computers can be paired and connected with the Music
Receiver using a Bluetooth® Dongle or built-in Bluetooth
capability (if applicable).
![](/img.php?id=1995065&img=bg4.png)
- -
2
2. Package Contents List
Please inspect this package and refer to the package
contents list below to verify all items were included in this
package:
1) Bluetooth® Wireless Music Receiver Audio Receiver
2) USB Charging Cable
3) 3.5mm Extension Adapter
4) User's Manual

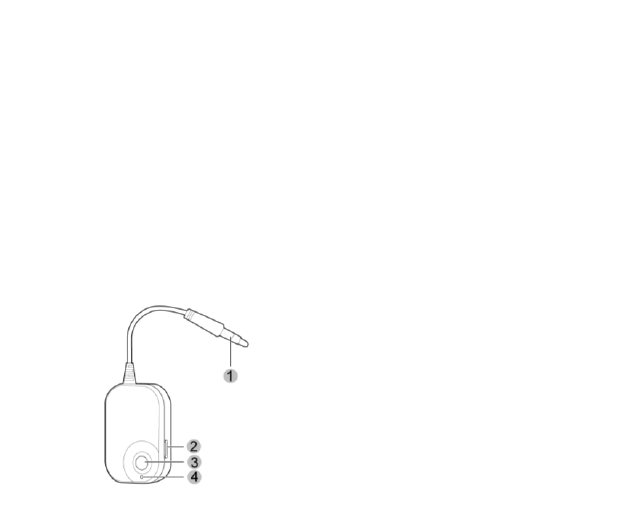

3. Bluetooth® Audio Receiver Overview
1) 3.5mm Male Connector
2) Charging Socket
3) MFB
4) Dual-color Indicator
![](/img.php?id=1995065&img=bg5.png)
- -
3
4. Battery information
The device is equipped with an integrated lithium-polymer
battery. The battery cannot be replaced. Do not attempt to
remove the battery from the device since it would damage
the device. The battery can be charged and discharged
several hundred times, but it loses its capacity over time.
Important: Ensure that the battery is fully charged if you do
not use the device for a long period of time. To avoid a
complete discharge of the battery, it should be charged at
least every 3 months.
5. Charging the battery
The Music Receiver is operated with a rechargeable battery.
Charge the battery completely before its first use.
1) Connect USB cable to a general USB power supplier.
2) The red indicator light will turn on while the charger is
connected. Charging the battery fully may take up to 2
![](/img.php?id=1995065&img=bg6.png)
- -
4
hour.
3) The red indicator light will turn blue when the battery
is fully charged. Disconnect the charger from the
device and the outlet.
NOTE:
- The fully charged battery has power for up to 10 hours of
play-time, and up to 300 hours of standby time. However,
the talk and standby times may vary when used with
different Bluetooth® devices, usage settings, usage styles,
and environments.
- When the battery power is low, the Wireless Music
Receiver will remind you by a "Beep" tone every 20 seconds,
and the red indicator light starts to flash.
6. Pairing to your Bluetooth® phone
Before you use Wireless Music Receiver the first time, you
must pair the unit Bluetooth® device. Please follow the
![](/img.php?id=1995065&img=bg7.png)
- -
5
instruction to pair with a Bluetooth® enabled mobile phone.
Pairing is a one-time process and required only for the first
connection with the cell phone.
1) Keep it within range of a Bluetooth®-ready cell phone;
the distance should not exceed 1 meter.
2) The device must be off.
3) Hold the MFB button for approx. 4 seconds, the
indicator light intermittently flashes red and blue. The
device is in pairing mode.
4) Find the Bluetooth® setting of your cell phone and
start the search for Bluetooth® devices. (For further
details, please read the operating instructions of your
cell phone).
5) From the list of devices found, select the "51901".
6) If required, enter the PIN code "0000" and confirm the
entry. If the pairing process was successful, the
indicator changes to flash blue.
![](/img.php?id=1995065&img=bg8.png)
- -
6
7) After pairing, the music receiver, automatically connect
with the cell phone. Once paired, the device will
change to standby mode and the indicator light will
flash blue 2 times every 5 seconds.
Note: If pairing is not completed within 2 minutes, the
Wireless Music Receiver will turn off. If this happens, repeat
the pairing process.
7. Turning Bluetooth® Wireless Music Receiver
on /off
Turning on
Press and hold MFB for 2 seconds, the Blue indicator light
will flash blue 3 times, it is now turned on.
Connecting to a Bluetooth® phone
If it has completed the pairing process successfully, it will
connect to the phone you last connected automatically
while it turns on. Please ensure your phone's Bluetooth®
function is active.
![](/img.php?id=1995065&img=bg9.png)
- -
7
Turning off
Press and hold MFB for 4 seconds, the Red indicator light
will flash red 3 times. It is now powered off.
Note:
To conserve power, if it is not connected to a device for
approximately 10 minutes, it will turn off automatically.
8. Using the wireless music receiver
After the Music Receiver is paired successfully, plug the
3.5mm male connector to the AUX jack of your car or home
stereo system, it is now ready to listen music.
9. Safety and general information
1) Please read this User's Manual carefully and follow all
instructions.
2) To avoid any damage or malfunction of the device do
not drop the device from high places.
![](/img.php?id=1995065&img=bga.png)
- -
8
3) Keep device away from humidity, water and any other
liquid. If the device is exposed to water, moisture and
other liquids do not operate it to avoid any electrical
shock, explosion and damage to the device or yourself.
4) Do not place or keep this device near any heat sources,
such as, direct sunlight, radiators, stoves or other
apparatus that produce heat. This may cause an
explosion, degrade the performance and/or reduce
battery life.
5) Do not modify, repair or disassemble device (Especially
the battery). Doing this will void the warranty.
6) Do not place heavy objects on the device.
7) Use only the supplied and approved chargers.
8) Please contact the retailer for replacement or support
with this product.
9) Unplug this device when unused for long periods of
time or during lightening storms.
![](/img.php?id=1995065&img=bgb.png)
- -
9
10) The battery used in this device may present a risk of
fire or chemical burn if mistreated.
www.Xtremecables.net
Important Regulatory Information
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
