BTSP044 User Manual HTML Version

Users Manual



BTSP044

BluetoothSpeaker

User’sManual



1. NoticeBeforeUsing

ThankyouforpurchasingtheBluetooth®speakerBTSP044.PleasereadthisUser's

Manualcompletelybeforeuse.

BTSP044designedforenjoythehighqualitymusicwirelesslywithacarriablesize

thatbasedonthelatestBluetooth®wirelesstechnology.BTSP044canbeeasily

connectedtoamobilephoneforcallconversationandmusiclistening,itisalso

capabletoconnecttotheotherBluetooth®‐enableddeviceslikeNotebook,iPod

etc.

BTSP044iscompliantwithBluetoothV2.1+EDRspecification,supportsHSP,HFP,

A2DPprofiles.BTSP044canuseforphonecallconversationasahands‐free

speaker.

Formoredetails,pleasereadtheuserguidefollowing.



2. Specification

Bluetoothspecification:V2.1+EDR

Operationfrequency:2.402‐2.48GHz

Supportedprofile:HSP,HFP,A2DP

Operationrange:Upto10meters

Playtime:2hours

Chargetime:~3Hours



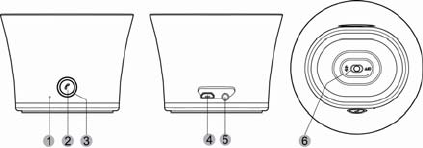

3. BTSP044Bluetoothspeakeroverview



① Microphone

② Answer

③ Indicator LED

④ ChargingPort

⑤ AUXINport

⑥ ON/OFFSwitch

4. Packagecontentslist:

1) BTSP044speaker

2) UserManual

3) USBChargingCable

4) Audiocable



5. Batteryinformation

Thedeviceisequippedwithanintegratedlithium‐polymerbattery.Thebattery

cannotbereplaced.Donotattempttoremovethebatteryfromthedevicesinceit

woulddamagethedevice.Thefullperformanceofanewbatteryisnotachieved

untilaftertwoorthreecompletecharging‐dischargingcycles.Thebatterycanbe

chargedanddischargedseveralhundredtimes,butitloosesitscapacityovertime.

DisconnecttheBTSP044fromthepowersupplyassoonasthebatteryisfully

charged,overchargingwouldreducetheservicelifeofthebattery.Acharged

batterywillloseitscapacityifitisnotusedonaregularbasis.

Important:

Ensurethatthebatteryisfullychargedifyoudonotusethedeviceforalong

periodoftime.Toavoidacompletedischargeofthebattery,theBTSP044should

bechargedatleastevery6months.



6. Chargingthebattery

TheBTSP044isoperatedwitharechargeablebattery.Chargethebattery

completelybeforeitsfirstuse.Readthesection"Batteryinformation"before

startingthechargingprocess.

1) ConnectUSBcabletoageneralUSBpowersupplier.

2) Connectthechargertotheproperoutlet.

3) Whenthechargerisconnectedtothespeaker,theredindicatorlightwill

turnon.Chargingthebatteryfullymaytakeupto3hours.



① MicroConnector

② USBAConnector

③ MicroUSBChargePort



4) Whenthebatteryisfullycharged,theredindicatorlightwillturnoff.

Disconnectthechargerfromthespeakerandtheoutlet.Thespeakeris

readytouse.

NOTE:

‐Giveyourspeakerafullchargebeforeusingforthefirsttime.

‐Whenthebatterypowerislow,andtheredindicatorlightstartstoflash.



7. PairtoyourBluetooth®phone

Beforeyouuseyourspeakerthefirsttime,youmustpairtheunitwitha

Bluetooth®enabledmobilephone.Pairingisaone‐timeprocessandrequiredonly

forthefirstconnectionwiththeMobilephone.TheBTSP044canbeconnected

withtwomobilephonessimultaneously.

1) KeeptheBTSP044within1meterrangeofaBluetooth®‐readyMobile

phone.

2) SlidethePowerSwitchtoOnpositon,theindicatorflashesredandblue

intermittently,thedeviceisnowinpairingmode.

3) FindtheBluetooth®settingofyourMobilephoneandstartthesearchfor

Bluetooth®devices.(Forfurtherdetails,pleasereadtheoperating

instructionsofyourMobilephone).

4) Fromthelistofdevicesfound,selectthe"BTSP044".

5) Ifrequired,enterthePINcode"0000"andconfirmtheentry.Oncethe

pairingprocesswassuccessful,thePBT511willconnecttoMobilephone

automaticallythenswitchtostandbymode,theindicatorwilllightblue

constantly.

Note:

Ifparingisnotcompletedwithin10minutes,thespeakerwillturnoff.If

thishappens,pleaserepeattheparingsteps.



8. TurningSpeakeron/off

Turnonyourspeaker

Beforeyoucanstartusingyourspeaker,youmustfirstchargetherechargeable

battery.

Oncecharged,slidetheON/OFFswitchtotheONpositiontopoweronyour

speaker.

Ifyourspeakerhavecompletedthepairingprocesssuccessfully,whenthespeaker

areturnedon,itwillconnecttothephoneyoulastconnectedtoautomatically.

Pleaseensureyourphone'sBluetooth®functionisactive.



Turnoffthespeaker

SlidetheswitchtoOFFpositiontopowerdownyourdevice.

Note:

1) Toconservepower,ifthespeakerisnotconnectedtoanymobilephone,it

willenterparingmode,andturnoffautomatically10minuteslater.You

shouldtogglethepowerswitchagaintoturnonthespeaker.

2) PleaseslidetheswitchtoOFFpositiontocutoffthepowercompletely

whenleavingthespeakerunused.

3) 

9. ListeningtoMusiconYourSpeaker

Play/Pause

PressAnswerbuttontogetmusicfromyouraudiosourcetoplayorpause.

Externalaudioinput

PBT511supportstheAUXinputforthewiredexternalaudiosourceconnection.

ThespeakershouldturnonthepowerwhenyouwanttouseAUXinput.When

plugintheaudiocablethespeakerwillpausetheplayingofyourmobilephone

whenstreamingthemusicfromBluetooth.

Note:

TheBTSP044supportsA2DPprofilethatallowsstereomusictostreamfroma

Bluetoothphone.Themusicwillpauseautomaticallywhileacallisdialed

incoming,andresumewhenthecallhasended.



10. Usingforphonecall

Lastnumberre‐dialing

PressandholdANSWERbuttonfor2seconds,thelastnumberyoudialedwillbe

re‐dialed.

Answeringacall

PressAnswerbuttontoanswertheincomingcall.

Endingacall

PresstheAnswerbuttontoendacall.

11. Safetyandgeneralinformation

1) PleasereadthisUser'sManualcarefullyandfollowallinstructions.

2) Toavoidanydamageormalfunctionofthedevicedonotdropthedevice

fromhighplaces.

3) Keepdeviceawayfromhumidity,waterandanyotherliquid.Ifthedevice

isexposedtowater,moistureandotherliquidsdonotoperateittoavoid

anyelectricalshock,explosionanddamagetothedeviceoryourself.

4) Donotplaceorkeepthisdevicenearanyheatsources,suchas,direct

sunlight,radiators,stovesorotherapparatusthatproduceheat.Thismay

causeanexplosion,degradetheperformanceand/orreducebatterylife.

5) Donotmodify,repairordisassembledevice(Especiallythebattery).Doing

thiswillvoidthewarranty.

6) Donotplaceheavyobjectsonthedevice.

7) Useonlythesuppliedandapprovedchargers.

8) Unplugthisdevicewhenunusedforlongperiodsoftimeorduring

lighteningstorms.

9) Thebatteryusedinthisdevicemaypresentariskoffireorchemicalburnif

mistreated.



12. FCC&ICStatement

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexample

RADIOorTVinterference,causedbyunauthorizedmodificationstothis

equipment.Suchmodificationscouldvoidtheuser'sauthoritytooperatethe

equipment.



13. ECDeclarationofConformity

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexample

RADIOorTVinterference,causedbyunauthorizedmodificationstothis

equipment.

Suchmodificationscouldvoidtheuser'sauthoritytooperatetheequipment.This

productisCEcertifiedaccordingtotheprovisionoftheR&TTEDirective(99/5/EC).

Thisdeclaresthatthisproductisincompliancewiththeessentialrequirements

andotherrelevantprovisionsofDirective1999/5/EC.Pleasenotethatthis

productusesradiofrequencybandsnotharmonizedwithinEU.

WithintheEUthisproductisintendedtobeusedinAustria,Belgium,Denmark,

Finland,France,Germany,Greece,Ireland,Italy,Luxembourg,TheNetherlands,

Portugal,Spain,Sweden,andUnitedKingdomandwithinEFTAinIceland,Norway

andSwitzerland.



14. Warranty

Theconditionofthiswarrantyandsupplier'sresponsibilitiesunderthiswarranty

areasfollows:

Warrantyisnon‐transferableandislimitedtotheoriginalpurchaseronly.

‐Youmustbeabletoprovethedateoforiginalpurchaseoftheunitwithadated

receipt.

‐Thewarrantyisnotapplicableiftheproducthasbeensubjecttophysicalabuse,

improperinstallation,modificationorrepairbyanunauthorizedthirdparty.

‐Supplier'sresponsibilityshallbelimitedtotherepairorreplacementofthe

productatitssolediscretion.

‐Specificallyexemptfromanywarrantyarelimited‐lifeconsumablecomponents

subjecttonormalwearandtearsuchasbatteries,decoratesandother

accessories.

‐Supplierisnotresponsible,forfailureresultingfromaccident,abuse,misuse,or

anyunauthorizedrepair,ormodification.

‐Modificationandrepairoftheunitshouldbedonebyanauthorizedand

qualifiedservicecenterorreturnedtothemanufacturer.

‐Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,

whichvaryunderlocallaws.


