ATI Electronics SH5B Bluetooth Headset User Manual 1 Notice Before Using

ATI Electronics (Shenzhen) Co. Ltd Bluetooth Headset 1 Notice Before Using

User Manual

- 1 -
SH5B
Bluetooth® Headset
User manual
- 2 -
1. Notice Before Using
Thank you for purchasing the Bluetooth® Headset SH5B. Please read this User's
Manual completely before you use the Headset.
SH5B designed for listening the high quality music wirelessly that based on the
latest Bluetooth® wireless technology. SH5B can be easily connected to a mobile
phone for call conversation and music listening, it is also capable to connect to the
other Bluetooth®-enabled devices like Notebook, iPod etc.
SH5B is compliant with Bluetooth V3.0 specification, supports HSP, HFP, A2DP and
AVRCP profiles. Please make sure your phone or other device supports these
profiles.
2. Specification
Bluetooth specification: V3.0
Operation frequency: 2.402-2.48GHz
Supported profile: HSP, HFP, A2DP,AVRCP
Operation range: Up to 10 meters
Talk time: 6 hours
Play time: 5 hours
Standby time: 240hours
Battery type: 120mAh, 3.7V, Polymer Li-ion Battery
Charge time:2 Hours
- 3 -
3. Package Contents List
Please inspect this package and refer to the package contents list below to verify all
items were included in this package:
1) SH5B Bluetooth® headset(1)
2) USB Charging Cable(1)
3) User's Manual(1)

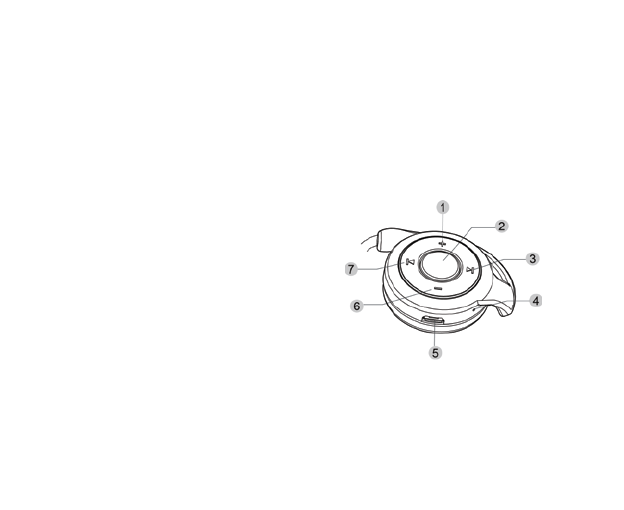

4. SH5B Bluetooth® Headset Overview
Volume +
Answer / Play/ Pause/ Indicator LED
Next Track
Microphone
Charging Port
Volume -
Previous Track
5. Battery information
The device is equipped with an integrated lithium-polymer battery. The battery
cannot be replaced. Do not attempt to remove the battery from the device since it
would damage the device. The full performance of a new battery is not achieved
- 4 -
until after two or three complete charging-discharging cycles. The battery can be
charged and discharged several hundred times, but it loses its capacity over time.
Disconnect the SH5B from the power supply as soon as the battery is fully charged,
overcharging would reduce the service life of the battery. A charged battery will lose
its capacity if it is not used on a regular basis.
Important:
Ensure that the battery is fully charged if you do not use the device for a long period
of time. To avoid a complete discharge of the battery, the SH5B should be charged
at least every 3 months.
6. Charging the battery
The SH5B is operated with a rechargeable battery. Charge the battery completely
before its first use. Read the section "Battery information" before starting the
charging process.
1) Connect USB cable to a general USB power supplier.
2) Connect the charger to the correct outlet.
3) When the charger is connected to the headset, the red indicator light will
turn on. Charging the battery fully may take up to 2 hours.
4) When the battery is fully charged, the red indicator light will turn blue.
Disconnect the charger from the headset and the outlet. The headset is
ready to use.
NOTE:
- For first time use, please charge the headset fully.
- 5 -
- The fully charged battery has power for up to 6 hours of talk-time and 5 hours
music playing time, and up to 240 hours of standby time. However, the talk and
standby times may vary when used with different mobile phones or other
compatible Bluetooth® devices, usage settings, usage styles, and environments.
When the battery power is low, the headset will remind you by voice prompt
"Battery low" every 20 seconds, and the red indicator light starts to flash.

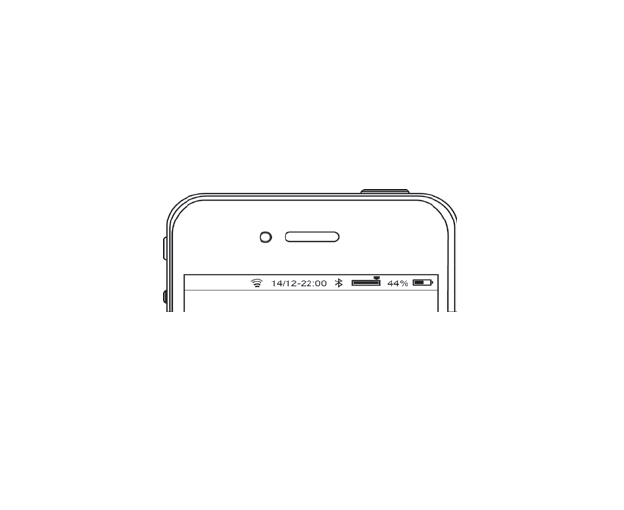

- For using the SH5B with iPhone, an additional battery meter feature will be
activated and the remaining battery capacity will display on your phone.
7. Pair to your Bluetooth® phone
Before you use your headset the first time, you must pair the unit with a Bluetooth®
enabled mobile phone. Pairing is a one-time process and required only for the first
connection with the Mobile phone. The SH5B can be connected with two mobile
phones simultaneously.
1) Keep the SH5B within 1 meter range of a Bluetooth®-ready Mobile phone.
- 6 -
2) Press and hold the Power button for about 5 s, the indicator light will flashes
red and blue intermittently, the device is now in pairing mode.
3) Find the Bluetooth® setting of your Mobile phone and start the search for
Bluetooth® devices. (For further details, please read the operating
instructions of your Mobile phone).
4) From the list of devices found, select the "SH5B".
5) If required, enter the PIN code "0000" and confirm the entry. Once the
pairing process was successful, the SH5B will connect to Mobile phone
automatically then switch to standby mode, the indicator will flash blue
every 5 seconds.
Note:
1) If pairing is not completed within 2 minutes, the headset will turn off. If this
happens, please repeat the pairing steps.
2) The SH5B supports Multi-connection that allows for the simultaneous use of
the SH5B with two mobile phones. After paring successfully with 2 mobile
phones, switch off the headset and switch on again, the headset will connect
to both 2 mobile phones automatically. Otherwise, you can connect the
headset on the cellphone manually.
8. Turning headset on /off
Turn on your headset
Press and hold Power button for 3s to turn on your headset. If your headset has
completed the pairing process successfully, when the headset is turned on, it will
- 7 -
connect to the phone you last connected automatically. Please ensure your phone's
Bluetooth® function is active.
Turn off the headset
Press and hold Power button for 5s to turn off the headset.
Note:
To conserve power, if the headset is not connected to a device for approximately 10
minutes, the headset will turn off automatically.
9. Using for music play
Play/Pause
Press Play/Pause button to get the music play or pause.
Track the song
Press Next Track/ Previous Track button to track the song to next or previous.
Increase/Decrease volume
Press Volume +/- button to increase or decrease volume.
Note:
The SH5B supports A2DP profile that allows stereo music streaming from a
Bluetooth phone. The music will pause automatically while a call is dialed
out/incoming, and resume when the call conversation has ended.
10. Using for phone call
Last number re-dialing
- 8 -
At standby status, double press the ANSWER, the last number you dialed will be
re-dialed.
Note: the last number re-dialing is available only for the first device if two Mobile
phones are connected. The connection sequence can be determined by reconnect
manually.
Answering a call
Press ANSWER shortly to answer the incoming call.
Reject an incoming call
Press and hold ANSWER for 2 seconds to reject the incoming call.
Transferring a call
Press and hold Volume + for 2 seconds to transfer the call between the phone and
headset.
Ending a call
Press the ANSWER shortly to end a call.
Call-waiting
- If there is an incoming call while a call is in progress, press ANSWER shortly to
accept the waiting call and end current calling.
- If there is an incoming call while a call is in progress, press and hold ANSWER for 2
seconds to accept the incoming call and place the current call on hold.
Note:The same operation could be performed in case of Multi-connection.
Volume adjusting
Press Volume +/- button to increase or decrease volume.
- 9 -
Mute
While a call is in progress, Press Volume - button for 2s to mute the headset, a
remindful tone would be heard every 10 seconds. Repeat the operation to un-mute.
11. Safety and general information
1) Please read this User's Manual carefully and follow all instructions.
2) To avoid any damage or malfunction of the device do not drop the device
from high places.
3) Keep device away from humidity, water and any other liquid. If the device is
exposed to water, moisture and other liquids do not operate it to avoid any
electrical shock, explosion and damage to the device or yourself.
4) Do not place or keep this device near any heat sources, such as, direct
sunlight, radiators, stoves or other apparatus that produce heat. This may
cause an explosion, degrade the performance and/or reduce battery life.
5) Do not modify, repair or disassemble device (Especially the battery). Doing
this will void the warranty.
6) Do not place heavy objects on the device.
7) Use only the supplied and approved chargers.
8) Unplug this device when unused for long periods of time or during lightening
storms.
9) The battery used in this device may present a risk of fire or chemical burn if
mistreated.
10)
- 10 -
12. FCC Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for ANY interference, for example RADIO
or TV interference, caused by unauthorized modifications to this equipment. Such
modifications could void the user's authority to operate the equipment.
- 11 -
13. EC Declaration of Conformity
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: The manufacturer is not responsible for ANY interference, for example RADIO
or TV interference, caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the equipment. This
product is CE certified according to the provision of the R&TTE Directive (99/5/EC).
This declares that this product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. Please note that this product uses
radio frequency bands not harmonized within EU.
Within the EU this product is intended to be used in Austria, Belgium, Denmark,
Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands,
Portugal, Spain, Sweden, and United Kingdom and within EFTA in Iceland, Norway
and Switzerland.
14. Warranty
The condition of this warranty and supplier's responsibilities under this warranty are
- 12 -
as follows:
Warranty is non-transferable and is limited to the original purchaser only.
- You must be able to prove the date of original purchase of the unit with a dated
receipt.
- The warranty is not applicable if the product has been subject to physical abuse,
improper installation, modification or repair by an unauthorized third party.
- Supplier's responsibility shall be limited to the repair or replacement of the
product at its sole discretion.
- Specifically exempt from any warranty are limited-life consumable components
subject to normal wear and tear such as batteries, decorates and other accessories.
- Supplier is not responsible, for failure resulting from accident, abuse, misuse, or
any unauthorized repair, or modification.
- Modification and repair of the unit should be done by an authorized and qualified
service center or returned to the manufacturer.
- This warranty gives you specific legal rights, and you may also have other rights,
which vary under local laws.
