User Manual

- 1 -

SH802

Bluetooth® Headset

User manual

- 2 -

1. NoticeBeforeUsing

ThankyouforpurchasingtheBluetooth®HeadsetSH802.PleasereadthisUser's

ManualcompletelybeforeyouusetheHeadset.

SH802designedforlisteningthehighqualitymusicwirelesslythatbasedonthe

latestBluetooth®wirelesstechnology.SH802canbeeasilyconnectedtoamobile

phoneforcallconversationandmusiclistening,itisalsocapabletoconnecttothe

otherBluetooth®‐enableddeviceslikeNotebook,iPodetc.

SH802iscompliantwithBluetoothV3.0specification,supportsHSP,HFP,A2DPand

AVRCPprofiles.Pleasemakesureyourphoneorotherdevicesupportsthese

profiles.

2. Specification

Bluetoothspecification:V3.0

Operationfrequency:2.402‐2.48GHz

Supportedprofile:HSP,HFP,A2DP,AVRCP

Operationrange:Upto10meters

Talktime:5hours

Playtime:4.5hours

Standbytime:300hours

Chargetime:1Hours



3. PackageContentsList

Pleaseinspectthispackageandrefertothepackagecontentslistbelowtoverifyall

- 3 -

itemswereincludedinthispackage:

1) SH802Bluetooth®headset(1)

2) USBChargingCable(1)

3) User'sManual(1)

4) EarCap(2x3Sizes)

5) Earfitkits(2)

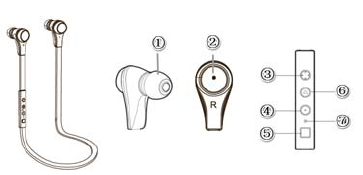

4. SH802Bluetooth®HeadsetOverview



① Ear Cap

② Indicator

③ Volume Up/Previous

④ Volume Down/Next

⑤ Answer

⑥ Power/Play

- 4 -

⑦ Microphone

5. Batteryinformation

Thedeviceisequippedwithanintegratedlithium‐polymerbattery.Thebattery

cannotbereplaced.Donotattempttoremovethebatteryfromthedevicesinceit

woulddamagethedevice.Thefullperformanceofanewbatteryisnotachieved

untilaftertwoorthreecompletecharging‐dischargingcycles.Thebatterycanbe

chargedanddischargedseveralhundredtimes,butitloosesitscapacityovertime.

DisconnecttheSH802fromthepowersupplyassoonasthebatteryisfullycharged,

overchargingwouldreducetheservicelifeofthebattery.Achargedbatterywilllose

itscapacityifitisnotusedonaregularbasis.

Important:Ensurethatthebatteryisfullychargedifyoudonotusethedevicefora

longperiodoftime.Toavoidacompletedischargeofthebattery,theSH802should

bechargedatleastevery3months.

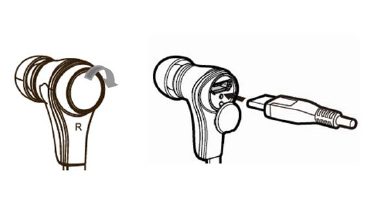

6. Chargingthebattery

TheSH802isoperatedwitharechargeablebattery.Chargethebatterycompletely

beforeitsfirstuse.Readthesection"Batteryinformation"beforestartingthe

chargingprocess.

1) ConnectUSBcabletoageneralUSBpowersupplier.

2) Connectthechargertothecorrectoutlet.

3) Whenthechargerisconnectedtotheheadset,theredindicatorlightwill

turnon.Chargingthebatteryfullymaytakeupto1hours.

- 5 -

4) Whenthebatteryisfullycharged,theredindicatorlightwillturnblue.

Disconnectthechargerfromtheheadsetandtheoutlet.Theheadsetis

readytouse.

NOTE:

‐Forfirsttimeuse,pleasechargetheheadsetfully.

‐Thefullychargedbatteryhaspowerforupto5hoursoftalk‐timeand4.5hours

musicplayingtime,andupto300hoursofstandbytime.However,thetalkand

standbytimesmayvarywhenusedwithdifferentmobilephonesorother

compatibleBluetooth®devices,usagesettings,usagestyles,andenvironments.

- 6 -

Whenthebatterypowerislow,theheadsetwillremindyoubyvoiceprompt

"Batterylow"every20seconds,andtheredindicatorlightstartstoflash.

‐ForusingtheSH802withiPhone,anadditionalbatterymeter( )willbe

activatedandtheremainingbatterycapacitywilldisplayonyourphone.



7. PairtoyourBluetooth®phone

Beforeyouuseyourheadsetthefirsttime,youmustpairtheunitwithaBluetooth®

enabledmobilephone.Pairingisaone‐timeprocessandrequiredonlyforthefirst

connectionwiththeMobilephone.TheSH802canbeconnectedwithtwomobile

phonessimultaneously.

1) KeeptheSH802within1meterrangeofaBluetooth®‐readyMobilephone.

2) PressandholdthePower/Playbuttonforabout5s,theindicatorlightwill

flashesredandblueintermittently,thedeviceisnowinpairingmode.

- 7 -

3) FindtheBluetooth®settingofyourMobilephoneandstartthesearchfor

Bluetooth®devices.(Forfurtherdetails,pleasereadtheoperating

instructionsofyourMobilephone).

4) Fromthelistofdevicesfound,selectthe"SH802".

5) Ifrequired,enterthePINcode"0000"andconfirmtheentry.Oncethe

pairingprocesswassuccessful,theSH802willconnecttoMobilephone

automaticallythenswitchtostandbymode,theindicatorwillflashblue

every5seconds.

Note:

1) Ifpairingisnotcompletedwithin2minutes,theheadsetwillturnoff.Ifthis

happens,pleaserepeatthepairingsteps.

2) TheSH802supportsMulti‐connectionthatallowsforthesimultaneoususe

oftheSH802withtwomobilephones.Afterparingsuccessfullywith2

mobilephones,switchofftheheadsetandswitchonagain,theheadsetwill

connecttoboth2mobilephonesautomatically.Otherwise,youcanconnect

theheadsetonthecellphonemanually.

8. Turningheadseton/off

Turnonyourheadset

LongpressthePower/Playfor3stoturnonyourheadset.Ifyourheadsethas

completedthepairingprocesssuccessfully,whentheheadsetisturnedon,itwill

connecttothephoneyoulastconnectedautomatically.Pleaseensureyourphone's

Bluetooth®functionisactive.

- 8 -

Turnofftheheadset

Longpressthepowerbuttonfor3stoturnofftheheadset.theRedindicatorwill

flashred.

Note:

Toconservepower,iftheheadsetisnotconnectedtoadeviceforapproximately10

minutes,theheadsetwillturnoffautomatically.

9. SelectingtheVoicepromptlanguage

TheSH802supportsvoicepromptfortheheadset’sstatusannouncementin5

differentlanguages(English,Chinese,Spanish,French,German).Atthestandbystate

withconnection,longpressAnswerbuttontoshiftthelanguagesonebyone,short

pressthePower/Playtoselectthelanguages.

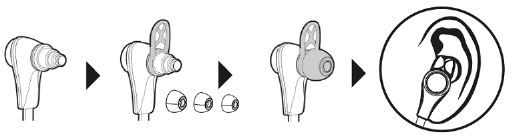

10. Wearingtheheadset

Forthebestsoundperformanceandasecure,comfortablefit,besuretheearbuds

torestgentlyinyourearanddrapearoundthebackofourneck.Usetheprovided

fitkittofindtheeartipthatworksbestforyou.

- 9 -

11. Usingformusicplay

Play/Pause

PressPower/Playbuttontogetthemusicplayorpause.

Next/Previoussong

PressandholdNextbuttontoskiptonextsongorchapter,pressandholdPrevious

buttontogobackprevioussongorchapter.

Increase/Decreasevolume

PressVolumeUpbuttontoincreasevolume,pressVolumeDownbuttonto

decreasevolume.

Note:

TheSH802supportsA2DPprofilethatallowsstereomusicstreamingfroma

Bluetoothphone.Themusicwillpauseautomaticallywhileacallisdialed

out/incoming,andresumewhenthecallconversationhasended.

12. Usingforphonecall

- 10 -

Lastnumberre‐dialing

Atstandbystatus,doublepresstheAnswer,thelastnumberyoudialedwillbe

re‐dialed.

Note:thelastnumberre‐dialingisavailableonlyforthefirstdeviceiftwoMobile

phonesareconnected.Theconnectionsequencecanbedeterminedbyreconnect

manually.

Answeringacall

PressAnswershortlytoanswertheincomingcall.

Rejectanincomingcall

PressandholdAnswerfor2secondstorejecttheincomingcall.

Transferringacall

PressandholdVolumeUpfor2secondstotransferthecallbetweenthephoneand

headset.

Endingacall

PresstheAnswershortlytoendacall.

Call‐waiting

‐Ifthereisanincomingcallwhileacallisinprogress,pressAnswershortlyto

acceptthewaitingcallandendcurrentcalling.

‐Ifthereisanincomingcallwhileacallisinprogress,pressandholdAnswerfor3

secondstoaccepttheincomingcallandplacethecurrentcallonhold.

Note:

ThesameoperationcouldbeperformedincaseofMulti‐connection.

- 11 -

Volumeadjusting

PresstheVolumeUpandVolumeDownbuttontoadjustthevolume.

Mute

Whileacallisinprogress,pressandholdVolumeDownbuttonfor2stomutethe

headset,aremindfultonewouldbeheardevery10seconds.Repeattheoperation

toun‐mute.

13. Safetyandgeneralinformation

1) PleasereadthisUser'sManualcarefullyandfollowallinstructions.

2) Toavoidanydamageormalfunctionofthedevicedonotdropthedevice

fromhighplaces.

3) Keepdeviceawayfromhumidity,waterandanyotherliquid.Ifthedeviceis

exposedtowater,moistureandotherliquidsdonotoperateittoavoidany

electricalshock,explosionanddamagetothedeviceoryourself.

4) Donotplaceorkeepthisdevicenearanyheatsources,suchas,direct

sunlight,radiators,stovesorotherapparatusthatproduceheat.Thismay

causeanexplosion,degradetheperformanceand/orreducebatterylife.

5) Donotmodify,repairordisassembledevice(Especiallythebattery).Doing

thiswillvoidthewarranty.

6) Donotplaceheavyobjectsonthedevice.

7) Useonlythesuppliedandapprovedchargers.

8) Unplugthisdevicewhenunusedforlongperiodsoftimeorduringlightening

storms.

9) Thebatteryusedinthisdevicemaypresentariskoffireorchemicalburnif

- 12 -

mistreated.

14. FCC&ICStatement

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:1.ThemanufacturerisnotresponsibleforANYinterference,forexample

RADIOorTVinterference,causedbyunauthorizedmodificationstothisequipment.

Suchmodificationscouldvoidtheuser'sauthoritytooperatetheequipment.

2.Anychangesormodificationstothisunitnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe

equipment.

15. ECDeclarationofConformity

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexampleRADIO

orTVinterference,causedbyunauthorizedmodificationstothisequipment.

Suchmodificationscouldvoidtheuser'sauthoritytooperatetheequipment.This

productisCEcertifiedaccordingtotheprovisionoftheR&TTEDirective(99/5/EC).

Thisdeclaresthatthisproductisincompliancewiththeessentialrequirementsand

otherrelevantprovisionsofDirective1999/5/EC.Pleasenotethatthisproductuses

- 13 -

radiofrequencybandsnotharmonizedwithinEU.

WithintheEUthisproductisintendedtobeusedinAustria,Belgium,Denmark,

Finland,France,Germany,Greece,Ireland,Italy,Luxembourg,TheNetherlands,

Portugal,Spain,Sweden,andUnitedKingdomandwithinEFTAinIceland,Norway

andSwitzerland.

16. Warranty

Theconditionofthiswarrantyandsupplier'sresponsibilitiesunderthiswarrantyare

asfollows:

Warrantyisnon‐transferableandislimitedtotheoriginalpurchaseronly.

‐Youmustbeabletoprovethedateoforiginalpurchaseoftheunitwithadated

receipt.

‐Thewarrantyisnotapplicableiftheproducthasbeensubjecttophysicalabuse,

improperinstallation,modificationorrepairbyanunauthorizedthirdparty.

‐Supplier'sresponsibilityshallbelimitedtotherepairorreplacementofthe

productatitssolediscretion.

‐Specificallyexemptfromanywarrantyarelimited‐lifeconsumablecomponents

subjecttonormalwearandtearsuchasbatteries,decoratesandotheraccessories.

‐Supplierisnotresponsible,forfailureresultingfromaccident,abuse,misuse,or

anyunauthorizedrepair,ormodification.

‐Modificationandrepairoftheunitshouldbedonebyanauthorizedandqualified

servicecenterorreturnedtothemanufacturer.

‐Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,

whichvaryunderlocallaws.

ATI Electronics SH802 BLUETOOTH HEADSET User Manual SH802

ATI Electronics (Shenzhen) Co. Ltd BLUETOOTH HEADSET SH802

User Manual

Navigation menu

Namespaces

Views

Navigation
