USERS MANUAL

- 1 -

SH900

Bluetooth® Headset

User manual

- 2 -

1. NoticeBeforeUsing

ThankyouforpurchasingtheBluetooth®HeadsetSH900.PleasereadthisUser's

ManualcompletelybeforeyouusetheHeadset.

SH900designedforlisteningthehighqualitymusicwirelesslythatbasedonthe

Bluetooth®wirelesstechnology.SH900canbeeasilyconnectedtoamobilephone

forcallconversationandmusiclistening,itisalsocapabletoconnecttotheother

Bluetooth®‐enableddeviceslikeNotebook,iPodorTabletdevice,etc.

SH900iscompliantwithBluetoothV3.0specification,supportsHSP,HFP,A2DPand

AVRCPprofiles.Pleasemakesureyourphoneorotherdevicesupportsthese

profiles.

2. Specification

Bluetoothspecification:V3.0

Operationfrequency:2.402‐2.48GHz

Supportedprofile:HSP,HFP,A2DP,AVRCP

Operationrange:Upto10meters

Talktime:8hours

Playtime:7hours

Standbytime:370hours

Batterytype:150mAh,3.7V,PolymerLi‐ionBattery

Chargetime:<2Hours



- 3 -

3. PackageContentsList

Pleaseinspectthispackageandrefertothepackagecontentslistbelowtoverifyall

itemswereincludedinthispackage:

1) SH900Bluetooth®headset(1)

2) USBChargingCable(1)

3) User'sManual(1)

4. SH900Bluetooth®HeadsetOverview





① ChargePort

② Microphone

③ Power/Play

④ Volume(‐)/Previous

⑤ Volume(+)/Next

⑥ Indicator

⑦ Earcap



- 4 -

5. Batteryinformation

Thedeviceisequippedwithanintegratedlithium‐polymerbattery.Thebattery

cannotbereplaced.Donotattempttoremovethebatteryfromthedevicesinceit

woulddamagethedevice.Thefullperformanceofanewbatteryisnotachieved

untilaftertwoorthreecompletecharging‐dischargingcycles.Thebatterycanbe

chargedanddischargedseveralhundredtimes,butitloosesitscapacityovertime.

DisconnecttheSH900fromthepowersupplyassoonasthebatteryisfullycharged,

overchargingwouldreducetheservicelifeofthebattery.Achargedbatterywilllose

itscapacityifitisnotusedonaregularbasis.

Important:Ensurethatthebatteryisfullychargedifyoudonotusethedevicefora

longperiodoftime.Toavoidacompletedischargeofthebattery,theSH900should

bechargedatleastevery3months.

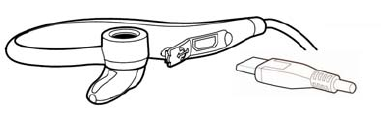

6. Chargingthebattery

TheSH900isoperatedwitharechargeablebattery.Chargethebatterycompletely

beforeitsfirstuse.Readthesection"Batteryinformation"beforestartingthe

chargingprocess.

1) ConnectUSBcabletoageneralUSBpowersupplier.

2) Connectthechargertothecorrectoutlet.

3) Whenthechargerisconnectedtotheheadset,theredindicatorlightwill

turnon.Chargingthebatteryfullymaytakeupto2hours.

- 5 -

4) Whenthebatteryisfullycharged,theredindicatorlightwillturnblue.

Disconnectthechargerfromtheheadsetandtheoutlet.Theheadsetis

readytouse.

NOTE:

‐Forfirsttimeuse,pleasechargetheheadsetfully.

‐Thefullychargedbatteryhaspowerforupto8hoursoftalk‐timeand7hours

musicplayingtime,andupto370hoursofstandbytime.However,thetalkand

standbytimesmayvarywhenusedwithdifferentmobilephonesorother

compatibleBluetooth®devices,usagesettings,usagestyles,andenvironments.

Whenthebatterypowerislow,theheadsetwillremindyoubyprompttoneevery

20seconds,andtheredindicatorlightstartstoflash.

‐ForusingtheSH900withiPhone,anadditionalbatterymeterfeaturewillbe

activatedandtheremainingbatterycapacitywilldisplayonyourphone.

- 6 -



7. PairtoyourBluetooth®phone

Beforeyouuseyourheadsetthefirsttime,youmustpairtheunitwithaBluetooth®

enabledmobilephone.Pairingisaone‐timeprocessandrequiredonlyforthefirst

connectionwiththeMobilephone.TheSH900canbeconnectedwithtwomobile

phonessimultaneously.

1) KeeptheSH900within1meterrangeofaBluetooth®‐readymobilephone.

2) PressandholdthePower/Playbuttonforabout5s,theindicatorlightwill

flashesredandblueintermittently,thedeviceisnowinpairingmode.

3) FindtheBluetooth®settingofyourMobilephoneandstartthesearchfor

Bluetooth®devices.(Forfurtherdetails,pleasereadtheoperating

instructionsofyourMobilephone).

4) Fromthelistofdevicesfound,selectthe"SH900".

- 7 -

5) Ifrequired,enterthePINcode"0000"andconfirmtheentry.Oncethe

pairingprocesswassuccessful,theSH900willconnecttoMobilephone

automaticallythenswitchtostandbymode,theindicatorwillflashblue

every5seconds.

Note:

1) Ifpairingisnotcompletedwithin2minutes,theheadsetwillturnoff.Ifthis

happens,pleaserepeatthepairingsteps.

2) TheSH900supportsMulti‐connectionthatallowsforthesimultaneoususe

oftheSH900withtwomobilephones.Afterparingsuccessfullywith2

mobilephones,switchofftheheadsetandswitchonagain,theheadsetwill

connecttoboth2mobilephonesautomatically.Otherwise,youcanconnect

theheadsetonthecellphonemanually.

8. Turningheadseton/off

Turnonyourheadset

LongpressthePower/Playfor3stoturnonyourheadset.Ifyourheadsethas

completedthepairingprocesssuccessfully,whentheheadsetisturnedon,itwill

connecttothephoneyoulastconnectedautomatically.Pleaseensureyourphone's

Bluetooth®functionisactive.

Turnofftheheadset

Longpressthepowerbuttonfor5stoturnofftheheadset.theRedindicatorwill

flashred.

Note:

- 8 -

Toconservepower,iftheheadsetisnotconnectedtoadeviceforapproximately10

minutes,theheadsetwillturnoffautomatically.

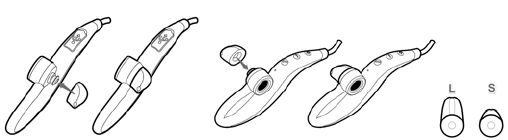

9. Wearingtheheadset

Forthebestsoundperformanceandasecure,comfortablefit,besuretheearbuds

isfixedproperly,andsuitablesizeselected.



Weartheheadsetaroundthebackofourneckandfineadjusttheangleforthebest

fit.

- 9 -

10. Usingformusicplay

Play/Pause

PressPower/Playbuttontogetthemusicplayorpause.

Next/Previoussong

LongpressVolume(+)/Nextbuttonfor2stoskiptonextsongorchapter,Longpress

Volume(‐)/Previousbuttonfor2stobacktoprevioussongorchapter.

Increase/Decreasevolume

PressVolume(+)buttontoincreasevolume,pressVolume(‐)/Previousbuttonto

decreasevolume.

Note:

TheSH900supportsA2DPprofilethatallowsstereomusicstreamingfroma

Bluetoothphone.Themusicwillpauseautomaticallywhileacallisdialed

out/incoming,andresumewhenthecallconversationhasended.



- 10 -

11. Usingforphonecall

Lastnumberre‐dialing

DoublepressthePower/Play,thelastnumberyoudialedwillbere‐dialed.

Note:thelastnumberre‐dialingisavailableonlyforthefirstdeviceiftwoMobile

phonesareconnected.Theconnectionsequencecanbedeterminedbyreconnect

manually.

Answeringacall

PressPower/Playshortlytoanswertheincomingcall.Otherwise,SH900supports

voicerecognitiontoanswertheincomingcallbysaying"YES".

Rejectanincomingcall

PressandholdPower/Playfor2secondsthenreleasetorejecttheincomingcall.

Transferringacall

PressandholdVolume(+)/Nextfor2secondstotransferthecallbetweenthe

phoneandheadset.

Endingacall

PressthePower/Playshortlytoendacall.

Call‐waiting

‐Ifthereisanincomingcallwhileacallisinprogress,pressPower/Playshortlyto

acceptthewaitingcallandendcurrentcalling.

‐Ifthereisanincomingcallwhileacallisinprogress,pressandholdPower/Playfor

2secondsthenreleasetoaccepttheincomingcallandplacethecurrentcallon

hold.

- 11 -

Note:

ThesameoperationcouldbeperformedincaseofMulti‐connection.

Volumeadjusting

PresstheVolume(+)/NextandVolume(‐)/Previousbuttontoadjustthevolume.

Mute

Whileacallisinprogress,pressandholdVolume(‐)/Previousbuttonfor2sto

mutetheheadset,aremindfultonewouldbeheardevery10seconds.Repeatthe

operationtoun‐mute.

12. Safetyandgeneralinformation

1) PleasereadthisUser'sManualcarefullyandfollowallinstructions.

2) Toavoidanydamageormalfunctionofthedevicedonotdropthedevice

fromhighplaces.

3) Keepdeviceawayfromhumidity,waterandanyotherliquid.Ifthedeviceis

exposedtowater,moistureandotherliquidsdonotoperateittoavoidany

electricalshock,explosionanddamagetothedeviceoryourself.

4) Donotplaceorkeepthisdevicenearanyheatsources,suchas,direct

sunlight,radiators,stovesorotherapparatusthatproduceheat.Thismay

causeanexplosion,degradetheperformanceand/orreducebatterylife.

5) Donotmodify,repairordisassembledevice(Especiallythebattery).Doing

thiswillvoidthewarranty.

6) Donotplaceheavyobjectsonthedevice.

7) Useonlythesuppliedandapprovedchargers.

8) Unplugthisdevicewhenunusedforlongperiodsoftimeorduringlightening

- 12 -

storms.

9) Thebatteryusedinthisdevicemaypresentariskoffireorchemicalburnif

mistreated.

13. FCC&ICStatement

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexampleRADIO

orTVinterference,causedbyunauthorizedmodificationstothisequipment.Such

modificationscouldvoidtheuser'sauthoritytooperatetheequipment.

14. ECDeclarationofConformity

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexampleRADIO

orTVinterference,causedbyunauthorizedmodificationstothisequipment.

Suchmodificationscouldvoidtheuser'sauthoritytooperatetheequipment.This

productisCEcertifiedaccordingtotheprovisionoftheR&TTEDirective(99/5/EC).

Thisdeclaresthatthisproductisincompliancewiththeessentialrequirementsand

otherrelevantprovisionsofDirective1999/5/EC.Pleasenotethatthisproductuses

radiofrequencybandsnotharmonizedwithinEU.

- 13 -

WithintheEUthisproductisintendedtobeusedinAustria,Belgium,Denmark,

Finland,France,Germany,Greece,Ireland,Italy,Luxembourg,TheNetherlands,

Portugal,Spain,Sweden,andUnitedKingdomandwithinEFTAinIceland,Norway

andSwitzerland.

15. Warranty

Theconditionofthiswarrantyandsupplier'sresponsibilitiesunderthiswarrantyare

asfollows:

Warrantyisnon‐transferableandislimitedtotheoriginalpurchaseronly.

‐Youmustbeabletoprovethedateoforiginalpurchaseoftheunitwithadated

receipt.

‐Thewarrantyisnotapplicableiftheproducthasbeensubjecttophysicalabuse,

improperinstallation,modificationorrepairbyanunauthorizedthirdparty.

‐Supplier'sresponsibilityshallbelimitedtotherepairorreplacementofthe

productatitssolediscretion.

‐Specificallyexemptfromanywarrantyarelimited‐lifeconsumablecomponents

subjecttonormalwearandtearsuchasbatteries,decoratesandotheraccessories.

‐Supplierisnotresponsible,forfailureresultingfromaccident,abuse,misuse,or

anyunauthorizedrepair,ormodification.

‐Modificationandrepairoftheunitshouldbedonebyanauthorizedandqualified

servicecenterorreturnedtothemanufacturer.

‐Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,

whichvaryunderlocallaws.



- 14 -



FCCWarning

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.



NOTE:Anychangesormodificationstothisunitnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe

equipment.



ATI Electronics SH900 Bluetooth headset User Manual SH900 ISSC 20131202

ATI Electronics (Shenzhen) Co. Ltd Bluetooth headset SH900 ISSC 20131202

USERS MANUAL

Navigation menu

Namespaces

Views

Navigation
