ATID AT570 INDUSTRIAL PDA User Manual AT 570 English Rev1 1
ATID Co., Ltd INDUSTRIAL PDA AT 570 English Rev1 1
ATID >
Contents
- 1. USERS MANUAL
- 2. revised users manual
USERS MANUAL
AT570 User Reference
2
ATID Co., Ltd.
#1210, Byuksan/Gyungln Digital Valley II, #481-10,
Gasan-Dong, Gumchon-Gu, Seoul, Korea
Telephone: +82-2-544-1436
Fax: +82-2-2113-0040
www.atid1.com
Copyright ○
c2006 ATID Co., Ltd. An Unpublished Work – All right reserved. No part of the
contents of this documentation or the procedures described there in may be reproduced or
transmitted in any form or by any means without prior written permission of ATID Co., Ltd.. or
its wholly owned subsidiaries ("ATID ").
Owners of ATID products are hereby granted a non-exclusive, revocable license to reproduce
and transmit this documentation for the purchaser's own internal business purposes.
Purchaser shall not remove or alter any proprietary notices, including copyright notices,
contained in this documentation and shall ensure that all notices appear on any reproductions
of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by
contacting ATID Customer Administration. Electronic versions may either be downloadable from
the ATID web site (www.atid1.com) or provided on appropriate media. If you visit our web site
and would like to make comments or suggestions about this or other ATID publications, please
let us know via the “Contact ATID ” page.
Disclaimer
Reasonable measures have been taken to ensure that the information included in this manual is
complete and accurate. However, ATID reserves the right to change any specification at
anytime without prior notice.
ATID is a registered trademark of ATID Co., Ltd..
The ATID logo is a trademark of ATID . All other trademarks and trade names referred to herein
are property of their respective owners.
AT570 is a registered trademark of ATID Co., Ltd.. and of its wholly owned subsidiaries.
Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® NT, and Windows® XP
are registered trademarks of Microsoft Corporation.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
3
Contents
Before You Begin....................................................................................6
Chap1. Using AT-570..............................................................................7
1. Introducing..........................................................................................7
1.1 Features...........................................................................................................................7
1.2 View of the PDA #1.........................................................................................................8
1.3 View of the PDA #2.........................................................................................................9
1.4 Table 1 Features Function/Description.........................................................................10
2. Power................................................................................................12
2.1 Power ON/OFF...............................................................................................................12
2.1.1 Power ON.............................................................................................................12
2.1.2 Power OFF...........................................................................................................12
2.1.3 What is idle mode?..............................................................................................12
2.1.4 Suspend mode ....................................................................................................13
2.2 Battery............................................................................................................................13
2.2.1 Checking Battery Power......................................................................................13
2.2.2 Very Low Battery Status ......................................................................................13
2.3 Removing and installing the battery..............................................................................13
2.3.1 Removing the battery ..........................................................................................13
2.3.2 Installing the battery............................................................................................13
2.4 Battery discharging........................................................................................................13
2.5 Recharging the battery..................................................................................................13
2.5.1 Using the adapter................................................................................................13
2.5.2 Using the Dock....................................................................................................14
2.6 Backup Battery ..............................................................................................................15
2.7 Disposal of the spent battery........................................................................................15
3. Setting up the AT-570.......................................................................16
3.1 Power On.......................................................................................................................16
3.2 Power Off.......................................................................................................................16
3.3 Adjusting the Brightness................................................................................................16
3.4 Calibrating the screen ...................................................................................................17
3.5 Adjusting the Volume.....................................................................................................17
3.6 Setting up the Date and Time .......................................................................................18
3.7 Power Configuration......................................................................................................18
3.8 Schemes Tab.................................................................................................................18
3.9 Memory Allocation .........................................................................................................19
4. Resetting the PDA............................................................................20
4.1 Warm Reset....................................................................................................................20
4.2 Hard Reset (cold reset).................................................................................................20
5. Flash Disk.........................................................................................21
5.1 Making user’s program replayed automatically after a hard-reset............................21
5.1.1 Re-executing a program directly after finishing a hard-reset........................21
5.1.2 Re-executing a program directly after a warm-reset.....................................23
5.2 Restoring programs to the former place.......................................................................23
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
4
6. Registry Backup................................................................................26
7. Using the keypad..............................................................................28
7.1 Change current character..............................................................................................28
7.2 Inputting the data ..........................................................................................................28
7.3 Setting device though the <Fn> key .............................................................................29
8. Using the stylus................................................................................29
9. Using the Hand-strap and Gun hand-held.......................................30
Chap 2. Windows Program...................................................................31
1. Basic Information..............................................................................31
1.1 Task Bar and Command Bar.........................................................................................31
1.2 Pop-up Menus...............................................................................................................32
2. Executing a Program........................................................................32
3. Entering information.........................................................................32
3.1 Using the Onscreen keypad..........................................................................................32
3.2 Using the Transcriber....................................................................................................33
4. Customizing Your AT-570.................................................................34
4.1 Adjust settings...............................................................................................................34
4.2 Adding or Removing the Programs ...............................................................................34
4.3 Adding the Programs Using ActiveSync.......................................................................34
4.4 Removing the Programs................................................................................................35
5. Microsoft ActiveSync........................................................................35
5.1 Using Microsoft ActiveSync...........................................................................................35
5.2 Installing Microsoft ActiveSync on your desktop..........................................................35
5.3 Setting up a Partnership................................................................................................36
5.4 Transferring Files...........................................................................................................36
6. Microsoft WordPad...........................................................................36
7. Window Media Player.......................................................................37
8. Internet Explorer...............................................................................37
9. Context Sensitive Help.....................................................................38
Chap 3. Optional Module (Version 1.1)................................................39
1. 1D barcode Scanner.........................................................................40
1.1 1DScanner(Demo program) ..........................................................................................40
1.2 Setting up the AT1DEmulator........................................................................................43
1.3 Setting up the 1D Barcode Symbology.........................................................................45
2. 2D barcode Scanner.........................................................................47
2.1 Reading 2D barcode & Symbology Setting...................................................................47
2.2 Setting the AT2DEmulator .............................................................................................49
2.3 Scanning Barcode.........................................................................................................51
3. Wireless LAN....................................................................................53
3.1 Power on Wireless LAN .................................................................................................53
3.2 IP Information ................................................................................................................54
3.3 Setting manually ............................................................................................................55
3.4 Power Off Wireless Off..................................................................................................55
4. GSM/GPRS......................................................................................56
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
5
4.1 Executing Phone UI.......................................................................................................56
4.2 Phone Screen ................................................................................................................56
5. Using Camera...................................................................................58
5.1 To use your Camera:.....................................................................................................58
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
6
Before You Begin
This section provides you with safety information, technical support information, and sources
for additional product information
Who should read this manual?
This manual is written for the person who is responsible for installing, configuring, and
maintaining the AT-570.
This manual provides you with information about the features of the AT570, and how to install,
configure, operate, and maintain it.
Before you work with the AT570, you should be familiar with your network and general
networking terms, such as IP address.
Safety information
Your safety is extremely important. Read and follow all warnings and cautions in this
document before you handle and operate ATID equipment. You can be seriously injured, and
equipment and data can be damaged if you do not follow the safety warnings and cautions.
WARNING
A warning alerts you to an operating procedure, practice, condition, or statement that must
be strictly observed to avoid serious injury to the person who working on the equipment
CAUTION
A caution alerts you to an operating procedure, practice, condition, or statement that must be
strictly observed to prevent equipment damage or destruction, or corruption or loss of data.
NOTICE
A notice makes you have more information while you use AT-570
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
7
Chap1. Using AT-570
This chapter introduces the AT570 Mobile Computer to enhance wireless connectivity needs
and contains hardware and software configuration to assist you in making the most out of
your AT570.
1. Introducing
The ATID AT570 mobile computer is a small, ergonomically designed mobile computer built
on the Microsoft window CE NET 5.0 operating system. The PDA uses an Intel® Bulverde
CPU and a 3.5” VGA, color Touch screen display. The PDA supports wireless LAN 802.11b/g
(embedded module) for communication.
1.1 Features
Remove all the items from the packing box, and check to make sure all the parts are present:

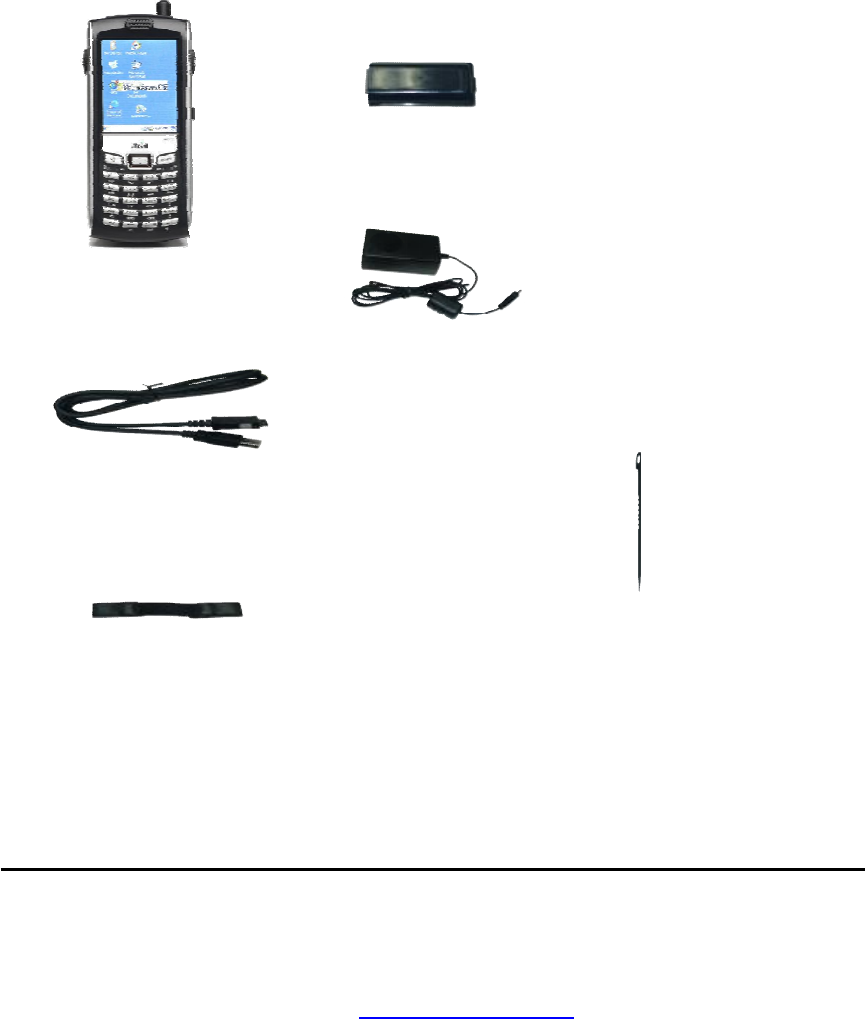

Figure 1. In the Packing box
4
2
6
1. AT570 PDA
2. Power Adaptor
3. Lithium Ion Battery Pack
4. Synchronization Cable
5. Stylus
6. Hand strap
3
2
5
1
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
8
1.2 View of the PDA #1
Refer to Table 1 for a list and description of the illustrated features.

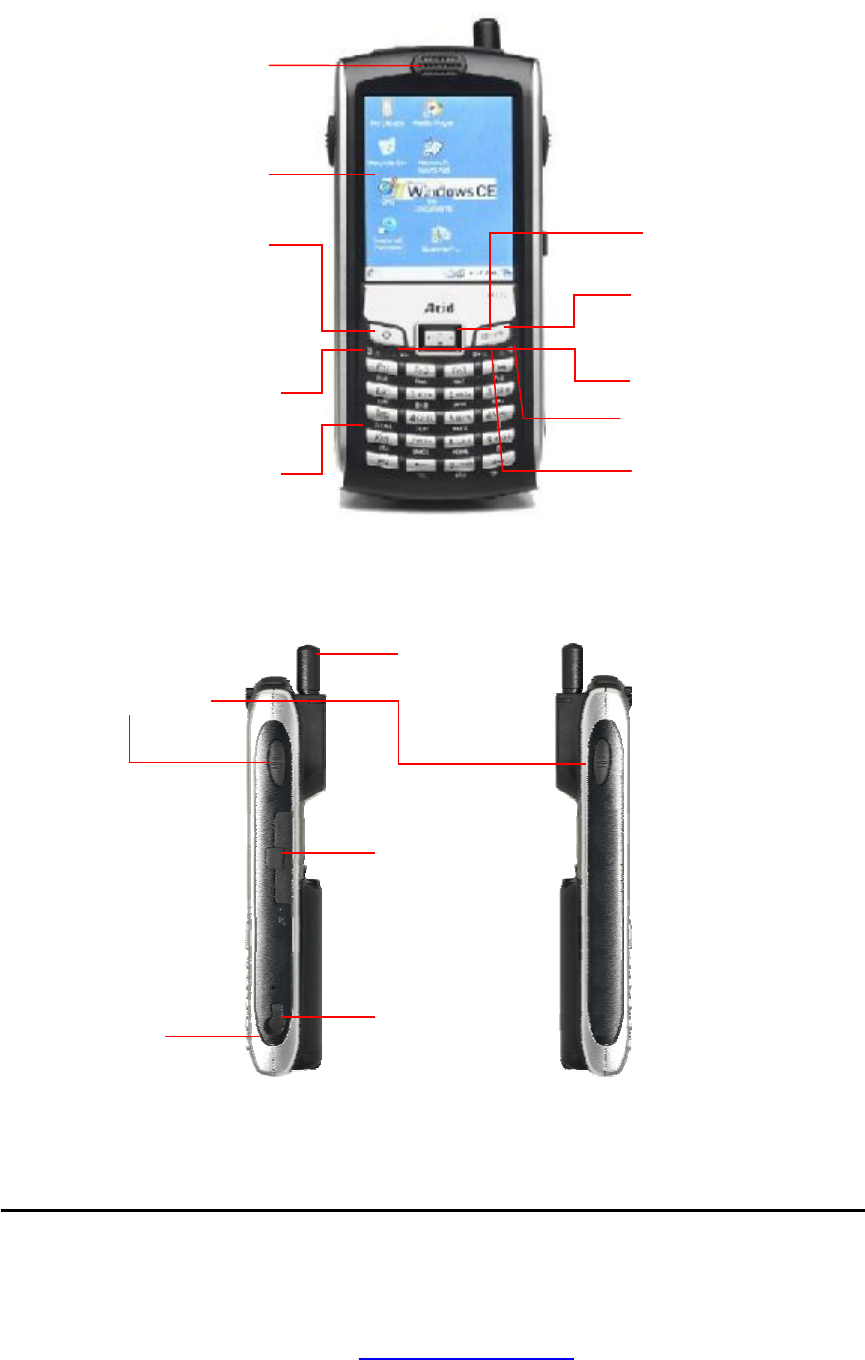

Figure 2. Front View
Figure 3. Side view
1. LCD/Touc
h
-
screen (Display) 13.Navigation Key
11. Speaker
12. Power Key
6. Power LED/Alarm
Indicator
16. Key Pad
14. KBD Key
15. Reset Key
4. WLAN ON/OFF
Alarm
10. Antenna for
GSM/GPRS and
CDMA
2. Scan key
(Left & Right)
5. Secure Digital
(SD) Slot
21. MIC
17. Ear Jack
22. Low
Battery LED
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
9
1.3 View of the PDA #2

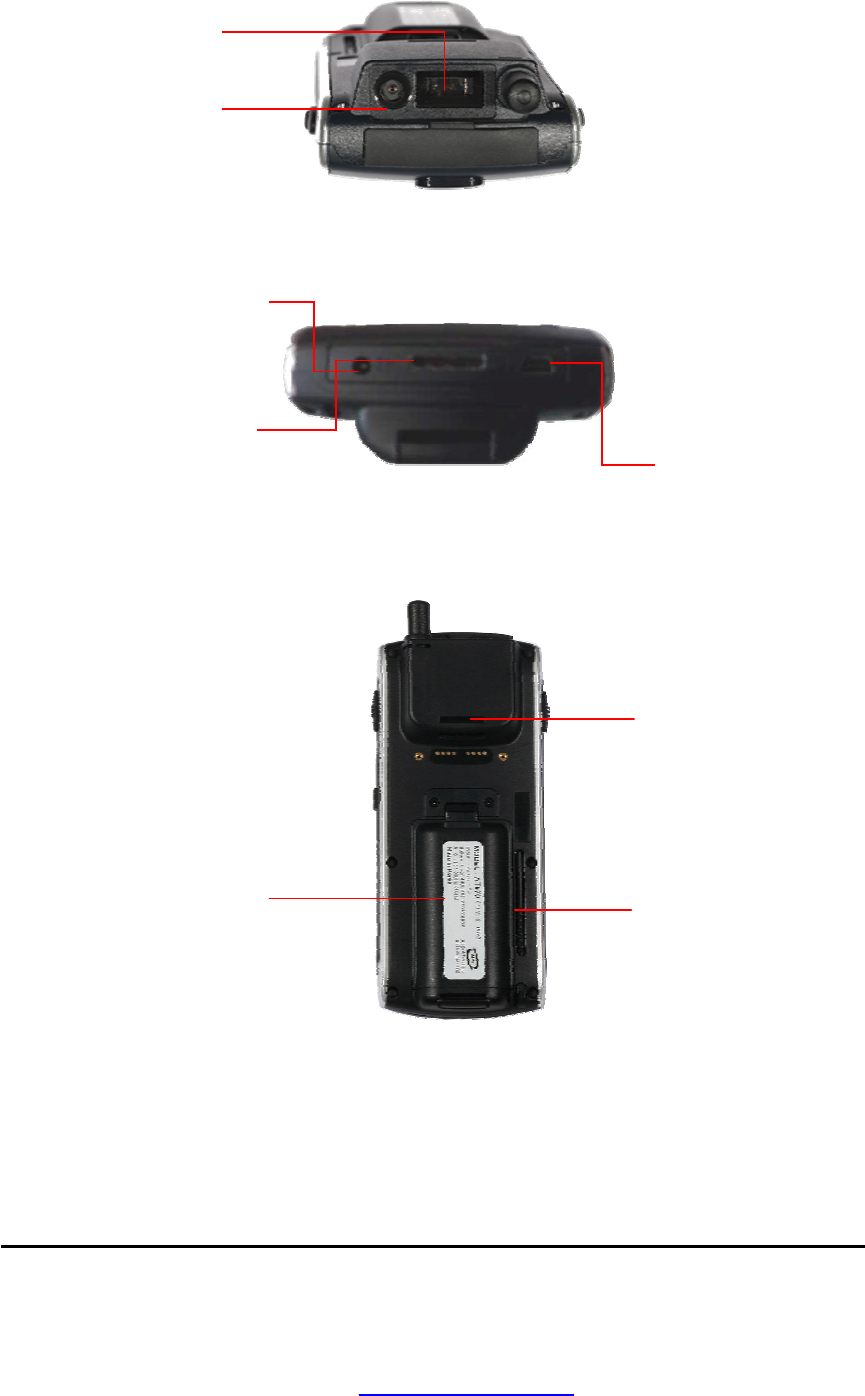

Figure 4. Top view
Figure 5. Bottom view
Figure 6. Rear view
3. Scan Window
23. Camera
7. DC Power
Adaptor
8. USB/Serial
Synchronization
Port
9. USB Host Port
18. Battery
Compartment
19. Hand strap
Holder
20. Stylus
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
10
1.4 Table 1 Features Function/Description
Features Function/Description
1.LCD/Touchscreen
LCD touch screen displays information and data.
You can see the results of your work trough the LCD touch screen. The AT570 has a stylus
you can use to select items and inter information.
Caution: Do not use a pen, pencil, or other sharp object on the AT570’s touch screen. Use
only the supplied stylus or plastic-tipped pens intended for use with a touch-screen
sensitive display.
2.Scan key
(Left and Right)

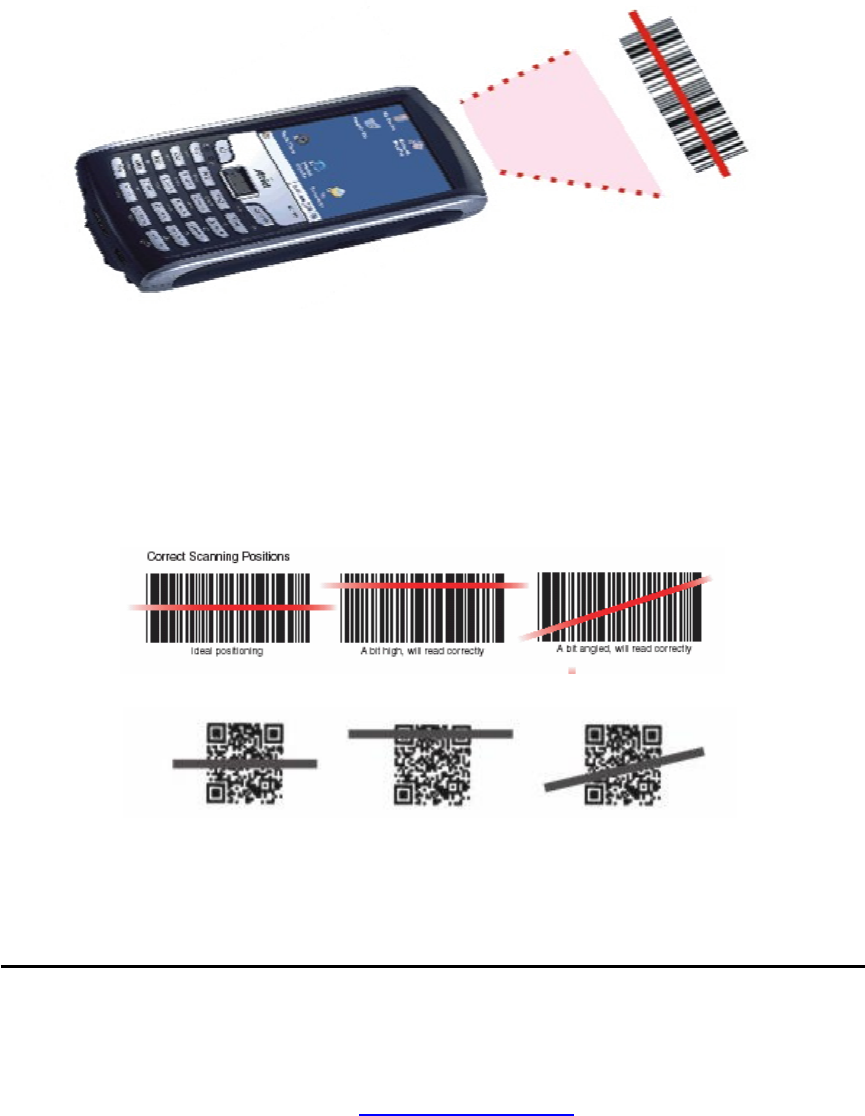

Use either the right or left <Scan> button to activate the scanner and read a bar code. The
scanner starts to read the bar code. The scanner automatically turns off either when the
barcode is read, when you release the scan button, or after 10 seconds, which ever comes
first.
3.Scan Window The scanning beam is emitted from this aperture. Aim the scanning beam at the bar code
you wish to scan.
Refer to "Scanning Bar Codes" on page 23 for more information.

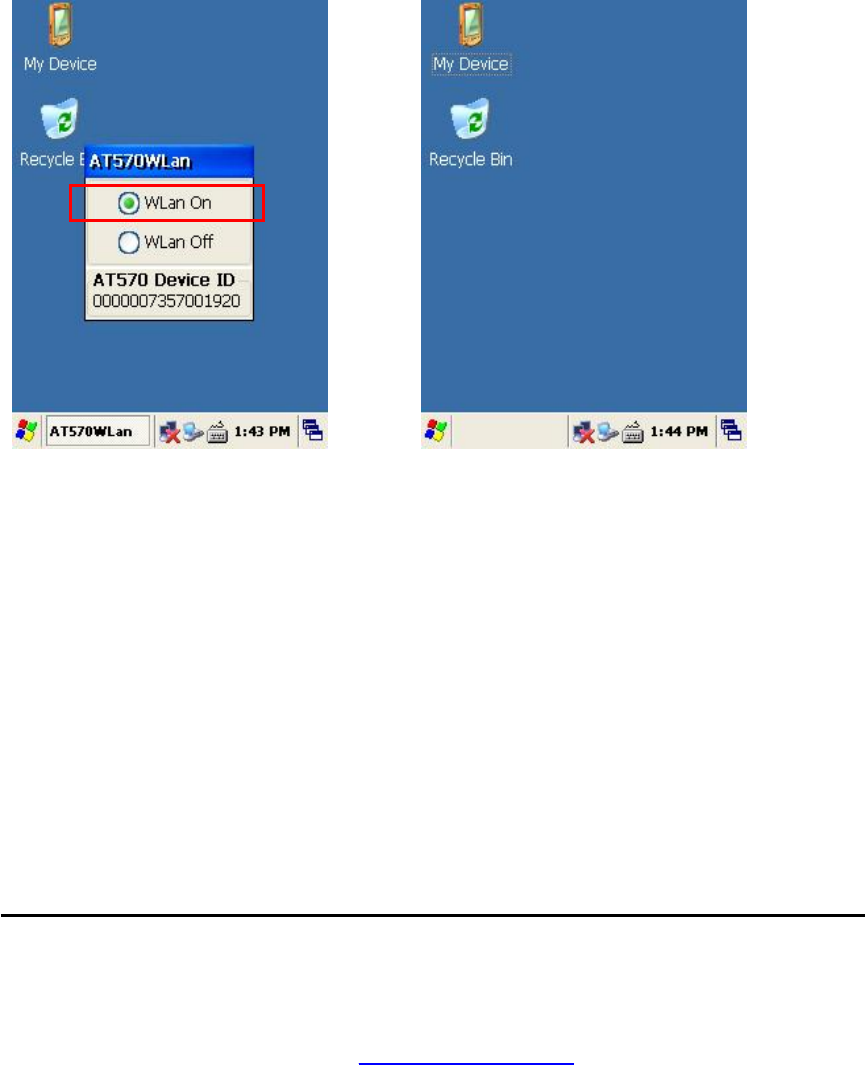

4. 22.WLAN
ON/OFF display
light It makes you know that the WLAN is on or off.
5.Secure Digital
(SD) Slot
The secure digital card slot accepts a secure digital storage card. Refer to the iPC320
Product Reference
Guide for installation instructions.
6.Power LED /
Alarm Indicator
When the battery pack is installed in the PDA and charging in the Dock, this LED is Red.
When the battery is completely charged, the LED changes to Green. When the LED flashes
blue, it indicates a low battery. Some applications use a blue LED to indicate an Alarm or
Error.
7.DC Power
Adaptor Port
Connect the external power adaptor to this port to charge the battery. You must charge the
batteries for thirteen (13) hours prior to first use. Charge the battery completely.
Subsequent charge cycles require four (4) hours.
8.USB/Serial
Synchronization
Port
To synchronize data between a PC and the PDA, connect the USB or Serial cable with
Desktop and the PDA.
You must download and install Microsoft ActiveSync 3.7 or higher in the PC. Download
ActiveSync from the Microsoft Web site at www.microsoft.com.
9.USB Host Port
The USB Host port can be used with a USB keyboard, mouse, compact flash card, and/or
Ethernet connection. When using the dock, you can use standard a USB host port to
connect USB peripherals.
The USB Host Port supports only peripherals with low power consumption.
10.Anttena Antenna for CDMA, GSM/GPRS etc.
11.Speaker The speaker emits the sounds from *.WAV and other media files. It can also be set to emit
beeps or tones to indicate errors or good reads when bar code scanning and inputting data
using the keypad or stylus.
12.Power/ Key Press the Power/Backlight key briefly to turn the unit on. The Backlight comes on
automatically.
Press this key again briefly to turn the unit off.
13.Navigation Key
Press the edge of the 4-way navigation rocker key to move the cursor or highlighted text
entry during a menu/list selection.
• The <Up> arrow moves the cursor up one line.
• The <Right> arrow moves the cursor to the right one character.
• The <Down> arrow moves the cursor down one line.
• The <Left> arrow moves the cursor to the left one character.
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
11
Features Function/Description
14.KBD key KBD key executes input panel (SIP)
Press again, input panel (SIP) disappears
15.Reset Key Use (R/S) button located on the Keypad of PDA to perform a soft and hard reset.
Please refer to the section 4 –Resetting the PDA.
16.Keypad Use the alpha-numeric, function, and navigation keys on the keypad to enter numbers,
letters, symbols and navigate. For details on each key in the keypad, please refer to the
section 7 - Using the Keypad.
17.Ear Port Connect the Ear/Microphone to listen to audio files using the media player, or communicate
with others using an application such as GSM.
18.Battery
Compartment. Insert battery charged fully in this compartment.

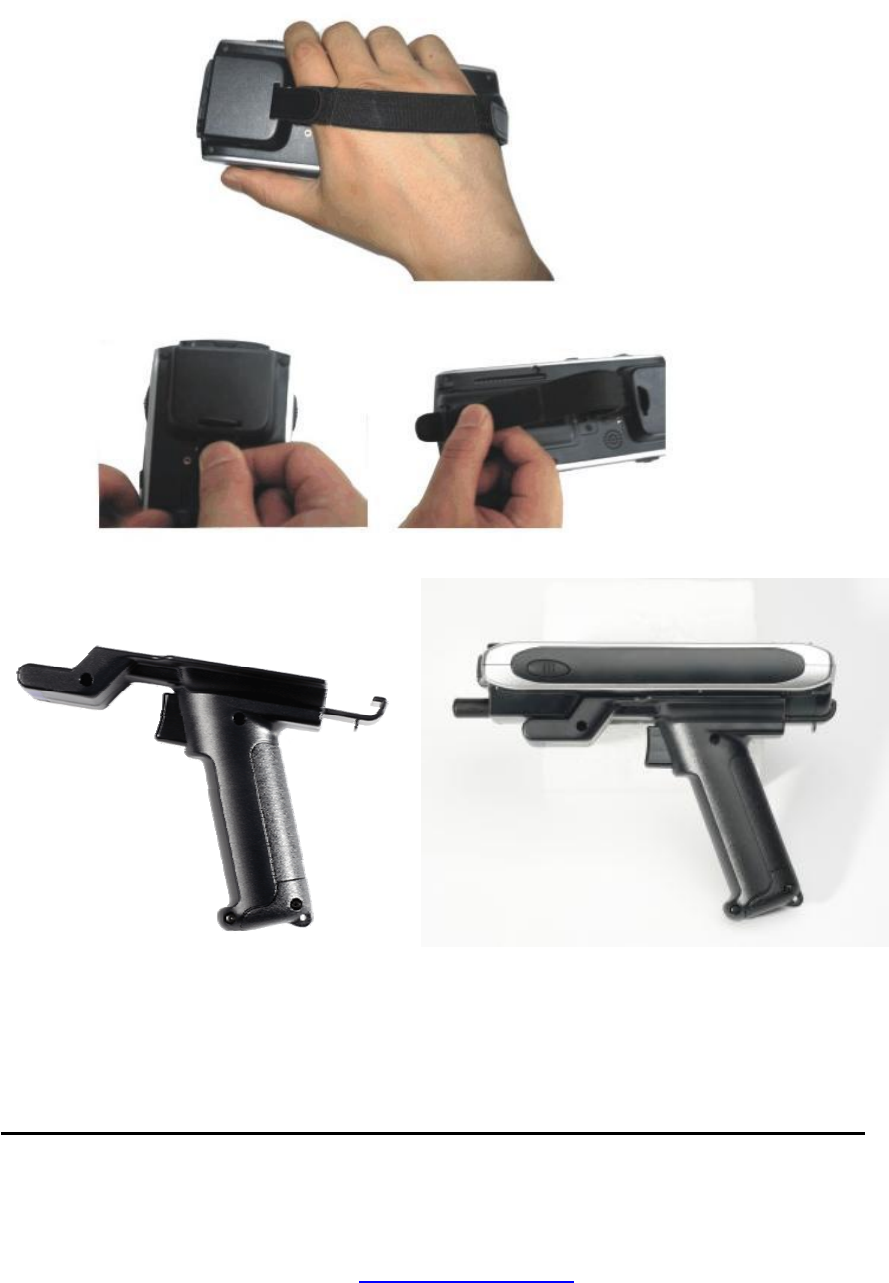

19.Handstrap The PDA comes with the hand strap, which is easily removable to access features and can
be replaced by an ergonmically designed handle.
20.Stylus Use the stylus for navigation, on the soft input panel (SIP), and to select items on the touch
screen. It is a good idea to replace the stylus in the holder after each use so you don’t lose
or misplace it.
21.MIC Use it, when you are calling trough GSM
22. Low Battery
LED The battery becomes red and blinks automatically, when it is in the “low Battery Status”
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
12
2. Power
This section introduces the power system of AT570 such as power switch and battery.
2.1 Power ON/OFF
2.1.1 Power ON
1. Press power key, the AT570 and the backlight will be on.
2. To save power and prolong the battery, the screen gets to be off, when the AT570
goes into idle mode. And it is easy to resume activity. Just tap the screen or press
any key on the keypad.
2.1.2 Power OFF
1. Press power key, you actually suspend the AT570 and turn off the display and
backlight.
2. The other method: Tap start > Suspend
2.1.3 What is idle mode?
It is the period that computer goes on without any activity for a long time, but it doesn’t
have influence on data
You can set up the idle mode and the PDA will go into the idle mode automatically after the
interval that you set goes to the end. It helps you prolong your battery life. If you want to
restart your AT-570 while the PDA goes into idle time, tap anywhere on the screen.

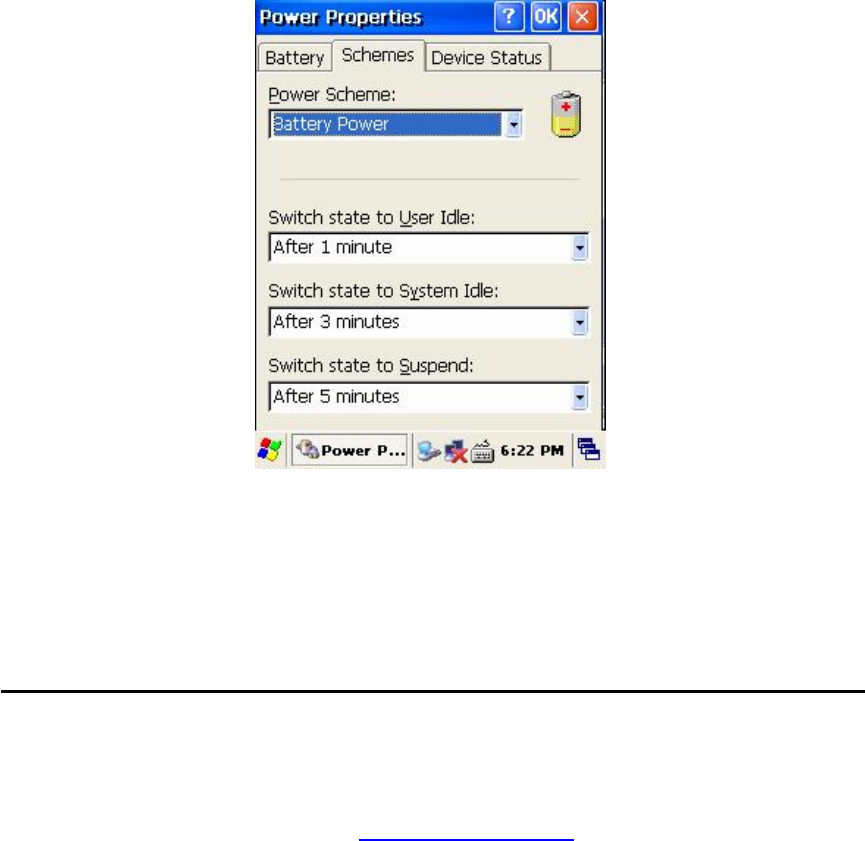

To change the time into idle mode
Tap Start > Setting > Control Panel > Power

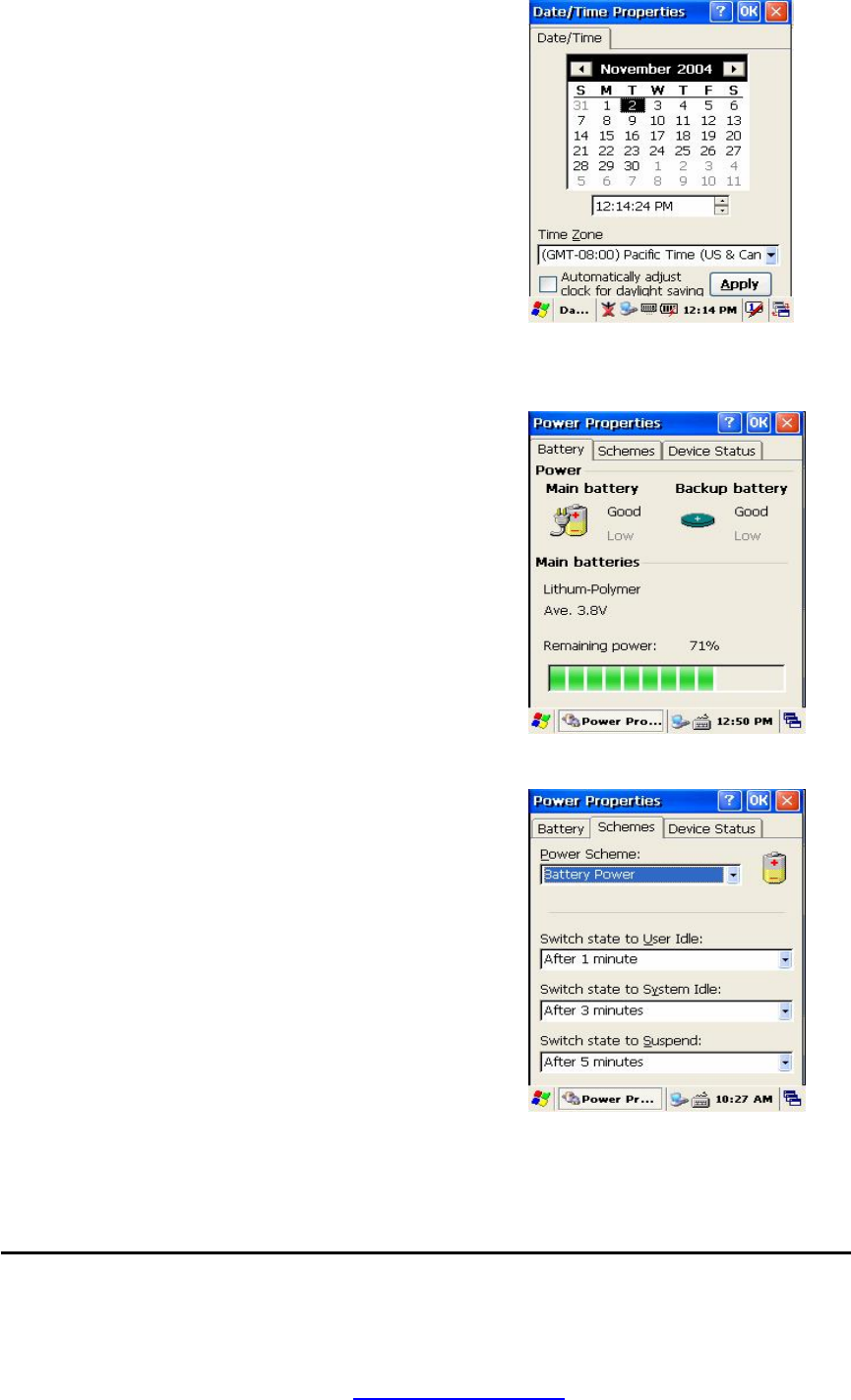

Figure 1. Setting Idle time
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
13
2.1.4 Suspend mode
1. When you do not use AT-570 for a long time, make your AT-570 go into the suspend
mode for saving power.
2. If you want to restart your AT-570, press power key.
2.2 Battery
AT570 uses replaceable 4400 mAh, Li-ion batteries.
If the battery continues to drop to the “Low Battery Status”, the battery status LED
becomes red and blinks. You need to recharge the battery.
2.2.1 Checking Battery Power
You can check the battery status by using the power applet.
Tap Start > Settings] > Control panel > Power
The power control panel applet displays a battery power gauge.
2.2.2 Very Low Battery Status
To prevent the AT570 from being discharged completely, your AT-570 will be suspended,
when the battery continues to get low. You need to recharge your battery before the battery
continues to drop.
2.3 Removing and installing the battery
2.3.1 Removing the battery
At first, pull out the hand scrap and then press the battery latch to the above until the battery
is released from the AT570, then lift it out.
2.3.2 Installing the battery
Insert the bottom of battery into the sunken place located in battery compartment, and press
the battery latch to the above until the battery is installed completely.
2.4 Battery discharging
Several factors determine the life of your battery such as extreme temperatures, input devices,
and your usage, but generally you can use AT-570 for 6~12hours.
If the AT-570 is not on external power and battery pack is removed, it will enter suspend
mode.
2.5 Recharging the battery
Use the adapter provided from ATID to recharge your battery.
Caution
Your AT-570 can be damaged, in case of using the adapter that is not provided from ATID.
2.5.1 Using the adapter
The charge/operating power can be applied to AT-570 by using DC adapter.
1. Connect the adapter to the power cord.
2. Connect the DC power jack to the AT-570.
3. When the battery is charging, the LED becomes red.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
14

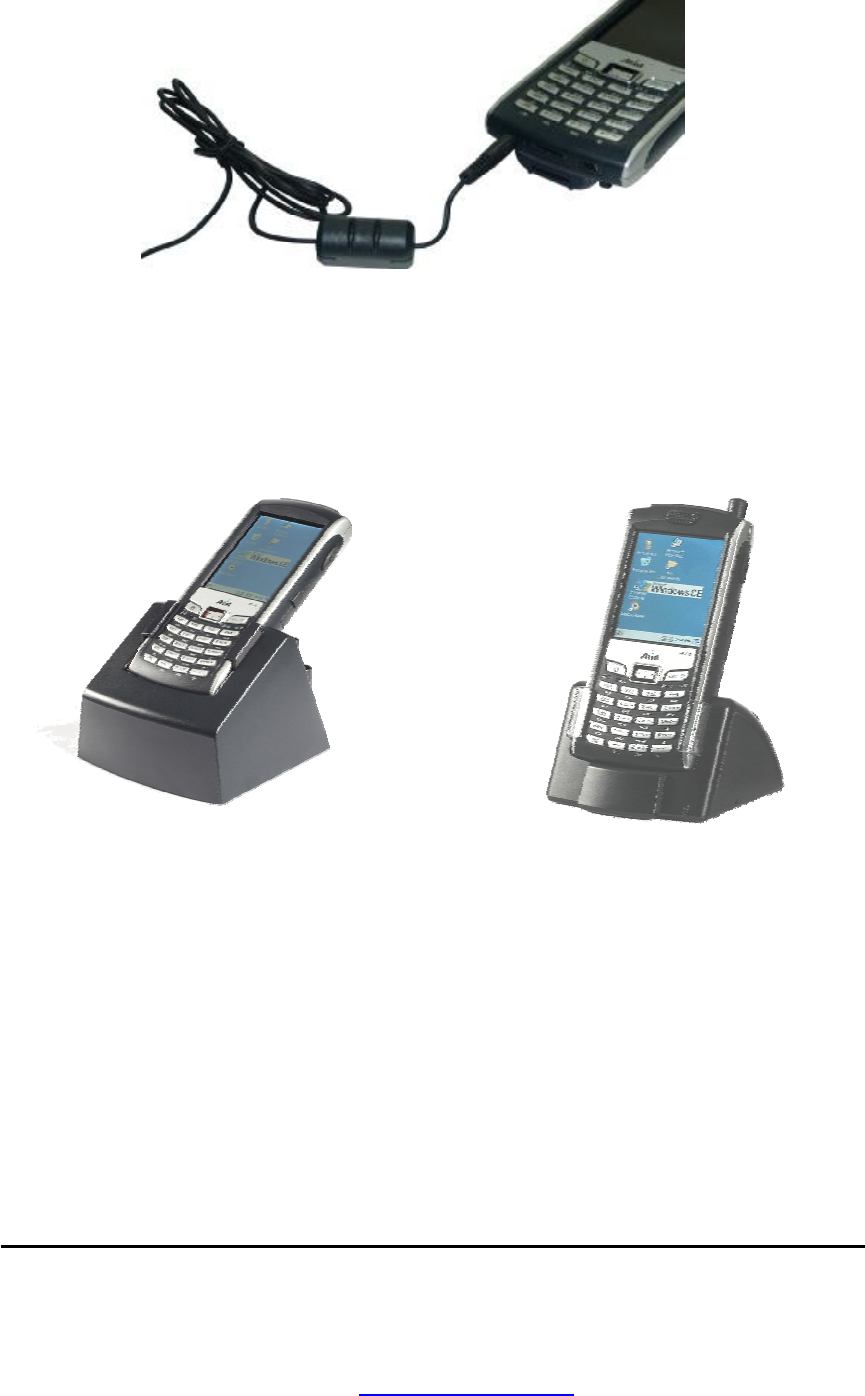

Figure 2. Using the adapter to recharge
2.5.2 Using the Dock
The Dock is for charging AT570, and the dock is one of which also can act as a
communication port.
Figure 3. Using the Dock to recharge
CAUTION
Make sure the AT570 is firmly seated in the dock, charger, or power adaptor.
If it is not firmly seated, battery charging and communication with the Host PC will NOT be
initiated.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
15
2.6 Backup Battery
The backup battery in the PDA is a 200mAh rechargeable battery that holds system data at
least 2 hours without main battery.
CAUTION
If you remove the battery or the battery completely discharges, there is a two(2)hour window
in which to insert a charged battery before the backup battery completely discharges and the
contents of the RAM memory are lost. It is a good idea to keep your data and applications in
Flask Disk for that reason. Refer to “Flash Disk” for more information.
If both the battery pack and the backup battery are allowed to discharge completely, you
must recharge both batteries for thirteen (13) hours.
The backup battery is charged off the battery pack, so it is important to keep the battery pack
with at least a minimal charge so the unit can maintain date, time, data, and other settings.
2.7 Disposal of the spent battery
When the battery reaches the end of its useful life, the spent battery must be disposed by a
qualified recycler or material handler
Warning
Do not mix the spent battery with the solid waste stream and keep away from children.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
16
3. Setting up the AT-570
This section describes the basic information for setting your AT-570.
3.1 Power On
Press the Power key briefly to turn on the PDA. The Backlight comes on automatically. Press
this key again briefly to turn off the PDA. To turn off the Backlight while the PDA goes on,
press and hold the key for at least a second. This key acts to toggle the Backlight function off
and on.

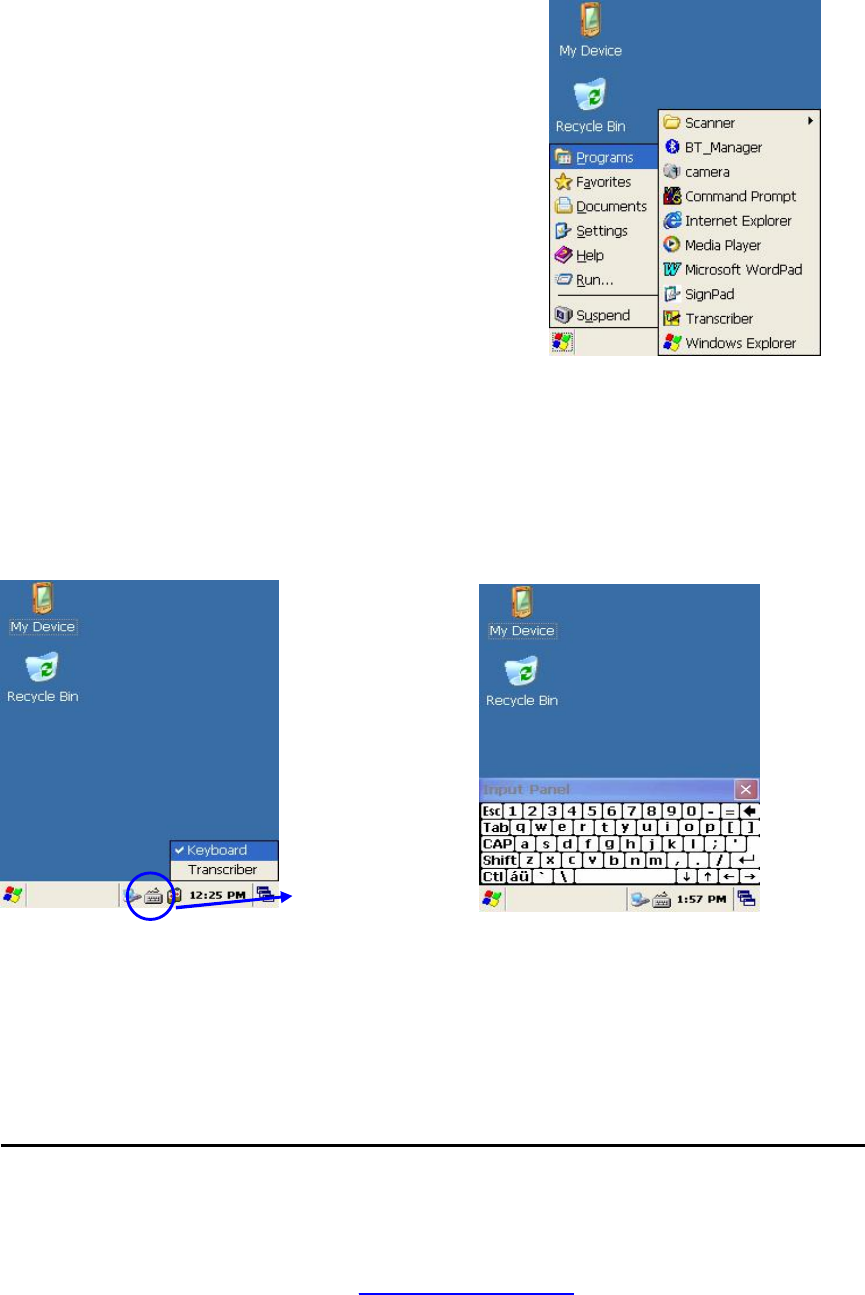

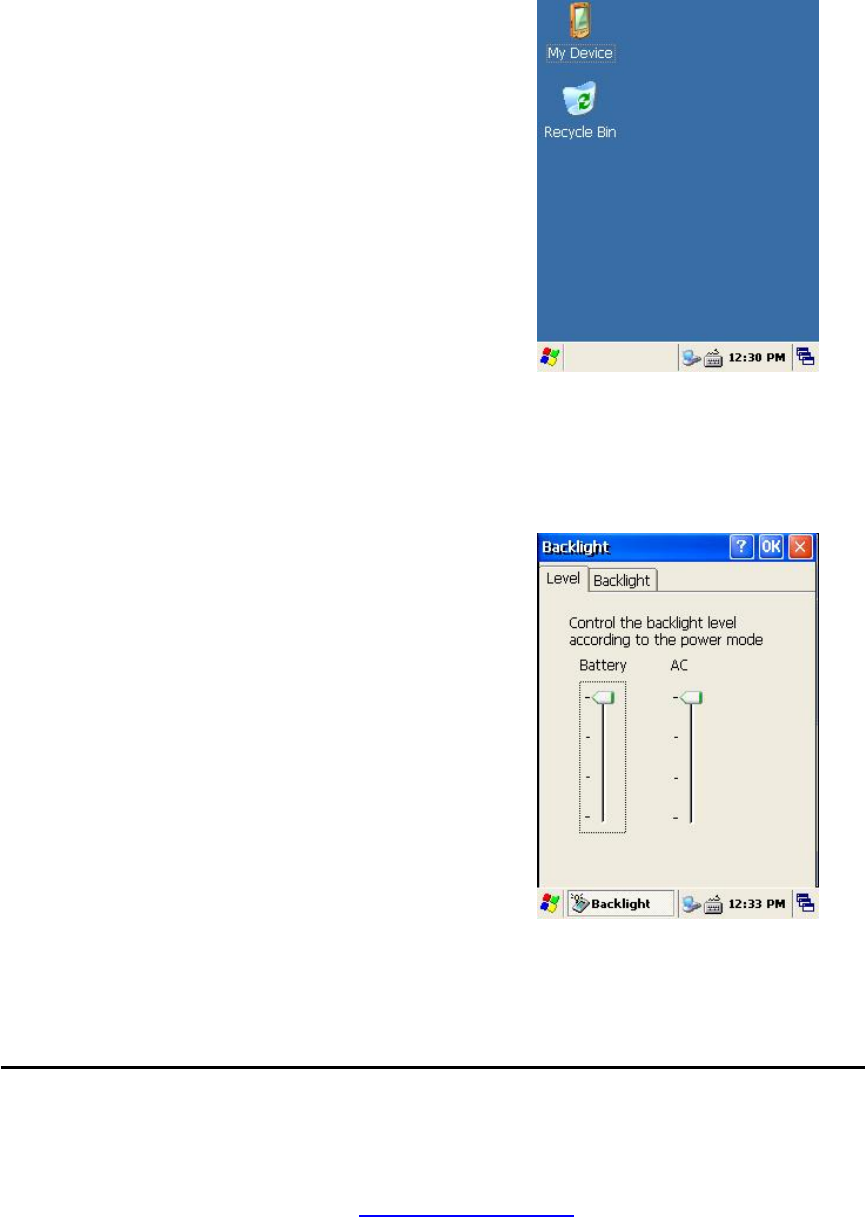

Desktop: The figure at the right shows the
desktop display, or main screen.
3.2 Power Off
To turn the PDA off, press the Power key again.
This action suspends the device, but does not
actually turn it off. All running applications remain as
you left them until you press the Power key
again to resume operation of the device.
Figure 1. Background Screen
3.3 Adjusting the Brightness
The AT-570 manufactured at the factory keeps 80% brightness, but because of several
reasons such as dark environment or user’s condition of eyesight, and above all, the
illumination consumes much power, so that the users want to adjust the backlight.
To adjust backlight:
Tap Start > Settings > control panel > backlight
Level: you can adjust the brightness
Backlight: you can adjust the entry time into idle
mode when use AT-570 with battery power
or external power.
Figure 2. Adjusting Brightness
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
17
3.4 Calibrating the screen
According to user’s personal treatment, and activity, applications installed in the AT-570
need to be set up after purchasing it.
Calibrating the Touch Screen
Thought the screen is already calibrated, but if you
have feeling that your screen isn’t responding
properly to your tap, you can recalibrate it again.
To recalibrate the screen
Tap start > Settings > Control panel > Stylus
> Calibration > Recalibration
Press and briefly hold stylus on the center
of target, and repeat 5 times as the target
moves around the screen. The screen counts
30 seconds after calibrating, and you can
finish the recalibration to touch screen
wherever you want. If you did not have any action, the
screen will automatically finish the recalibration of itself.

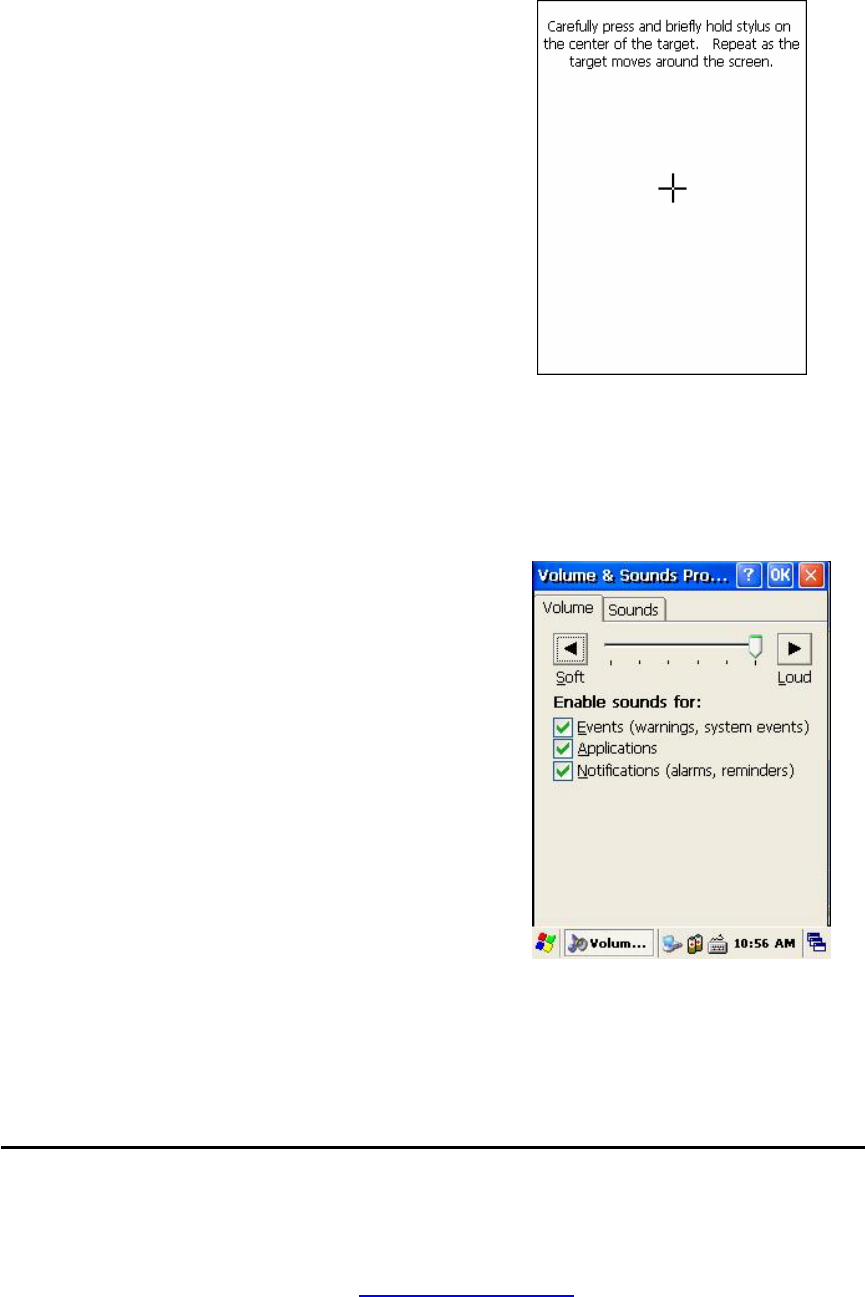

Figure 3. Recalibrating
3.5 Adjusting the Volume
Volume & Sounds
Your AT-570 manufactured at factory is set at the maximum volume, so you can adjust the
volume if you need suitable sound.
To adjust Volume & Sounds
Tap Start > Settings > Volume & Sounds
Volume tap: tap to adjust Volume
Sounds tab: tap to set the imitated sounds
Figure 4. Adjusting volume
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
18
3.6 Setting up the Date and Time
Date & time
You can set the current time located at the bottom
of screen.

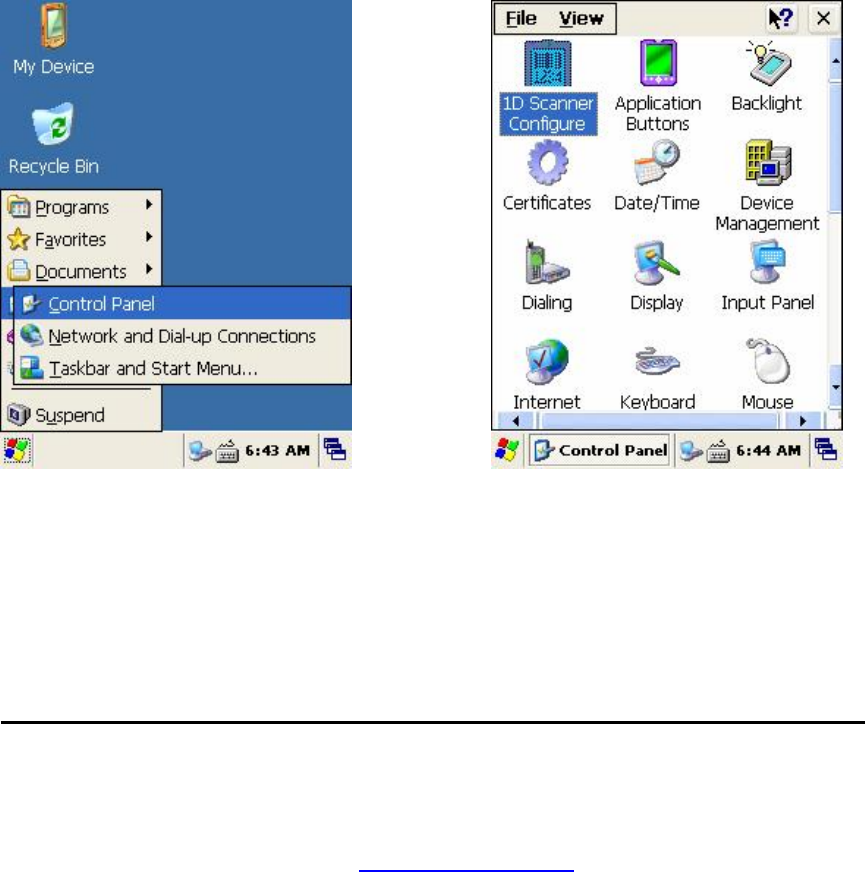

Tap Start > Settings > Control Panel
> Date & Time
Year: Select the year, then the spin control appears.
Try to set the year though the navigation key or
up/down button.
Month: Select the month directly, then the full months
of one year appear. Try to select the correct month.
You can also select the month though the left/right key.
Day: Just tap a day in the calendar.
Time: you can set the time though the up/down button.
Figure 5. Date/Time
If you set the time zone one time, you can set the correct local time easily by changing the
location into where you are.
3.7 Power Configuration
To adjust power management settings,
Tap Start > Settings > Control Panel > Power
Use this control panel to check the charge on the
battery or to change the Power settings.
Battery Tab
Battery tap: It shows the power remained in the main
battery and the backup battery.
To exit, press OK from the command bar, or press
the <Enter> key on the keypad.
Figure 6. Battery status
3.8 Schemes Tab
It allows you to determine the entry time of user’s idle
mode, system idle mode, and suspend mode while
you use either main battery or AC power. This will
helps you to save more power, if you have to move
repeatedly on your work.
To exit, press OK from the command bar, or press the
<Enter> key on the keypad.
Figure 7 . Schemes Tap
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
19

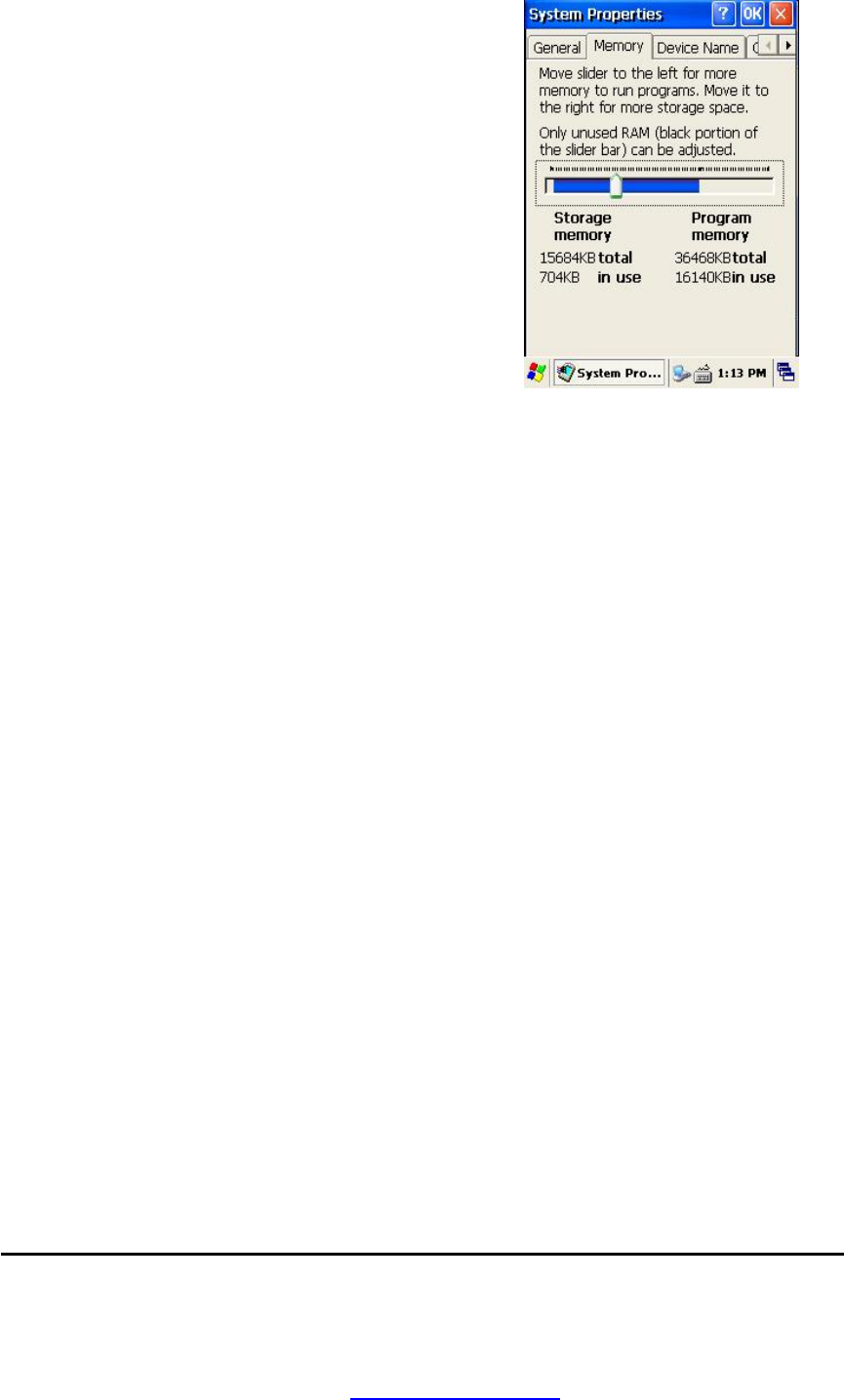

3.9 Memory Allocation
Adjust the Memory Allocation with the following steps:
1.Tab Start > Settings > Control Panel
> System Properties
2.Seletc the Memory tab.
3.Move the slider to adjust memory allocation.
Default storage Memory is normally set to about
8 MB with the remainder.
4. Press the OK button, or the <Enter>key on
the keypad.
Figure8. Memory Allocation
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
20
4. Resetting the PDA
When the AT-570 completely stops responding for your command, or an application is locked
up and does not respond, and when you want to upgrade the firmware, it may be necessary
to perform a reset.
Caution
Always attempt a Warm reset before initiating a Cold reset. Once you initiate a cold reset, all
applications are forcibly closed and working RAM and files are cleared.
It is a good idea to store important data in the resident (Flash Disk) for this reason.
Warning
Do not use force or a sharp object like paper clip to press the reset button. Use the stylus for
that purpose. Sharp object like paper clip could puncture the seal of the reset key.
4.1 Warm Reset
When you should perform the warm reset?
When you cannot turn on or off a program, or execute other programs because of
“hang”-the system error that stops responding. The “warm reset” for recovering the
AT-570 is to press R/S button on the front of AT-570. This method not guarantee that
cashed disk data will be saved, so transactional data maybe lost during the reset.
Procedure to Warm Reset. To initialize warm reset, press and hold the <Reset> key.
After Warm Reset
• The splash screen will appear shortly.
• The desktop appears with the application shortcuts on the screen.
• The custom settings in the registry are persistent.
• The RF Network PC Card if present, connects to the network system.
4.2 Hard Reset (cold reset)
When you should perform the cold reset?
If the performed reset method fails to restore system operation, it may be necessary to
perform a hard reset. This is a boot method that formats the object store to clean data and
registry information from the AT-570 system and restores them to their factory-default state.
This will erase the memory in the AT-570, including all applications and data files found in the
object store (user store).
A Hard reset is a complete reset of the PDA in which all applications are forcibly closed and
working RAM and files are cleared.
Hard Reset Procedure. To perform a Hard reset, simultaneously press the <Reset> key with
the stylus while pressing the <power> key.
After Hard Reset.
When a PDA goes through the Hard reset sequence, it clears the working RAM and initializes
the file system.
• The splash screen will appear shortly.
• You will be asked to recalibrate the touch screen. Press the <ESC> key to circumvent
recalibration.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
21
• The desktop appears with the application shortcuts on the screen.
• The custom settings in the registry are persistent.
• The RF Network PC Card if present, connects to the network system.
• The application saved in Flash Disk will not be deleted after cold reset (refer to section 5
Flash Disk)
5. Flash Disk
In addition to the RAM-based storage standard on Windows CE .NET terminals, the AT-570 is
also equipped with a Flash Disk, and all the application and data in the Flash Disk can be
persisted in its own condition after the hard reset. From this point of view, it is a kind of very
useful method to keep important application and execute user’s own application
automatically after the hard reset.
5.1 Making user’s program replayed automatically after a hard-reset
When you need to perform a hard-reset, you maybe feel that it will be a troublesome thing to
re-execute your application every time. But if there is some function makes user’s
application replayed automatically without any action after the hard-reset, it must be a useful
method for users. Even a man who does not know anything about PDA but he know how to
perform a hard-reset, he can continue to use his program, if the application is to be pasted
in the HardReset folder by Flash Disk.
If you want to re-execute your program directly every time after a hard-reset, do as following
steps.
5.1.1 Re-executing a program directly after finishing a hard-reset
1. Before everything, copy the program that you want to replay automatically after a
hard-reset.
Figure 1. Copy Your Program
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
22
2. Paste the copied program in the HardReset folder as following steps.
My device > Flash Disk > Open Start folder > HardReset folder
Figure 2. Click Flash Disk Figure 3. Open Start folder
Figure 4. Open HardReset folder Figure 5. Paste the copied program
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
23
5.1.2 Re-executing a program directly after a warm-reset
Re-executing a program after a warm-reset is very alike with Re-executing a program after a
hard-reset.
1. Before everything, copy program that you want to replay automatically after a warm-reset.
2. My Device > Flash Disk > Open Start folder > Open Reset folder
3. Paste the copied program in the Reset folder.

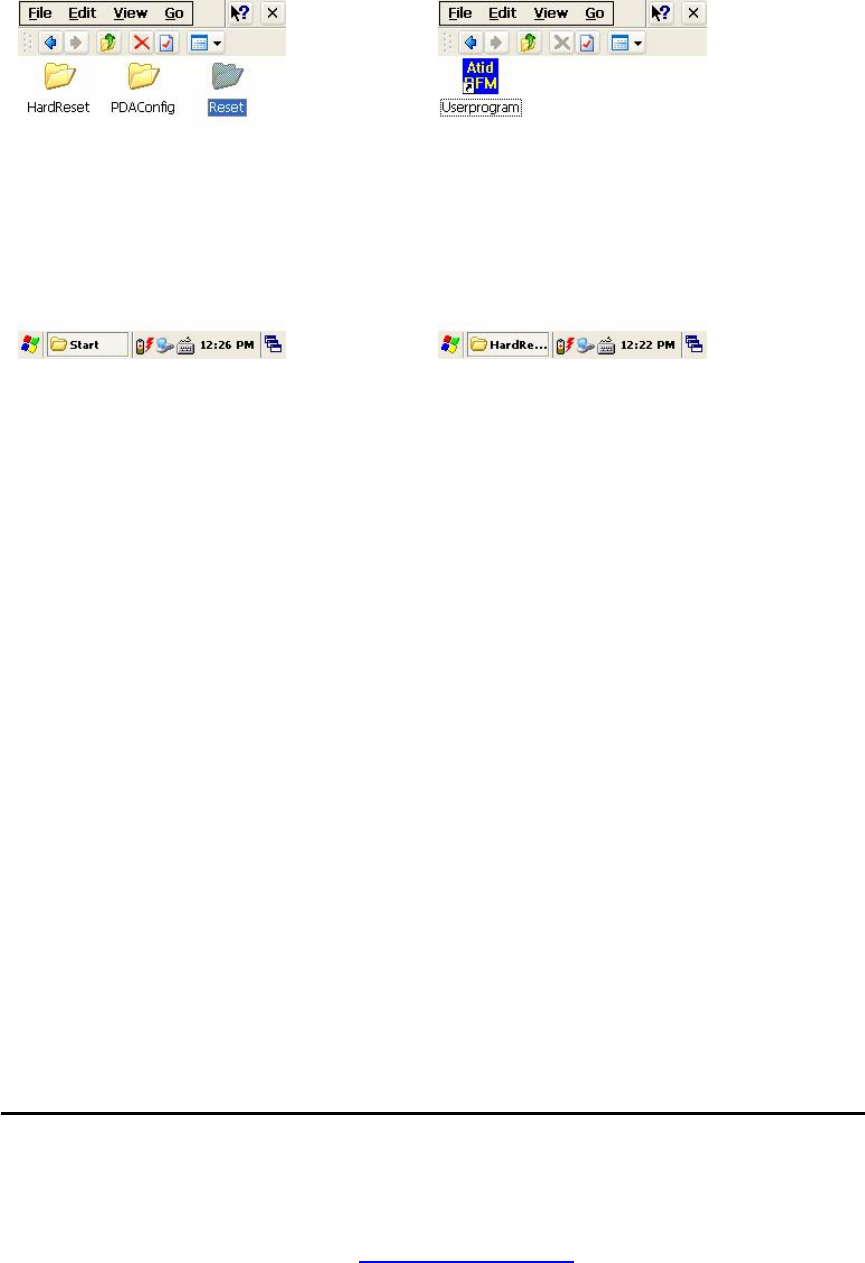

Figure 5. Open Reset Folder Figure 6. An application to be replayed
Caution: Even it is a rare thing that your application has some problem that makes your PDA
stop operating, no matter how many times you try to perform a hard reset, it is
impossible to re-execute your PDA. In this kind of case, you should press the “Fn”
key. The PDA does not execute your application that you pasted in the HardReset
folder after a hard reset, if you press “Fn” key before the hard reset to be finished.
5.2 Restoring programs to the former place
When a PDA goes through the hard Reset sequence, it clears the working RAM and initializes
the file system, but because of Flash Disk you can make your files restored back to their
former place after the Hard Reset get performed. This method is also very useful to configure
your system without any action after the hard Reset.
To restore programs to the former place: It must be a troublesome work to make your
applications restored to the former place such as Windows, Background screen, and
Programs after performing a hard-reset every time. See the following illustration, the user
program disappears after a hard-reset, but you can make your applications restored to the
former place by using Flash Disk.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
24

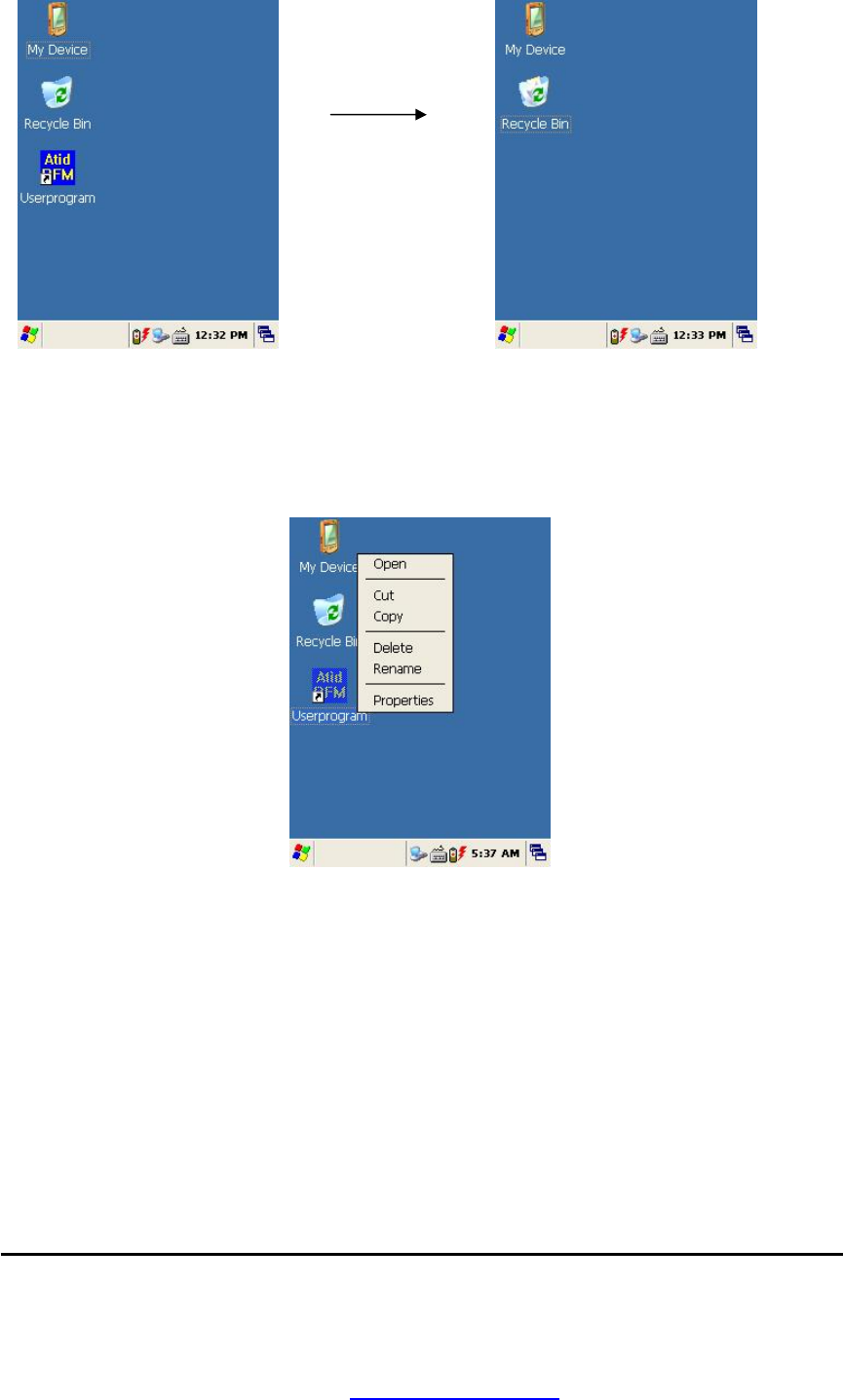

Hard reset

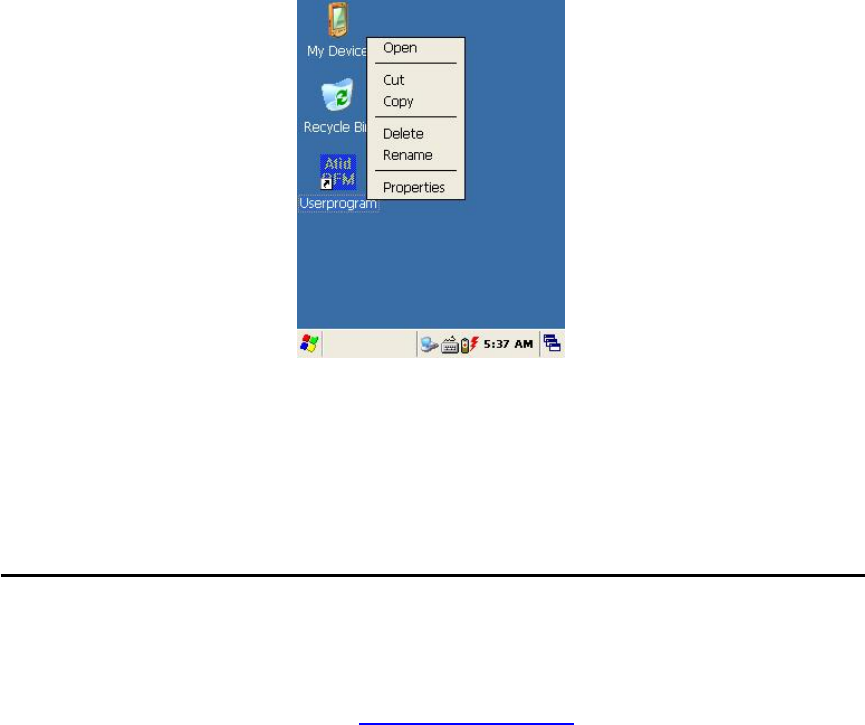

Figure 1 User’s application that disappeared after a hard reset.
To restore applications to their former location, please do as following steps:
Copy an application to be restored after a hard reset at first.
Figure 2 Copy an application
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
25

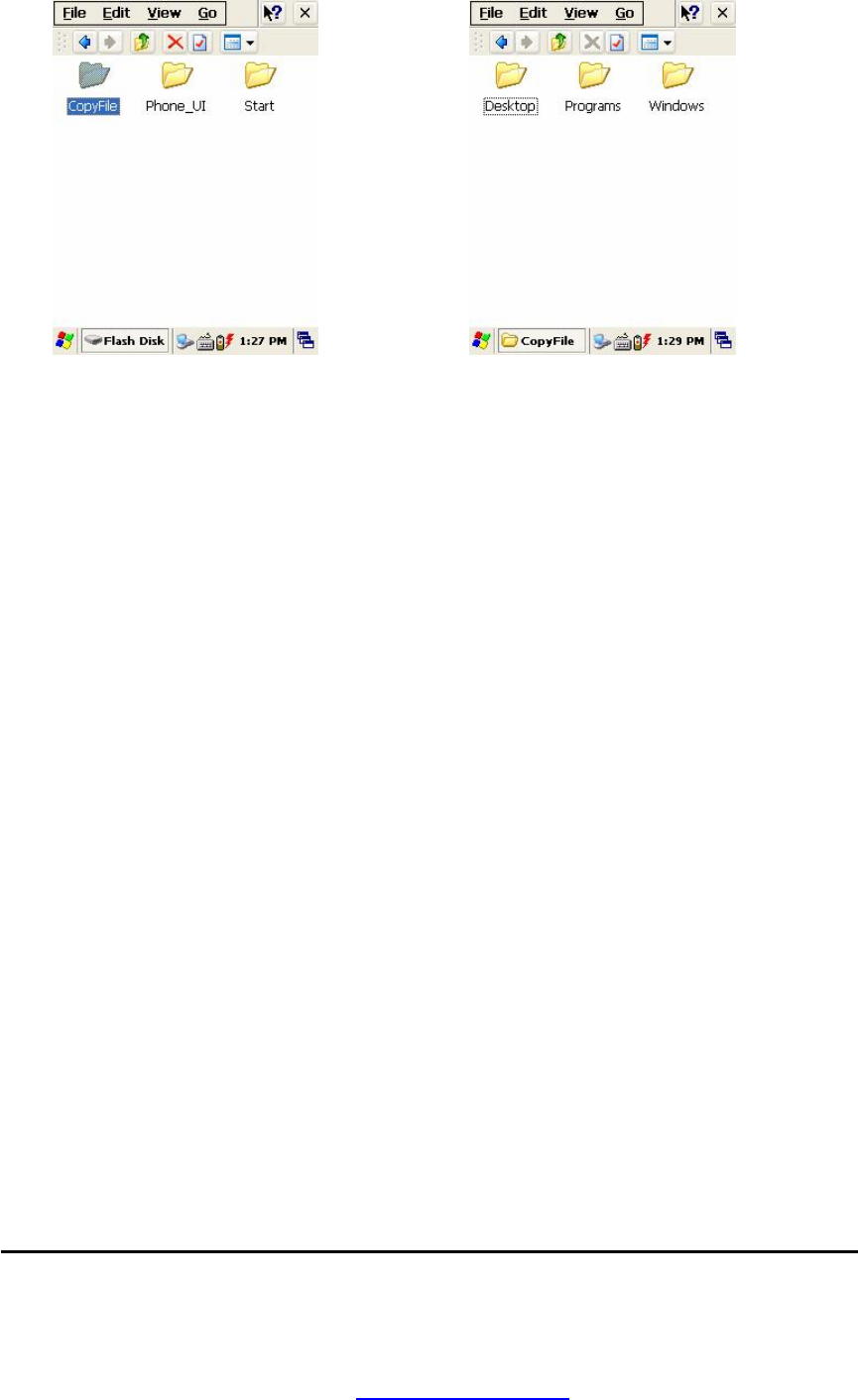

My Device > Flash Disk > Open CopyFile folder > Select a folder
Figure 7. Open CopyFile folder Figure 8. Select a folder
If you want your application to be restored in the screen (\Windows\Background) after a
hard reset, open Desktop folder and paste the copied application in it.
If you want your application to be restored in the Programs (\Windows\ Programs) after a
hard reset, open Programs folder and paste the copied application in it.
If you want your application to be restored in Windows (\Windows) after a hard reset, open
Windows folder and paste the copied application in it.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
26

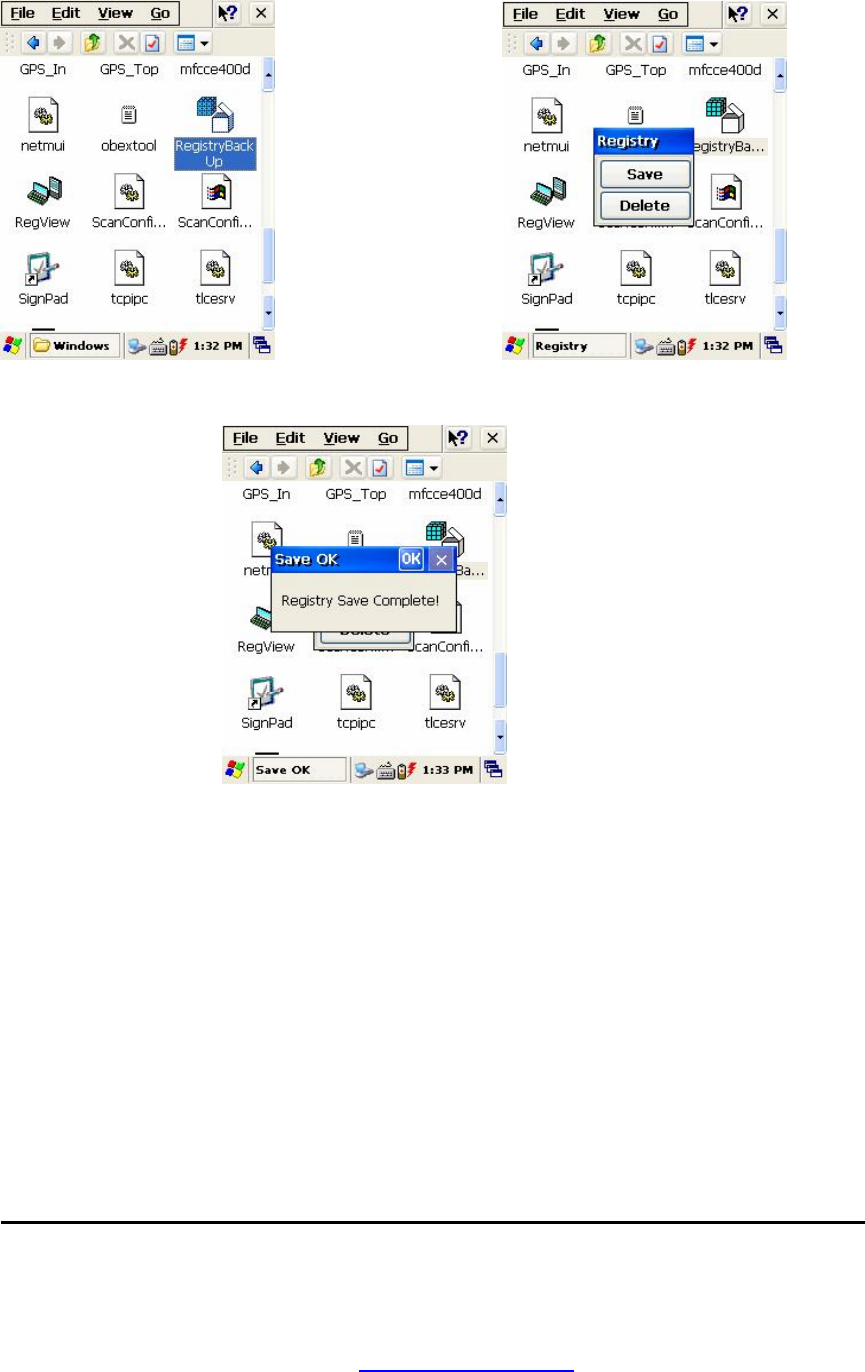

6. Registry Backup
Your AT-570 is preparing the Registry Backup program for solution to save the user’s
registry. This is a very useful method to restore your AT-570, when you perform the hard
reset, and even if it is discharged completely.
.
The main function of registry backup:
The most important function for saving registry with AT570 is to restore the former connection
status between the wireless LAN and AP after a hard reset. See the following illustration, you
don’t need to set the connection (refer to the chapter 3 optional module-wireless LAN)
between wireless LAN and AP again after a hard reset.

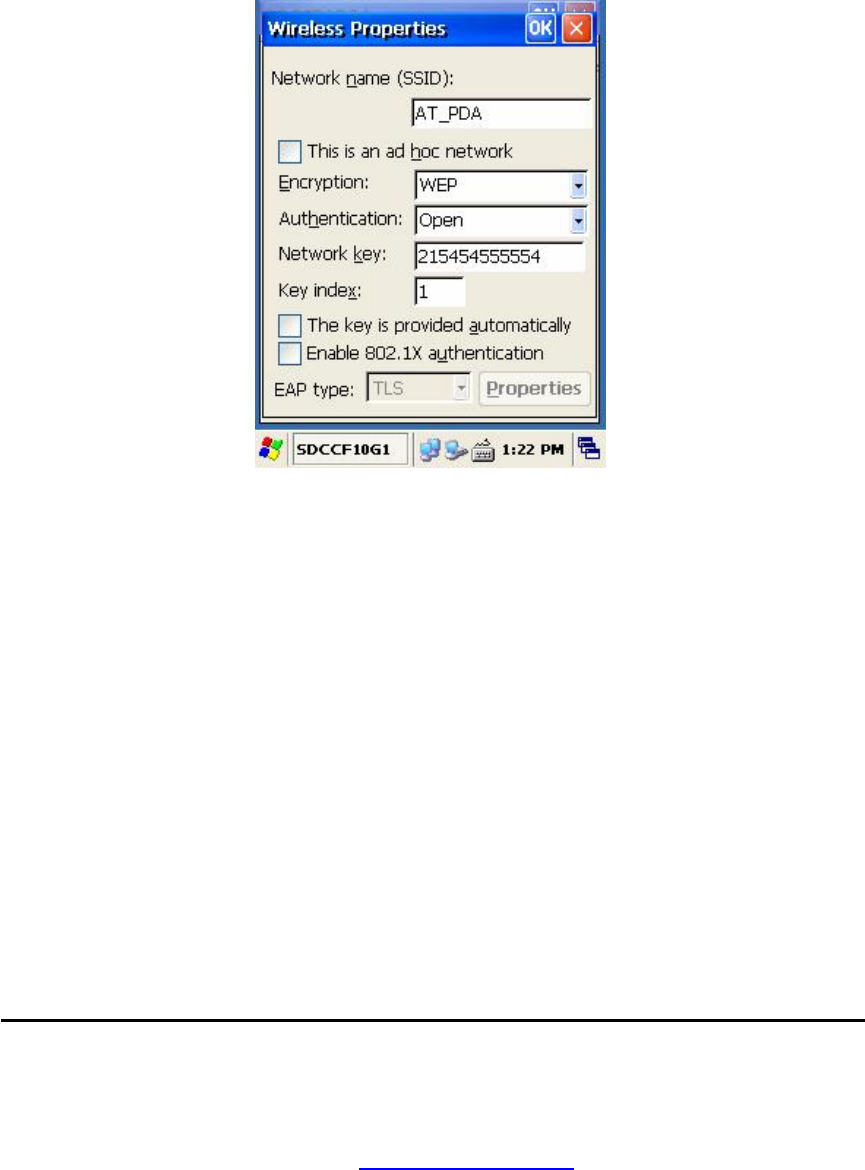

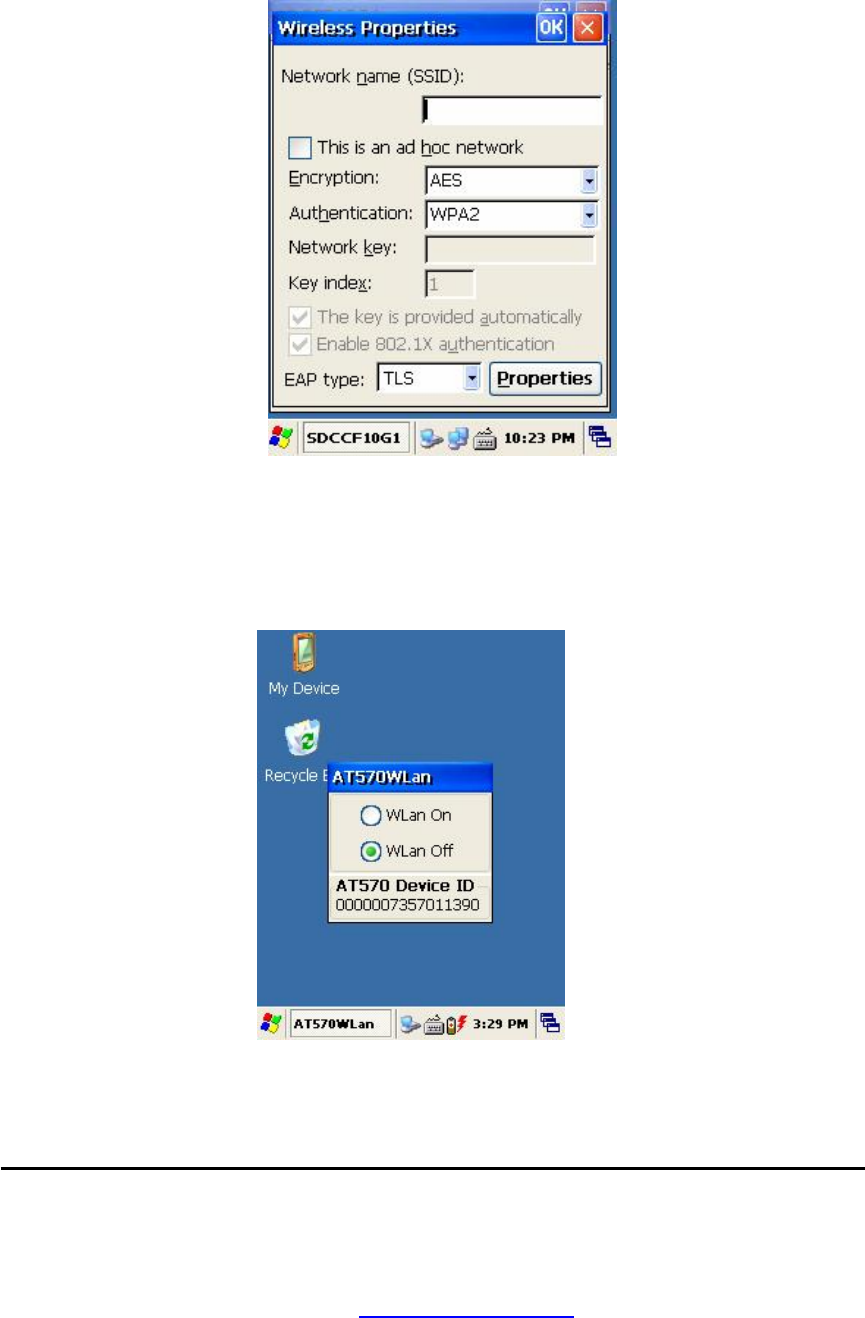

Figure 1 Wireless Properties
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
28
7. Using the keypad
The keypad is useful to input data and most of the keys on the keypad have more than one
function. Try to input data with the keypad after know how to use it and keep the intimate
knowledge like following tips in your mind.
7.1 Change current character
To change the current input character type, press the <key> key, than you can see the
changed current key type like following steps:
Numeric > Lowercase > Uppercase > Special

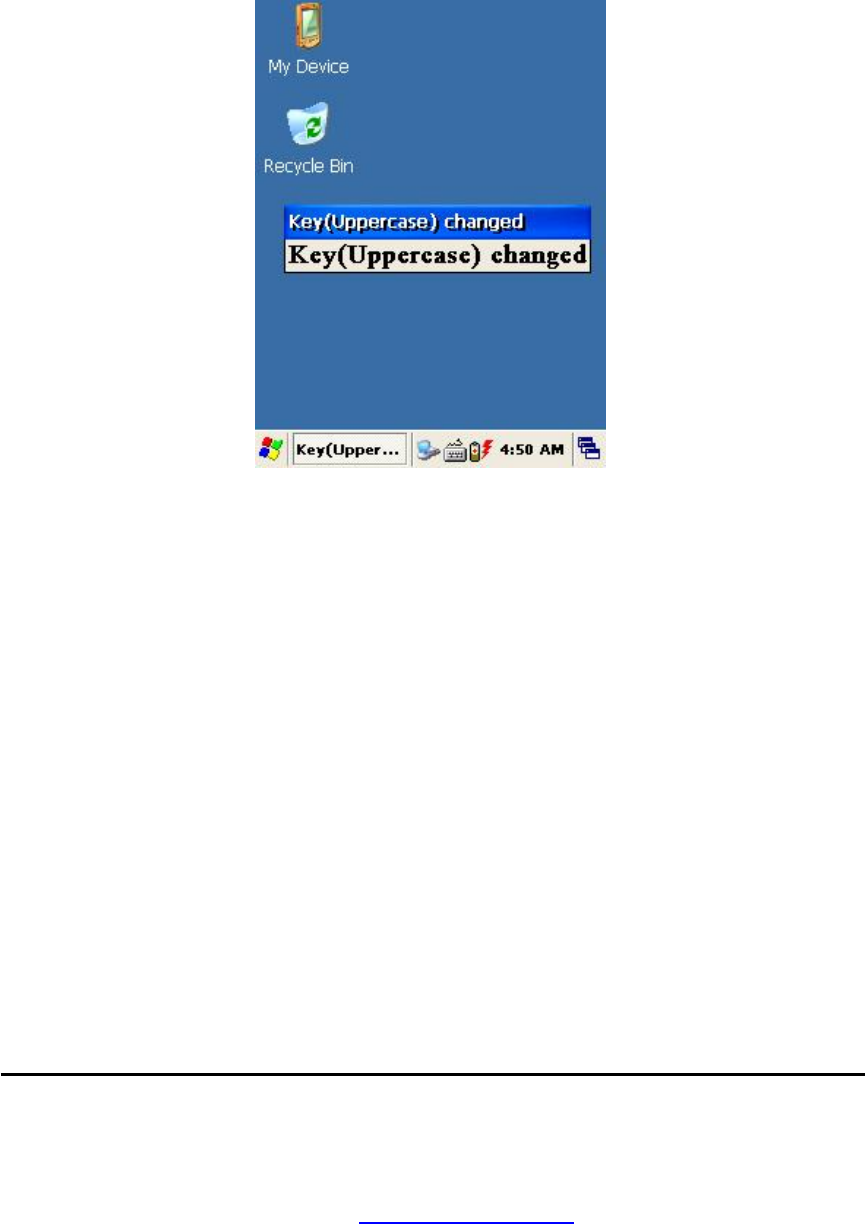

Figure4. Changing Current Character
7.2 Inputting the data
Numeric Mode: After making your choice to the Numeric Mode through the<key> key, and just
press from 1 to 10 numeric keys.
Alpha Mode: In alphabetical order, there are 2~3 letters per key.
To input the first letter, press the key you want input one time, and to input the second and
third letter, press the key how many times as the letter is ordered on the key continuously.
Special character: After making your choice to the Special Mode through the<key> key, press
the key that has special character you want to input.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
29
7.3 Setting device though the <Fn> key
Press <Fn> + other keys simultaneously to activate follows.
Table3.key describe
Fn + Function
Navigation <Up> Increase sound.
Navigation <Down>
Decrease sound.
<Esc> Key WLAN ON / OFF
2 Execute App1 program.
3 Execute App3 program.
4 Copy clip board.
5 Add to clip board.
Setting App
To execute the program designated by user directly:
Tap Start > Control panel > Application Buttons and designate App1, App2 as you want to
execute anytime.
l

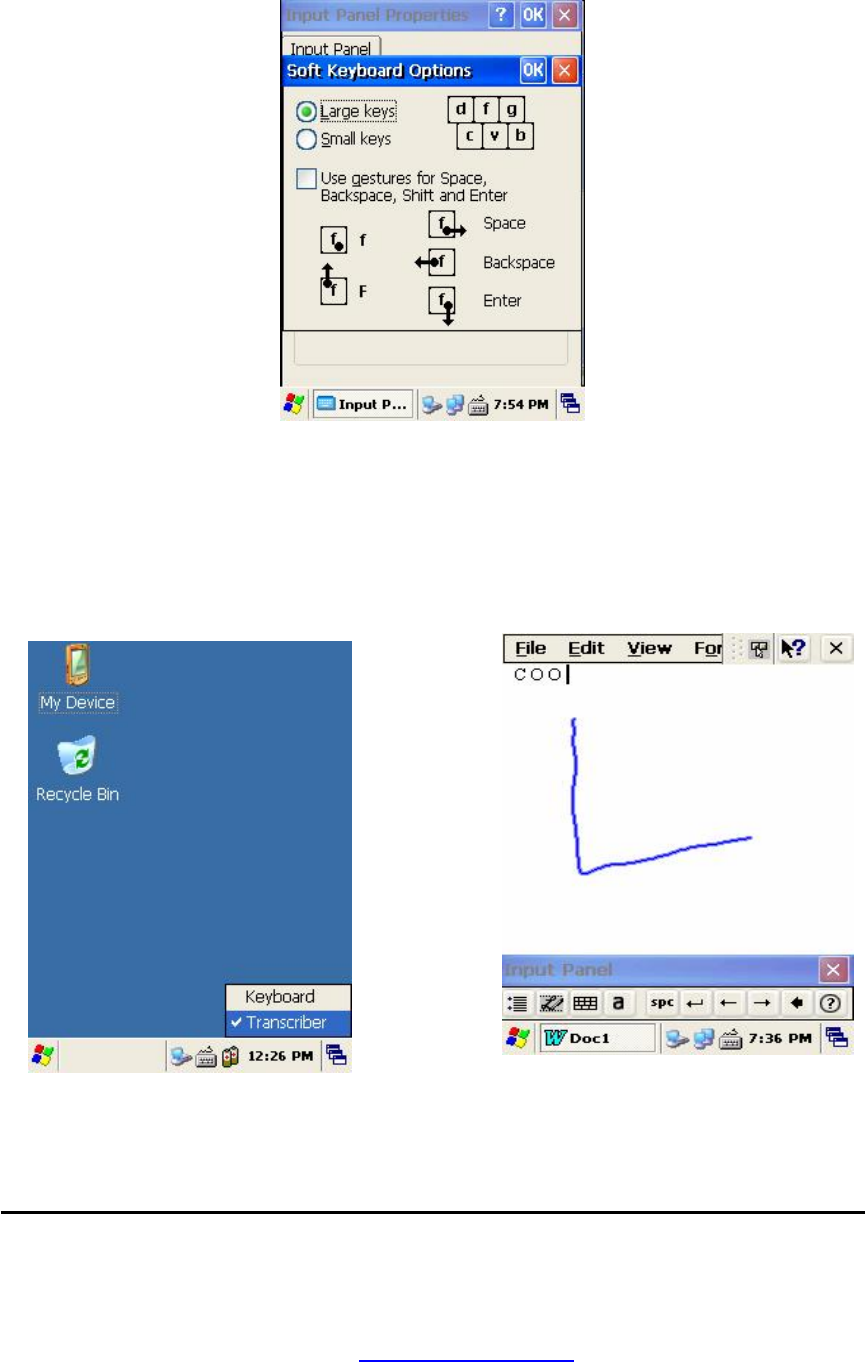

KBD button: you can make the touch screen display the input panel program directly to press
the KBD button on the front of the AT-570.
8. Using the stylus
The stylus is located next to the Battery pack on the right rear of the PDA. The stylus on the
PDA is the equivalent of the mouse on a PC.
Warning: Never use a pen, pencil, or other sharp object on the AT570’s touch screen display.
Use only the supplied stylus or plastic-tipped pens intended for use with a touch
screen-sensitive display.
Use the stylus to:
*Navigate the touch screen display.
*Select characters in the soft input panel (SIP).
*Select applications from the desktop or system tray.
*Select buttons, tabs, fields and text within applications and dialog boxes.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
30

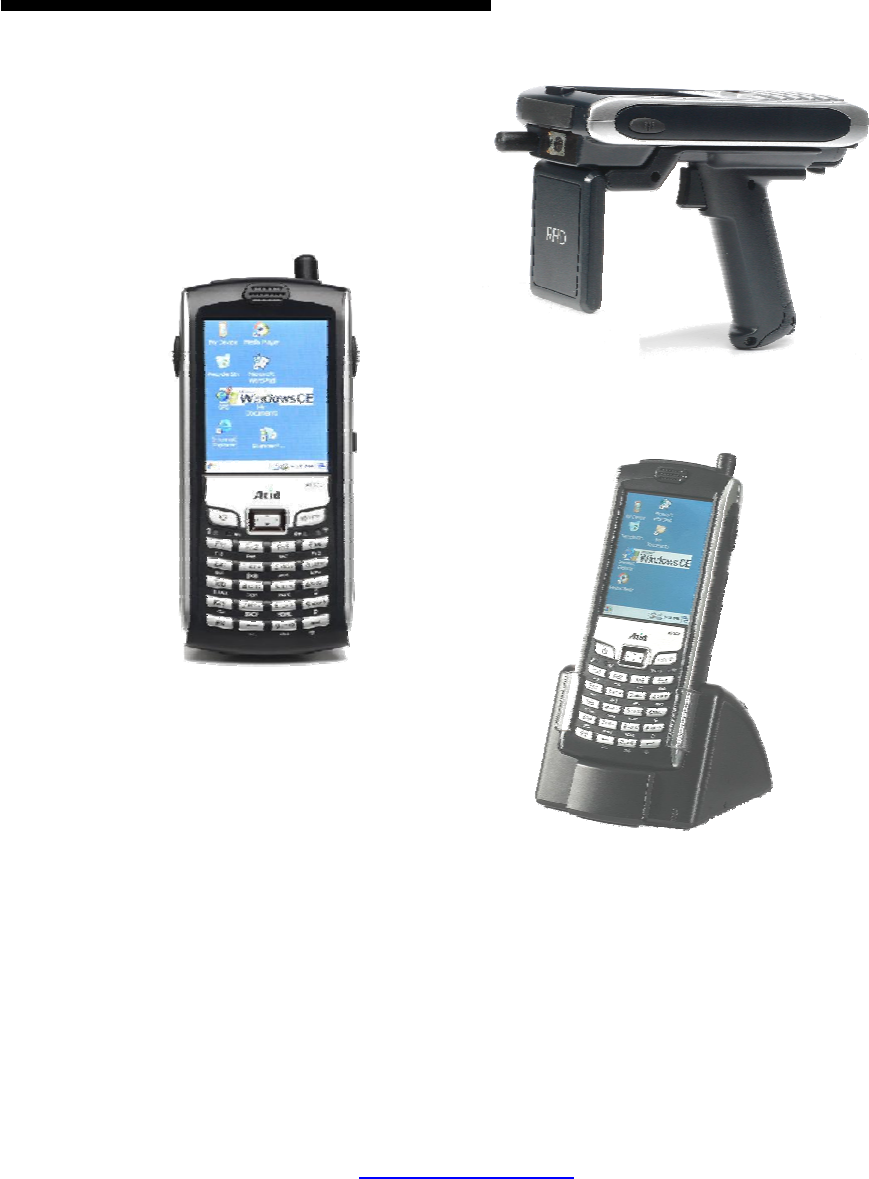

9. Using the Hand-strap and Gun hand-held
To use the PDA for extended periods of time, install the hand-strap for increased comfort
and usability.
1. Turn the PDA face down and ensure the power in off.
2. Insert strap into strap holder and pull down for fixing.
3. Pull plastic tab up to insert the strap recess at the top of the unit.
Figure 1. Using the hand-strap
Figure 2. The Gun-typed hand-held
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
31
Chap 2. Windows Program
This chapter introduces Microsoft Windows Mobile 5.0 for Pocket PC. While using the ATID
Mobile Computer, keep these key points in mind:
1) Tap Start on the navigation bar, located at the bottom of the screen, to quickly move to
programs, files, and settings.
2) Tap and hold an item to see a pop-up menu containing a list of actions you can
perform.
1. Basic Information
1.1 Task Bar and Command Bar

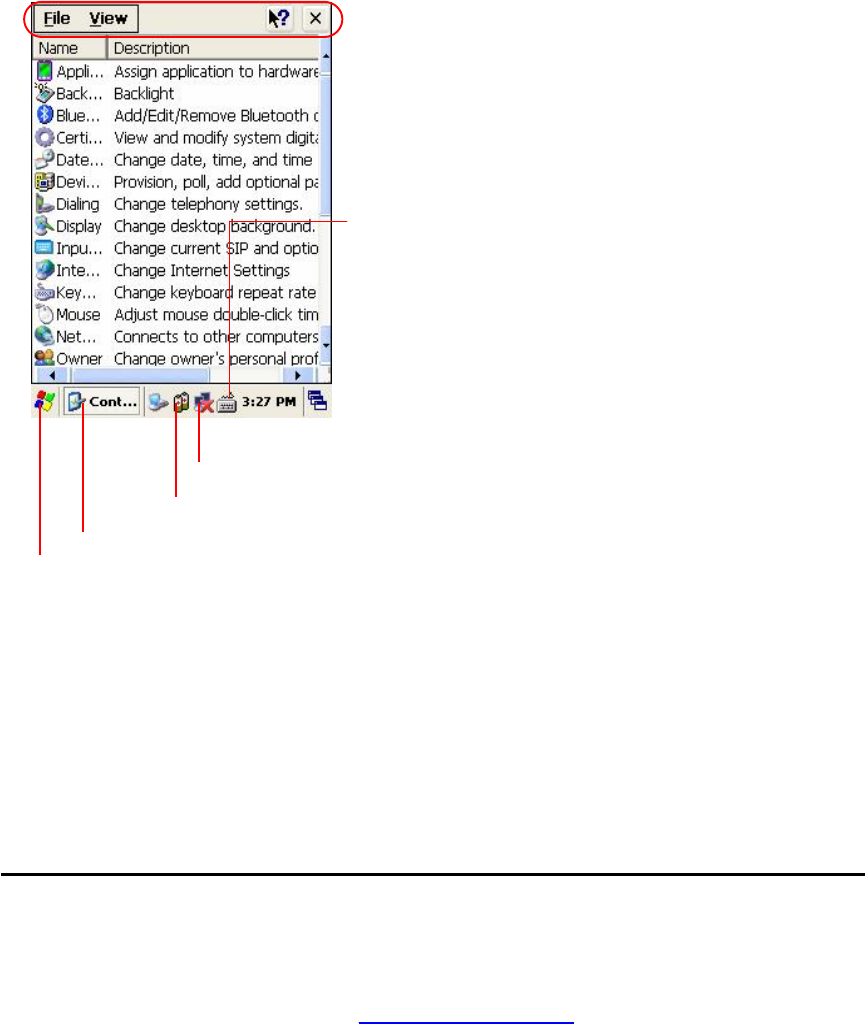

The task bar is located at the bottom of the screen. It displays the active program and current
time, switch to programs, input panel, and battery status.
Command bar
Input panel
WLAN status
Battery status
Current program
Tap to start a program
Figure 1. Task Bar and Command Bar
Use the command bar to perform tasks in programs. The command bar includes menu names,
functions.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
32
1.2 Pop-up Menus
Use pop-up menus to quickly perform an action on an item. For example, you can use a
pop-up menu to delete or copy of an item. To access a pop-up menu, tap and hold the item
on which you want to perform the action. When the menu appears, tap the action you want to
perform, or tap anywhere outside the menu to close the menu without doing the action.
2. Executing a Program
When you turn on the AT-570 for the first time, you can
see the following start screen. Try to double-tap
“My device” Icon > windows > Program >
tap an icon you want to execute.
You can also display it by tapping the Start flag at the
bottom left of your display.
Figure 2. Executing a Program to use Start Flag
3. Entering information
You can enter information on your AT-570 in several ways, depending on the type you have
and the program you are using.
3.1 Using the Onscreen keypad
Use the input panel to enter information in any program on your AT-570.
You can both type using onscreen keyboard or write using transcriber.
Figure 3-1. Selecting SIP menu Figure 3-2 Popping-up SIP
To make pop-up menu appears, double-tap the keypad icon on the taskbar.
To make soft input panel (SIP) popped up, tap the keypad icon on the taskbar, or press
“KBD/)) “key on the keypad.
Double-click
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
33
To see Soft Keyboard Option:
Tap Start > Settings > Control Panel > Input panel, select “keyboard” from the current Input
method drop-down list, tap “option”, then adjust Options as you want to use.
Figure 4. Keypad Option
3.2 Using the Transcriber
With Transcriber, you can write anywhere on the screen using the stylus just as you would on
paper. Double-tap input panel icon, than tap Transcriber. After selecting, than write anywhere
on the screen.
Figure 5. Using Transcriber in an application program
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
34
4. Customizing Your AT-570
You can customize your mobile by adjusting setting and installing additional software.
4.1 Adjust settings
To adjust settings to fit the way you work:
Tap [Start] > [Settings] > [Control Panel]
To open a program, you can use the “File” pop-up menu, or double-tap an icon you want
execute in the Control Panel.

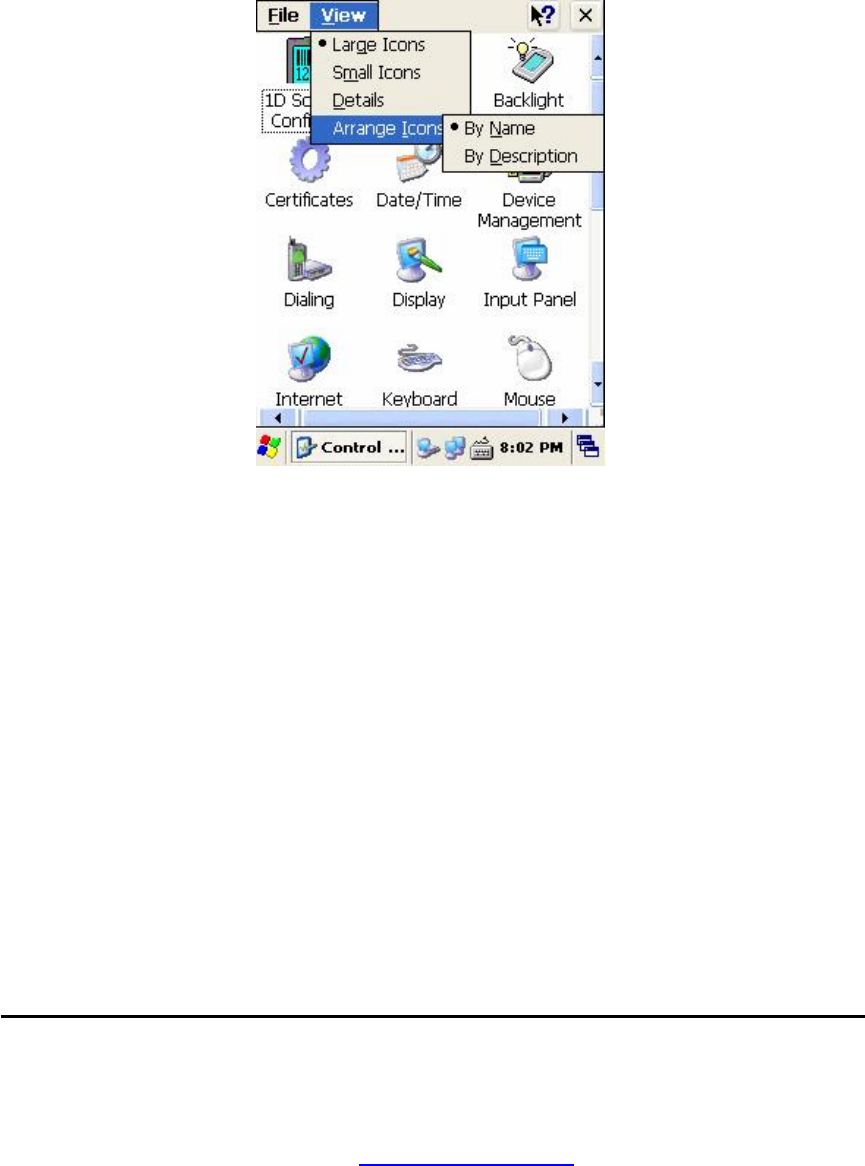

To arrange programs with detail, tap the “View” and select “Detail”, and than tap
“Arrange Icons”. If you want to arrange all the icons by description, tap “By Description”,
and if you want to arrange all icons by alphabetic order, tap “By Name”.
Figure 1. Setting Icons
4.2 Adding or Removing the Programs
Programs added to your AT-570 Mobile computer at the factory are stored in ROM (Read
Only Memory). You cannot remove this software, and you cannot accidentally lose ROM
contents. Applications added to your AT-570 Mobile computer go into the Object Store,
Which is located in Flash ROM. You can install any program created for AT-570, as long as
there is enough memory.
4.3 Adding the Programs Using ActiveSync
1. Use the Explore in ActiveSync on your desktop computer to explore the files on your
PDA, and locate the program.
2. Right-click on the program, then select Create Shortcut.
3. Move the shortcut to the Programs folder in the Windows folder.
The shortcut appears on the menu.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
35
4.4 Removing the Programs
To remove a program, tap Start > Settings > Control Panel > tap Remove Programs Icon, than
select the program you want to remove. Press the “Remove” tap.

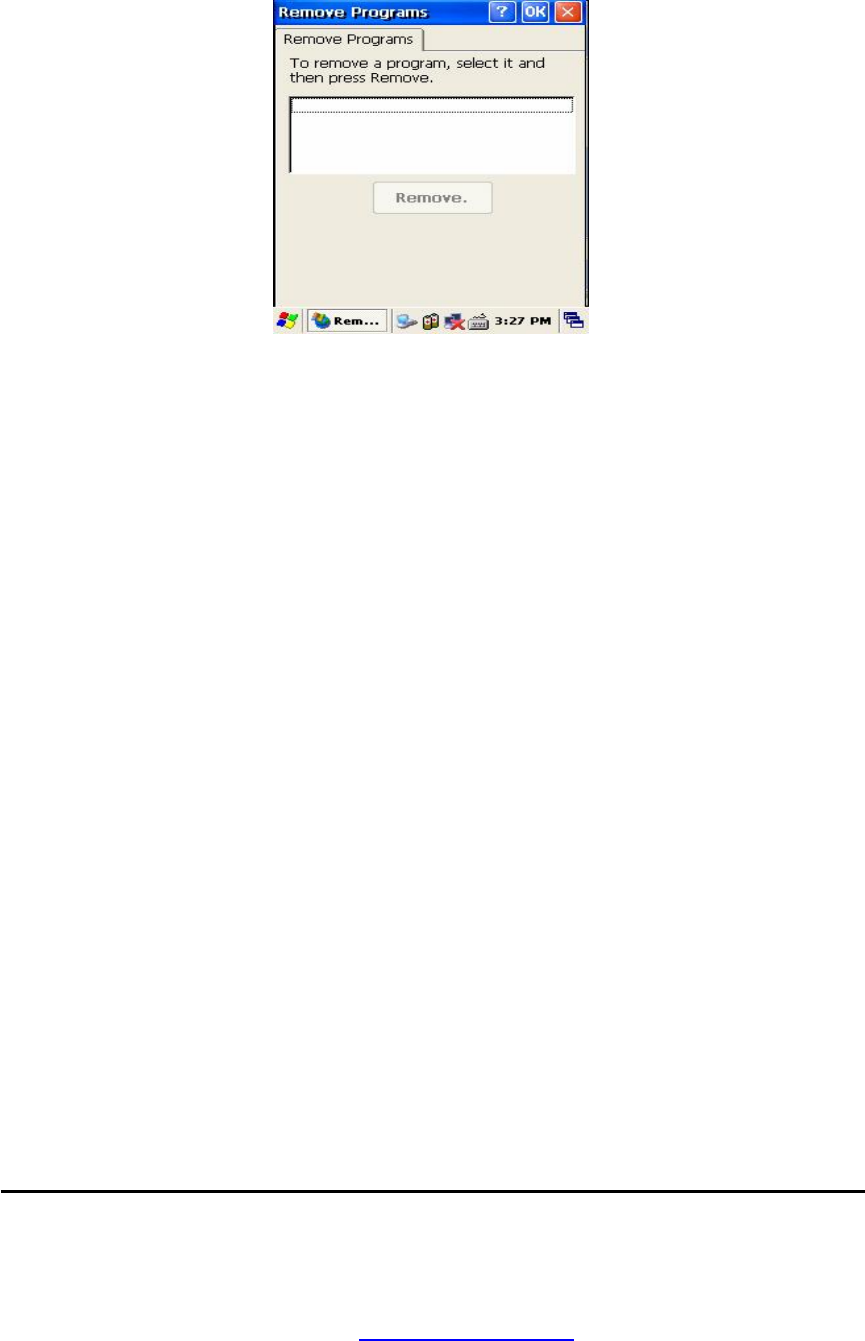

Figure 2. Input a program to remove
5. Microsoft ActiveSync
This section provides instructions on setting up the Host PC so that the PC can communicate
with the PDA and the dock.
5.1 Using Microsoft ActiveSync
You can synchronize the information on your desktop with the information on your AT-570.
Synchronization compares the data on your AT-570 with your desktop and updates both
computers with the most recent information
NOTICE: You must have Microsoft ActiveSync 4.2 or greater on your desktop before you can
synchronize information with your AT-570.
With ActiveSync
You can also do:
1. Back up and restore your AT-570 data
2. Copy (rather than synchronize) files between your AT-570 and desktop.
3. Control when synchronization occurs by selecting a synchronization mode. For
example, you can synchronize continually while connected to your desktop or only
when you choose the synchronize command.
4. Select which information types are synchronized and control how much data is
synchronized.
For more information, please refer to the instruction of Microsoft ActiveSync.
5.2 Installing Microsoft ActiveSync on your desktop
Microsoft ActiveSync is a file transfer tool to synchronize the files on a desktop with the files
on your PDA. The AT570 comes from the factory with ActiveSync loaded. If you have
ActiveSync already installed on your PC, make sure that you have v4.2 or higher.
To install Microsoft ActiveSync, complete the following steps on the PC:
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
36
1. Go to the Microsoft Windows CE .NET website and download the most current
version of ActiveSync http://www.microsoft.com/mobile/pocketpc/downloads/.
Install the most current version of Microsoft ActiveSync (v4.2 or greater) on the host
PC.
2. Once ActiveSync is installed, it will attempt to connect to the AT570; allow it to fail on
the first attempt.
5.3 Setting up a Partnership
ActiveSync file synchronization requires an ActiveSync partnership between the AT570 and
the Host PC.
Setting up a Partnership.
1. Select the files in the synchronization configuration for the AT570.
2. Select Tools > Options from the ActiveSync command bar to configure the
synchronization options.
Place the file to be synchronized in the Synchronization folder created in your My Documents
directory. During the ActiveSync connection, all files in the Synchronization folder will be
synchronized to the My Documents directory on the AT570.
5.4 Transferring Files
To transfer files, complete the following steps on the host PC:
1. Select Start > Programs > Microsoft ActiveSync
2. Double-click on the ActiveSync icon in the System Tool Tray.
3. After you have established a connection with your PDA, tap the Explore button at the
top of the ActiveSync window (or select Explore form the File menu). Navigate to
the target directory on your portable and copy the desired file by using the Copy/Paste
method or dragging and dropping the desired file(s) into the folder.
6. Microsoft WordPad
Use Microsoft WordPad to create documents, such as letters or meeting minutes.
Select Start > Programs > Microsoft WordPad
The PDA comes with WordPad for Windows CE .NET installed from the factory. The following
text and document file types are compatible with WordPad:
Text (*.txt ), Word Document (*.doc ), Rich Text File (*.rtf ), WordPad (*.pwd )
When you transfer file types other than *.pwd to the Windows CE .NET device, it translates
the files into a compressed Windows CE .NET file type.

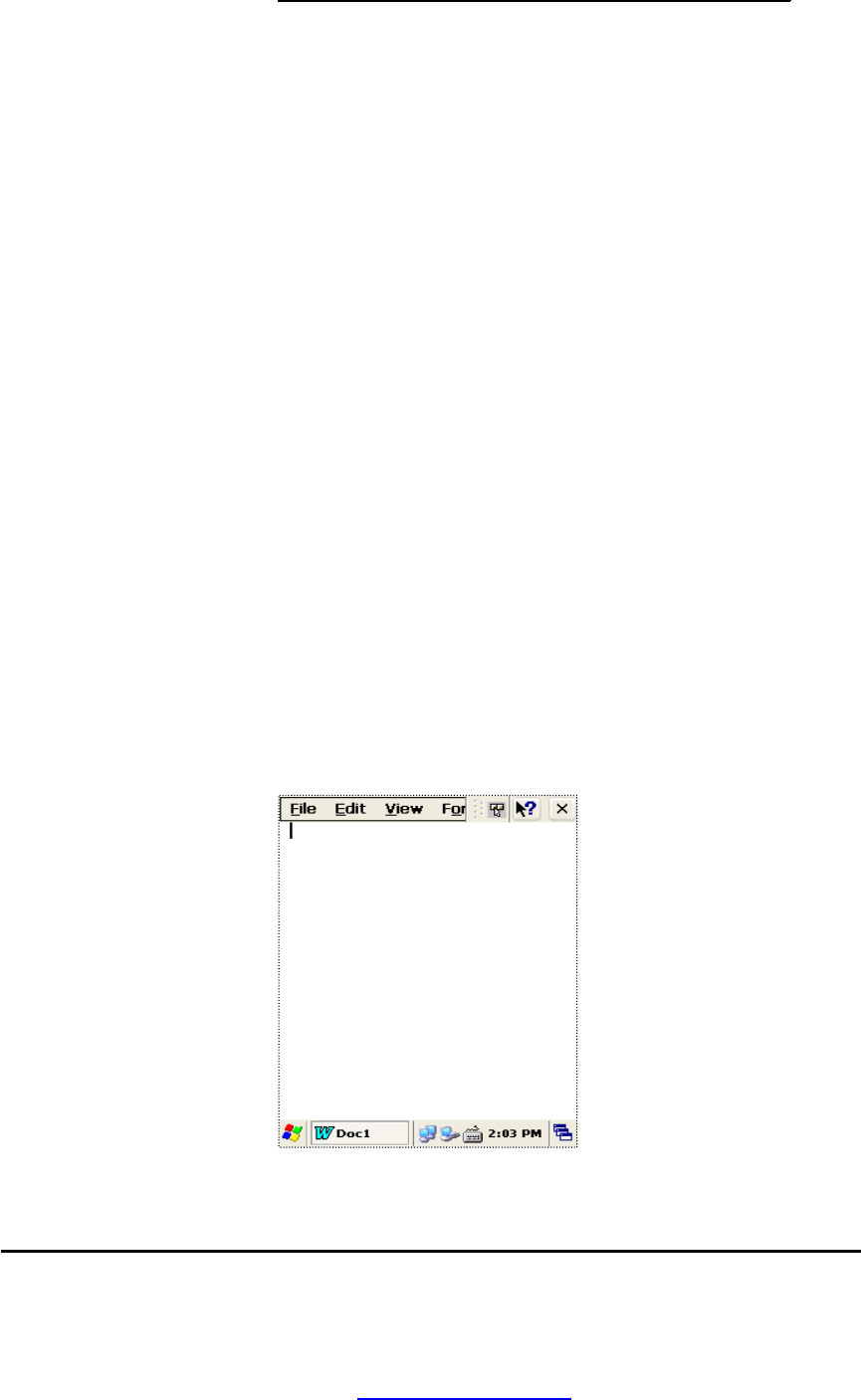

Figure 1. WordPad.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
37
7. Window Media Player
Use Media Player on your desktop to copy digital audio and video files to your AT-570. You
can play Window media and MP3 files on your AT-570.
To display Media Player:
Tap Star > Programs > Media Player

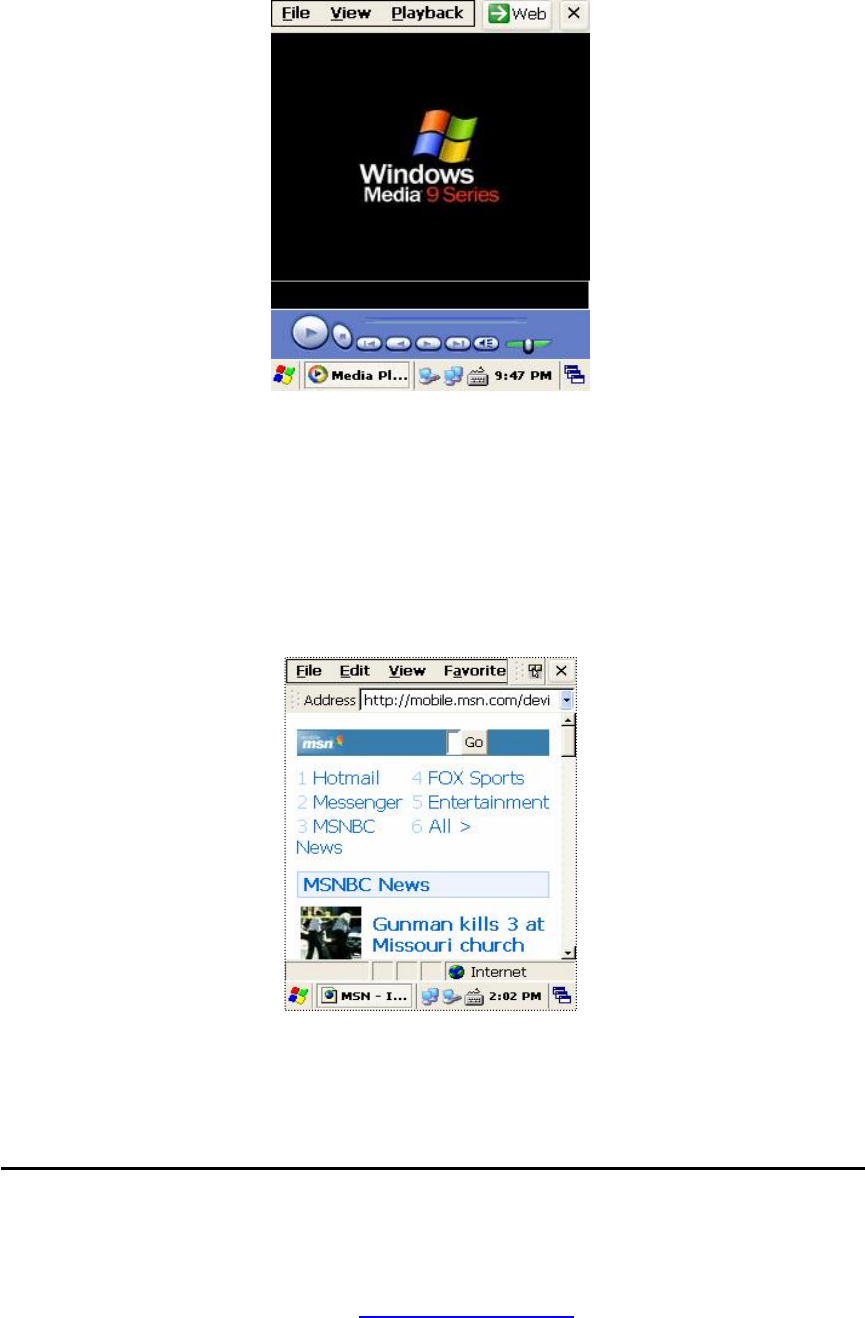

Figure 1. Media Player
8. Internet Explorer
The PDA comes with Internet Explorer for Windows CE.Net installed
1. Open Internet Explorer by selecting Start > Programs > Internet Explorer.
2. To set a default home page, navigate to the desired default web page.
3. Select View > Internet Options from the command bar.
4. Enter the desired URL in the Start Page field.
5. Press the OK button.
Figure 1. Internet Explorer
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
38
9. Context Sensitive Help
Microsoft Windows CE context sensitive help is available where ever a “?” button appears
in the upper right hand corner of the window. To open context sensitive Help, select/tap the
“?” in the upper right corner of most screens. Select/tap the desired item from the list of
hot links.

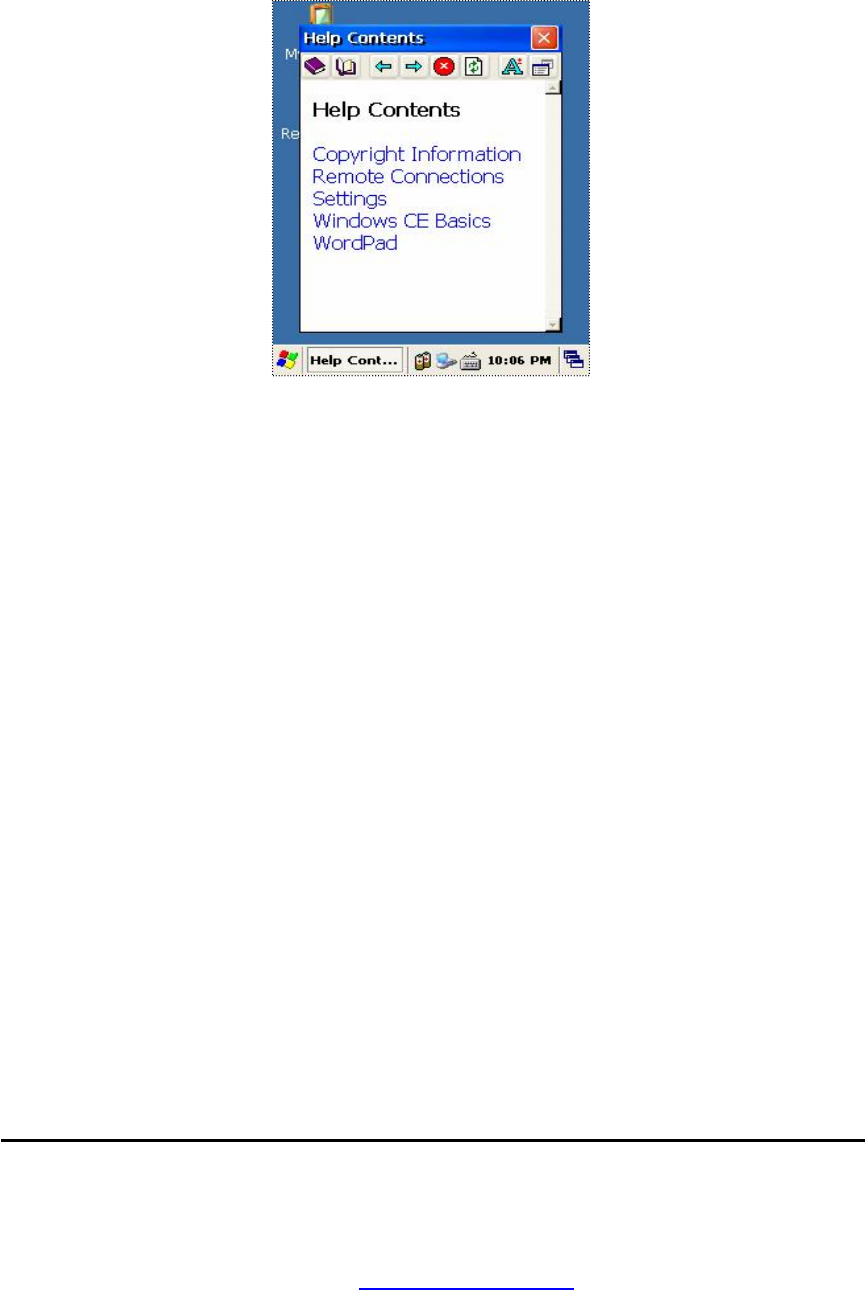

Figure 1. Sensitive Help
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
39
Chap 3. Optional Module (Version 1.1)
The automatic identification and wireless network technology has helped users to keep their
information, and makes IT engineers try various methods to develop modules used within
mobile computer. The AT-570 can also be supported with the optional modules for the needs
of users. This section provides you with the information of the Optional Modules, and sources
for additional product information. You need to confirm the follow information before you get
the device that you want to use.
The Optional modules supported from ATID
Note: According to user’s purpose or Upgrading for device, the additional information can be
changed.
1) Barcode Reader
-. 1D Scanner Barcode Reader
2) Barcode Reader
-. 2D Scanner Barcode Reader

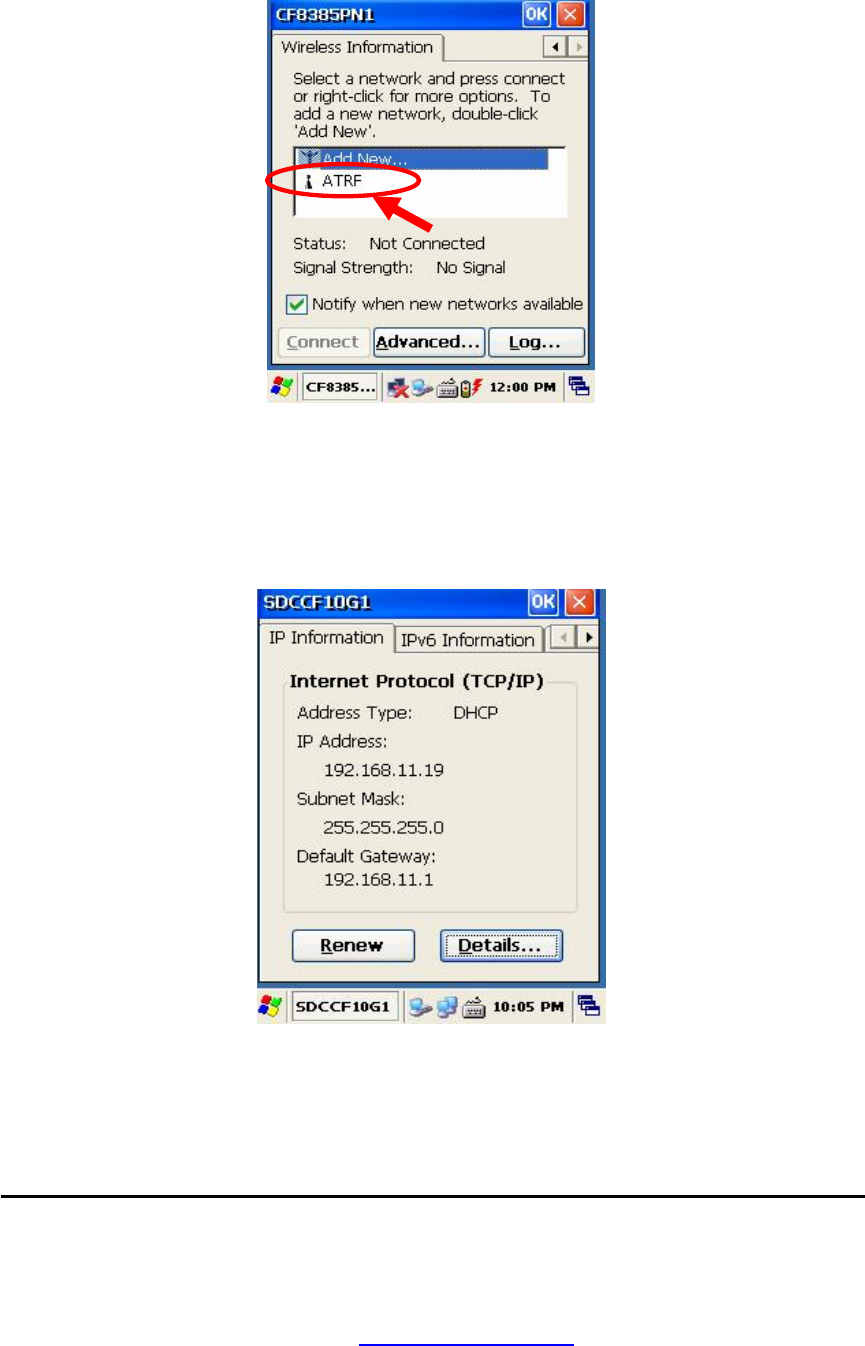

3) Wireless Lan – 801.11 b.g
4) GSM/GPRS / CDAM

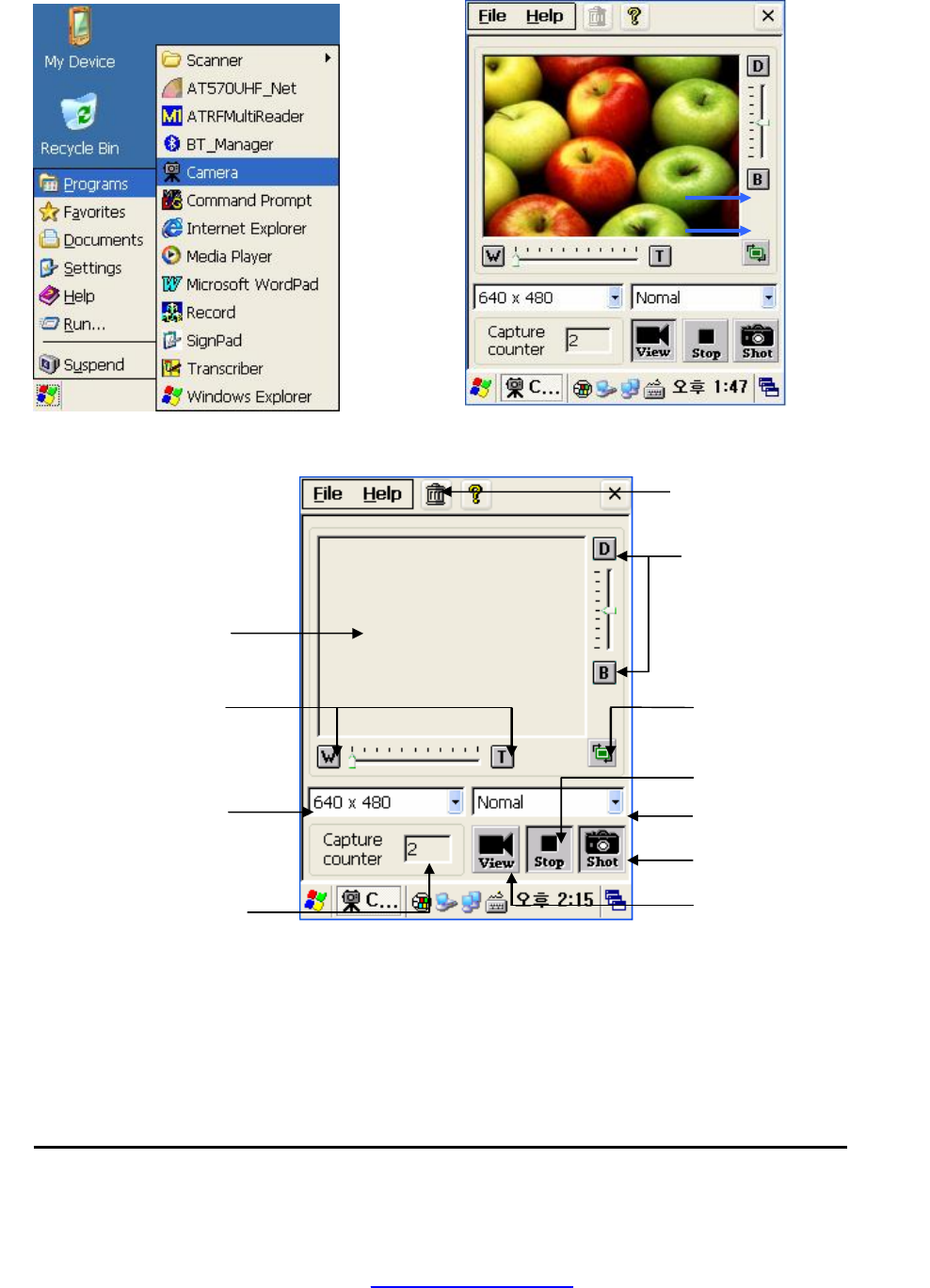

5) Camera
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
40
1. 1D barcode Scanner
This chapter introduces the AT570 built in with the 1D, 2D barcode Scanner program to assist
you in making the most out of your AT570
1.1 1DScanner(Demo program)
You can execute AT1DTScanner coded from ATID to make sure that your AT570 scans
barcodes exactly.

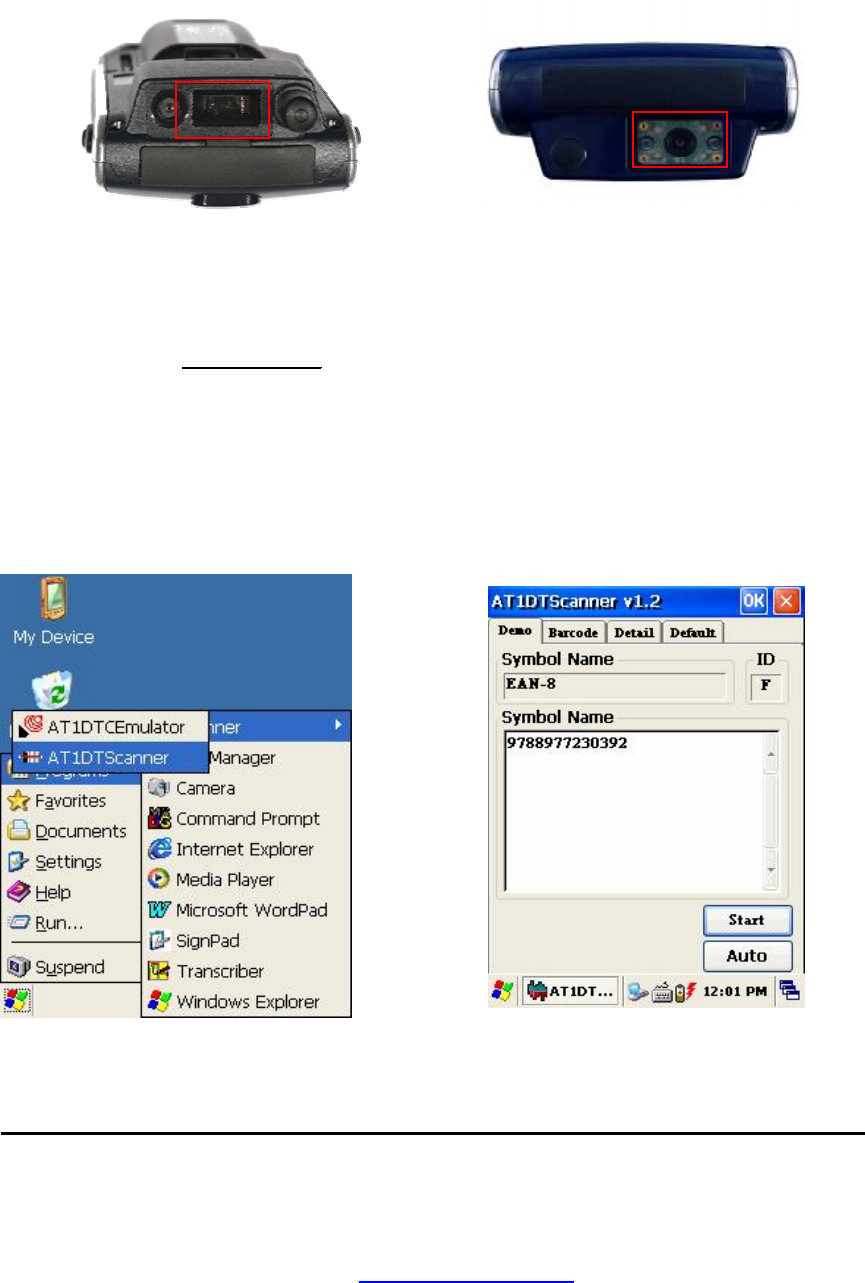

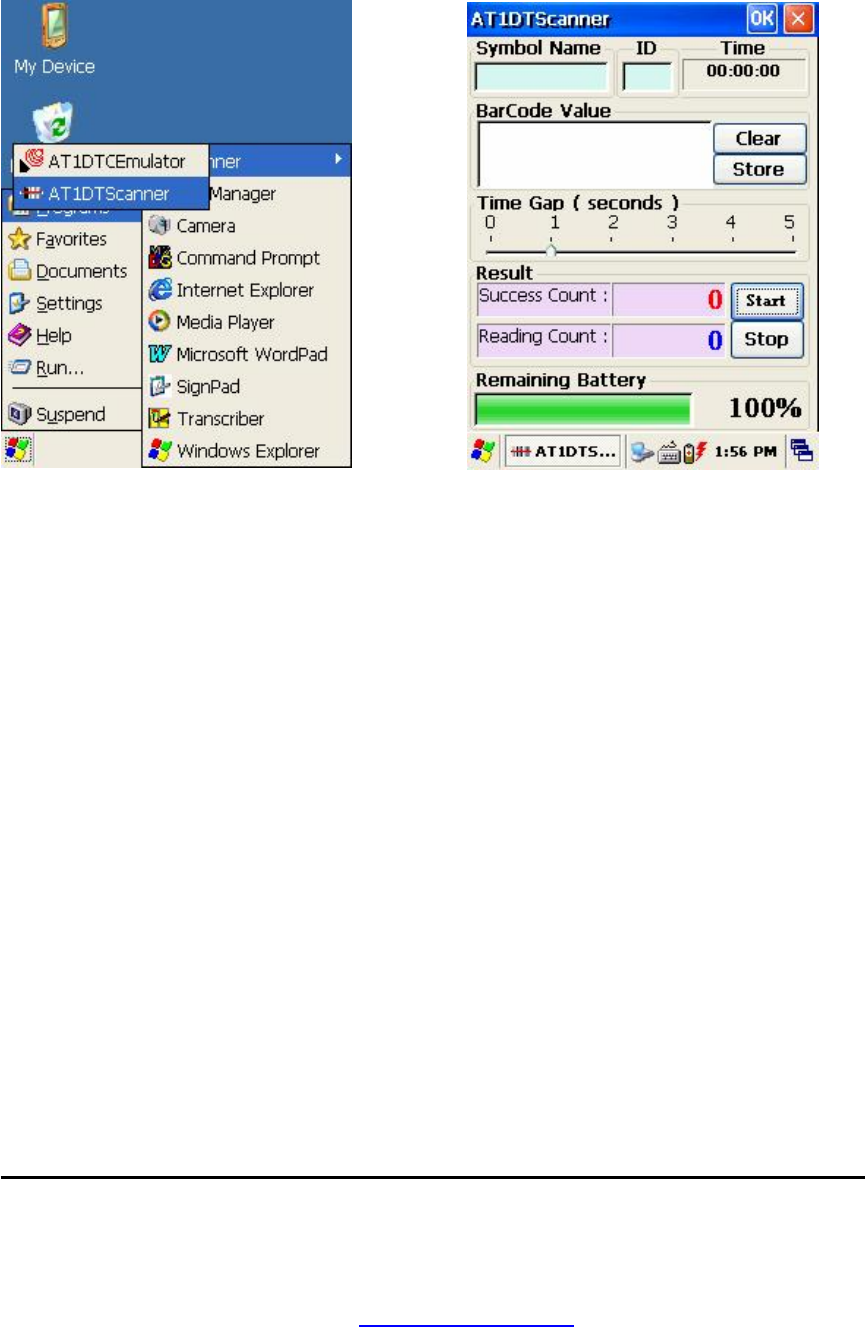

Figure 1. Scan Window for 1D image Figure 2. Scan Window for 2D image
1) To execute Scanner Diagnostics
Tap [start] -> [program] -> [Scanner] -> [AT1DTScanner]
Note: If you don’t have AT1Dscanner.exe(Ver 1.2) File, please look for our staff or visit ATID
web site at www.atid1.com to download.
[Program Release Note]
1. Ver 1.2 : can only read barcode
2. Ver 1.0 : can read barcode and set up symbology
2) Reading barcodes
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
Figure 3. 1D Scanner Program(ver 1.2)
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
42
3) Reading barcodes
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
Figure 7. 1D Scanner Program
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
43
1.2 Setting up the AT1DEmulator
You can input the barcode value you scanned in any application program that has a cursor
after setting the AT1Demulator. Like an input device, the AT1Demulator makes data displayed
in an application program (see the following figure)

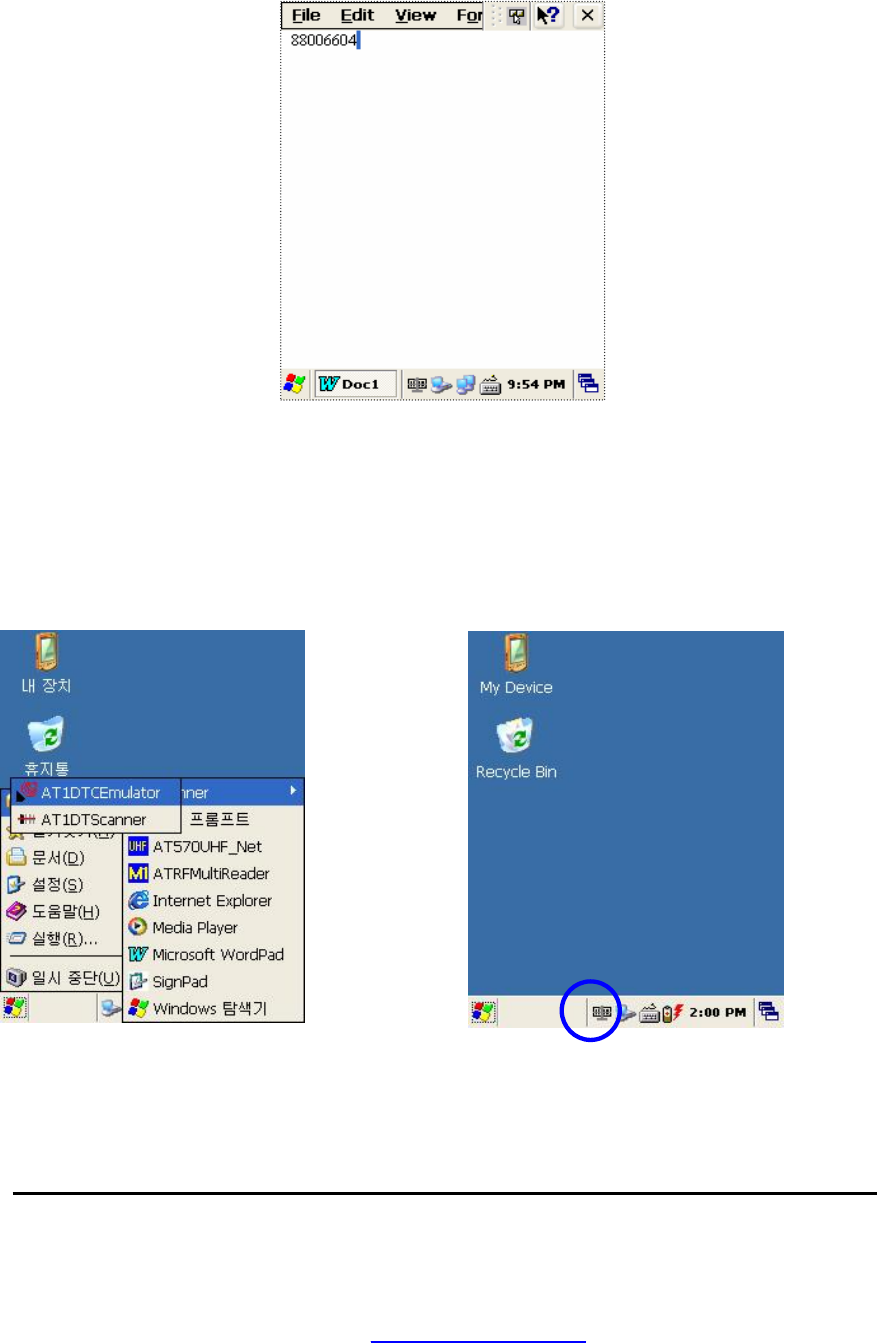

Fiture8. Barcode value in the WordPad Program
1) Using the AT1DEmulator
Because the AT1DEmulator can apply to all application programs that have a cursor such like
Web program, Wordpad and others, you can input the scanned data directly without coding
any application program.
2) To executing Emulator
Tap [Start] -> [Program] -> [Scanner] -> [AT1DTCEmulator]
Figure 9. AT1DTCEmulator.exe Figure 10. Tap this AT1DTCEmulator Icon
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
44
3) Setting the Emulator

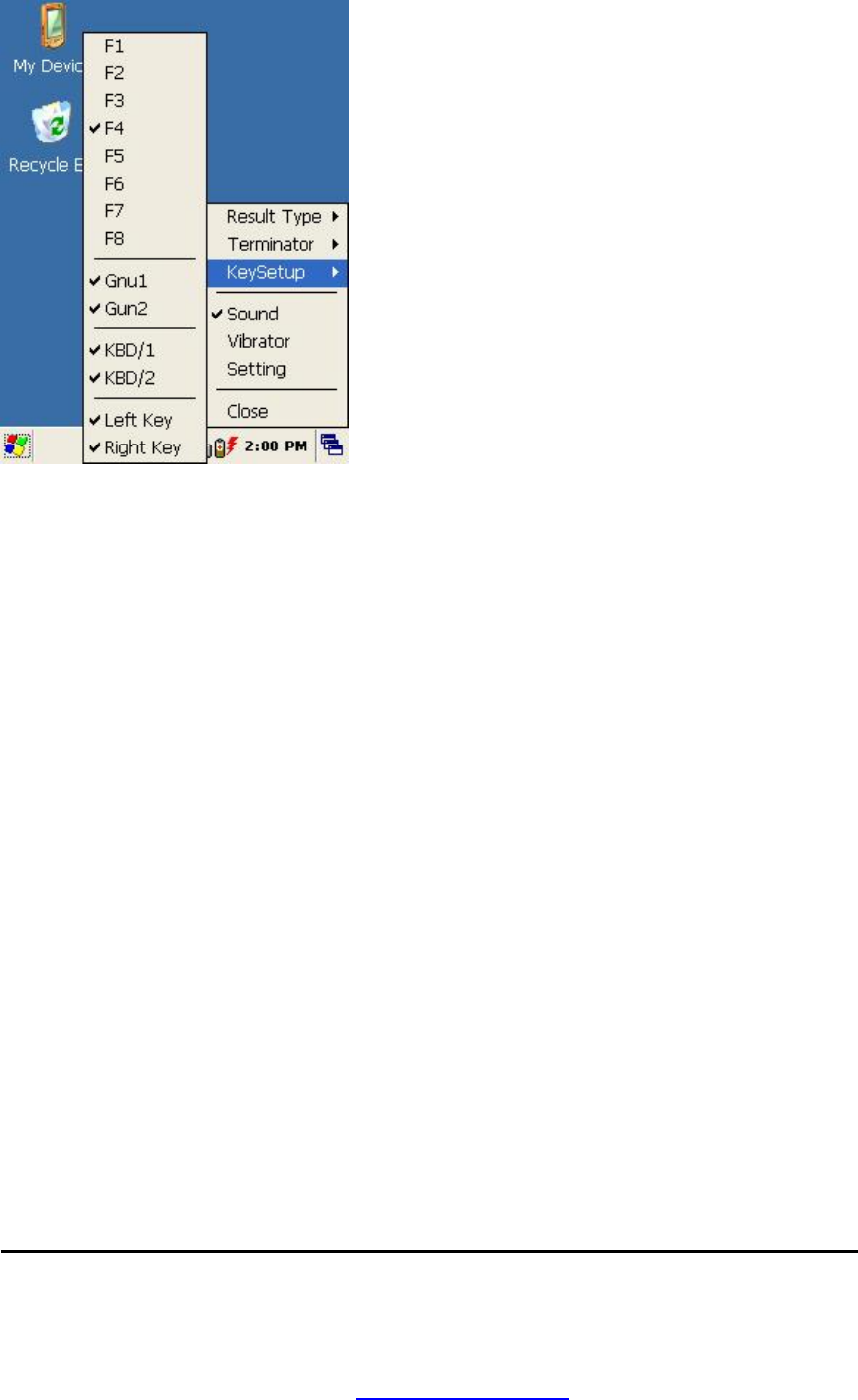

Figure 11. Setting Menu
1. Result Type
There are 2 kinds of method to print the scanned barcode data where a curser is
pointing.
A. Keyboard Event : Print the scanned barcode data like input Keyboard
B. Copy & Paste : Print the scanned barcode data with Clipboard
2. Terminator
You can set the termination code at the end of Barcode Value to tap “Terminator”.
A. None : No input the termination code.
B. CRLF(Default Setting) : Carriage Return & Line Feed (Enter code)
C. Space : Input Space code.
D. Tab : Input Tab key code.
3. KeySetup
You can make Hardware keys set to aim the lager beam.
A. F1 ~ F8 Key : press those keys on the keypad to read barcode after setting.
B. Gun1, Gun2 : Set for the gun-typed AT-570 .
C. KBD/1, KBD/2 key : Same with the F1 ~ F8 Key
D. Left Key, Right Key key : Same with the F1 ~ F8 Key
4. Sound : set the sound On/Off after Scanning Barcode
5. Vibrator : set the Vibrator On/Off after Scanning Barcode
6. Setting : NO use.
7. Close : Make Emulator Program closed
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
45
1.3 Setting up the 1D Barcode Symbology
When you are using barcodes that are encoded in a different symbology, you need to enable
the symbology on your AT570. Please use ATID application to enable and disable
symbologies.
This way will help you to improve the performance of your work, for example if you enable
only the barcodes that you need to use every day, you don’t need to perform any activity to
use that barcodes.

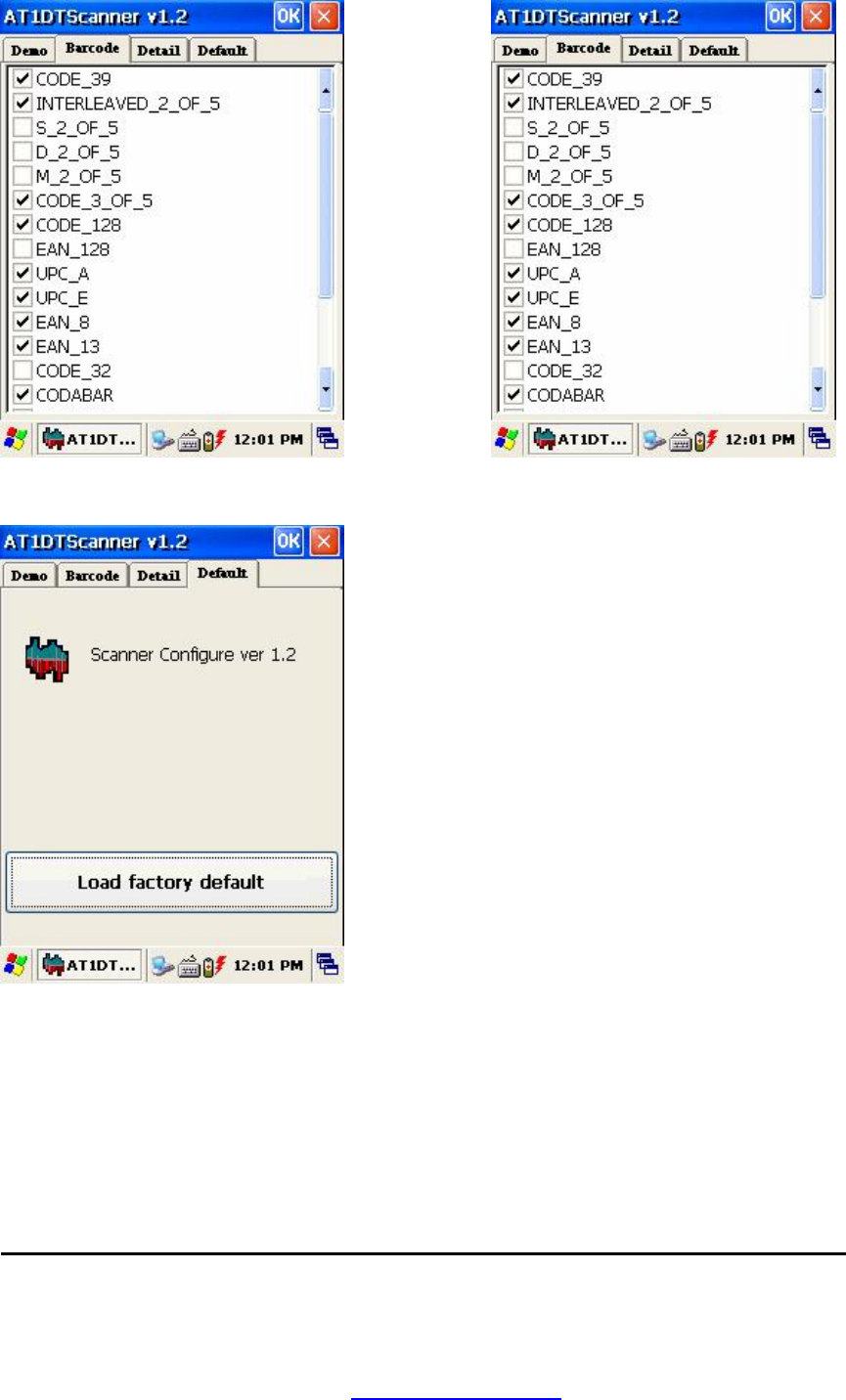

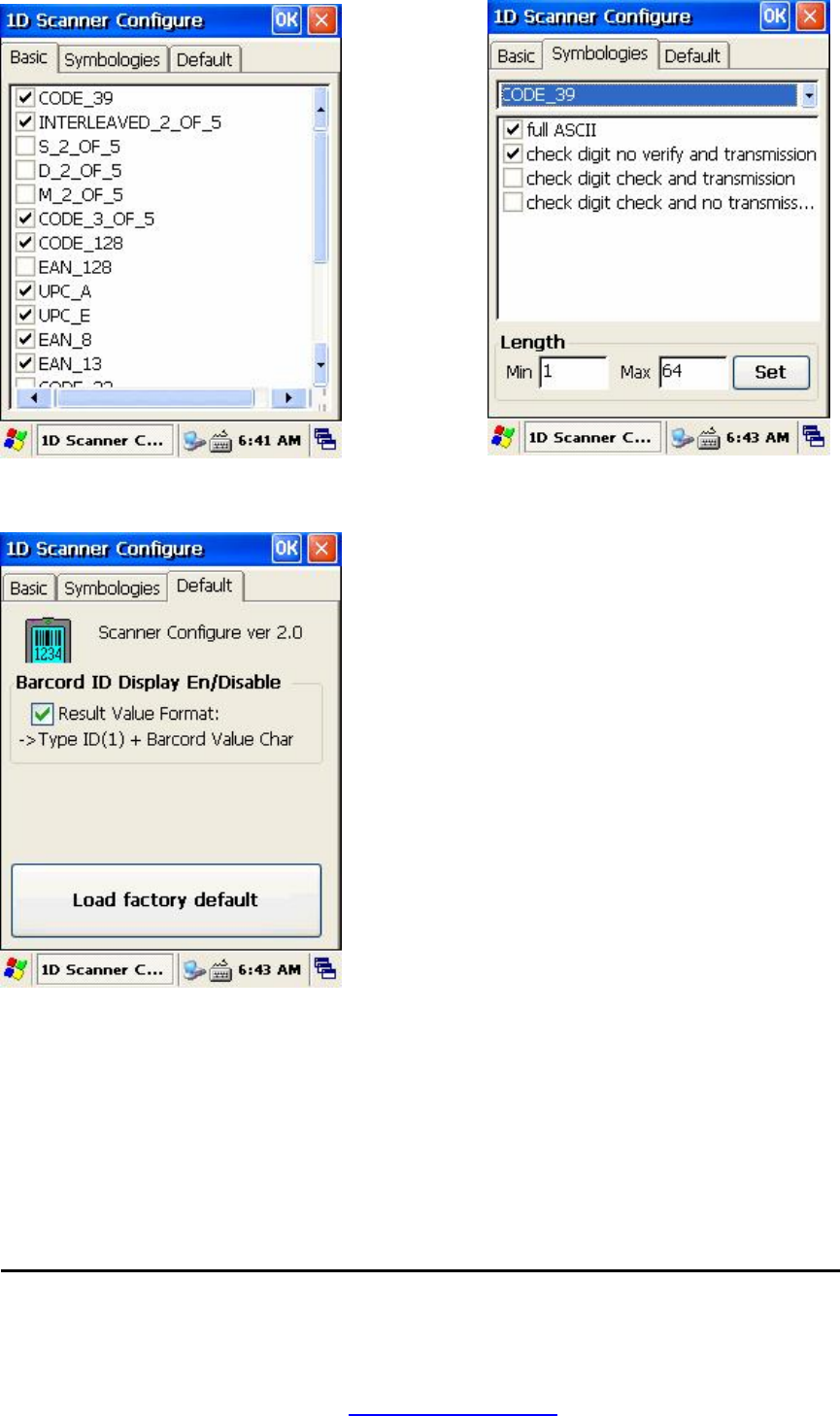

You can set the details for all kinds of barcode, as you use 1D Scanner Configure
program.
[Setting details]
1. Settings for selecting barcodes that you want to enable
2. Settings for the detailed optional function to every barcode.
3. Changing the default of barcode scanner into the factory default.
The final state of the default that you set through the “1D Scanner Configure” cannot be
initialized after you perform a hard-reset. So if you want to set up the default again, use
Symbology Setting program to change the default.
1) Executing Symbology Setting program
To execute Symbology Setting program:
Start > setting > control panel > 1D Scanner Configure
Figure 12. Tap Control Panel Figure 13. Execute 1D Scanner Configure
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
47
2. 2D barcode Scanner
2.1 Reading 2D barcode & Symbology Setting
You can execute AT2DScanner coded from ATID to make sure that your AT570 scans
barcodes exactly.

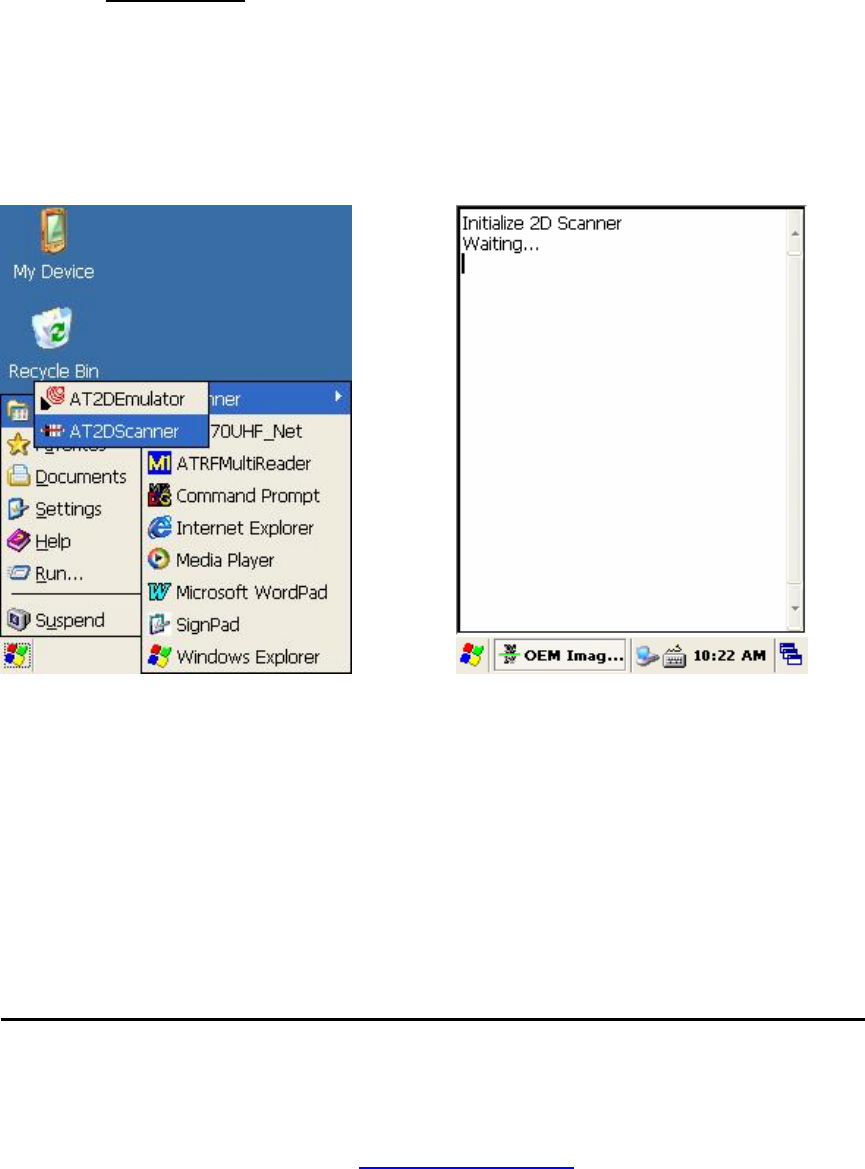

1) Executing Scanner Diagnostics
[Start] -> [Programs] -> [Scanner] -> [AT2DTScanner]
Note: If you don’t have AT2Dscanner.exe(Ver 2.0) File, please look for our staff or visit ATID
web site at www.atid1.com to download.
.
[Program Release Note]
1. Ver 1.0 : can only read barcode
2. Ver 2.0 : can read barcode and set up symbology
2) Reading barcode(Ver 2.0)
Figure 1. Wait till the program is initialized.
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
* If you stop scanning before your AT-570 reads a tag completely – An abnormal sound
comes out.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
48

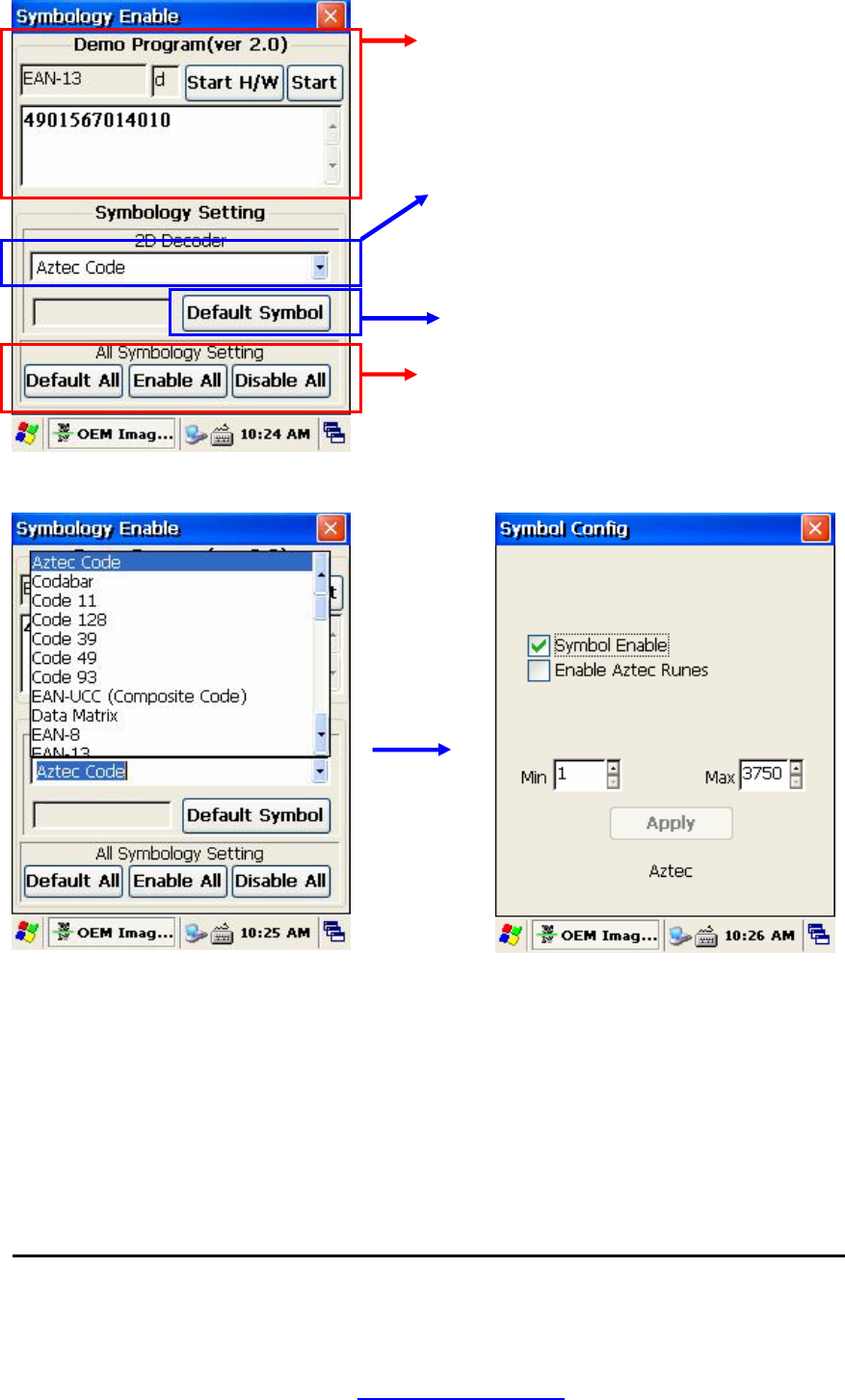

Figure 2. 2D Scanner Function
Figure 3. Select symbology Figure 14. set up symbology with detail.
After Scanning barcode, the value you scanned will
be displayed on the screen.
* Start H/W button is for only checking H/W.
You can set up the selected Symbology Value
with detail.
Setting all Symbology
Default All : makes all Symbologis set to be factory
default
Enable All : makes all Symbologis enabled to read
Disable All : makes all Symbologis disabled to read
You can set up the selected Symbology Value to
be factory default
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
49
2.2 Setting the AT2DEmulator
You can input the barcode value you scanned in any application program that has a cursor
after setting the AT1Demulator. Like an input device, the AT1Demulator makes data displayed
in an application program (see the following figure)

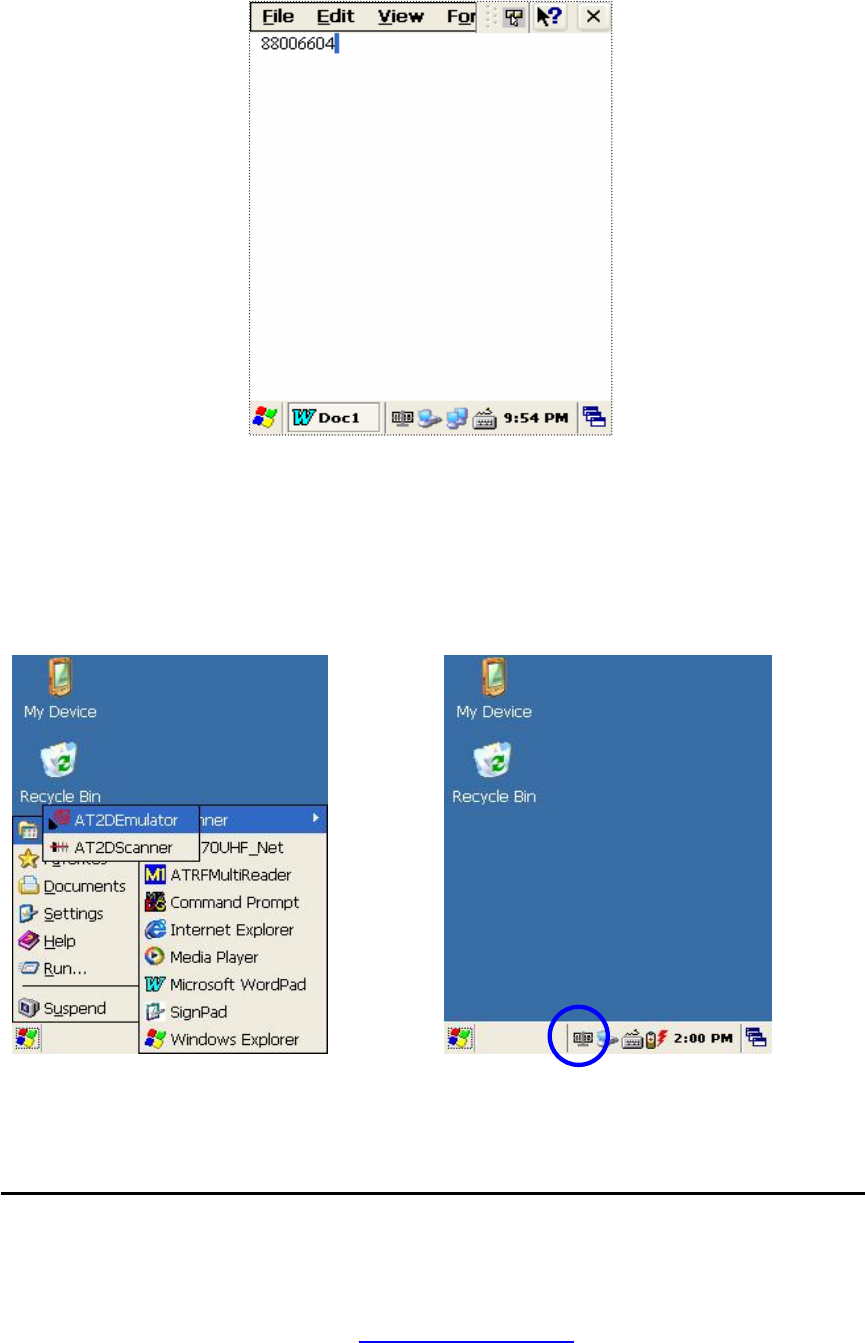

Fiture 5. Barcode value in the WordPad Program
1) Using the AT2DEmulator
Because the AT2DEmulator can apply to all application programs that have a cursor such like
Web program, Wordpad and others, you can input the scanned data directly without coding
any application program.
2) To executing Emulator
Tap [Start] -> [Program] -> [Scanner] -> [AT2DTCEmulator]
Figure 6. AT2DEmulator.exe Figure 7. Tap this AT2DEmulator Icon
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
50
3) Setting the Emulator
Figure 8. Setting Menu
1. Result Type
There are 2 kinds of method to print the scanned barcode data where a curser is
pointing.
A. Keyboard Event : Print the scanned barcode data like input Keyboard
B. Copy & Paste : Print the scanned barcode data with Clipboard
2. Terminator
You can set the termination code at the end of Barcode Value to tap “Terminator”.
A. None : No input the termination code.
B. CRLF(Default Setting) : Carriage Return & Line Feed (Enter code)
C. Space : Input Space code.
D. Tab : Input Tab key code.
3. KeySetup
You can make Hardware keys set to aim the lager beam.
A. F1 ~ F8 Key : press those keys on the keypad to read barcode after setting.
B. Gun1, Gun2 : Set for the gun-typed AT-570 .
C. KBD/1, KBD/2 key : Same with the F1 ~ F8 Key
D. Left Key, Right Key key : Same with the F1 ~ F8 Key
4. Sound : set the sound On/Off after Scanning Barcode
5. Vibrator : set the Vibrator On/Off after Scanning Barcode
6. Setting : NO use.
7. Close : Make Emulator Program closed
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
51
2.3 Scanning Barcode
To use the scanning function, complete the following steps:
1. If you have not already done so, remove the protective plastic film before using devices
equipped with a laser scanner.
Warning
Some AT570 come with laser scanners that scan using laser light. Never look directly into the
laser light or shine the laser light into the eyes.
2. Select Start > Programs > Scanner > AT1DScanner to open the scanning application. This
application runs in the background and only shows up as bar code icon in the system tray.
Figure 1. Scanning a bar code
3. Aim the scanning beam at the center of the bar code.
• Position the device close to bar code when scanning small bar codes.
• Position it at a distance when scanning larger bar codes.
• The scanner stops scanning after you release the key or after five (5) seconds.
Figure 2. Scanning Beam Positions
Correct Scanning Position
1D
2D
Incorrect Scanning Position
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
52

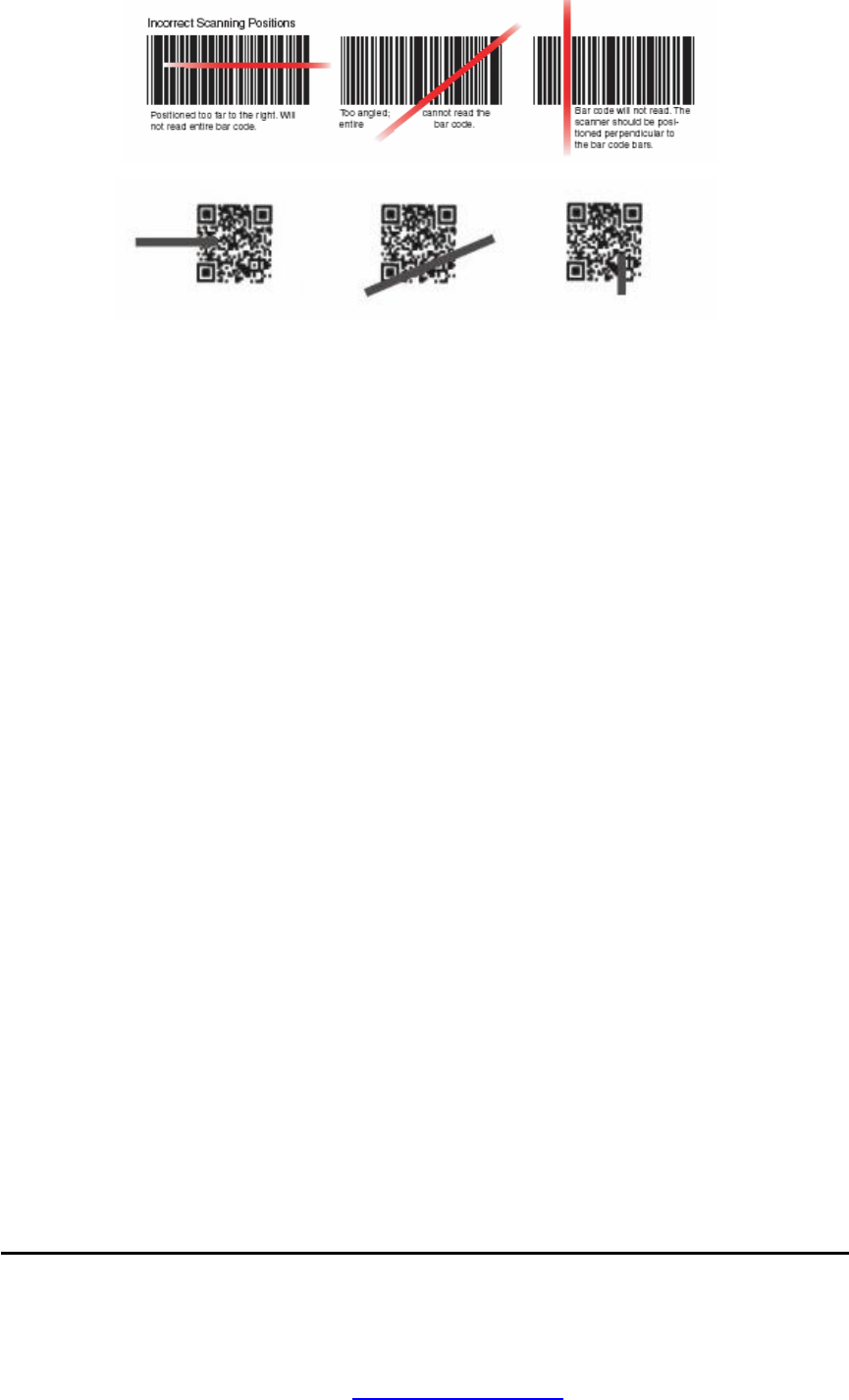

1D
2D
Wrong ways to san barcode
4. Press the Right or Left <Scan> key. The scanner scans as long as you hold the key or for
five (5) seconds.
5. Upon reading a bar code, the device beeps and the vibrates until the trigger is released or
after five (5)
seconds. The beep tone and Vibrates indicate a good read.
*If the bar code scan failed, adjust the reading angle or distance. Make sure that the scanning
beam scans across all bars of the bar code.
6. The bar code data is entered in the current application. Once a bar code is read
successfully, the scanner turns off automatically.
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
53
3. Wireless LAN
The AT-570 is versatile mobile computer that you can add to your wireless LAN. It has an
internal 802.11 b/g radio to transfer data using wireless communications. This section of the
manual assumes that you have already set up your wireless communications network
including access points.
Your AT-570 supports TCP/IP network protocols. In a TCP/IP network, the AT-570
communicates with a host computer directly using TCP/IP. The access point acts a bridge to
allow communications in wireless networks.
3.1 Power on Wireless LAN
The default of Wireless LAN was set with “WLan off” when your AT-570 was manufactured
at the factory.
To make wireless LAN on:
Press FN key and Esc key at the same time, than you can see the following screen.
Figure 1. Wireless icon Figure 2. Select AP
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
54
After selecting “WLan On” the LAN icon appears on the control bar.
Connecting your AT-570 to a network device:
Double tap LAN icon > tap Wireless Information.
Figure 3. Select AP
Select a network that your AT-570 has scanned in the list box, and tap Connect after
selecting the network, than the network will be connected to your AT-570.
3.2 IP Information
To see IP Information:
Double-tap the LAN icon, and tap IP Information tap.
Figure 4. IP Information
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
55
3.3 Setting manually
You can also connect your AT-570 to a network with manual method in the Wireless
Properties.
To set wireless LAN in Wireless Properties:
Double tap WLAN icon > tap WLAN Tap > Input data > Tap “OK”
Figure 5. Wireless Properties
3.4 Power Off Wireless Off
To make wireless LAN Off:
Press FN key and Esc key at the same time, and select WLAN Off
Figure 6. Wireless Off
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
57

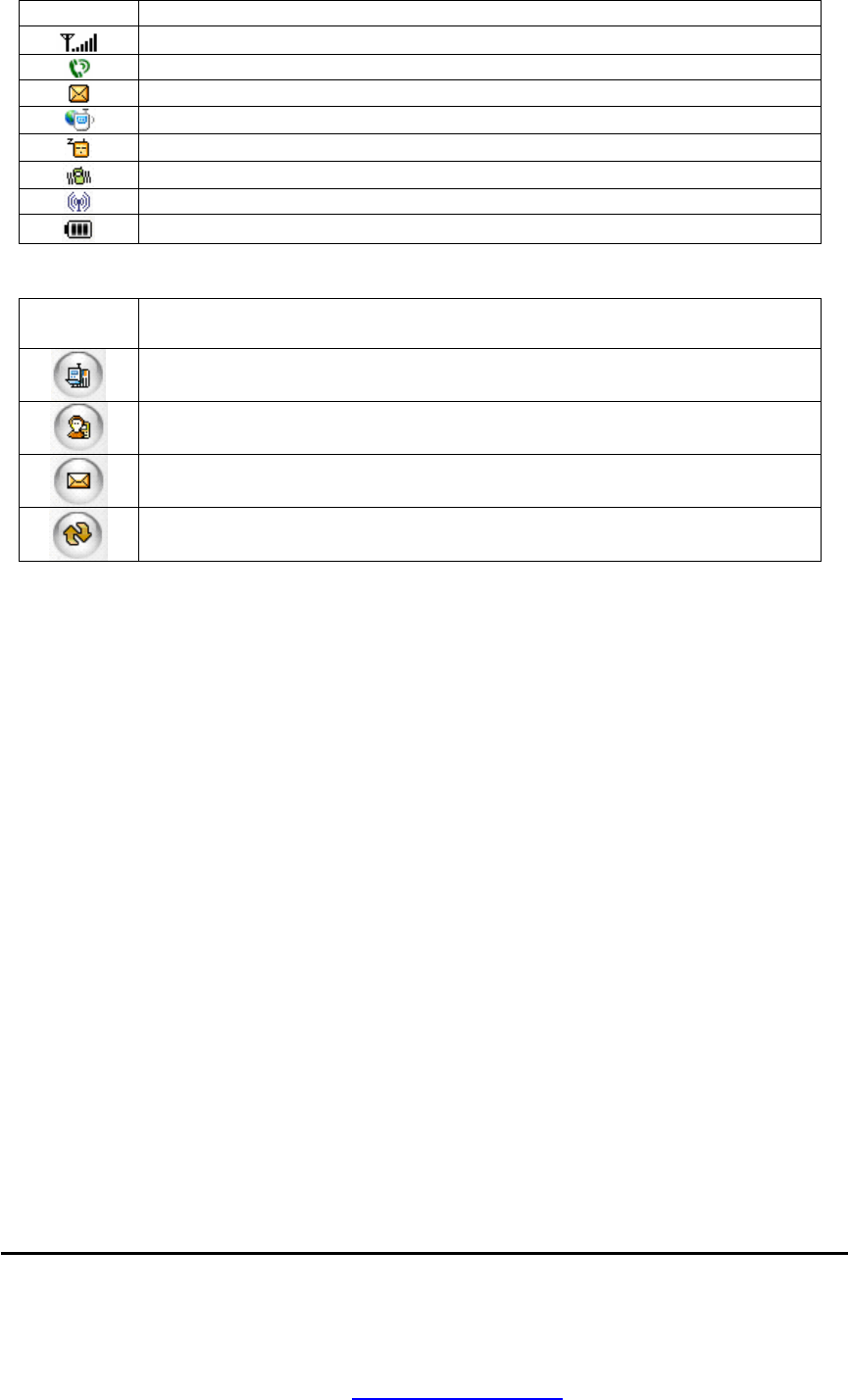

(1) Status Icons
Icon Description
Receive Sensitivity Icon
Notice Icon for receiving phone
Notice Icon for receiving text massage
Indicator for Roaming service (Only for CDMA)
Dormant mode Icon (Only for CDMA)
Vibration mode Icon (GSM)
Data Communication state Icon (GSM)
Battery Status Icon
(2) Function Icons
Function
Icons Description
Press this icon to refer to the whole telephone number listed in the PDA.
Press this icon to search the directory for a number.
Press this icon to manage your text massage.
Press this icon to use Dial-up Connection for connecting your phone to
RAS data communication.

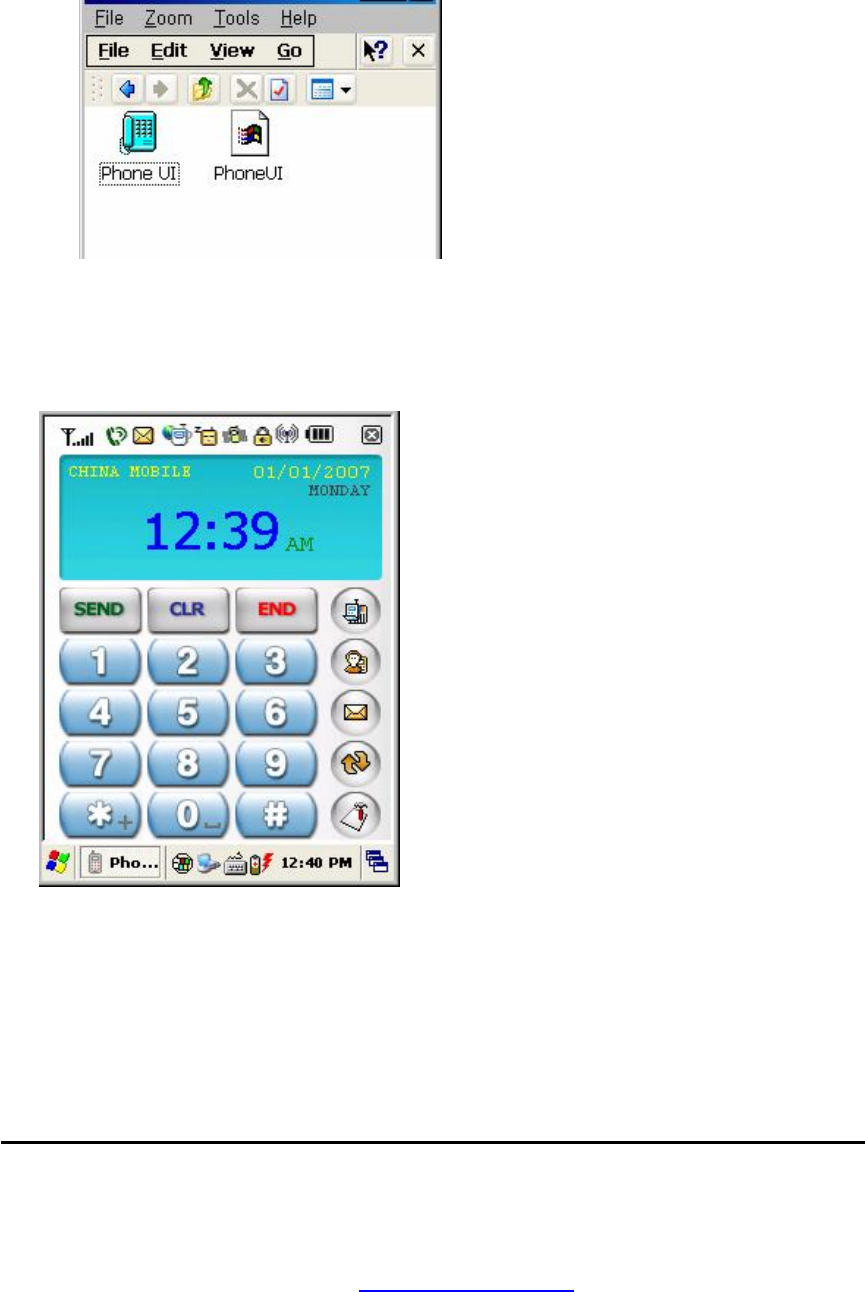

(3) Having a phone
1) Press the telephone number you want to call.
2) You can adjust incorrect number and rewrite the number over again to press [CLR] button.
3) Press [SEND] button to have a phone call.
Note: If you press [SEND] button without inputting phone number, the phone number list
that you has called before appears on the screen.
4) Start to have a telephone call after connection.
- The dial tone comes out and you can call.
- The talk time will be displayed on the screen.
5) Press [END] button to finish communication.
(4) Receiving a phone
1) The bell rings and receiving massage appears when you receive a phone.
2) Press [SEND] button to start to have a phone.
3) The telephone will be disconnected when you press [END] button or the opposite person
presses the [END] button.
(5) The others (Only for GSM)
1) You can input the “+” to press [*] button with long time.
2) You can input the “”-space character to press the [0] button with long time.
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
58
5. Using Camera
5.1 To use your Camera:
Tap start > Program > Camera
Figure 1. Executing Camera
Camera Screen
Figure 2 Camera Screen
Preview Window
Capturing button
The number of stored files
Delete File Button
Adjusting Brightness
Zooming button
Resolution Setting Button
Re-rotation Button
Preview Stop Button
Setting Viewing Effect
Preview Start Button
PDF created with pdfFactory Pro trial version www.pdffactory.com
Quick Reference Guide
Chap 4. RF EXPOSURE INFORMATION
Read this information before using your phone
In August 1996 the Federal Communications Commission (FCC) of the United States with its
action in Report and Order FCC 96-326 adopted an updated safety standard for human
exposure to radiofrequency (RF) electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety standard previously set by both
U.S. and international standards bodies. The design of this phone complies with the FCC
guidelines and these international standards. Use only the supplied or an approved antenna.
Unanthorized antennas, modifications, or attachments could impair call quality, damaged the
phone, or result in violation of FCC regulations. Do not use the phone with a damaged
antenna. If a damaged antenna comes into contact with the skin, a minor burn may result.
Please contact your local dealer for replacement antenna.
Specific Absorption Rate (SAR) for Wireless Phones
The SAR is a value that corresponds to the relative amount of RF energy absorbed in the
head of a user for a wireless handset. The SAR value of a phone is the result of an extensive
testing, measuring and calculation process. It does not represent how much RF the phone
emits. All phone models are tested at their highest value in strict laboratory settings. But when
in operation, the SAR of a phone can be substantially less that the level reported to the FCC.
This is because of a variety of factors including its proximity to a base station antenna, phone
design and other factors. What is important to remember is that each phone meets strict
federal guidelines. Variations in SAR’ s do not represent a variation in safety. All phones must
meet the federal standard, which incorporates a substantial margin of safety. As stated above,
variations in SAR values between different model phones do not mean variations in safety.
SAR values at or below the federal standard of 1.6W/kg averaged over 1 gram of tissue are
considered safe for use by the public.
FCC Radio Frequency Emission
This phone meets the FCC Radio Frequency Emission Guidelines. FCC ID number: VUJAT570
More information on the phone’ s SAR can be found from the following FCC website:
http://www.fcc.gov/oet/fccid
AT570
Chap 5. USER INFORMATION
Cautions
Modifications not expressly approved by the party responsible for compliance could void the
user’ s authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions: 1. This device may not cause harmful
interference, and 2. This device must accept any interference received. Including
interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
