Before You Begin
This section provides you with safety information, technical support information, and sources
for additional product information
Who should read this manual?
This manual is written for the person who is responsible for installing, configuring, and
maintaining the AT-570W.
This manual provides you with information about the features of the AT570W, and how to
install, configure, operate, and maintain it.
Before you work with the AT570W, you should be familiar with your network and general
networking terms, such as IP address.
Safety information
Your safety is extremely important. Read and follow all warnings and cautions in this
document before you handle and operate ATID equipment. You can be seriously injured, and
equipment and data can be damaged if you do not follow the safety warnings and cautions.
WARNING
A warning alerts you to an operating procedure, practice, condition, or statement that must
be strictly observed to avoid serious injury to the person who working on the equipment
CAUTION
A caution alerts you to an operating procedure, practice, condition, or statement that must be
strictly observed to prevent equipment damage or destruction, or corruption or loss of data.
NOTICE
A notice makes you have more information while you use AT-570W
Quick Reference Guide
Chap1. Using The AT-570W
This chapter introduces the AT570 Mobile Computer to enhance wireless connectivity needs
and contains hardware and software configuration to assist you in making the most out of
your AT570W
1. Introducing
The ATID AT570 mobile computer is a small, ergonomically designed mobile computer built
on the Microsoft window CE NET 5.0 operating system. The PDA uses an Intel® Bulverde
microprocessor and a 3.5” VGA, color
Touch screen display. The PDA supports RF wireless LAN 802.11b.g(embedded module) for
communication
1.1 Features
Remove all the items from the packing box, and check to make sure all the parts are present:

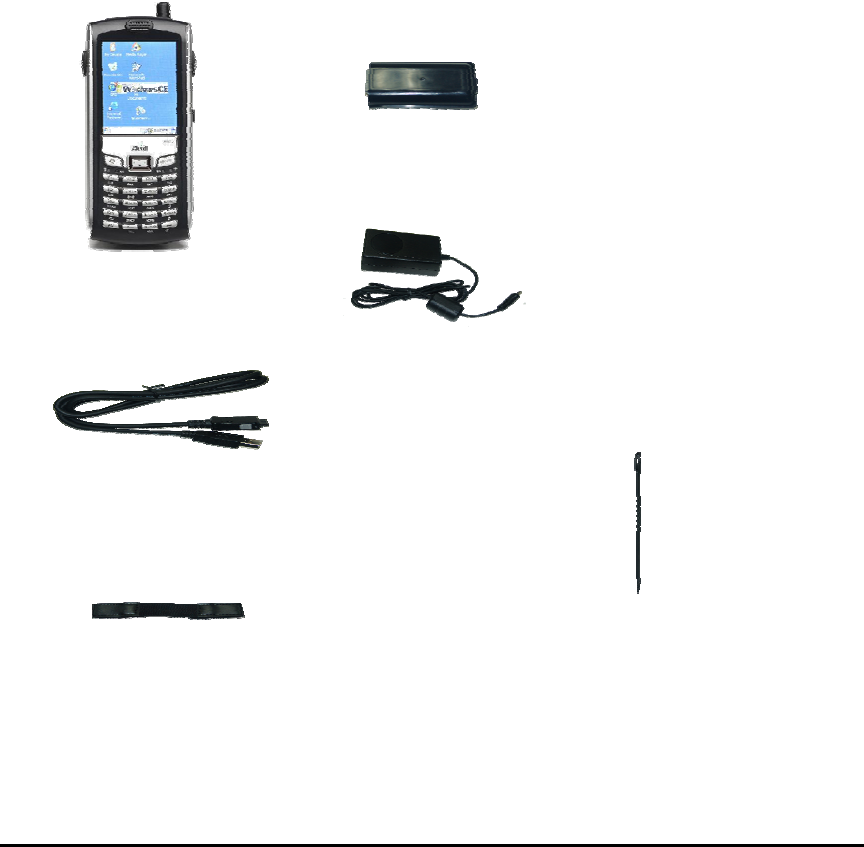

Figure 1. In the Packing box
4
2
6
1. AT570 PDA
2. Power Adaptor
3. Lithium Ion Battery Pack
4. Synchronization Cable
5. Stylus
6. Hand strap
3
2
5
1
AT570W
1.2 View of the PDA #1
Refer to Table 1 for a list and description of the illustrated features.

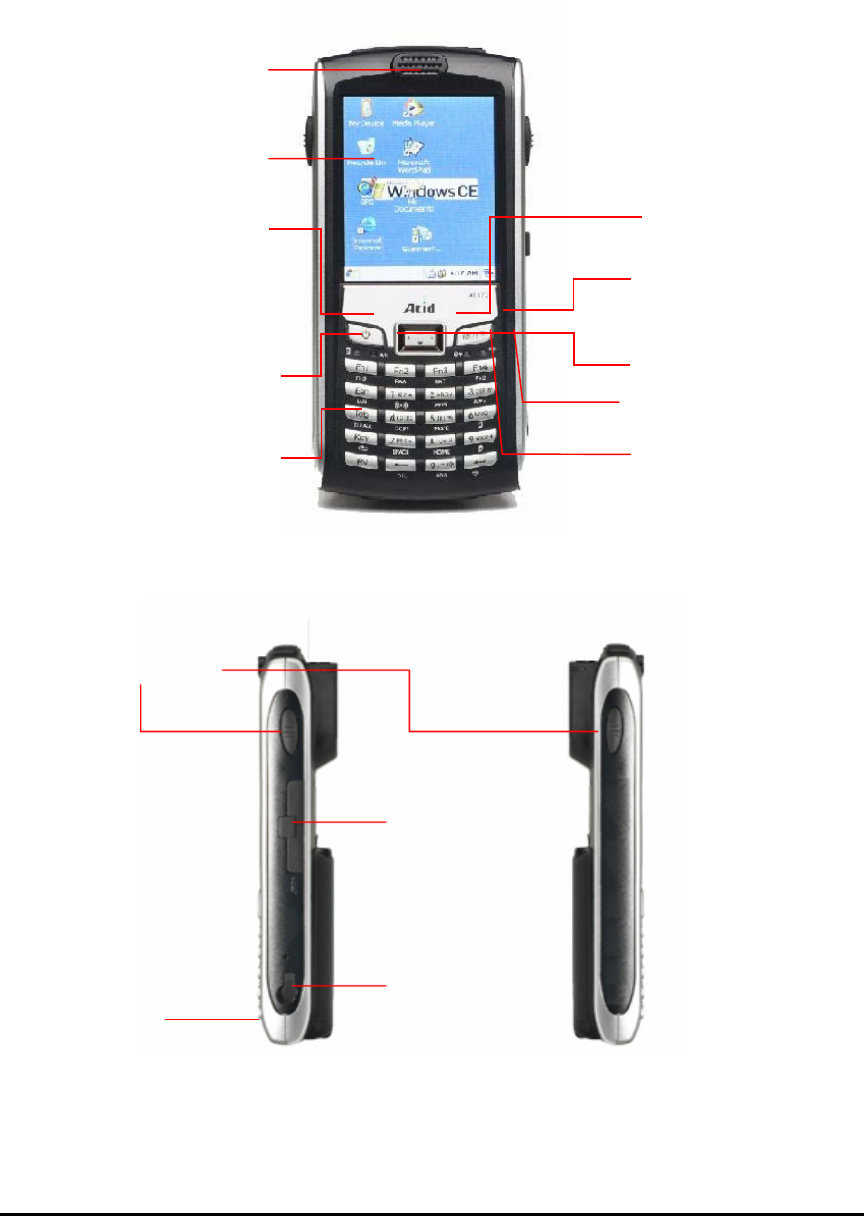

Figure 2. Front View
Figure 3. Side view
1. LCD/Touch-
screen (Display) 13.Navigation Key
11. Speaker
12. Power Key
6. Power LED/Alarm
Indicator
16. Key Pad
14. KBD Ke
y
15. Reset Key
4. WLAN ON/OFF
Alarm
2. Scan key
(Left & Right)
5. Secure Digital
(SD) Slot
21. MIC 17. Ear
Piece Jack
22. Low
Battery LED
Quick Reference Guide
1.3 View of the PDA #2
Figure 4. Top view
Figure 5. Bottom view

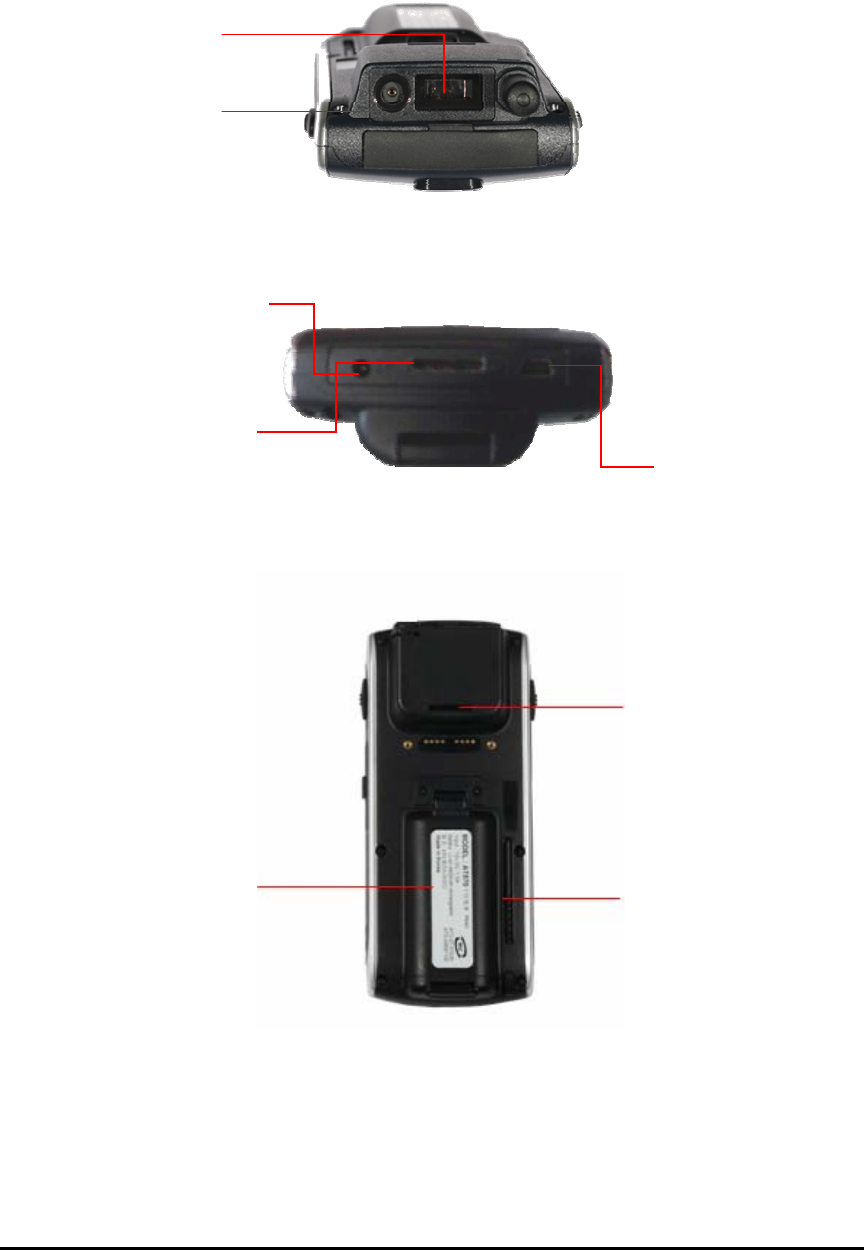

Figure 6. Rear view
3. Scan Window
23. Camera
7. DC Power
Ada
p
tor
8. USB/Serial
Synchronization
Port 9. USB Host Port
18. Battery
Compartment
19. Hand strap
Holder
20. Stylus
AT570W
1.4 Table Features Function/Description
Features Function/Description
1.LCD/Touchscreen
LCD touch screen displays information and data.
You can see the results of your work trough the LCD touch screen. The AT570 has a stylus
you can use to select items and inter information.
Caution: Do not use a pen, pencil, or other sharp object on the AT570’ s touch screen. Use
only the supplied stylus or plastic-tipped pens intended for use with a touch-screen
sensitive display.
2.Scan key
(Left and Right)
Use either the right or left <Scan> button to activate the scanner and read a bar code. The
scanner starts to read the bar code. The scanner automatically turns off either when the
barcode is read, when you release the scan button, or after 10 seconds, which ever comes
first.
3.Scan Window
The scanning beam is emitted from this aperture. Aim the scanning beam at the bar code
you wish to scan.

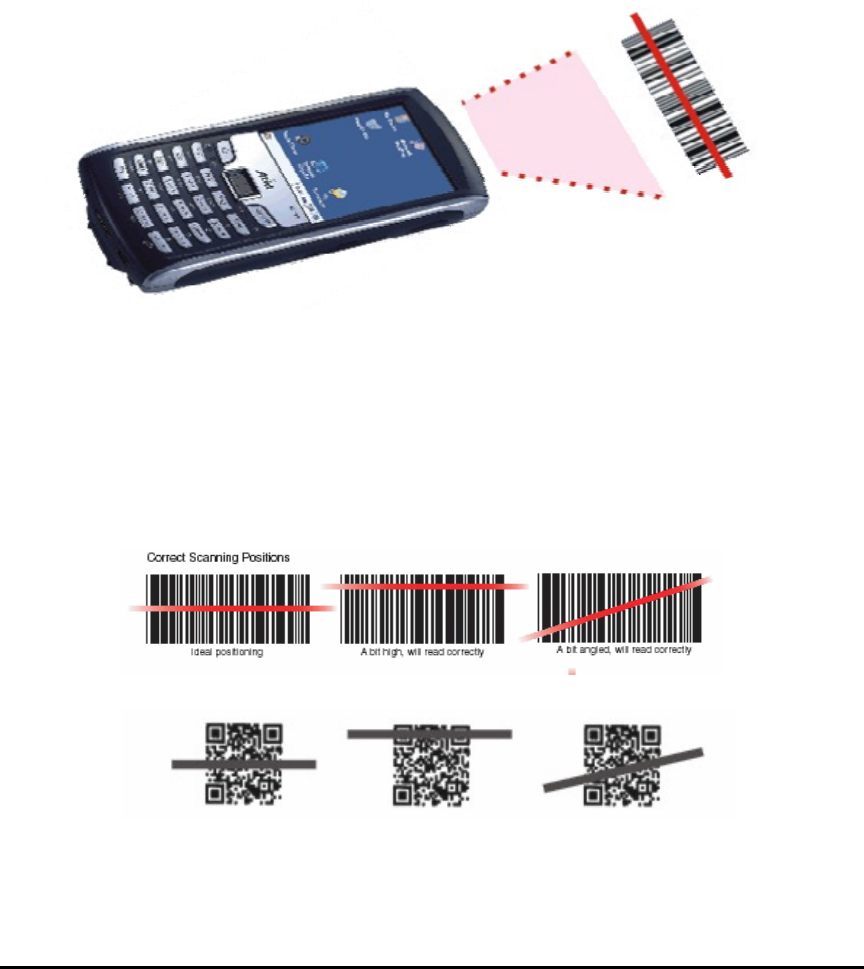

Refer to "Scanning Bar Codes" on page 23 for more information.

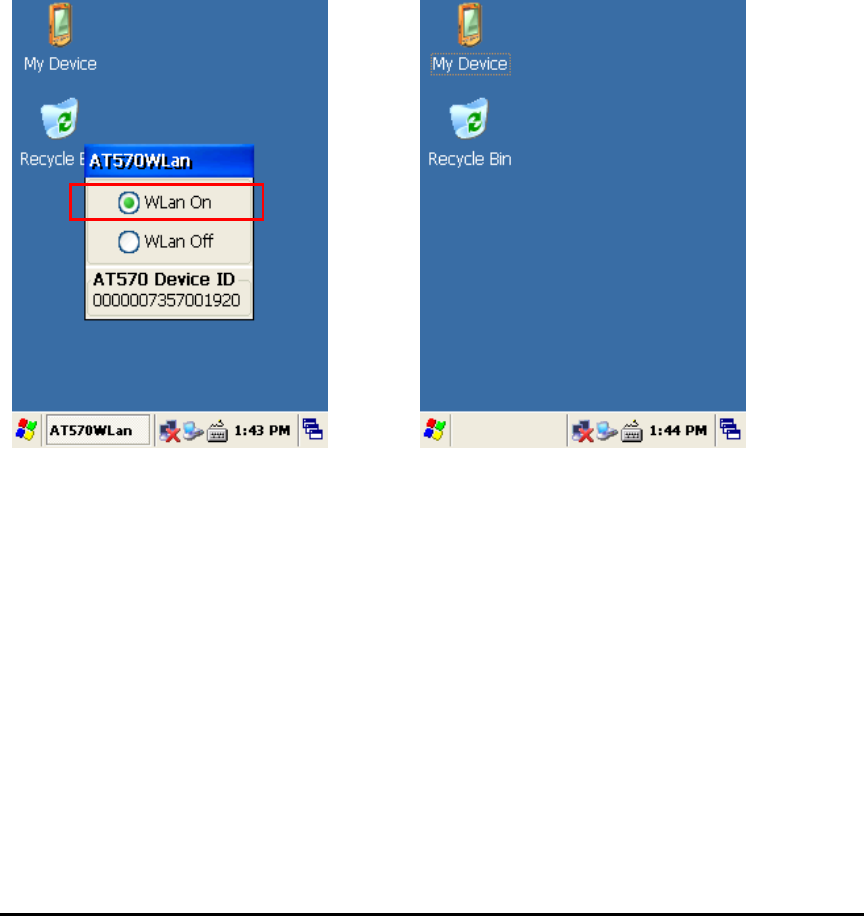

4. 22.WLAN
ON/OFF display
light
It makes you know that the WLAN is on or off.
5.Secure Digital
(SD) Slot
The secure digital card slot accepts a secure digital storage card. Refer to the
iPC320
Product Reference
Guide
for installation instructions.
6.Power LED /
Alarm Indicator
When the battery pack is installed in the PDA and charging in the Dock, this LED is Red.
When the battery is completely charged, the LED changes to Green. When the LED flashes
blue, it indicates a low battery. Some applications use a blue LED to indicate an Alarm or
Error.
7.DC Power
Adaptor Port
Connect the external power adaptor to this port to charge the battery. You must charge the
batteries for thirteen (13) hours prior to first use. Charge the battery completely.
Subsequent charge cycles require four (4) hours.
8.USB/Serial
Synchronization
Port
To synchronize data between a PC and the PDA, connect the USB or Serial cable with
Desktop and the PDA.
You must download and install Microsoft ActiveSync 3.7 or higher in the PC. Download
ActiveSync from the Microsoft Web site at www.microsoft.com.
9.USB Host Port
The USB Host port can be used with a USB keyboard, mouse, compact flash card, and/or
Ethernet connection. When using the dock, you can use standard a USB host port to
connect USB peripherals.
The USB Host Port supports only peripherals with low power consumption.
11.Speaker
The speaker emits the sounds from *.WAV and other media files. It can also be set to emit
beeps or tones to indicate errors or good reads when bar code scanning and inputting data
using the keypad or stylus.
12.Power/ Key
Press the Power/Backlight key briefly to turn the unit on. The Backlight comes on
automatically.
Press this key again briefly to turn the unit off.
13.Navigation Key
Press the edge of the 4-way navigation rocker key to move the cursor or highlighted text
entry during a menu/list selection.
• The <Up> arrow moves the cursor up one line.
• The <Right> arrow moves the cursor to the right one character.
• The <Down> arrow moves the cursor down one line.
• The <Left> arrow moves the cursor to the left one character.
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
Quick Reference Guide
Features Function/Description
14.KBD key KBD key executes input panel (SIP)
Press again, input panel (SIP) disappears
15.Reset Key Use (R/S) button located on the Keypad of PDA to perform a soft and hard reset.
Please refer to the section 4 – Resetting the PDA.
16.Keypad
Use the alpha-numeric, function, and navigation keys on the keypad to enter numbers,
letters, symbols and navigate. For details on each key in the keypad, please refer to the
section 7 - Using the Keypad.
17.Ear Port
18.Battery
Compartment. Insert battery charged fully in this compartment.

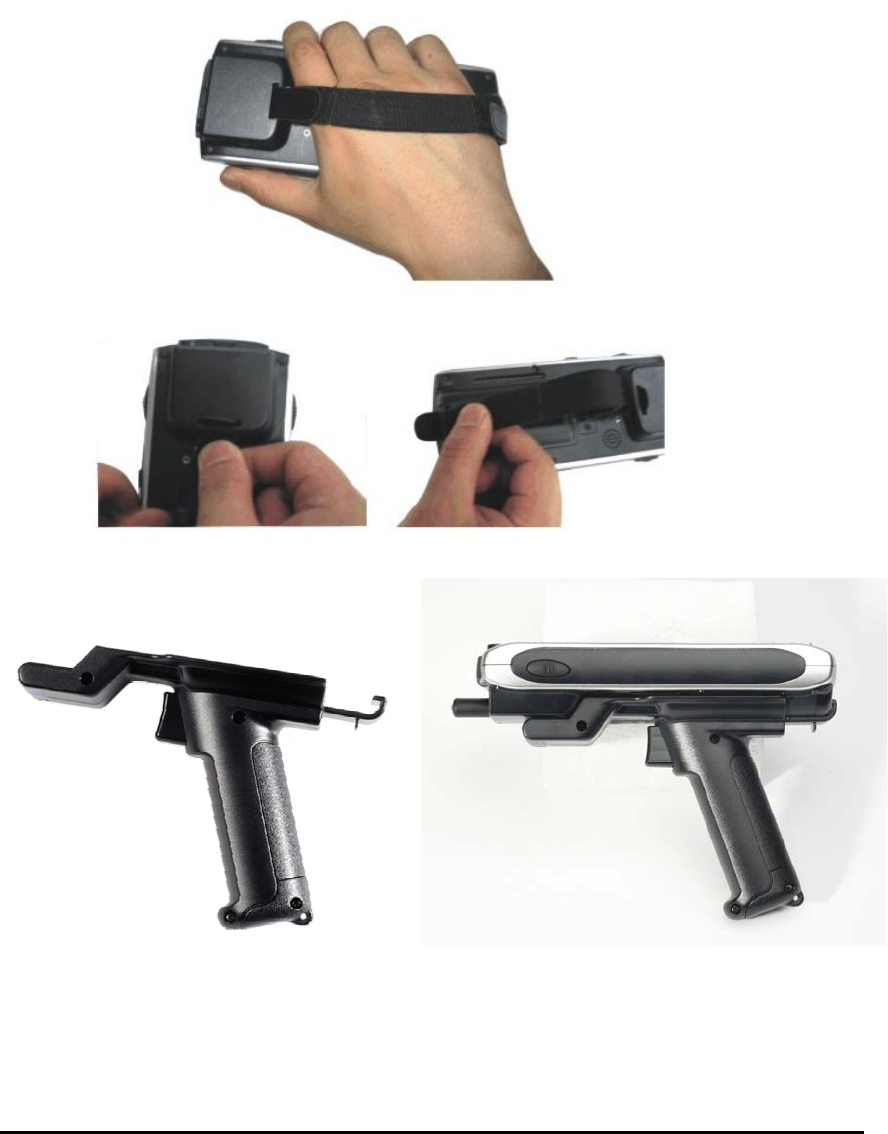

19.Handstrap The PDA comes with the hand strap, which is easily removable to access features and can
be replaced by an ergonomically designed handle.
20.Stylus
Use the stylus for navigation, on the soft input panel (SIP), and to select items on the touch
screen. It is a good idea to replace the stylus in the holder after each use so you don’ t lose
or misplace it.
21.MIC
22. Low Battery
LED The battery becomes red and blinks automatically, when it is in the “ low Battery Status”
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
AT570W
2. Power
This section introduces the power system of AT570 such as power switch and battery.
2.1 Power ON/OFF
2.1.1 Power ON
1. Press power key, the AT570 and the backlight will be on.
2. To save power and prolong the battery, the screen gets to be off, when the AT570
goes into idle mode. And it is easy to resume activity. Just tap the screen or press
any key on the keypad.
2.1.2 Power OFF
1. Press power key, you actually suspend the AT570 and turn off the display and
backlight.
2. The other method: Tap start > Suspend
2.1.3 What is idle mode?
It is the period that computer goes on without any activity for a long time, but it doesn’ t
have influence on data
You can set up the time into idle mode and the PDA will enter the idle mode automatically
after the interval time you set goes to the end. It helps you prolong your battery life. If you
want to restart your AT-570 while the PDA goes in the idle time, tap anywhere on the screen.
To change the time into idle mode
Tap Start > Setting > Control Panel > Power
Figure 1. Setting Idle time
Quick Reference Guide
2.1.4 Suspend mode
1. When you do not use AT-570W for a long time, make your AT-570W go into the
suspend mode for saving power.
2. If you want to restart your AT-570W, press the power key.
2.2 Battery
The AT570 uses replaceable 4400 mAh, Li-ion batteries.
If the battery continues to drop to the “ Low Battery Status, the battery status LED becomes
red and blinks, and than AT570W will be suspended. You need to recharge the battery.
2.2.1 Checking Battery Power
You can check the battery status by using the power applet.
Tap Start > Settings] > Control panel > Power
The power control panel applet displays a battery power gauge.
2.2.2 Very Low Battery Status
To prevent the AT570W from being discharged completely, your AT-570W will be suspended,
when the battery continues to get low. You need to recharge your battery before the battery
continues to drop.
2.3 Removing and installing the battery
2.3.1 Removing the battery
At first, pull out the hand scrap and then press the battery latch to the above until the battery
is released from the AT570W, then lift it out.
2.3.2 Installing the battery
Insert the bottom of battery into the sunken place located in battery compartment, and press
the battery latch to the above until the battery is installed completely.
2.4 Battery discharging
Several factors determine the life of your battery such as extreme temperatures, input devices,
and your usage, but generally you can use AT-570W for 6~12hours.
If the AT-570W is not on external power and battery pack is removed, it will enter suspend
mode.
2.5 Recharging the battery
Use the adapter provided from ATID to recharge your battery.
Caution
Your AT-570W can be damaged, in case of using the adapter that is not provided from ATID.
2.5.1 Using the adapter
The charge/operating power can be applied to AT-570W by using DC adapter.
1. Connect the adapter to the power cord.
2. Connect the DC power jack to the AT-570W.
3. When the battery is charging, the LED becomes red.
AT570W
Figure 2. Using the adapter to recharge

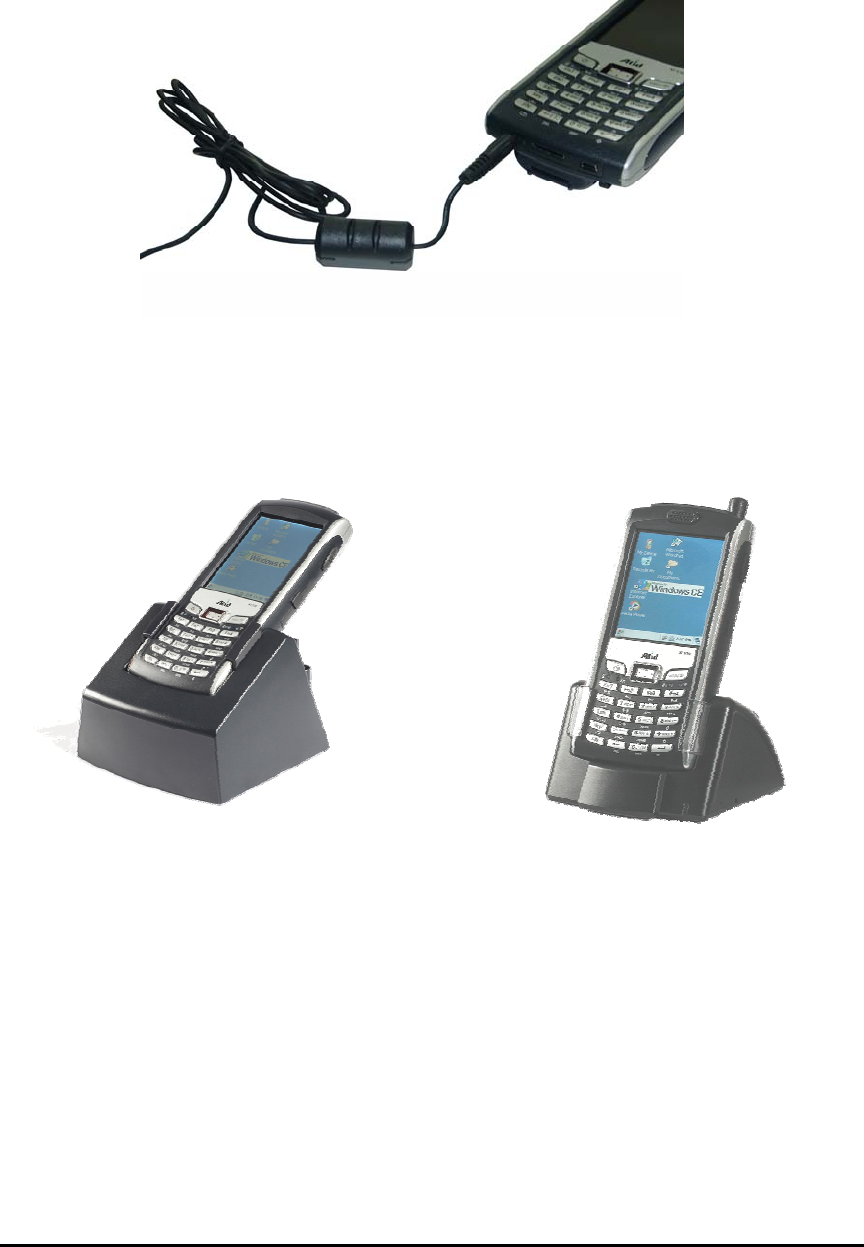

2.5.2 Using the Dock
The Dock is for charging AT570W, and the dock is one of which also can act as a
communication port.
Figure 3. Using the Dock to recharge
CAUTION
Make sure the AT570W is firmly seated in the dock, charger, or power adaptor.
If it is not firmly seated, battery charging and communication with the Host PC will NOT be
initiated.
There are four methods for charging a main battery. Refer to Table 3 for a complete listing of
methods,
Durations, and LED indicators.
Quick Reference Guide
2.6 Backup Battery
The backup battery in the PDA is a 200mAh rechargeable battery that holds system data at
least 2 hours without main battery.
CAUTION
If you remove the battery or the battery completely discharges, there is a two(2)hour window
in which to insert a charged battery before the backup battery completely discharges and the
contents of the RAM memory are lost. It is a good idea to keep your data and applications in
Flask Disk for that reason. Refer to “ Flash Disk” for more information.
If both the battery pack and the backup battery are allowed to discharge completely, you
must recharge both batteries for thirteen (13) hours.
The backup battery is charged off the battery pack, so it is important to keep the battery pack
with at least a minimal charge so the unit can maintain date, time, data, and other settings.
2.7 Disposal of spent battery
When the battery reaches the end of its useful life, the spent battery should be disposed by a
qualified recycler or material handler
Warning
Do not mix the spent battery with the solid waste stream and keep away from children.
AT570W
3. Setting up the AT-570W
This section describes the basic information for setting your AT-570W.
3.1 Power
Press the Power key briefly to turn on the PDA. The Backlight comes on automatically. Press
this key again briefly to turn off the PDA. To turn off the Backlight while the PDA goes on,
press and hold the key for at least a second. This key acts to toggle the Backlight function off
and on.

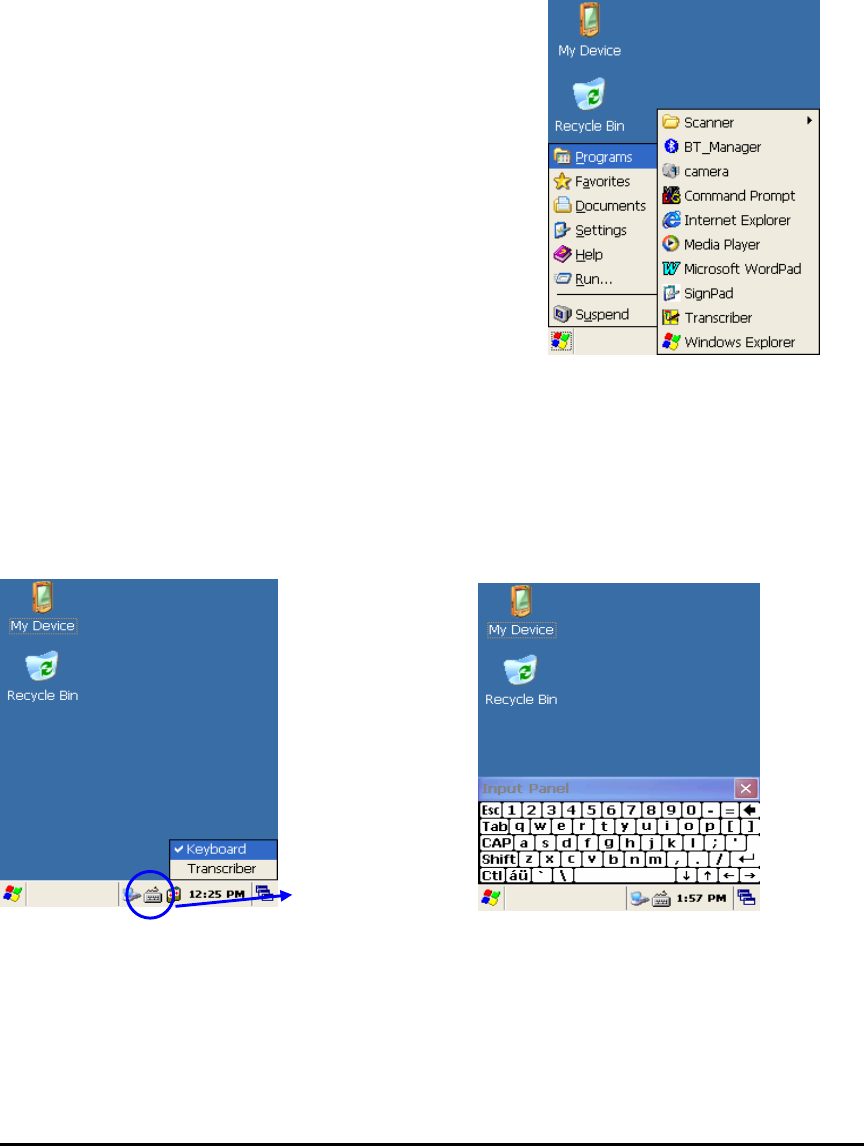

Desktop: The figure to the right shows the
desktop display, or main screen.
3.2 Power Off
To turn the PDA off, press the Power key again.
This action suspends the device, but does not
actually turn it off. All running applications remain as
you left them until you press the Power key
again to resume operation of the device.
Figure 1. Background Screen
3.3 Adjusting Brightness
The AT-570W manufactured at the factory keeps 80% brightness, but because of several
reasons such as dark environment or user’ s condition of eyesight, and above all, the
illumination consumes much power, so that the users want to adjust the backlight.

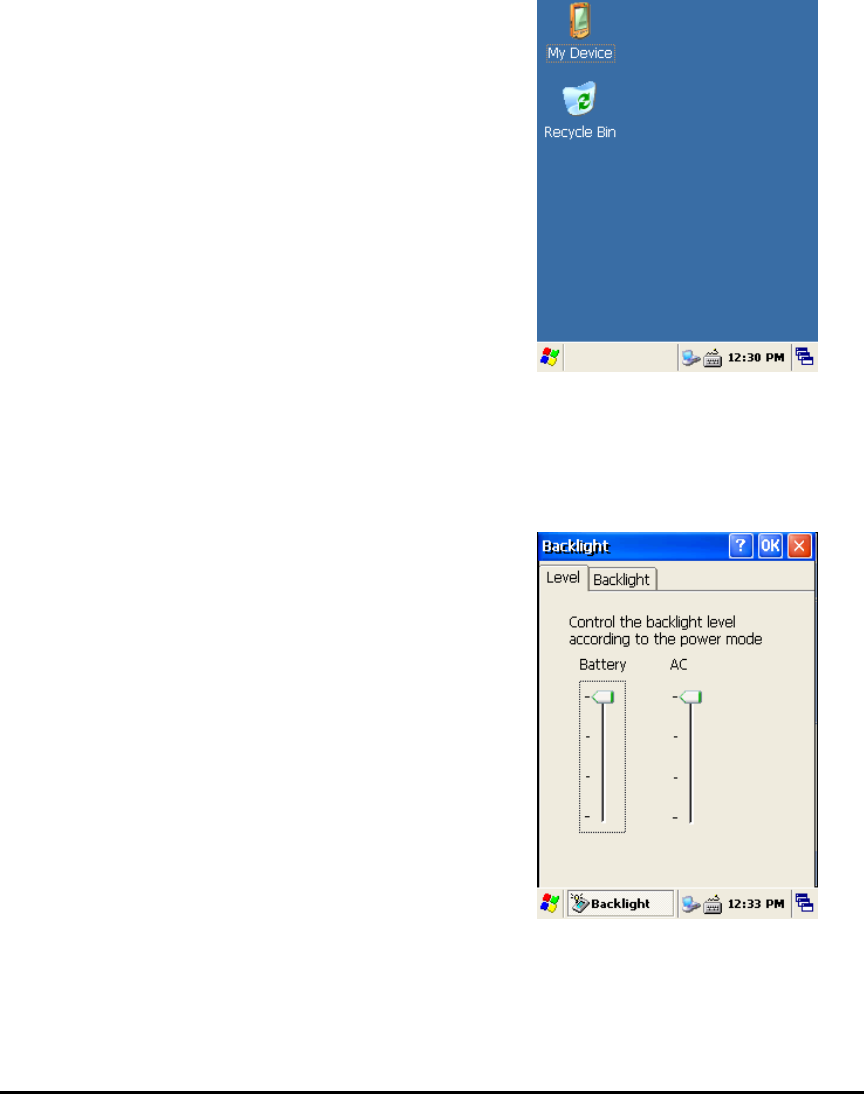

To adjust backlight:
Tap Start > Settings > control panel > backlight
Level: you can adjust the brightness
Backlight: you can adjust the entry time into idle
mode when use AT-570W with battery power
or external power.
Figure 2. Adjusting Brightness
Quick Reference Guide
3.4 Calibrating up the screen
According to user’ s personal treatment, and activity, applications installed in the AT-570W
need to be set up after purchasing it.
Calibrating the Touch Screen
Thought the screen is already calibrated, but if you
have feeling that your screen isn’ t responding
properly to your tap, you can recalibrate it again.
To recalibrate the screen
Tap start > Settings > Control panel > Stylus
> Calibration > Recalibration

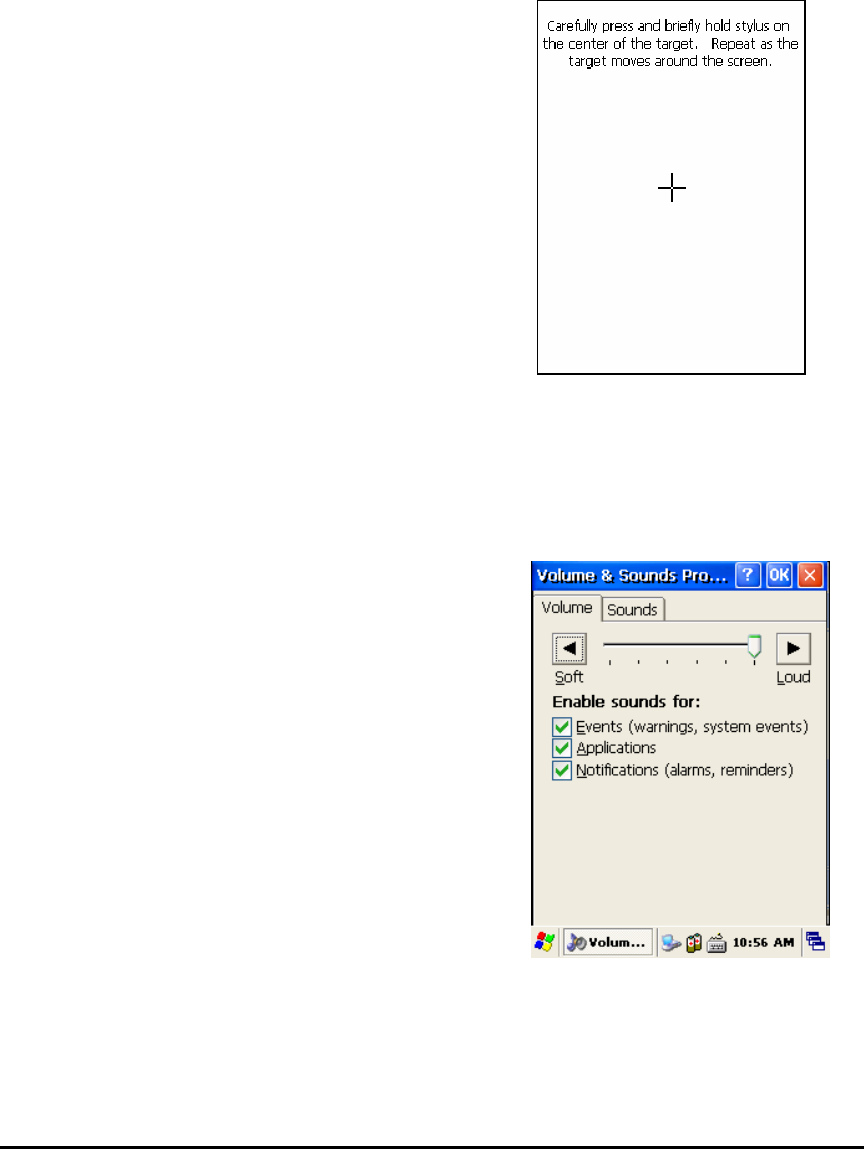

Press and briefly hold stylus on the center
of target, and repeat 5 times as the target
moves around the screen. The screen counts
30 seconds after calibrating, and you can
finish the recalibration to touch screen
wherever you want. If you did not have any action, the
screen will automatically finish the recalibration of itself.
Figure 3. Recalibrating
3.5 Adjusting Volume
Volume & Sounds
Your AT-570W manufactured at factory is set at the maximum volume, so you can adjust the
volume if you need suitable sound.
To adjust Volume & Sounds
Tap Start > Settings > Volume & Sounds
Volume tap: tap to adjust Volume
Sounds tab: tap to set the imitated sounds
Figure 4. Adjusting volume
AT570W
3.6 Setting Date and Time
Date & time
You can set the current time located at the bottom
of screen.
Tap Start > Settings > Control Panel
> Date & Time

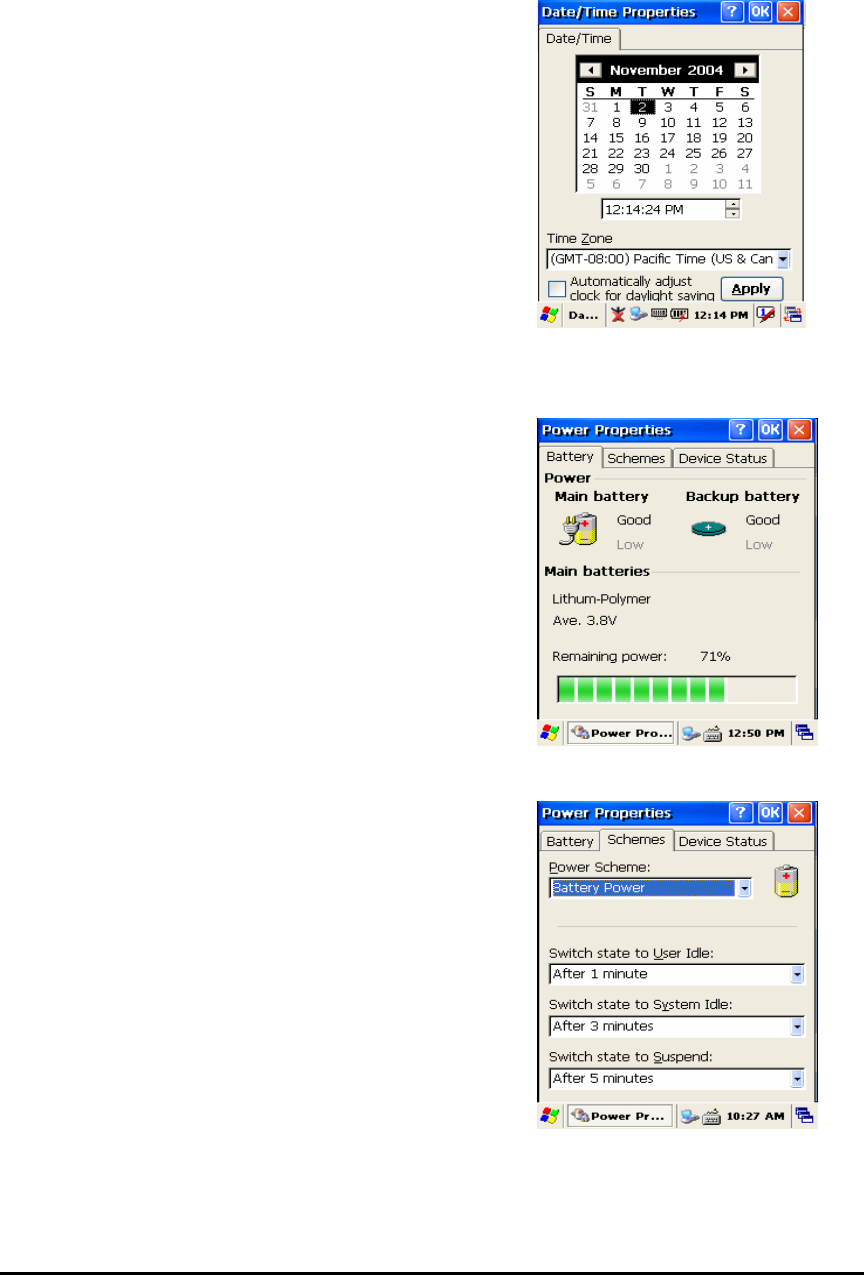

Year: Select the year, then the spin control appears.
Try to set the year though the navigation key or
up/down button.
Month: Select the month directly, then the full months
of one year appear. Try to select the correct month.
You can also select the month though the left/right key.
Day: Just tap a day in the calendar.
Time: you can set the time though the up/down button.
Figure 5. Date/Time
If you set the time zone one time, you can set the correct local time easily by changing the
location into where you are.
3.7 Power Configuration
To adjust power management settings,
Tap Start > Settings > Control Panel > Power
Use this control panel to check the charge on the
battery or to change the Power settings.
Battery Tab
Battery tap: It shows the power remained in the main
battery and the backup battery.
To exit, press OK from the command bar, or press
the <Enter> key on the keypad.
Figure 6. Battery status

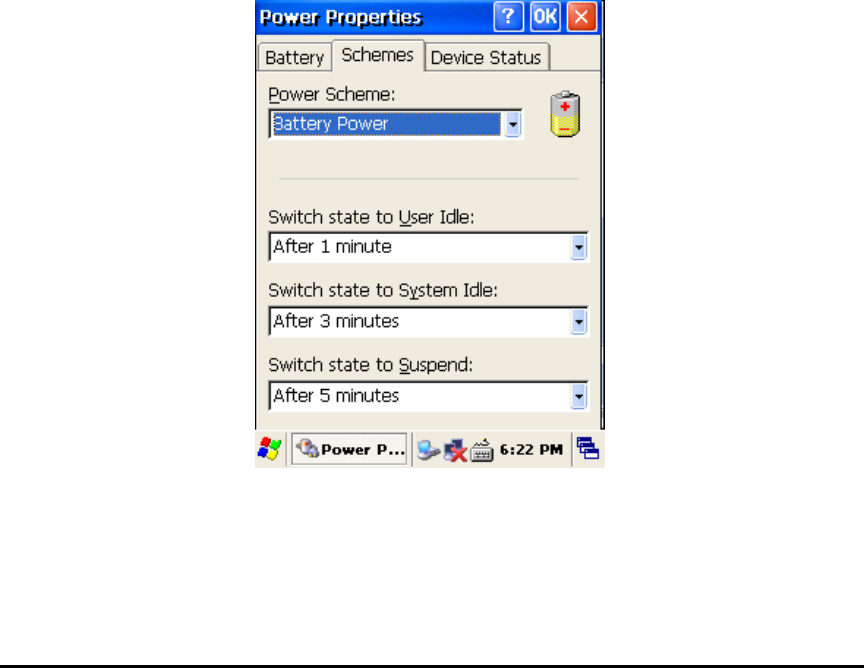

3.8 Schemes Tab
It allows you to determine the entry time of user’ s idle
mode, system idle mode, and suspend mode while
you use either main battery or AC power. This will
helps you to save more power, if you have to move
repeatedly on your work.
To exit, press OK from the command bar, or press the
<Enter> key on the keypad.
Figure 7 . Schemes Tap
Quick Reference Guide
3.9 Memory Allocation
Adjust the Memory Allocation with the following steps:
1.Tab Start > Settings > Control Panel
> System Properties
2.Seletc the Memory tab.
3.Move the slider to adjust memory allocation.
Default storage Memory is normally set to about
8 MB with the remainder.
4. Press the OK button, or the <Enter>key on
the keypad.

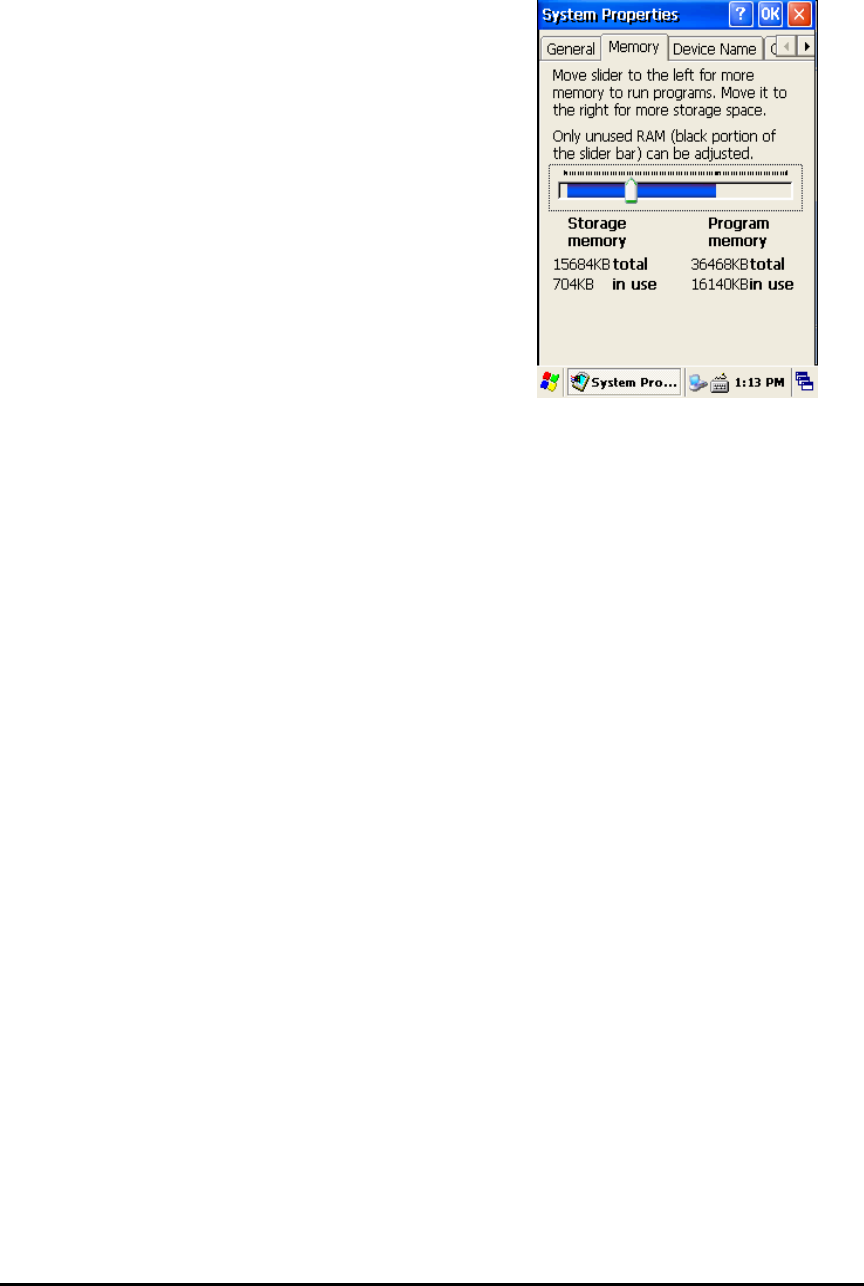

Figure8. Memory Allocation
AT570W
4. Resetting the PDA
When the AT-570W completely stops responding for your command, or an application is
locked up and does not respond, and when you want to upgrade the firmware, it may be
necessary to perform a reset.
Caution
Always attempt a Warm reset before initiating a Cold reset. Once you initiate a cold reset, all
applications are forcibly closed and working RAM and files are cleared.
It is a good idea to store important data in the resident (Flash Disk) for this reason.
Warning
Do not use force or a sharp object like paper clip to press the reset button. Use the stylus for
that purpose. Sharp object like paper clip could puncture the seal of the reset key.
4.1 Warm Reset
When you should perform the warm reset?
When you cannot turn on or off a program, or execute other programs because of
“hang” -the system error that stops responding. The “ warm reset” for recovering the
AT-570W is to press R/S button on the front of AT-570W. This method not guarantee that
cashed disk data will be saved, so transactional data maybe lost during the reset.
Procedure to Warm Reset. To initialize warm reset, press and hold the <Reset> key.
After Warm Reset
• The splash screen will appear shortly.
• The desktop appears with the application shortcuts on the screen.
• The custom settings in the registry are persistent.
• The RF Network PC Card if present, connects to the network system.
4.2 Hard Reset (cold reset)
When you should perform the cold reset?
If the performed reset method fails to restore system operation, it may be necessary to
perform a hard reset. This is a boot method that formats the object store to clean data and
registry information from the AT-570W system and restores them to their factory-default
state.
This will erase the memory in the AT-570W, including all applications and data files found in
the object store (user store).
A Hard reset is a complete reset of the PDA in which all applications are forcibly closed and
working RAM and files are cleared.
Hard Reset Procedure. To perform a Hard reset, simultaneously press the <Reset> key with
the stylus while pressing the <power> key.
After Hard Reset.
When a PDA goes through the Hard reset sequence, it clears the working RAM and initializes
the file system.
• The splash screen will appear shortly.
• You will be asked to recalibrate the touch screen. Press the <ESC> key to circumvent
Quick Reference Guide
recalibration.
• The desktop appears with the application shortcuts on the screen.
• The custom settings in the registry are persistent.
• The RF Network PC Card if present, connects to the network system.
• The application saved in Flash Disk will not be deleted after cold reset (refer to section 5
Flash Disk)
5. Flash Disk
In addition to the RAM-based storage standard on Windows CE .NET terminals, the AT-570 is
also equipped with a Flash Disk, and all the application and data in the Flash Disk can be
persisted in its own condition after the hard reset. From this point of view, it is a kind of very
useful method to keep important application and execute user’ s own application
automatically after the hard reset.
To save your application program, please keep these following steps in your mind.
5.1 Hard reset
1. At first copy an execute file you want to re-execute.
2. Double-tap My Device > Flash Disk > Open Start folder >Open Hard Reset folder
3. Paste the copied file in the Hard Reset Folder.
ㅇ

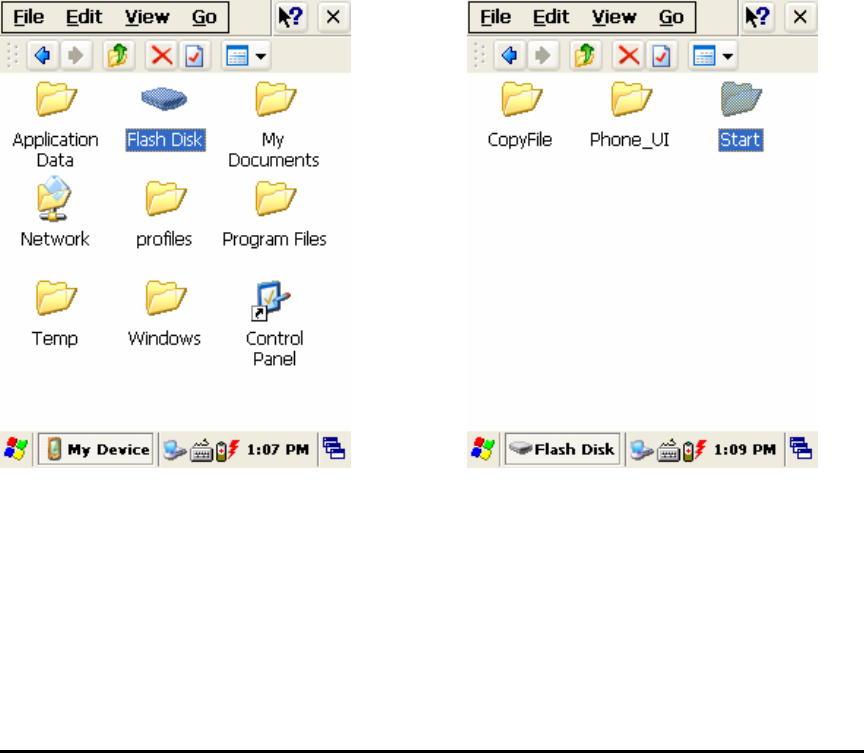

Fitgure1. Click Flask Disk Figure2. Click Start folder
AT570W

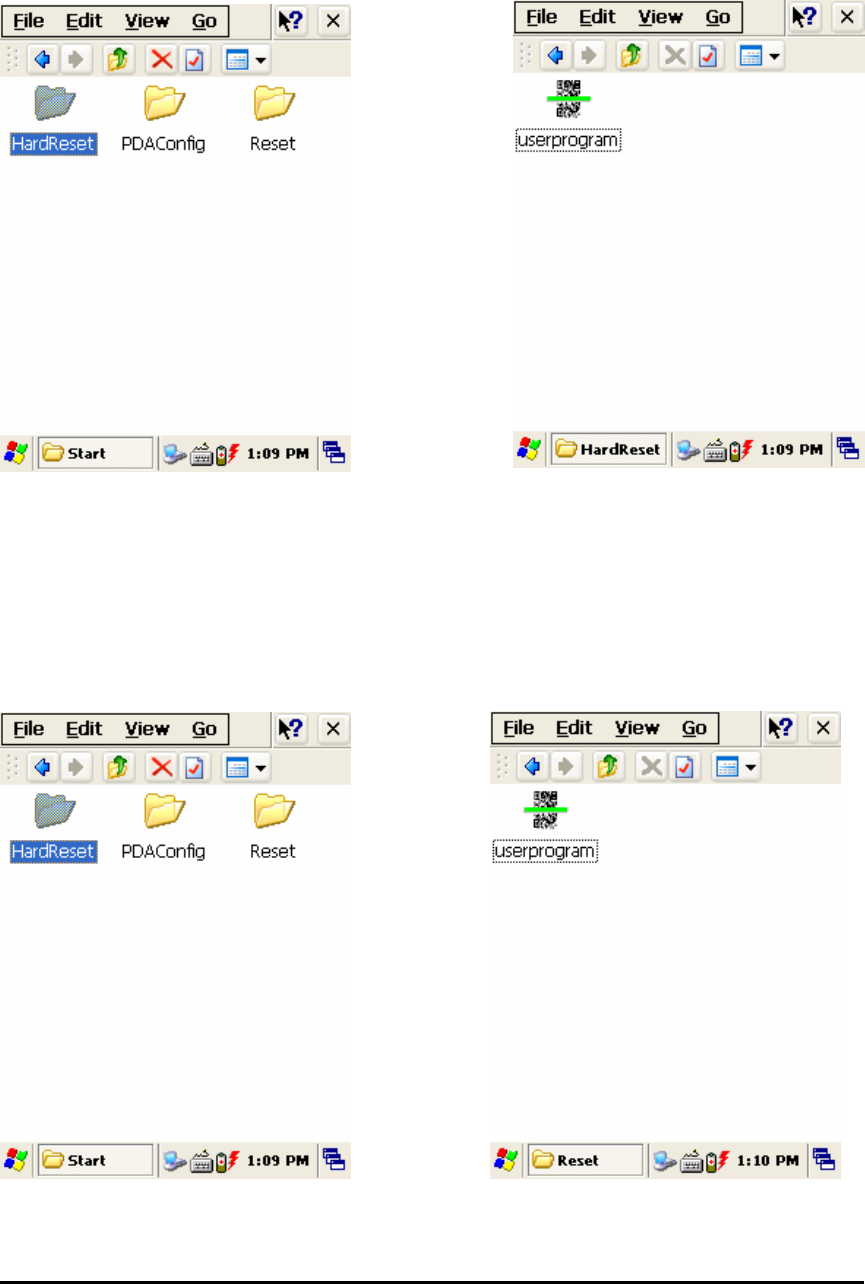

Figure 3. Open the HardReset folder Figure4. An application in the HardReset folder
If you don’ t want to execute the application copied in the Flash Disk, after the hard reset is
performed, press the “ Fn” key during the hard reset.
5.2 Warm reset
1. At first copy an execute file you want to execute after warm reset.
2. Double-tap My Device > Flash Disk > Open Start folder > Open Reset folder
3. Paste the copied file in the Reset folder.
Quick Reference Guide
Figure 5. Open Reset Folder Figure 6. An application in theReset folder
If you don’ t want to execute the application copied in the Flash Disk, after the Warm reset is
performed, press the “ Fn” key during the Warm reset.
5.3 Restoring files to the existed place
When a PDA goes through the hard Reset sequence, it clears the working RAM and initializes
the file system, but because of Flash Disk you can make your files return back to their existed
place after the Hard Reset get performed. This method is also very useful to configure your
system without any action after the hard Reset.
To make files get replaced:
Copy files you want to replace after the hard reset.
Double-tap My Device > Flash Disk > Open CopyFile

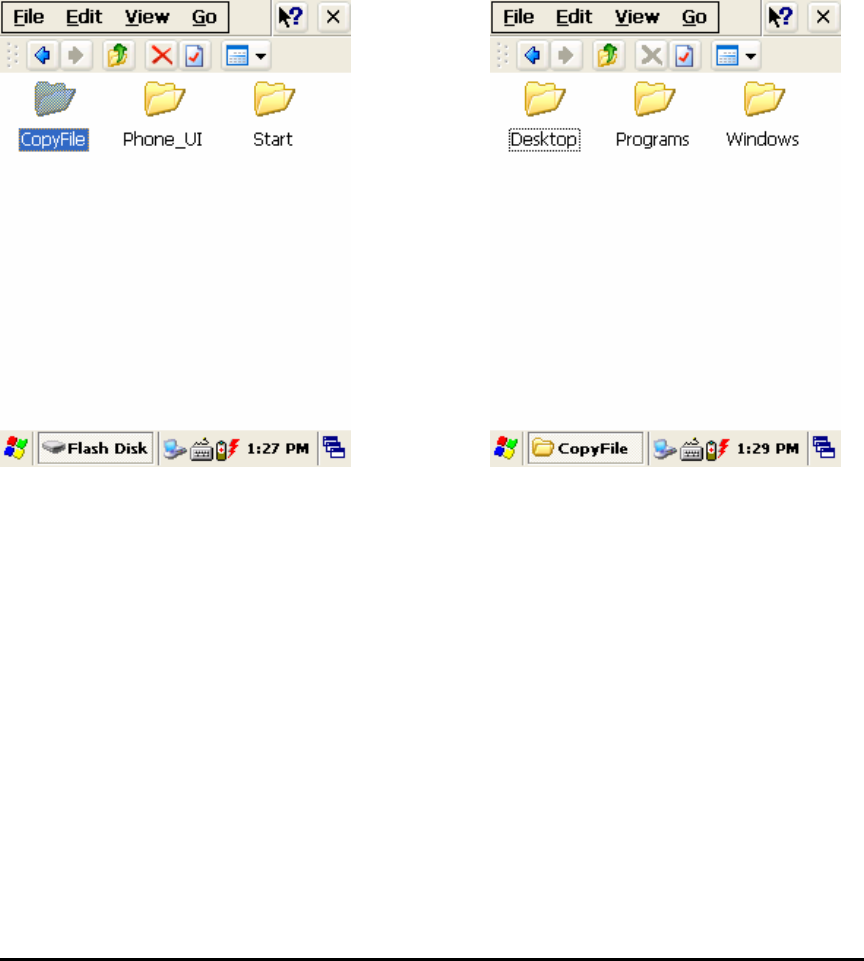

Figure 7. Click CopyFile Figure 8. Copy files you want to replace
To make your files replaced back to the background screen (\Windows\Background) after
the Hard Reset, copy your Files into the Desktop folder.
To make your files replaced back to programs (\Windows\Programs) folder after the Hard
Reset, copy your Files into the Programs folder.
To make your files replaced back to Windows (\Windows) after the Hard Reset, copy your
Files into the Windows folder.
AT570W
6. Registry Backup
Your AT-570 is preparing the Registry Backup program for solution to save the user’ s
registry. This is a very useful method to restore your AT-570, when you perform the hard
reset, and even if it is discharged completely.
The main function of registry:
1. Makes connection between WLAN and AP.
2. Execute Registry BackUp program and save registry.
3. Restores the connection between WLAN and AP after hard or soft reset.
To save registry:
Tap My device > Windows > Double-tap Registry Backup

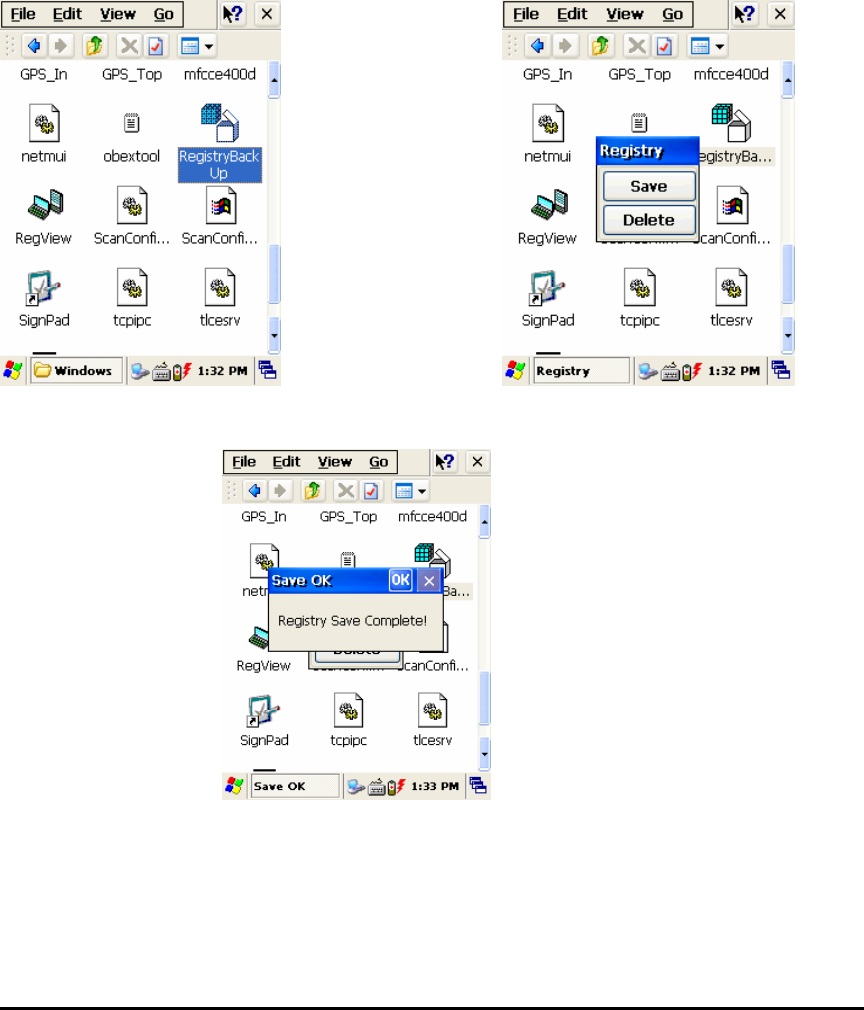

Figure 1. Registry BackUp Figure 2. Save or delete registry
Figure 3. Registry Save
Quick Reference Guide
7. Using the keypad
The keypad is useful to input data and most of the keys on the keypad have more than one
function. Try to input data with the keypad after know how to use it and keep the intimate
knowledge like following tips in your mind.
7.1 Change current character
To change the current input character type, press the <key> key, than you can see the
changed current key type like following steps:
Numeric > Lowercase > Uppercase > Special

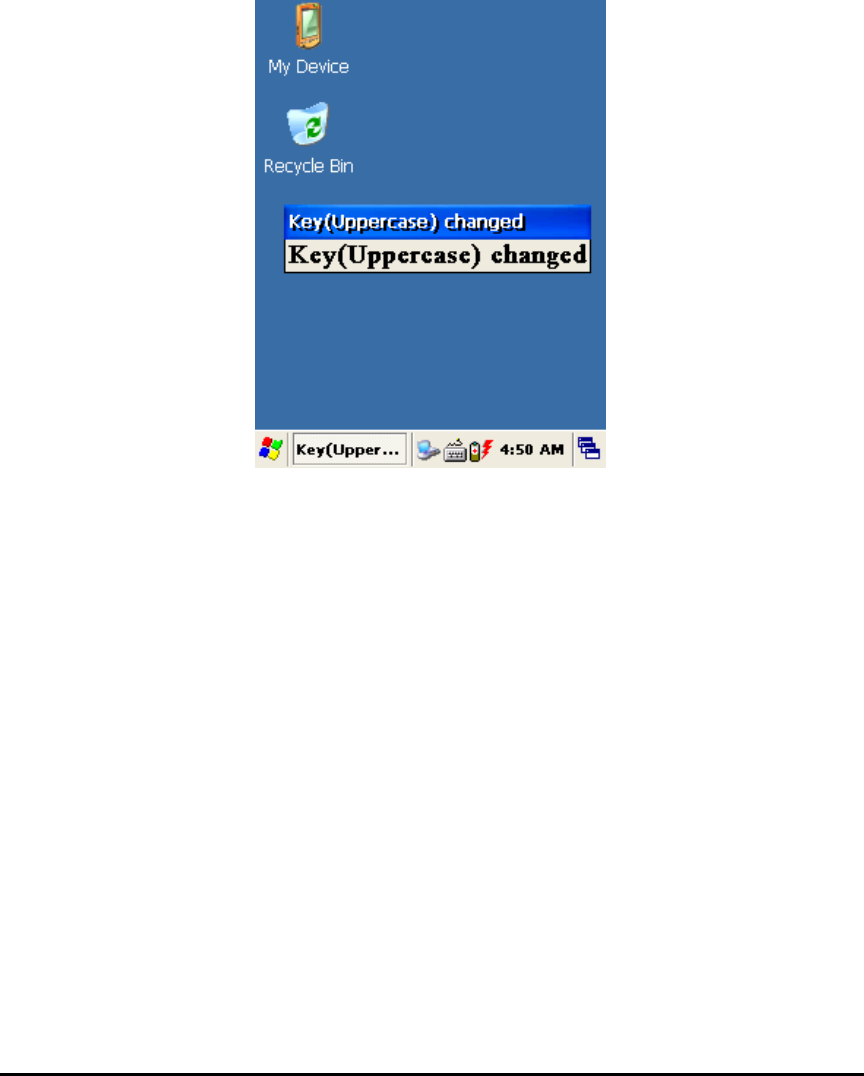

Figure4. Changing Current Character
7.2 Inputting data
Numeric Mode: After making your choice to the Numeric Mode through the<key> key, and just
press from 1 to 10 numeric keys.
Alpha Mode: In alphabetical order, there are 2~3 letters per key.
To input the first letter, press the key you want input one time, and to input the second and
third letter, press the key how many times as the letter is ordered on the key continuously.
Special character: After making your choice to the Special Mode through the<key> key, press
the key that has special character you want to input.
AT570W
7.3 Setting device though the <Fn> key
Press <Fn> + other keys simultaneously to activate follows.
Table3.key describe
Fn + Function
Navigation <Up> Increase sound.
Navigation <Down> Decrease sound.
<Esc> Key WLAN ON / OFF
2 Execute App1 program.
3 Execute App3 program.
4 Copy clip board.
5 Add to clip board.
Setting App
To execute the program designated by user directly:
Tap Start > Control panel > Application Buttons and designate App1, App2 as you want to
execute anytime.
z
KBD button: you can make the touch screen display the input panel program directly to press
the KBD button on the front of the AT-570W.
8. Using the stylus
The stylus is located next to the Battery pack on the right rear of the PDA. The stylus on the
PDA is the equivalent of the mouse on a PC.
Warning: Never use a pen, pencil, or other sharp object on the AT570W’ s touch screen
display. Use only the supplied stylus or plastic-tipped pens intended for use with a touch
screen-sensitive display.
Use the stylus to:
*Navigate the touch screen display.
*Select characters in the soft input panel (SIP).
*Select applications from the desktop or system tray.
*Select buttons, tabs, fields and text within applications and dialog boxes.
Quick Reference Guide
9. Using the Hand-strap and Gun hand-held
To use the PDA for extended periods of time, install the hand-strap for increased comfort
and usability.
1. Turn the PDA face down and ensure the power in off.
2. Insert strap into strap holder and pull down for fixing.
3. Pull plastic tab up to insert the strap recess at the top of the unit.

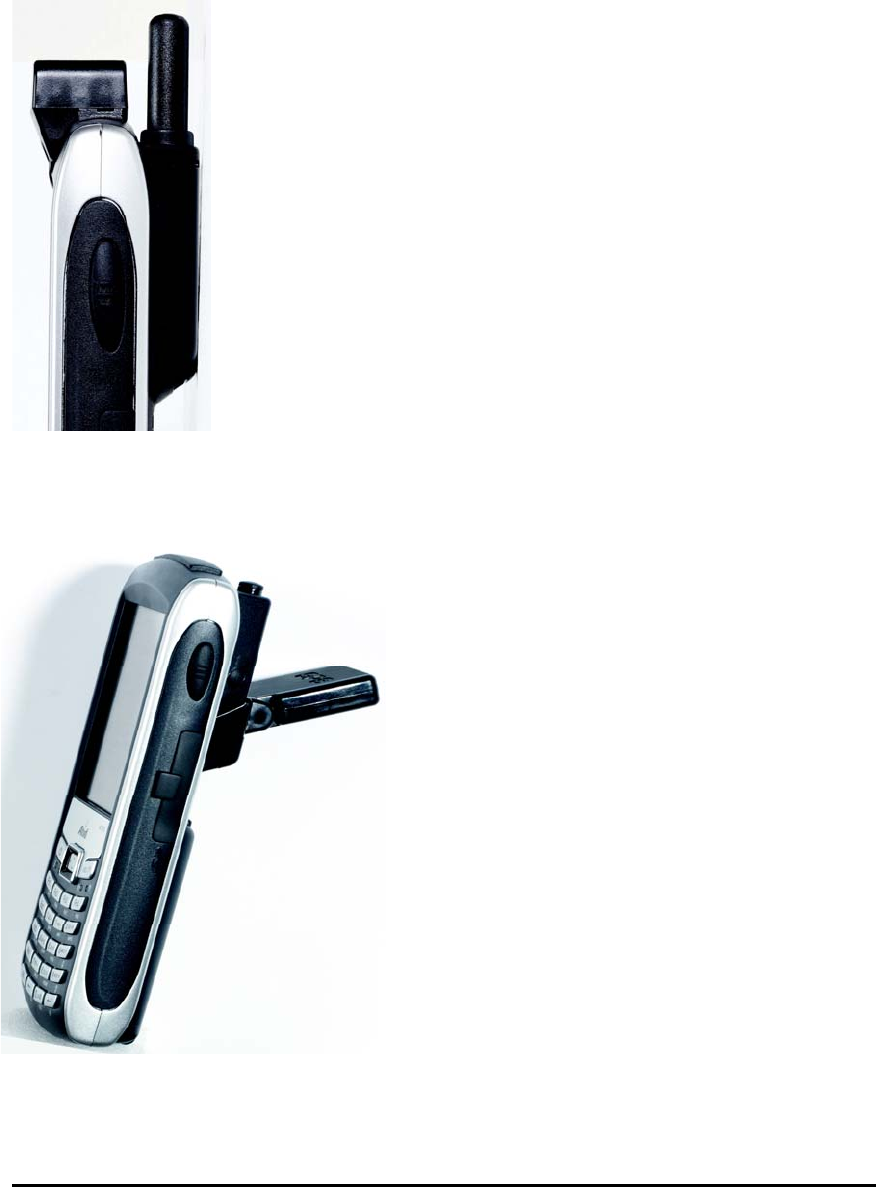

Figure 1. Using the hand-strap
Figure 2. the Gun-typed hand-held
AT570W
Chap 2. Windows Program
This chapter introduces Microsoft Windows Mobile 5.0 for Pocket PC. While using the ATID
Mobile Computer, keep these key points in mind:
1) Tap Start on the navigation bar, located at the bottom of the screen, to quickly move to
programs, files, and settings.
2) Tap and hold an item to see a pop-up menu containing a list of actions you can
perform.
1. Basic Information
1.1 Task Bar and Command Bar
The task bar is located at the bottom of the screen. It displays the active program and current
time, switch to programs, input panel, and battery status.
Command bar
Input panel
WLAN status
Battery status
Current program
Tap to start a program

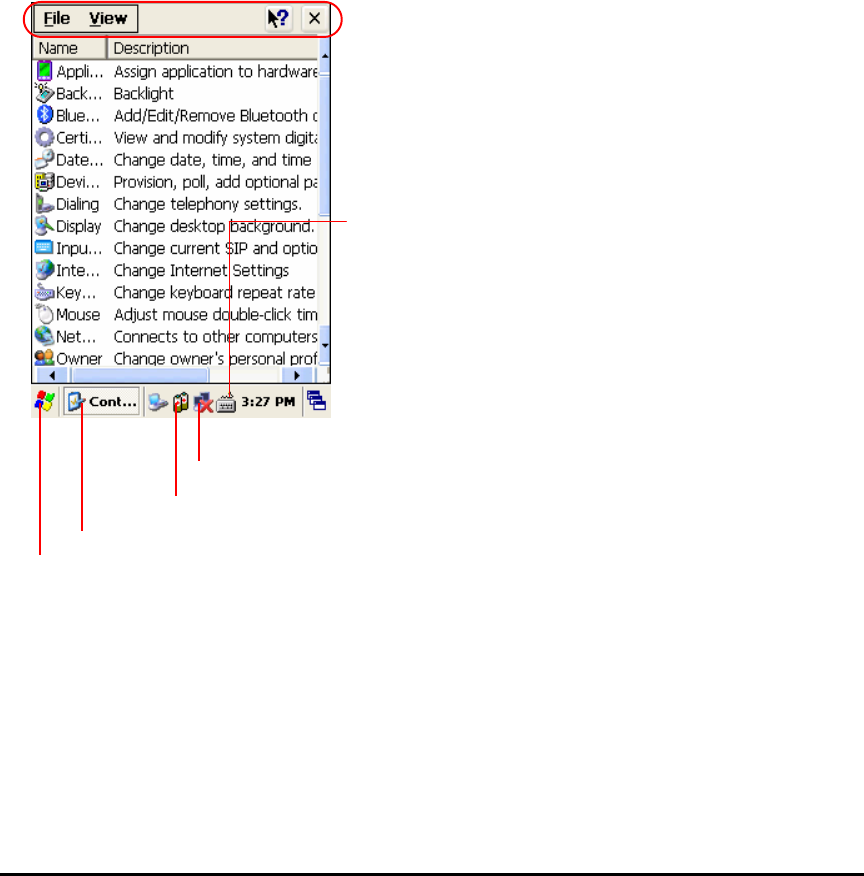

Figure 1. Task Bar and Command Bar
Use the command bar to perform tasks in programs. The command bar includes menu names,
functions.
Quick Reference Guide
1.2 Pop-up Menus
Use pop-up menus to quickly perform an action on an item. For example, you can use a
pop-up menu to delete or copy of an item. To access a pop-up menu, tap and hold the item
on which you want to perform the action. When the menu appears, tap the action you want to
perform, or tap anywhere outside the menu to close the menu without doing the action.
2. Executing a Program
When you turn on the AT-570 for the first time, you can
see the following start screen. Try to double-tap “My
device” Icon > windows > Program > tap an icon you
want to execute.
You can also display it by tapping the Start flag at the
bottom left of your display.

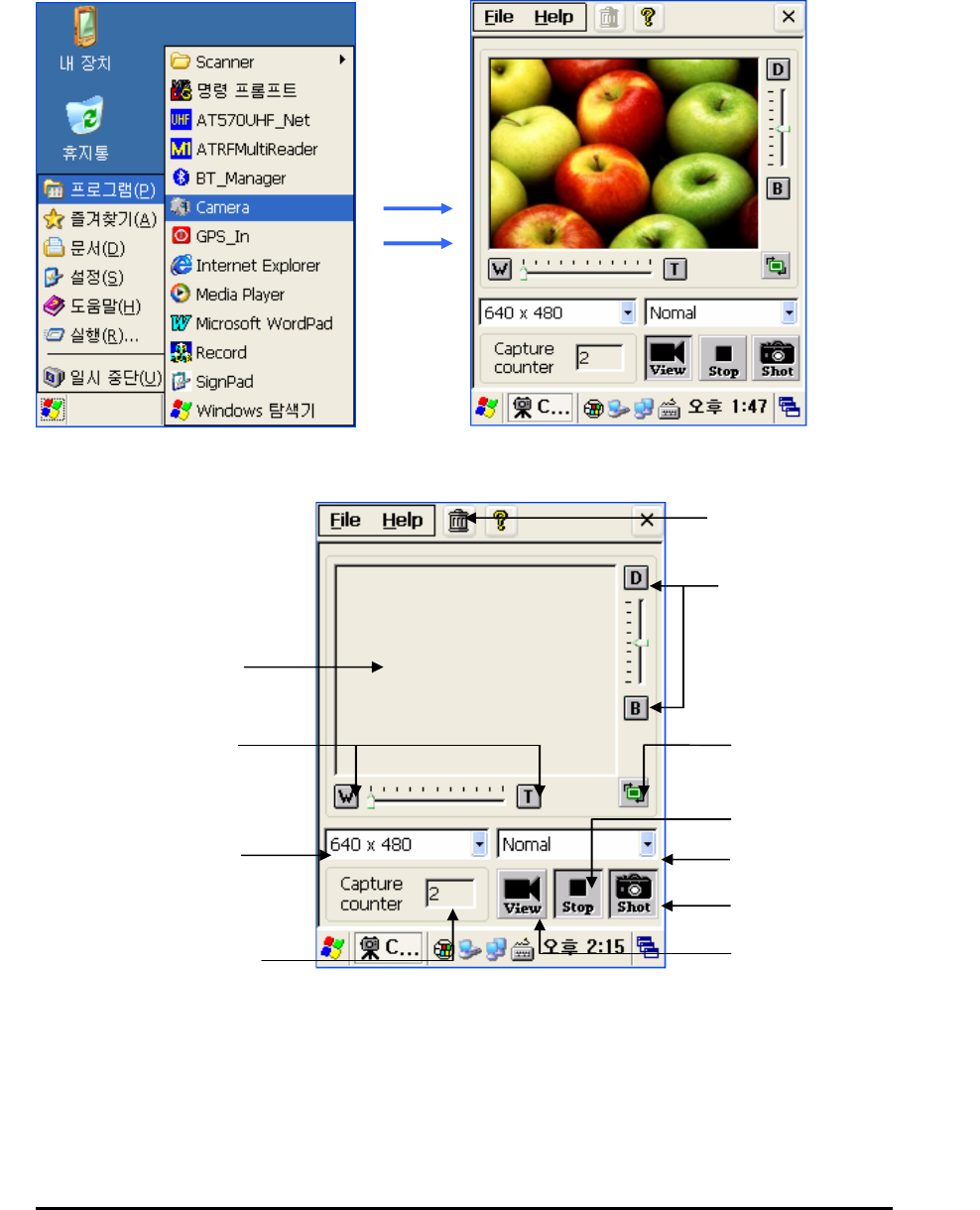

Figure 2. Executing a Program to use Start Flag
3. Entering information
You can enter information on your AT-570 in several ways, depending on the type you have
and the program you are using.
3.1 Using the Onscreen keypad
Use the input panel to enter information in any program on your AT-570.
You can both type using onscreen keyboard or write using transcriber.
Figure 3-1. Selecting SIP menu Figure 3-2 Popping-up SIP
To make pop-up menu appears, double-tap the keypad icon on the taskbar.
To make soft input panel (SIP) popped up, tap the keypad icon on the taskbar, or press
“KBD/)) “ key on the keypad.
Double-click
AT570W
To see Soft Keyboard Option:
Tap Start > Settings > Control Panel > Input panel, select “ keyboard” from the current Input
method drop-down list, tap “ option” , then adjust Options as you want to use.

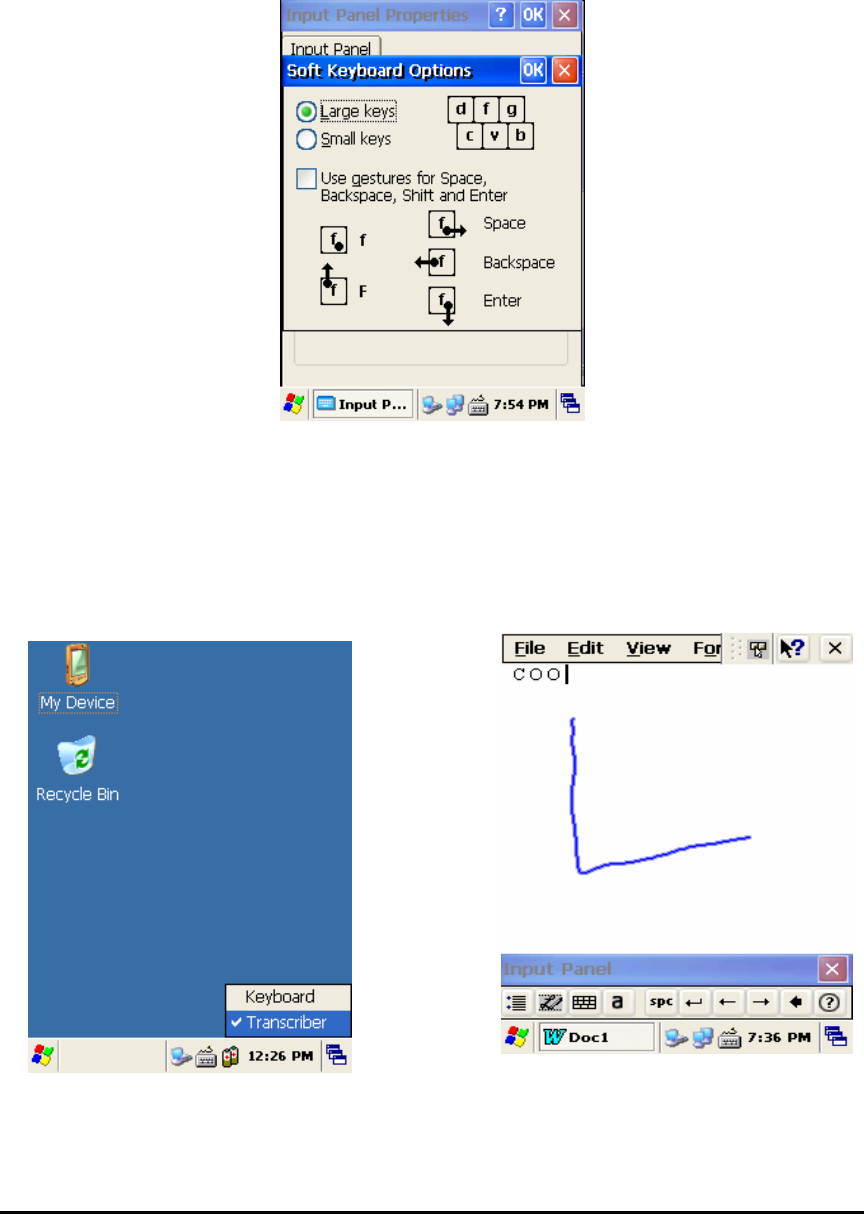

Figure 4. Keypad Option
3.2 Using Transcriber
With Transcriber, you can write anywhere on the screen using the stylus just as you would on
paper. Double-tap input panel icon, than tap Transcriber. After selecting, than write anywhere
on the screen.
Figure 5. Using Transcriber in an application program
Quick Reference Guide
4. Customizing Your AT-570W
You can customize your mobile by adjusting setting and installing additional software.
4.1 Adjusting settings
To adjust settings to fit the way you work:

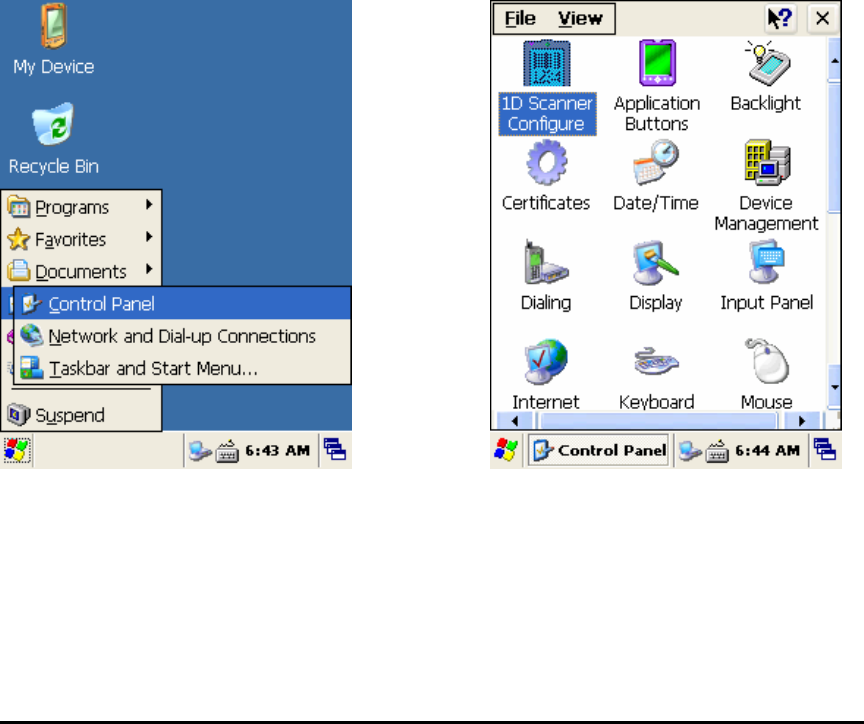

Tap [Start] > [Settings] > [Control Panel]
To open a program, you can use the “ File” pop-up menu, or double-tap an icon you want
execute in the Control Panel.

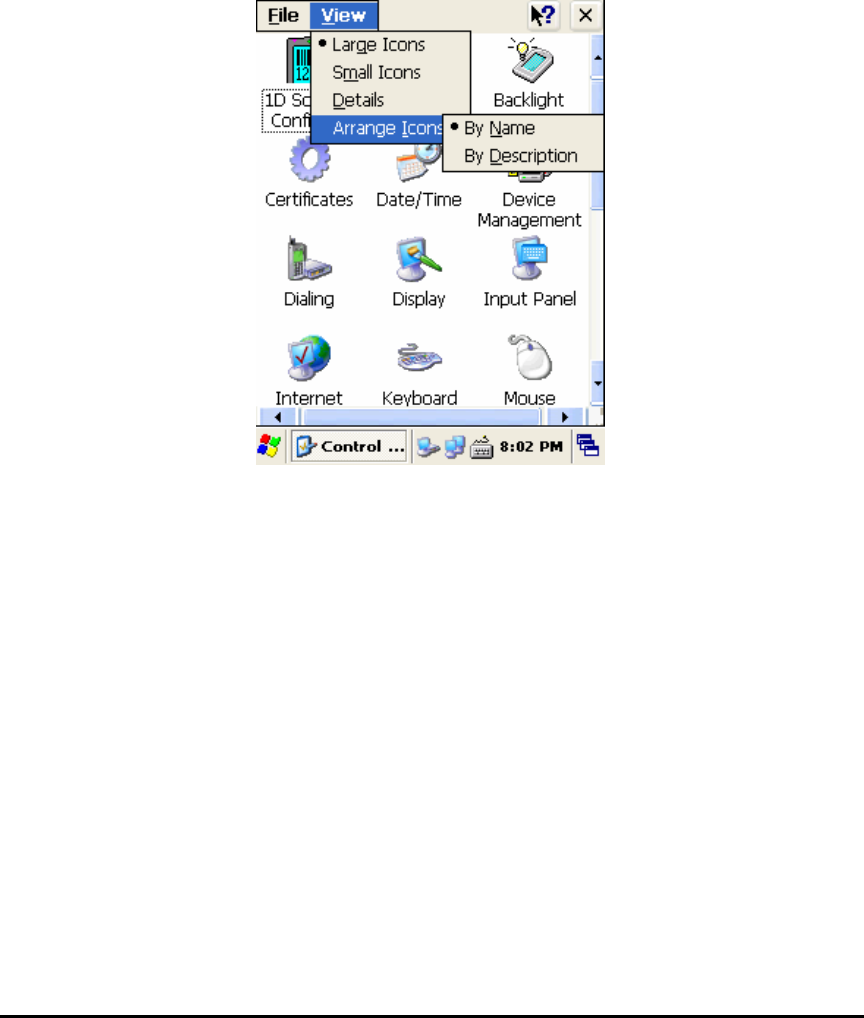

To arrange programs with detail, tap the “ View” and select “ Detail” , and than tap
“ Arrange Icons” . If you want to arrange all the icons by description, tap “ By Description” ,
and if you want to arrange all icons by alphabetic order, tap “ By Name”.
Figure 1. Setting Icons
4.2 Adding or Removing Programs
Programs added to your AT-570 Mobile computer at the factory are stored in ROM (Read
Only Memory). You cannot remove this software, and you cannot accidentally lose ROM
contents. Applications added to your AT-570 Mobile computer go into the Object Store,
Which is located in Flash ROM. You can install any program created for AT-570, as long as
there is enough memory.
4.3 Adding Programs Using ActiveSync
1.Use the Explore in ActiveSync on your desktop computer to explore the files on your
PDA, and locate the program.
2. Right-click on the program, then select Create Shortcut.
3. Move the shortcut to the Programs folder in the Windows folder.
The shortcut appears on the menu.
AT570W
4.5 Removing Programs
To remove a program, tap Start > Settings > Control Panel > tap Remove Programs Icon, than
select the program you want to remove. Press the “ Remove” tap.

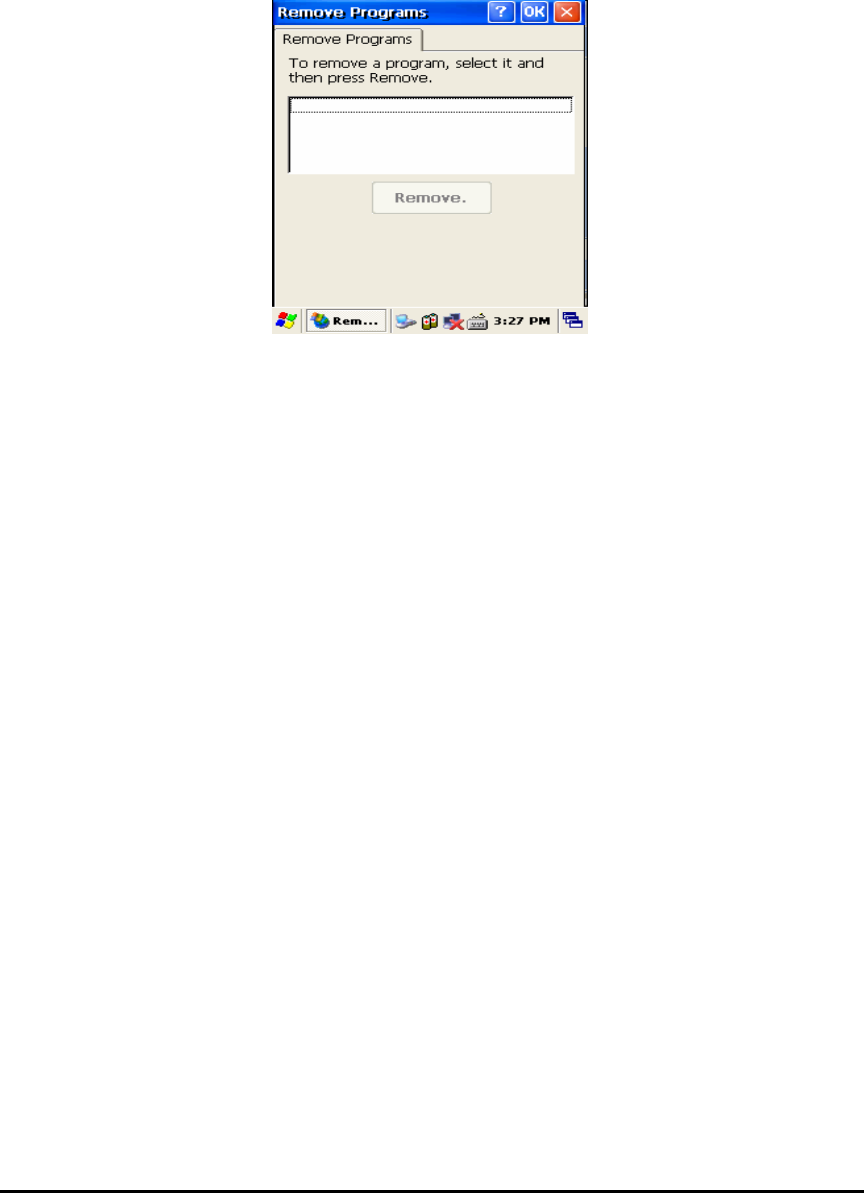

Figure 2. Input a program to remove
5. Microsoft ActiveSync
This section provides instructions on setting up the Host PC so that the PC can communicate
with the PDA and the dock.
5.1 Using Microsoft ActiveSync
You can synchronize the information on your desktop with the information on your AT-570.
Synchronization compares the data on your AT-570 with your desktop and updates both
computers with the most recent information
NOTICE: You must have Microsoft ActiveSync 4.2 or greater on your desktop before you can
synchronize information with your AT-570.
With ActiveSync
You can also do:
1. Back up and restore your AT-570 data
2. Copy (rather than synchronize) files between your AT-570 and desktop.
3. Control when synchronization occurs by selecting a synchronization mode. For
example, you can synchronize continually while connected to your desktop or only
when you choose the synchronize command.
4. Select which information types are synchronized and control how much data is
synchronized.
For more information, please refer to the instruction of Microsoft ActiveSync.
5.2 Installing Microsoft ActiveSync on your desktop
Microsoft ActiveSync is a file transfer tool to synchronize the files on a desktop with the files
on your PDA. The AT570 comes from the factory with ActiveSync loaded. If you have
ActiveSync already installed on your PC, make sure that you have v4.2 or higher.
To install Microsoft ActiveSync, complete the following steps on the PC:
Quick Reference Guide
1. Go to the Microsoft Windows CE .NET website and download the most current
version of ActiveSync http://www.microsoft.com/mobile/pocketpc/downloads/.
Install the most current version of Microsoft ActiveSync (v4.2 or greater) on the host
PC.
2. Once ActiveSync is installed, it will attempt to connect to the AT570; allow it to fail on
the first attempt.
5.3 Setting up a Partnership
ActiveSync file synchronization requires an ActiveSync partnership between the AT570 and
the Host PC.
Setting up a Partnership.
1. Select the files in the synchronization configuration for the AT570.
2. Select Tools > Options from the ActiveSync command bar to configure the
synchronization options.
Place the file to be synchronized in the Synchronization folder created in your My Documents
directory. During the ActiveSync connection, all files in the Synchronization folder will be
synchronized to the My Documents directory on the AT570.
5.4 Transferring Files
To transfer files, complete the following steps on the host PC:
1. Select Start > Programs > Microsoft ActiveSync
2. Double-click on the ActiveSync icon in the System Tool Tray.
3. After you have established a connection with your PDA, tap the Explore button at the
top of the ActiveSync window (or select Explore form the File menu). Navigate to
the target directory on your portable and copy the desired file by using the Copy/Paste
method or dragging and dropping the desired file(s) into the folder.
6. Microsoft WordPad
Use Microsoft WordPad to create documents, such as letters or meeting minutes.
Select Start > Programs > Microsoft WordPad
The PDA comes with WordPad for Windows CE .NET installed from the factory. The following
text and document file types are compatible with WordPad:
Text (*.txt ), Word Document (*.doc ), Rich Text File (*.rtf ), WordPad (*.pwd )
When you transfer file types other than *.pwd to the Windows CE .NET device, it translates
the files into a compressed Windows CE .NET file type.
Figure 1. WordPad.
AT570W
7. Window Media Player
Use Media Player on your desktop to copy digital audio and video files to your AT-570. You
can play Window media and MP3 files on your AT-570.
To display Media Player:
Tap Star > Programs > Media Player

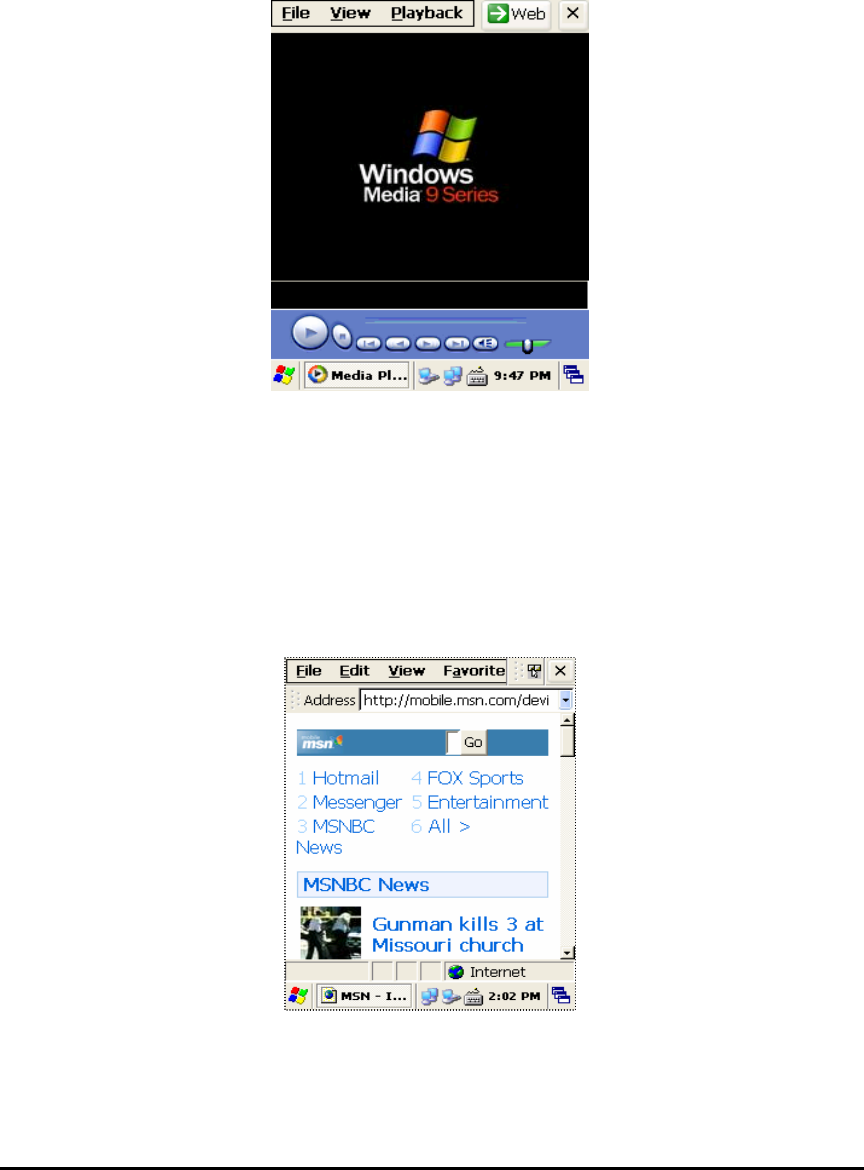

Figure 1. Media Player
8. Internet Explorer
The PDA comes with Internet Explorer for Windows CE.Net installed
1. Open Internet Explorer by selecting Start > Programs > Internet Explorer.
2. To set a default home page, navigate to the desired default web page.
3. Select View > Internet Options from the command bar.
4. Enter the desired URL in the Start Page field.
5. Press the OK button.
Figure 1. Internet Explorer
Quick Reference Guide

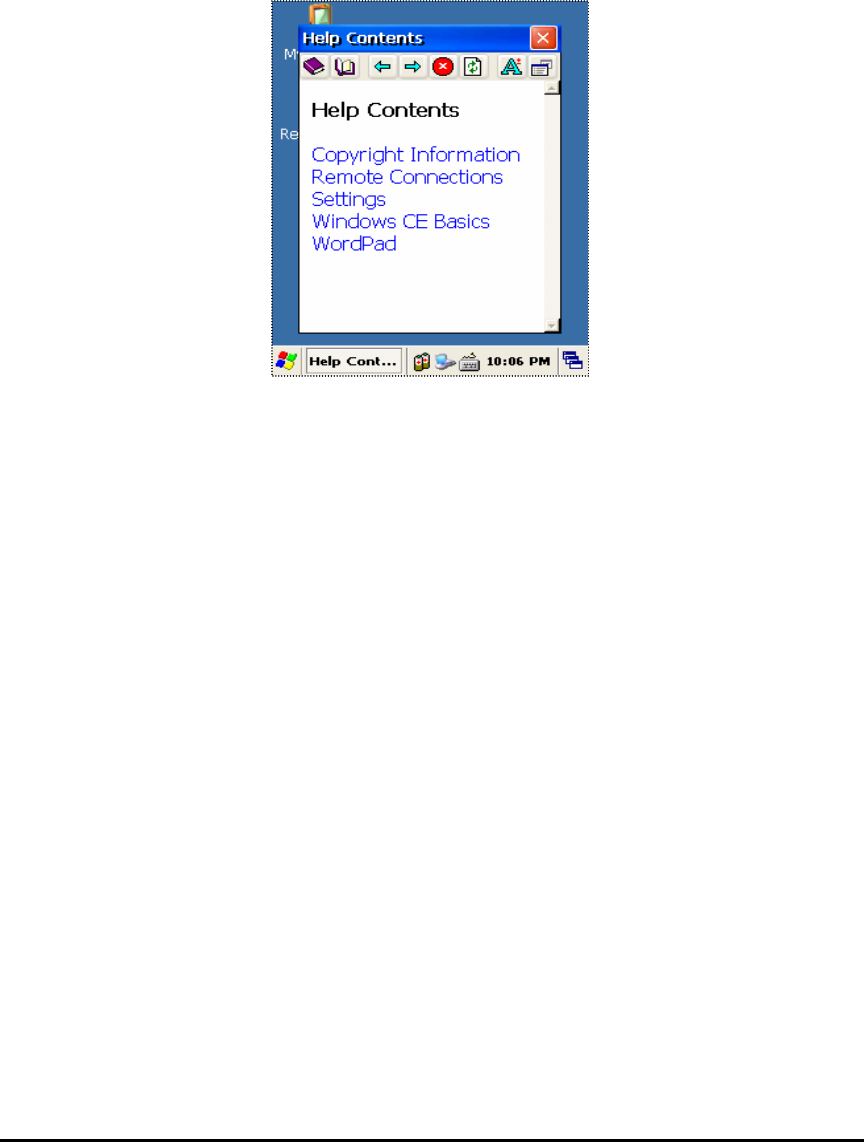

9. Context Sensitive Help
Microsoft Windows CE context sensitive help is available where ever a “ ?” button appears
in the upper right hand corner of the window. To open context sensitive Help, select/tap the
“ ?” in the upper right corner of most screens. Select/tap the desired item from the list of
hot links.
Figure 1. Sensitive Help
AT570W
Chap 3. Optional Module (Version 1.1)
The automatic identification and wireless network technology has helped users to keep their
information, and makes IT engineers try various methods to develop modules used within
mobile computer. The AT-570 can also be supported with the optional modules for the needs
of users. This section provides you with the information of the Optional Modules, and sources
for additional product information. You need to confirm the follow information before you get
the device that you want to use.
The Optional modules supported from ATID
Note: According to Upgrading for device, the additional information can be changed.
1) Barcode Reader
-. 1D Scanner Barcode Reader
2) Barcode Reader
-. 2D Scanner Barcode Reader
3) Wireless Lan – 801.11 b.g
4) Camera
Quick Reference Guide
1. 1D barcode Scanner
This chapter introduces the AT570 built in with the 1D, 2D barcode Scanner program to assist
you in making the most out of your AT570
1.1 AT1DTScanner(Demo program)
You can execute AT1DTScanner coded from ATID to make sure that your AT570 scans
barcodes exactly.

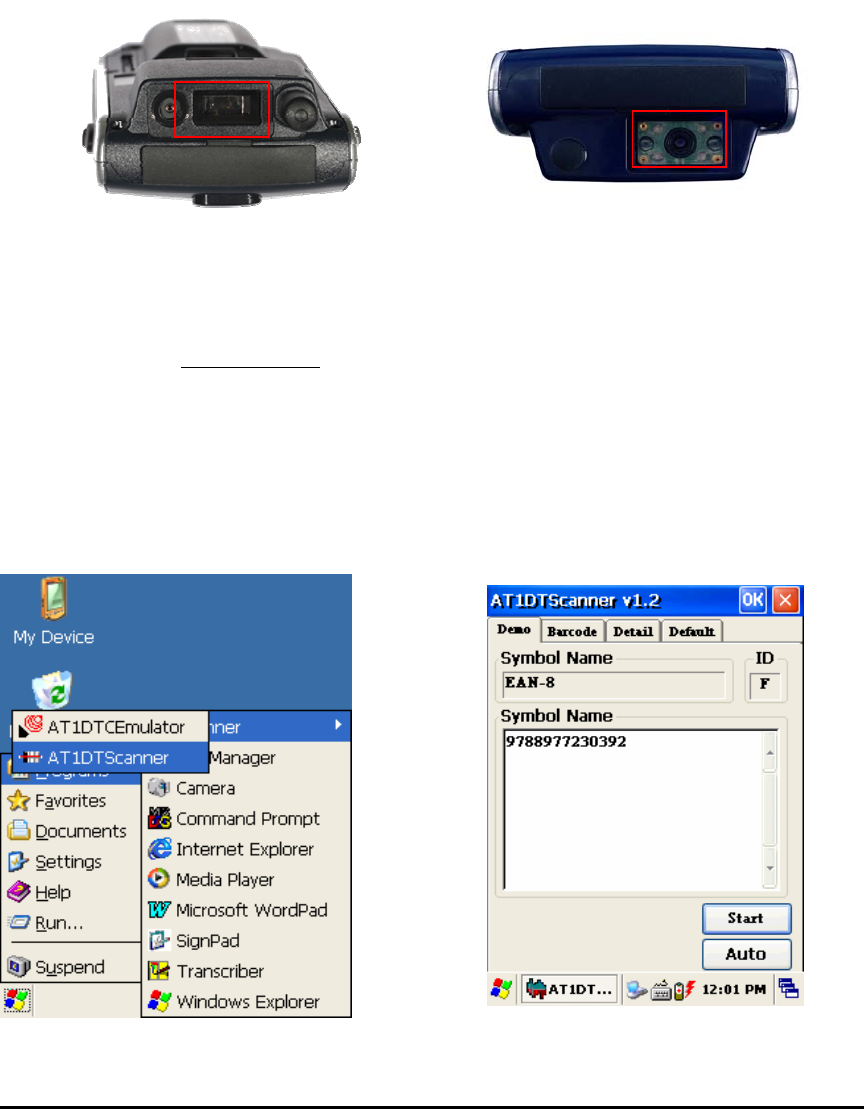

Figure 1. Scan Window for 1D image Figure 2. Scan Window for 2D image
1) To execute Scanner Diagnostics
Tap [start] -> [program] -> [Scanner] -> [AT1DTScanner]
Note: If you don’ t have AT1Dscanner.exe(Ver 1.2) File, please look for our staff or visit ATID
web site at www.atid1.com to download.
[Program Release Note]
1. Ver 1.2 : can only read barcode
2. Ver 1.0 : can read barcode and set up symbology
2) Reading barcodes
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“ Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
AT570W

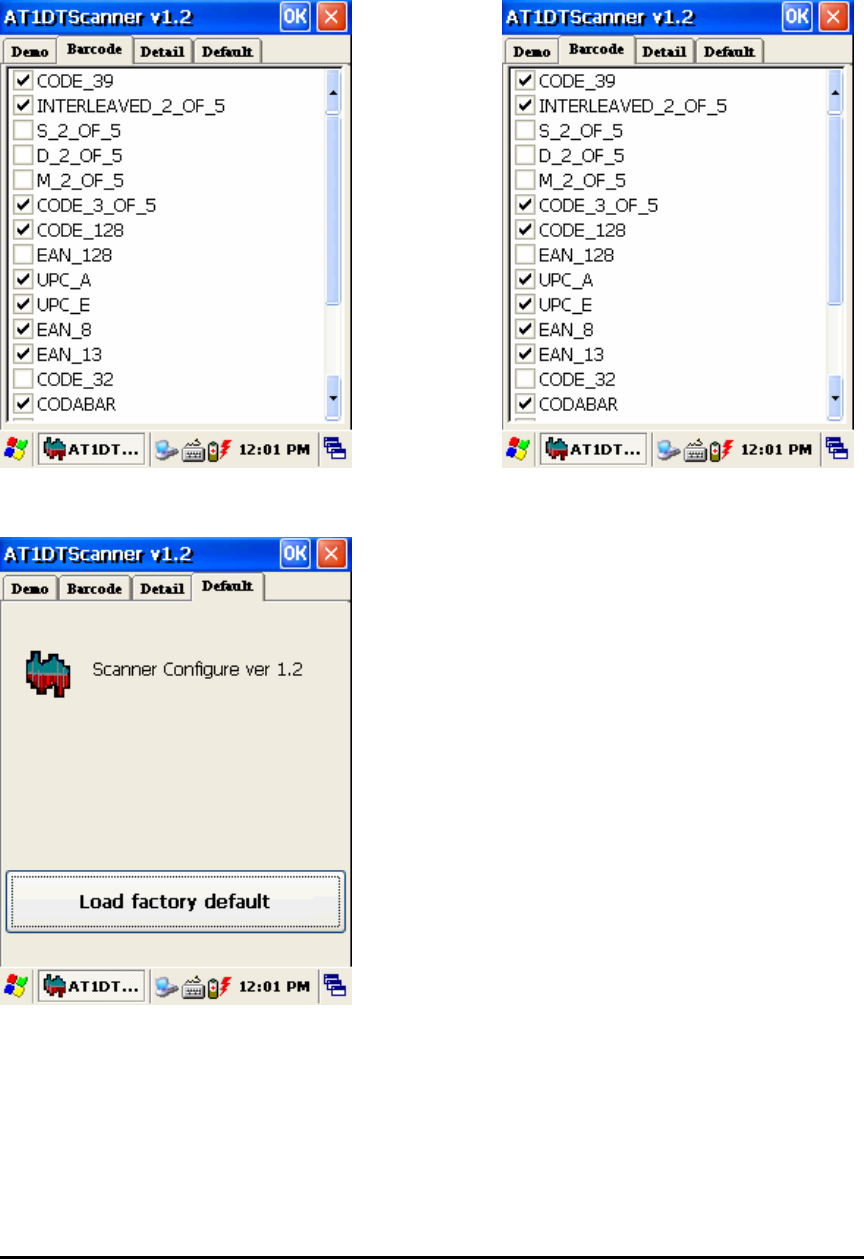

Figure 3. 1D Scanner Program(ver 1.2)
Figure 4. Select barcodes that you are
i
Figure 5. Detailed function
Figure 6. Load factory default
Optional Function:
Format the result value to be added
with its type or not.
Quick Reference Guide
3) Reading barcodes
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“ Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
Figure 7. 1D Scanner Program
AT570W
1.2 Setting up the AT1D Emulator
You can input the barcode value you scanned in any application program that has a cursor
after setting the AT1Demulator. Like an input device, the AT1Demulator makes data displayed
in an application program (see the following figure)

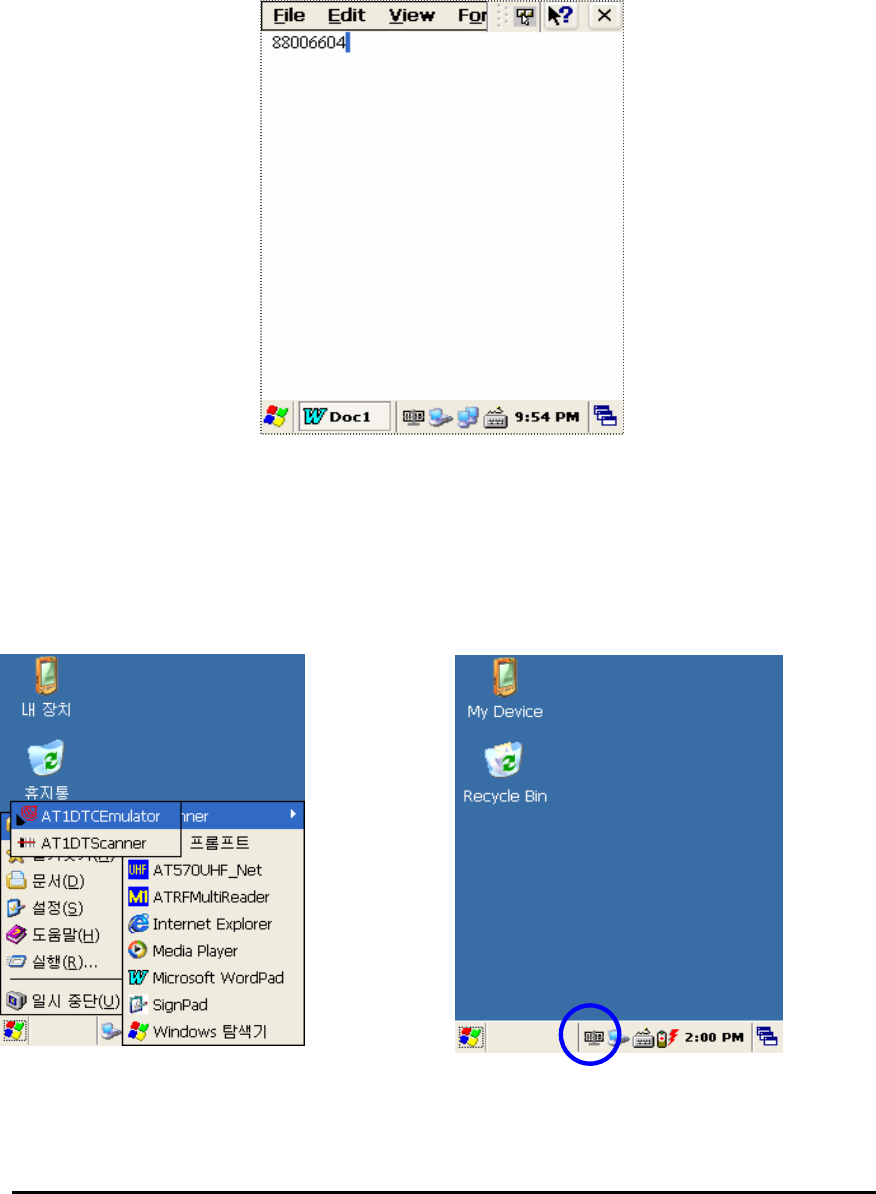

Fiture8. Barcode value in the WordPad Program
1) Merit to use the AT1DEmulator
Because the AT1DEmulator can apply to all application programs that have a cursor such like
Web program, Wordpad and others, you can input the scanned data directly without coding
any application program.
2) To executing Emulator
Tap [Start] -> [Program] -> [Scanner] -> [AT1DTCEmulator]
Figure 9. AT1DTCEmulator.exe Figure 10. Tap this AT1DTCEmulator Icon
Quick Reference Guide

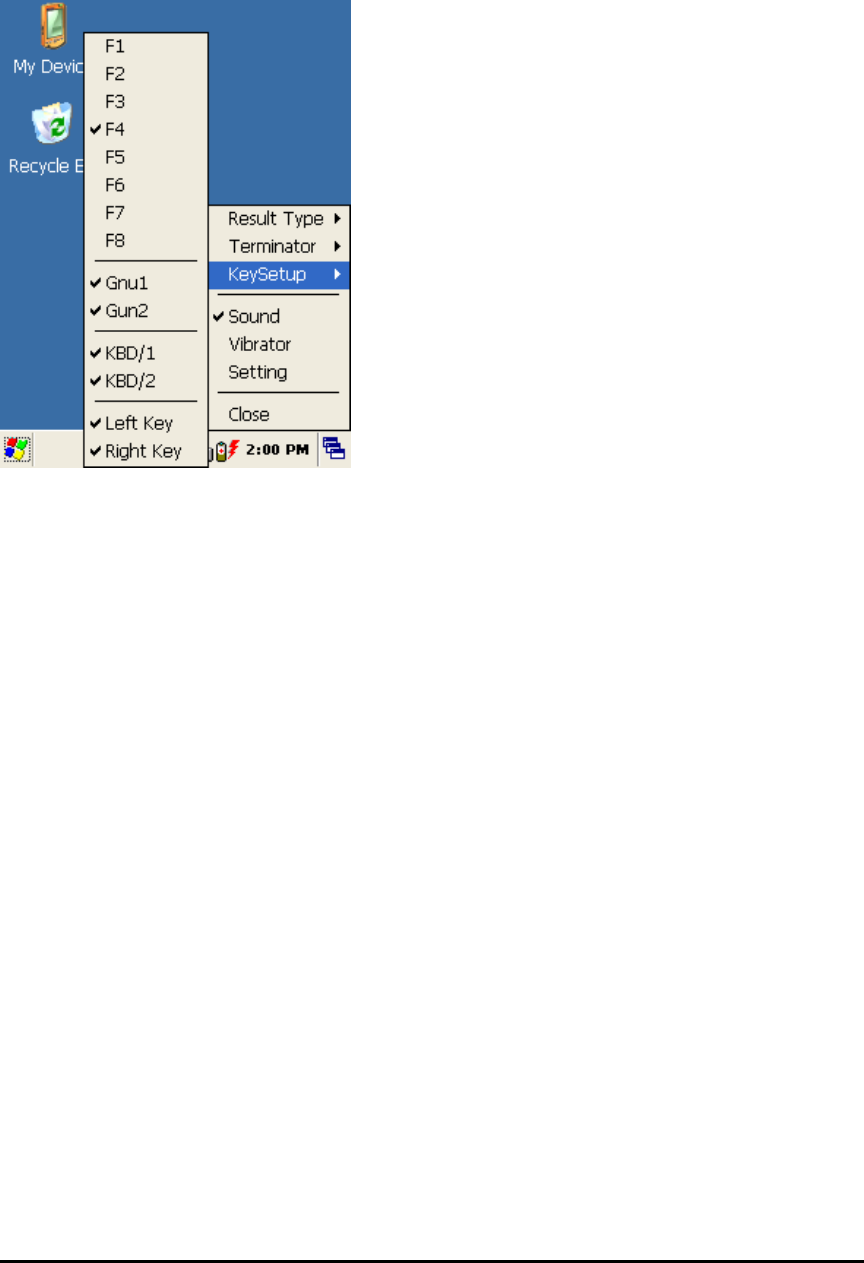

3) Setting the Emulator
Figure 11. Setting Menu
1. Result Type
There are 2 kinds of method to print the scanned barcode data where a curser is
pointing.
A. Keyboard Event : Print the scanned barcode data like input Keyboard
B. Copy & Paste : Print the scanned barcode data with Clipboard
2. Terminator
You can set the termination code at the end of Barcode Value to tap “ Terminator” .
A. None : No input the termination code.
B. CRLF(Default Setting) : Carriage Return & Line Feed (Enter code)
C. Space : Input Space code.
D. Tab : Input Tab key code.
3. KeySetup
You can make Hardware keys set to aim the lager beam.
A. F1 ~ F8 Key : press those keys on the keypad to read barcode after setting.
B. Gun1, Gun2 : Set for the gun-typed AT-570 .
C. KBD/1, KBD/2 key : Same with the F1 ~ F8 Key
D. Left Key, Right Key key : Same with the F1 ~ F8 Key
4. Sound : set the sound On/Off after Scanning Barcode
5. Vibrator : set the Vibrator On/Off after Scanning Barcode
6. Setting : NO use.
7. Close : Make Emulator Program closed
AT570W
1.3 Setting up the 1D Barcode Symbology
When you are using barcodes that are encoded in a different symbology, you need to enable
the symbology on your AT570. Please use ATID application to enable and disable
symbologies.
This way will help you to improve the performance of your work, for example if you enable
only the barcodes that you need to use every day, you don’ t need to perform any activity to
use that barcodes.
You can set the details for all kinds of barcode, as you use 1D Scanner Configure
program.
[Setting details]
1. Settings for selecting barcodes that you want to enable
2. Settings for the detailed optional function to every barcode.
3. Changing the default of barcode scanner into the factory default.
The final state of the default that you set through the “ 1D Scanner Configure” cannot be
initialized after you perform a hard-reset. So if you want to set up the default again, use
Symbology Setting program to change the default.
1) Executing Symbology Setting program
To execute Symbology Setting program:
Start > setting > control panel > 1D Scanner Configure

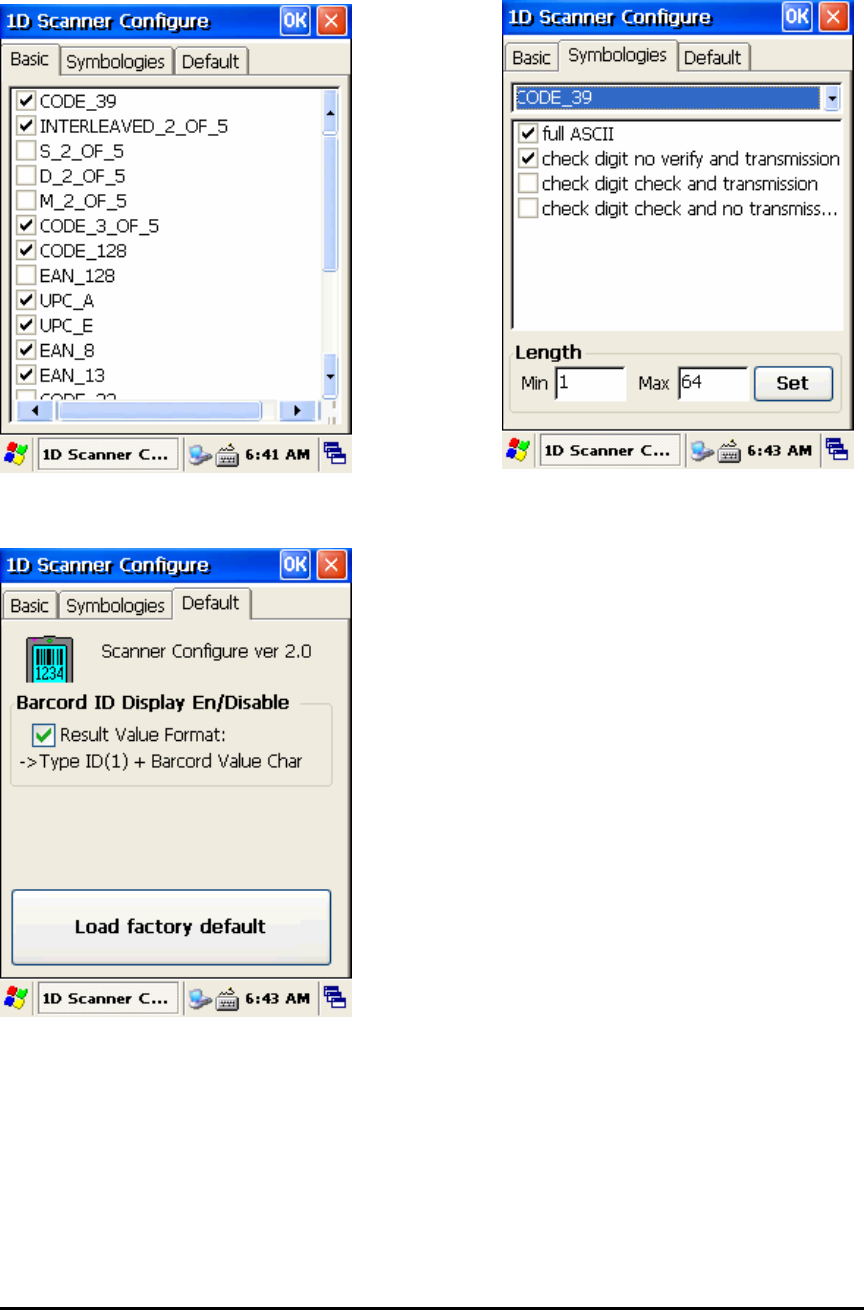

Figure 12. Tap Control Panel Figure 13. Execute 1D Scanner Configure
Quick Reference Guide
Figure 14. Select barcodes that you are using Figure 15. Detailed function
Figure 16. Load factory default
Optional Function:
Format the result value to be added
with its type or not.
AT570W
2. 2D barcode Scanner
2.1 Reading 2D barcode & Symbology Setting
You can execute AT2DScanner coded from ATID to make sure that your AT570 scans
barcodes exactly.
1) Executing Scanner Diagnostics

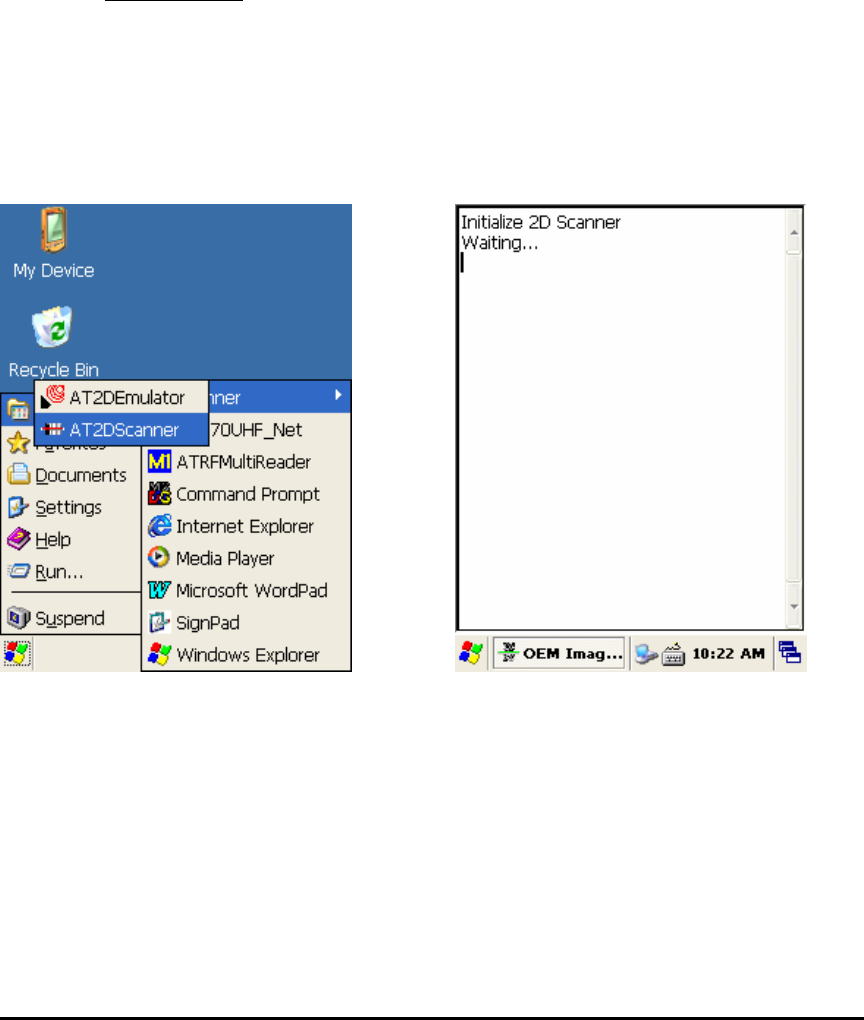

[Start] -> [Programs] -> [Scanner] -> [AT2DTScanner]
Note: If you don’ t have AT2Dscanner.exe(Ver 2.0) File, please look for our staff or visit ATID
web site at www.atid1.com to download.
.
[Program Release Note]
1. Ver 1.0 : can only read barcode
2. Ver 2.0 : can read barcode and set up symbology
2) Reading barcode(Ver 2.0)
Figure 1. Wait till the program is initialized.
1. Press the L/R scanning button or Fn4, KBD key to scan barcode. You can also tap the
“ Start” on the screen to scan a barcode when the lager beam is aimed to a barcode.
2. Make sure that your AT570 scans barcode exactly on the demo program.
* The scanned data will be displayed on the screen, if your AT-570 reads a tag exactly.
* If you stop scanning before your AT-570 reads a tag completely – An abnormal sound
comes out.
Quick Reference Guide

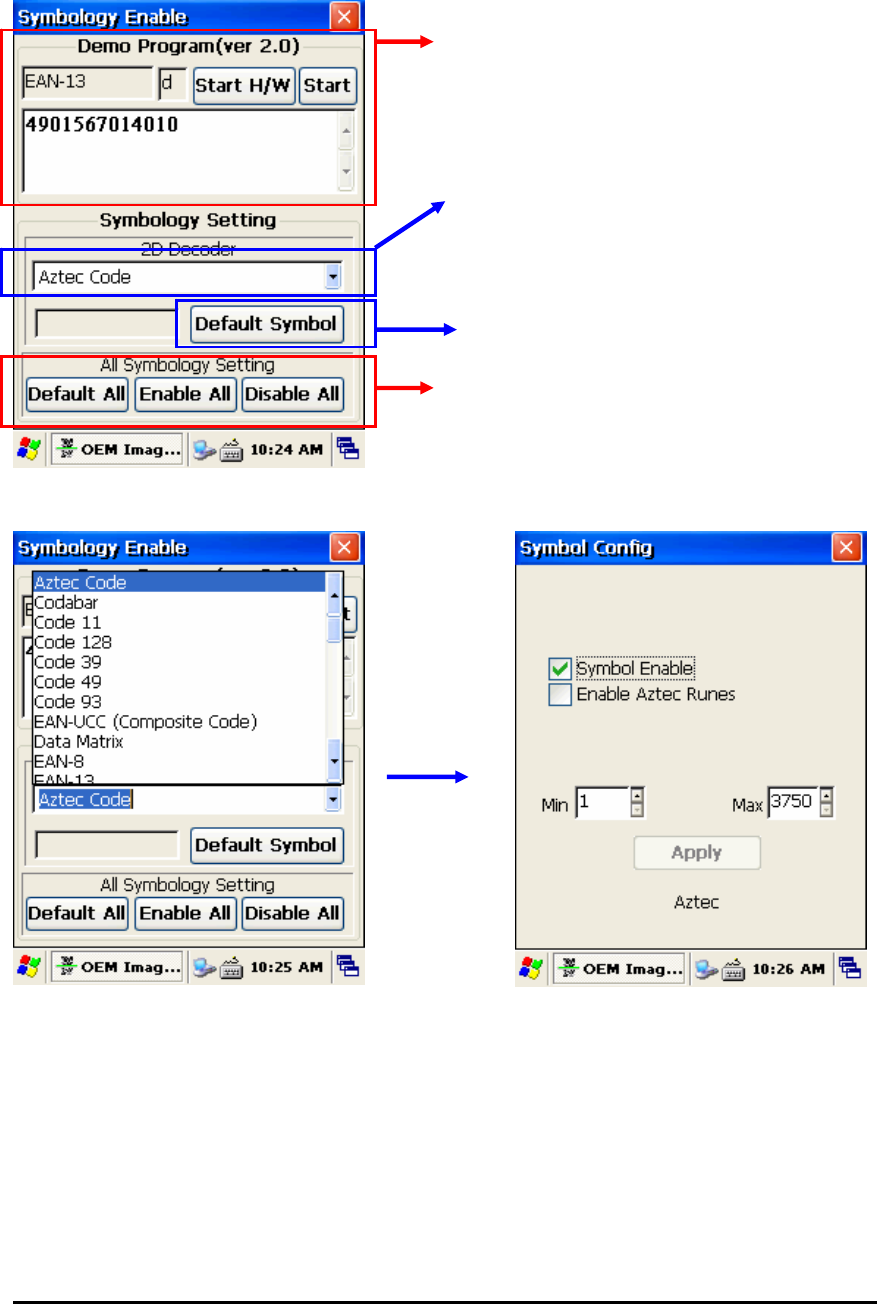

Figure 2. 2D Scanner Function
Figure 3. Select symbology Figure 14. set up symbology with detail.
After Scanning barcode, the value you scanned will
be displayed on the screen.
* Start H/W button is for only checking H/W.
You can set up the selected Symbology Value
with detail.
Setting all Symbology
Default All : makes all Symbologis set to be factory
default
Enable All : makes all Symbologis enabled to read
Disable All : makes all Symbologis disabled to read
You can set up the selected Symbology Value to
be factory default
AT570W
2.2 Setting the AT2DEmulator
You can input the barcode value you scanned in any application program that has a cursor
after setting the AT1Demulator. Like an input device, the AT1Demulator makes data displayed
in an application program (see the following figure)

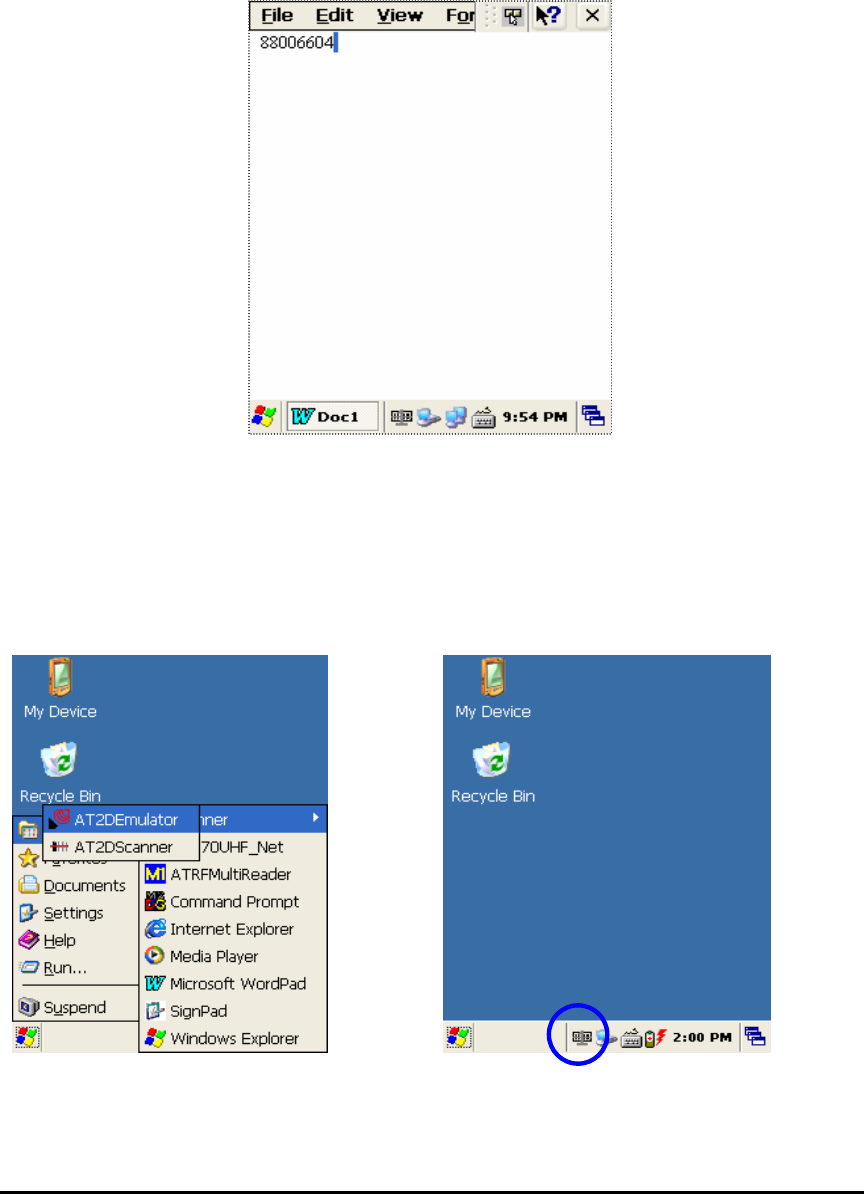

Figure 5. Barcode value in the WordPad Program
1) Merit to use the AT2DEmulator
Because the AT2DEmulator can apply to all application programs that have a cursor such like
Web program, Wordpad and others, you can input the scanned data directly without coding
any application program.
2) To executing Emulator
Tap [Start] -> [Program] -> [Scanner] -> [AT2DTCEmulator]
Figure 6. AT2DEmulator.exe Figure 7. Tap this AT2DEmulator Icon
Quick Reference Guide
3) Setting the Emulator
Figure 8. Setting Menu
1. Result Type
There are 2 kinds of method to print the scanned barcode data where a curser is
pointing.
A. Keyboard Event : Print the scanned barcode data like input Keyboard
B. Copy & Paste : Print the scanned barcode data with Clipboard
2. Terminator
You can set the termination code at the end of Barcode Value to tap “ Terminator” .
A. None : No input the termination code.
B. CRLF(Default Setting) : Carriage Return & Line Feed (Enter code)
C. Space : Input Space code.
D. Tab : Input Tab key code.
3. Key Setup
You can make Hardware keys set to aim the lager beam.
A. F1 ~ F8 Key : press those keys on the keypad to read barcode after setting.
B. Gun1, Gun2 : Set for the gun-typed AT-570 .
C. KBD/1, KBD/2 key : Same with the F1 ~ F8 Key
D. Left Key, Right Key : Same with the F1 ~ F8 Key
4. Sound : set the sound On/Off after Scanning Barcode
5. Vibrator : set the Vibrator On/Off after Scanning Barcode
6. Setting : NO use.
7. Close : Make Emulator Program closed
AT570W
2.3 Scanning Barcode
To use the scanning function, complete the following steps:
1. If you have not already done so, remove the protective plastic film before using devices
equipped with a laser scanner.
Warning
Some AT570 come with laser scanners that scan using laser light. Never look directly into the
laser light or shine the laser light into the eyes.
2. Select Start > Programs > Scanner > AT1DScanner to open the scanning application. This
application runs in the background and only shows up as bar code icon in the system tray.
Figure 1. Scanning a bar code
3. Aim the scanning beam at the center of the bar code.
• Position the device close to bar code when scanning small bar codes.
• Position it at a distance when scanning larger bar codes.
• The scanner stops scanning after you release the key or after five (5) seconds.
Figure 2. Scanning Beam Positions
Correct Scanning Position
1D
2D

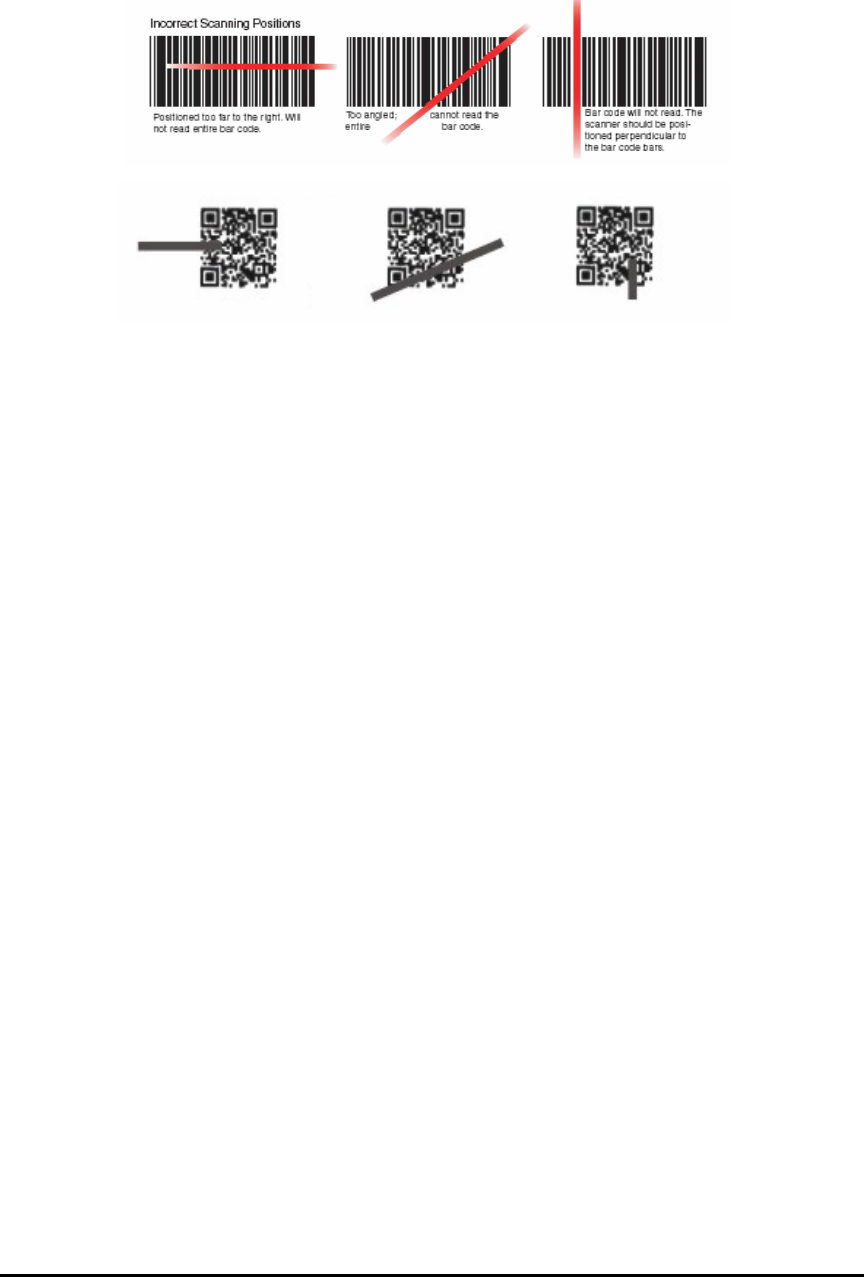

Incorrect Scanning Position
Quick Reference Guide
1D
2D
Wrong ways to san barcode
4. Press the Right or Left <Scan> key. The scanner scans as long as you hold the key or for
five (5) seconds.
5. Upon reading a bar code, the device beeps and the vibrates until the trigger is released or
after five (5)
seconds. The beep tone and Vibrates indicate a good read.
*If the bar code scan failed, adjust the reading angle or distance. Make sure that the scanning
beam scans across all bars of the bar code.
6. The bar code data is entered in the current application. Once a bar code is read
successfully, the scanner turns off automatically.
AT570W
3. Wireless LAN
The AT-570 is versatile mobile computer that you can add to your wireless LAN. It has an
internal 802.11 b/g radio to transfer data using wireless communications. This section of the
manual assumes that you have already set up your wireless communications network
including access points.
Your AT-570 supports TCP/IP network protocols. In a TCP/IP network, the AT-570
communicates with a host computer directly using TCP/IP. The access point acts a bridge to
allow communications in wireless networks.
3.1 Making Wireless LAN ON
The default of Wireless LAN was set with “ WLan off” when your AT-570 was manufactured
at the factory.
To make wireless LAN on:
Press FN key and Esc key at the same time, than you can see the following screen.
Figure 1. Wireless icon Figure 2. Select AP
Quick Reference Guide
After selecting “ WLAN On” the LAN icon appears on the control bar.
Connecting your AT-570W to a network device:
Double tap LAN icon > tap Wireless Information.

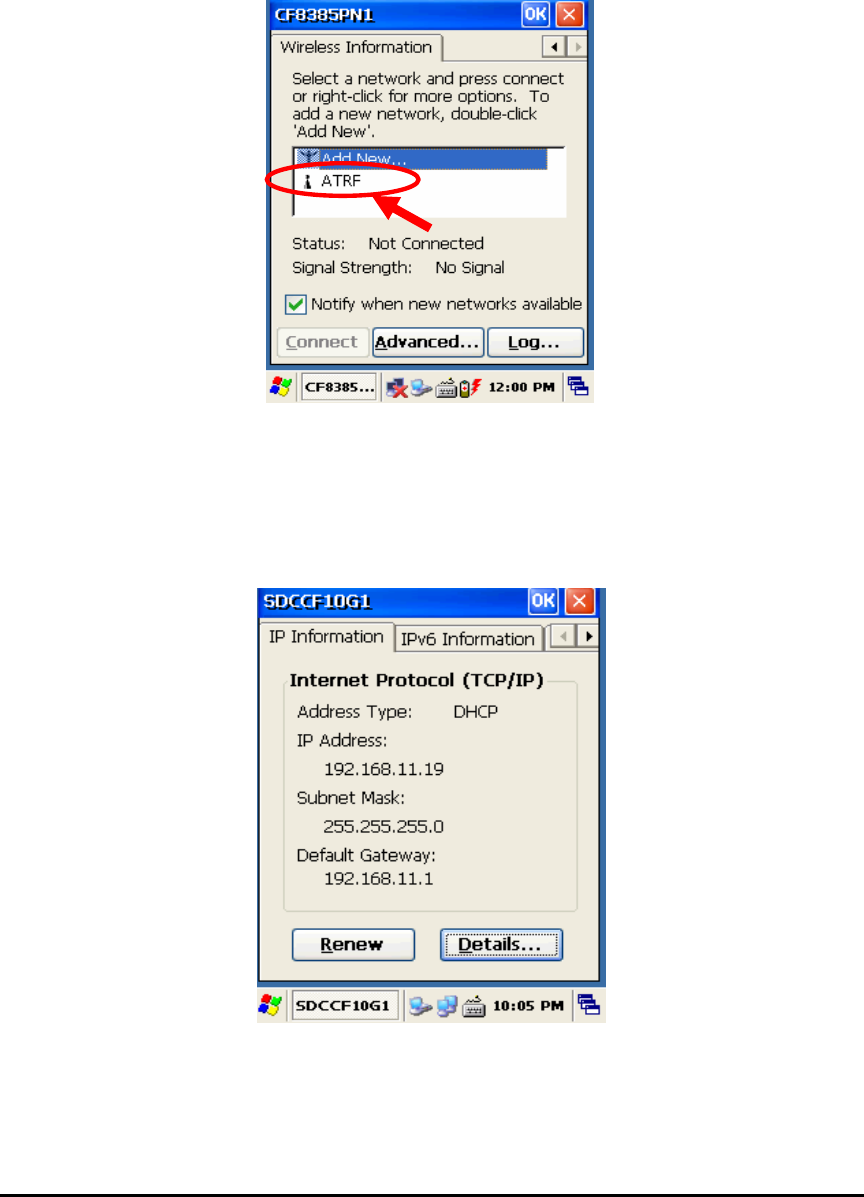

Figure 3. Select AP
Select a network that your AT-570W has scanned in the list box, and tap Connect after
selecting the network, than the network will be connected to your AT-570W.
3.2 IP Information
To see IP Information:
Double-tap the LAN icon, and tap IP Information tap.
Figure 4. IP Information
AT570W
3.3 Setting with manual method
You can also connect your AT-570W to a network with manual method in the Wireless
Properties.
To set wireless LAN in Wireless Properties:
Double tap WLAN icon > tap WLAN Tap > Input data > Tap “ OK”

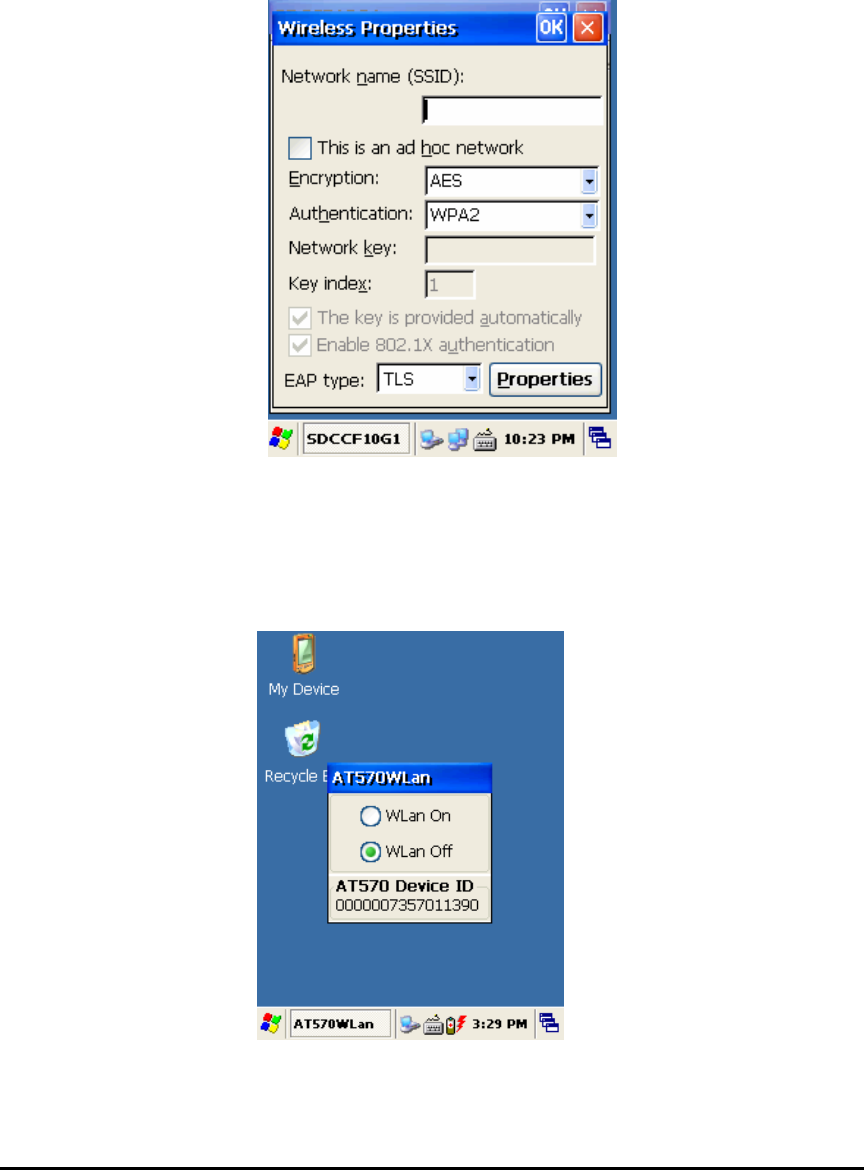

Figure 5. Wireless Properties
3.4 Making WLAN Off
To make wireless LAN Off:
Press FN key and Esc key at the same time, and select WLAN Off
Figure 6. Wireless Off
Quick Reference Guide
7. GPS Module
Options to install the GPS Module
Figure 1 (Port : COM6)
GPS Module designed to be installed on the top of the AT570
Figure 2 (Port : COM9)
GPS Module designed to
be installed on the rear of AT-570
AT570W

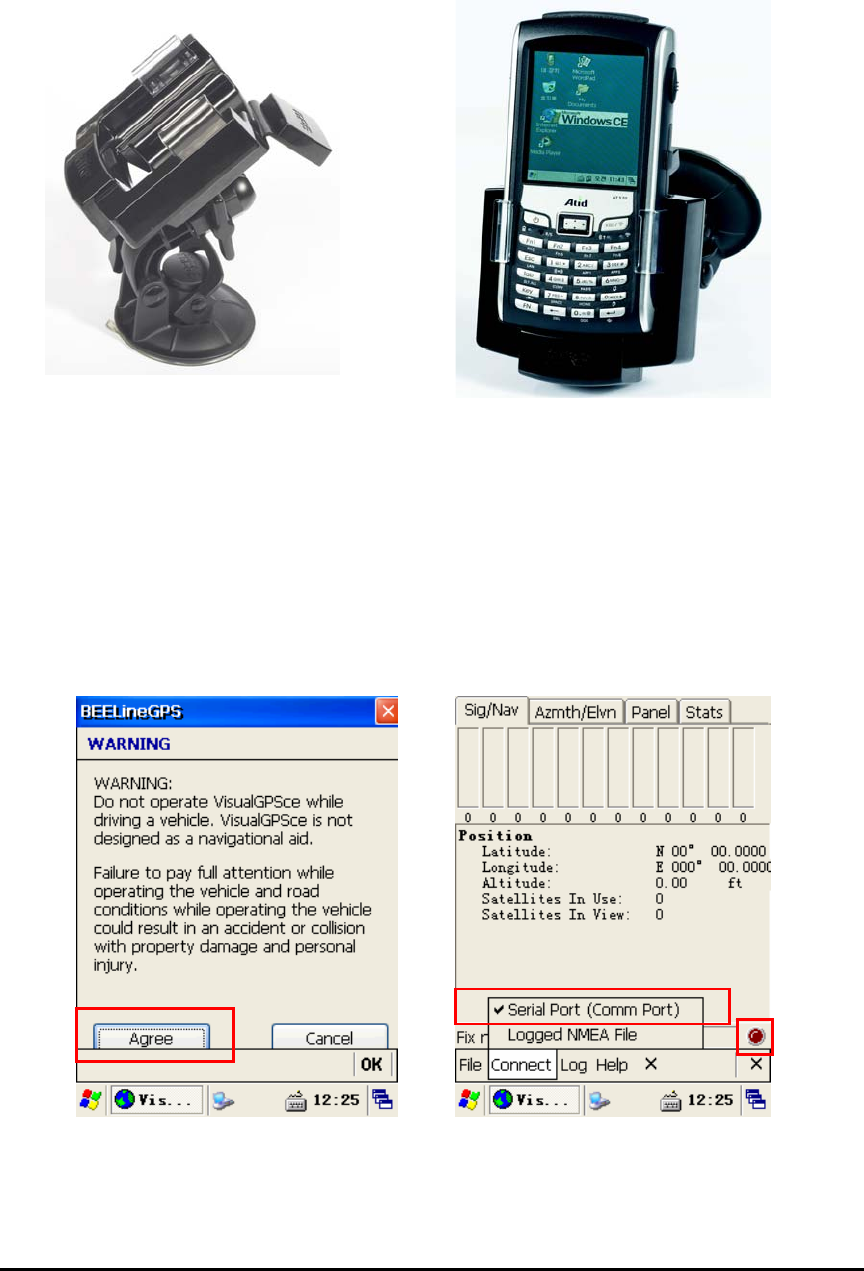

Figure 3. GPS Module designed to be installed on the Car Cradle(COM9)
7.1 Executing the GPS
To execute GPS:
Tap start > program > GPS_xxx.exe
7.2 Configuring the Port and Baud Setting for Executing the GPS
To use the GPS installed on your AT-570, you need to make the GPS’ s power on. For that,
please double-click the “ GPS_Power_Init “ -the EXE file that in the “ Flash Disk” . And
than tap the GPS EXE icon, the following GPS screen appears.
Figure 4. Executed GPS screen Figure 5. Comm Setting
Quick Reference Guide
If you tap the Agree tap in the figure 5, the Comm Setting screen appears. For executing the
GPS, you need to configure the port and baud at first. Select the “ connect” on the
command bar, and select Serial Port(Comm Port) in the pop-up menu.And select these
settings.
GPS port: COM9(GPS_in.exe, GPS_Car.exe) or COM6(GPS_Top.exe)
Baud: 9600 bps

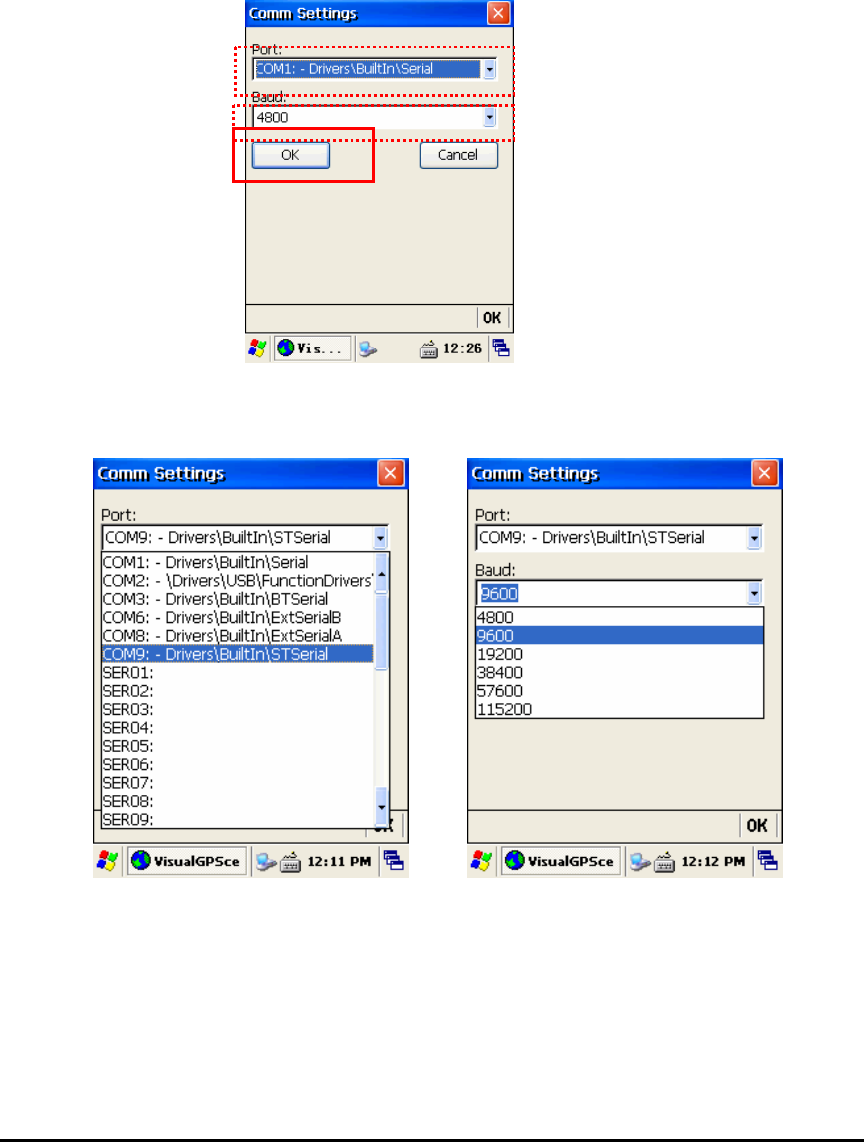

Figure 6. Comm Setting screen
Tap “ OK” after configuring Port and Baud
Figure 7. Com Port Setting Figure 8. Baud Rate Setting
AT570W
7.3 Checking up the GPS status
After tapping “ OK ” if the program is operated normally, you can see the red lamp (see the
○1 in the figure 26) glittering.
The data received appears in the part of the ○2 (but according to the reception status it takes
more or less time to access data.)

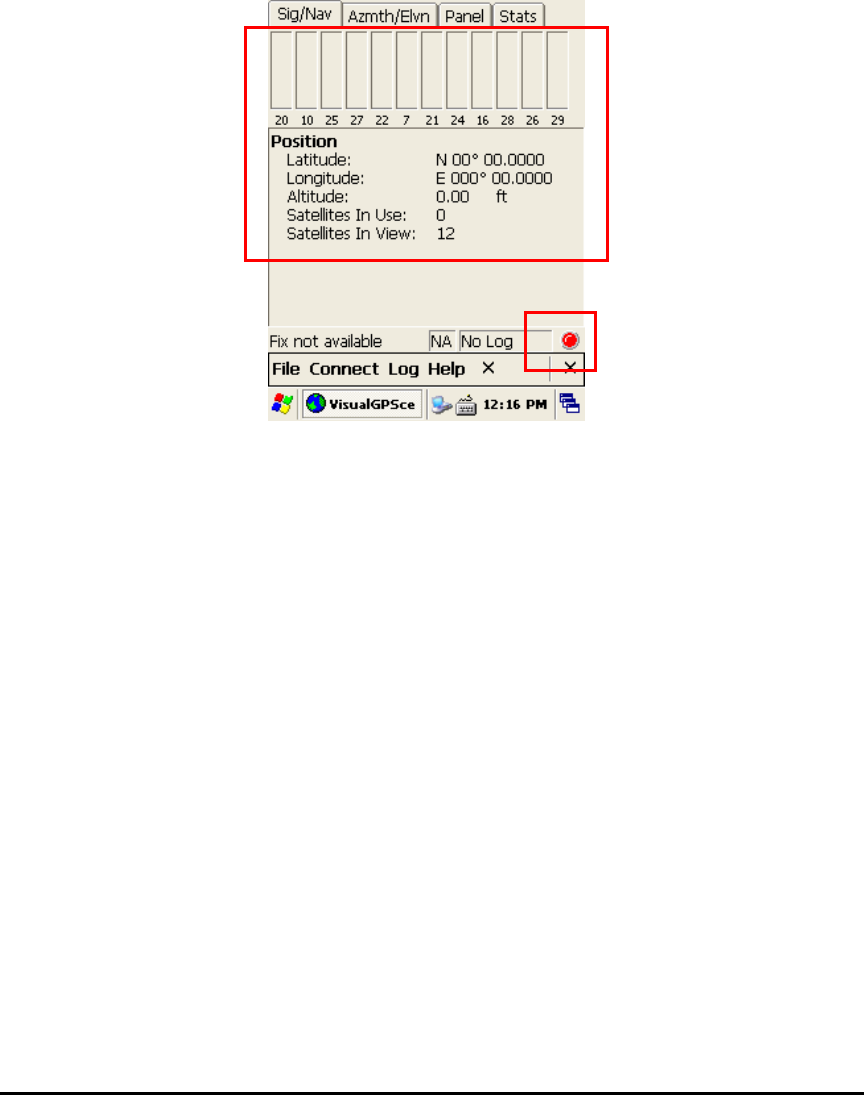

Figure 9. GPS Reception Status
Checking GPS Data Reception
1. First check whether GPS Data reception is working normal in open space is or not.
2. GPS Data reception time is different by circumstance.(3 ~ 10 minutes)
3. It is quickly receipt GPS data if it has been receipted from satellite.
○
1
○
2
Quick Reference Guide
9. Using Camera
9.1 To use your Camera:
Tap start > Program > Camera
Figure 1. Executing Camera
9.2 Camera Screen
Figure 2 Camera Screen
Preview Window
Capturing button
The number of stored files
Delete File Button
Adjusting Brightness
Zooming button
Resolution Setting Button
Re-rotation Button
Preview Stop Button
Setting Viewing Effect
Preview Start Button
AT570W
Chap 4. USER INFORMATION
Cautions
Modifications not expressly approved by the party responsible for compliance could void the
user’ s authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions: 1. This device may not cause harmful
interference, and 2. This device must accept any interference received. Including
interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
