ATID ATM2000S1 ATM2000 Module User Manual ATM2000 USER S MANUAL
ATID Co., Ltd ATM2000 Module ATM2000 USER S MANUAL
ATID >
User Manual
ATID Co.Ltd
ATM2000 USER’S MANUAL
OEM/Integrators Installation Manual
Doek-Jae Lee
2017-01-24
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 2
Contents
▶ Introduction ..............................................................................................................................................................................
▶ System Composition Diagram ..................................................................................................................................
▶ Composition Parts .............................................................................................................................................................
▶ Reader Description ...........................................................................................................................................
▶ Reader Specification ........................................................................................................................................
▶ Mechanical Dimension ...................................................................................................................................
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 3
▶ Introduction
- ATM2000 is a small RFID reader module designed for the embedded reader market, including the
printer, industrial PDA and similar devices. It offers low-cost, high-performance features as well as small
size. Also, it supports ISO18000-6C (EPC C1G2) protocol and interfaces with main system through UART.
- Subjects of application
PDA type RFID Reader
RFID Printers / Tag Encoders
USB Readers
Smart-Shelves
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 4

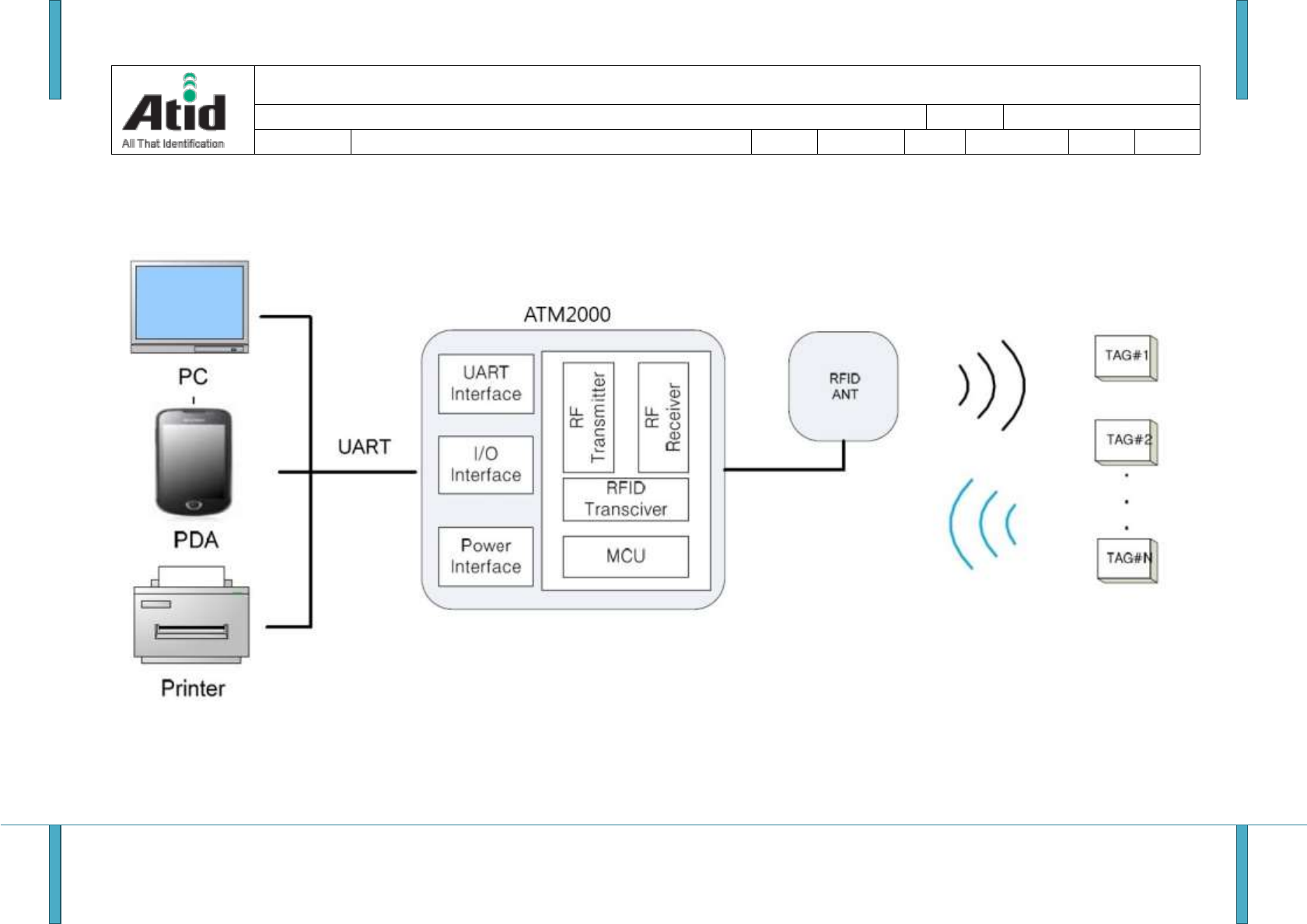

▶ System Composition Diagram
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 5

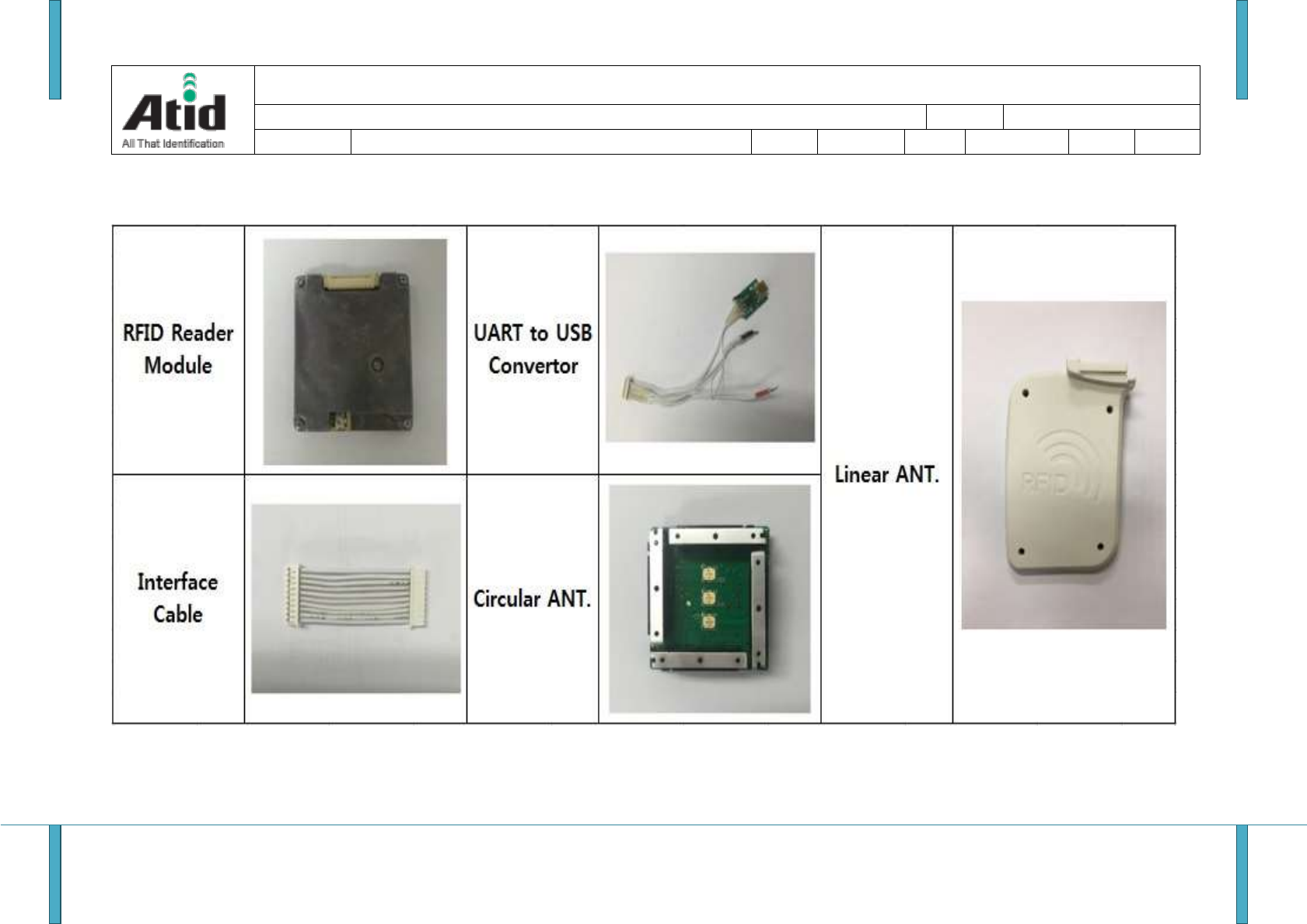

▶ Composition Parts
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 6

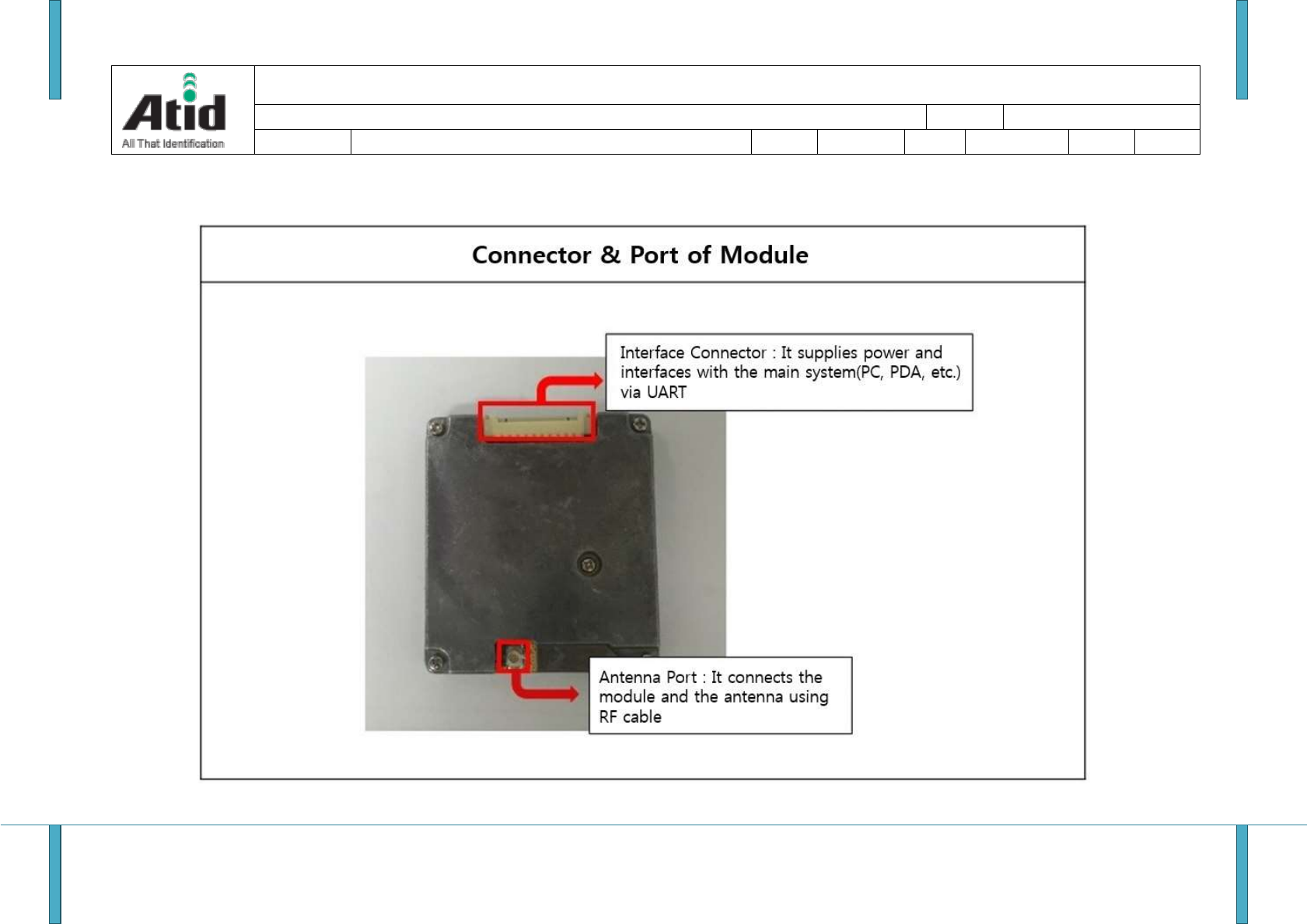

▶ Reader Description
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 7
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 8
▶ Reader Specification
▷ Reader Performance
Description
Value
MODEL
ATM2000
Architecture
UHF RFID Reader Module
Protocol
EPCglobal UHF Class 1 Gen2 / ISO 18000-6C)
Frequency
902MHz to 928MHz
Max Tx Power
=< 30dBm (+-0.5dB)
Power Control
5dBm to 30dBm (1dB step)
Operating Temperature
-10˚C to +50˚C
Signaling
UART, Baud rate(115200bps)
▷ Electrical Characteristics
PARAMETER
SYMBOL
MIN TYP MAX
UNITS
Supply Voltage
VCC
3.8 4.0 4.2
V
VCC Supply Current
Icc
1.5
A
TXD (→HOST)
VOH
3.3
V
RXD (←HOST)
VIH
3.3
V
PWR_ON(Active “H”)
VIH
3.3
V
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 9

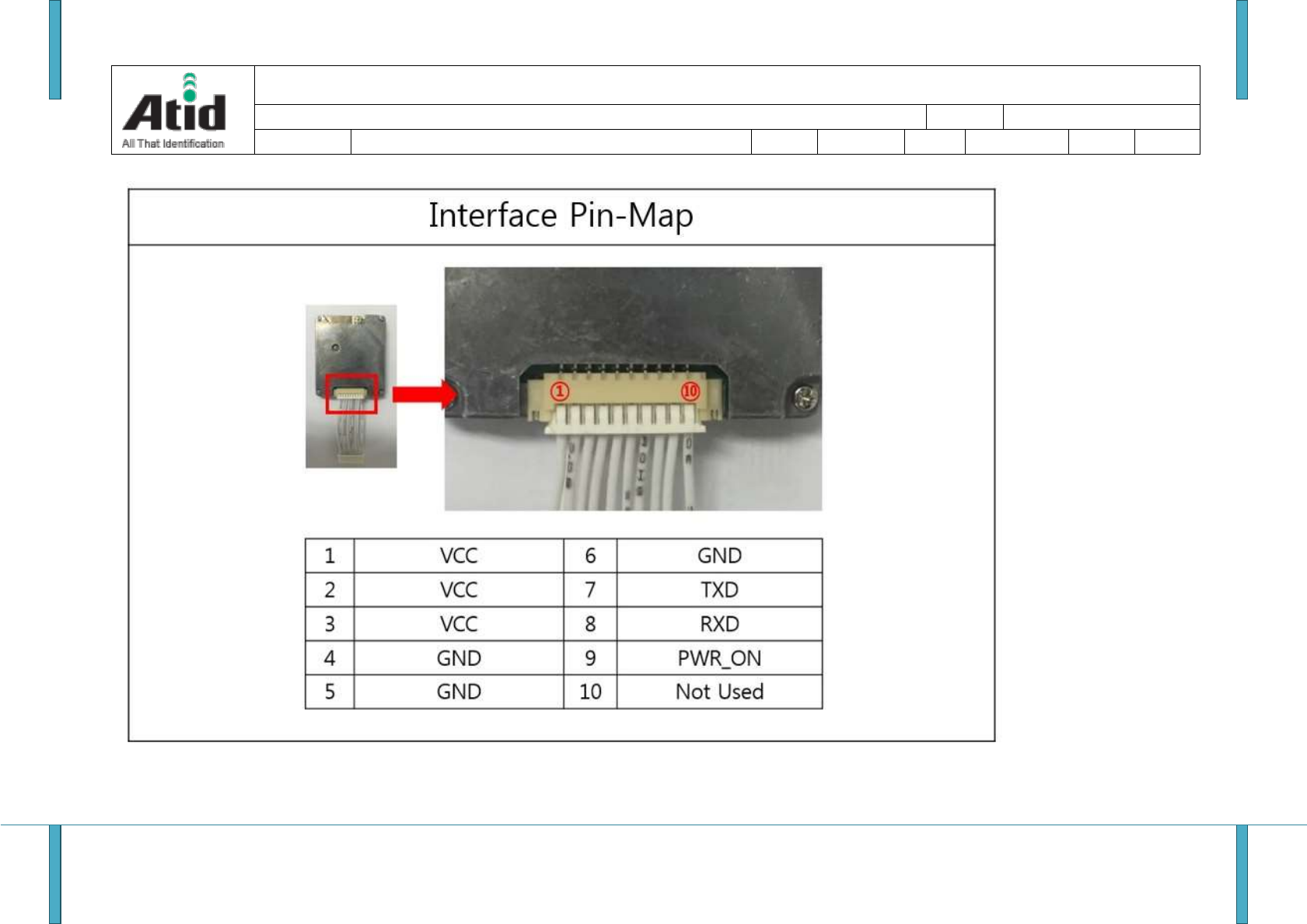

▷ Interface
Host Connector
Part No. : 12505WR-10
Manufacturer : Yeonho Electronics
ANT. Connector
Part No. : CMJ-S00
Manufacturer : Giga Lane
ATM2000 USER’S MANUAL
ATM2000 manual
Company
ATID Co.Ltd
Document
Writer
DJ Lee
Date
2017-01-24
Ver.
v0.1
ATM2000 USER’S MANUAL 페이지 10
▶ Mechanical Dimension
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance.
Note 1: This module certified that complies with RF exposure requirement under mobile or fixed condition, this module is to be installed only in mobile or fixed
applications.
A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance
of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. Transmitting devices
designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile
devices if they meet the 20 centimeter separation requirement.
A fixed device is defined as a device is physically secured at one location and is not able to be easily moved to another location.
Note 2: Any modifications made to the module will void the Grant of Certification, this module is limited to OEM installation only and must not be sold to end-users,
end-user has no manual instructions to remove or install the device, only software or operating procedure shall be placed in the end-user operating manual of final
products.
Note 3: Additional testing and certification may be necessary when multiple modules are used.
Note 4: The module may be operated only with the antenna with which it is authorized. Any antenna that is of the same type and of equal or less directional gain as
an antenna that is authorized with the intentional radiator may be marketed with, and used with, that intentional radiator.
Note 5: To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully
operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter
certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to
be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the module is integrated with the host, ATID CO.,
LTD shall provide guidance to the host manufacturer for compliance with the Part 15B requirements.
Note 6: FCC ID label on the final system must be labeled with “Contains FCC ID: VUJATM2000S1” or “Contains transmitter module FCC ID: VUJATM2000S1”.
