ATID ATS100 UHF Reader User Manual ATS100 User guide
ATID Co., Ltd UHF Reader ATS100 User guide
ATID >
User Manual
Atid Co., Ltd.
ATS100 User guide
ATS100 Product Quick guide
Kyoung-Won Lee
2018-01-08
ATS100 User guide Page 2
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
Revision History
Version Revised Date Revised
Reason
Revised Contents Writer
V0.1 2018-01-08 Draft Issue Draft KyoungWon Lee
ATS100 User guide Page 3
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
Contents
Contents .......................................................................................................................................................................................... 3
1 Before Beginning, .............................................................................................................................................................. 4
2 Product Overview .............................................................................................................................................................. 4
3 Strength of Product .......................................................................................................................................................... 5
4 H/W Specification .............................................................................................................................................................. 5
5 Product Composition ....................................................................................................................................................... 7
5.1 Product Composition ....................................................................................................................................... 7
5.2 Composition of Each Product’s Part ......................................................................................................... 7
6 Warranty and Technical Support ................................................................................................................................ 9
ATS100 User guide Page 4
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
1. Before Beginning,
The objective of user guide is to pass the basic contents related with ATS100`s maintenance and
smooth uses.
User guide inclusive of text, images, logos, product name may not be distributed, modified,
displayed, reproduced (in whole or in part) without the prior written permission of ATID Co,.ltd.
Furthermore, the described contents in this document are subject to change without notice for
improving or maintaining the product and we inform the user that some material may be different
with the described contents due to the firmware changes of product.
Ownership of text, images, logos, product name in user guide is included in writer and some parts
of text, images, logos, product name in the user guide were borrowed for user`s understanding at
random. If there is a legal restriction such as a copyright law, it will be re-distributed after adjustment
2. Product Overview
ATS100 is both subminiature barcode and RFID reader which can grasp with just one hand. As
the device that meets the basic function for industrial product such as IP65 in water & dust test
and 1.2 m drop specification, it can take an active as data collector in the various kinds of part in
medicine, stock and product management and logistics shipping/tracking, access control. 2D
Barcode, UHF RFID Tag information can be collected by just one ATS100 and collected data can
transfer to the HOST PC or Smart Phone by using Bluetooth or Wireless LAN through Remote
process / real time process / batch process mode. This device is designed to handle the data by
the equipment which has the Windows, Android as an operating system.
ATS100 User guide Page 5
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
3. Strength of Product
ATS100 is the smallest product among the existing RFID, Barcode Scanner-Reader product
Its device as durable industrial PDA meets IP65 standard for the dust & water
proof and 1.2m drop to concrete.
Apply Motorola SE4710 Barcode module, fast and accurate support for
Barcode data collection.
UHF RFID Tag can be read and written quickly since Impinj R2000 module is
installed in the product
It device can be connected to PC and charged up itself through USB Cable.
It can be charged up without exclusive adapter through normal smartphone
charger
Battery replacement is easily available and its device can change the battery
in case of battery shortage while using it.
Exclusive charging package for only battery charging will be offered
(Option: To be Offered in the near future)
4. H/W Specification
Performance Characteristics
Processor ARM7 Core
Support Operating System Windows(WLAN/BT), Android(BT)
Memory 1Mbit (512Kbyte able to use)
Weight 420g
Operation Temperature -20~40℃
Storage Temperature -30~70℃
Humidity 95% non-condensing
Drop specification 1.2M Drop to concrete
Dust & Water Proof IP65
Physical Characteristics
ATS100 User guide Page 6
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
Audio Buzzer
Standard I/O Port Bluetooth 4.1
Notification LED, Buzzer, vibrator
Dimensions(L x W x H) 133.8 x 173.7 x 70.0 mm
Battery Supply
Main Battery 5,200mAH Li-Ion Rechargeable Battery
Power Adapter Battery Charger(Option) & DC5V, 800mA
Network Characteristics
Wireless LAN 802.11 b/g/n Wireless LAN, Key Emulator
Bluetooth Bluetooth 4.1 HID/SPP
Barcode Data Processing Device
Barcode Engine 2D Scanner
UHF 900MHz RFID Reader/Writer
Chips set Impinj R2000
Frequency 902~928MHz
Reading Range 0M~3M(According to Tag & Environment)
Writing Range 0M~1.5M(According to Tag & Environment)
Max. RF output 30dBm, Circular
Protocol EPC Gen2, ISO/IEC 18000-6C
Special Function Anti-Collision
ATS100 User guide Page 7
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
5. Product Composition
5.1 Product Composition

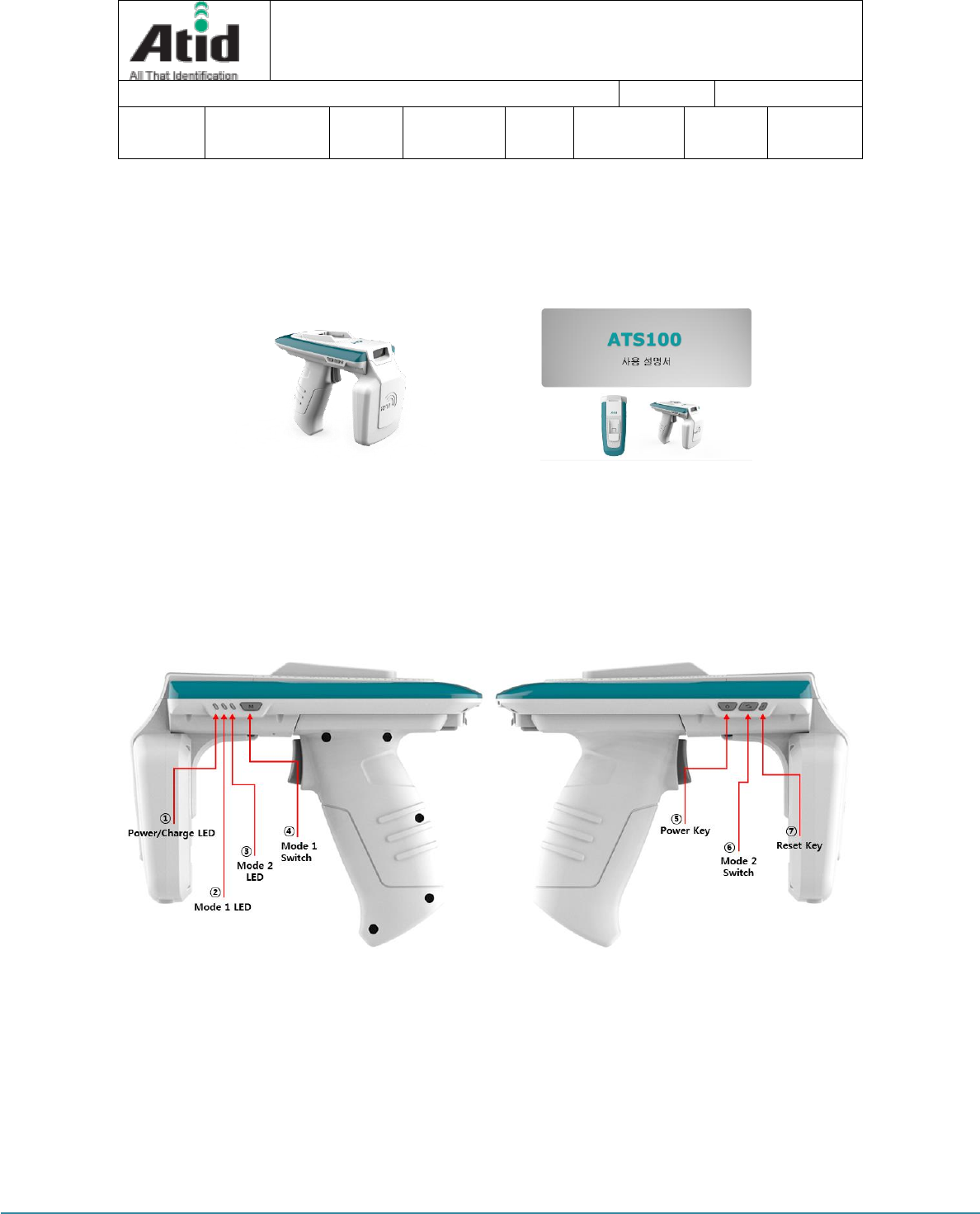

The basic package for ATS100 is shown as below
< Device Body > < User Guide >
5.2 Composition of Each Product`s Part
i. Button and LED of device
① Power/Charge LED : Red lamp will be lit in case of charging and green light
is on in the case of fully charged.
② Mode 1 LED : Displays the operation method currently in use. Each time
the Mode 1 Switch button is pressed, the three modes of RFID (off), Scanner
ATS100 User guide Page 8
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
(On) and Trigger (Blink) are switched.
③ Mode 2 LED: Displays the communication method currently in use. Each
time the Mode 2 Switch button is pressed, the two modes of Bluetooth (Green)
and WiFi (Orange) are switched.
Fast blinking: Indicates that it is waiting for connection with host device.
Slow blinking: Indicates that the host device is connected to the current
communication mode.
④ Mode 1 Switch : Switch the communication function of Bluetooth, WLAN
whenever you press it.
⑤ Power Key : Turn on/off pressing it more than 2 seconds.
⑥ Mode 2 Switch : Switch the operation function of RFID and Scanner
whenever you press it.
⑦ Reset Key : Restart the device.

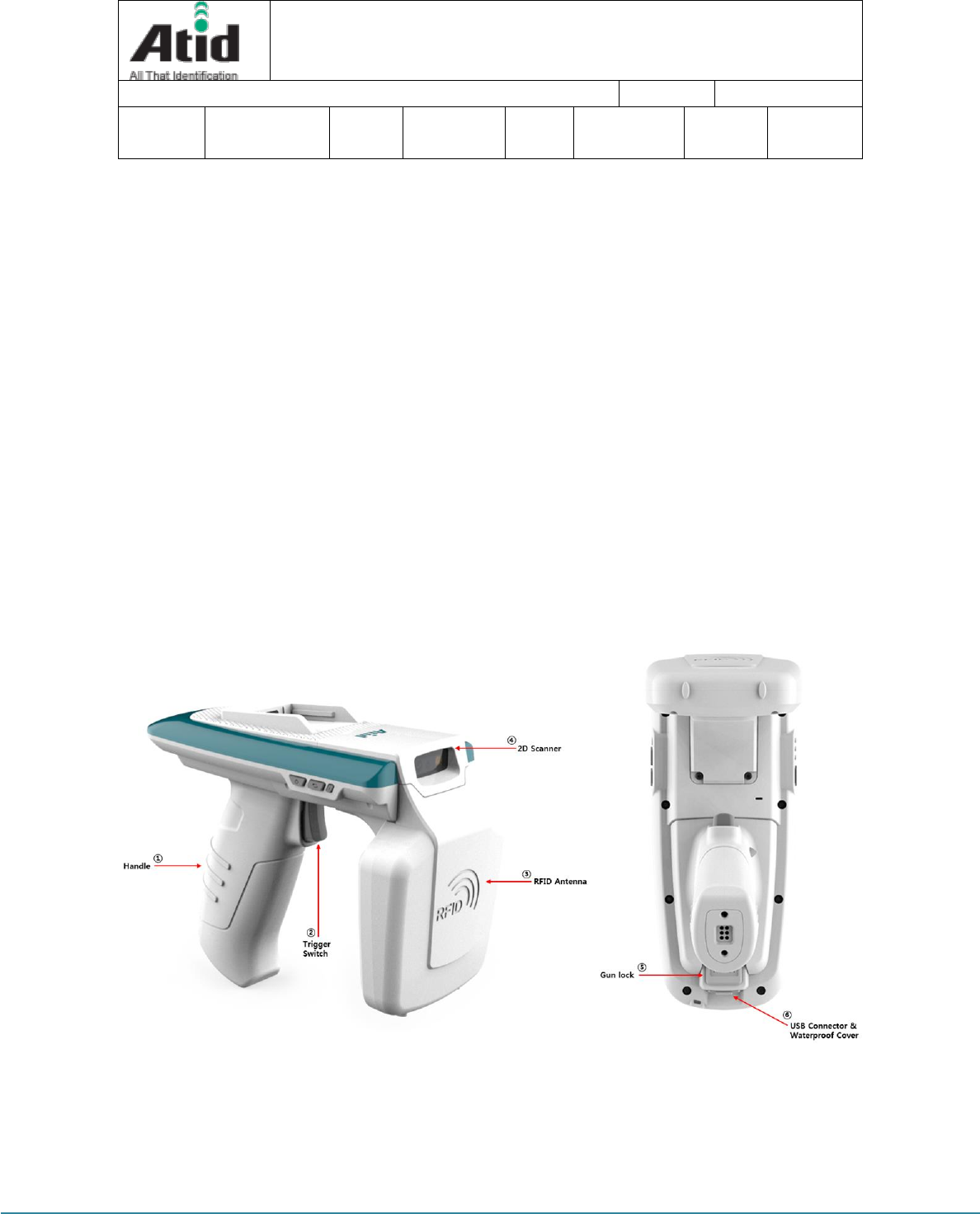

ii. General description
① Handle : Handle that fits in your hand, and the battery is built in the device.
ATS100 User guide Page 9
ATS100 User guide
ATS100 Product Quick guide Company Atid Co., Ltd.
Doc
Name User guide Writer Kyoung-
Won Lee Date 2018-01-08 Ver. v0.1
② Trigger Switch : Scan Switch according to operating mode.
③ RFID Antenna : UHF RFID Antenna is built in the device, and the radio is
emitted through RFID Antenna when reading the Tag
④ Scanner : Barcode scanner is built in the device and 2D barcode module
will be selectively applied. Please note that it should be careful to use since it
is one of the most important part to read the barcode.
⑤ Gun lock : Push the lock button to separate the gun(battery).
⑥ USB Connector & Waterproof Cover : If the Waterproof Cover opens up,
C-type USB connector is located in it. User can charge the device through it.
6 Warranty and Technical Supports
All of ATID products have one-year warranty from date of manufacture
However, there is a principle in ATID that the customer will be charged for the repairs, in case
of the damage caused by customer even if it is under warranty period
We recommend requesting the warranty and technical support for ATS100 through distributor.
ATID Co., Ltd.
#1211 Byuksan/Gyungin Digitial Valley II, #481-10 Gasan-Dong Gumchon-Gu, Seoul, Korea
TEL: +82-2-544-1436
FAX: +82-2-2113-0040
Homepage: http://www.atid1.com
E-mail: atid@atid1.com , webmaster@atid1.com
English: +82-70-8677-8589
Chinese: +82-70-8677-8669
Japanese: +82-70-8677-8594
Korean: +82-70-8677-8594
FCC RF Exposure Information and Statement
This device meets the government's requirements for exposure to radio waves. The guidelines are based
on standards that were developed by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of
all persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg averaged. Device types: UHF
Reader (FCC ID: VUJATS100) has also been tested against this SAR limit. SAR information on this and other pad
can be viewed on‐line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search.
This device was tested simulation typical 0mm for WiFi transmit and 40 mm for RFID transmit to body. To
maintain compliance with FCC RF exposure requirements, should maintain a separation distance between the
user's bodies mentioned above.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
