ATrack Technology ATVT1038 GPS/GSM/GPRS Tracker User Manual AT1 E AT3 E
ATrack Technology Inc. GPS/GSM/GPRS Tracker AT1 E AT3 E
User Manual
![](/img.php?id=1374484&img=bg2.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 2 of 14
Contents
1. Notification..............................................................................................................................3
1.1. Disclaimer....................................................................................................................................3
1.2. Copyright.....................................................................................................................................3
1.3. Warning.......................................................................................................................................3
2. Hardware.................................................................................................................................4
2.1. Package Content.........................................................................................................................4
2.2. Pin Assignments..........................................................................................................................5

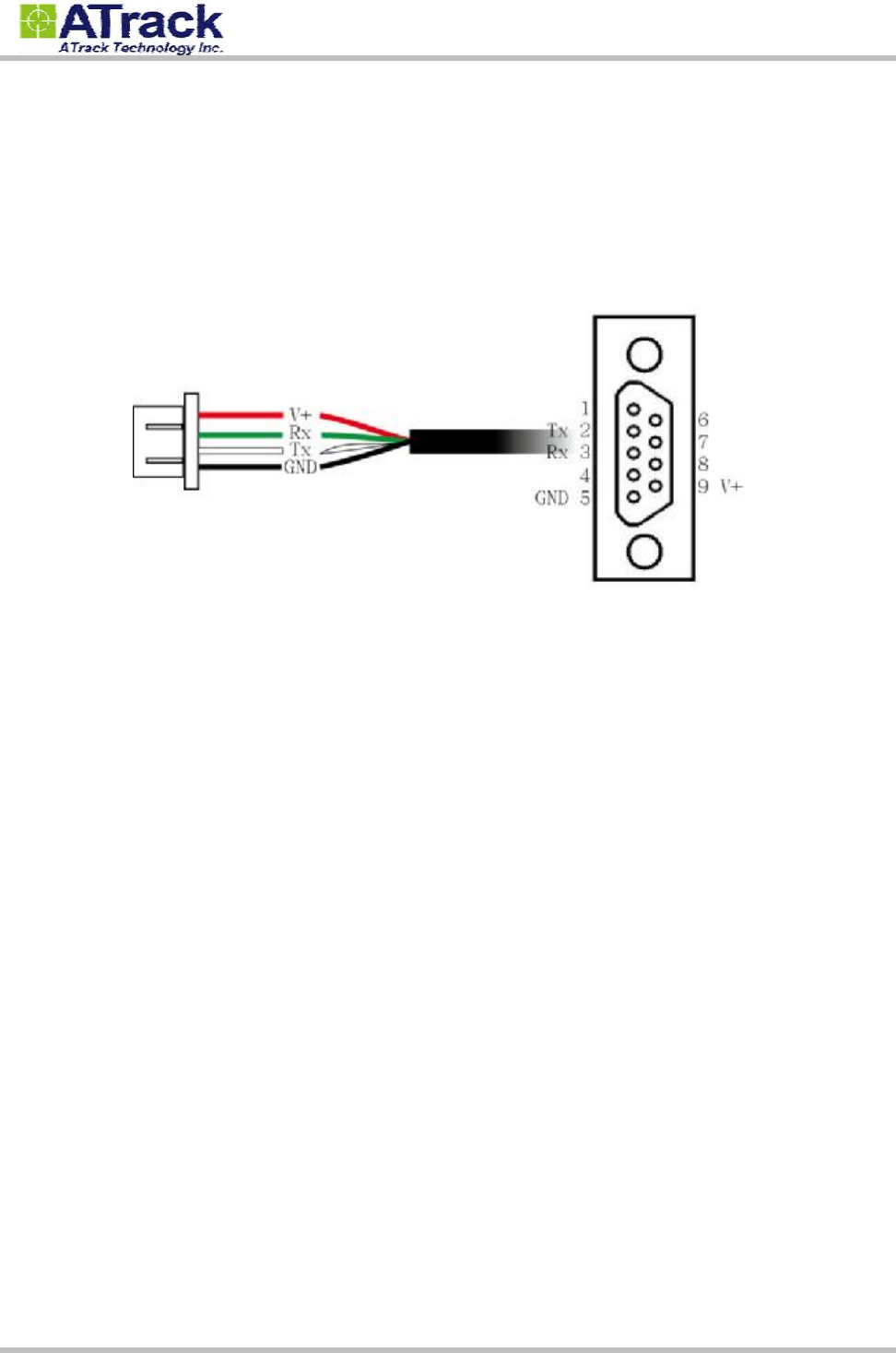

2.2.1. Serial Cable (JST Female Connector to DB9 Female Connector).........................................5
2.2.2. Power/IO connector................................................................................................................5
3. Firmware Upgrade.................................................................................................................6
3.1. Firmware Upgrade by serial connection......................................................................................6
4. Appendix................................................................................................................................13
4.1. Hardware Specification..............................................................................................................13
4.2. FCC Regulations:......................................................................................................................14
![](/img.php?id=1374484&img=bg3.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 3 of 14
1
1.
.
N
No
ot
ti
if
fi
ic
ca
at
ti
io
on
n
1
1.
.1
1.
.
D
Di
is
sc
cl
la
ai
im
me
er
r
This document, and all other related products, such as device, firmware, and software, is developed by
ATrack Technology Inc. thoroughly. At the time of release, it is most compatible with specified firmware version.
Due to the functionalities of the devices are being developed and improved from time to time, the change in
the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology
Inc. is obligated to modify all the documentation without the limitation of time frame. A change notice shall be
released to ATrack Technology Inc. customers upon the completion of document modification.
ATrack Technology Inc. products are not intended to be used as life support or rescue equipments. ATrack
Technology Inc. is not liable for any loss or injury caused by using or referencing to any products. Any possible
means of using or integrating ATrack Technology Inc. products shall be avoided.
1
1.
.2
2.
.
C
Co
op
py
yr
ri
ig
gh
ht
t
ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries.
Any or all parts of this document shall not be exposed to non-authorized party without any form of approval
from ATrack Technology Inc. Any forms, including but not limited to oral, copy, or internet sharing, of releasing
or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the
rights of litigation in the violation of such copyright laws.
1
1.
.3
3.
.
W
Wa
ar
rn
ni
in
ng
g
Connecting the wire inputs can be hazardous to both the installer and your vehicle’s electrical system if not
done by an experienced installer. This document assumes you are aware of the inherent dangers of working
in and around a vehicle and have a working understanding of electricity.
![](/img.php?id=1374484&img=bg4.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 4 of 14
2
2.
.
H
Ha
ar
rd
dw
wa
ar
re
e
2
2.
.1
1.
.
P
Pa
ac
ck
ka
ag
ge
e
C
Co
on
nt
te
en
nt
t

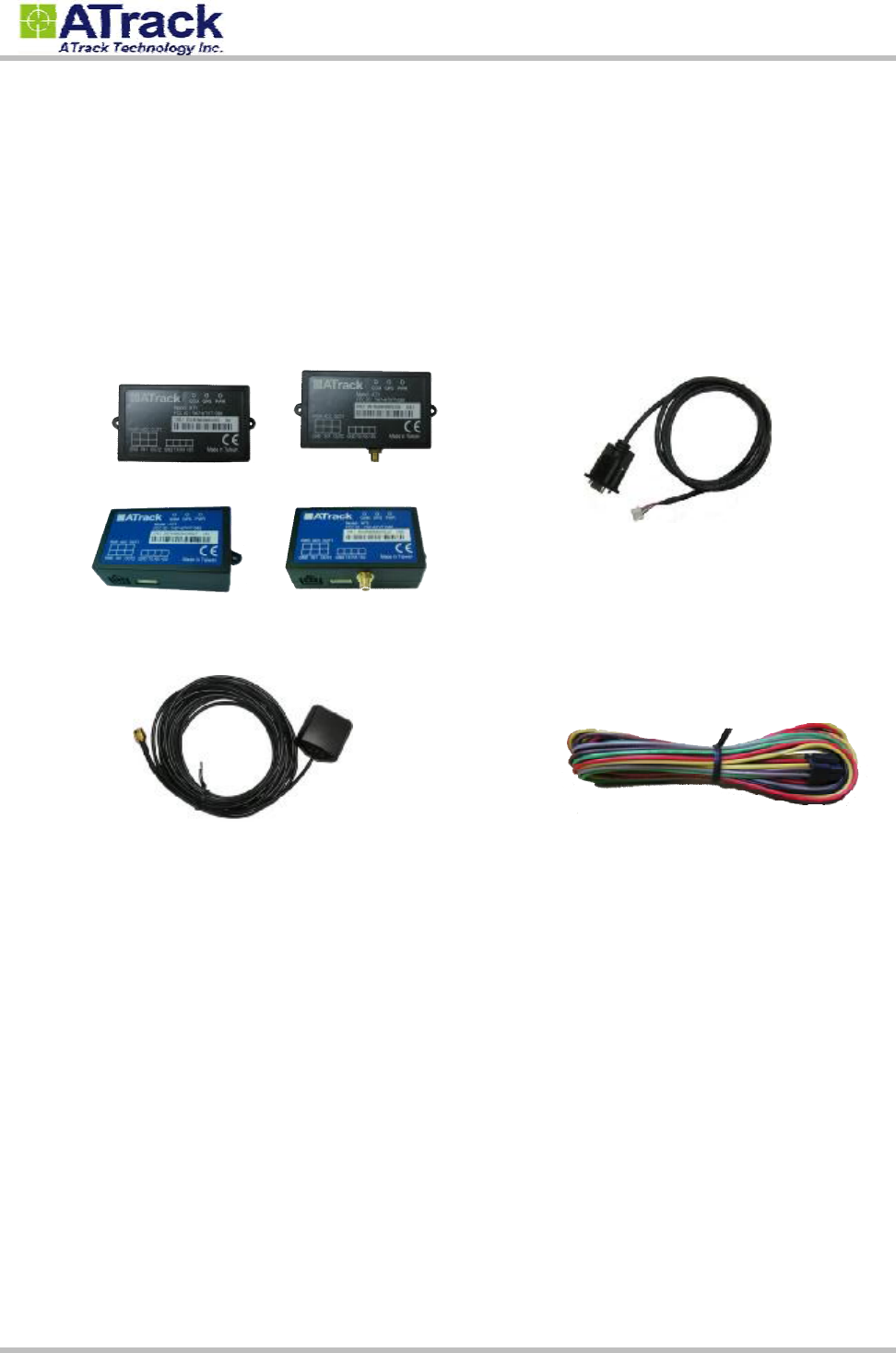

Each package contains the following device/accessories:
• Device * 1 (one of the devices below)
AT1 AT1E
AT3 AT3E
• GPS Antenna * 1 for AT1EONLY
• Serial Cable * 1
• Power/IO Cable * 1
Note: The label of the device with GPS antenna built-in has to be placed toward sky.
If the label side is not facing up, or is covered by metal or thick objects, the GPS
reception quality will be degraded dramatically.
![](/img.php?id=1374484&img=bg5.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 5 of 14
2
2.
.2
2.
.
P
Pi
in
n
A
As
ss
si
ig
gn
nm
me
en
nt
ts
s
2
2.
.2
2.
.1
1.
.
S
Se
er
ri
ia
al
l
C
Ca
ab
bl
le
e
(
(J
JS
ST
T
F
Fe
em
ma
al
le
e
C
Co
on
nn
ne
ec
ct
to
or
r
t
to
o
D
DB
B9
9
F
Fe
em
ma
al
le
e
C
Co
on
nn
ne
ec
ct
to
or
r)
)
2
2.
.2
2.
.2
2.
.
P
Po
ow
we
er
r/
/I
IO
O
c
co
on
nn
ne
ec
ct
to
or
r
The Power/IO connector pin assignment is shown on the device.
Positive Inputs: ACC (Triggered when connects to V+ range from 3.7 ~ 40V)
Negative Inputs: IN1 (Triggered when connects to ground range from 0.8 ~ 0V)
All outputs are open collector type (grounded when enabled) with max. sink current of 300mA.
![](/img.php?id=1374484&img=bg6.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 6 of 14
3
3.
.
F
Fi
ir
rm
mw
wa
ar
re
e
U
Up
pg
gr
ra
ad
de
e
3
3.
.1
1.
.
F
Fi
ir
rm
mw
wa
ar
re
e
U
Up
pg
gr
ra
ad
de
e
b
by
y
s
se
er
ri
ia
al
l
c
co
on
nn
ne
ec
ct
ti
io
on
n

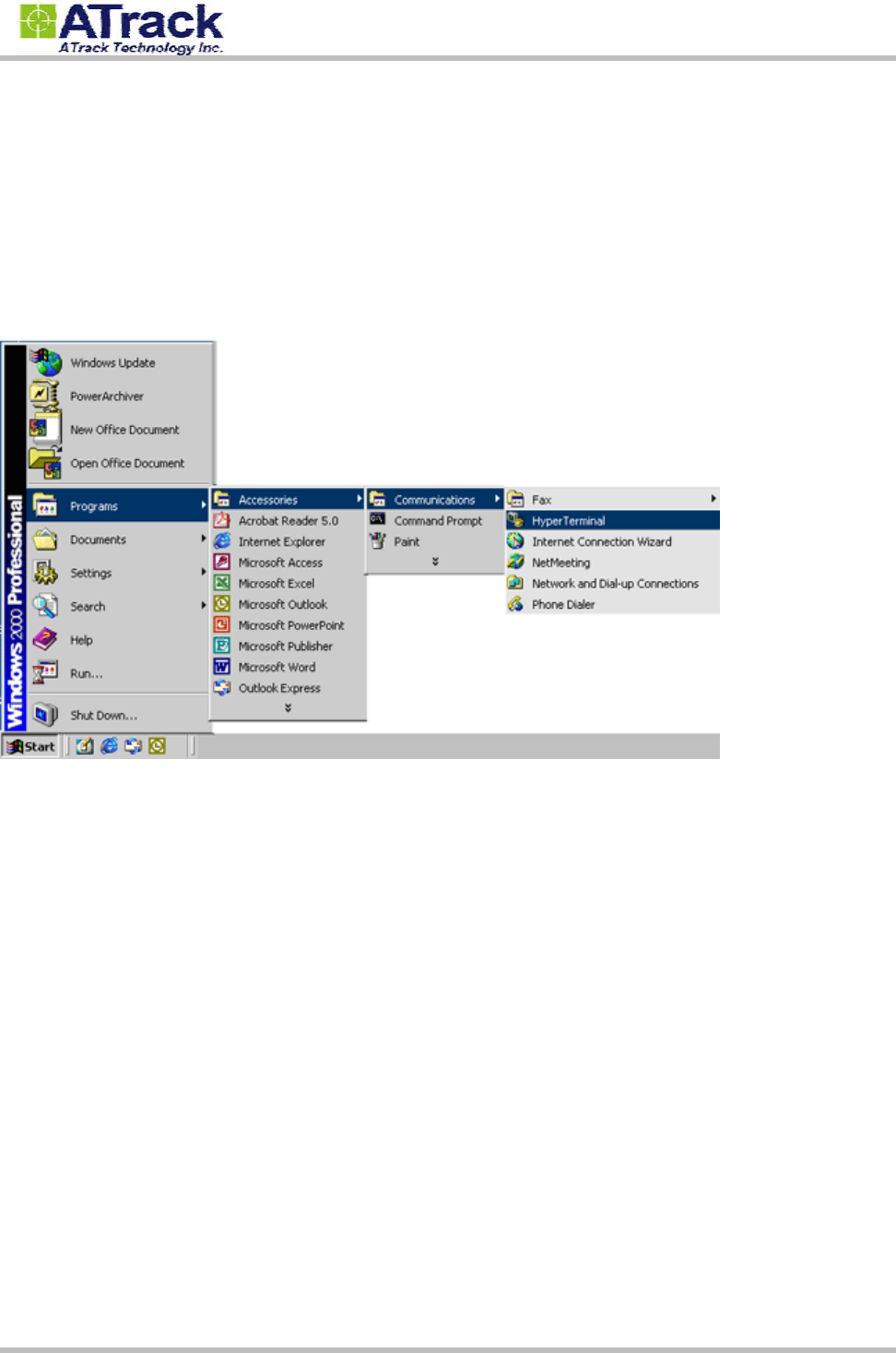

(1) Run HyperTerminal program
![](/img.php?id=1374484&img=bg7.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 7 of 14

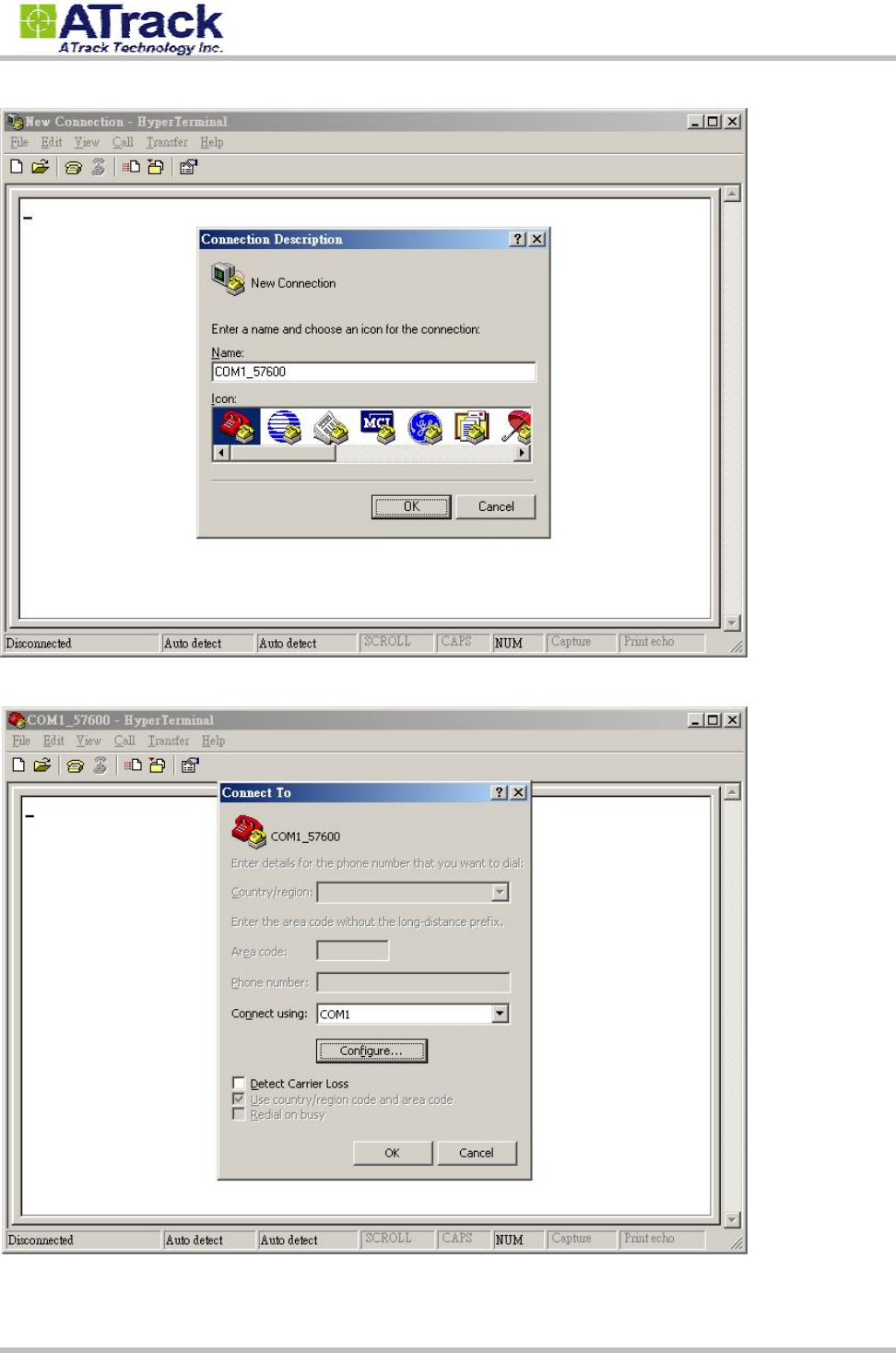

(2) Enter a name for the connection
(3) Choose COM port and click [Configure…] button.
![](/img.php?id=1374484&img=bg8.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 8 of 14

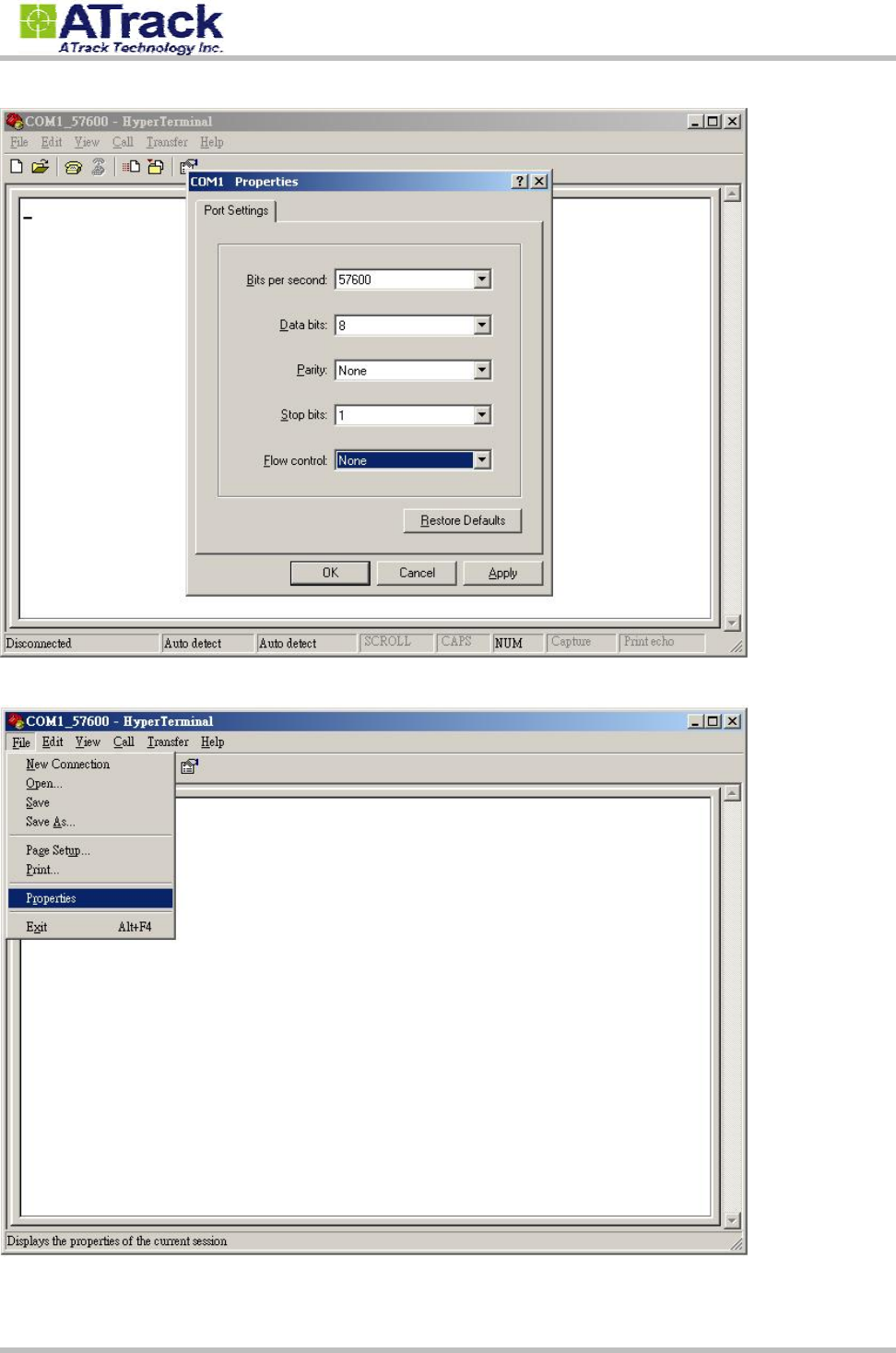

(4) Choose 57600,8,N,1 None flow control properties and click [OK] button.
(5) Click [File]à[Properties]
![](/img.php?id=1374484&img=bg9.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 9 of 14

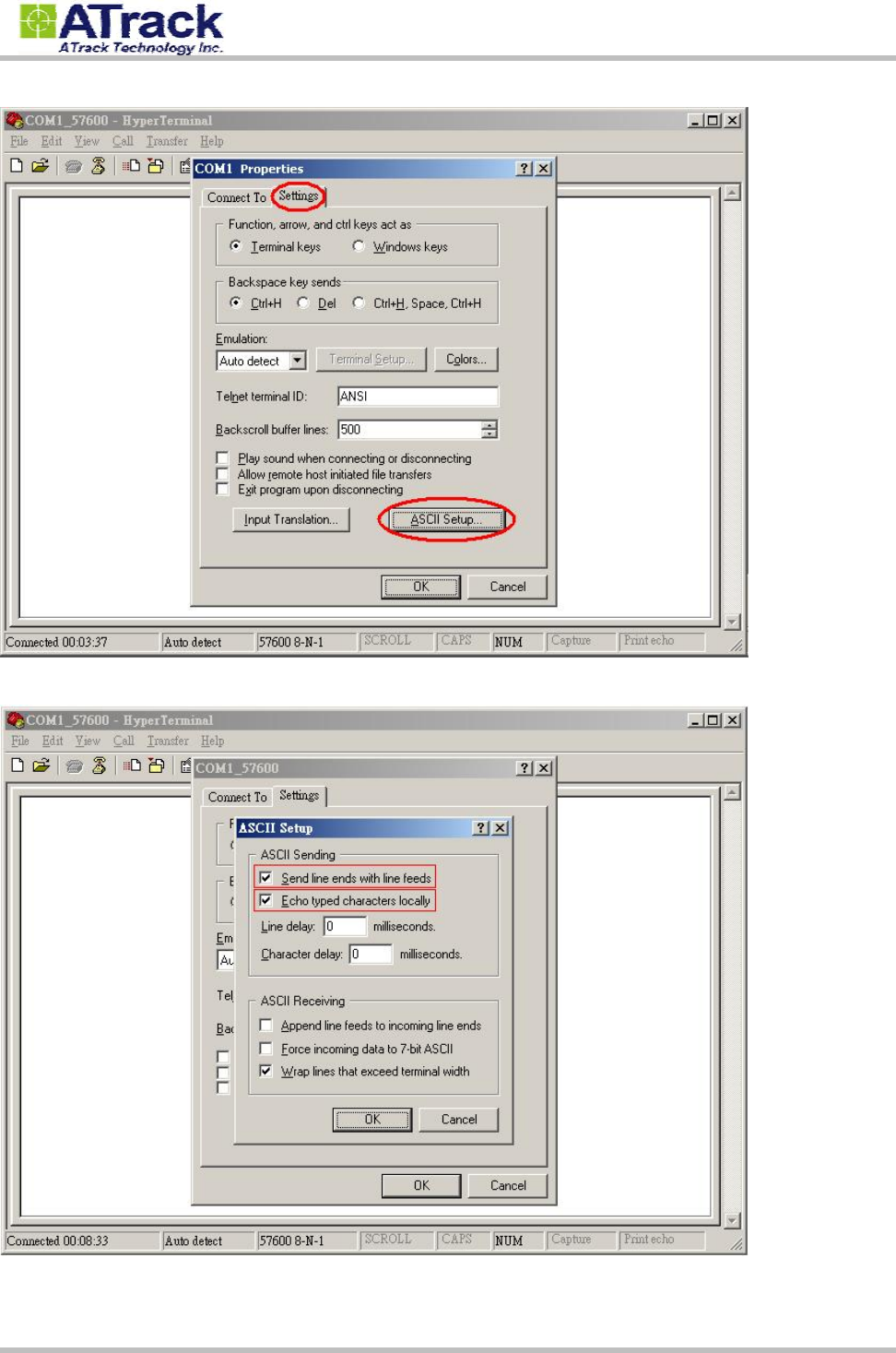

(6) Click [Settings] tab and [ASCII Setup…] button
(7) Checked the following option and click [OK] button
![](/img.php?id=1374484&img=bga.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 10 of 14

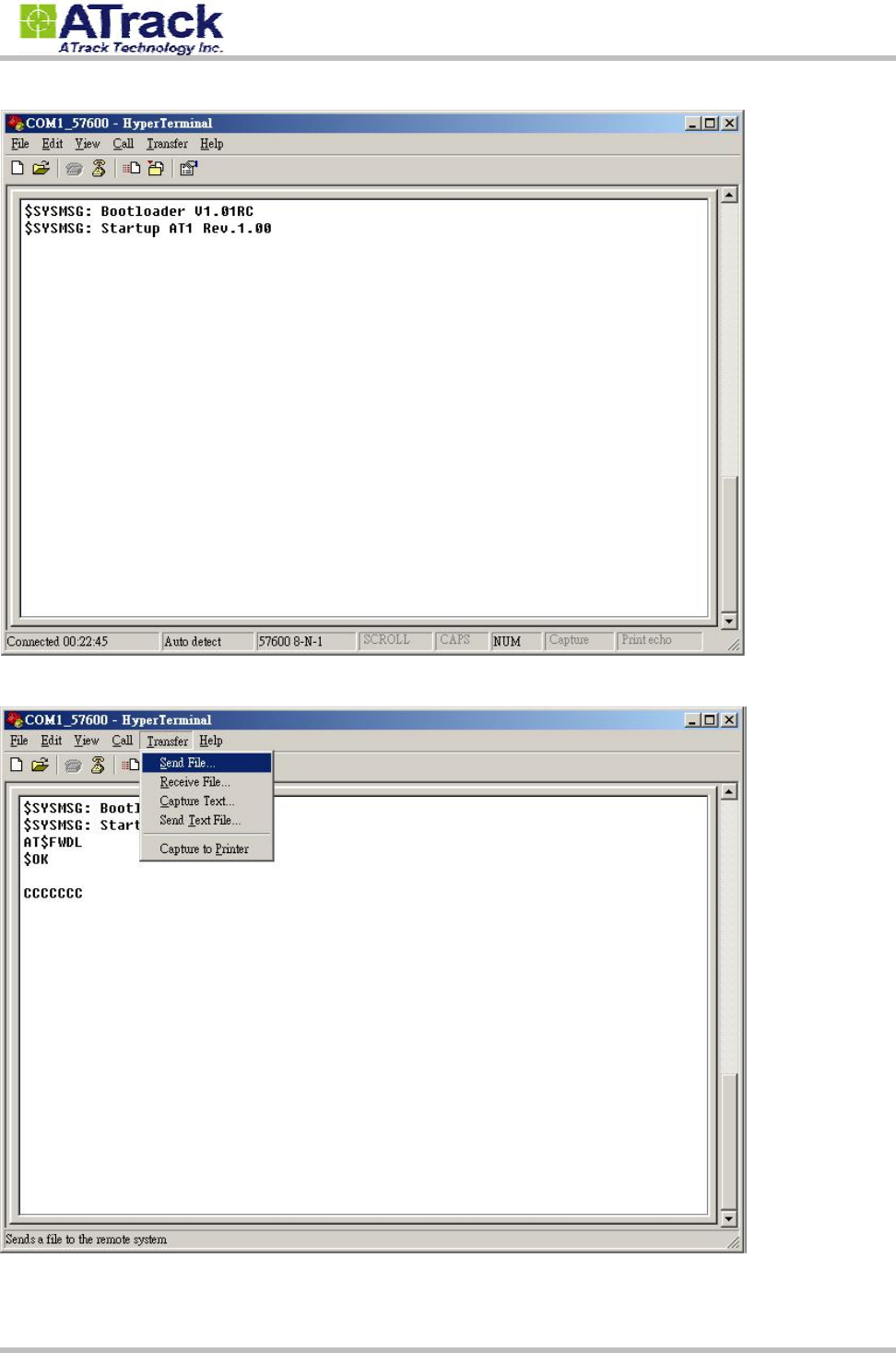

(8) Power ON the device. The startup message will show on the screen.
(9) Type “AT$FWDL” command and press [Enter] key. Choose [Transfer]à[Send File…]
![](/img.php?id=1374484&img=bgb.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 11 of 14

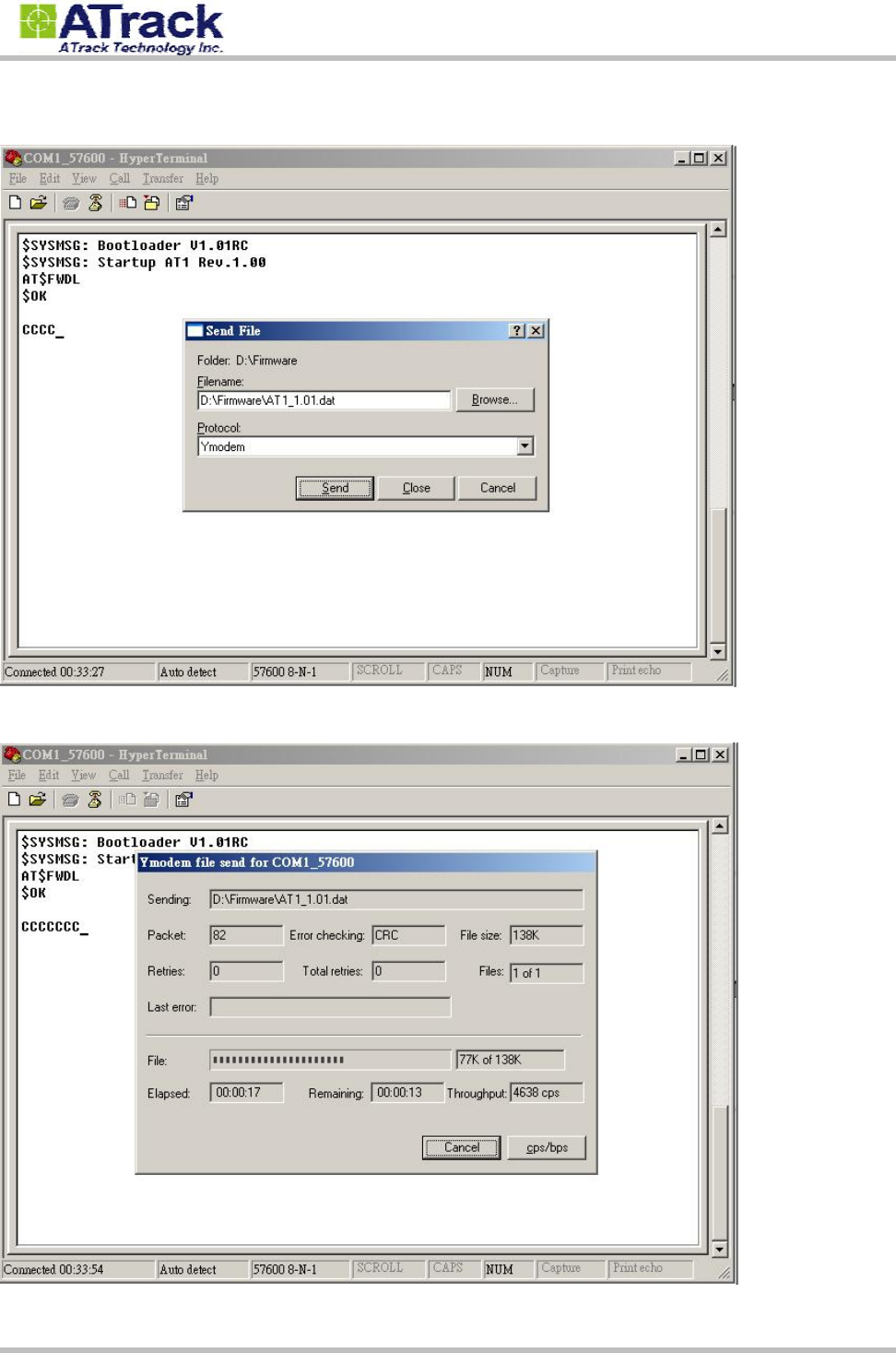

(10) Choose the firmware filename which is provided by ATrack and select [Ymodem] Protocol option and
click [Send] button.
(11) When [Send] button is clicked, the file transfer progress will show as below:
![](/img.php?id=1374484&img=bgc.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 12 of 14

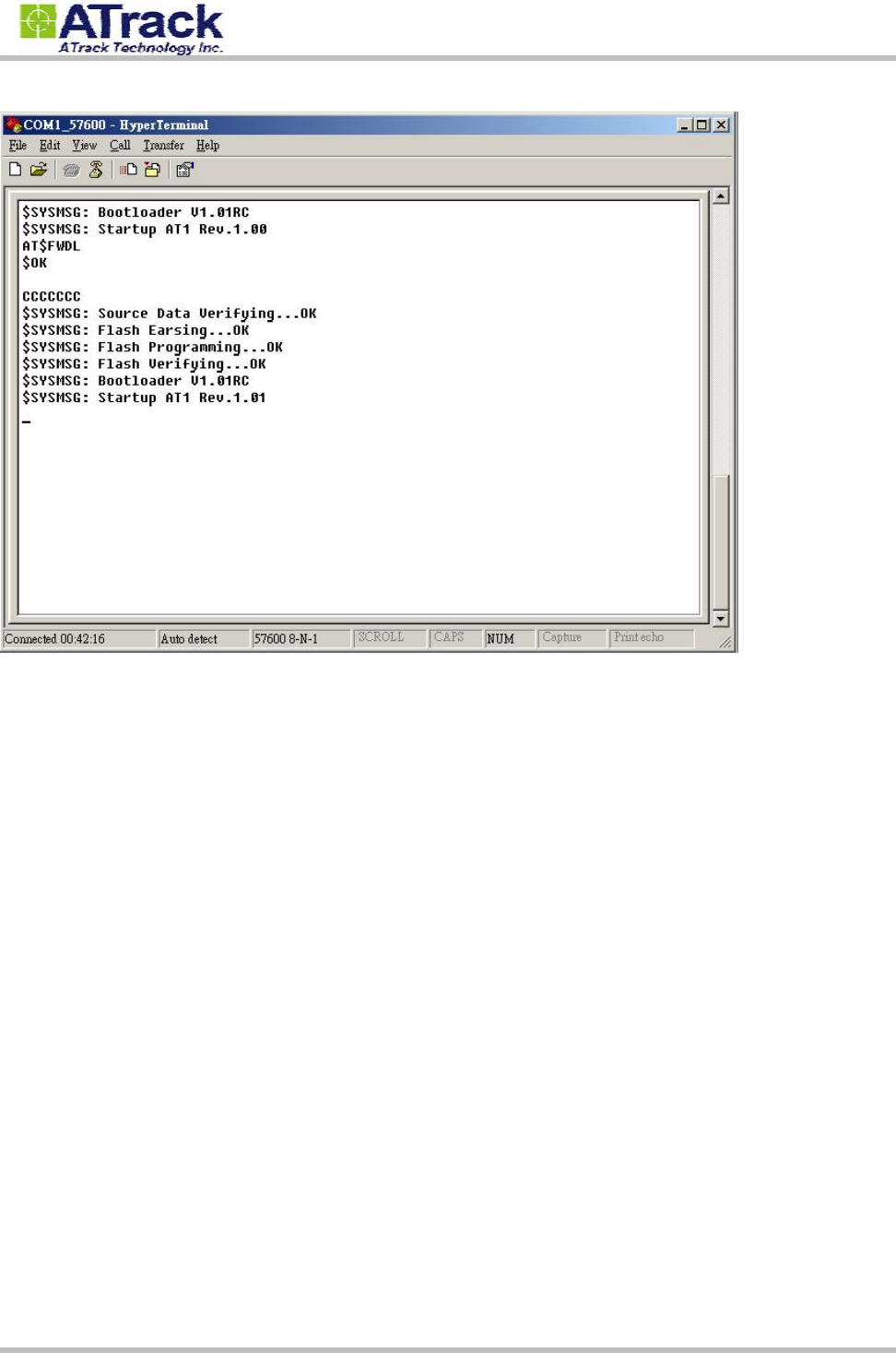

(12) When file sending is completed, the device will program and restart itself automatically.
![](/img.php?id=1374484&img=bgd.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 13 of 14
4
4.
.
A
Ap
pp
pe
en
nd
di
ix
x
4
4.
.1
1.
.
H
Ha
ar
rd
dw
wa
ar
re
e
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
AT1/AT1E/AT3/AT3E
Physical Characteristics
Dimension
80 * 48 * 26 mm
GSM Module
Quad-band
Frequency Bands
850/900/1800/1900
GPS Module
High Sensitivity (65 Channel)
GPS Antennas (for AT1E)
SMA Connector Type
Shock Sensor
Built-In
Real-Time Clock
Built-In
Memory Capacity
2MB
Casing
High Heat Grade ABS
Electrical Characteristics
Power Source
9-40 VDC
Power Consumption Operational
100 mA @ 12VDC
Sleep
20 mA @ 12VDC
Deep Sleep
8 mA @ 12VDC
I/O Characteristics
Device I/O Ports Positive Input
1 (Triggering voltage: 3.7 ~ 40V)
Negative Input
1 (Triggering voltage: 0 ~ 0.8V)
Negative Outputs
2 (Open Collector Type @ 300mAMAX)
Serial Configurable
1
Baud rates
1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200 bps
Environmental Characteristics
Operation Temperature
-20 ~ +70°C (Note: Temp. up to +85°C with
extreme condition)
Storage Temperature
-40 ~ +85°C
Relative Humidity
5 ~ 95%
![](/img.php?id=1374484&img=bge.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 14 of 14
4
4.
.2
2.
.
F
FC
CC
C
R
Re
eg
gu
ul
la
at
ti
io
on
ns
s:
:
l This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
l This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
l This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to
the antenna shall not be less than 20cm (8 inches) during normal operation.
