ATrack Technology ATVT1306 UMTS GPS VEHICLE TRACKER User Manual
ATrack Technology Inc. UMTS GPS VEHICLE TRACKER
User Manual
![](/img.php?id=2009465&img=bg1.png)
AU7
User Manual
Revision: 10
Revision Date: 2012/06/25
ATrack Technology Inc.
3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist.,
Taipei City 11493, Taiwan (R.O.C.)
Tel: +886-2-27975852
Fax: +886-2-27974030
http://www.atrack.com.tw
![](/img.php?id=2009465&img=bg2.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 2 of 15
Contents
1.Notification .............................................................................................................................. 3
1.1.Disclaimer .................................................................................................................................... 3
1.2.Copyright ...................................................................................................................................... 3
1.3.Warning ........................................................................................................................................ 3
2.Hardware ................................................................................................................................. 4
2.1.Package Content ......................................................................................................................... 4
2.2.Pin Assignments .......................................................................................................................... 5
2.2.1.Serial Cable (JST Female Connector to DB9 Female Connector) .......................................... 5
2.2.2.Power/IO connector (Male; On Device) ................................................................................... 5
2.3.Installation .................................................................................................................................... 6
3.Firmware Upgrade ................................................................................................................. 7
3.1.Firmware Upgrade by serial connection ...................................................................................... 7
3.2.LED Indications .......................................................................................................................... 13
4.Appendix ................................................................................................................................ 14
4.1.Hardware Specification .............................................................................................................. 14
4.2.FCC Regulations: ....................................................................................................................... 15
![](/img.php?id=2009465&img=bg3.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 3 of 15
1
1.
.
N
No
ot
ti
if
fi
ic
ca
at
ti
io
on
n
1
1.
.1
1.
.
D
Di
is
sc
cl
la
ai
im
me
er
r
This document, and all other related products, such as device, firmware, and software, is developed by
ATrack Technology Inc. thoroughly. At the time of release, it is most compatible with specified firmware version.
Due to the functionalities of the devices are being developed and improved from time to time, the change in
the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology
Inc. is obligated to modify all the documentation without the limitation of time frame. A change notice shall be
released to ATrack Technology Inc. customers upon the completion of document modification.
ATrack Technology Inc. products are not intended to be used as life support or rescue equipments. ATrack
Technology Inc. is not liable for any loss or injury caused by using or referencing to any products. Any possible
means of using or integrating ATrack Technology Inc. products shall be avoided.
1
1.
.2
2.
.
C
Co
op
py
yr
ri
ig
gh
ht
t
ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries.
Any or all parts of this document shall not be exposed to non-authorized party without any form of approval
from ATrack Technology Inc. Any forms, including but not limited to oral, copy, or internet sharing, of releasing
or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the
rights of litigation in the violation of such copyright laws.
1
1.
.3
3.
.
W
Wa
ar
rn
ni
in
ng
g
Connecting the wire inputs can be hazardous to both the installer and your vehicle’s electrical system if not
done by an experienced installer. This document assumes you are aware of the inherent dangers of working
in and around a vehicle and have a working understanding of electricity.
![](/img.php?id=2009465&img=bg4.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 4 of 15
2
2.
.
H
Ha
ar
rd
dw
wa
ar
re
e
2
2.
.1
1.
.
P
Pa
ac
ck
ka
ag
ge
e
C
Co
on
nt
te
en
nt
t
Each package contains the following device/accessories:
Device * 1
GPS Antenna * 1
Serial Cable * 1
GSM Antenna * 1
Power/IO Cable * 1
![](/img.php?id=2009465&img=bg5.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 5 of 15
2
2.
.2
2.
.
P
Pi
in
n
A
As
ss
si
ig
gn
nm
me
en
nt
ts
s
2
2.
.2
2.
.1
1.
.
S
Se
er
ri
ia
al
l
C
Ca
ab
bl
le
e
(
(J
JS
ST
T
F
Fe
em
ma
al
le
e
C
Co
on
nn
ne
ec
ct
to
or
r
t
to
o
D
DB
B9
9
F
Fe
em
ma
al
le
e
C
Co
on
nn
ne
ec
ct
to
or
r)
)
The Pin 9 is a power output port to provide a 5V, 300mA power source for accessory that
connects to the serial port. If the connected accessory requires more power, please use external
power source instead.
2
2.
.2
2.
.2
2.
.
P
Po
ow
we
er
r/
/I
IO
O
c
co
on
nn
ne
ec
ct
to
or
r
(
(M
Ma
al
le
e;
;
O
On
n
D
De
ev
vi
ic
ce
e)
)
Positive Inputs: IN0, IN1 (Triggered when connects to V+ range from 3.7 ~ 40V)
Negative Inputs: IN2, IN3 (Triggered when connects to ground range from 0.8 ~ 0V)
Analog Input: 0 ~ 40 V; 10-bit Resolution.
All outputs are open collector type (grounded when enabled).
DO NOT CONNECT ANY POWER SOURCE TO 1-WIRE IO AND 1-WIRE GND TO AVOID DAMAGE.
![](/img.php?id=2009465&img=bg6.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 6 of 15
2
2.
.3
3.
.
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n

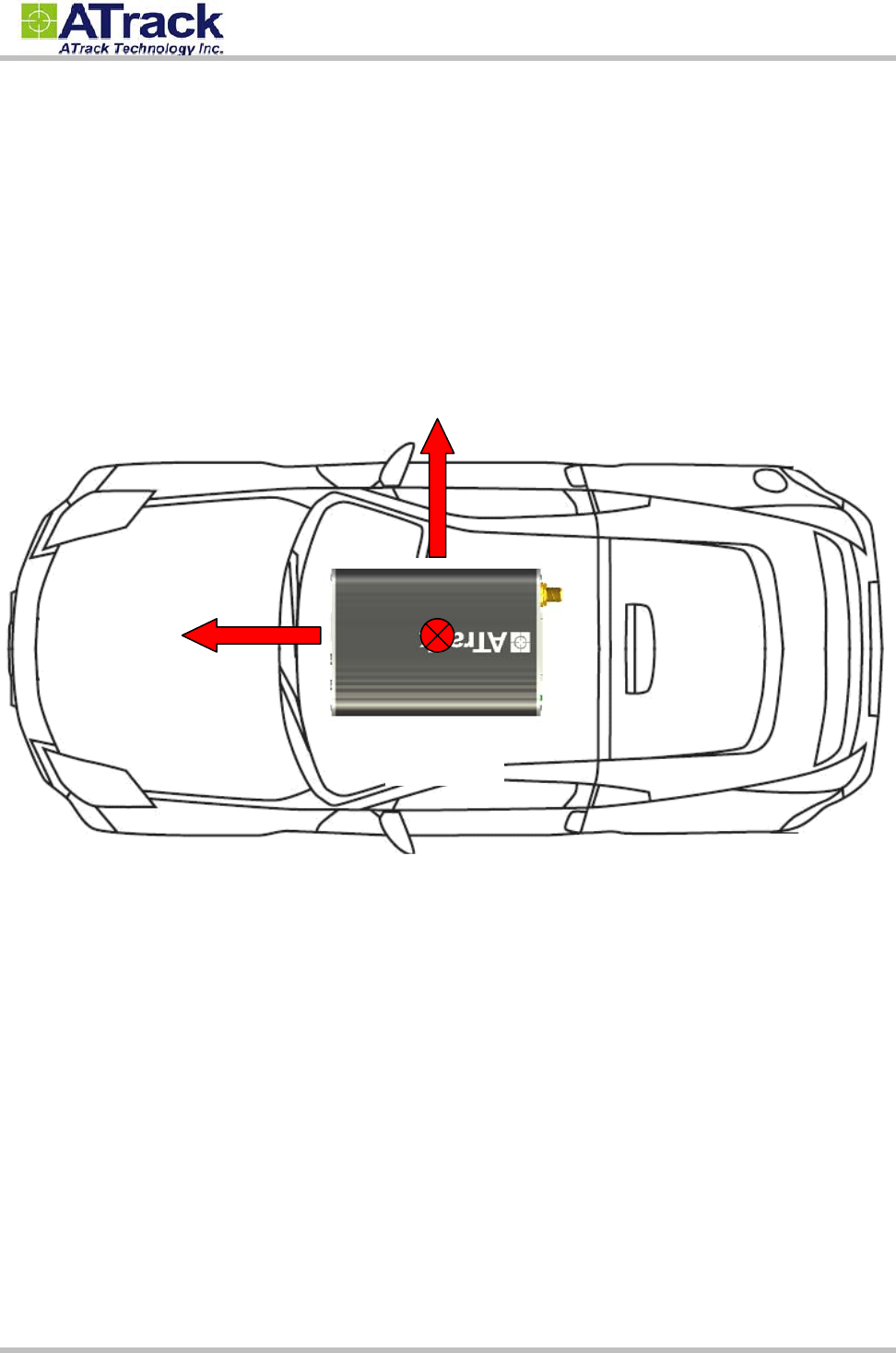

When installing the device onto the vehicle, it is necessary to make sure that the direction of the device is
following the picture demonstrated in the below picture, in order to have the G-Sensor working properly for
harsh driving event detections. The forces on the axes are used to determine the harsh driving event status,
hence if the installation is not able to be like in the picture, it is suggested to use GPS for detection instead.
Note: when installing the device, the vehicle should be parked on a horizontal place (not tilted). The
device then should be installed parallel to the vehicle body and fixed with mounting bracket or double
side adhesive as shown to ensure the G-Sensor is functioning properly.
Y- A x i s
X-Axis
Z-Axis
![](/img.php?id=2009465&img=bg7.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 7 of 15
3
3.
.
F
Fi
ir
rm
mw
wa
ar
re
e
U
Up
pg
gr
ra
ad
de
e
3
3.
.1
1.
.
F
Fi
ir
rm
mw
wa
ar
re
e
U
Up
pg
gr
ra
ad
de
e
b
by
y
s
se
er
ri
ia
al
l
c
co
on
nn
ne
ec
ct
ti
io
on
n

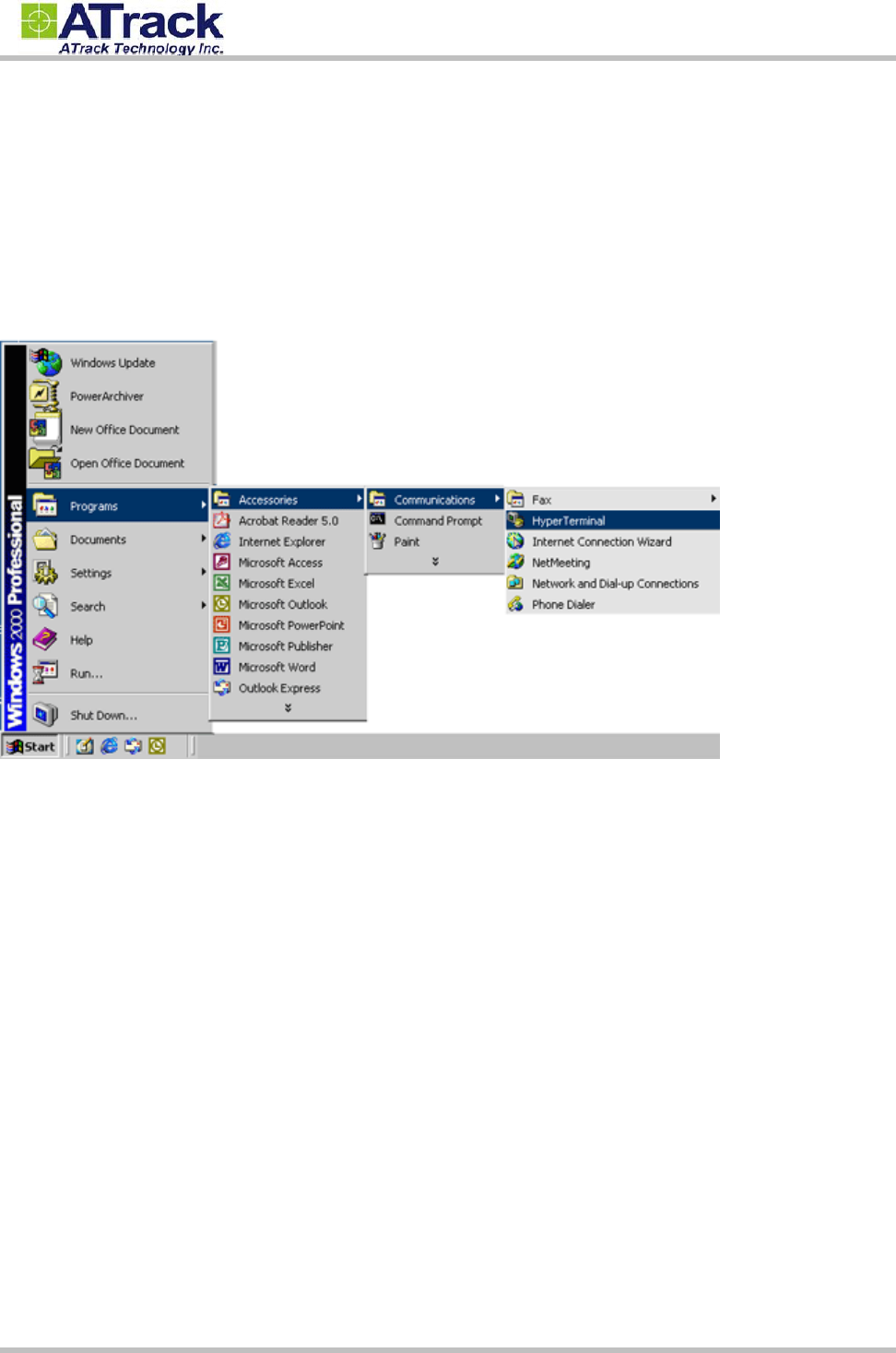

(1) Run HyperTerminal program
![](/img.php?id=2009465&img=bg8.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 8 of 15

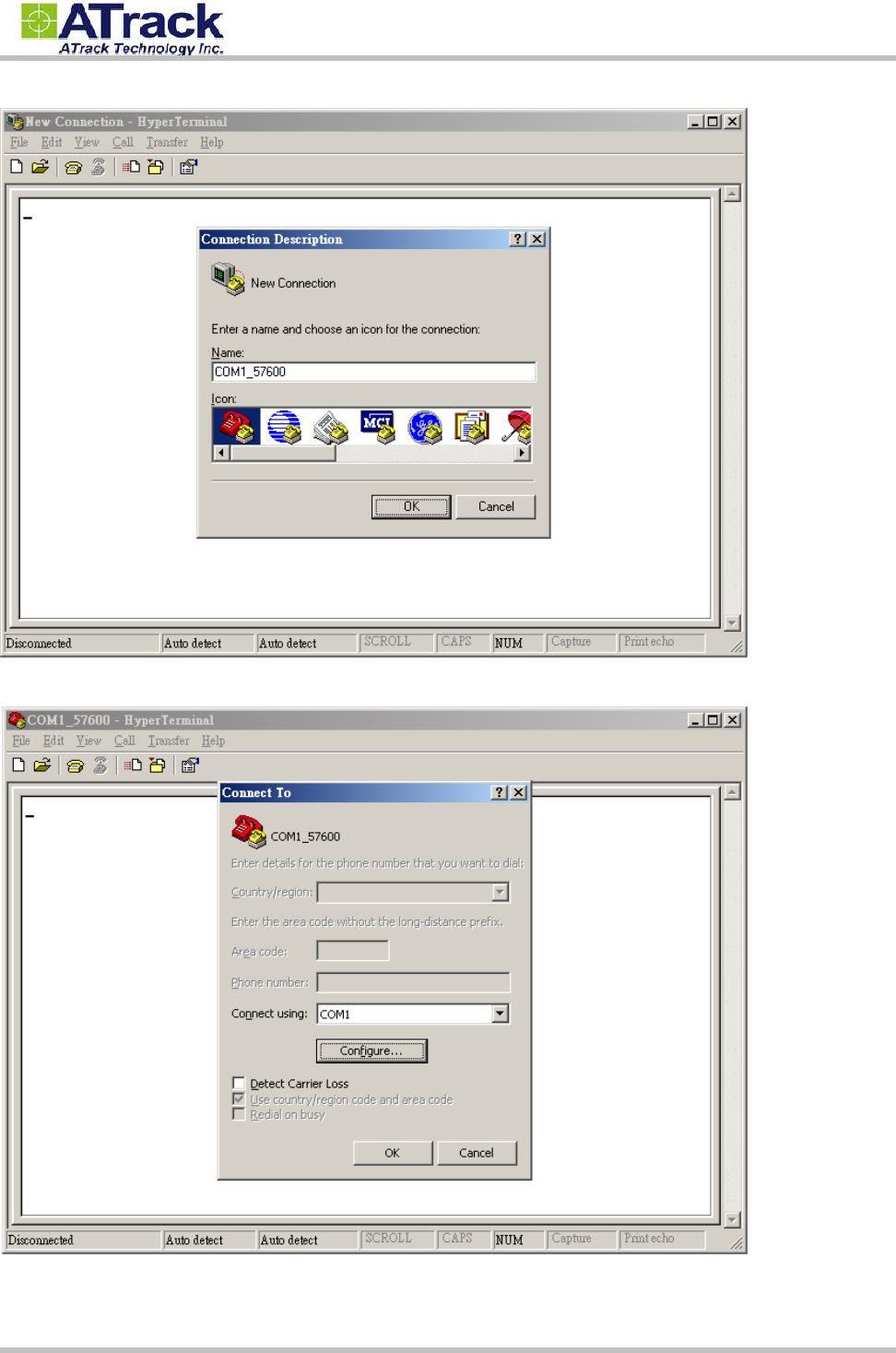

(2) Enter a name for the connection
(3) Choose COM port and click [Configure…] button.
![](/img.php?id=2009465&img=bg9.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 9 of 15

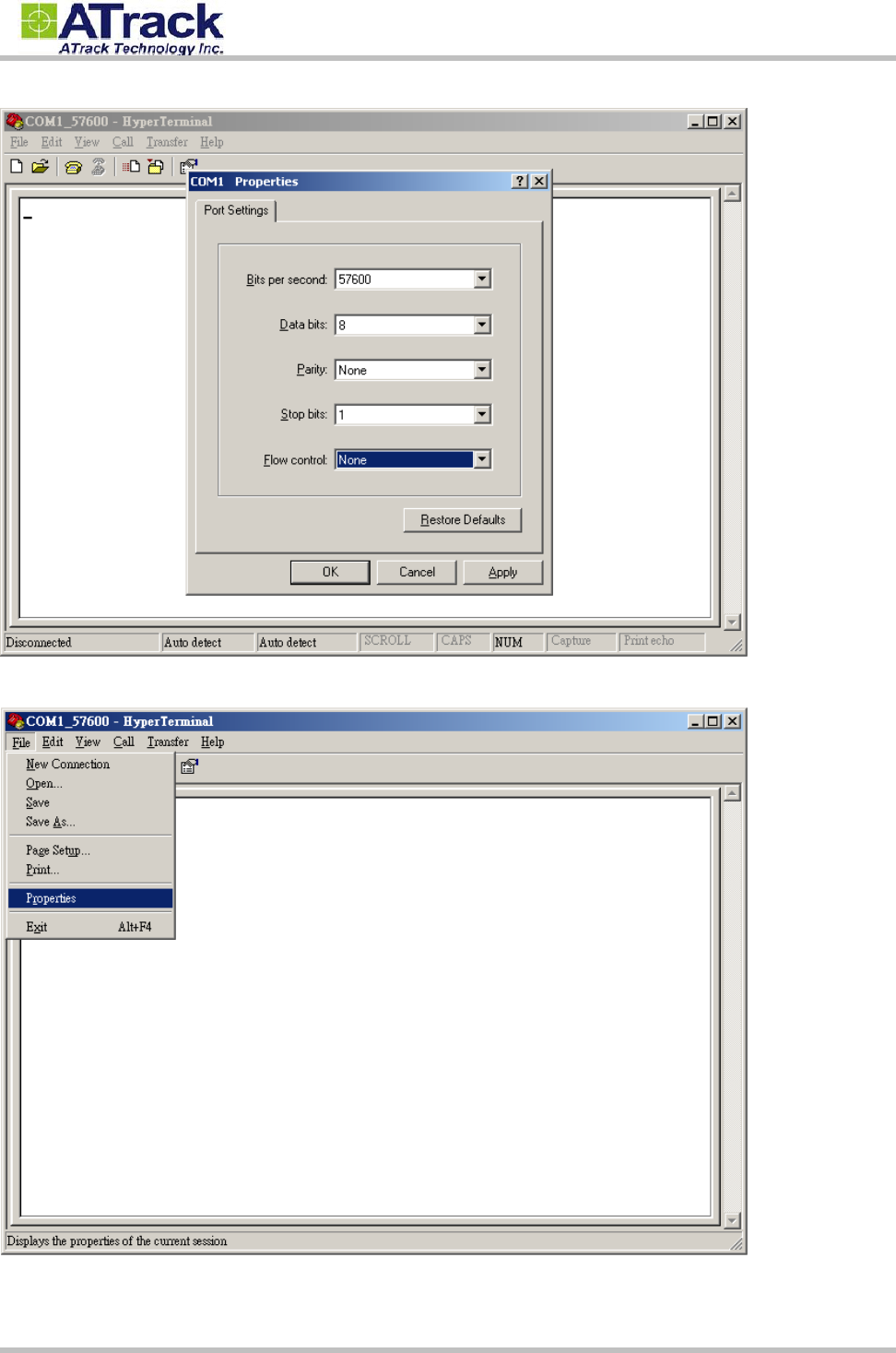

(4) Choose 57600,8,N,1 None flow control properties and click [OK] button.
(5) Click [File][Properties]
![](/img.php?id=2009465&img=bga.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 10 of 15

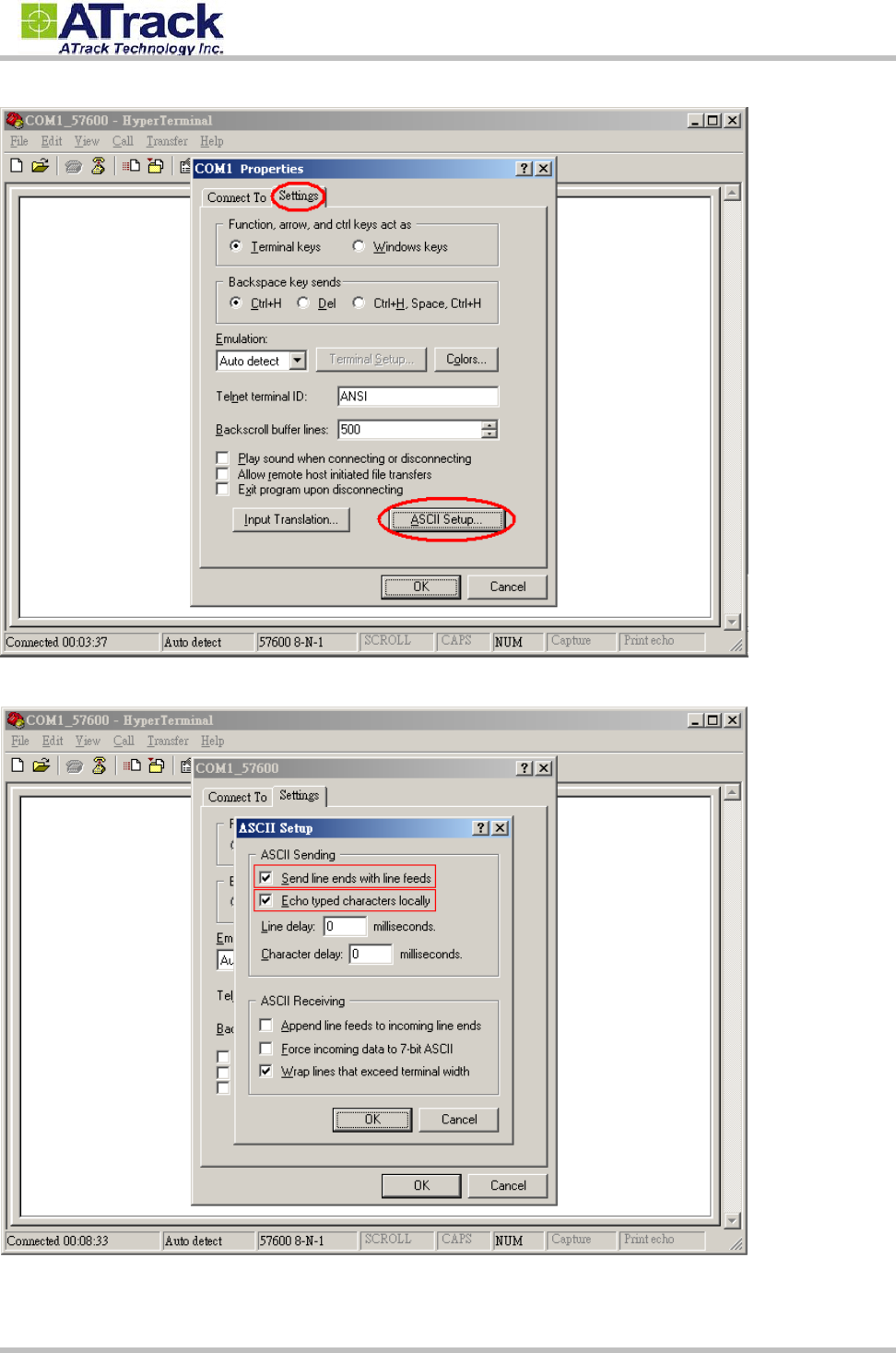

(6) Click [Settings] tab and [ASCII Setup…] button
(7) Checked the following option and click [OK] button
![](/img.php?id=2009465&img=bgb.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 11 of 15

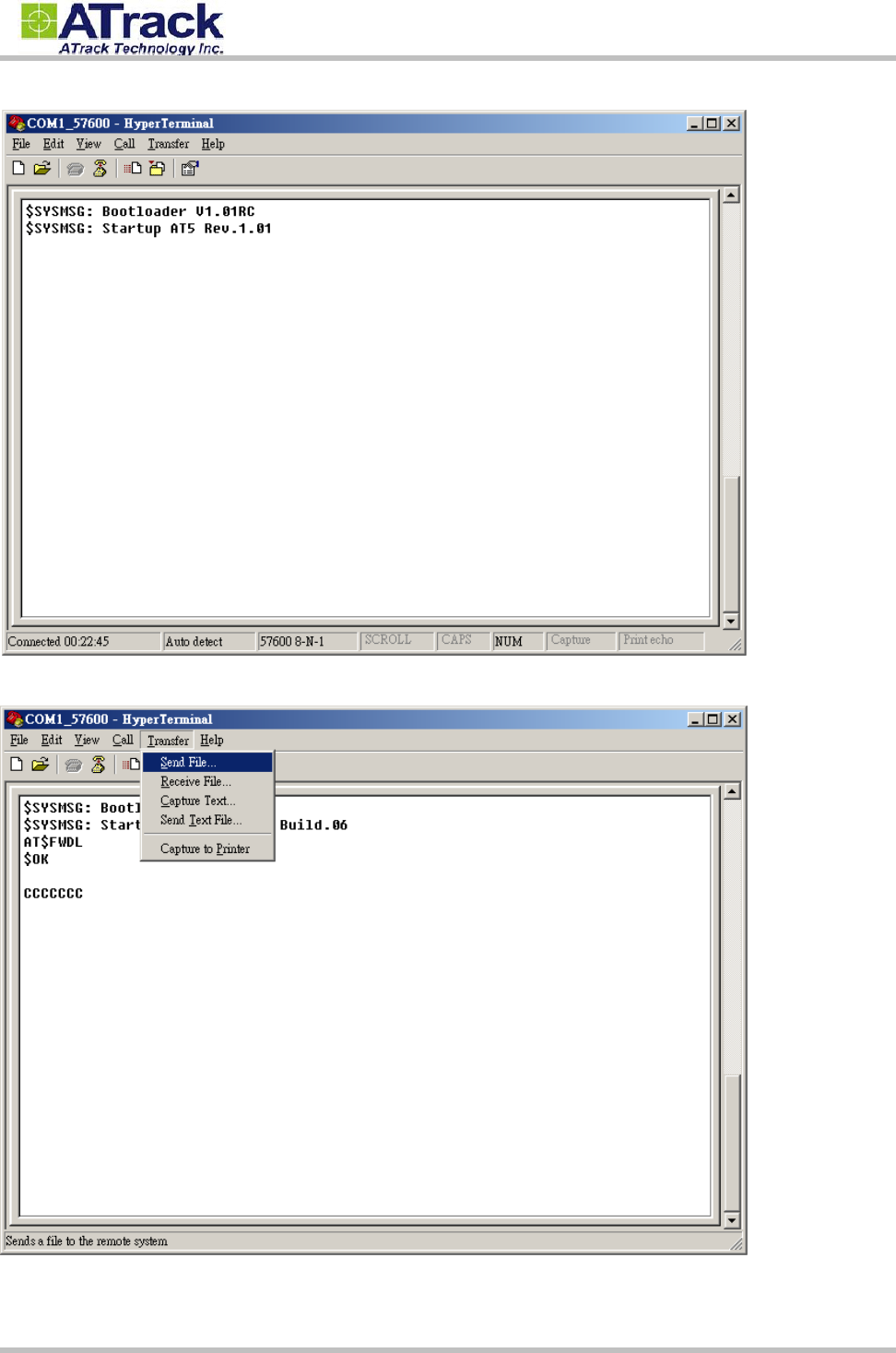

(8) Power ON the device. The startup message will show on the screen.
(9) Type “AT$FWDL” command and press [Enter] key. Choose [Transfer][Send File…]
![](/img.php?id=2009465&img=bgc.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 12 of 15

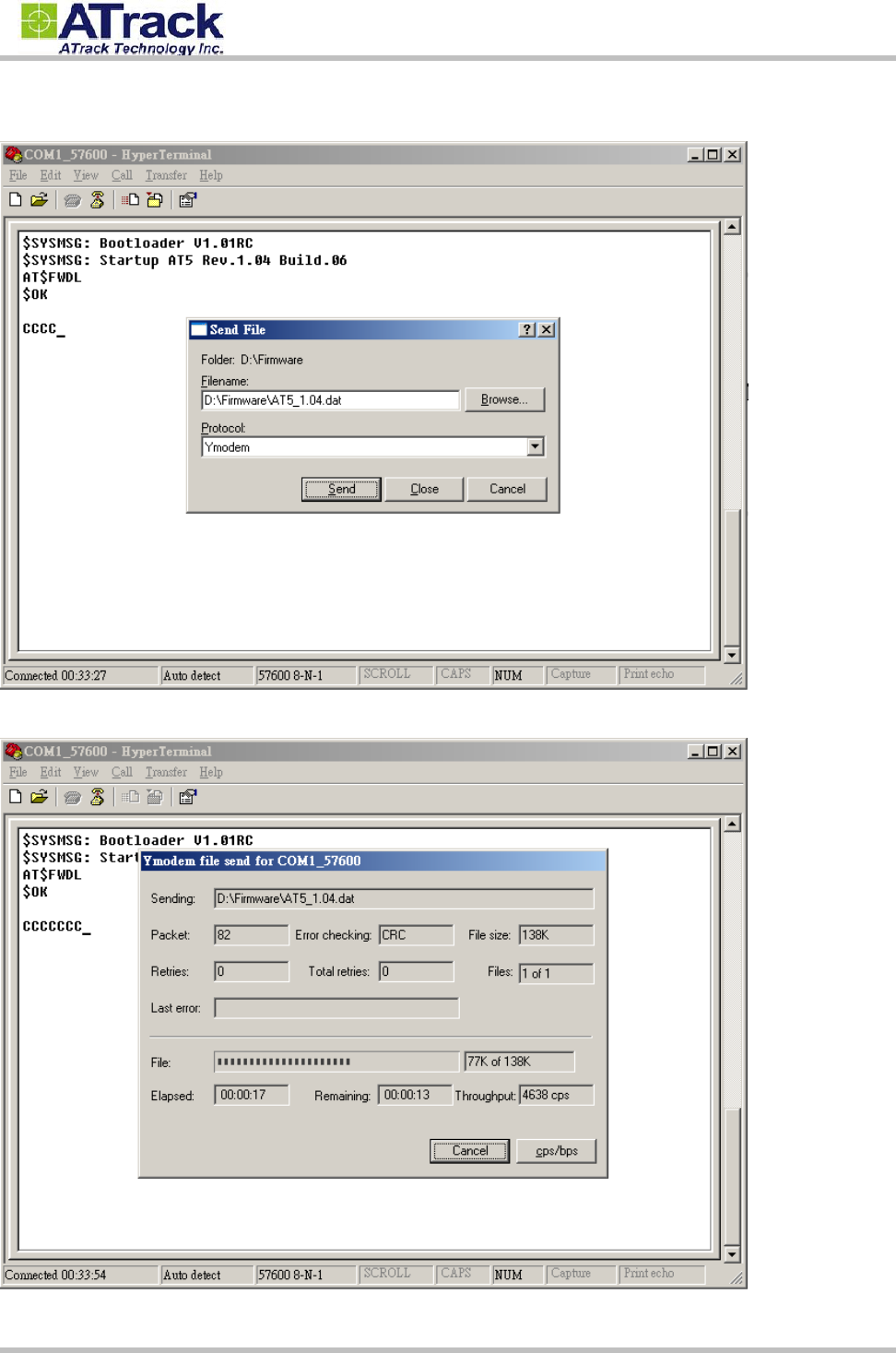

(10) Choose the firmware filename which is provided by ATrack and select [Ymodem] Protocol option and
click [Send] button.
(11) When [Send] button is clicked, the file transfer progress will show as below:
![](/img.php?id=2009465&img=bgd.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 13 of 15

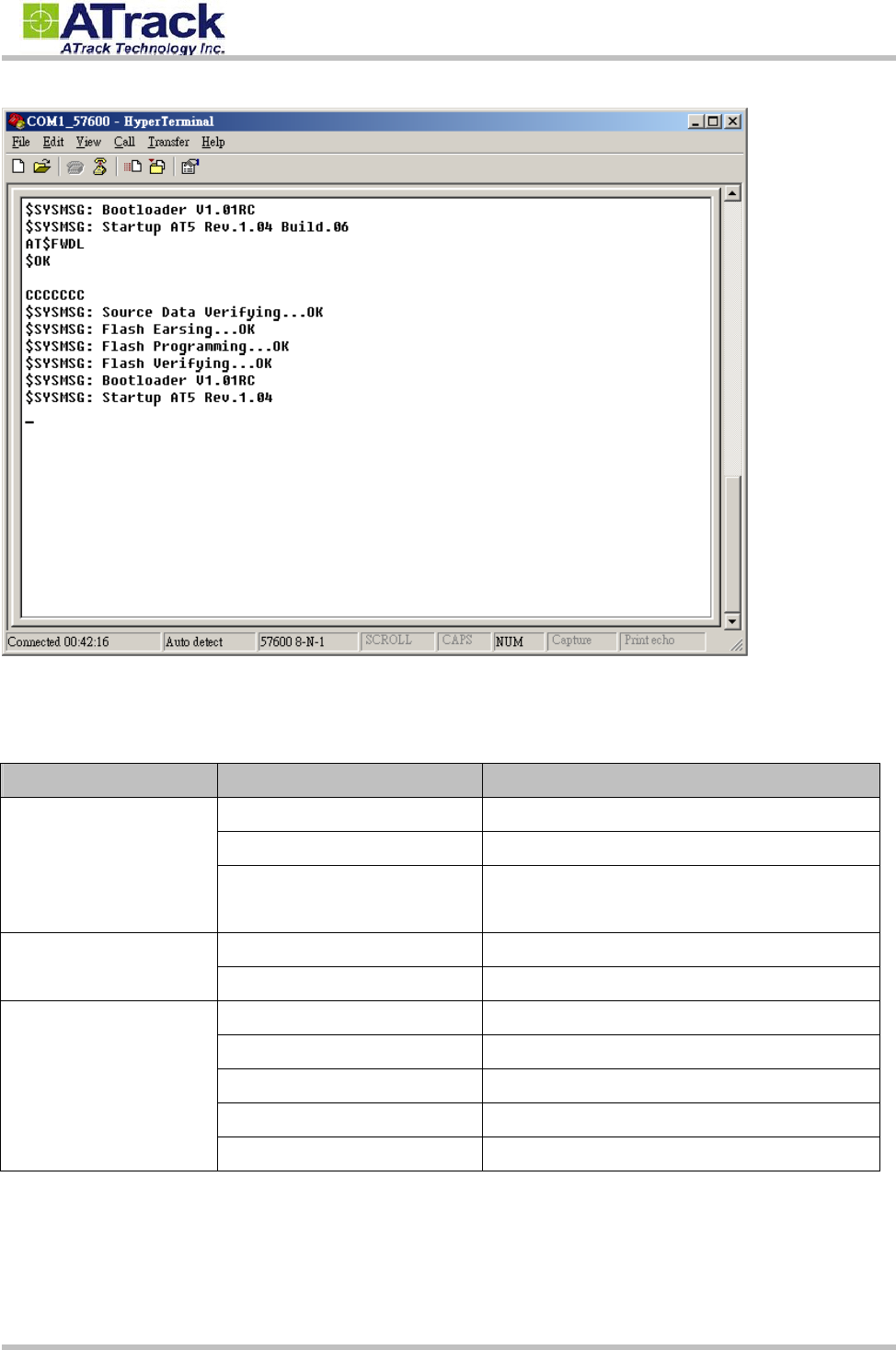

(12) When file sending is completed, the device will program and restart itself automatically.
3
3.
.2
2.
.
L
LE
ED
D
I
In
nd
di
ic
ca
at
ti
io
on
ns
s
LED Indication Description
PWR (Green)
Solid On In full operation mode
1 blink (0.1 sec.) in every 10 sec. In sleep mode
1 sec. On, 1 sec. Off
GPS module off, External power lost, running on
backup battery
GPS (Red)
0.7 sec. On, 0.7 sec. Off Searching GPS signal
Solid On Position get fixed
GSM (Red)
Off GSM module off
0.7 sec. On, 0.7 sec. Off Searching GSM signal
0.2 sec. On, 2 sec. Off Registered to GSM network
2 blinks in every 2 sec. Connected to GPRS network
Continuous blinking SIM PIN Error
Note: In the case of SIM PIN Error, the device will check the AT$SPIN every 10 minutes and try to access the SIM again.
If the PIN is not corrected within 3 times of checking, including the first inserting time, the SIM card will be locked. Once
the SIM is locked, you need to contact your GSM carrier for the PUK to unlock the SIM card on a cellular phone.
![](/img.php?id=2009465&img=bge.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 14 of 15
4
4.
.
A
Ap
pp
pe
en
nd
di
ix
x
4
4.
.1
1.
.
H
Ha
ar
rd
dw
wa
ar
re
e
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
AU7
Physical Characteristics
Dimension 100 * 65 * 26 mm
GSM Module Quad band GSM 850/900/1800/1900MHz
Tri‐bandUMTS850/1900/2100MHz
GPS Module High Sensitivity (44 Channel)
GSM and GPS Antennas SMA Connector Type
Accelerometer Built-In 3-Axis @ 16GMAX
Audio Amplifier Built-In
Real-Time Clock Built-In
Memory Capacity 8MB
Casing Aluminum alloy
Electrical Characteristics
Power Source 8-40 VDC
Power Consumption Operational 80 mA @ 12VDC
Sleep 18 mA @ 12VDC
Deep Sleep 4 mA @ 12VDC
I/O Characteristics
Device I/O Ports Positive Inputs 2 (Triggering voltage: 3.7 ~ 40V)
Negative Inputs 2 (Triggering voltage: 0 ~ 0.8V)
Analog Input 1 (0 ~ 40V with 10-bit resolution)
Negative Outputs 3 (Open Collector Type @ 300mAMAX)
Serial Configurable 1
Baud rates 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200 bps
1-Wire 1
Environmental Characteristics
Operation Temperature -30 ~ +65°C (Note: Temp. up to +85°C with
extreme condition)
Storage Temperature -40 ~ +85°C
Relative Humidity 5 ~ 95%
![](/img.php?id=2009465&img=bgf.png)
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 15 of 15
4
4.
.2
2.
.
F
FC
CC
C
R
Re
eg
gu
ul
la
at
ti
io
on
ns
s:
:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to
the antenna shall not be less than 20cm (8 inches) during normal operation.
