AVALUE TECHNOLOGY ORPORATION MOD9001C GSM/GPRS Modem User Manual OK
Avalue Technology Inc. GSM/GPRS Modem OK
Users Manual
1

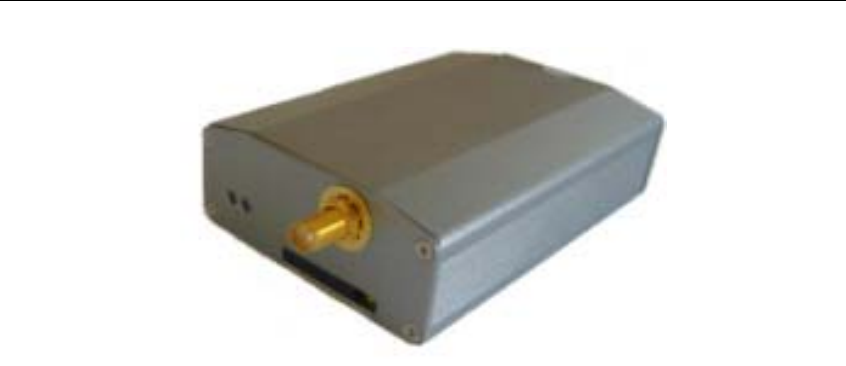

MOD 9001C RS232 GSM/GPRS Modem
User Manual
2
Read First
Before operating the system, please read this manual thoroughly, and retain it for future
reference.
Attention
Please not leave the GSM/GPRS Modem and its power adapter in raining or humidity
place. The GSM Modem can only be used after being connected to antenna and has a
valid SIM card inserted. Please do not remove the shielding cover.
Warning
The Avalue Technology Inc.will not fix the GSM/GPRS Modem that is opened by user.
In such case, its warranty will be terminated too.
1. Summary
More and more applications emerged with the rapid development of wireless data services, such
as vehicle navigation, remote monitoring, wireless Internet access, wireless POS, etc. Thus, more
and more devices need to be able to do wireless communication. With this background, Avalue
Technology Inc. develops its MOD 9001C GSM/GPRS Modem. Users of this product can add
wireless communication capability easily to their own products, and then, develop many
applications.
The MOD 9001C GSM/GPRS Modem mostly fits the need of data transfer, with SMS data
communication, GPRS data navigation, Circuit Switch / Data Connectivity, TCP/IP protocol etc.
Because the easy setting up in SCM (Single Chip Micyoco), it is convenient for network data
communication. The MOD 9001C GSM/GPRS Modem with small size, which fits both embedded
application and external peripheral equipment. The AT command set and RS232 interface will
offer easy data connection without any extra circuit control.
Traditionally, the above applications use digital cellular, CDPD or other wire-line modem to
do communication, and these technologies are of the disadvantages of high communication
expense, limited communication range, dial before communications, etc. When we begin to
use MOD 9001C GSM/GPRS Modem, all these problems disappeared.
Please read this manual carefully before your installation, and please keep this manual for
3
further reference.
2. Interfaces
1 Serial port, （3.3V TTL Voltage level /RS232 Voltage level optional,115200bps、8、
1、N，No hardware flow control）
Power supply（DC 7.5V）
Antenna interface
Status lights（Red light indicate power status）
SIM Card Holder
3. Features
Supporting both Chinese/English SMS data communication
Supporting 850/1900 MHz GSM Quad band, better signal quality
Status lights indication
Supporting AT Command Set
Standard RS-232 serial port, easy to use
Industrial standard design and quality guarantee
4. Specifications
Operation temperature ：-25 - +60℃
Storage temperature：-35 - +80℃
Humidity ：0 - 95％ non-condense
Receive Sensitivity：-102dBm
Dynamic range：62dB
Power supply： 7.5V
Current：standby 50mA，work 300mA
Weight： 250g
4
5. Installation
a) Open the SIM card holder, insert in a valid SIM Card provided by GSM network operator or
service provider.
b) Install the GSM Modem to your location and connect the antenna to the SMA connector.
c) Fix the serial cable to the GSM modem, the supplied cable will connect the unit to a PC. For
other devices you may need a crossover cable.
d) Connect the GSM Modem power supply interface with the power adapter’s output
jack, and then connect the adapter to its power supply source.
Make sure that all connections are properly
5
6. Modem Basic Operation
A. Module connection with Hyper Terminal.
1. Establish or Open Hyper Terminal from All Programs Accessories-
Communications and setting up relevant parameters. Module baud rate is 115200.

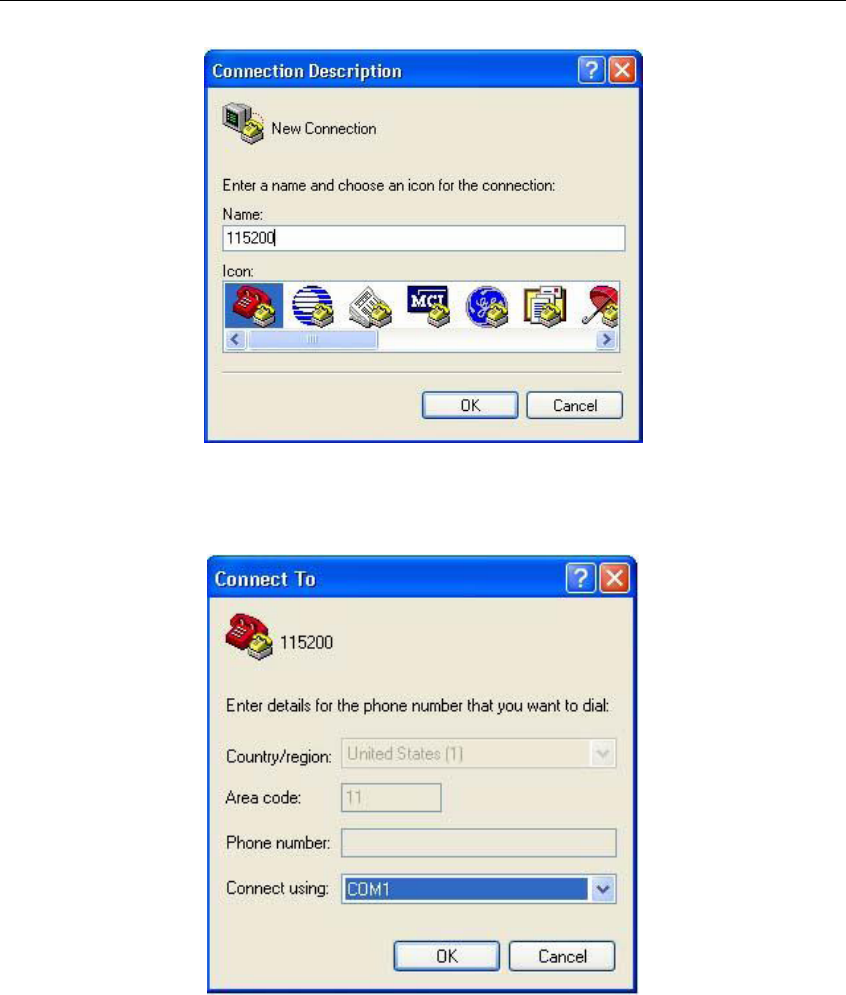

(1). Establish connection.
6
(2). Setting up usage port.

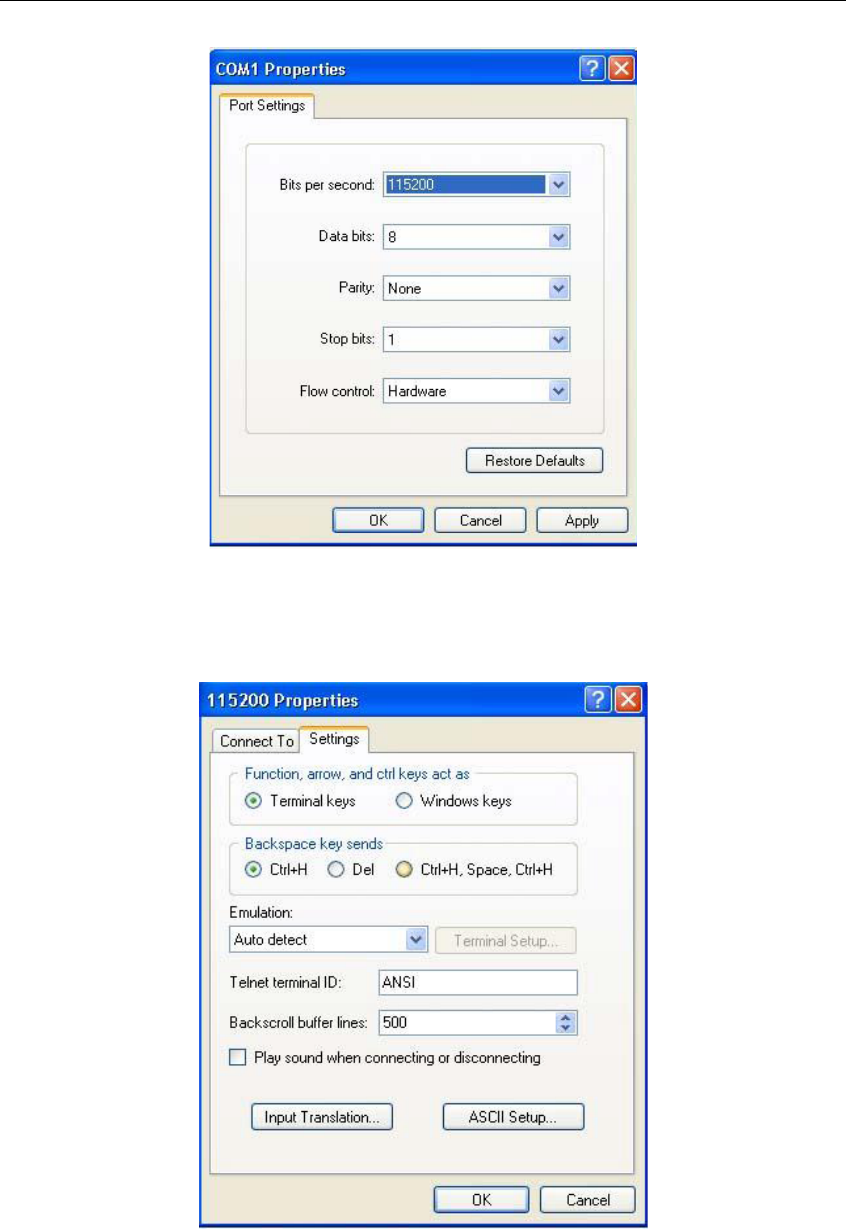

(3). Setting up port parameters.
7
(4). Setting up property in File Menu of Hyper Terminal
8

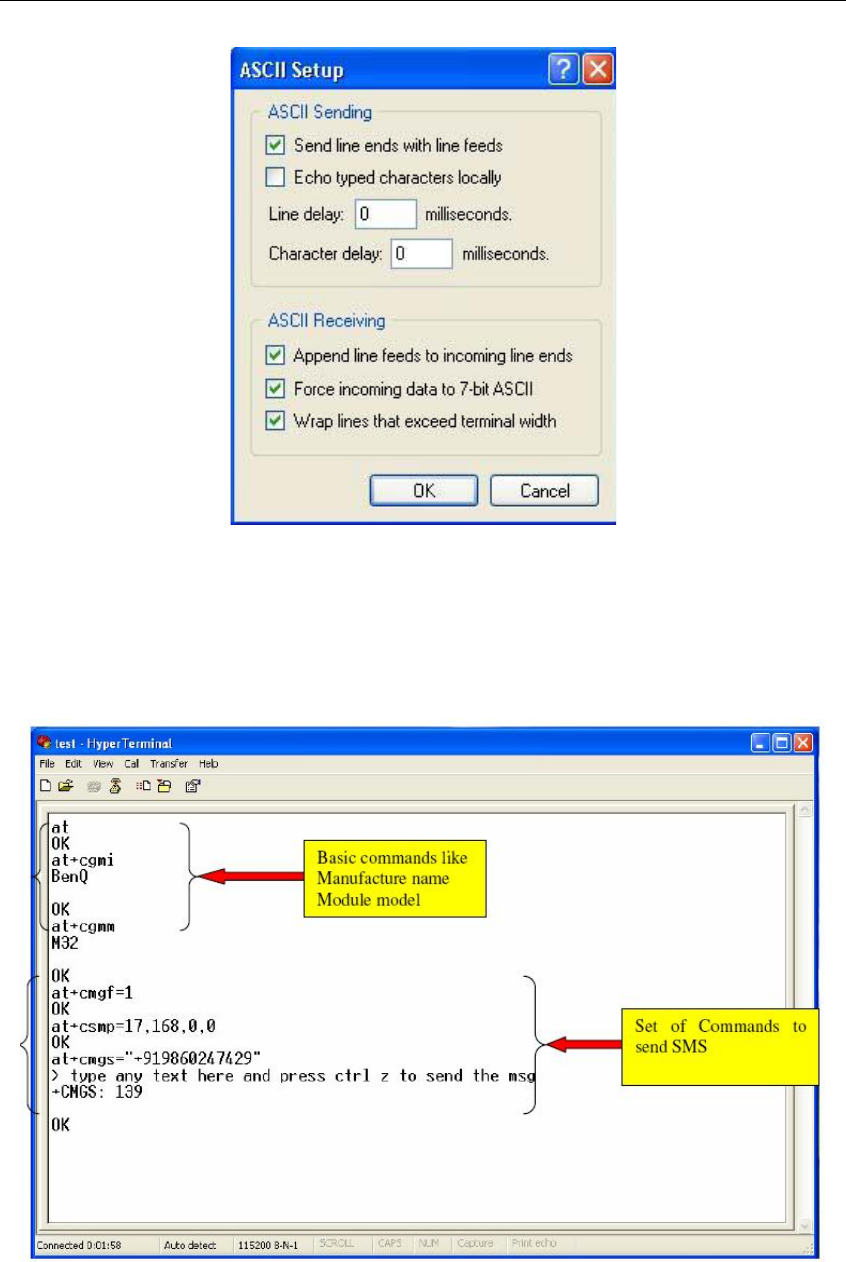

2. You can input word “AT” then press “Enter” key, it should be response word “OK” means work
property. All commands are executed by pressing “Enter” key.
Example as below:
9
3. If SIM card requires switch on password, please enter: AT+CPIN=“password”
4. Read module information
AT+CGMI （Manufacture name）
AT+CGMM （Read Module model）
AT+CGMR (Read module current SW version information)
AT+CGSN (Module serial number)
B. Dial call or receive call (Modem doesn’t provide voice port even with relevant
command)
1. Dial call ATDxxxxxxxxx； （xxxxxxxxx is phone number，example：ATD1860；）
2. Call waiting function：AT+CCWA
3. Hold function：AT+CHLD=？
4. Dial latest call number：AT+CLCC=？
5. Enter information once connection established（DTMF）：AT+VTS=（0-9，#，*，A-Z）
Dial Extension number（example：1234）：AT+VTS=1
AT+VTS=2
AT+VST=3
AT+VST=4
6. Receive call: ATA
7. Hang off call: ATH
8. Incoming call ID: AT+CLIP=1
9、SMS function：
⑴ Setting up SMS Center number：AT+CSCA=“+8613800XXXXXX”，145
SMS Center number：+8613800XXXXXX
⑵ TEXT parameter：AT+CSMP=17，168，0，0 English format
AT+CSMP=17，168，0，0 Chinese format
⑶ Send SMS：AT+CMGS
⑷ Read single SMS：AT+CMGR=1
⑸ List multiple SMS：AT+CMGF=1
AT+CMGF=4
10
⑹ Delete SMS：AT+CMGD
Example 1：Send English character SMS
AT+CMGF=1
AT+CSMP=17，168，0，0
AT+CMGS=“Telephone number”
>Character information Ctrl+z
Example 2：Send Chinese character SMS
AT+CMGF=1
AT+CSMP=17，168，0，8
AT+CMGS=“Telephone number”
>Chinese character information Ctrl+z
10. Chinese character information is Unicode.
11
GPRS Internet Access
The below guide is an example of connecting your GSM modem to a PC and establishing a GPRS
connection to the internet through standard "Dial Up Networking"
Double Click the “Phone and Modems Option” in “Control Panel”
Double Click the “Phone and Modems Option” Icon
Select the “Modem” tab
Click the “Add…” button at the bottom of the menu
Make sure the “Don’t detect my modem; I will select it from the list” is selected

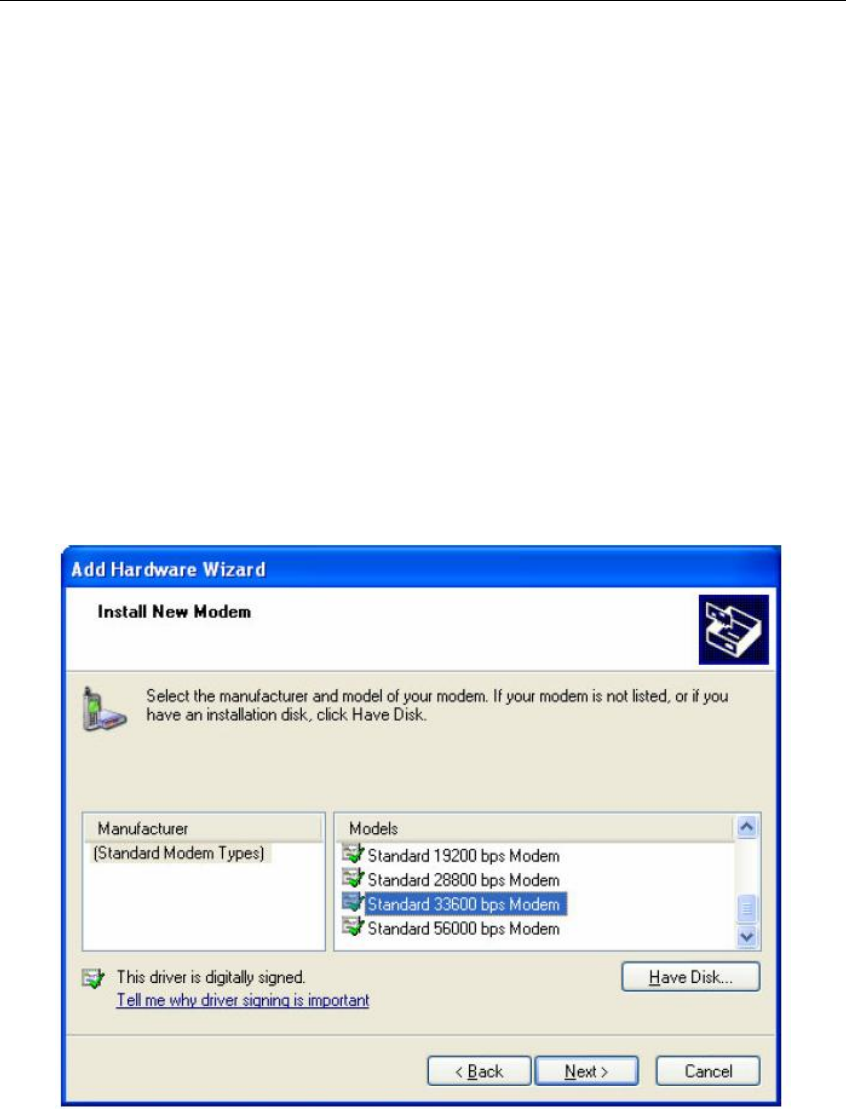

Your next screen will ask you which modem you have, make sure “Standard 33600 Bps”
modem is selected
12
The next screen will ask you which COM port your modem is connected to. Standard desktop
PC’s normally come with two COM ports, COM 1 and COM 2. If your using a USB
to RS232 Serial adapter this may appear to be a higher COM number such as COM 5
or COM 6.
You will then be greeted with a messages saying you have “Successfully Installed Your
Modem” Select your modem from the list in your “Phone and Modem Options” and click the
“Properties” button.
A new window will appear, from here you can test your modem by selecting “Diagnostics” to
ensure you have selected the appropriate COM port.
Click on the “Advanced” tab and enter the setting. Please note that you will need to obtain your
APN (Access Point Name) from your cell phone provider to replace the “CMNET” value
13

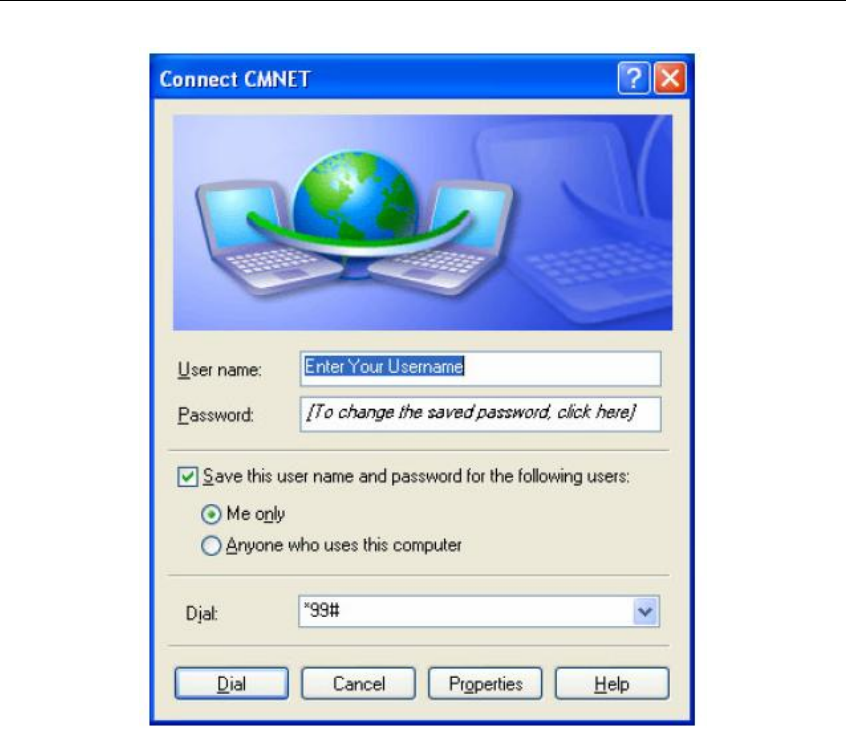

You can then establish a dial up networking connection by double clicking your “My Network
Places” icon, Selecting “View My Network Connections” and “Add a New Network Connection”
option.
You will also need to obtain your username and password from your ISP, your number to dial is
*99#
14
Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for uncontrolled
environment .This equipment should be installed and operated with minimum distance 32
cm between the radiator & your body.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
The manufacturer declares that the original GSM RF module was test in Shenzhen
Electronic Product Quality Testing Center with FCCID: UDV-0606020060002 certified
2006-08-01. The New sample (model: MOD9001C) output power is same with the original
GSM RF module sample conducted output power.
