AVALUE TECHNOLOGY ORPORATION RITAB-01 Semi Rugged Tablet User Manual Quick Installation Guide

Avalue Technology Inc. Semi Rugged Tablet Quick Installation Guide

Users Manual

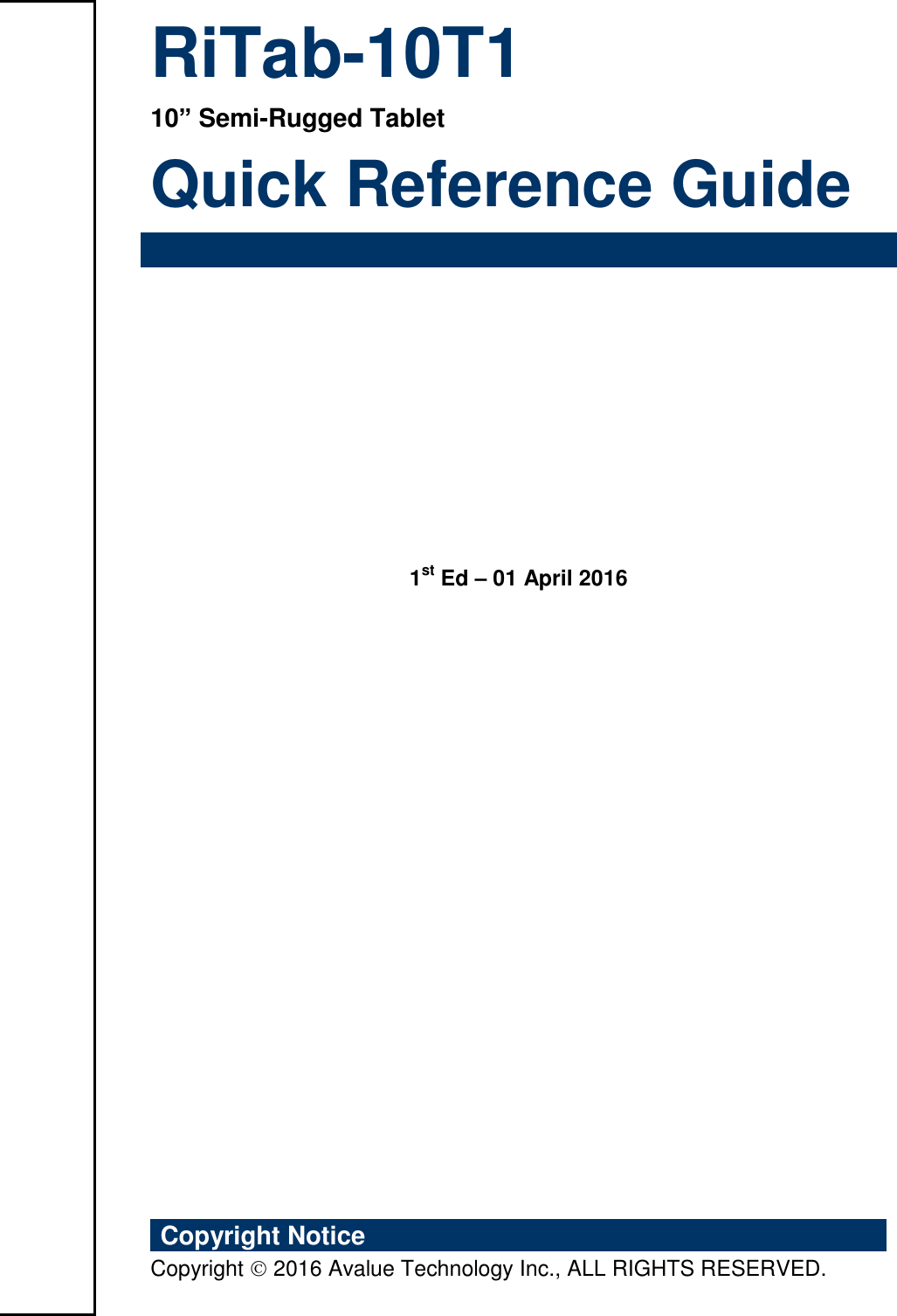

RiTab-10T1 10” Semi-Rugged Tablet Quick Reference Guide 1st Ed – 01 April 2016 Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.

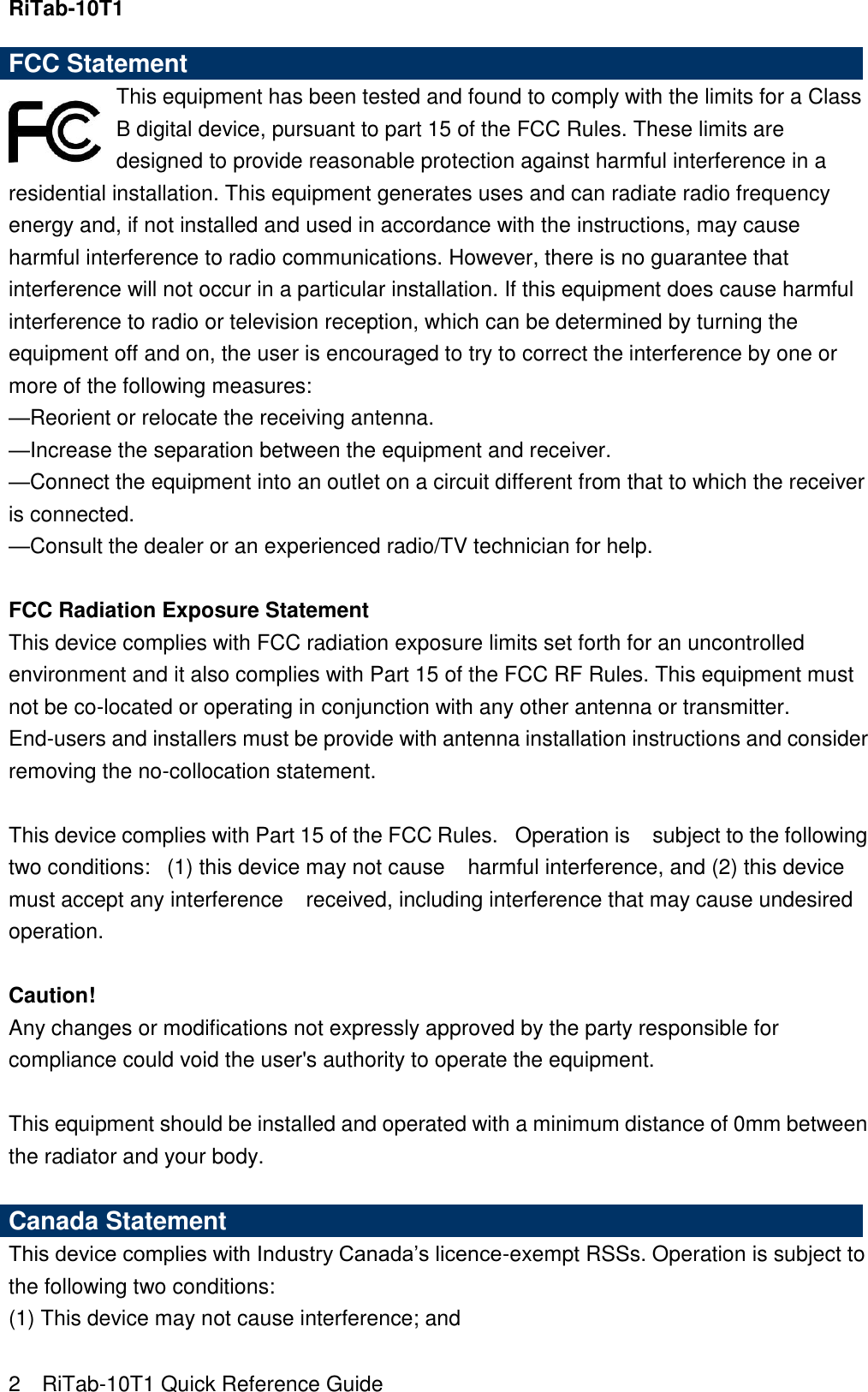

RiTab-10T1 2 RiTab-10T1 Quick Reference Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with a minimum distance of 0mm between the radiator and your body. Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and
Quick Reference Guide RiTab-10T1 Quick Reference Guide 3 (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. "This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 0mm between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 0mm entre le radiateur et votre corps." Notice This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user's manual. Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
RiTab-10T1 4 RiTab-10T1 Quick Reference Guide Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification. Life Support Policy Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF Avalue Technology Inc. As used herein: 1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user. 2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. A Message to the Customer Avalue Customer Services Each and every Avalue’s product is built to the most exacting specifications to ensure reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Avalue device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Avalue has come to be known. Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully. Technical Support We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can
Quick Reference Guide RiTab-10T1 Quick Reference Guide 5 easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/

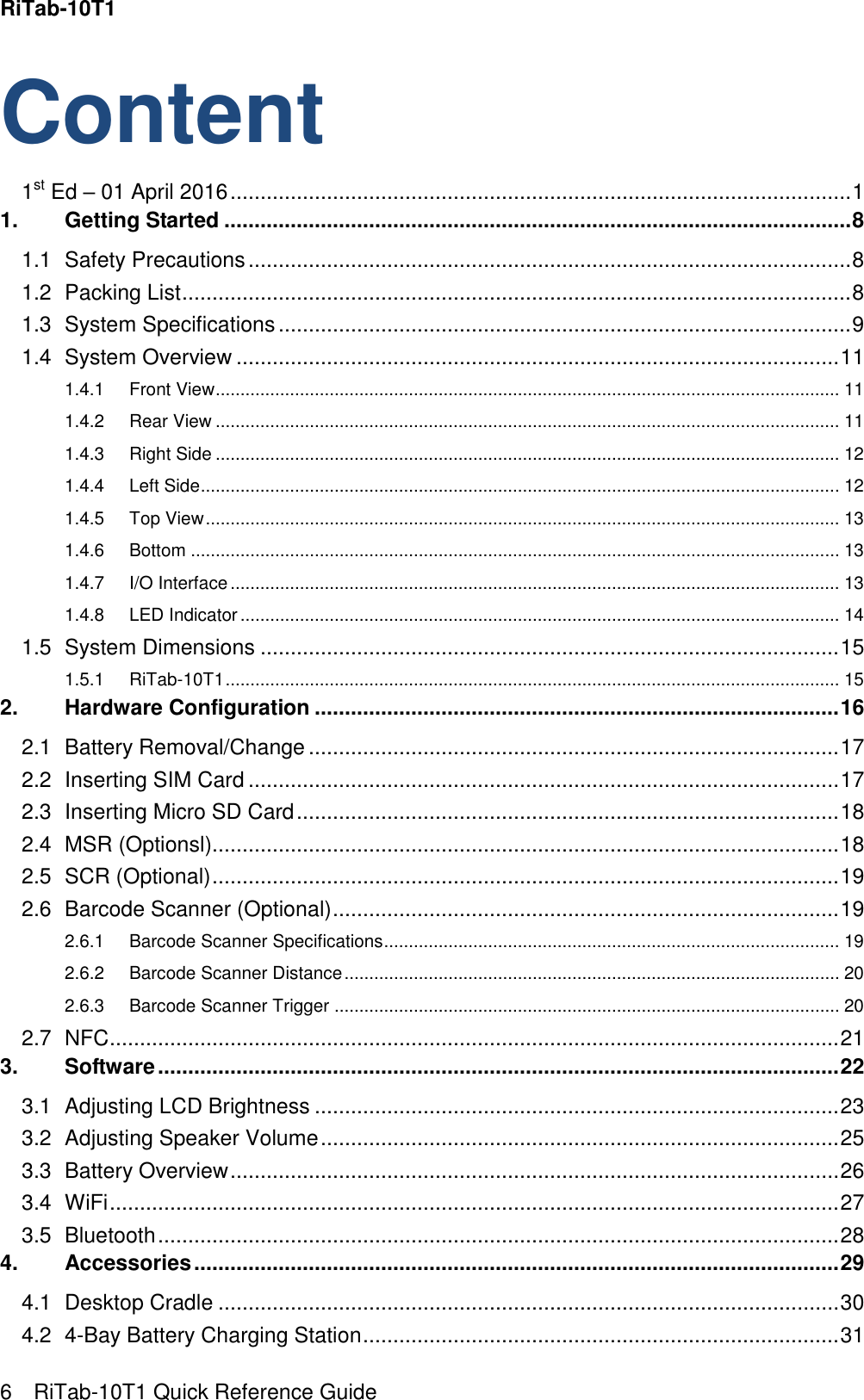

RiTab-10T1 6 RiTab-10T1 Quick Reference Guide Content 1st Ed – 01 April 2016 ....................................................................................................... 1 1. Getting Started ........................................................................................................ 8 1.1 Safety Precautions .................................................................................................... 8 1.2 Packing List ............................................................................................................... 8 1.3 System Specifications ............................................................................................... 9 1.4 System Overview .................................................................................................... 11 1.4.1 Front View .............................................................................................................................. 11 1.4.2 Rear View .............................................................................................................................. 11 1.4.3 Right Side .............................................................................................................................. 12 1.4.4 Left Side ................................................................................................................................. 12 1.4.5 Top View ................................................................................................................................ 13 1.4.6 Bottom ................................................................................................................................... 13 1.4.7 I/O Interface ........................................................................................................................... 13 1.4.8 LED Indicator ......................................................................................................................... 14 1.5 System Dimensions ................................................................................................ 15 1.5.1 RiTab-10T1 ............................................................................................................................ 15 2. Hardware Configuration ....................................................................................... 16 2.1 Battery Removal/Change ........................................................................................ 17 2.2 Inserting SIM Card .................................................................................................. 17 2.3 Inserting Micro SD Card .......................................................................................... 18 2.4 MSR (Optionsl)........................................................................................................ 18 2.5 SCR (Optional) ........................................................................................................ 19 2.6 Barcode Scanner (Optional) .................................................................................... 19 2.6.1 Barcode Scanner Specifications ............................................................................................ 19 2.6.2 Barcode Scanner Distance .................................................................................................... 20 2.6.3 Barcode Scanner Trigger ...................................................................................................... 20 2.7 NFC ......................................................................................................................... 21 3. Software ................................................................................................................. 22 3.1 Adjusting LCD Brightness ....................................................................................... 23 3.2 Adjusting Speaker Volume ...................................................................................... 25 3.3 Battery Overview ..................................................................................................... 26 3.4 WiFi ......................................................................................................................... 27 3.5 Bluetooth ................................................................................................................. 28 4. Accessories ........................................................................................................... 29 4.1 Desktop Cradle ....................................................................................................... 30 4.2 4-Bay Battery Charging Station ............................................................................... 31
Quick Reference Guide RiTab-10T1 Quick Reference Guide 7 4.3 Handstrap ............................................................................................................... 31 4.4 Mushroom Head Handle ......................................................................................... 33 4.5 Shoulder Strap ........................................................................................................ 34

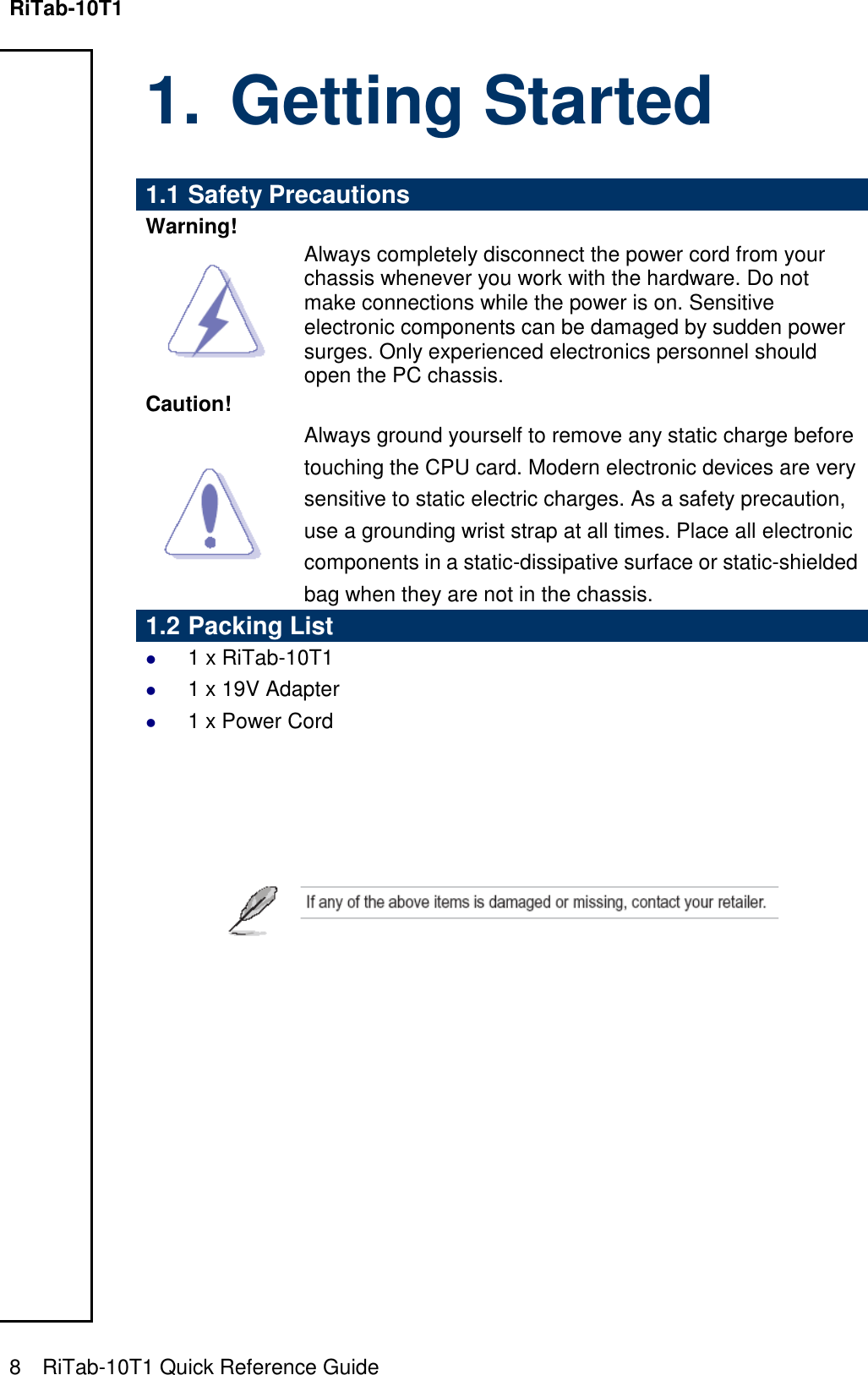

RiTab-10T1 8 RiTab-10T1 Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. Caution! Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List  1 x RiTab-10T1  1 x 19V Adapter  1 x Power Cord

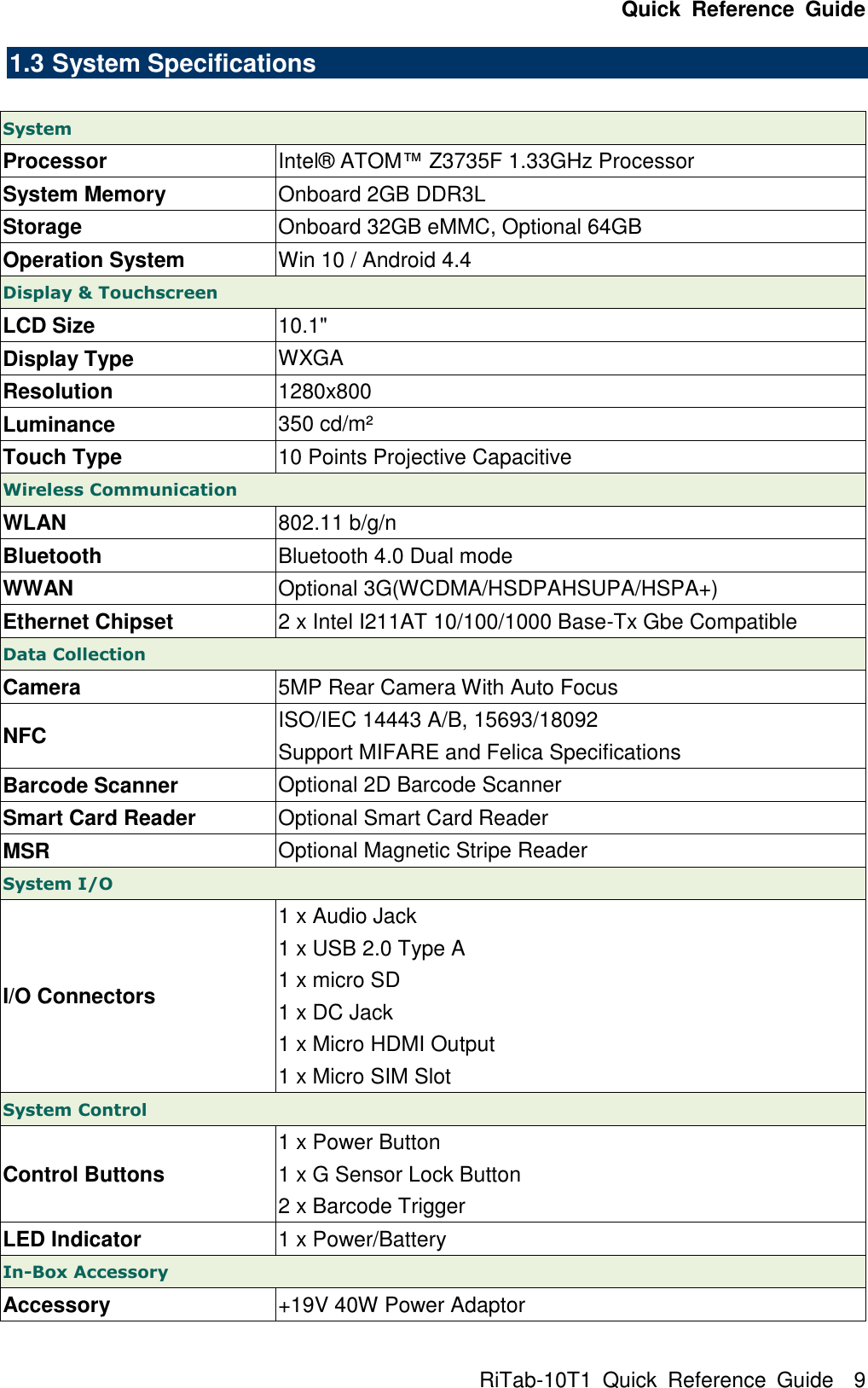

Quick Reference Guide RiTab-10T1 Quick Reference Guide 9 1.3 System Specifications System Processor Intel® ATOM™ Z3735F 1.33GHz Processor System Memory Onboard 2GB DDR3L Storage Onboard 32GB eMMC, Optional 64GB Operation System Win 10 / Android 4.4 Display & Touchscreen LCD Size 10.1" Display Type WXGA Resolution 1280x800 Luminance 350 cd/m² Touch Type 10 Points Projective Capacitive Wireless Communication WLAN 802.11 b/g/n Bluetooth Bluetooth 4.0 Dual mode WWAN Optional 3G(WCDMA/HSDPAHSUPA/HSPA+) Ethernet Chipset 2 x Intel I211AT 10/100/1000 Base-Tx Gbe Compatible Data Collection Camera 5MP Rear Camera With Auto Focus NFC ISO/IEC 14443 A/B, 15693/18092 Support MIFARE and Felica Specifications Barcode Scanner Optional 2D Barcode Scanner Smart Card Reader Optional Smart Card Reader MSR Optional Magnetic Stripe Reader System I/O I/O Connectors 1 x Audio Jack 1 x USB 2.0 Type A 1 x micro SD 1 x DC Jack 1 x Micro HDMI Output 1 x Micro SIM Slot System Control Control Buttons 1 x Power Button 1 x G Sensor Lock Button 2 x Barcode Trigger LED Indicator 1 x Power/Battery In-Box Accessory Accessory +19V 40W Power Adaptor

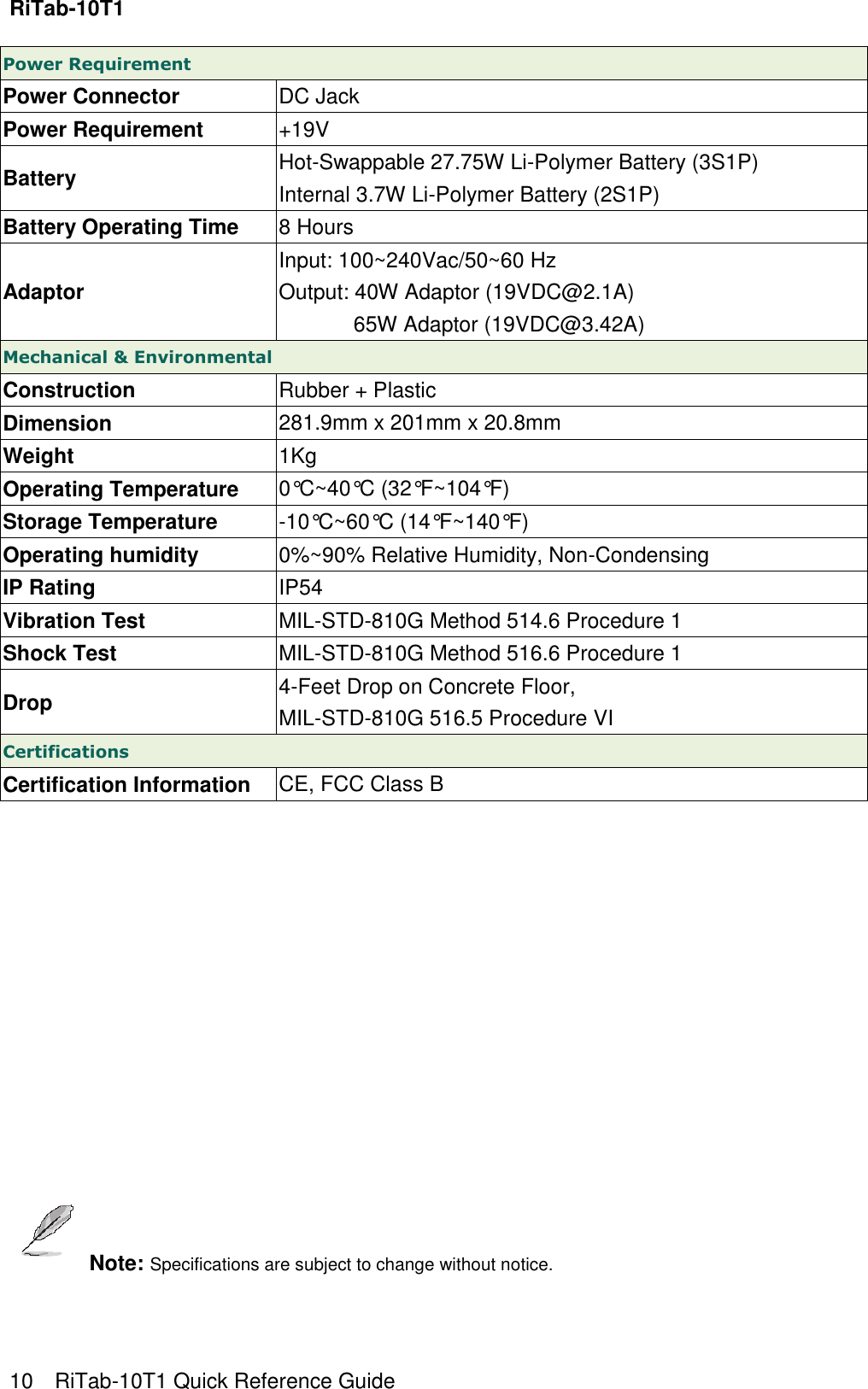

RiTab-10T1 10 RiTab-10T1 Quick Reference Guide Power Requirement Power Connector DC Jack Power Requirement +19V Battery Hot-Swappable 27.75W Li-Polymer Battery (3S1P) Internal 3.7W Li-Polymer Battery (2S1P) Battery Operating Time 8 Hours Adaptor Input: 100~240Vac/50~60 Hz Output: 40W Adaptor (19VDC@2.1A) 65W Adaptor (19VDC@3.42A) Mechanical & Environmental Construction Rubber + Plastic Dimension 281.9mm x 201mm x 20.8mm Weight 1Kg Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -10°C~60°C (14°F~140°F) Operating humidity 0%~90% Relative Humidity, Non-Condensing IP Rating IP54 Vibration Test MIL-STD-810G Method 514.6 Procedure 1 Shock Test MIL-STD-810G Method 516.6 Procedure 1 Drop 4-Feet Drop on Concrete Floor, MIL-STD-810G 516.5 Procedure VI Certifications Certification Information CE, FCC Class B Note: Specifications are subject to change without notice.

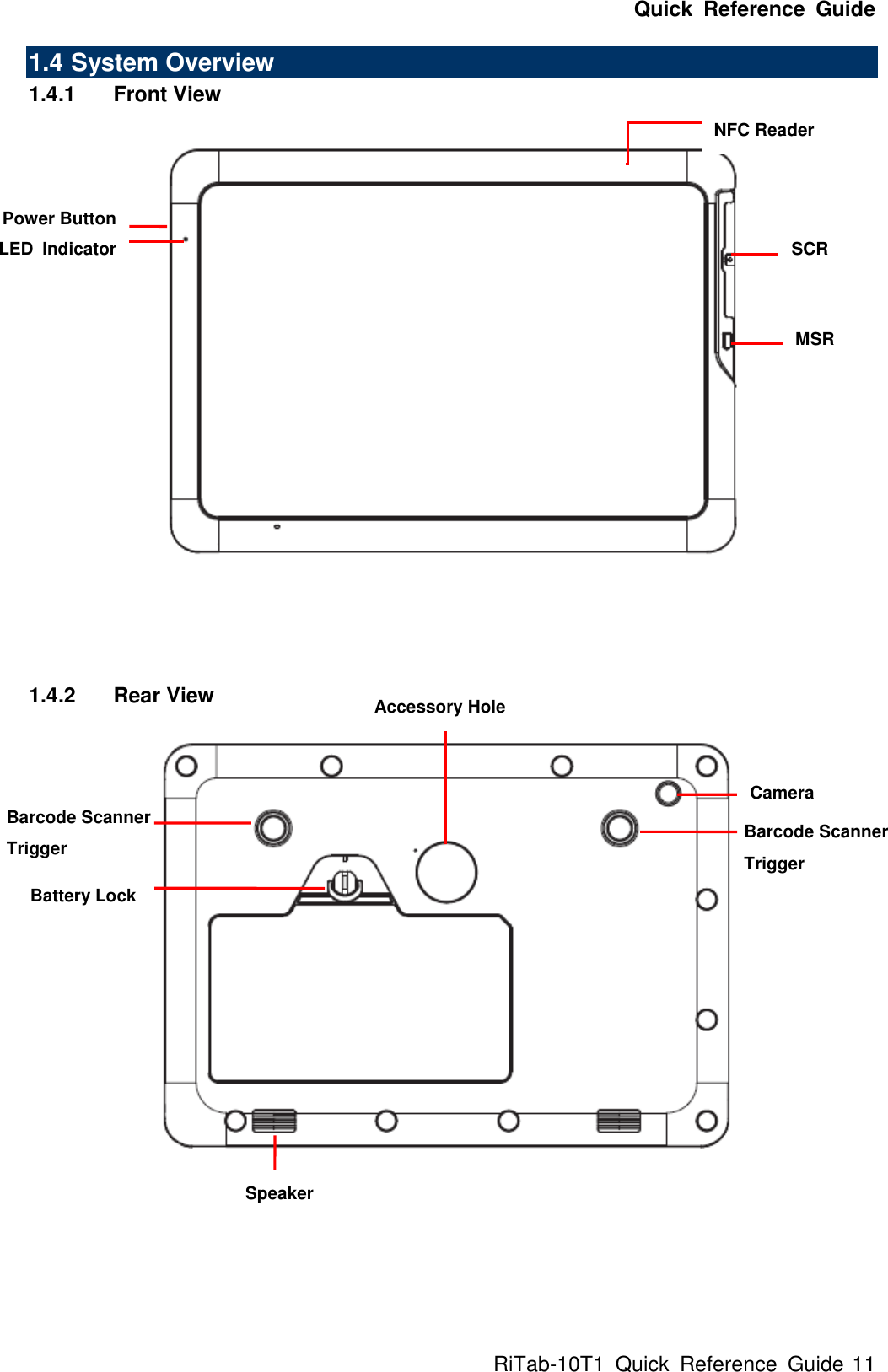

Quick Reference Guide RiTab-10T1 Quick Reference Guide 11 1.4 System Overview 1.4.1 Front View 1.4.2 Rear View Camera Barcode Scanner Trigger Barcode Scanner Trigger Battery Lock Speaker Accessory Hole NFC Reader SCR MSR Power Button LED Indicator

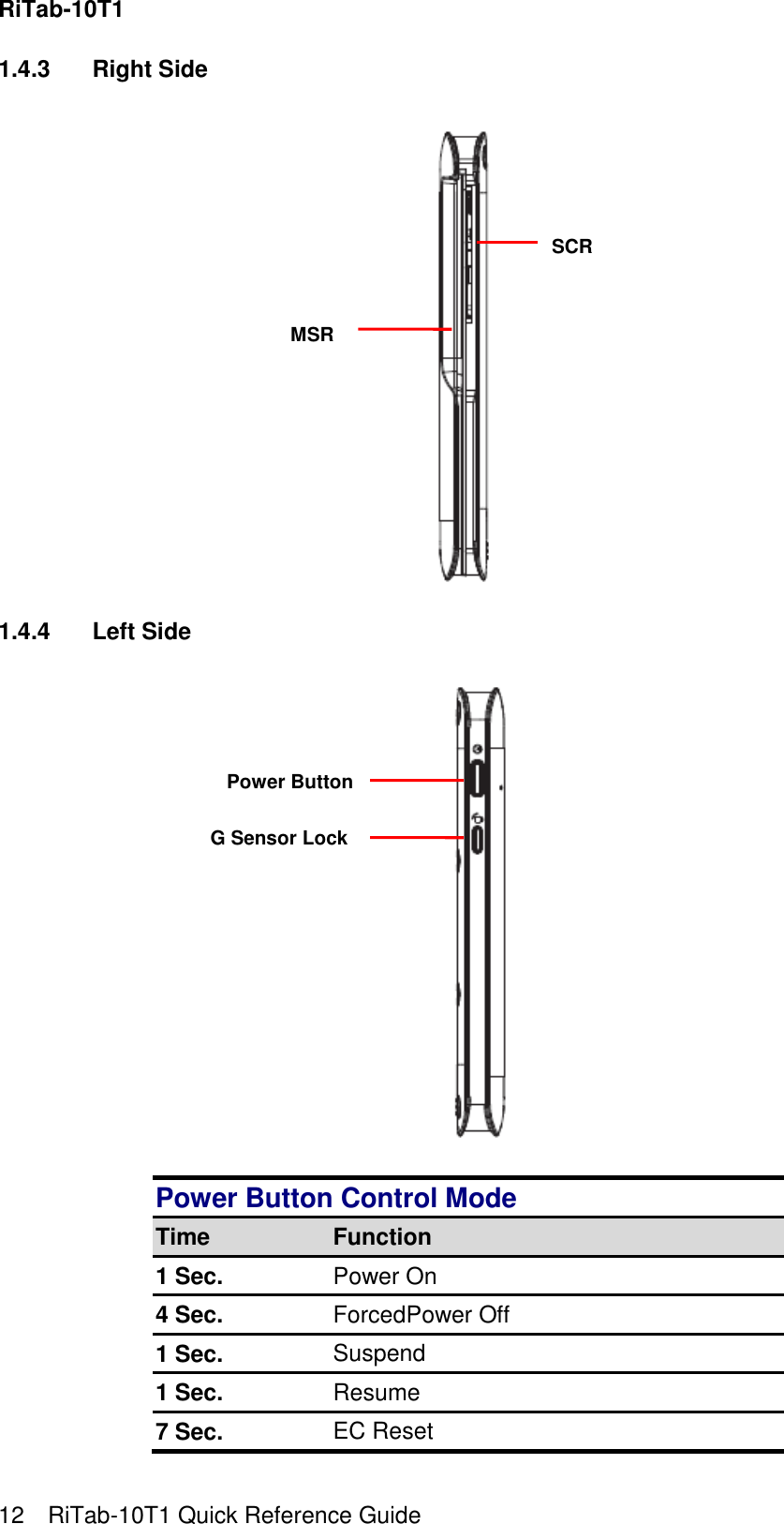

RiTab-10T1 12 RiTab-10T1 Quick Reference Guide 1.4.3 Right Side 1.4.4 Left Side Power Button Control Mode Time Function 1 Sec. Power On 4 Sec. ForcedPower Off 1 Sec. Suspend 1 Sec. Resume 7 Sec. EC Reset SCR MSR Power Button G Sensor Lock
Quick Reference Guide RiTab-10T1 Quick Reference Guide 13 1.4.5 Top View 1.4.6 Bottom 1.4.7 I/O Interface Connectors Label Function Note Micro HDMI Micro HDMI Connector Micro SD Micro SD Card Slot USB 1 x USB 2.0 Type A Docking Connector Docking Station Connector Audio Audio Connector DC-In DC Power-In Connector Barcode Scanner I/O (See 1.4.7) I/O (See 1.4.7)
RiTab-10T1 14 RiTab-10T1 Quick Reference Guide 1.4.8 LED Indicator Status Power Off Sleep Mode Power On (Main Battery Capacity) Not Charging LED Off LED Off 21% ~ 100% LED Off 11% ~ 20% Red, Blinking: ON 0.5sec., OFF 2 sec. 4% ~ 10% Red, Blinking: ON 0.5 sec., OFF 1 sec. Charging Amber Amber Amber Charging Finished w A/C Green Green Green LED Indicator

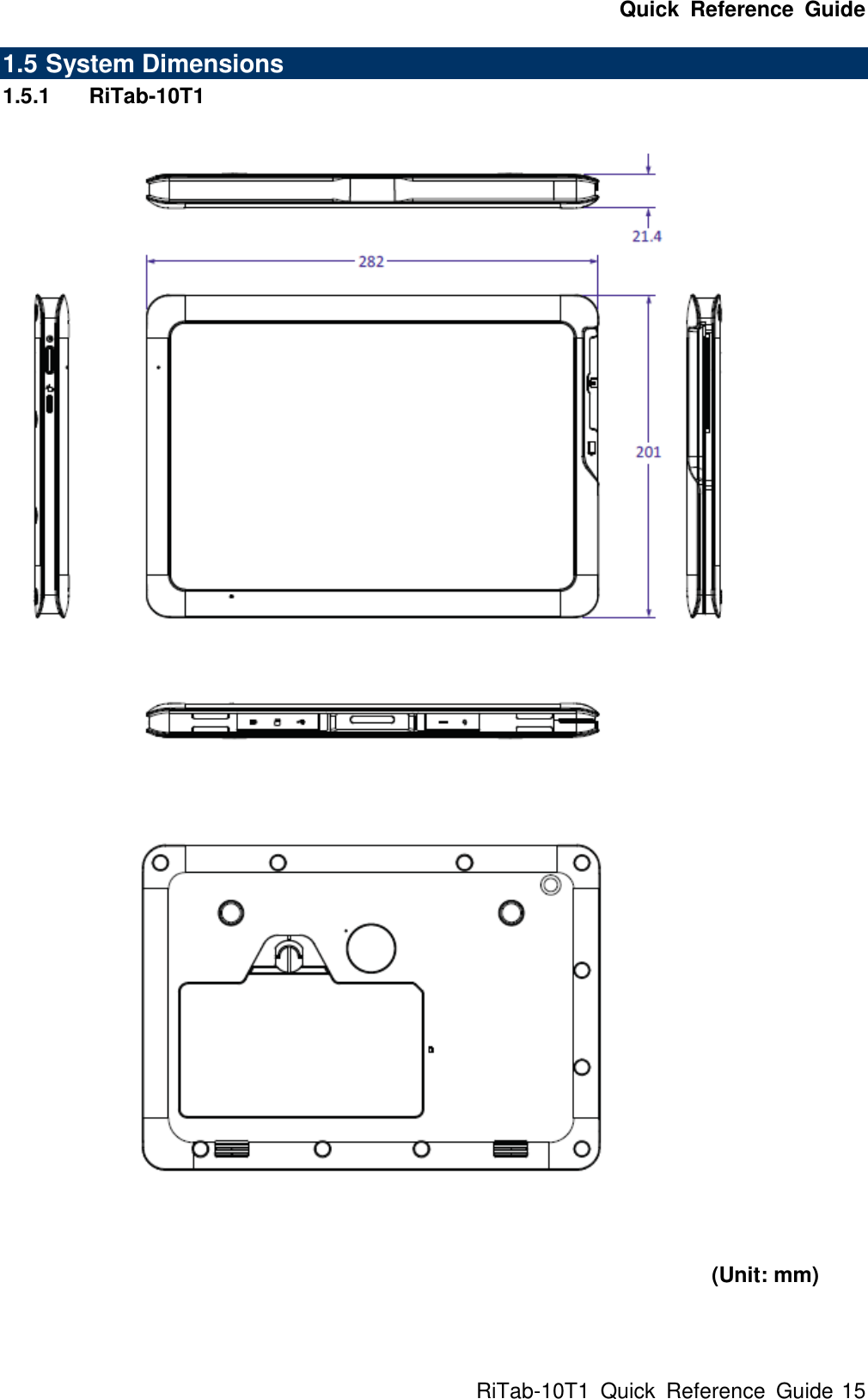

Quick Reference Guide RiTab-10T1 Quick Reference Guide 15 1.5 System Dimensions 1.5.1 RiTab-10T1 (Unit: mm)

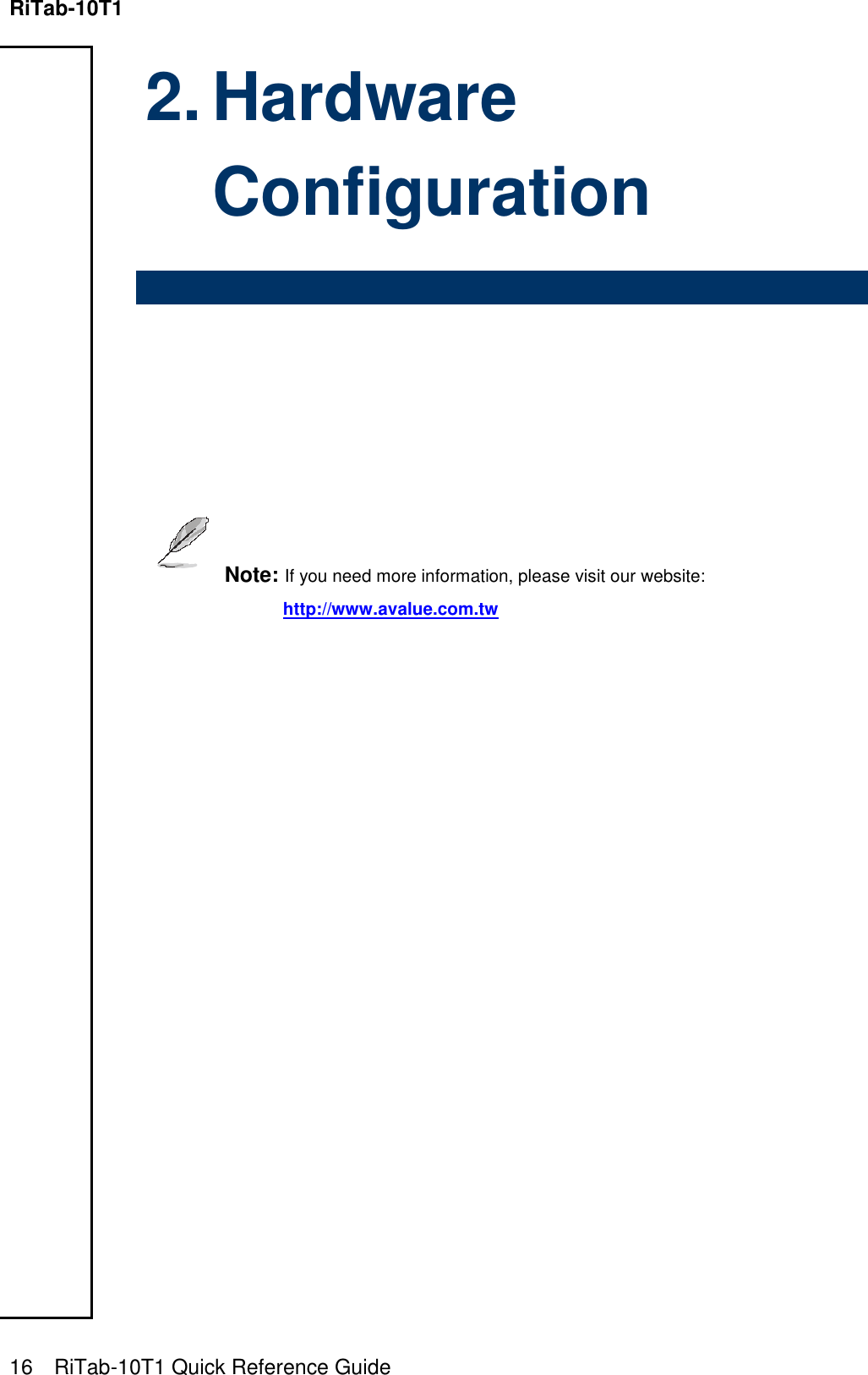

RiTab-10T1 16 RiTab-10T1 Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw

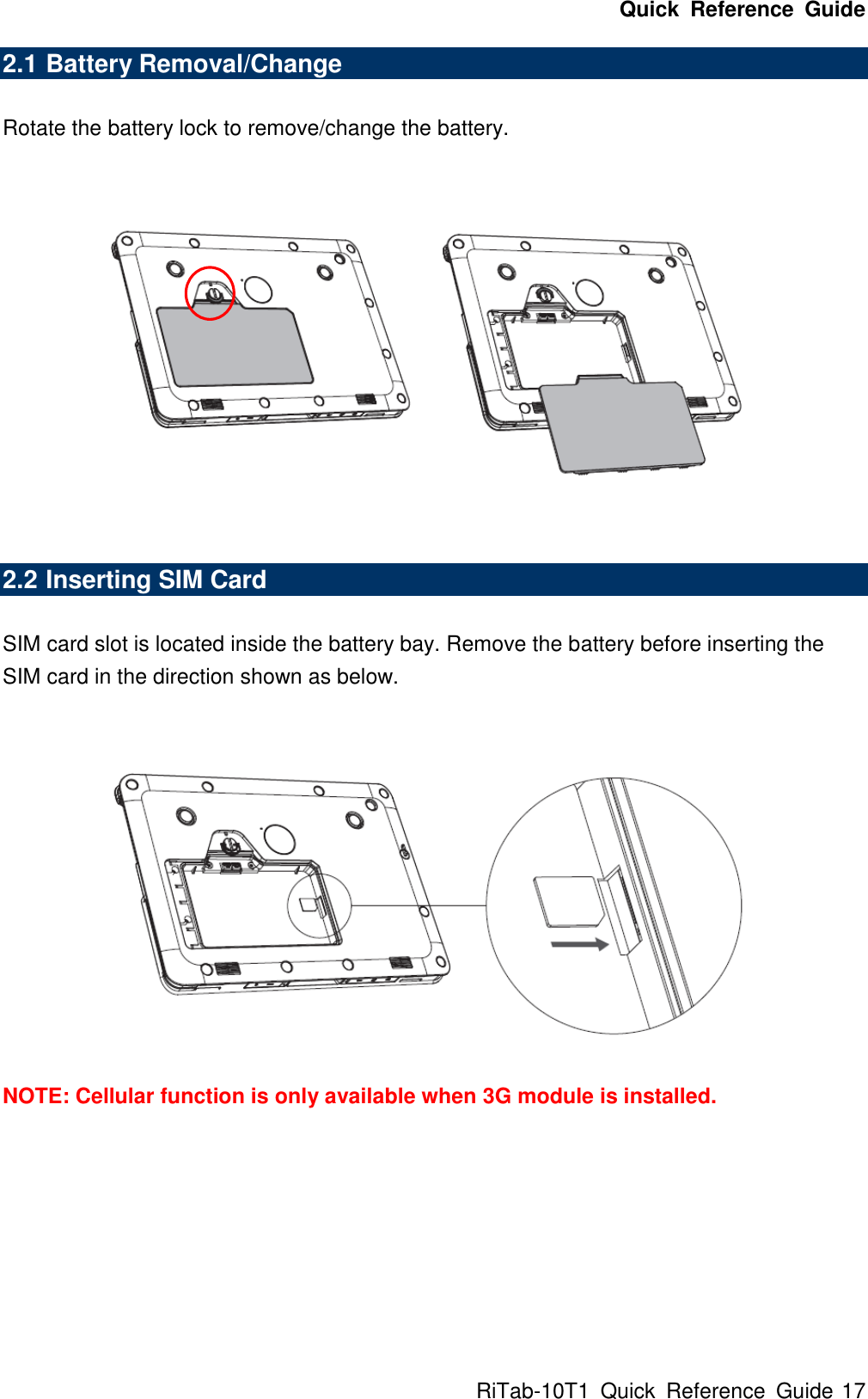

Quick Reference Guide RiTab-10T1 Quick Reference Guide 17 2.1 Battery Removal/Change Rotate the battery lock to remove/change the battery. 2.2 Inserting SIM Card SIM card slot is located inside the battery bay. Remove the battery before inserting the SIM card in the direction shown as below. NOTE: Cellular function is only available when 3G module is installed.

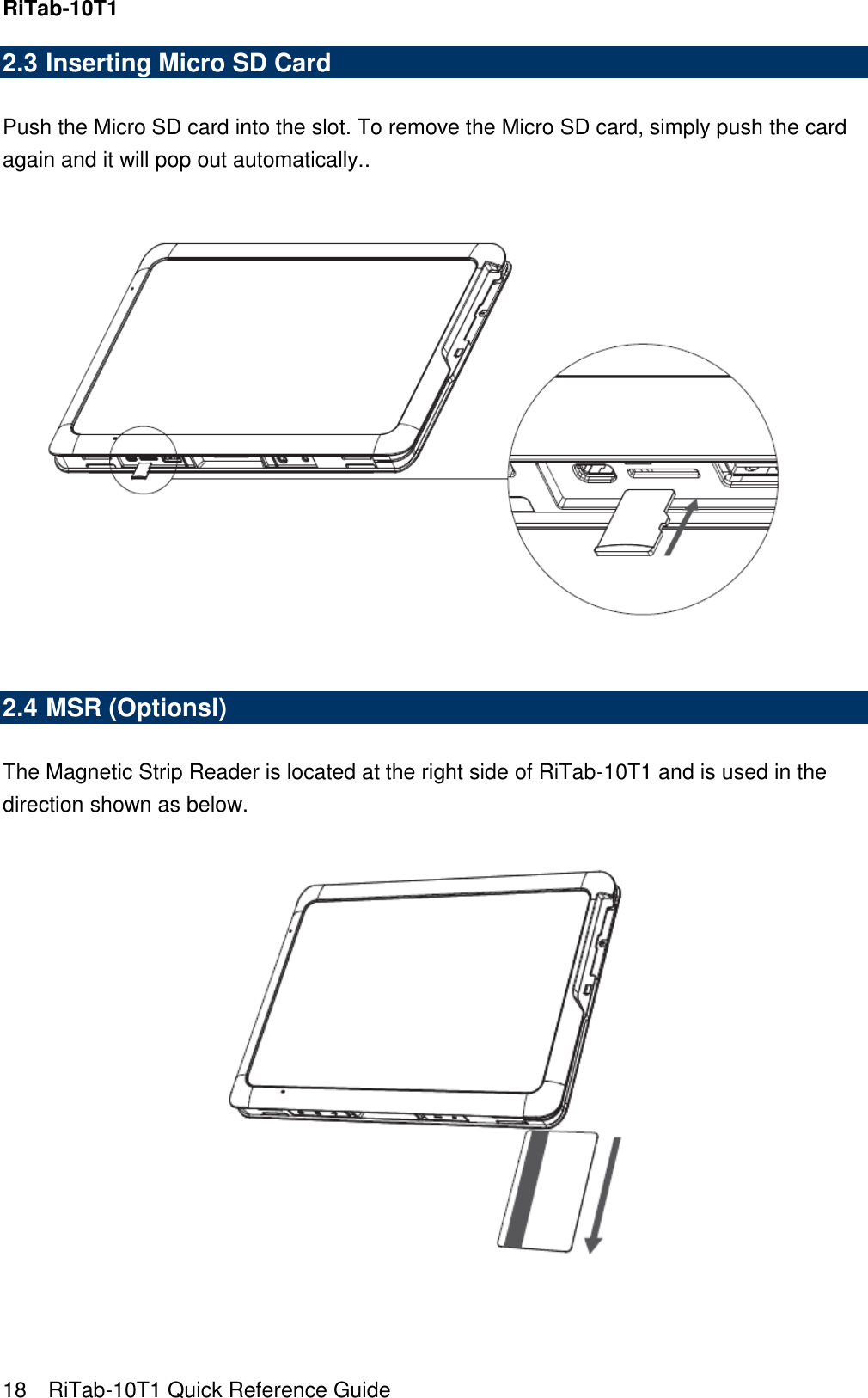

RiTab-10T1 18 RiTab-10T1 Quick Reference Guide 2.3 Inserting Micro SD Card Push the Micro SD card into the slot. To remove the Micro SD card, simply push the card again and it will pop out automatically.. 2.4 MSR (Optionsl) The Magnetic Strip Reader is located at the right side of RiTab-10T1 and is used in the direction shown as below.

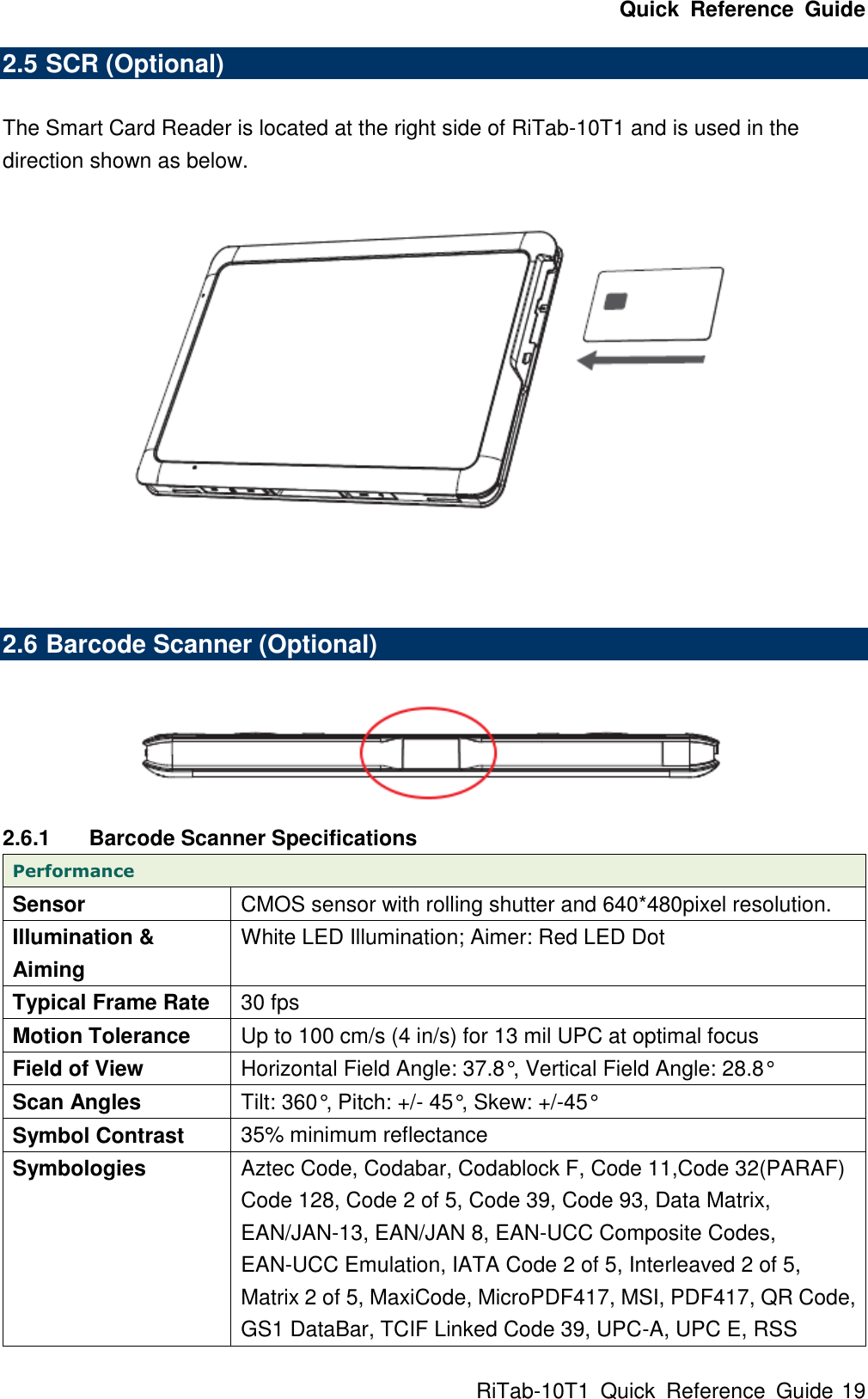

Quick Reference Guide RiTab-10T1 Quick Reference Guide 19 2.5 SCR (Optional) The Smart Card Reader is located at the right side of RiTab-10T1 and is used in the direction shown as below. 2.6 Barcode Scanner (Optional) 2.6.1 Barcode Scanner Specifications Performance Sensor CMOS sensor with rolling shutter and 640*480pixel resolution. Illumination & Aiming White LED Illumination; Aimer: Red LED Dot Typical Frame Rate 30 fps Motion Tolerance Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal focus Field of View Horizontal Field Angle: 37.8°, Vertical Field Angle: 28.8° Scan Angles Tilt: 360°, Pitch: +/- 45°, Skew: +/-45° Symbol Contrast 35% minimum reflectance Symbologies Aztec Code, Codabar, Codablock F, Code 11,Code 32(PARAF) Code 128, Code 2 of 5, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417, QR Code, GS1 DataBar, TCIF Linked Code 39, UPC-A, UPC E, RSS

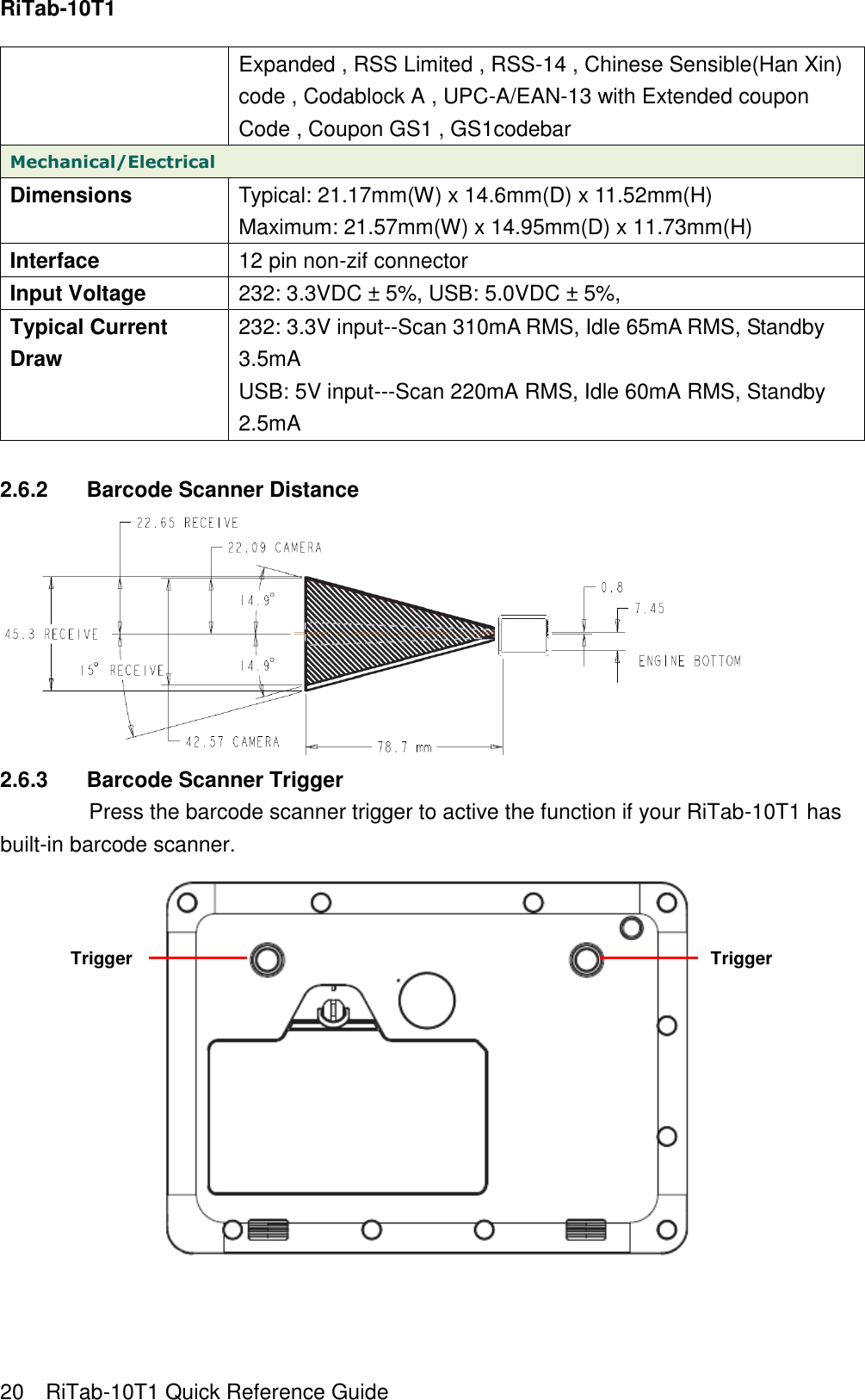

RiTab-10T1 20 RiTab-10T1 Quick Reference Guide Expanded , RSS Limited , RSS-14 , Chinese Sensible(Han Xin) code , Codablock A , UPC-A/EAN-13 with Extended coupon Code , Coupon GS1 , GS1codebar Mechanical/Electrical Dimensions Typical: 21.17mm(W) x 14.6mm(D) x 11.52mm(H) Maximum: 21.57mm(W) x 14.95mm(D) x 11.73mm(H) Interface 12 pin non-zif connector Input Voltage 232: 3.3VDC ± 5%, USB: 5.0VDC ± 5%, Typical Current Draw 232: 3.3V input--Scan 310mA RMS, Idle 65mA RMS, Standby 3.5mA USB: 5V input---Scan 220mA RMS, Idle 60mA RMS, Standby 2.5mA 2.6.2 Barcode Scanner Distance 2.6.3 Barcode Scanner Trigger Press the barcode scanner trigger to active the function if your RiTab-10T1 has built-in barcode scanner. Trigger Trigger

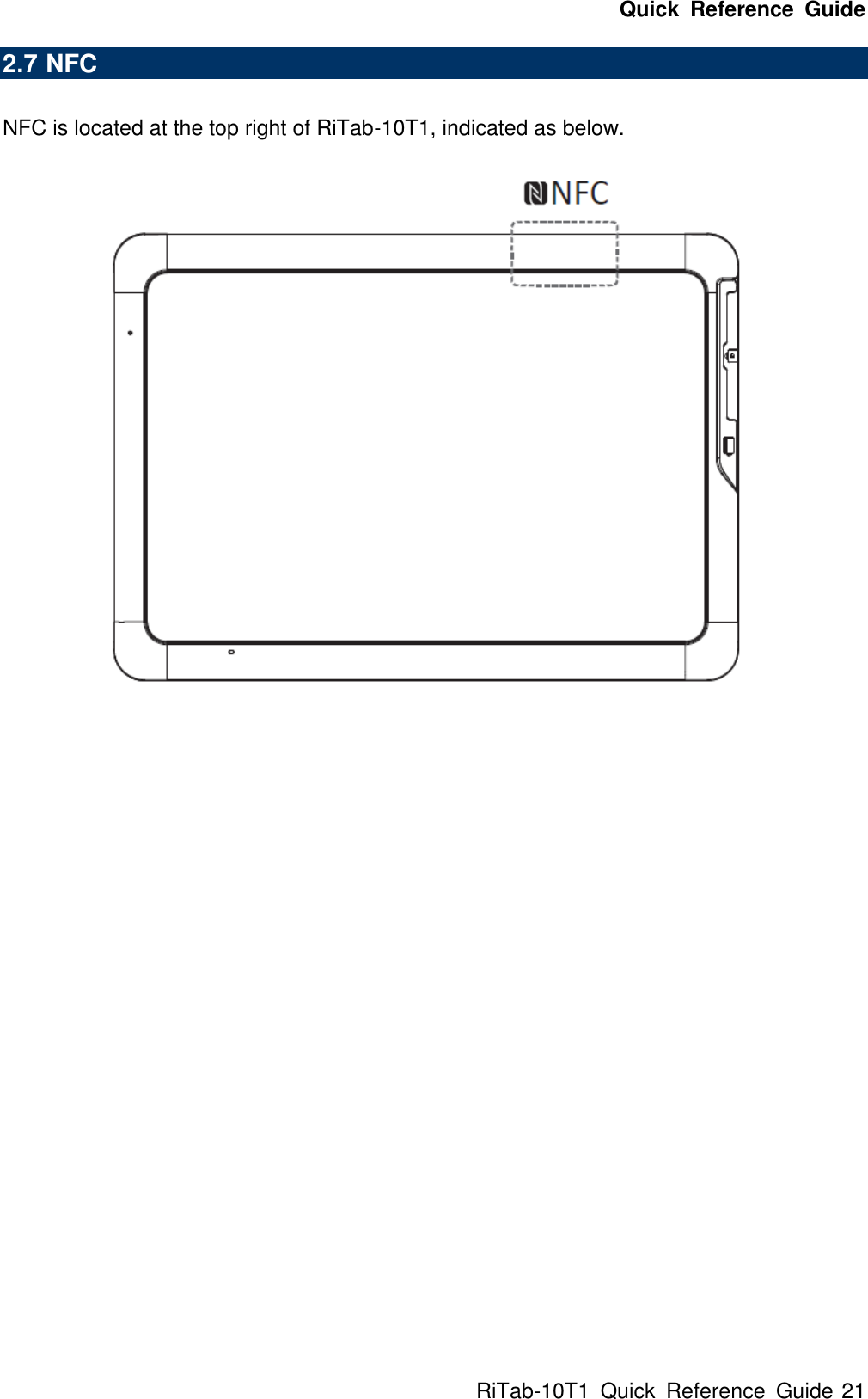

Quick Reference Guide RiTab-10T1 Quick Reference Guide 21 2.7 NFC NFC is located at the top right of RiTab-10T1, indicated as below.

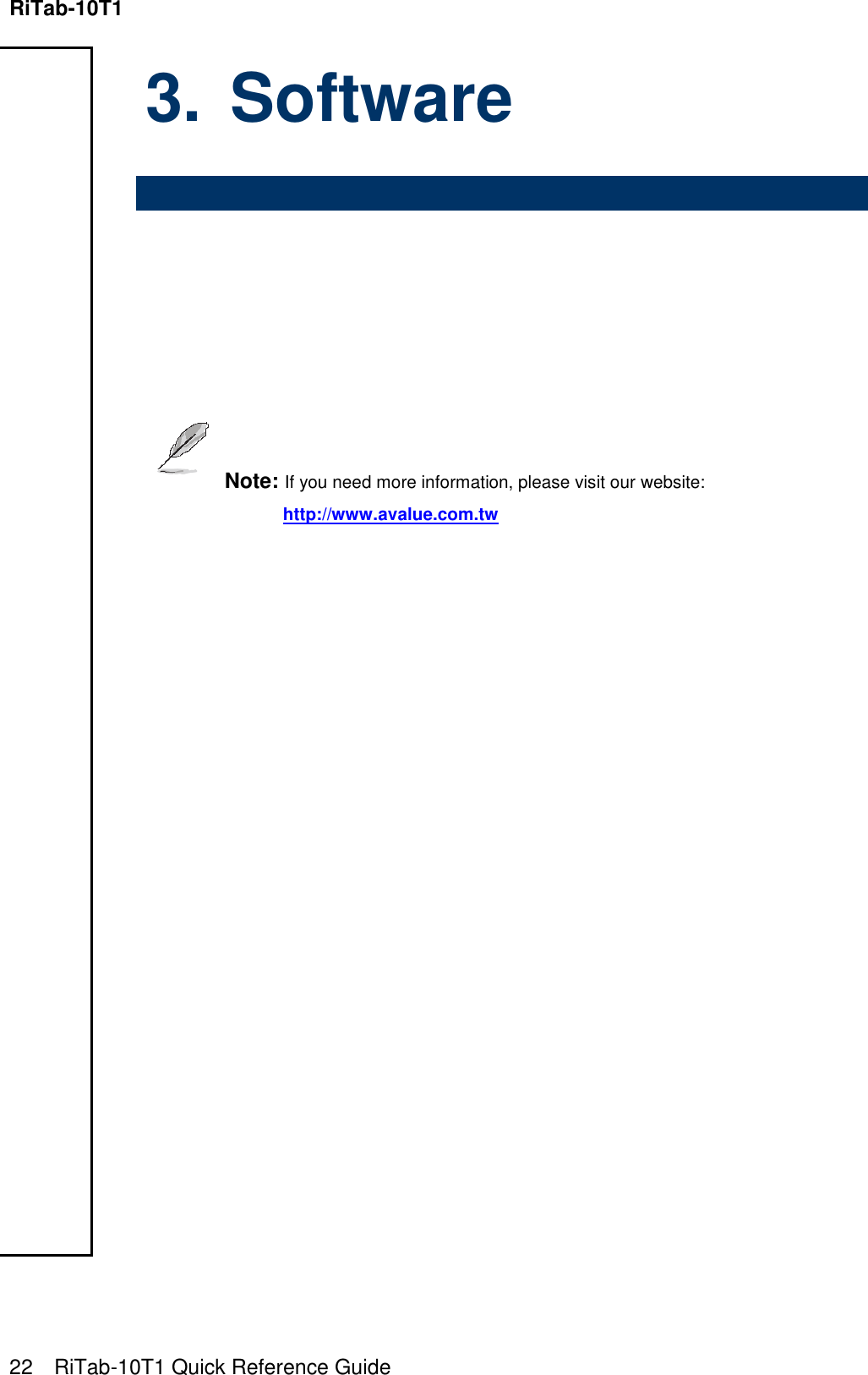

RiTab-10T1 22 RiTab-10T1 Quick Reference Guide 3. Software Note: If you need more information, please visit our website: http://www.avalue.com.tw

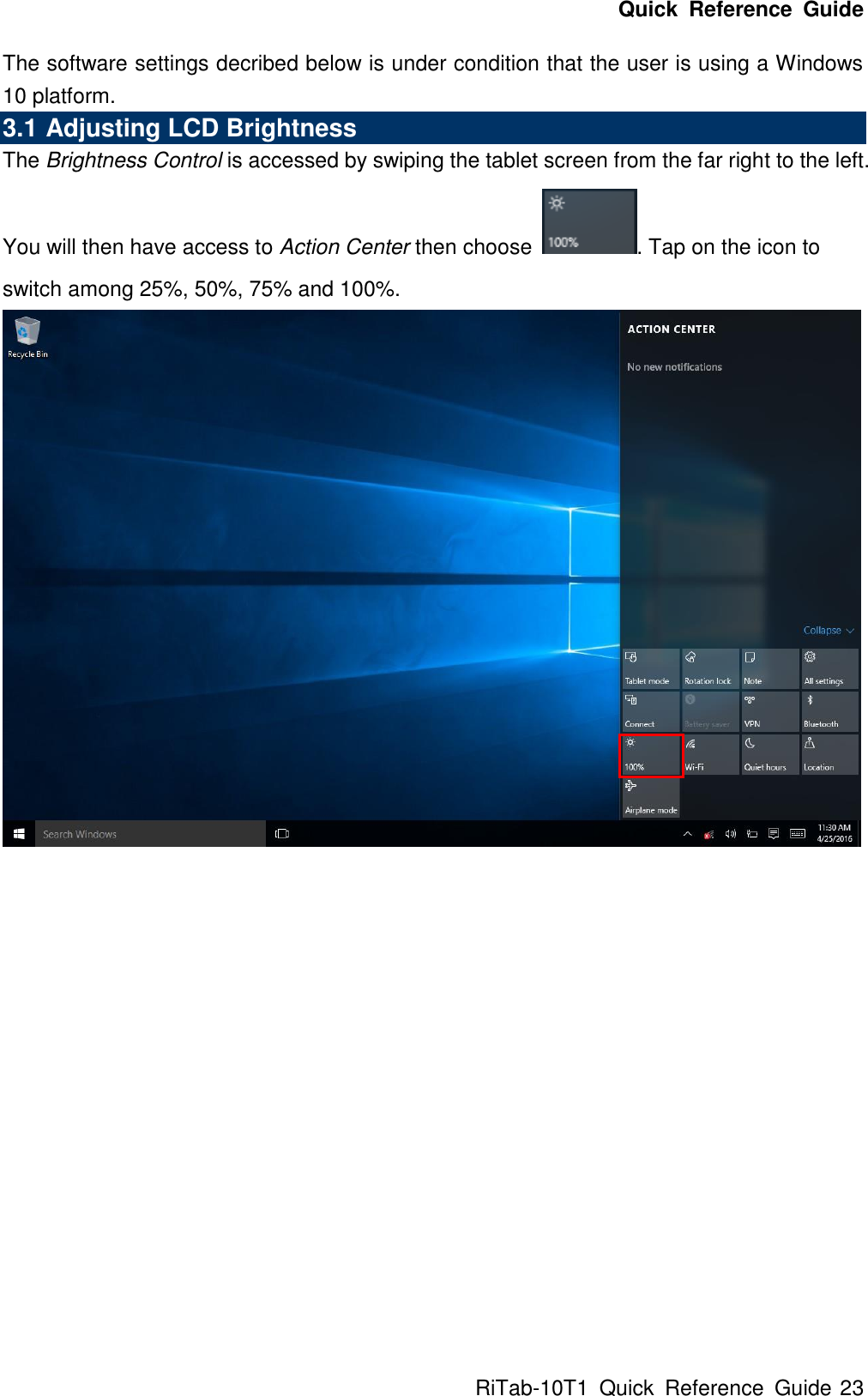

Quick Reference Guide RiTab-10T1 Quick Reference Guide 23 The software settings decribed below is under condition that the user is using a Windows 10 platform. 3.1 Adjusting LCD Brightness The Brightness Control is accessed by swiping the tablet screen from the far right to the left. You will then have access to Action Center then choose . Tap on the icon to switch among 25%, 50%, 75% and 100%.

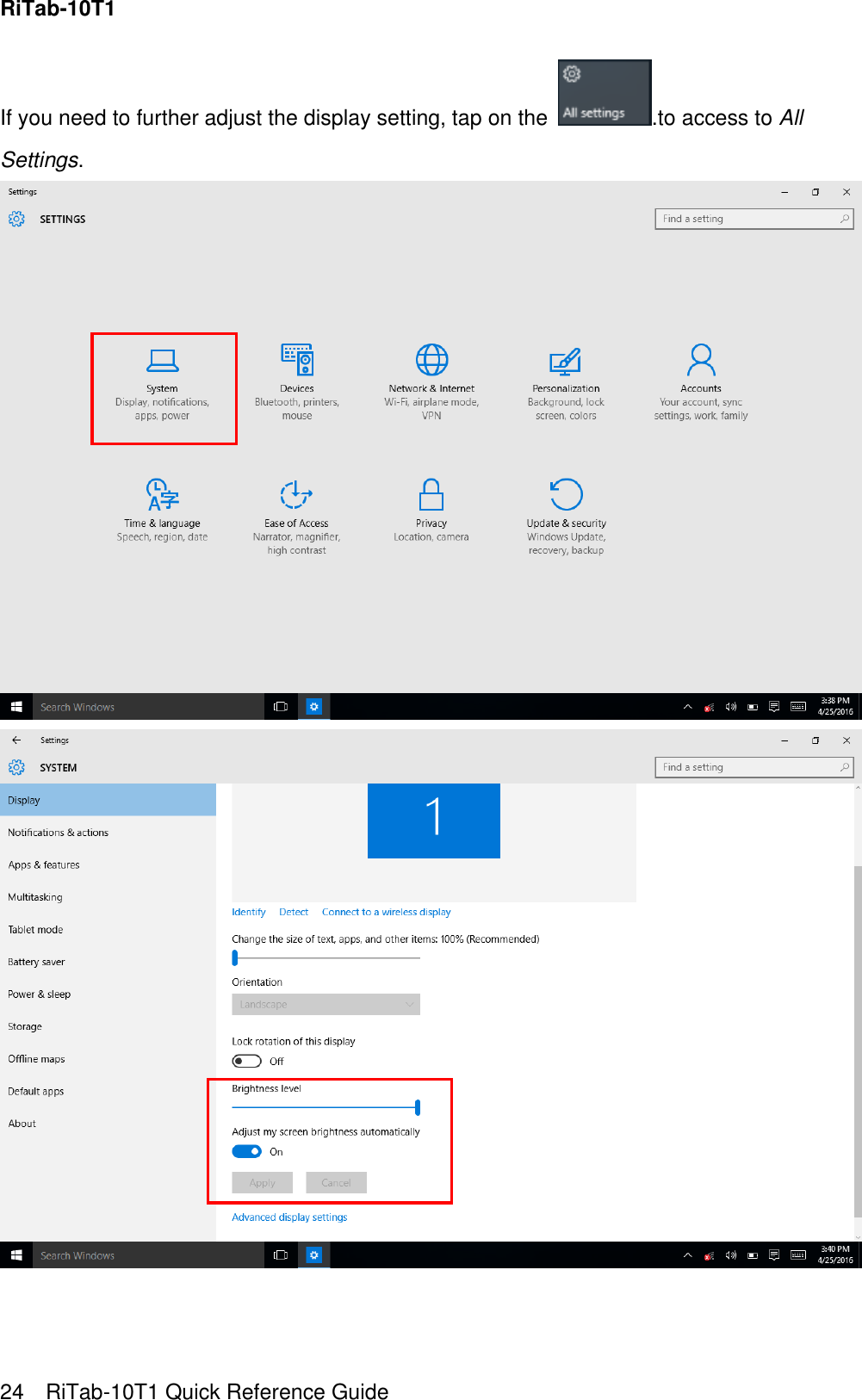

RiTab-10T1 24 RiTab-10T1 Quick Reference Guide If you need to further adjust the display setting, tap on the .to access to All Settings.

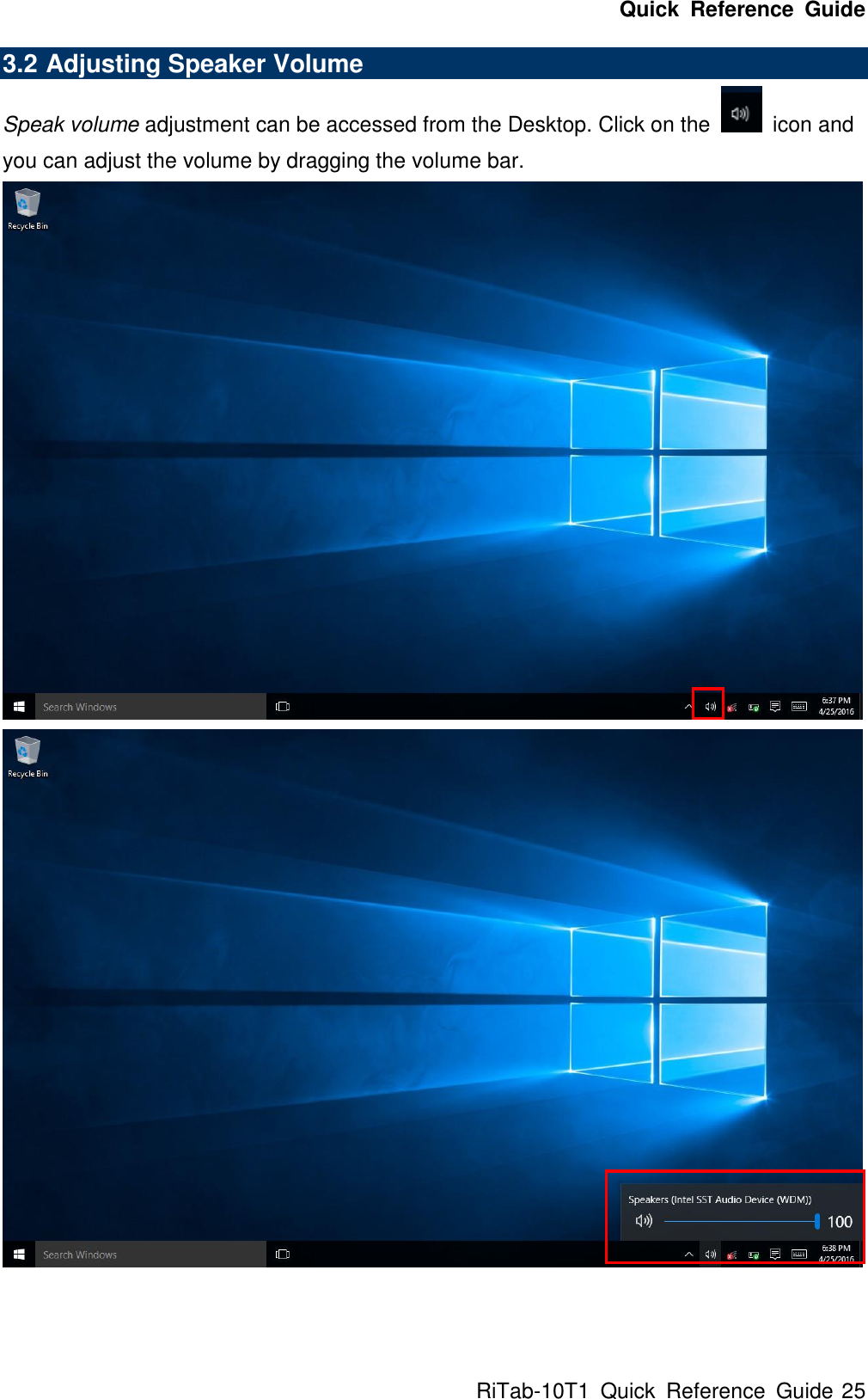

Quick Reference Guide RiTab-10T1 Quick Reference Guide 25 3.2 Adjusting Speaker Volume Speak volume adjustment can be accessed from the Desktop. Click on the icon and you can adjust the volume by dragging the volume bar.

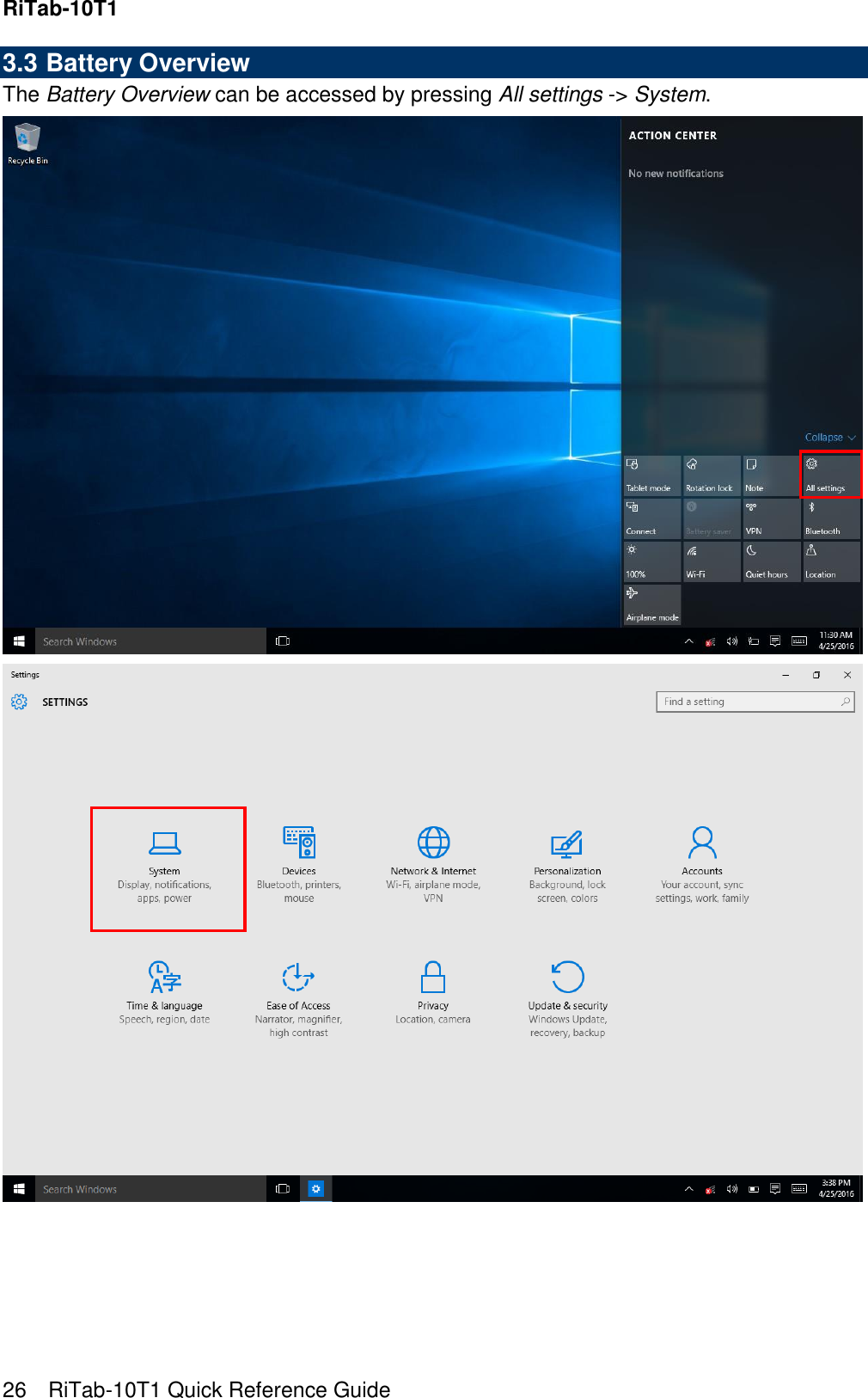

RiTab-10T1 26 RiTab-10T1 Quick Reference Guide 3.3 Battery Overview The Battery Overview can be accessed by pressing All settings -> System.

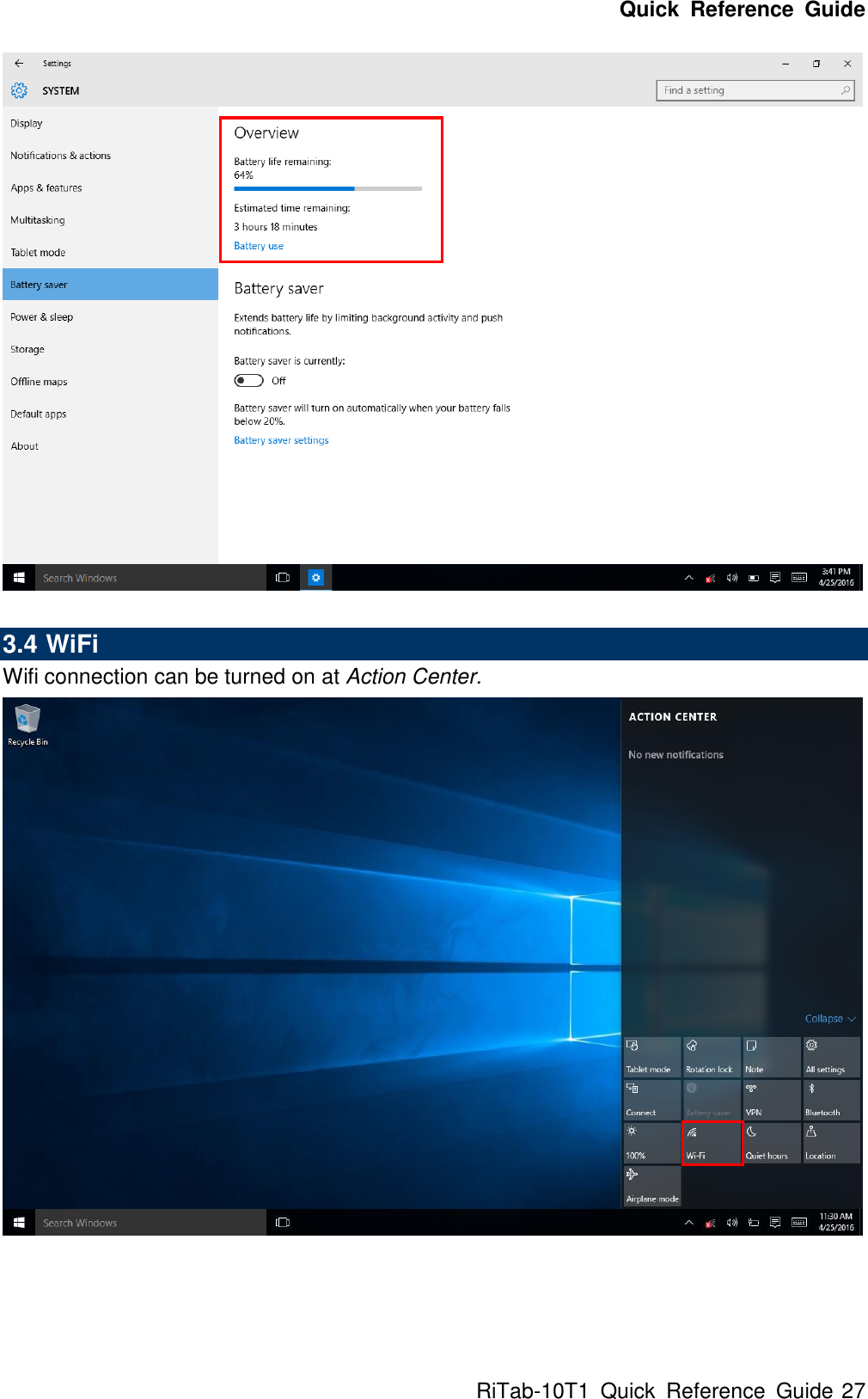

Quick Reference Guide RiTab-10T1 Quick Reference Guide 27 3.4 WiFi Wifi connection can be turned on at Action Center.

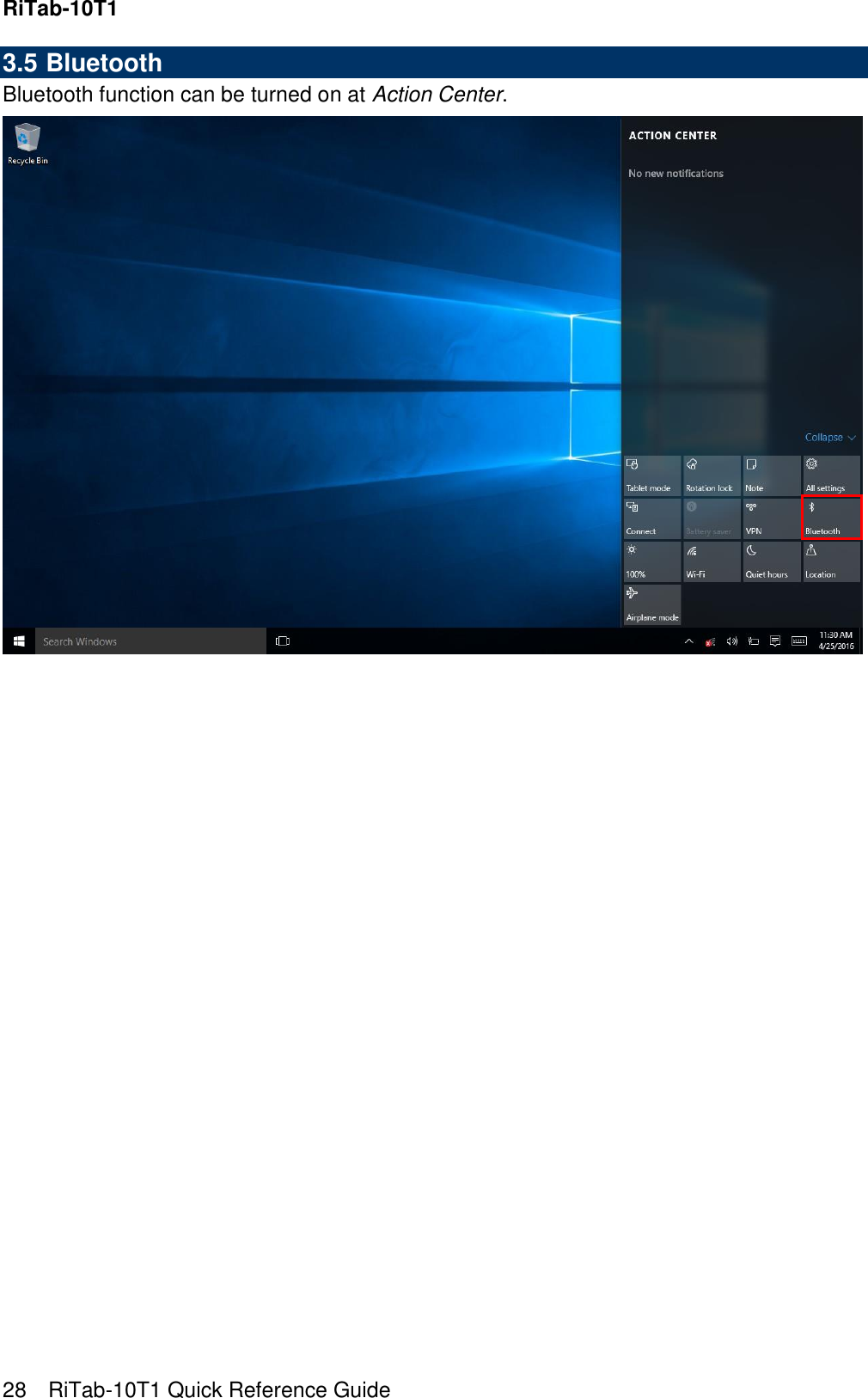

RiTab-10T1 28 RiTab-10T1 Quick Reference Guide 3.5 Bluetooth Bluetooth function can be turned on at Action Center.

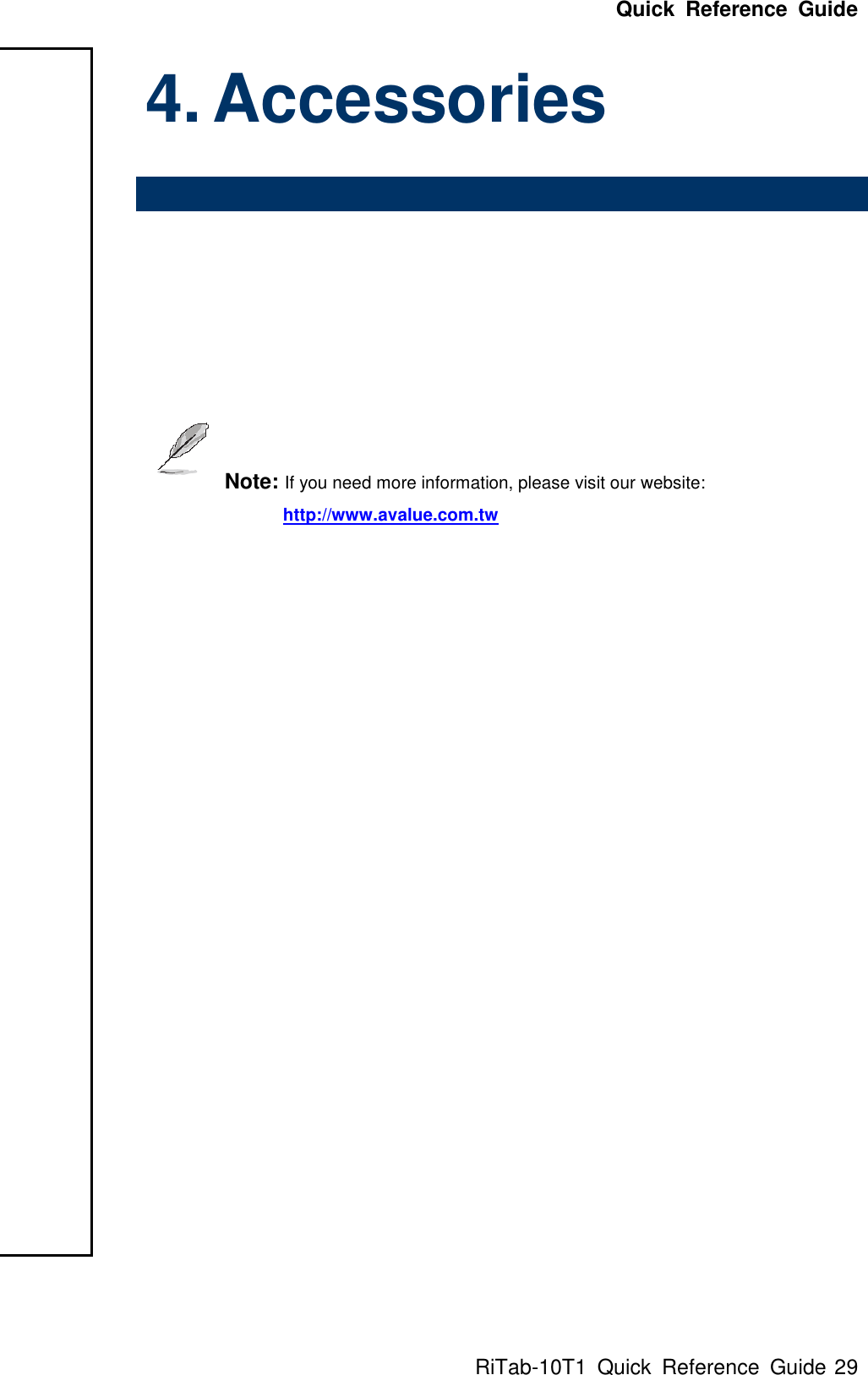

Quick Reference Guide RiTab-10T1 Quick Reference Guide 29 4. Accessories Note: If you need more information, please visit our website: http://www.avalue.com.tw
RiTab-10T1 30 RiTab-10T1 Quick Reference Guide 4.1 Desktop Cradle Place RiTab-10T1 on the desktop cradle in the direction shown as below. 1xDC-in 2xUSB2.0 2xUSB2.0 1xRJ45

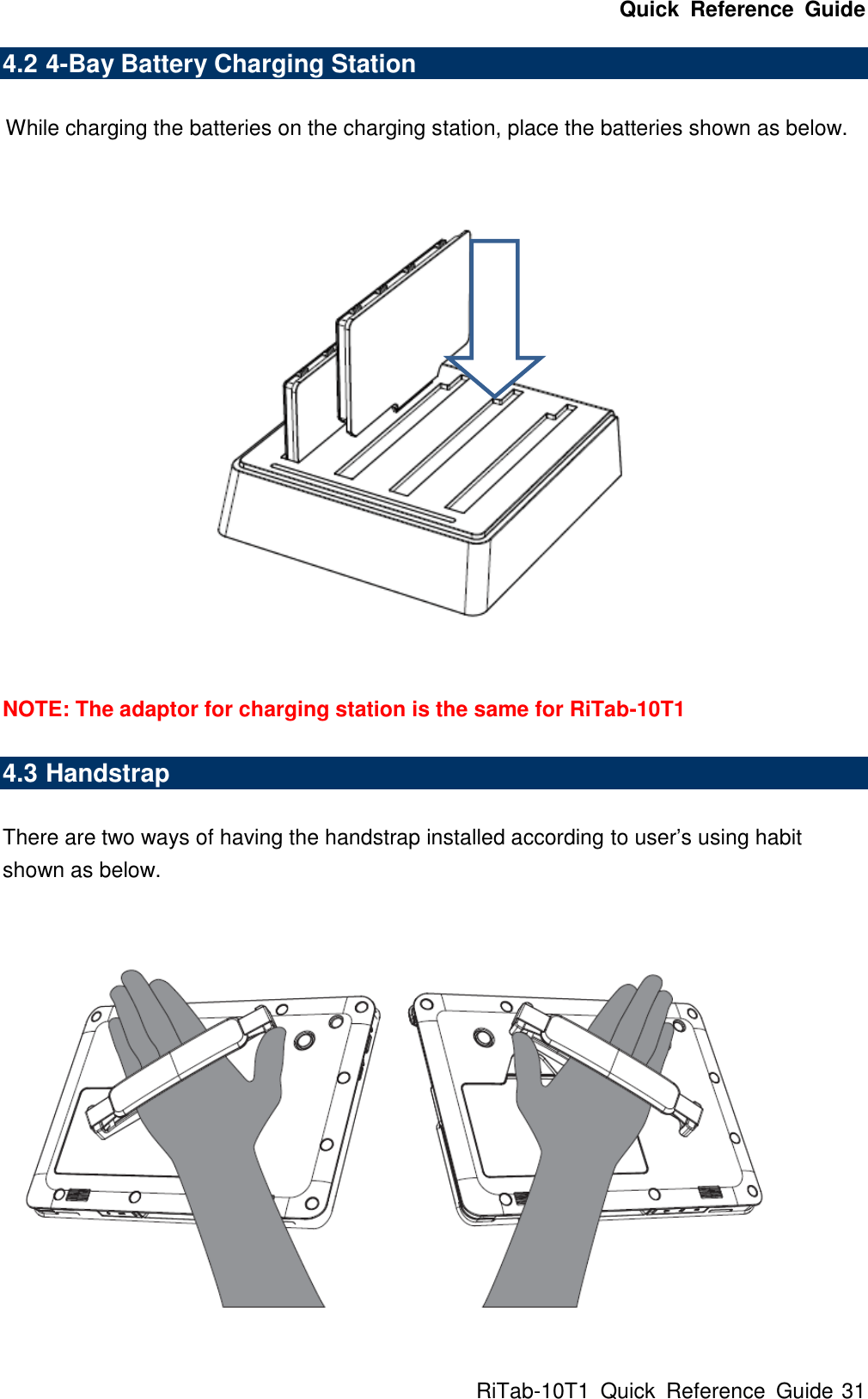

Quick Reference Guide RiTab-10T1 Quick Reference Guide 31 4.2 4-Bay Battery Charging Station While charging the batteries on the charging station, place the batteries shown as below. NOTE: The adaptor for charging station is the same for RiTab-10T1 4.3 Handstrap There are two ways of having the handstrap installed according to user’s using habit shown as below.
RiTab-10T1 32 RiTab-10T1 Quick Reference Guide To install, insert the handstrap into the hole at the back of the tablet and turn the handstrap clockwise to lock the handstrap. To remove the handtrap, turn the handstrp counter-clockwise into horizontal, then press the button on the handstrap and remove.

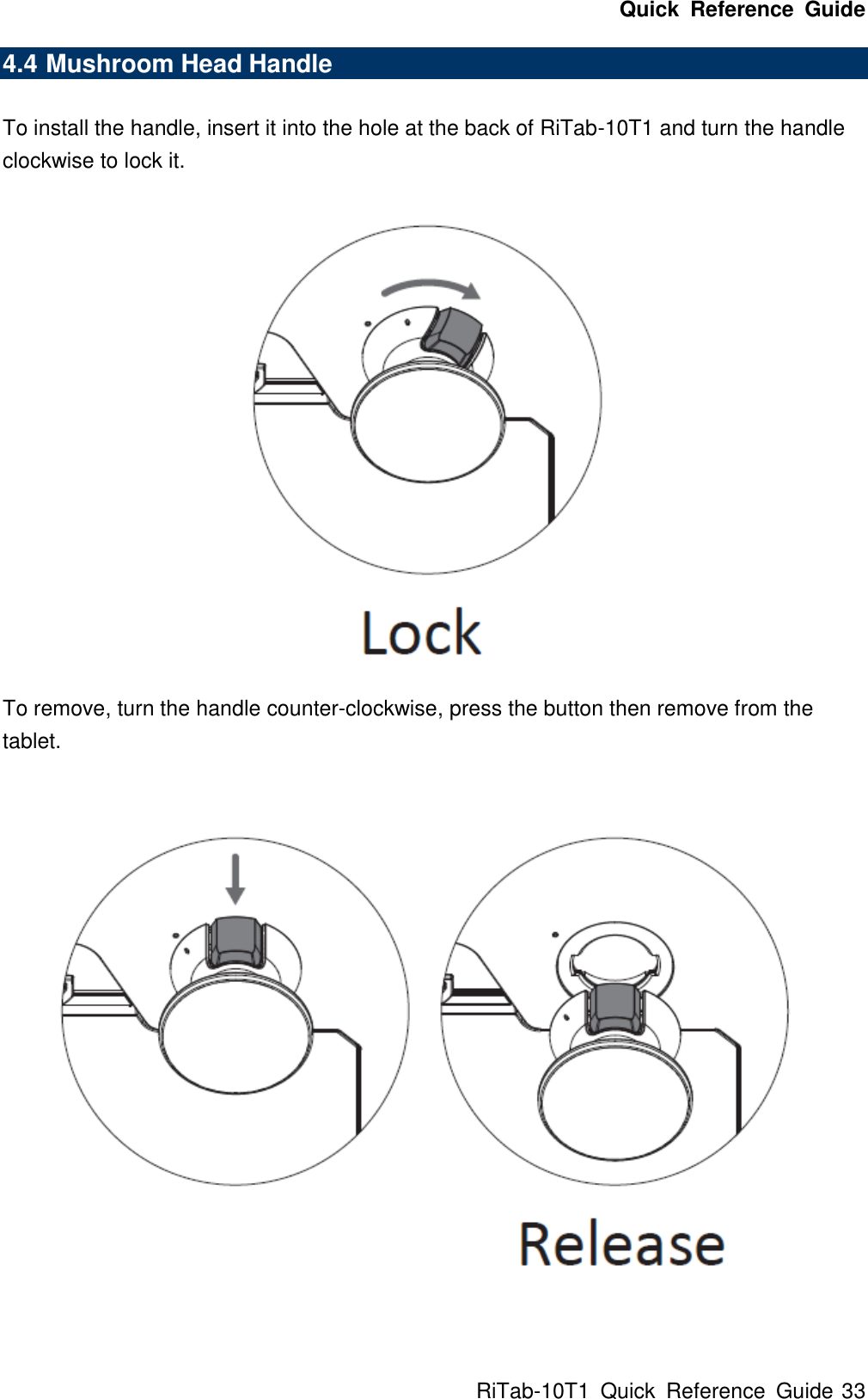

Quick Reference Guide RiTab-10T1 Quick Reference Guide 33 4.4 Mushroom Head Handle To install the handle, insert it into the hole at the back of RiTab-10T1 and turn the handle clockwise to lock it. To remove, turn the handle counter-clockwise, press the button then remove from the tablet.
RiTab-10T1 34 RiTab-10T1 Quick Reference Guide 4.5 Shoulder Strap
