AVWOO TECHNOLOGY A026 Portable Speaker User Manual 2016 1212 MMA3628

SHENZHEN AVWOO TECHNOLOGY CO., LTD Portable Speaker 2016 1212 MMA3628

15_A026 UserMan

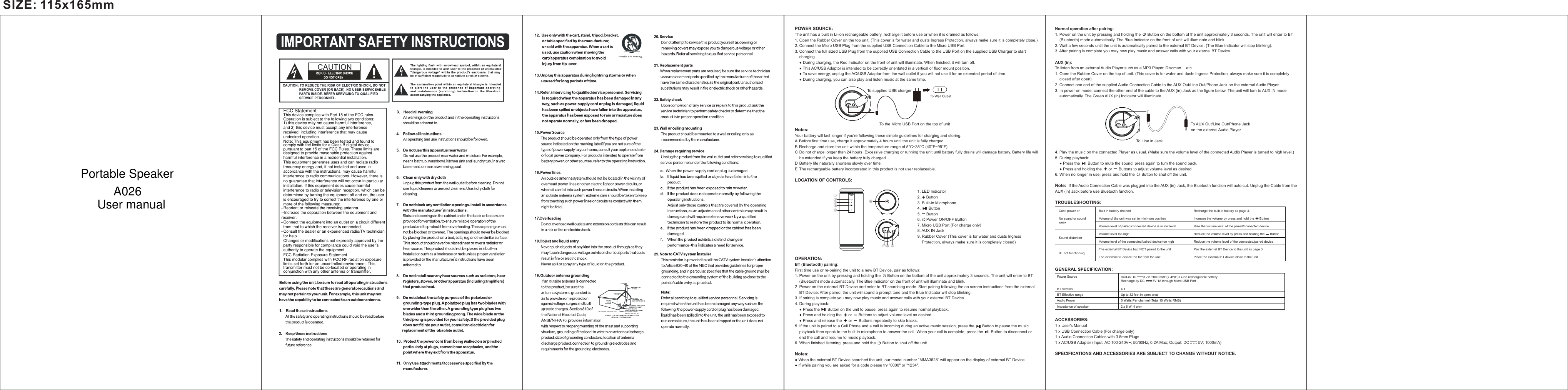

SIZE: 115x165mmPOWER SOURCE: The unit has a built in Li-ion rechargeable battery, recharge it before use or when it is drained as follows:1. Open the Rubber Cover on the top unit. (This cover is for water and dusts Ingress Protection, always make sure it is completely close.)2. Connect the Micro USB Plug from the supplied USB Connection Cable to the Micro USB Port.3. Connect the full sized USB Plug from the supplied USB Connection Cable to the USB Port on the supplied USB Charger to start charging. ● During charging, the Red Indicator on the front of unit will illuminate. When finished, it will turn off. ● This AC/USB Adaptor is intended to be correctly orientated in a vertical or floor mount position. ● To save energy, unplug the AC/USB Adaptor from the wall outlet if you will not use it for an extended period of time. ● During charging, you can also play and listen music at the same time. To supplied USB charger To the Micro USB Port on the top of unitNotes:Your battery will last longer if you're following these simple guidelines for charging and storing.A. Before first time use, charge it approximately 4 hours until the unit is fully charged.B. Recharge and store the unit within the temperature range of 5°C~35°C (40°F~95°F).C. Do not charge longer than 24 hours. Excessive charging or running the unit until battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.D. Battery life naturally shortens slowly over time.E. The rechargeable battery incorporated in this product is not user replaceable.LOCATION OF CONTROLS: 1. LED Indicator 2. Button 3. Built-in Microphone 4. Button 5. Button 6. Power ON/OFF Button 7. Micro USB Port (For charge only) 8. AUX IN Jack 9. Rubber Cover (This cover is for water and dusts Ingress Protection, always make sure it is completely closed) OPERATION:BT (Bluetooth) pairing:First time use or re-pairing the unit to a new BT Device, pair as follows:1. Power on the unit by pressing and holding the Button on the bottom of the unit approximately 3 seconds. The unit will enter to BT (Bluetooth) mode automatically. The Blue Indicator on the front of unit will illuminate and blink.2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device. After paired, the unit will sound a prompt tone and the Blue Indicator will stop blinking.3. If pairing is complete you may now play music and answer calls with your external BT Device.4. During playback: ● Press the Button on the unit to pause, press again to resume normal playback. ● Press and holding the or Buttons to adjust volume level as desired. ● Press and release the or Buttons repeatedly to skip tracks.5. If the unit is paired to a Cell Phone and a call is incoming during an active music session, press the Button to pause the music playback then speak to the built-in microphone to answer the call. When your call is complete, press the Button to disconnect or end the call and resume to music playback.6. When finished listening, press and hold the Button to shut off the unit.Notes:● When the external BT Device searched the unit, our model number “MMA3628” will appear on the display of external BT Device.● If while pairing you are asked for a code please try "0000" or "1234".Normal operation after pairing:1. Power on the unit by pressing and holding the Button on the bottom of the unit approximately 3 seconds. The unit will enter to BT (Bluetooth) mode automatically. The Blue Indicator on the front of unit will illuminate and blink.2. Wait a few seconds until the unit is automatically paired to the external BT Device. (The Blue Indicator will stop blinking).3. After pairing is complete you may now play music and answer calls with your external BT Device.AUX (in):To listen from an external Audio Player such as a MP3 Player, Discman …etc.1. Open the Rubber Cover on the top of unit. (This cover is for water and dusts Ingress Protection, always make sure it is completely closed after open).2. Connect one end of the supplied Audio Connection Cable to the AUX Out/Line Out/Phone Jack on the external Audio Player.3. In power on mode, connect the other end of the cable to the AUX (in) Jack as the figure below. The unit will turn to AUX IN mode automatically. The Green AUX (in) Indicator will illuminate. To AUX Out/Line Out/Phone Jack on the external Audio Player To Line in Jack4. Play the music on the connected Player as usual. (Make sure the volume level of the connected Audio Player is turned to high level.)5. During playback: ● Press the Button to mute the sound, press again to turn the sound back. ● Press and holding the or Buttons to adjust volume level as desired.6. When no longer in use, press and hold the Button to shut off the unit.Note: If the Audio Connection Cable was plugged into the AUX (in) Jack, the Bluetooth function will auto cut. Unplug the Cable from the AUX (in) Jack before use Bluetooth function.TROUBLESHOOTING:GENERAL SPECIFICATION:ACCESSORIES: 1 x User's Manual1 x USB Connection Cable (For charge only)1 x Audio Connection Cables with 3.5mm Plugs1 x AC/USB Adapter (Input: AC 100-240V~; 50/60Hz, 0.2A Max; Output: DC 5V; 1000mA) SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE.Audio PowerBT Effective range Up to 32 feet in open area5 Watts Per channel (Total 10 Watts RMS)Impedance of speaker 2 x 6 W; 4 ohm Power SourceBT Version 4.1Built-in DC 3.7V, 2000 mAH(7.4WH) Li-ion rechargeable battery;Recharge by DC 5V 1A through Micro USB Port Recharge the built-in battery as page 3.Increase the volume by press and hold the ButtonRise the volume level of the paired/connected deviceReduce the volume level by press and holding the ButtonReduce the volume level of the connected/paired devicePair the external BT Device to the unit as page 3.Place the external BT device close to the unitBuilt in battery drainedVolume of the unit was set to minimum positionVolume level of paired/connected device is in low levelVolume level too highVolume level of the connected/paired device too highThe external BT Device had NOT paired to the unitThe external BT device too far from the unitCan’t power onNo sound or sound weakSound distortionBT not functioning①②③④⑤⑥89⑦This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC Radiation Exposure StatementThis modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.FCC StatementPortable SpeakerA026User manual
