AVWOO TECHNOLOGY A050 Portable speaker User Manual BT28S

SHENZHEN AVWOO TECHNOLOGY CO., LTD Portable speaker BT28S

User manual

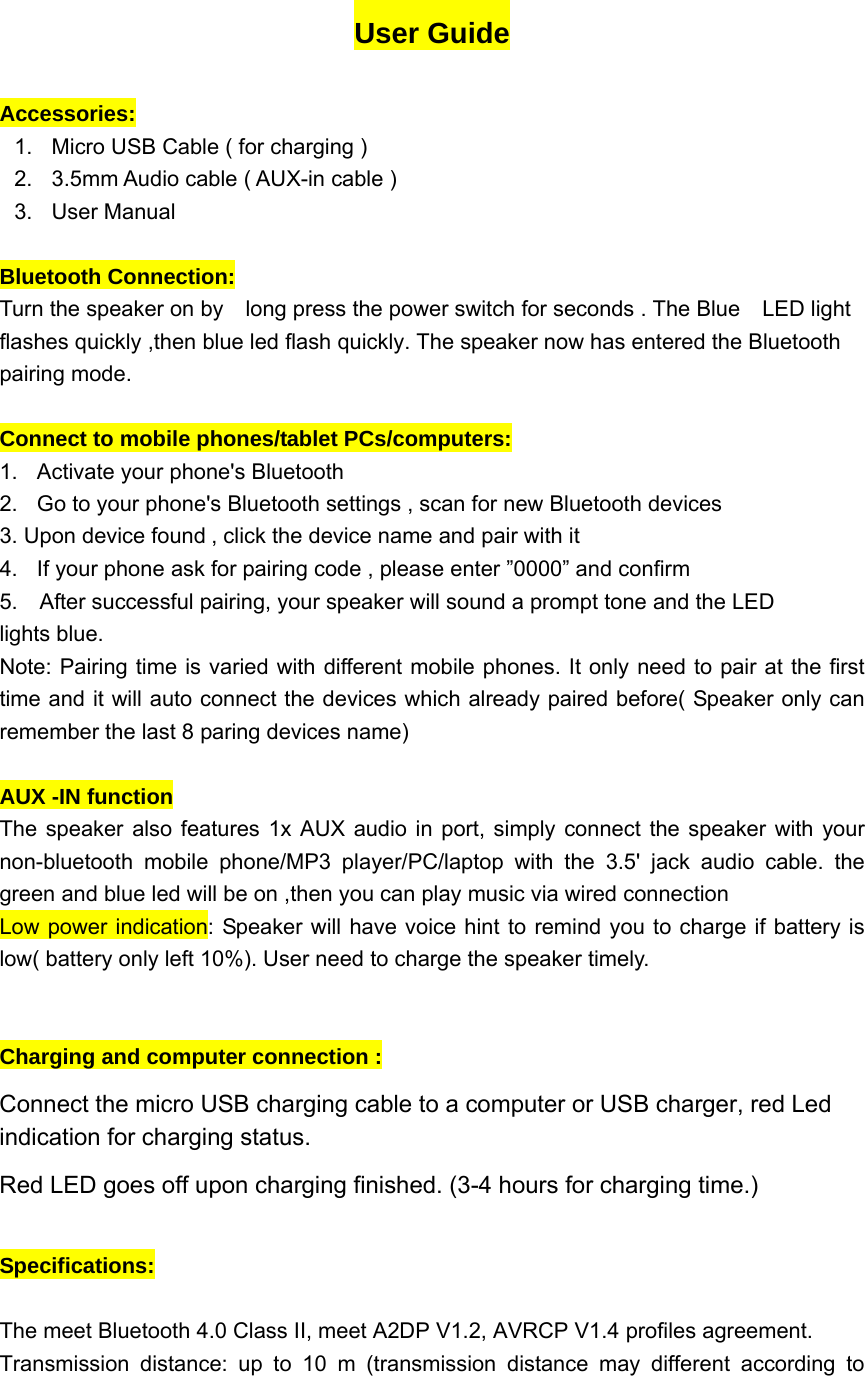

User Guide Accessories: 1. Micro USB Cable ( for charging ) 2. 3.5mm Audio cable ( AUX-in cable ) 3. User Manual Bluetooth Connection: Turn the speaker on by long press the power switch for seconds . The Blue LED light flashes quickly ,then blue led flash quickly. The speaker now has entered the Bluetooth pairing mode. Connect to mobile phones/tablet PCs/computers: 1. Activate your phone's Bluetooth 2. Go to your phone's Bluetooth settings , scan for new Bluetooth devices 3. Upon device found , click the device name and pair with it 4. If your phone ask for pairing code , please enter ”0000” and confirm 5. After successful pairing, your speaker will sound a prompt tone and the LED lights blue. Note: Pairing time is varied with different mobile phones. It only need to pair at the first time and it will auto connect the devices which already paired before( Speaker only can remember the last 8 paring devices name) AUX -IN function The speaker also features 1x AUX audio in port, simply connect the speaker with your non-bluetooth mobile phone/MP3 player/PC/laptop with the 3.5' jack audio cable. the green and blue led will be on ,then you can play music via wired connection Low power indication: Speaker will have voice hint to remind you to charge if battery is low( battery only left 10%). User need to charge the speaker timely. Charging and computer connection : Connect the micro USB charging cable to a computer or USB charger, red Led indication for charging status. Red LED goes off upon charging finished. (3-4 hours for charging time.) Specifications: The meet Bluetooth 4.0 Class II, meet A2DP V1.2, AVRCP V1.4 profiles agreement. Transmission distance: up to 10 m (transmission distance may different according to

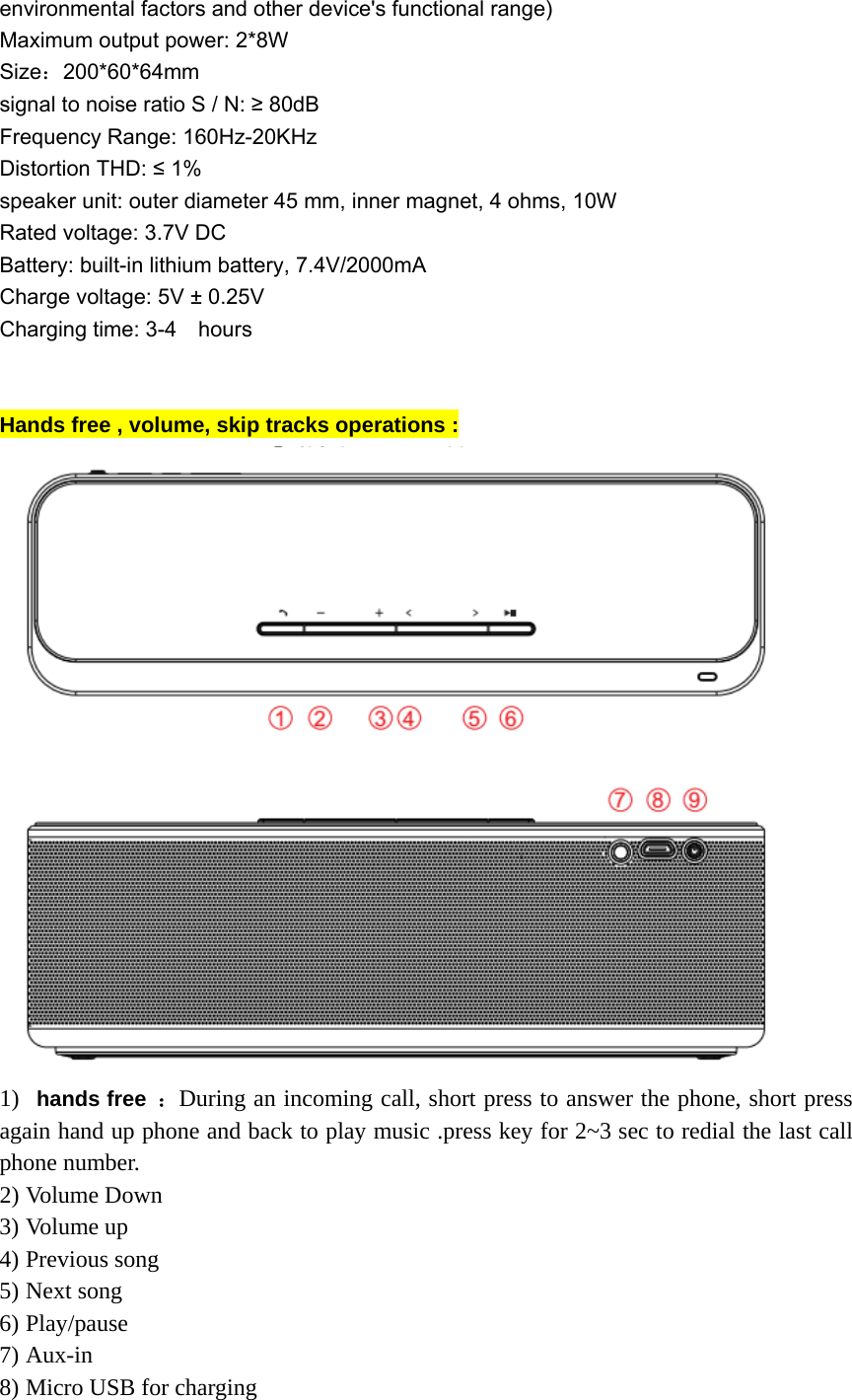

environmental factors and other device's functional range) Maximum output power: 2*8W Size：200*60*64mm signal to noise ratio S / N: ≥ 80dB Frequency Range: 160Hz-20KHz Distortion THD: ≤ 1% speaker unit: outer diameter 45 mm, inner magnet, 4 ohms, 10W Rated voltage: 3.7V DC Battery: built-in lithium battery, 7.4V/2000mA Charge voltage: 5V ± 0.25V Charging time: 3-4 hours Hands free , volume, skip tracks operations : 1) hands free ：During an incoming call, short press to answer the phone, short press again hand up phone and back to play music .press key for 2~3 sec to redial the last call phone number. 2) Volume Down 3) Volume up 4) Previous song 5) Next song 6) Play/pause 7) Aux-in 8) Micro USB for charging

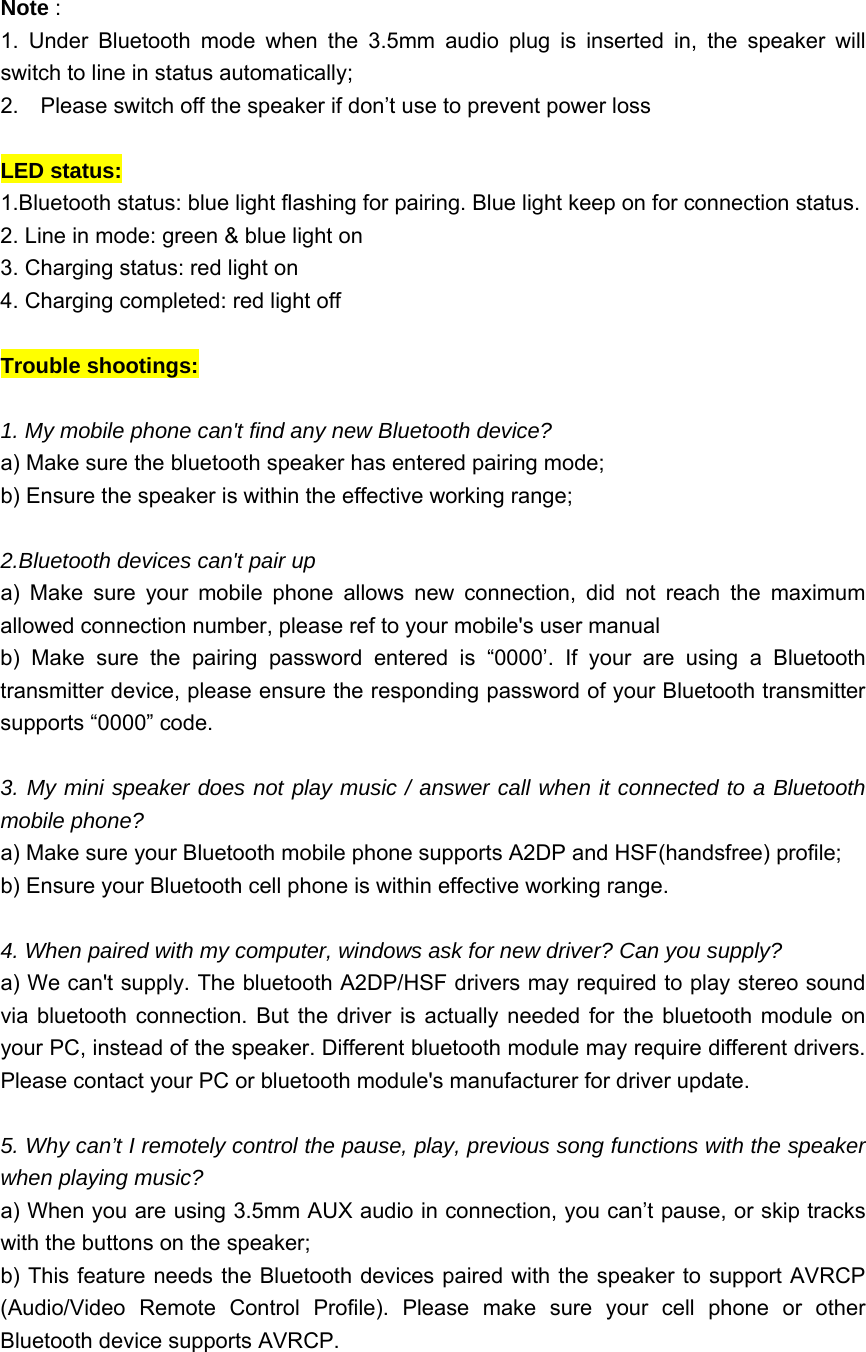

Note : 1. Under Bluetooth mode when the 3.5mm audio plug is inserted in, the speaker will switch to line in status automatically; 2. Please switch off the speaker if don’t use to prevent power loss LED status: 1.Bluetooth status: blue light flashing for pairing. Blue light keep on for connection status. 2. Line in mode: green & blue light on 3. Charging status: red light on 4. Charging completed: red light off Trouble shootings: 1. My mobile phone can't find any new Bluetooth device? a) Make sure the bluetooth speaker has entered pairing mode; b) Ensure the speaker is within the effective working range; 2.Bluetooth devices can't pair up a) Make sure your mobile phone allows new connection, did not reach the maximum allowed connection number, please ref to your mobile's user manual b) Make sure the pairing password entered is “0000’. If your are using a Bluetooth transmitter device, please ensure the responding password of your Bluetooth transmitter supports “0000” code. 3. My mini speaker does not play music / answer call when it connected to a Bluetooth mobile phone? a) Make sure your Bluetooth mobile phone supports A2DP and HSF(handsfree) profile; b) Ensure your Bluetooth cell phone is within effective working range. 4. When paired with my computer, windows ask for new driver? Can you supply? a) We can't supply. The bluetooth A2DP/HSF drivers may required to play stereo sound via bluetooth connection. But the driver is actually needed for the bluetooth module on your PC, instead of the speaker. Different bluetooth module may require different drivers. Please contact your PC or bluetooth module's manufacturer for driver update. 5. Why can’t I remotely control the pause, play, previous song functions with the speaker when playing music? a) When you are using 3.5mm AUX audio in connection, you can’t pause, or skip tracks with the buttons on the speaker; b) This feature needs the Bluetooth devices paired with the speaker to support AVRCP (Audio/Video Remote Control Profile). Please make sure your cell phone or other Bluetooth device supports AVRCP.

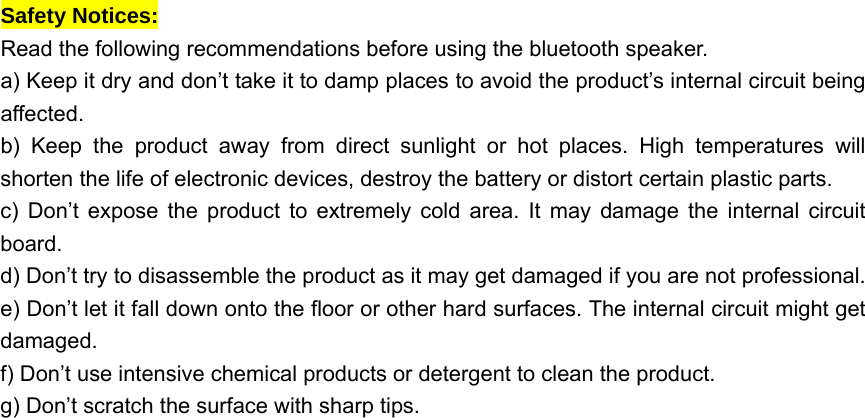

Safety Notices: Read the following recommendations before using the bluetooth speaker. a) Keep it dry and don’t take it to damp places to avoid the product’s internal circuit being affected. b) Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. c) Don’t expose the product to extremely cold area. It may damage the internal circuit board. d) Don’t try to disassemble the product as it may get damaged if you are not professional. e) Don’t let it fall down onto the floor or other hard surfaces. The internal circuit might get damaged. f) Don’t use intensive chemical products or detergent to clean the product. g) Don’t scratch the surface with sharp tips.

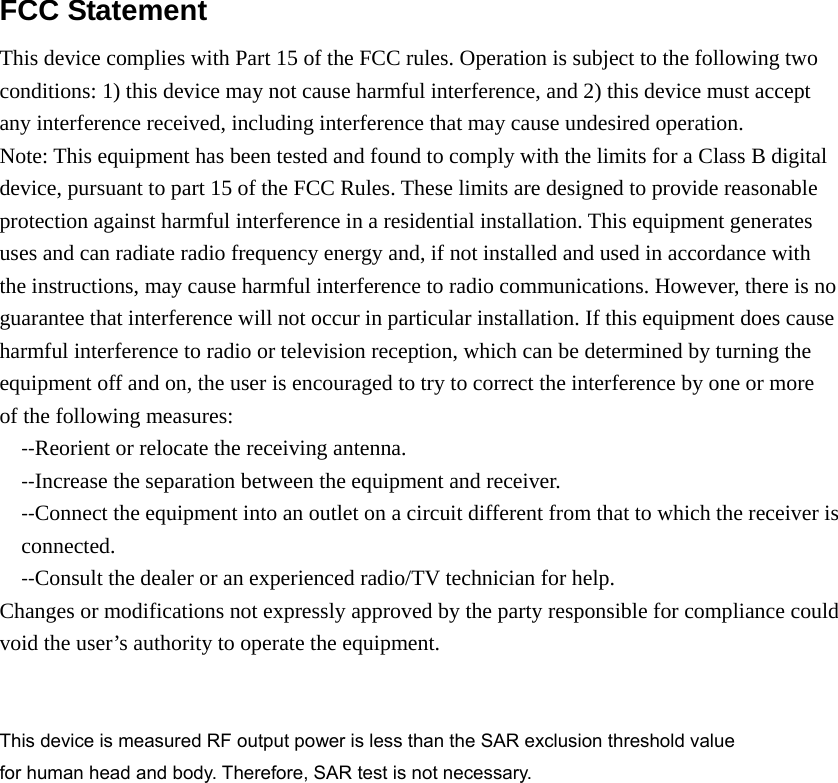

FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device is measured RF output power is less than the SAR exclusion threshold value for human head and body. Therefore, SAR test is not necessary.
