VUES ECLATÉES PENELOPE - PENELOPE EXPLODED DIAGRAMS June 2009

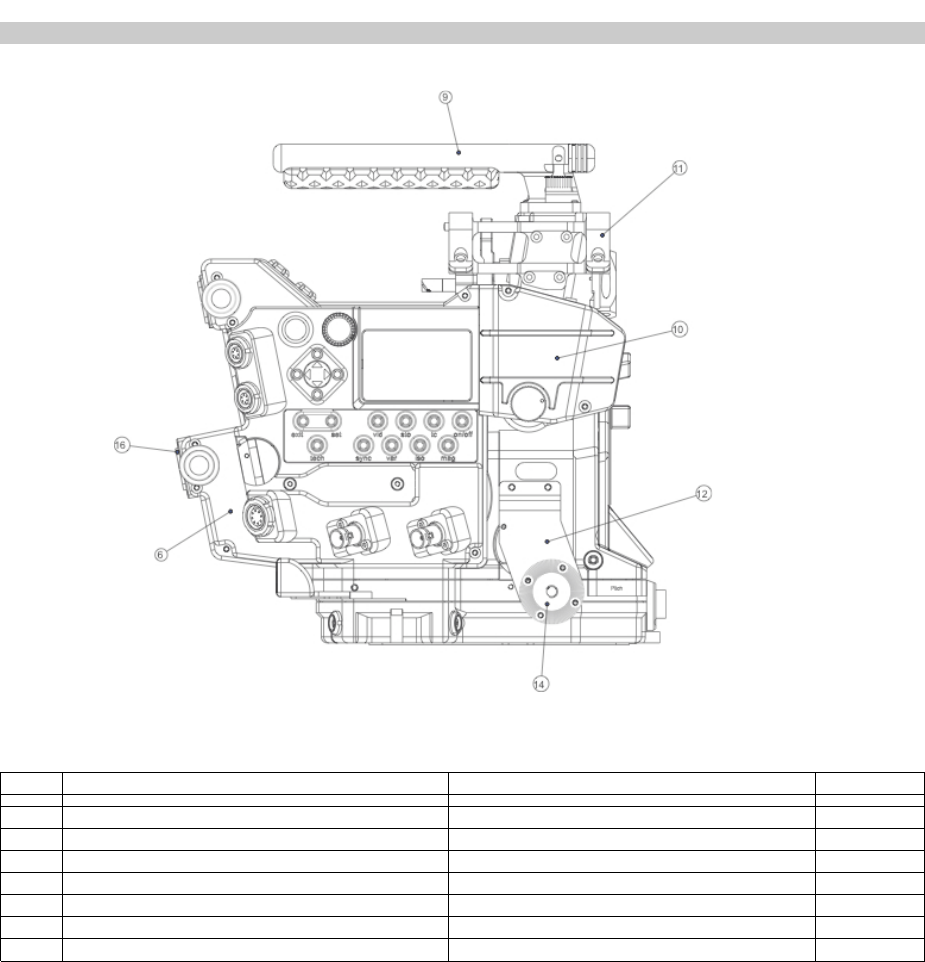

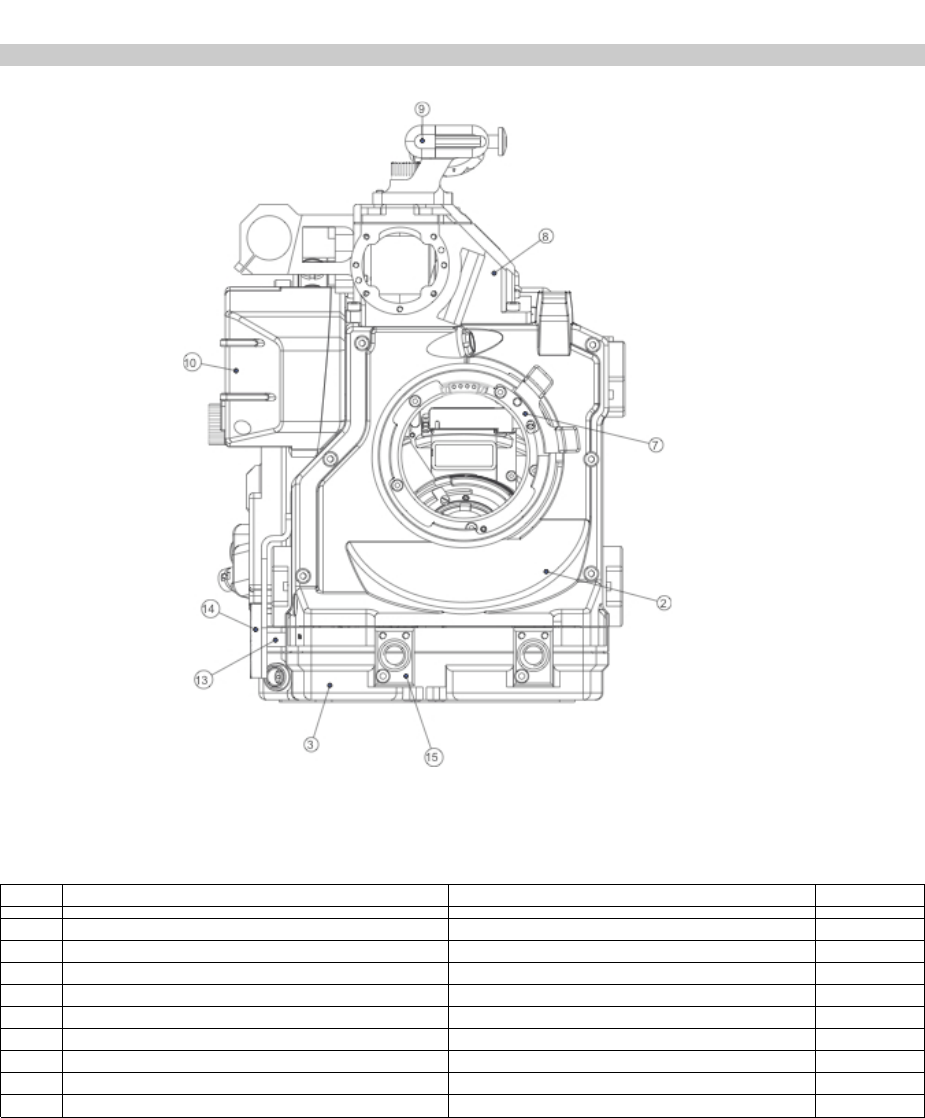

CAMERA BODY

IND DESIGNATION DESIGNATION REFERENCE

1 SE CHASSIS 2 PERFS PENELOPE CHASSIS S/A 3321001

4 SE CARTER INTERFACE FOND MAGAZINE SIDE BODY COVER S/A 3320065

5 SE CARTER INTERFACE CHASSIS CAMERAMAN SIDE BODY COVER S/A 3320040

CAMERA BODY

IND DESIGNATION DESIGNATION REFERENCE

2 PC CARTER AVANT PENELOPE FRONT BODY S/A 3320020

3 SE BARQUETTE PENELOPE PENELOPE ELECTRONIC BASE S/A 3320050

7 SE MONTURE ARRI ARRI PL MOUNT S/A 3321040

8 SE VISEUR PENELOPE PENELOPE VIEWFINDER S/A 0390001

9 SE POIGNEE PENELOPE PENELOPE TOP HANDLE S/A 3320070

10 PC CARTER VIDEO VIDEO COVER S/A 3320060

13 ENTRETOISE SUPPORT ROSETTE ROSETTE HOLDER SPACER 3321007

14 ROSETTE ARRI ARRI ROSETTE 3321013

15 ATTACHE BARQUETTE BASE FASTENER 3512021

CAMERA BODY

IND DESIGNATION DESIGNATION REFERENCE

6 SE BOITIER CONNECT-AFFICHEUR ASSISTANT SIDE BODY COVER S/A 3320030

9 SE POIGNEE PENELOPE PENELOPE TOP HANDLE S/A 3320070

10 PC CARTER VIDEO VIDEO COVER S/A 3320060

11 SE SUPPORT TIGE PENELOPE TOP ROD HOLDER S/A 3320095

12 SUPPORT ROSETTE ROSETTE HOLDER 3321014

14 ROSETTE ARRI ARRI ROSETTE 3321013

16 CAOUTCHOUC CALAGE BATTERIE BATTERY RUBBER HOLDER 3320007

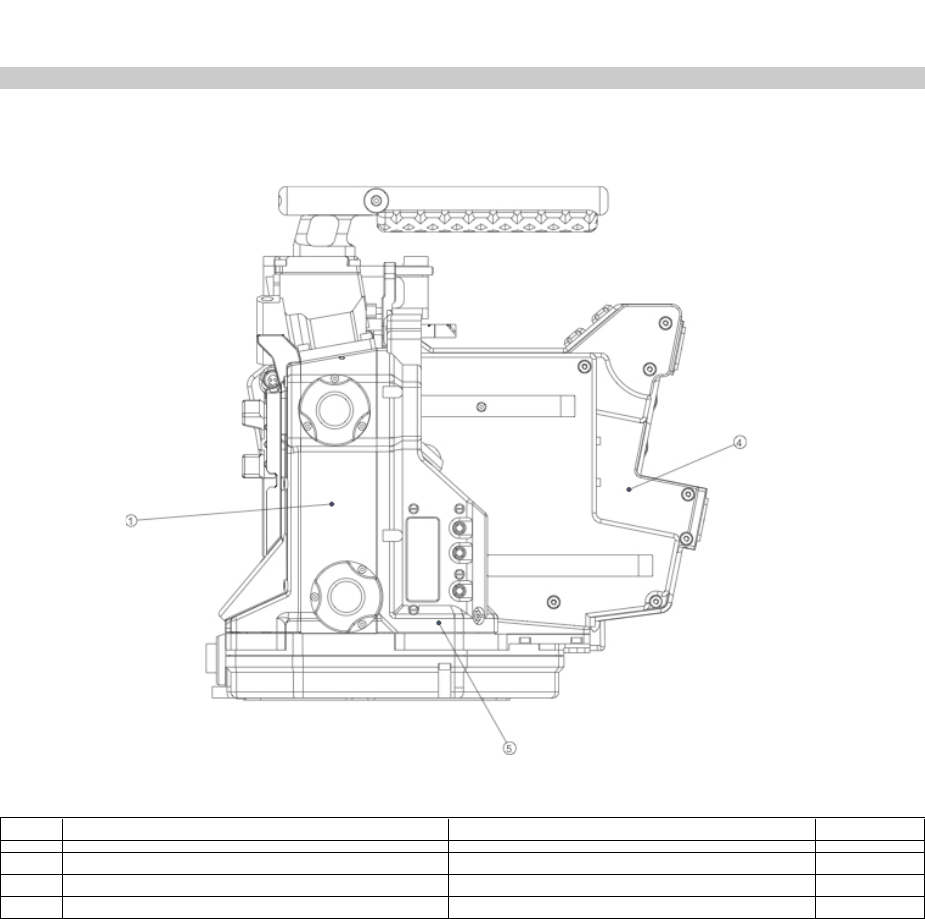

CAMERA BODY - Main Chassis

IND DESIGNATION DESIGNATION REFERENCE

1 CHASSIS PENELOPE PENELOPE CHASSIS 3321011

2 S/E PLATINE VERROU LOCKING PLATE S/A 3321020

3 S/E ARCEAU PENELOPE PENELOPE HOOP S/A 3324101

4 PC PLAQUE CANAL 2 PERFS 2 PERFS GATE S/A 3324120

5 SUPPORT OBJECTIF LENS HOLDER 3321031

6 PC SUSPENSION PENELOPE PENELOPE SUSPENSION S/A 3321015

7 PC SUSPENSION 4 SUSPENSION 4 S/A 3321035

8 CALE PELABLE SUSPENSION SUSPENSION THICKNESS WASHER 3321019

9 CALE FIXE SUSPENSION SUSPENSION FIXED WASHER 3321009

10 PATTE SUSPENSION 4 STRAND BINDING 4 3324126

11 GOUPILLE CYLINDRIQUE 4x8 CYLINDRICAL PIN 4x8 7084860

12 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

13 VIS CHC M2.5x10 M2.5x10 ALLEN SCREW 0105013

14 VIS CHC M2.5x6 M2.5x6 ALLEN SCREW 0105016

15 VIS CHC M2.5x14 M2.5x14 ALLEN SCREW 7084017

16 VIS CHC M3x10 M3x10 ALLEN SCREW 0105025

17 VIS CHC M3x8 M3x8 ALLEN SCREW 7084022

CAMERA BODY - Bottom Chassis

IND DESIGNATION DESIGNATION REFERENCE

1 PLATINE VERROU PENELOPE PENELOPE LOCK CHASSIS 3321021

2 TOLE COMPARTIMENT VERROU LOCK COVER PLATE 3321024

3 PC VERROU LOCK S/A 3541015

4 LEVIER DEVERROUILLAGE LOCKING LEVER 3321023

5 BOUTON LEVIER DEVERROUILLAGE LOCKING LEVER BUTTON 3321027

6 AXE LEVIER DEVERROUILLAGE LOCKING LEVER SHAFT 1315025

7 BARETTE VERROU MAGASIN PENELOPE PENELOPE MAGAZINE LOCKING PLATE 3321022

8 RESSORT VERROU 35 LOCK LEVER SPRING 35 3541033

9 EQUERRE INTERFACE TYPE A T-SQUARE TYPE A 3321028

10 EQUERRE INTERFACE TYPE B T-SQUARE TYPE B 3321029

11 LARDON GUIDE MAGASIN MAGAZINE LATTERAL GUIDE BAR 3321026

12 COSSE DE MASSE DIA.3.2 GROUND CONNECTION DIA.3.2 7085224

13 GOUPILLE CYLINDRIQUE- type A 2.5x12 CYLINDRICAL PIN- type A 2.5x12 7084838

14 GOUPILLE CYLINDRIQUE 2x4 CYLINDRICAL PIN 2x4 7084832

15 VIS CHC M2.5x5 M2.5x5 ALLEN SCREW 0105011

16 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

17 VIS CHC M2.5x6 M2.5x6 ALLEN SCREW 7084013

18 VIS CHC M2x3 M2x3 ALLEN SCREW 0105034

19 VIS CHC M2x6 M2x6 ALLEN SCREW 0105026

20 VIS FS M2x4 FS M2x4 SCREW 7084212

21 VIS FS M2.5x5 FS M2.5x5 SCREW 7084221

CAMERA BODY - Gate and Hoop S/A

IND DESIGNATION DESIGNATION REFERENCE

1 PC ARCEAU PENELOPE PENELOPE HOOP S/A 3324110

2 PRESSEUR LATERAL PENELOPE PENELOPE LATERAL PRESSURE PLATE 3324117

3 BARETTE FIXE PENELOPE PENELOPE LATTERAL GUIDE 3324118

4 PLOT POST 3324119

5 VIS FS M2x5 FS M2x5 SCREW 7084213

6 VIS CHC M2x5 M2x5 ALLEN SCREW 7084002

7 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

8 CHICANE AATONITE AATONITE CHICANE 3324109

9 VIS FS M1.6x2 FS M1.6x2 SCREW 7084101

CAMERA BODY - Groundglass holder S/A

IND DESIGNATION DESIGNATION REFERENCE

1 PC CADRE DEPOLI PENELOPE GROUNDGLASS HOLDER S/A 3323015

2 SUPPORT PRINCIPAL DEPOLI GROUNDGLASS MAIN HOLDER 3323011

3 SUPPORT DEPOLI REGLAGE COLIMATION COLIMATION ADJUSTMENT HOLDER 3323012

4 REGLAGE CADRAGE DEPOLI GROUNDGLASS FRAMING ADJUSTMENT 3323013

5 GOUPILLE CYLINDRIQUE 2x6 CYLINDRICAL PIN 2x6 7084833

6 INSERT M2.5 x 4 H2.8 M2.5 x 4 H2.8 INSERT 3513117

7 PLATINE REGLAGE SUPPORT DEPOLI GROUNDGLASS HOLDER PLATE 3323019

8 RESSORT DE COMPRESSION C 2x0.32x4 COMPRESSION SPRING - C 2x0.32x4 3323018

9 PC GUIDE REGLAGE COLIMATION COLIMATION ADJUSTMENT GUIDE S/A 3323005

10 RESSORT DE COMPRESSION C 4x0.7x5 COMPRESSION C 4x0.7x5 3323009

11 RONDELLE Z 2.5 WASHER Z 2.5 7084605

12 GOUPILLE CYLINDRIQUE 2.5x16 CYLINDRICAL PIN 2.5x16 7084850

13 CYLINDRE DE FRICTION FRICTION CYLINDER 3323014

14 BILLE DIA. 3 BALL DIA. 3 7084906

15 VIS CHC M2.5x10 M2.5x10 ALLEN SCREW 7084015

16 RESSORT DE COMPRESSION C 3.6x0.5x10 COMPRESSION SPRING C3.6x0.5x10 3323007

17 VIS CHC M2.5x6 M2.5x6 ALLEN SCREW 7084013

18 VIS SANS TETE 2.5 2.5 SLOTTED HEAD SCREW 0113134

19 VIS CHC M2.5x14 M2.5x14 ALLEN SCREW 7084017

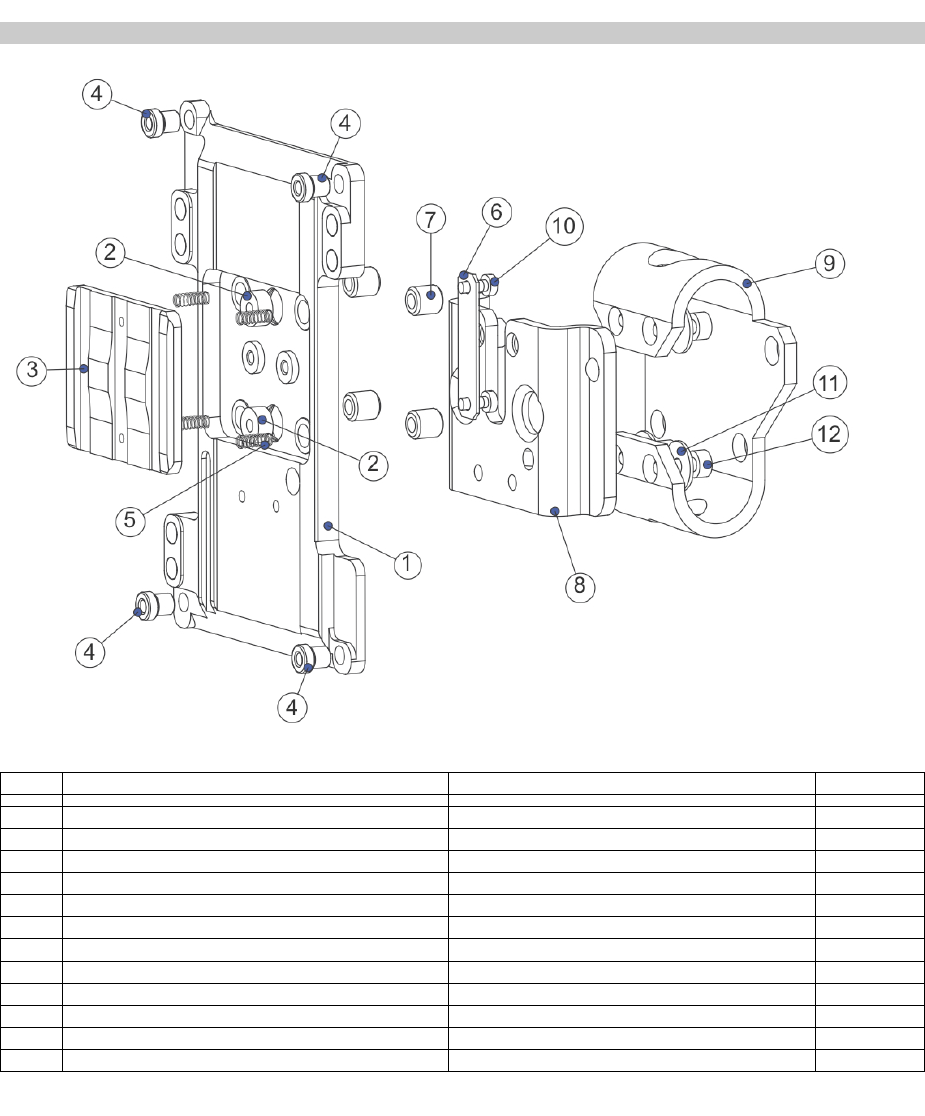

CAMERA BODY - Bascule Motor

IND DESIGNATION DESIGNATION REFERENCE

1 PC BASCULE BASCULE S/A 3352145

2 SUPPORT ROTOR MOTEUR GRIFFE CLAW MOTOR - ROTOR HOLDER 3352113

3 SE EXCENTRIQUE COULISSEAU ECCENTRIC SHIM S/A 3352140

4 AXE PALIER GRIFFE 2/3 PERFS 2/3 PERFS CLAW SHAFT RIVET 3352126

5 CAME PENELOPE 2/3 PERFS PENELOPE 2/3 PERFS CAME 3352129

6 FOURREAU MOTEUR MOTOR SLEEVE 3352112

7 REGLAGE COULISSEAU 2/3 PERFS REGLAGE COULISSEAU 2/3 PERFS 3352131

8 RESSORT BRAS ARM SPRING 3352136

9 BERCEAU MOTEUR GRIFFE CLAW MOTOR CRADDLE 3352111

10 MOTEUR TRI AMETECK TRIPASED AMETECK MOTOR 3352110

11 CARTE TAC GRIFFE-MAGASIN CLAW-MAG TAC BOARD 5571590

12 CARTE LED GRIFFE-MAGASIN CLAW-MAG LED BOARD 5571690

13 ROUE TACHY MOTEUR GRIFFE-MAGASIN CLAW-MAG MOTOR TACHY WHEEL 3352116

14 BAGUE INTERMEDIAIRE DIA. 8.4 INTERMEDIARY RING DIA. 8.4 0114012

15 RONDELLE DE SERRAGE LOCKING RING 3352132

16 GOUPILLE CYLINDRIQUE 2x25 CYLINDRICAL PIN 2x25 7084846

17 CONTRE-MASQUE MOTEUR PENELOPE PENELOPE MOTOR COUNTER-MASK 3352117

18 MASSELOTTE AXE GRIFFE 2/3 PERFS 2/3 PERFS CLAW SHAFT COUNTER-WEIGHT 3352128

19 PLAQUETTE ECROU AXE GRIFFE CLAW SHAFT PLATE NUT 3352127

20 RESSORT BASCULE BASCULE SPRING 3352134

21 ENTRETOISE RESSORT BASCULE BASCULE SPRING WASHER 3352133

22 RESSORT DE COMPRESSION CYLINDRIQUE COMPRESSION CYLINDRICAL SPRING 3352153

23 ENTRETOISE TACHY TACHY SPACER 3351144

24 ECROU TACHY MOTEUR GRIFFE-MAGASIN CLAW-MAG TACHY NUT 3352114

25 CABLE PELABLE SUPPORT EXCENTRIQUE ECCENTRIC HOLDER THICKNESS SHIM 3352154

26 RONDELLE 1.7x4x0.35 1.7x4x0.35 WASHER 7084601

27 VIS CS M1.6x5 CS M1.6x5 SLOTTED SCREW 7084104

28 VIS CS M1.6x3 CS M1.6x3 SLOTTED SCREW 7084102

29 VIS FS M1.6x3 FS M1.6x3 SLOTTED SCREW 7084202

30 VIS HC BOUT PLAT M2.5x2.5 HC M2.5x2.5 FLAT SCREW 7084315

32 VIS HC M2.5x4 PLAT HC M2.5x4 FLAT SCREW 7084312

33 VIS INOX CHC M2x5 M2x5 ALLEN INOX SCREW 0105035

34 VIS CHC M2x3 M2x3 ALLEN SCREW 0105034

35 VIS INOX CHC M2.5x4 M2.5x4 ALLEN INOX SCREW 0105019

36 VIS INOX CHC M2x4 M2x4 ALLEN INOX SCREW 0105026

37 VIS INOX CS M1.6x4 M1.6x4 CS INOX SCREW 0105037

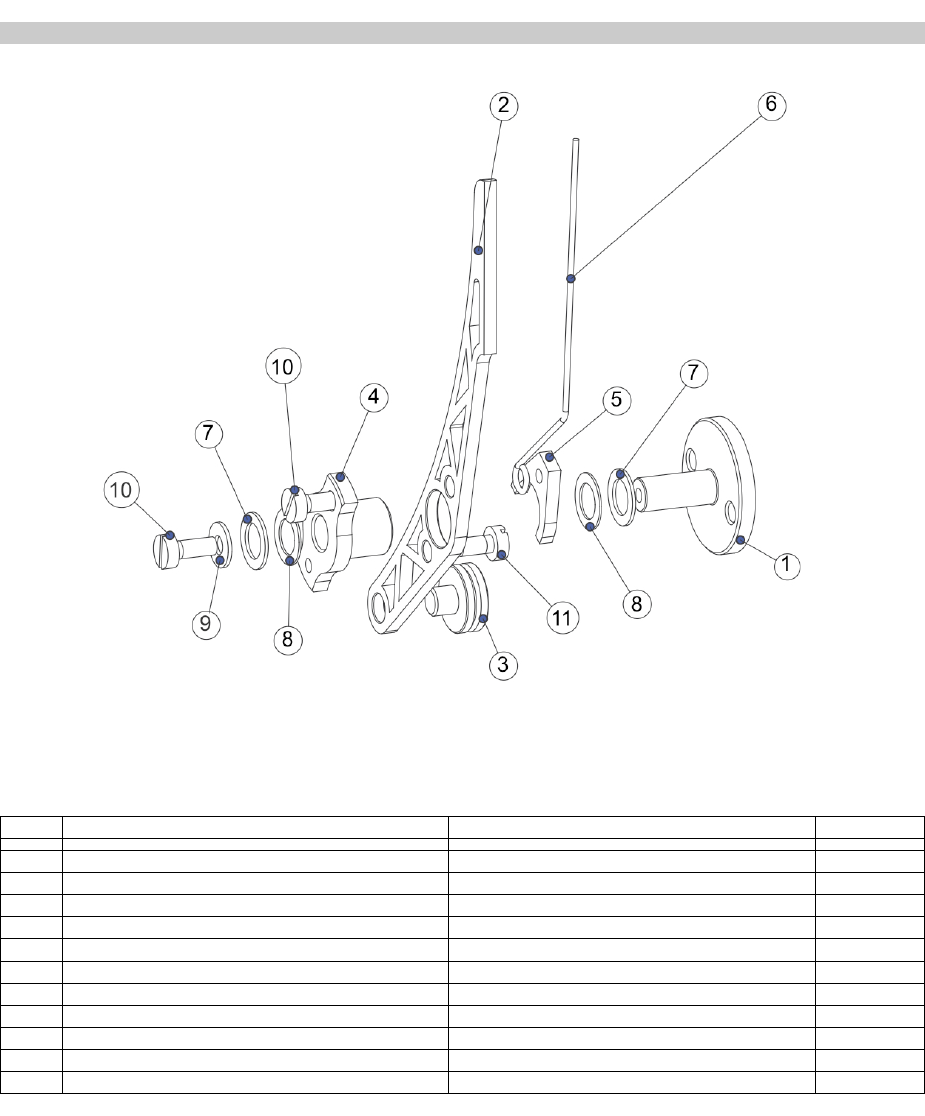

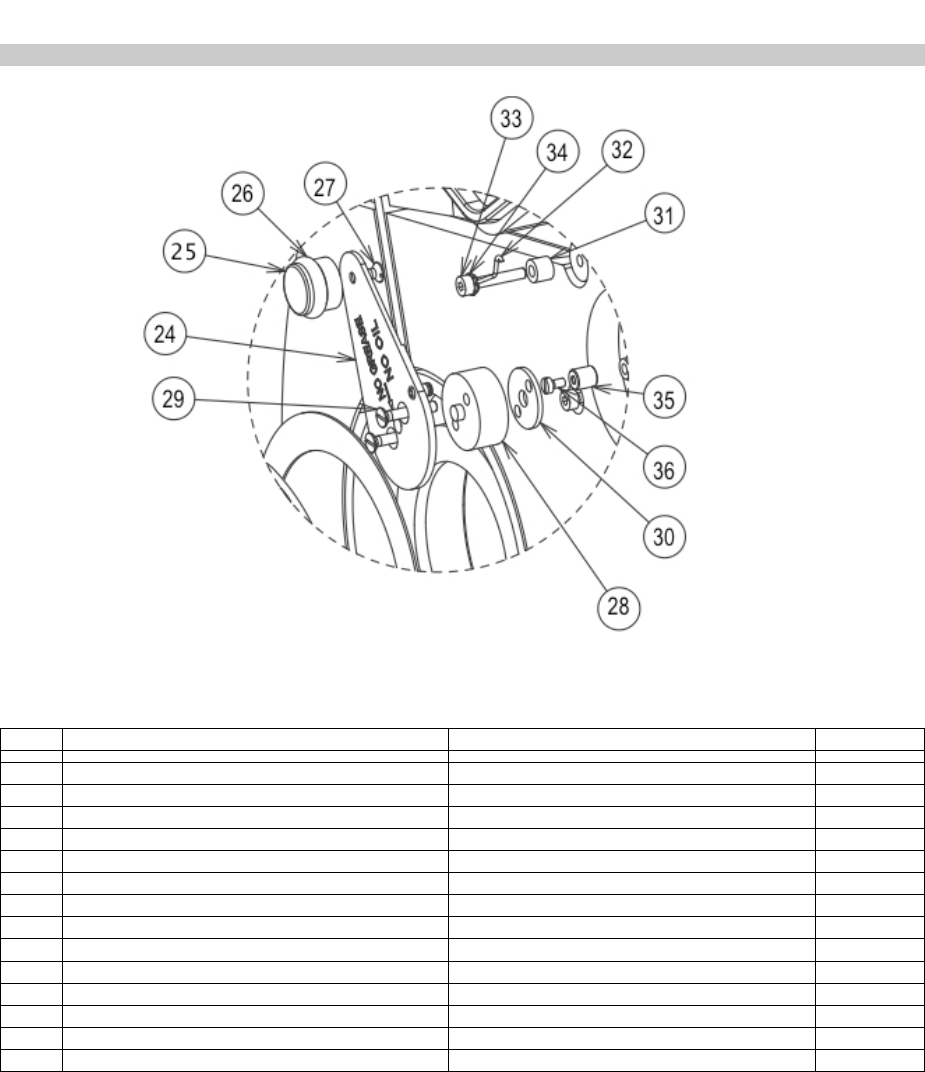

CAMERA BODY - Bascule and Movement system

IND DESIGNATION DESIGNATION REFERENCE

1 AXE BASCULE BASCULE SHAFT 3352144

2 BASCULE BASCULE 3352148

3 GALET BASCULE BASCULE DRIVE 3352146

4 PALIER BASCULE BASCULE RIVET 3352147

5 ECROU FIXATION RESSORT SPRING LOCKING NUT 3352152

6 RESSORT GRIFFE CLAW SPRING 3352151

7 RONDELLE PELABLE 5x3.2 5x3,2 THICKNESS WASHER 3352139

8 CALE TEFLON 3.2x5x0,2 3.2x5x0,2 TEFLON WASHER 3352141

9 RONDELLE 1.7x4x0.35 1.7x4x0.35 WASHER 7084601

10 VIS INOX CS M1.6x4 1.6x4 SLOTTED HEAD INOX SCREW 0105037

11 VIS CS M1.6x3 1.6x3 SLOTTED HEAD SCREW 7084102

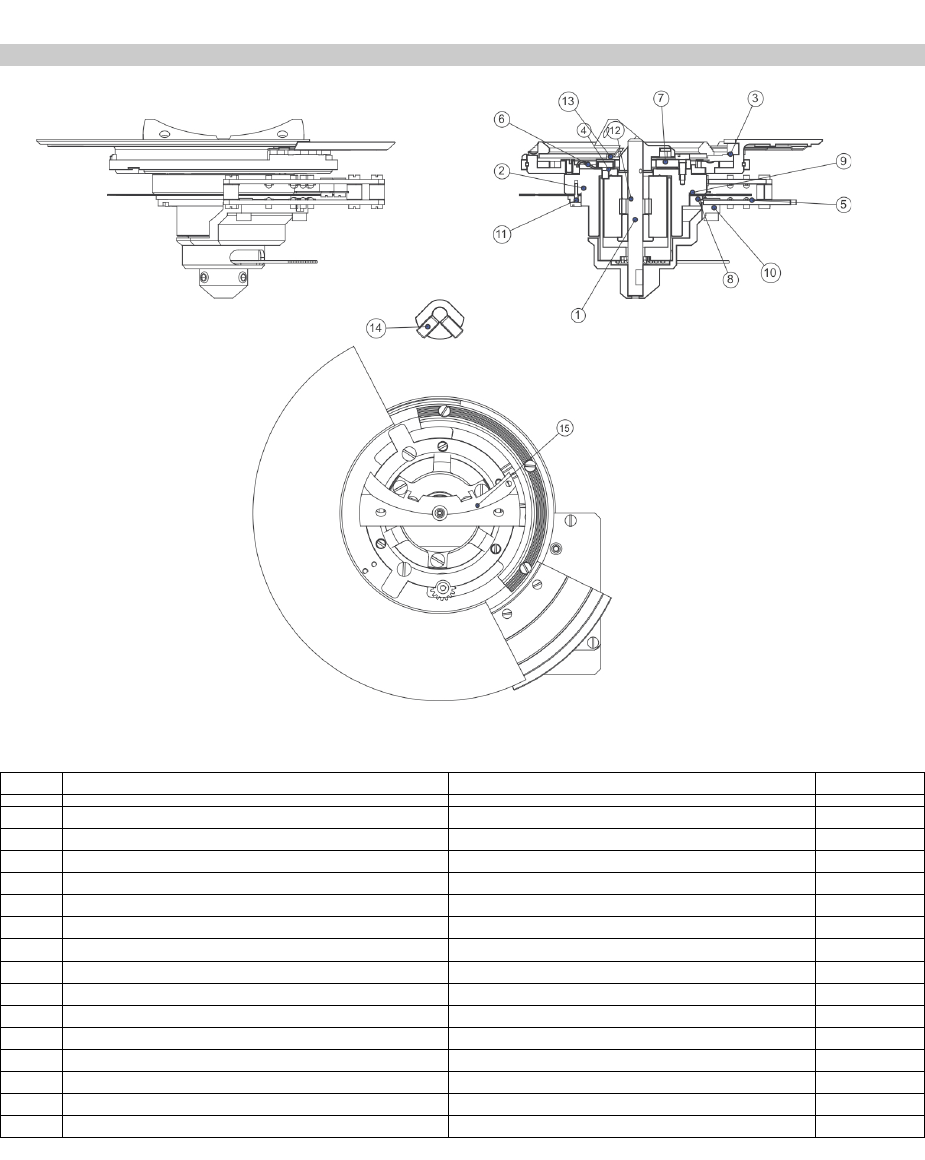

CAMERA BODY - Shutter Motor S/A

IND DESIGNATION DESIGNATION REFERENCE

1 PC CUIVRE MAXON MAXON BRASS S/A 3351130

2 PC FOURREAU MAXON MAXON SLEEVE S/A 3351120

3 PC MIROIR VARIABLE PENELOPE PENELOPE VARIABLE SHUTTER S/A 3552110

4 PC SUPPORT AXE MIROIR SHUTTER SHAFT HOLDER S/A 3351115

5 S/E TACHY MIROIR TACHY SHUTTER S/A 3351140

6 TOLE FIXATION MIROIR PENELOPE SHUTTER HOLDER PLATE 3351114

7 RONDELLE FERMETURE DE CHAMP FIELD LOCK WASHER 3351113

8 RONDELLE DE SERRAGE TACHY TACHY MIRROR TIGHTENER 3351111

9 ROUE CAPTEUR POSITION MIROIR SHUTTER POSITION SENSOR WHEEL 3351112

10 VIS CHC M2x4 M2x4 ALLEN SCREW 0105026

11 VIS CS M1.6x5 M1.6x5 CS SCREW 7084104

12 VIS CS M2x2 M2x2 CS SCREW 7084110

13 VIS CS M2x4 M2x4 CS SCREW 7084112

14 VIS HC M3x6 BOUT PLAT HC M3x6 FLAT SCREW 7084326

15 VIS HC M2x4 BOUT PLAT HC M2x4 FLAT SCREW 7084301

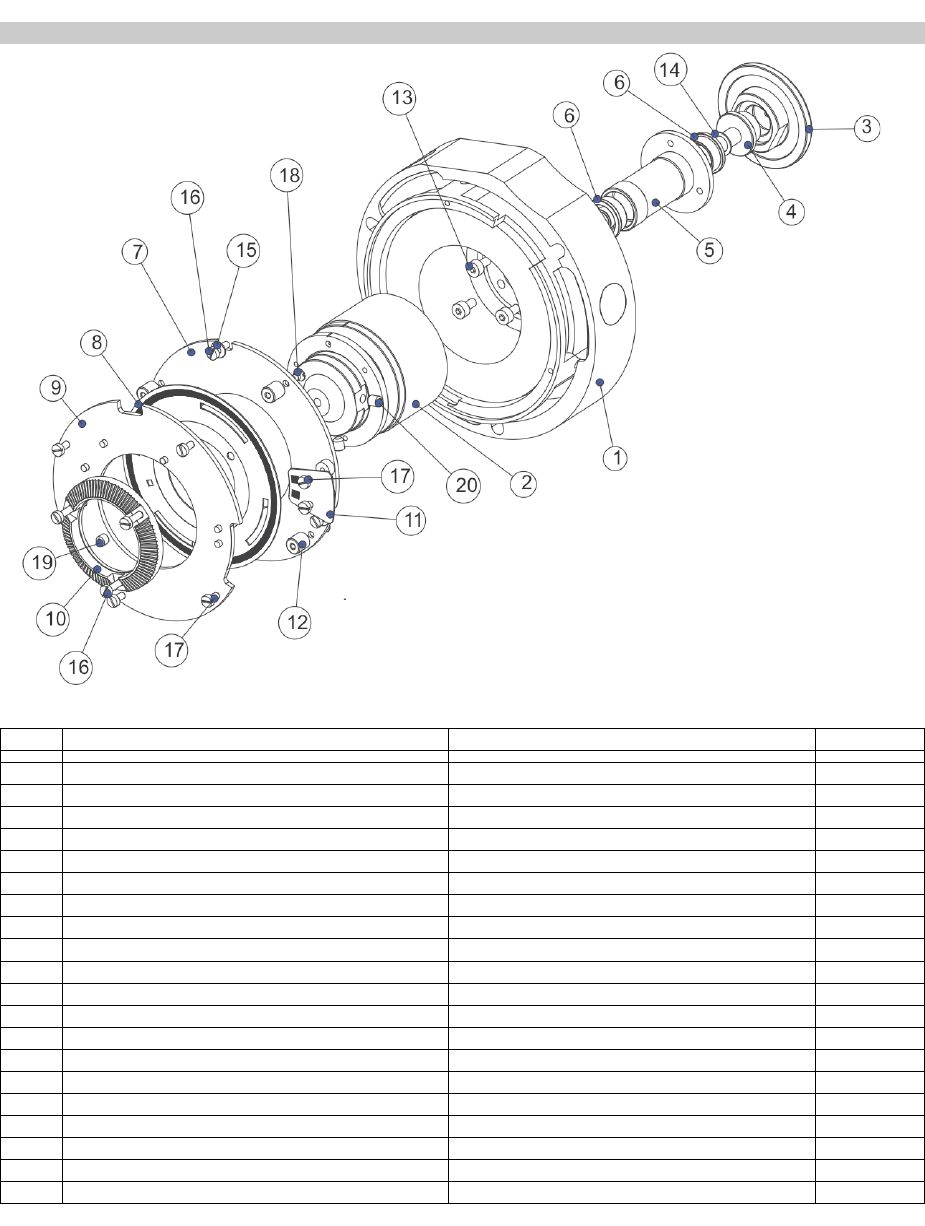

CAMERA BODY - Magazine Motor

IND DESIGNATION DESIGNATION REFERENCE

1 PC PANCAKE SUSPENDU SUSPENDED PANCAKE S/A 3354110

2 SUPPORT ROTOR MAG MAGAZINE ROTOR HOLDER 3354116

3 PC CRABOT MOTEUR MAG MAGAZINE MOTOR DRIVING SYSTEM S/A 3354120

4 AXE MOTEUR MAGASIN MAGAZINE MOTOR SHAFT 3354113

5 FOURREAU MOTEUR MAGASIN MAGAZINE MOTOR SLEEVE 3354112

6 ROULEMENT A BILLE 4x9x4 BALL BEARING 4x9x4 0242022

7 CARTE LED MOTEUR GRIFFE-MAGASIN CLAW-MAG MOTOR LED BOARD 5571690

8 ROUE TACHY MOTEUR GRIFFE-MAGASIN CLAW-MAG MOTOR TACHY WHEEL 3352116

9 CARTE TAC GRIFFE-MAGASIN CLAW-MAG TAC BOARD 5571590

10 BAGUE TACHY MOTEUR MOTOR TACHY NUT 3352114

11 CONTRE MASQUE MOTEUR PENELOPE PENELOPE MOTOR COUNTER-MASK 3352117

12 ENTRETOISE TACHY TACHY SPACER 3351144

13 VIS INOX CHC M2x4 M2x4 INOX ALLEN SCREW 0105026

14 CALE PELABLE DIA.4 Ep0.3mm THICKNESS SHIM DIA.4 Ep0.3mm 0115024

15 RONDELLE 1.7x4x0.35 1.7x4x0.35 WASHER 7084601

16 VIS CS M1.6x5 CS M1.6x5 SLOTTED SCREW 7084104

17 VIS CS M1.6x3 CS M1.6x3 SLOTTED SCREW 7084102

18 VIS FS M1.6x3 FS M1.6x3 SLOTTED SCREW 7084202

19 VIS HC M2.5x2.5 BOUT PLAT HC M2.5x2.5 FLAT SCREW 7084315

20 VIS HC 2.5x3 BOUT PLAT HC 2.5x3 FLAT SCREW 7084311

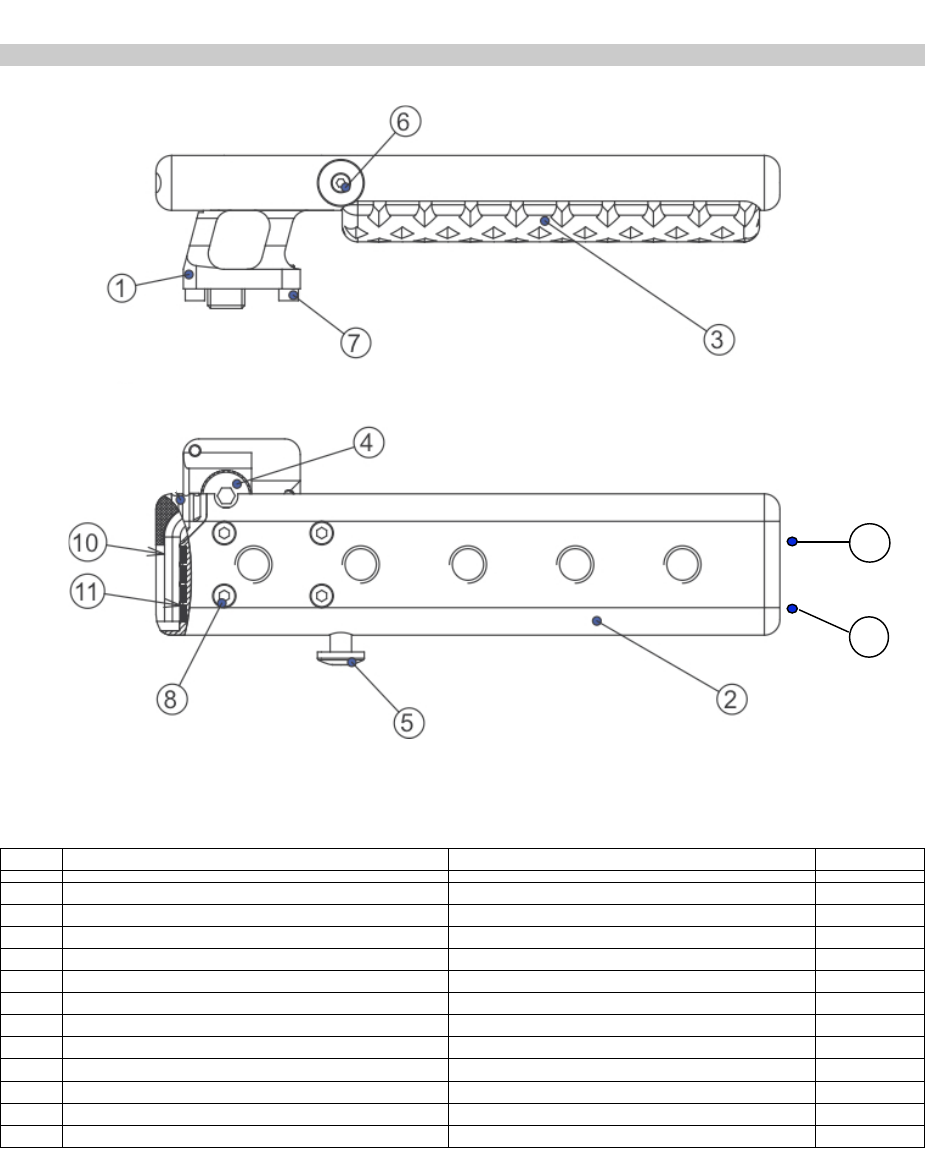

CAMERA BODY - Top Handle

13

12

IND DESIGNATION DESIGNATION REFERENCE

1 EMBASE POIGNEE PENELOPE HANDLE BASE 3320072

2 CORPS POIGNEE HANDLE BODY 3320071

3 COUSSIN DE POIGNEE HANDLE FOAM 3320074

4 VIS PAS DU CONGRES PENELOPE 3/8 SCREW 3320073

5 ATTACHE DECAMETRE DECAMETRE HOOK 0375116

6 VIS CHC M2.5x12 M2.5x12 ALLEN SCREW 7084016

7 REPRISE VIS CHC M3x6 M3x6 MODIFIED ALLEN SCREW 3320077

8 VIS CHC M3x10 M3x10 ALLEN SCREW 7084023

10 CLE 6 PAN MALE ALLEN KEY 7085406

11 AIMANT ø4x1.5 MAGNET ø4x1.5 1630043

12 OUTIL MIROIR VARIABLE VARIABLE SHUTTER KEY 0920072

13 OUTIL PITCH PITCH KEY 0920073

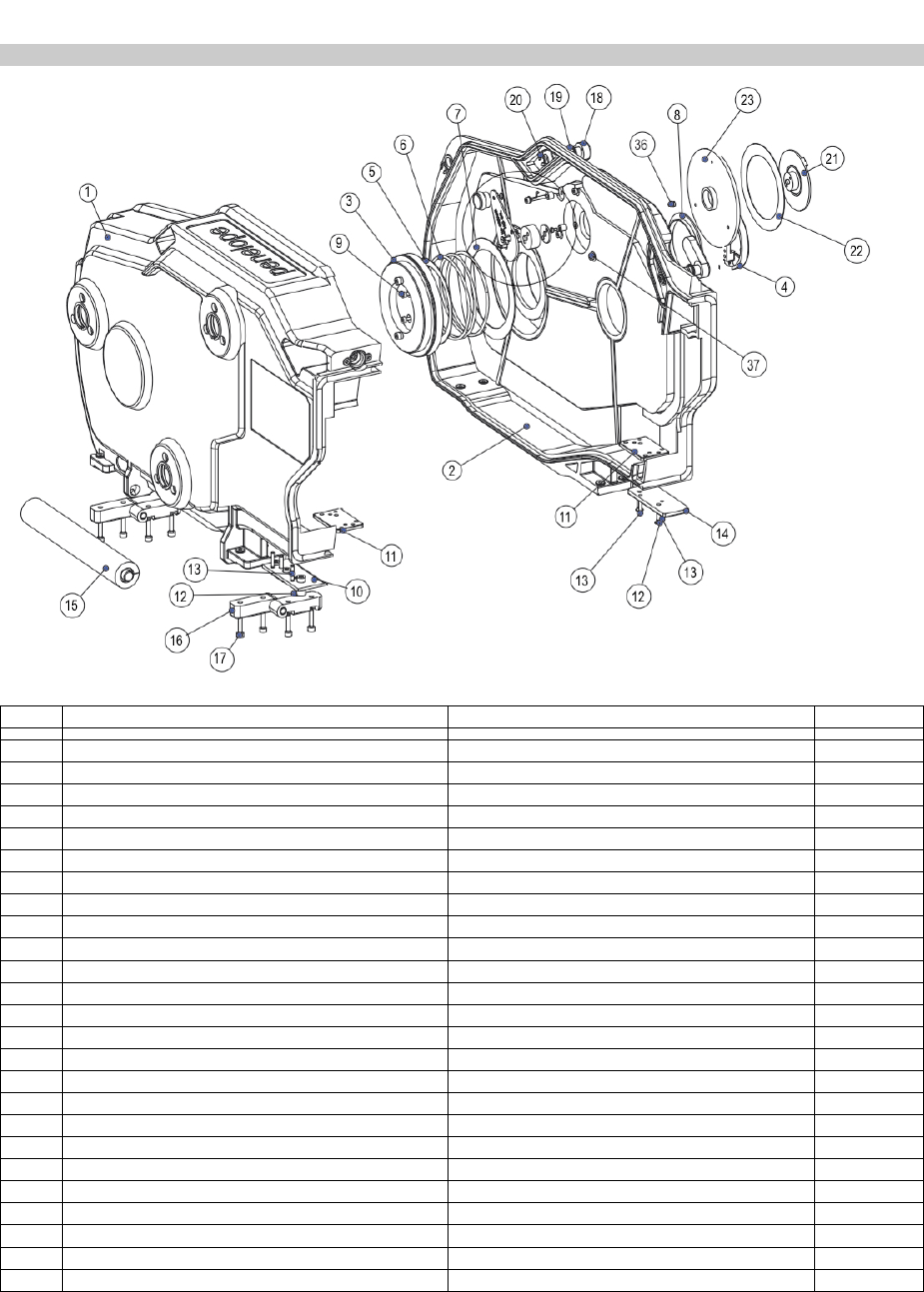

MAGAZINE

IND DESIGNATION DESIGNATION REFERENCE

1 PC CARTER CORPS MAGASIN MAGAZINE BODY S/A 3410021

2 PC COUVERCLE MAGASIN MAGAZINE DOOR S/A 3410031

3 PC CRABOT BOBINE SPOOL S/A 3410040

4 PC LEVIER CRABOT SLIDING LEVER S/A 3410035

5 RONDELLE TEFLON 1 CRABOT TENDEUR TEFLON RING #1 3410028

6 RESSORT CRABOT TENDEUR SPRING 3410038

7 RONDELLE TEFLON 2 CRABOT TENDEUR TEFLON RING #2 3410029

8 BAGUE GLISSEMENT CRABOT TENDEUR TENSION SLIDING RING 3410027

9 VIS CHC M2x4 M2x4 ALLEN SCREW 0105026

10 S/E PLAQUE VERROU MAG MAGAZINE LOCK PLATE S/A 3410020

11 CONTRE PLAQUE REINFORCEMENT PLATE 3410024

12 VIS FS M2.5x10 CSK M2.5x10 SLOTTED SCREW 7084223

13 GOUPILLE CYLINDRIQUE - type A 2x10 2x10 CYLINDRICAL PIN 7084835

14 EQUERRE CALAGE MAGASIN MAGAZINE STEEL PLATE 3410034

15 S/E TIGE MAG MAGAZINE SHOULDER ROD 3410050

16 S/E GOND PENELOPE PENELOPE HINGE S/A 3410060

17 VIS CHC M2.5x12 M2.5x12 ALLEN SCREW 7084016

18 PC BOUTON DZUS DZUS LOCK MAG 3410070

19 RESSORT LEVIER VERROUILLAGE LOCK LEVER SPRING 1820043

20 ANNEAU TRUARC 4 TRUARC 4 STEEL RING 7084716

21 BOUTON COMPTEUR KNOB INDICATOR 0282003

22 ECHELLE COMPTEUR PENELOPE PENELOPE COUNTER SCALE 3410048

23 SUPPORT COMPTEUR COUNTER HOLDER 0282001

36 VIS TETE CYLINDRIQUE M1.6x3 CYLINDRICAL HEAD M1.6x3 SCREW 7084102

37 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

MAGAZINE - Counter System details

IND DESIGNATION DESIGNATION REFERENCE

24 S/E LEVIER EQUIPE SENSOR LEVER S/A 0282110

25 GALET FIXE FIXED ROLLER 3410067

26 JOINT TORIQUE (6 int - 3 tore) O RING 0282102

27 VIS FS M2x5 CSK M2x5 SLOTTED SCREW 7084213

28 ENTRETOISE AXE COMPTEUR COUNTER SHAFT SPACER 3410046

29 VIS FS M2x12 CSK M2x12 SLOTTED SCREW 7084217

30 CALE PELABLE COMPTEUR COUNTER THICKNESS SHIM 0285027

31 ENTRETOISE RESSORT DE VERROUILLAGE LOCKING SPRING WASHER 3410047

32 ACCROCHE BRAS COMPTEUR LOCKING SPRING 0282005

33 VIS CHC M2x12 M2x12 ALLEN SCREW 7084003

34 RONDELLE EVENTAIL AZ2 FAN WASHER 7084611

35 ENTRETOISE TACHY TACHY SPACER 3351144

36 VIS TETE CYLINDRIQUE M1.6x3 CYLINDRICAL HEAD M1.6x3 SCREW 7084102

37 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

MAGAZINE - Chassis

IND DESIGNATION DESIGNATION REFERENCE

1 PLATINE MAGASIN MAGAZINE CHASSIS 3420011

4 S/E DEBITEUR UP PENELOPE UPPER SPROCKET S/A 3423010

5 S/E DEBITEUR DOWN REGLEUR DE BOUCLE LOWER SPROCKET S/A 3424010

6 SE GALET EXCENTRIQUE DOWN LOWER ECCENTRIC ROLLER 3426015

8 SE PRESSEUR PENELOPE PENELOPE PRESSURE PLATE S/A 3425010

10 PC CHICANE DEBITEUR FEED SIDE CHICANE S/A 3426035

11 SE VERROU BOBINE CORE RETAINER S/A 0261200

15 COURROIE BINDER T2.5/620 BELT T2.5/620 3426041

16 FLASQUE DROITE RIGHT FLANGE 3426043

17 FLASQUE GAUCHE LEFT FLANGE 3426044

18 GALET TENDEUR COURROIE SPROCKET BELT ROLLER 3426032

19 AXE GALET TENDEUR COURROIE SPROCKET BELT ROLLER SHAFT 3426031

20 VIS CHC M2x3 M2x3 ALLEN SCREW 0105034

21 TOLE FERMETURE GALET TENDEUR SPROCKET BELT ROLLER PLATE 3426033

22 VIS CHC M2x5 M2x5 ALLEN SCREW 0105035

23 VIS FHC M3x8 M3x8 ALLEN SCREW 7084242

26 VIS FS M2x5 FS M2x5 SCREW 0105027

27 VIS SPECIALE M2 TETE ø5.8mm M2 SPECIAL SCREW ø5.8mm 1115014

28 RONDELLE BALGLAS Ø4x8x0,25 BALGLAS WASHER Ø4x8x0,25 1624023

29 PC GALET DE RENVOI LOWER ROLLER S/A 3615045

MAGAZINE - Take Up and Feed side roller

IND DESIGNATION DESIGNATION REFERENCE

9 CALE PELABLE Ø4 Ep0.3mm THICKNESS WASHER Ø4 Ep0.3mm 0115024

11 S/E VERROU BOBINE CORE RETAINER S/A 0261200

13 AXE GALET BOBINE ROLLER SPINDLE SHAFT 3426034

24 LINGUET BOBINE CORE LOCKING BAR 3421013

27 VIS SPECIALE M2 TETE ø5.8mm M2 SPECIAL SCREW ø5.8mm 1115014

MAGAZINE - Pressure Plate

IND DESIGNATION DESIGNATION REFERENCE

1 SUPPORT PRESSEUR PENELOPE PENELOPE PRESSURE PLATE 3425016

2 BAGUE DE GUIDAGE - DIA. 9 INTERIEUR GUIDE RING - DIA. 9 0222015

3 PRESSEUR IMAGE IMAGE PRESSURE PLATE 3425018

4 VERIN SUPPORT PRESSEUR PRESSURE HOLDER POST 3425017

5 RESSORT PRESSEUR PRESSURE SPRING 3620133

6 PLAQUETTE PLATE 3620116

7 VERIN PRESSEUR PRESSURE SCREW 3620124

8 PATTE SUSPENSION PRESSEUR PRESSURE PLATE SUSPENSION HOLDER 3425021

9 SUSPENSION PRESSEUR PENELOPE PENELOPE PRESSURE PLATE SUSPENSION 3425019

10 VIS INOX TC M1.6x4 TC M1.6x4 INOX SCREW 0105037

11 RONDELLE L 2 WASHER L 2 7084615

12 VIS CHC M2x6 M2x6 ALLEN SCREW 0105039

MAGAZINE - Upper Sprocket S/A

IND DESIGNATION DESIGNATION REFERENCE

1 PC PIGNON 32DTS GEAR 32 TOOTH S/A 3423015

2 ROULEAU DEBITEUR UP UPPER SPROCKET ROLLER 3630047

3 AXE ENTRAINEUR UP UPPER SPROCKET DRIVING SHAFT 3423012

4 JOUE SUPERIEURE DEBITEUR UP UPPER SPROCKET FLANGE 3423013

5 PIGNON DEBITEUR SPROCKET GEAR 3630019

6

ROULEMENT A BILLES ¯4x9x4 BALL BEARING 4x9x4 0242022

7 SUPPORT DEBITEUR UP UPPER SPROCKET HOLDER 3423011

8 VIS HC M2.5x3 BOUT PLAT HC M2.5x3 FLAT SCREW 7084311

9 CALE PELABLE 4 Ep0.3mm THICKNESS WASHER 4 Ep0.3mm 0115024

10 VIS CHC M2x5 M2x5 ALLEN SCREW 7084002

11 VIS CS M2x6 CS M2x6 SCREW 7084114

MAGAZINE - Lower Sprocket S/A

IND DESIGNATION DESIGNATION REFERENCE

1 PC GALET DEBITEUR DOWN LOWER SPROCKET ROLLER S/A 3424015

2 PC JOUE DEBITEUR DOWN LOWER SPROCKET FLANGE 3424023

3 PC CRABOT PENELOPE SPROCKET DRIVING S/A 3424025

4 PC PLATEAU PERFORE PERFORATED PLATE S/A 3424020

5 RESSORT DE COMPRESSION COMPRESSION CYLINDRICAL SPRING 3424019

6 SUPPORT DEBITEUR DOWN LOWER SPROCKET HOLDER 3424011

7 AXE ENTRAINEUR DEBITEUR DOWN LOWER SPROCKET DRIVE SHAFT 3424012

8 ROULEMENT A BILLE 4x9x4 BALL BEARING 4x9x4 0242022

9 CALE PELABLE 4 Ep0.3mm THICKNESS WASHER 4 Ep0.3mm 0115024

10 HC M2.5x6 BOUT PLAT HC M2.5x6 FLAT SCREW 7084218

11 BOUTON REGLAGE BOUCLE LOOP ADJUSTMENT BUTTON 3424024

12 VIS CS M2x6 CS M2x6 SCREW 7084114

13 RONDELLE Z 6 WASHER Z 6 7084620

14 VIS HC M4x8 BOUT PLAT HC M4x8 FLAT SCREW 7084332

VIDEO ASSIST

IND DESIGNATION DESIGNATION REFERENCE

1 PC CAPTEUR PAL PAL VIDEO TARGET S/A 3323095

2 SE PORTE FILTRES FILTERS HOLDER S/A 3323085

3 AXE PIGNON 22 DTS GEAR SHAFT 22 TOOTH 3323081

4 BILLE DIA.3 BALL DIA.3 7084906

5 BRIDE FIXE FIXED RETAINER 3323088

6 BRIDE MOBILE MOBILE RETAINER 3323089

7 GOUPILLE CYLINDRIQUE 1x6 CYLINDRICAL PIN 1x6 7084813

8 PASTILLE ISOLANTE VIDEO INSULATING 3323083

9 PIGNON M=1 - 22DTS GEAR M=1 - 22 TOOTH 3323091

10 FILTRE CIBLE VIDEO VIDEO TARGET FILTER 0663457

11 RESSORT DE COMPRESSION - C 3.2x0.4x4 COMPRESSION SPRING - C 3.2x0.4x4 3632018

12 SPIROLE 1x6 PIN 1x6 7084867

13 RONDELLE L2 SPACER L2 7084615

14 SUPPORT VIDEO PENELOPE PENELOPE VIDEO HOLDER 3323082

15 VIS CHC M2.5x10 M2.5x10 ALLEN SCREW 0105013

16 VIS CHC M2x4 M2x4 ALLEN SCREW 0105026

17 TETON RESSORT SPRING STUD 0663456

18 VIS HC M2.5x4 HC M2.5x4 SCREW 7084312

19 VIS HC BOUT PLAT M4x4 HC M4x4 FLAT SCREW 7084334

20 RESSORT 3.2x0.4x4 SPRING 3.2x0.4x4 3662018
