Aava Mobile INARI51 INARI Tablet Computer User Manual Inari5 Android Quick Start Guide V1 3 8
Aava Mobile Oy INARI Tablet Computer Inari5 Android Quick Start Guide V1 3 8
Inari5_Android_Quick-Start-Guide_V1-3-8
Inari5
Quick Start Guide
Version 1.3.8
1
Inari5 features, buttons & interfaces

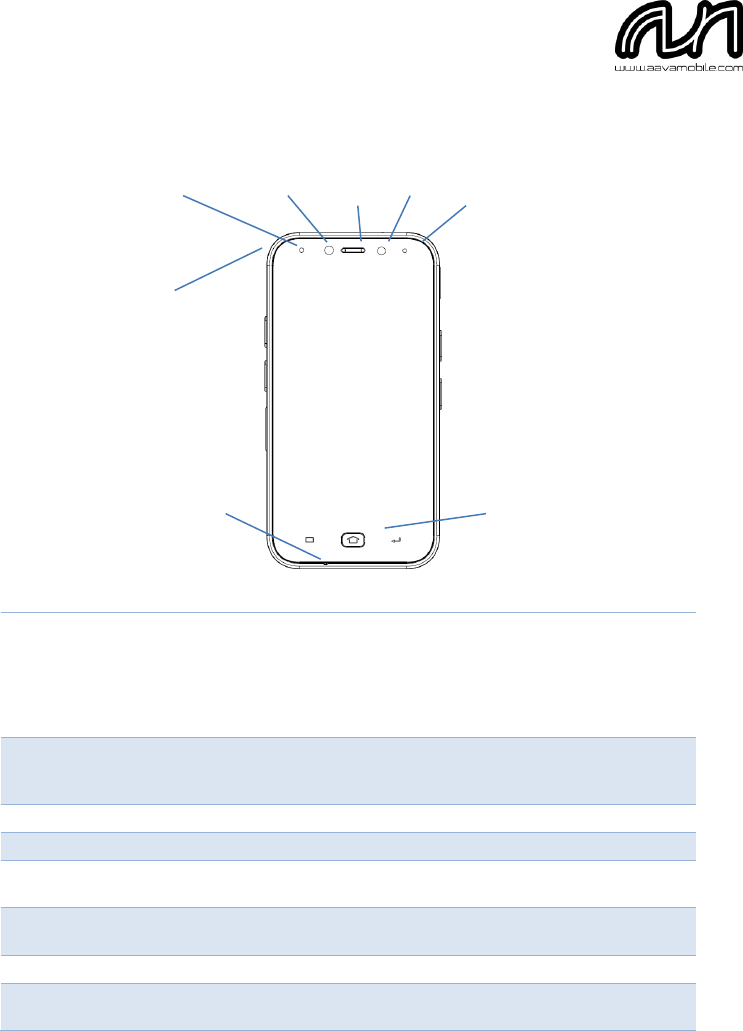

Front
1
Charging indicator LED
OFF not connected to charger
ORANGE charging
GREEN connected and fully charged
RED charge fault
starts blinking when battery becomes low
2
Ambient Light Sensor & proximity sensor
ALS recognizes the ambient light and adjusts the display brightness if enabled in the operating
system; PS recognizes if device is held to ear or in pocket
3
Front speaker / receiver
4
Front camera
5
Camera Indicator LED
Lights up if camera is activated and during device boot and shutdown
6
Android Buttons
Android home, menu and return buttons
7
Front microphone outlet
8
Secondary microphone outlet
(top side)
1
2
3
4
6
5
7
8
2

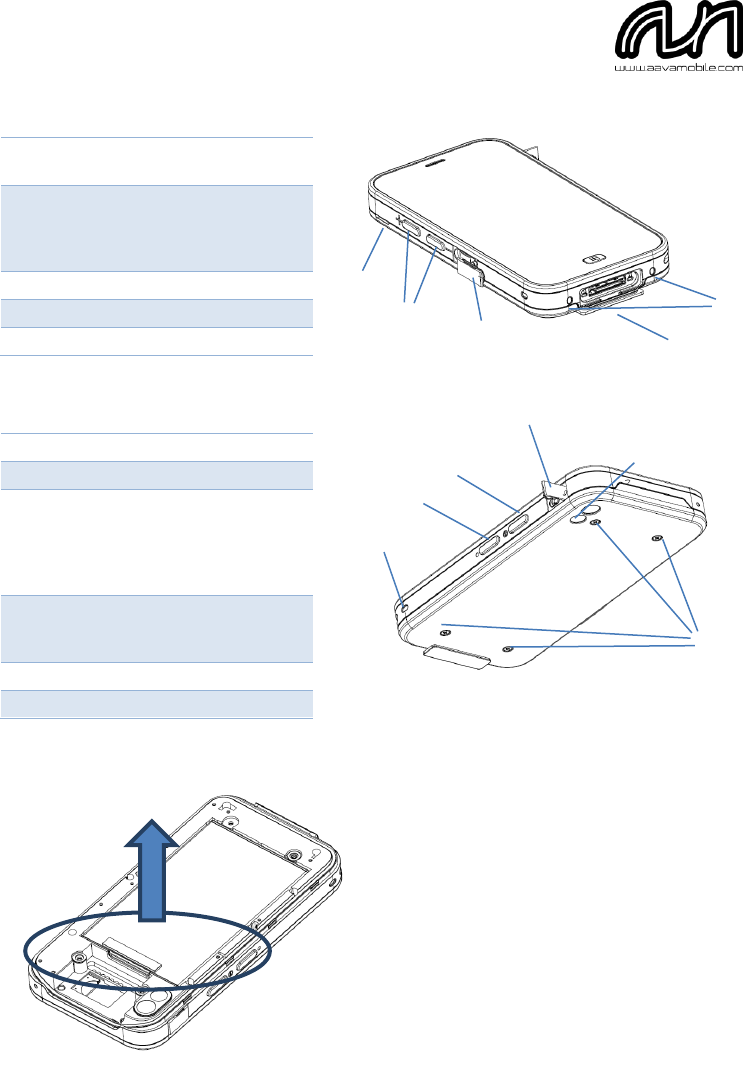

Interfaces & Buttons
9
Speaker
For speaker phone function
10
Volume keys
Push the ‘-‘ button to reduce the
volume, use the ‘+’ button to
increase the volume
11
µUSB port
12
System connector
13
Charging pads
Rear view
14
Wrist strap hook location
15
General purpose button
16
On / Off Button
Push it once to start the device;
push it again to enable the sleep
mode. Push and hold it to shut
down the device.
17
Audio jack
Combined audio and microphone
headset
18
Rear camera & flash LED
19
Screws for battery lid
Replacing Battery / Adding µSD card
19
10
11
12
13
9
17
16
18
14
15
To replace the battery, take of the
back cover by loosening all four
screws. Take of the back cover.
Pull on the battery grip. Pull the
battery up.
3
µSD card slot
Device
type
label
For µSD card please use the
dedicated slot below the battery.

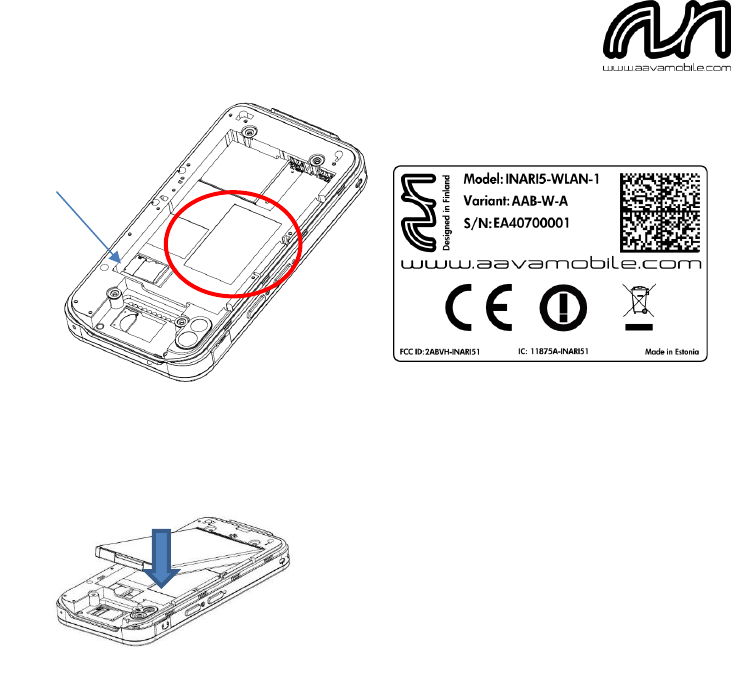

Example type label:
When putting the battery back in
place, please make sure it is safely
put in place again, contacts first and
then push down the grip area.
4
Using the device for the first time

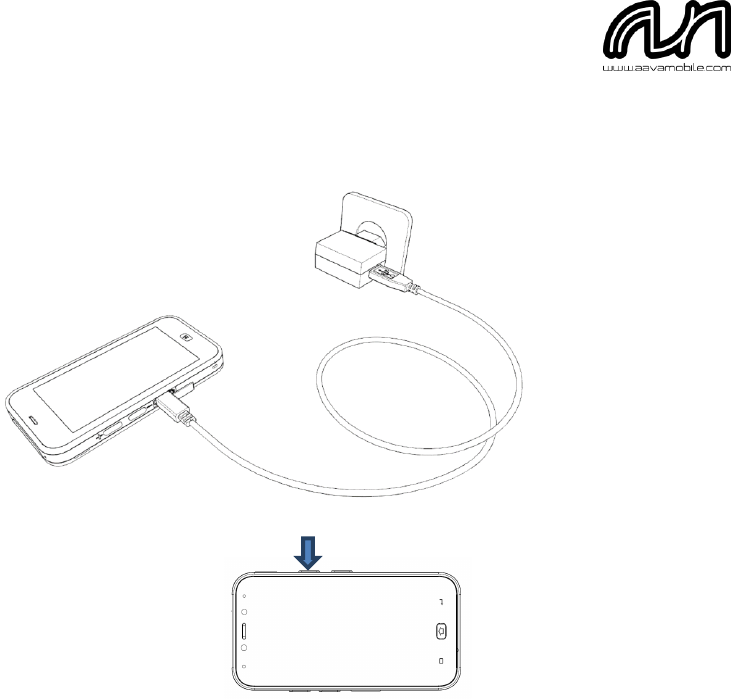

1. Connect power supply for the first time and make sure battery is fully
charged before disconnecting.
Please note, depending on your region, USB charger might look different.
2. Press the power button
3. Follow the instructions in the operating system to complete the setup
Troubleshooting
In case devices freezes and you need to do a hard reset, press and hold the power button for approx. 14 seconds. Device
will be turned off now.
Important Product and Safety information
Do not drop, bend or twist your device. This can break the display glass, internal circuit boards or mechanics. If the
glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop
using the device until the glass is replaced by qualified service personnel.
Do not try to disassembly your device. This may cause damage.
Operate your device in a place where temperature is between -20°C and +45°C.
Charge your device with the supplied charged in a place where temperature is between 0°C and +40°C.
Store your device in a place where temperature is between -30°C and +60°C.
Protect your device from water and moisture intake. Keep connector doors closed when not in use to prevent
water and moisture intake.
Listen to a headset at a moderate level, and do not place the device loudspeaker outlets near your ear when the
loudspeakers are in use.
Use only soft, clean and dry lint-free cloth to clean your device.
5
Keep the unit and accessories away from small children.
Switch off your device before boarding an aircraft.
Switch off your device in any area with a potentially explosive atmosphere.
Your device meets guidelines for exposure to radio waves (SAR, Specific Absorption Rate) when kept in a minimum
distance of 5mm to your body.
Use only charger delivered with your tablet.
Power rating: 3.8V 3.0A
Do not disconnect charger by pulling the cord.
Do not use damaged power cords or plugs.
Save energy. You can save energy by doing following.
o Close unused applications and data connections.
o Decrease screen brightness and sound volume.
o Deactivate unnecessary sounds like touch panel sound.
o Disconnect your charger from mains outlet when charger is not needed.
o Do no keep unnecessary accessories connected in your device.
Recycle. Return your used electronic units to dedicated collection points. Please note that your device has a
battery, so it is not allowed to be disposed to normal household waste and battery requires separate recycling.
Battery safety
o Batteries have life cycles. If the time that the battery powers equipment becomes much shorter than
usual, the battery life might be at the end.
o Fully charge the battery at least every 6 months.
o Stop using the tablet if abnormal heat, order, discoloration, deformation, or abnormal condition is
detected during use, charge, or storage.
o Keep the device away from heat (battery temperature not to exceed 60°C).
o Do not throw battery into fire, it may explode.
o Do not soak the battery with liquid like water, tea, coffee etc.
o Do not hit, bend, deform or drop the battery.
o Do not pierce battery with a sharp object such as a needle, etc.
o The battery should not have liquid from electrolyte flowing, but in case the electrolyte come into
contact with eyes, don’t rub your eyes. Wash your eyes well with clean water and go to see a doctor
immediately. In case the electrolyte come into contact with your skin, wash it well with clean water.
o Do not externally short-circuit the battery. If externally short-circuited, the battery may be heated,
ignited or broken.
o There is a risk of explosion if you replace the battery with an incorrect type. Only use the correct
battery type for this device.
o Dispose of battery needs to be done according to instructions above.
Warning Statements
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Antenna Positions
Your device meets guidelines for exposure to radio waves (SAR, Specific Absorption Rate) when kept in a minimum
distance of 5mm to your body. It is recommended to learn the antenna positions as mentioned below and not to touch or
bring your body closer than 5 mm to these antenna areas. Antenna areas are highlighted in below pictures. Please avoid
covering the antenna areas.

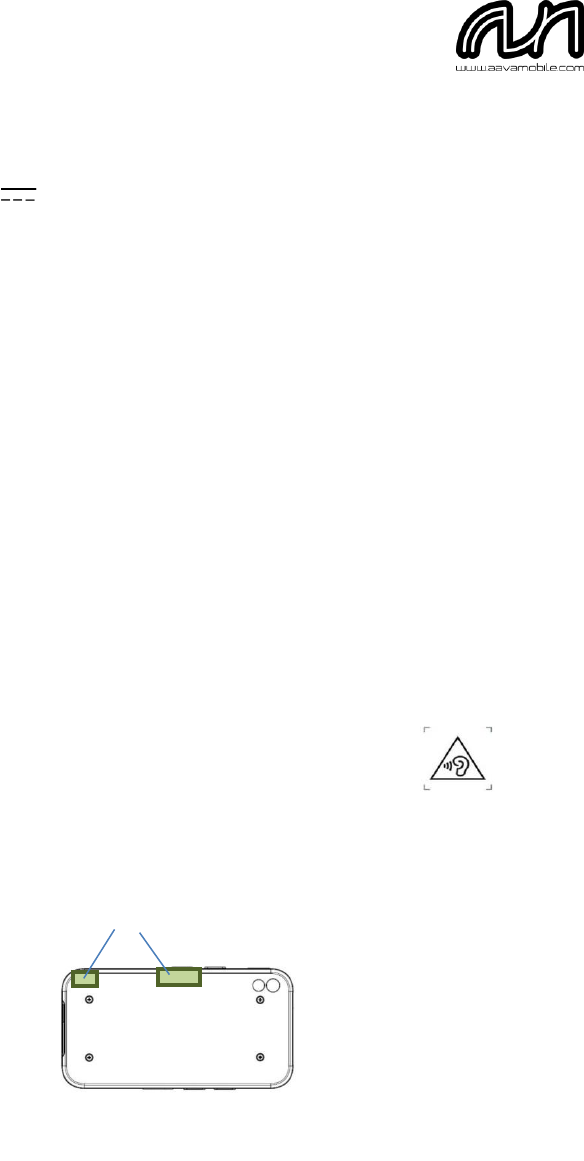

BT / WLAN antennas
6
EU Declaration of Conformity
Please check page 3 for type label location.
Hereby, Aava Mobile declares that this device is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
FCC Compliance Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B Computing Device/Personal Computer,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference and
2. this device must accept any interference received, including interference that may cause undesired operation
of the device.
FCC type approval ID: 2ABVH-INARI51
RF Exposure Information (SAR)
This model device meets the government’s requirements for exposure to radio waves. This device is designed and
manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U. S. Government. The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified
level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device
is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output.
While there may be differences between the SAR levels of various devices and at various positions, the all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on the below:
FCC ID: 2ABVH-INARI51
Specific Absorption Rate (SAR): 1.194 W/kg
This product has been tested and found to comply with the following standards:
For the worst case positions, the INARI5 is in compliance with the IC RSS 102 Issue 5 (RSS 102) and Federal
Communications Commission (FCC) Guidelines (OET 65) for uncontrolled exposure.
SAR assessment in body worn was conducted with a distance of 5 mm between the housing of the handheld
and the flat phantom.
EM 62311:2008: Assessment of electronic and electrical equipment related to human exposure restrictions
for electromagnetic fields (0 Hz – 300 GHz).
7
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de classe B est conforme à la norme NMB-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s). Son fonctionnement est soumis aux
deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute
interférence, y compris les interférences pouvant entraîner un mauvais fonctionnement de la appareil.
For Local Area Net operation (RSS-210 A9.4 sections (6-7)):
(1) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
(2) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz
and that these radars could cause interference and/or damage to LE-LAN devices
(1) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(2) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces
radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
IC type approval ID: 11875A-INARI51
802.11a Radio Precaution Statement
- The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
- The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply
with the e.i.r.p. limit; and
- The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits
specified for point-to-point and non point-to-point operation as appropriate.
- Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN
devices.
- Les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
- Le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit
se conformer à la limite de p.i.r.e.;
- Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la
limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
- De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces
radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
802.11 Radio Precaution statement
Users are responsible for configuring the channels of operation that comply with their country regulatory standards.
A Wireless Network Administrator should review the operating restrictions detailed within the Access Point installation
manual.
Radiation Exposure Statement
Warning: This equipment complies with International Commission on Non-Ionizing Radiation Protection (ICNIRP), IEEE
C95.1, Canada RSS-102, and European Committee for Electrotechnical Standardization (CENELEC) limits for exposure to
radio frequency (RF) radiation.
If a body worn accessory is not purchased from ecom, the accessory must contain no metal and provide minimum 5mm
space between the device and the body.
