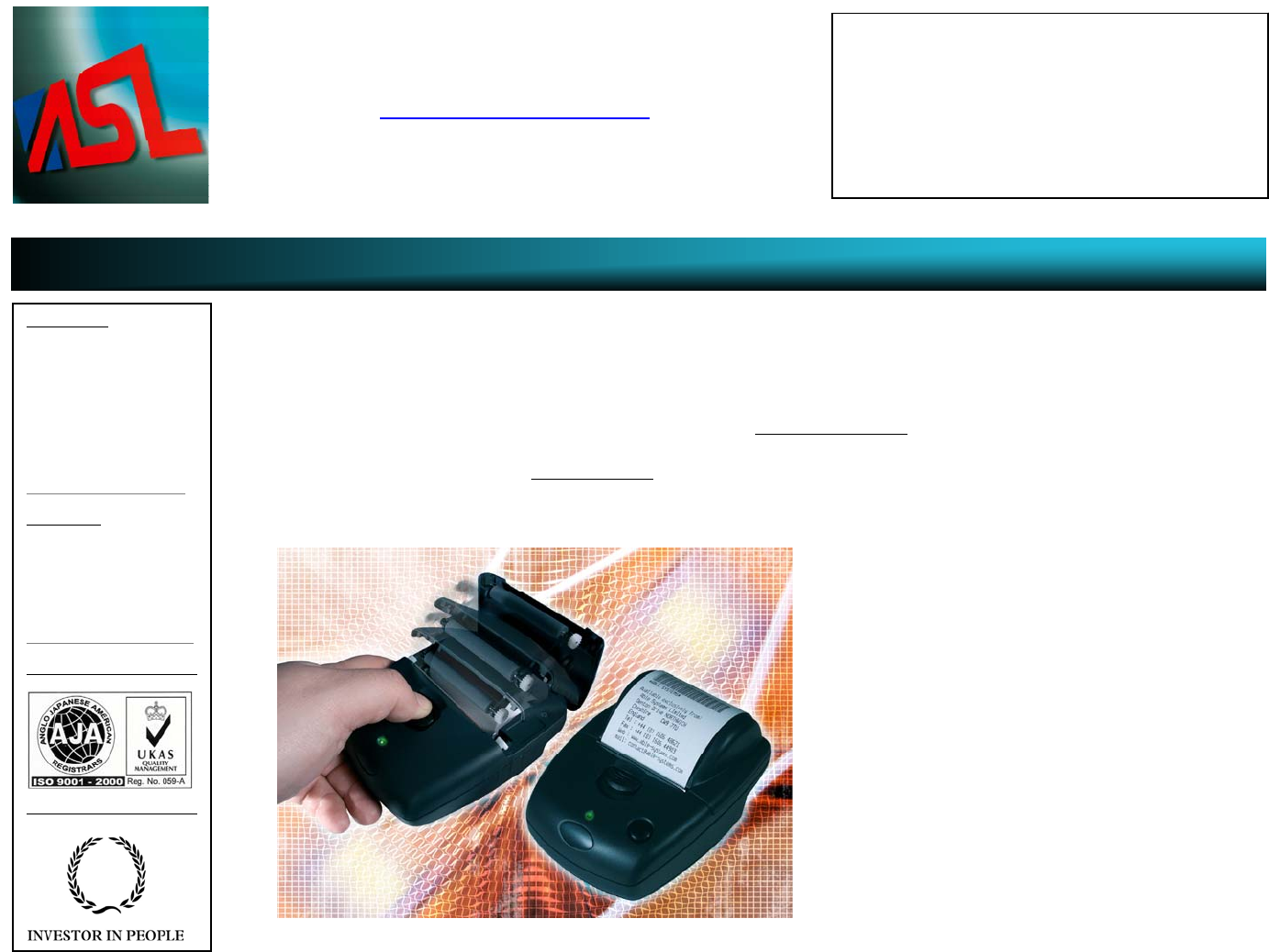

Ap1310 Thermal Portable Printer – with 38m long paper roll & label or Bluetooth options
Design registered.
Compact and stylish
x Unique SINGLE-handed easy paper-load system – no other printer is easier!
x Utilising a high speed and high quality fixed head thermal mechanism with superb quality text.
x Capable of printing on linerless labels.
x Choice of interface solutions including Serial RS232, full implementation IrDA and Bluetooth.
x Strong case design that won’t stress the lid hinge.
x Miniature size - yet takes up to 38m long paper roll.
x Choice of battery management within one printer (re-chargeable within the unit or use primary cells). In-
vehicle solutions and mains su
pp
l
y
also available.
Typical Applications include:
Mobile ticketing and recording. Use with PDA’s.
Labelling. Queue busting. Utility billing. In-
vehicle receipting. Financial transactions. Taxi
receipt printing. Law enforcement agencies. Test
and measurement. Medical. Hospitality.
Available from:
Head Office (Production,
Sales, Design & Repair)
A
BLE Systems Limited
Denton Drive
NORTHWICH
Cheshire, CW9 7TU
England
Tel: +44 (0) 1606 48621
Fax: +44 (0) 1606 44903
contact@able-systems.com
USA office (Sales)
1514 Meadow Brook Lane
West Chester, PA 19380,
USA
Tel: +1 610 692 4580
Fax: +1 610 692 4570
USSales@able-systems.com
Ap1310 Thermal Portable Printer – with 38m long paper roll & label or Bluetooth options
__________________________________________________________________________________________________________________________
Other products available from Able Systems include:
Portable printers Panel mounting printers Kiosk printers In-vehicle printers Printer mechanisms & interfaces Accessories Consumables
E & OE. Copyright 2005 Able Systems Limited. All trade marks acknowledged. Specifications subject to change without notice. Ap1310/1105/DW.
Specification Ap1310 Ap1310-IR Ap1310-BT
Data Input RS-232 Serial
(RJ12 connector)
RS-232 Serial
(RJ12 connector)
RS-232 Serial
(RJ12 connector)
Wireless Data Input N/A
IrDA
(IrPHY V1.0, IrLAP, IrLMP,
IAS, TinyTP, IrCOMM 9-wire)
Bluetooth
Print Method Fujitsu fixed head thermal mechanism
Print Speed 60 mm/s (at 7.2V battery voltage); 50mm/s (typical)
Paper Specification Paper Roll Width: 57.5 ± 0.5mm. Max roll diameter: 55mm (Length: 37.7m @ 60um thickness)
Accepts paper rolls with or without a core
Print Width 48 mm
Dots per line (graphics) 384
Dot spacing 8 dots/mm (vertical and horizontal)
Sensors Paper Out (Opto reflective) and Head Up (Mechanical)
Data Buffer 20 Kb
Baud Rate Up to 57,600 (9600 Default)
Character Set IBM® 224 character set, CP437. (See note 1)
Number of columns 12, 16, 21, 24, 42, 32 (Default). (See note 1)
Font (dots) 7 x 24, 10 x 24 (Default). (See note 1)
Dimensions 65 x 95 x 128 mm (H x W x L)
Weight 446g (including battery and full roll of paper)
Power Supply Options
As standard the Ap1310 range is supplied with a shrink-wrapped re-chargeable battery
pack (5 cell 6V NiMH), together with an adapter to allow the use of primary cells.
Note that chargers and data or power cables need to be ordered separately (see below)
or as part of a complete kit. Power supply options include:
x BC1300: Universal i/p trickle charger
x BC1300FC: Universal i/p combined fast charger and 12V vehicle charger
Other options
x Ap1300BR-01: Combined wall mounting bracket and belt clip
x Ap1300-D9: D9 to RJ12 data cable (with jack socket for alternative charging)
x Ap1300BP-01: Spare NiMH battery pack
Windows® Driver Win98, WinME, WinNT, Win2k, WinXP. Download from www.able-s
y
stems.com
Temperature Range (operating) 0 - 50°C
Reliability - MCBF 108 print pulses or 50kms. >13 million print lines (Approx. 3,500 paper rolls).
Note 1: The proprietary Font Editor Utility software (order code Ap800FEU) enables customisation of character fonts by the user.
Please note that for low volume purchases the
A
p1310 family of printers are only available in
kit form.
The different kits and their composition will be
specified in due course. Contact our sales
department or your local distributor for more
information.
There are also some new options available:
Ap1310-DP as per the standard Ap1310 but
suitable for use with mains power (no
batteries).
Ap1310-DC as per the standard Ap1310 but
with an integral DC:DC converter for
automotive applications. Availability to be
notified.
Ap1310-USB-DP as per the Ap1310-DP but
with a USB (not RS232) serial data input (A to
B connection). Availability to be notified.
